FM 4-20.152 Airdrop of Supplies and Equipment: Rigging Dragon and Javelin Missiles (SEPTEMBER 2007) - page 1





*FM 4-20.152/TO 13C7-22-61
Field Manual
Headquarters
Department of the Army
No. 4-20.152 (10-552)
Department of the Air Force
Technical Order
Washington, DC, 6 September 2007
No. 13C7-22-61
AIRDROP OF SUPPLIES AND EQUIPMENT:
RIGGING DRAGON AND JAVELIN MISSILES
Contents
Page
PREFACE
vi
Scope
vi
User Information
vi
INTRODUCTION
vii
Chapter 1
RIGGING DRAGON MISSILES IN AN A-22 CARGO BAG
1-1
Section I-Rigging Nine One-Round Containers
1-1
Description of Load
1-1
Rigging Load
1-2
Closing Cargo Bag
1-6
Installing Parachutes
1-6
Equipment Required
1-6
Section II-Rigging One 15-Round Container
1-7
Description of Load
1-7
Rigging Load
1-8
Closing Cargo Bag
1-12
Installing Parachutes
1-12
Equipment Required
1-12
Chapter 2
RIGGING DRAGON OR DRAGON II MISSILE CONTAINERS ON AN 8-FOOT,
TYPE V PLATFORM FOR LOW-VELOCITY AIRDROP
2-1
Section I-Rigging 36 One-Round Containers
2-1
Description of Load
2-1

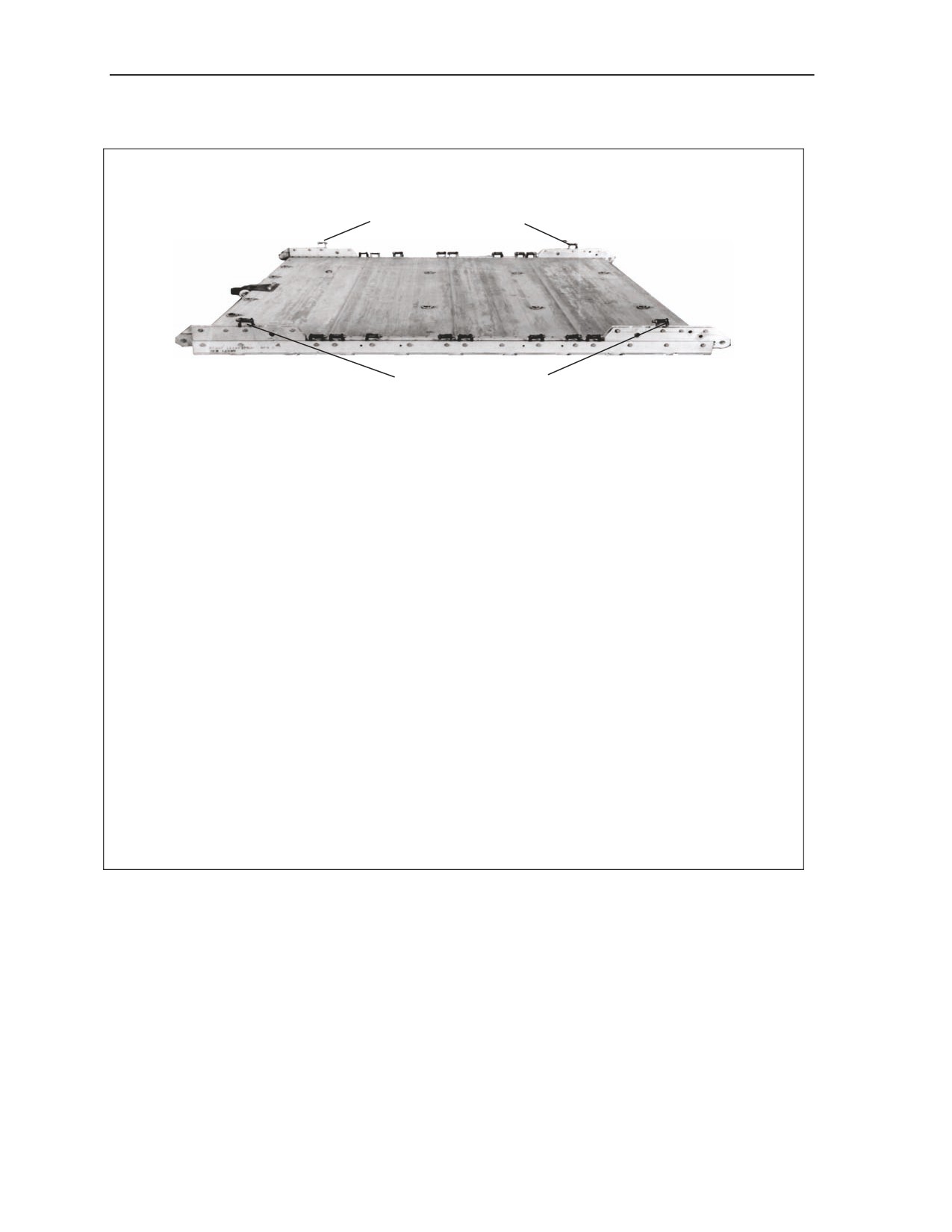

Preparing Platform
2-1

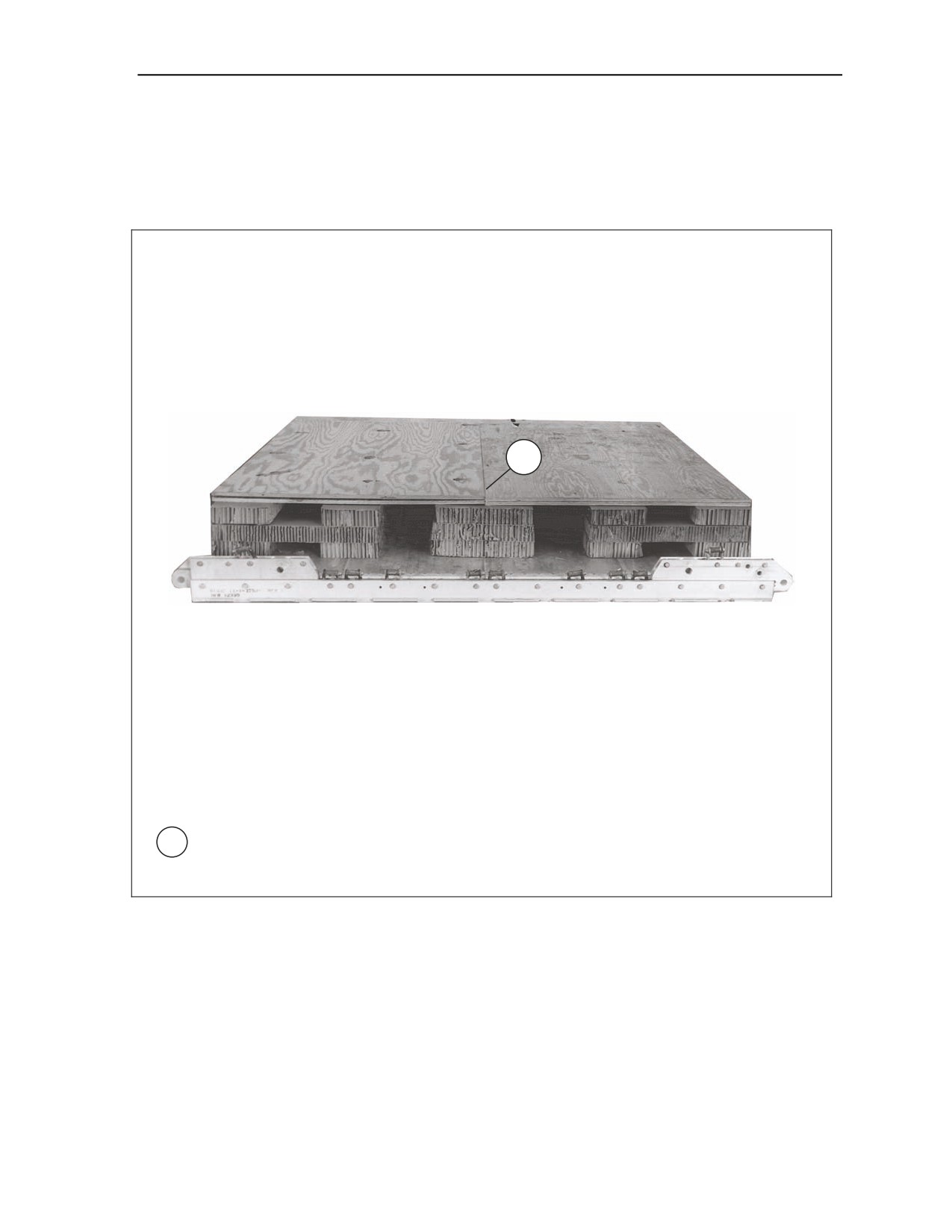

Building and Placing Honeycomb Stacks
2-3
Positioning and Lashing Missile Container Groups 1 through 4
2-4
DISTRIBUTION RESTRICTION. Approved for public release; distribution is unlimited.
*This publication supersedes FM 10-552/TO 13C7-22-61, dated 5 March 1982.
i
Preface
Positioning and Lashing Missile Containers
2-7
Installing Suspension Slings and Deadman’s Tie
2-11
Stowing Cargo Parachute
2-12
Installing Extraction System
2-13
Installing Parachute Release
2-14
Placing Extraction Parachute
2-15
Installing Provisions for Emergency Restraints
2-15
Marking Rigged Load
2-15
Equipment Required
2-15
Section II-Rigging Four 15-Round Containers
2-19
Description of Load
2-19
Preparing Platform
2-19
Building and Placing Honeycomb Stacks
2-20
Positioning the Plywood
2-21
Positioning Missile Containers
2-22
Positioning and Lashing Missile Containers
2-24
Installing Suspension Slings and Deadman’s Tie
2-28
Stowing Cargo Parachute
2-29
Installing Extraction System
2-30
Installing Parachute Release
2-31
Placing Extraction Parachute
2-32
Installing Provisions for Emergency Restraints
2-32
Marking Rigged Load
2-32
Equipment Required
2-32
Section III-Rigging Four A-22 Cargo Bags With One-Round Containers..2-36
Description of Load
2-36
Preparing Platform
2-36
Building and Placing Honeycomb Stacks
2-37
Preparing Load
2-38
Positioning the Load
2-40
Securing Suspension Webs and Lashing Containers
2-41
Installing Suspension Slings and Deadman’s Tie
2-45
Stowing Cargo Parachute
2-46
Installing Extraction System
2-47
Installing Parachute Release
2-48
Placing Extraction Parachute
2-49
Installing Provisions For Emergency Restraints
2-49
Marking Rigged Load
2-49
Equipment Required
2-49
Section IV-Rigging Four 15-Round Containers
2-53
Description of Load
2-53
Prepraring Platform
2-53
Building and Placing Honeycomb Stacks
2-54
Preparing the Load
2-55
Positioning Load
2-57
Lashing Missile Containers
2-58
Installing Suspension Slings and Deadman’s Tie
2-61
ii
FM 4-20.152/TO 13C7-22-61
6 September 2007
Preface
Stowing Cargo Parachute
2-62
Installing Extraction System
2-63
Installing Parachute Release
2-64
Placing Extraction Parachute
2-65
Installing Provisions for Emergency Restraints
2-65
Marking Rigged Load
2-65
Equipment Required
2-65
Chapter 3
RIGGING THE ADVANCED ANTITANK WEAPON SYSTEM-MEDIUM (JAVELIN)
FOR LOW-VELOCITY AIRDROP
3-1
Section I-Rigging Two-Round A-7A Door Bundle
3-1
Description of Load
3-1
Preparing Two-Round A-7A Door Bundle
3-1
Attaching Parachute to Load
3-12
Marking Rigged Load
3-13
Equipment Required
3-13
Section II-Rigging Four-Round A-7A Door Bundle
3-15
Description of Load
3-15
Preparing Four-Round A-7A Door Bundle
3-15
Attaching Parachute
3-26
Marking Rigged Load
3-27
Equipment Required
3-27
Section III-Rigging Nine-Round Container Delivery System (CDS)
Rigged in an A-22 Container
3-30
Description of Load
3-30
Preparing Skid Board and Ties
3-30
Preparing and Positioning Honeycomb And A-22 Sling Assemblies
3-33
Positioning Covers and A-7A Straps
3-34
Positioning and Securing Javelin Missiles
3-35
Securing the Lateral Straps and Installing Suspension Slings
3-36
Securing Skid Board Ties and Installing Parachute
3-37
Marking Rigged Load
3-38
Equipment Required
3-38
Section IV-Rigging Javelin Missile Containers (Plastic / LC-RSSC) in an
A-22 Container Cargo Bag Assembly for Low-Velocity Airdrop
3-41
Description of Load
3-41
Preparing Skid Board and Ties
3-41
Preparing and Positioning Honeycomb Stack
3-44
Positioning A-22 Cargo Bag Sling, Cover and Load
3-50
Securing the A-22 Bag Cover and Sling Assembly
3-54
Securing the Skid Board to A-22 Cargo Bag
3-56
Attaching the Suspension Webs
3-57
Attaching and Securing the G-12E Cargo Parachute
3-57
Marking Rigged Load
3-58
Equipment Required
3-58
Chapter 4
RIGGING THIRTY-SIX JAVELIN ROUNDS AS A MASS SUPPLY LOAD ON A 12-
FOOT TYPE V, AIRDROP PLATFORM FOR LOW-VELOCITY AIRDROP
4-1
6 September 2007
FM 4-20.152/TO 13C7-22-61
iii
Preface
Description of Load
4-1
Preparing Platform
4-1
Building and Positioning Honeycomb Stacks
4-3
Positioning and Securing Javelin Rounds
4-8
Lashing Load to Platform
4-15
Covering Load, Installing Suspension Slings and Deadman’s Tie
4-19
Stowing Cargo Parachutes and Installing Extraction System
4-21
Installing Parachute Release
4-22
Placing Extraction Parachute
4-23
Installing Provisions for Emergency Restraints
4-23
Marking Rigged Load
4-23
Equipment Required
4-23
Chapter 5
RIGGING JAVELIN MISSILE CONTAINERS
5-1
Section I-Rigging Javelin Missile Containers (Plastic) on an 8-Foot,
Type V Platform
5-1
Description of Load
5-1
Preparing Platform
5-1
Preparing and Placing Honeycomb on Platform
5-3
Preparing Honeycomb Stacks
5-5
Positioning and Securing Javelins on Stack 1
5-6
Positioning and Securing Javelins on Stack 2
5-7
Constructing Front Endboard
5-8
Constructing Rear Endboard
5-9
Positioning Front and Rear Endboards
5-10
Front and Rear Endboards Secured with Lashing
5-11
Lashing Load to Platform
5-12
Positioning the Front and Rear Attitude Control Bar (ACB)
5-18
Lashing the Front ACB to Honeycomb Stack 1
5-19
Lashing the Rear ACB to Honeycomb Stack 2
5-20
Securing Plywood Between Stack 1 and Stack 2
5-21
Installing Suspension Slings
5-22
Preparing and Stowing Cargo Parachutes
5-23
Installing the Release System
5-24
Installing the Extraction System
5-25
Placing Extraction Parachute
5-26
Installing Provisions for Emergency Restraints
5-26
Marking Rigged Load
5-26
Equipment Required
5-26
Section II-Rigging Javelin Missile Containers on a 16-Foot, Type V
Platform
5-30
Description of Load
5-30
Preparing Platform
5-30
Preparing Honeycomb Stacks
5-32
Positioning and Securing Javelins on Stack 1
5-33
Constructing Endboard for Stack 2
5-34
Positioning and Securing Javelins and Placing Endboards on Stack 2
5-35
Positioning and Securing Javelins on Stack 3
5-36
iv
FM 4-20.152/TO 13C7-22-61
6 September 2007
Preface
Constructing Front Endboard
5-37
Constructing Rear Endboard
5-38
Positioning and Securing Front Endboard and Positioning Rear Endboard
5-39
Lashing Load to Platform
5-41
Building and Lashing Parachute Platform to Load
5-54
Installing Suspension Slings and Deadman’s Tie
5-57
Preparing and Stowing Cargo Parachutes
5-58
Installing the Release System
5-59
Installing the Extraction System
5-60
Placing Extraction Parachute
5-61
Installing Provisions for Emergency Restraints
5-61
Marking Rigged Load
5-61
Equipment Required
5-61
GLOSSARY
Glossary-1
REFERENCES
References-1
6 September 2007
FM 4-20.152/TO 13C7-22-61
v
Preface
SCOPE
This manual tells and shows how to prepare and rig the Dragon and Javelin antitank/assault missiles for low-
velocity airdrop from C-130 or C-17 aircraft. This manual is designed for all parachute riggers.
USER INFORMATION
The proponent of this publication is the United States Training and Doctrine Command TRADOC. You are
encouraged to report any errors or omissions and to suggest ways of making this a better manual. Army
personnel, send your comments on DA Form 2028 directly to:
Director
Aerial Delivery and Field Services Department
USA Quartermaster Center and School
710 Adams Avenue
Fort Lee, Virginia 23801-1502
Air Force personnel, route your reports on AFTO Form 22 through your respective command Weapons and
Tactics to:
Headquarters
Air Mobility Command (AMC/A30T)
402 Scott Drive, Unit 3A1
Scott AFB, Illinois 62225-5302
HQ AMC/A39T will consolidate and forward changes to:
Director
Aerial Delivery and Field Services Department
USA Quartermaster Center and School
710 Adams Avenue
Fort Lee, Virginia 23801-1502
Also send information copy of AFTO Form 22 to:
584 CBSS/GBMUDE
380 Richard Ray Blvd
STE 104
Robins AFB, Georgia 31098-1640
This publication applies to the Active Army, the Army National Guard/Army National Guard of
the United States, and the United States Army Reserve unless other stated.
Unless this publication states otherwise, masculine nouns and pronouns do not refer exclusively
to men
6 September 2007
FM 4-20.152/TO 13C7-22-61
vi
Introduction
Introduction
DESCRIPTION OF ITEMS
The descriptions of the items rigged in this manual are given below:
Dragon or Dragon II Missiles
Nine one-round containers are rigged in an A-22 cargo bag on a standard skid for a low-velocity
airdrop.
One 15-round container is rigged in an A-22 cargo sling on a standard skid for a low-velocity
airdrop.
Thirty-six one-round containers are rigged on an 8-foot type V platform for a low-velocity
airdrop.
Four 15-round containers are rigged on an 8-foot type V platform for a low-velocity airdrop.
Four A-22 cargo bags with nine one-round containers in each A-22 cargo bag are rigged on an 8-
foot type V platform for low-velocity airdrop.
Four A-22 cargo slings with four 15-round containers are rigged on an 8-foot type V platform for
low-velocity airdrop.
Javelin Missiles
Rigging Two-Round A-7Adoor bundle for low-velocity airdrop.
Rigging Four-Round A-7A door bundle for low-velocity airdrop.
Rigging Nine-Round Container Delivery System (CDS) rigged in an A-22 stretch container for
low-velocity airdrop.
Rigging Javelin Missile Containers (plastic) in an A-22 container cargo bag assembly for low-
velocity airdrop.
Rigging thirty-Six Javelin Rounds as a mass supply load on a 12-foot type V, platform for low-
velocity airdrop.
Rigging Javelin Missile Containers (plastic) on an 8-foot, type V platform for low-velocity
airdrop.
Rigging Javelin Missile Containers on a 16-foot, type V platform for low-velocity airdrop.
SPECIAL CONSIDERATIONS
Special considerations for this manual are given below.
The loads covered in this manual may include hazardous materials as defined in AFMAN(I) 24-
204/TM 38-250. If included, the hazardous materials must be packaged, marked, and labeled as
required by AFMAN(I) 24-204/TM 38-250.
CAUTION
Only ammunition listed in FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
may be airdropped.
A copy of this manual must be available to the joint airdrop inspectors during the before- and
after-loading inspection.
6 September 2007
FM 4-20.152/TO 13C7-22-61
vii
Chapter 1
Rigging Dragon Missiles in an A-22 Cargo Bag
SECTION I-RIGGING NINE ONE-ROUND CONTAINERS
DESCRIPTION OF LOAD

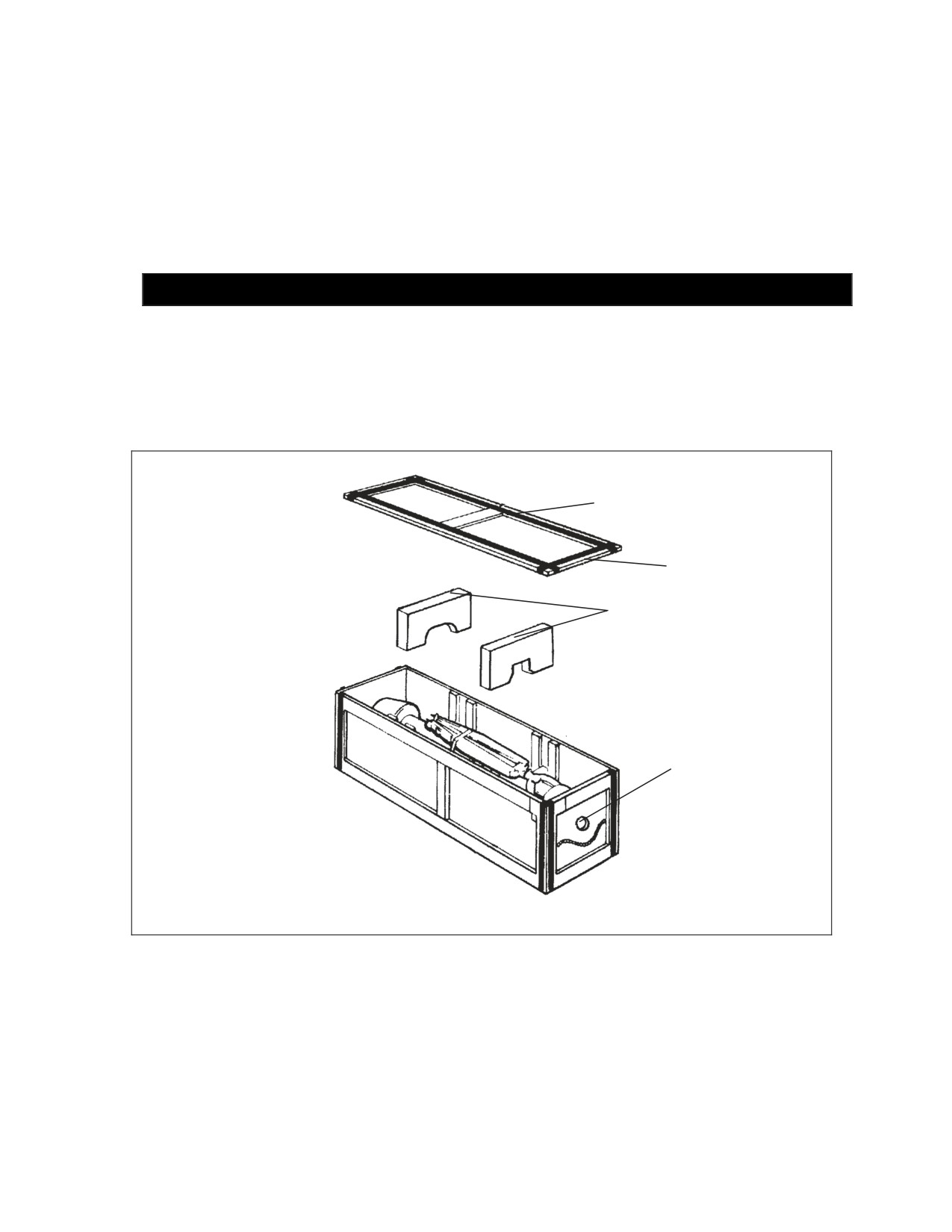

1-1. Nine one-round containers (Figure 1-1) are rigged in an A-22 cargo bag on a standard skid. Each
container is 47 ½ inches long, 16 inches wide, 16 inches high, and weighs 67 pounds. The rigged load uses
either one G-12 or three G-14 cargo parachutes for low-velocity airdrop from a C-130 or C-17 aircraft.
STEEL STRAPPING
SADDLES
INSPECTION PORT
Figure 1-1. Dragon Missile in a One-Round Container
6 September 2007
FM 4-20.152/TO 13C7-22-61
1-1
Chapter 1
RIGGING LOAD
1-2. Rig nine one-round containers in an A-22 cargo bag according to FM 4-20.103/MCRP 4-11.3C/TO
13C7-1-11 and as shown in Figures 1-2 through 1-4.
Notes. 1. All dimensions are in inches.
2. This drawing is not drawn to scale.
3
4
1
5
2

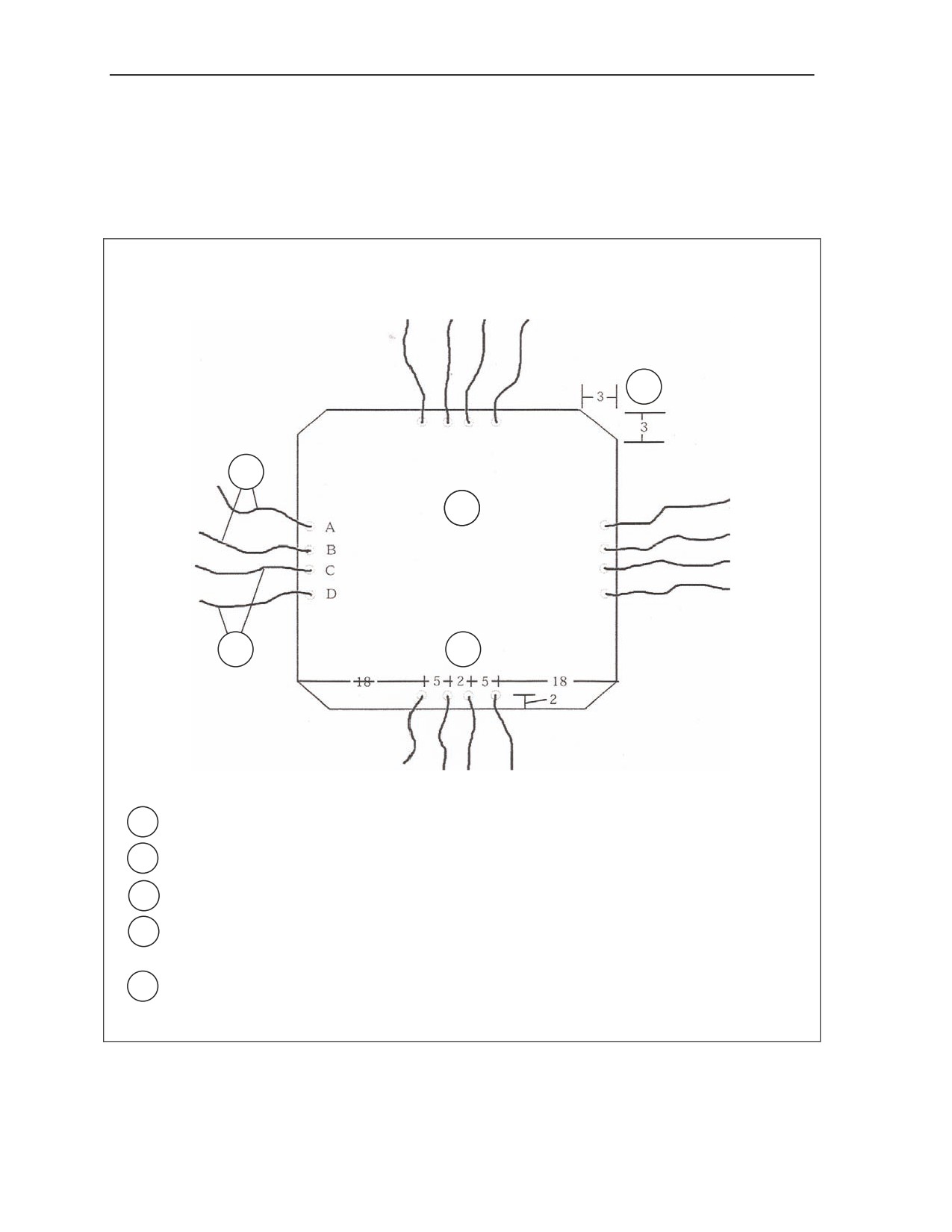

1. Place a 3/4- or 1- by 48- by 48-inch piece of plywood on a flat surface.
2. Drill four 1/2-inch holes on each side as shown above.
3. Measure 3 inches in from each corner of the skid board and make a diagonal cut.
4. Cut eight 8-foot lengths of 1/2-inch tubular nylon webbing. Route one length through hole A
from the bottom and the other end through hole B from the bottom. Even the ends.
5. Repeat step 4 for holes C and D and remaining sides.

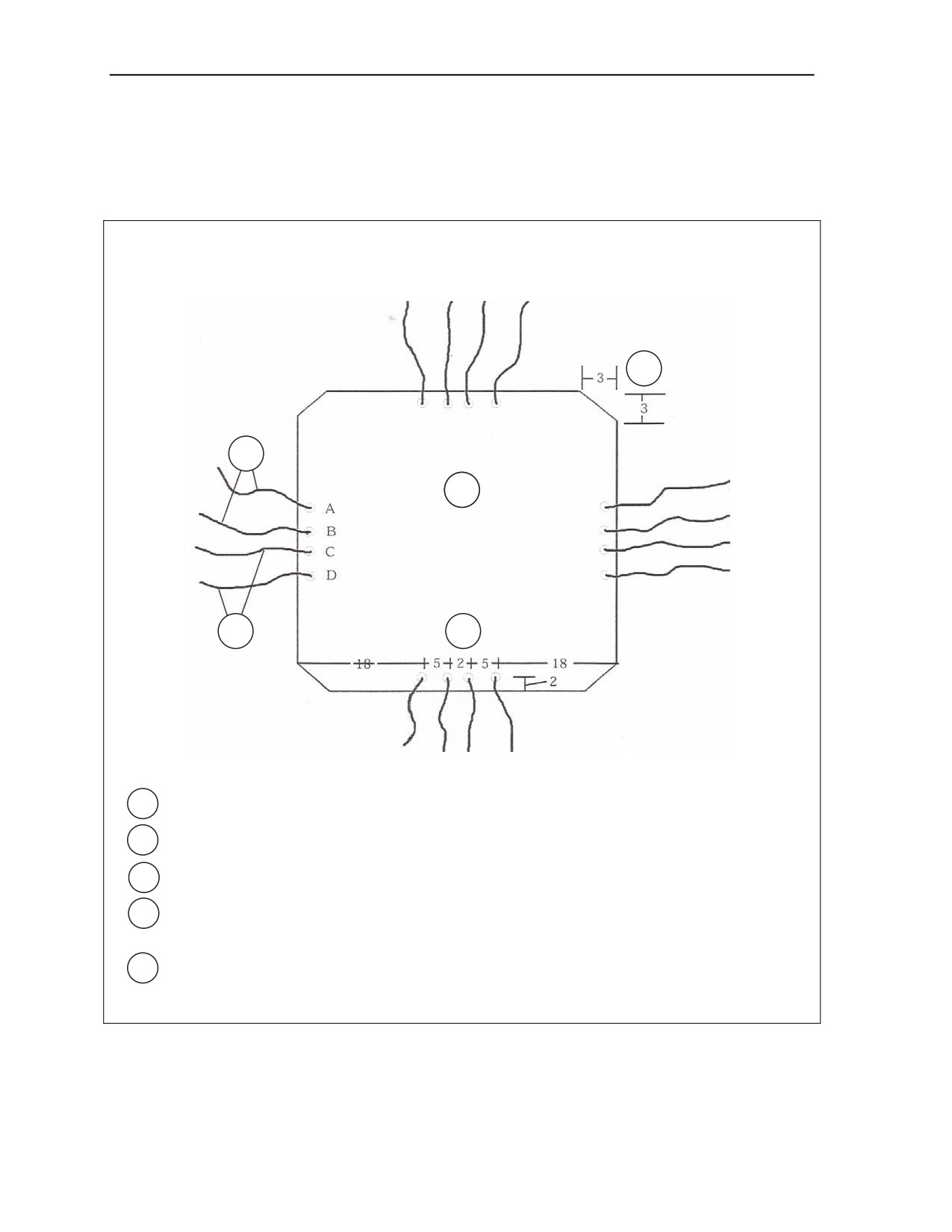

Figure 1-2. Skid Prepared and Honeycomb Stacks Positioned
1-2
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon Missiles in an A-22 Cargo Bag
Note. All dimensions are in inches.
6
7
6

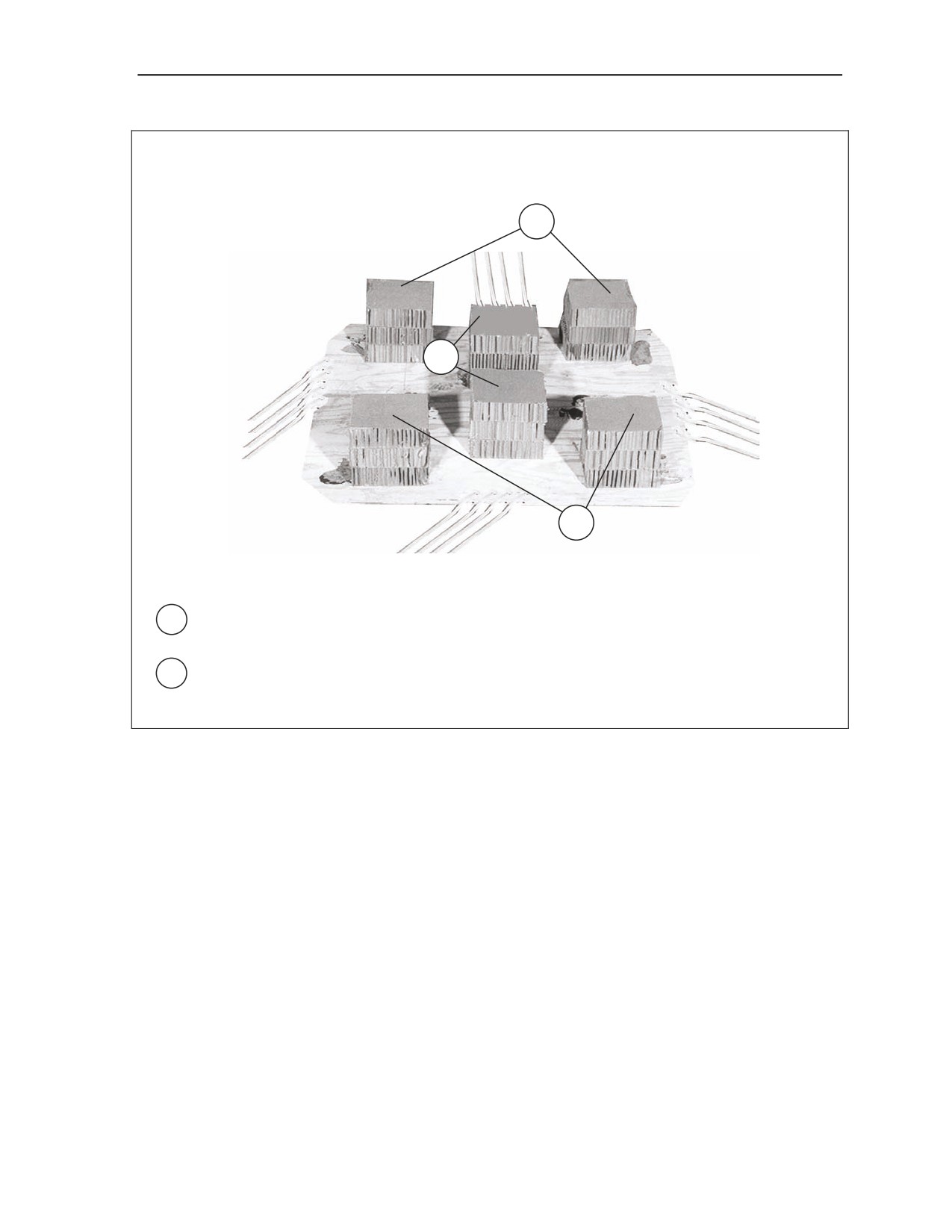

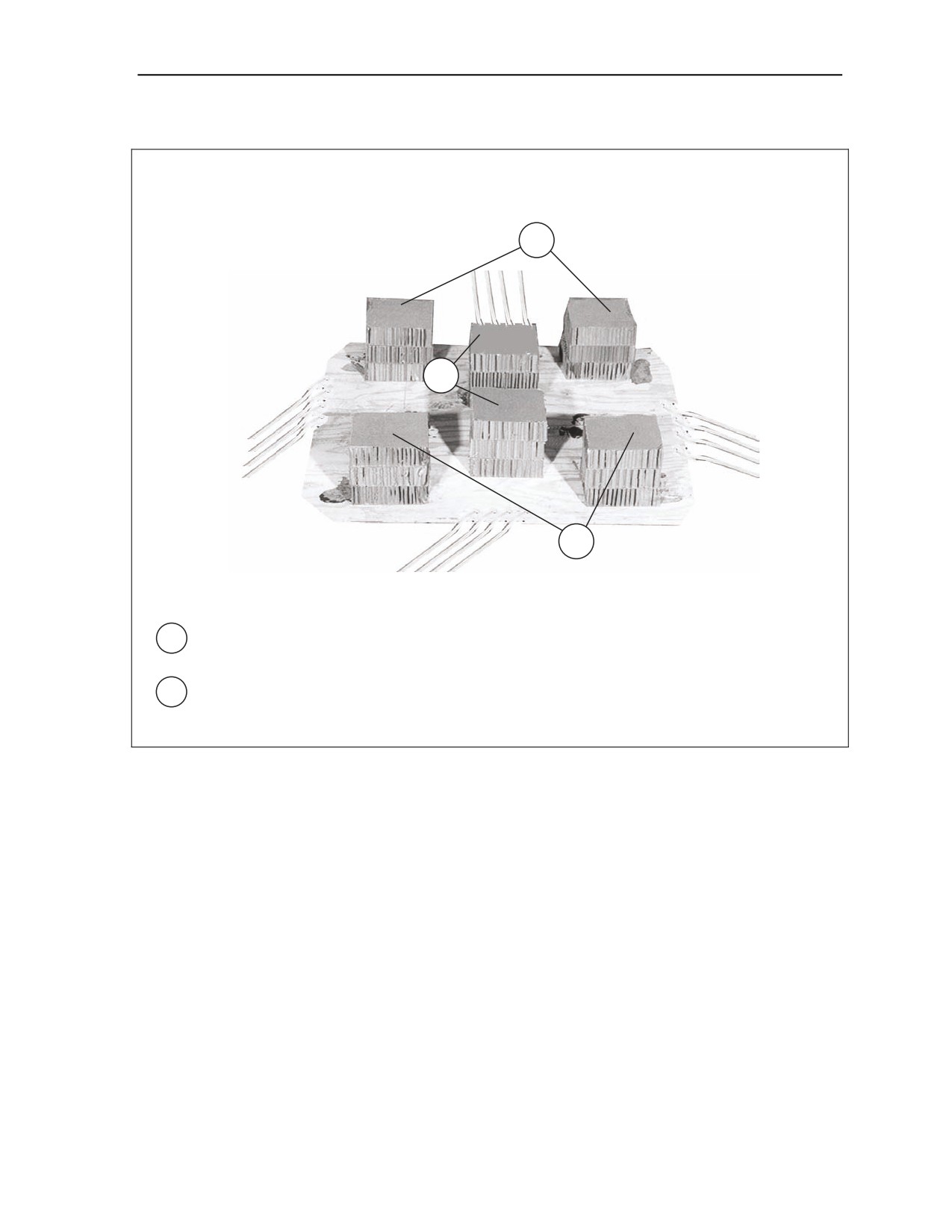

6. Make six honeycomb stacks using three layers of 9- by 9-inch honeycomb, and glue the
layers together. Position and glue the corner stacks 3 inches in from the sides of the skid.
7. Position the center stacks 10 inches in from the skid board edges and center between the
sides. Glue the stacks in place.
Figure 1-2. Skid Prepared and Honeycomb Stacks Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
1-3
Chapter 1
1
1. Center the A-22 sling assembly on the stacks with the outside of the sling down.
2
2. Center the A-22 cover on the sling assembly with the outside of the cover down.
3
4
3. Center a 3/4- by 48 by 48-inch piece of plywood on the cover.
4. Form a 30-foot lashing according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and lay the strap across the center of the plywood from side to
side.

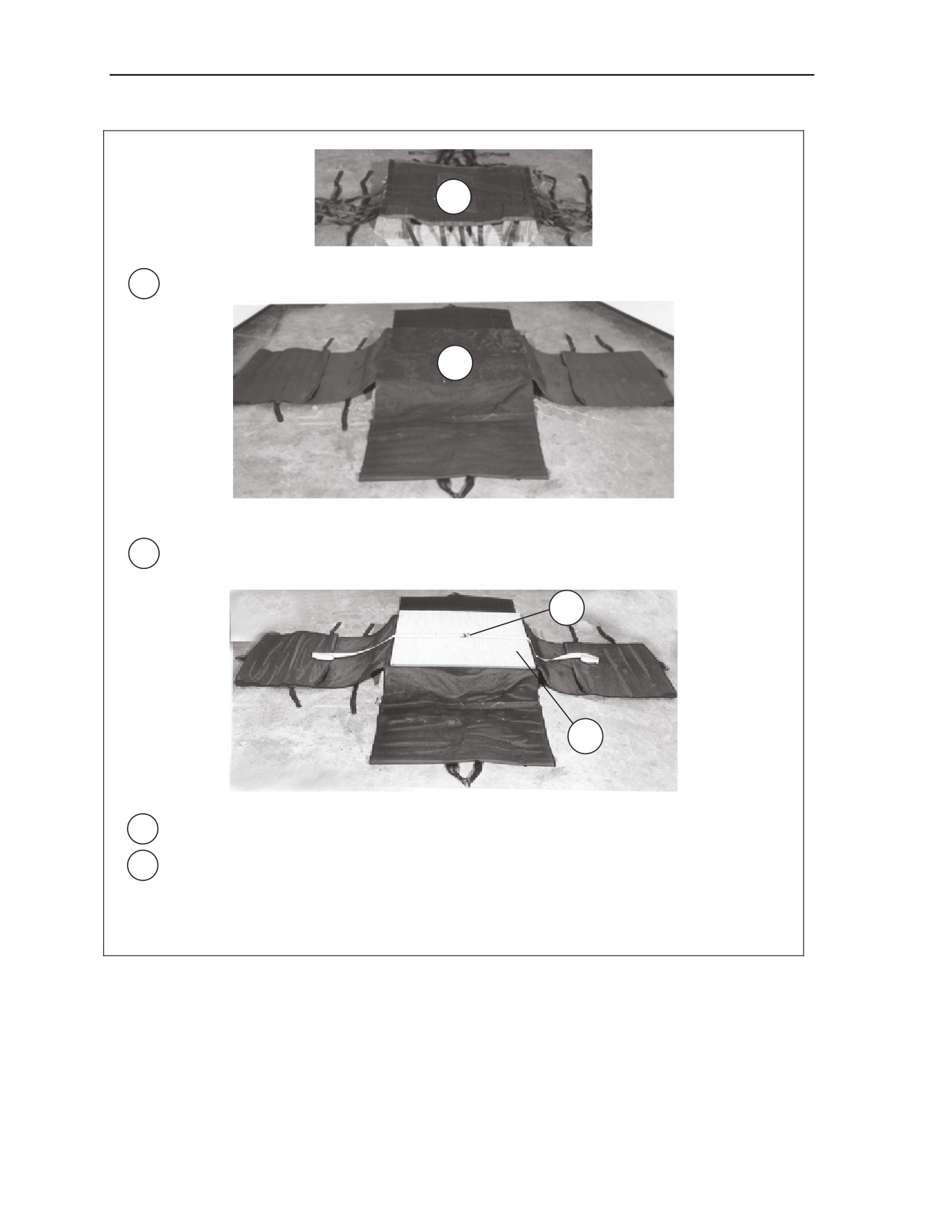

Figure 1-3. Cargo Bag, Plywood, and Tiedown Strap Positioned
1-4
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon Missiles in an A-22 Cargo Bag
4
3
2
1

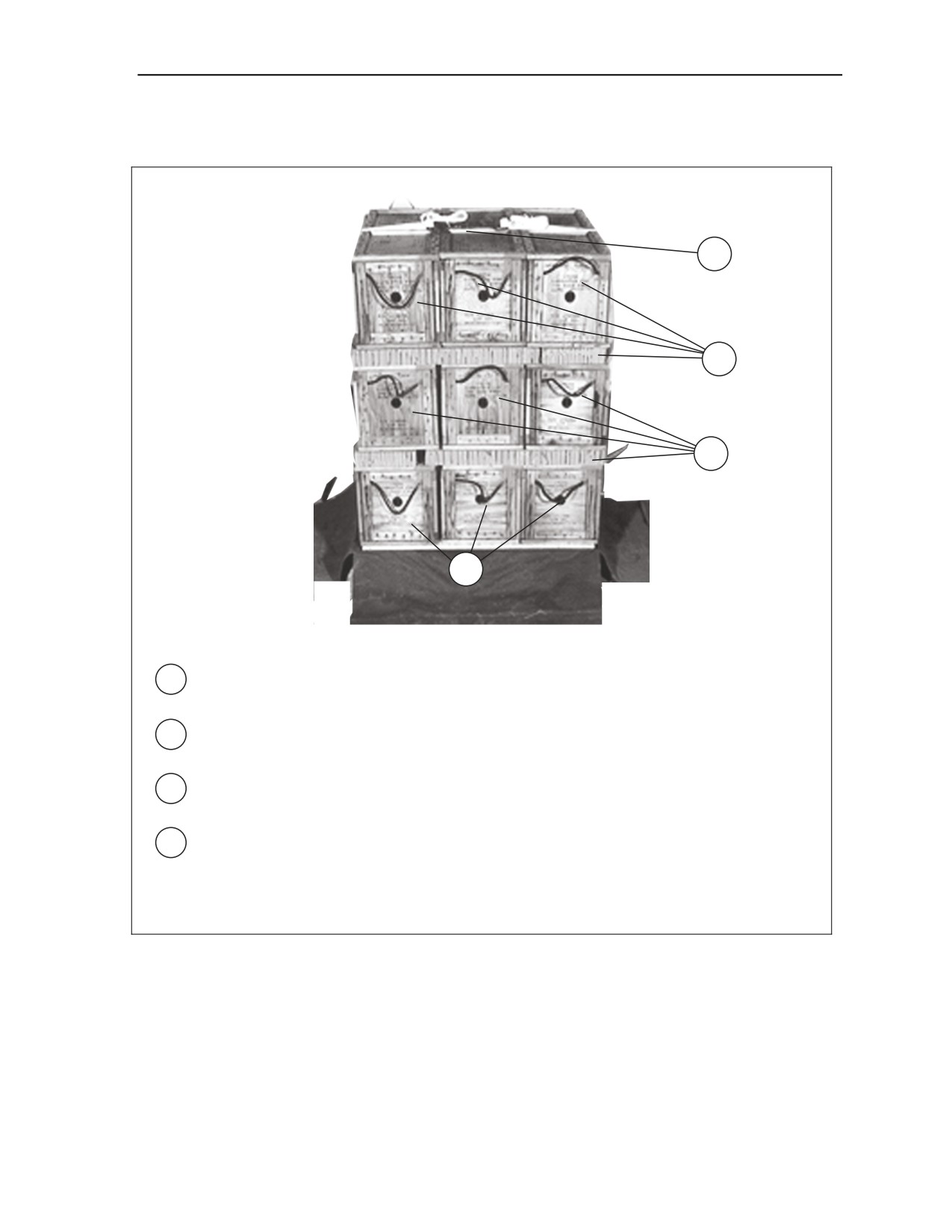

1. Place three containers on the plywood so that the 47 ½-inch sides of the containers are
parallel with the sides of the skid.
2. Place a layer of honeycomb (one piece 36 by 48 inches and one piece 12 by 48 inches) on
the containers. Set three more containers on the honeycomb.
3. Place another layer of honeycomb on the containers. Set the last three containers on the
honeycomb.
4. Run the ends of the 30-foot tiedown strap over the top of the stacked containers, and bind
the ends together with two D-rings and a load binder.
Figure 1-4. Nine One-Round Containers Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
1-5
Chapter 1
CLOSING CARGO BAG
1-3. Close the A-22 cargo bag according to the steps in FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
INSTALLING PARACHUTES
1-4. Prepare and stow one G-12 cargo parachute with a 68-inch pilot parachute or three G-14 cargo
parachutes according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
Note. This rigged A-22 cargo bag weighs 863 pounds. It is 81 inches high, 53 ½ inches wide,
and 48 inches long.
EQUIPMENT REQUIRED
1-5. The equipment needed to rig nine one-round containers is listed in Table 1-1.
Table 1-1. Equipment Required for Rigging Nine One-Round Containers in an A-22 Cargo Bag
for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste 1-gallon
As required
8465-00-587-3421
Bag, cargo, aerial delivery, type A-22
1
4030-00-678-8562
Clevis Assembly, suspension, cargo
1
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-217-2421
Link Assembly, parachute connector, removable, L Bar
3
1670-00-753-3928
Pad, energy-dissipating, honeycomb
2 sheets
1670-00-216-7297
Pilot Chute, cargo type, 68-in diam
1
1670-00-999-2658
Parachute, cargo, 34-foot, G-14
3
1670-01-065-3755
Parachute, cargo, 64-foot, G-12
1
5530-00-128-4981
Plywood, 3/4- by 48- by 48-inch
1 sheet
Skid, cargo bag, platform
1670-00-883-1654
1
Strap, connector, extraction, 60-inch
1670-00-738-5878
3
Strap, connector, extraction, 120-inch
1670-00-738-5879
3
Tape, adhesive, 2-inch
8305-00-082-5752
As required
8305-00-263-3591
Tie-down assembly, 15-foot
2
Webbing:
Cotton, 1/4-inch, type I
8305-00-268-2411
As required
Nylon: Tubular, 1/2-inch
8305-00-082-5752
As required
1-6
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon Missiles in an A-22 Cargo Bag
SECTION II-RIGGING ONE 15-ROUND CONTAINER
DESCRIPTION OF LOAD
1-6. One 15-round container (Figure 1-5) is rigged in an A-22 cargo sling on a standard skid. The
container is 49 inches long, 37 inches wide, 67 inches high, and weighs 695 pounds. The rigged load uses
either one G-12, or three G-14 cargo parachutes. The rigged load also uses four extra suspension webs.

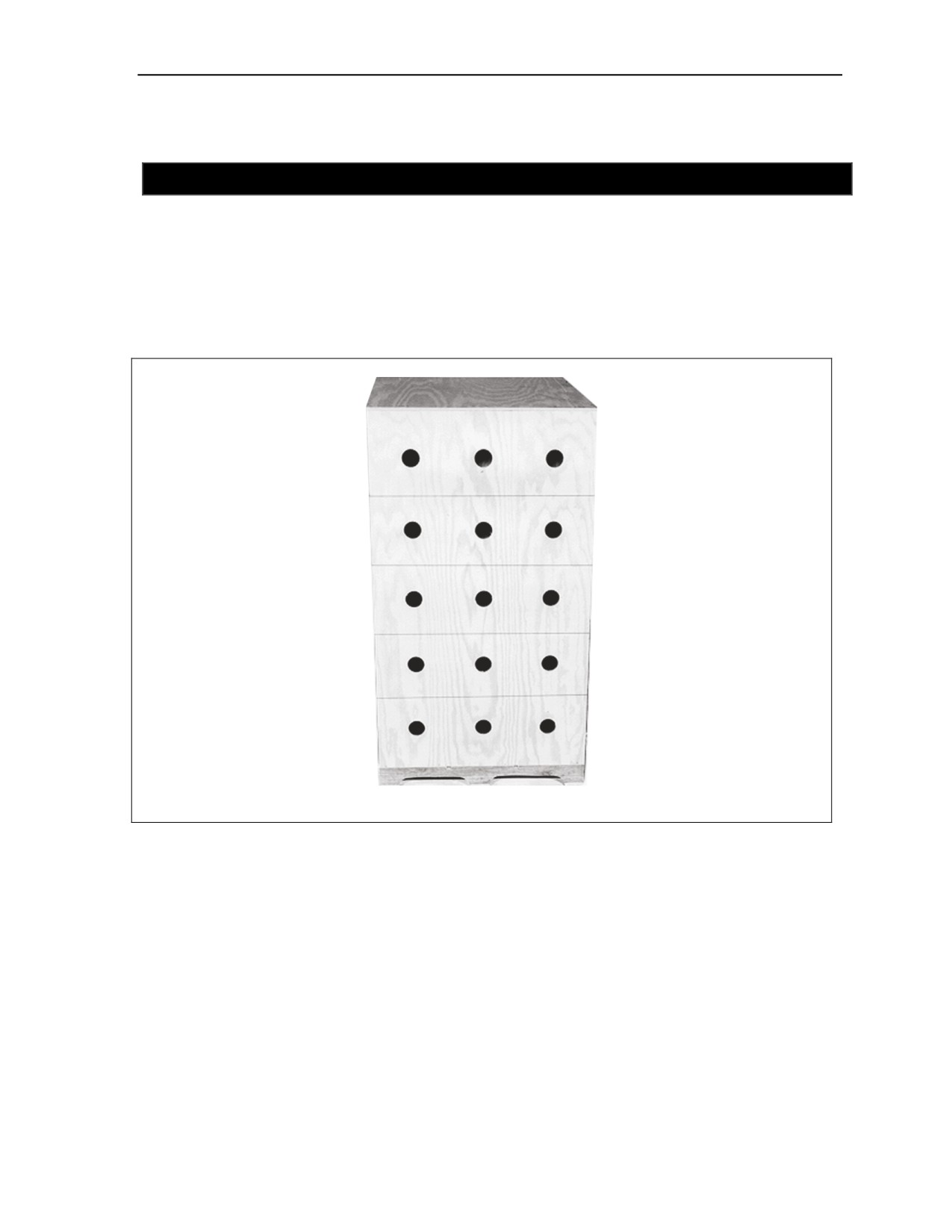

Figure 1-5. One 15-Round Dragon Missile Container
6 September 2007
FM 4-20.152/TO 13C7-22-61
1-7
Chapter 1
RIGGING LOAD
1-7. Rig one 15-round Dragon missile container in an A-22 cargo sling assembly according to FM 4-
20.103/MCRP 4-11.3C/TO 13C7-1-11 and as shown in Figures 1-6 through 1-8.
Notes. 1. All dimensions are in inches.
2. This drawing is not drawn to scale.
3
4
1
5
2
1. Place a 3/4- or 1- by 48- by 48-inch piece of plywood on a flat surface.
2. Drill four 1/2-inch holes on each side as shown above.
3. Measure 3 inches in from each corner of the skid board and make a diagonal cut.
4. Cut eight 8-foot lengths of 1/2-inch tubular nylon webbing. Route one length through hole A
from the bottom and the other end through hole B from the bottom. Even the ends.
5. Repeat step 4 for holes C and D and remaining sides.
Figure 1-6. Skid Prepared and Honeycomb Stacks Positioned
1-8
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon Missiles in an A-22 Cargo Bag
Note. All dimensions are in inches.
6
7
6
6. Make six honeycomb stacks using three layers of 9- by 9-inch honeycomb, and glue the
layers together. Position and glue the corner stacks 3 inches in from the sides of the skid.
7. Position the center stacks 10 inches in from the skid board edges and center between the
sides. Glue the stacks in place.
Figure 1-6. Skid Prepared and Honeycomb Stacks Positioned (Continued)
6 September 2007
FM 4-20.152/TO 13C7-22-61
1-9
Chapter 1
2
1

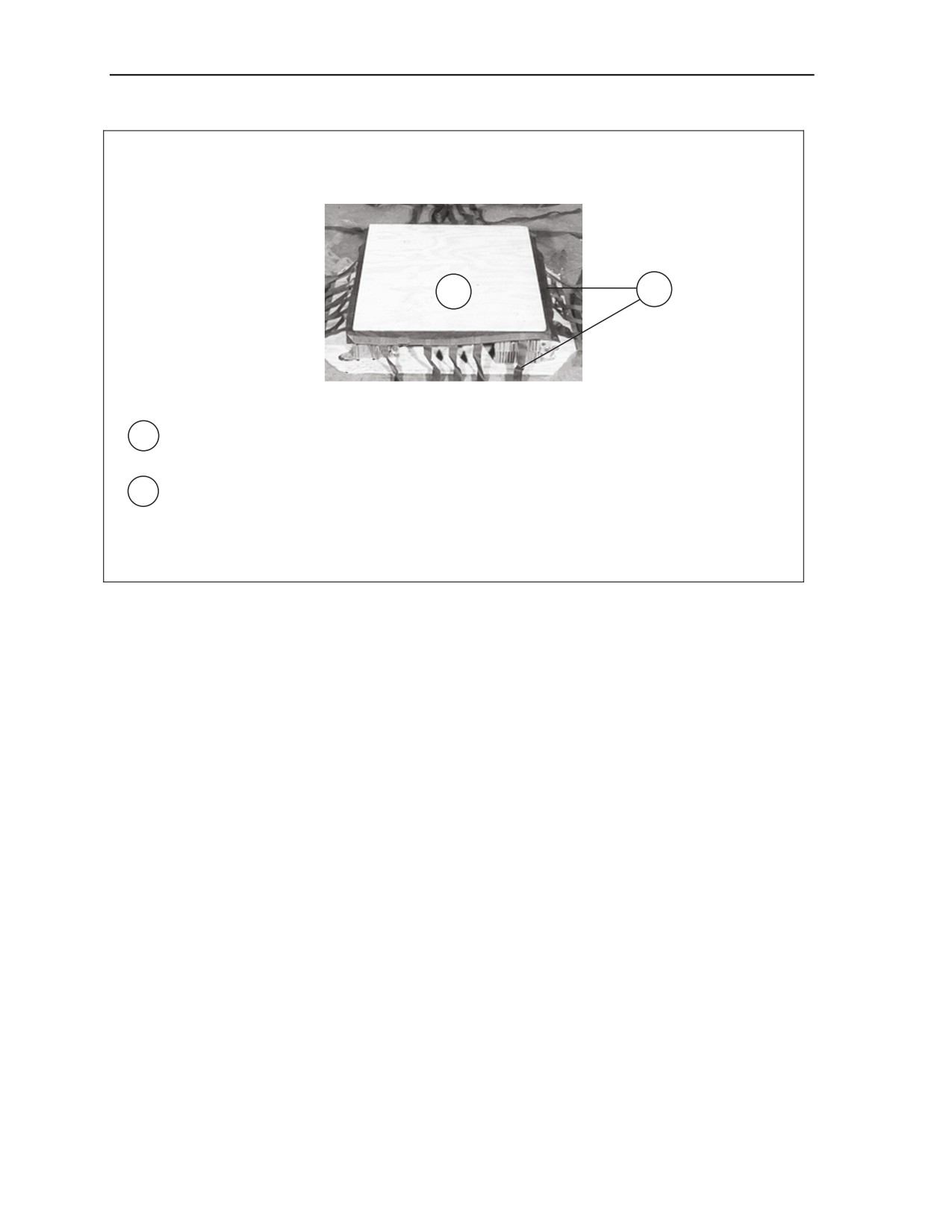

1. Center the A-22 sling assembly on the stacks with the outside of the sling down and the
long side of the scuff pad parallel with the side of the skid.
2. Center a 3/4- by 38- by 48-inch piece of plywood on the scuff pad.
Note. Set the container on the plywood. Close the A-22 cargo sling by following the steps in FM 4-
20.103/MCRP 4-11.3C/TO 13C7-1-11.
Figure 1-7. A-22 Cargo Sling and Plywood Positioned
1-10
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon Missiles in an A-22 Cargo Bag
1

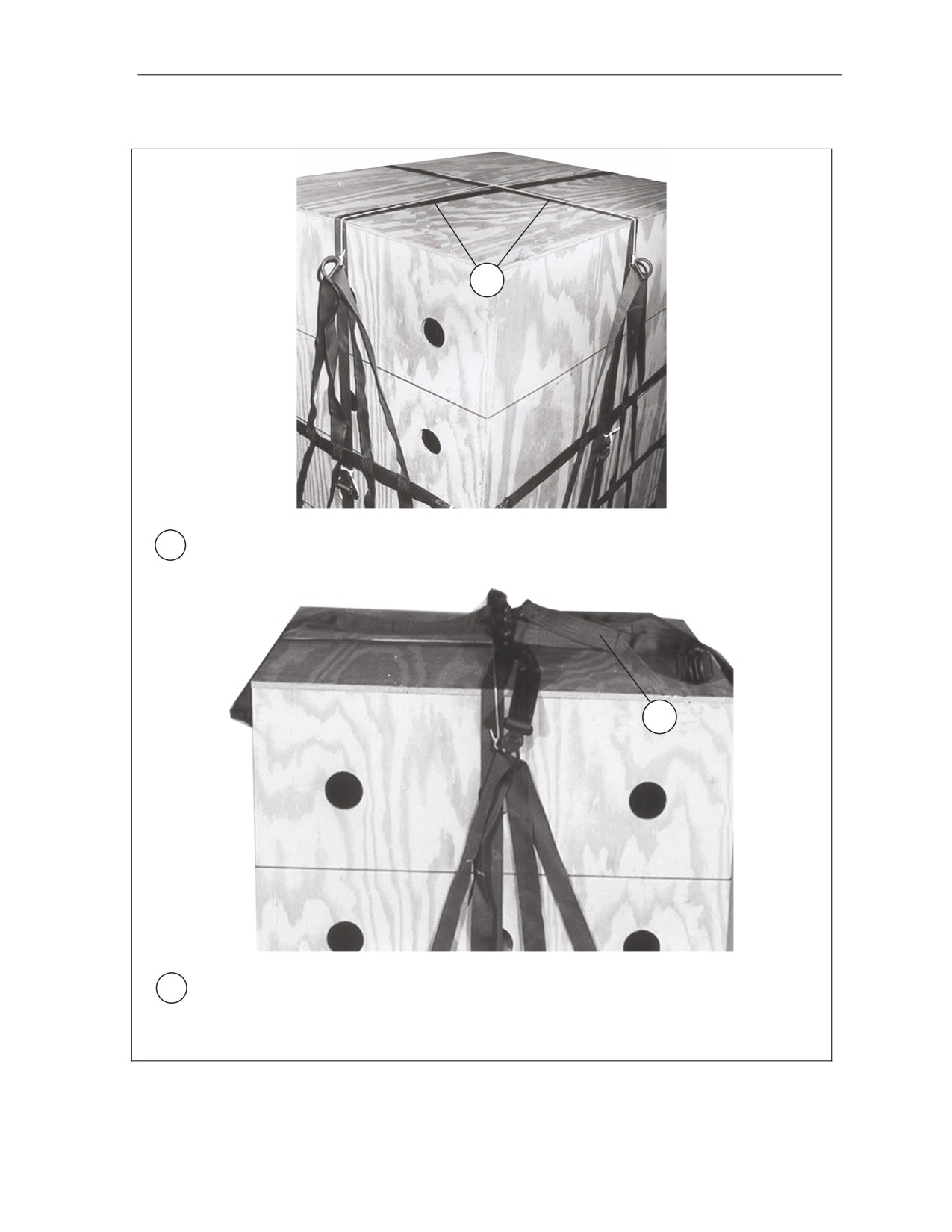

1. Tie the D-ring on the front support web to the D-ring on the rear support web with type III
nylon cord. Tie the D-rings of the side support webs together using type III nylon cord.
2
2. Snap another suspension web to each normally rigged suspension web. This gives a two-
suspension web length snapped onto the D-rings. Make sure that the open side of the
connector snaps face inward. Tape all connector snaps.
Figure 1-8. Container Positioned, and Cargo Sling Closed
6 September 2007
FM 4-20.152/TO 13C7-22-61
1-11
Chapter 1
CLOSING CARGO BAG
1-8. Close the A-22 cargo bag according to the steps in FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
INSTALLING PARACHUTES
1-9. Prepare and stow one G-12 cargo parachute with a 68-inch pilot parachute or three G-14 cargo
parachutes according to FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
Note. This A-22 cargo sling weighs 925 pounds. It is 95 inches high, 53 ½ inches wide, and 49
inches long.
EQUIPMENT REQUIRED
1-10. The equipment needed to rig one 15-round container is listed in Table 1-2.
Table 1-2. Equipment Required for Rigging One 15-Round Container in an A-22 Cargo Bag for
Low-Velocity Airdrop.
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste 1-gal
As required
8465-00-587-3421
Bag, cargo, aerial delivery, type A-22
1
4030-00-678-8562
Clevis Assembly, suspension, cargo
1
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-217-2421
Link Assembly, parachute connector, removable, L Bar
3
1670-00-753-3928
Pad, energy-dissipating, honeycomb
1 sheet
1670-00-216-7297
Pilot Chute, cargo type, 68-in diameter
1
1670-00-999-2658
Parachute, cargo, 34-ft, G-14
3
1670-01-065-3755
Parachute, cargo, 64-ft, G-12
1
5530-00-128-4981
Plywood, 3/4- by 38- by 48-in
1 sheet
Skid, cargo bag, platform
1670-00-883-1654
1
Strap, connector, extraction, 60-in
1670-00-738-5878
3
Strap, connector, extraction, 120-in
1670-00-738-5879
3
Strap, webbing, suspension, A-22 cargo bag
1670-00-360-0560
8
Tape, adhesive, 2-inch
8305-00-082-5752
As required
Tie-down assembly, 15-foot
8305-00-263-3591
2
Webbing:
Cotton, 1/4-inch, type I
8305-00-268-2411
As required
Nylon: Tubular, 1/2-inch
8305-00-082-5752
As required
1-12
FM 4-20.152/TO 13C7-22-61
6 September 2007
Chapter 2
Rigging Dragon or Dragon II Missile Containers on an 8-
Foot, Type V Platform for Low-Velocity Airdrop
SECTION I-RIGGING 36 ONE-ROUND CONTAINERS
DESCRIPTION OF LOAD

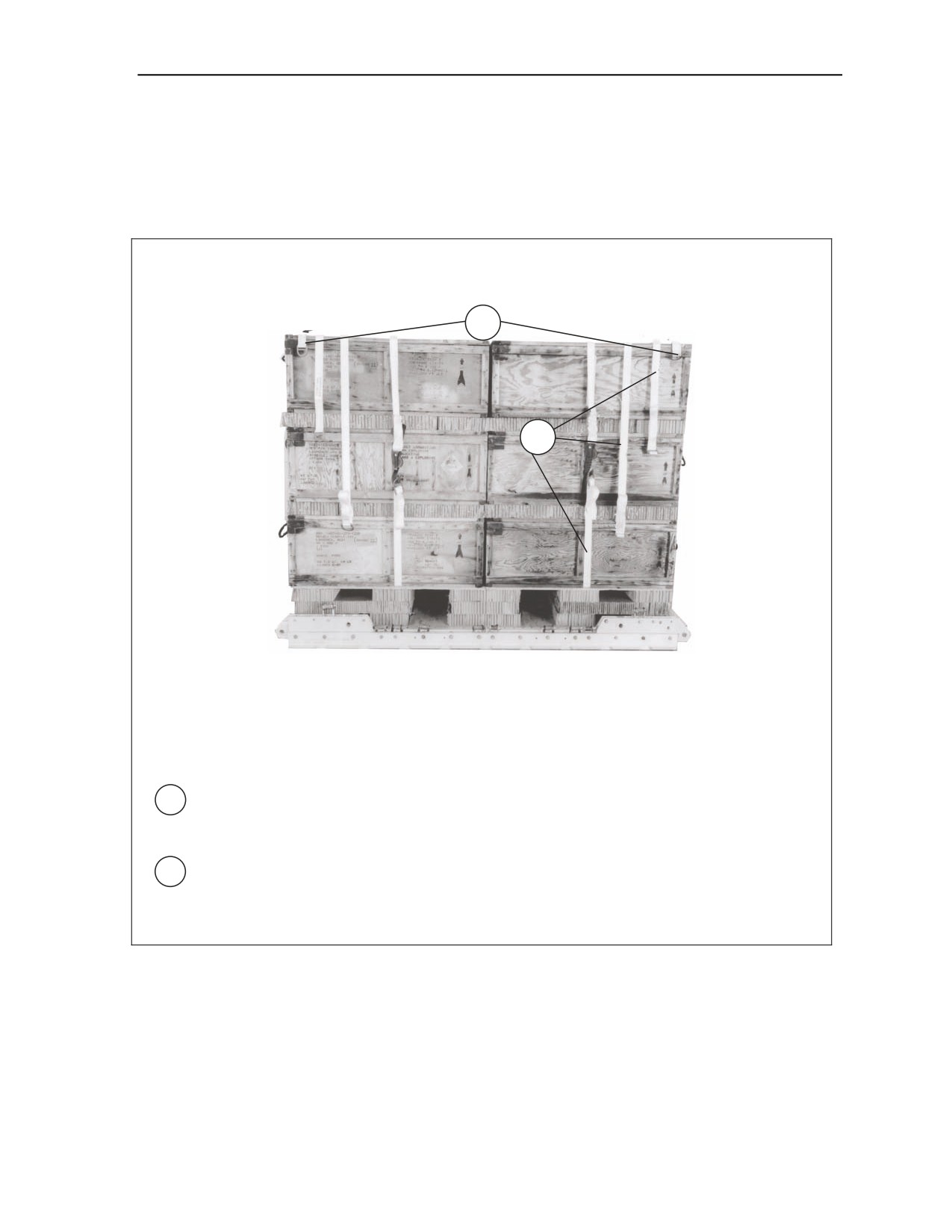

2-1. Thirty-six Dragon II missiles in one-round containers are rigged on an 8-foot, type V platform with
one G-11 cargo parachute for low-velocity airdrop (LVAD) from a C-130 or C-17 aircraft. Each container
is 47 ½ inches long, 16 inches wide, 16 inches high, and weighs 67 pounds.
PREPARING PLATFORM
2-2. Prepare an 8-foot, type V platform using 4 tandem links and 20 clevises as shown in Figure 2-1.
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-1
Chapter 2
CLEVISES
10A THROUGH 1A
REAR
FRONT
CLEVISES
10 THROUGH 1
Step:
1. Inspect, or assemble and inspect, an 8-foot, type V platform as outlined in TM 10-
1670-268-20&P/TO 13C7-52-22.
2. Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3. Install a tandem link to the rear of each platform side rail using holes 14, 15, and 16.
4. Install clevises on bushing 3 of each front tandem link.
5. Install clevises on bushing 3 of each rear tandem link.
6. Starting at the front of the right platform side rail, install clevises on the bushings bolted
to holes 4, 5, 6, 8, 9, 11, 12, and 13. Repeat for the left side.
7. Starting at the front of the platform, number the clevises 1 through 10 on the right side,
and 1A through 10A on the left side.
8. Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.

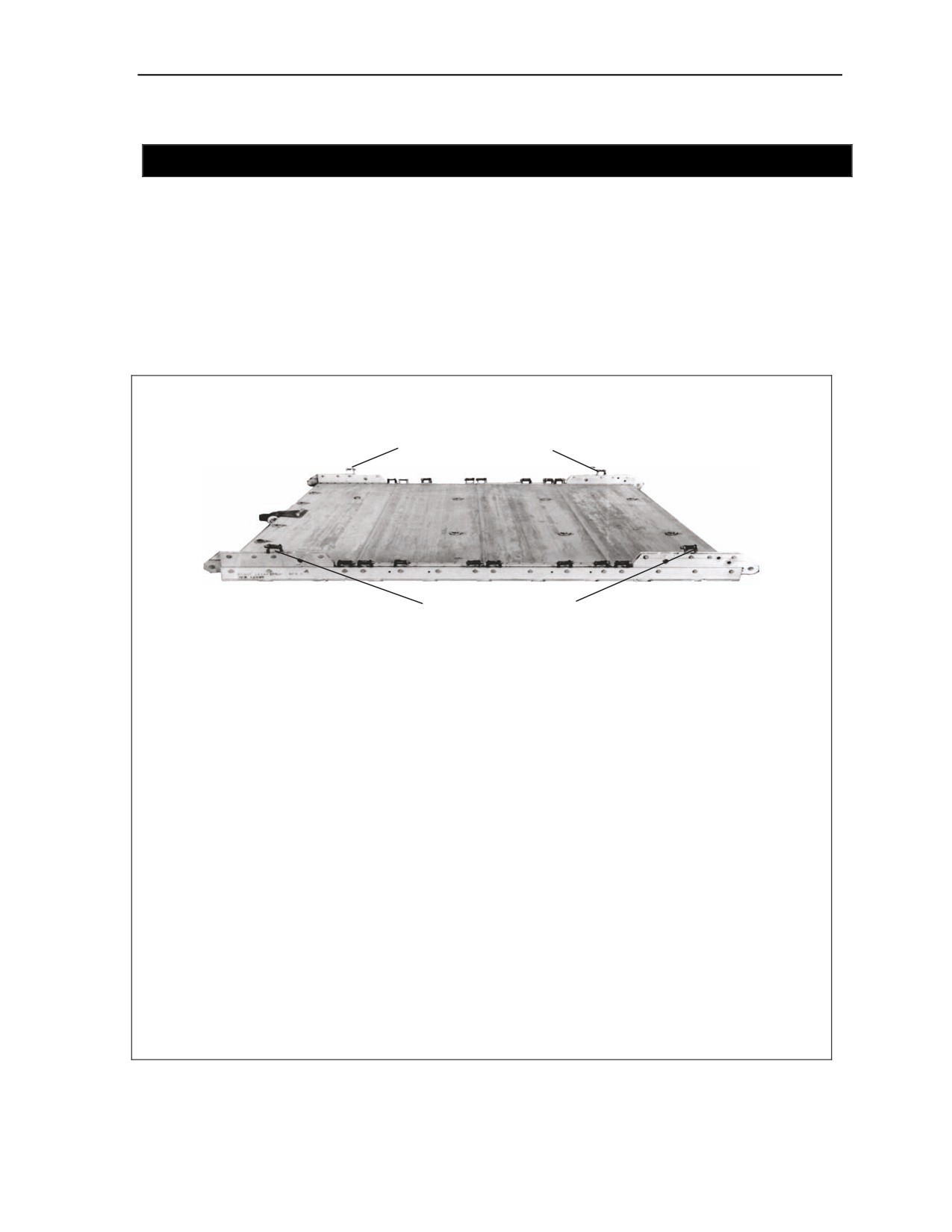

Figure 2-1. Platform Prepared
2-2
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
BUILDING AND PLACING HONEYCOMB STACKS

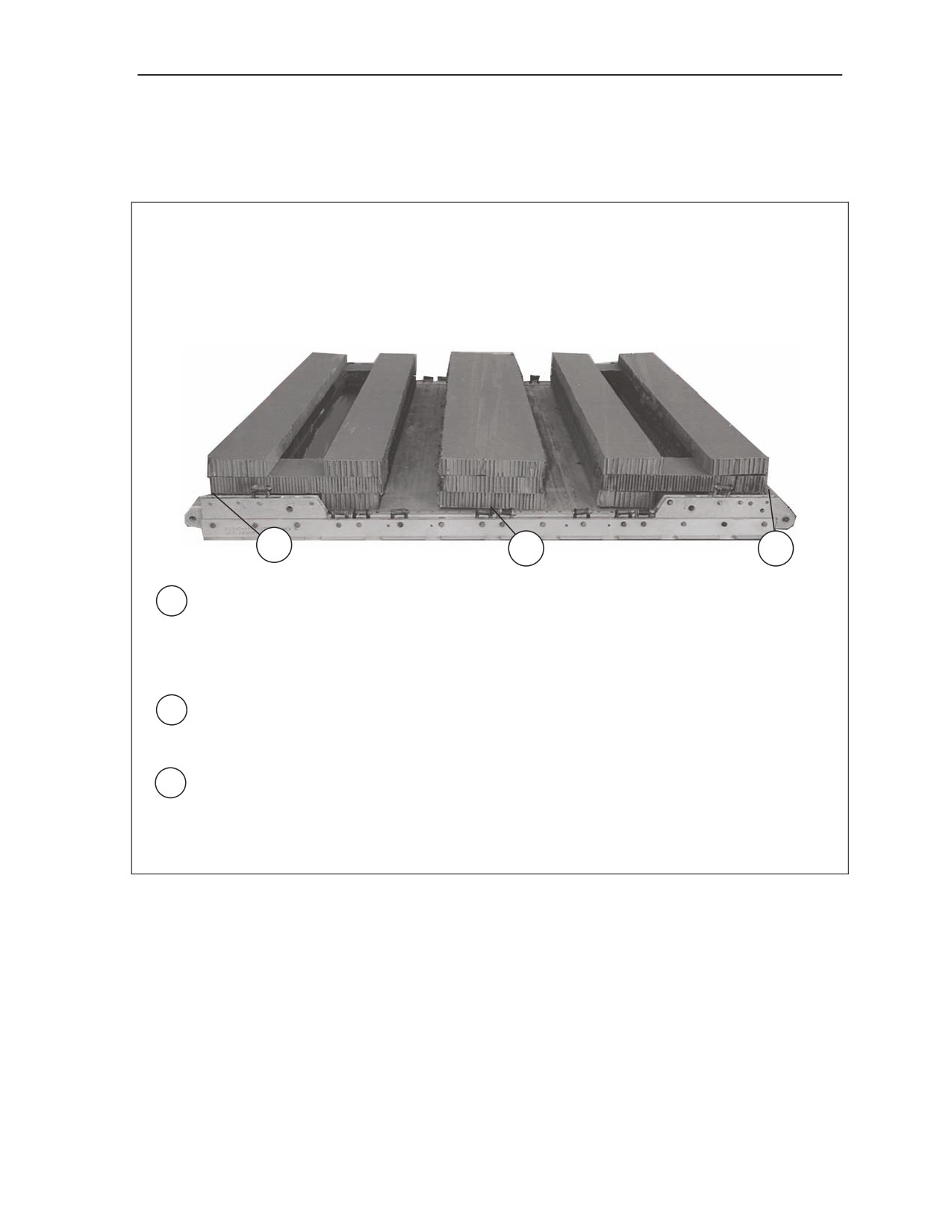

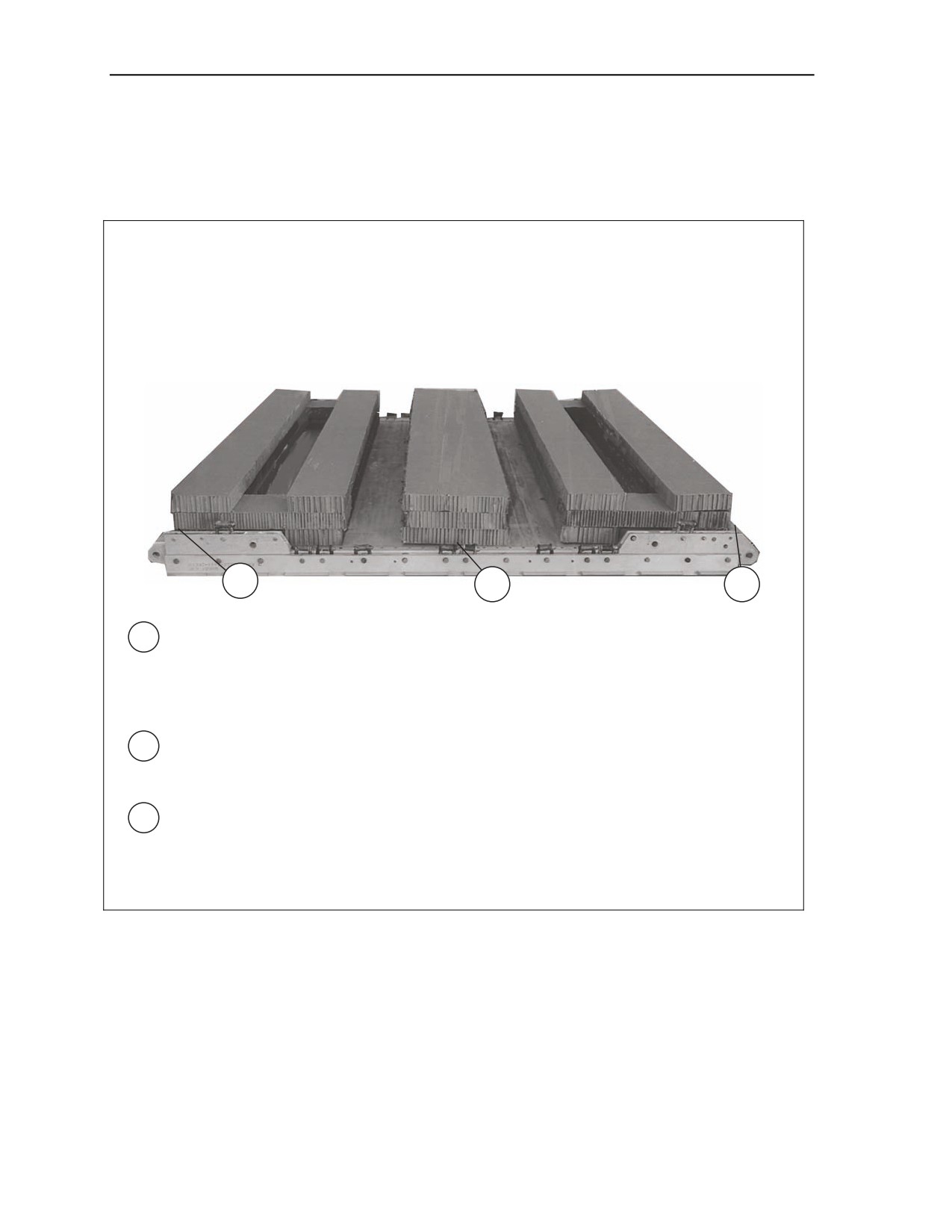

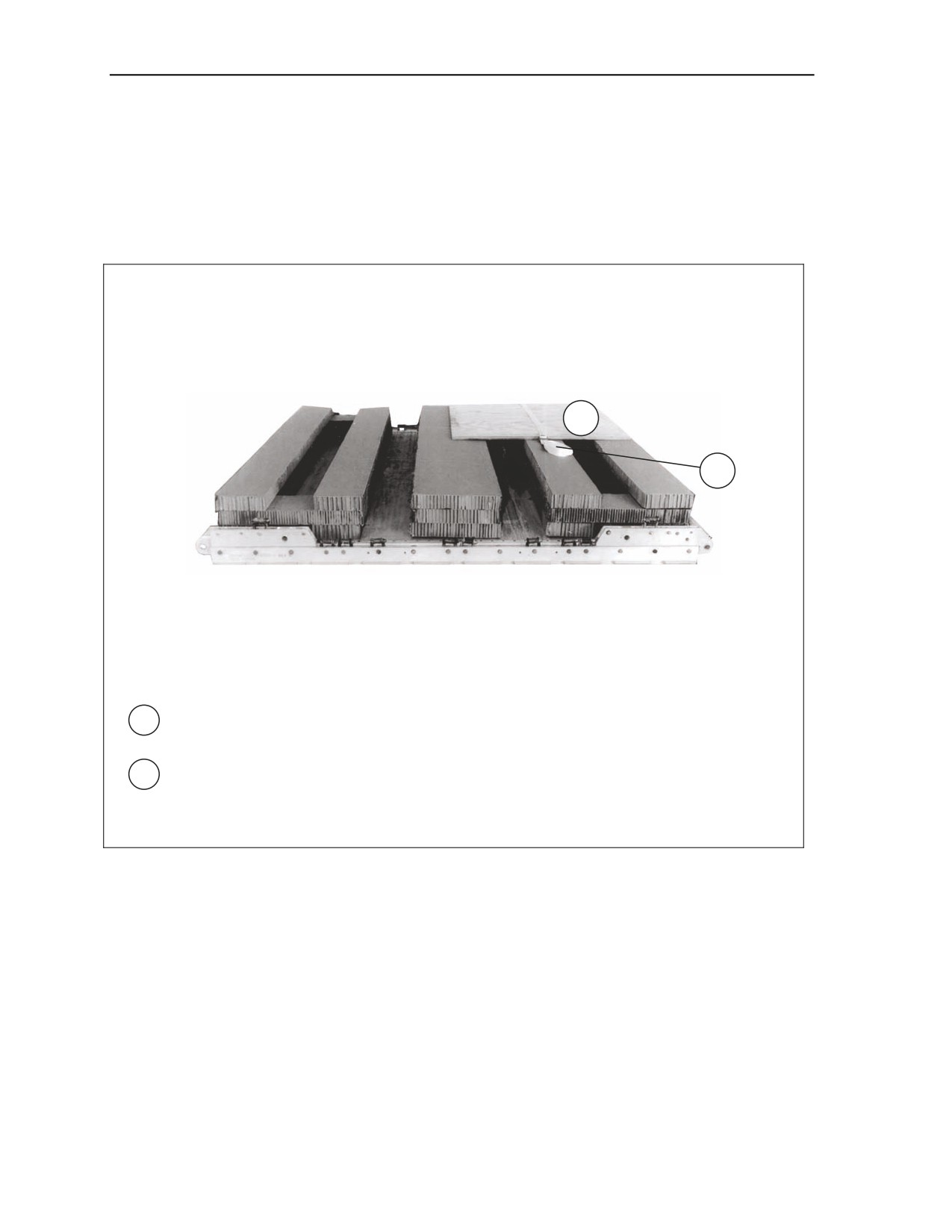

2-3. Prepare and position the honeycomb stacks as shown in Figure 2-2.
Notes.
1. Measurements from the front of the platform are taken from the front edge of the first panel.
2. Measurements from the rear edge of the platform are taken from the rear edge of the last
panel.
STACK 2
STACK 3
STACK 1
3
2
1
1. Build the first stack by using the following pieces of honeycomb, and position the honeycomb
flush with the front edge of the platform.
4 pieces
10- by 96-inches
(1st and 3rd layers)
2 pieces
10- by 76-inches
(2nd layer)
2 pieces
10- by 29-inches
(2nd layer bridge)
2. Build the second stack by using three pieces of honeycomb (18- by 96-inch). Center the
stack over the joint where the second and third panels join together and between the side
rails.
3. Build the third stack by repeating step 1 above, and position the honeycomb flush with the
rear edge of the platform.
Figure 2-2. Honeycomb Stacks Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-3
Chapter 2
POSITIONING AND LASHING MISSILE CONTAINER GROUPS 1
THROUGH 4
2-4. Position and lash the missile container groups 1 through 4 as shown in Figures 2-3 through 2-5.
1
2
1. Position a piece of 3/4- by 48- by 48-inch plywood on the first stack. Place the plywood so
that the outside edges are flush with the outside edges of the first stack.
2. Form a 30-foot lashing as outlined in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Lay the lashing across the center of the plywood.
Figure 2-3. Plywood and Lashing Positioned
2-4
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
CAUTION
Make sure the inspection port holes in the missile containers face
the front and rear of the platform.
6
5
4
3
2
1
1. Set three containers side by side on the plywood and lashing.
2. Position one layer of honeycomb (one piece 36 by 48 inches and one piece 12 by 48
inches) on the containers.
3. Set three more containers on the honeycomb layer.
4. Position another layer of honeycomb (one piece 36 by 48 inches and one piece 12 by 48
inches) on the containers.
5. Set the last three containers on the honeycomb layer.
6. Bind the nine missile containers together with the 30-foot lashing. Secure the lashing on
the side of the containers with two D-rings and a load binder.

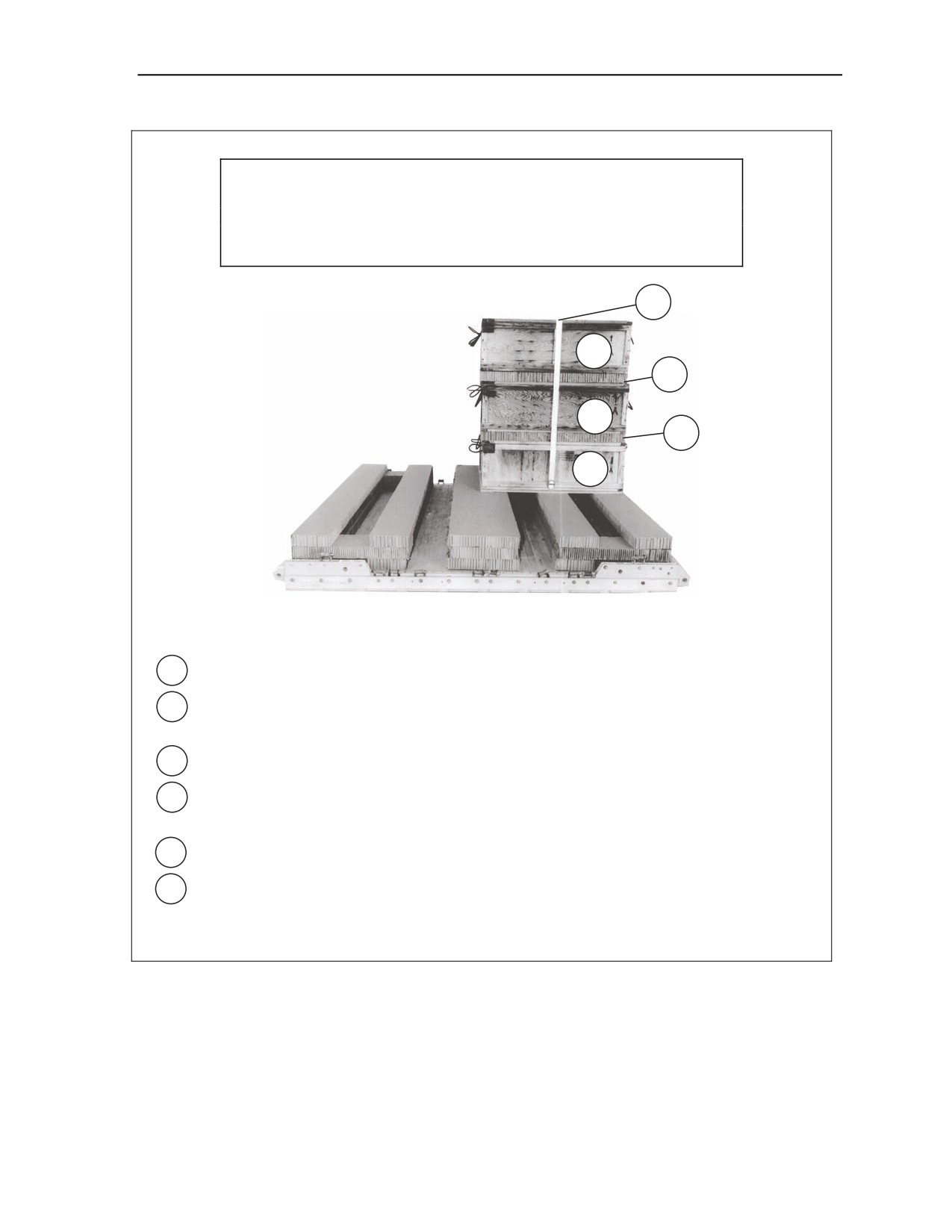

Figure 2-4. First Missile Container Group Positioned, Stacked, and Lashed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-5
Chapter 2
2
1
3
1. Position the second group of containers following the steps in Figures 2-3 and 2-4.
2. Position the third group of containers following the steps in Figures 2-3 and 2-4; however,
place the plywood on the center and third stacks and flush with the outside edge of the
third stack.
3. Position the fourth group of containers following the steps in Figures 2-3 and 2-4; however,
place the plywood on the center and third stacks and flush with the outside edge of the
third stack.

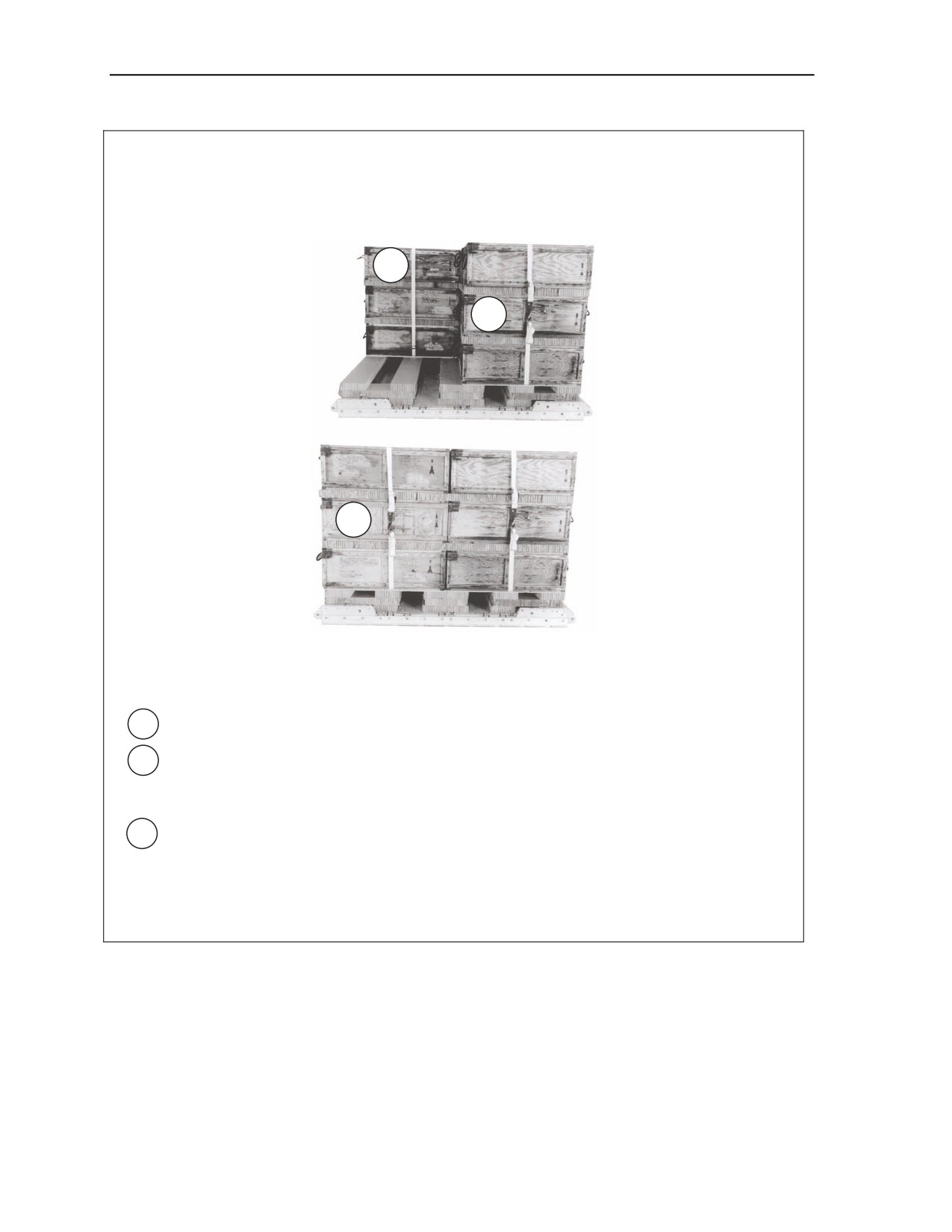

Figure 2-5. Missile Container Groups 2 and 3 and Positioned and Lashed
2-6
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
POSITIONING AND LASHING MISSILE CONTAINERS
2-5. Position the lashings as shown in Figure 2-6 and lash the containers to the platform as shown in
Figures
2-7 through
2-9. Install and safety the lashings as outlined in FM
4-20.102/MCRP
4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Note. Make sure all corners and sharp edges are padded.
1
2
1. Form two 30-foot lashings as outlined in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Lay two 15-foot lashings and one 30-foot lashing across both the
front and rear edges of the container groups.
2. Fit a D-ring to each lashing and adjust the length of the straps to center each D-ring with a
layer of containers.
Figure 2-6. Lashings Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-7
Chapter 2
3
2
1
7
5
2
Lashing
Tiedown
Instructions
Number
Clevis
Number
1
2 and 2A
Run a 15-foot lashing from clevis 2 and a 15-foot lashing from clevis 2A.
Pass the lashings through the D-rings and containers carrying handles
centered on the bottom container layer. Secure the lashings on the front
using two D-rings and a load binder.
2
5 and 5A
Run a 15-foot lashing from clevis 5 and a 15-foot lashing from clevis 5A.
Pass the lashings through the D-rings and containers carrying handles
centered on the middle container layer. Secure the lashings on the front
using two D-rings and a load binder.
3
7 and 7A
Run a 15-foot lashing from clevis 7 and a 15-foot lashing from clevis 7A.
Pass the lashings through the D-rings and containers carrying handles
centered on the top container layer. Secure the lashings on the front
using two D-rings and a load binder.
Figure 2-7. Lashings 1 through 3 Installed
2-8
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
4
5
6
9
6
4
Lashing
Tiedown
Instructions
Number
Clevis
Number
4
4 and 4A
Run a 15-foot lashing from clevis 4 and a 15-foot lashing from clevis 4A.
Pass the lashings through the D-rings and containers carrying handles
centered on the top container layer. Secure the lashings on the rear using
two D-rings and a load binder.
5
6 and 6A
Run a 15-foot lashing from clevis 6 and a 15-foot lashing from clevis 6A.
Pass the lashings through the D-rings and containers carrying handles
centered on the middle container layer. Secure the lashings on the rear
using two D-rings and a load binder.
6
9 and 9A
Run a 15-foot lashing from clevis 9 and a 15-foot lashing from clevis 9A.
Pass the lashings through the D-rings and containers carrying handles
centered on the bottom container layer. Secure the lashings on the rear
using two D-rings and a load binder.

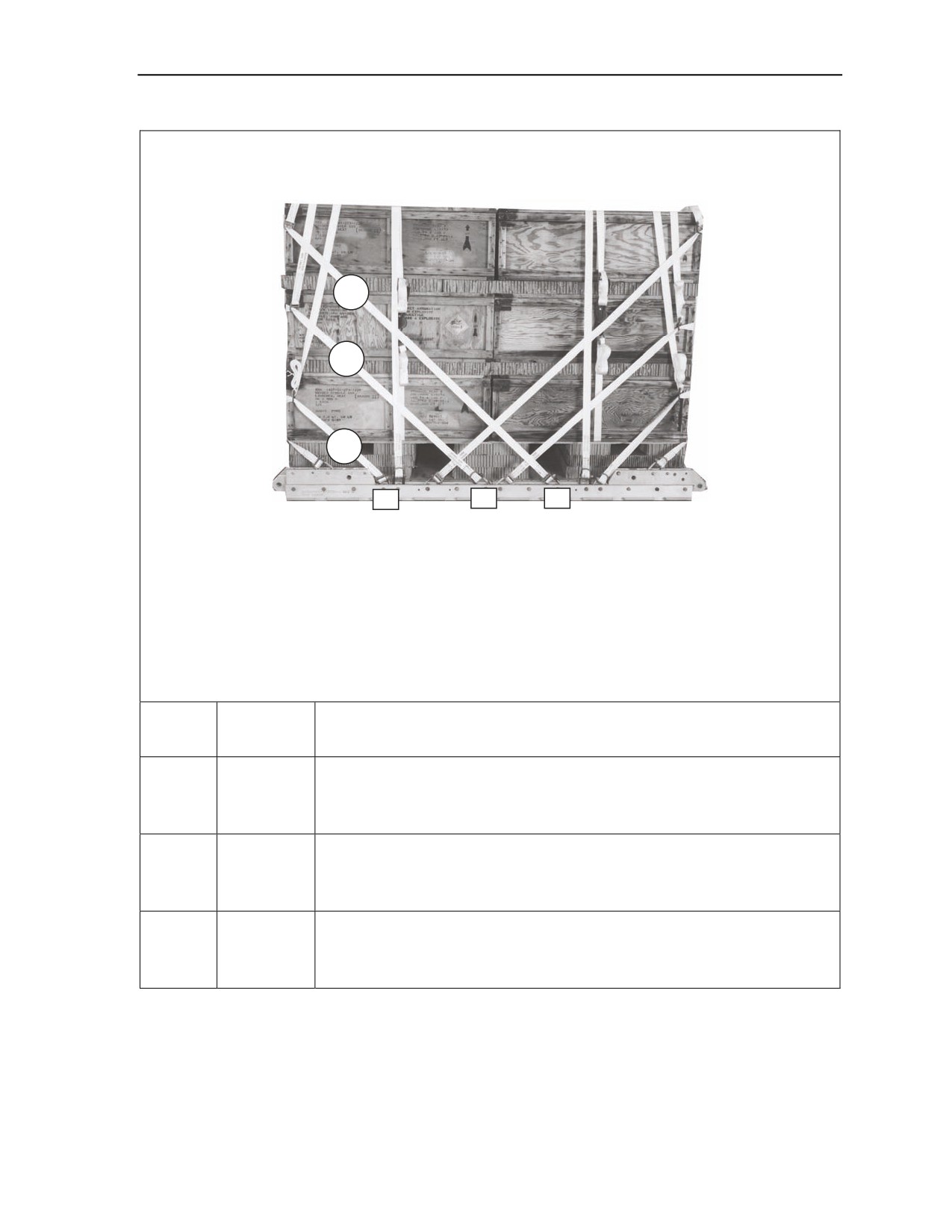

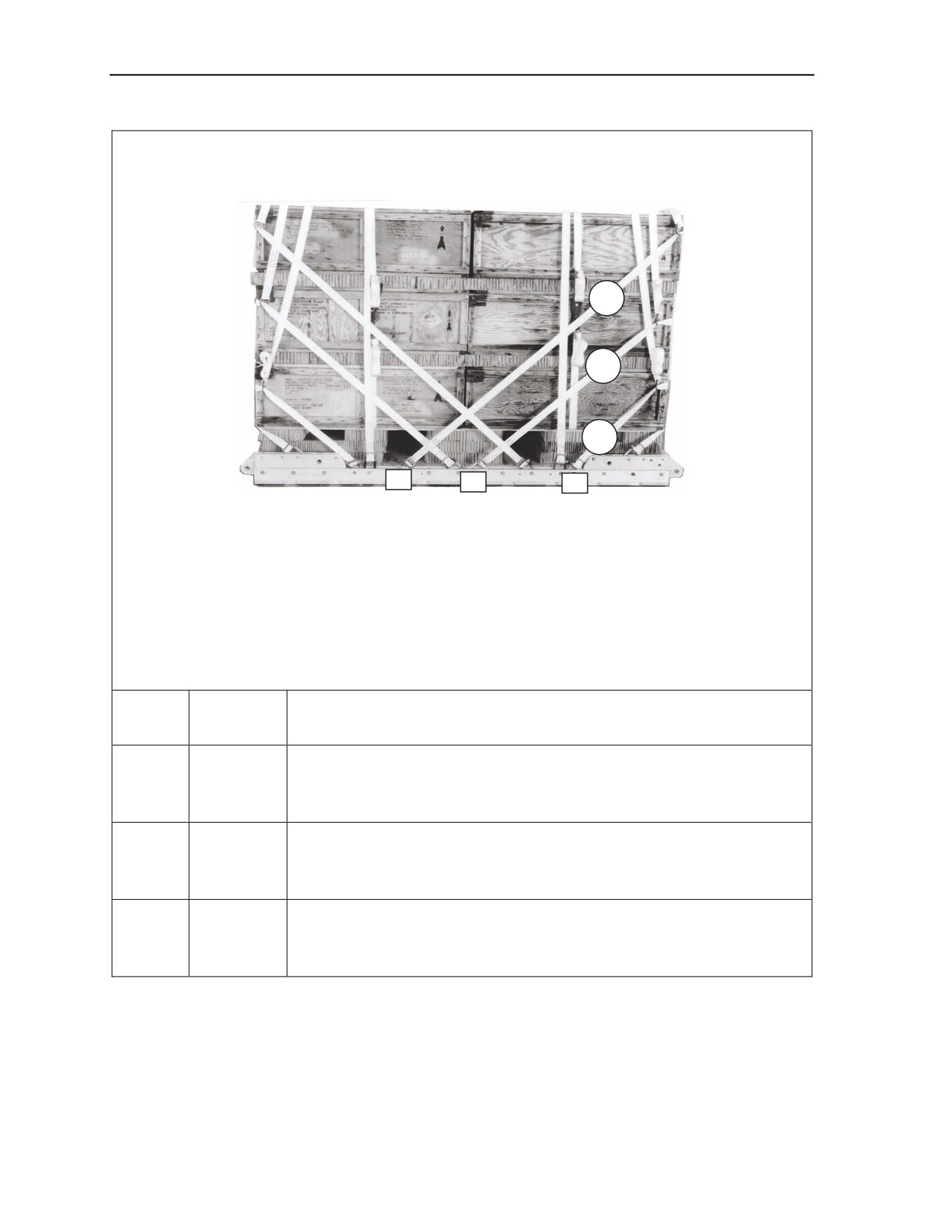

Figure 2-8. Lashings 4 through 6 Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-9
Chapter 2
8
7
8
10
9
10
8
3
1
Lashing
Tiedown
Instructions
Number
Clevis
Number
7
1 and 10A
Run a 15-foot lashing from clevis 1 and a 15-foot lashing from clevis 10A.
Pass the lashings around the bottom ends of the containers and through
the bottom and top containers carrying handles and up over the load.
Secure the lashings on the top using two D-rings and a load binder.
8
1A and 10
Run a 15-foot lashing from clevis 1A and a 15-foot lashing from clevis 10.
Pass the lashings around the bottom ends of the containers and through
the bottom and top containers carrying handles and up over the load.
Secure the lashings on the top using two D-rings and a load binder.
9
3 and 3A
Run a 15-foot lashing from clevis 3 and a 15-foot lashing from clevis 3A.
Pass the lashings over the top of the load. Secure the lashings on the top
using two D-rings and a load binder.
10
8 and 8A
Run a 15-foot lashing from clevis 8 and a 15-foot lashing from clevis 8A.
Pass the lashings over the top of the load. Secure the lashings on the top
using two D-rings and a load binder.

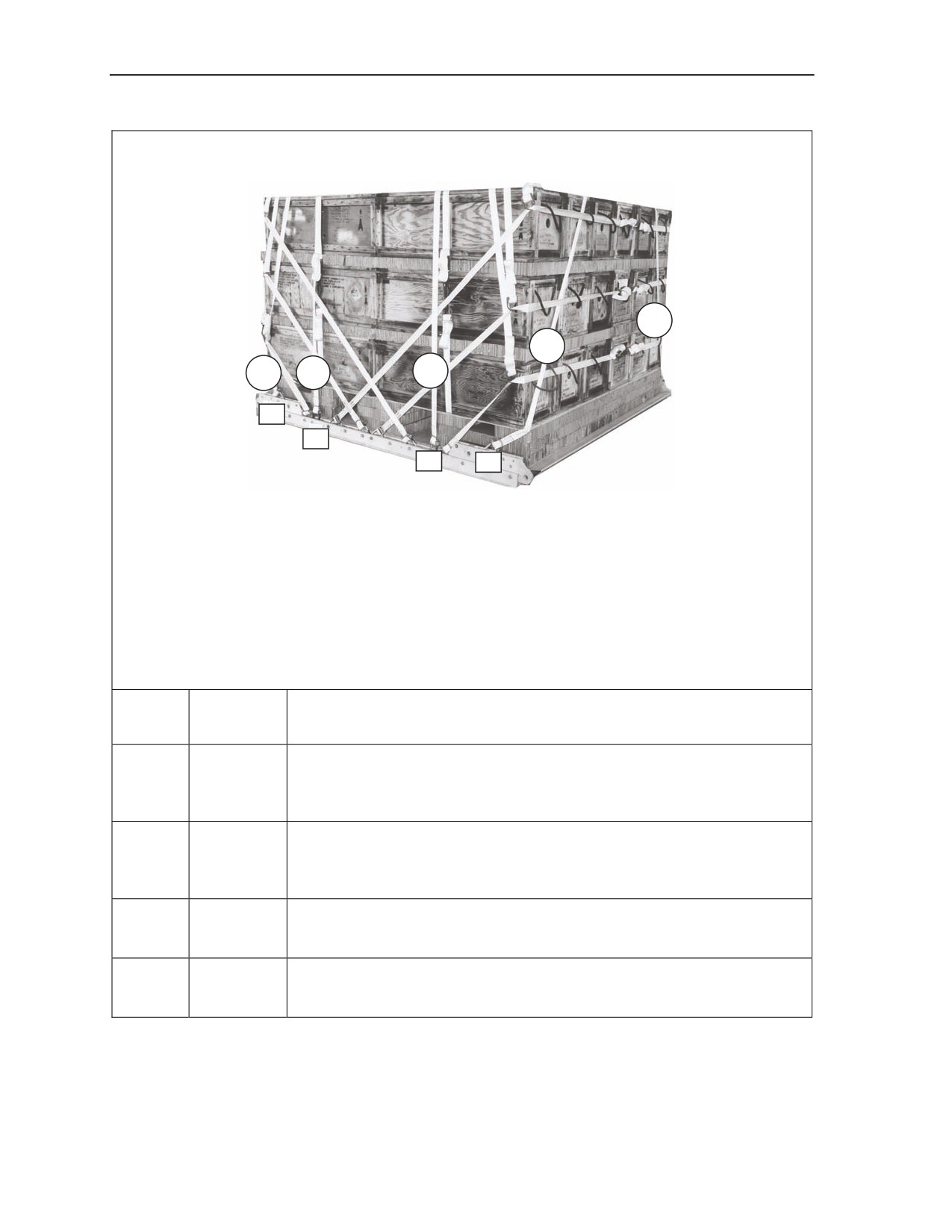

Figure 2-9. Lashings 7 through 10 Installed
2-10
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING SUSPENSION SLINGS AND DEADMAN’S TIE
2-6. Install and safety four 16-foot (2-loop), type XXVI nylon slings and four large clevises. Attach each
suspension sling to a clevis and attach one clevis to all four tandem links as shown in Figure 2-10.
1
3
2
1. Attach one 16-foot (2-loop), type XXVI nylon suspension sling to a large suspension clevis.
Attach the clevis to one of the tandem links. Repeat the same procedure for the other three
tandem links.
2. Use four pieces of felt padding (approximately 18 by 6 inches) to pad the slings. Secure
the felt to the sling with type III nylon cord and cloth back tape.
3. Raise the suspension slings above the load, and install a deadman’s tie as outlined in FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.

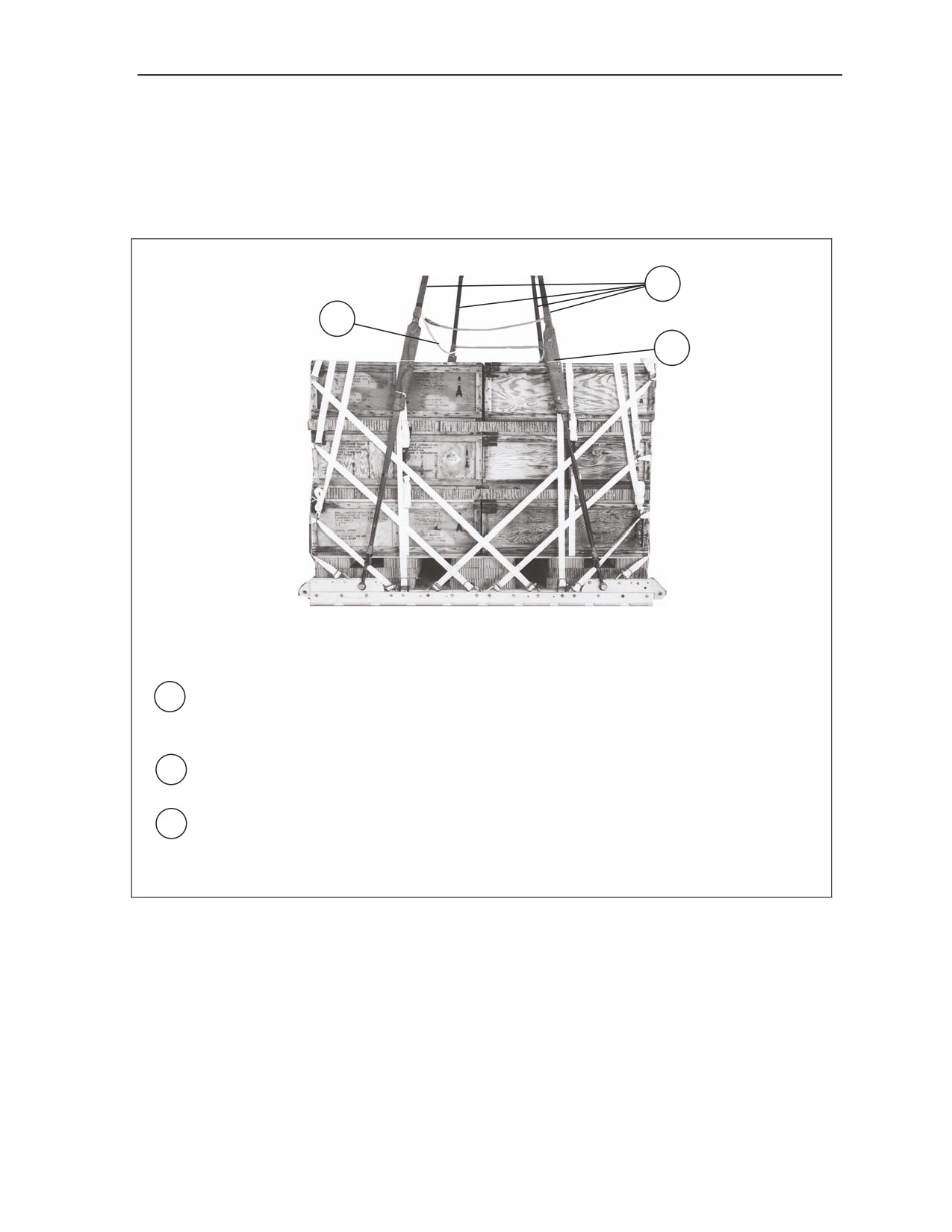

Figure 2-10. Suspension Slings and Deadman’s Tie Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-11
Chapter 2
STOWING CARGO PARACHUTE
2-7. Stow one G-11B cargo parachute as outlined in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figure 2-11.
Note. Use a 12-foot (2-loop), type XXVI nylon sling as a deployment line.
1
1. Prepare, place, and secure one G-11B cargo parachute according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.

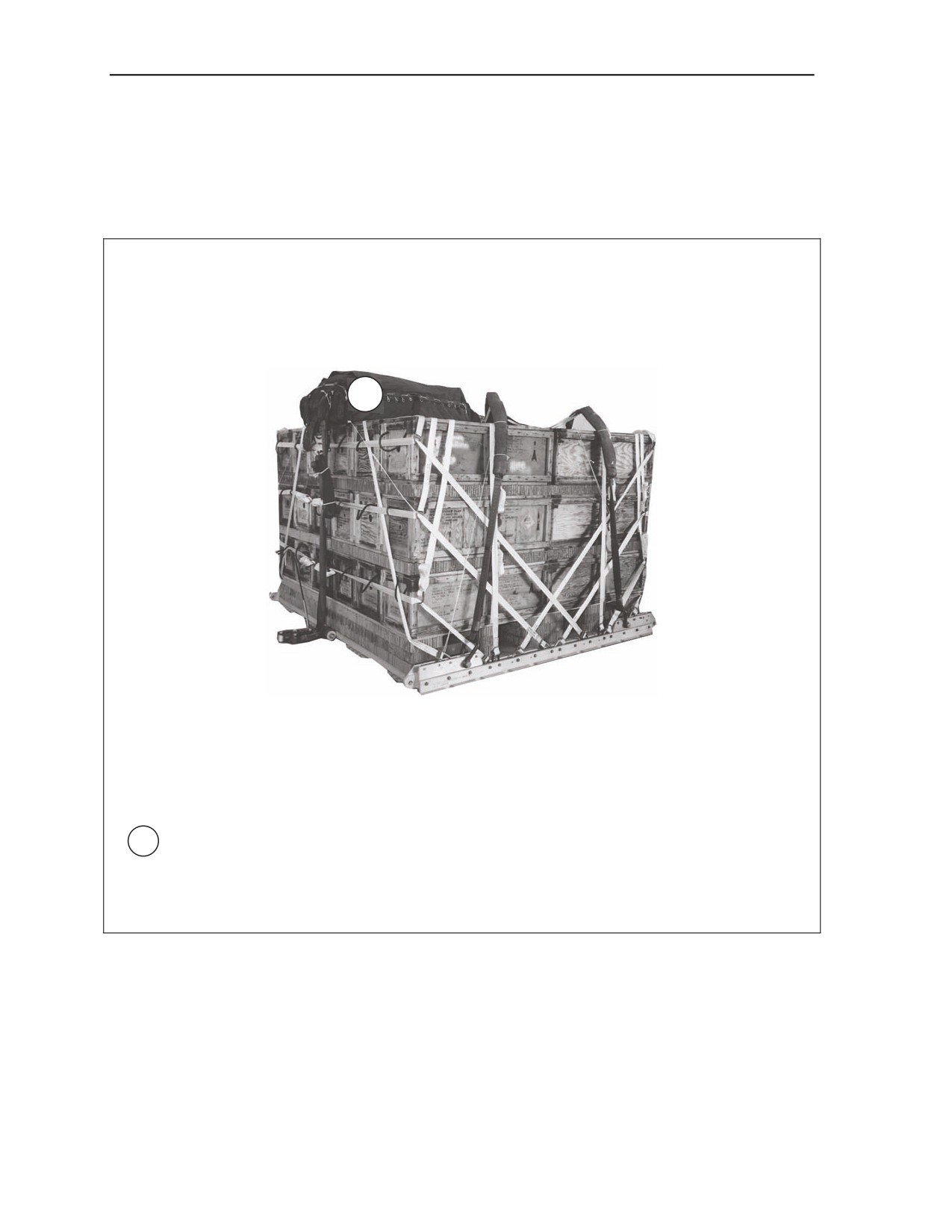

Figure 2-11. Cargo Parachute Stowed and Secured to Load
2-12
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING EXTRACTION SYSTEM
2-8. Attach the components of the Extraction Force Transfer Coupling (EFTC) according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-12.
1
3
2
1. Install the EFTC mounting brackets to the front mounting holes in the left platform rail.
Install the EFTC actuator assembly according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
2. Attach a 12-foot cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Safety the cable to the lashing with type I, 1/4-inch cotton
webbing.
3. Attach a 12-foot (2-loop), type XXVI nylon sling as a deployment line to the load. Bolt it to
the latch assembly on the right spacer. S-fold the excess deployment line and secure the
folds with type I, 1/4-inch cotton webbing.

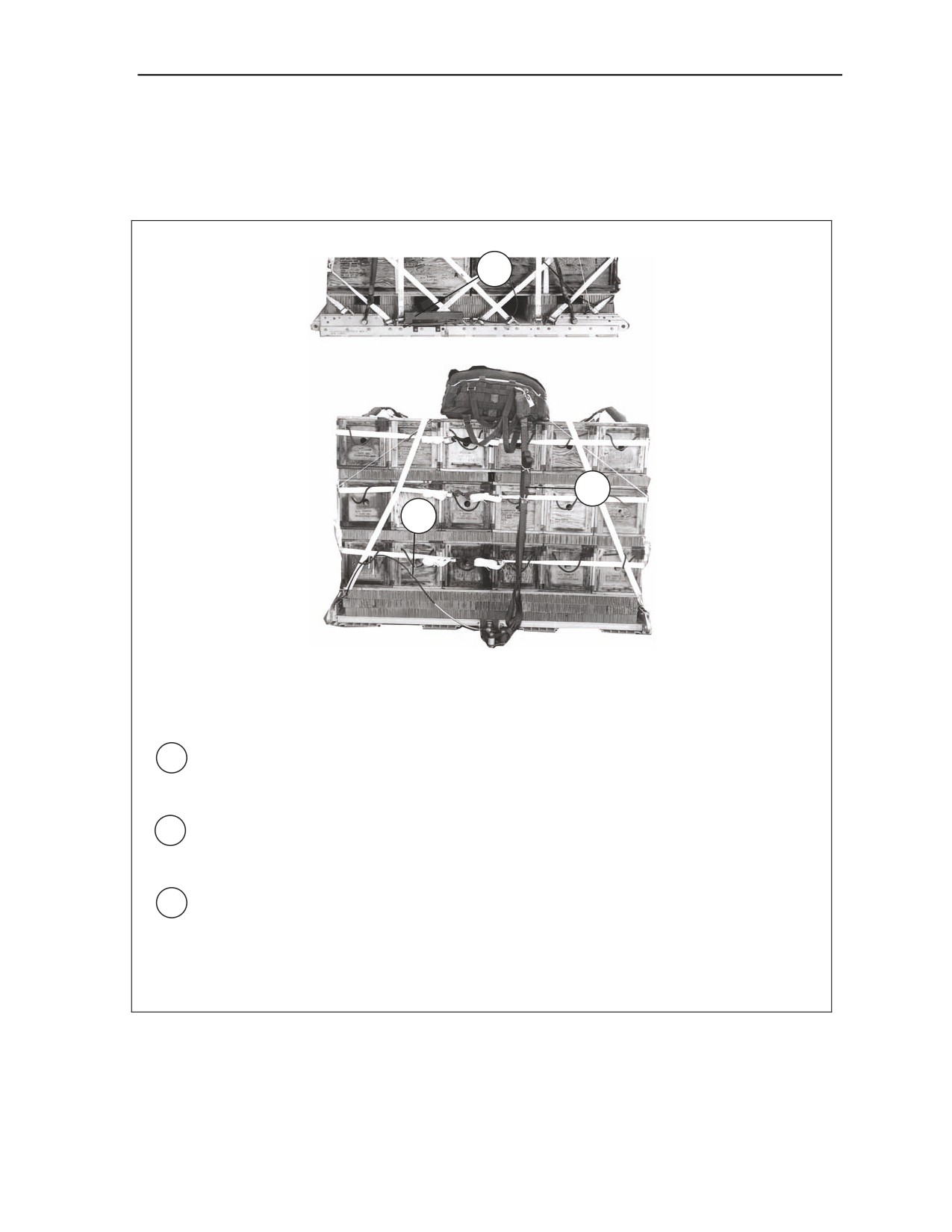

Figure 2-12. EFTC Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-13
Chapter 2
INSTALLING PARACHUTE RELEASE
2-9. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-13.
1
2
3
4
1. Position an 18- by 24-inch piece of honeycomb on top of the load, and secure the
honeycomb with type III nylon cord.
2. Place the M-1 release on top of the honeycomb, and attach the suspension slings and the
parachute riser extensions.
3. Secure the M-1 release to the load with type III nylon cord.
4. S-fold and tape or tie any excess suspension slings.

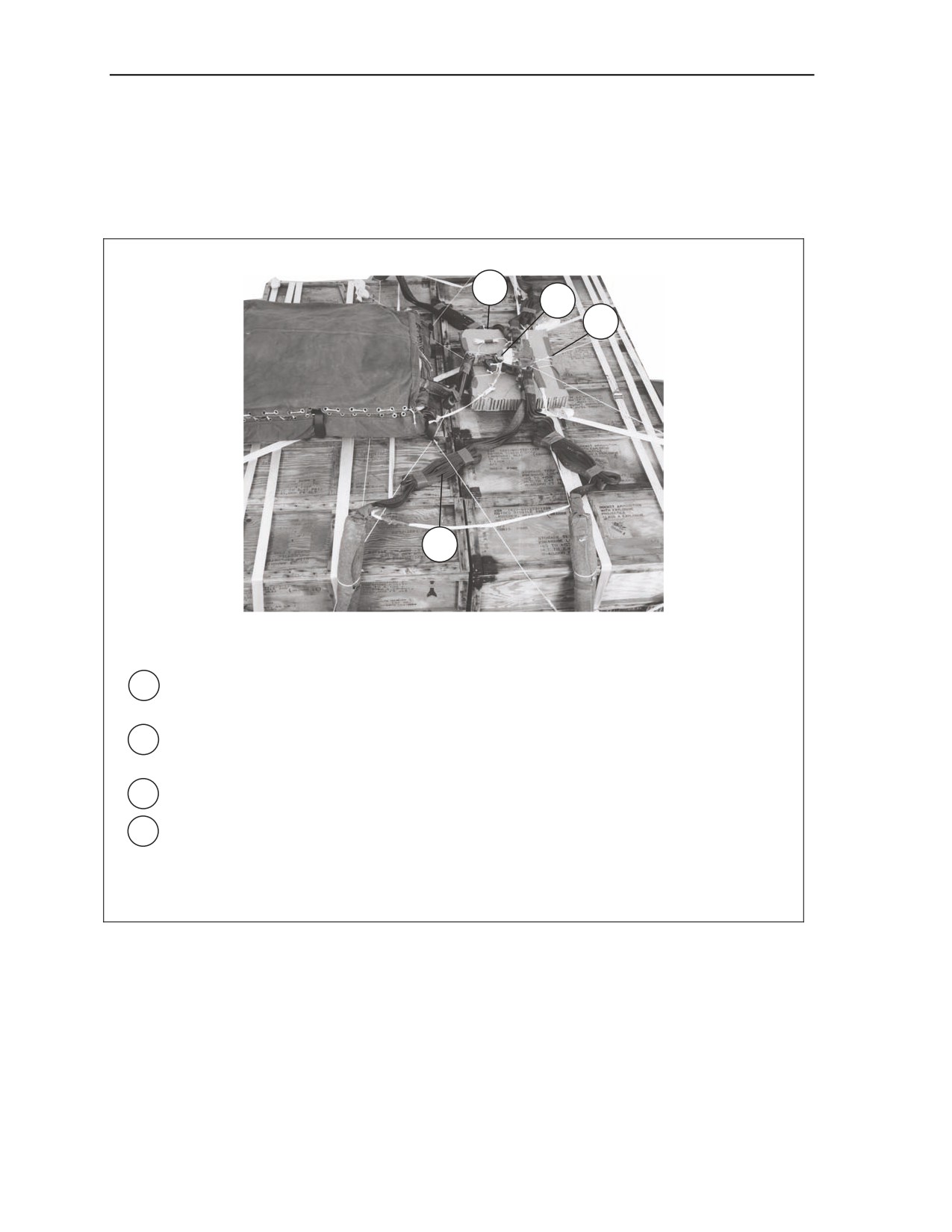

Figure 2-13. M-1 Cargo Parachute Release Installed
2-14
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
PLACING EXTRACTION PARACHUTE
2-10. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
2-11. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
2-12. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 2-14. Complete Declaration for Dangerous Goods. If the load
varies from the one shown, the weight, height, CB, and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
2-13. Use the equipment listed in Table 2-1 to rig this load.
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-15
Chapter 2
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
3,960 pounds
Height
83 inches
Width
108 inches
Overall Length
96 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of the platform)
50 inches
Extraction System with 12-foot cable (adds 18 inches to length of platform)
EFTC

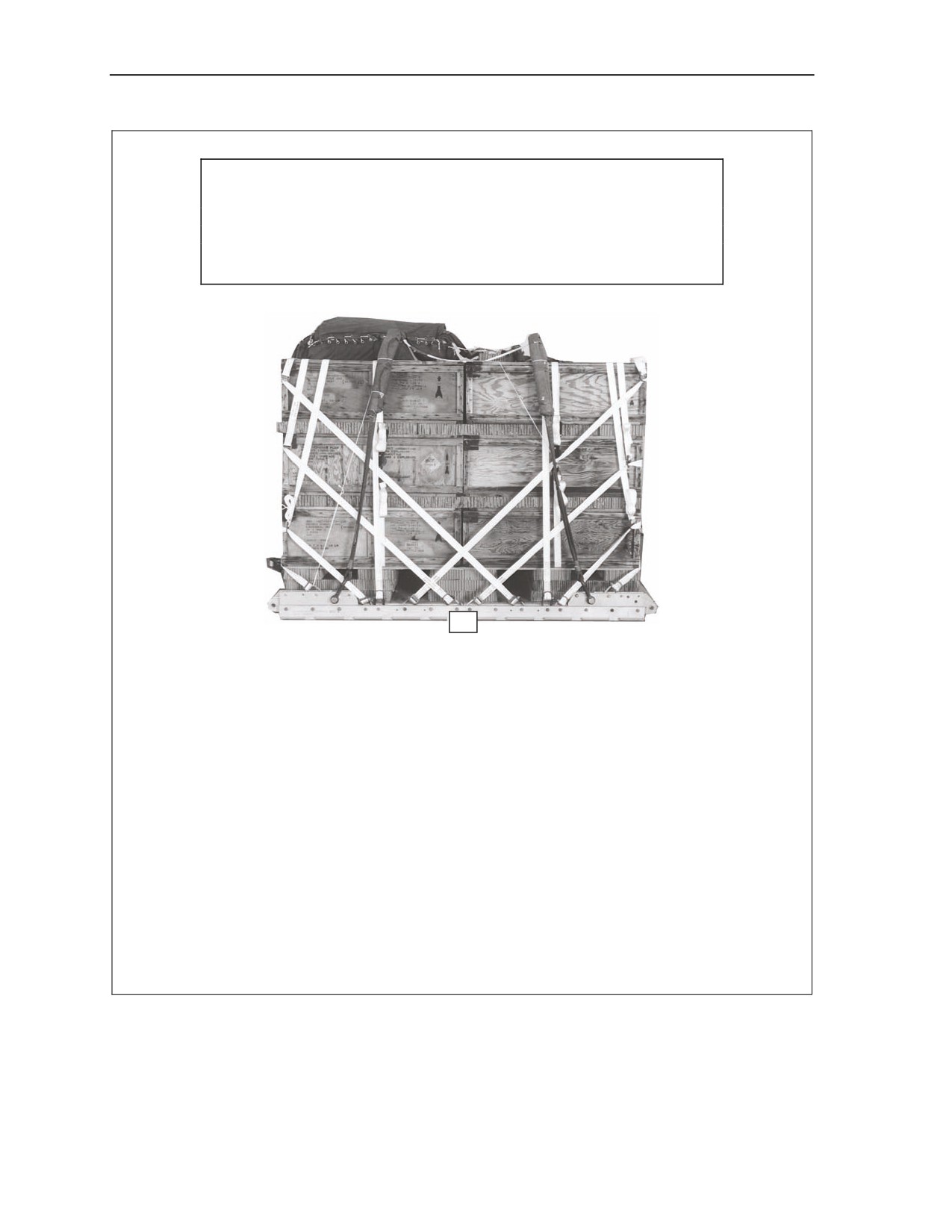

Figure 2-14. Thirty-Six One-Round Containers Rigged on an 8-Foot, Type V Platform for Low-
Velocity Airdrop
2-16
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
Table 2-1. Equipment Required for Rigging 36 One-Round Dragon or Dragon II Missile
Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
2
4030-00-090-5354
1-inch (large)
5
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5783
Coupling, airdrop, extraction force transfer with
1
12-foot cable
1670-00-360-0328
Cover, clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-958-3685
Felt, 1/2-inch thick
As required
1670-01-183-2678
Leaf, extraction line
1
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (1-loop)
1
Or
1670-01-107-7652
160-foot (1-loop)
1
1670-01-064-4452
60-foot (1-loop), type XXVI for C-17 drogue line
1
Link assembly, two-point:
5306-00-435-8994
Bolt, 1-inch diameter, 4-inch long
1
5310-00-232-5165
Nut, 1-inch, hexagonal
1
1670-00-003-1953
Plate, side 3 3/4-inch
1
5365-00-007-3414
Spacer, large
1
1670-00-753-3928
Pad, energy-dissipating, honeycomb
9 sheets
Parachute:
1670-01-016-7841
Cargo, G-11B
1
1670-01-063-3715
Cargo, extraction, 15-foot
1
Platform, airdrop, type V, 8-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2376
Bracket assembly, extraction
1
1670-01-162-2372
Clevis assembly
20
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
2 sheets
1670-01-097-8816
Release, cargo parachute, M-1
1
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-17
Chapter 2
Table 2-1. Equipment Required for Rigging 36 One-Round Dragon or Dragon II Missile
Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
For deployment line:
1670-00-753-3792
12-foot (2-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6301
3-foot (2-loop), type XXVI nylon webbing
4
For suspension:
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
4
Strap parachute release, multicut
1670-00-040-8219
1
Tape, adhesive, 2-inch
7515-00-266-5016
As required
Tape, masking
7501-00-266-6710
As required
Tie-down assembly, 15-foot
1670-00-937-0271
36
Towplate release mechanism (H-block) (C-17)
1670-01-483-8259
1
Webbing:
Cotton, 1/4-inch, type I
8305-00-268-2411
As required
Nylon:
Tubular, 1/2-inch
8305-00-082-5752
As required
Type VIII webbing
8305-00-263-3591
As required
2-18
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
SECTION II-RIGGING FOUR 15-ROUND CONTAINERS
DESCRIPTION OF LOAD
2-14. Four Dragon or Dragon II missiles in 15-round containers are rigged on an 8-foot, type V airdrop
platform with one G-11 cargo parachute for low-velocity airdrop (LVAD) from a C-130 or C-17 aircraft.
Each container is 49 inches long, 37 inches wide, 67 inches high, and weighs 695 pounds.
PREPARING PLATFORM
2-15. Prepare an 8-foot airdrop platform as shown in Figure 2-15.
CLEVISES
10A THROUGH 1A
REAR
FRONT
CLEVISES
10 THROUGH 1
Step:
1.
Inspect, or assemble and inspect, an 8-foot, type V platform as outlined in TM 10-
1670-268-20&P/TO 13C7-52-22.
2.
Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3.
Install a tandem link to the rear of each platform side rail using holes 14, 15, and 16.
4.
Install clevises on bushing 3 of each front tandem link.
5.
Install clevises on bushing 3 of each rear tandem link.
6.
Starting at the front of the right platform side rail, install clevises on the bushings bolted
to holes 4, 5, 6, 8, 9, 11, 12, and 13. Repeat for the left side.
7.
Starting at the front of the platform, number the clevises 1 through 10 on the right side,
and 1A through 10A on the left side.
8.
Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 2-15. Platform Prepared
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-19
Chapter 2
BUILDING AND PLACING HONEYCOMB STACKS
2-16. Prepare and position the honeycomb stacks as shown in Figure 2-16.
Notes.
1. Measurements from the front of the platform are taken from the front edge of the first
panel.
2. Measurements from the rear edge of the platform are taken from the rear edge of the last
panel.
STACK 2
STACK 3
STACK 1
3
2
1
1. Build the first stack by using the following pieces of honeycomb, and position the
honeycomb flush with the front edge of the platform.
4 pieces
10- by 80-inches
(1st and 3rd layers)
2-pieces
10- by 60-inches
(2nd layer)
2 pieces
10- by 29-inches
(2nd layer bridge)
2. Build the second stack by using three pieces of honeycomb (18- by 80-inch). Center the
stack over the joint where the second and third panels join together and between the side
rails.
3. Build the third stack by repeating step 1 above, and position the honeycomb flush with the
rear edge of the platform.
Figure 2-16. Honeycomb Stacks Positioned
2-20
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
POSITIONING THE PLYWOOD
2-17. Position plywood on honeycomb stacks as shown in Figure 2-17.
1
1. Position four pieces of 3/4- by 48- by 76-inch plywood on the honeycomb stacks. Center
the plywood from left to right and front to rear.
Figure 2-17. Plywood Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-21
