Chapter 2
POSITIONING MISSILE CONTAINERS
2-18. Place four 15-round containers on the platform as shown in Figures 2-18 and 2-19.
CAUTION
Make sure the inspection port holes in the missile containers face
the front and rear of the platform: the inspection port holes face the
rear of the platform in the container groups.
1
1. Place a 15-round missile container on the platform with the container overhanging the front
edge of the platform by 1 inch.
Figure 2-18. First Missile Container Positioned
2-22
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
1
2
1. Position the second and third containers on the platform with the containers overhanging
the front and rear edges of the platform.
2. Place the fourth container on the platform with the container overhanging the rear edge of
the platform by 1 inch.

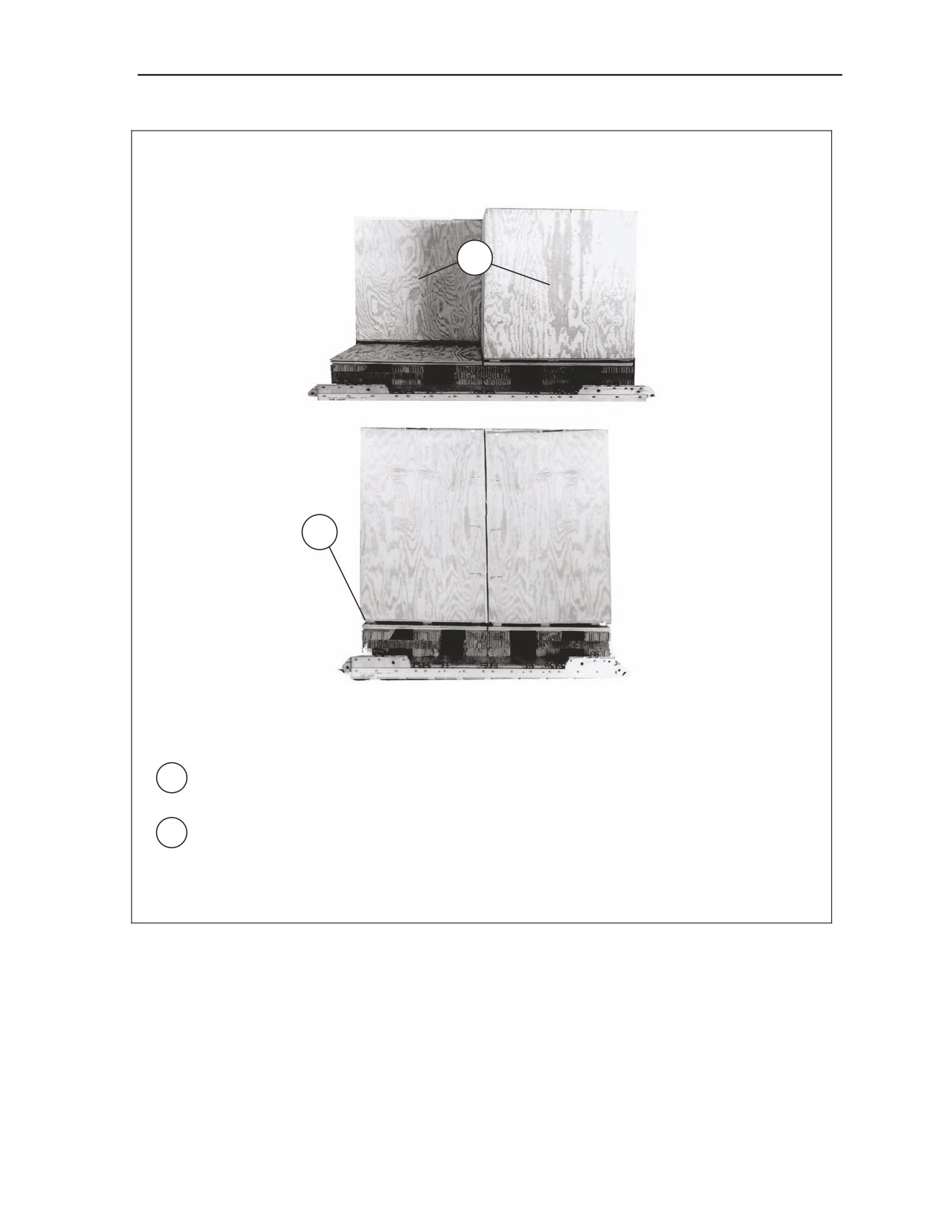

Figure 2-19. Missile Containers 2, 3, and 4 Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-23
Chapter 2
POSITIONING AND LASHING MISSILE CONTAINERS
2-19. Position the lashings as shown in Figure 2-20 and lash the containers to the platform as shown in
Figures
2-21 through
2-23. Install and safety the lashings as outlined in FM
4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Note: All dimensions are in inches.
1
16 1/4
2
32 1/2
48 3/4
1. Form two 30-foot lashings as outlined in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Lay two 15-foot lashings and one 30-foot lashing across both the
front and rear edges of the container groups.
2. Fit a D-ring to each lashing, and adjust the length of the lashings and D-rings at intervals of
16 1/4 inches from the top of containers.

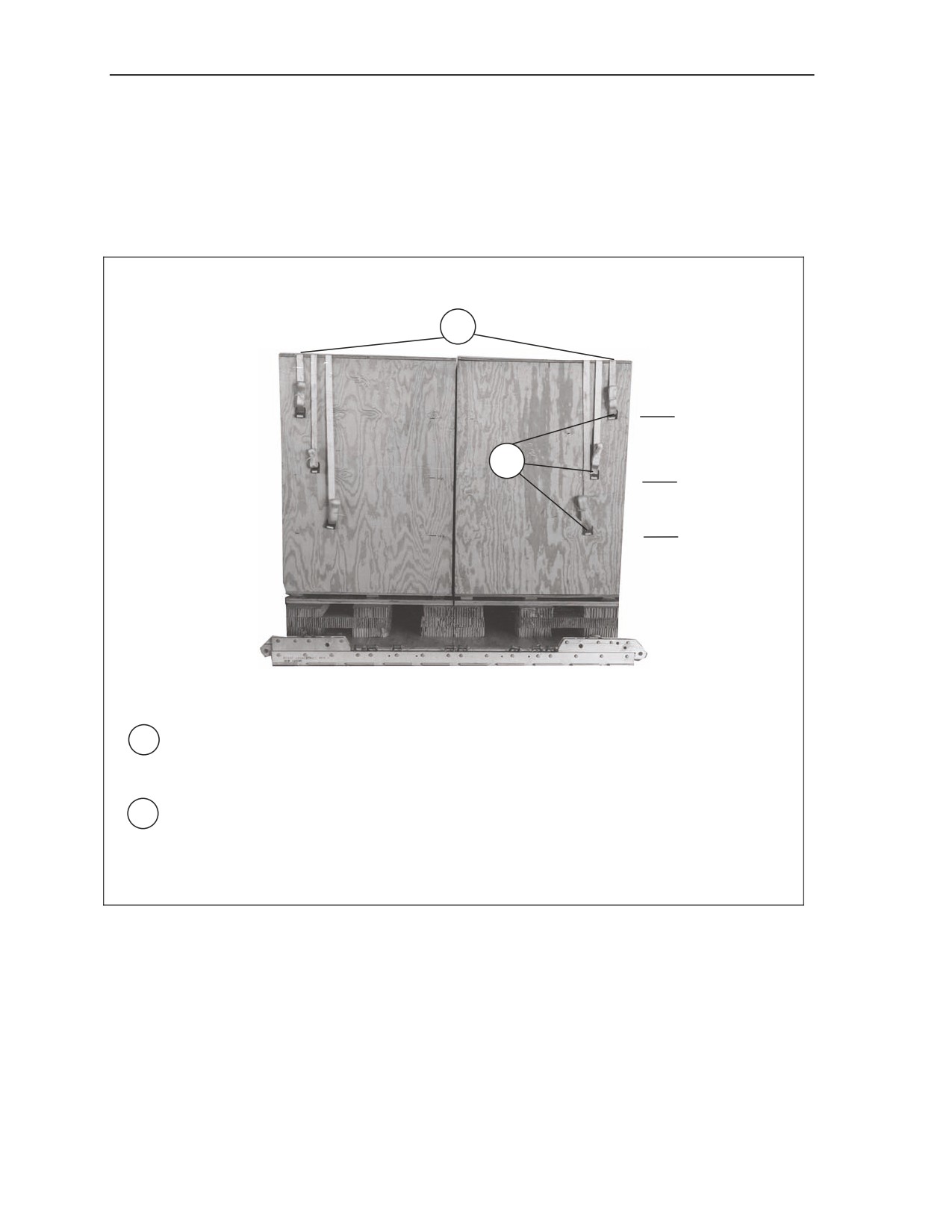

Figure 2-20. Lashings Installed
2-24
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
3
2
1
7
5
2
Lashing
Tiedown
Instructions
Number
Clevis
Number

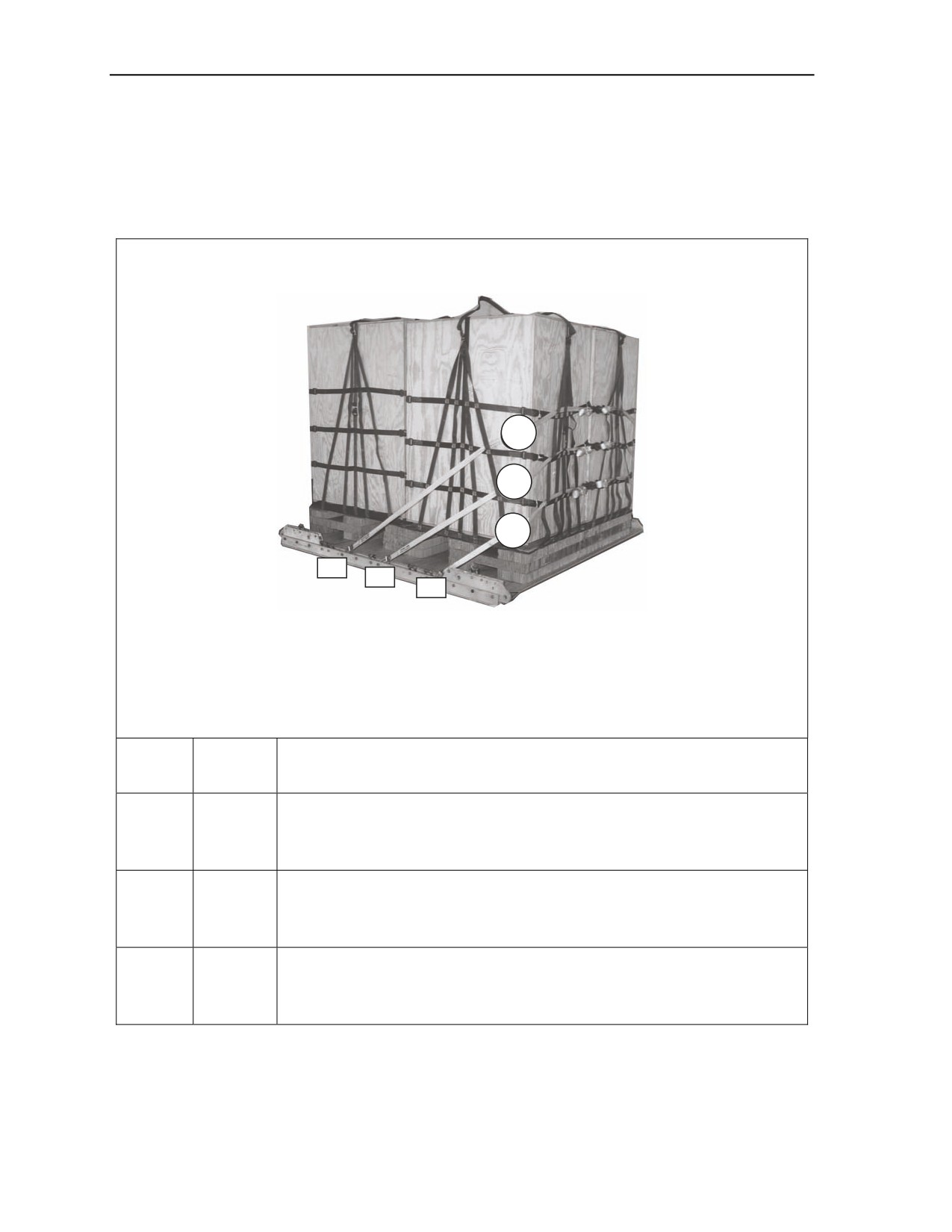

1
2 and 2A
Route a 15-foot lashing from clevis 2 and a 15-foot lashing from clevis 2A.
Pass the lashings through the D-rings. Secure the lashings on the front
using two D-rings and a load binder.
2
5 and 5A
Route a 15-foot lashing from clevis 5 and a 15-foot lashing from clevis 5A.
Pass the lashings through the D-rings. Secure the lashings on the front
using two D-rings and a load binder.
3
7 and 7A
Route a 15-foot lashing from clevis 7 and a 15-foot lashing from clevis 7A.
Pass the lashings through the D-rings. Secure the lashings on the front
using two D-rings and a load binder.

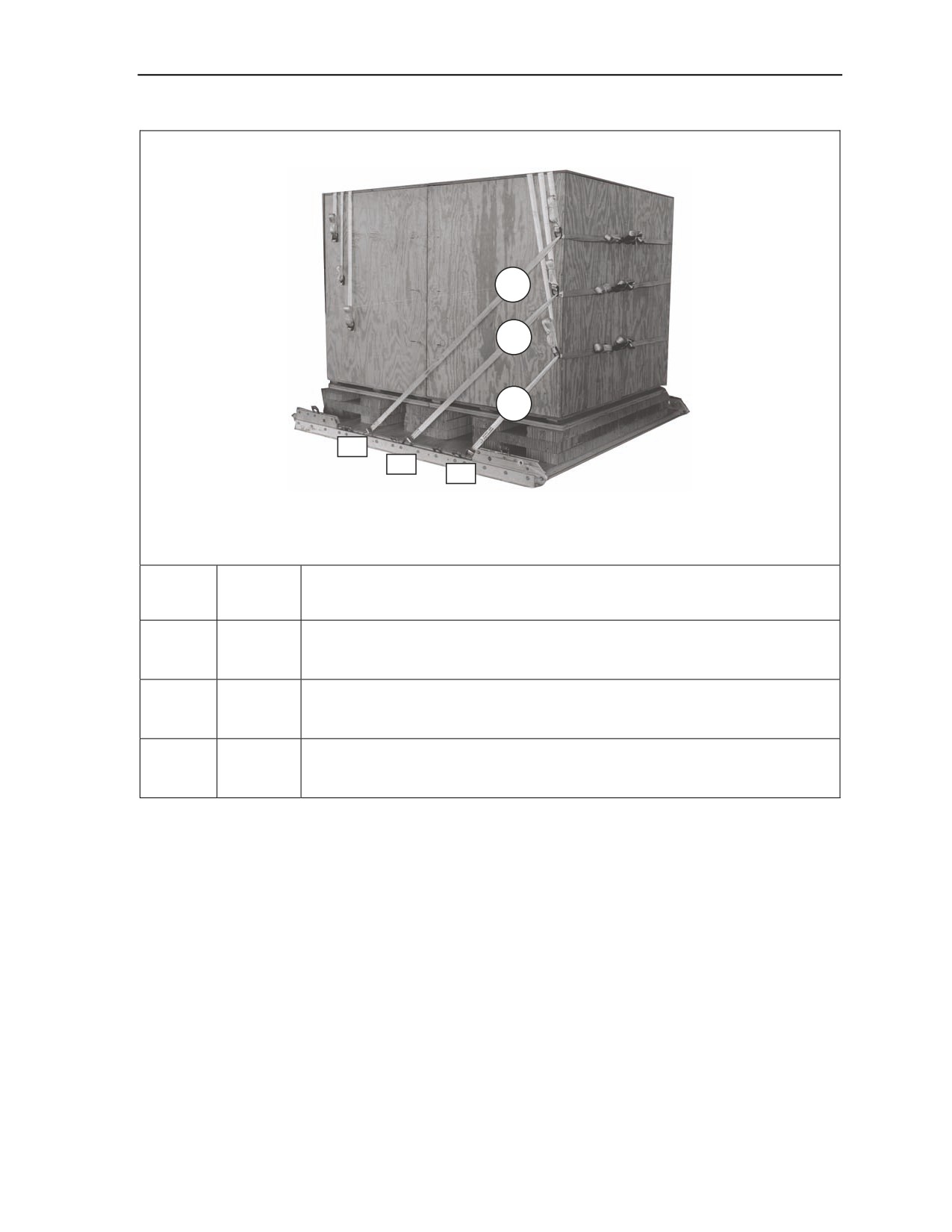

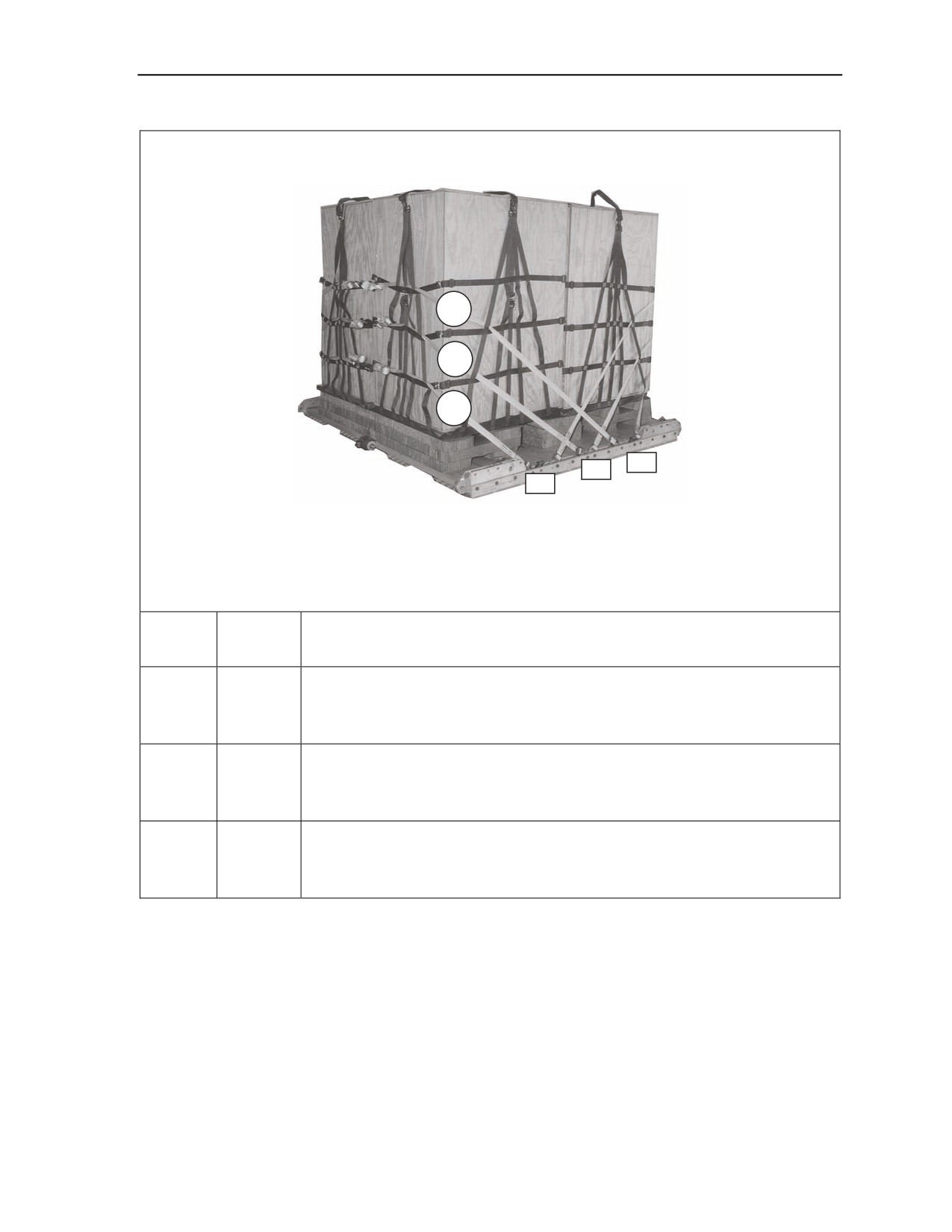

Figure 2-21. Lashings 1 Through 3 Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-25
Chapter 2
4
5
6
4
6
9
Lashing
Tiedown
Instructions
Number
Clevis
Number

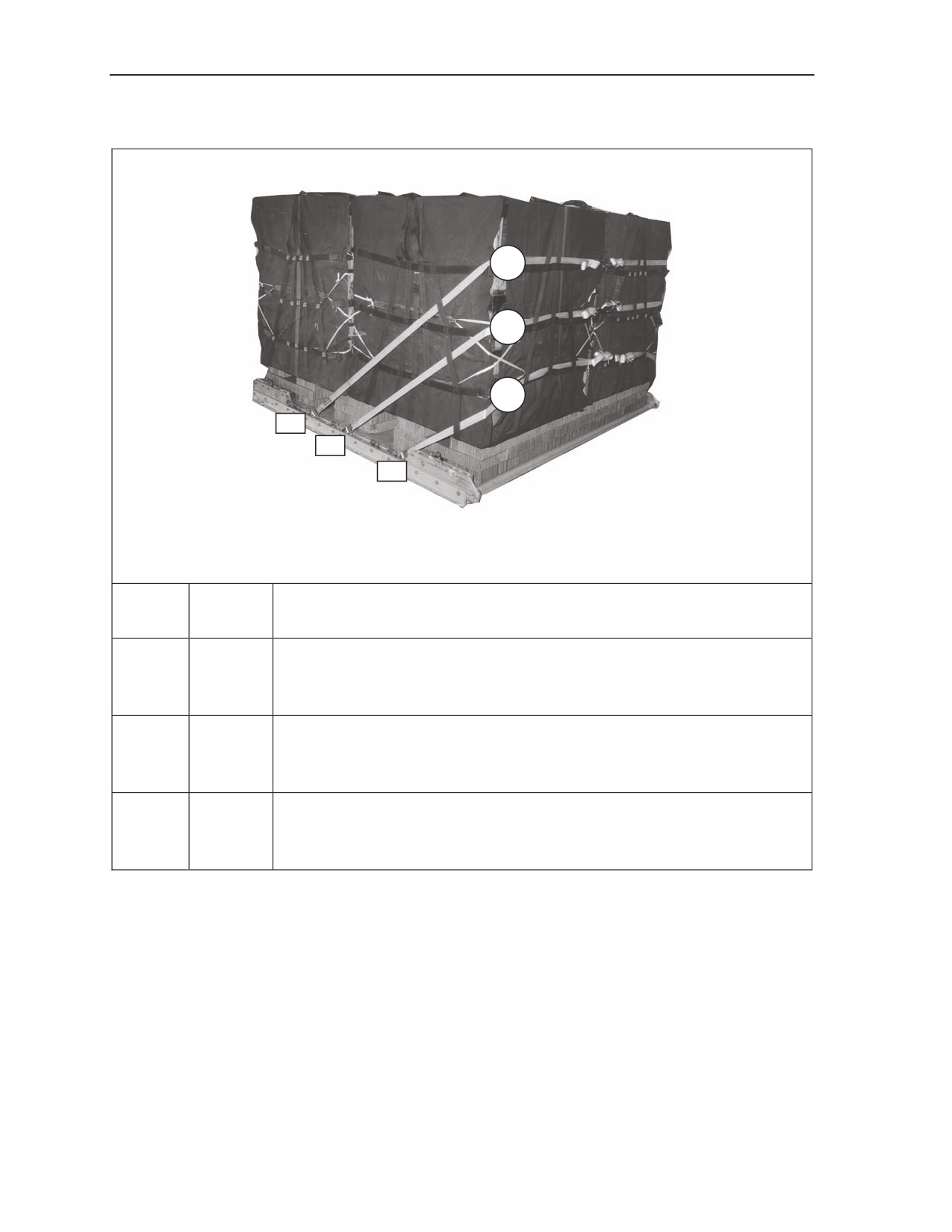

4
4 and 4A
Route a 15-foot lashing from clevis 4 and a 15-foot lashing from clevis 4A.
Pass the lashings through the D-rings. Secure the lashings on the rear
using two D-rings and a load binder.
5
6 and 6A
Route a 15-foot lashing from clevis 6 and a 15-foot lashing from clevis 6A.
Pass the lashings through the D-rings. Secure the lashings on the rear
using two D-rings and a load binder.
6
9 and 9A
Route a 15-foot lashing from clevis 9 and a 15-foot lashing from clevis 9A.
Pass the lashings through the D-rings. Secure the lashings on the rear
using two D-rings and a load binder.

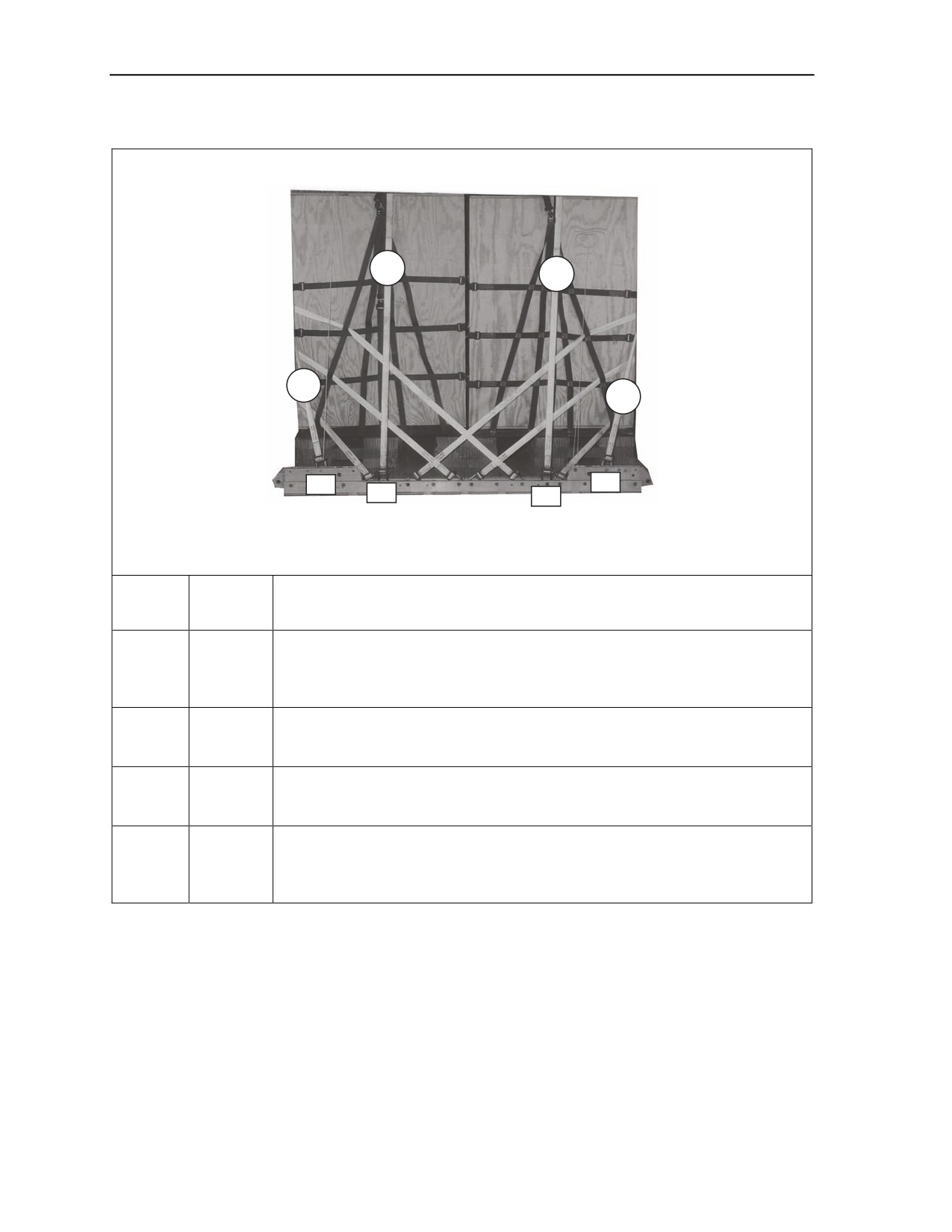

Figure 2-22. Lashings 4 Through 6 Installed
2-26
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
10
7
8
9
7
10
8
3
1
Lashing
Tiedown
Instructions
Number
Clevis
Number
7
10 and
Run a 15-foot lashing through clevis 10 and a 15-foot lashing from clevis
1A
1A. Pass the lashings around ends of the containers and up over the load.
Secure the lashings on the top using two D-rings and a load binder. Safety
the lashings to the bottom D-rings with type I, ¼-inch cotton webbing
8
8 and 8A
Run a 15-foot lashing through clevis 8 and a 15-foot lashing from clevis 8A.
Pass the lashings over the top of the load. Secure the lashings on the top
using two D-rings and a load binder.
9
3 and 3A
Run a 15-foot lashing through clevis 3 and a 15-foot lashing from clevis 3A.
Pass the lashings over the top of the load. Secure the lashings on the top
using two D-rings and a load binder.
10
1 and
Run a 15-foot lashing through clevis 1 and a 15-foot lashing from clevis
10A
10A. Pass the lashings around ends of the containers and up over the load.
Secure the lashings on the top using two D-rings and a load binder. Safety
the lashings to the bottom D-rings with type I, ¼-inch cotton webbing.
Figure 2-23. Lashings 7 Through 10 Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-27
Chapter 2
INSTALLING SUSPENSION SLINGS AND DEADMAN’S TIE
2-20. Install and safety four 16-foot (2-loop), type XXVI nylon slings and four large clevises as shown in
Figure 2-24.
3
4
2
1
1. Attach one 16-foot (2-loop), type XXVI nylon suspension sling to a large suspension clevis.
Attach the clevis to one of the tandem links. Repeat the same procedure for the other three
tandem links.
2. Use four pieces of felt padding (approximately 18 by 6-inches) to pad the slings. Secure
the felt to the sling with type III nylon cord and cloth back adhesive tape.
3. Raise the suspension slings above the load, and install a deadman’s tie as outlined in FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
4. Position two 36- by 96-inch pieces of honeycomb side by side on top of the load. Tape the
edges of the honeycomb and secure the honeycomb with type III nylon cord to convenient
places on the load.

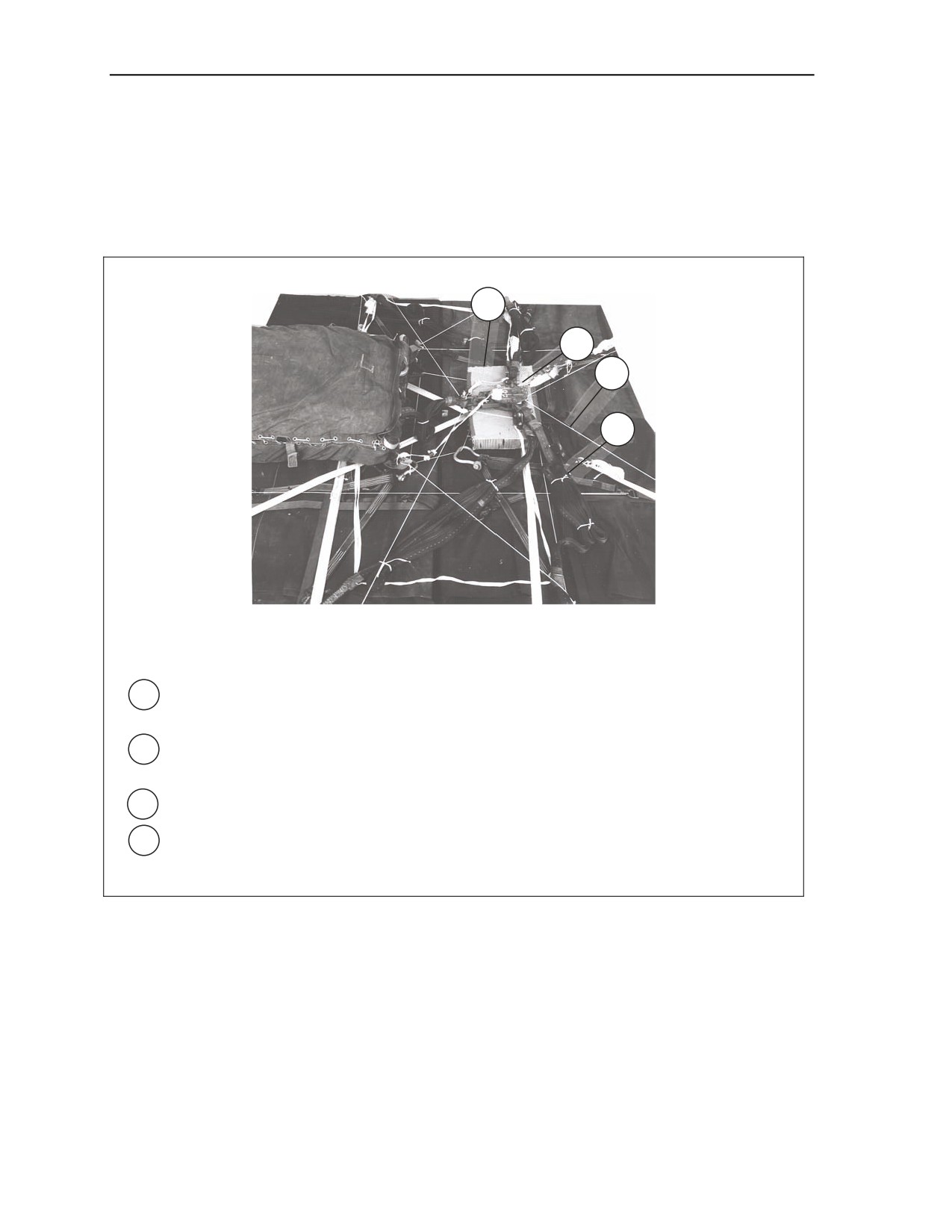

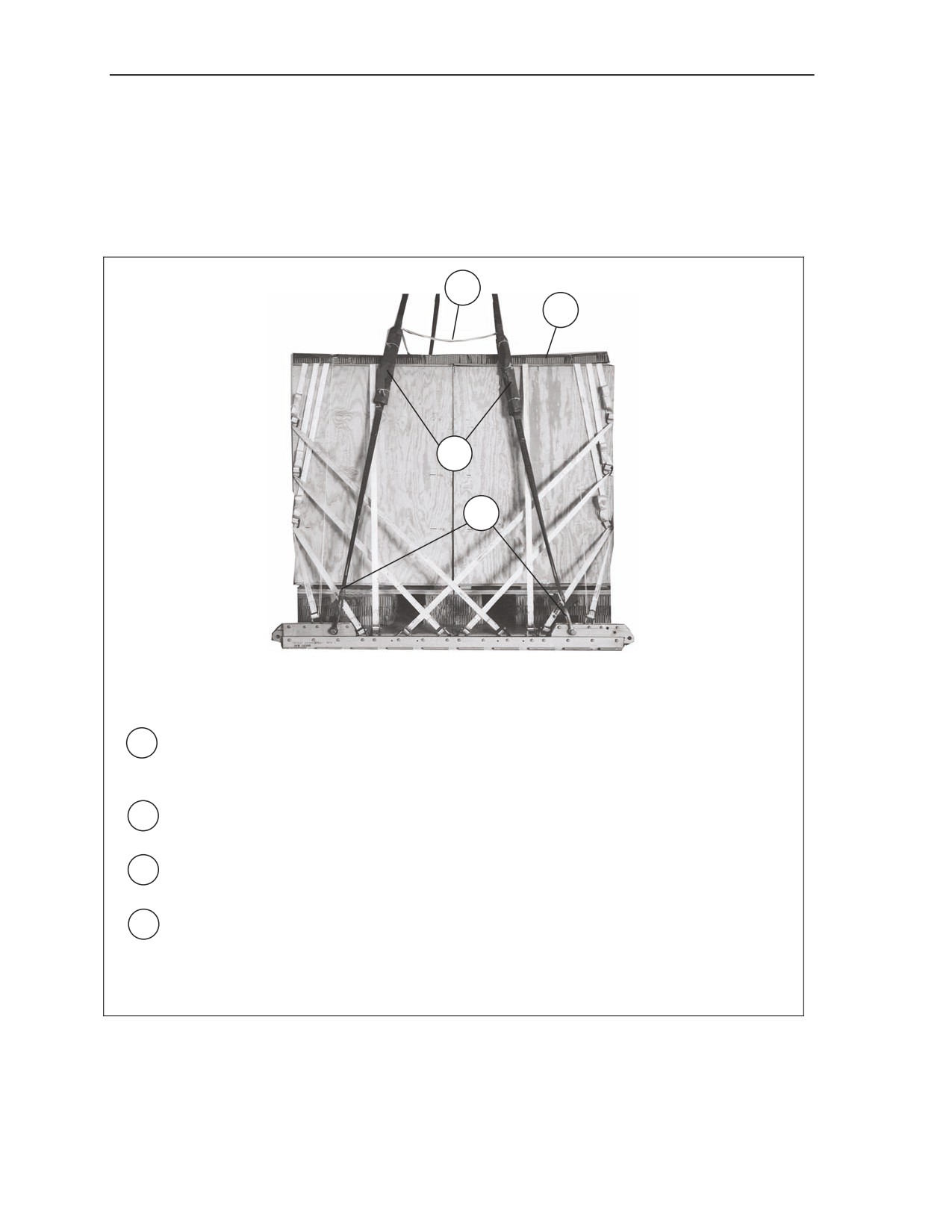

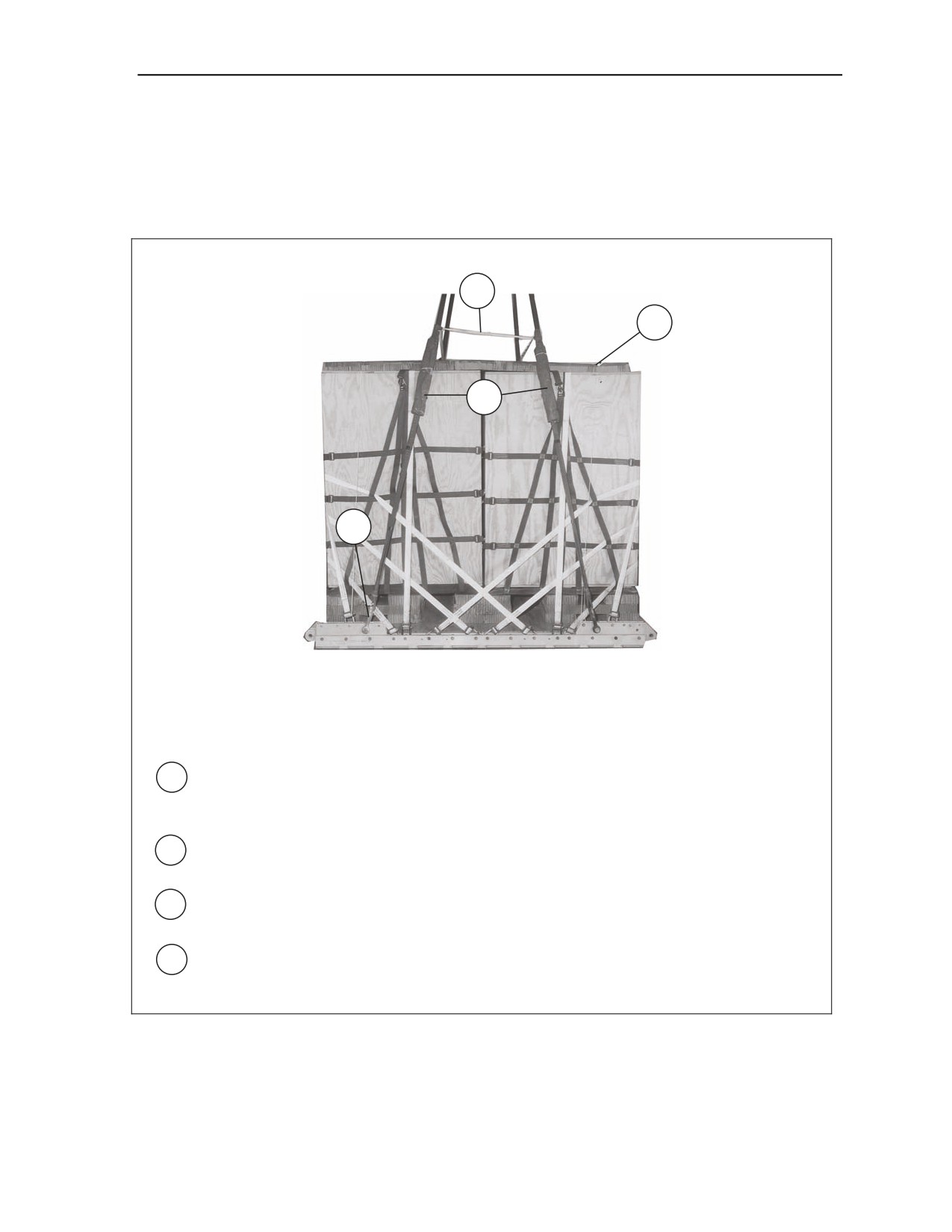

Figure 2-24. Suspension Slings and Deadman’s Tie Installed
2-28
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
STOWING CARGO PARACHUTE
2-21. Stow one G-11B cargo parachute according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figure 2-25.
1
2

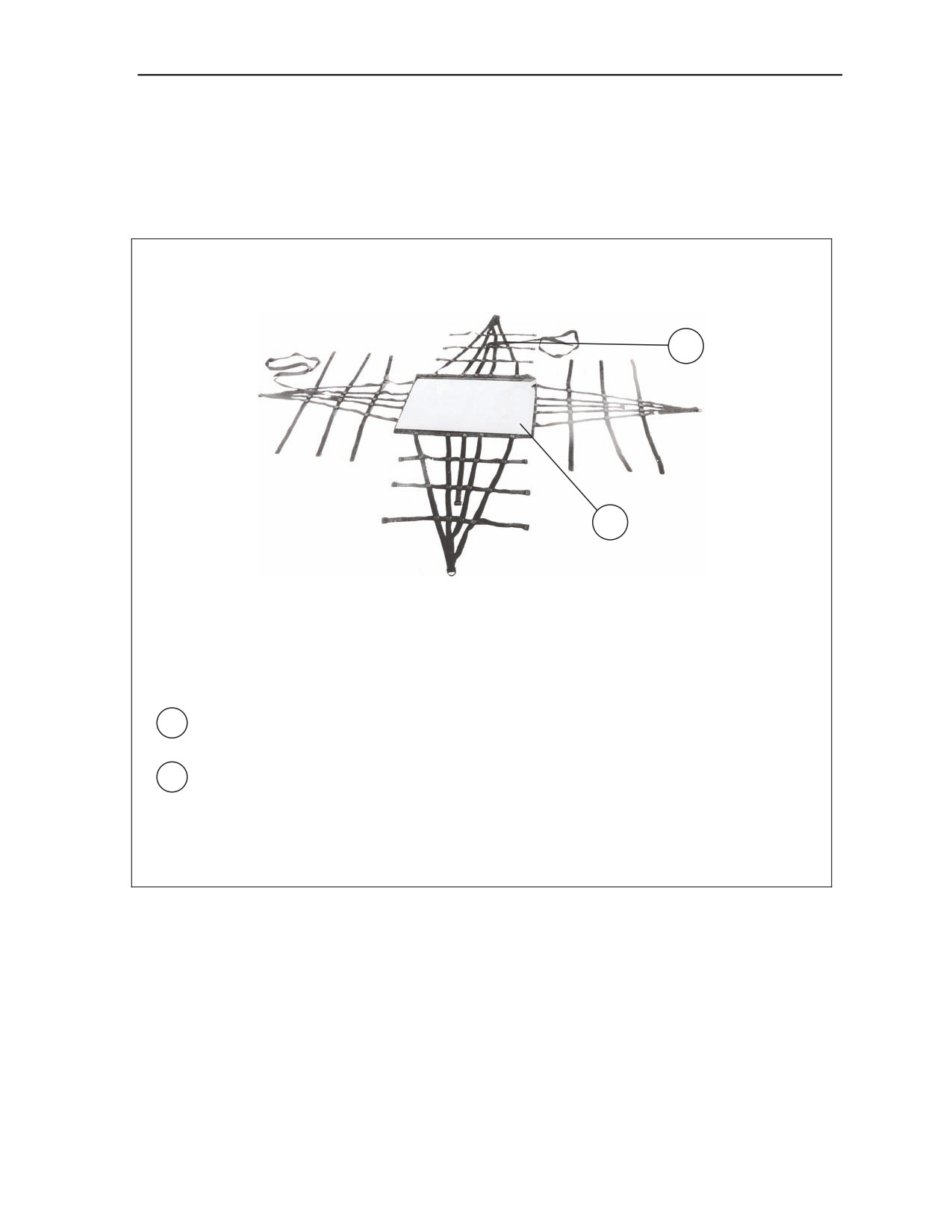

1. Prepare, place, and secure one G-11B cargo parachute according to FM 4-20.102/MCRP
4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2. Use a 12-foot (2-loop), type XXVI nylon sling as a deployment line. Bolt it to the latch
assembly on the right spacer. S-fold the slack and tie the folds with type I, 1/4-inch cotton
webbing.

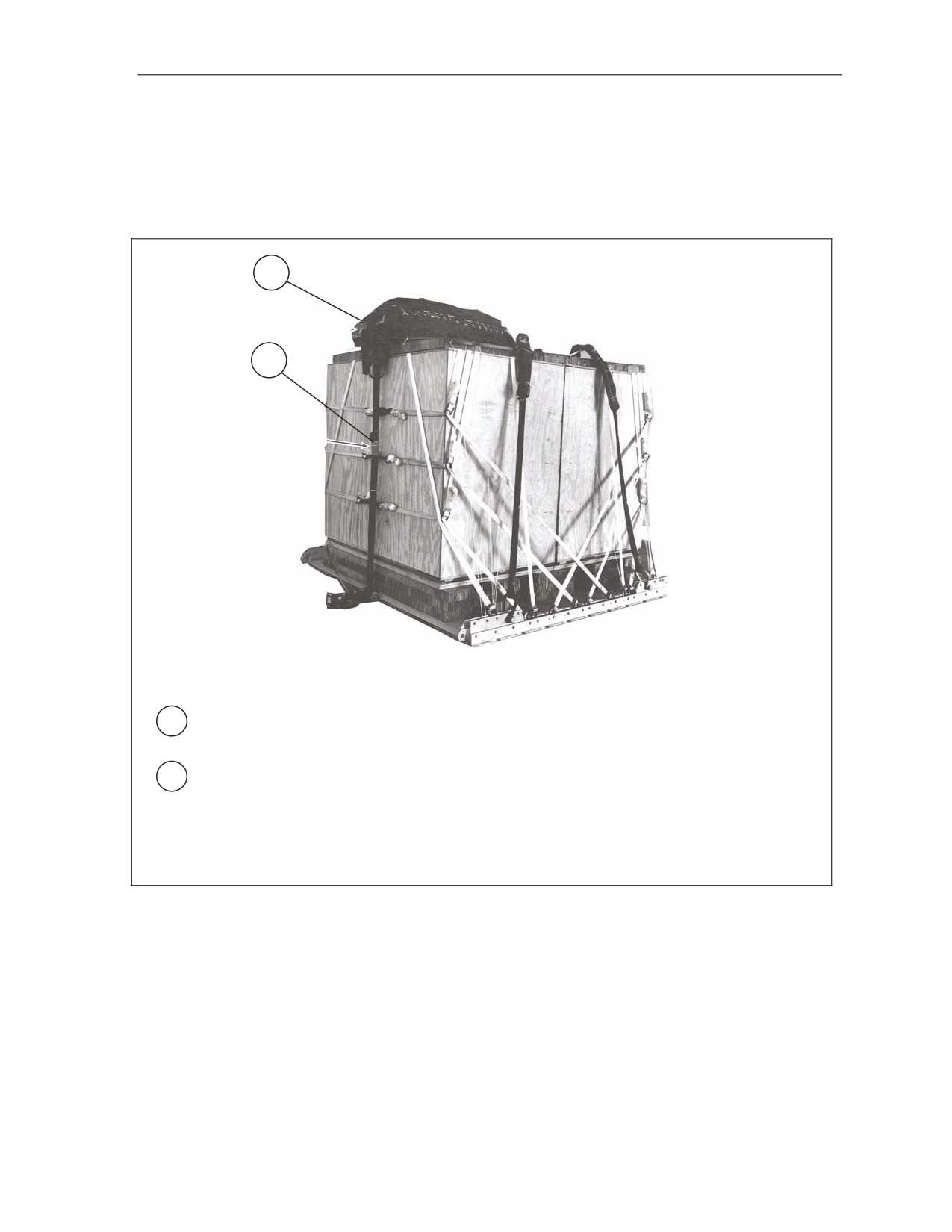

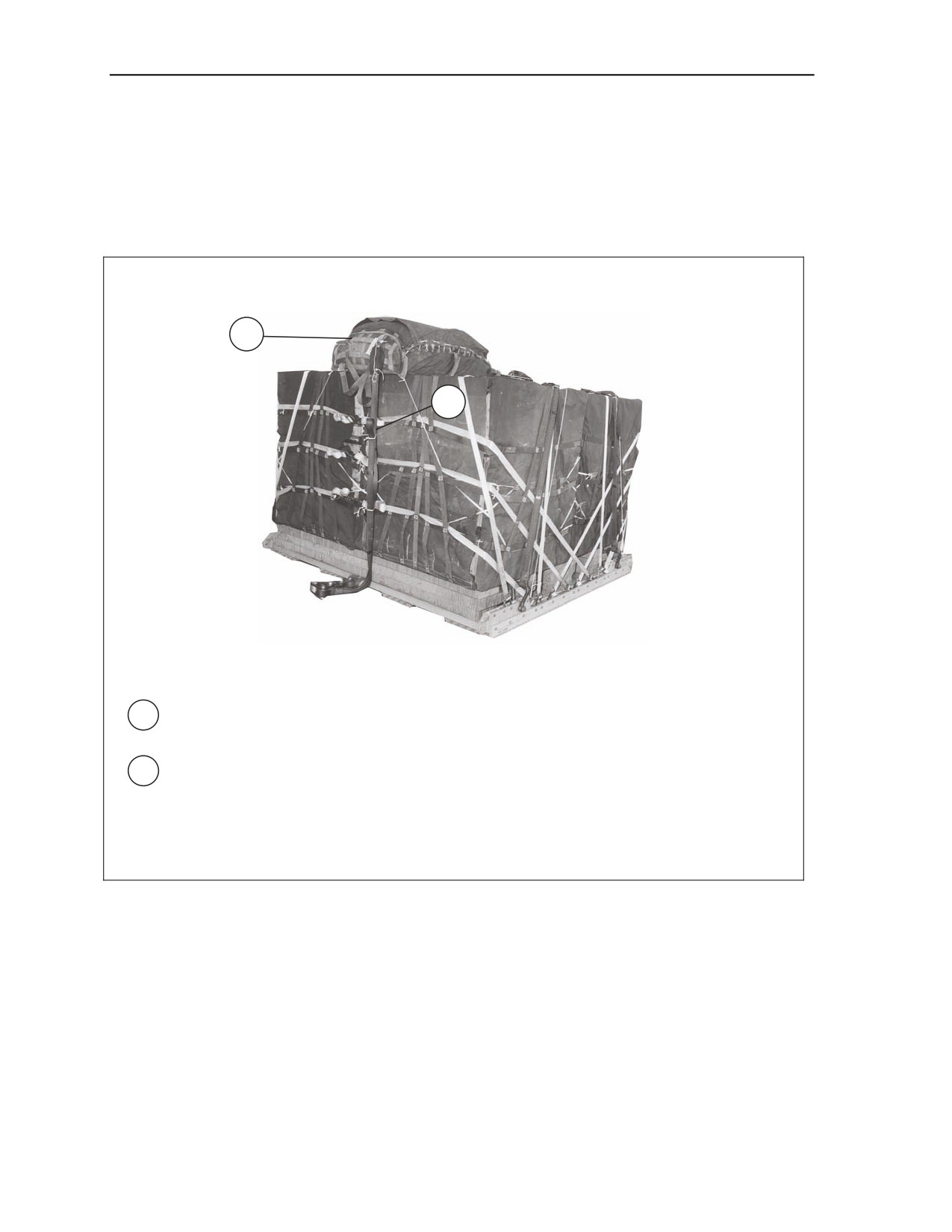

Figure 2-25. Cargo Parachute Stowed and Secured to Load
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-29
Chapter 2
INSTALLING EXTRACTION SYSTEM
2-22. Attach the EFTC according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5 and as shown in Figure 2-26.
2
1
1. Install the EFTC actuator mounting brackets to the front holes in the left platform rail. Install
the EFTC actuator assembly to the brackets according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2. Install a 12-foot cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Safety the cable to the lashing with type I, 1/4-inch cotton
webbing.

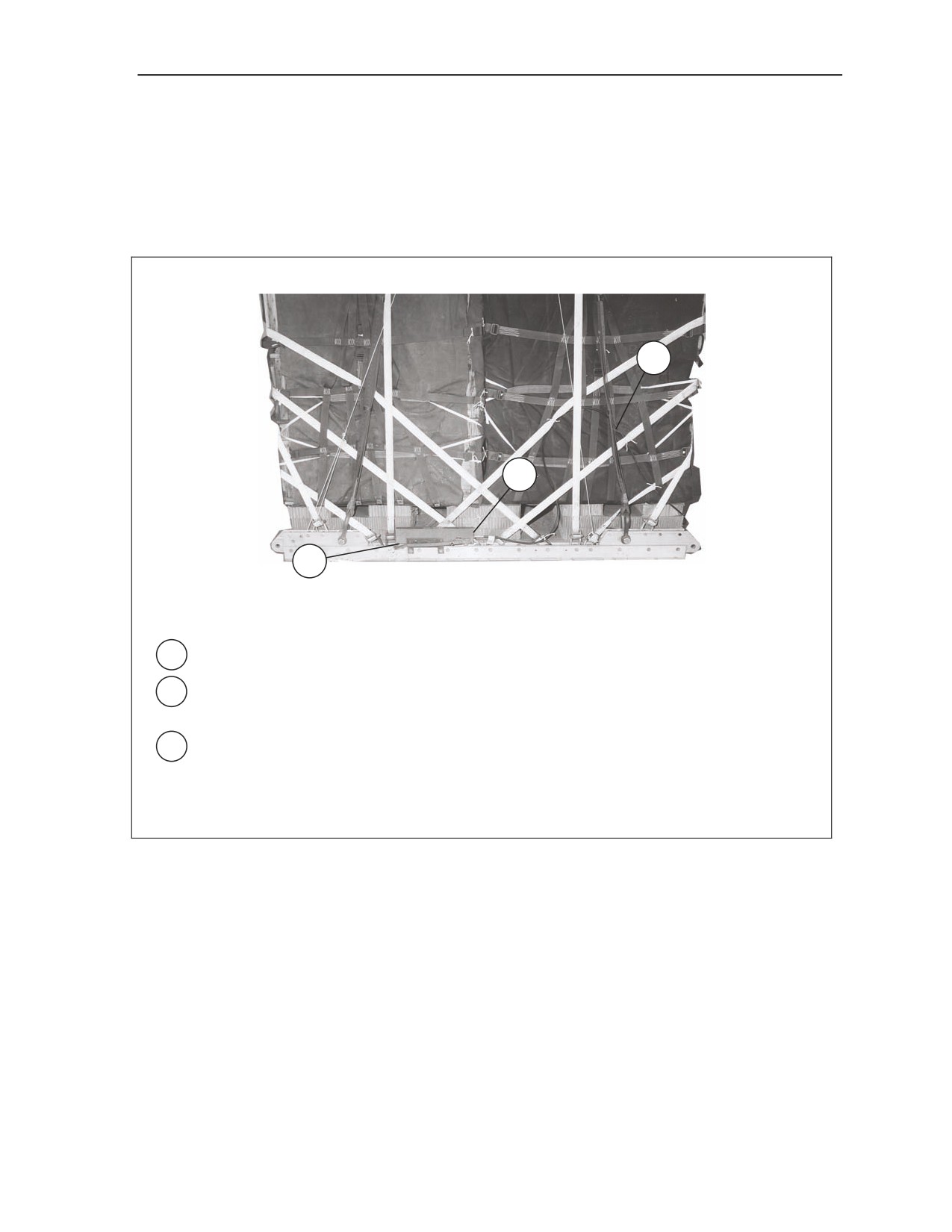

Figure 2-26. EFTC Installed
2-30
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING PARACHUTE RELEASE
2-23. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-27.
1
2
3
1. Prepare and install an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the M-1 release on top of the
honeycomb, and attach the suspension slings and the parachute riser extensions.
2. Secure the M-1 release to the load with type III nylon cord.
3. S-fold and tie any excess suspension slings. Secure with type I, 1/4-inch cotton webbing.

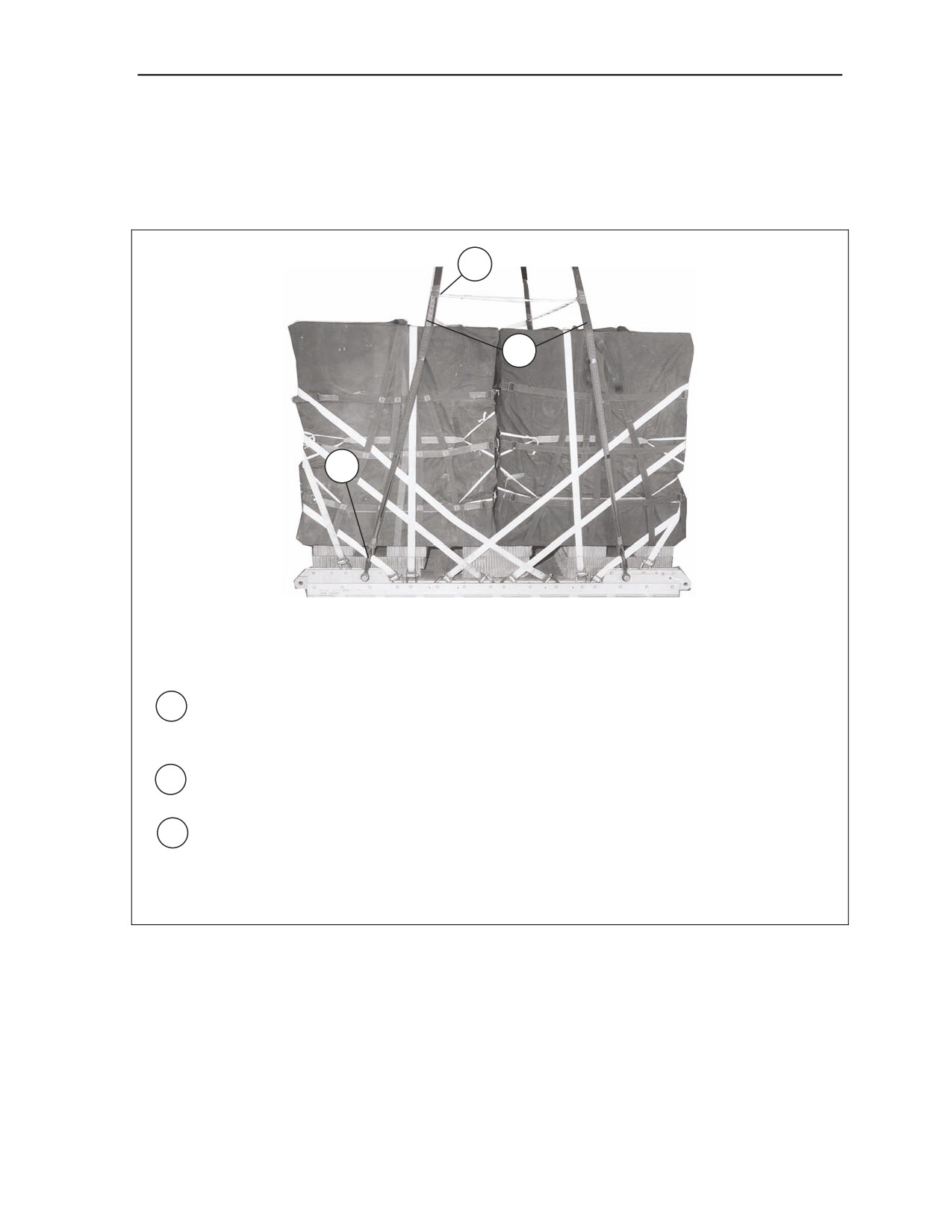

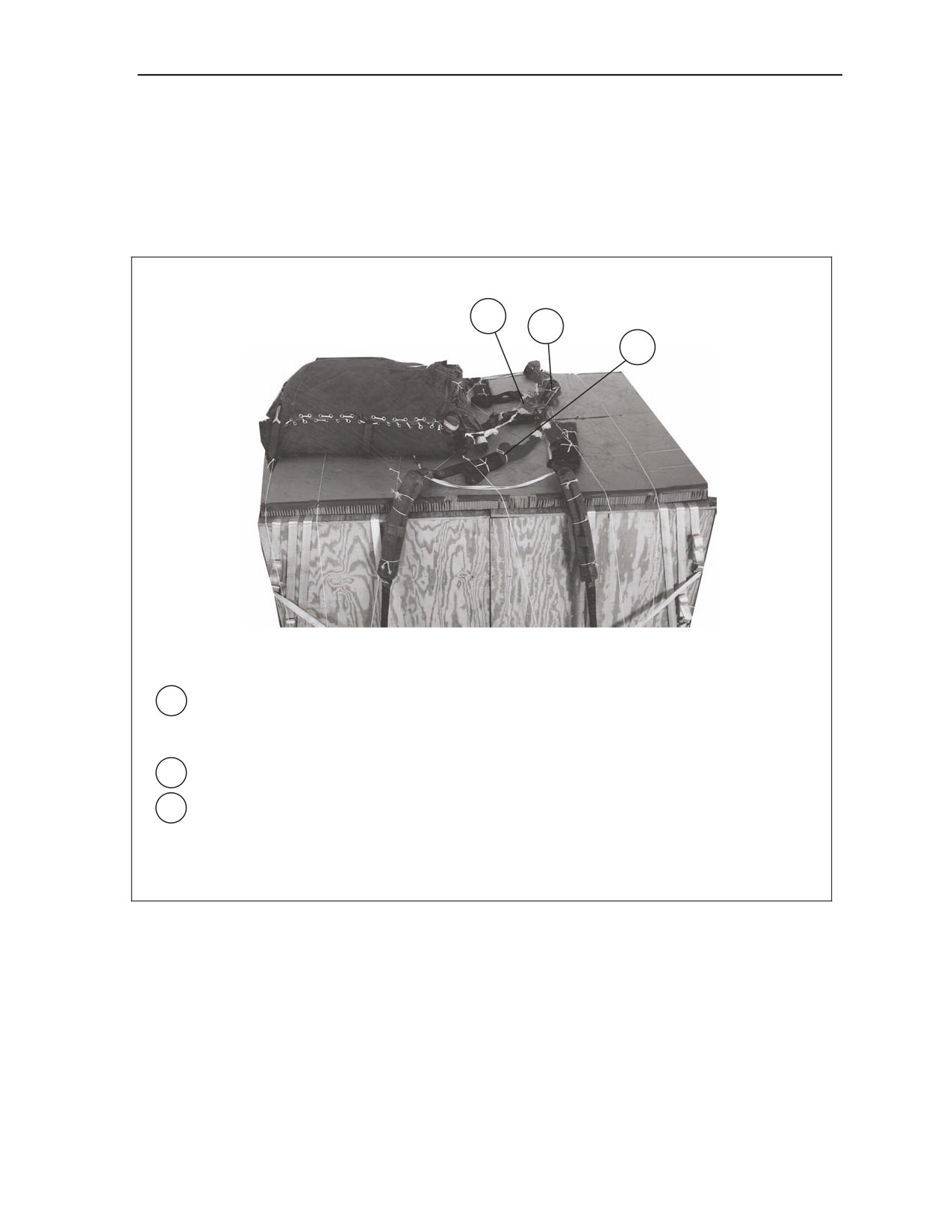

Figure 2-27. M-1 Cargo Parachute Release Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-31
Chapter 2
PLACING EXTRACTION PARACHUTE
2-24. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
2-25. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-
5.
MARKING RIGGED LOAD
2-26. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 2-28. Complete Declaration for Dangerous Goods. If the load
varies from the one shown, the weight, height, CB, and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
2-27. Use the equipment listed in Table 2-2 to rig this load.
2-32
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.

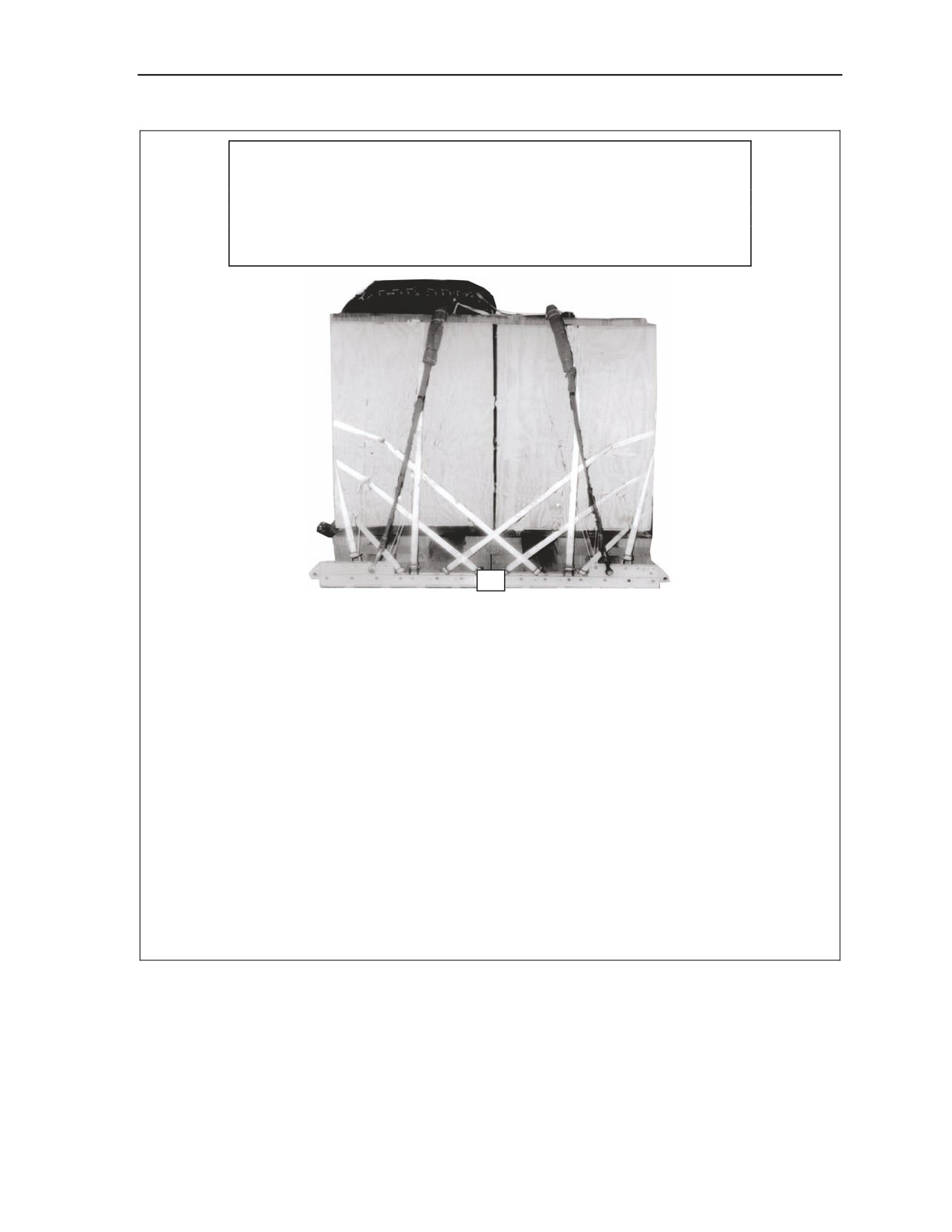

CB
RIGGED LOAD DATA
Weight: Load shown
4,460 pounds
Height
83 inches
Width
108 inches
Overall Length
98 inches
Overhang: Front
1 inch
Rear
1 inch
Center of Balance (from front edge of the platform)
51 inches
Extraction System with 12-foot cable (adds 18 inches to length of platform)
EFTC

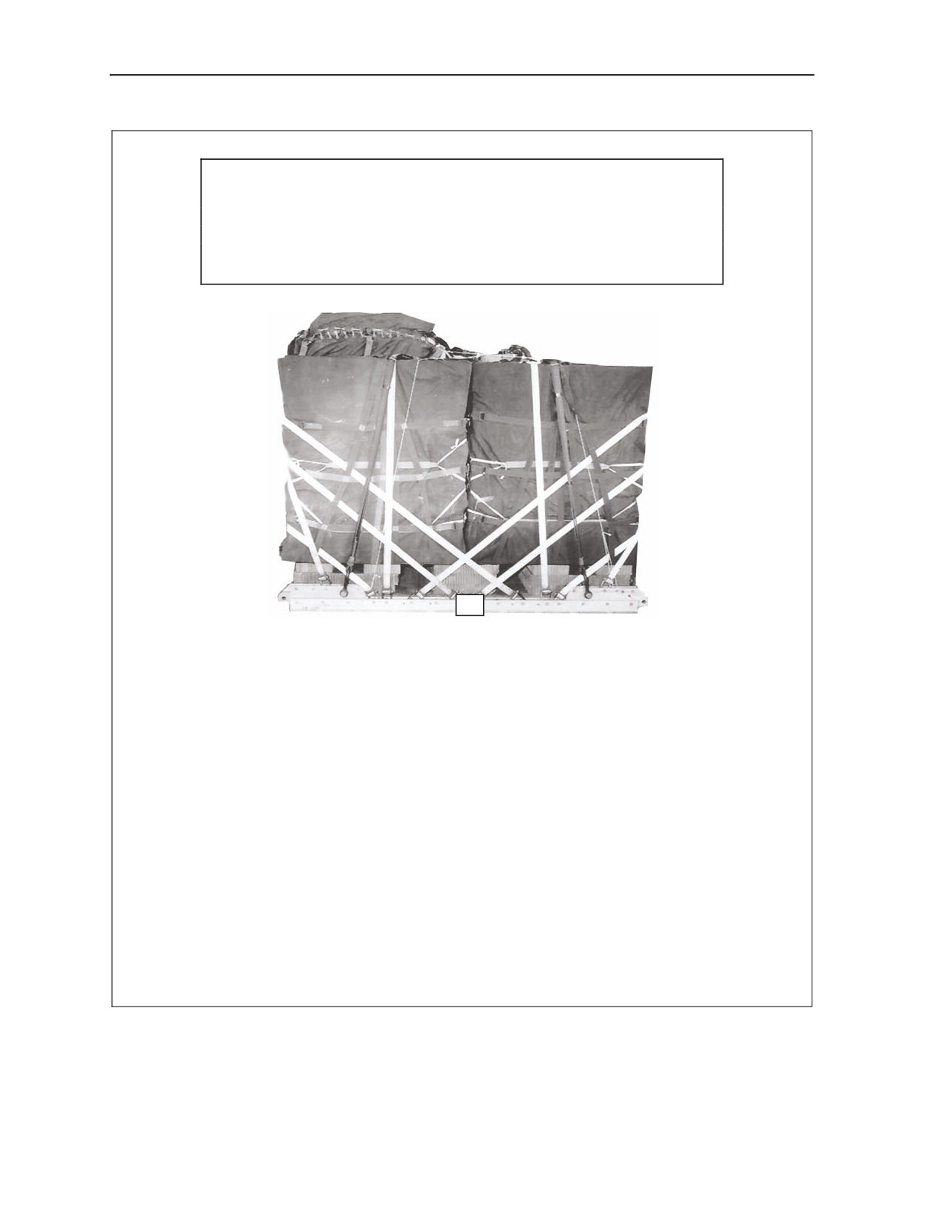

Figure 2-28. Four 15-Round Containers Rigged on an 8-Foot, Type V Platform for Low-Velocity
Airdrop
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-33
Chapter 2
Table 2-2. Equipment Required for Rigging Four 15-Round Dragon or Dragon II Missile
Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
2
4030-00-090-5354
1-inch (large)
5
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5783
Coupling, airdrop, extraction force transfer with
1
12-foot cable
1670-00-360-0328
Cover, clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-958-3685
Felt, 1/2-inch thick
As required
1670-01-183-2678
Leaf, extraction line
2
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (1-loop)
1
Or
1670-01-107-7652
160-foot (1-loop)
2
1670-01-064-4452
60-foot (1-loop), type XXVI for C-17 drogue line
1
Link assembly, two-point:
5306-00-435-8994
Bolt, 1-inch diameter, 4-inch long
1
5310-00-232-5165
Nut, 1-inch, hexagonal
1
1670-00-003-1953
Plate, side 3 3/4-inch
1
5365-00-007-3414
Spacer, large
1
1670-00-753-3928
Pad, energy-dissipating, honeycomb
9 sheets
Parachute:
1670-01-016-7841
Cargo, G-11B
1
1670-01-063-3715
Cargo, extraction, 15-foot
1
Platform, airdrop, type V, 8-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2376
Bracket assembly, extraction
1
1670-01-162-2372
Clevis assembly
20
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
4 sheets
1670-01-097-8816
Release, cargo parachute, M-1
1
2-34
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
Table 2-2. Equipment Required for Rigging Four 15-Round Dragon or Dragon II Missile
Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop (Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
For deployment line:
1670-00-753-3792
12-foot (2-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6301
3-foot (2-loop), type XXVI nylon webbing
1
For suspension:
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
4
Strap parachute release, multicut
1670-00-040-8219
1
Tape, adhesive, 2-inch
7515-00-266-5016
As required
Tape, masking
7501-00-266-6710
As required
Tie-down assembly, 15-foot
1670-00-937-0271
28
Towplate release mechanism (H-block) (C-17)
1670-01-483-8259
1
Webbing:
Cotton, 1/4-inch, type I
8305-00-268-2411
As required
Nylon:
Tubular, 1/2-inch
8305-00-082-5752
As required
Type VIII webbing
8305-00-263-3591
As required
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-35
Chapter 2
SECTION III-RIGGING FOUR A-22 CARGO BAGS WITH ONE-ROUND
CONTAINERS
DESCRIPTION OF LOAD
2-28. Four A-22 cargo bags with Dragon or Dragon II missiles in one-round containers are rigged on an 8-
foot, type V airdrop platform with one G-11B cargo parachute for low-velocity airdrop (LVAD) from a C-
130 or C-17 aircraft. Each A-22 cargo bag with missile containers is 48 inches long, 48 inches wide, and
weighs 693 pounds.
PREPARING PLATFORM
2-29. Prepare an 8-foot, type V airdrop platform as shown in Figure 2-29.
CLEVISES
10A THROUGH 1A
REAR
FRONT
CLEVISES
10 THROUGH 1
Step:
1.
Inspect, or assemble and inspect, an 8-foot, type V platform as outlined in TM 10-
1670-268-20&P/TO 13C7-52-22.
2.
Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3.
Install a tandem link to the rear of each platform side rail using holes 14, 15, and 16.
4.
Install clevises on bushing 3 of each front tandem link.
5.
Install clevises on bushing 3 of each rear tandem link.
6.
Starting at the front of the right platform side rail, install clevises on the bushings bolted
to holes 4, 5, 6, 8, 9, 11, 12, and 13. Repeat for the left side.
7.
Starting at the front of the platform, number the clevises 1 through 10 on the right side,
and 1A through 10A on the left side.
8.
Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.

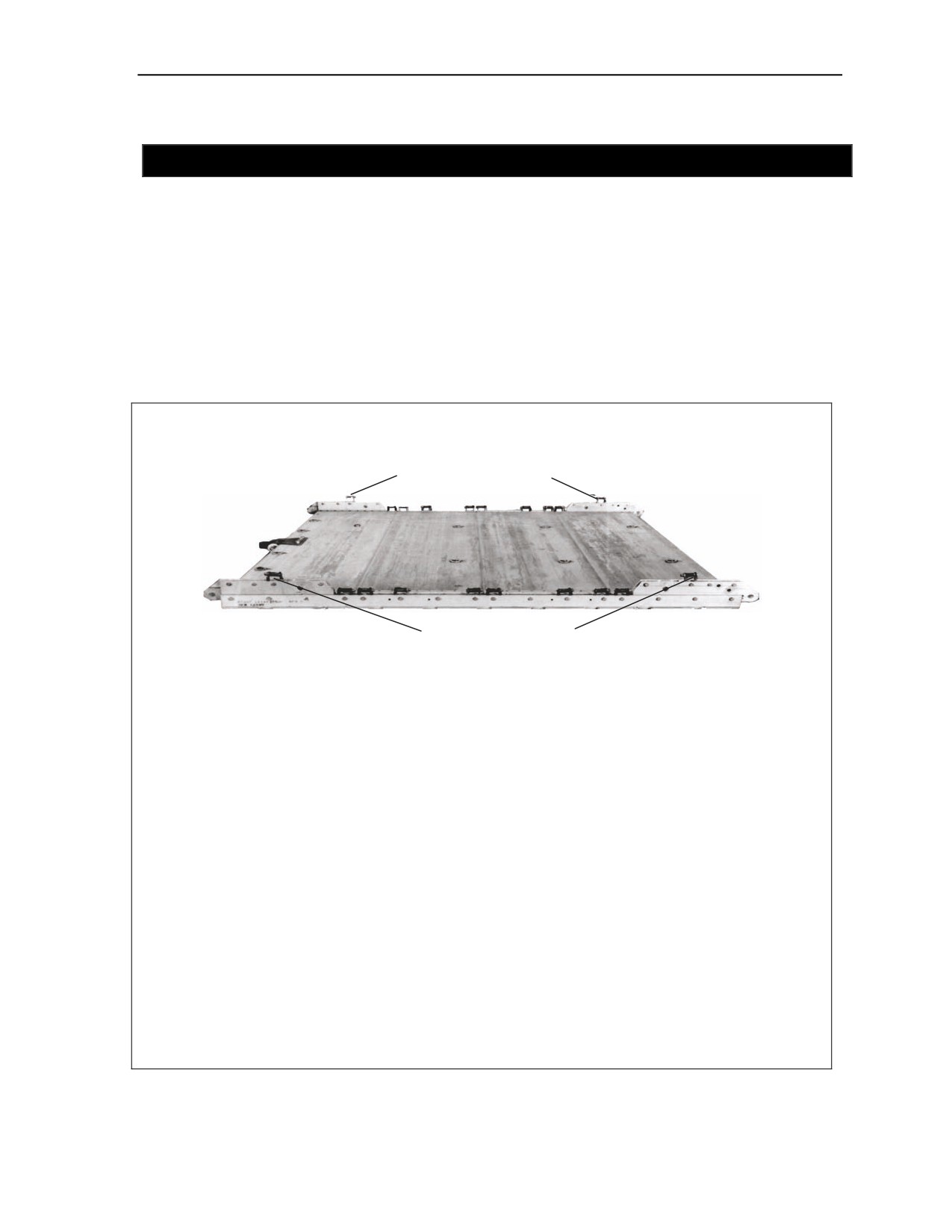

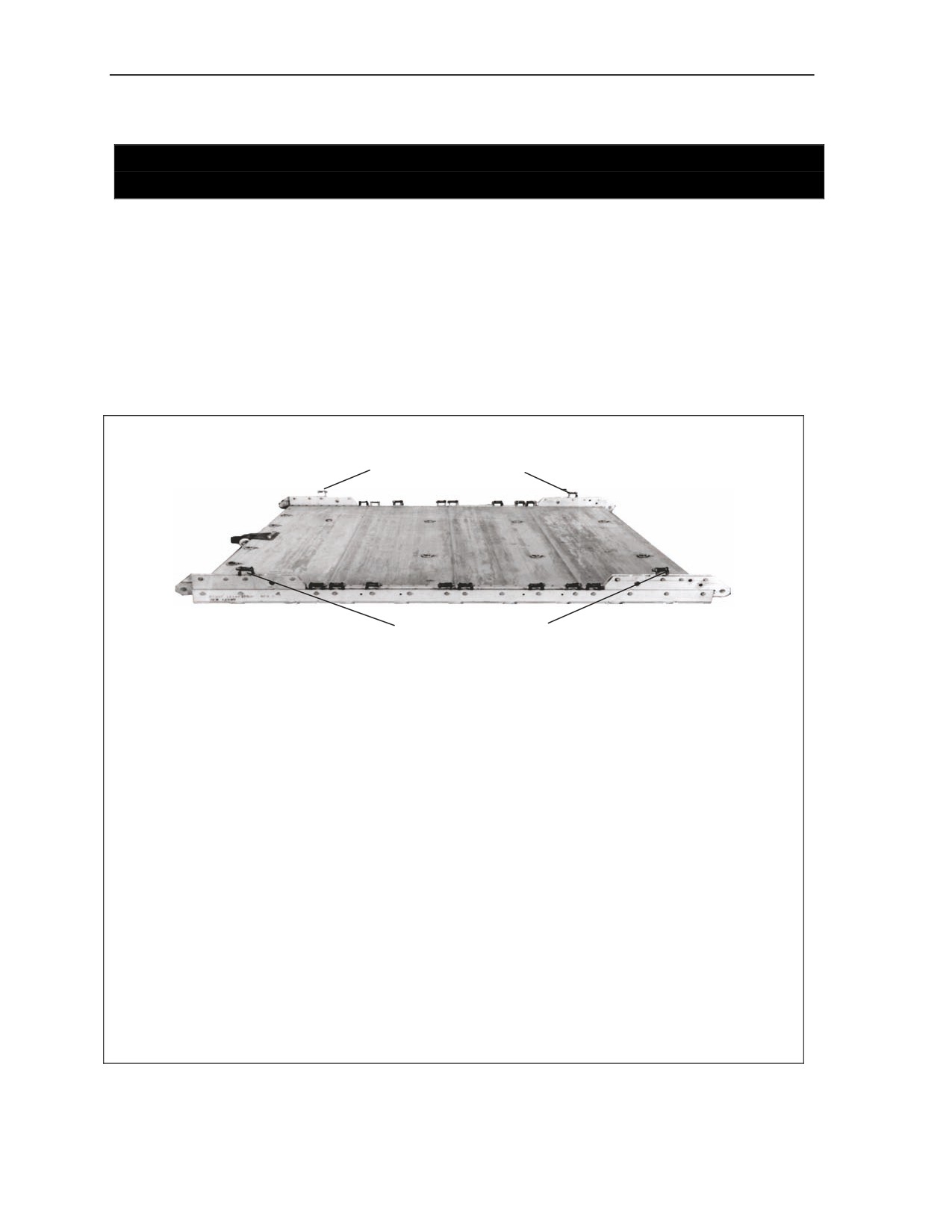

Figure 2-29. Platform Prepared
2-36
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
BUILDING AND PLACING HONEYCOMB STACKS
2-30. Prepare and position the honeycomb stacks as shown in Figure 2-30.
Notes.
1. Measurements from the front of the platform are taken from the front edge of the first panel.
2. Measurements from the rear edge of the platform are taken from the rear edge of the last
panel.
STACK 2
STACK 3
STACK 1
3
2
1
1. Build the first stack by using the following pieces of honeycomb, and position the honeycomb
flush with the front edge of the platform.
4 pieces
10- by 96-inches
(1st and 3rd layers)
2 pieces
10- by 76-inches
(2nd layer)
2 pieces
10- by 29-inches
(2nd layer bridge)
2. Build the second stack by using three pieces of honeycomb (18- by 96-inch). Center the
stack over the joint where the second and third panels join together and between the side
rails.
3. Build the third stack by repeating step 1 above, and position the honeycomb 1 inch from the
rear edge of the platform.

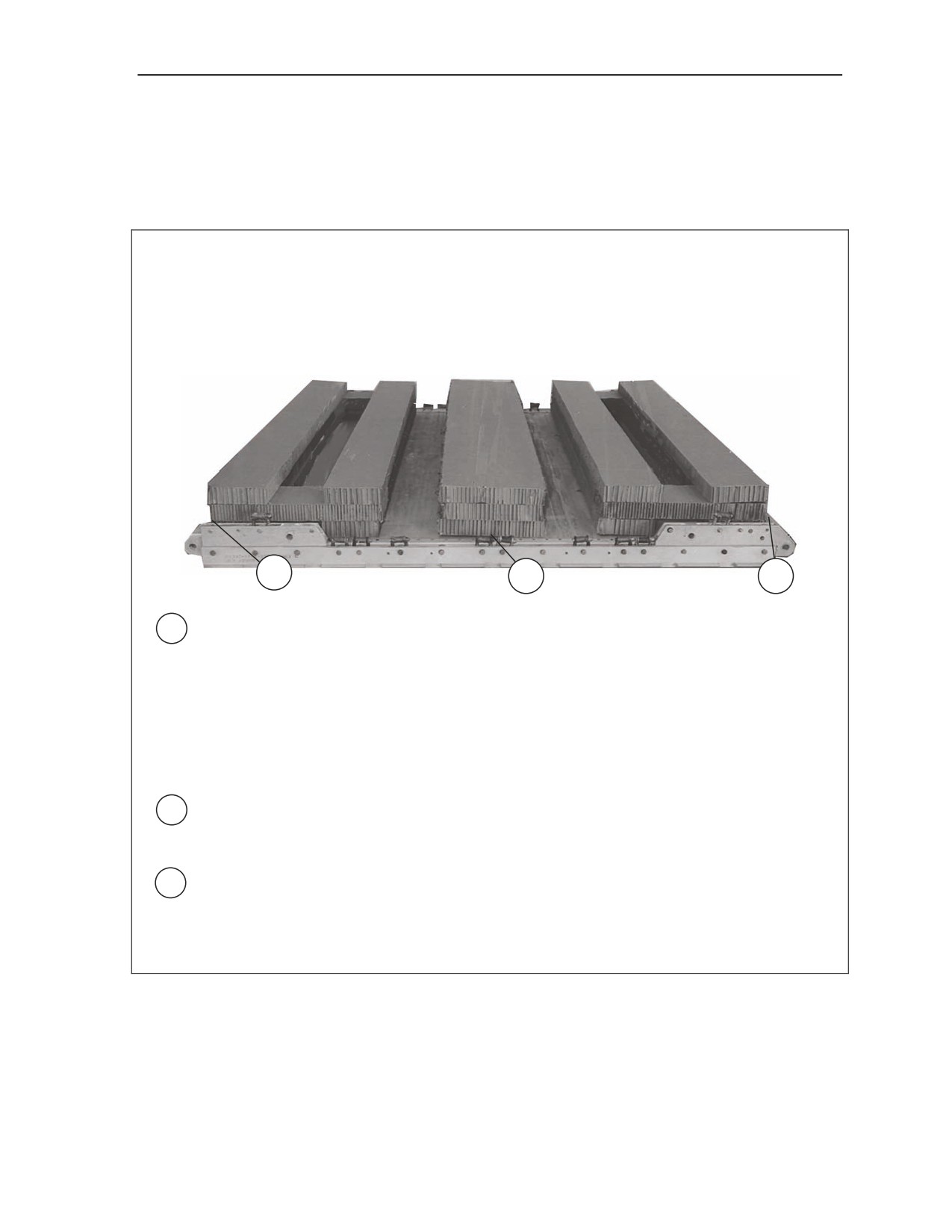

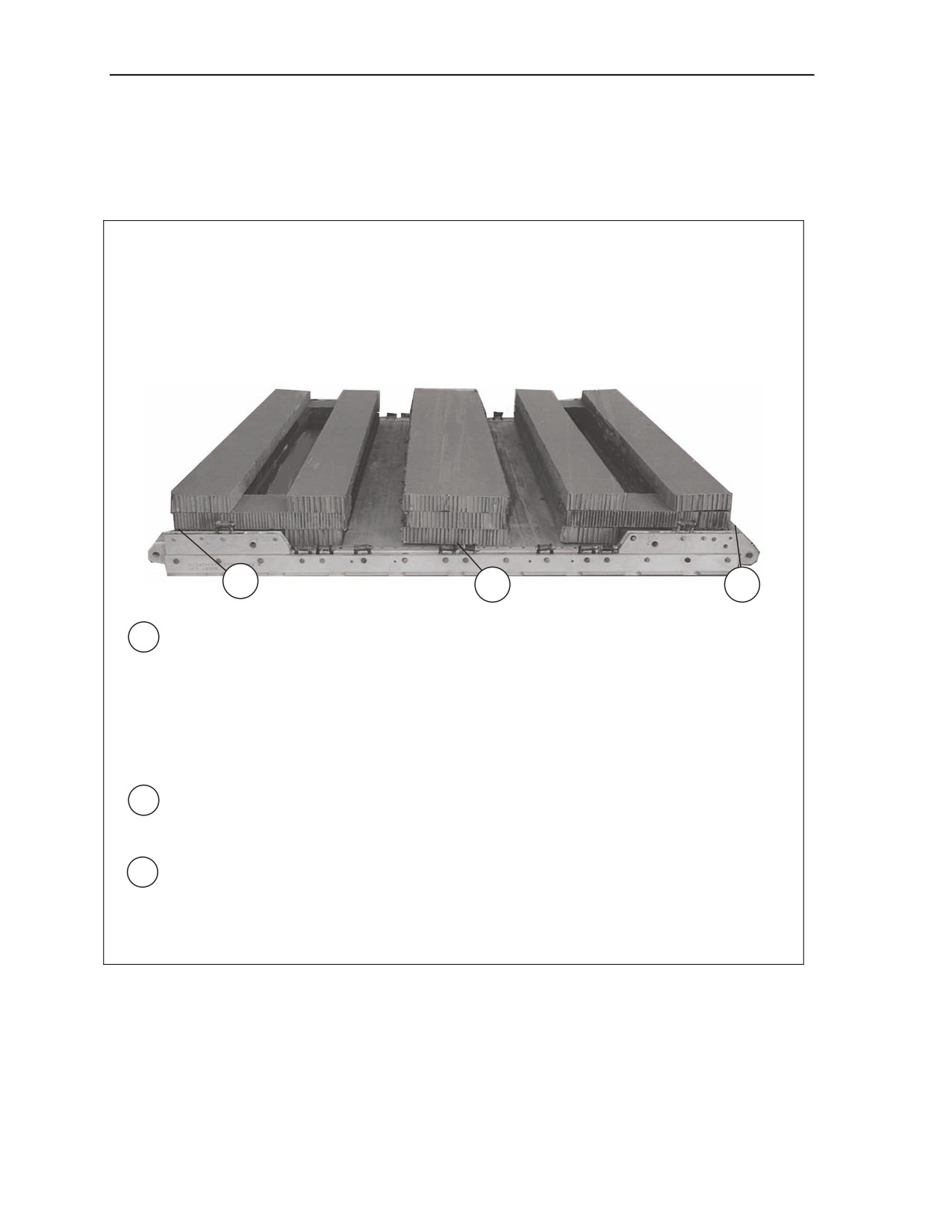

Figure 2-30. Honeycomb Stacks Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-37
Chapter 2
PREPARING LOAD
2-31. Prepare four A-22 cargo bags with nine one-round containers as shown in Figures 2-31 and 2-32;
however, do not use the skid or skid honeycomb. Close the A-22 cargo bags by following the steps in FM
4-20.103/MCRP 4-11.3C/TO 13C7-1-11.
3
2
1

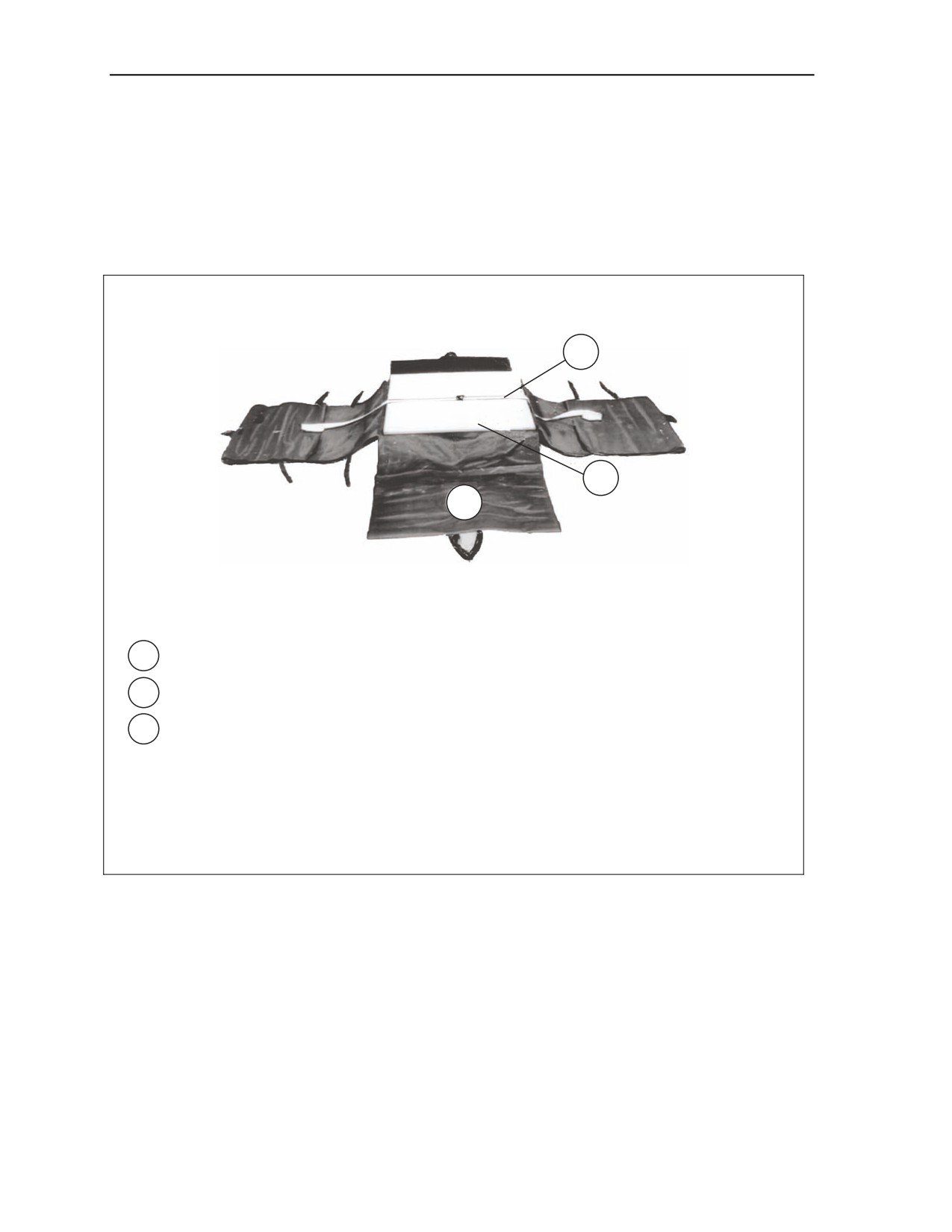

1. Center the A-22 cover on the sling assembly (with the outside of the cover down).
2. Center a 3/4- by 48- by 48-inch piece of plywood on the cover.
3. Form a 30-foot lashing according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and lay the strap across the center of the plywood from side to
side.
Figure 2-31. Cargo Bag, Plywood, and Lashing Positioned
2-38
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
CAUTION
Make sure the inspection port holes in the missile containers face
the front and rear of the platform.
4
3
2
1

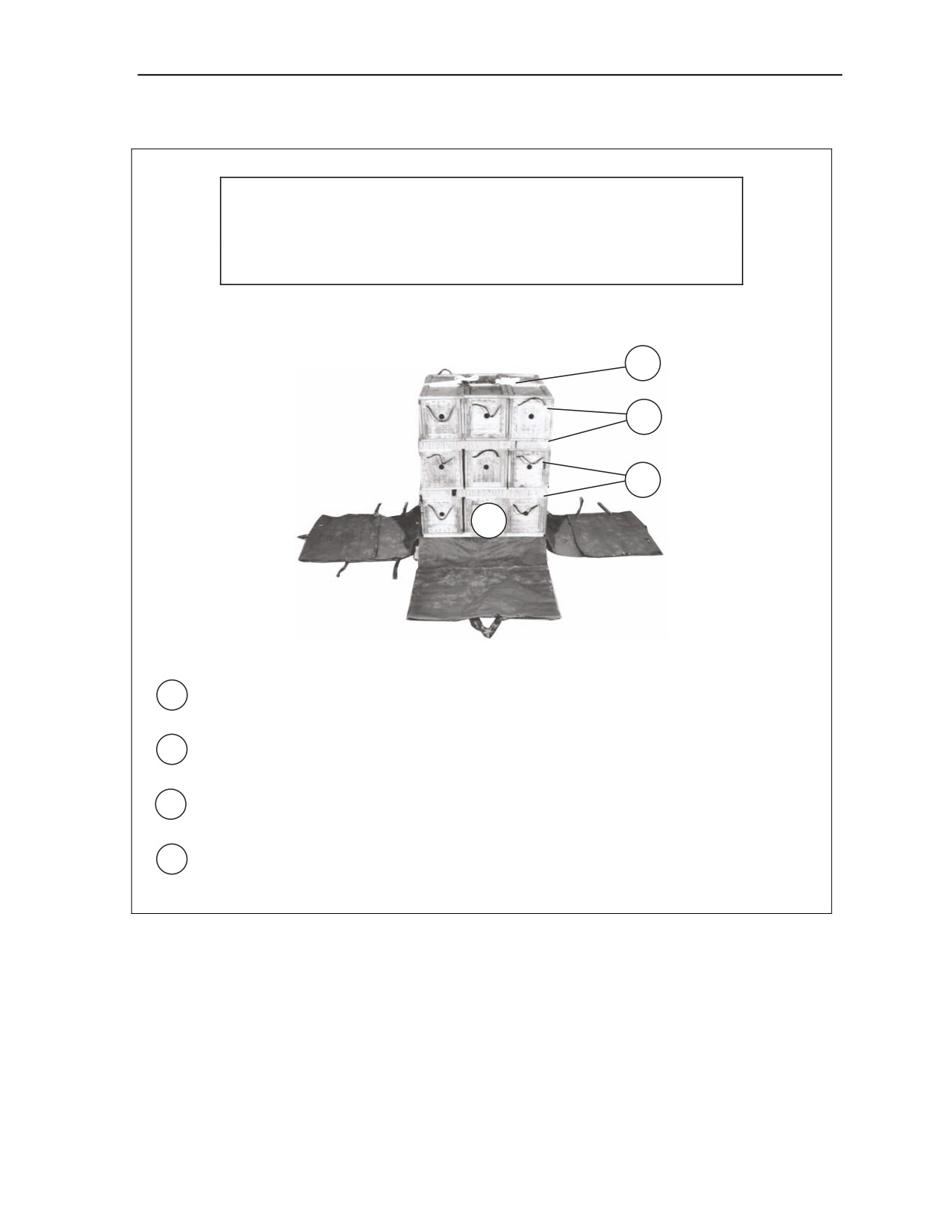

1. Set three containers on the plywood so that the 47 1/2 inch sides of the containers are
parallel with the 3/4- by 48- by 48-inch plywood on the A-22 cover.
2. Place a layer of one piece of 36- by 48-inch honeycomb and one piece of 12- by 48-inch
honeycomb on the containers. Set three more containers on the honeycomb.
3. Place another layer of honeycomb on the containers. Set the last three containers on the
honeycomb.
4. Run the ends of the 30-foot lashing over the top of the stacked containers, and bind the
ends together with two D-rings and a load binder.

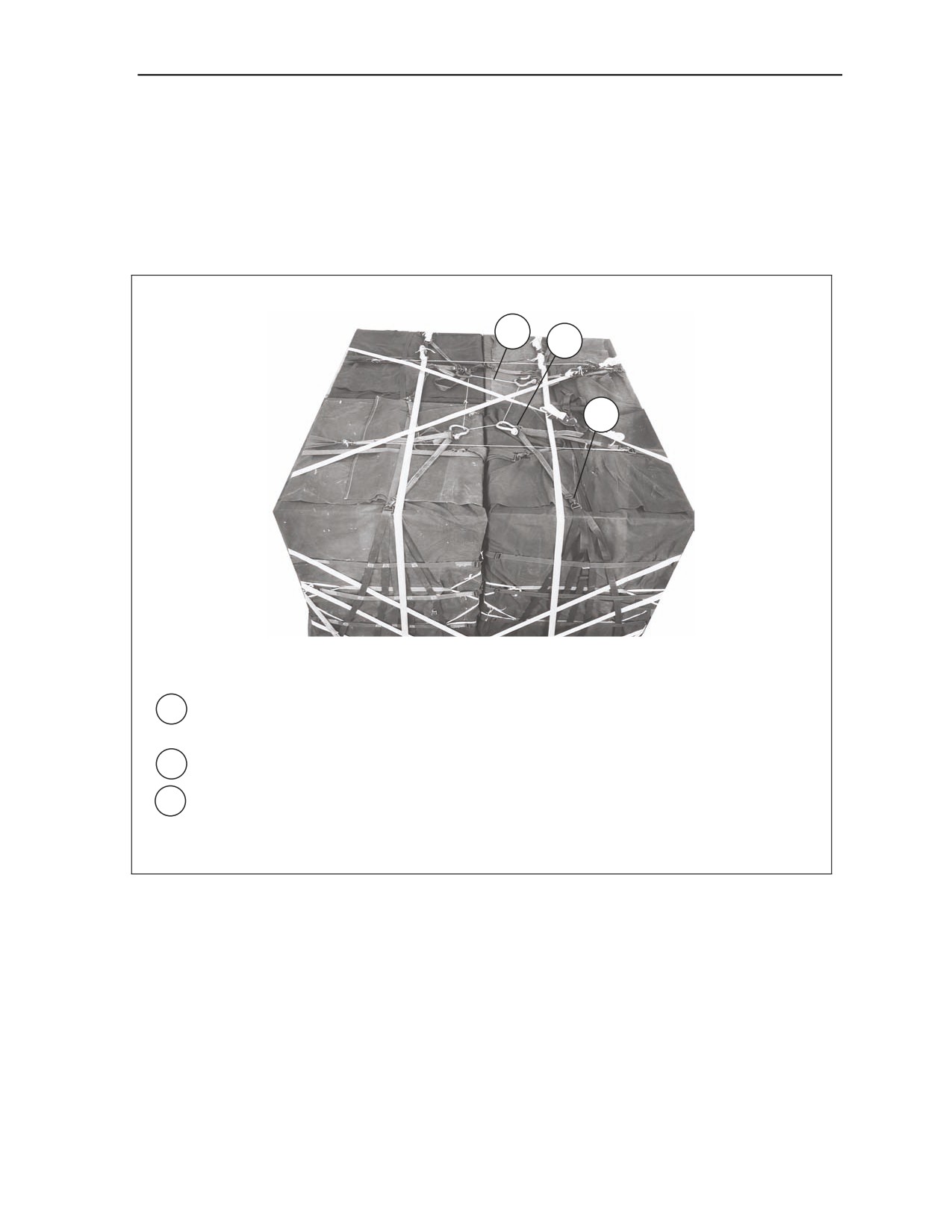

Figure 2-32. Nine One-Round Containers Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-39
Chapter 2
POSITIONING THE LOAD
2-32. Place the four A-22 containers on the platform as shown in Figure 2-33.
CAUTION
Make sure the inspection port holes in the missile containers face
the front and rear of the platform.
1
2
2
1. Place the four A-22 cargo bags on the honeycomb stacks, centering them from side to side
and from front to rear on the honeycomb.
2. The A-22 cargo bags will overhang 1 inch on the front and 1 inch on the rear of the
platform.

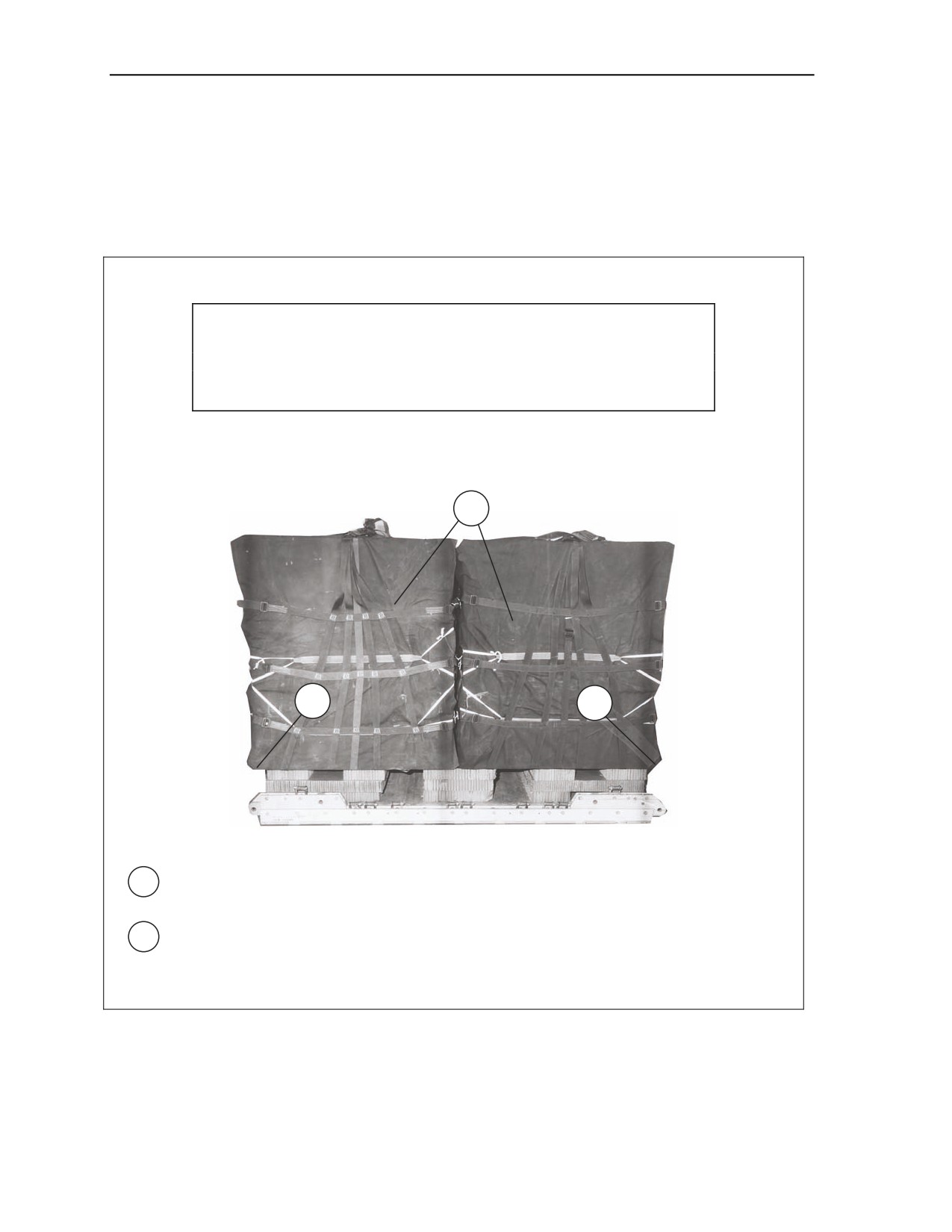

Figure 2-33. Cargo A-22 Containers Positioned
2-40
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
SECURING SUSPENSION WEBS AND LASHING CONTAINERS
2-33. Secure the suspension webs as shown in Figure 2-34. Lash the A-22 cargo bags to the platform as
shown in Figures
2-35 through
2-37. Install the lashings as outlined in FM
4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3
2
1
1. Attach all suspension webs as shown. Route the hook on the strap fastener from outside
to inside. The gate on the strap fastener must face inside.
2. Place the suspension web D-rings on the bolt of a large suspension clevis.
3. Secure the cargo clevises with type III nylon cord.
Figure 2-34. Lashings Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-41
Chapter 2
3
2
1
7
5
2
Lashing
Tiedown
Instructions
Number
Clevis
Number
1
2 and 2A
Route a 15-foot lashing from clevis 2 and a 15-foot lashing from clevis 2A.
Pass the lashings underneath the A-22 webbing on the sides and around
the front of the load. Secure the lashings on the front using two D-rings and
a load binder.
2
5 and 5A
Route a 15-foot lashing from clevis 5 and a 15-foot lashing from clevis 5A.
Pass the lashings underneath the A-22 webbing on the sides and around
the front of the load. Secure the lashings on the front using two D-rings and
a load binder.
3
7 and 7A
Route a 15-foot lashing from clevis 7 and a 15-foot lashing from clevis 7A.
Pass the lashings underneath the A-22 webbing on the sides and around
the front of the load. Secure the lashings on the front using two D-rings and
a load binder.

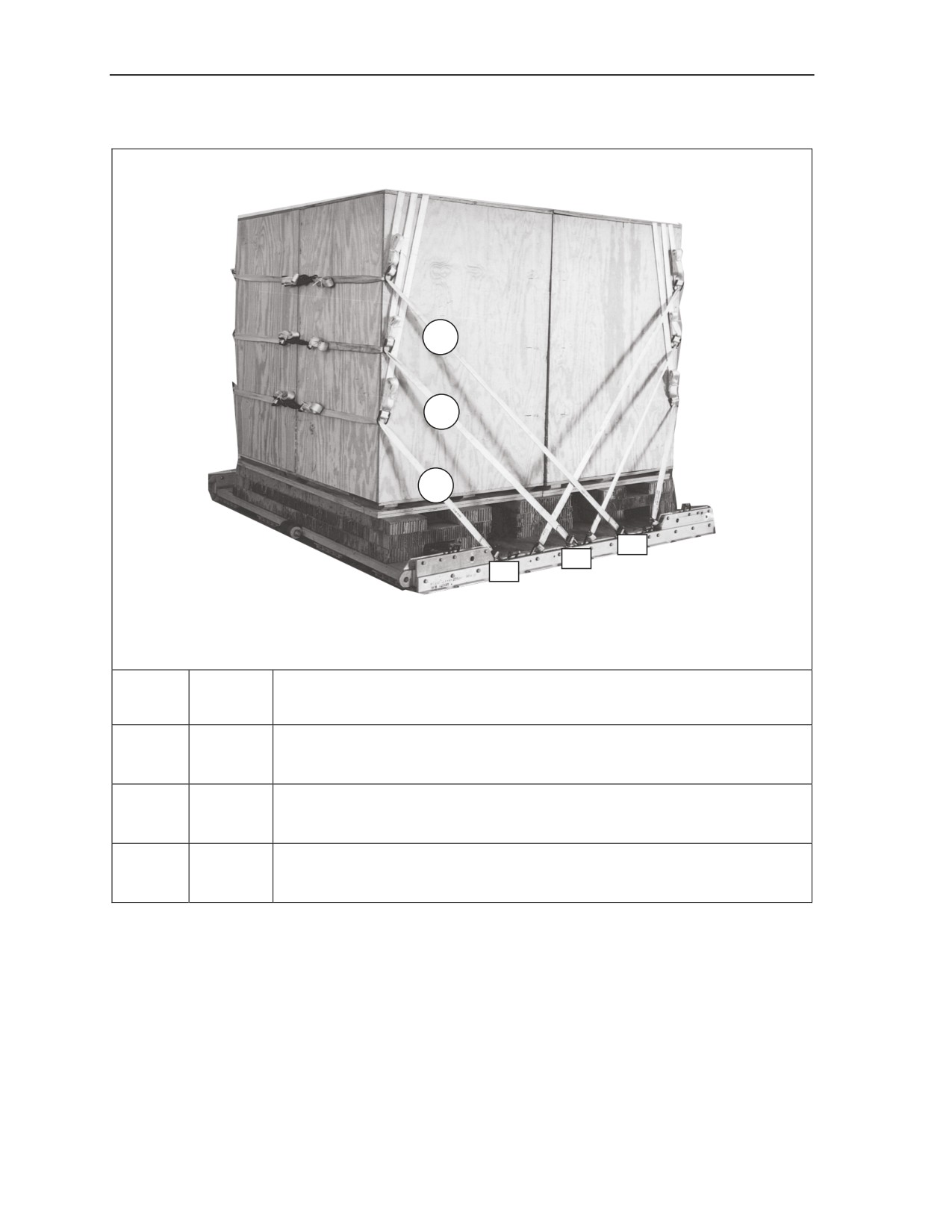

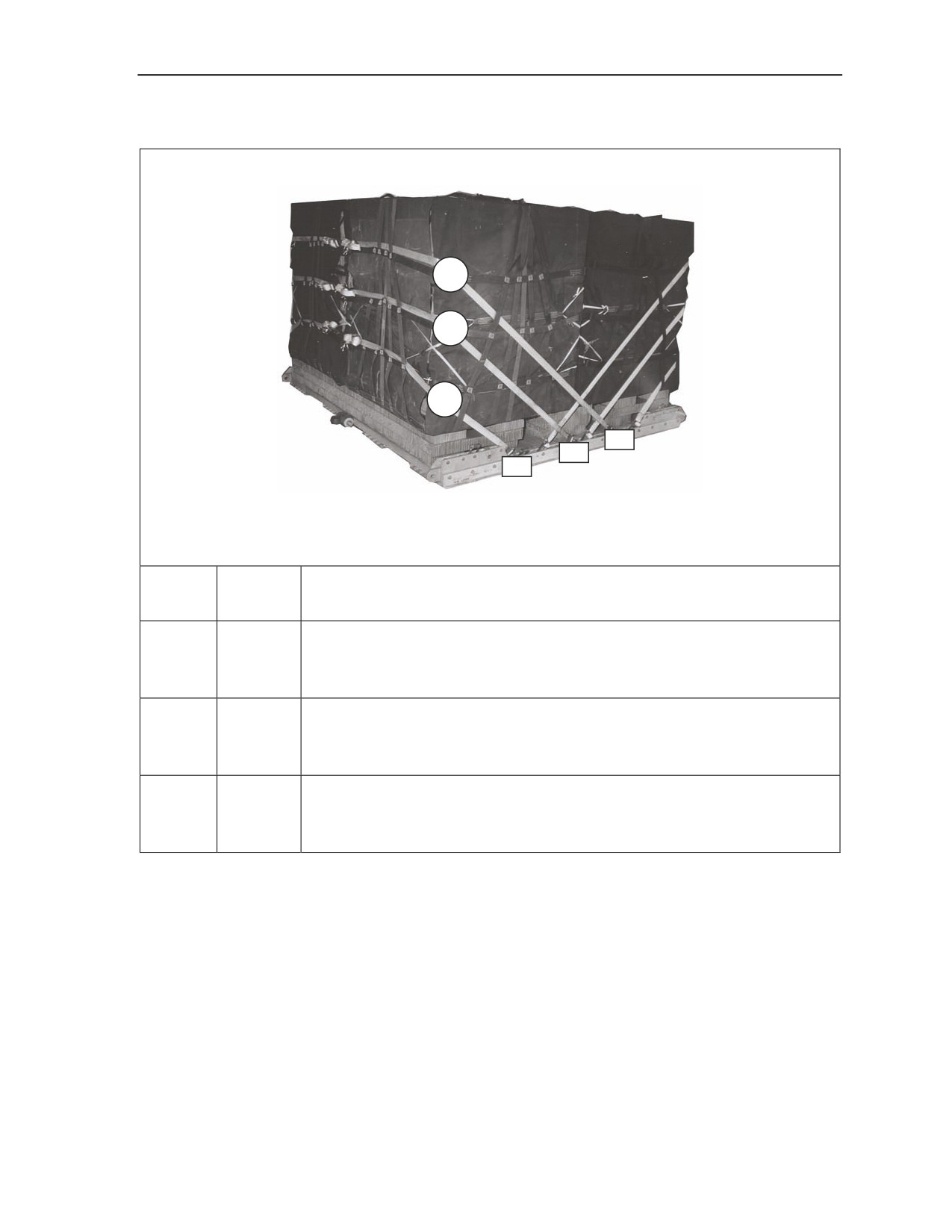

Figure 2-35. Lashings 1 Through 3 Installed
2-42
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
4
5
6
4
6
9
Lashing
Tiedown
Instructions
Number
Clevis
Number
4
4 and 4A

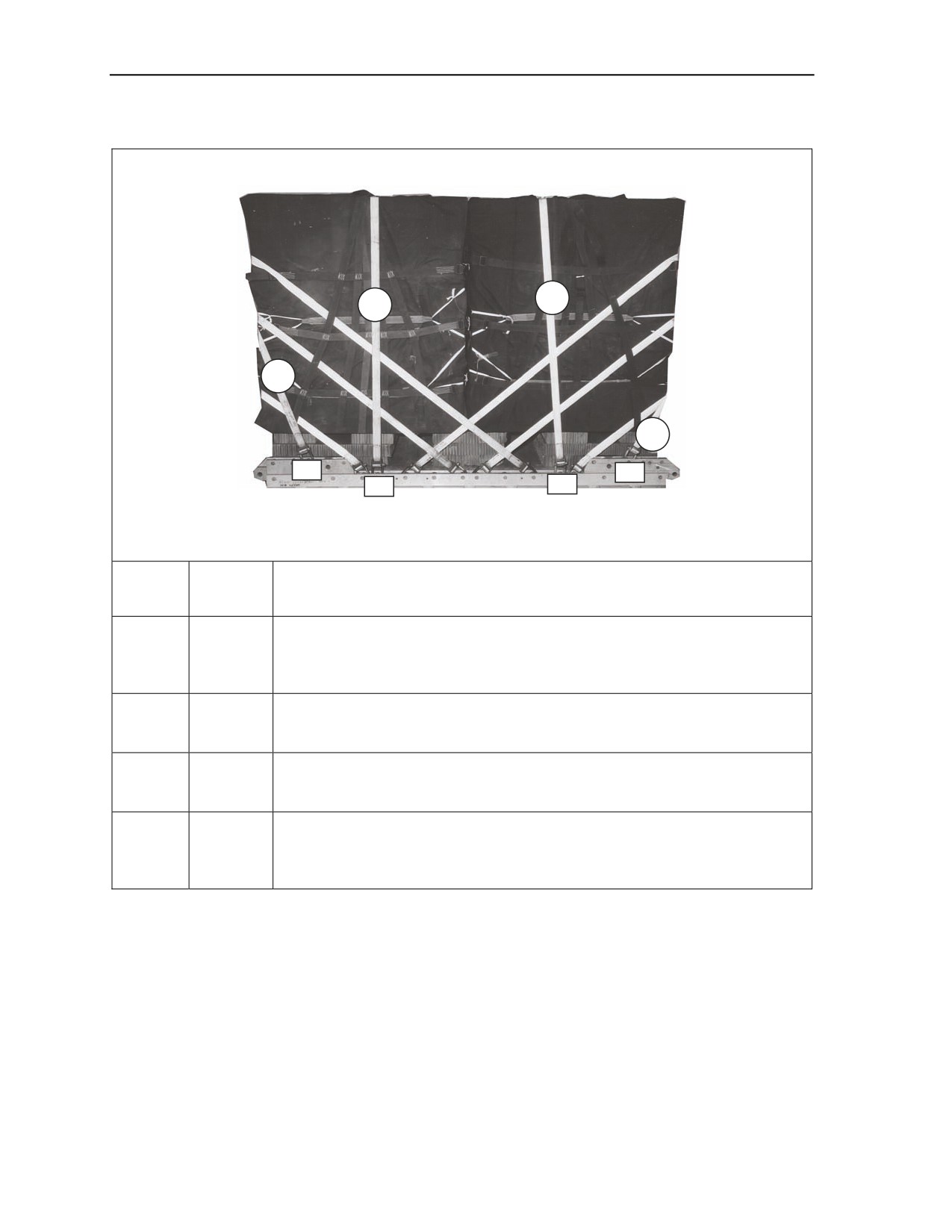

Route a 15-foot lashing from clevis 4 and a 15-foot lashing from clevis 4A.
Pass the lashings underneath the A-22 webbing on the sides and around
the rear of the load. Secure the lashings on the rear using two D-rings and
a load binder.
5
6 and 6A
Route a 15-foot lashing from clevis 6 and a 15-foot lashing from clevis 6A.
Pass the lashings underneath the A-22 webbing on the sides and around
the rear of the load. Secure the lashings on the rear using two D-rings and
a load binder.
6
9 and 9A
Route a 15-foot lashing from clevis 9 and a 15-foot lashing from clevis 9A.
Pass the lashings underneath the A-22 webbing on the sides and around
the rear of the load. Secure the lashings on the rear using two D-rings and
a load binder.
Figure 2-36. Lashings 4 Through 6 Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-43
Chapter 2
8
9
10
7
10
1
8
3
Lashing
Tiedown
Instructions
Number
Clevis
Number
7
1 and
Route a 15-foot lashing from clevis 1 and a 15-foot lashing from clevis 10A.
10A
Pass the lashings around the front and rear of the load and up over the top
of the load. Secure the lashings on the top using two D-rings and a load
binder.
8
3 and 3A
Route a 15-foot lashing from clevis 3 and a 15-foot lashing from clevis 3A.
Pass the lashings over the top of the load. Secure the lashings on the top
using two D-rings and a load binder.
9
8 and 8A
Route a 15-foot lashing from clevis 8 and a 15-foot lashing from clevis 8A.
Pass the lashings over the top of the load. Secure the lashings on the top
using two D-rings and a load binder.
10
10 and
Route a 15-foot lashing from clevis 10 and a 15-foot lashing from clevis 1A.
1A
Pass the lashings around the front and rear of the load and up over the top
of the load. Secure the lashings on the top using two D-rings and a load
binder.

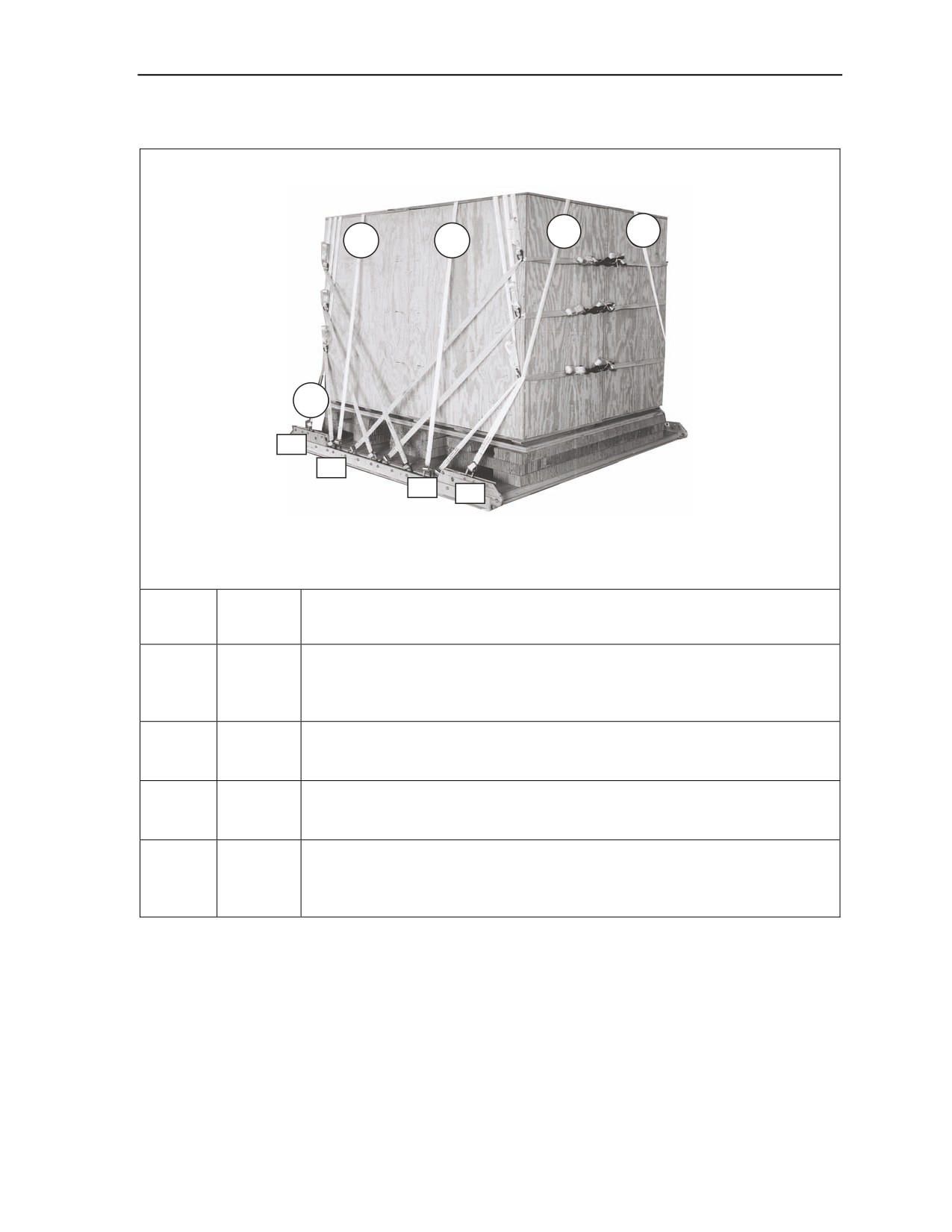

Figure 2-37. Lashings 7 Through 10 Installed
2-44
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING SUSPENSION SLINGS AND DEADMAN’S TIE
2-34. Install and safety four 16-foot (2-loop), type XXVI nylon slings as shown in Figure 2-38.
3
2
1
1. Attach one 16-foot (2-loop), type XXVI nylon suspension sling to a large suspension clevis.
Attach the clevis to one of the tandem links. Repeat the same procedure for the other three
tandem links.
2. Use four pieces of felt padding (approximately 18 by 6-inches) to pad the slings. Secure the
felt to the sling with type III nylon cord and cloth back adhesive tape.
3. Raise the four suspension slings above the load, and install a deadman’s tie as outlined in
FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Figure 2-38. Suspension Slings and Deadman’s Tie Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-45
Chapter 2
STOWING CARGO PARACHUTE
2-35. Stow one G-11 cargo parachute according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figure 2-39.
1
2
1. Prepare, place, and secure one G-11 cargo parachute according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2. Use a 12-loop (2-loop), type XXVI nylon sling as a deployment line. Bolt it to the latch
assembly on the right spacer. S-fold the slack and tie the folds with type I, 1/4-inch cotton
webbing.

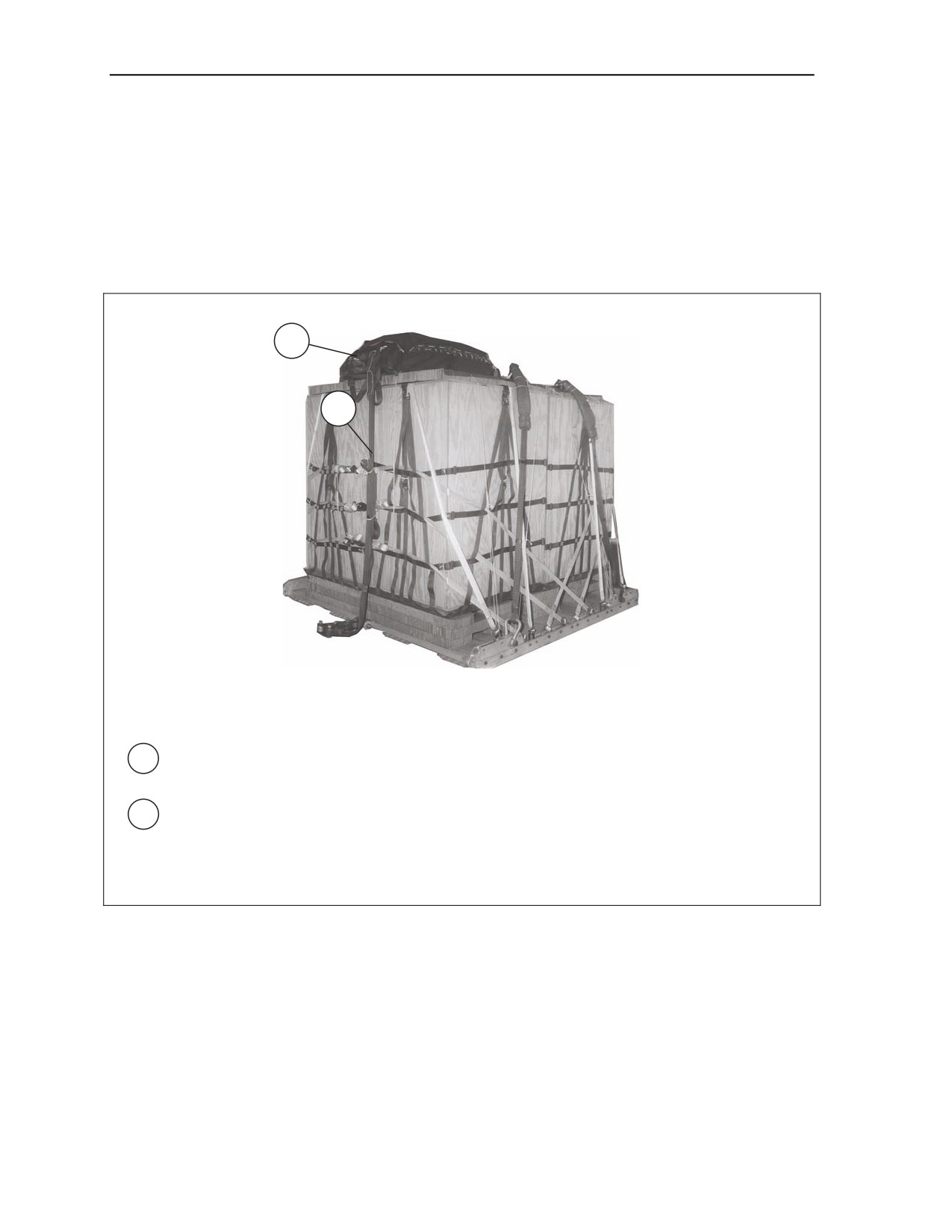

Figure 2-39. Cargo Parachute Stowed and Secured to Load
2-46
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING EXTRACTION SYSTEM
2-36. Attach the components of the Extraction Force Transfer Coupling (EFTC) according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-40.
3
2
1
1. Attach the EFTC mounting brackets to the front holes on the left rail.
2. Install the actuator according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5.
3. Install and safety a 12-foot cable according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5.
Figure 2-40. EFTC Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-47
Chapter 2
INSTALLING PARACHUTE RELEASE
2-37. Prepare, attach, and safety an M-1 cargo parachute release according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 2-41.
1
2
3
4

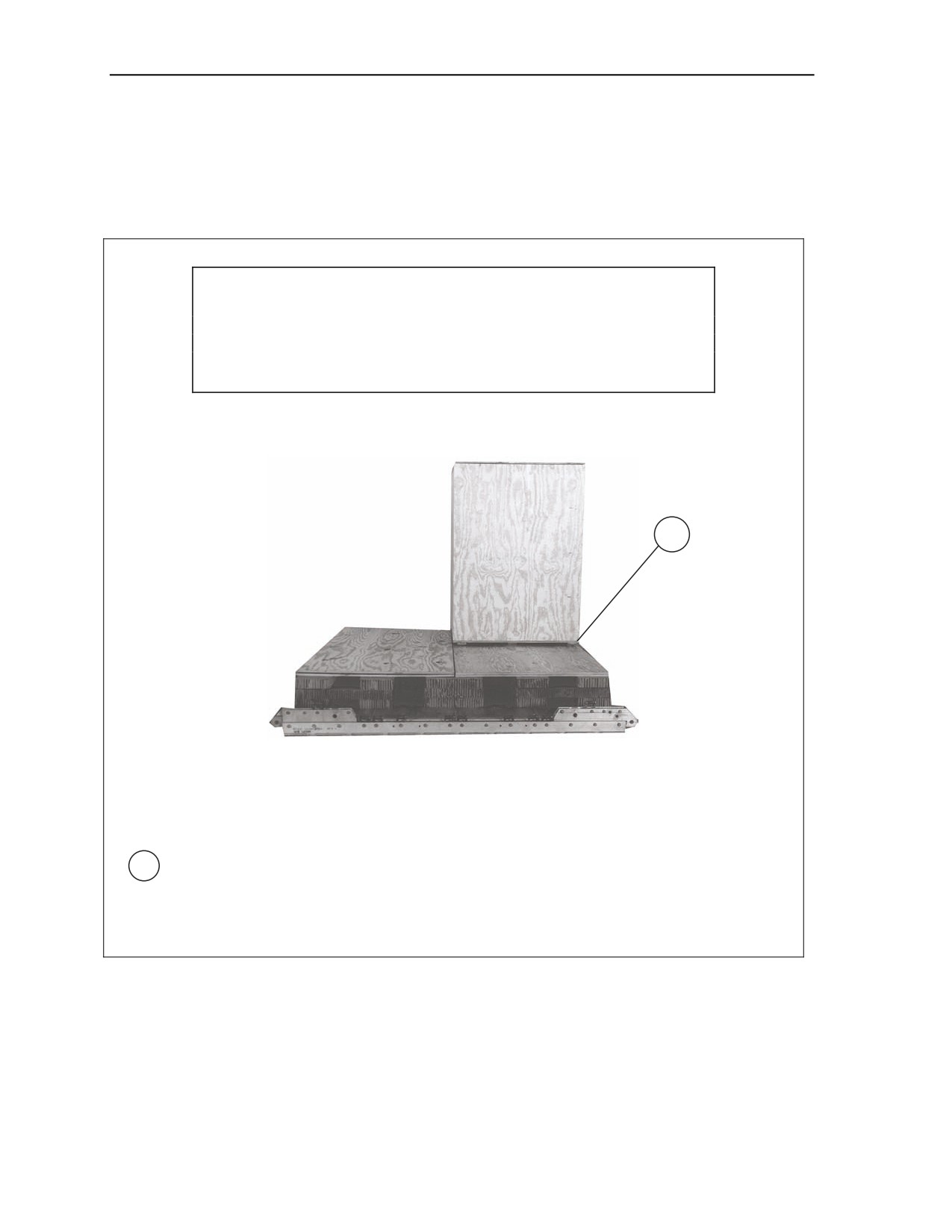

1. Position an 18- by 24-inch piece of honeycomb on top of the load, and secure the
honeycomb with type III nylon cord.
2. Place the M-1 release on top of the honeycomb, and attach the suspension slings and the
parachute riser extensions.
3. Secure the M-1 release to convenient points on the load with type III nylon cord.
4. S-fold and tie any excess suspension slings.
Figure 2-41. M-1 Cargo Parachute Release Installed
2-48
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
PLACING EXTRACTION PARACHUTE
2-38. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Place the extraction
parachute and line on the load for installation in the aircraft.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
2-39. Select and install the provisions for the emergency aft restraints according to the emergency aft
restraint requirements table in FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
MARKING RIGGED LOAD
2-40. Mark the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 2-42. Complete Declaration for Dangerous Goods. If the load
varies from the one shown, the weight, height, CB, and parachute requirements must be recomputed.
EQUIPMENT REQUIRED
2-41. Use the equipment listed in Table 2-3 to rig this load.
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-49
Chapter 2
CAUTION
Make the final rigger inspection required by AR 59-4 and FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5
before the load leaves the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
4,040 pounds
Height
83 inches
Width
108 inches
Overall Length
98 inches
Overhang: Front
1 inch
Rear
1 inch
Center of Balance (from front edge of the platform)
50 inches
Extraction System with 12-foot cable (adds 18 inches to length of platform)
EFTC
Figure 2-42. One-Round Containers Rigged in Four A-22 Cargo Bags on an 8-Foot, Type V
Platform for Low-Velocity Airdrop
2-50
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
Table 2-3. Equipment Required for Rigging One -Round Dragon or Dragon II Missile
Containers in Four A-22 Cargo Bags on an 8-Foot, Type V Platform for Low-Velocity Airdrop
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
8465-00-587-3421
Bag, cargo, aerial delivery, type A-22
4
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
2
4030-00-090-5354
1-inch (large)
9
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5783
Coupling, airdrop, extraction force transfer with
1
12-foot cable
1670-00-360-0328
Cover, clevis, large
1
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-958-3685
Felt, 1/2-inch thick
As required
1670-01-183-2678
Leaf, extraction line
2
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (1-loop)
1
Or
1670-01-107-7652
160-foot (1-loop)
2
1670-01-064-4452
60-foot (1-loop), type XXVI for C-17 drogue line
1
Link assembly, two-point:
5306-00-435-8994
Bolt, 1-inch diameter, 4-inch long
1
5310-00-232-5165
Nut, 1-inch, hexagonal
1
1670-00-003-1953
Plate, side 3 3/4-inch
1
5365-00-007-3414
Spacer, large
1
1670-00-753-3928
Pad, energy-dissipating, honeycomb
10 sheets
Parachute:
1670-01-016-7841
Cargo, G-11B
1
1670-01-063-3715
Cargo, extraction, 15-foot
1
Platform, airdrop, type V, 8-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2376
Bracket assembly, extraction
1
1670-01-162-2372
Clevis assembly
20
1670-01-162-2381
Tandem link
4
5530-00-128-4981
Plywood, 3/4-inch
2 sheets
1670-01-097-8816
Release, cargo parachute, M-1
1
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-51
Chapter 2
Table 2-3. Equipment Required for Rigging One -Round Dragon or Dragon II Missile
Containers in Four A-22 Cargo Bags on an 8-Foot, Type V Platform for Low-Velocity Airdrop
(Continued)
National Stock Number
Item
Quantity
Sling, cargo airdrop:
For deployment line:
1670-00-753-3792
12-foot (2-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6301
3-foot (2-loop), type XXVI nylon webbing
1
For suspension:
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
4
Strap parachute release, multicut
1670-00-040-8219
1
Tape, adhesive, 2-inch
7515-00-266-5016
As required
Tape, masking
7501-00-266-6710
As required
Towplate release mechanism (H-block) (C-17)
1670-01-4838259
1
Tie-down assembly, 15-foot
1670-00-937-0271
28
Webbing:
Cotton, 1/4-inch, type I
8305-00-268-2411
As required
Nylon:
Tubular, 1/2-inch
8305-00-082-5752
As required
Type VIII webbing
8305-00-263-3591
As required
2-52
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
SECTION IV-RIGGING FOUR 15-ROUND CONTAINERS
DESCRIPTION OF LOAD
2-42. Four Dragon or Dragon II missiles in 15-round containers are rigged in four A-22 cargo slings on an
8-foot, type V airdrop platform with one G-11 cargo parachute for low-velocity airdrop (LVAD) from a C-
130 or C-17 aircraft. Each container is 49 inches long, 37 inches wide, 67 inches high, and weighs 695
pounds.
PREPRARING PLATFORM
2-43. Prepare an 8-foot airdrop platform as shown in Figure 2-43.
CLEVISES
10A THROUGH 1A
REAR
FRONT
CLEVISES
10 THROUGH 1
Step:
1.
Inspect, or assemble and inspect, an 8-foot, type V platform as outlined in TM 10-
1670-268-20&P/TO 13C7-52-22.
2.
Install a tandem link to the front of each platform side rail using holes 1, 2, and 3.
3.
Install a tandem link to the rear of each platform side rail using holes 14, 15, and 16.
4.
Install clevises on bushing 3 of each front tandem link.
5.
Install clevises on bushing 3 of each rear tandem link.
6.
Starting at the front of the right platform side rail, install clevises on the bushings bolted
to holes 4, 5, 6, 8, 9, 11, 12, and 13. Repeat for the left side.
7.
Starting at the front of the platform, number the clevises 1 through 10 on the right side,
and 1A through 10A on the left side.
8.
Label the tiedown rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 2-43. Platform Prepared
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-53
Chapter 2
BUILDING AND PLACING HONEYCOMB STACKS
2-44. Prepare and position the honeycomb stacks as shown in Figure 2-44.
Notes.
1. Measurements from the front of the platform are taken from the front edge of the first
panel.
2. Measurements from the rear edge of the platform are taken from the rear edge of the last
panel.
STACK 2
STACK 3
STACK 1
3
2
1
1. Build the first stack by using the following pieces of honeycomb, and position the
honeycomb flush with the front edge of the platform.
4 pieces
10- by 80-inches
(1st and 3rd layers)
2 pieces
10- by 60-inches
(2nd layer)
2 pieces
10- by 29-inches
(2nd layer bridge)
2. Build the second stack by using three pieces of honeycomb (18- by 80-inch). Center the
stack over the joint where the second and third panels join together and between the side
rails.
3. Build the third stack by repeating step 1 above, and position the honeycomb flush with the
rear edge of the platform.
Figure 2-44. Honeycomb Stacks Positioned
2-54
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
PREPARING THE LOAD
2-45. Prepare four A-22 cargo slings with four 15-round containers as shown in Figures 2-45 and 2-46.
However, do not use the skid or skid honeycomb. Close the A-22 slings by following steps in FM 4-
20.103/MCRP 4-11.3C/TO 13C7-1-11.
1
2
1. Position the A-22 sling assembly by following the procedures outlined in FM 4-
20.103/MCRP 4-11.3C/TO 13C7-1-11.
2. Center a 3/4- by 38- by 48-inch piece of plywood on the scuff pad.
Note. Set the container on the plywood. Close the A-22 cargo sling by following the steps in FM 4-
20.103/MCRP 4-11.3C/TO 13C7-1-11.
Figure 2-45. Cargo Sling and Plywood Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-55
Chapter 2
1
2
1. Tie the D-ring on the support web to the front support web with type III nylon cord. Tie the
D-rings of the side of the support webs together using type III nylon cord.
2. Snap another suspension web to each normally rigged suspension web. This gives a two-
suspension web length snapped onto the D-rings. Be sure the open side of the connector
straps faces inward. Tape all connector snaps.
Figure 2-46. Containers Positioned and Cargo Slings Closed
2-56
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
POSITIONING LOAD
2-46. Place the four A-22 cargo slings with four 15-round containers on the honeycomb stacks as shown in
Figure 2-47.
CAUTION
Make sure the inspection port holes in the missile containers face
the front and rear of the platform: the inspection port holes face the
rear of the platform in the container groups.
1
1. Place four A-22 cargo slings on the honeycomb, centering them from side to side and from
front to rear on the platform.
Figure 2-47. Missile Containers Positioned
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-57
Chapter 2
LASHING MISSILE CONTAINERS
2-47. Lash the containers to the platform as shown in Figures 2-48 through 2-50. Install and safety the
lashings as outlined in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3
2
1
7
5
2
Lashing
Tiedown
Instructions
Number
Clevis
Number
1
2 and 2A
Route a 15-foot lashing from clevis 2 and a 15-foot lashing from clevis 2A.
Pass the lashings underneath the A-22 webbing on the sides and around
the front of the load. Secure the lashings on the front using two D-rings
and a load binder.
2
5 and 5A
Route a 15-foot lashing from clevis 5 and a 15-foot lashing from clevis 5A.
Pass the lashings underneath the A-22 webbing on the sides and around
the front of the load. Secure the lashings on the front using two D-rings
and a load binder.
3
7 and 7A
Route a 15-foot lashing from clevis 7 and a 15-foot lashing from clevis 7A.
Pass the lashings underneath the A-22 webbing on the sides and around
the front of the load. Secure the lashings on the front using two D-rings
and a load binder.
Figure 2-48. Lashings 1 Through 3 Installed
2-58
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
4
5
6
4
6
9
Lashing
Tiedown
Instructions
Number
Clevis
Number
4
4 and 4A
Route a 15-foot lashing from clevis 4 and a 15-foot lashing from clevis 4A.
Pass the lashings underneath the A-22 webbing on the sides and around
the rear of the load. Secure the lashings on the rear using two D-rings and
a load binder.
5
6 and 6A
Route a 15-foot lashing from clevis 6 and a 15-foot lashing from clevis 6A.
Pass the lashings underneath the A-22 webbing on the sides and around
the rear of the load. Secure the lashings on the rear using two D-rings and
a load binder.
6
9 and 9A
Route a 15-foot lashing from clevis 9 and a 15-foot lashing from clevis 9A.
Pass the lashings underneath the A-22 webbing on the sides and around
the rear of the load. Secure the lashings on the rear using two D-rings and
a load binder.
Figure 2-49. Lashings 4 Through 6 Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-59
Chapter 2
9
8
10
7
10
1
8
3
Lashing
Tiedown
Instructions
Number
Clevis
Number
7
1 and
Route a 15-foot lashing from clevis 1 and a 15-foot lashing from clevis 10A.
10A
Pass the lashings around the front and rear of the load and up over the top
of the load. Secure the lashings on the top using two D-rings and a load
binder.
8
3 and 3A
Route a 15-foot lashing from clevis 3 and a 15-foot lashing from clevis 3A.
Pass the lashings over the top of the load. Secure the lashings on the top
using two D-rings and a load binder.
9
8 and 8A
Route a 15-foot lashing from clevis 8 and a 15-foot lashing from clevis 8A.
Pass the lashings over the top of the load. Secure the lashings on the top
using two D-rings and a load binder.
10
10 and
Route a 15-foot lashing from clevis 10 and a 15-foot lashing from clevis 1A.
1A
Pass the lashings around the front and rear of the load and up over the top
of the load. Secure the lashings on the top using two D-rings and a load
binder.

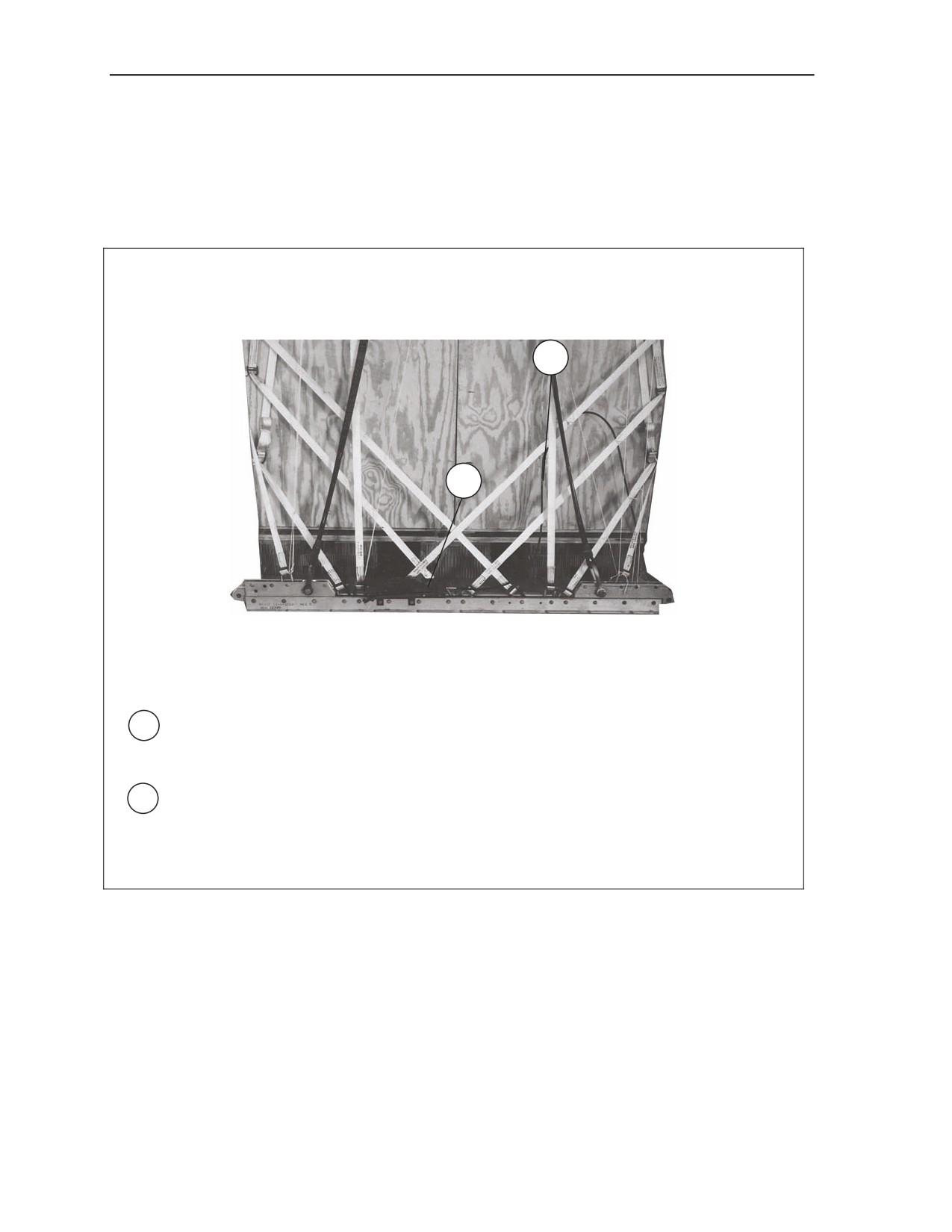

Figure 2-50. Lashings 7 Through 10 Installed
2-60
FM 4-20.152/TO 13C7-22-61
6 September 2007
Rigging Dragon or Dragon II Missile Containers on an 8-Foot, Type V Platform for Low-Velocity Airdrop
INSTALLING SUSPENSION SLINGS AND DEADMAN’S TIE
2-48. Install and safety four 16-foot (2-loop), type XXVI nylon slings and four large clevises. Attach each
sling to a clevis and attach one clevis to each of the four tandem links as shown in Figure 2-51.
3
4
2
1
1. Attach one 16-foot (2-loop), type XXVI nylon suspension sling to a large suspension clevis.
Attach the clevis to one of the tandem links. Repeat the same procedure for the other three
tandem links.
2. Use four pieces of felt padding (approximately 18 by 6 inches) to pad the slings. Secure
the felt to the sling with type III nylon cord and pressure-sensitive tape.
3. Raise the four suspension slings above the load, and install a deadman’s tie as outlined in
to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
4. Position two 36- by 96-inch pieces of honeycomb side by side on top of the load, tape the
edges of the honeycomb and secure the honeycomb with type III nylon cord.

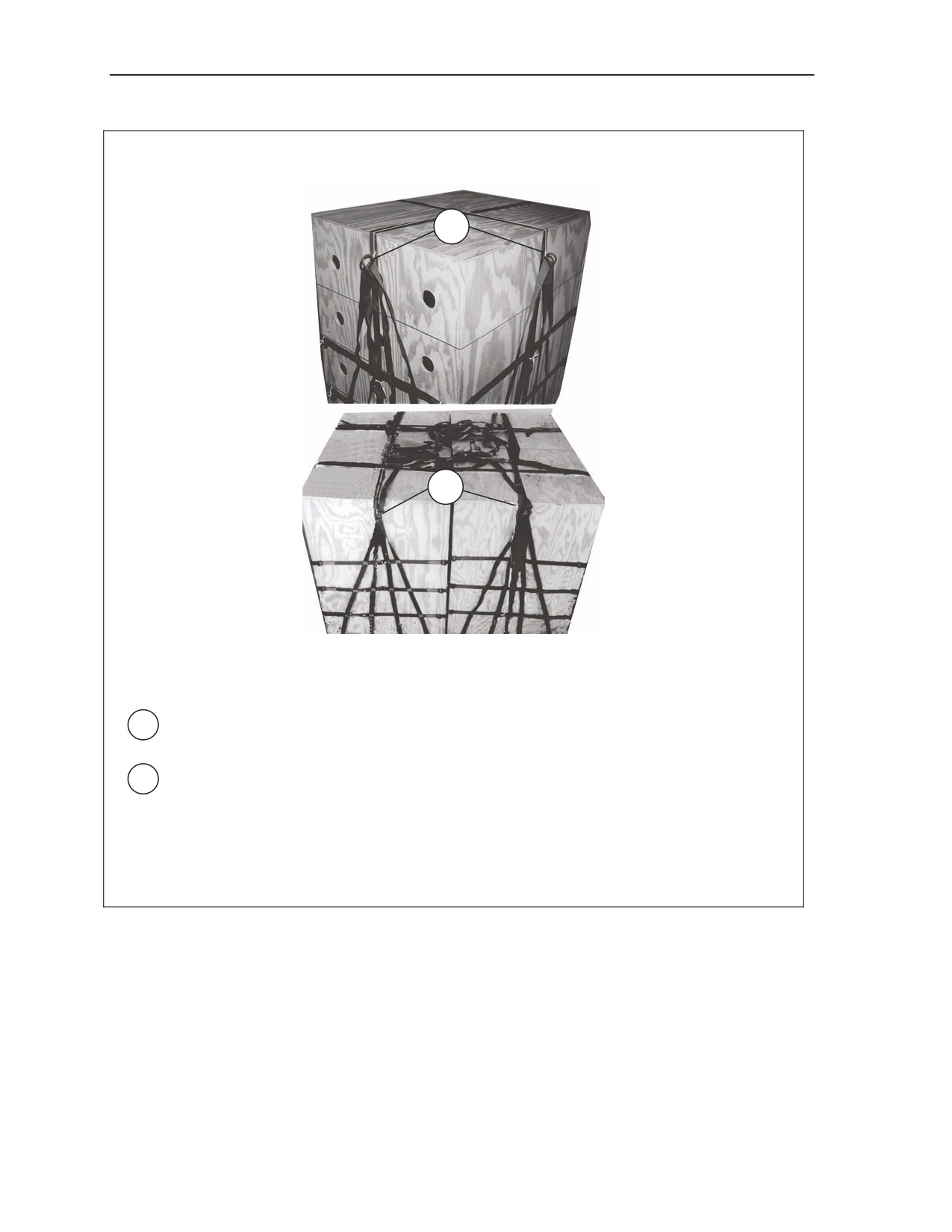

Figure 2-51. Suspension Slings and Deadman’s Tie Installed
6 September 2007
FM 4-20.152/TO 13C7-22-61
2-61
Chapter 2
STOWING CARGO PARACHUTE
2-49. Stow one G-11 cargo parachute according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figure 2-52.
1
2
1. Prepare, place, and secure one G-11 cargo parachute according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2. Use a 12-loop (2-loop), type XXVI nylon sling as a deployment line. Bolt it to the latch
assembly on the right spacer. S-fold the slack and tie the folds with type I, 1/4-inch cotton
webbing.

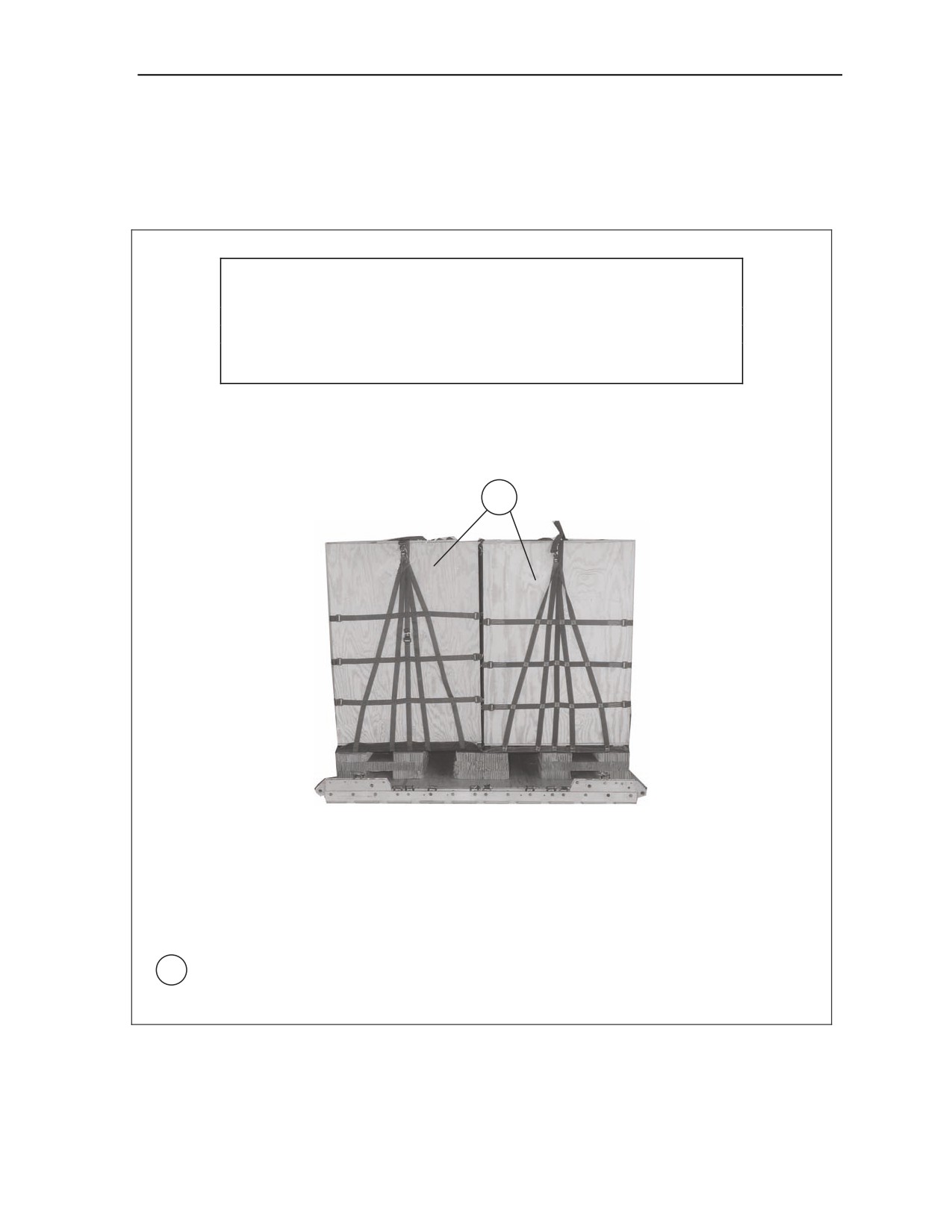

Figure 2-52. Cargo Parachute Stowed and Secured to Load
2-62
FM 4-20.152/TO 13C7-22-61
6 September 2007
|
|
