FM 4-20.116 Airdrop of Supplies and Equipment: Reference Data for Airdrop Platform Loads (MAY 2006) - page 4





Chapter 2

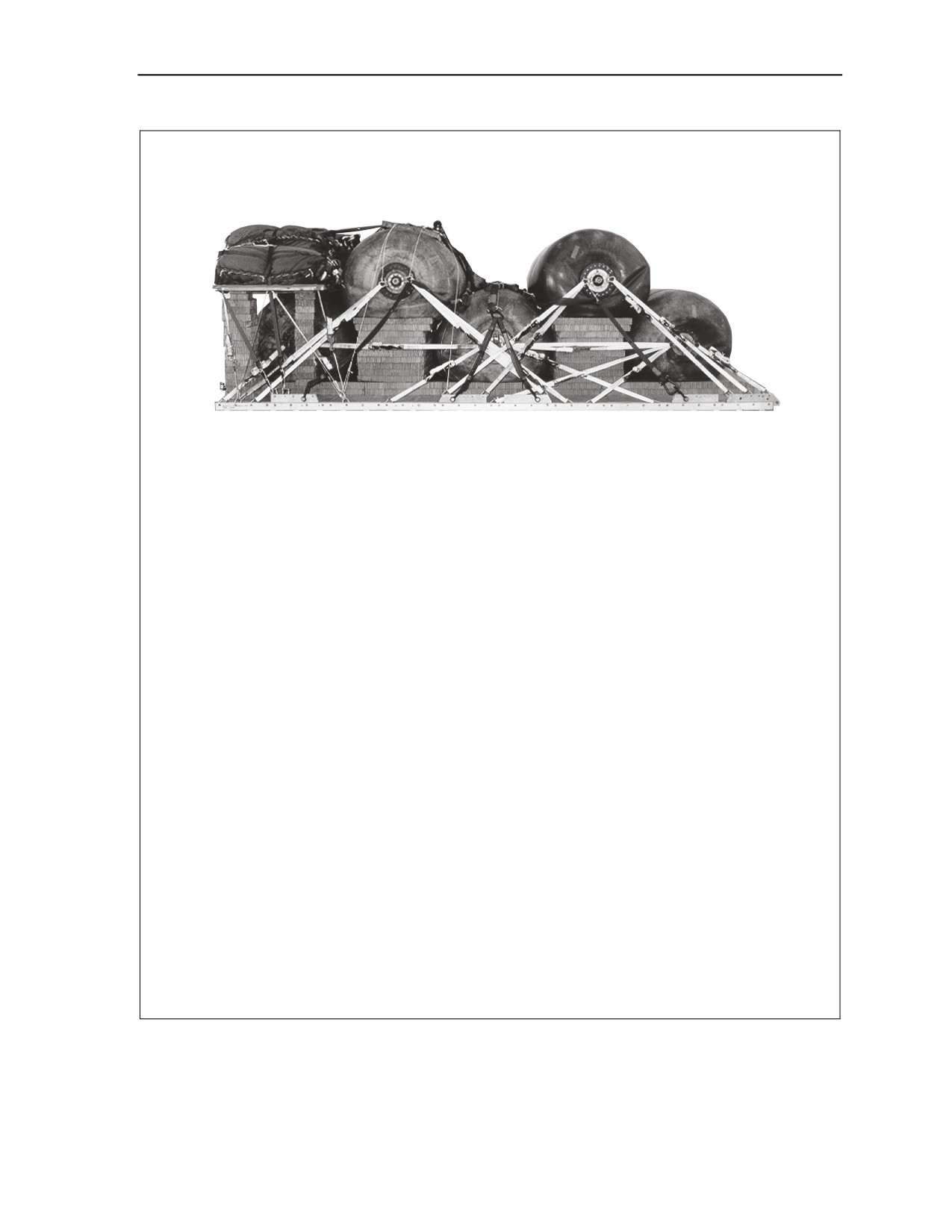

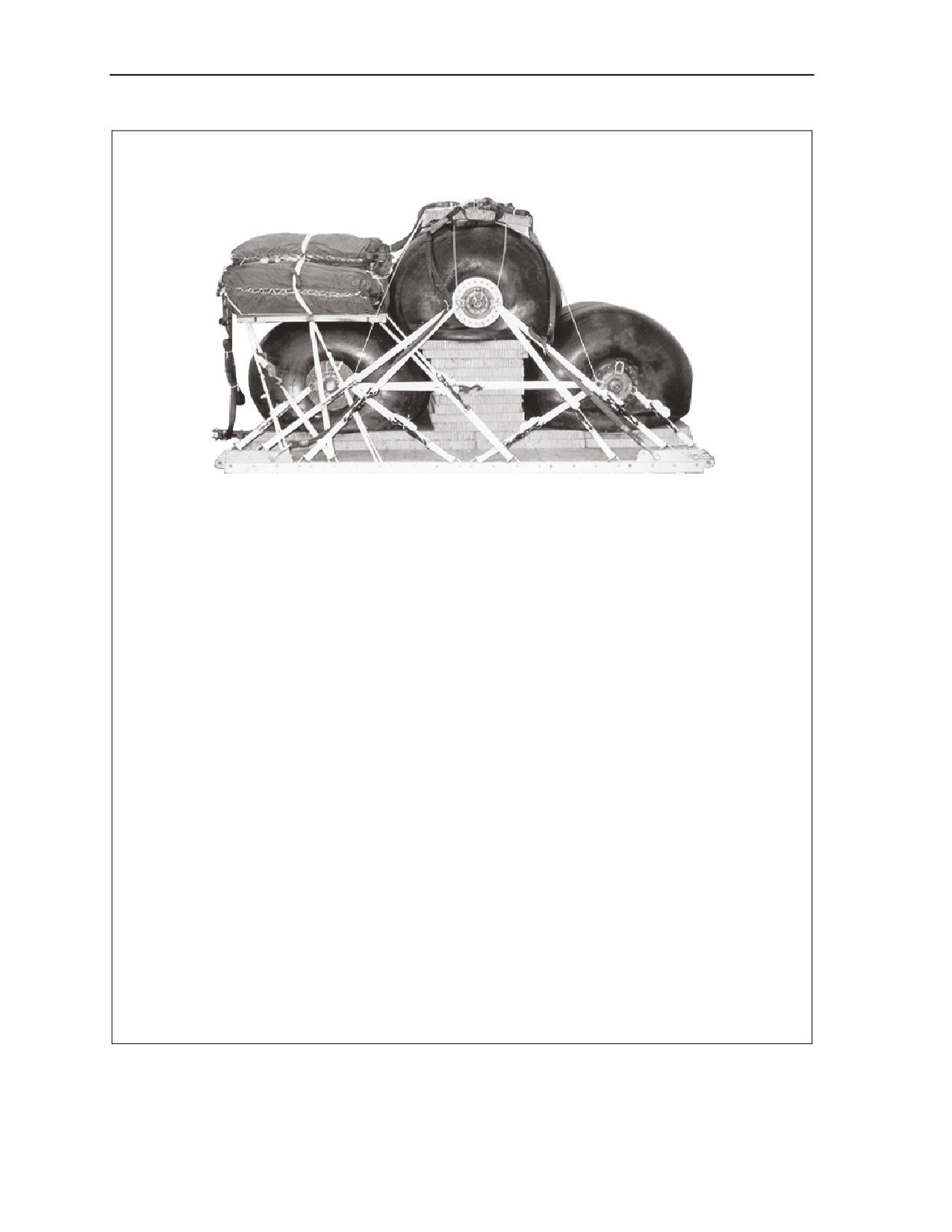

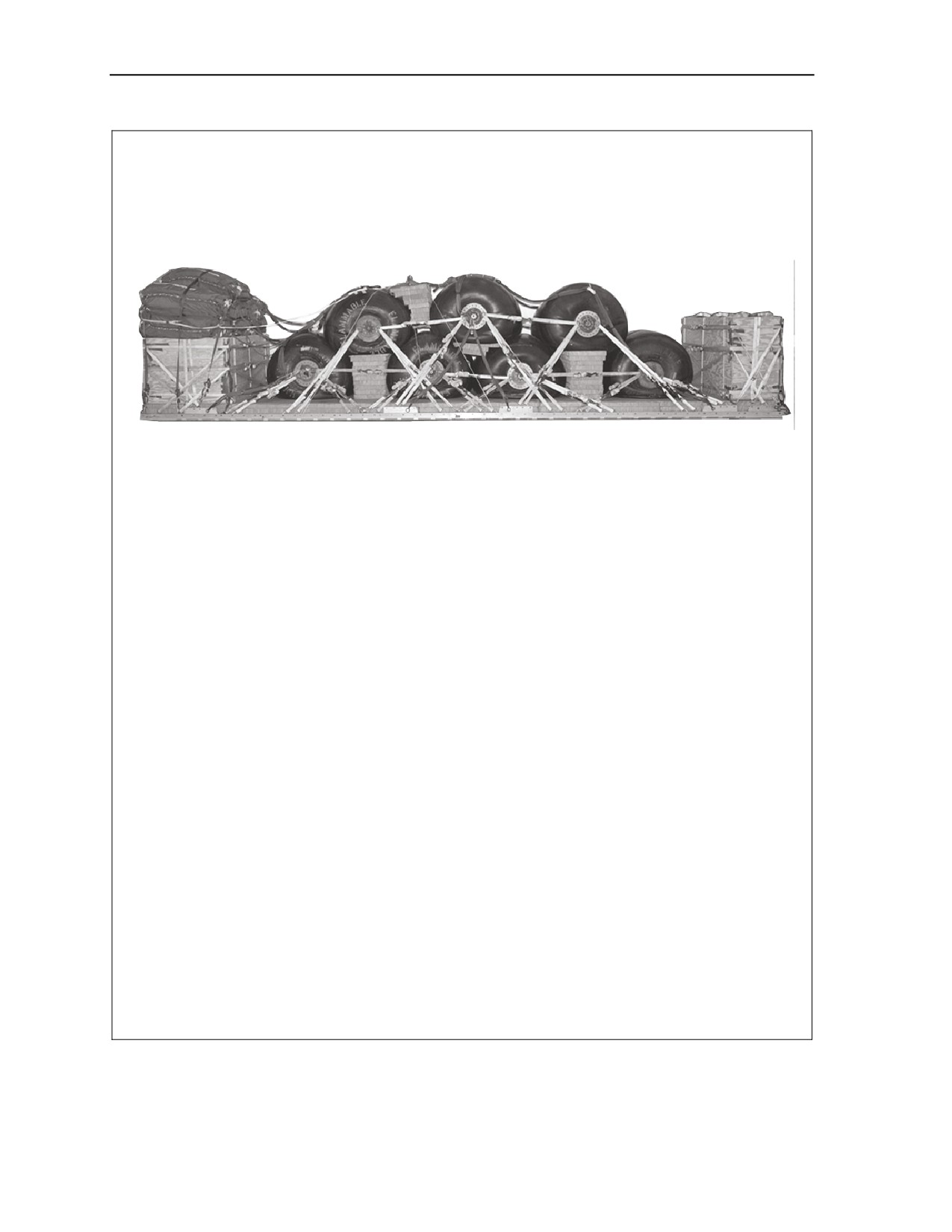

AAFARS with Five 500-Gallon Fuel Drums
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
27,292 pounds
Height
96 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
324 inches
Overhang: Front (Tongue of Pump)
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
146 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Six G-11C

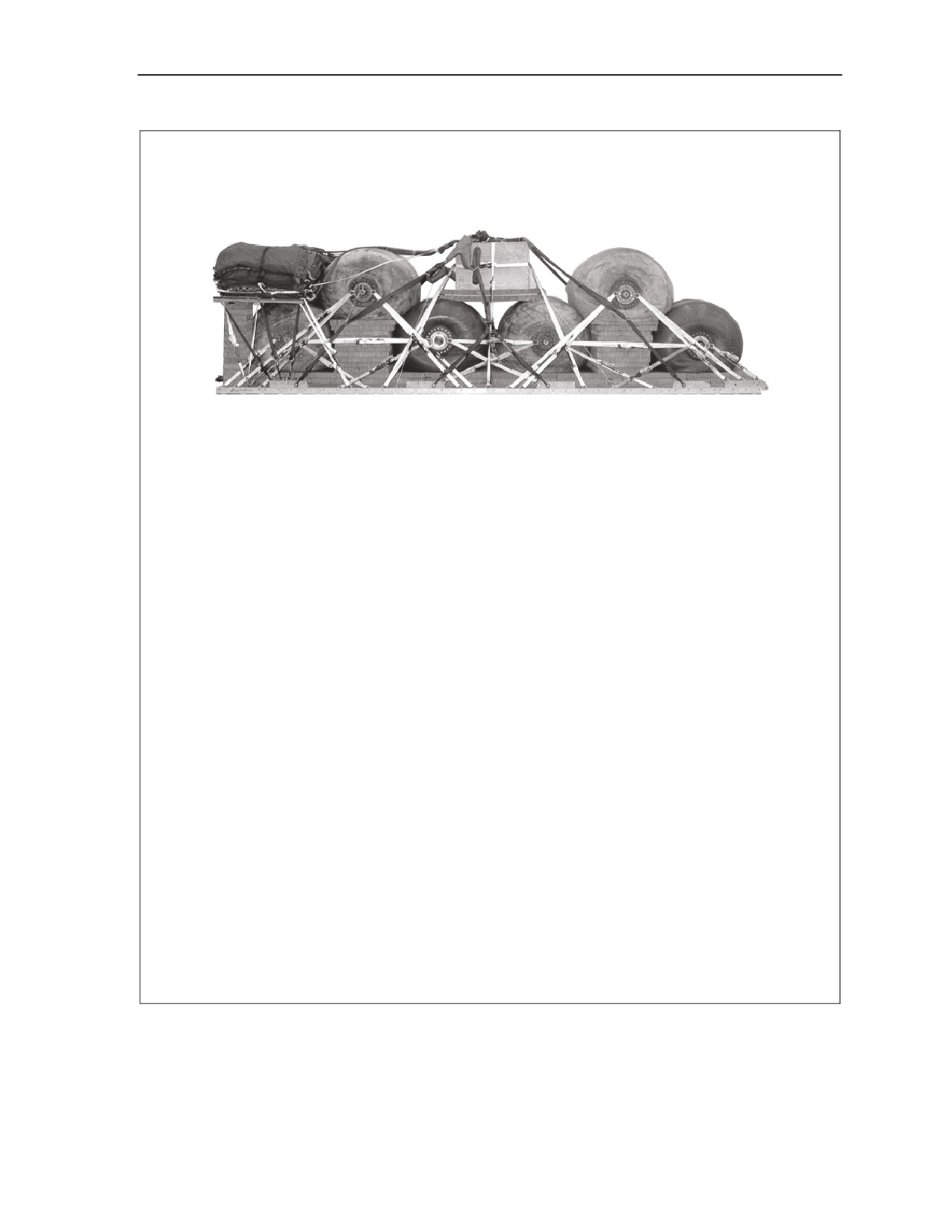

Figure 2-85. AAFARS with Five 500-Gallon Fuel Drums
2-86
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

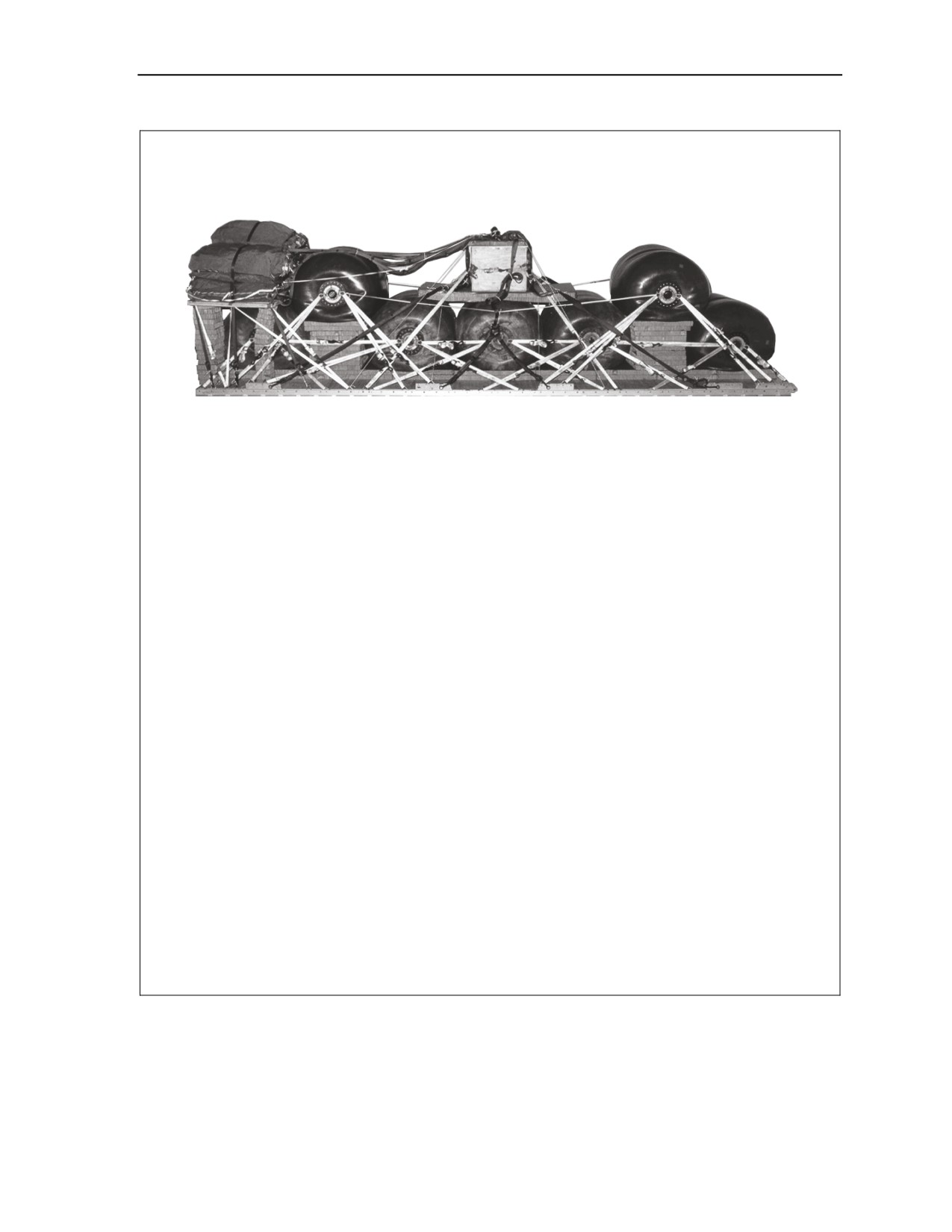

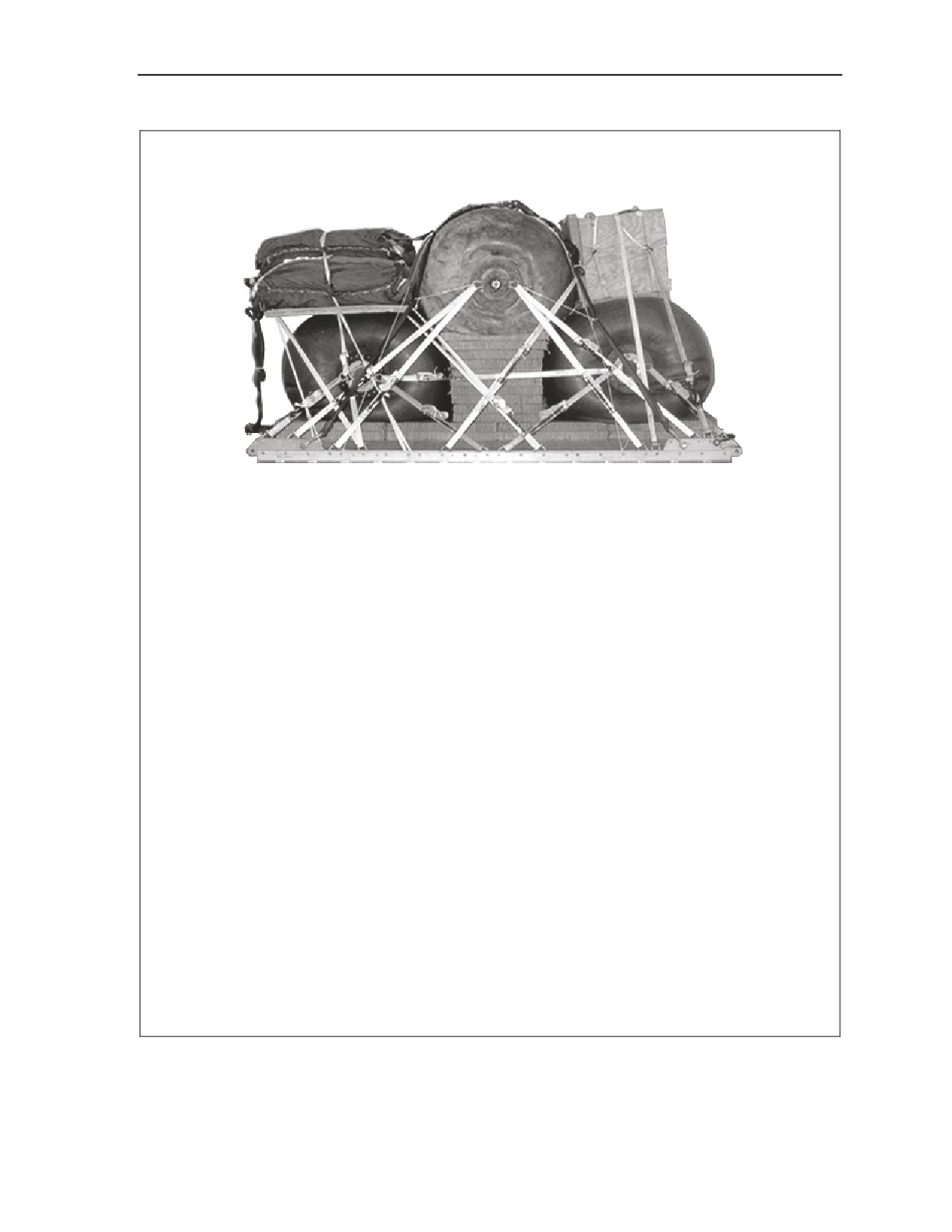

AAFARS with Six 500-Gallon Fuel Drums
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
32,480 pounds
Height
94 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front (Tongue of Pump)
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
195 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Seven G-11C

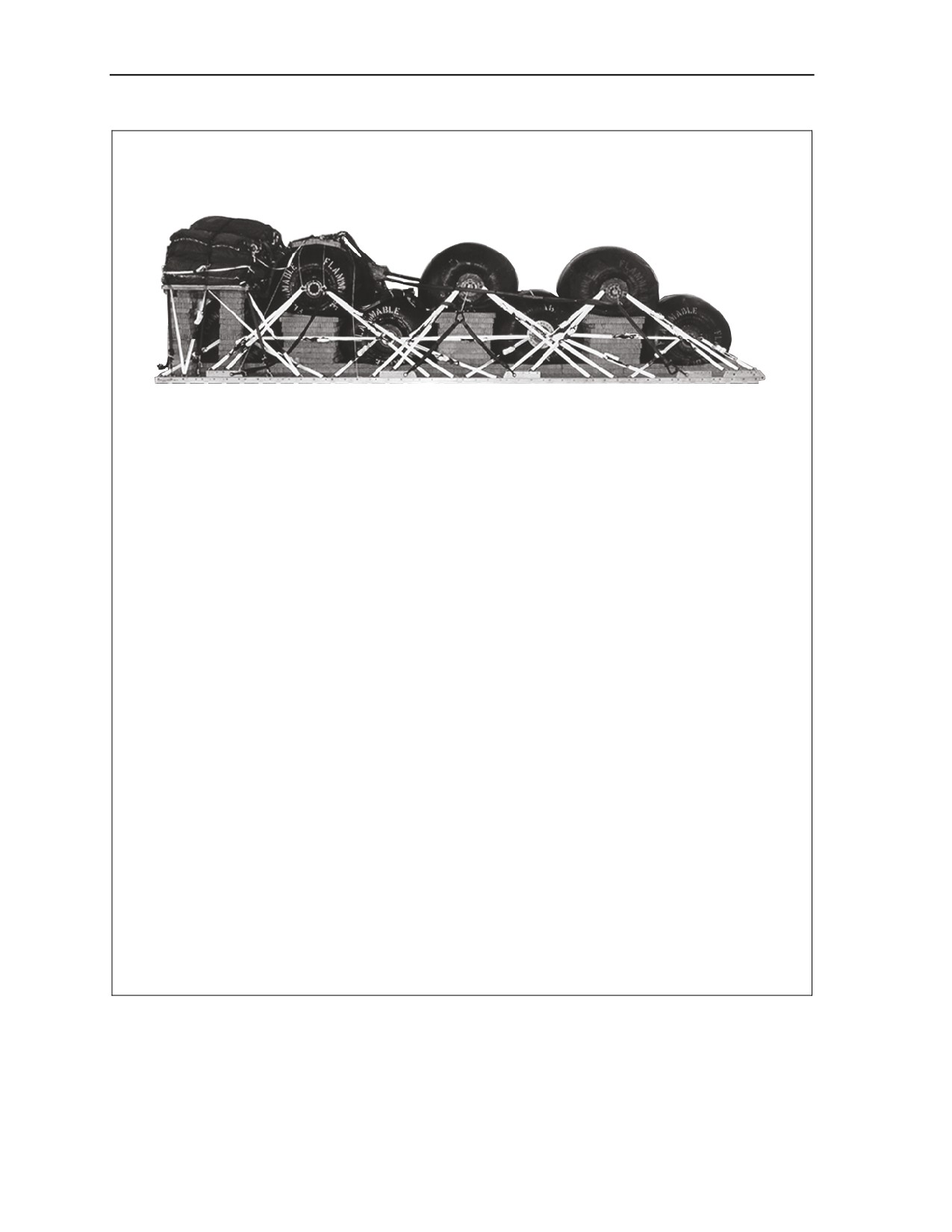

Figure 2-86. AAFARS with Six 500-Gallon Fuel Drums
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-87
Chapter 2

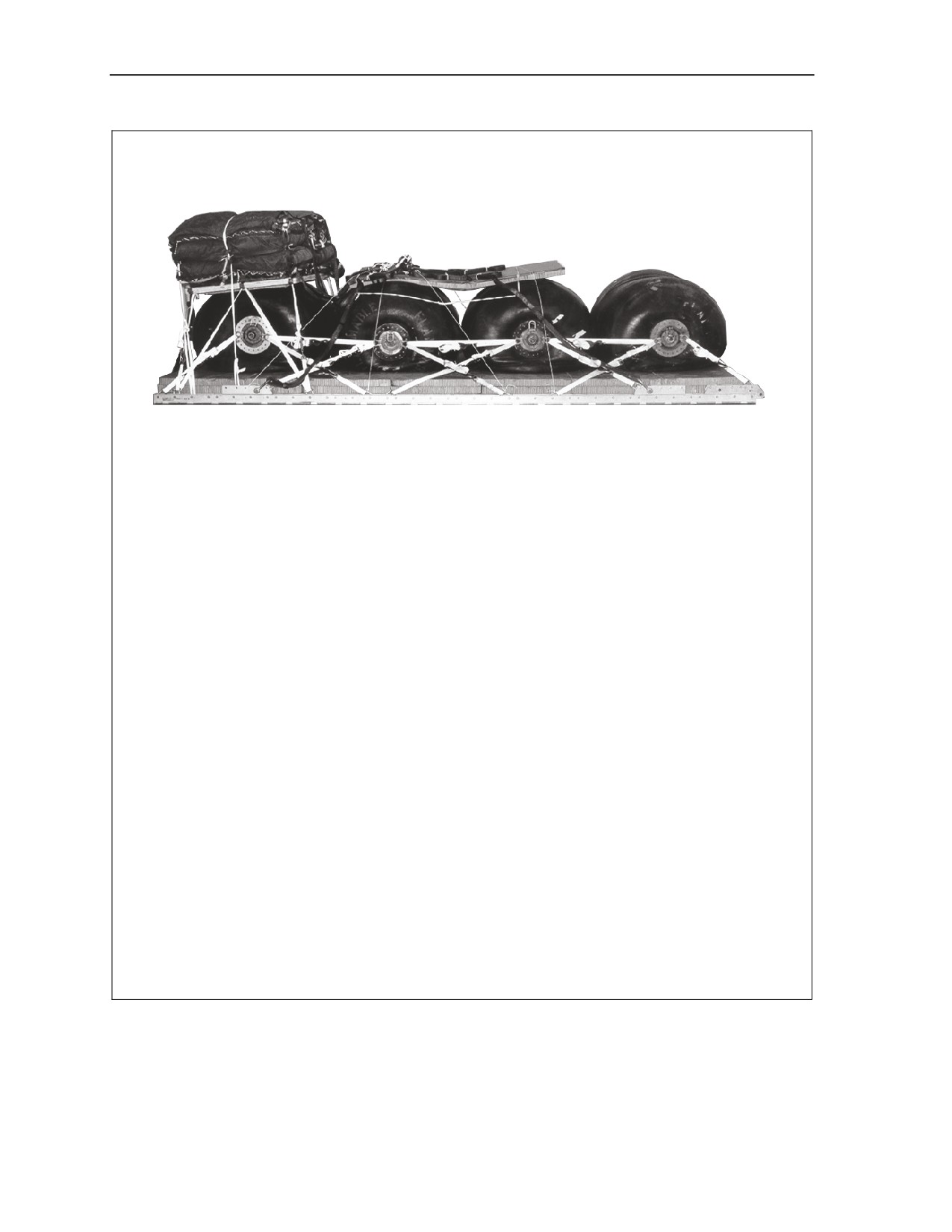

AAFARS with Seven 500-Gallon Fuel Drums
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
36,480 pounds
Height
96 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front (Tongue of Pump)
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
191 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Seven G-11C

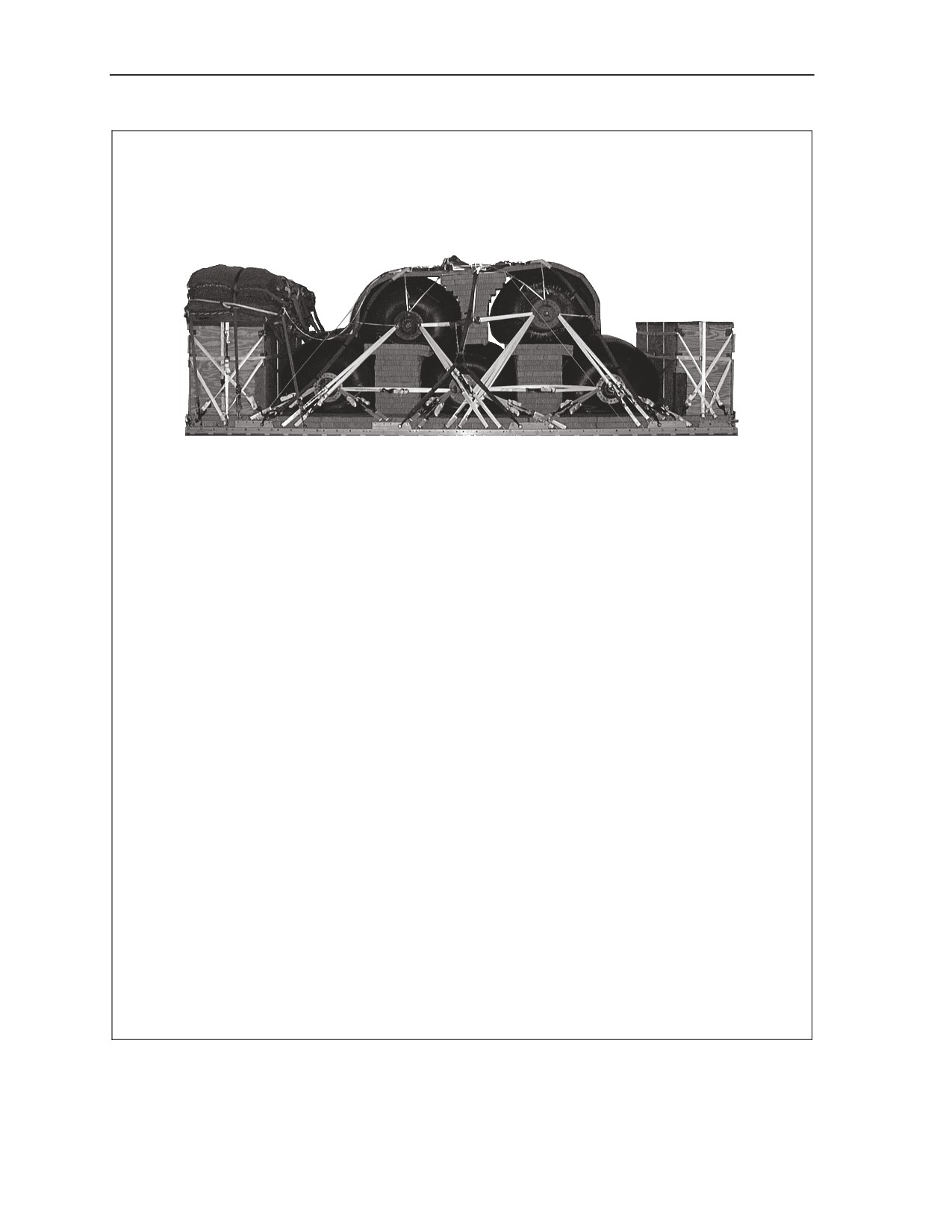

Figure 2-87. AAFARS with Seven 500-Gallon Fuel Drums
2-88
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

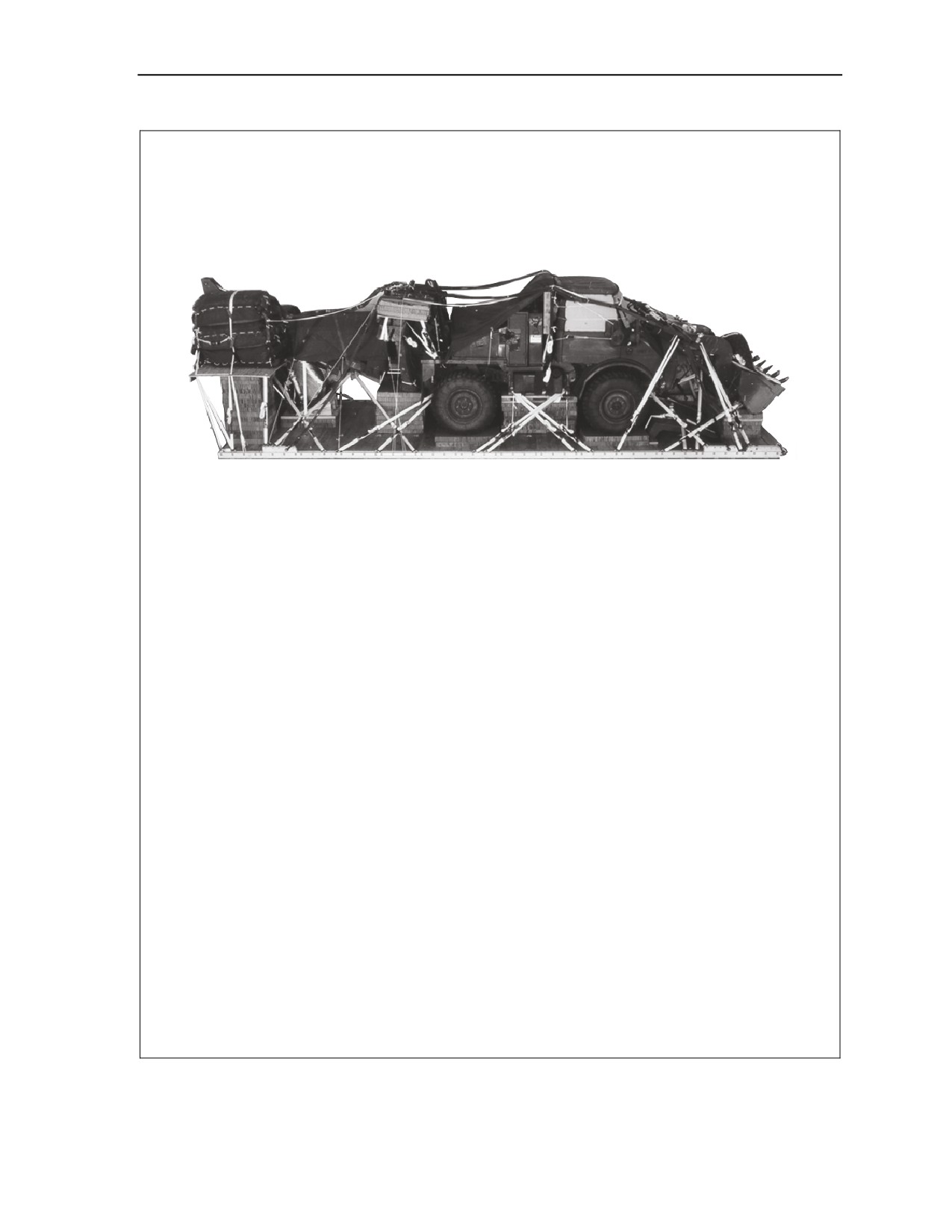

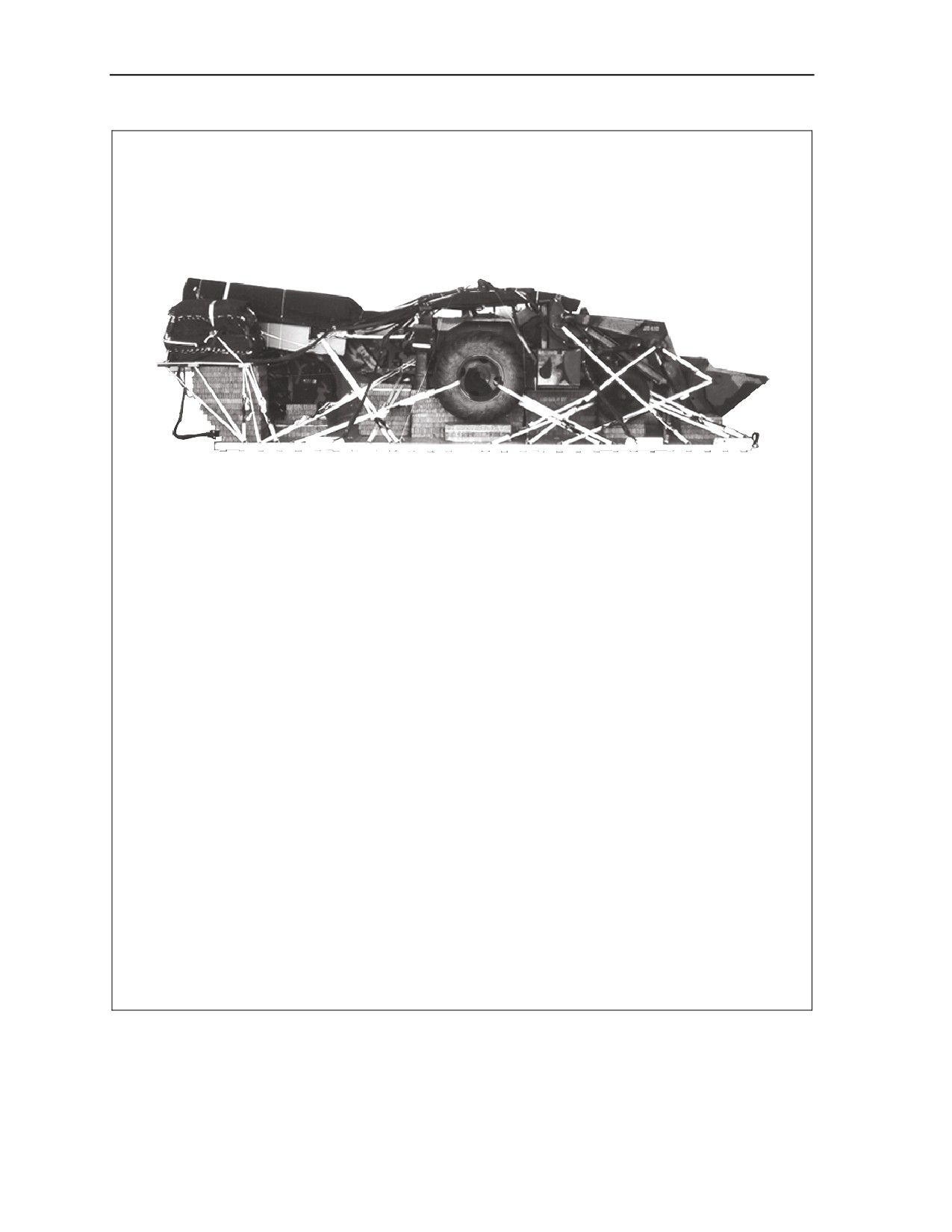

Small Emplacement Excavator (SEE)
Reference: FM 10-539/TO 13C7-1-17
Weight: Load shown
21,624 pounds
Height
99 3/4 inches
Width
108 inches
Overall Length with EFTC
364 inches
Overall Length with EPJS
372 inches
Overhang: Front (Front of Vehicle)
6 inches
Rear (Rear of Vehicle)
22 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
165 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Five G-11C
Figure 2-88. Small Emplacement Excavator (SEE)
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-89
Chapter 2
JD410 Tractor
Reference: FM 10-539/TO 13C7-1-17
Weight: Load shown
19,690 pounds
Height
95 inches
Width
108 inches
Overall Length with EFTC
376 inches
Overall Length with EPJS
376 inches
Overhang: Front (Front of Vehicle)
6 inches
Rear (Rear of Vehicle)
34 inches
Center of Balance (from front edge of platform)
149 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Two G-11B
Figure 2-89. JD410 Tractor
2-90
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

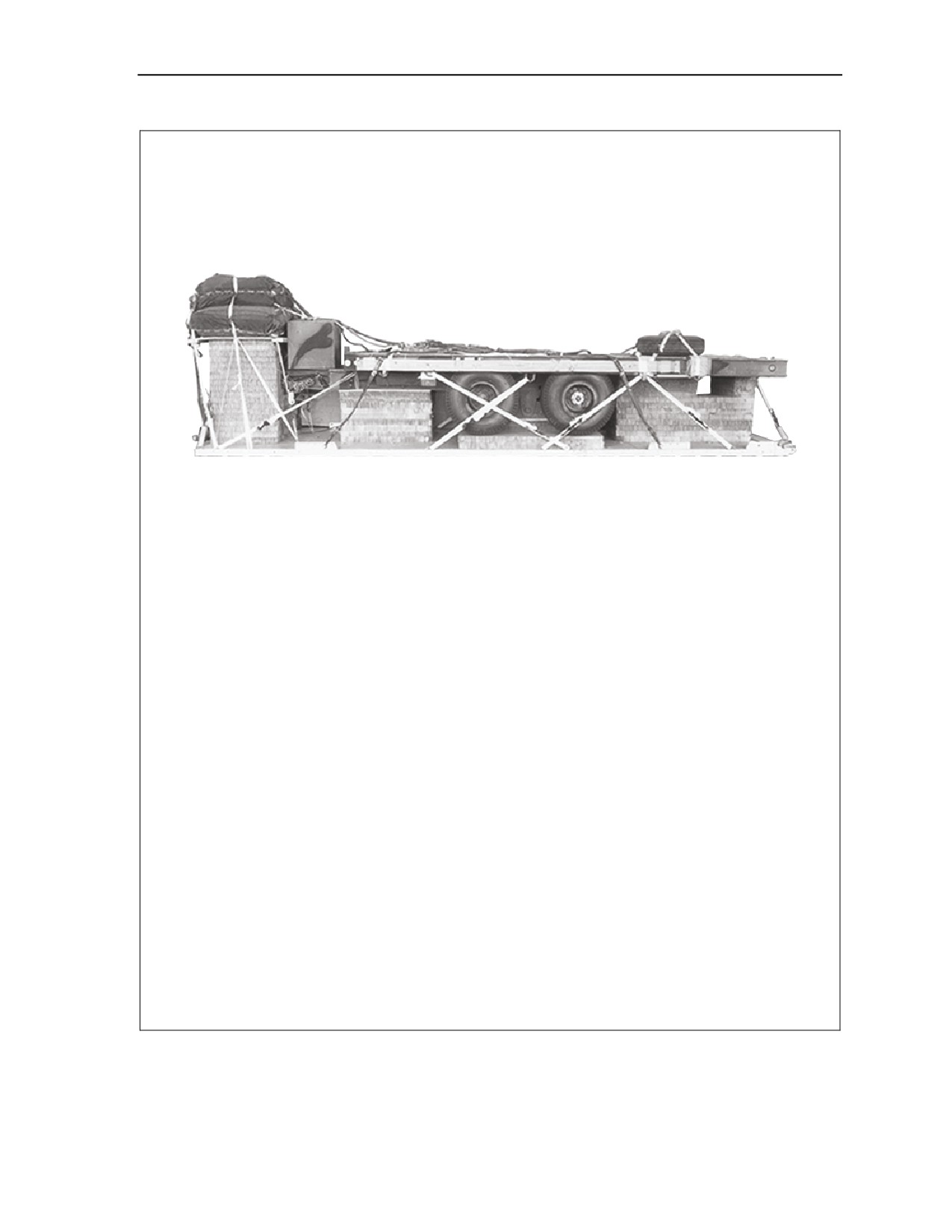

Fifteen-Ton Tilt Bed Trailer
Reference: FM 10-540/TO 13C7-3-381
Weight: Load shown
12,350 pounds
Height
90 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
324 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
146 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 24-Foot
Cargo Parachutes: Three G-11B

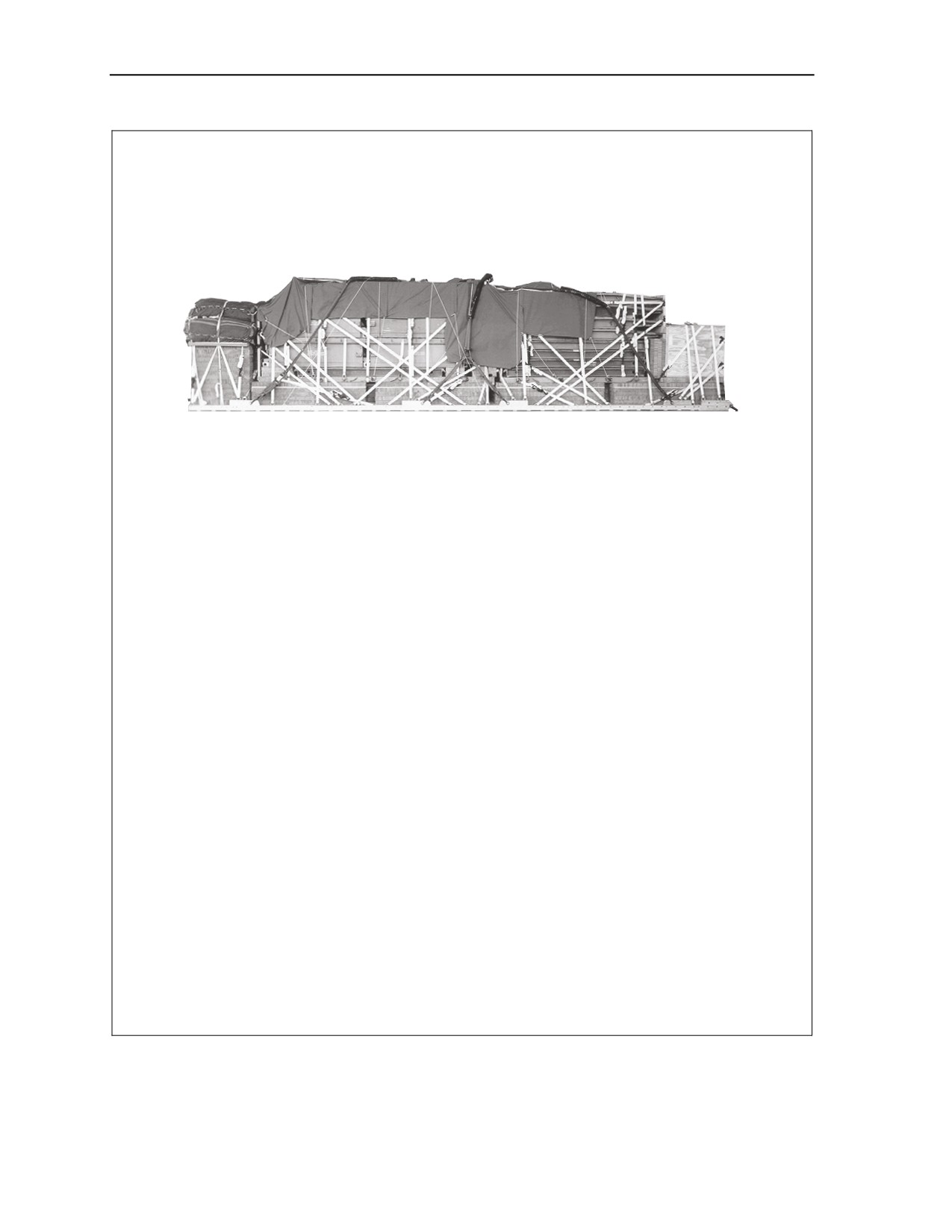

Figure 2-90. Fifteen-Ton Tilt Bed Trailer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-91
Chapter 2
Five-Bay, Single-Story, Medium Girder (Fixed) Bridge
Reference: FM 10-541/TO 13C7-11-21
Weight: Load shown
22,480 pounds
Height
97 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
186 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Five G-11C
Figure 2-91. Five-Bay, Single-Story, Medium Girder (Fixed) Bridge
2-92
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

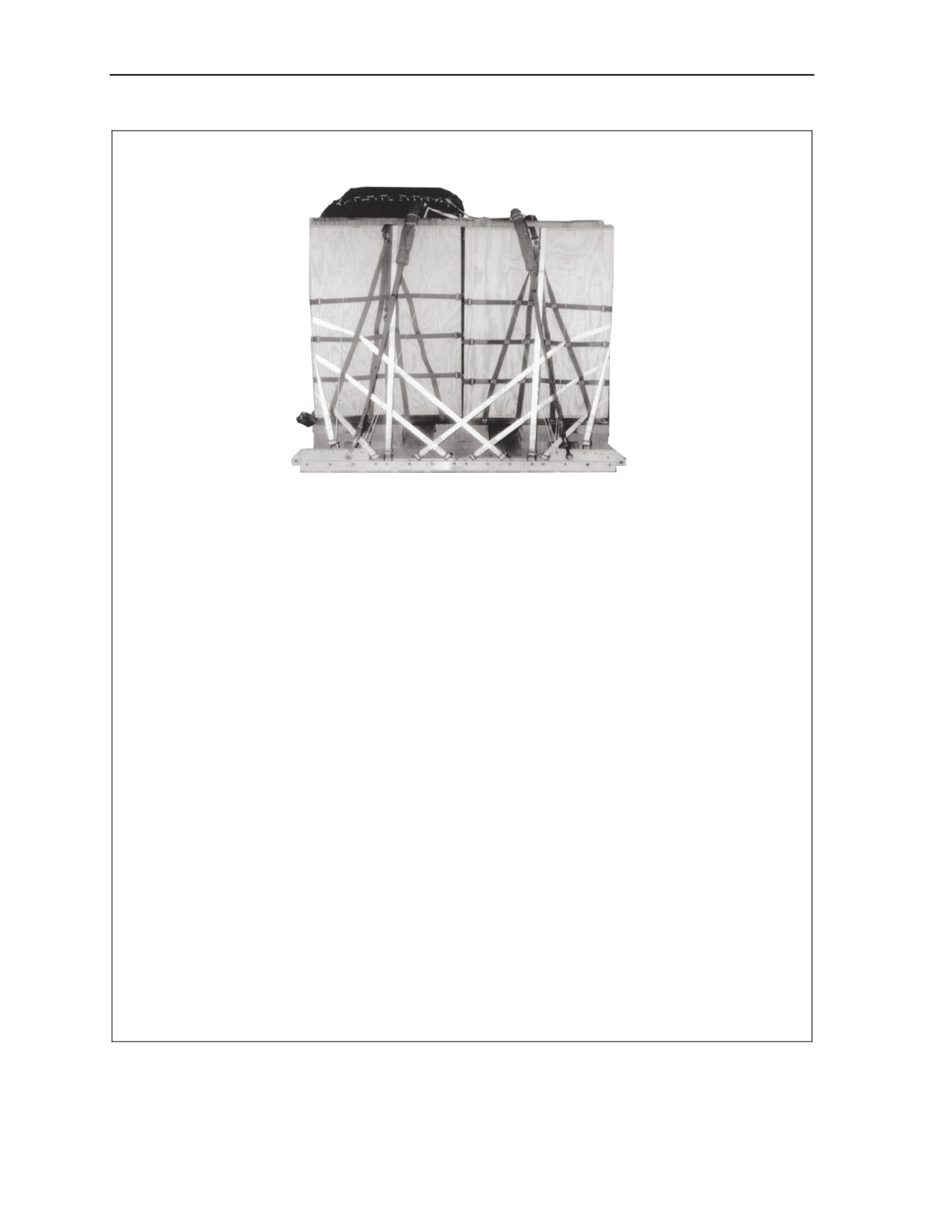

Two-Bay Components for the Seven-Bay, Single-Story, Medium Girder (Fixed) Bridge
Reference: FM 10-541/TO 13C7-11-21
Weight: Load shown
6,310 pounds
Height
67 1/2 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
101 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B

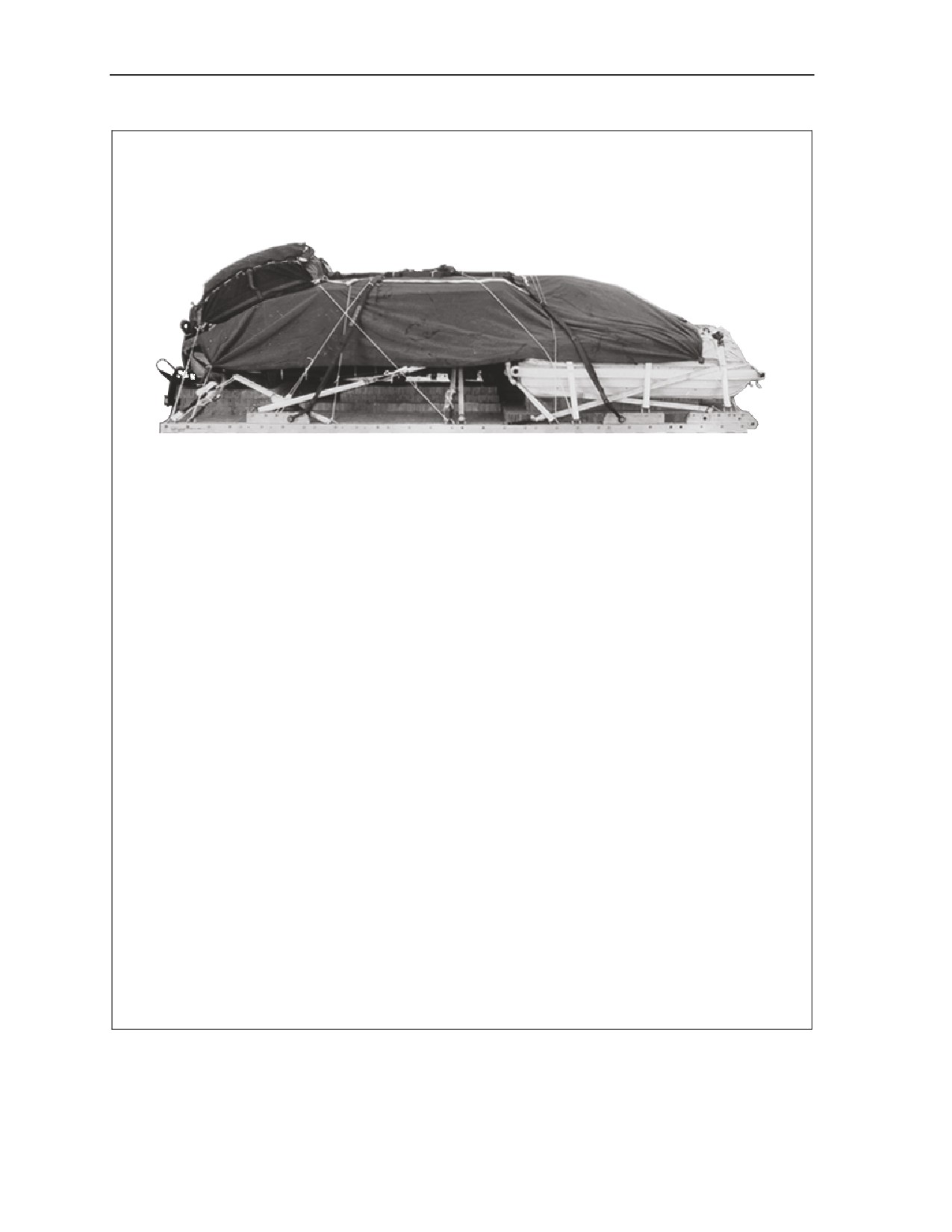

Figure 2-92. Two-Bay Components for the Seven-Bay, Single-Story, Medium Girder (Fixed)
Bridge
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-93
Chapter 2

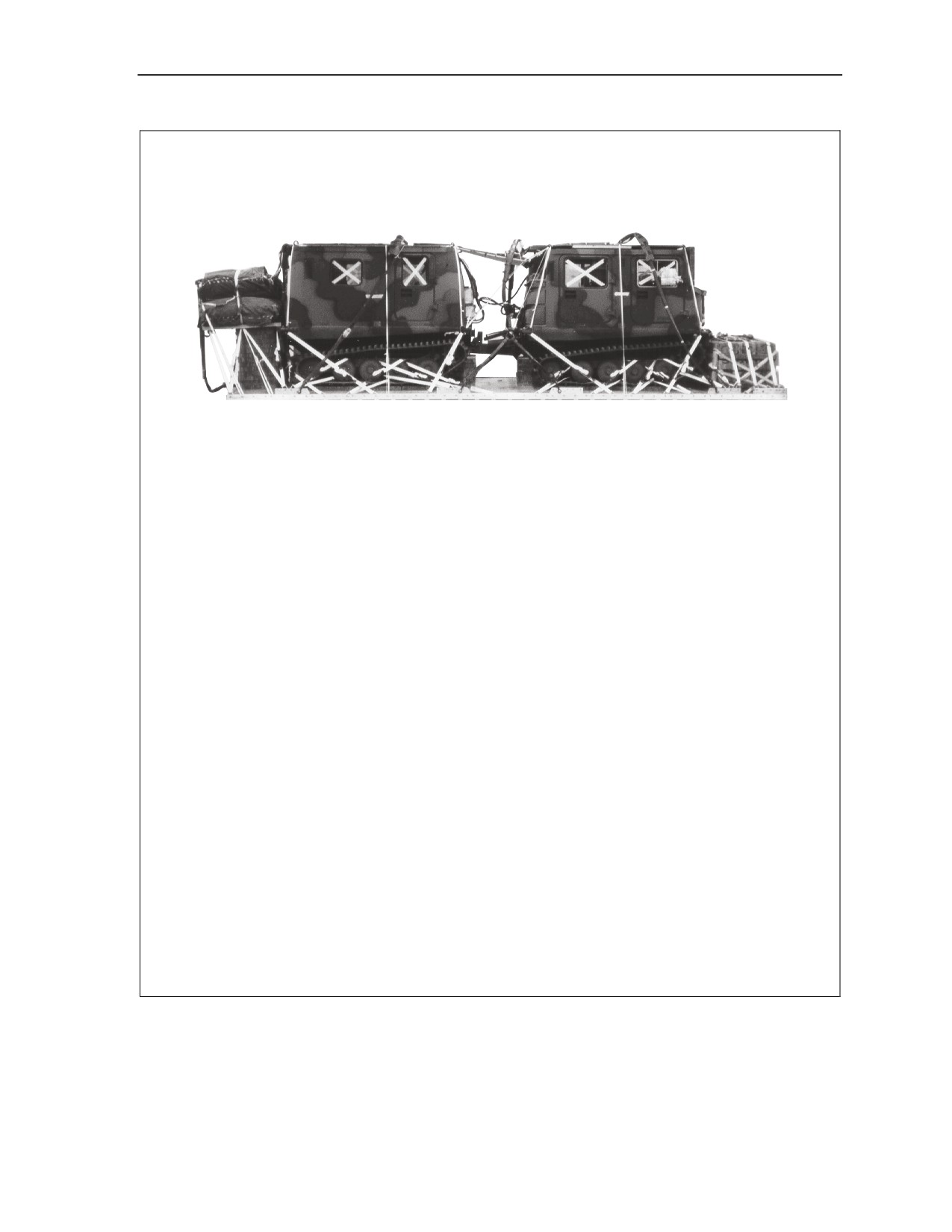

Mobile Over Snow Transport (MOST)
Reference: FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21
Weight: Load shown
4,460 pounds
Height
66 inches
Width
108 inches
Overall Length with EFTC
220 inches
Overall Length with EPJS
238 inches
Overhang: Front (Movile)
10 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
100 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 16-Foot
Cargo Parachute: One G-11B

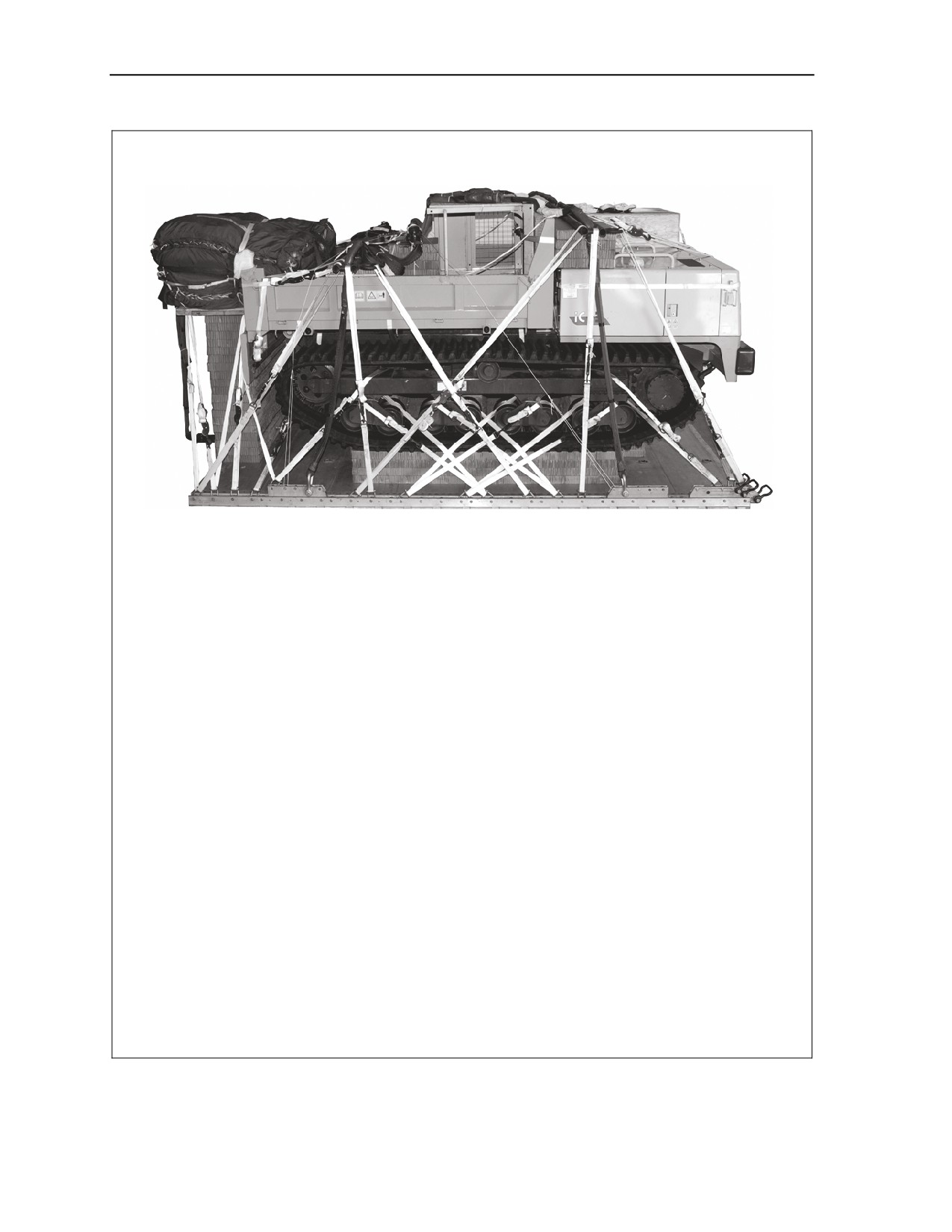

Figure 2-93. Mobile Over Snow Transport (MOST)
2-94
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

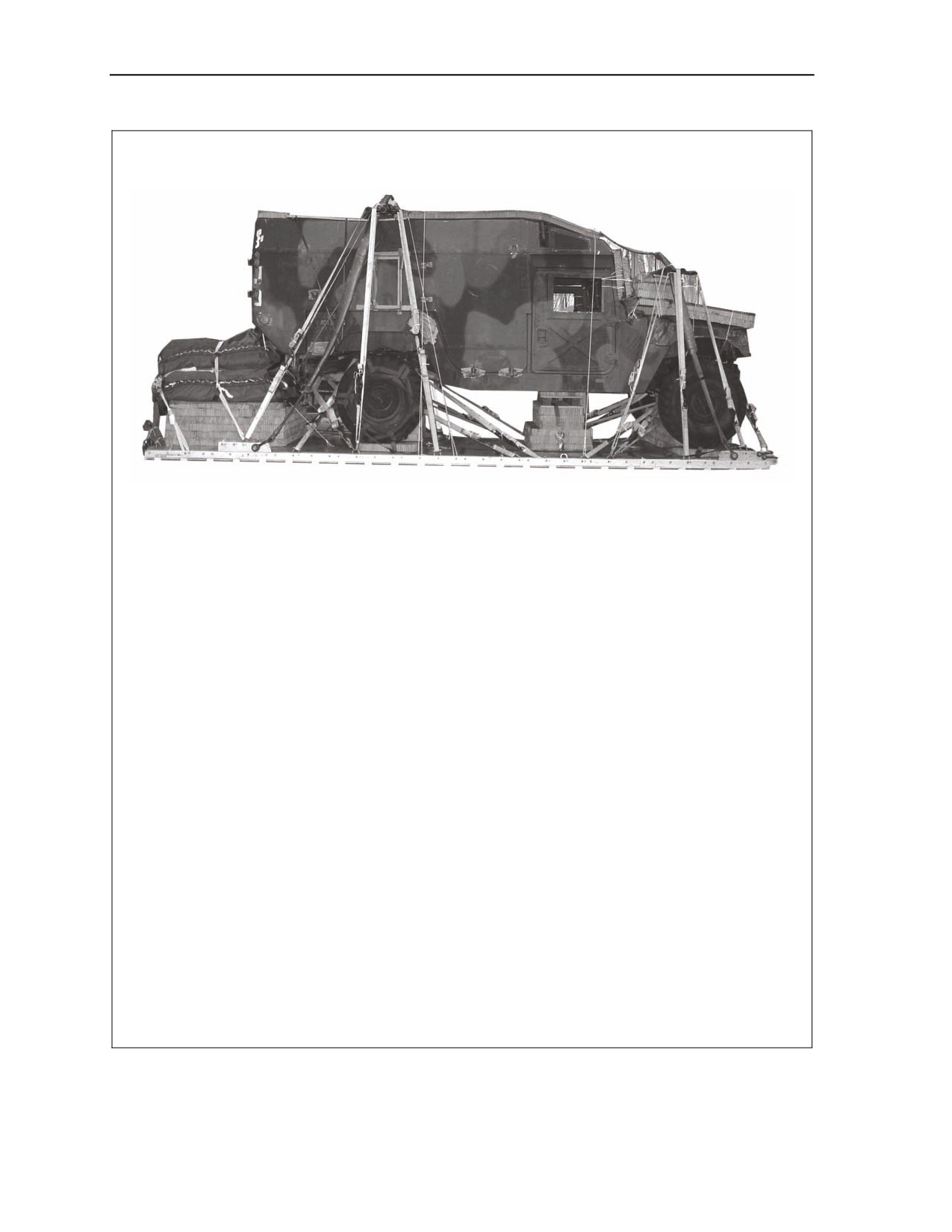

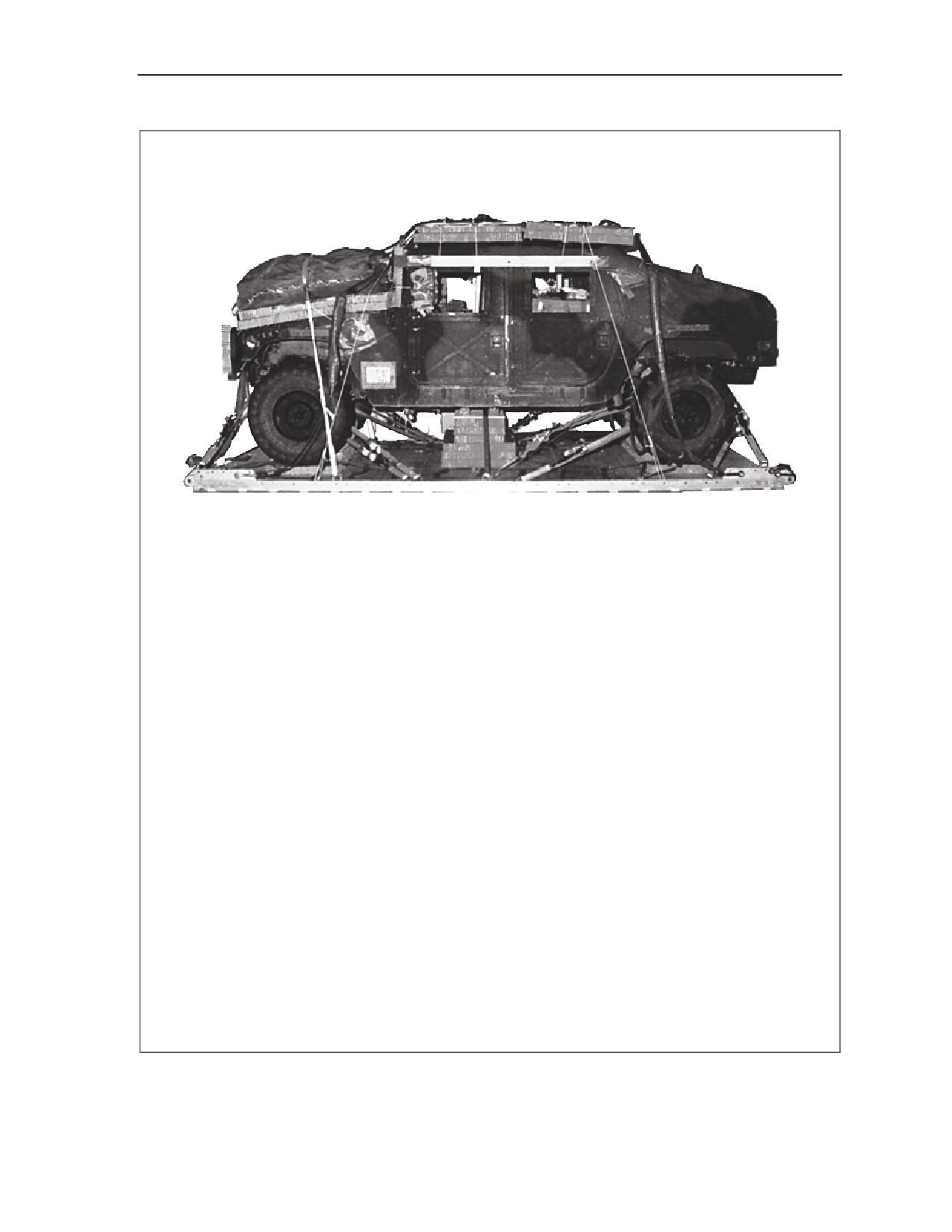

M1025 or M1026 Armament Carrier with Technical Defense Alert Radar System (TDARS)
Reference: FM 10-543/TO 13C7-2-1011
Weight: Load shown
9,650 pounds
Height
91 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
93 inches
Accompanying Load: TDARS plus one box of 105-mm ammunition rigged in back of truck
weighs 845 pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-94. M1025 or M1026 Armament Carrier with Technical Defense Alert Radar System
(TDARS)
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-95
Chapter 2
120-mm Mortar and 1 1/4-Ton Truck
Reference: FM 10-500-45/TO 13C7-10-201
Weight: Load shown
14,140 pounds
Height
87 inches
Width
108 inches
Overall Length with EFTC
365 inches
Overall Length with EPJS
383 inches
Overhang: Front (Front of Truck)
11 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
164 inches
Accompanying Load: An accompanying load weighing 2,700 pounds is rigged on the platform
and equipment weighing up to 1,800 pounds is rigged in the truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 28-Foot
Cargo Parachutes: Three G-11B

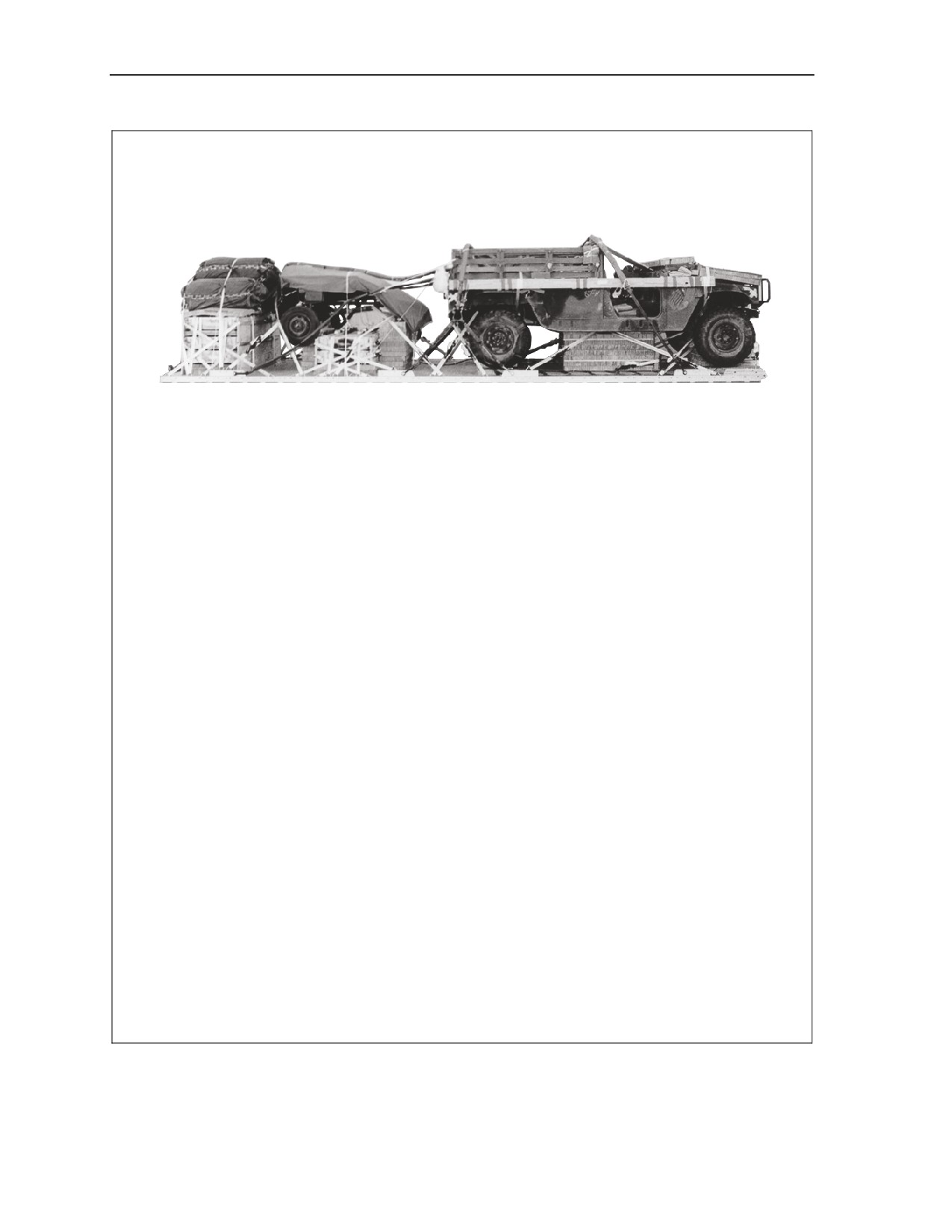

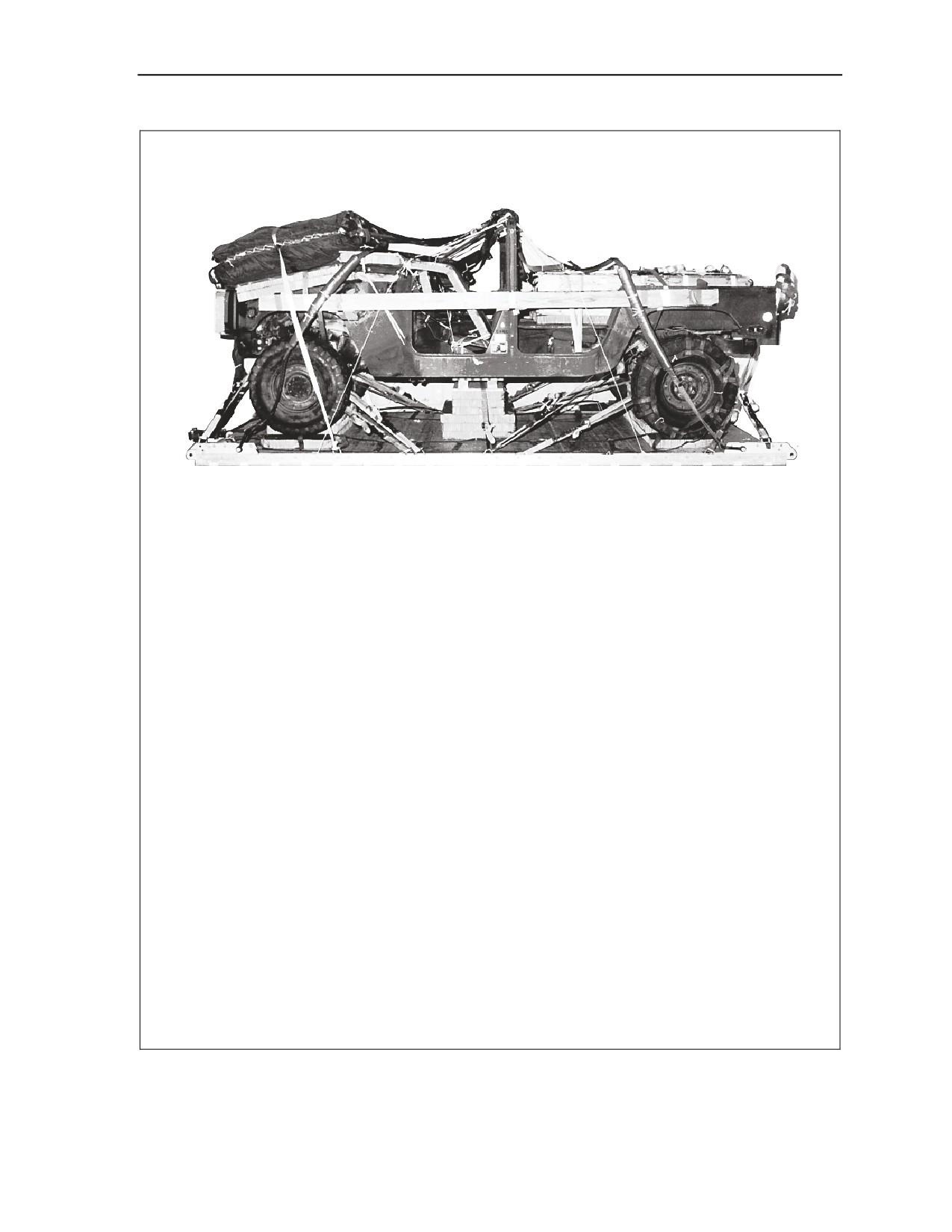

Figure 2-95. 120-mm Mortar and 1 1/4-Ton Truck
2-96
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
1 1/4-Ton Truck with 120-mm Mortar
Reference: FM 10-500-45/TO 13C7-10-201
Weight: Load shown
9,950 pounds
Height
86 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
95 inches
Accompanying Load: An accompanying load of 120-mm mortar ammunition rigged in back of
truck may not exceed 2,000 pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-96. 1 1/4-Ton Truck with 120-mm Mortar
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-97
Chapter 2
Koehring 7 1/2-Ton Crane
Reference: FM 10-548/TO 13C7-24-21
Weight: Load shown
30,368 pounds
Height
100 inches
Width
108 inches
Overall Length with EFTC
347 inches
Overall Length with EPJS
347 inches
Overhang: Front (Front of Crane)
22 inches
Rear (Boom)
37 inches
Center of Balance (from front edge of platform)
123 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Seven G-11C
Figure 2-97. Koehring 7 1/2-Ton Crane
2-98
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M998 1 1/4-Ton Truck with Six Stinger Weapon Systems
Reference: FM 10-550/TO 13C7-22-71
Weight: Load shown
8,830 pounds
Height
92 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
95 inches
Accompanying Load: Accompanying load rigged in truck weighs 1,180 pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-98. M998 1 1/4-Ton Truck with Six Stinger Weapon Systems
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-99
Chapter 2
Avenger Air Defense Weapons System with Environmental Control Unit (ECU) and M1097A2 Truck
Reference: FM 10-550/TO 13C7-22-71
Weight: Load shown
14,182 pounds
Height
95 inches
Width
108 inches
Overall Length with EFTC
356 inches
Overall Length with EPJS
374 inches
Overhang: Front (Brushguard)
2 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
167 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 28-Foot
Cargo Parachutes: Three G-11B

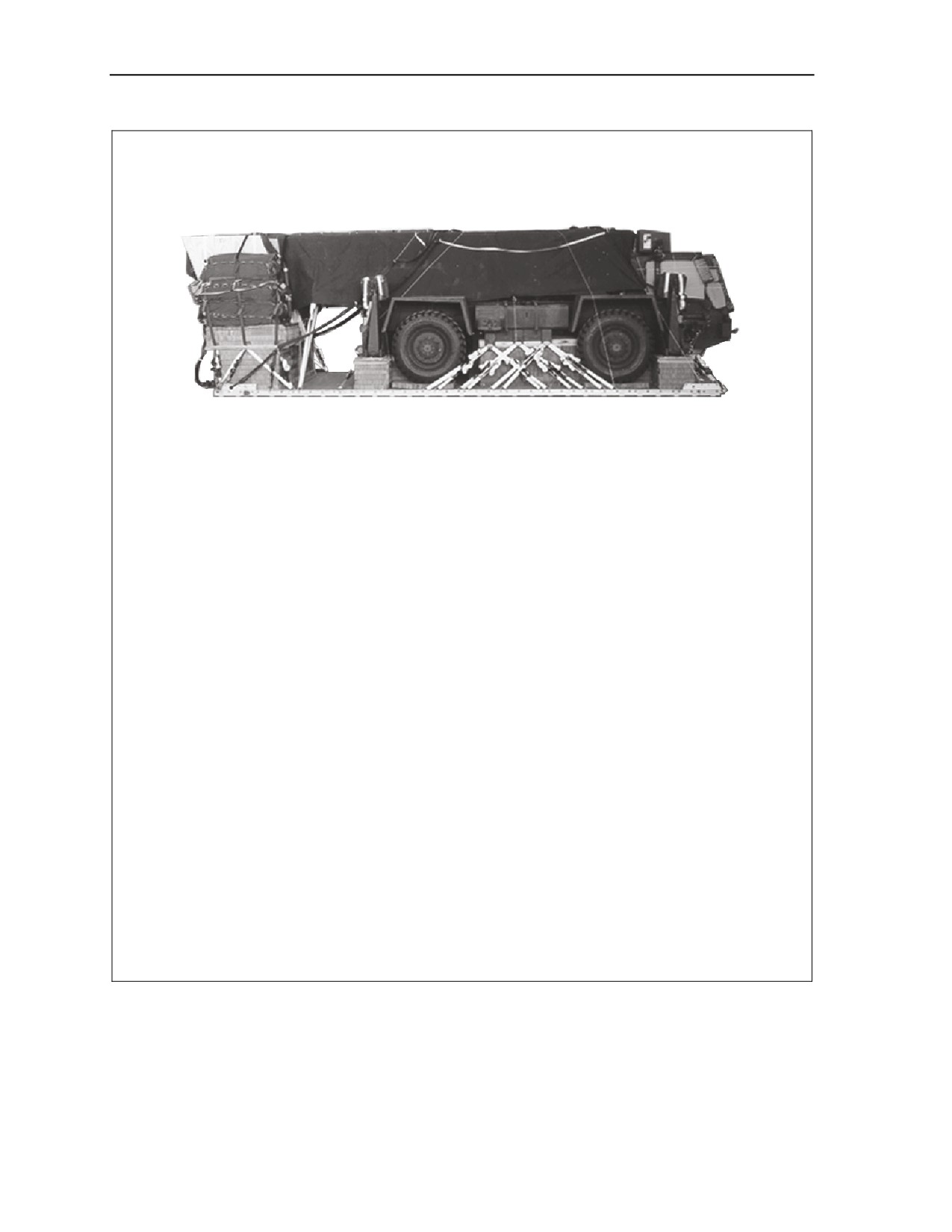

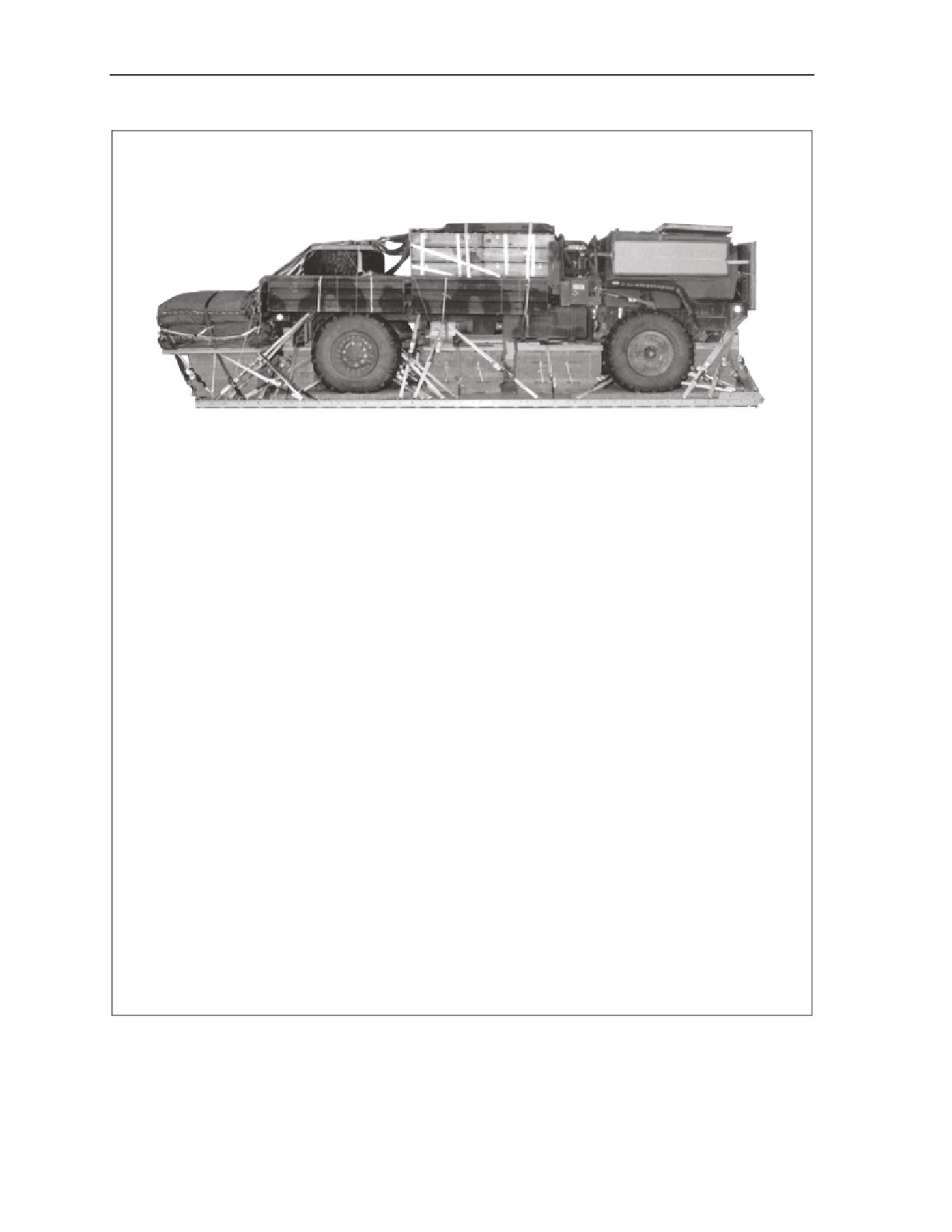

Figure 2-99. Avenger Air Defense Weapons System with Environmental Control Unit (ECU)
and M1097A2 Truck
2-100
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

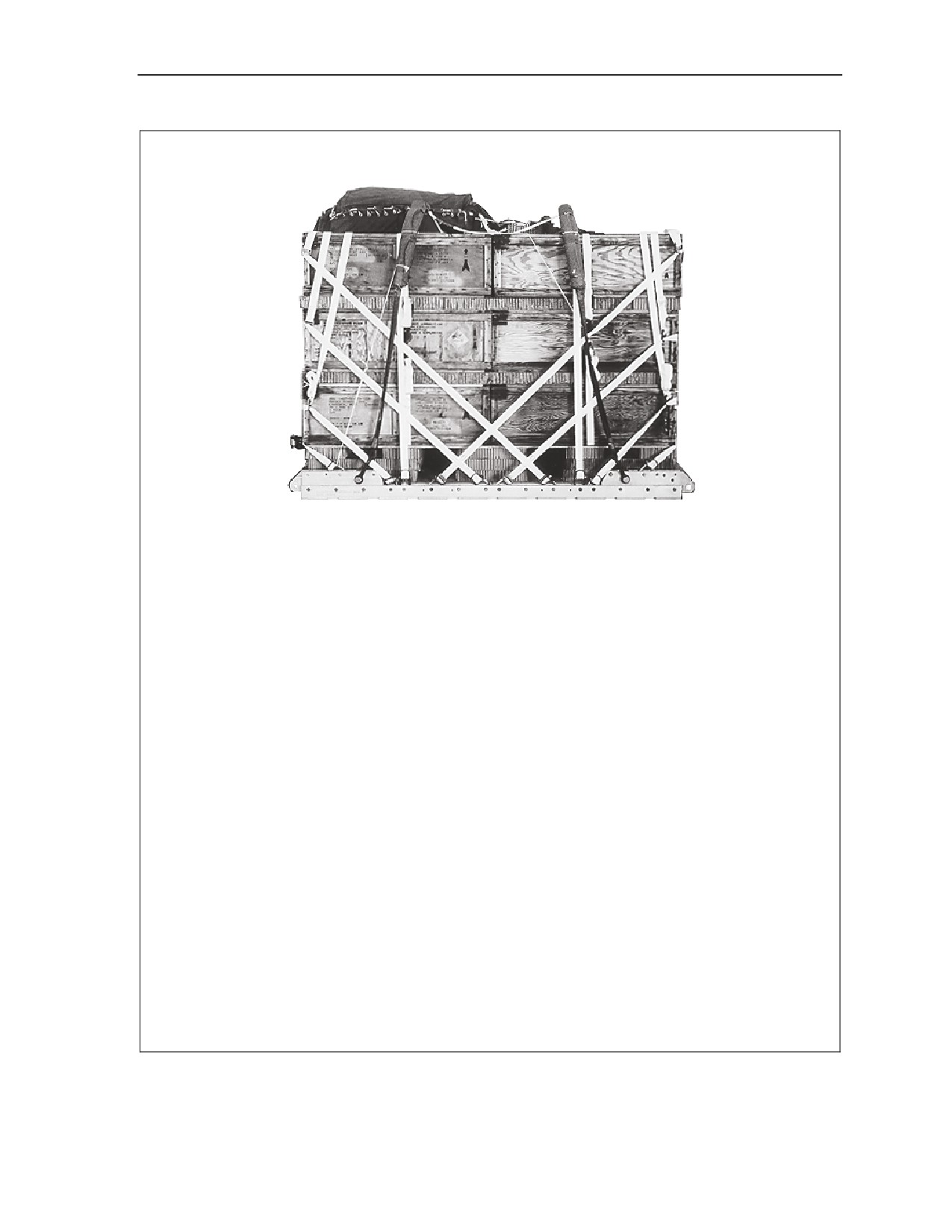

Thirty-Six Dragon or Dragon II Missiles in One-Round Containers
Reference: FM 10-552/TO 13C7-22-61
Weight: Load shown
3,960 pounds
Height
83 inches
Width
108 inches
Overall Length with EFTC
114 inches
Overall Length with EPJS
132 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
50 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachute: One G-11B
Figure 2-100. Thirty-Six Dragon or Dragon II Missiles in One-Round Containers
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-101
Chapter 2
Four Dragon or Dragon II Missiles in 15-Round Containers
Reference: FM 10-552/TO 13C7-22-61
Weight: Load shown
4,400 pounds
Height
83 inches
Width
108 inches
Overall Length with EFTC
115 inches
Overall Length with EPJS
133 inches
Overhang: Front (Container)
1 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
51 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachute: One G-11B
Figure 2-101. Four Dragon or Dragon II Missiles in 15-Round Containers
2-102
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

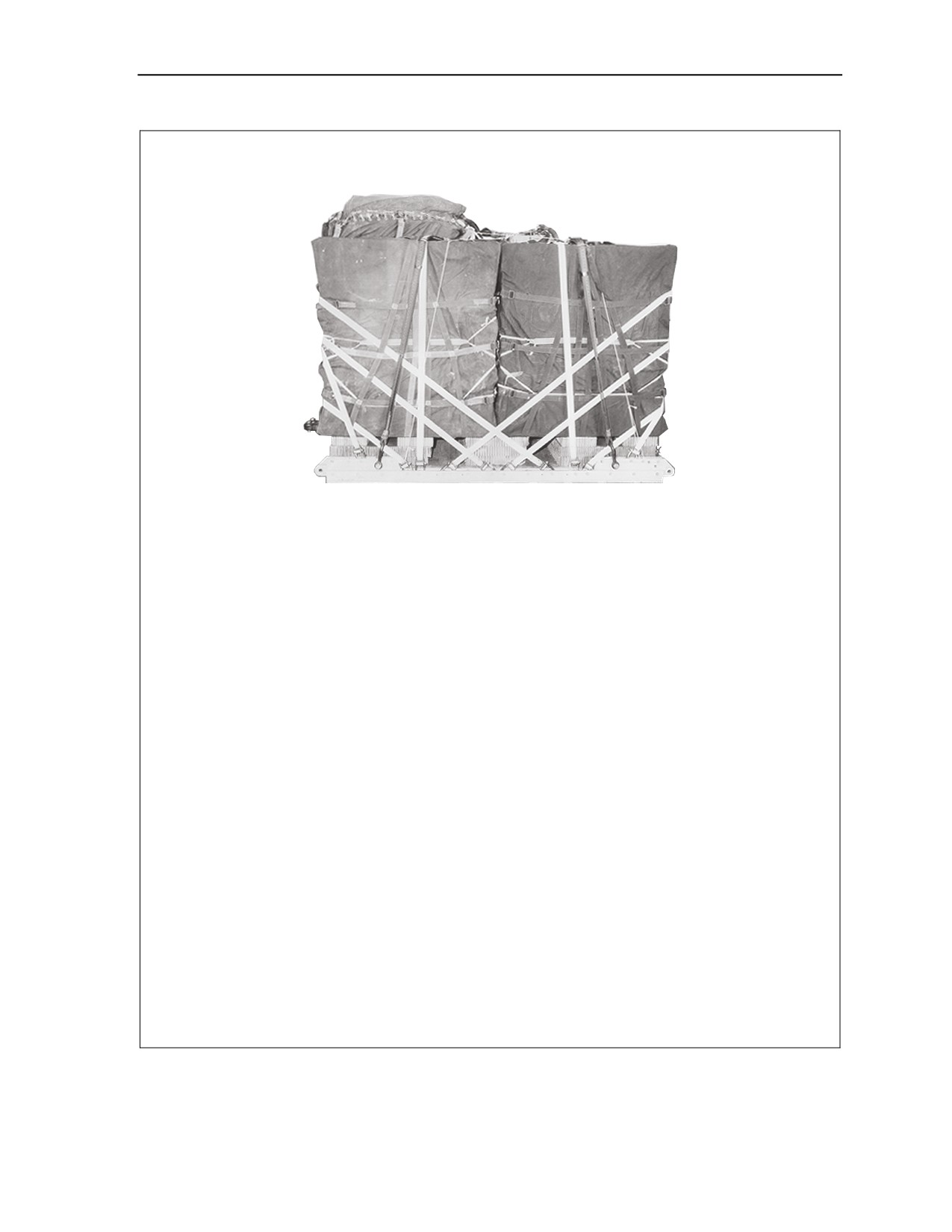

Four A-22 Cargo Bags with Dragon or Dragon II Missiles in One-Round Containers
Reference: FM 10-552/TO 13C7-22-61
Weight: Load shown
4,040 pounds
Height
83 inches
Width
108 inches
Overall Length with EFTC
115 inches
Overall Length with EPJS
133 inches
Overhang: Front (Container)
1 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
50 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachute: One G-11B

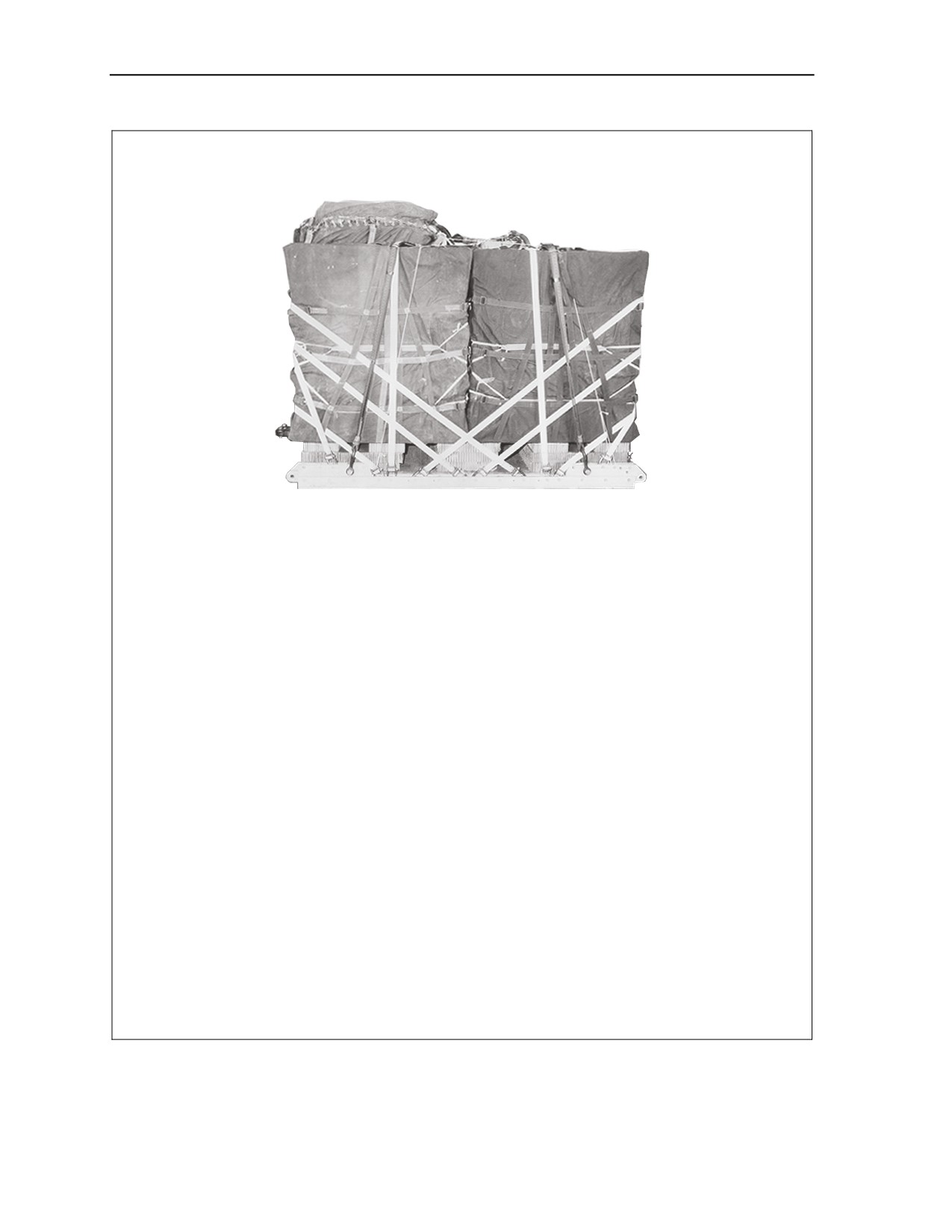

Figure 2-102. Four A-22 Cargo Bags with Dragon or Dragon II Missiles in One-Round
Containers
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-103
Chapter 2
Four Dragon or Dragon II Missiles in 15-Round Containers Rigged in Four A-22 Cargo Slings
Reference: FM 10-552/TO 13C7-22-61
Weight: Load shown
4,440 pounds
Height
83 inches
Width
108 inches
Overall Length with EFTC
114 inches
Overall Length with EPJS
420 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
51 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachute: One G-11B
Figure 2-103. Four Dragon or Dragon II Missiles in 15-Round Containers Rigged in Four A-22
Cargo Slings
2-104
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

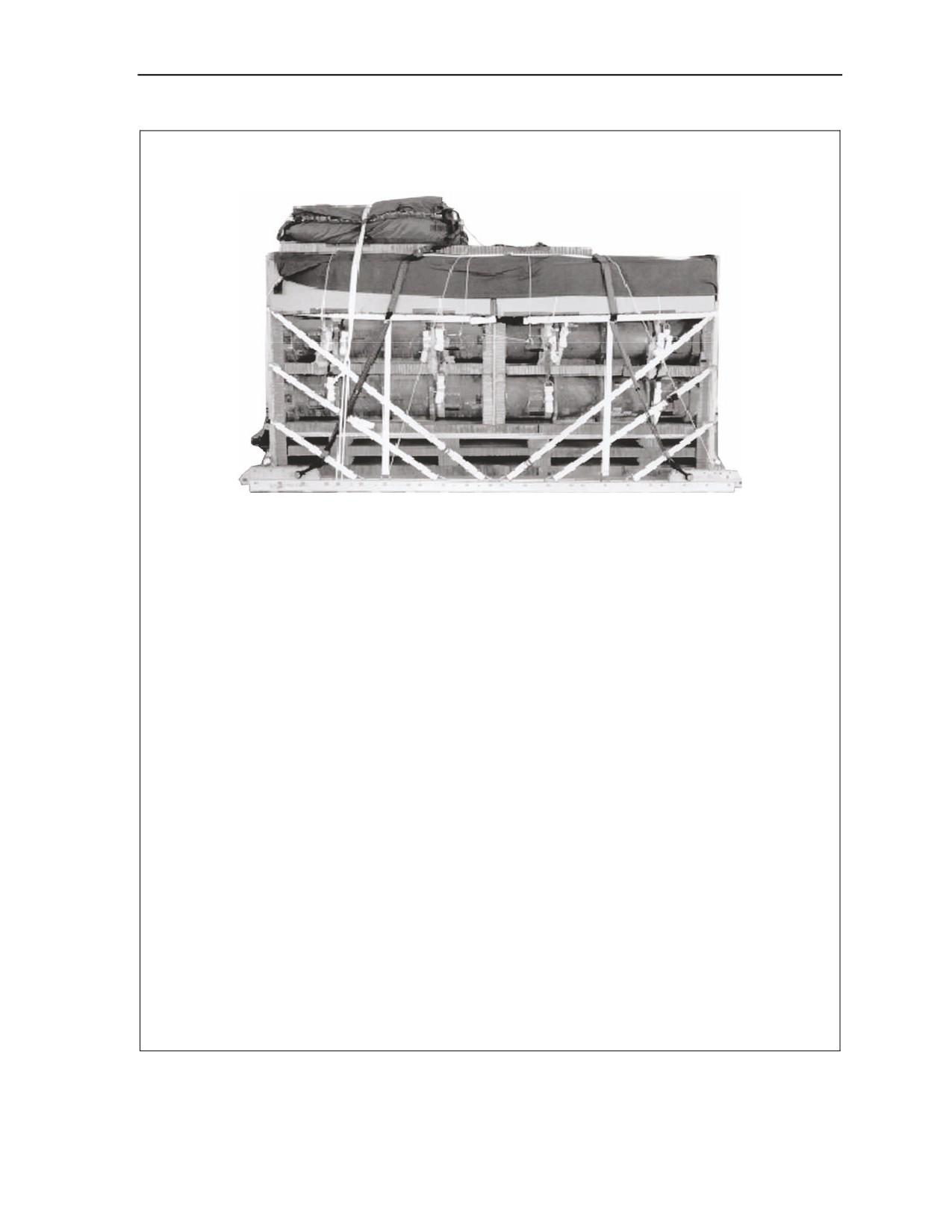

Thirty-Six Javelin Rounds as a Mass Supply Load
Reference: FM 10-552/TO 13C7-22-61
Weight: Load shown
5,976 pounds
Height
86 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
76 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-104. Thirty-Six Javelin Rounds as a Mass Supply Load
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-105
Chapter 2

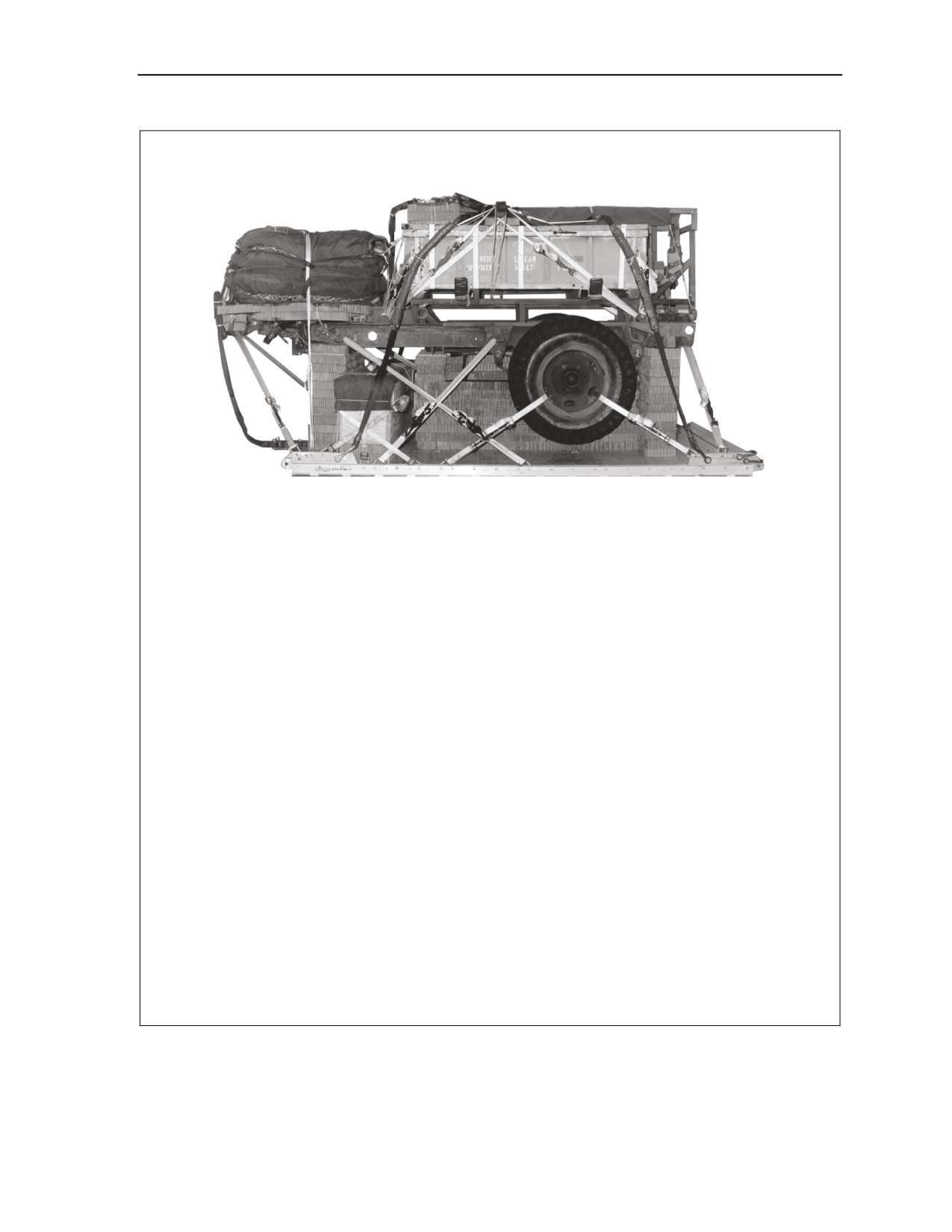

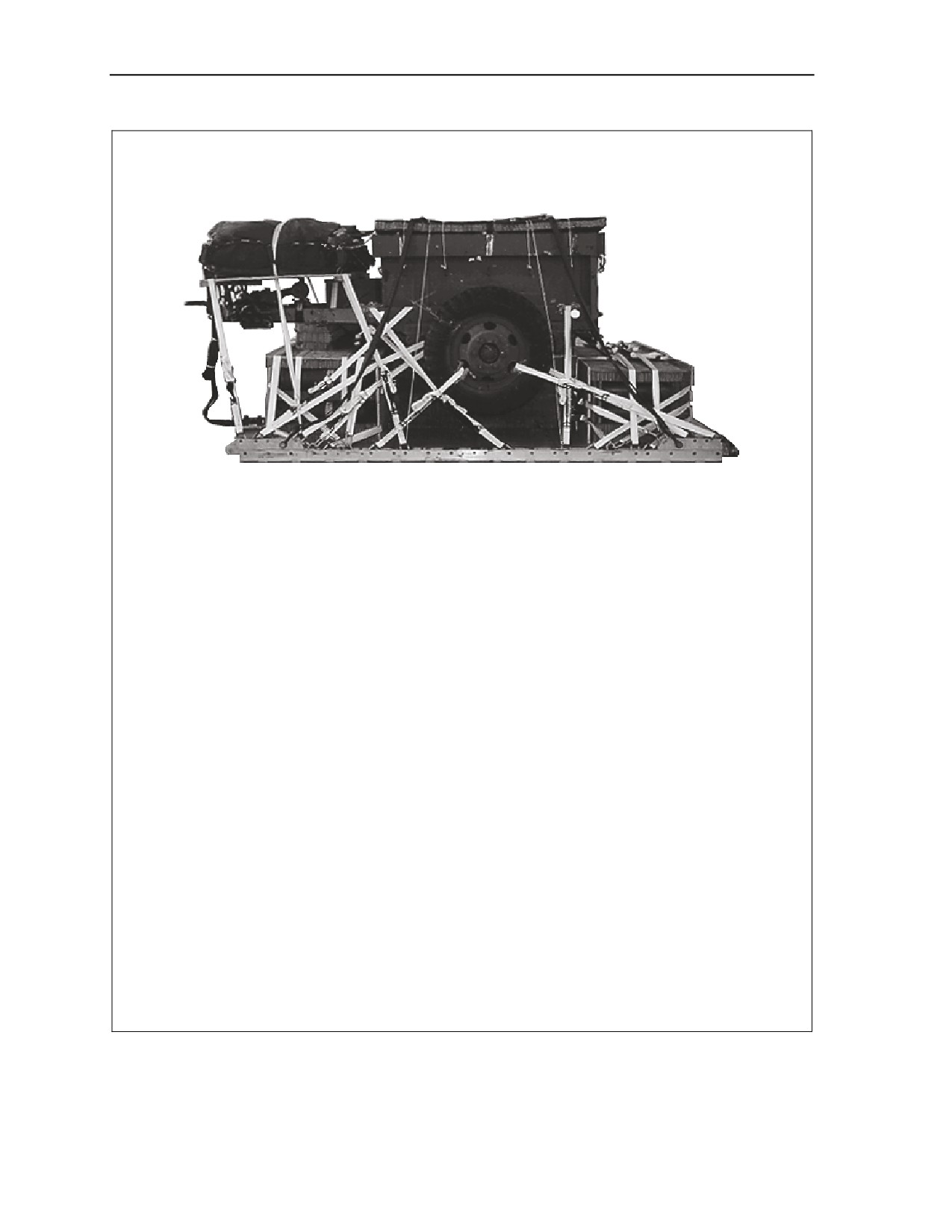

1 1/2-Ton Ammunition Trailer
Reference: FM 10-555/TO 13C7-3-401
Weight: Load shown
8,200 pounds
Height
81 inches
Width
108 inches
Overall Length with EFTC
176 inches
Overall Length with EPJS
176 inches
Overhang: Front
0 inches
Rear (Lunette)
32 inches
Center of Balance (from front edge of platform)
71 inches
Accompanying Load: Accompanying load in trailer may weigh a maximum of 3,000 pounds.
Total weight of accompanying load in trailer and on platform must not
exceed 5,090 pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-105. 1 1/2-Ton Ammunition Trailer
2-106
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Mine Clearing Line Charge (MICLIC) on 2 1/2-ton Trailer
Reference: FM 10-555/TO 13C7-3-401
Weight: Load shown
8,400 pounds
Height
94 1/2 inches
Width
108 inches
Overall Length with EFTC
178 inches
Overall Length with EPJS
178 inches
Overhang: Front
0 inches
Rear (Lunette)
34 inches
Center of Balance (from front edge of platform)
77 inches
Accompanying Load: Rocket projectile weighing 270 pounds is rigged on platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-106. Mine Clearing Line Charge (MICLIC) on 2 1/2-ton Trailer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-107
Chapter 2

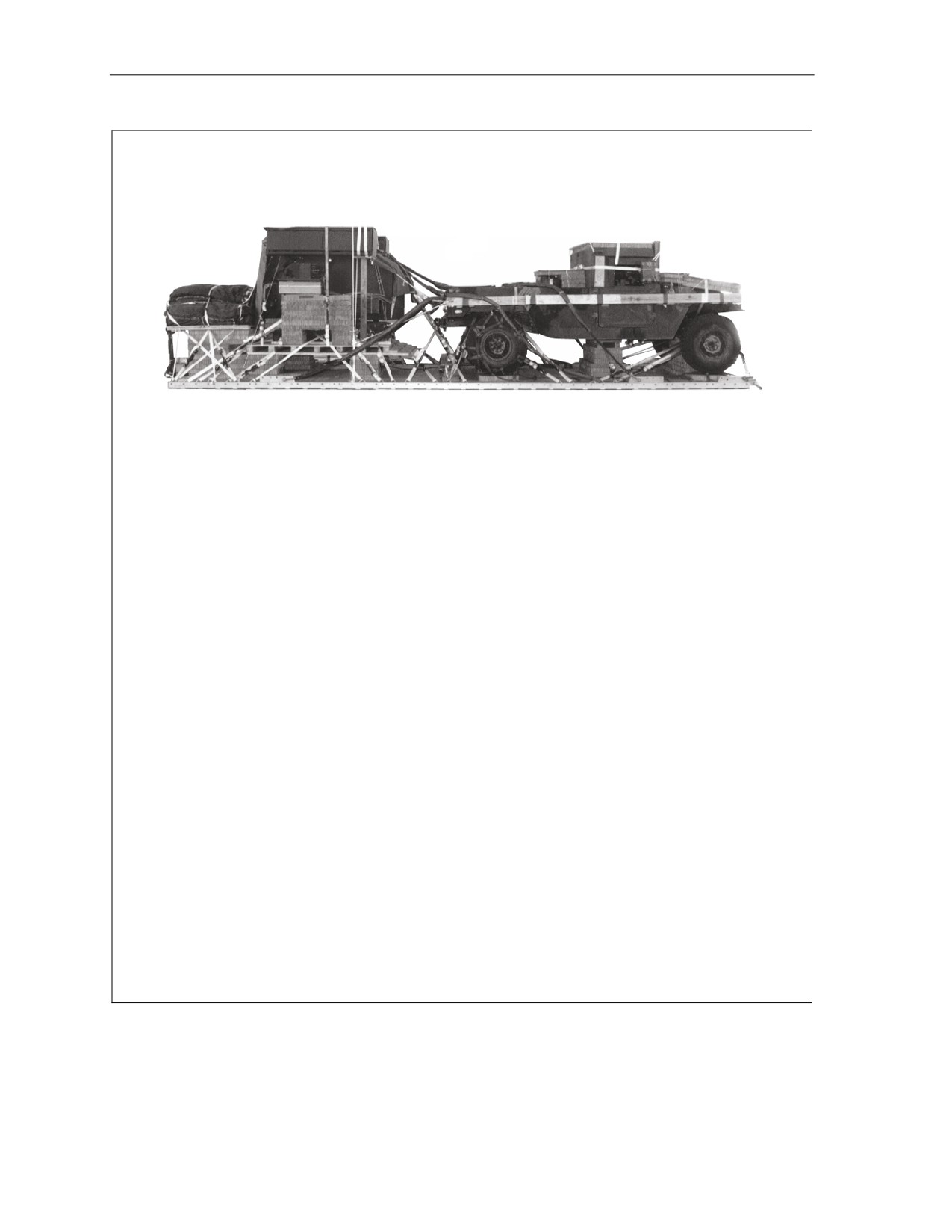

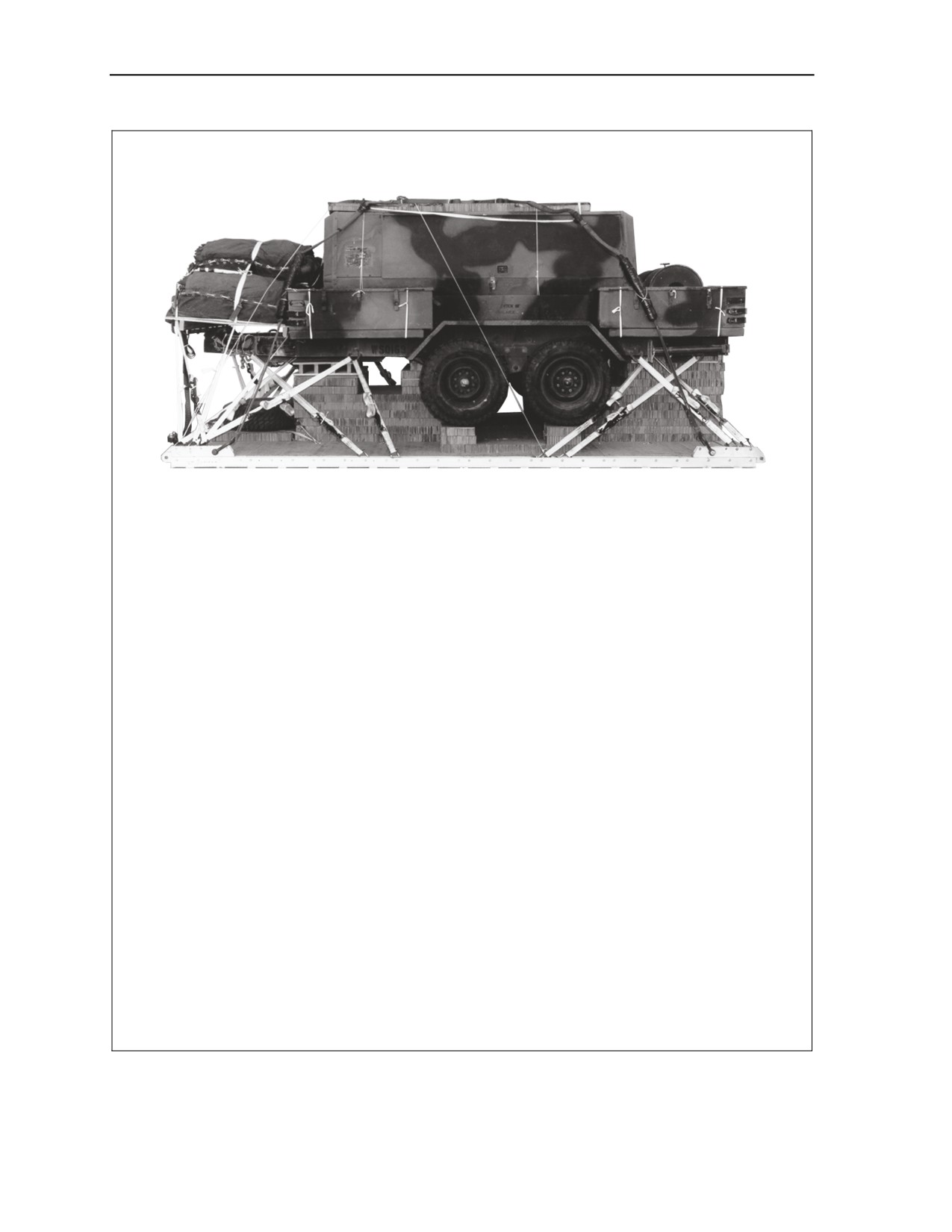

600-GPH Reverse Osmosis Water Purification Unit (ROWPU)
Reference: FM 4-20.158/TO 13C7-7-61
Weight: Load shown
21,780 pounds
Height
101 inches
Width
108 inches
Overall Length with EFTC
275 inches
Overall Length with EPJS
275 inches
Overhang: Front
0 inches
Rear (Drawbar)
35 inches
Center of Balance (from front edge of platform)
130 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Five G-11C

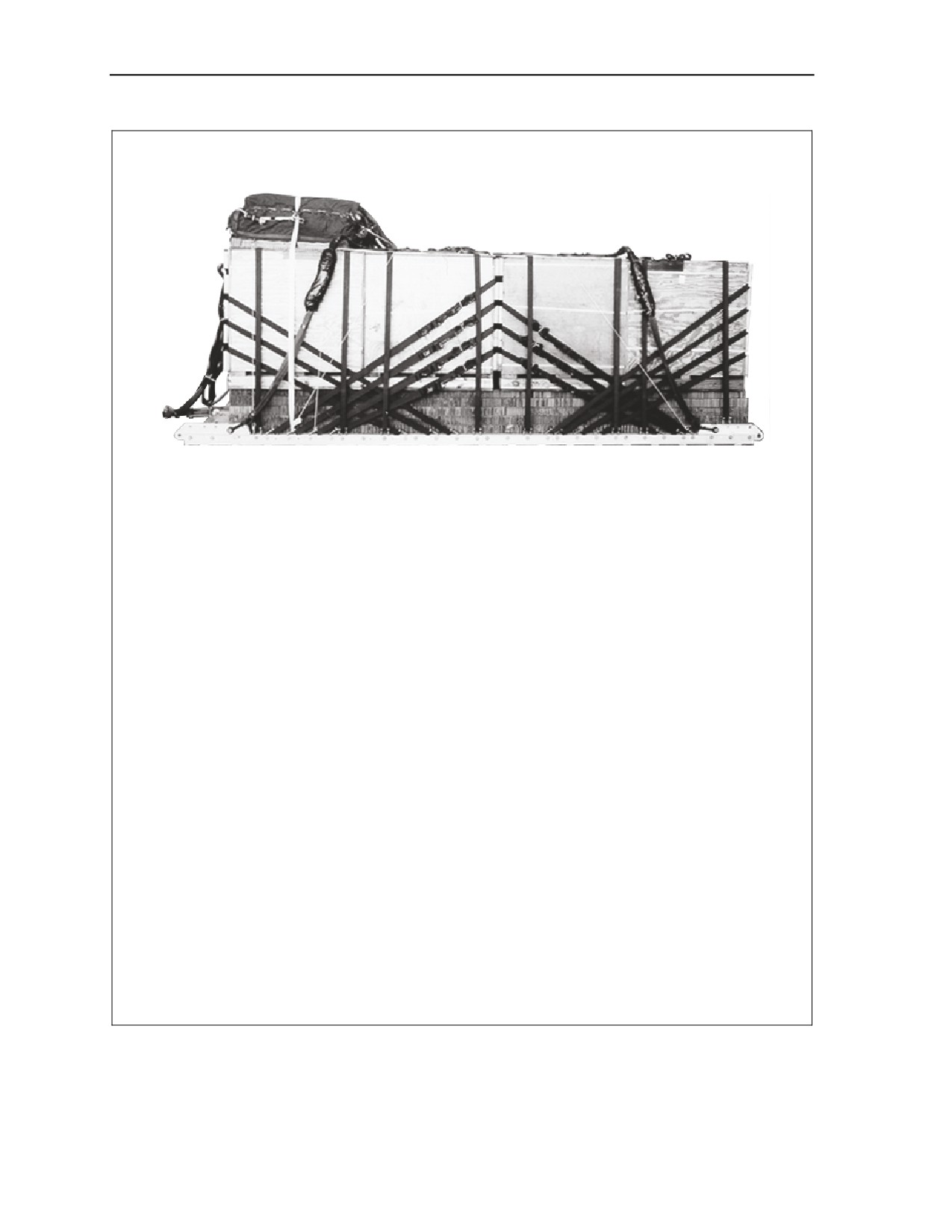

Figure 2-107. 600-GPH Reverse Osmosis Water Purification Unit (ROWPU)
2-108
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

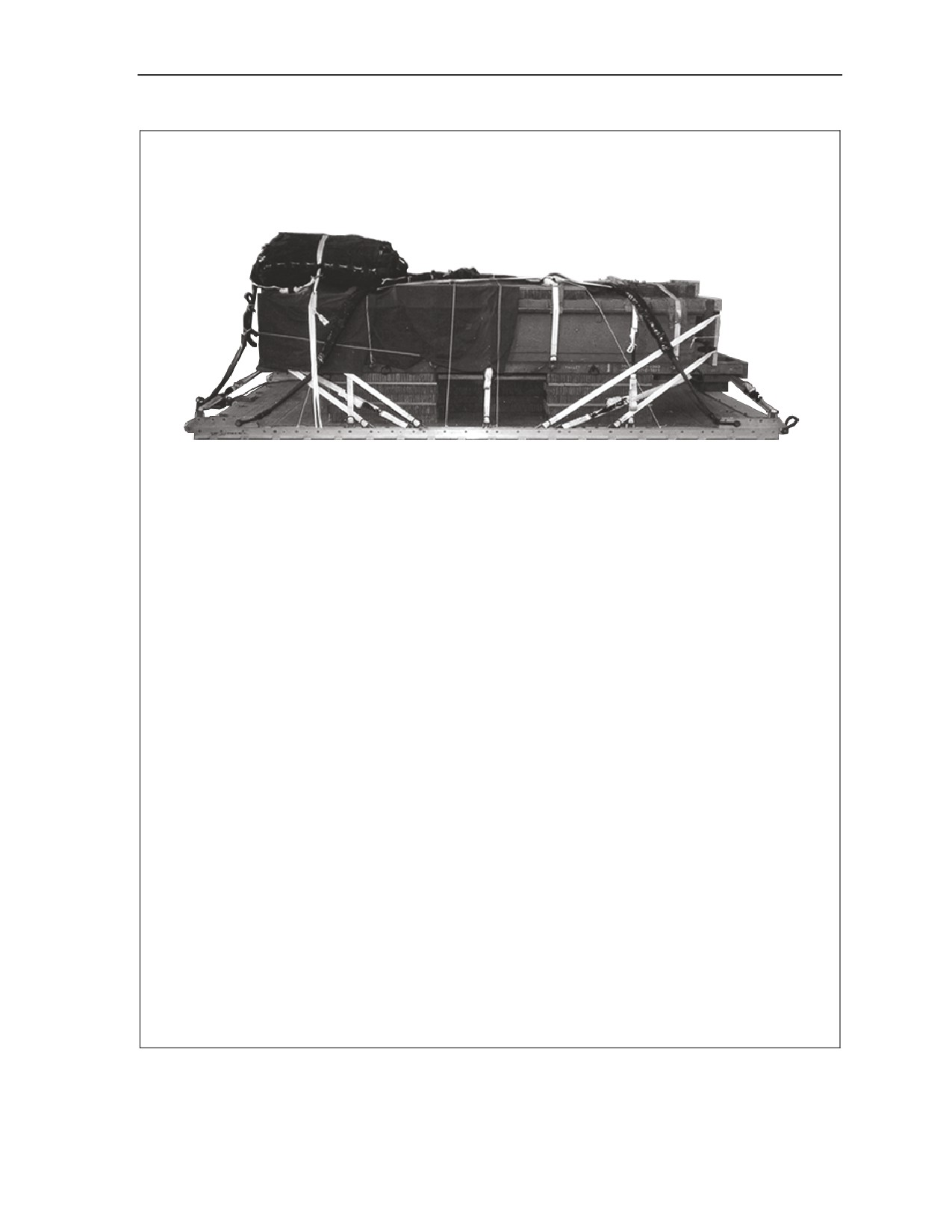

Lightweight Water Purifier (LWP)
Reference: FM 4-20.158/TO 13C7-7-61
Weight: Load shown
6,140 pounds
Height
92 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
70 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B

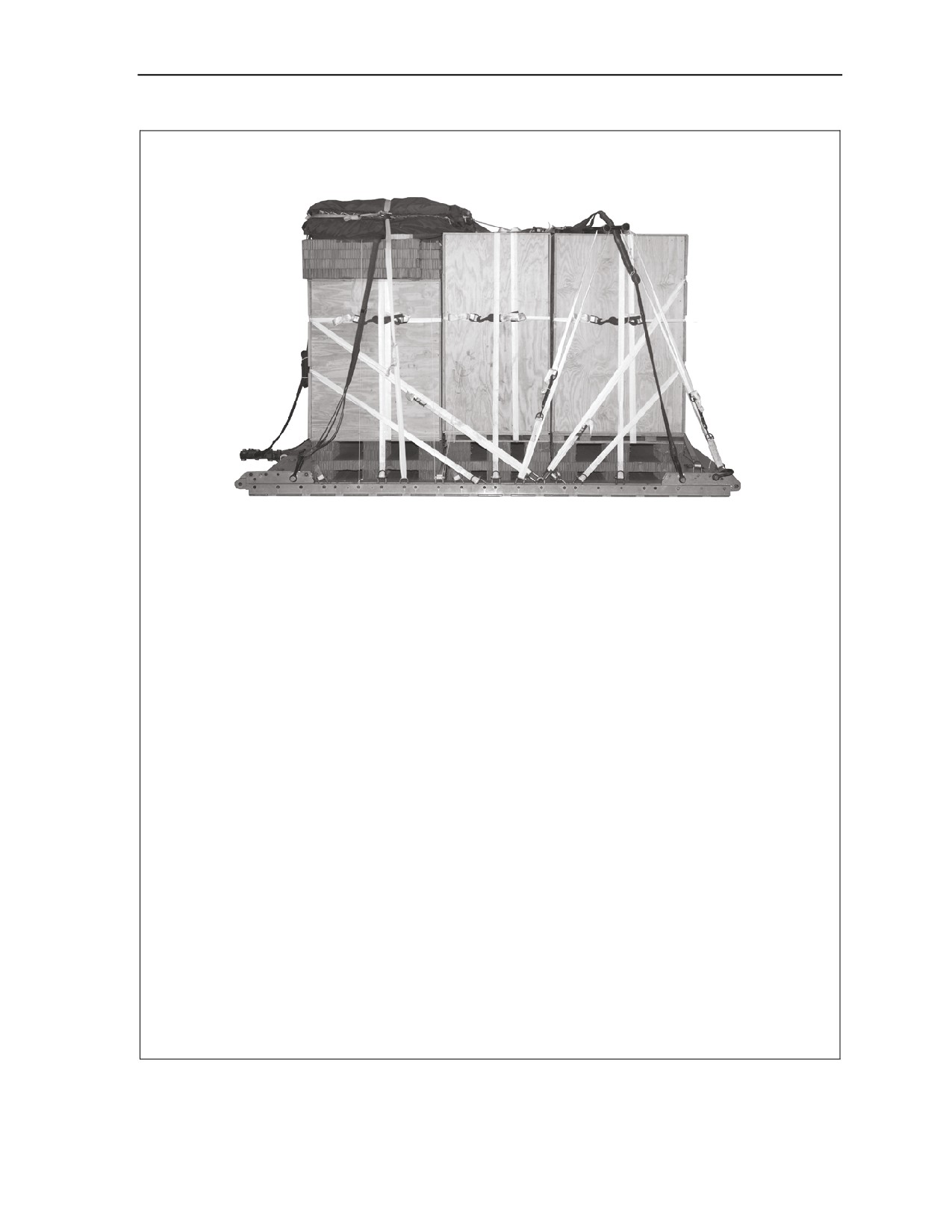

Figure 2-108. Lightweight Water Purifier (LWP)
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-109
Chapter 2
Whole Blood
Reference: FM 10-562/TO 13C7-34-1
Weight: Load shown
7,680 pounds
Height
80 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
100 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-109. Whole Blood
2-110
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

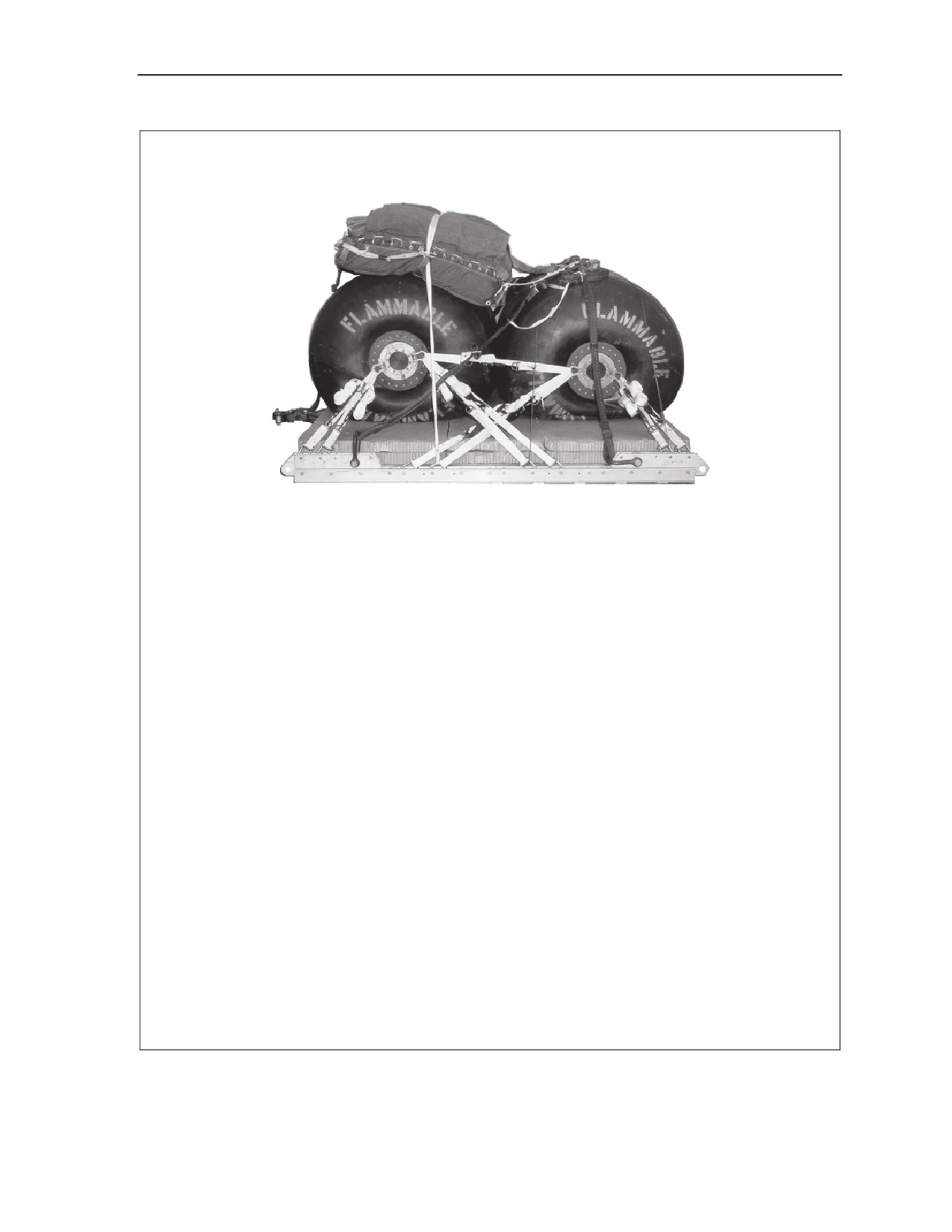

Two Drums without Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
7,320 pounds
Height
70 inches
Width
108 inches
Overall Length with EFTC
114 inches
Overall Length with EPJS
132 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
54 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachutes: Two G-11B
Figure 2-110. Two Drums without Pumping Assembly
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-111
Chapter 2
Three Drums without Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
10,960 pounds
Height
86 1/2 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
75 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Three G-11B
Figure 2-111. Three Drums without Pumping Assembly
2-112
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Three Drums with Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
11,200 pounds
Height
86 1/2 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
74 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Three G-11B
Figure 2-112. Three Drums with Pumping Assembly
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-113
Chapter 2
Four Drums without Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
14,426 pounds
Height
90 1/2 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
125 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 20-Foot
Cargo Parachutes: Four G-11B
Figure 2-113. Four Drums without Pumping Assembly
2-114
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

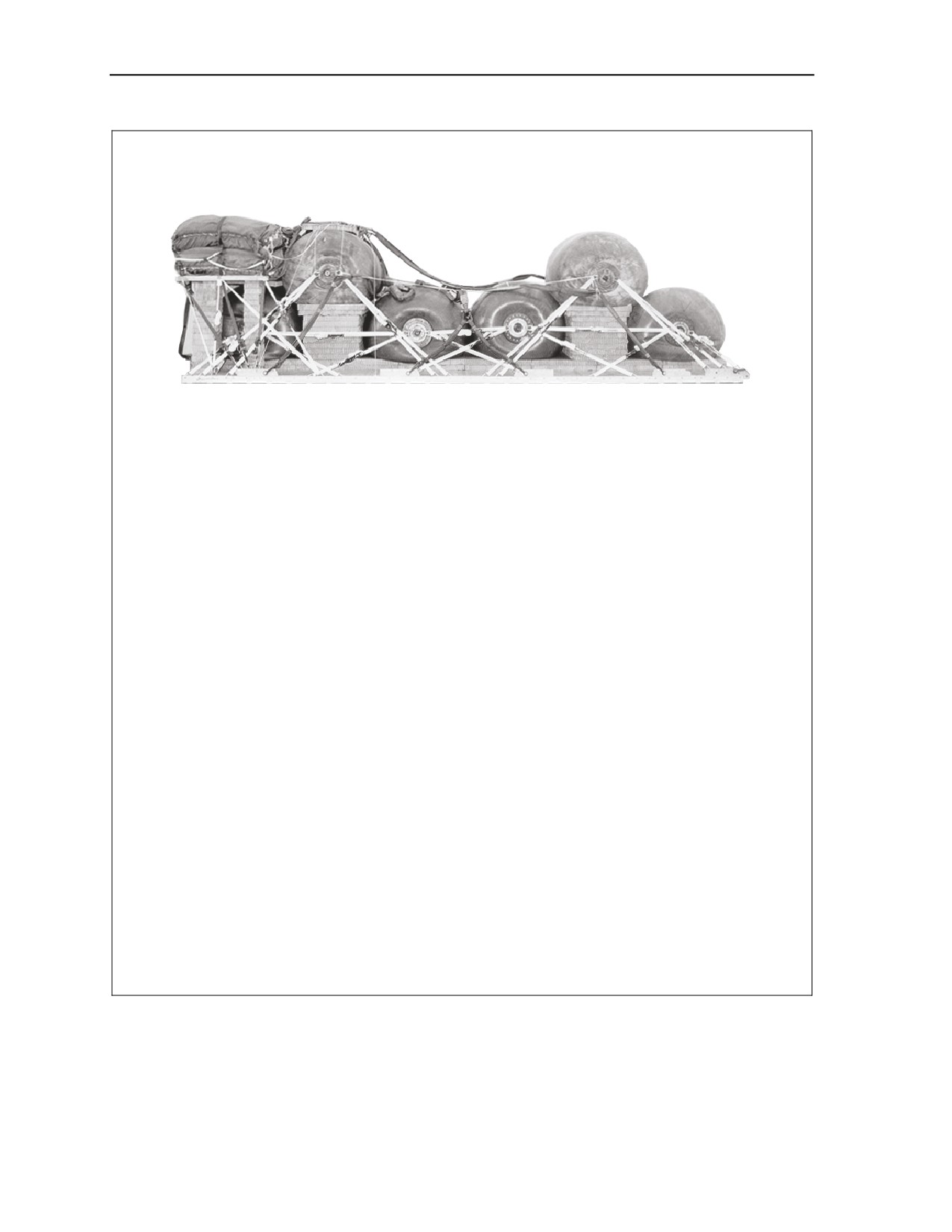

Five Drums without Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
18,492 pounds
Height
84 3/4 inches
Width
108 inches
Overall Length with EFTC
240 inches
Overall Length with EPJS
258 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
126 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Five G-11C
Figure 2-114. Five Drums without Pumping Assembly
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-115
Chapter 2
Six Drums without Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
22,158 pounds
Height
85 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
324inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
153 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Six G-11C
Figure 2-115. Six Drums without Pumping Assembly
2-116
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Six Drums with Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
22,548 pounds
Height
92 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
324 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
150 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Six G-11C
Figure 2-116. Six Drums with Pumping Assembly
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-117
Chapter 2

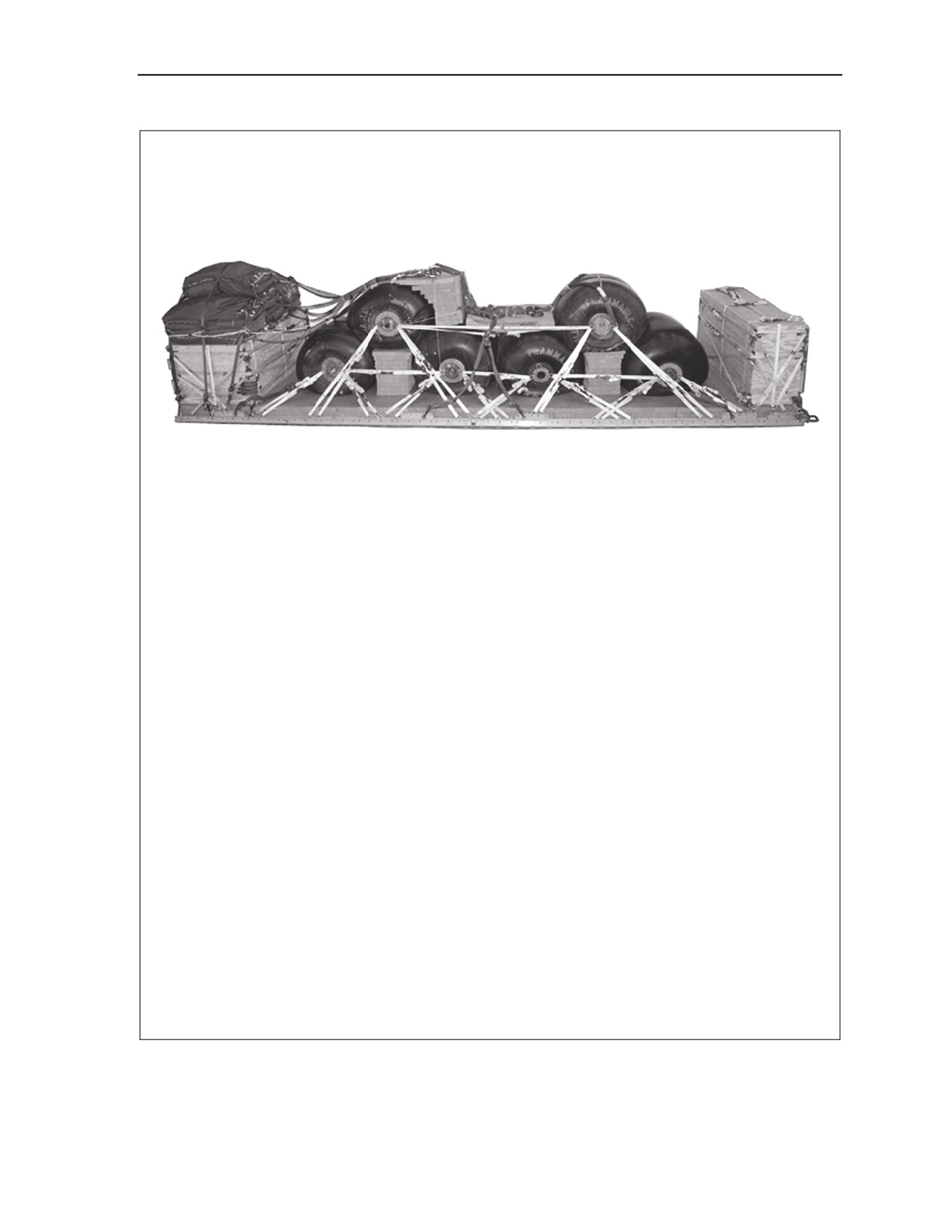

Seven Drums without Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
24,781 pounds
Height
90 inches
Width
108 inches
Overall Length with EFTC
354 inches
Overall Length with EPJS
372 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
176 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Seven G-11C
Figure 2-117. Seven Drums without Pumping Assembly
2-118
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Seven Drums with Pumping Assembly
Reference: FM 10-564/TO 13C7-37-1
Weight: Load shown
25,081 pounds
Height
90 inches
Width
108 inches
Overall Length with EFTC
354 inches
Overall Length with EPJS
372 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
176 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Seven G-11C
Figure 2-118. Seven Drums with Pumping Assembly
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-119
Chapter 2

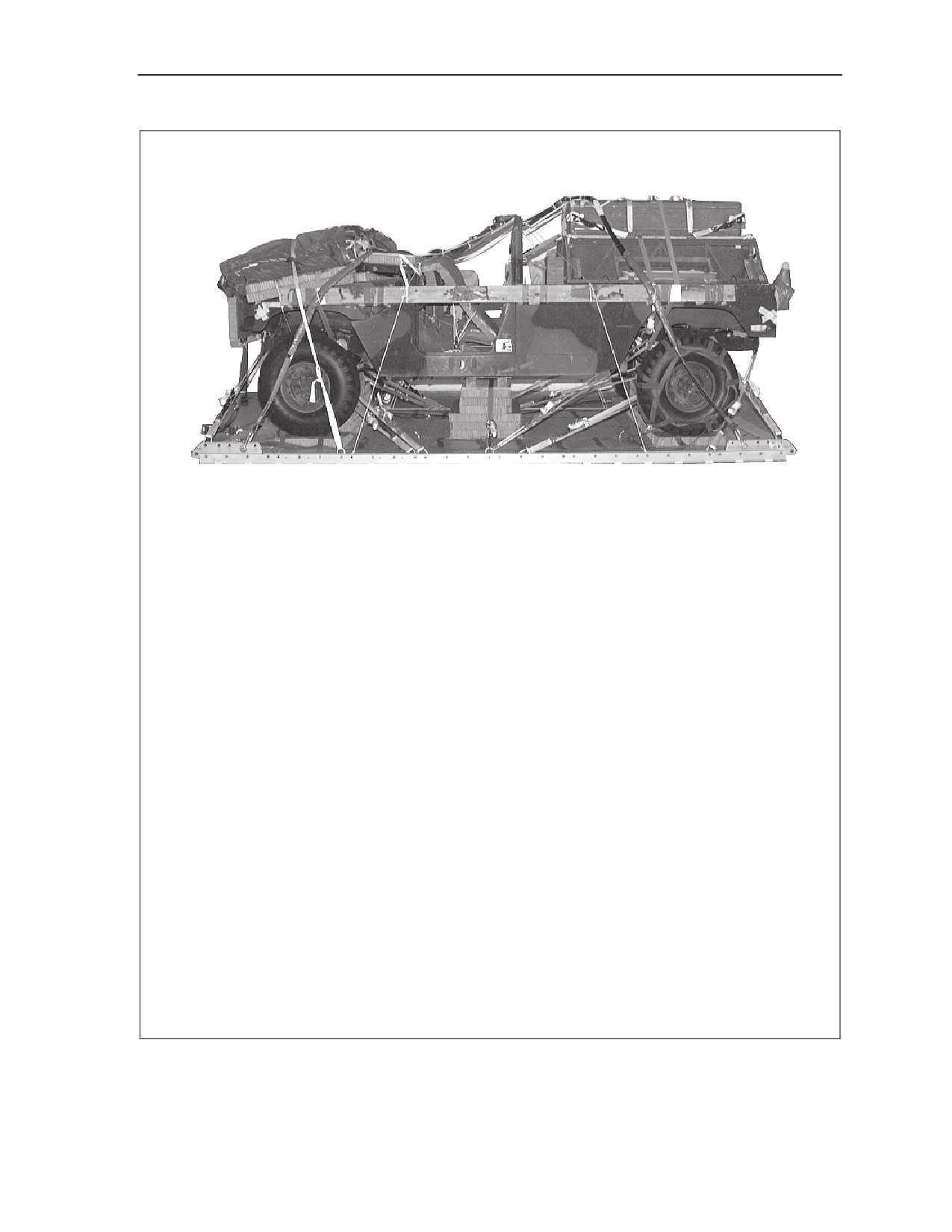

M996 2-Litter Armored Ambulance
Reference: FM 4-20.166/TO 13C7-25-71
Weight: Load shown
11,680 pounds
Height
100 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
110 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 20-Foot
Cargo Parachutes: Three G-11B
Figure 2-119. M996 2-Litter Armored Ambulance
2-120
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

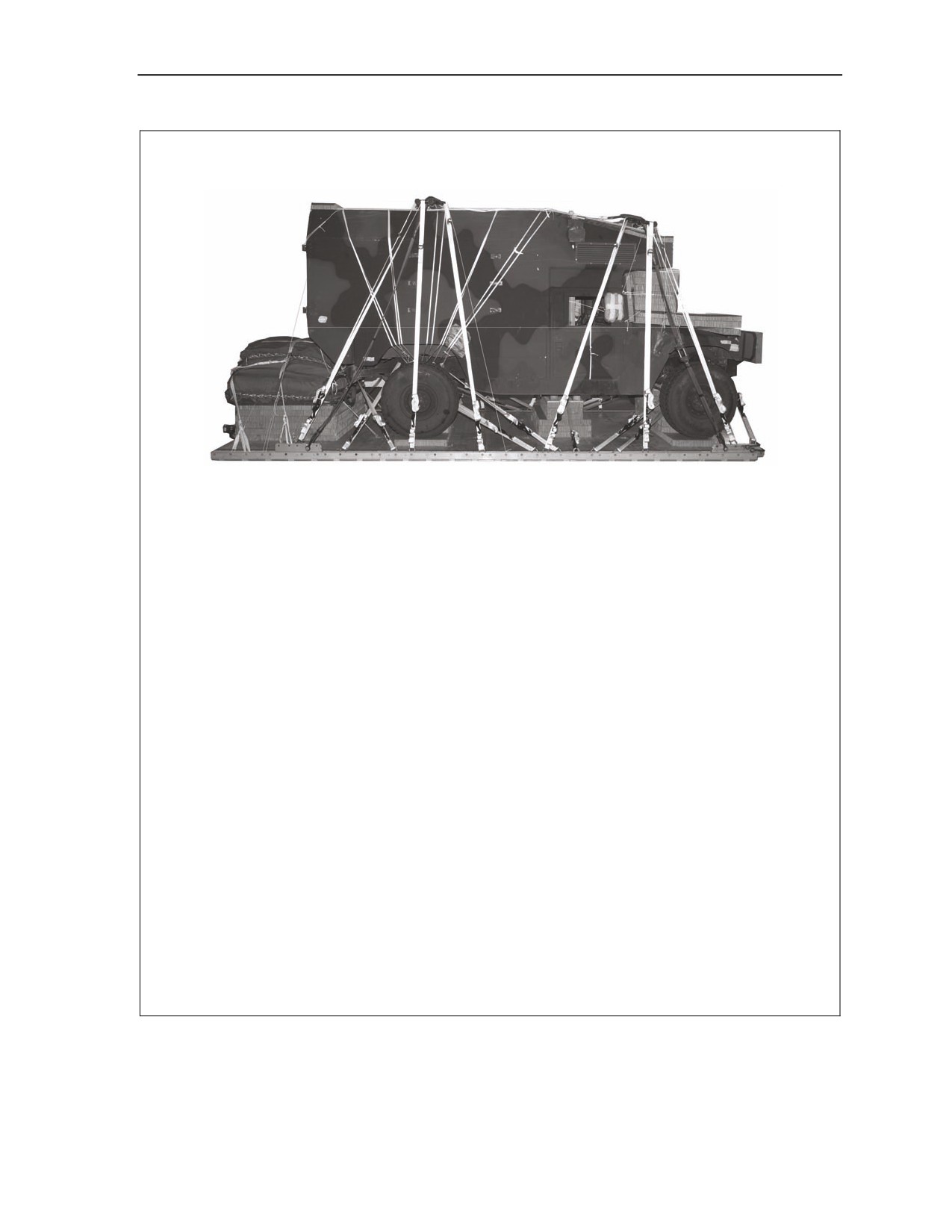

M997 4-Litter Ambulance
Reference: FM 4-20.166/TO 13C7-25-71
Weight: Load shown
11,480 pounds
Height
115 inches
Width
108 inches
Overall Length with EFTC
261 inches
Overall Length with EPJS
279 inches
Overhang: Front (Brush Guard)
3 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
107 inches
Accompanying Load: None
Aircraft: C-17 only
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 20-Foot
Cargo Parachutes: Three G-11B
Figure 2-120. M997 4-Litter Ambulance
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-121
Chapter 2
IC45 Crawler Carrier
Reference: FM 4-20.167/TO 13C7-16-171
Weight: Load shown
17,480 pounds
Height
98 1/2 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
88 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 16-Foot
Cargo Parachutes: Four G-11B
Figure 2-121. IC45 Crawler Carrier
2-122
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M973A 1 1/2-Ton Cargo Carrier Small Unit Support Vehicle (SUSV)
Reference: FM 4-20.167/TO 13C7-16-171
Weight: Load shown
16,800 pounds
Height
97 inches
Width
108 inches
Overall Length with EFTC
353 inches
Overall Length with EPJS
371 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
155 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot or 28-Foot
Extraction Parachute C-17: 22-Foot or 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Four G-11B
Figure 2-122. M973A 1 1/2-Ton Cargo Carrier Small Unit Support Vehicle (SUSV)
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-123
Chapter 2

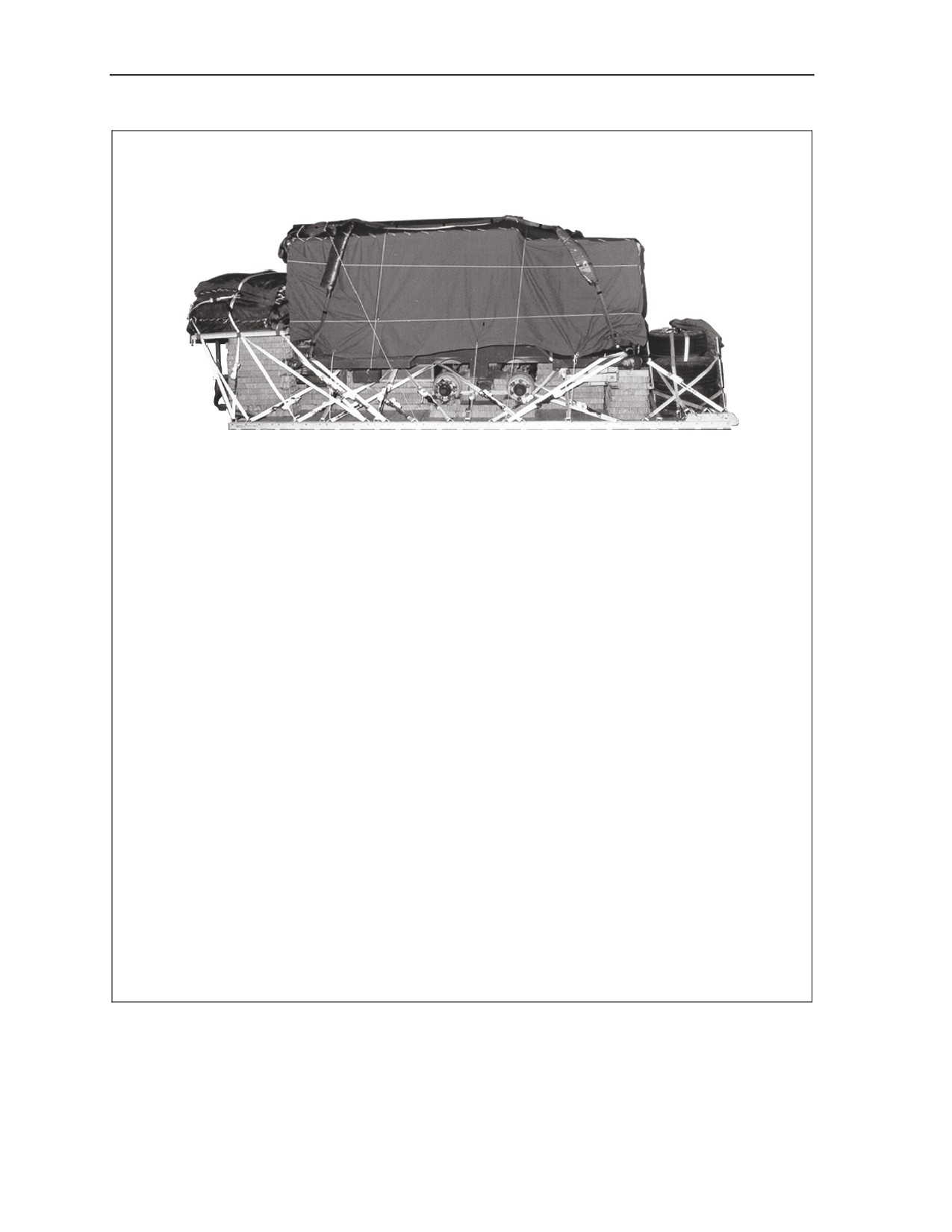

Ingersol-Rand Model 250-CFM Trailer-Mounted Air Compressor
Reference: FM 10-569/TO 13C7-15-61
Weight: Load shown
10,100 pounds
Height
96 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
94 1/2 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-123. Ingersol-Rand Model 250-CFM Trailer-Mounted Air Compressor
2-124
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

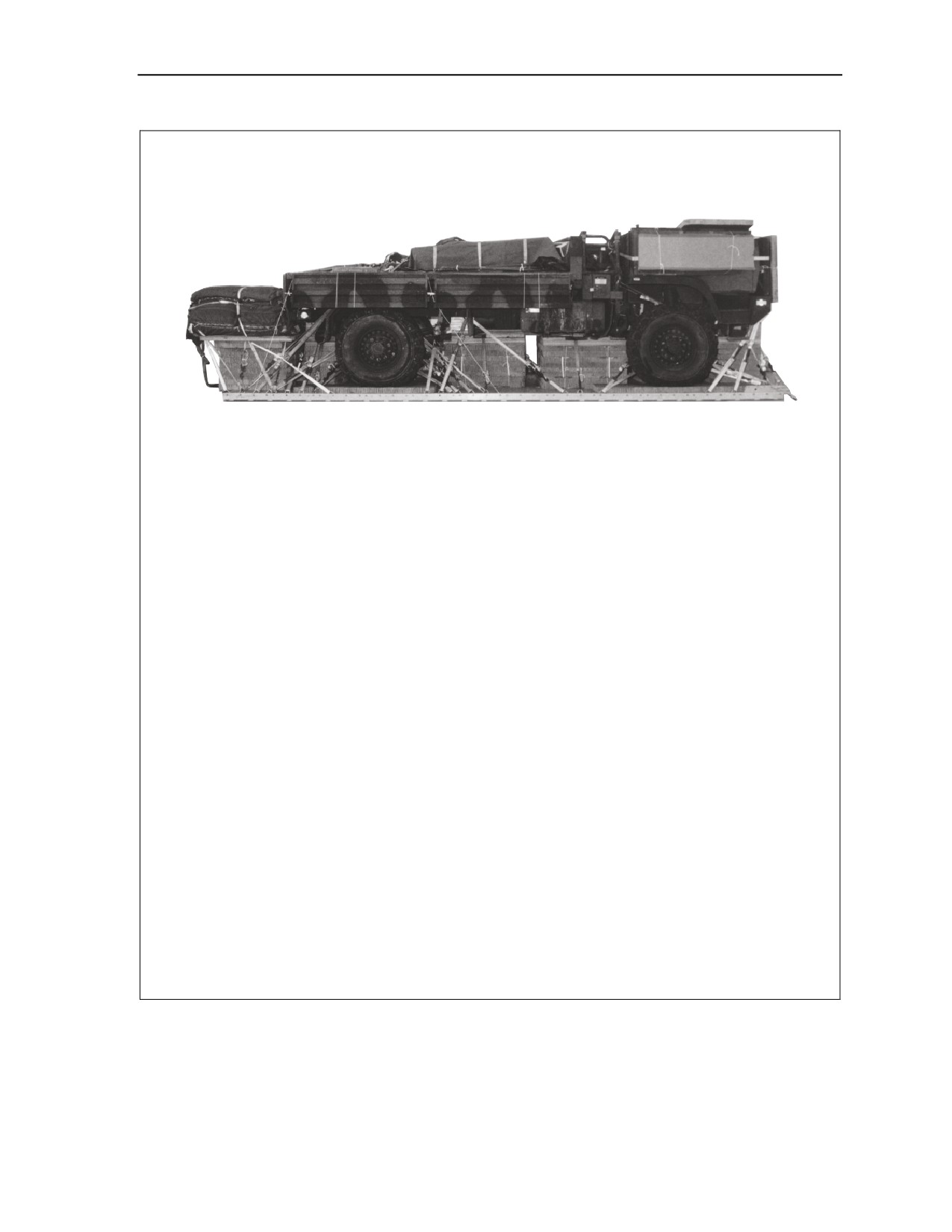

M1081 2 1/2-Ton Cargo Truck
Reference: FM 10-500-71/TO 13C7-6-141
Weight: Load shown
23,181 pounds
Height
93 inches
Width
108 inches
Overall Length with EFTC
315 inches
Overall Length with EPJS
318 inches
Overhang: Front
0 inches
Rear (Cargo Parachutes)
27 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
135 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Five G-11C
Figure 2-124. M1081 2 1/2-Ton Cargo Truck
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-125
Chapter 2
M1081 2 1/2-Ton Cargo Truck with Accompanying Load
Reference: FM 10-500-71/TO 13C7-6-141
Weight: Load shown
28,014 pounds
Height
97 inches
Width
108 inches
Overall Length with EFTC
315 inches
Overall Length with EPJS
318 inches
Overhang: Front
0 inches
Rear (Cargo Parachute)
27 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
137 inches
Accompanying Load: Accompanying load consists of 42 boxes of 105-mm ammunition rigged
in bed of truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Six G-11C
Figure 2-125. M1081 2 1/2-Ton Cargo Truck with Accompanying Load
2-126
FM 4-20.116/TO 13C7-1-13
10 May 2006















Content      ..     2      3      4      5     ..
