Chapter 2

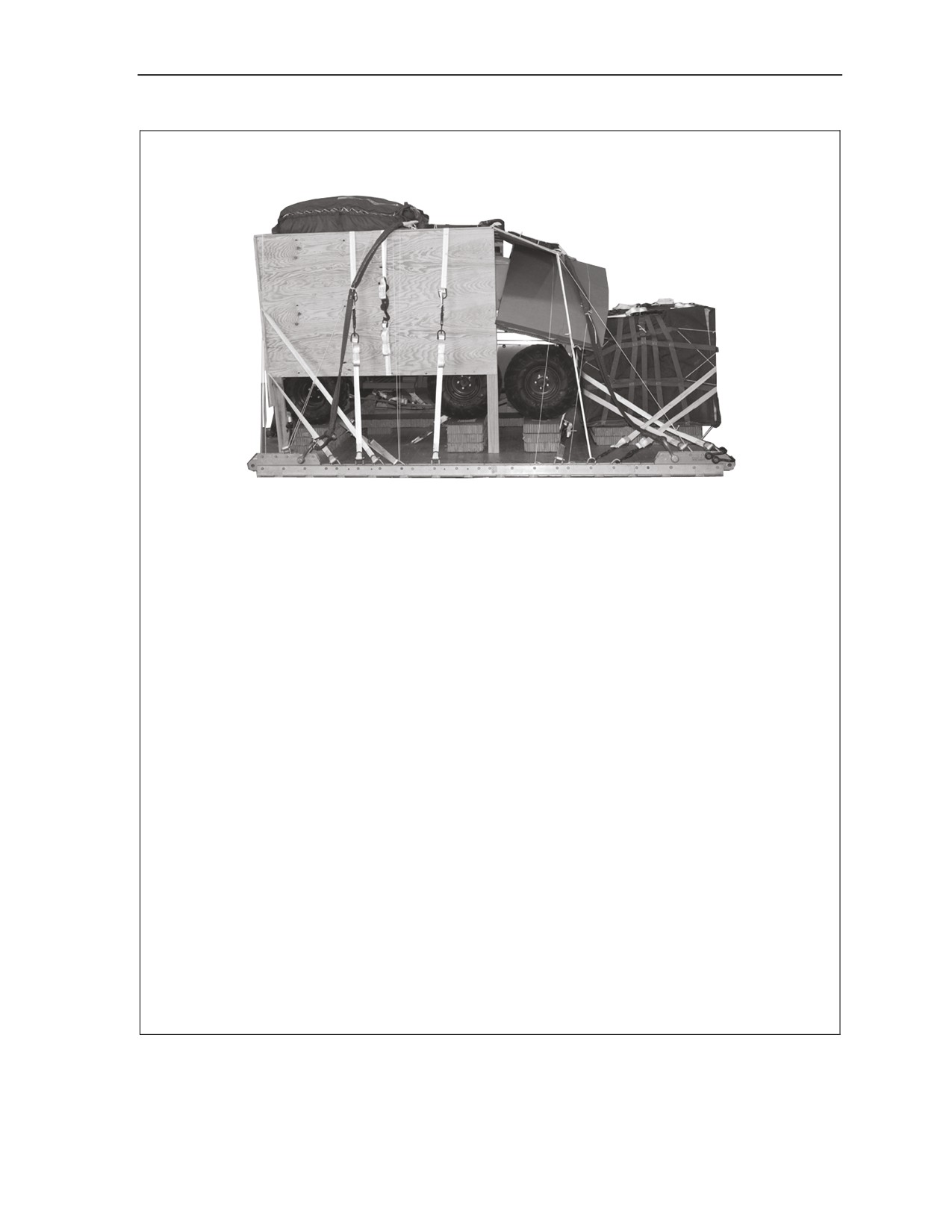

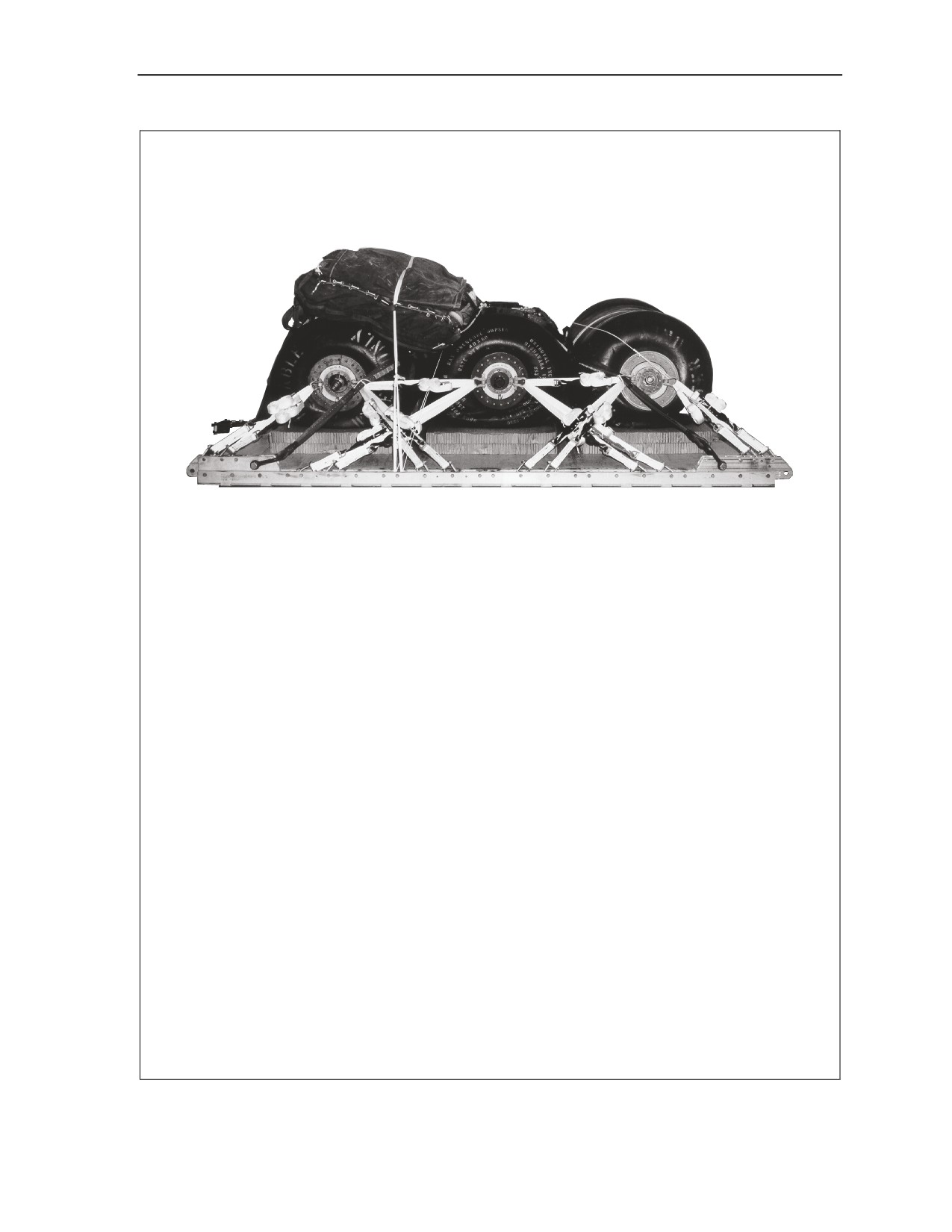

One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot Platform
Reference: FM 4-20.108/TO 13C7-2-491
Weight: Load shown
4,630 pounds
Height
78 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
68 inches
Accompanying Load: A-22 Cargo Bag with 800 to 1,000 pounds of equipment.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-foot
Extraction Parachute C-17: 15-foot
Platform Size: 12-Foot
Cargo Parachute: One G-11B
Figure 2-3. One Military Utility Vehicle (M-Gator) and an A-22 Cargo Bag on a 12-Foot Platform
2-4
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M-Gator with First Response Expeditionary (FRE) Fire Vehicle on a 12-Foot Platform
Reference: FM 4-20.108/TO 13C7-2-491
Weight: Load shown
4,980 pounds
Height
94 inches
Width
108 inches
Overall Length
168 inches
Overall Length with EPJS
180 inches
Overhang: Front (A-22 Cargo Bag)
6 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
70 inches
Accompanying Load: A-22 Cargo Bag must weigh 1200 pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-foot
Extraction Parachute C-17: 15-foot
Platform Size: 12-Foot
Cargo Parachute: One G-11B
Figure 2-4. M-Gator with First Response Expeditionary (FRE) Fire Vehicle on a 12-Foot
Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-5
Chapter 2
Bulk Supplies on an 8-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
6,344 pounds
Height
56 inches
Width
108 inches
Overall Length with EFTC
114 inches
Overall Length with EPJS
132 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
50 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachutes: Two G-11B
Figure 2-5. Bulk Supplies on an 8-Foot Platform
2-6
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

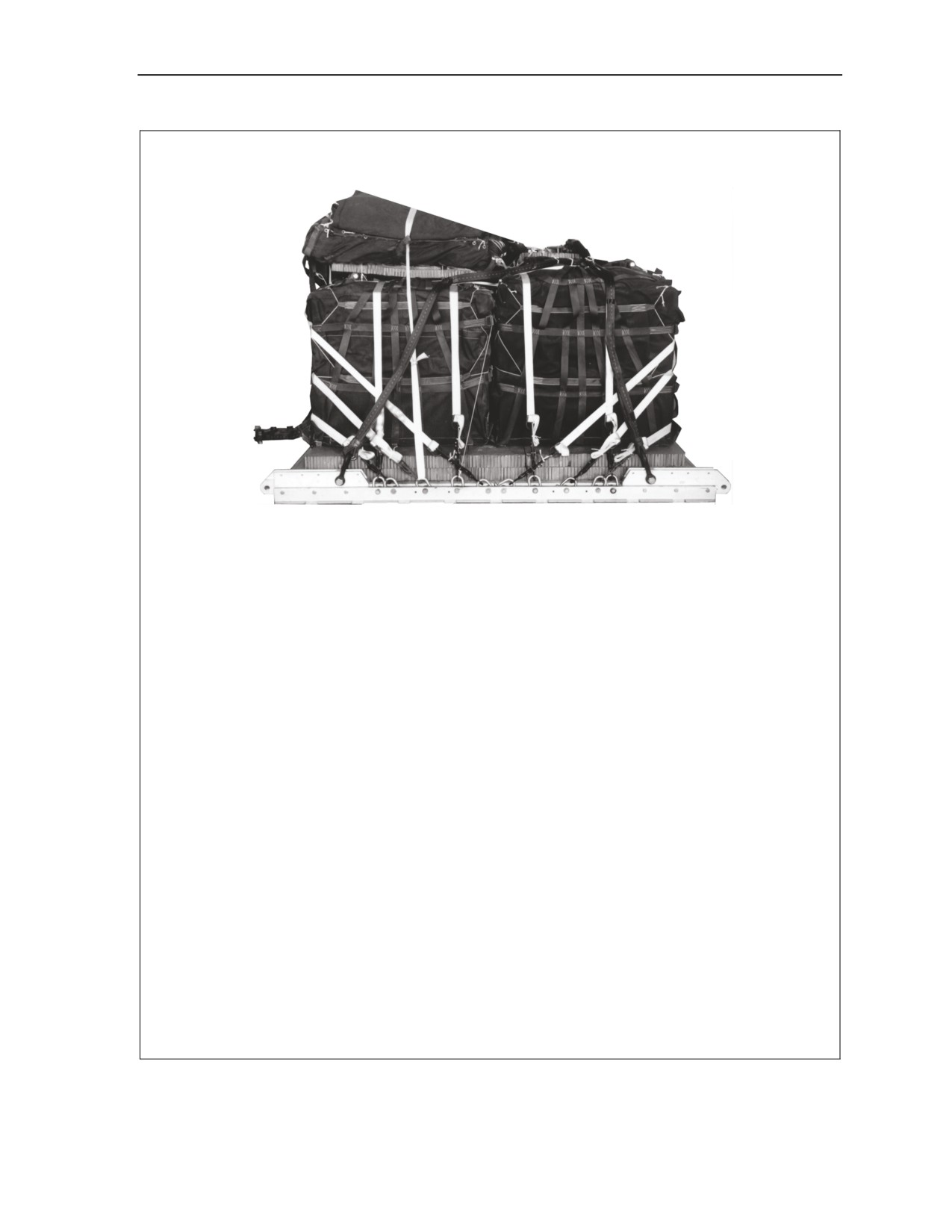

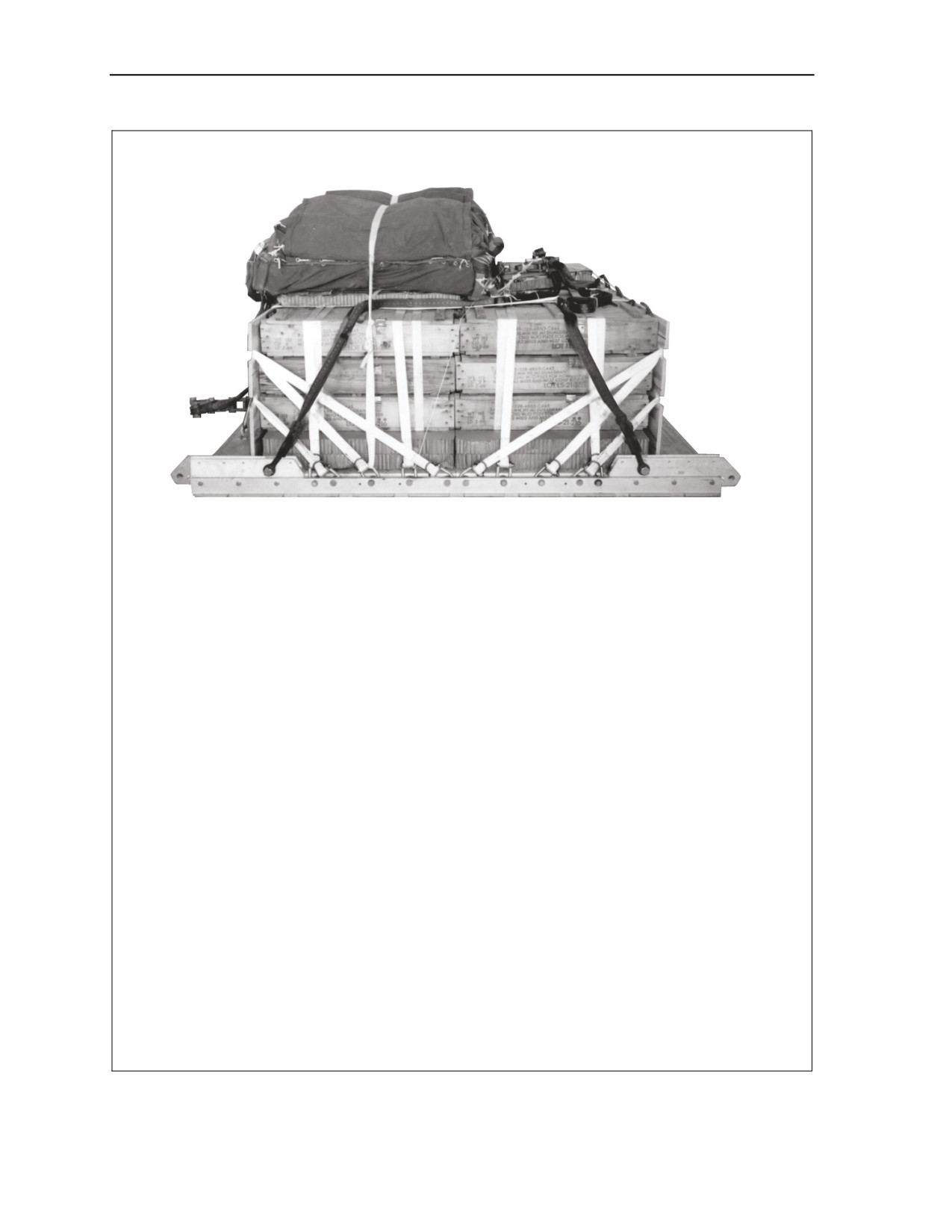

Bulk Supplies in A-22 Cargo Bags on an 8-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
6,750 pounds
Height
71 inches
Width
108 inches
Overall Length
114 inches
Overall Length with EPJS
132 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
50 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachutes: Two G-11B
Figure 2-6. Bulk Supplies in A-22 Cargo Bags on an 8-Foot Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-7
Chapter 2

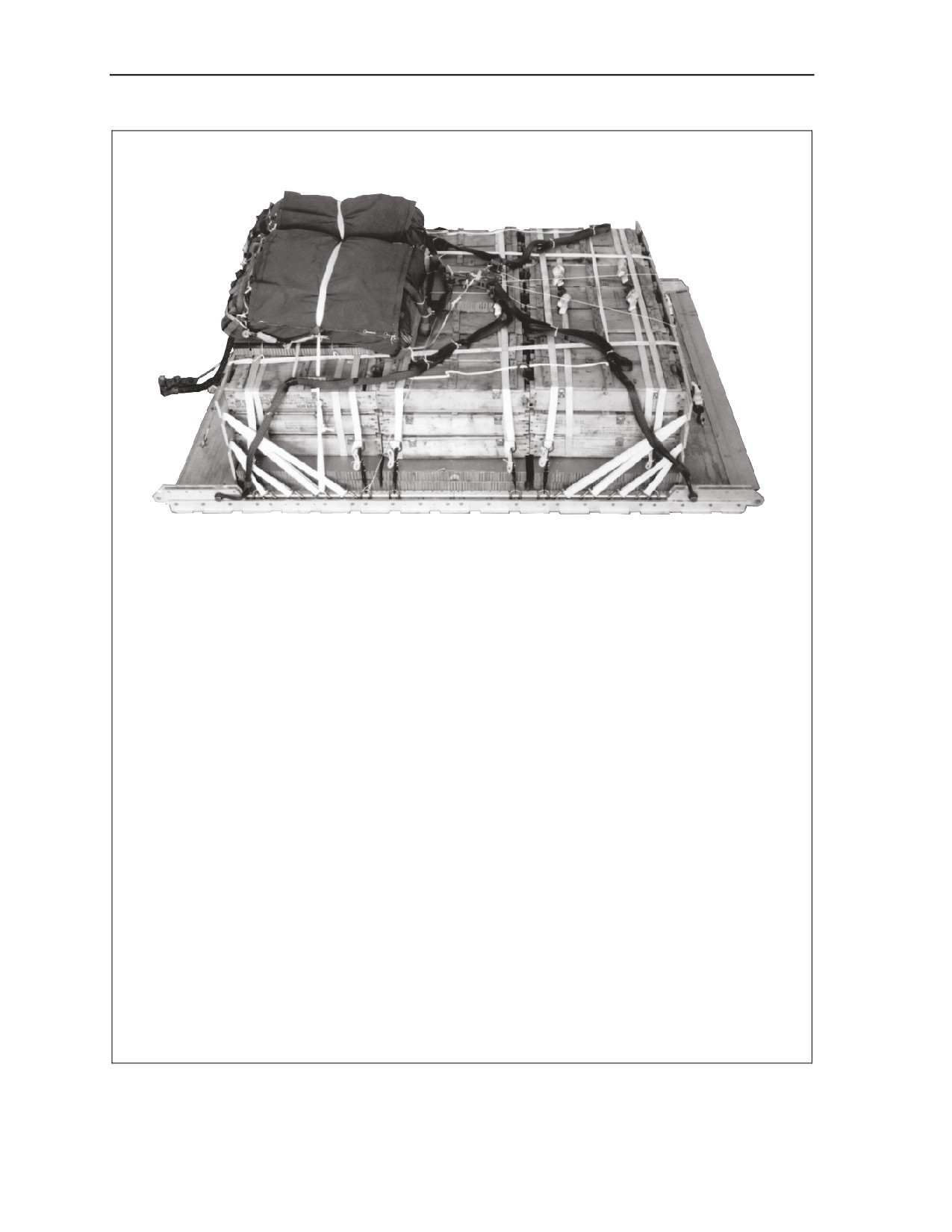

Bulk Supplies on a 12-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
8,904 pounds
Height
56 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
74 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-7. Bulk Supplies on a 12-Foot Platform
2-8
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

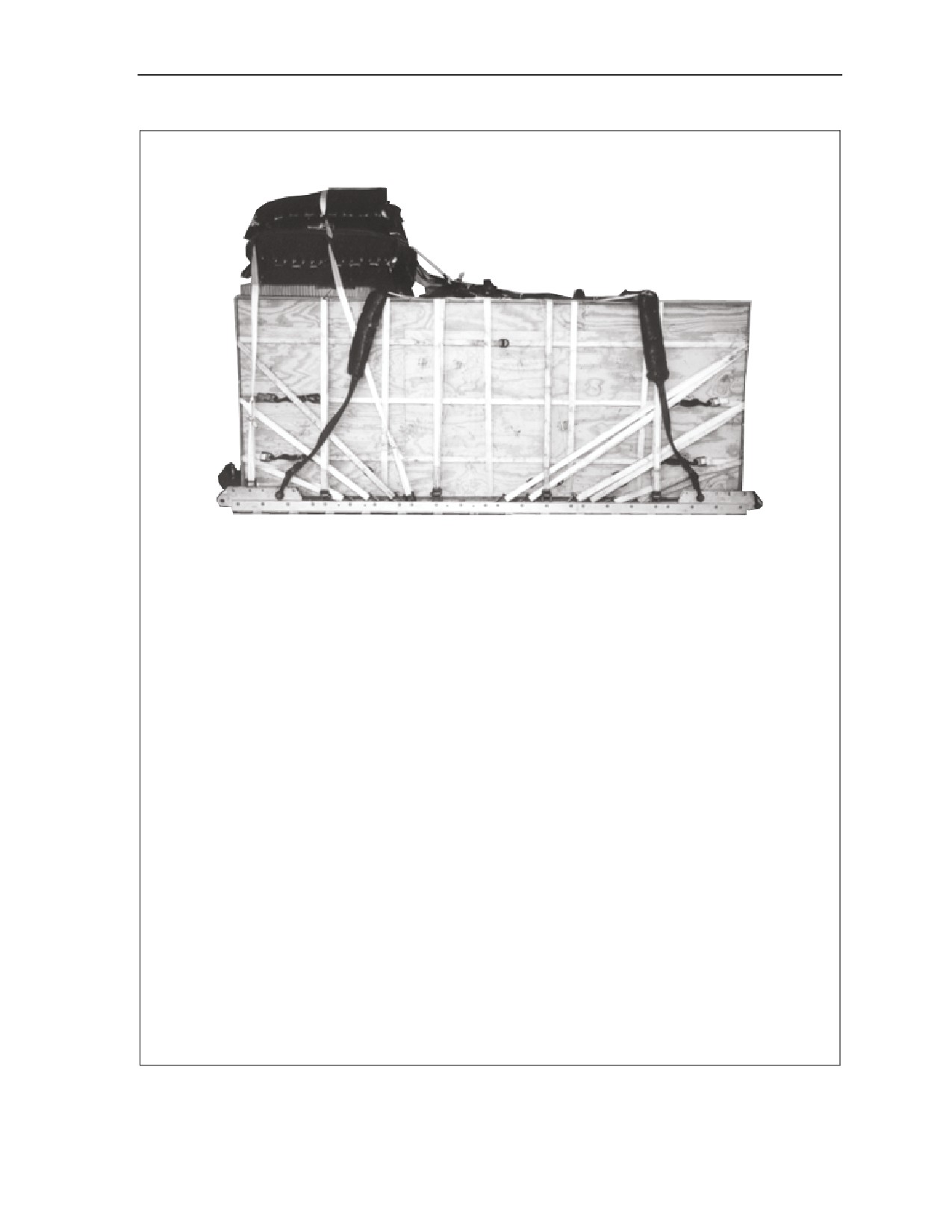

Forward Area Surgical Team (FAST) Equipment on a 12-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
12,000 pounds
Height
92 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
84 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Three G-11B
Figure 2-8. Forward Area Surgical Team (FAST) Equipment on a 12-Foot Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-9
Chapter 2

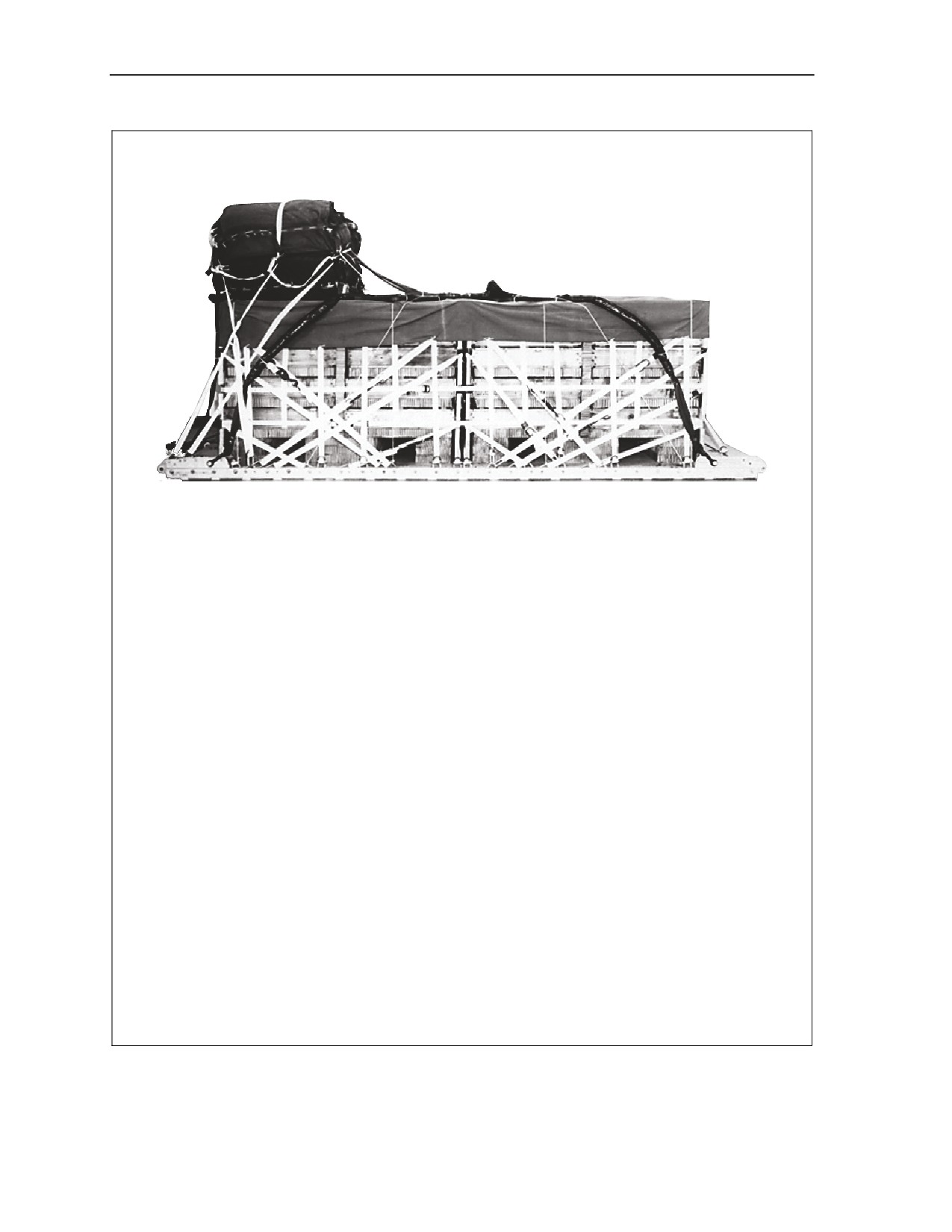

105-mm Ammunition on a 16-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
18,560 pounds
Height
97 1/2 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
106 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 16-Foot
Cargo Parachutes: Four G-11B
Figure 2-9. 105-mm Ammunition on a 16-Foot Platform
2-10
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

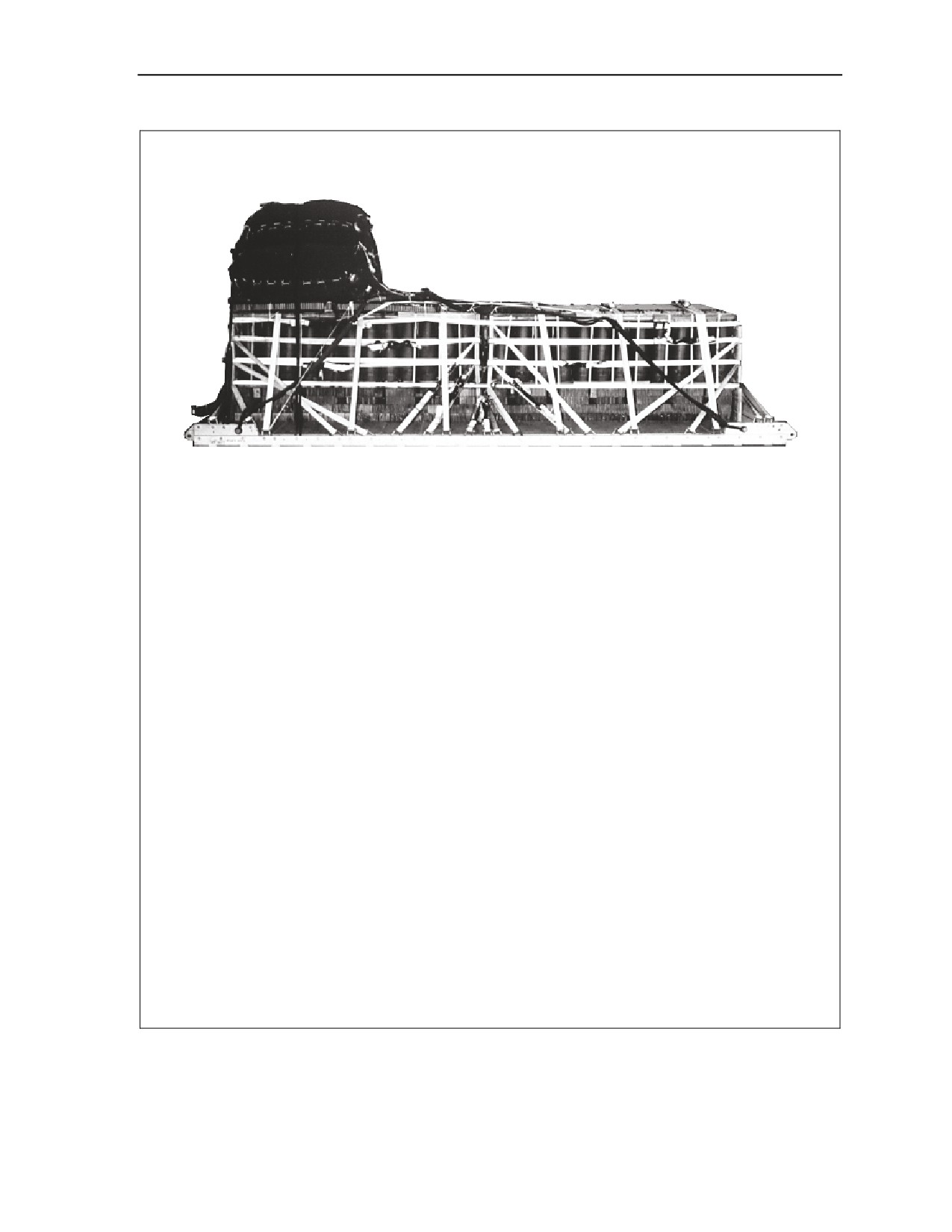

155-mm Ammunition on a 16-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
26,060 pounds
Height
92 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
101 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 16-Foot
Cargo Parachutes: Five G-11C
Figure 2-10. 155-mm Ammunition on a 16-Foot Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-11
Chapter 2

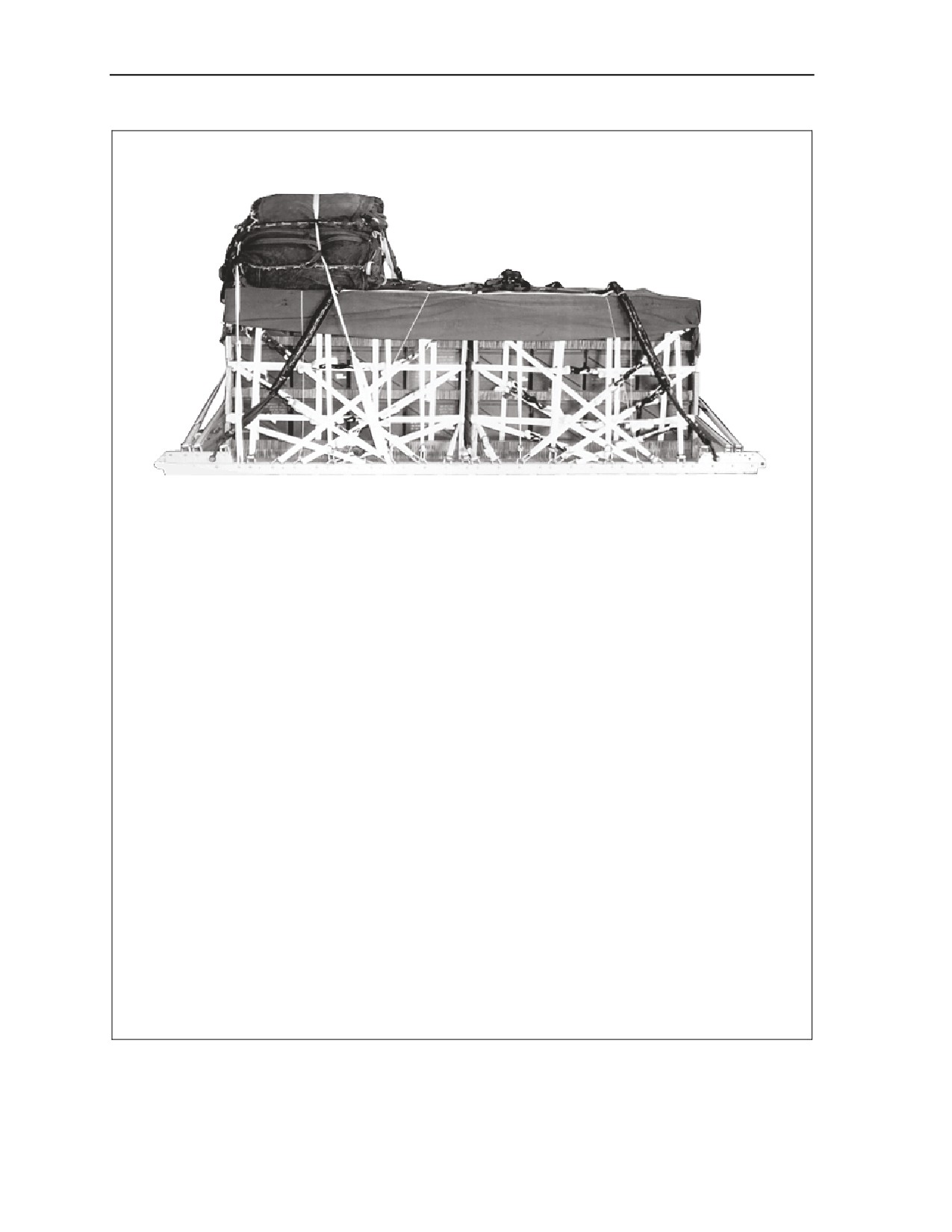

20-mm Ammunition on a 16-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
26,060 pounds
Height
92 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
91 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 16-Foot
Cargo Parachutes: Five G-11C
Figure 2-11. 20-mm Ammunition on a 16-Foot Platform
2-12
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

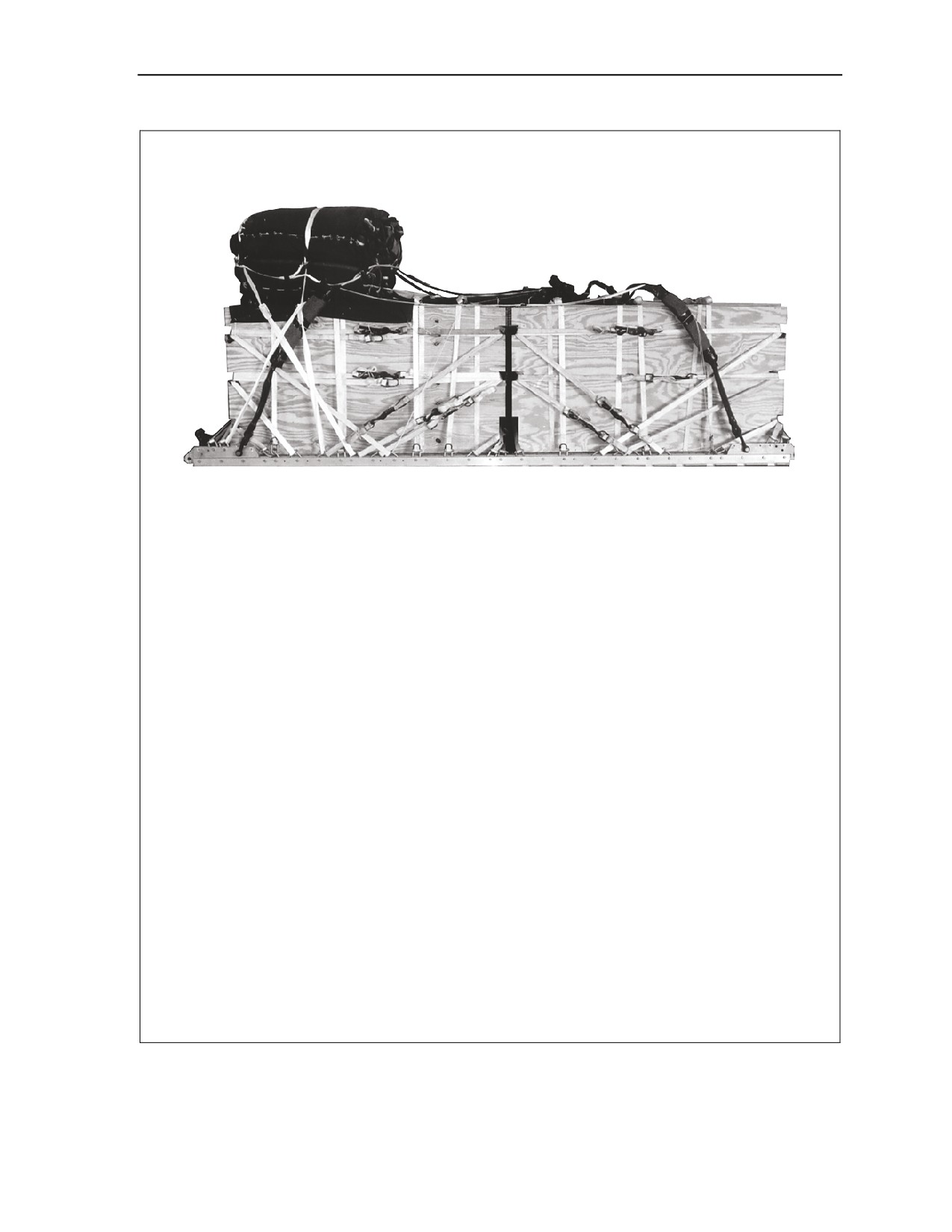

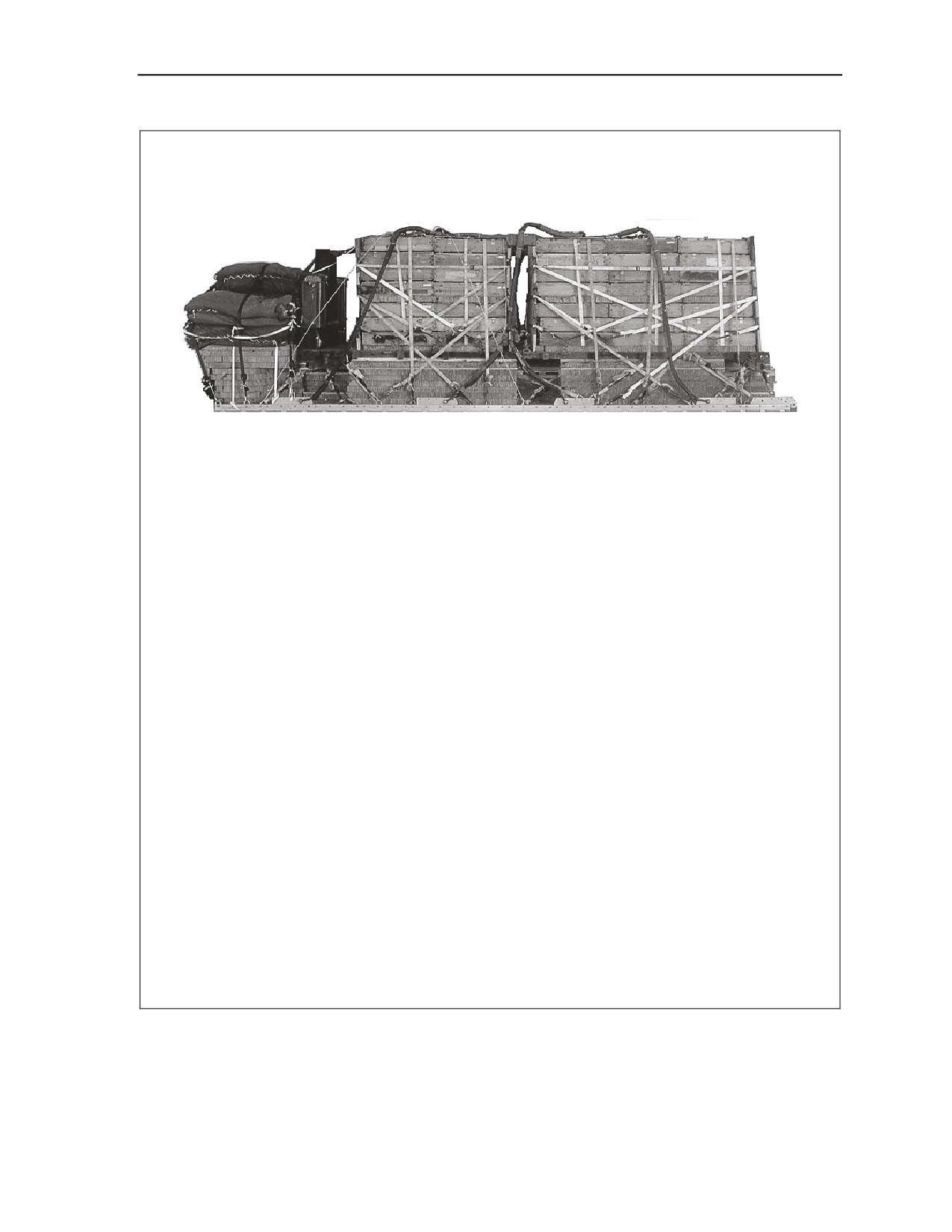

Mass Supply Boxes on a 16-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
15,040 pounds
Height
88 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
97 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Four G-11B
Figure 2-12. Mass Supply Boxes on a 16-Foot Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-13
Chapter 2

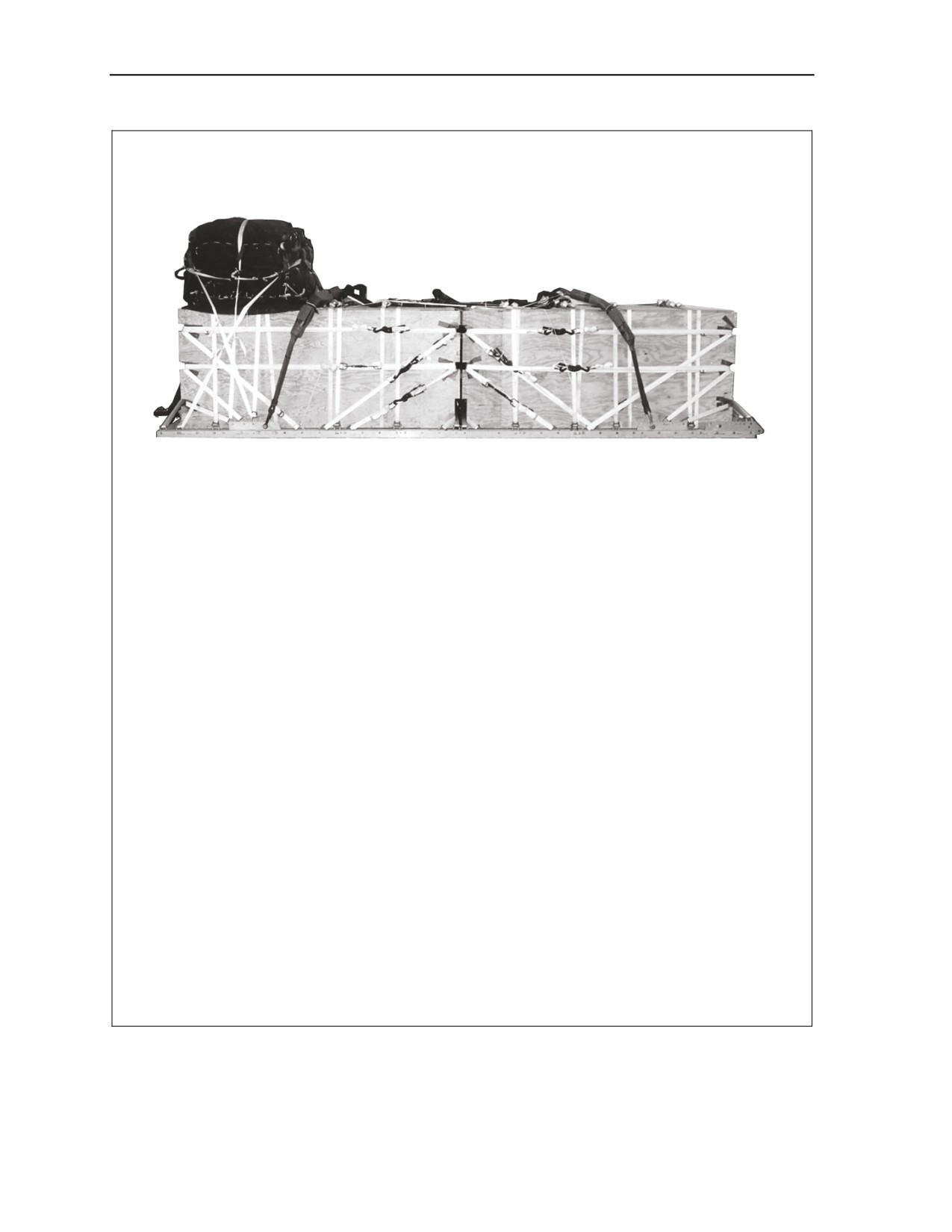

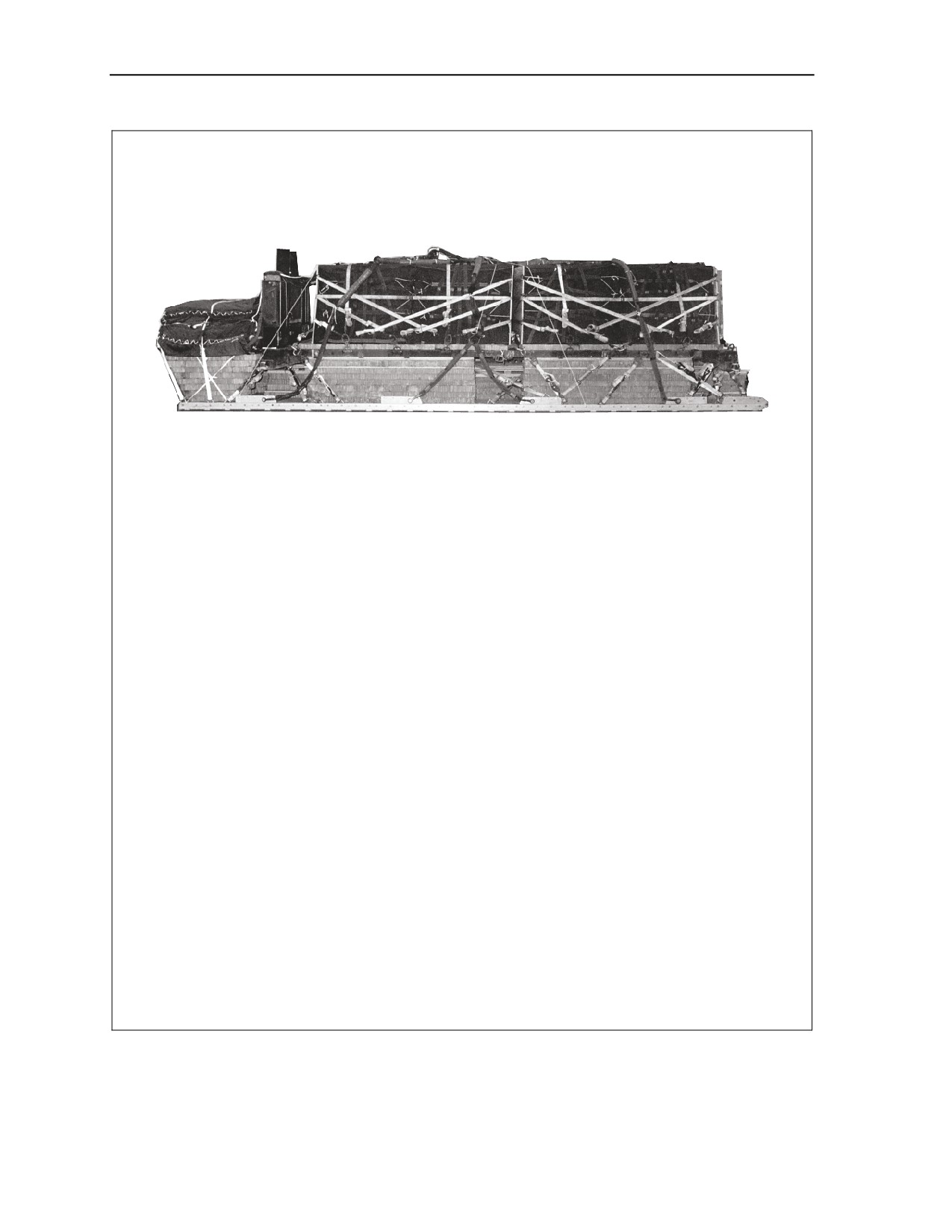

Mass Supply Boxes on a 20-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
16,300 pounds
Height
88 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
126 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22- or 28-Foot
Extraction Parachute C-17: 22- or 28-Foot
Platform Size: 16-Foot
Cargo Parachutes: Four G-11B
Figure 2-13. Mass Supply Boxes on a 20-Foot Platform
2-14
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Palletized Load System (PLS) Pallet with 105-mm Ammunition on a 24-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
33,343 pounds
Height
97 inches
Width
108 inches
Overall Length with EFTC
310 inches
Overall Length with EPJS
318 inches
Overhang: Front
0 inches
Rear (cargo parachutes)
22 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
132 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Seven G-11C
Figure 2-14. Palletized Load System (PLS) Pallet with 105-mm Ammunition on a 24-Foot
Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-15
Chapter 2
PLS with A-22 Containers on a 24-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
24,278 pounds
Height
84 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
334 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
137 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Five G-11C
Figure 2-15. PLS with A-22 Containers on a 24-Foot Platform
2-16
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

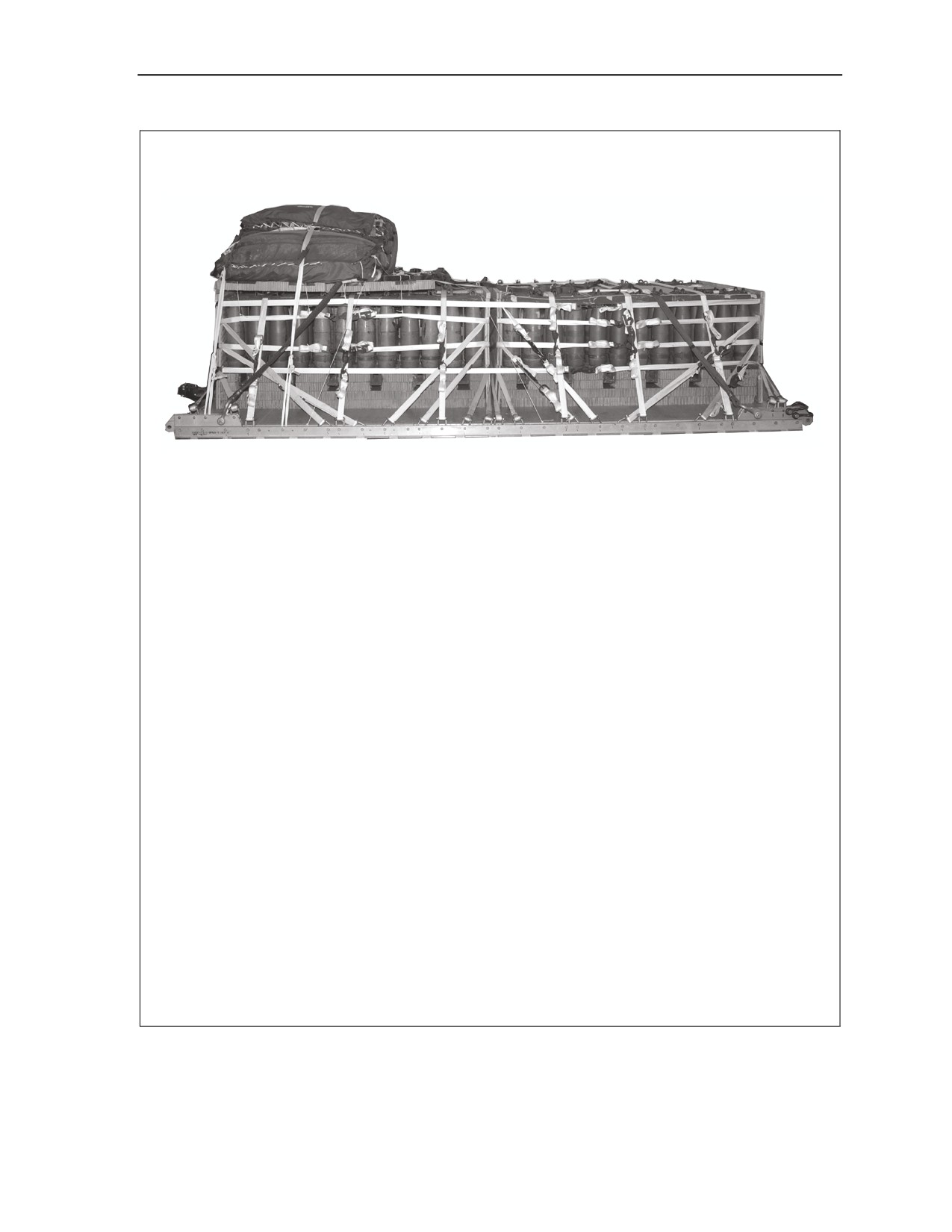

155-mm Ammunition Modular Artillery Charge System (MACS) Rigged on a 16-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
11,460 pounds
Height
48 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
96 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Five G-11C
Figure 2-16. 155-mm Ammunition Modular Artillery Charge System (MACS) Rigged on a 16-
Foot Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-17
Chapter 2

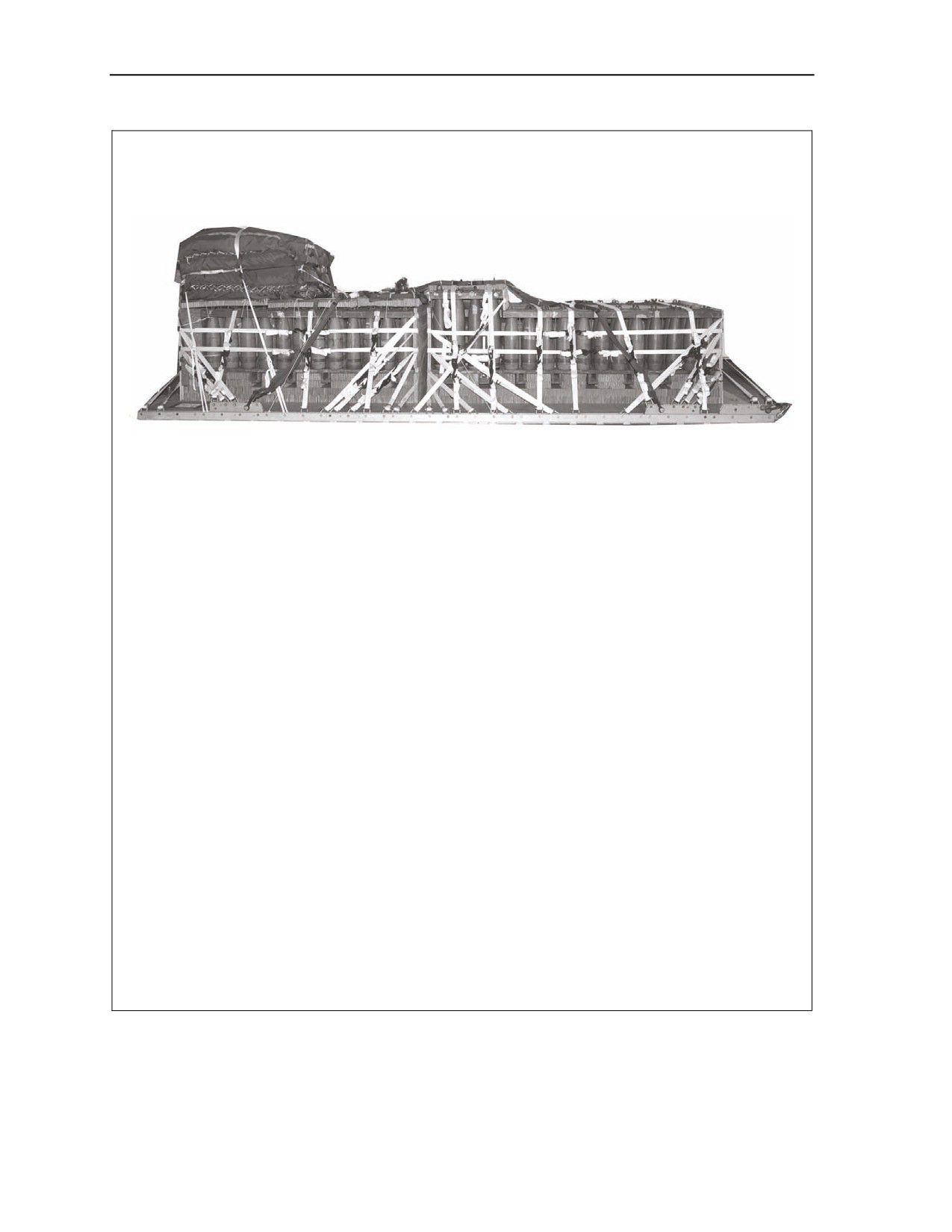

155-mm Ammunition (MACS PAC) Rigged on a 20-Foot Platform
Reference: FM 4-20.112/TO 13C7-1-8
Weight: Load shown
18,460 pounds
Height
73 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
171 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Four G-11B
Figure 2-17. 155-MM Ammunition (MACS PAC) Rigged on a 20-Foot Platform
2-18
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

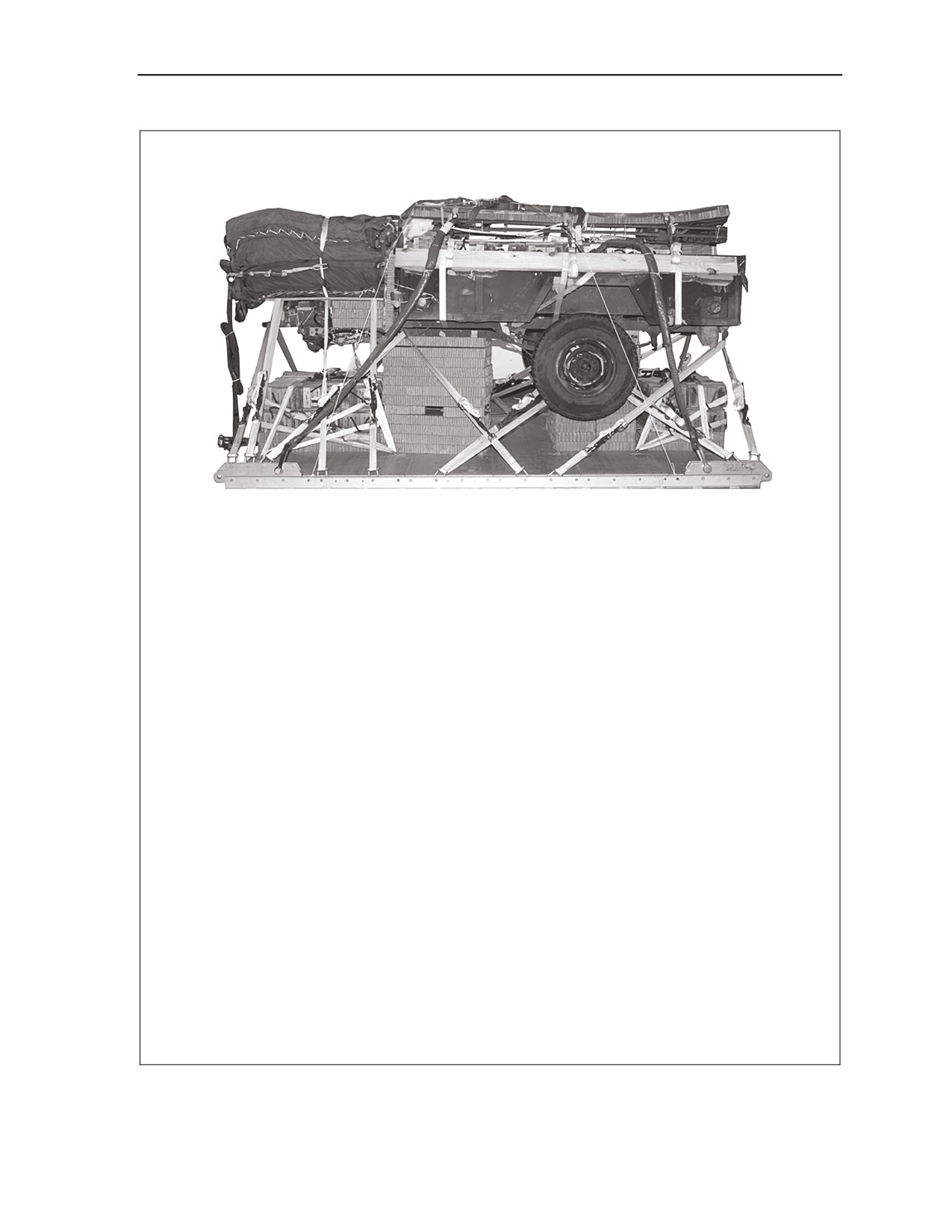

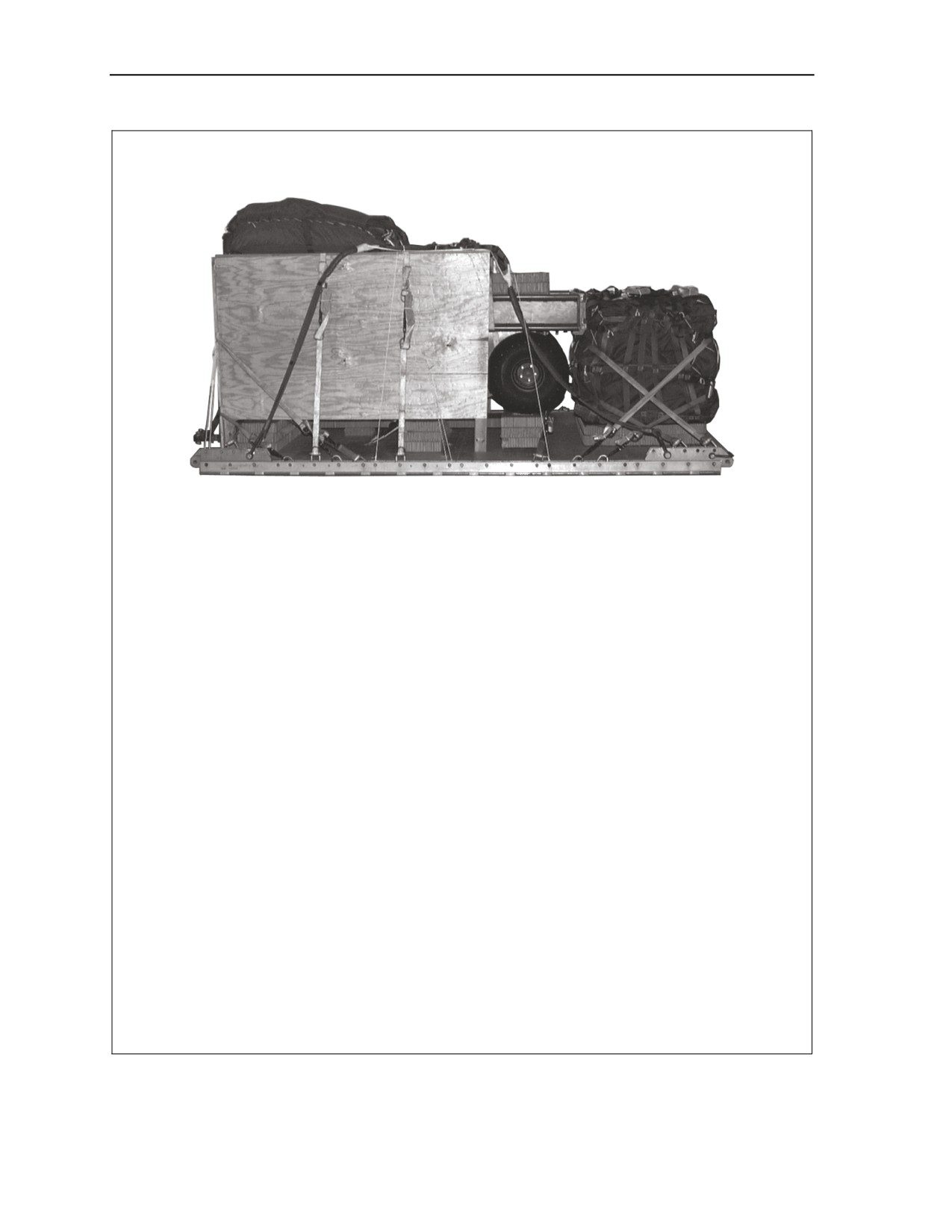

3/4-Ton Cargo Trailer
Reference: FM 4-20.113/TO 13C7-3-51
Weight: Load shown
5,920 pounds
Height
72 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
70 inches
Accompanying Load: Maximum accompanying load of 1,500 pounds stowed in the trailer with
additional load of 2,500 pounds stowed on the platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-18. 3/4-Ton Cargo Trailer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-19
Chapter 2

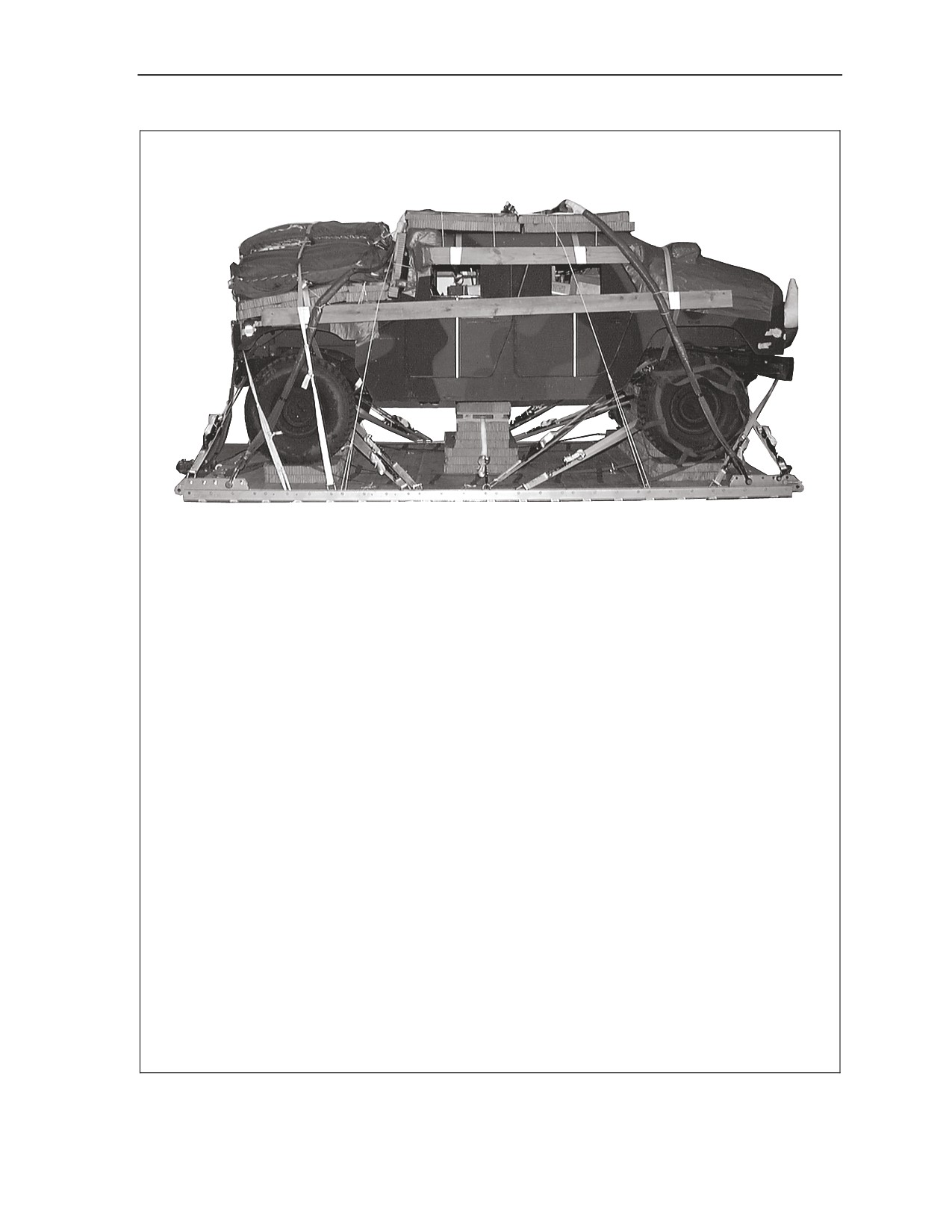

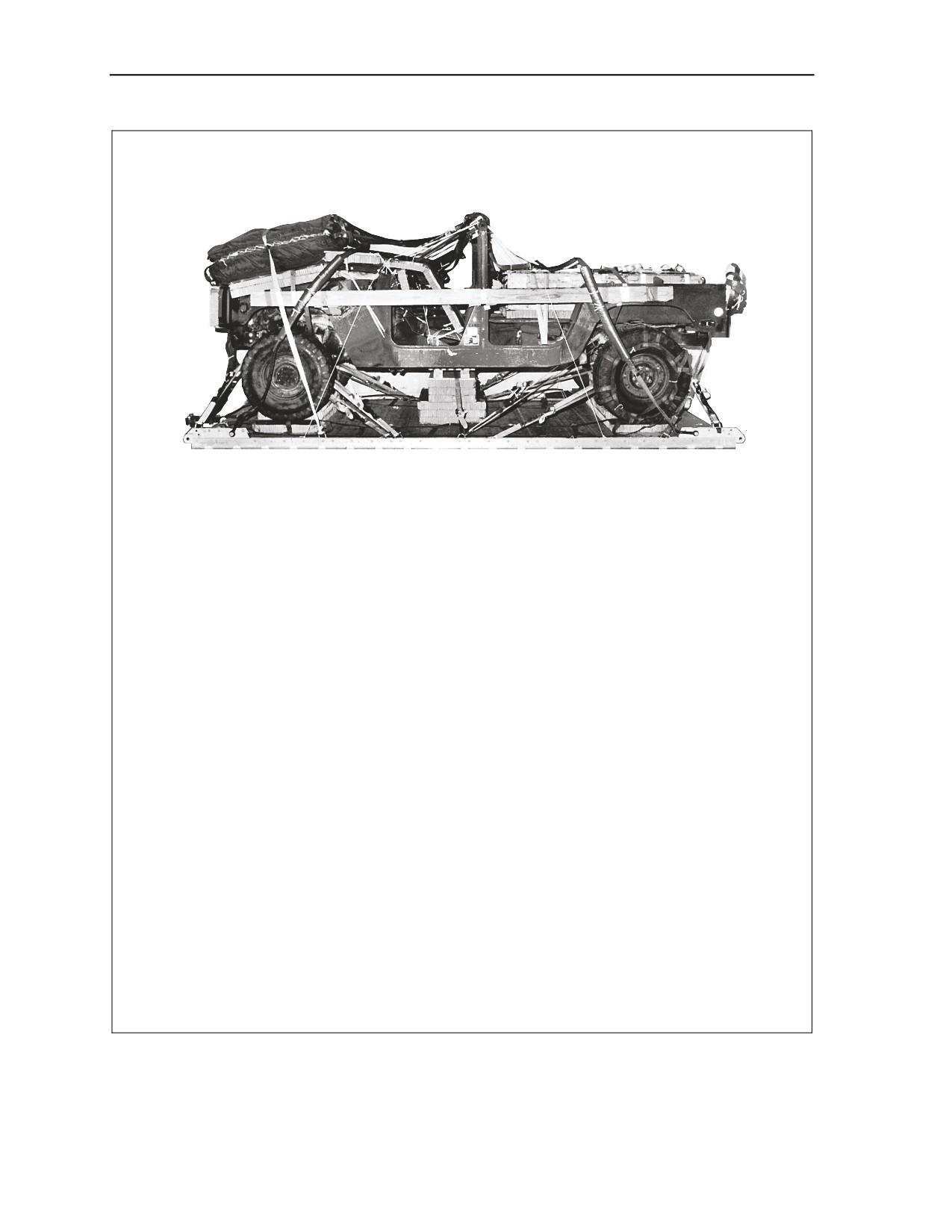

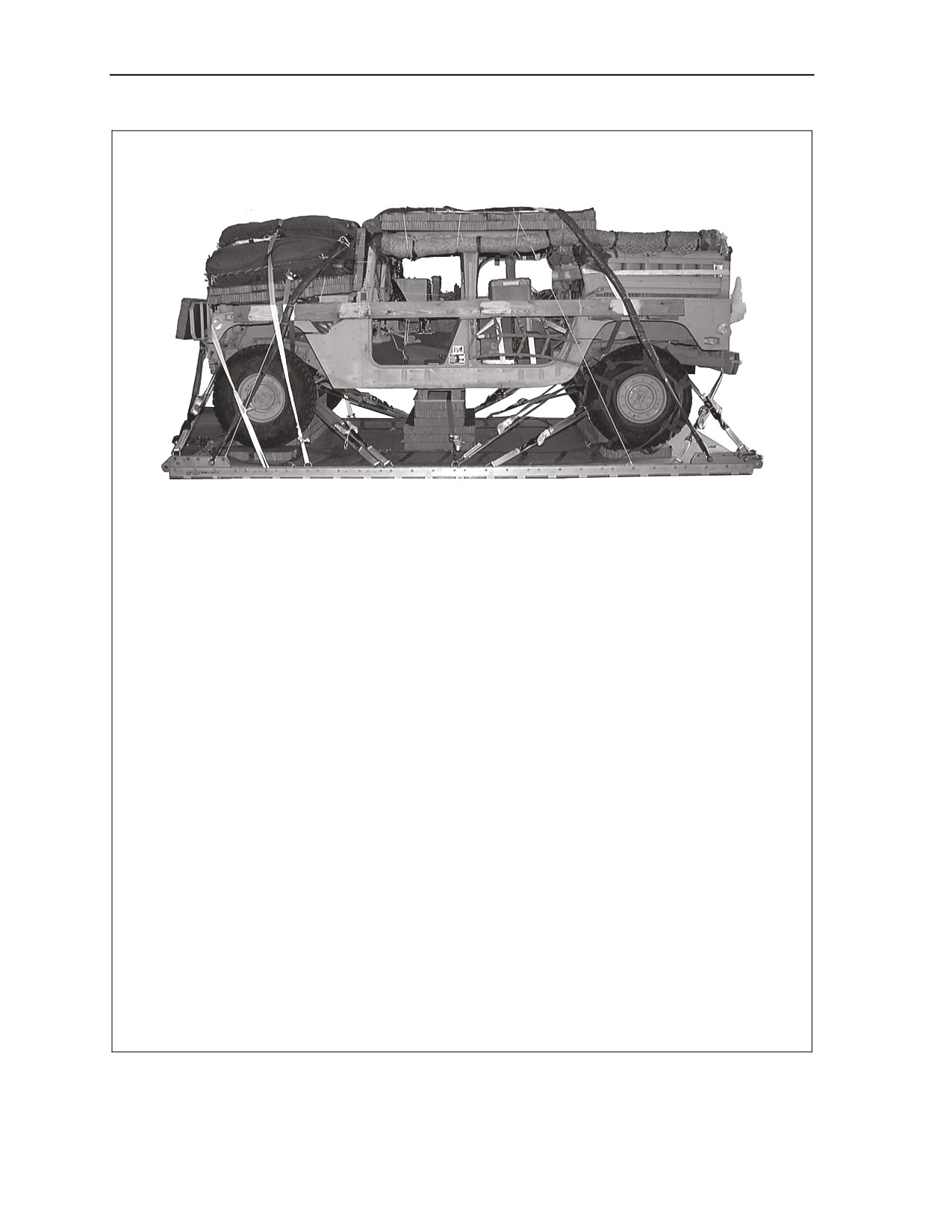

M998 Cargo/Troop Carrier
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
9,750 pounds
Height
86 inches
Width
108 inches
Overall Length with EFTC
215 inches
Overall Length with EPJS
233 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
95 inches
Accompanying Load: An accompanying load of 800 to 2,000 pounds must be rigged in the
truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-19. M998 Cargo/Troop Carrier
2-20
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M1025 Armament Carrier
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
9, 820 pounds
Height
91 inches
Width
108 inches
Overall Length with EFTC
215 inches
Overall Length with EPJS
233 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
96 inches
Accompanying Load: An accompanying load of 800 to 2,000 pounds must be rigged in the
truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-20. M1025 Armament Carrier
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-21
Chapter 2
M1025 Armament Carrier with Additional Accompanying Ammunition Load on a 20-Foot Platform
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
11,740 pounds
Height
91 inches
Width
108 inches
Overall Length with EFTC
265 inches
Overall Length with EPJS
283 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
112 inches
Accompanying Load: Ammunition rigged on the platform and any accompanying load stowed
in truck must weigh no less than 3,300 pounds and no more than 4,300
pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-21. M1025 Armament Carrier with Additional Accompanying Ammunition Load on a
20-Foot Platform
2-22
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M1025 Armament Carrier Rigged with Striker
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
11,389 pounds
Height
98 inches
Width
108 inches
Overall Length with EFTC
215 inches
Overall Length with EPJS
233 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
97 inches
Accompanying Load: Striker and accessories.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-22. M1025 Armament Carrier Rigged with Striker
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-23
Chapter 2

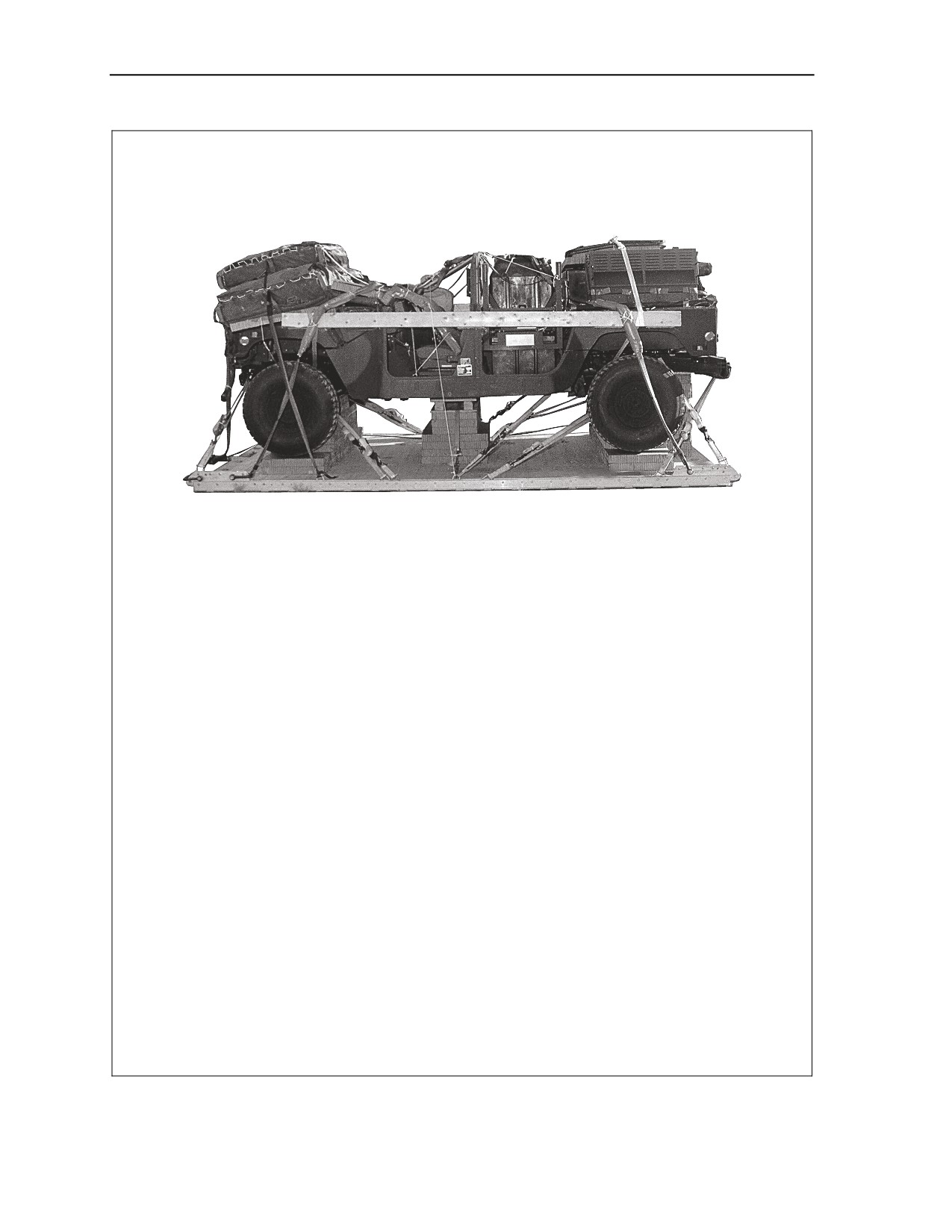

M56 Smoke Generator Rigged in M1113
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
11,960 pounds
Height
97 inches
Width
108 inches
Overall Length with EFTC
215 inches
Overall Length with EPJS
233 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
91 inches
Accompanying Load: An accompanying load of 800 to 2,500 pounds must be rigged in the
truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-23. M56 Smoke Generator Rigged in M1113
2-24
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

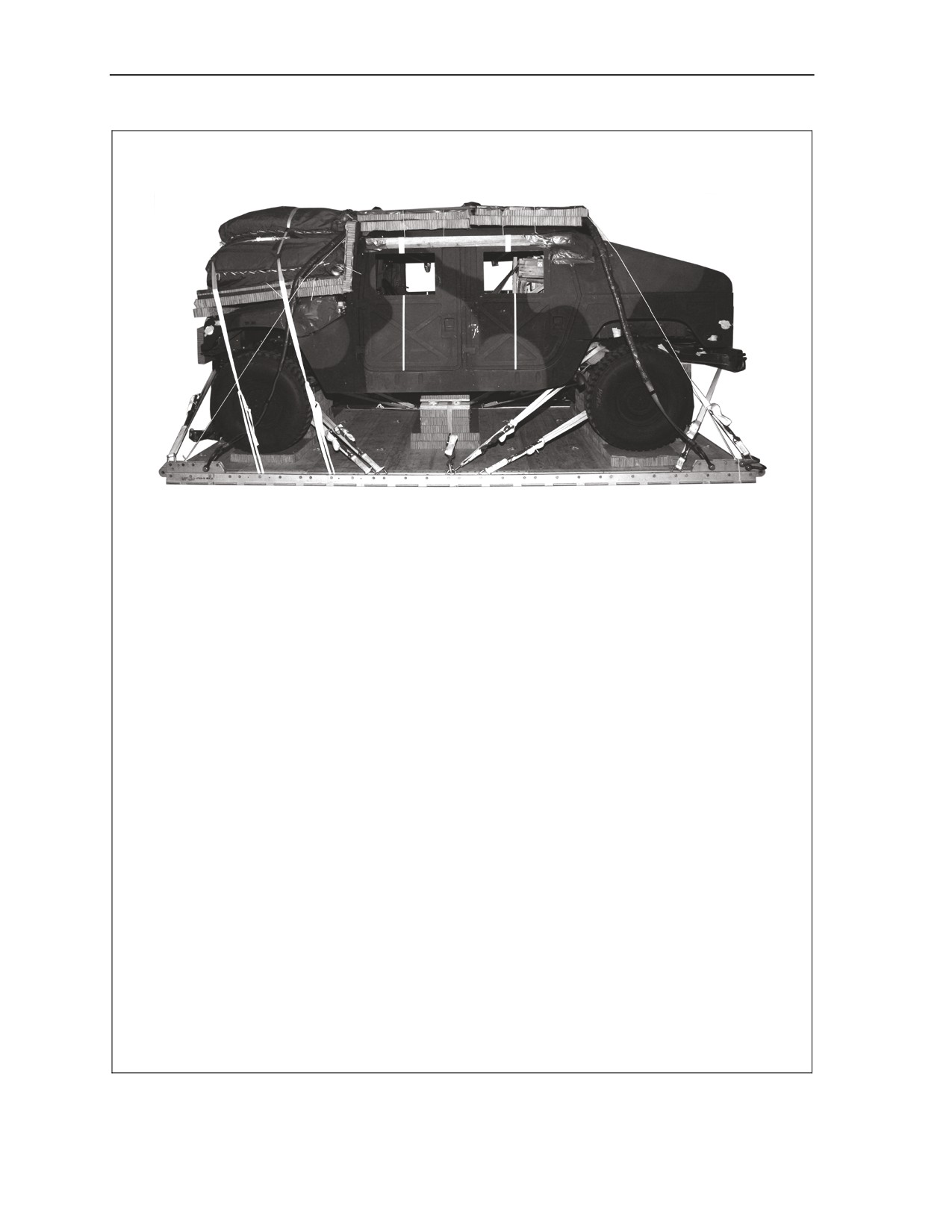

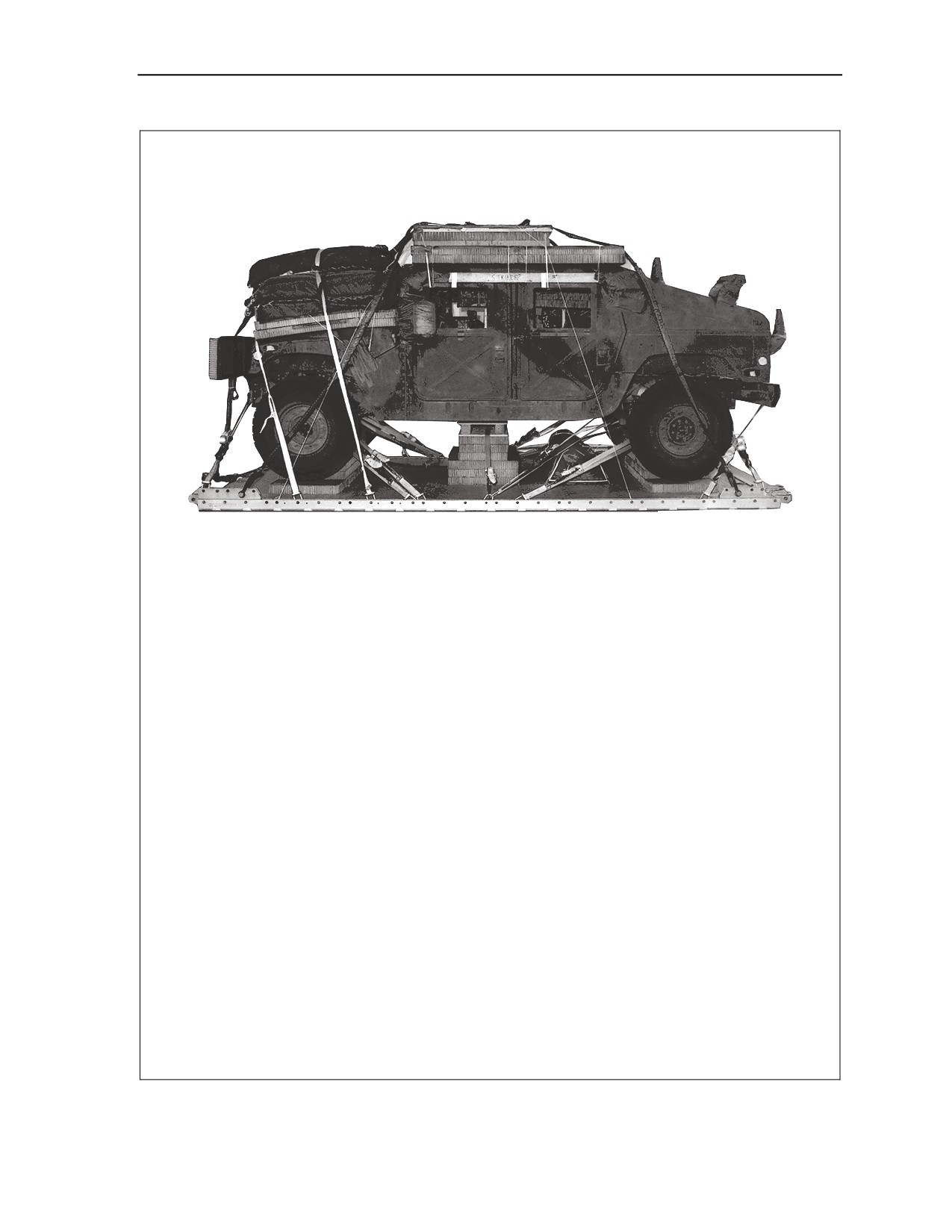

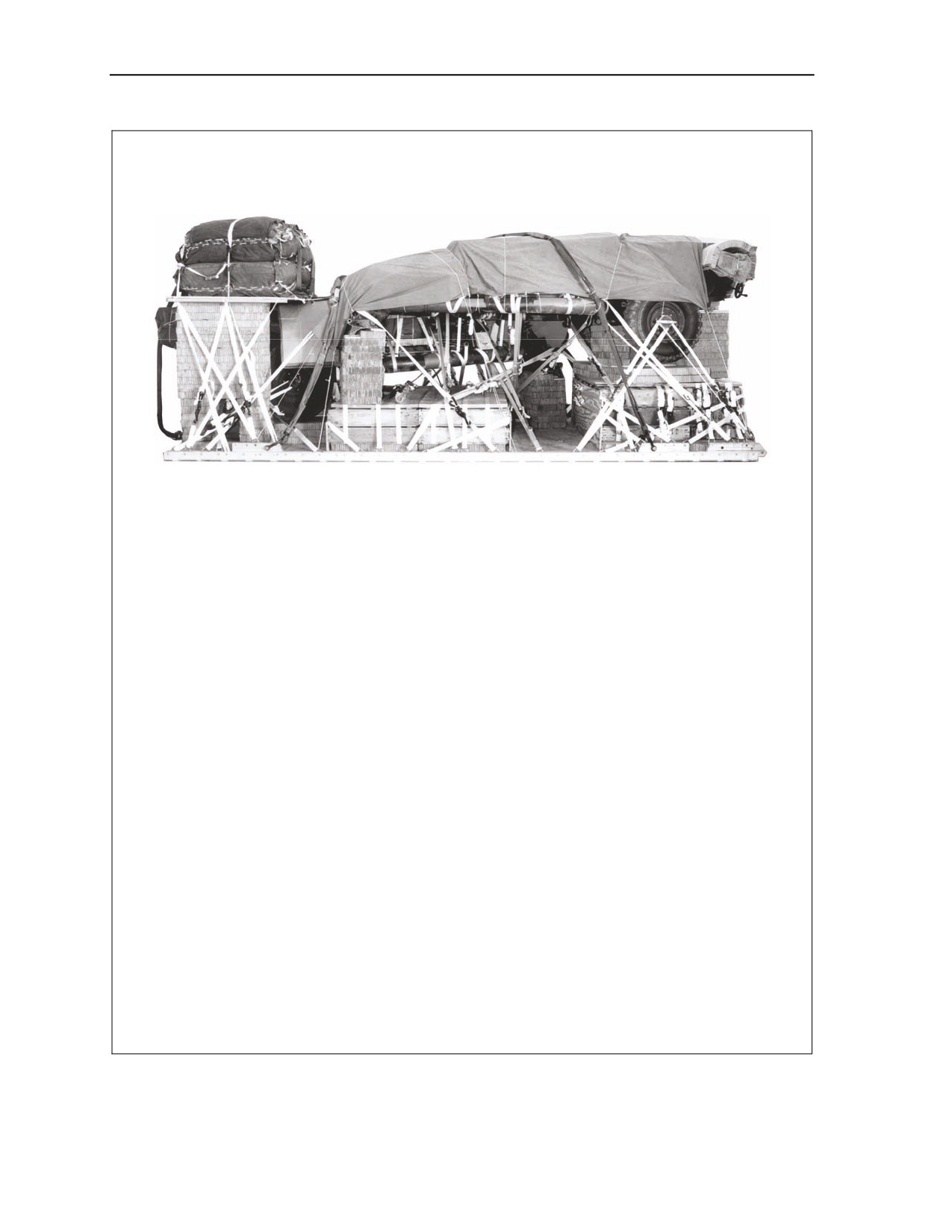

M1114-Up-Armament Carrier
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
15,240 pounds
Height
98 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
92 inches
Accompanying Load: An accompanying load of 800 to 2,000 pounds must be rigged in the
truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-24. M1114-Up-Armament Carrier
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-25
Chapter 2
M1151 Expanded Capacity Armament Carrier
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
11,340 pounds
Height
93 inches
Width
108 inches
Overall Length with EFTC
215 inches
Overall Length with EPJS
233 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
96 inches
Accompanying Load: An accompanying load of 1,300 to 2,000 pounds must be rigged in the
truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-25. M1151 Expanded Capacity Armament Carrier
2-26
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

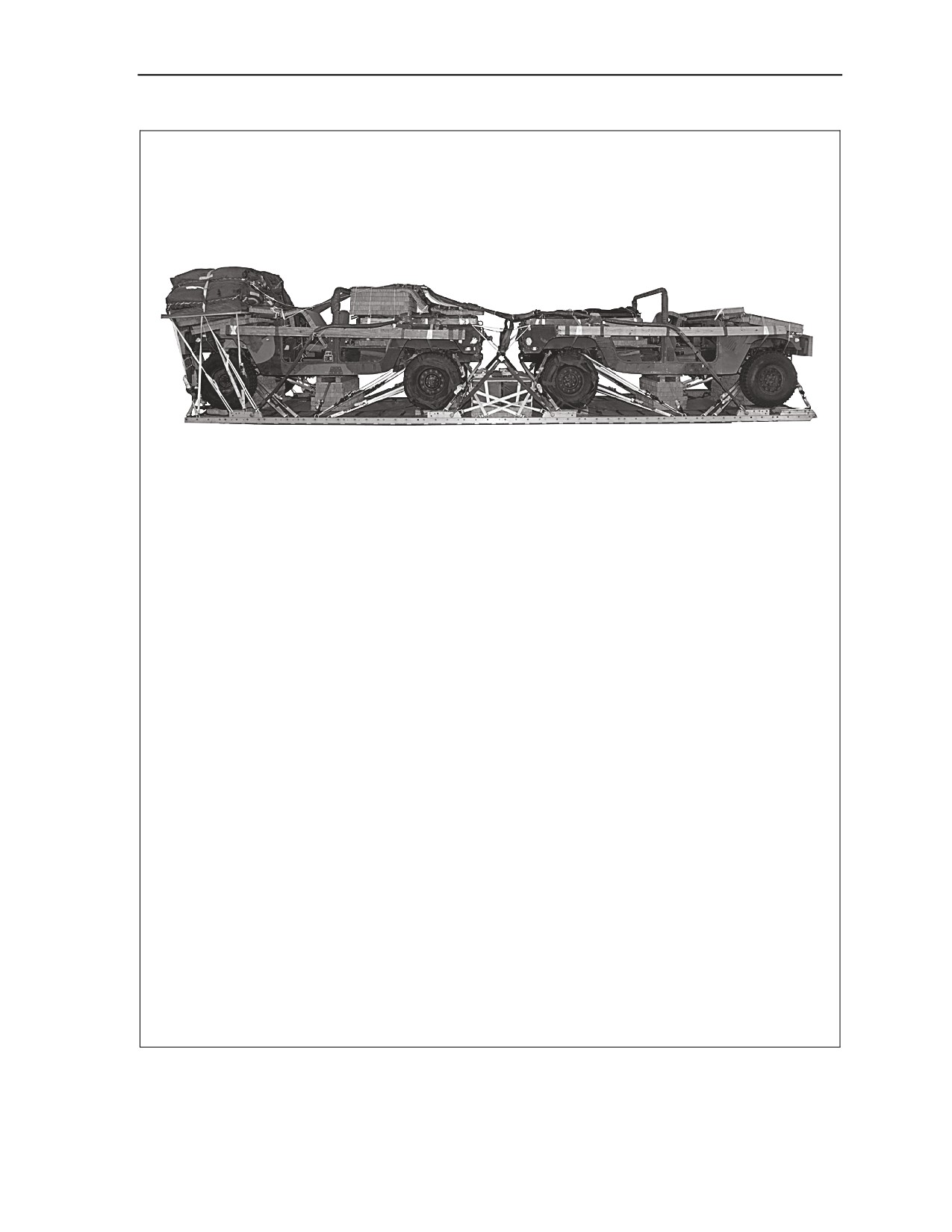

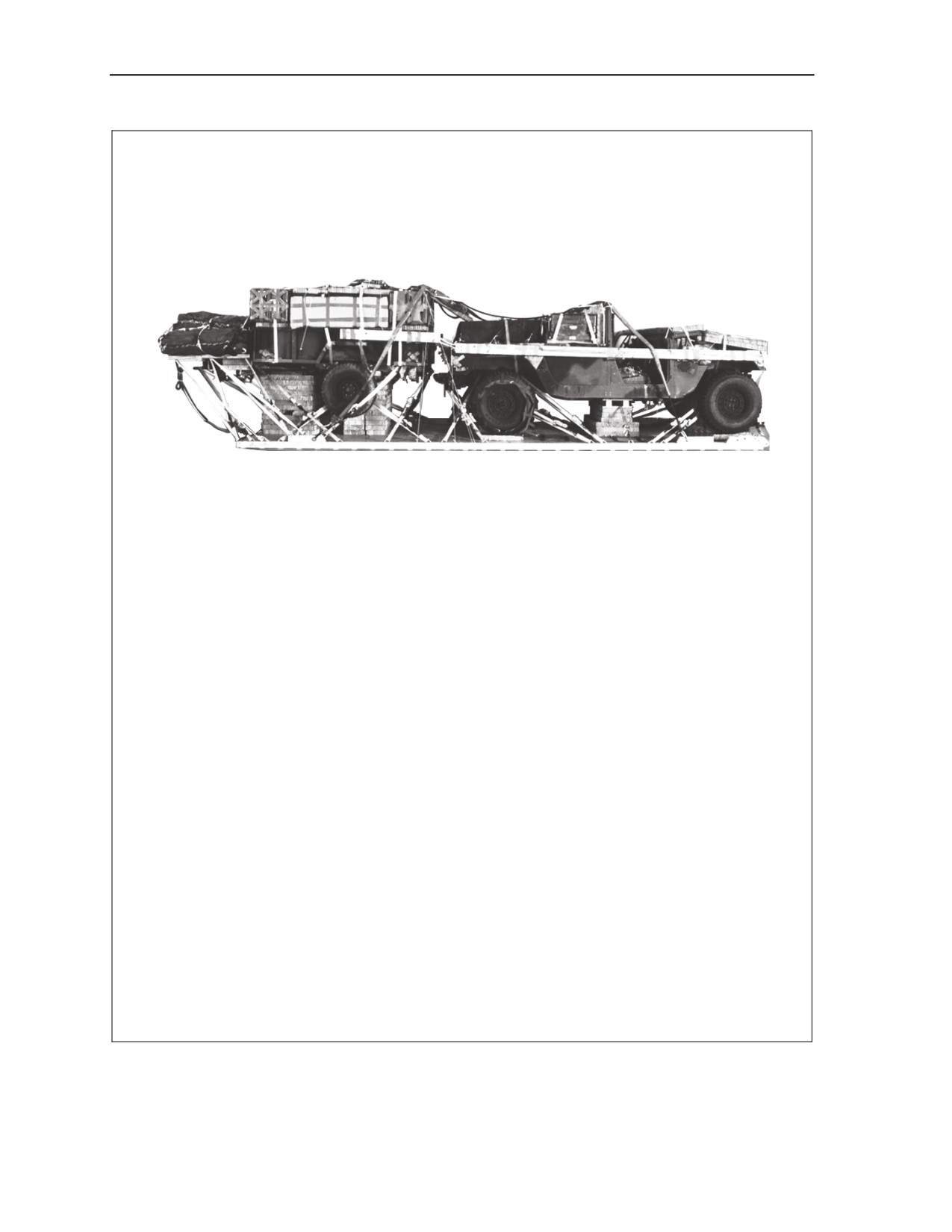

Two M998 Trucks
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
21,200 pounds
Height
96 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
207 inches
Accompanying Load: An accompanying load of 800 to 2,000 pounds must be rigged in each
truck and 20 boxes of 20-millimeter ammunition rigged on the platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Five G-11C
Figure 2-26. Two M998 Trucks
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-27
Chapter 2
Ground Mobility Vehicle
Reference: FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111
Weight: Load shown
12,420 pounds
Height
94 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
96 inches
Accompanying Load: The accompanying load weighs 2,140 pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-27. Ground Mobility Vehicle
2-28
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

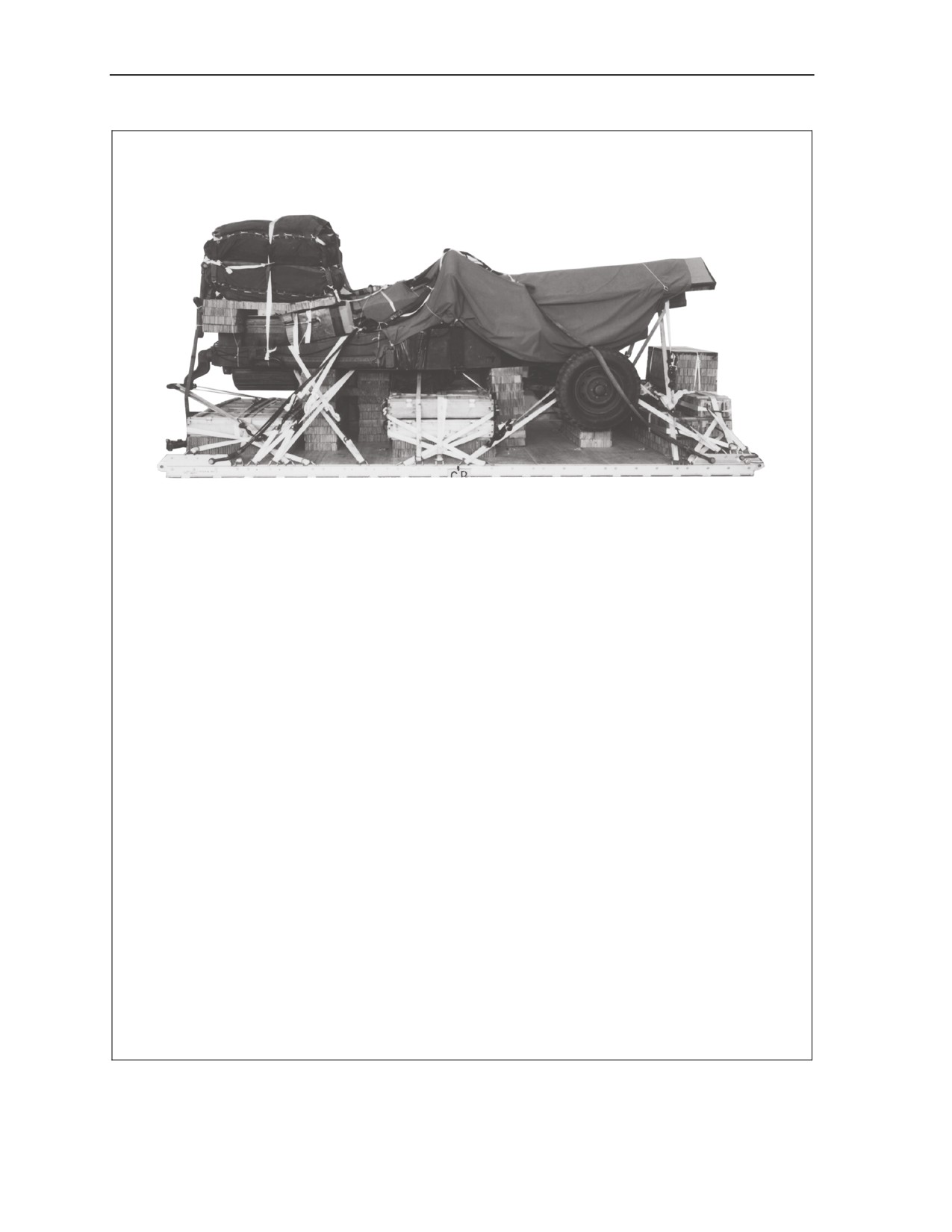

M102 Howitzer Rigged with 17 Boxes of Ammunition
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
8,060 pounds
Height
90 1/2 inches
Width
108108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
98 inches
Accompanying Load: An accompanying load weighing 2,040 pounds rigged on platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-28. M102 Howitzer Rigged with 17 Boxes of Ammunition
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-29
Chapter 2

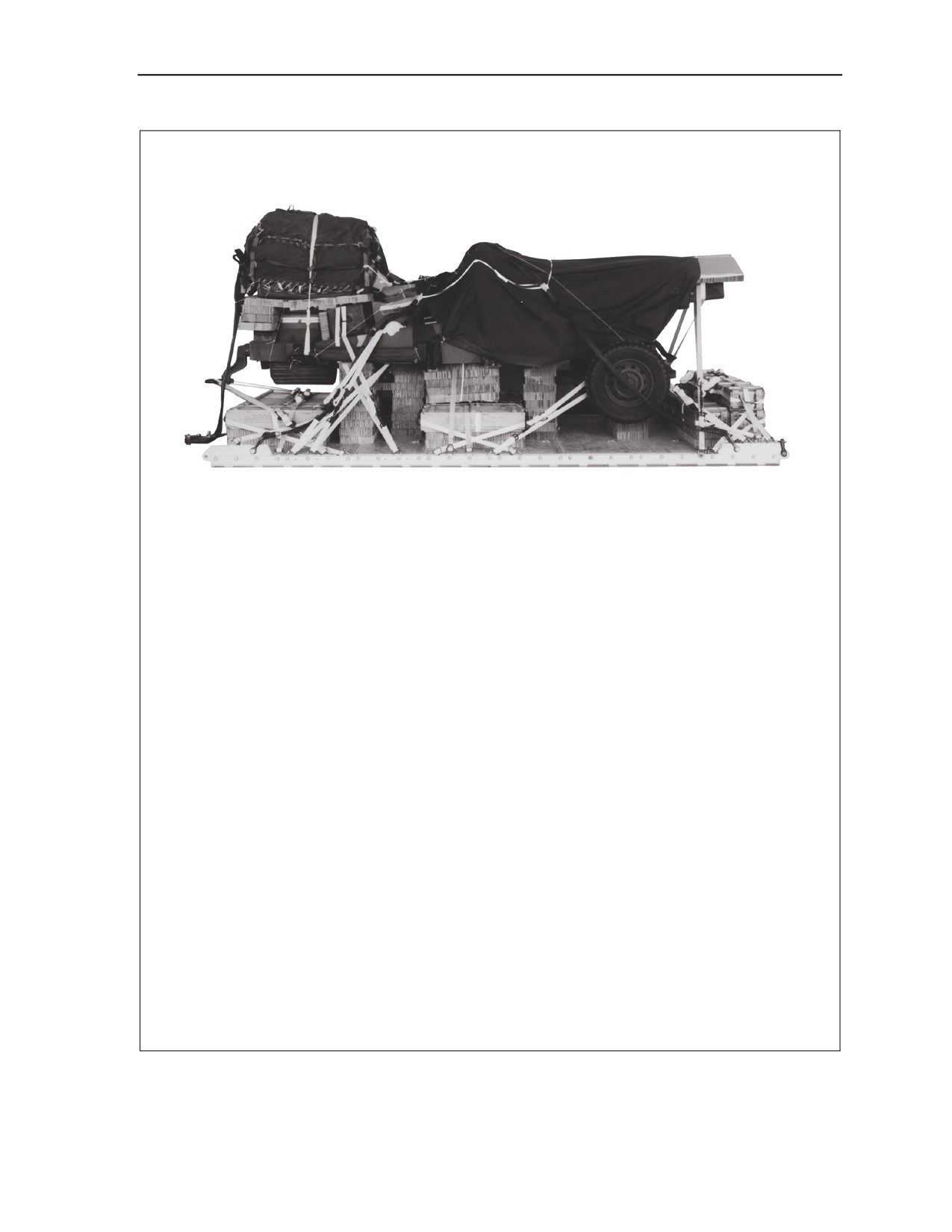

M102 Howitzer Rigged with 23 Boxes of Ammunition
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
8,800 pounds
Height
90 1/2 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
98 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-29. M102 Howitzer Rigged with 23 Boxes of Ammunition
2-30
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

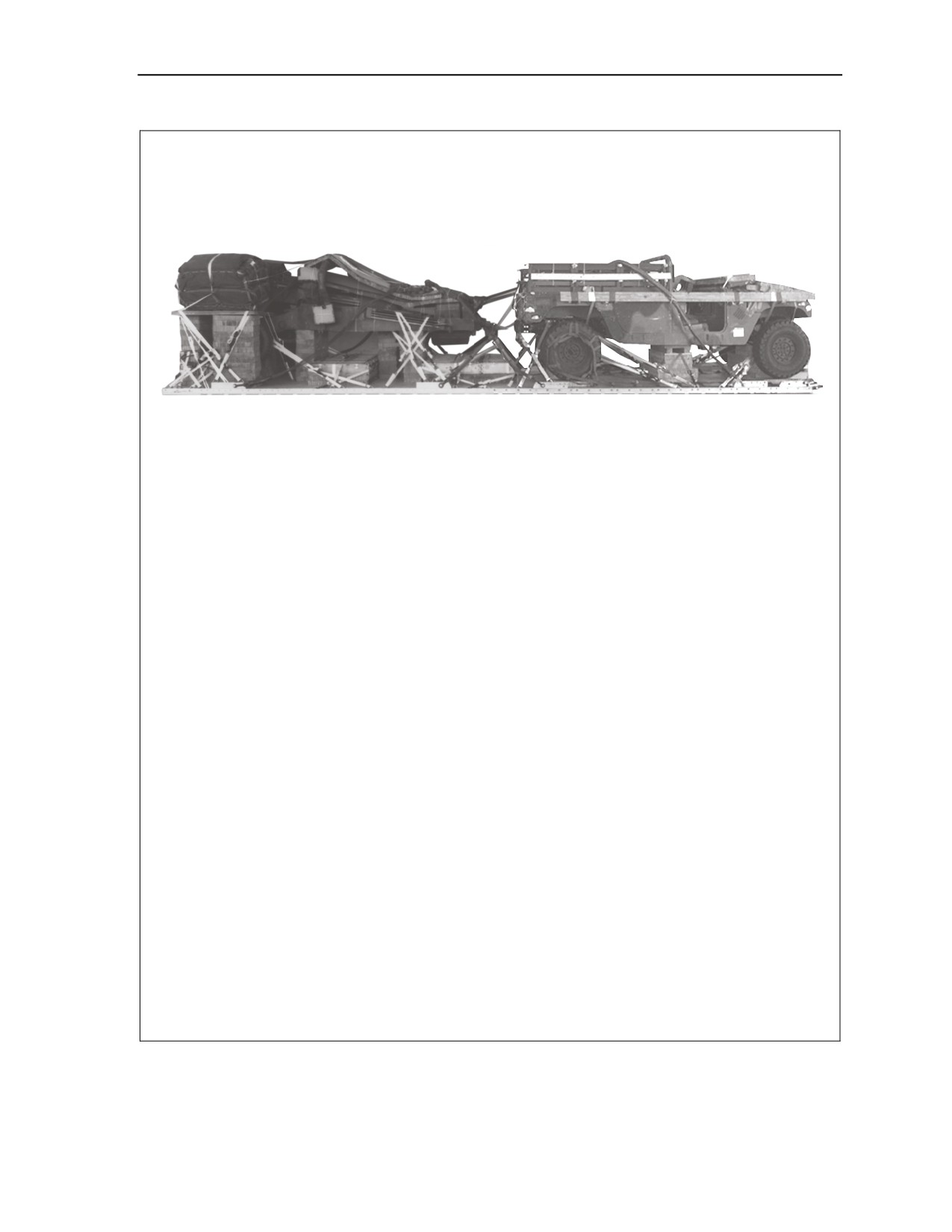

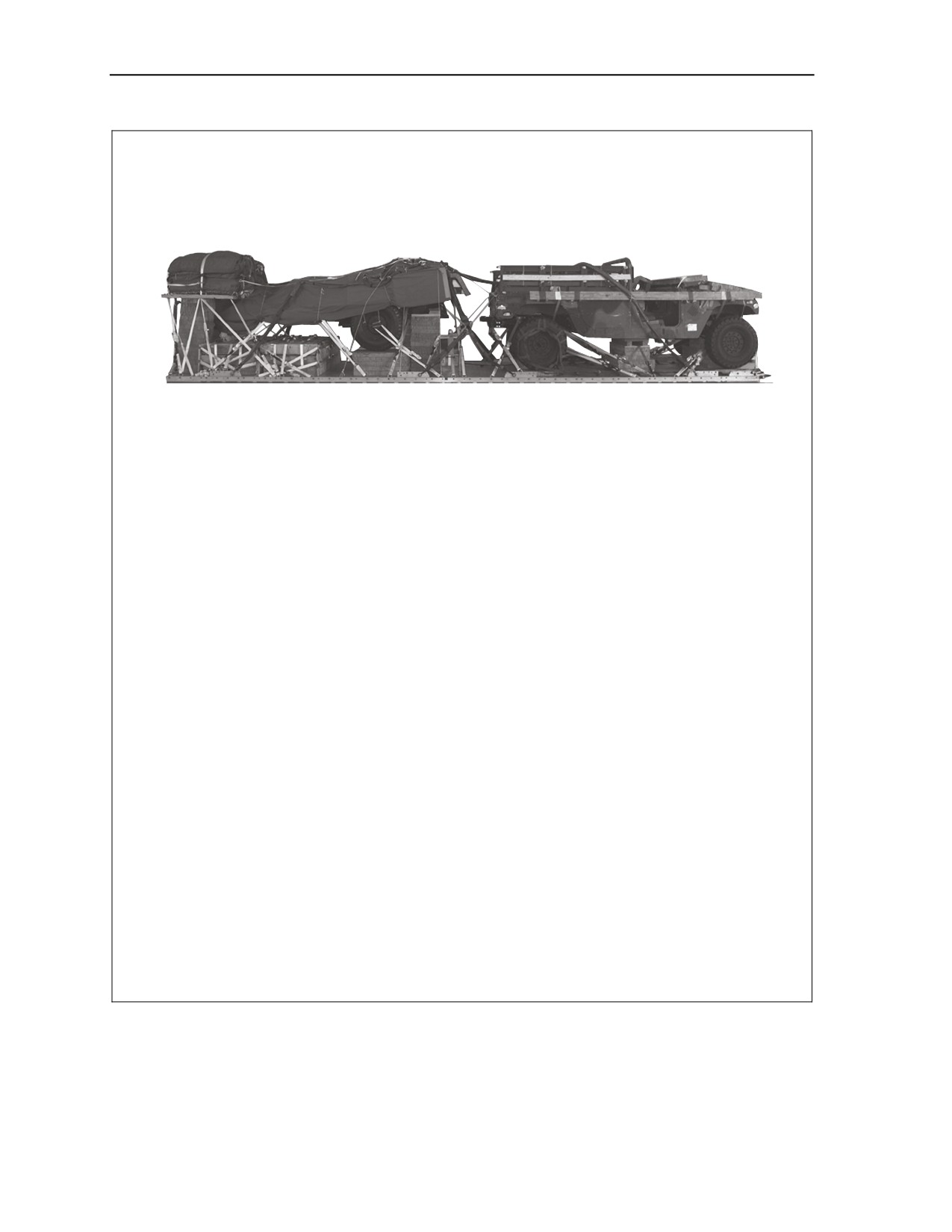

M102 Howitzer with 1 1/4-Ton Truck
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
17,770 pounds
Height
83 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
196 inches
Accompanying Load: Accompanying load weighing 800 to 2,200 pounds must be rigged in
truck and 22 boxes of 105-mm ammunition rigged on a platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Four G-11B
Figure 2-30. M102 Howitzer with 1 1/4-Ton Truck
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-31
Chapter 2

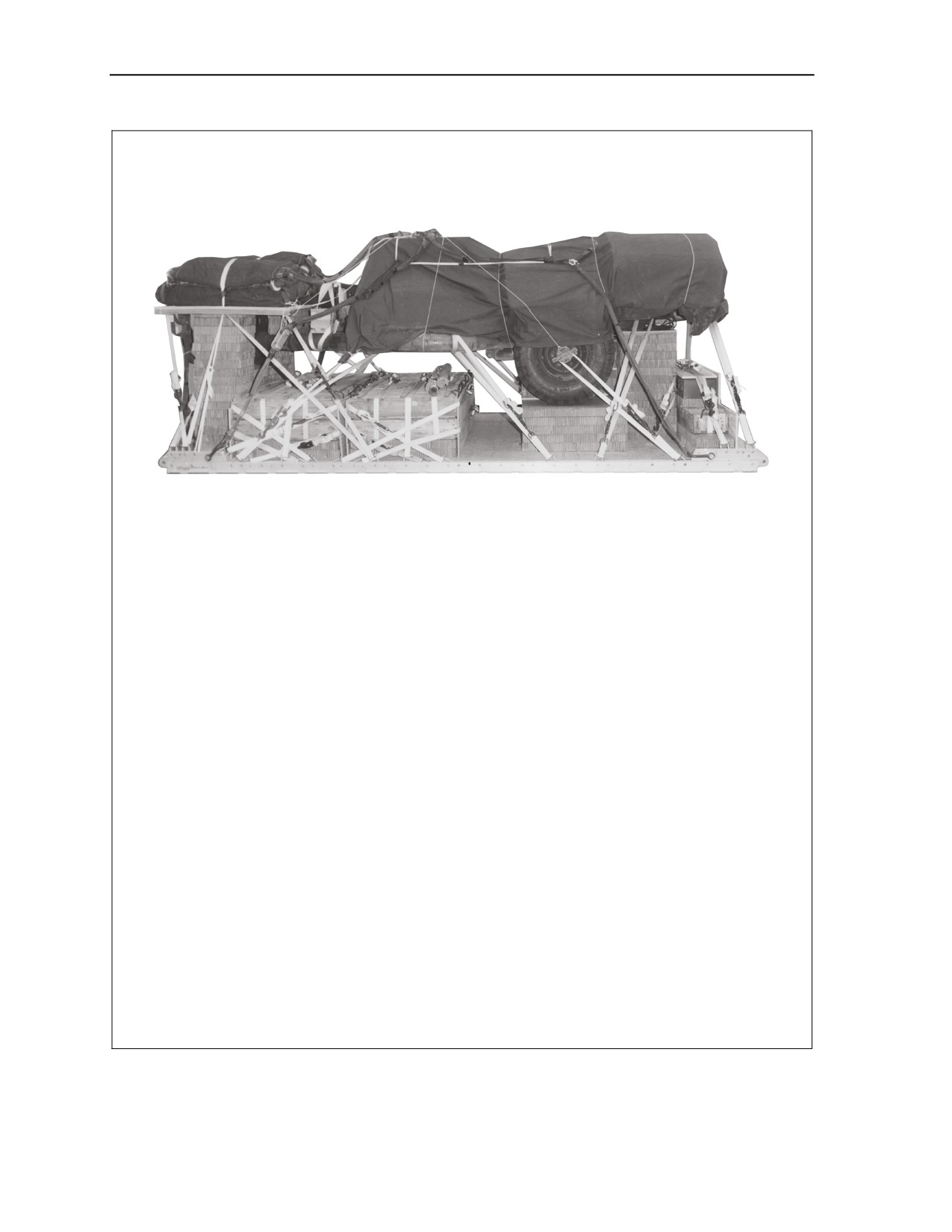

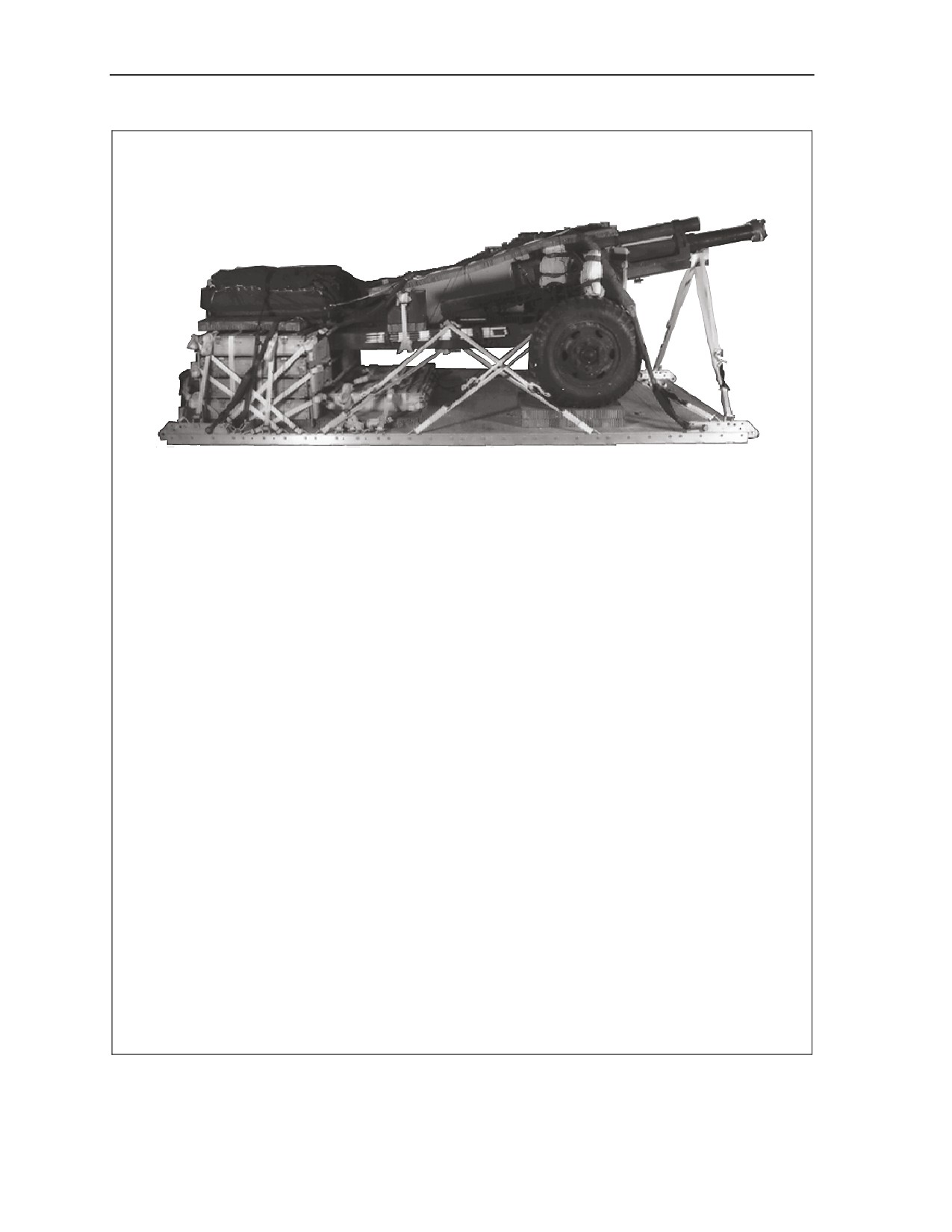

M119 Howitzer Rigged with 30 Boxes of Ammunition
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
10,000 pounds
Height
83 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
100 inches
Accompanying Load: Accompanying load weighing 3,713 pounds is rigged on platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-31. M119 Howitzer Rigged with 30 Boxes of Ammunition
2-32
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

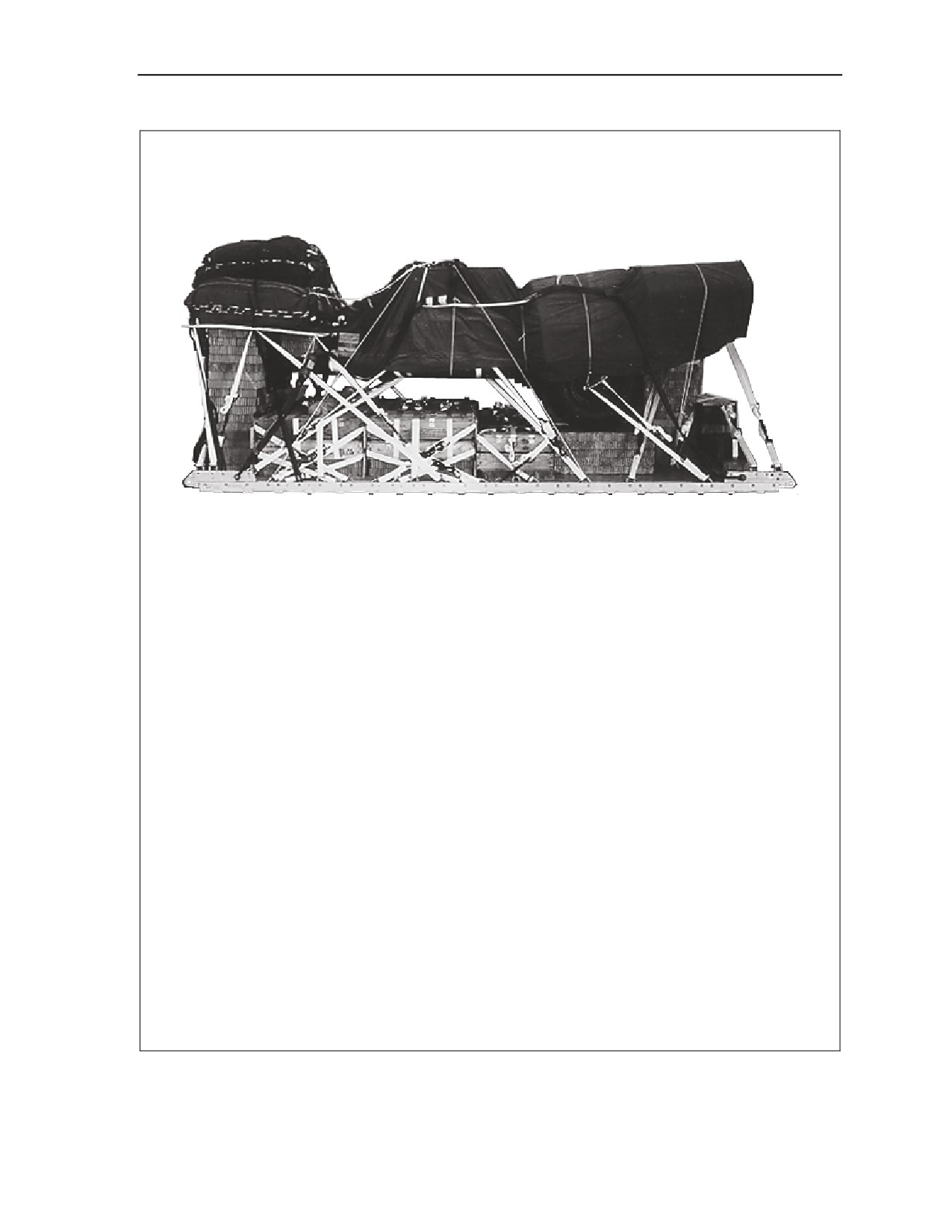

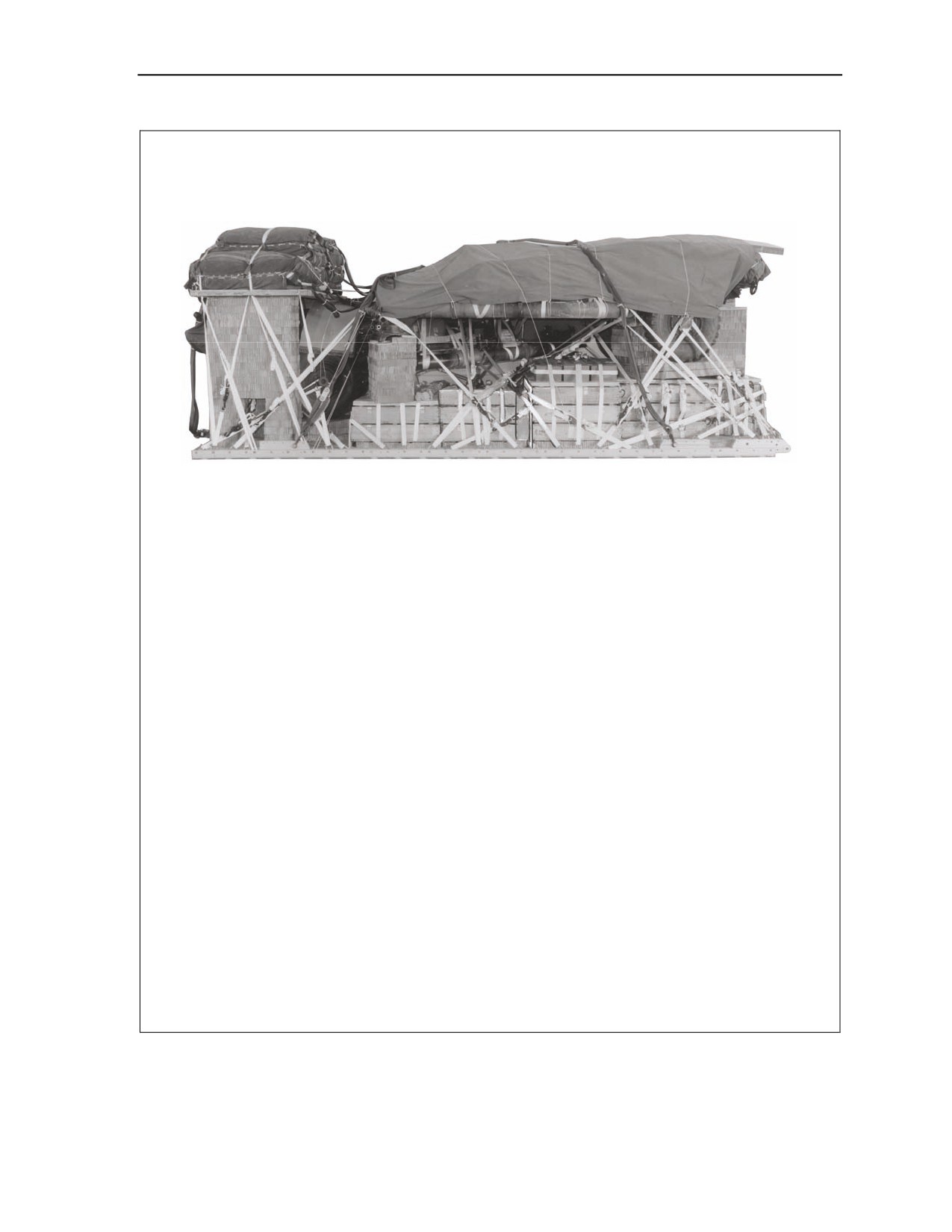

M119 Howitzer Rigged with 81-Millimeter Mortar
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
11,200 pounds
Height
86 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
105 inches
Accompanying Load: Accompanying load weighing 3,713 pounds rigged on platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-32. M119 Howitzer Rigged with 81-Millimeter Mortar
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-33
Chapter 2
M119 Howitzer Rigged with 1 1/4-Ton Truck
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
20,339 pounds
Height
91 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
201 inches
Accompanying Load: Accompanying load weighing 3,360 pounds is rigged on the platform
with additional load of 800 to 2,000 pounds rigged in truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Four G-11B
Figure 2-33. M119 Howitzer Rigged with 1 1/4-Ton Truck
2-34
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

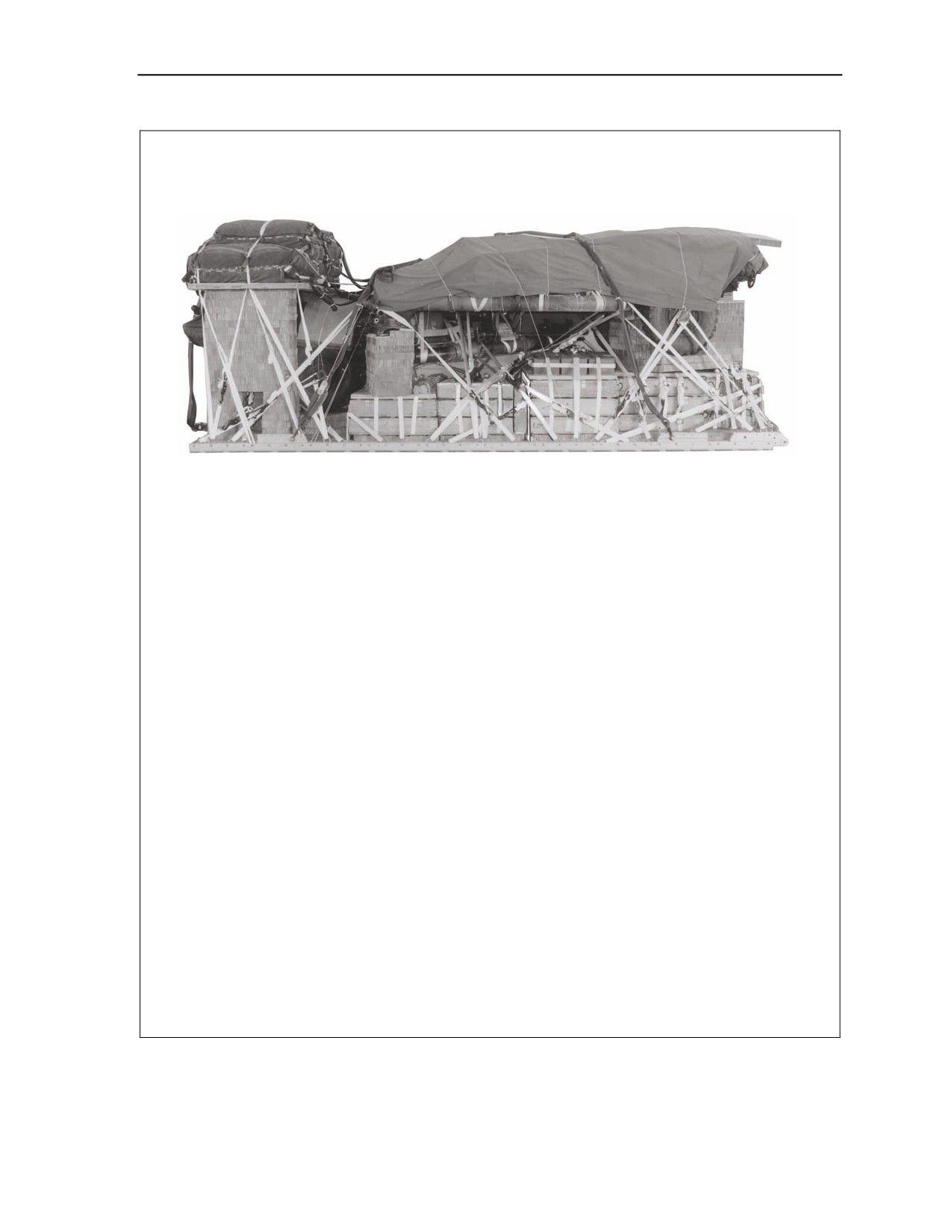

Two M119 Howitzers
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
22,660 pounds
Height
98 inches
Width
108 inches
Overall Length with EFTC
275 inches
Overall Length with EPJS
293 inches
Overhang: Front
17 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
110 inches
Accompanying Load:
82 boxes of ammunition rigged on platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Five G-11C
Figure 2-34. Two M119 Howitzers
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-35
Chapter 2
Two M119 Howitzers with Light Ammunition
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
19,320 pounds
Height
99 1/2 inches
Width
108 inches
Overall Length with EFTC
274 inches
Overall Length with EPJS
292 inches
Overhang: Front
17 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
112 inches
Accompanying Load:
63 boxes of ammunition rigged on platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Four G-11B
Figure 2-35. Two M119 Howitzers with Light Ammunition
2-36
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

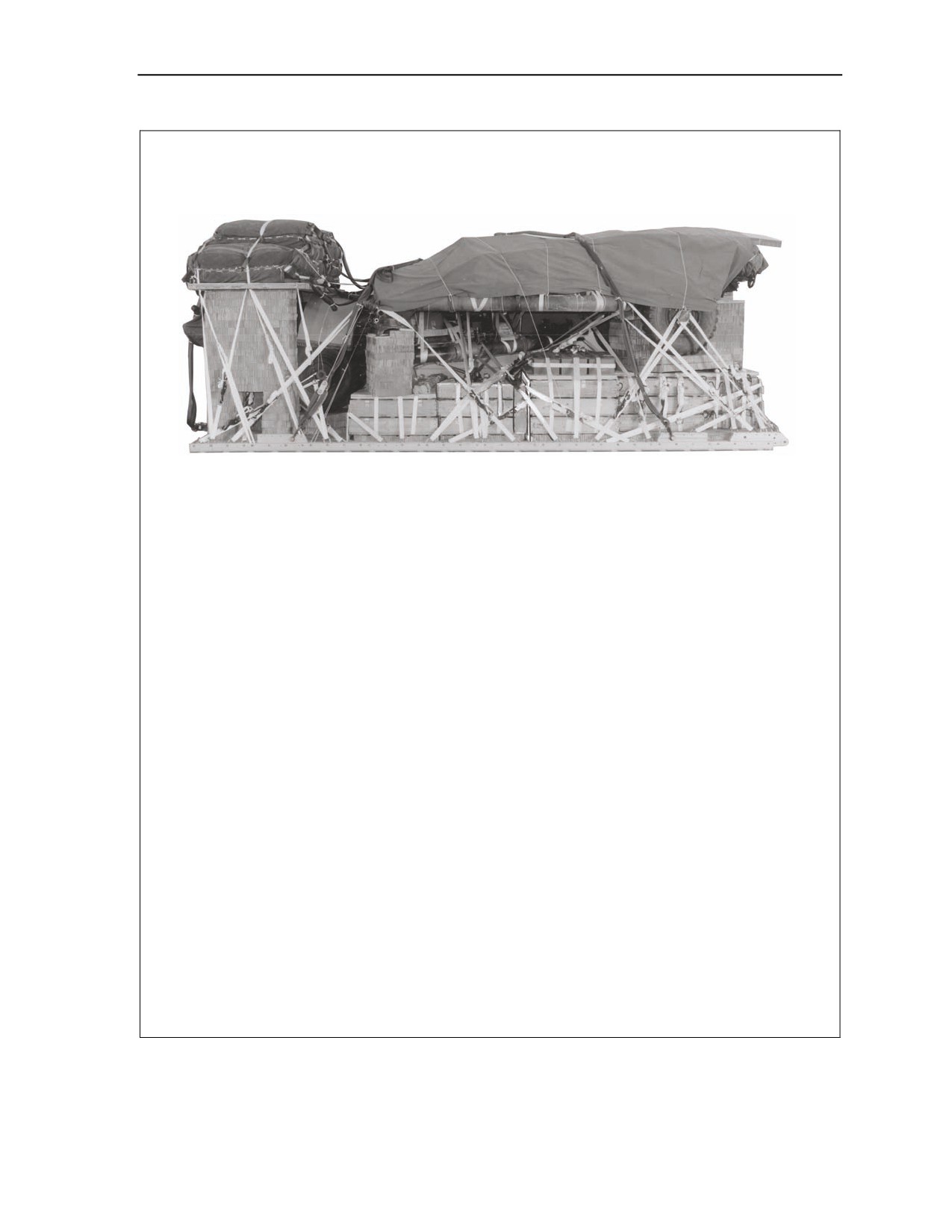

Two M119 Howitzers Rigged with Two 81-mm Mortars
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
21,940 pounds
Height
98 inches
Width
108 inches
Overall Length with EFTC
274 inches
Overall Length with EPJS
292 inches
Overhang: Front
17 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
110 inches
Accompanying Load: 68 boxes of ammunition rigged on platform and two 81-mm mortars.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Five G-11C
Figure 2-36. Two M119 Howitzers Rigged with Two 81-mm Mortars
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-37
Chapter 2
M101A1 Howitzer
Reference: FM 4-20.119/TO 13C7-10-31
Weight: Load shown
9,500 pounds
Height
79 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
96 inches
Accompanying Load: Accompanying load rigged on platform must weigh at least 2,000
pounds but no more than 2,400 pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-37. M101A1 Howitzer
2-38
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

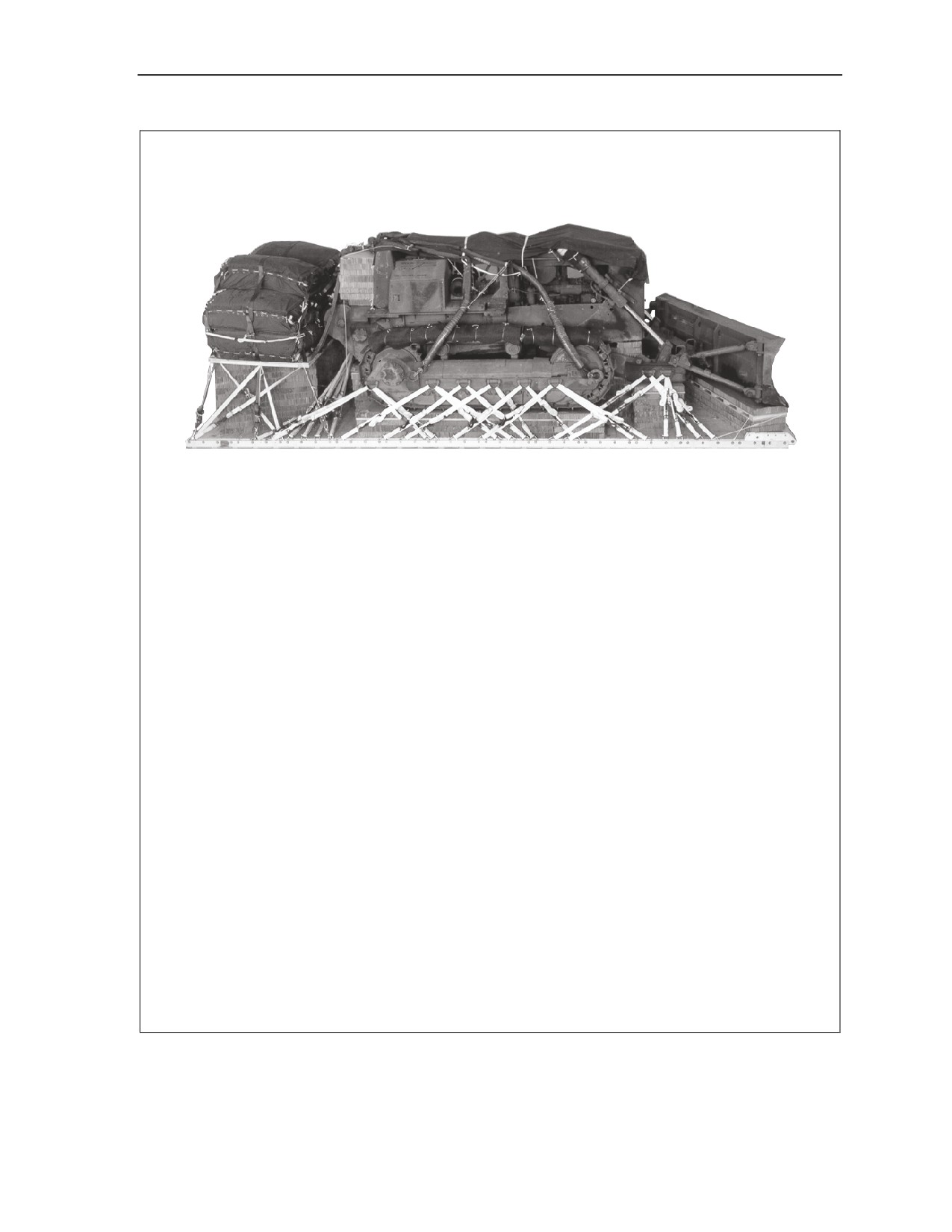

Type 1 D-5B Tractor Dozer
Reference: FM 4-20.121/TO 13C7-6-21
Weight: Load shown
36,140 pounds
Height
98 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
324 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
152 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Eight G-11C
Figure 2-38. Type 1 D-5B Tractor Dozer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-39
Chapter 2

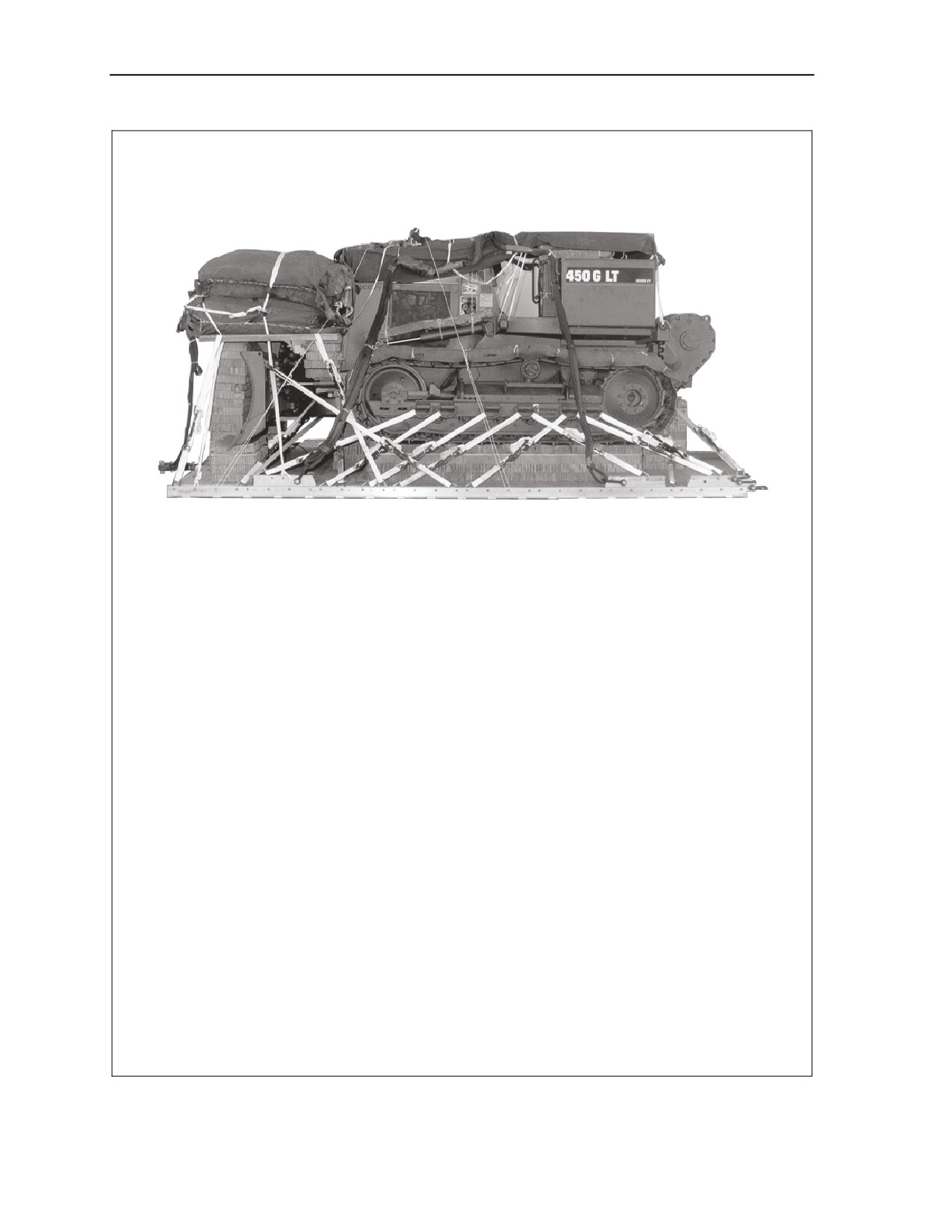

John Deere 450G Lt Full-Tracked Bulldozer
Reference: FM 4-20.121/TO 13C7-6-21
Weight: Load shown
20,960 pounds
Height
94 inches
Width
108 inches
Overall Length with EFTC
215 inches
Overall Length with EPJS
233 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
84 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 16-Foot
Cargo Parachutes: Four G-11B
Figure 2-39. John Deere 450G Lt Full-Tracked Bulldozer
2-40
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

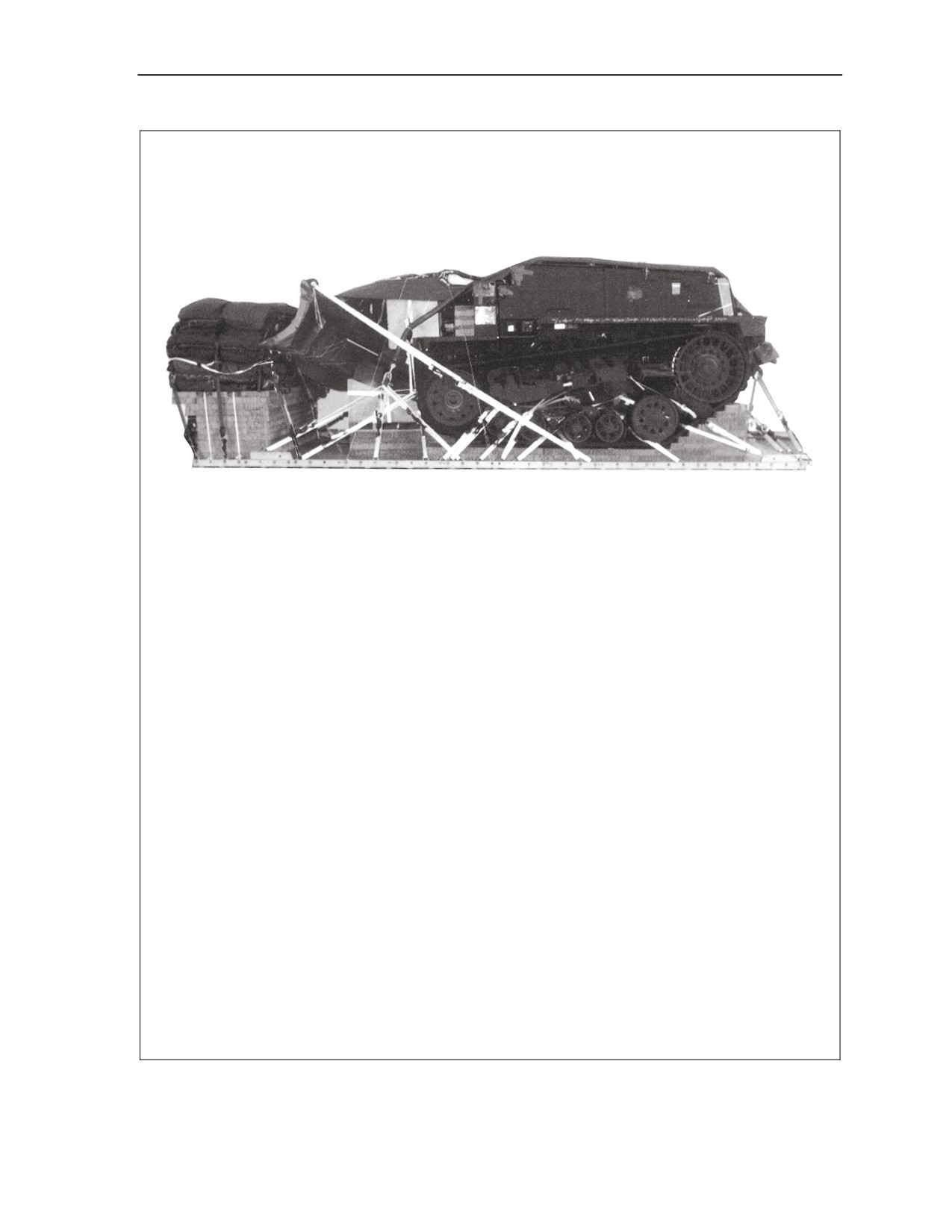

Deployable Universal Combat Earthmover (DEUCE)
Reference: FM 4-20.121/TO 13C7-6-21
Weight: Load shown
40,340 pounds
Height
101 1/2 inches
Width
110 inches
Overall Length with EFTC
310 inches
Overall Length with EPJS
328 inches
Overhang: Front
0 inches
Rear (Parachute Stowage Platform)
22 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
122 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Eight G-11C
Figure 2-40. Deployable Universal Combat Earthmover (DEUCE)
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-41
Chapter 2

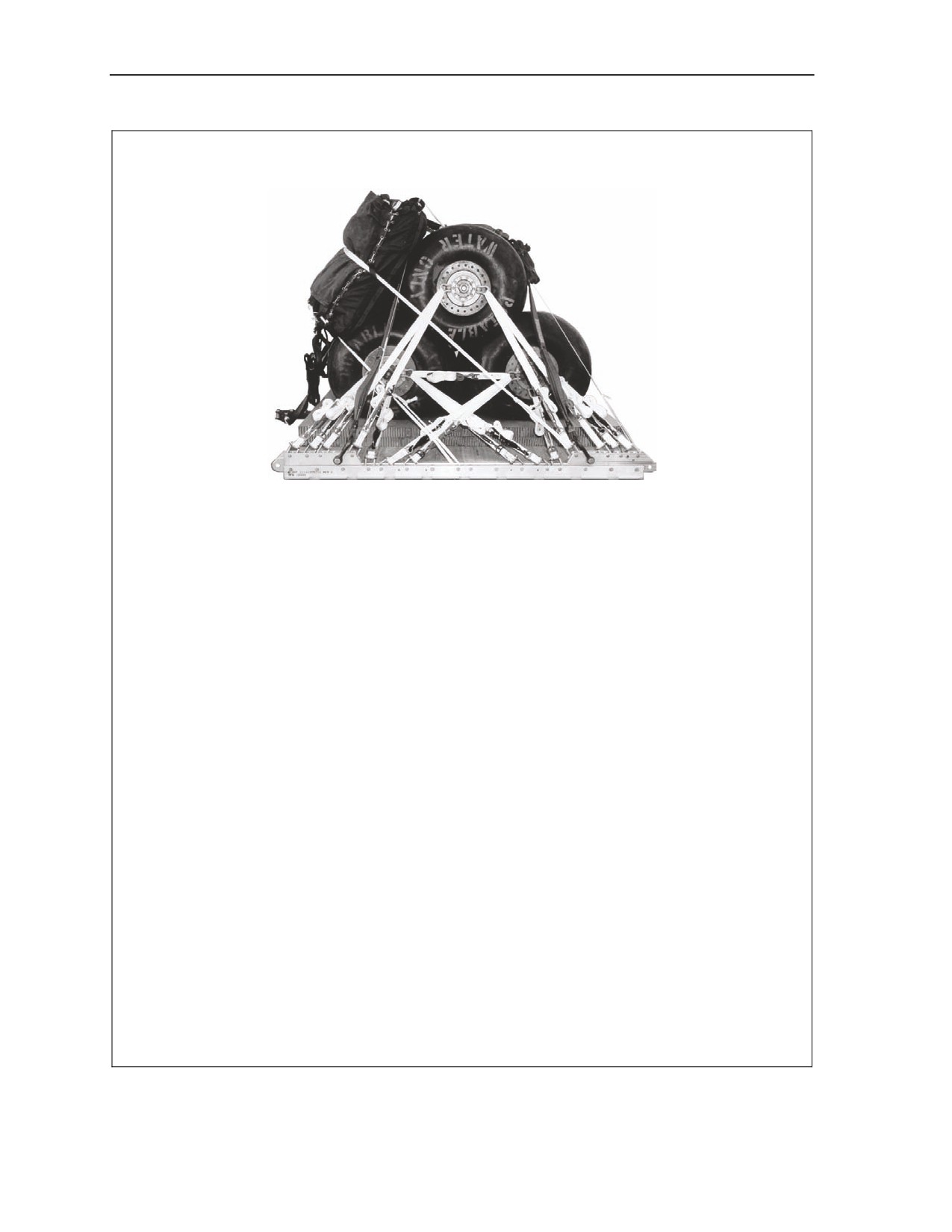

Three 250-Gallon Water Drums on an 8-Foot Platform
Reference: FM 10-522/TO 13C7-2-1001
Weight: Load shown
8,300 pounds
Height
77 inches
Width
108 inches
Overall Length with EFTC
114 inches
Overall Length with EPJS
132 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
50 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 8-Foot
Cargo Parachutes: Two G-11B
Figure 2-41. Three 250-Gallon Water Drums on an 8-Foot Platform
2-42
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Three 250-Gallon Water Drums on a 12-Foot Platform
Reference: FM 10-522/TO 13C7-2-1001
Weight: Load shown
8,760 pounds
Height
60 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
143 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
73 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 228-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-42. Three 250-Gallon Water Drums on a 12-Foot Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-43
Chapter 2

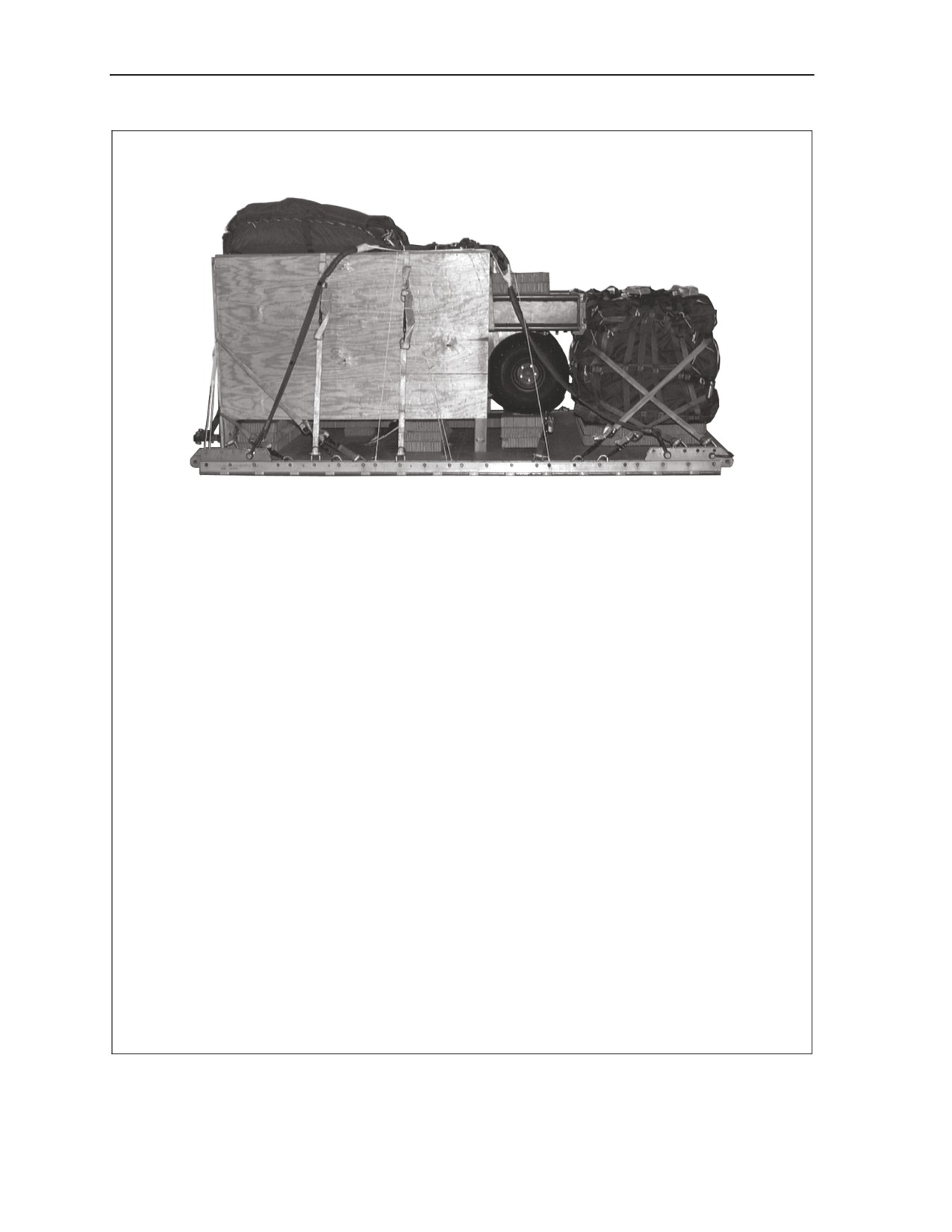

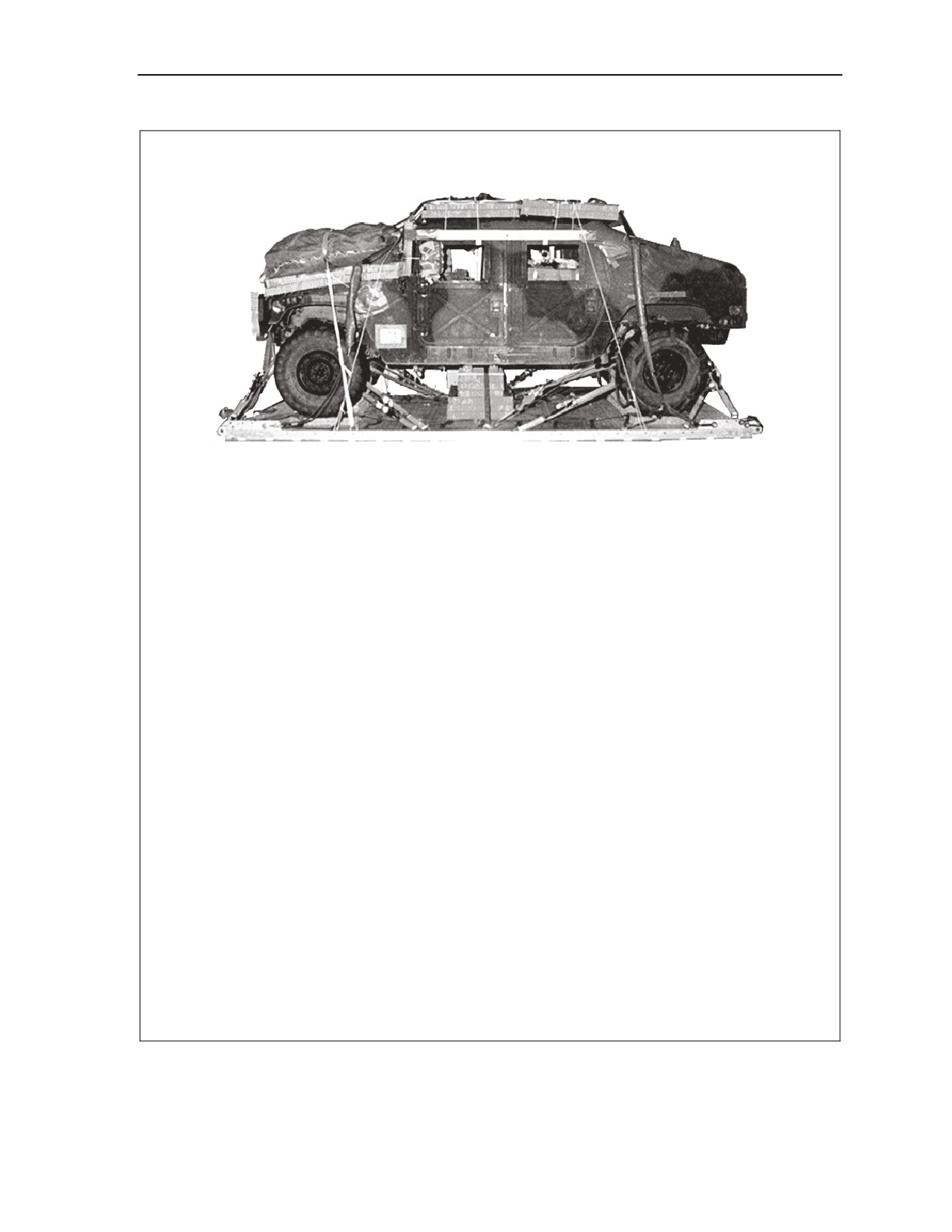

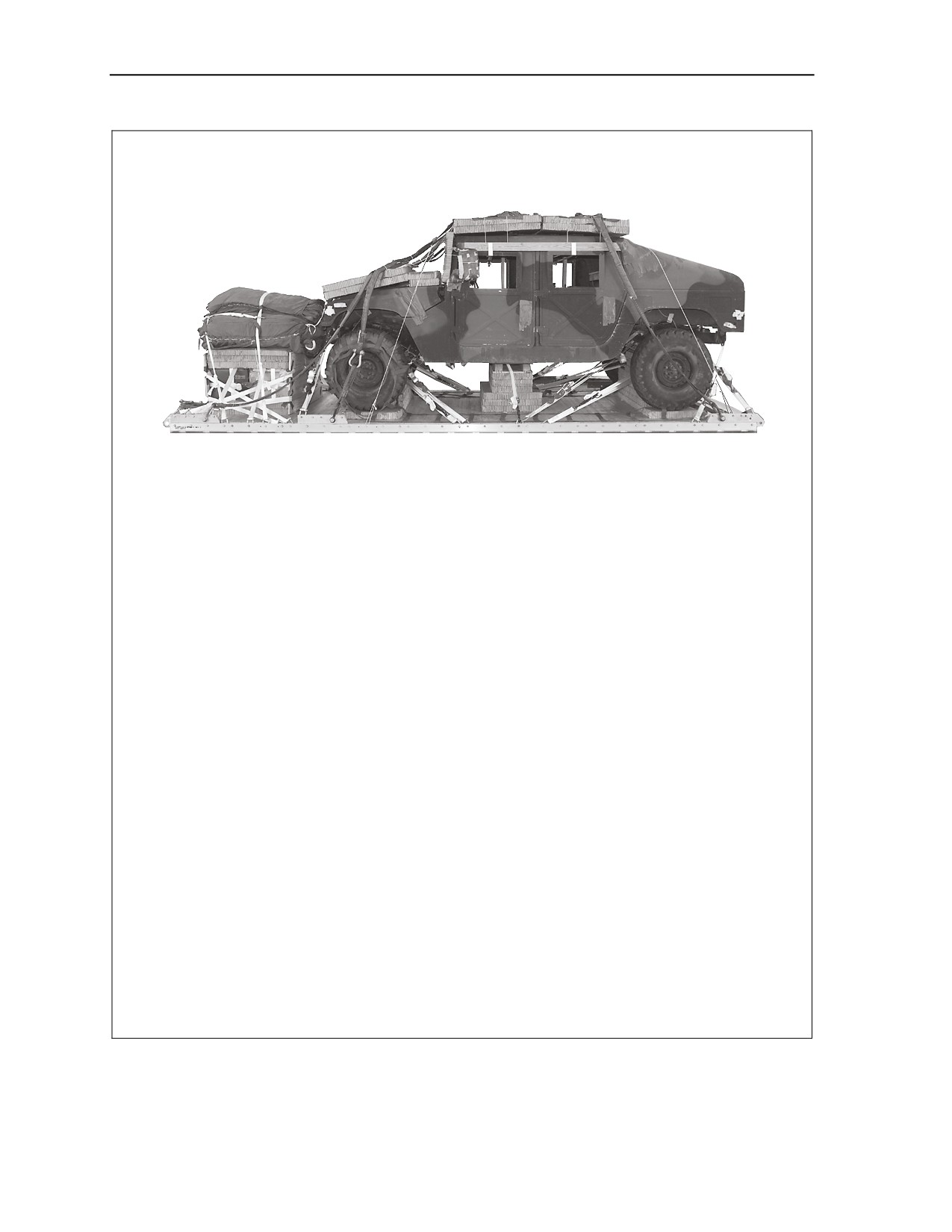

Mobile Microwave Landing System (MMLS) in an M998 and a 3/4-Ton Trailer
Reference: FM 10-500-23/TO 13C7-14-461
Weight: Load shown
13,289 pounds
Height
99 inches
Width
108 inches
Overall Length with EFTC
333 inches
Overall Length with EPJS
333 inches
Overhang: Front
0 inches
Rear (Cargo Parachutes)
45 inches
Center of Balance (from front edge of platform)
140 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 24-Foot
Cargo Parachutes: Three G-11B
Figure 2-43. Mobile Microwave Landing System (MMLS) in an M998 and a 3/4-Ton Trailer
2-44
FM 4-20.116/TO 13C7-1-13
10 May 2006
|
|
