Rigged Load Reference Data

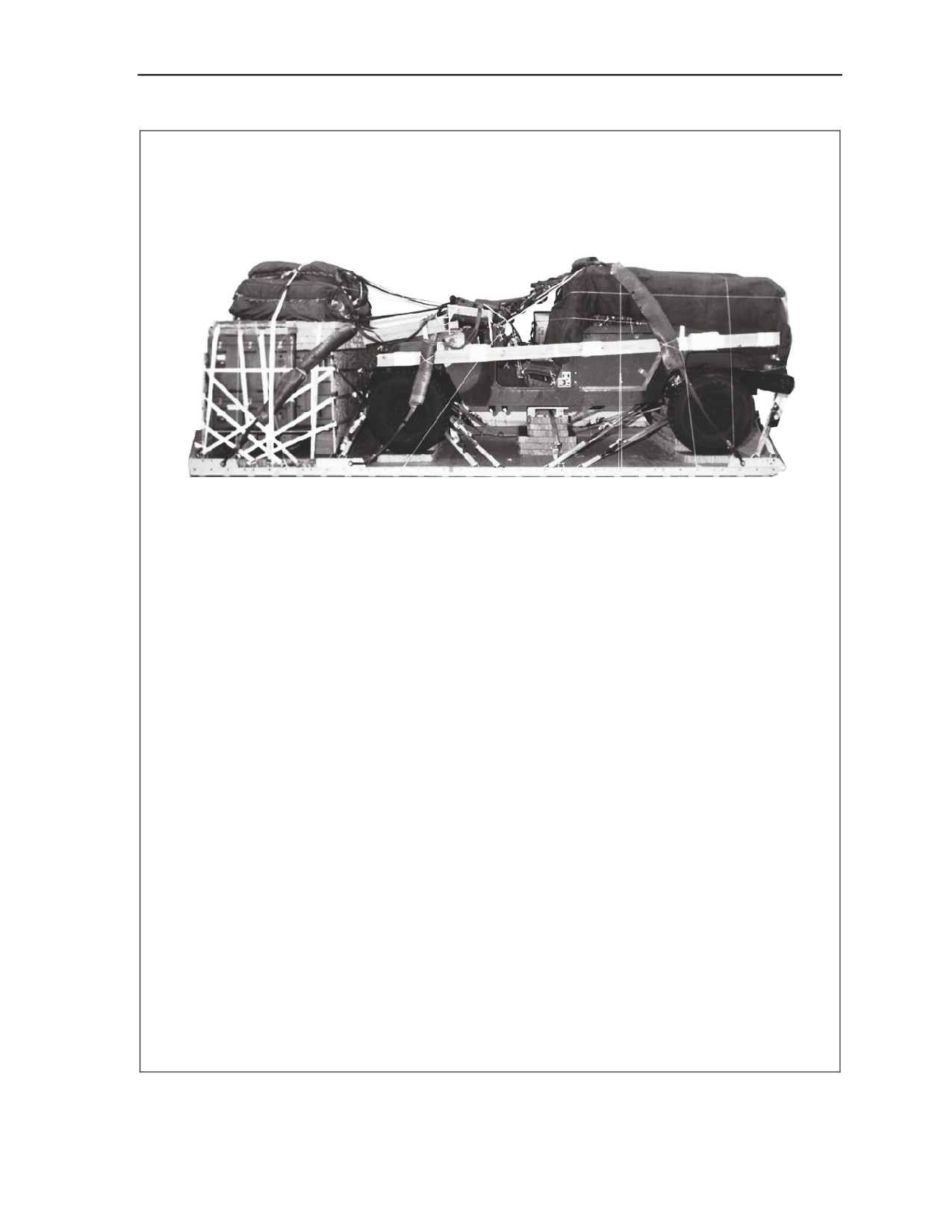

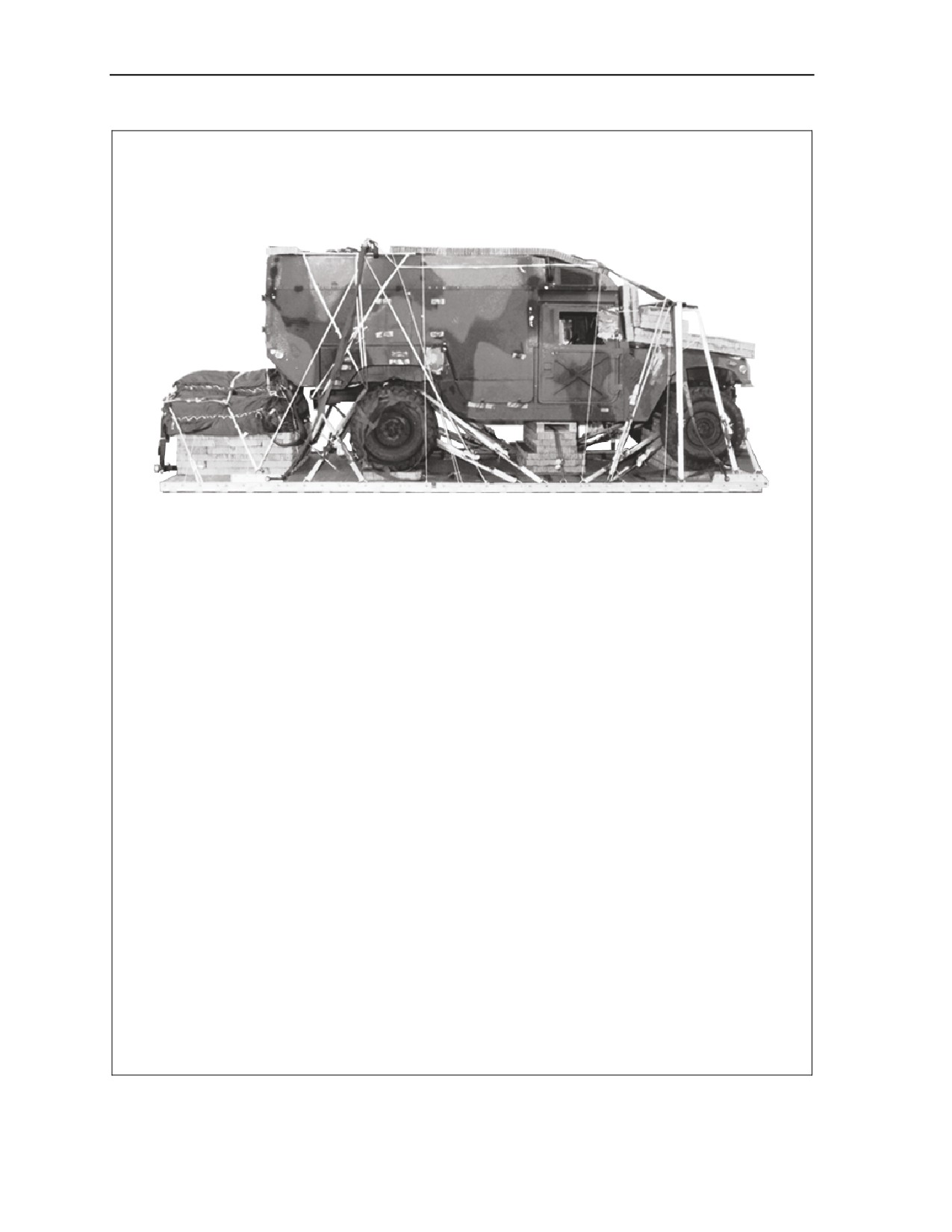

Standard Integration Command Post System (SICPS) with the CHS-2
Reference: FM 10-500-23/TO 13C7-14-461
Weight: Load shown
12,100 pounds
Height
94 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
110 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 20-Foot
Cargo Parachutes: Three G-11B
Figure 2-44. Standard Integration Command Post System (SICPS) with the CHS-2
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-45
Chapter 2
Command Assault Vehicle (CAV)
Reference: FM 10-500-23/TO 13C7-14-461
Weight: Load shown
11,680 pounds
Height
100 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
110 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 20-Foot
Cargo Parachutes: Three G-11B

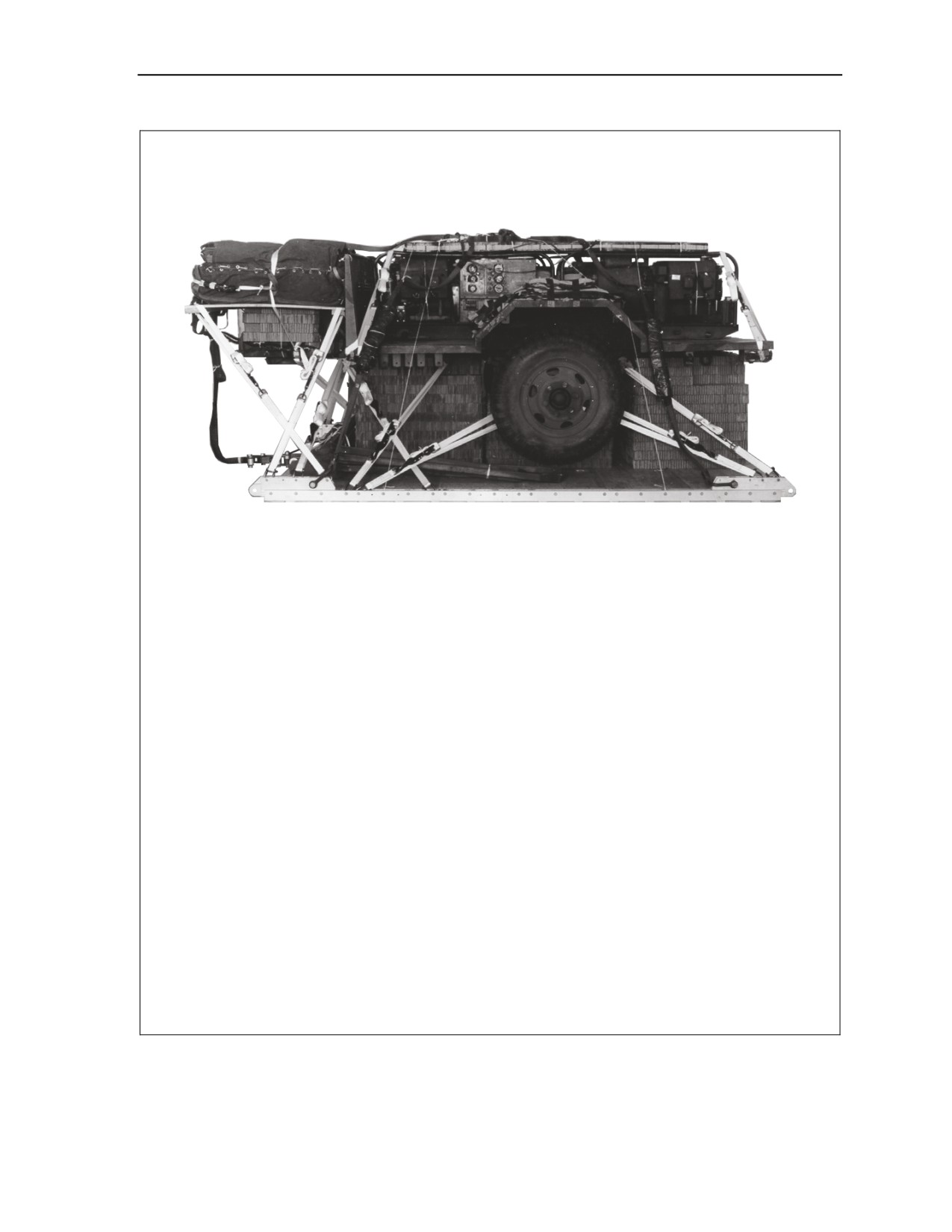

Figure 2-45. Command Assault Vehicle (CAV)
2-46
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

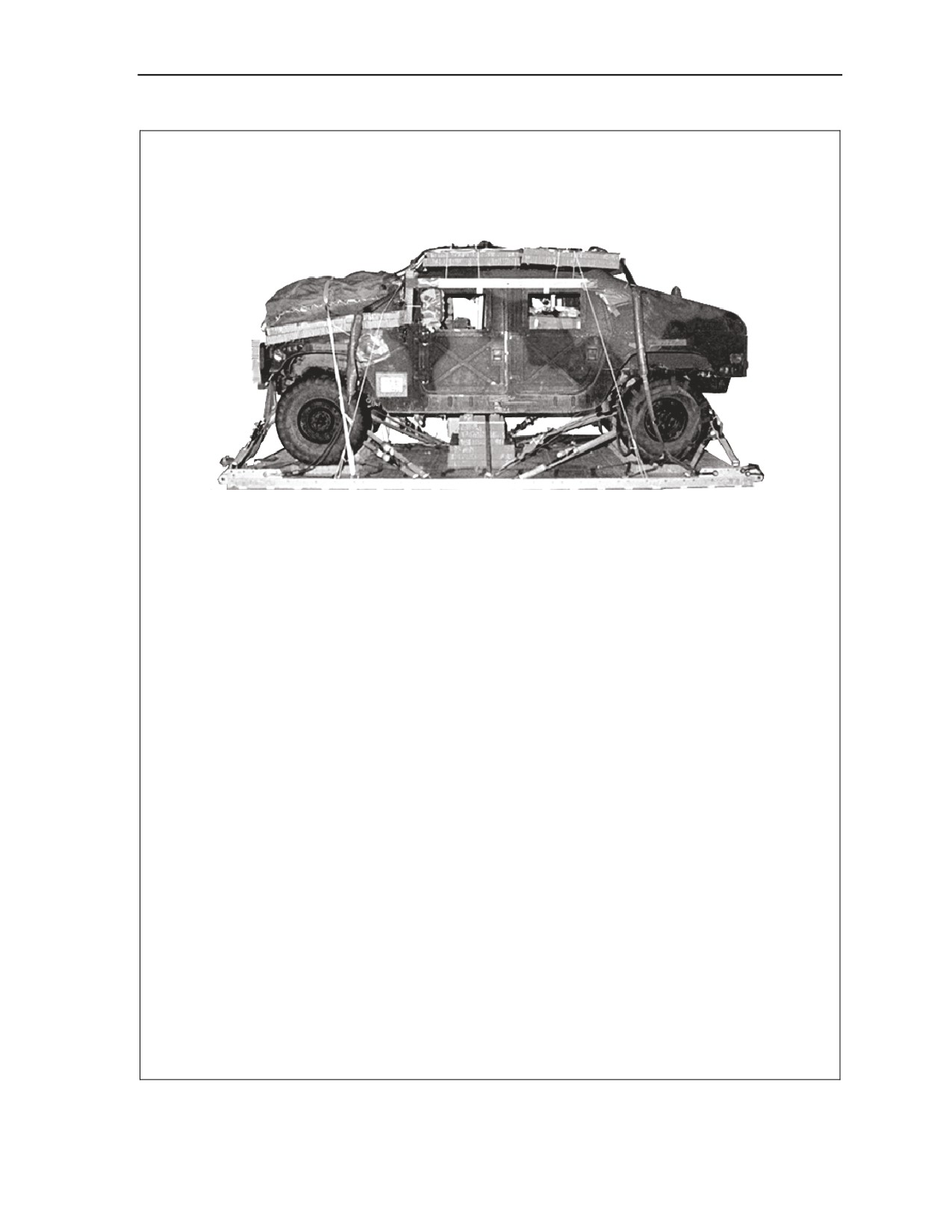

M998 Cargo/Troop Carrier (Two Seater) with GRC/206 Air Force Pallet
Reference: FM 10-500-23/TO 13C7-14-461
Weight: Load shown
9,480 pounds
Height
85 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
101 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B

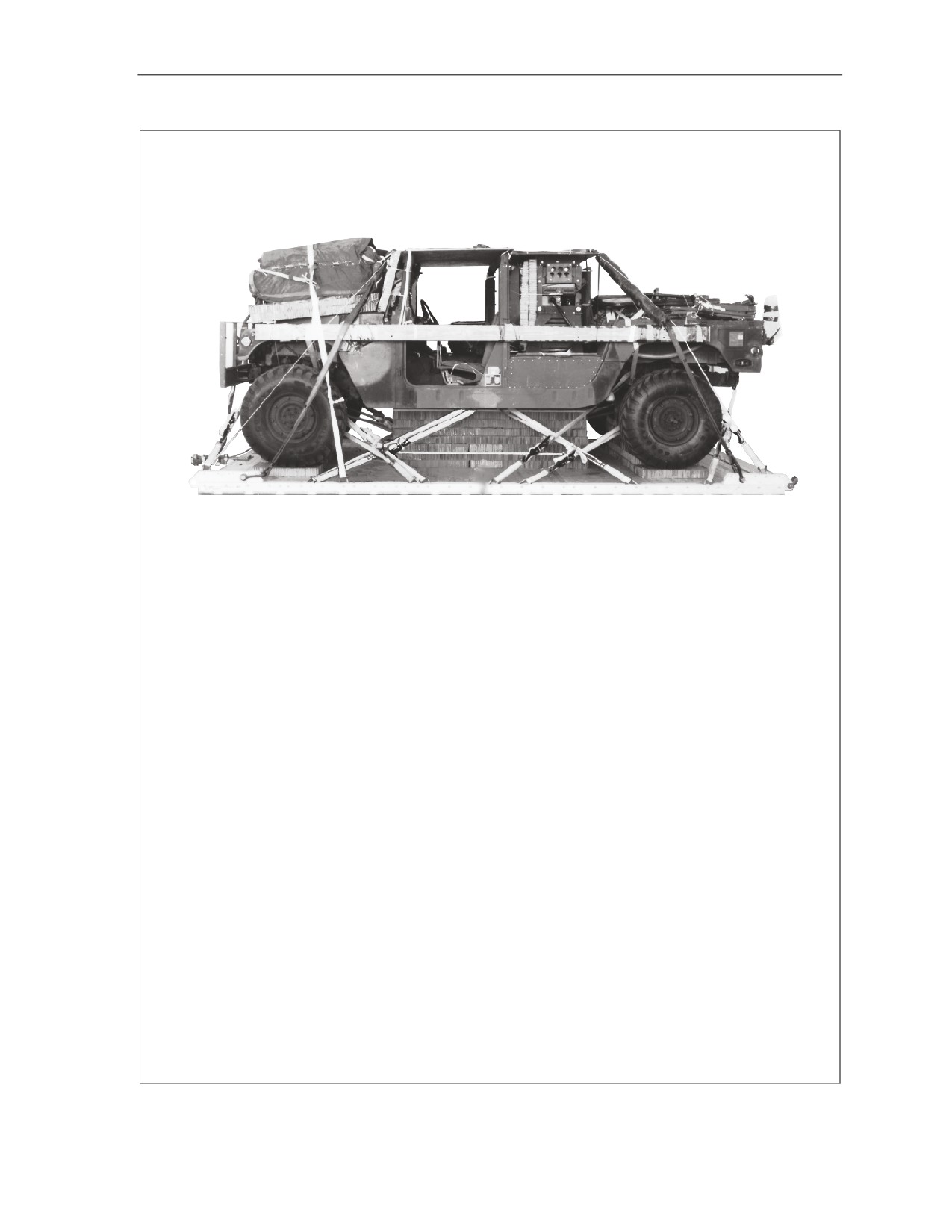

Figure 2-46. M998 Cargo/Troop Carrier (Two Seater) with GRC/206 Air Force Pallet
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-47
Chapter 2
M998 Cargo/Troop Carrier (Four Seater) with GRC/206 Air Force Pallet
Reference: FM 10-500-23/TO 13C7-14-461
Weight: Load shown
8,810 pounds
Height
86 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
98 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B

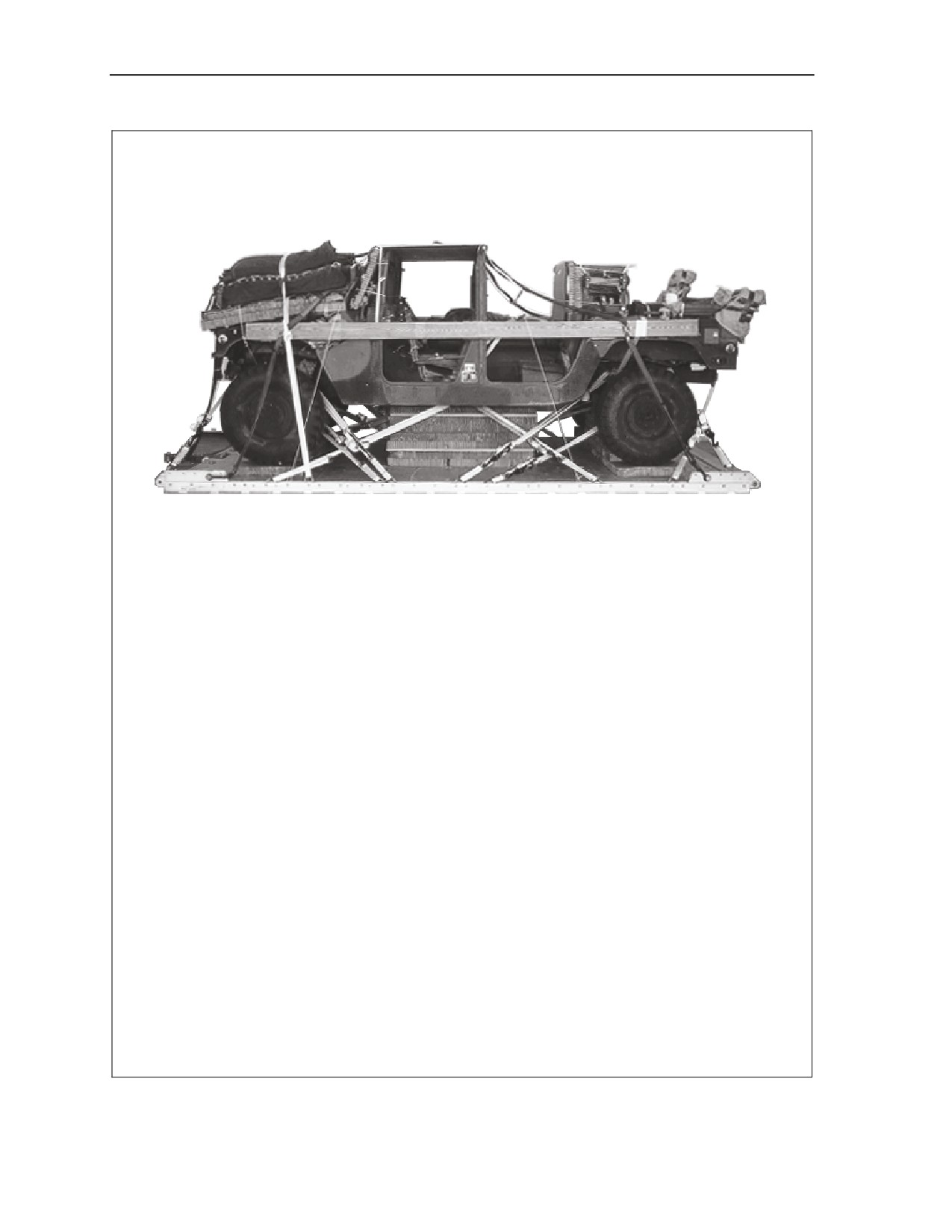

Figure 2-47. M998 Cargo/Troop Carrier (Four Seater) with GRC/206 Air Force Pallet
2-48
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

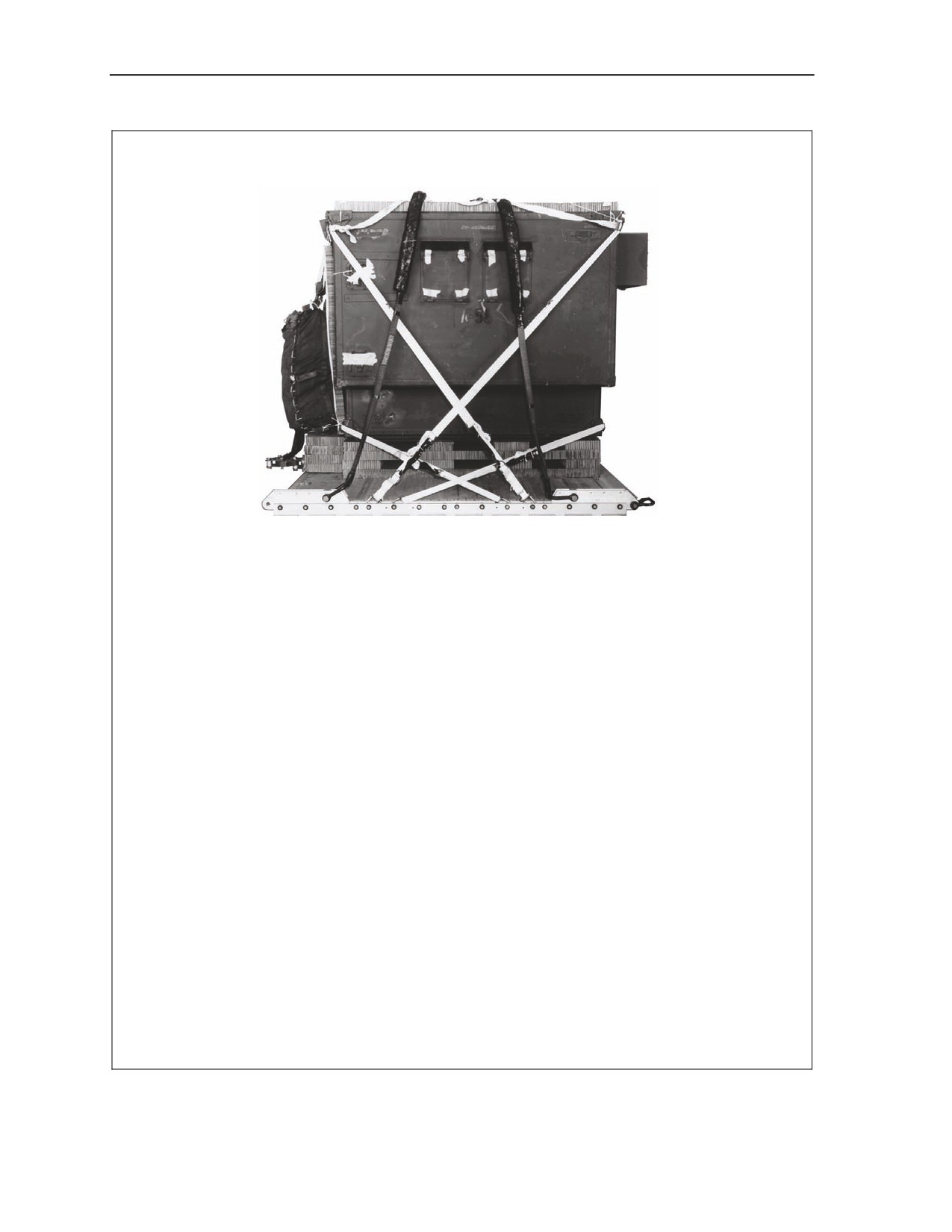

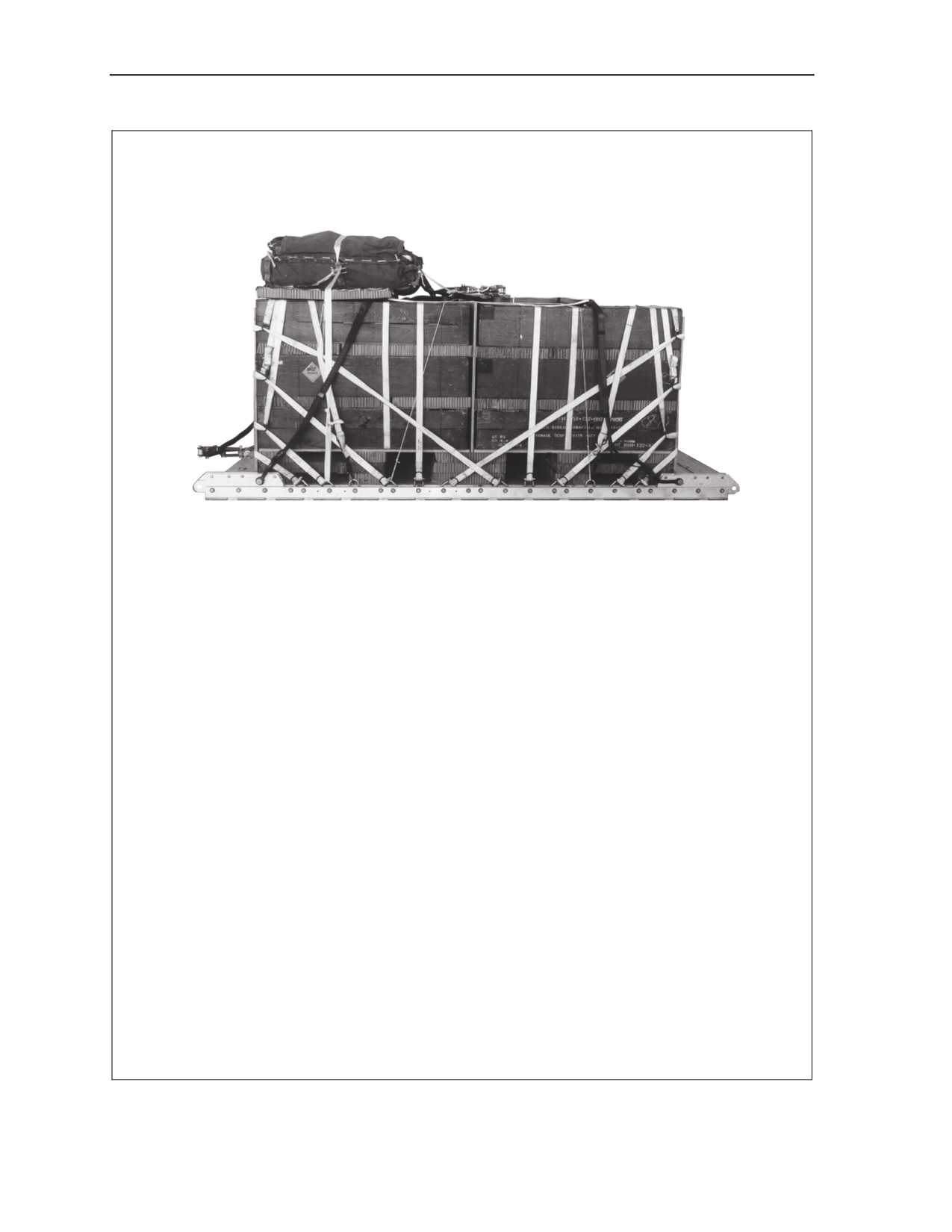

S-318/G Shelter with AN/GRC-122 Communication Equipment
Reference: FM 10-524/TO 13C7-14-471
Weight: Load shown
3,630 pounds
Height
95 1/2 inches
Width
108 inches
Overall Length with EFTC
114 inches
Overall Length with EPJS
132 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
49 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachute: One G-11B

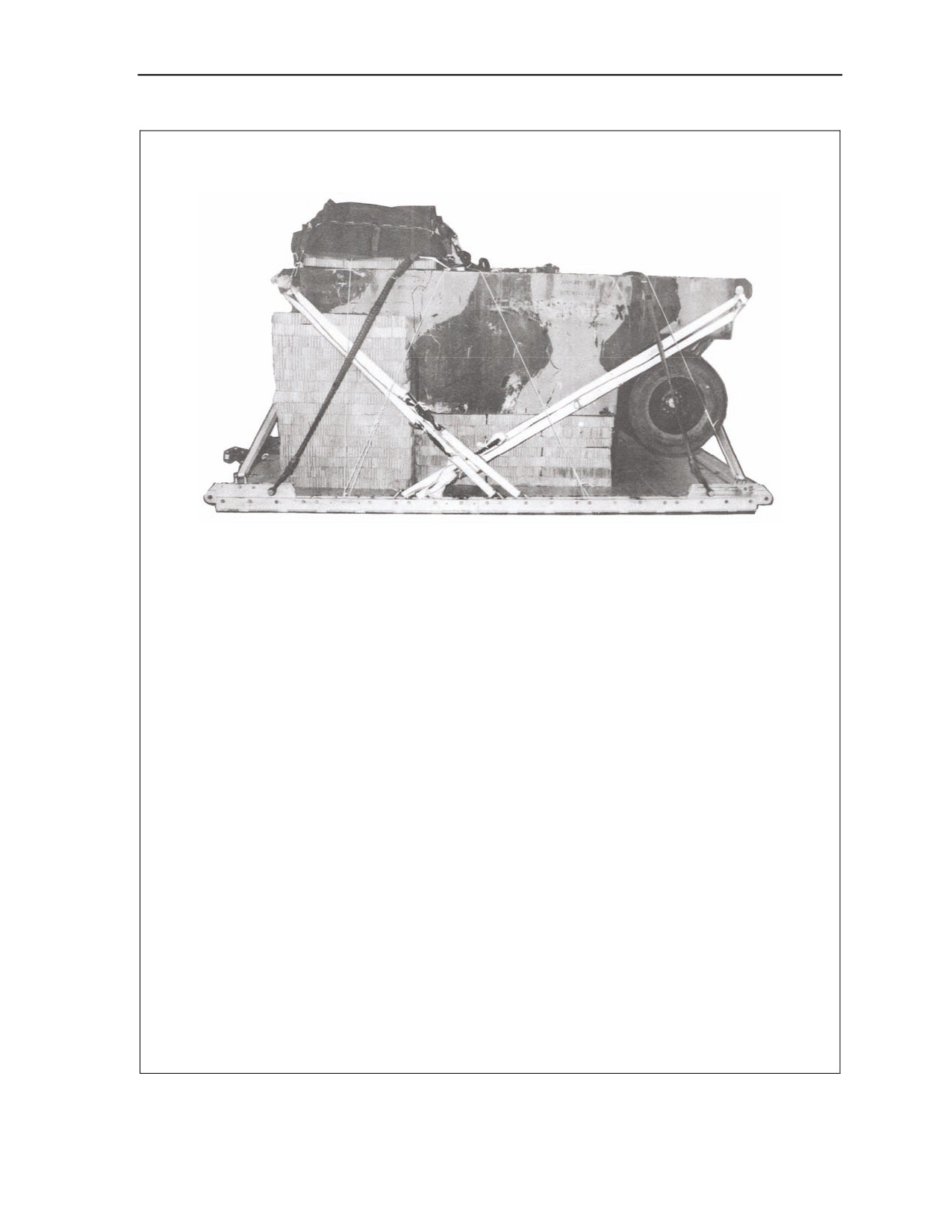

Figure 2-48. S-318/G Shelter with AN/GRC-122 Communication Equipment
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-49
Chapter 2

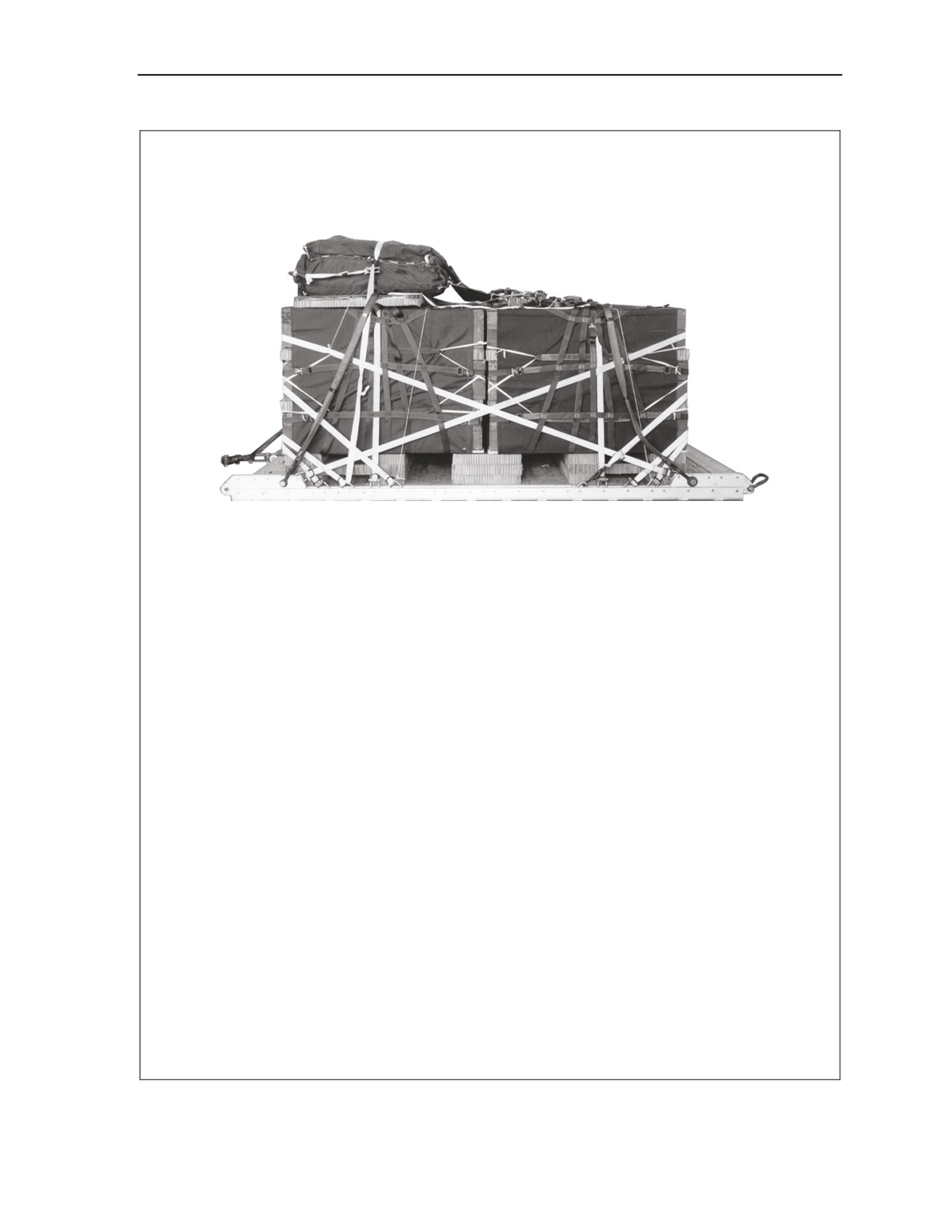

S-502 Shelter with AN/GRC-142 Communications Equipment
Reference: FM 10-524/TO 13C7-14-471
Weight: Load shown
3,450 pounds
Height
95 1/2 inches
Width
108 inches
Overall Length with EFTC
114 inches
Overall Length with EPJS
132 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
48 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachute: One G-11B
Figure 2-49. S-502 Shelter with AN/GRC-142 Communications Equipment
2-50
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

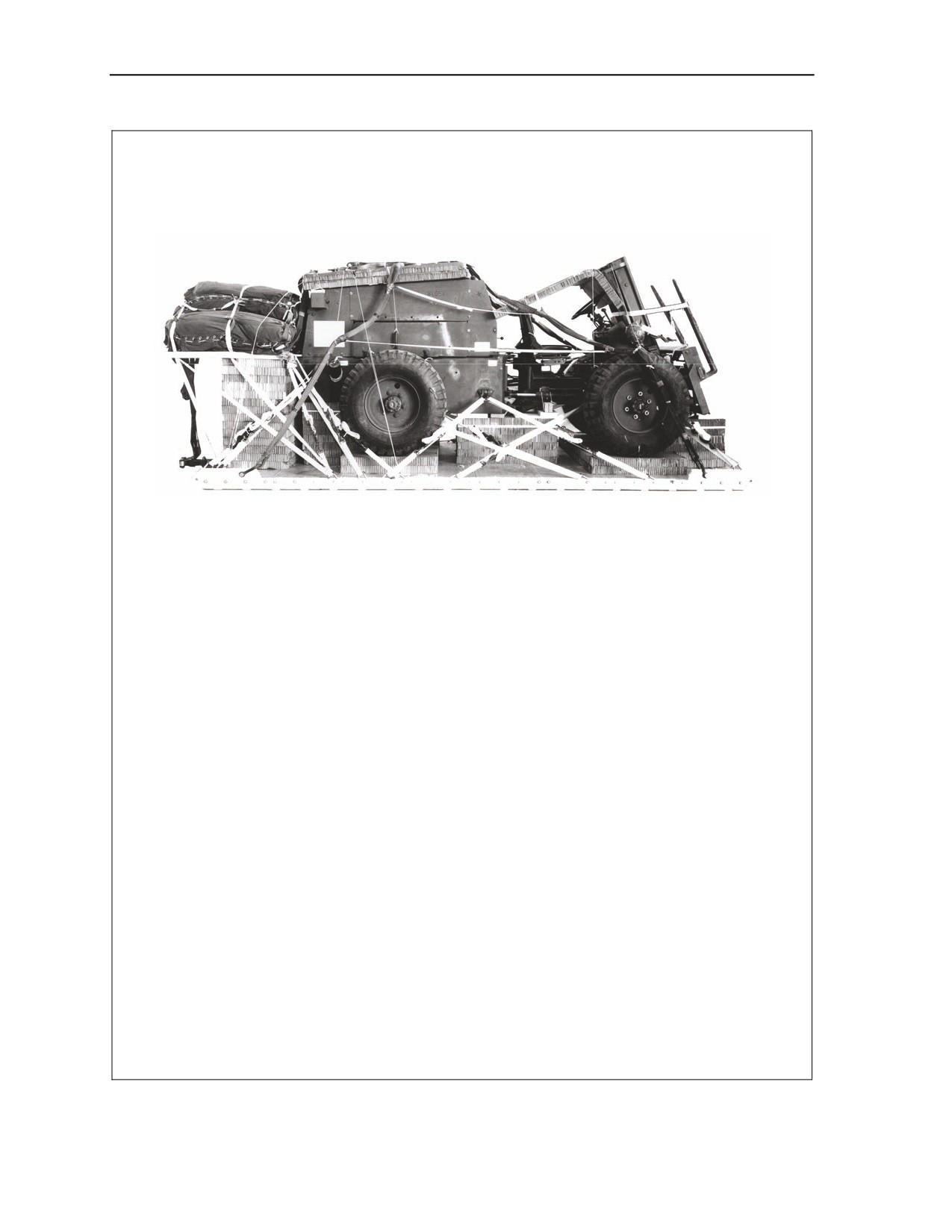

PU-619M Power Unit
Reference: FM 10-524/TO 13C7-14-471
Weight: Load shown
6,680 pounds
Height
76 inches
Width
108 inches
Overall Length with EFTC
174 1/2 inches
Overall Length with EPJS
174 1/2 inches
Overhang: Front
0 inches
Rear (Lunette)
30 1/2 inches
Center of Balance (from front edge of platform)
74 1/2 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-50. PU-619M Power Unit
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-51
Chapter 2

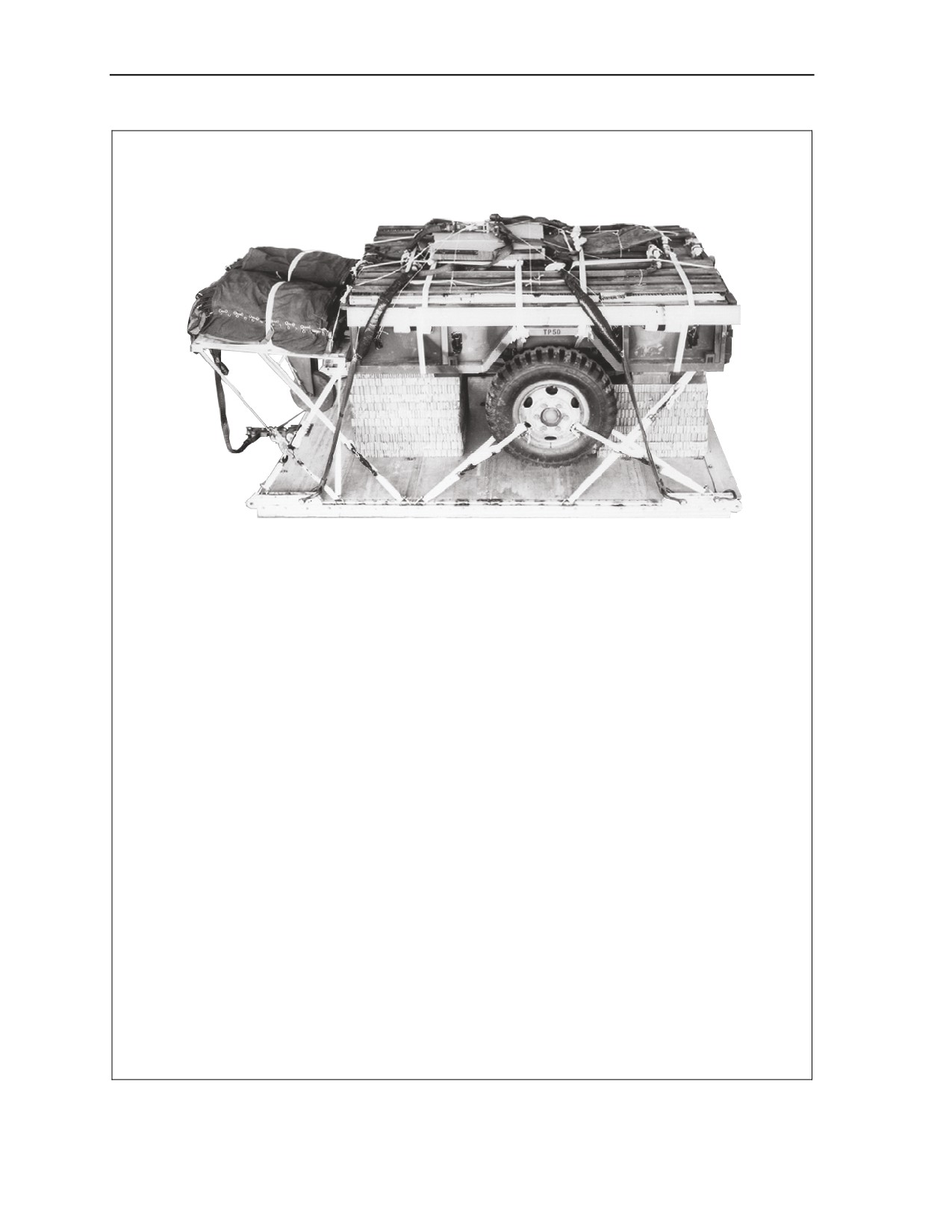

PU-620 Power Unit
Reference: FM 10-524/TO 13C7-14-471
Weight: Load shown
4,750 pounds
Height
81 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
82 1/2 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachute: One G-11B
Figure 2-51. PU-620 Power Unit
2-52
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

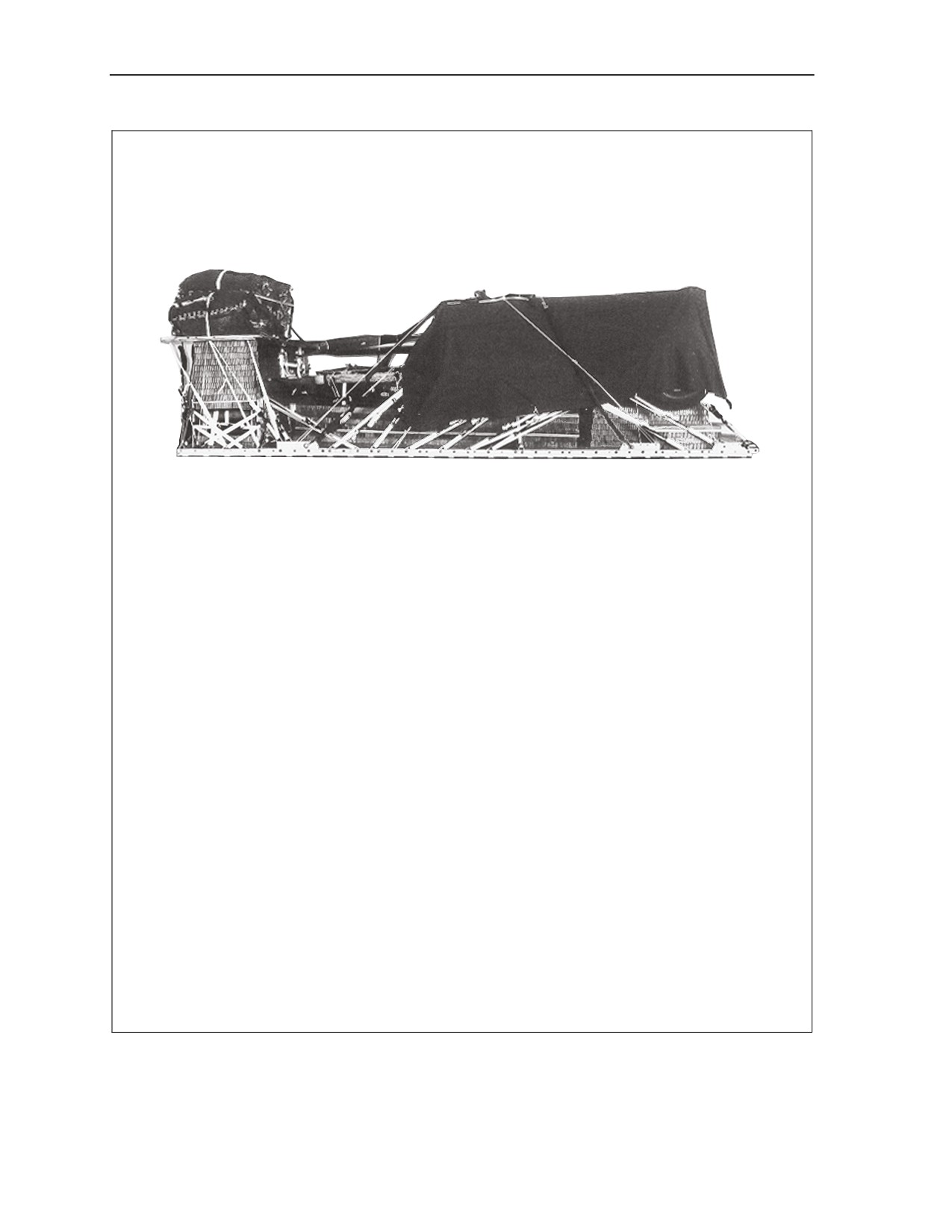

M198 155-mm Howitzer
Reference: FM 4-20.127/TO 13C7-10-191
Weight: Load shown
21,030 pounds
Height
96 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
324 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
126 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Five G-11C

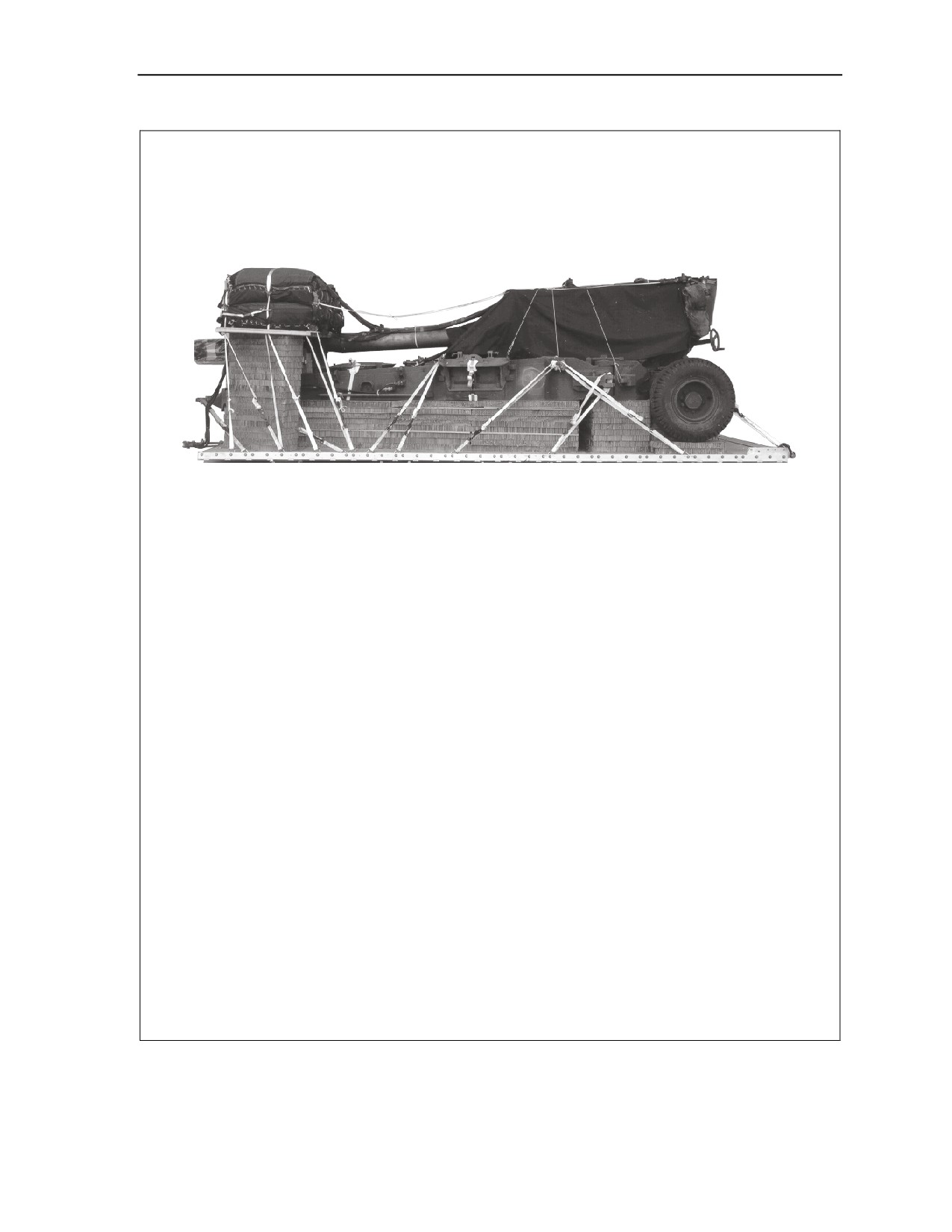

Figure 2-52. M198 155-mm Howitzer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-53
Chapter 2

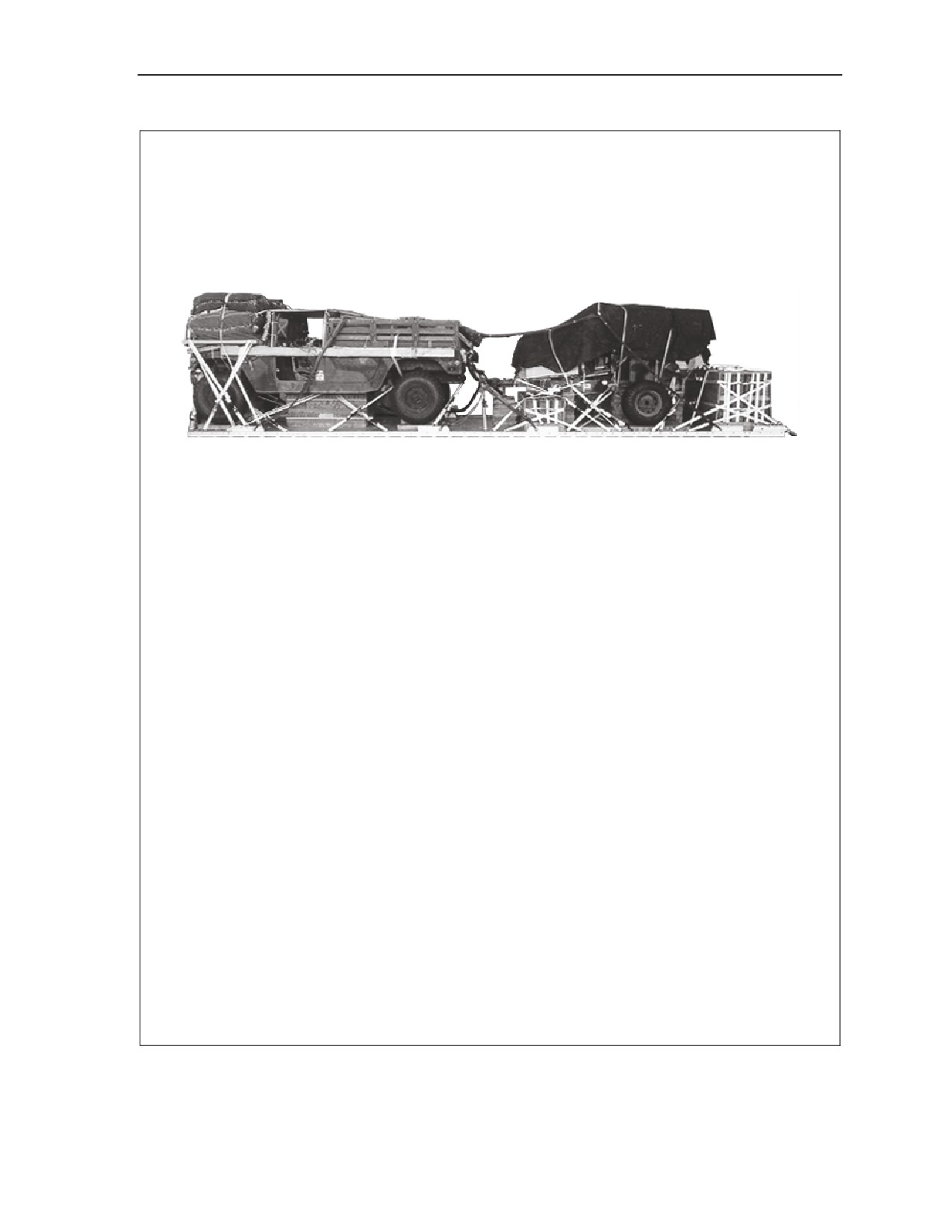

M198 155-mm Howitzer with Accompanying Ammunition
Reference: FM 4-20.127/TO 13C7-10-191
Weight: Load shown
23,400 pounds
Height
94 inches
Width
109 1/2 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
324 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
128 inches
Accompanying Load: Accompanying load weighing 1,509 pounds is rigged on the platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Five G-11C
Figure 2-53. M198 155-mm Howitzer with Accompanying Ammunition
2-54
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M198 155-mm Howitzer with MACS
Reference: FM 4-20.127/TO 13C7-10-191
Weight: Load shown
23,700 pounds
Height
92 inches
Width
108 inches
Overall Length with EFTC
288 inches
Overall Length with EPJS
306 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
124 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Five G-11C

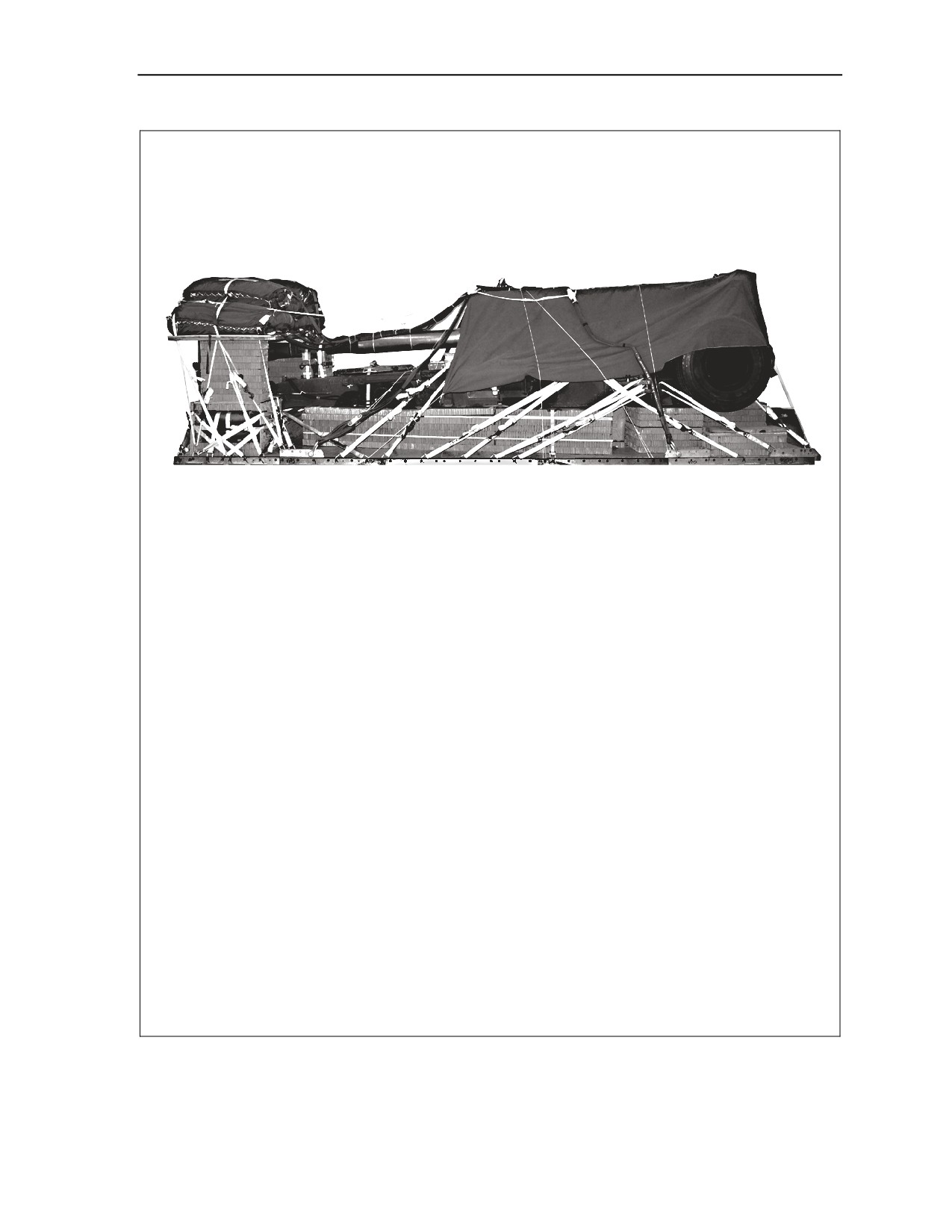

Figure 2-54. M198 155-mm Howitzer with MACS
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-55
Chapter 2

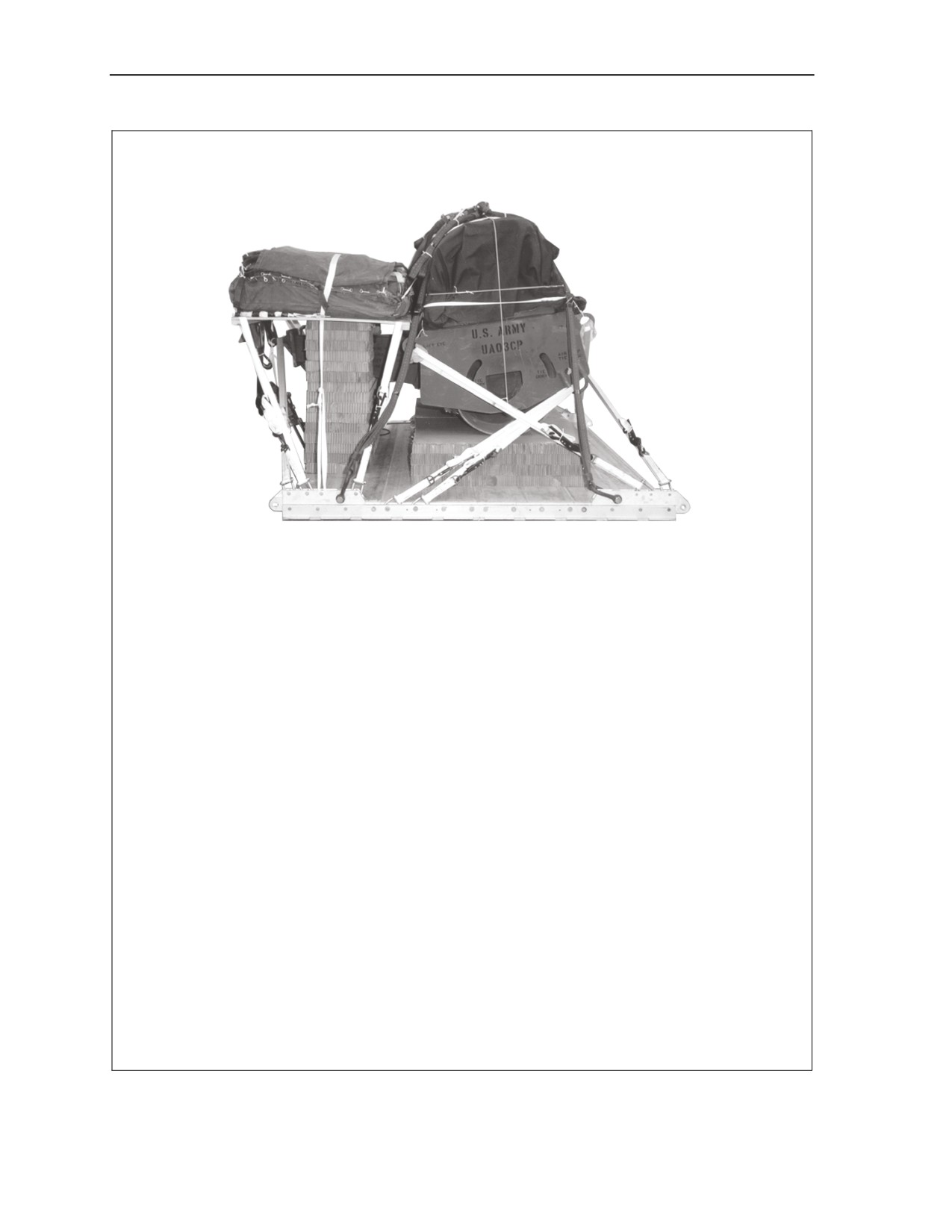

Type 1 Towed Roller
Reference: FM 10-528/TO 13C7-26-71
Weight: Load shown
6,550 pounds
Height
80 inches
Width
108 inches
Overall Length with EFTC
121 inches
Overall Length with EPJS
126 inches
Overhang: Front
0 inches
Rear (Parachute Stowage Platform)
25 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
48 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachutes: Two G-11B
Figure 2-55. Type 1 Towed Roller
2-56
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

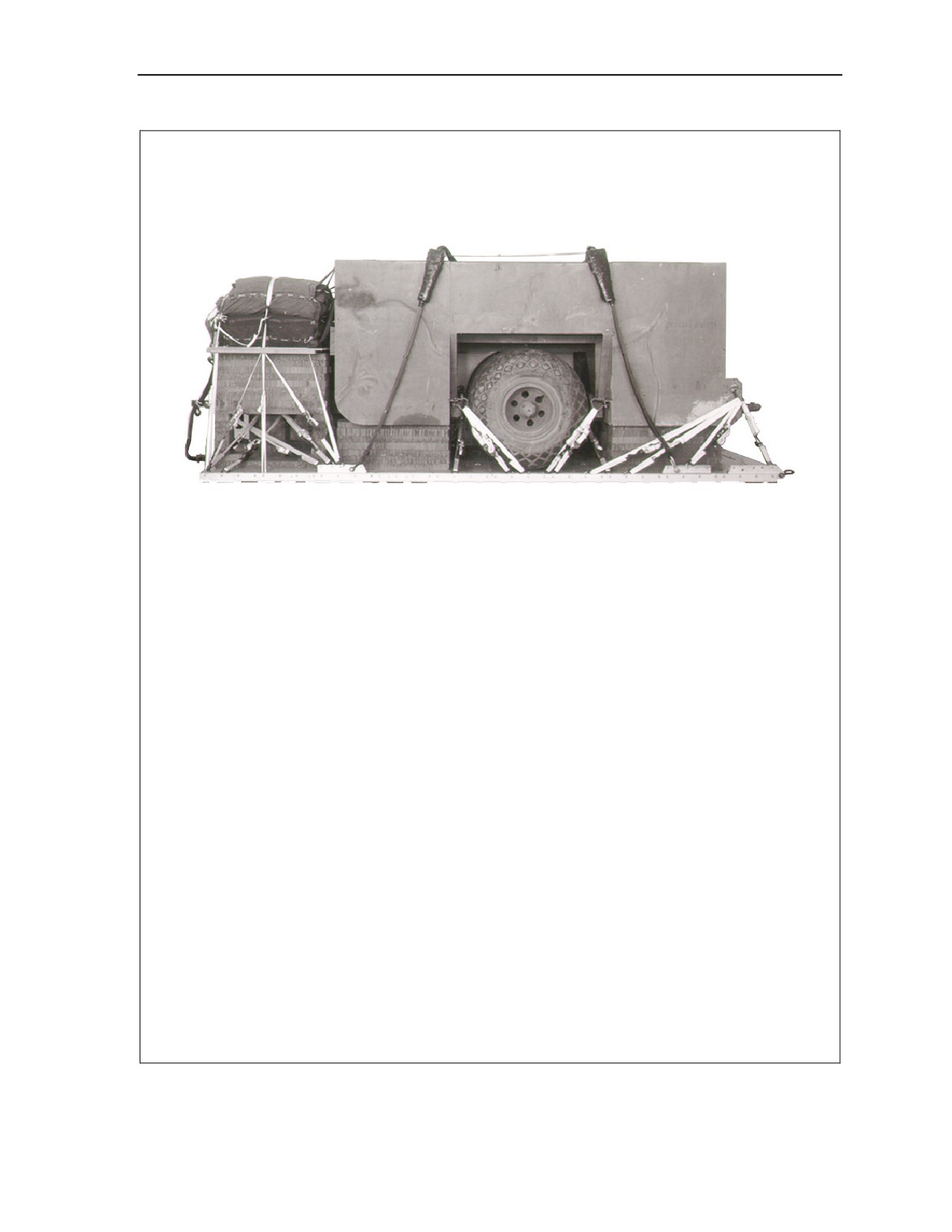

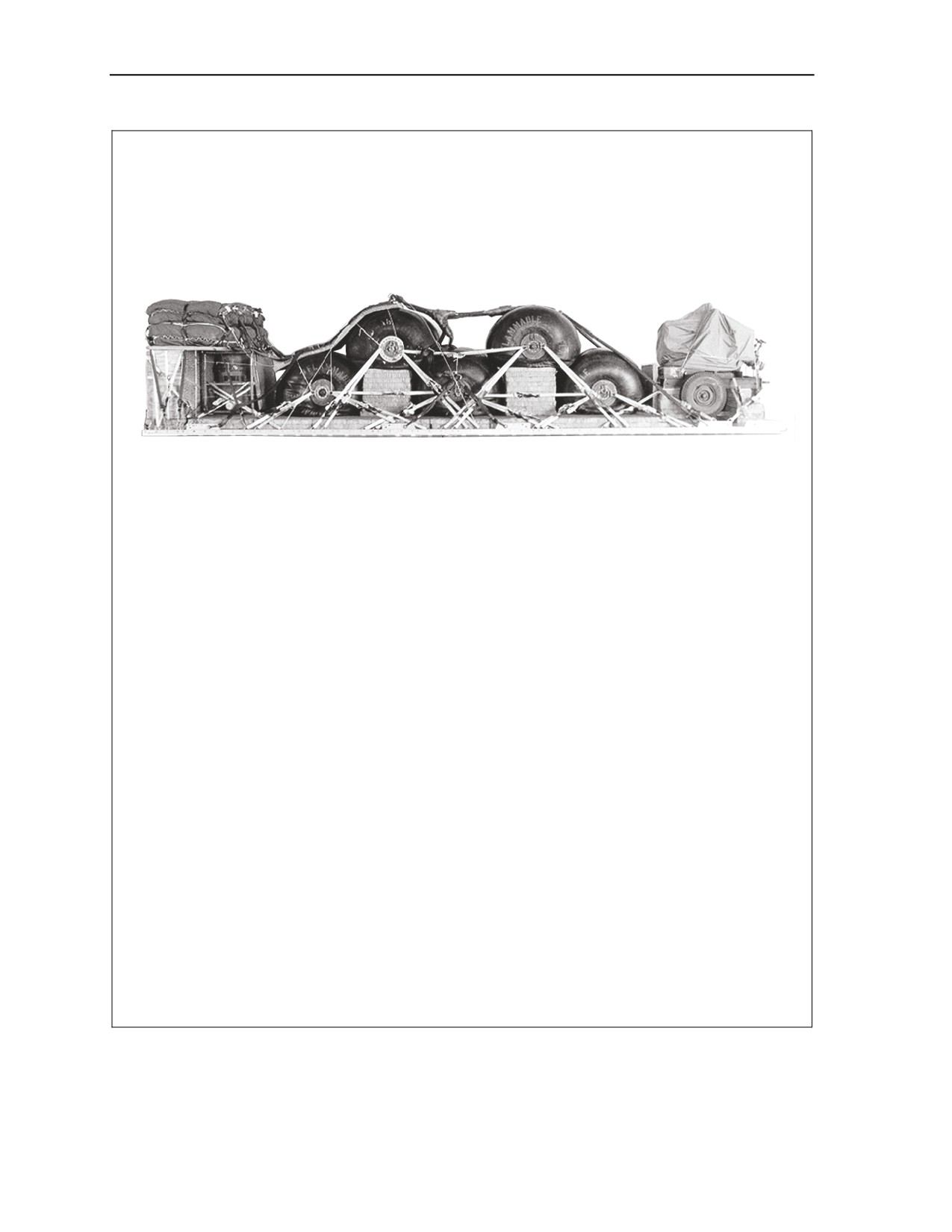

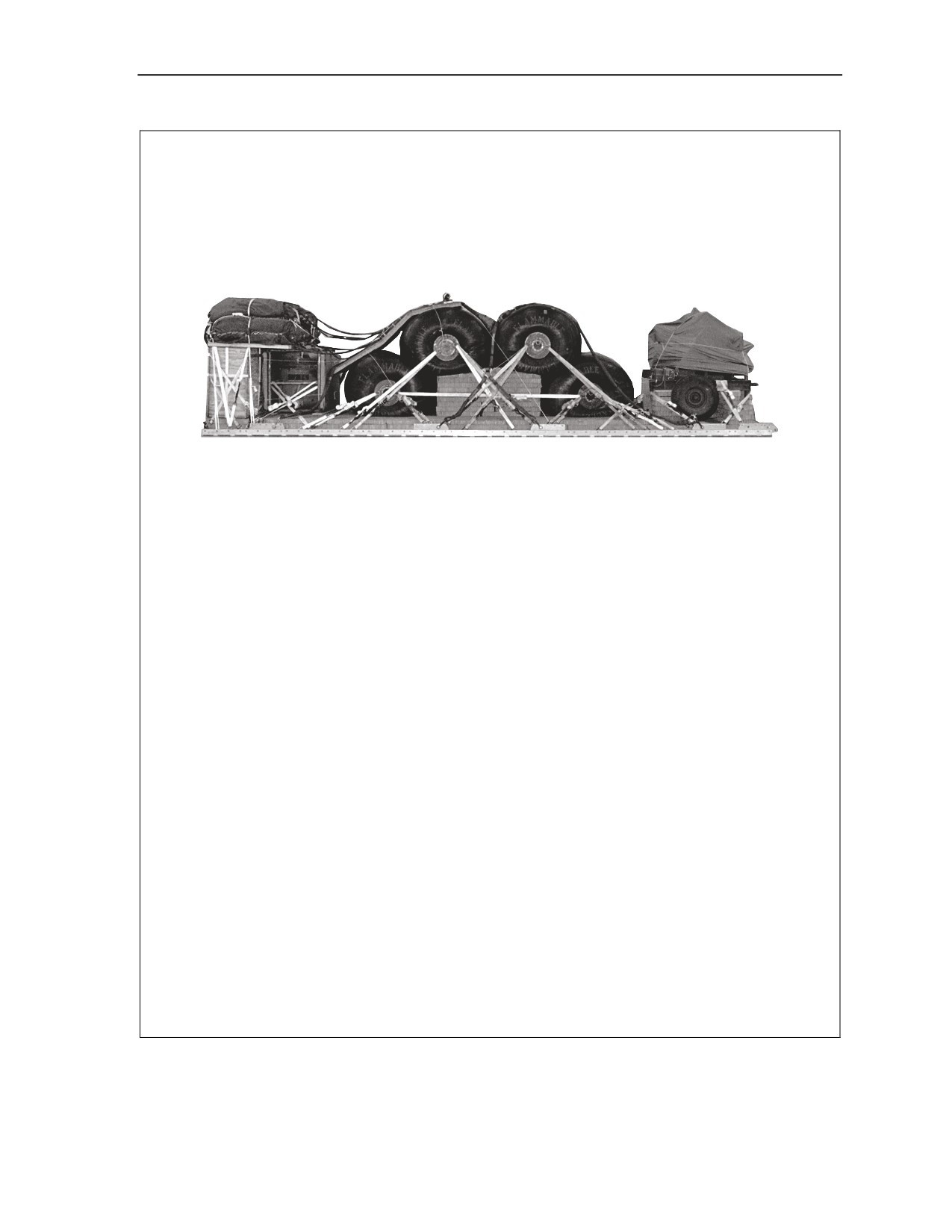

M435 Towed Roller
Reference: FM 10-528/TO 13C7-26-71
Weight: Load shown
15,440 pounds
Height
97 inches
Width
108 inches
Overall Length with EFTC
260 inches
Overall Length with EPJS
270 inches
Overhang: Front
0 inches
Rear (Lunette)
20 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
118 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 20-Foot
Cargo Parachutes: Four G-11B

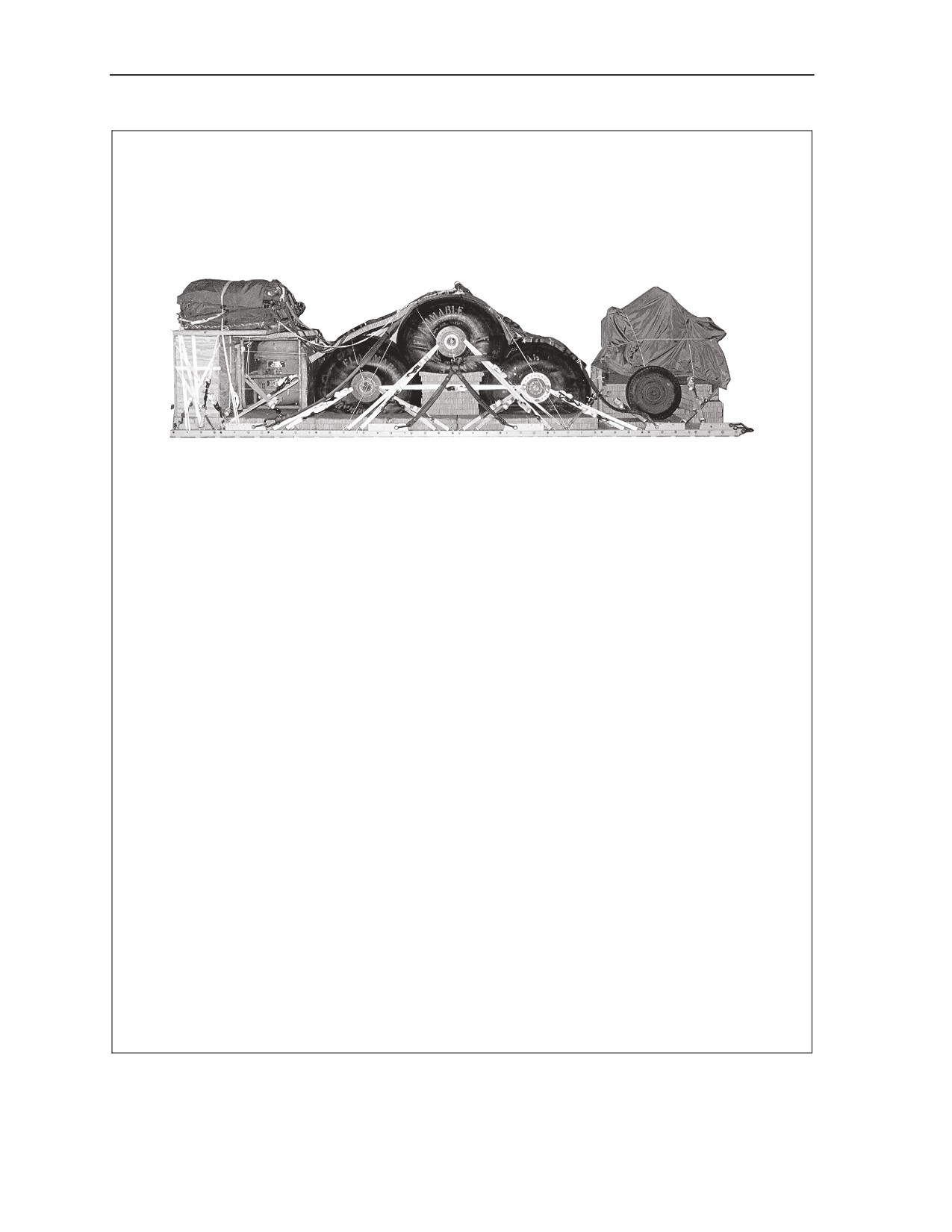

Figure 2-56. M435 Towed Roller
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-57
Chapter 2

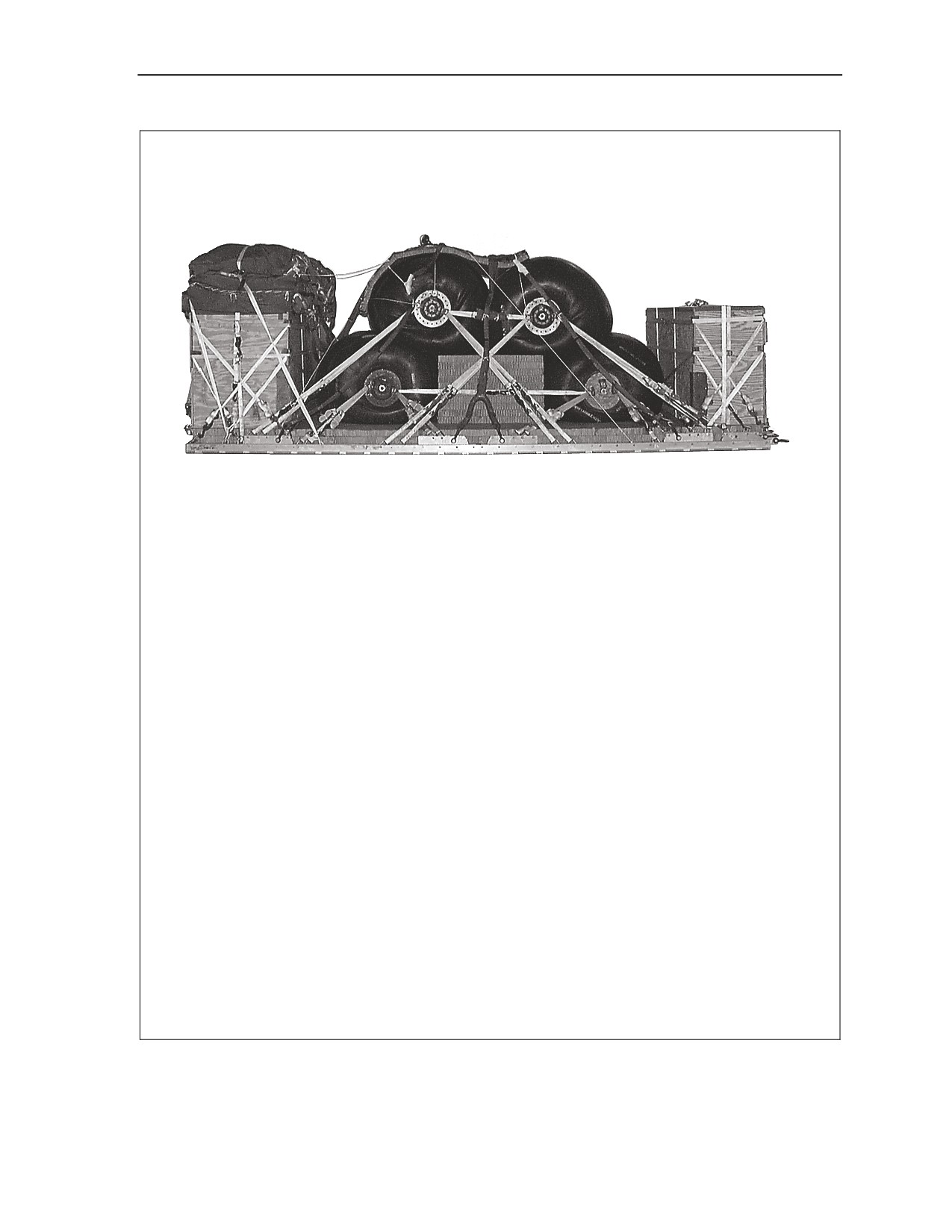

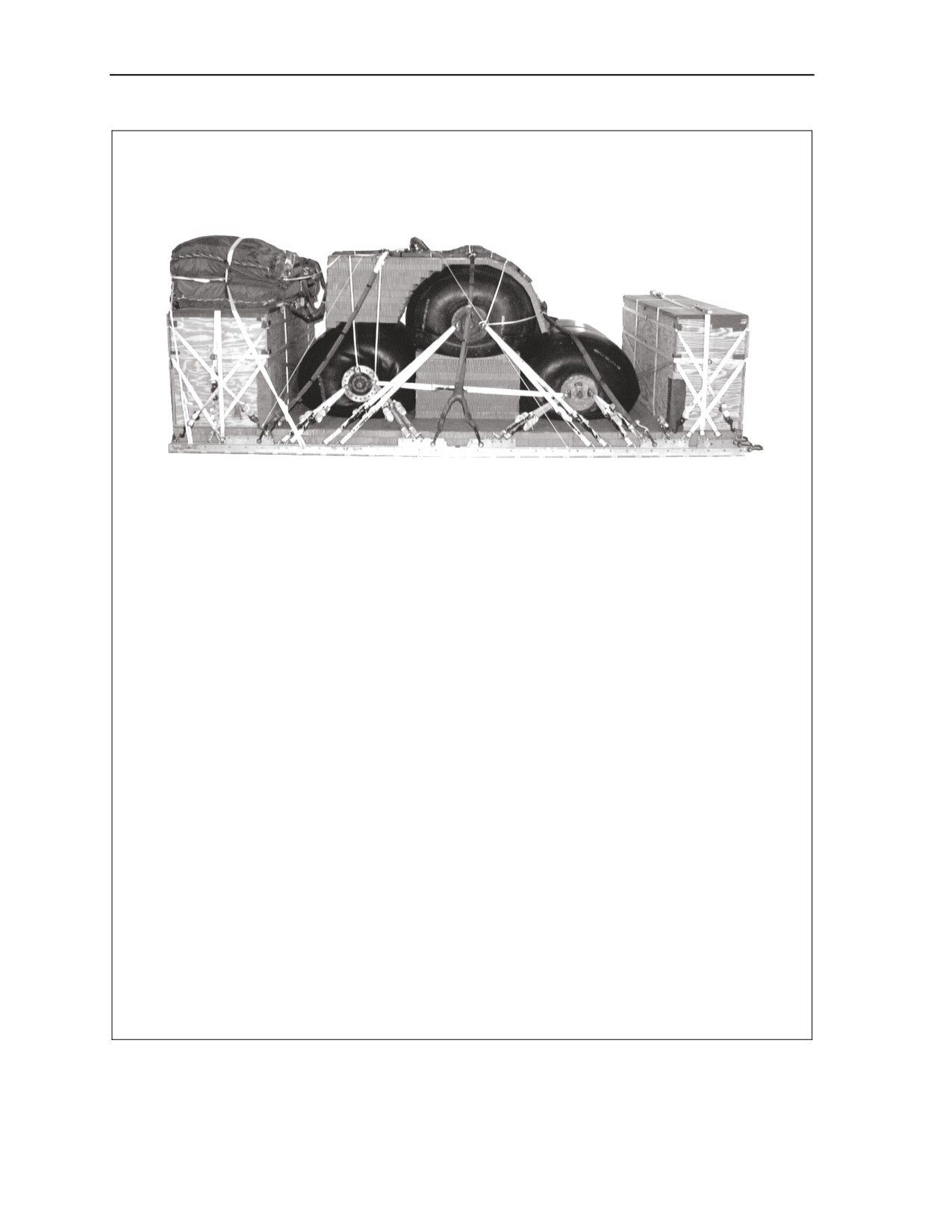

13-Wheeled Towed Roller
Reference: FM 10-528/TO 13C7-26-71
Weight: Load shown
5,750 pounds
Height
80 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
76 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachute: One G-11B

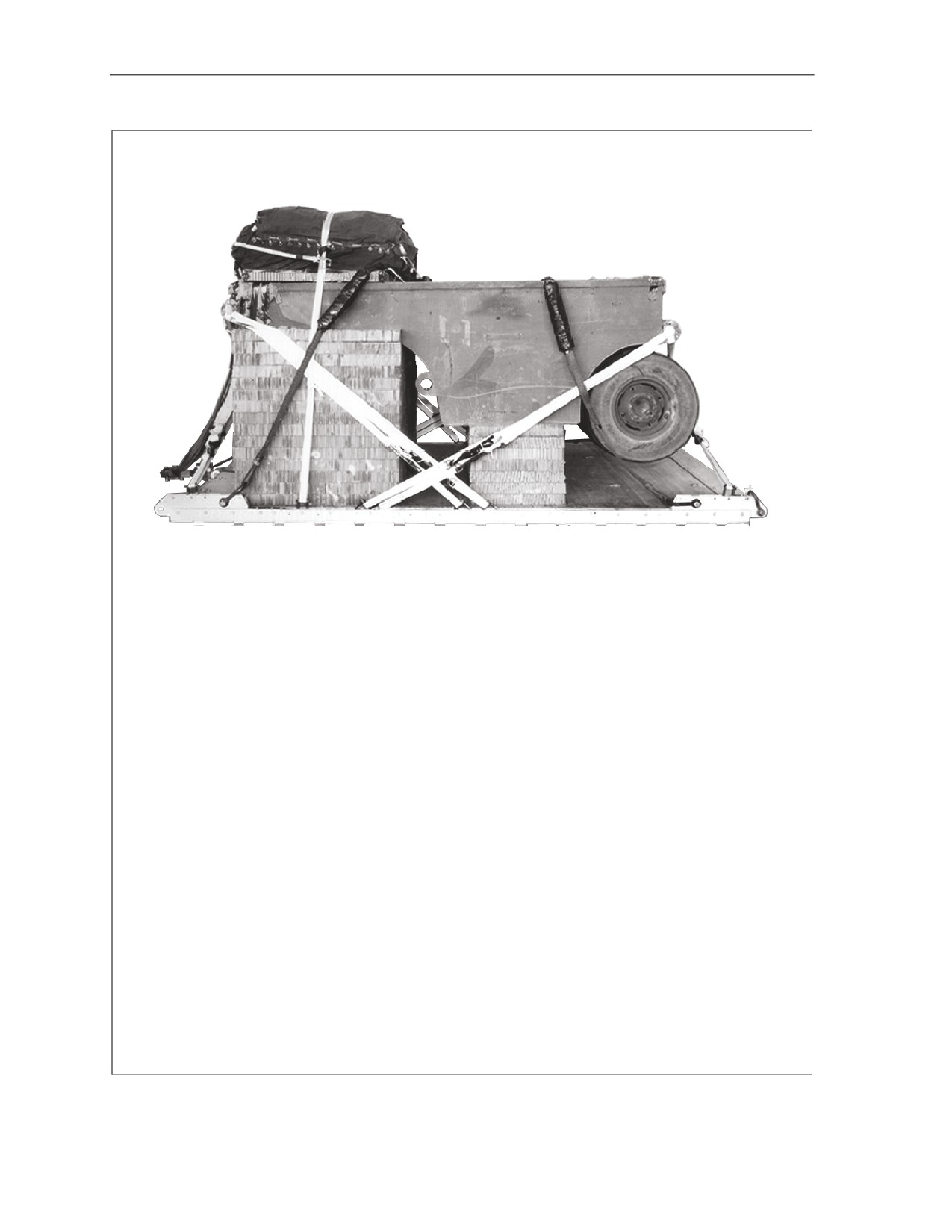

Figure 2-57. 13-Wheeled Towed Roller
2-58
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
11-Wheeled Towed Roller
Reference: FM 10-528/TO 13C7-26-71
Weight: Load shown
5,140 pounds
Height
80 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
76 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachute: One G-11B
Figure 2-58. 11-Wheeled Towed Roller
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-59
Chapter 2

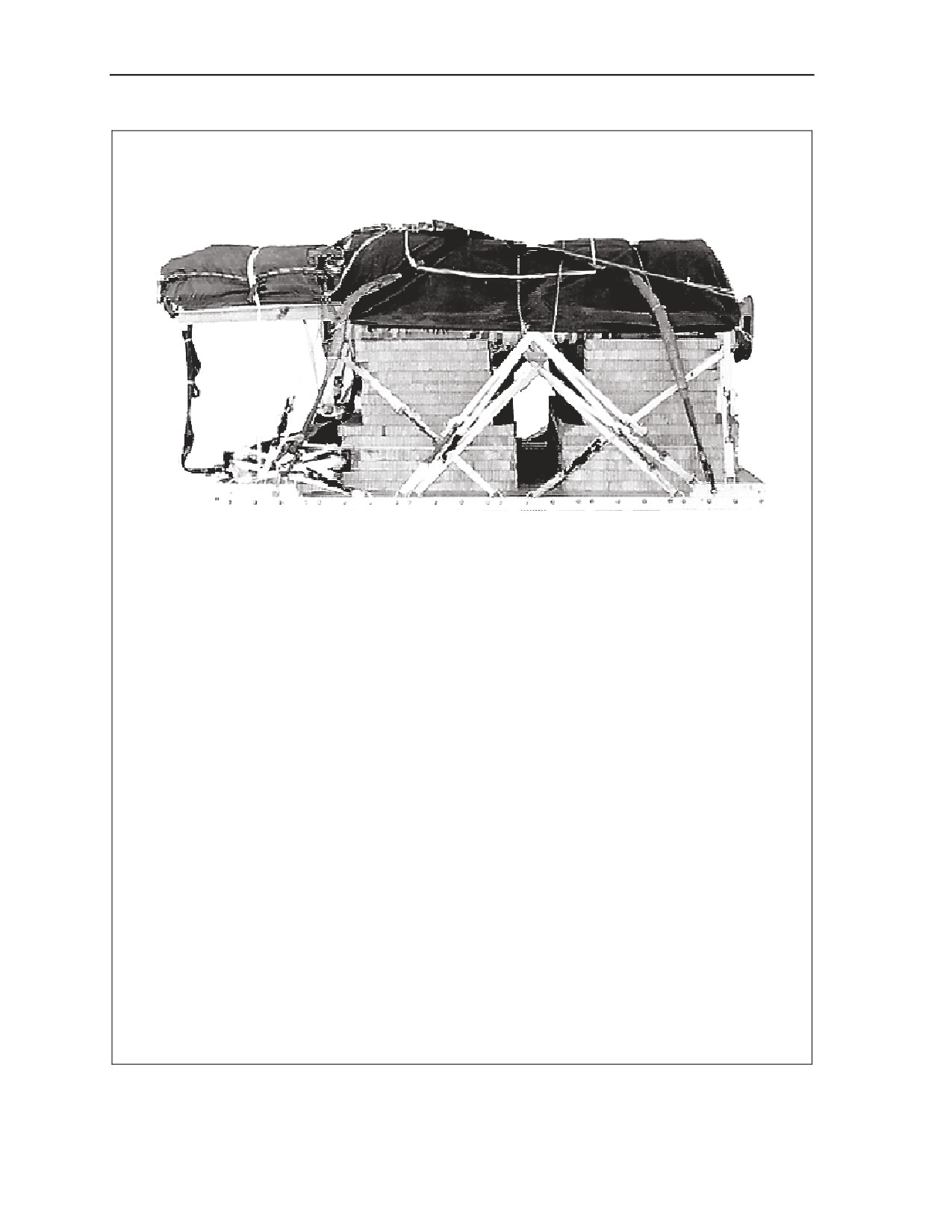

MDG 96 Sheepsfoot Roller
Reference: FM 10-528/TO 13C7-26-71
Weight: Load shown
9,760 pounds
Height
82 inches
Width
108 inches
Overall Length with EFTC
168 inches
Overall Length with EPJS
174 inches
Overhang: Front
0 inches
Rear (Parachute Stowage Platform)
24 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
71 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-59. MDG 96 Sheepsfoot Roller
2-60
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

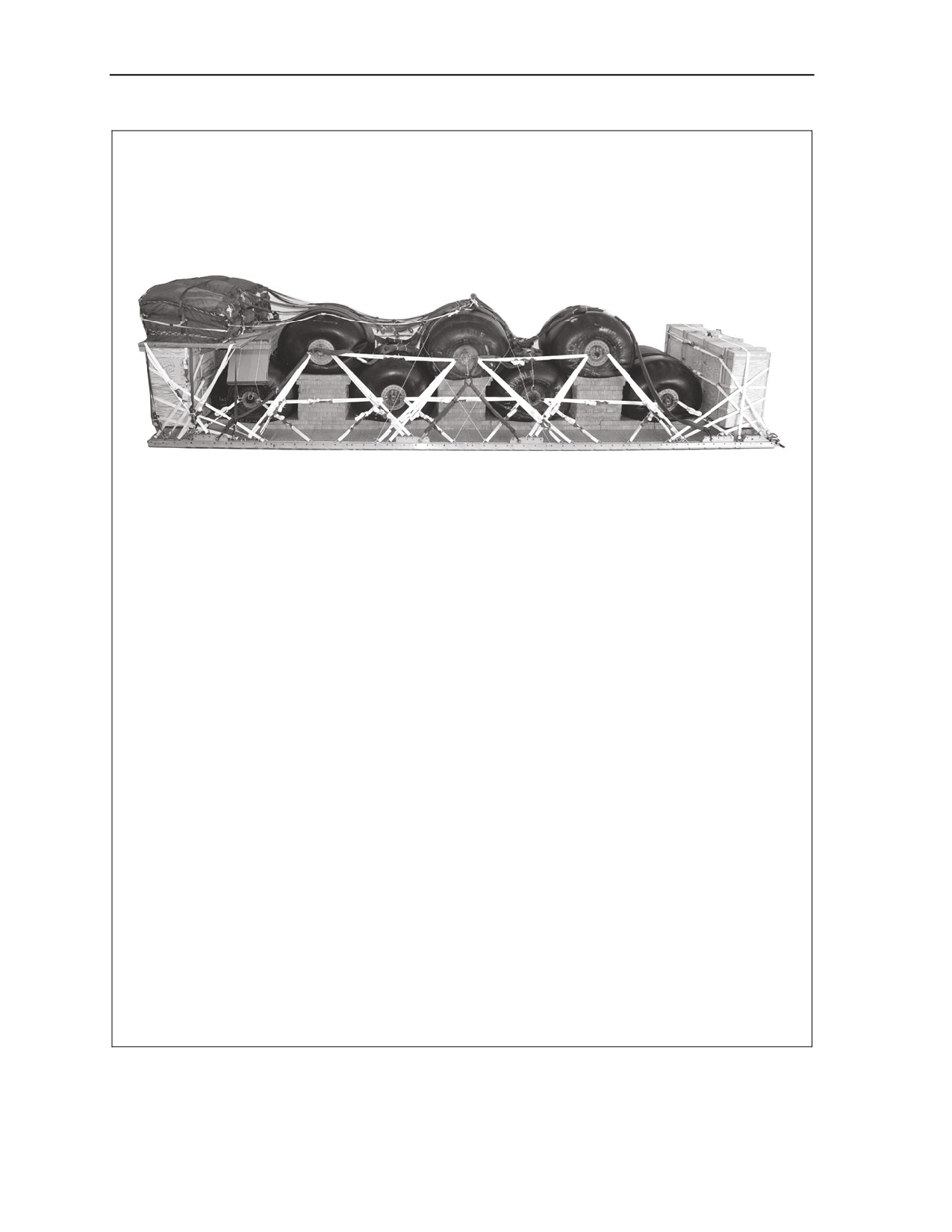

Thirteen Wheel (Model PT-13) Towed Roller
Reference: FM 10-528/TO 13C7-26-71
Weight: Load shown
6,582 pounds
Height
75 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
68 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-60. Thirteen Wheel (Model PT-13) Towed Roller
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-61
Chapter 2
Vibratory Compactor (Model CS-433C)
Reference: FM 10-528/TO 13C7-26-71
Weight: Load shown
18,890 pounds
Height
99 inches
Width
108 inches
Overall Length with EFTC
262 inches
Overall Length with EPJS
270 inches
Overhang: Front
0 inches
Rear (Parachute Stowage Platform)
22 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
74 1/2 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Four G-11B

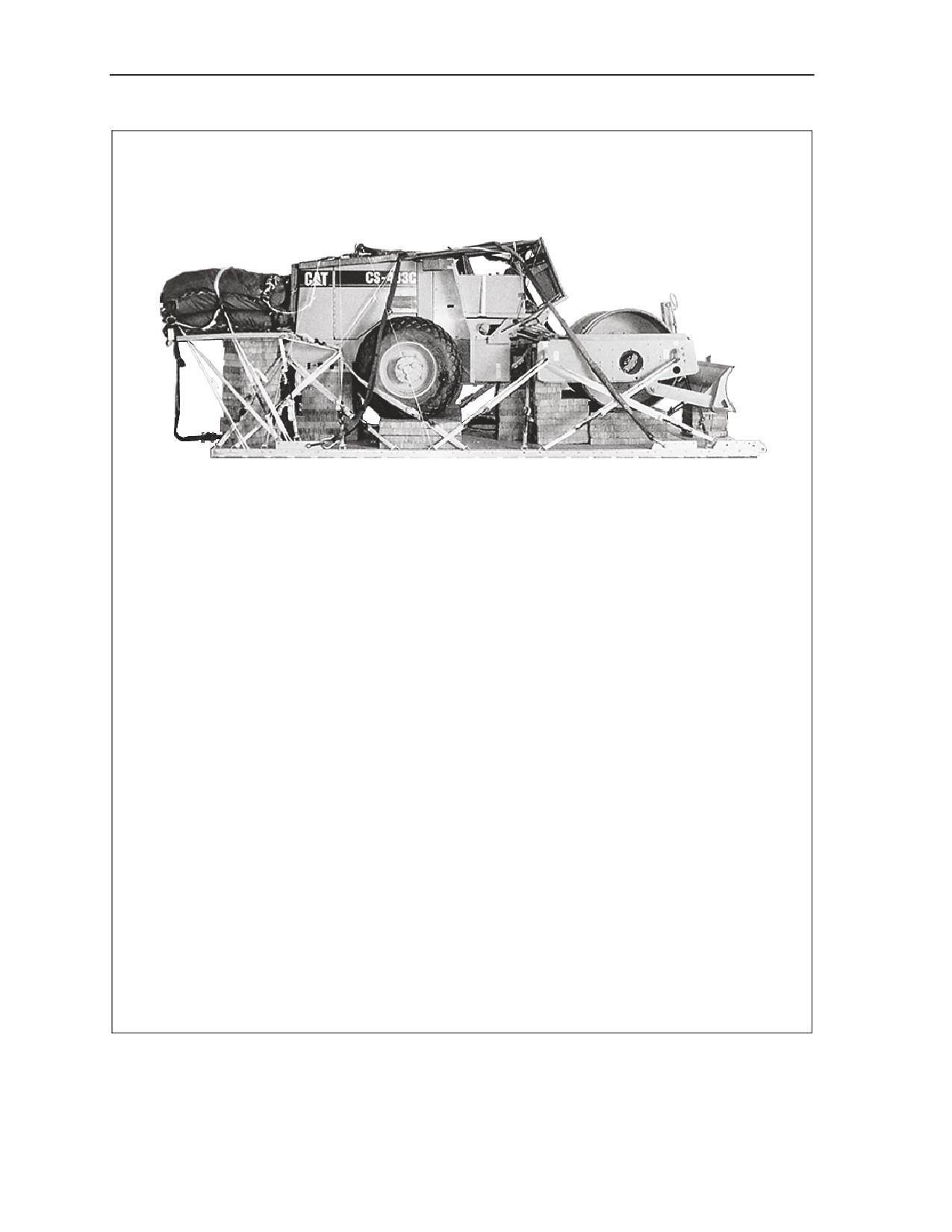

Figure 2-61. Vibratory Compactor (Model CS-433C)
2-62
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

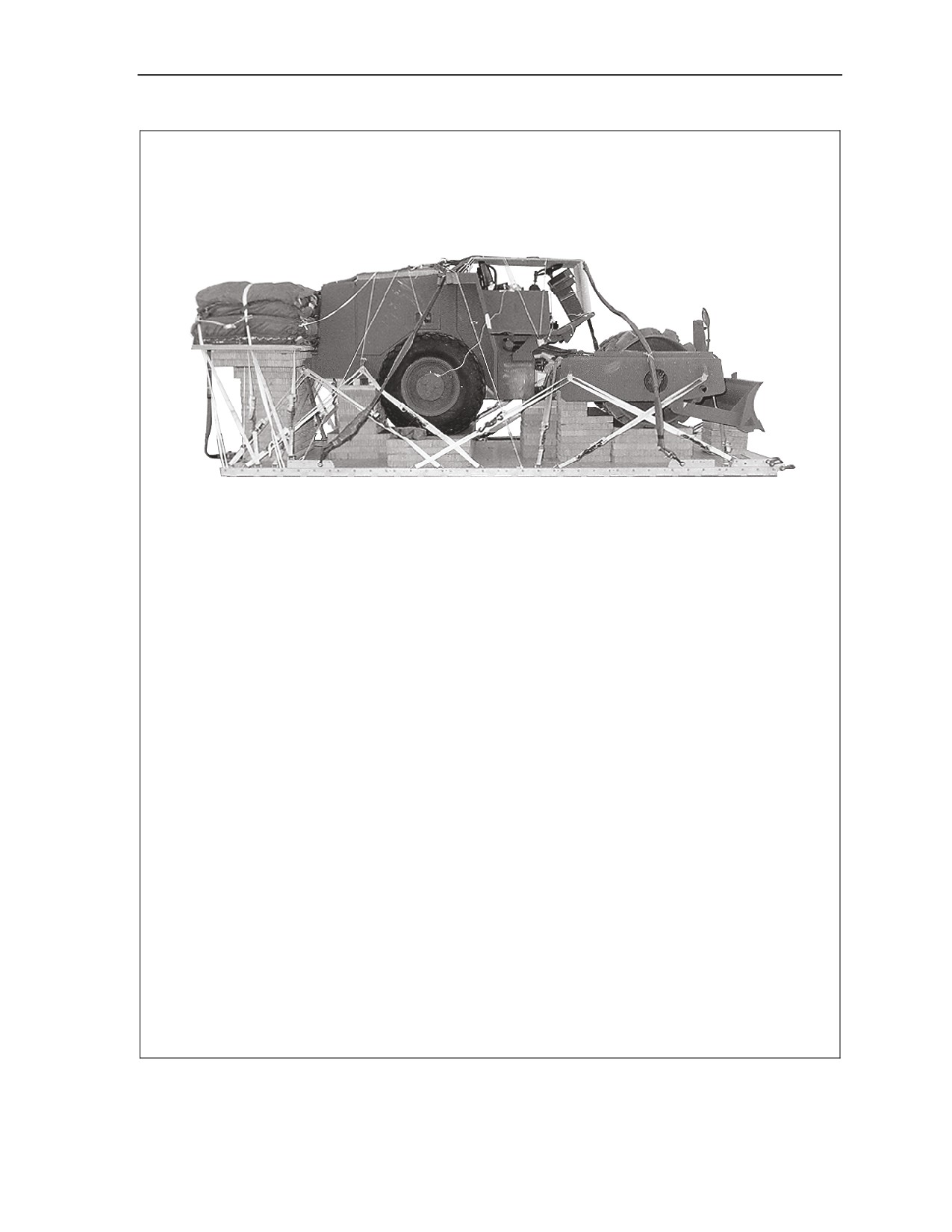

Vibratory Compactor (Model CS-433P)
Reference: FM 10-528/TO 13C7-26-71
Weight: Load shown
19,147 pounds
Height
99 inches
Width
108 inches
Overall Length with EFTC
262 inches
Overall Length with EPJS
270 inches
Overhang: Front
0 inches
Rear (EFTC)
22 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
108 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Four G-11B
Figure 2-62. Vibratory Compactor (Model CS-433P)
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-63
Chapter 2

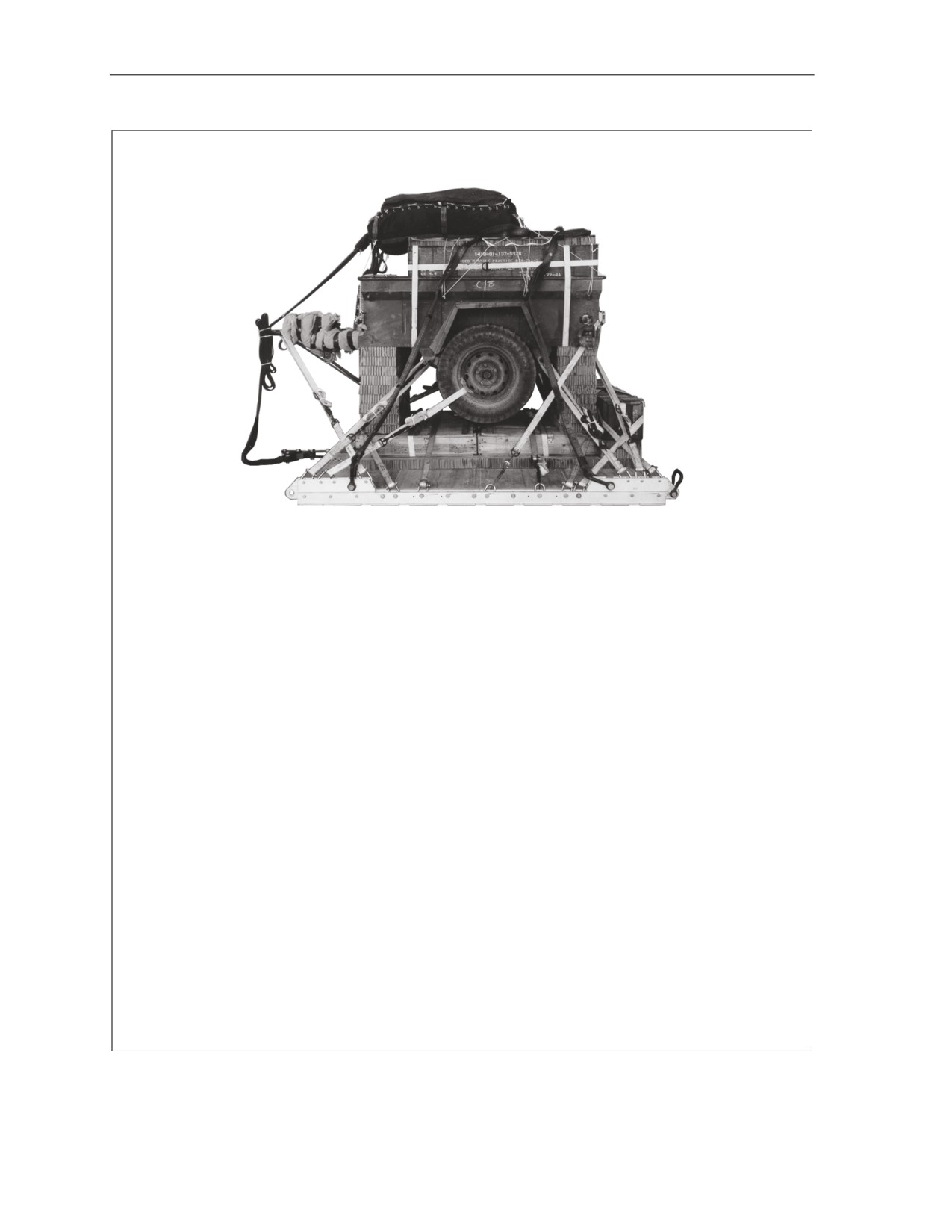

M416 Trailer with Eight Tube-Launched, Optically Tracked, Wire-Guided (TOW) Missiles
Reference: FM 10-500-29/TO 13C7-10-171
Weight: Load shown
3,480 pounds
Height
87 inches
Width
108 inches
Overall Length with EFTC
121 inches
Overall Length with EPJS
126 inches
Overhang: Front
0 inches
Rear (Lunette)
25 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
51 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 8-Foot
Cargo Parachute: One G-11B
Figure 2-63. M416 Trailer with Eight Tube-Launched, Optically Tracked, Wire-Guided (TOW)
Missiles
2-64
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

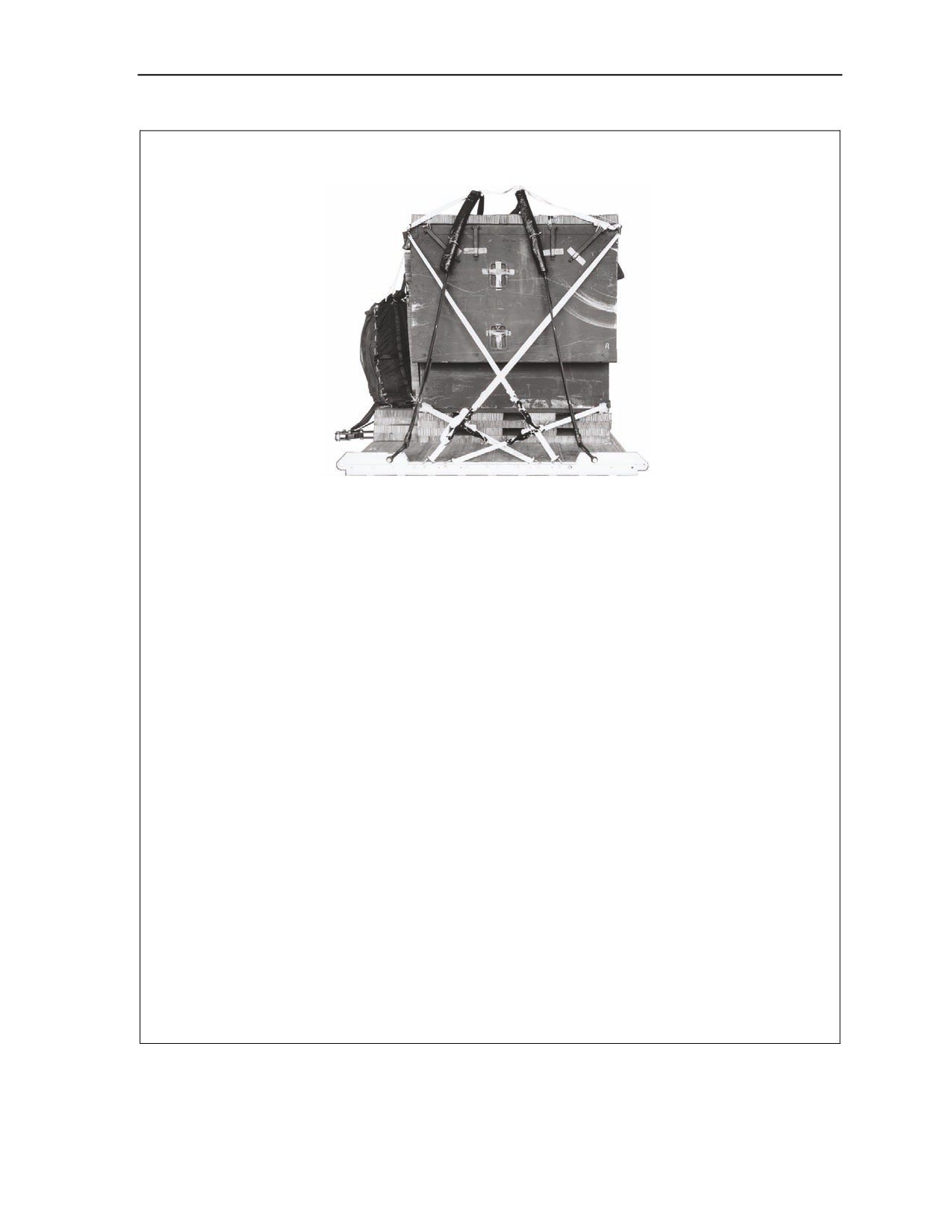

TOW Missiles Rigged in A-22 Cargo Bags
Reference: FM 10-500-29/TO 13C7-10-171
Weight: Load shown
6,600 pounds
Height
75 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
77 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-64. TOW Missiles Rigged in A-22 Cargo Bags
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-65
Chapter 2
TOW Missiles Rigged on a 12-Foot Platform
Reference: FM 10-500-29/TO 13C7-10-171
Weight: Load shown
6,650 pounds
Height
75 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
118 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-65. TOW Missiles Rigged on a 12-Foot Platform
2-66
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M966 TOW Carrier
Reference: FM 10-500-29/TO 13C7-10-171
Weight: Load shown
8,810 pounds
Height
91 inches
Width
108 inches
Overall Length with EFTC
210 inches
Overall Length with EPJS
228 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
102 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B
Figure 2-66. M966 TOW Carrier
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-67
Chapter 2
M4K 4,000 Pound Capacity Forklift
Reference: FM 4-20.131/TO 13C7-54-1
Weight: Load shown
12,370 pounds
Height
86 inches
Width
108 inches
Overall Length with EFTC
216 inches
Overall Length with EPJS
232 inches
Overhang: Front
0 inches
Rear (Parachute Stowage Platform)
24 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
82 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-67. M4K 4,000 Pound Capacity Forklift
2-68
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M270 4,000 Pound Capacity Forklift
Reference: FM 4-20.131/TO 13C7-54-1
Weight: Load shown
15,400 pounds
Height
98 1/2 inches
Width
108 inches
Overall Length with EFTC
225 inches
Overall Length with EPJS
243 inches
Overhang: Front (Forks)
15 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
83 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Three G-11B
Figure 2-68. M270 4,000 Pound Capacity Forklift
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-69
Chapter 2

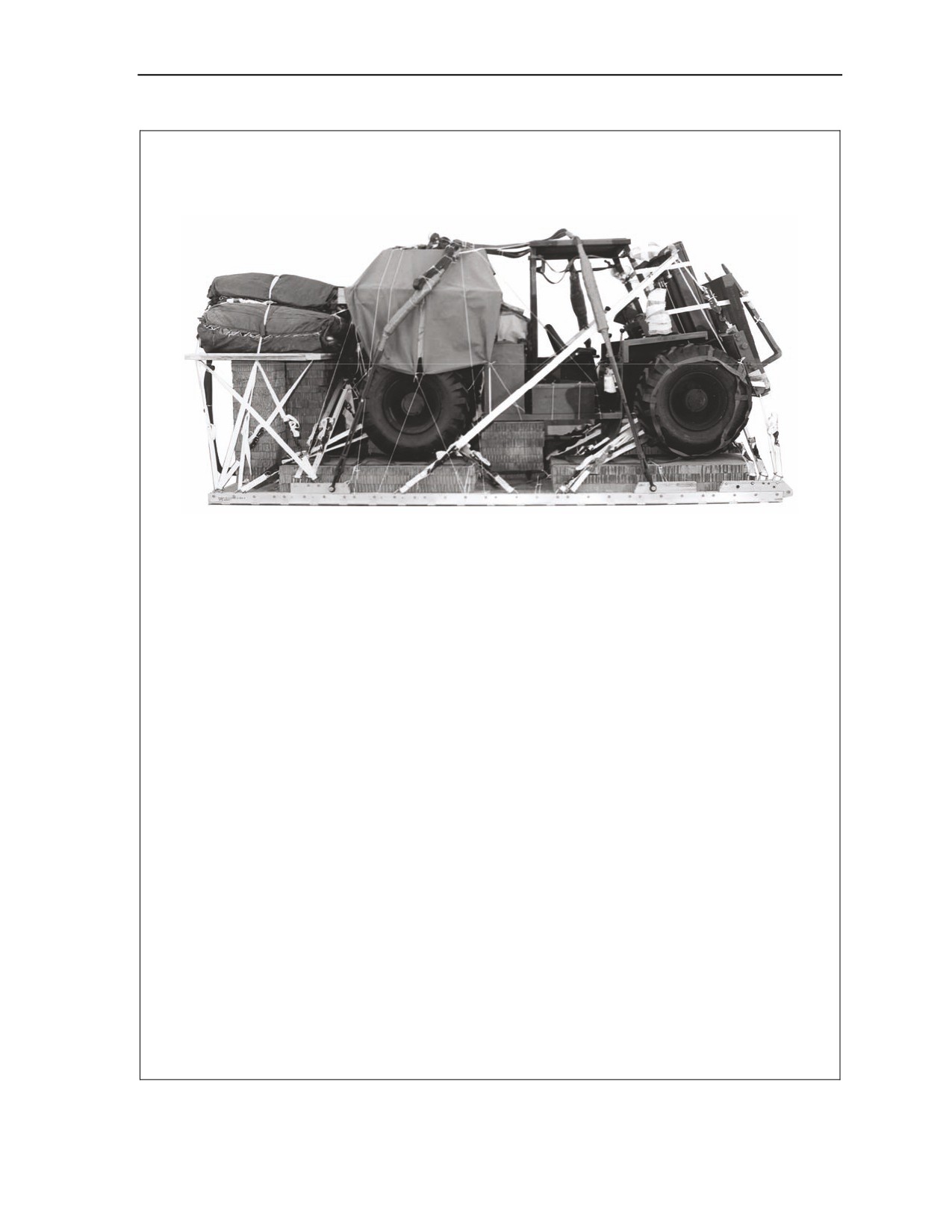

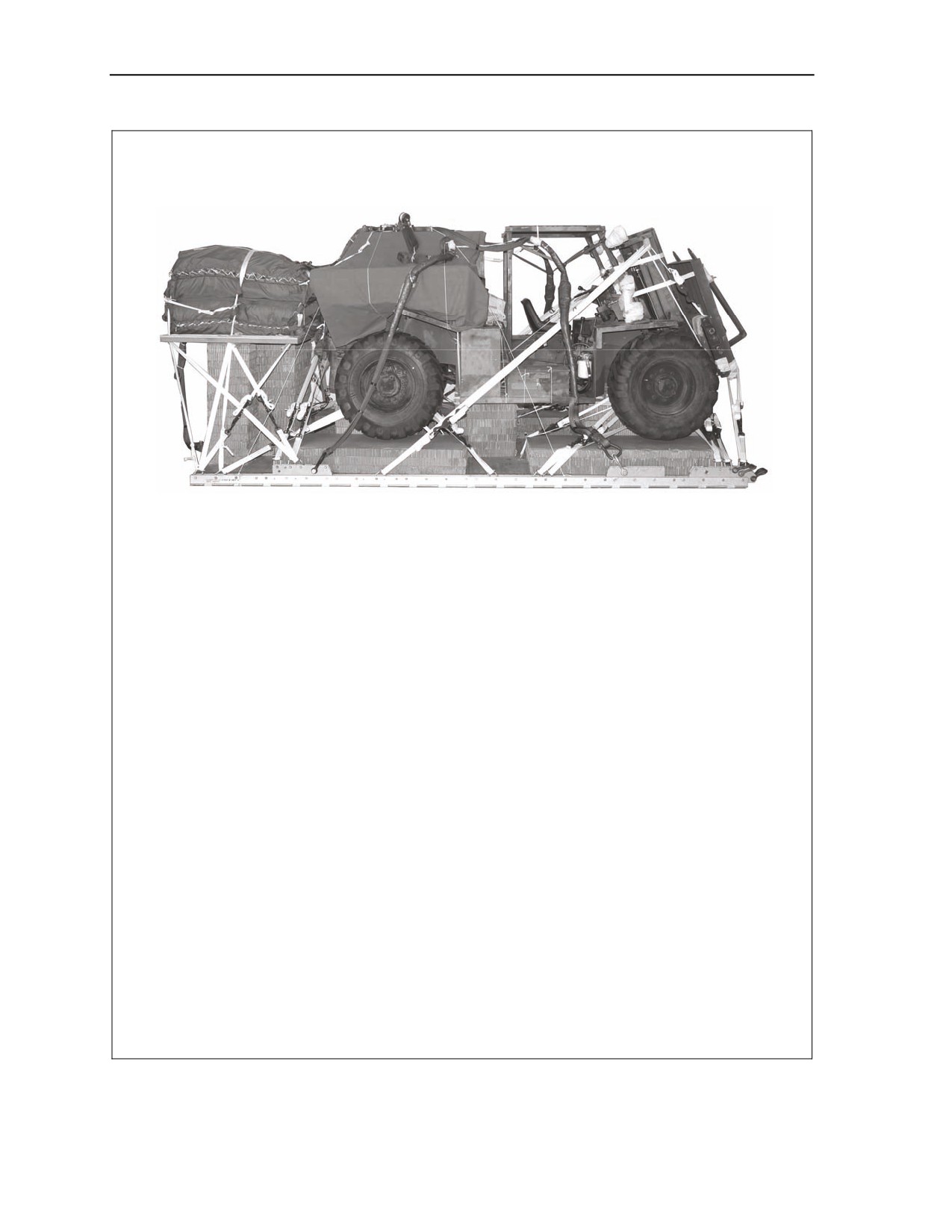

M271 4,000 Pound Capacity Forklift
Reference: FM 4-20.131/TO 13C7-54-1
Weight: Load shown
17,380 pounds
Height
98 1/2 inches
Width
108 inches
Overall Length with EFTC
226 inches
Overall Length with EPJS
244 inches
Overhang: Front (Forks)
15 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
82 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot or 28-Foot
Extraction Parachute C-17: 22-Foot or 28-Foot
Platform Size: 16-Foot
Cargo Parachutes: Four G-11B
Figure 2-69. M271 4,000 Pound Capacity Forklift
2-70
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
6,000 Pound Capacity Forklift
Reference: FM 4-20.131/TO 13C7-54-1
Weight: Load shown
28,660 pounds
Height
100 3/4 inches
Width
108 inches
Overall Length with EFTC
333 inches
Overall Length with EPJS
351 inches
Overhang: Front (Forks)
27 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
141 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Six G-11C

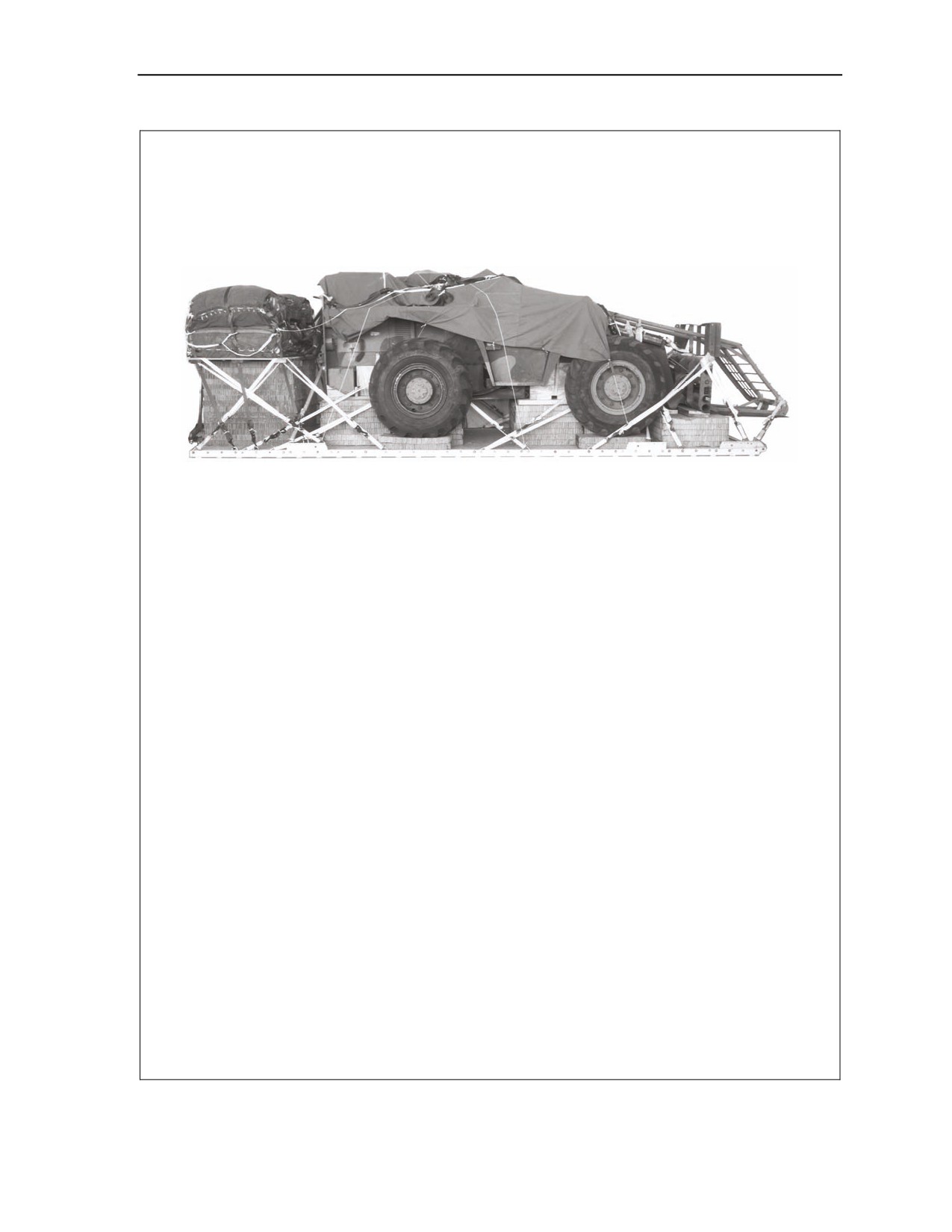

Figure 2-70. 6,000 Pound Capacity Forklift
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-71
Chapter 2

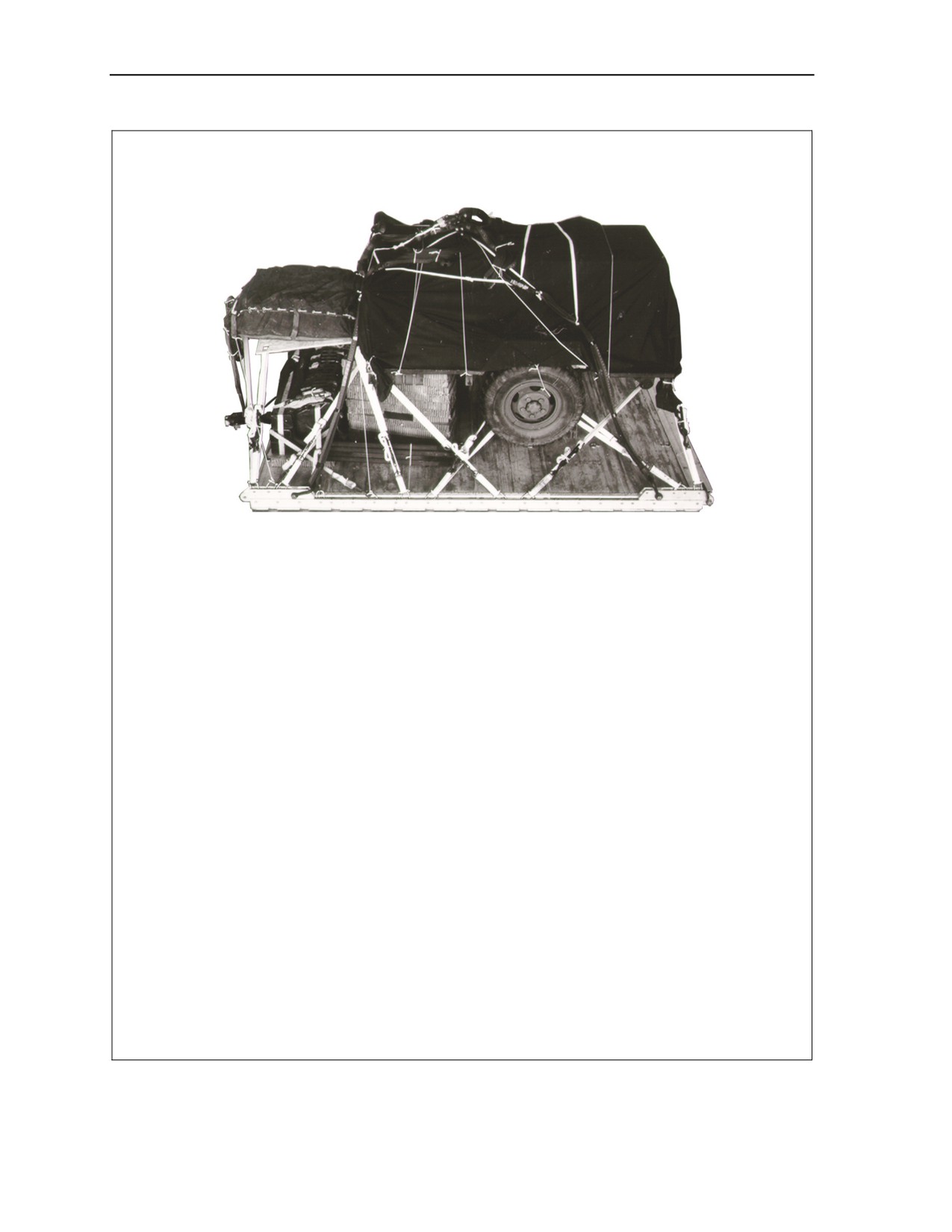

1 1/2-Ton Trailer
Reference: FM 10-532/TO 13C7-3-361
Weight: Load shown
7,360 pounds
Height
81 inches
Width
108 inches
Overall Length with EFTC
166 inches
Overall Length with EPJS
174 inches
Overhang: Front
0 inches
Rear (Parachute)
22 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
72 inches
Accompanying Load: An accompanying load must not weigh more than 3,000 pounds.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot or 22-Foot
Extraction Parachute C-17: 15-Foot or 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-71. 1 1/2-Ton Trailer
2-72
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M149A1 400-Gallon Water Trailer
Reference: FM 10-532/TO 13C7-3-361
Weight: Load shown
7,200 pounds
Height
86 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
63 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot or 22-Foot
Extraction Parachute C-17: 15-Foot or 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-72. M149A1 400-Gallon Water Trailer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-73
Chapter 2

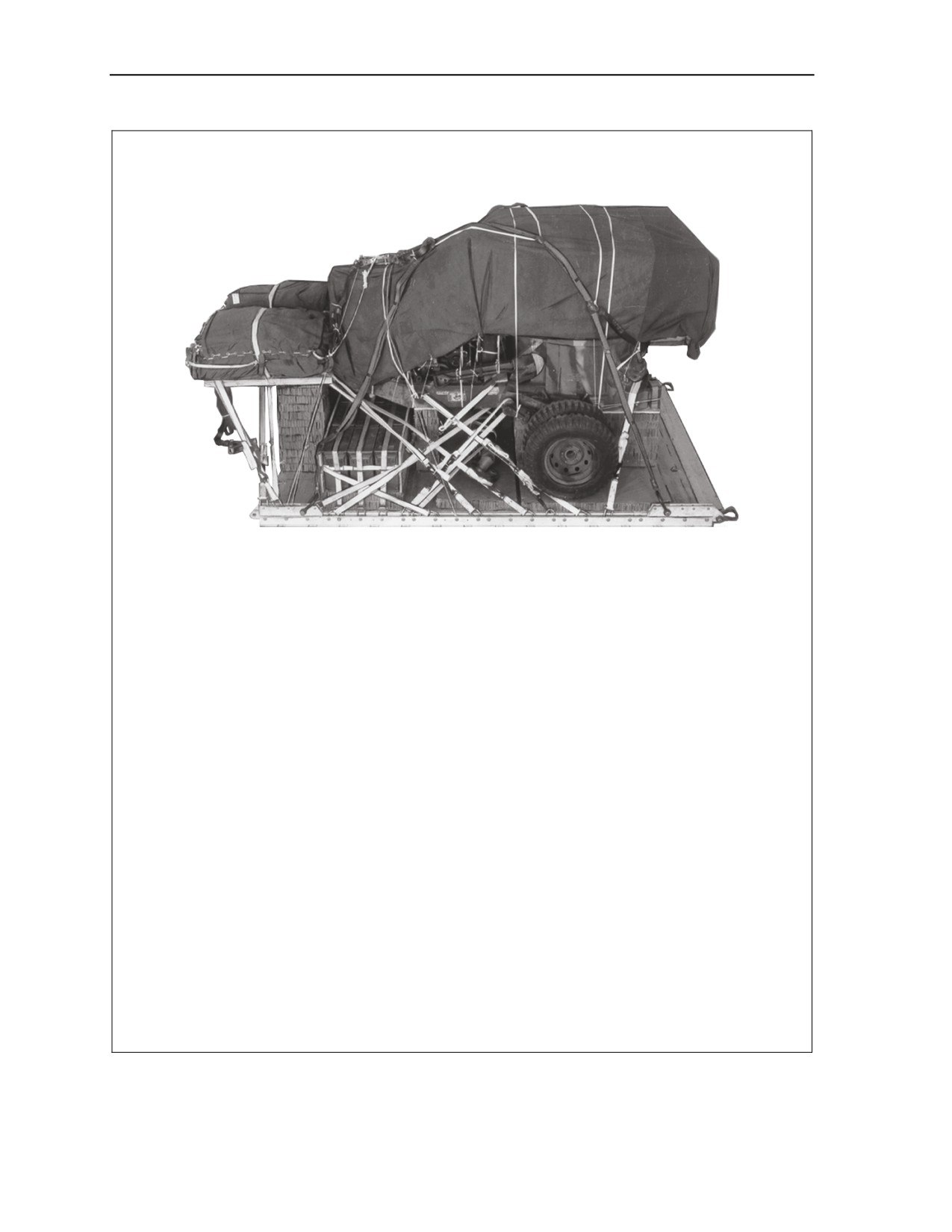

M167A1 Gun
Reference: FM 10-534/TO 13C7-10-161
Weight: Load shown
7,250 pounds
Height
89 inches
Width
108 inches
Overall Length with EFTC
176 inches
Overall Length with EPJS
176 inches
Overhang: Front
0 inches
Rear (Parachute Stowage Platform)
32 inches
Center of Balance (from front edge of platform)
108 inches
Accompanying Load: Stow 15 boxes of 20-mm ammunition on the platform.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B
Figure 2-73. M167A1 Gun
2-74
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M167A2 Gun with 1 1/4-Ton Truck
Reference: FM 10-534/TO 13C7-10-161
Weight: Load shown
23,100 pounds
Height
95 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
189 inches
Accompanying Load: Stow 55 boxes of 20-mm ammunition on platform and 800 to 2,000
pounds in the truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Five G-11C
Figure 2-74. M167A2 Gun with 1 1/4-Ton Truck
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-75
Chapter 2
Forward Area Refueling Equipment (FARE) with Two 500-Gallon Fuel Drums
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
9,107 pounds
Height
70 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
72 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 12-Foot
Cargo Parachutes: Two G-11B

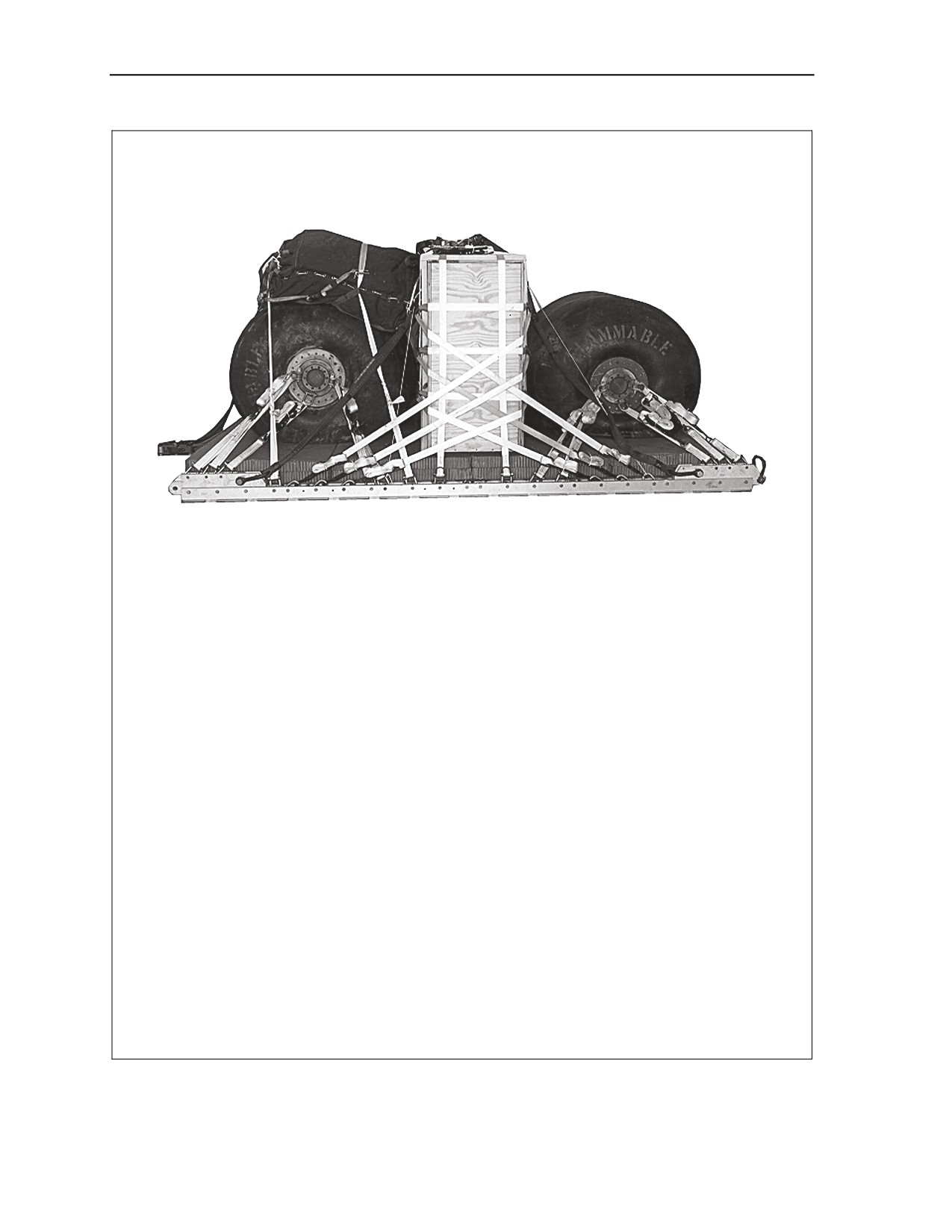

Figure 2-75. Forward Area Refueling Equipment (FARE) with Two 500-Gallon Fuel Drums
2-76
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

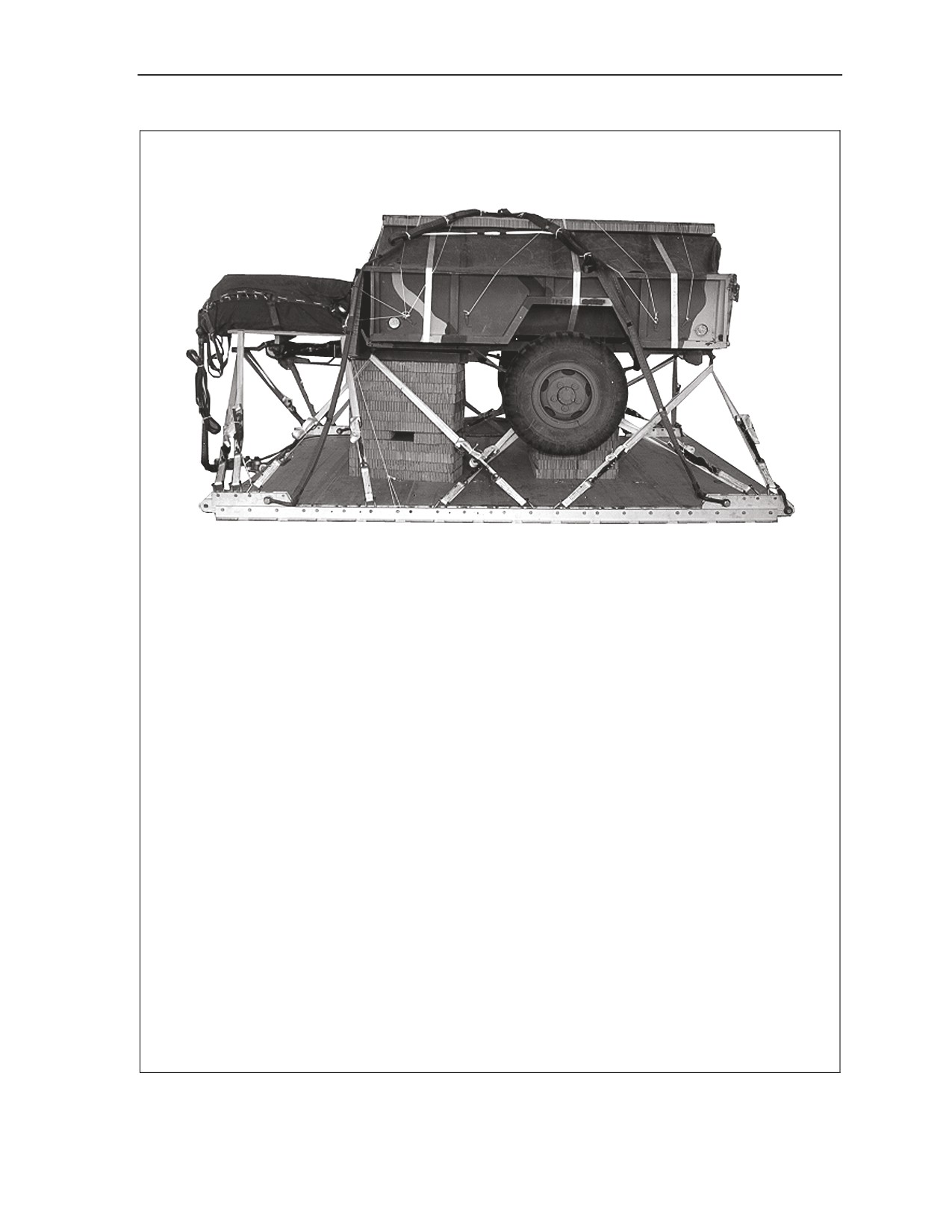

FARE Rigged in an M101A1 3/4-Ton Trailer
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
4,050 pounds
Height
83 inches
Width
108 inches
Overall Length with EFTC
162 inches
Overall Length with EPJS
180 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
72 1/2 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachute: One G-11B

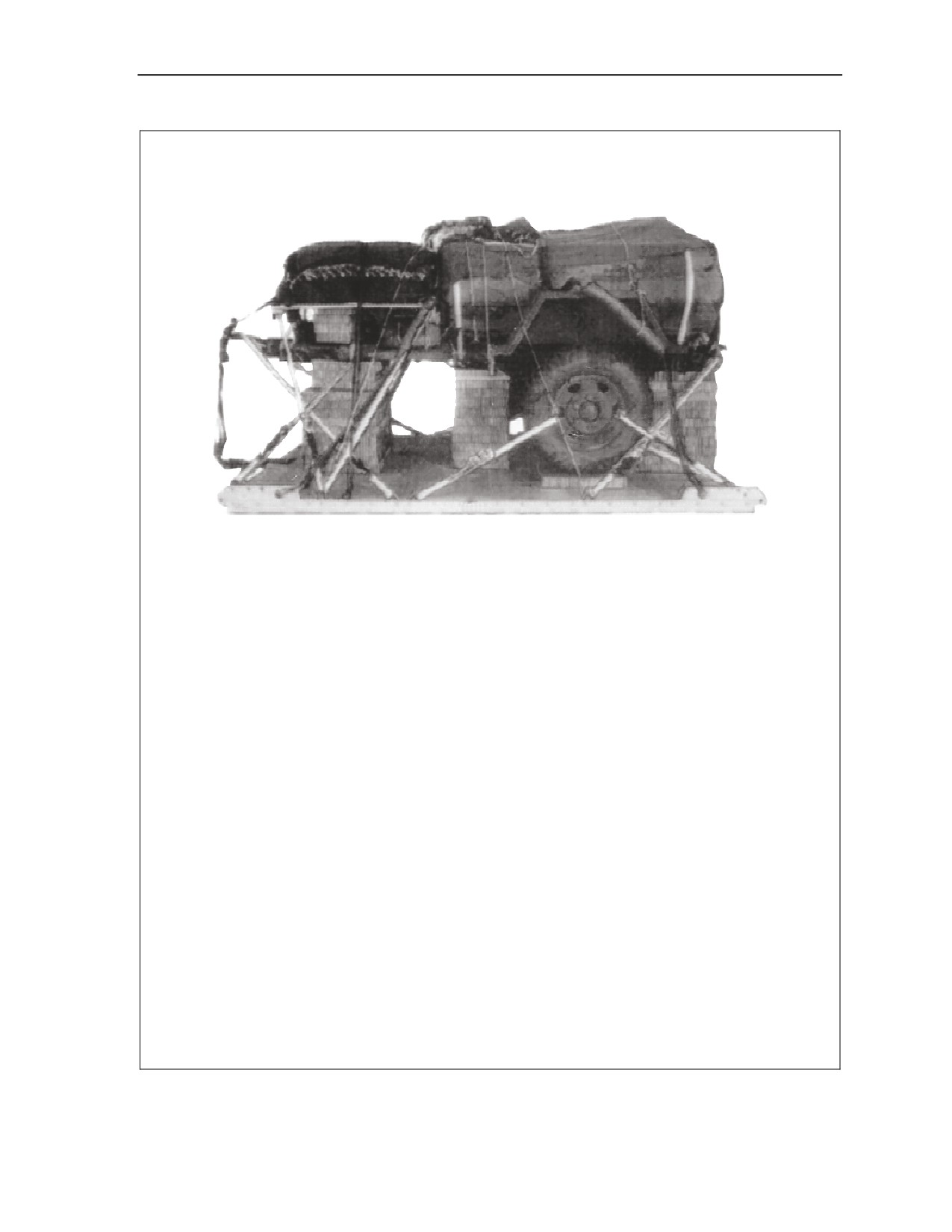

Figure 2-76. FARE Rigged in an M101A1 3/4-Ton Trailer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-77
Chapter 2
FARE with Seven 500-Gallon Fuel Drums
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
28,000 pounds
Height
95 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
202 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Six G-11C
Figure 2-77. FARE with Seven 500-Gallon Fuel Drums
2-78
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

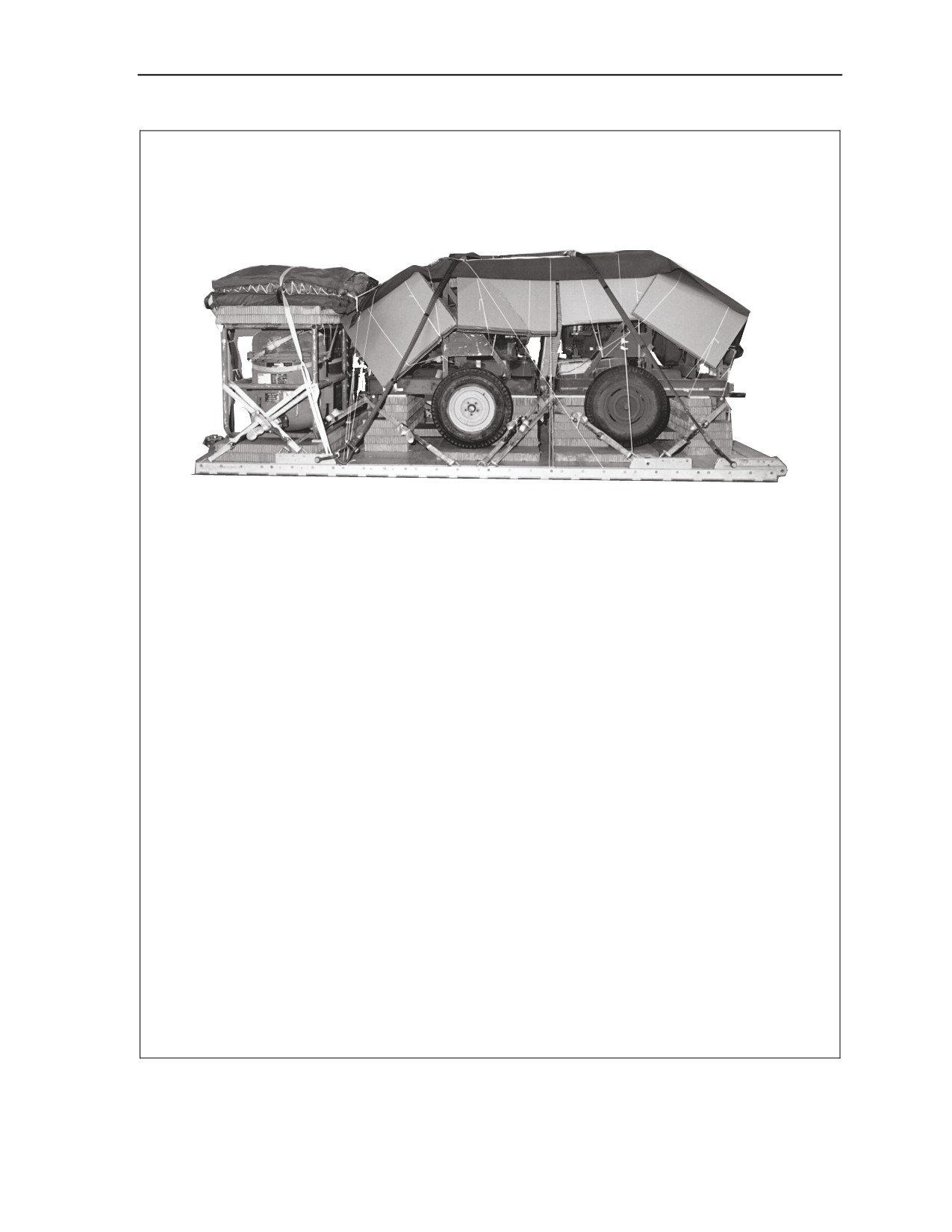

350-GPM Wheel-Mounted Pumping Assembly with Filter/Separator
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
7,880 pounds
Height
77 inches
Width
108 inches
Overall Length with EFTC
214 1/2 inches
Overall Length with EPJS
232 1/2 inches
Overhang: Front (Lunette on Front of Pump)
4 1/2 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
100 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot or 22-Foot
Extraction Parachute C-17: 15-Foot or 22-Foot
Platform Size: 16-Foot
Cargo Parachutes: Two G-11B

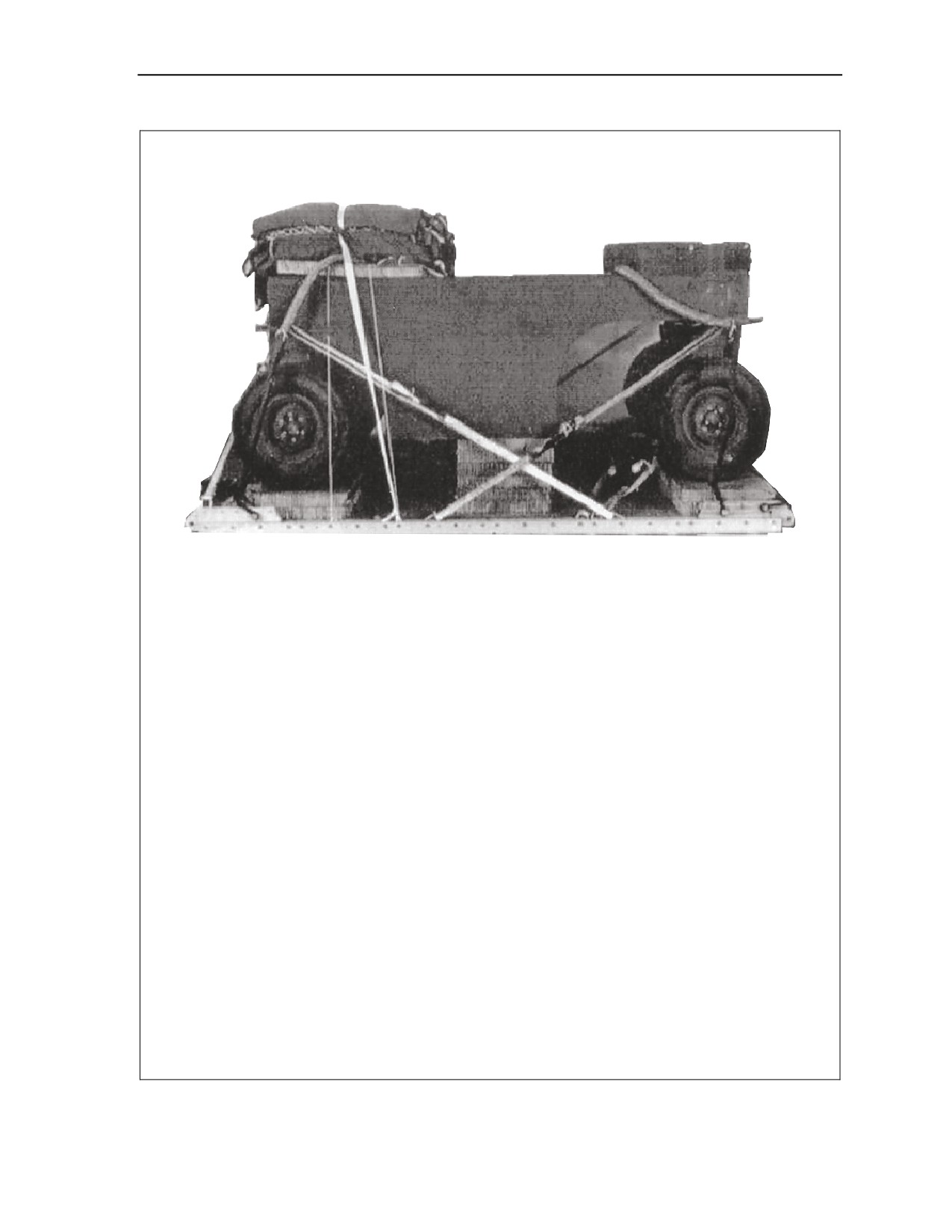

Figure 2-78. 350-GPM Wheel-Mounted Pumping Assembly with Filter/Separator
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-79
Chapter 2
Three 500-Gallon Drums with Pump and Separator
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
19,689 pounds
Height
89 inches
Width
108 inches
Overall Length with EFTC
315 inches
Overall Length with EPJS
333 inches
Overhang: Front (Tongue of Pump)
9 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
144 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Four G-11B
Figure 2-79. Three 500-Gallon Drums with Pump and Separator
2-80
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Four 500-Gallon Drums with Pump and Separator
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
24,408 pounds
Height
89 inches
Width
108 inches
Overall Length with EFTC
363 inches
Overall Length with EPJS
371 inches
Overhang: Front (Tongue of Pump)
9 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
172 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Five G-11C
Figure 2-80. Four 500-Gallon Drums with Pump and Separator
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-81
Chapter 2
Five 500-Gallon Drums with Pump and Separator
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
28,855 pounds
Height
75 inches
Width
108 inches
Overall Length with EFTC
411 inches
Overall Length with EPJS
429 inches
Overhang: Front (Tongue of Pump)
9 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
198 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Six G-11C
Figure 2-81. Five 500-Gallon Drums with Pump and Separator
2-82
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

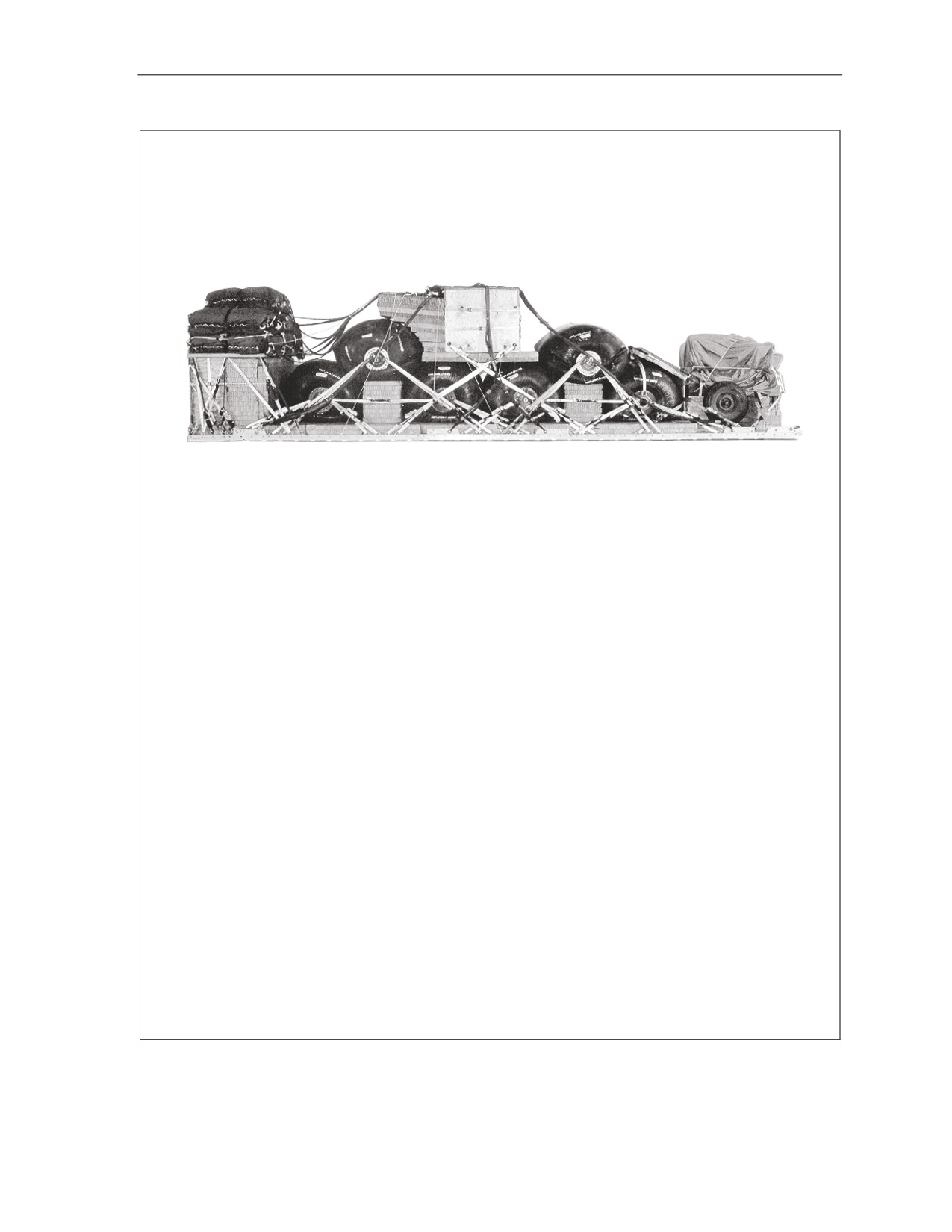

Six 500-Gallon Drums with Pump and Separator
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
32,730 pounds
Height
97 inches
Width
108 inches
Overall Length with EFTC
411 inches
Overall Length with EPJS
429 inches
Overhang: Front (Tongue of Pump)
9 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
201 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Seven G-11C
Figure 2-82. Six 500-Gallon Drums with Pump and Separator
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-83
Chapter 2
AAFARS with Three 500-Gallon Fuel Drums
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
18,501 pounds
Height
88 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front (Tongue of Pump)
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
121 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 20-Foot
Cargo Parachutes: Four G-11B
Figure 2-83. AAFARS with Three 500-Gallon Fuel Drums
2-84
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
AAFARS with Four 500-Gallon Fuel Drums
Reference: FM 4-20.137/TO 13C7-1-19
Weight: Load shown
22,630 pounds
Height
88 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front (Tongue of Pump)
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
121 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 20-Foot
Cargo Parachutes: Five G-11C
Figure 2-84. AAFARS with Four 500-Gallon Fuel Drums
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-85
|
|
