Rigged Load Reference Data
M1093 5-Ton 6x6 Standard Cargo Truck
Reference: FM 10-500-71/TO 13C7-6-141
Weight: Load shown
27,318 pounds
Height
100 inches
Width
108 inches
Overall Length with EFTC
354 inches
Overall Length with EPJS
372 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
150 inches
Accompanying Load: Basic load rigged in bed of truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Six G-11C

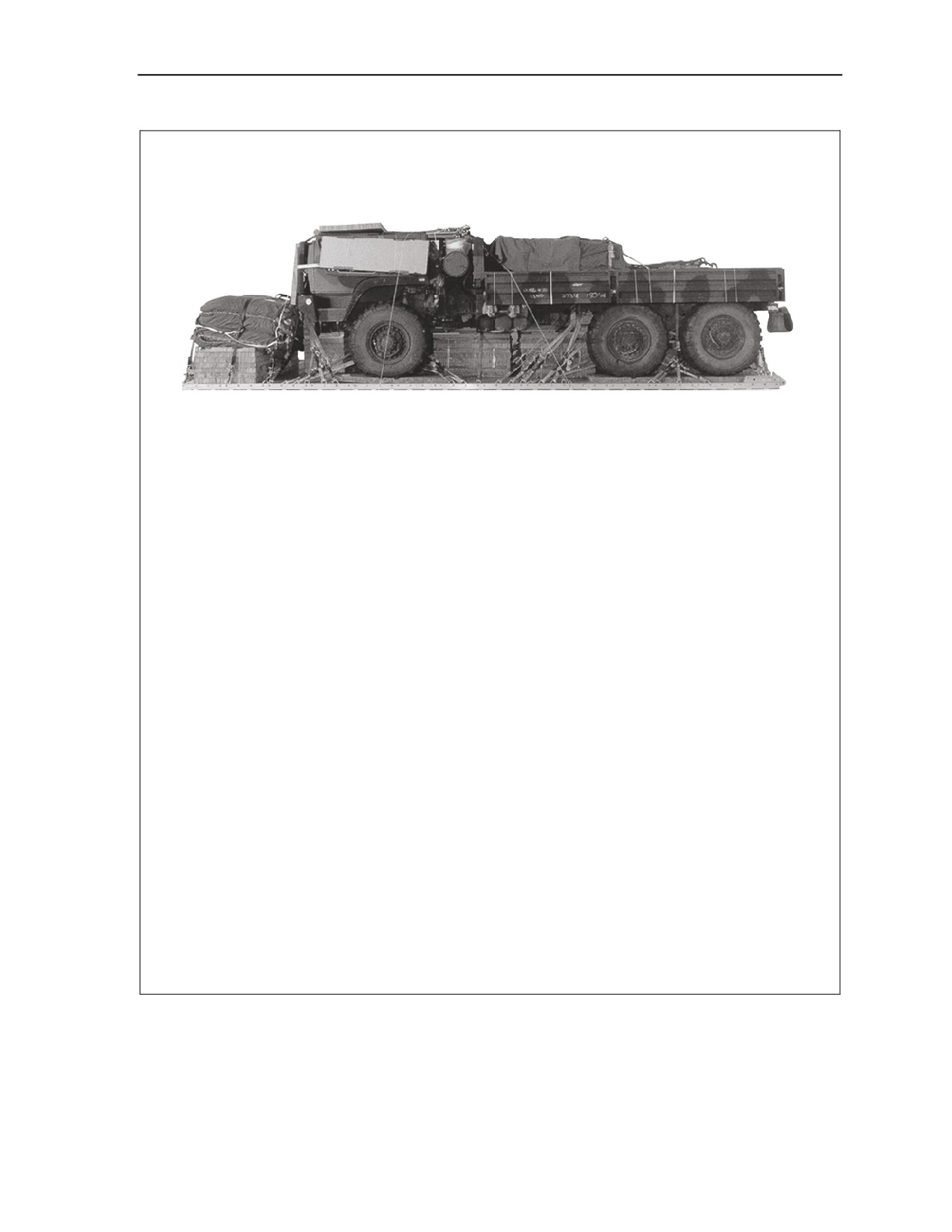

Figure 2-126. M1093 5-Ton 6x6 Standard Cargo Truck
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-127
Chapter 2
M1094, 5-Ton Dump Truck
Reference: FM 10-500-71/TO 13C7-6-141
Weight: Load shown
34,100 pounds
Height
95 inches
Width
108 inches
Overall Length with EFTC
354 inches
Overall Length with EPJS
372 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
144 inches
Accompanying Load: Accompanying load weighing a minimum of 2,000 to 2,200 pounds must
be rigged in the truck.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28 -Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Six G-11C
Figure 2-127. M1094, 5-Ton Dump Truck
2-128
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M-1095, 5-Ton Trailer
Reference: FM 10-500-71/TO 13C7-6-141
Weight: Load shown
30,330 pounds
Height
99 1/2 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
326 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
145 inches
Accompanying Load: Accompanying load consists of sixteen green bag canisters, eight white
bag canisters, five fuse ammo boxes, four M483 HE round racks, and
one M1101A1 WP round rack.
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Six G-11C

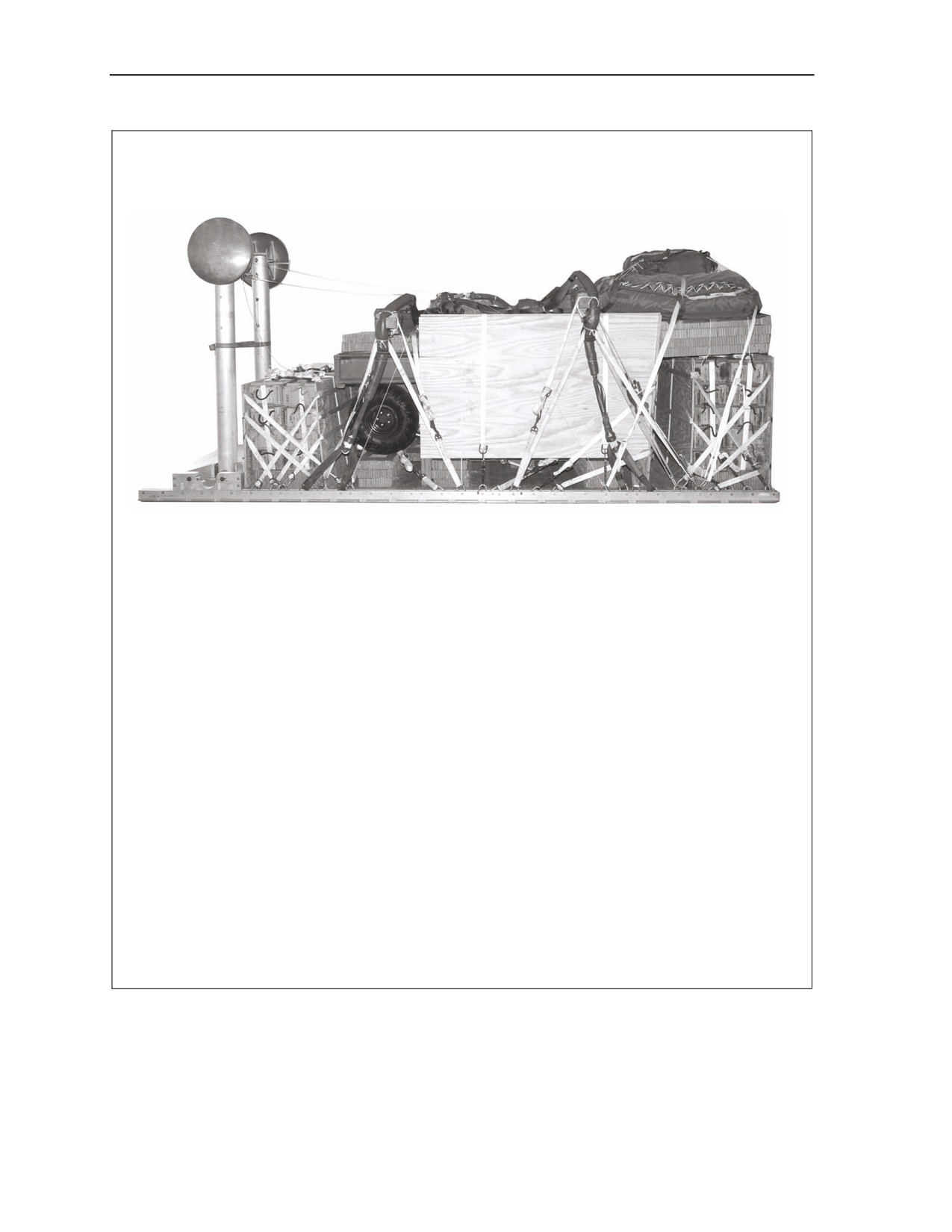

Figure 2-128. M-1095, 5-Ton Trailer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-129
Chapter 2

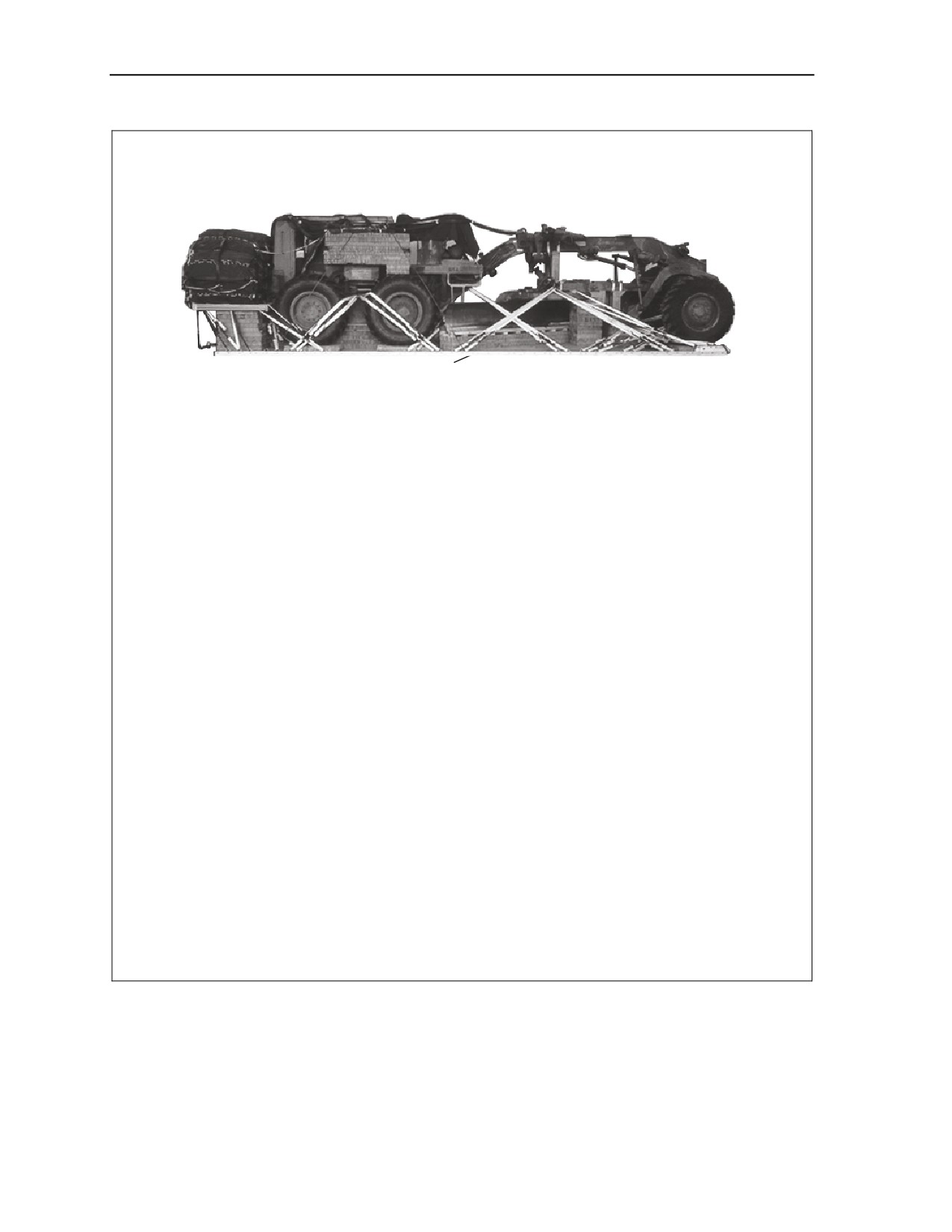

130G Motor Grader
Reference: FM 10-573/TO 13C7-27-141
Weight: Load shown
36,220 pounds
Height
98 inches
Width
108 inches
Overall Length with EFTC
374 inches
Overall Length with EPJS
380 inches
Overhang: Front (Front of Grader)
14 inches
Rear (Parachute Stowage Platform)
24 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
18 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Eight G-11C
Figure 2-129. 130G Motor Grader
2-130
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

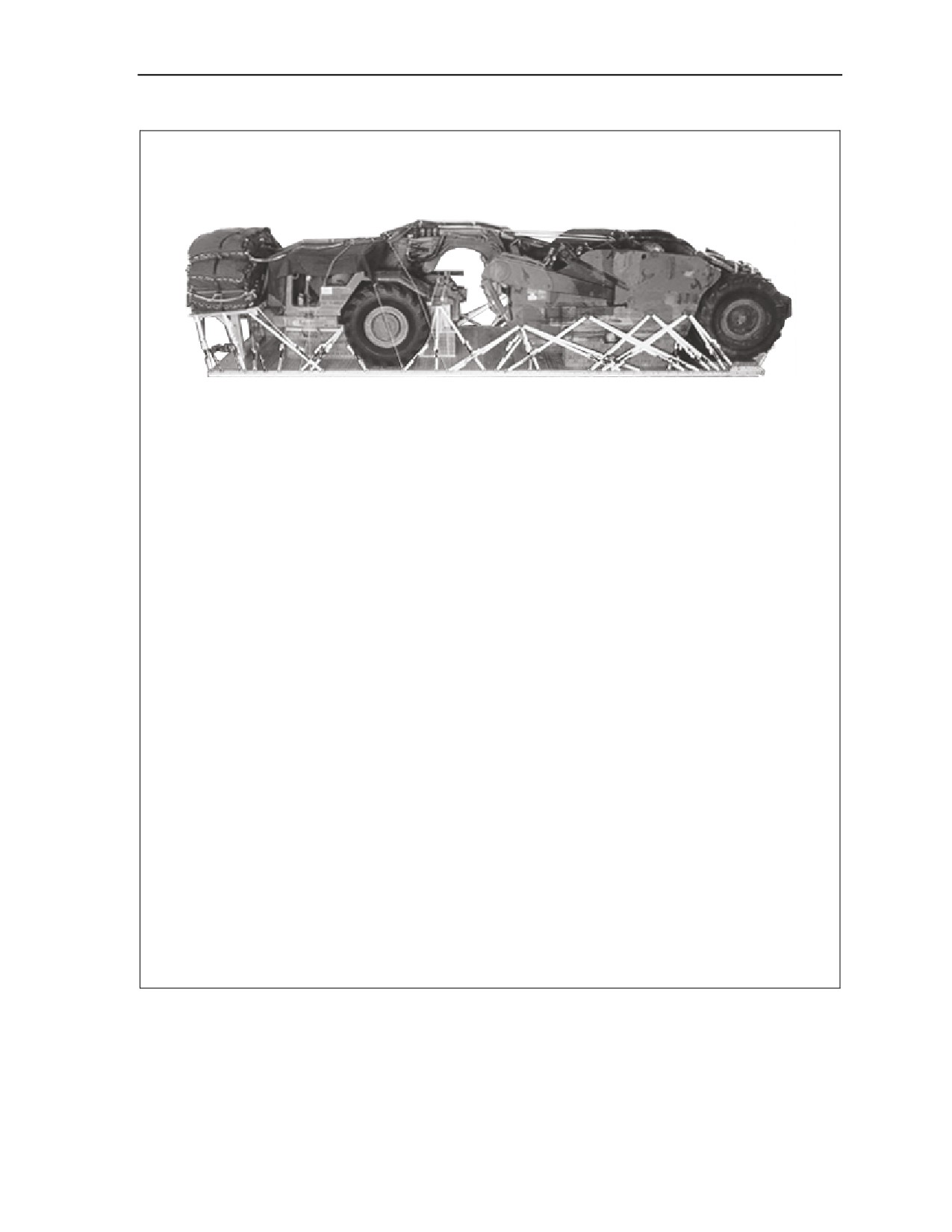

950B Scoop Loader
Reference: FM 4-20.174/TO 13C7-31-31
Weight: Load shown
37,200 pounds
Height
100 inches
Width
108 inches
Overall Length with EFTC
336 inches
Overall Length with EPJS
354 inches
Overhang: Front (Front of Bucket)
27 inches
Rear (Parachute Stowage Platform)
21 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
135 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Eight G-11C

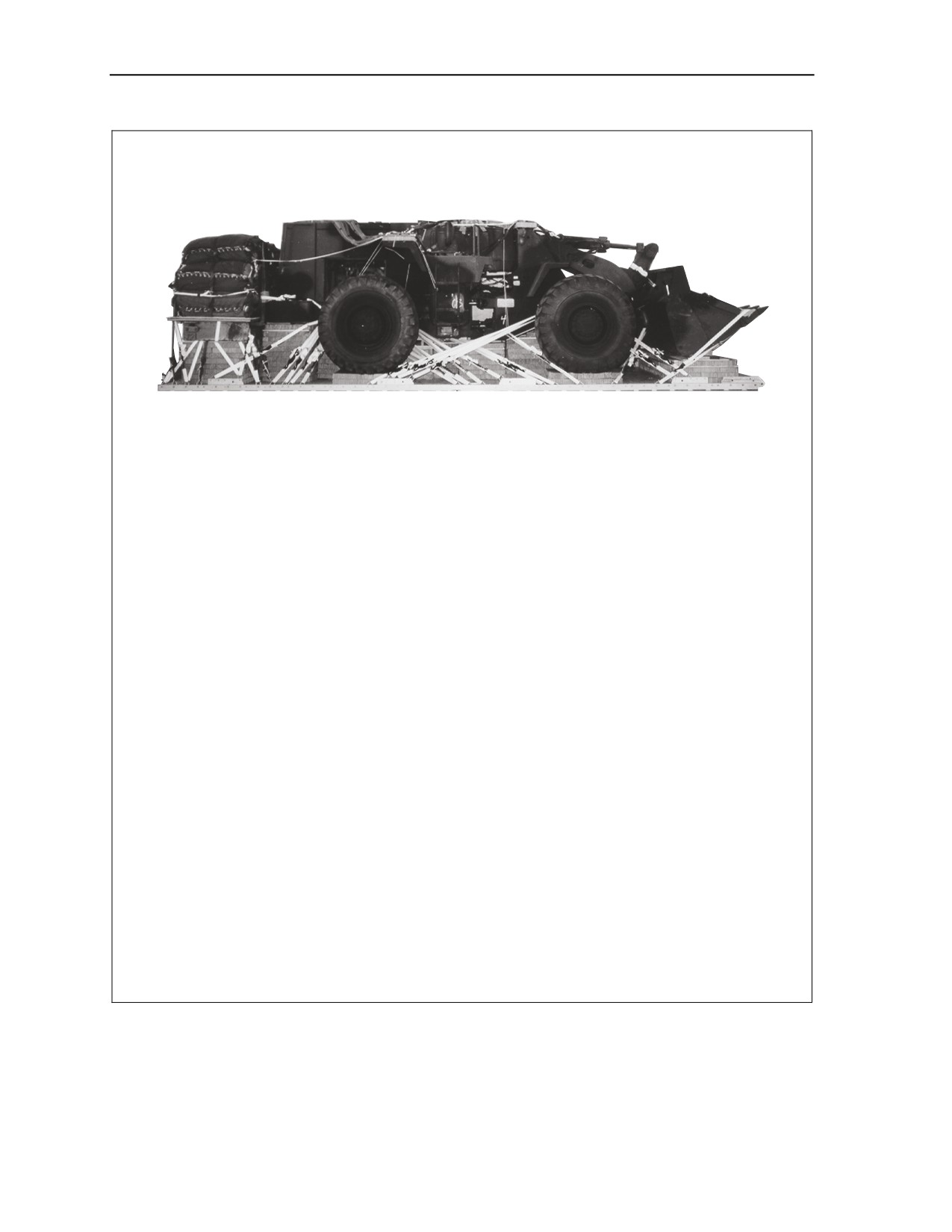

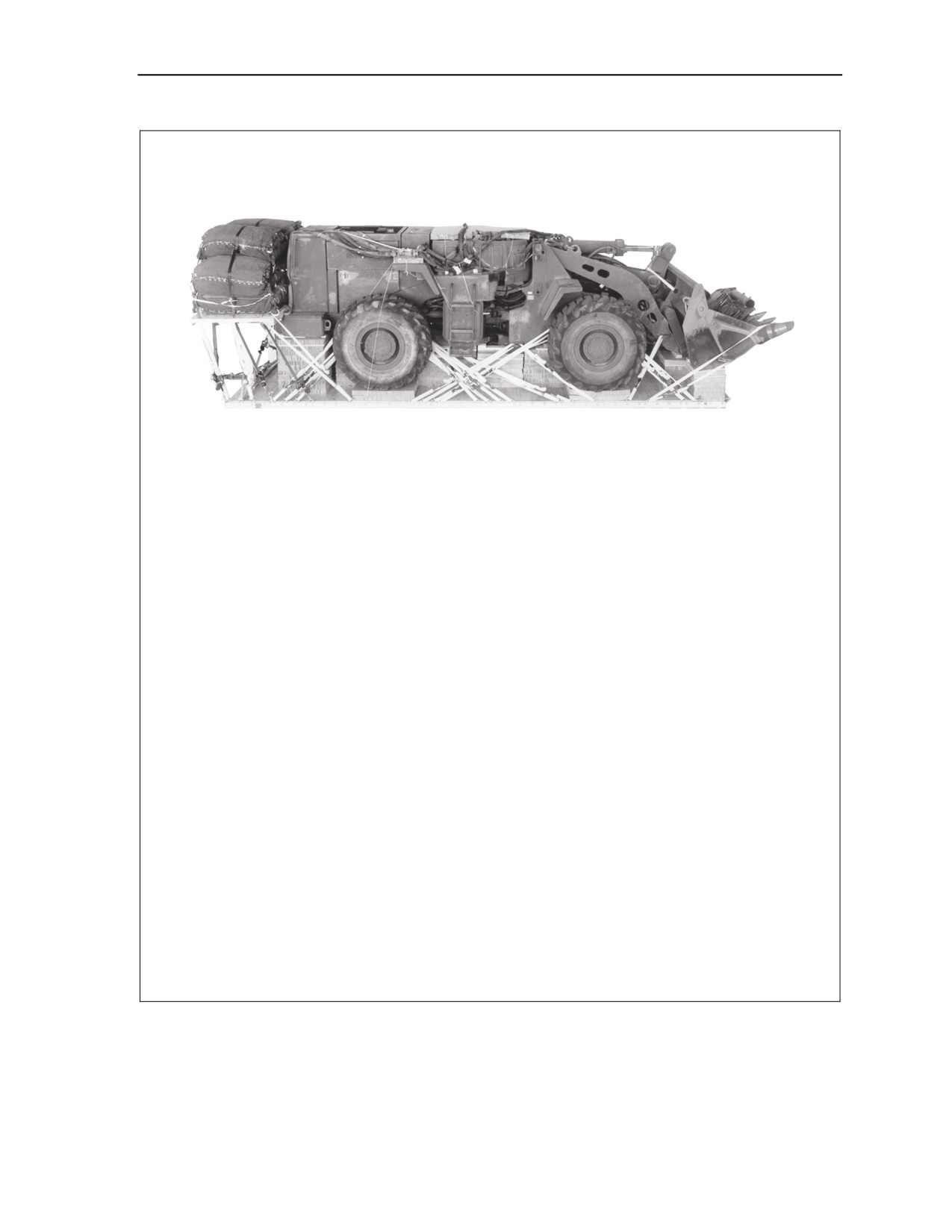

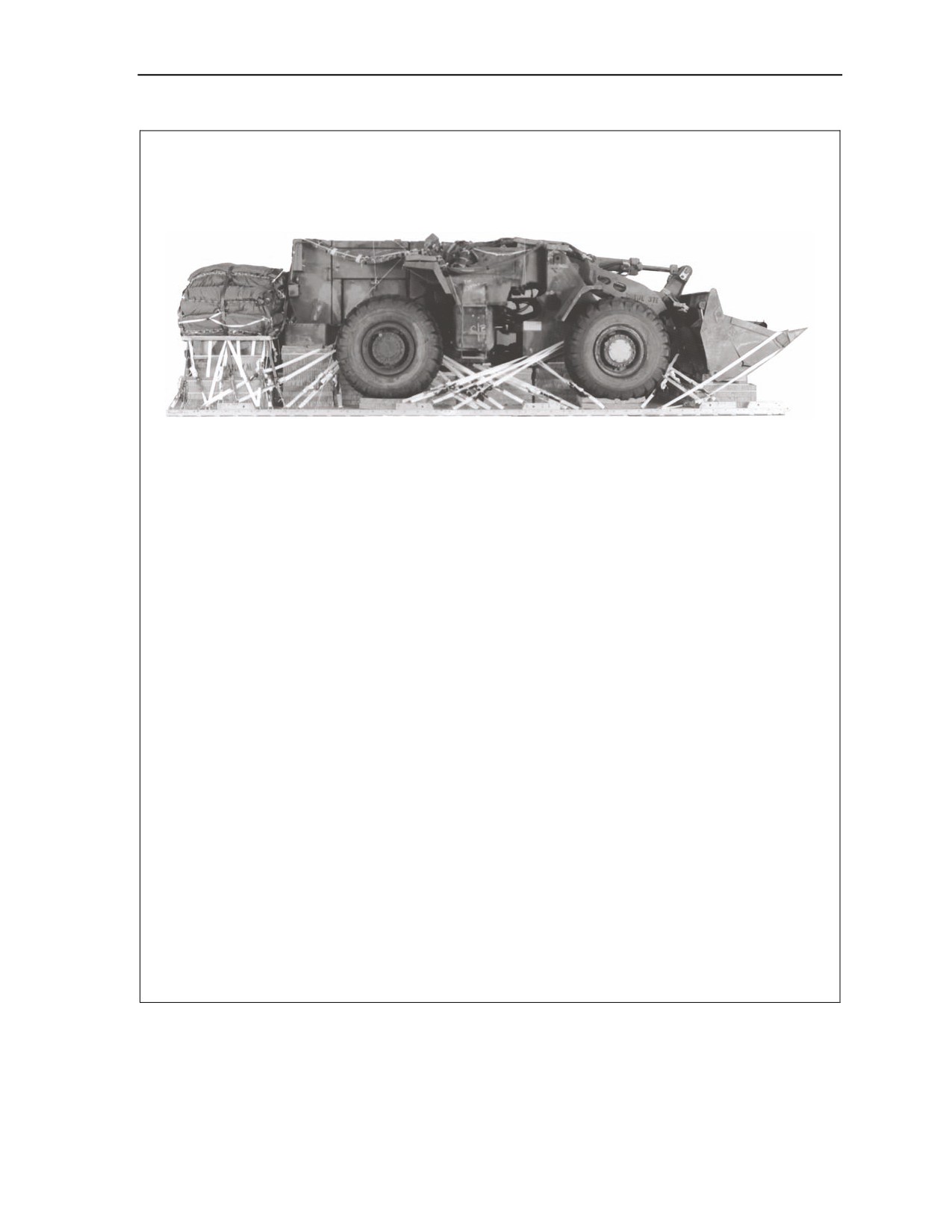

Figure 2-130. 950B Scoop Loader
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-131
Chapter 2
950B Scoop Loader with Five-Foot Forklift Attachment
Reference: FM 4-20.174/TO 13C7-31-31
Weight: Load shown
39,940 pounds
Height
100 inches
Width
108 inches
Overall Length with EFTC
363 inches
Overall Length with EPJS
381 inches
Overhang: Front (Front of Bucket)
9 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
168 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Eight G-11C
Figure 2-131. 950B Scoop Loader with Five-Foot Forklift Attachment
2-132
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
950B Scoop Loader with Seven-Foot Forklift Attachment
Reference: FM 4-20.174/TO 13C7-31-31
Weight: Load shown
39,860 pounds
Height
100 inches
Width
108 inches
Overall Length with EFTC
367 inches
Overall Length with EPJS
385 inches
Overhang: Front (Front of Bucket)
13 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
166 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 28-Foot
Cargo Parachutes: Eight G-11C
Figure 2-132. 950B Scoop Loader with Seven-Foot Forklift Attachment
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-133
Chapter 2

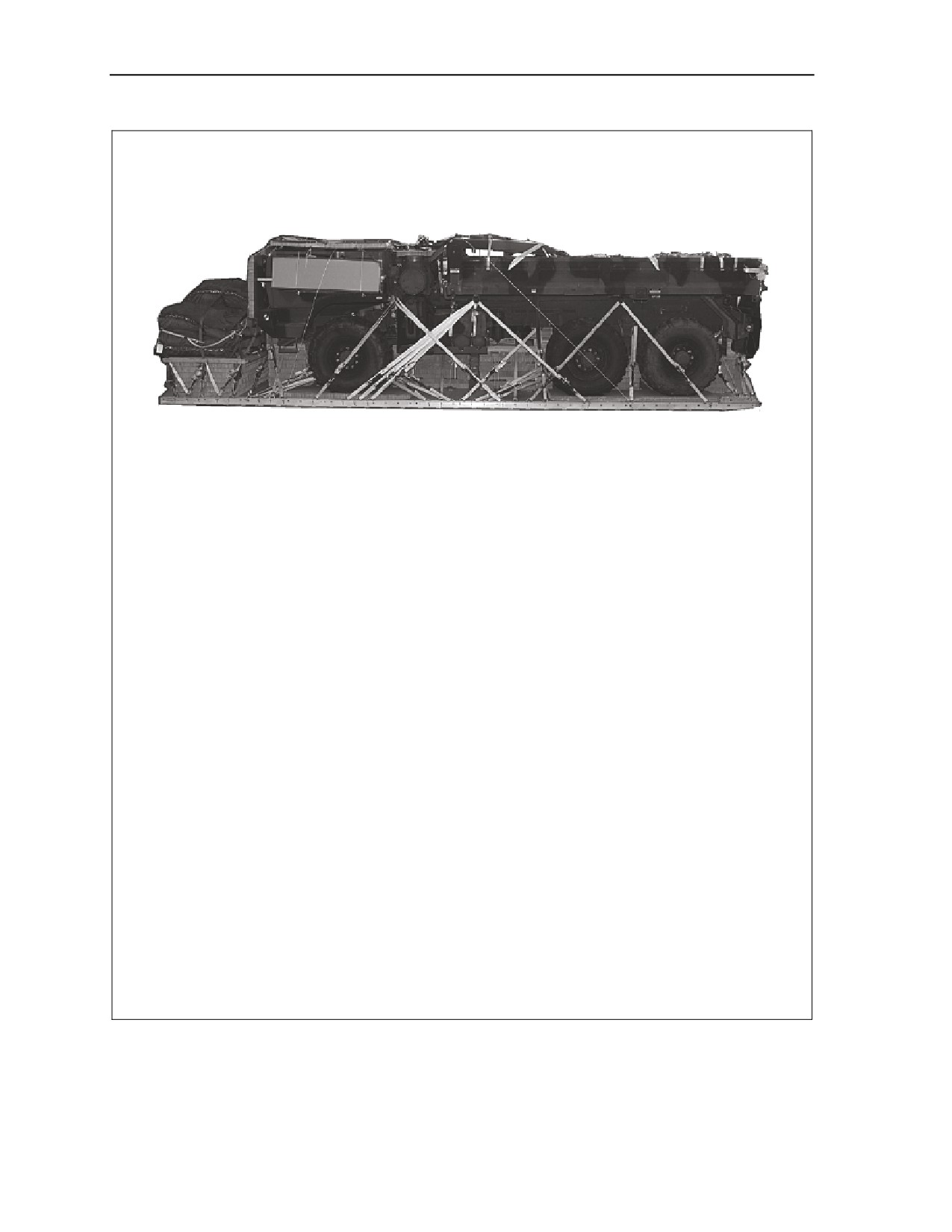

613WD Water Distributor
Reference: FM 10-575/TO 13C7-17-11
Weight: Load shown
37,350 pounds
Height
100 inches
Width
108 inches
Overall Length with EFTC
438 inches
Overall Length with EPJS
456 inches
Overhang: Front (Front of Vehicle)
36 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
177 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Eight G-11C

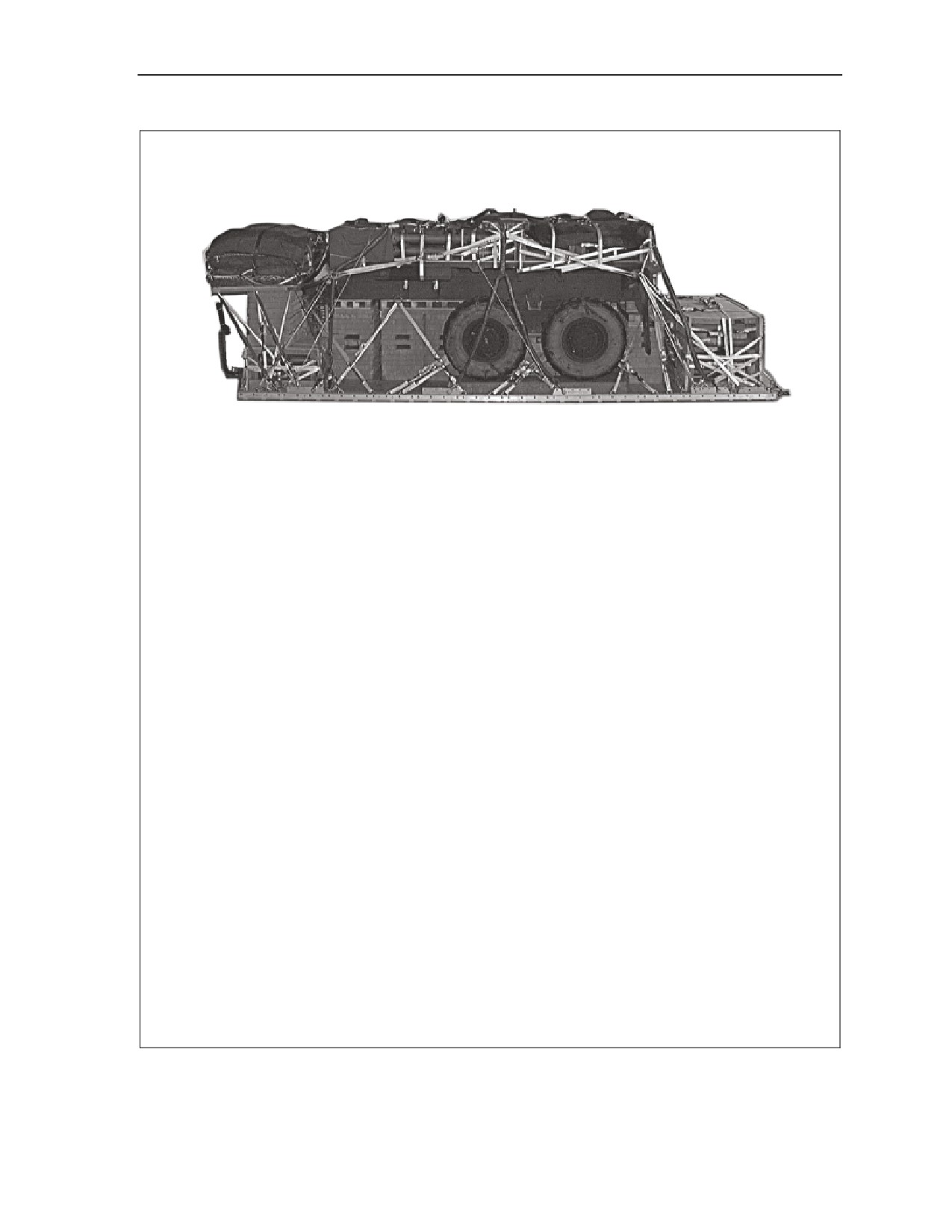

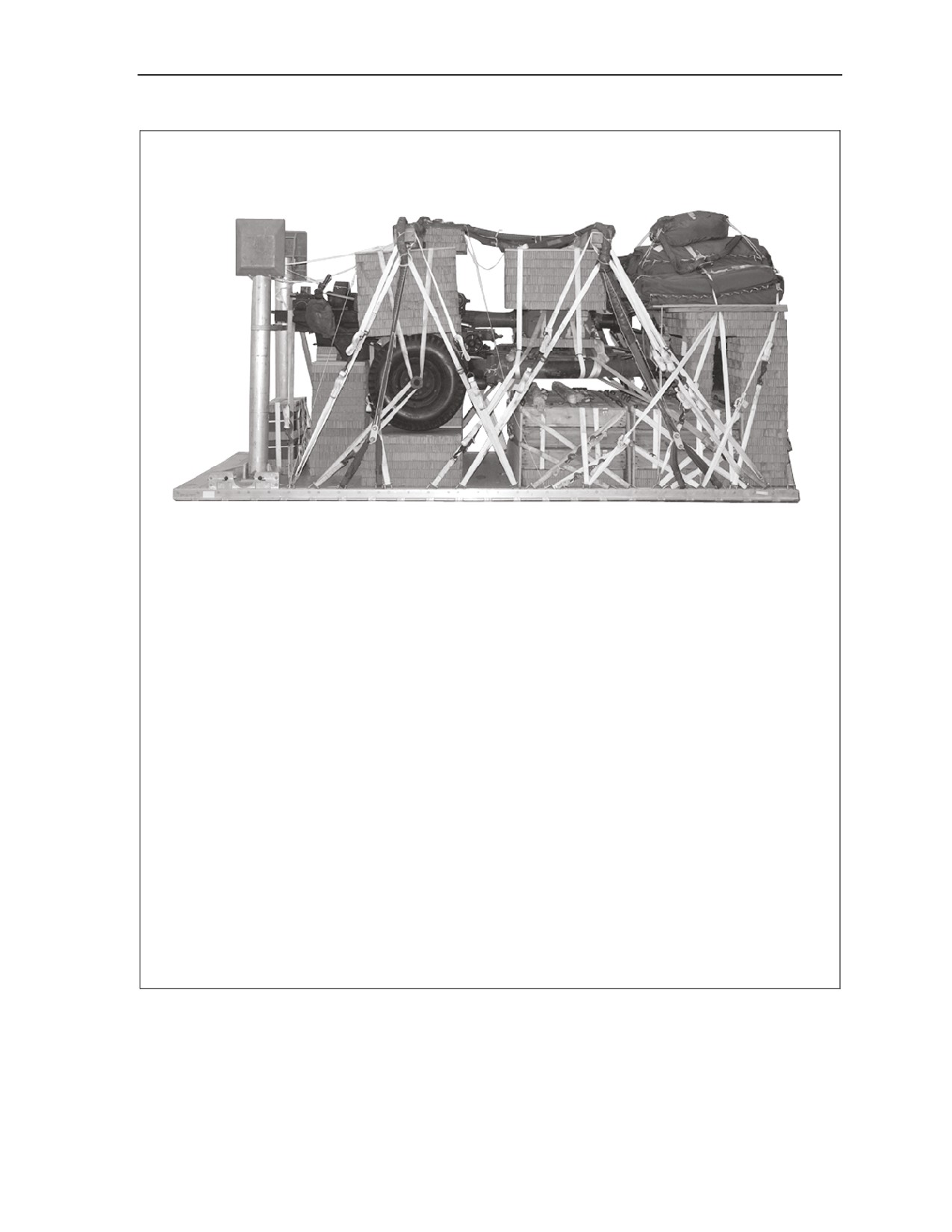

Figure 2-133. 613WD Water Distributor
2-134
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

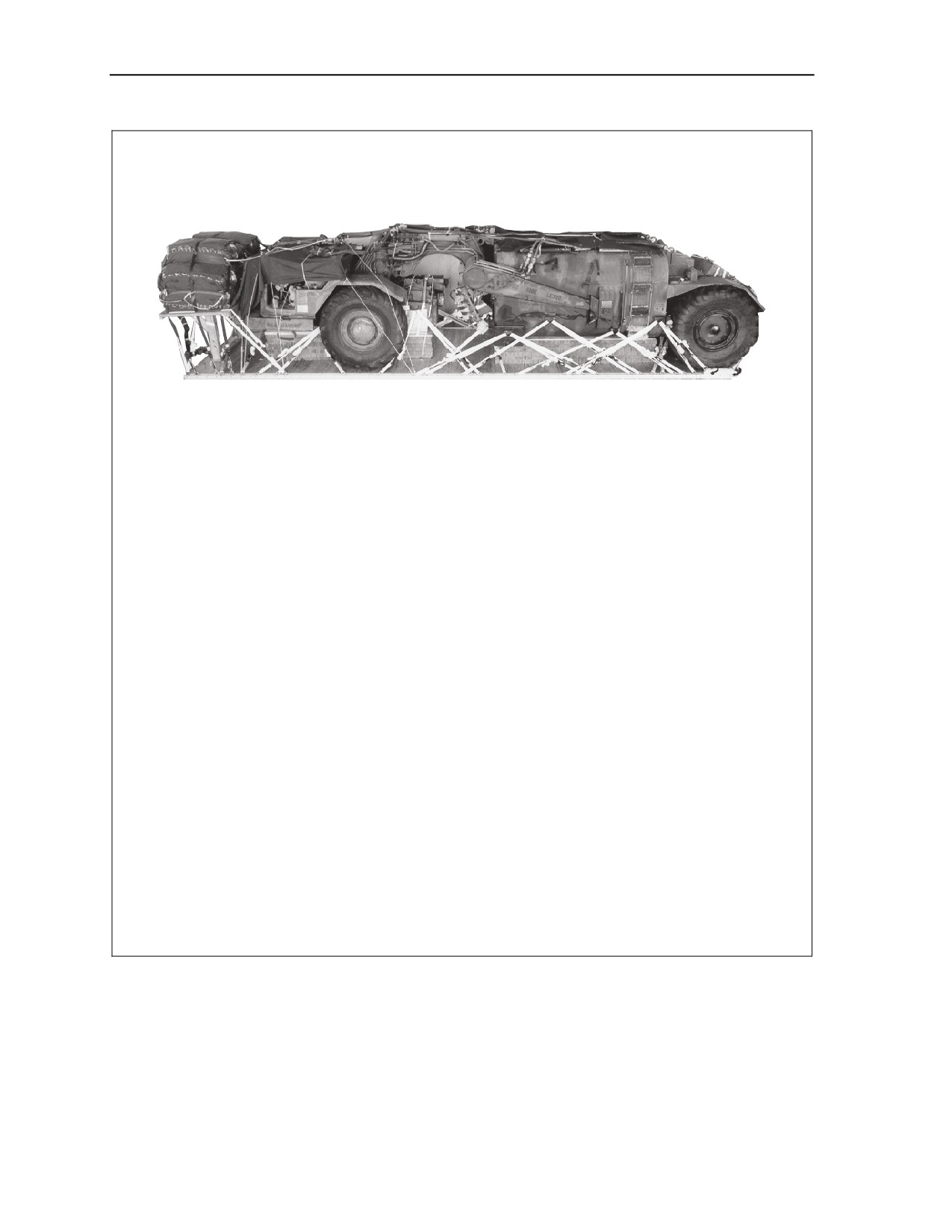

613S Type I Scraper
Reference: FM 10-576/TO 13C7-27-151
Weight: Load shown
37,880 pounds
Height
98 1/2 inches
Width
108 inches
Overall Length with EFTC
440 inches
Overall Length with EPJS
458 inches
Overhang: Front (Front of Vehicle)
36 inches
Rear (Parachute Stowage Platform)
21 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
181 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: Two 28-Foot
Extraction Parachute C-17: Two 28-Foot
Platform Size: 32-Foot
Cargo Parachutes: Eight G-11C
Figure 2-134. 613S Type I Scraper
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-135
Chapter 2
Rapid Runway Repair (RRR) Kit on 24-Foot Platform
Reference: FM 10-579/TO 13C7-50-1
Weight: Load shown
24,360 pounds
Height
90 inches
Width
108 inches
Overall Length with EFTC
306 inches
Overall Length with EPJS
328 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
136 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform Size: 24-Foot
Cargo Parachutes: Five G-11C
Figure 2-135. Rapid Runway Repair (RRR) Kit on 24-Foot Platform
2-136
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Rapid Runway Repair (RRR) Kit on 20-Foot Platform
Reference: FM 10-579/TO 13C7-50-1
Weight: Load shown
14,080 pounds
Height
67 inches
Width
108 inches
Overall Length with EFTC
258 inches
Overall Length with EPJS
276 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
124 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 20 -Foot
Cargo Parachutes: Three G-11B

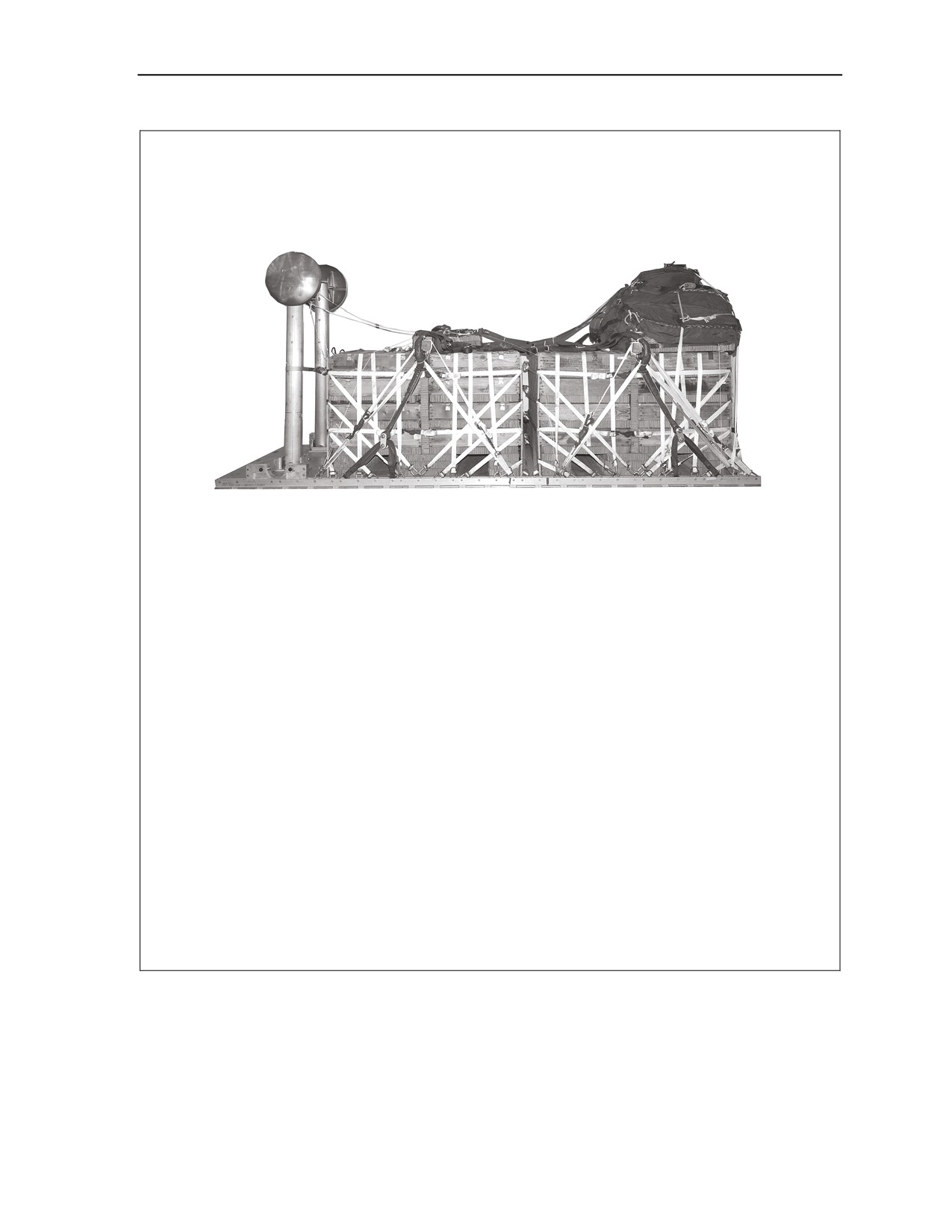

Figure 2-136. Rapid Runway Repair (RRR) Kit on 20-Foot Platform
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-137
Chapter 2
Rapid Runway Repair (RRR) Kit-ALPHA
Reference: FM 10-579/TO 13C7-50-1
Weight: Load shown
13,260 pounds
Height
59 1/2 inches
Width
108 inches
Overall Length with EFTC
402 inches
Overall Length with EPJS
420 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
189 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 22-Foot
Extraction Parachute C-17: 22-Foot
Platform Size: 32-Foot
Cargo Parachutes: Three G-11B

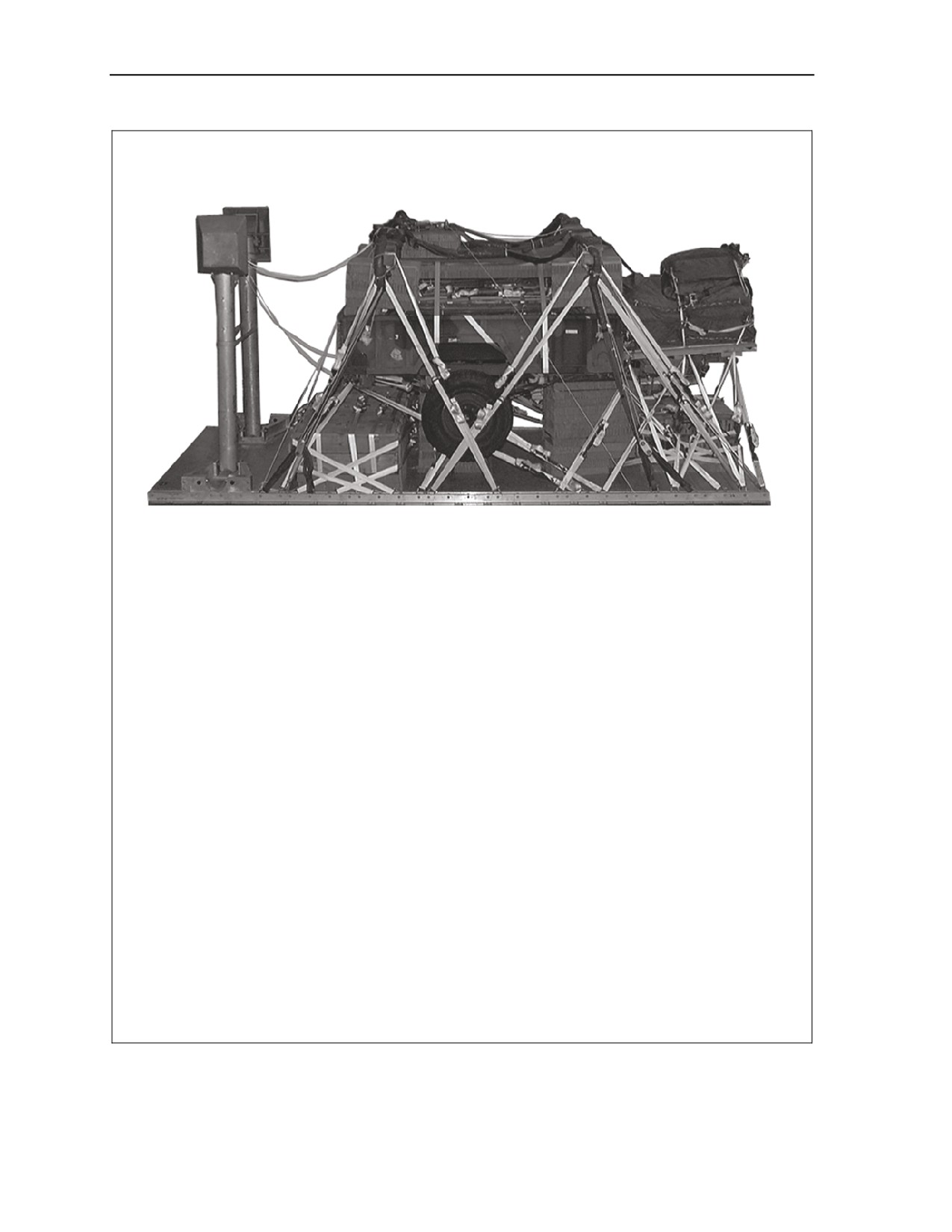

Figure 2-137. Rapid Runway Repair (RRR) Kit-ALPHA
2-138
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Trailer-Mounted Engineer Electrical Tool Outfit
Reference: FM 10-591/TO 13C7-8-31
Weight: Load shown
4,520 pounds
Height
82 inches
Width
108 inches
Overall Length with EFTC
164 inches
Overall Length with EPJS
174 inches
Overhang: Front
0 inches
Rear (Lunette)
20 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
72 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 15-Foot
Extraction Parachute C-17: 15-Foot
Platform Size: 12-Foot
Cargo Parachute: One G-11B

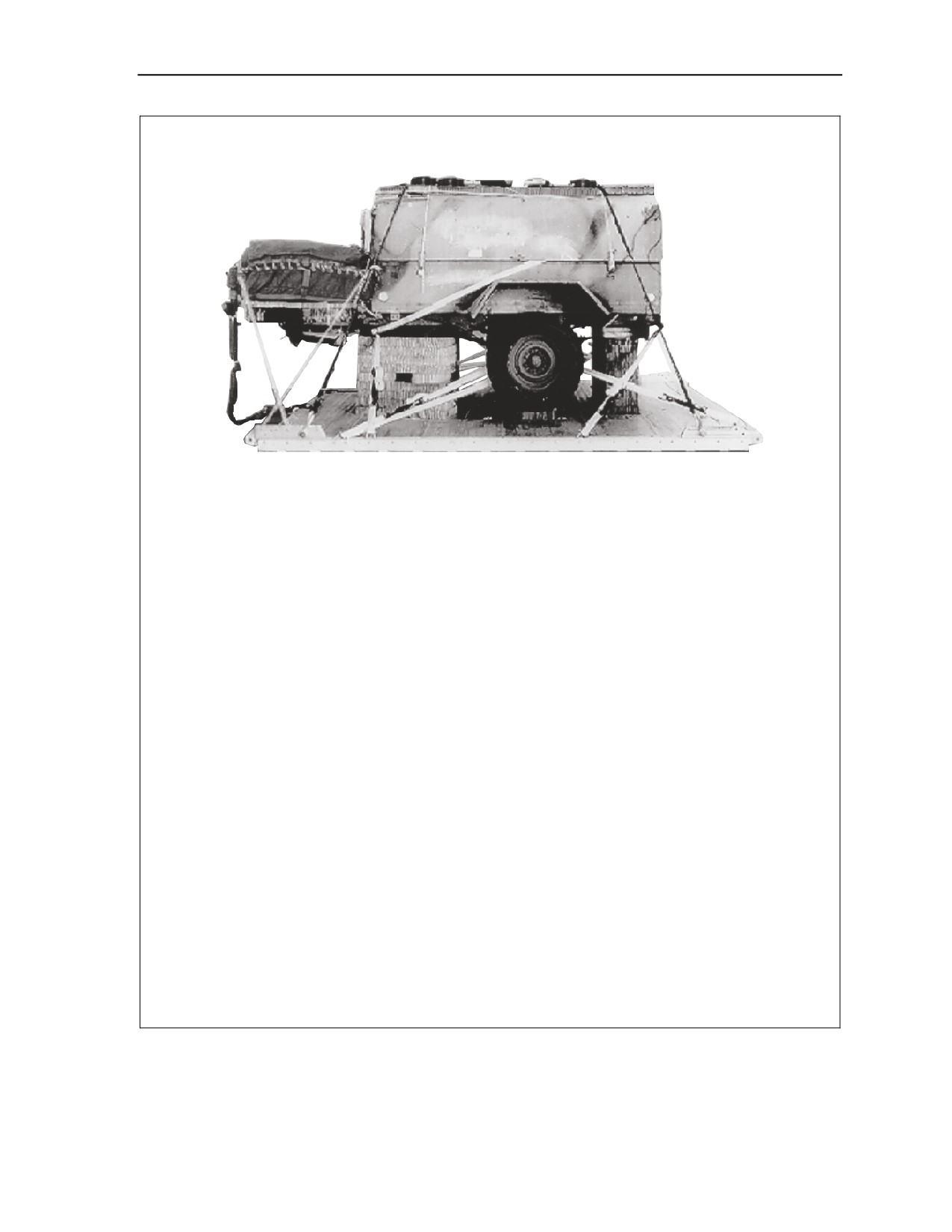

Figure 2-138. Trailer-Mounted Engineer Electrical Tool Outfit
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-139
Chapter 2
SECTION III - LOW-VELOCITY AIRDROP ON COMBAT EXPENDABLE
PLATFORM

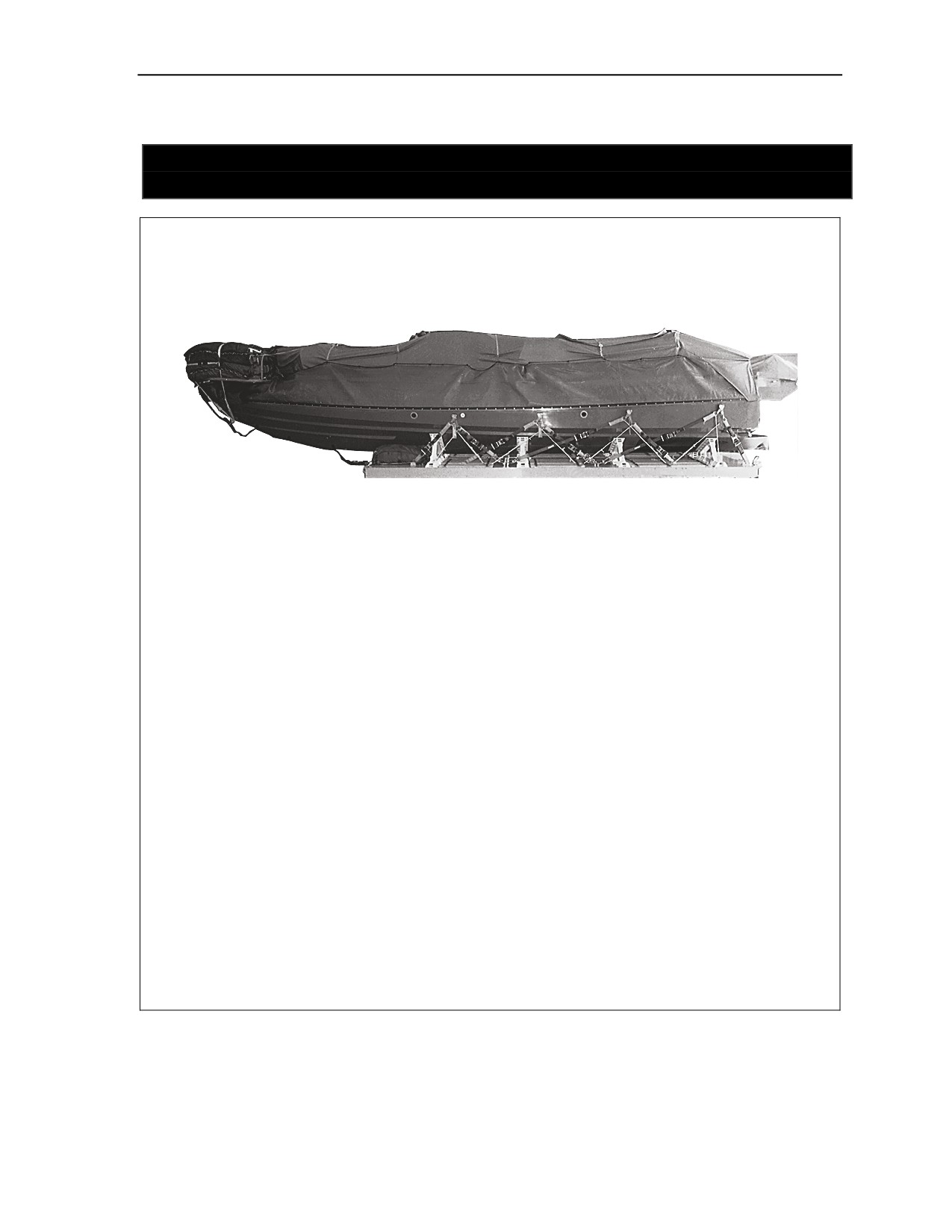

Zodiac Mark III Rubber Raiding Craft
Reference: FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21
Weight: Load shown
2,470 pounds
Height
60 inches
Width
75 inches
Overall Length
184 inches
Overhang: Front (Rear of Boat)
17 inches
Rear (Front of Boat)
23 inches
Center of Balance (from front edge of platform)
60 inches
Accompanying Load: An accompanying load must weigh between 650 and 1,170 pounds.
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: 15-Foot Drogue
Extraction Parachute C-17: 15-Foot Drogue
Platform Size: 75- by 144-inch
Cargo Parachute: One G-12E

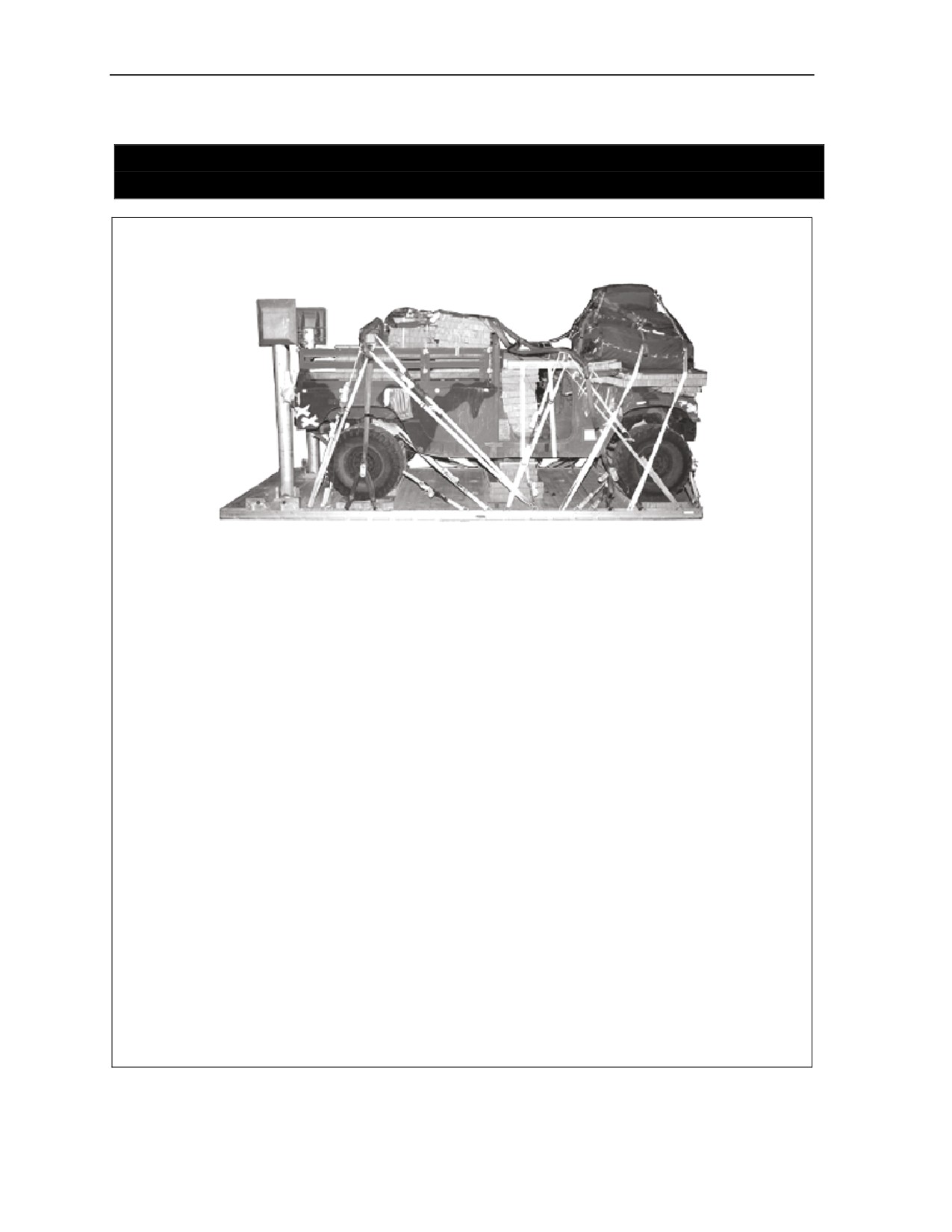

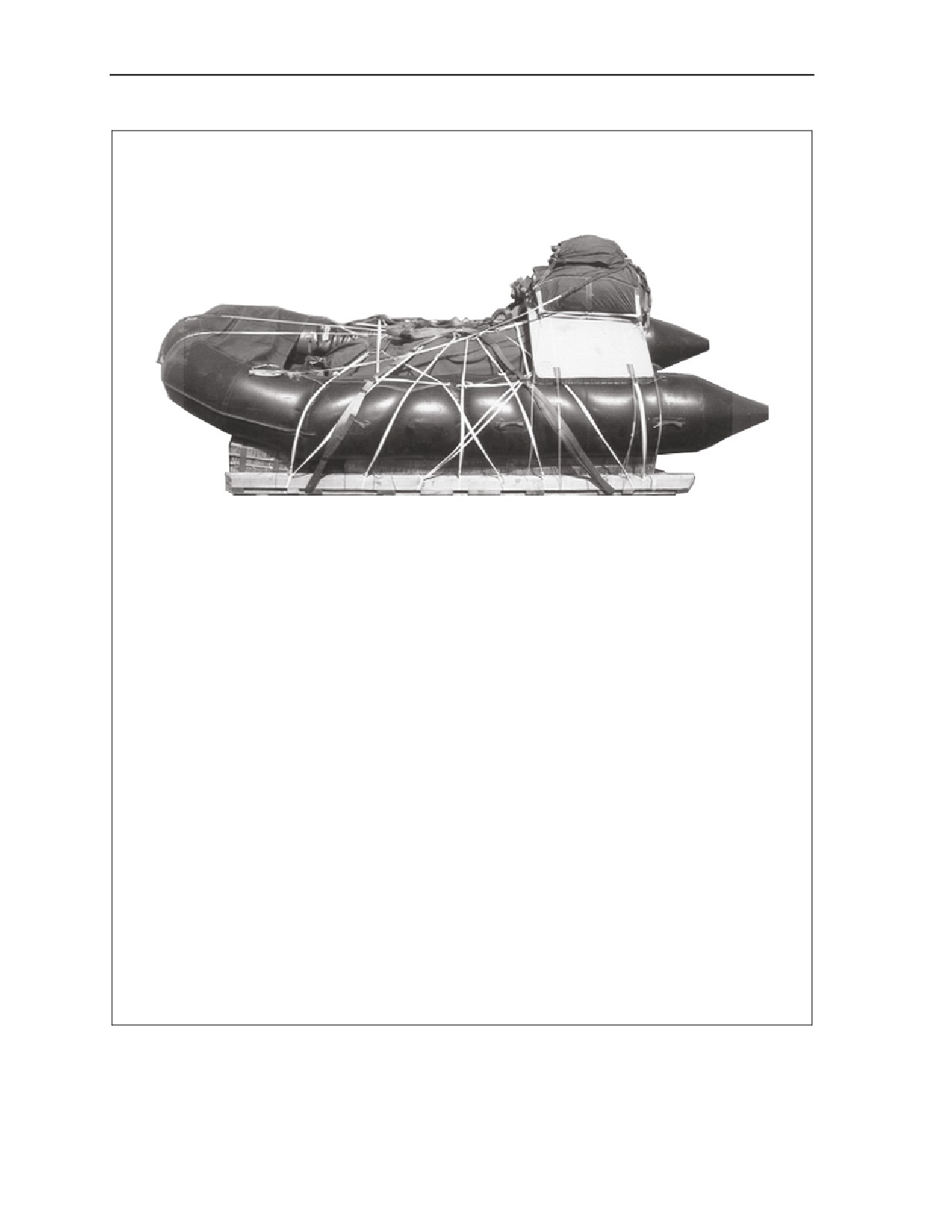

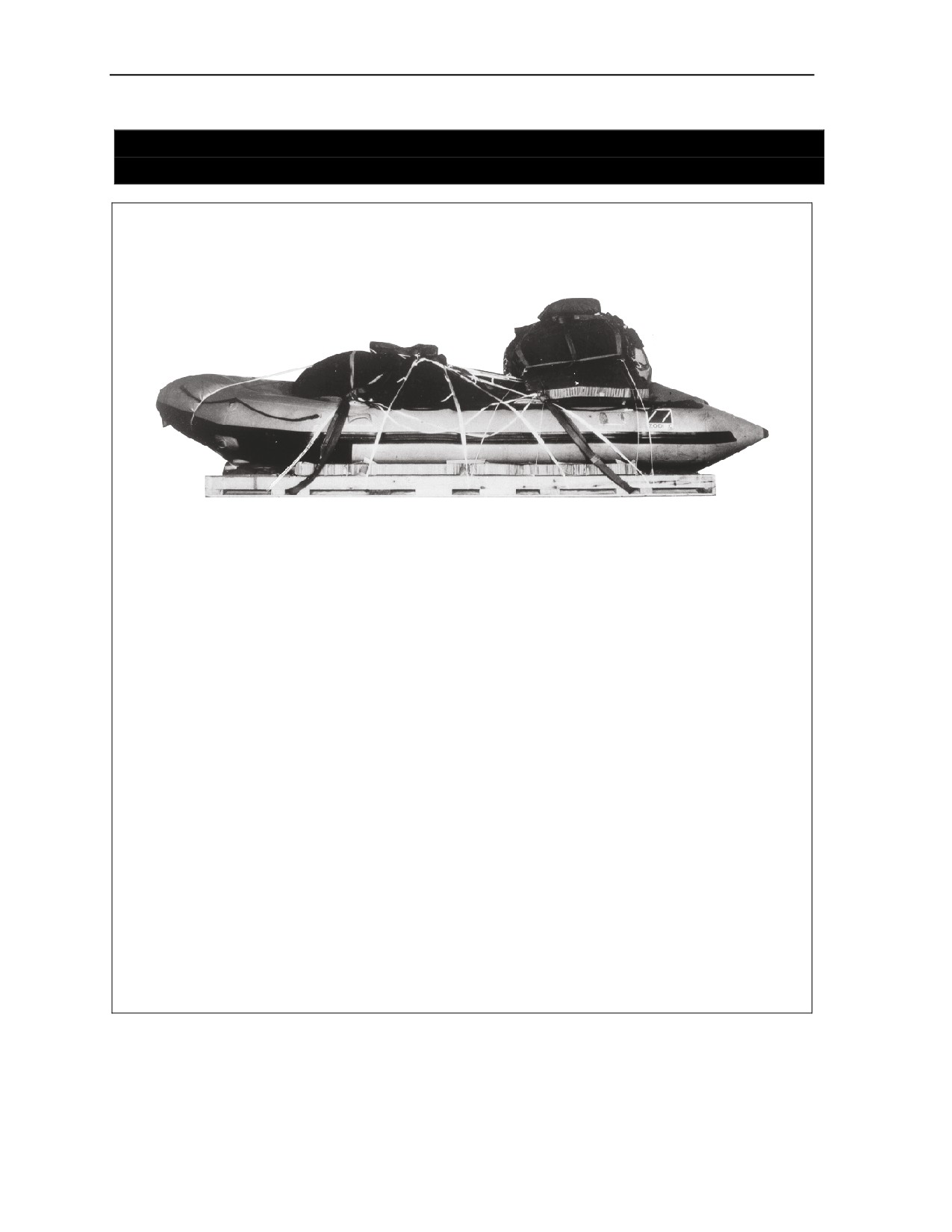

Figure 2-139. Zodiac Mark III Rubber Raiding Craft
2-140
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data

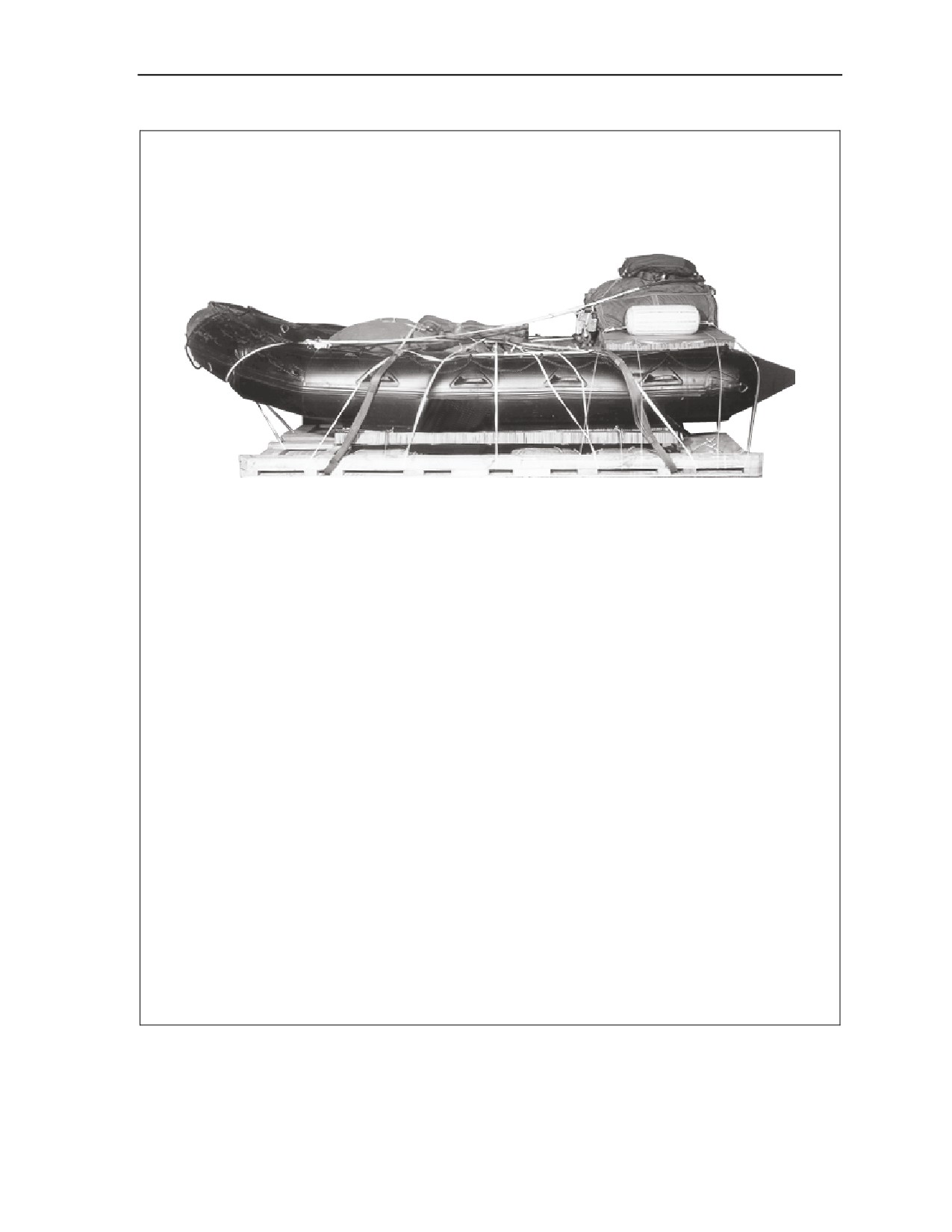

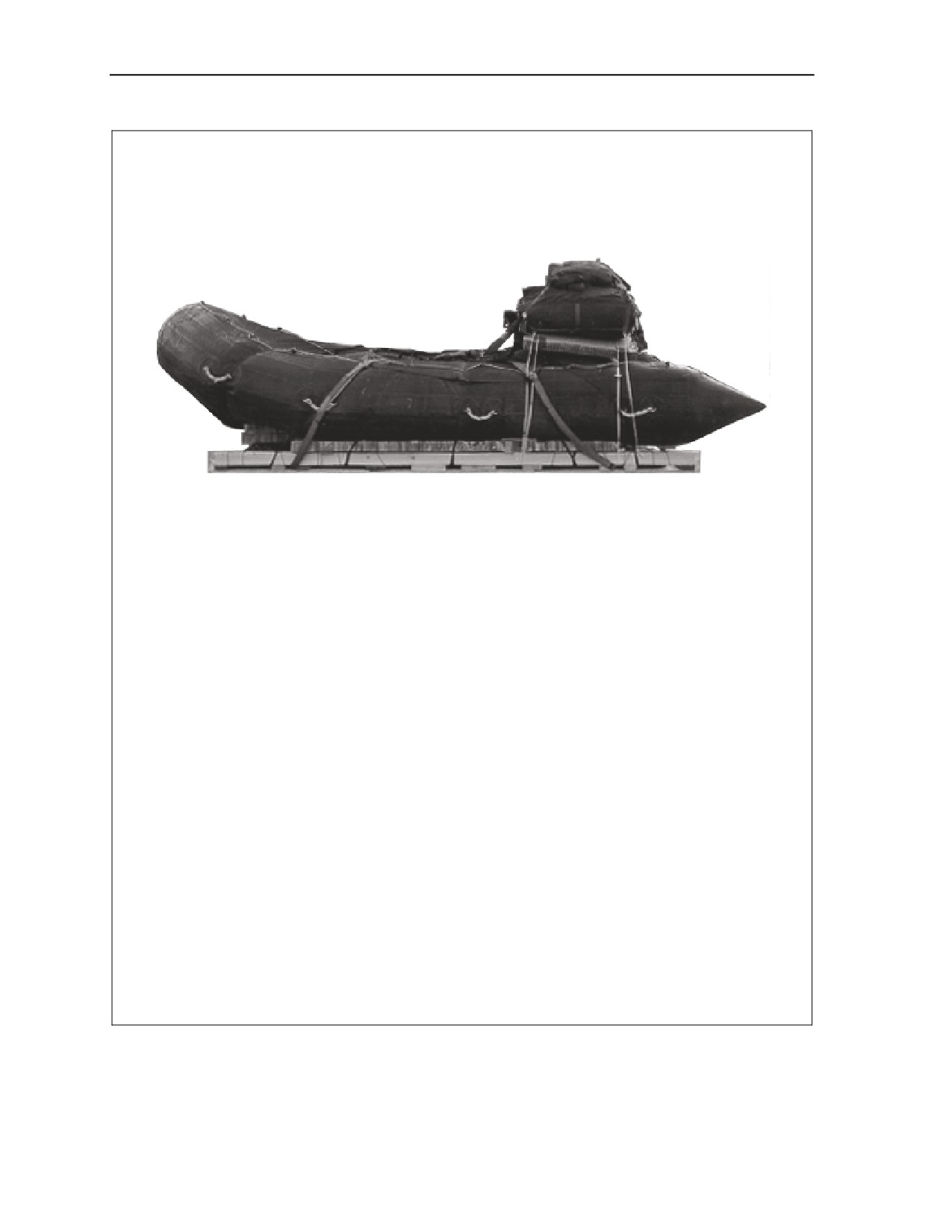

Zodiac Mark III Futura Rubber Raiding Craft
Reference: FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21
Weight: Load shown
2,440 pounds
Height
67 inches
Width
75 inches
Overall Length
185 inches
Overhang: Front (Rear of Boat)
18 inches
Rear (Front of Boat)
23 inches
Center of Balance (from front edge of platform)
60 inches
Accompanying Load: An accompanying load must weigh between 650 and 1,170 pounds.
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: 15-Foot Drogue
Extraction Parachute C-17: 15-Foot Drogue
Platform Size: 75- by 144-inch
Cargo Parachute: One G-12E
Figure 2-140. Zodiac Mark III Futura Rubber Raiding Craft
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-141
Chapter 2
Z-Bird Rubber Raiding Craft
Reference: FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21
Weight: Load shown
2,470 pounds
Height
60 inches
Width
75 inches
Overall Length
185 inches
Overhang: Front (Rear of Boat)
17 inches
Rear (Front of Boat)
23 inches
Center of Balance (from front edge of platform)
60 inches
Accompanying Load: An accompanying load must weigh between 650 and 1,170 pounds.
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: 15-Foot Drogue
Extraction Parachute C-17: 15-Foot Drogue
Platform Size: 75- by 144-inch
Cargo Parachute: One G-12E
Figure 2-141. Z-Bird Rubber Raiding Craft
2-142
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Zodiac K40 Rubber Raiding Craft
Reference: FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21
Weight: Load shown
2,208 pounds
Height
70 inches
Width
82 inches
Overall Length
176 inches
Overhang: Front (Rear of Boat)
20 inches
Rear (Front of Boat)
12 inches
Center of Balance (from front edge of platform)
60 inches
Accompanying Load: An accompanying load must weigh between 470 and 870 pounds.
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: 15-Foot Drogue
Extraction Parachute C-17: 15-Foot Drogue
Platform Size: 75- by 144-inch
Cargo Parachute: One G-12E

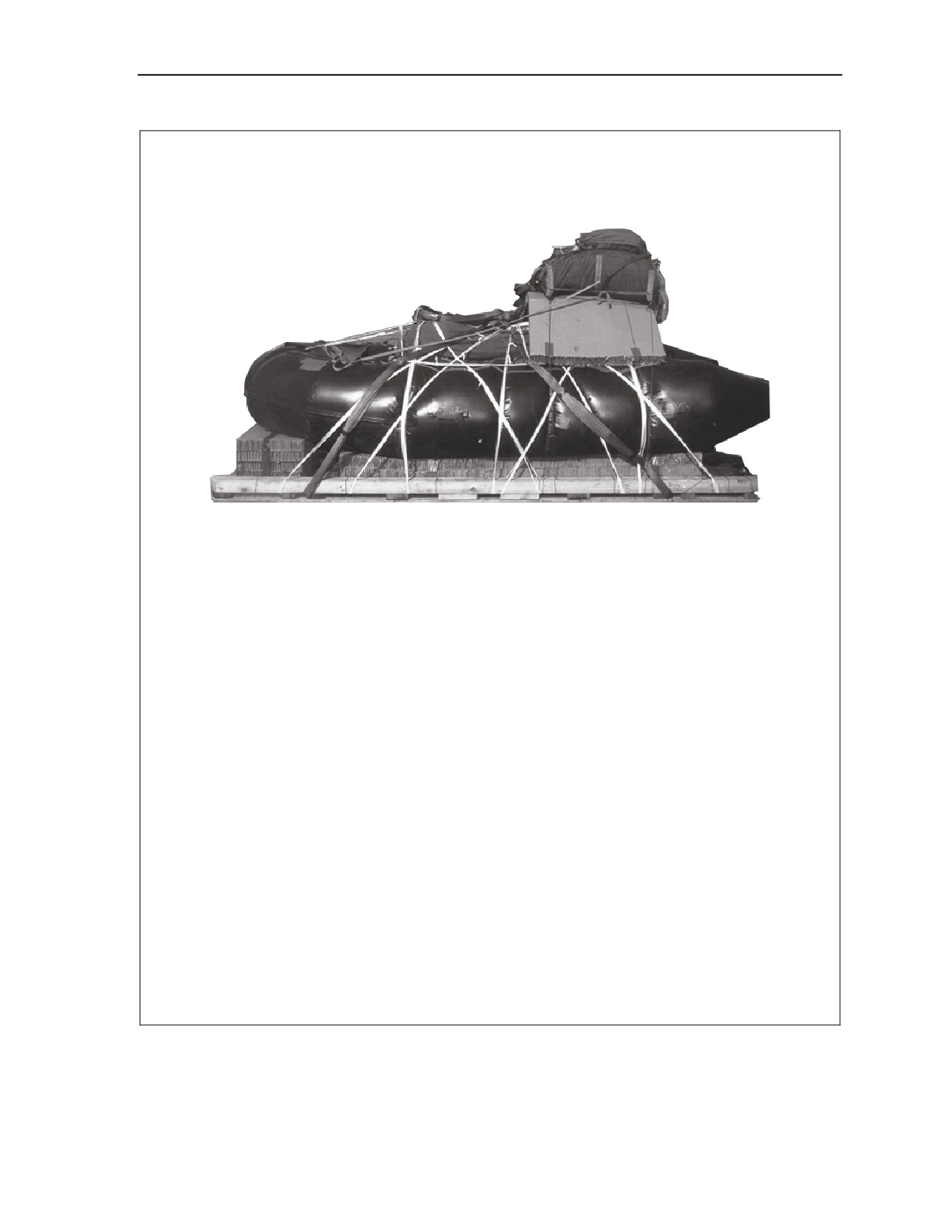

Figure 2-142. Zodiac K40 Rubber Raiding Craft
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-143
Chapter 2
Zodiac K50 Rubber Raiding Craft
Reference: FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21
Weight: Load shown
2,218 pounds
Height
70 inches
Width
75 inches
Overall Length
194 inches
Overhang: Front (Rear of Boat)
25 inches
Rear (Front of Boat)
25 inches
Center of Balance (from front edge of platform)
52 inches
Accompanying Load: An accompanying load must weigh between 650 and 850 pounds.
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: 15-Foot Drogue
Extraction Parachute C-17: 15-Foot Drogue
Platform Size: 75- by 144-inch
Cargo Parachute: One G-12E
Figure 2-143. Zodiac K50 Rubber Raiding Craft
2-144
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Double Zodiac F470U Boat
Reference: FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21
Weight: Load shown
3,500 pounds
Height
86 inches
Width
75 inches
Overall Length
189 inches
Overhang: Front (Rear of Boat)
16 inches
Rear (Front of Boat)
29 inches
Center of Balance (from front edge of platform)
60 inches
Accompanying Load: An accompanying load must weigh between 650 and 1,170 pounds.
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: NA
Extraction Parachute C-17: NA
Platform Size: 75- by 144-inch
Cargo Parachutes: Two G-12E

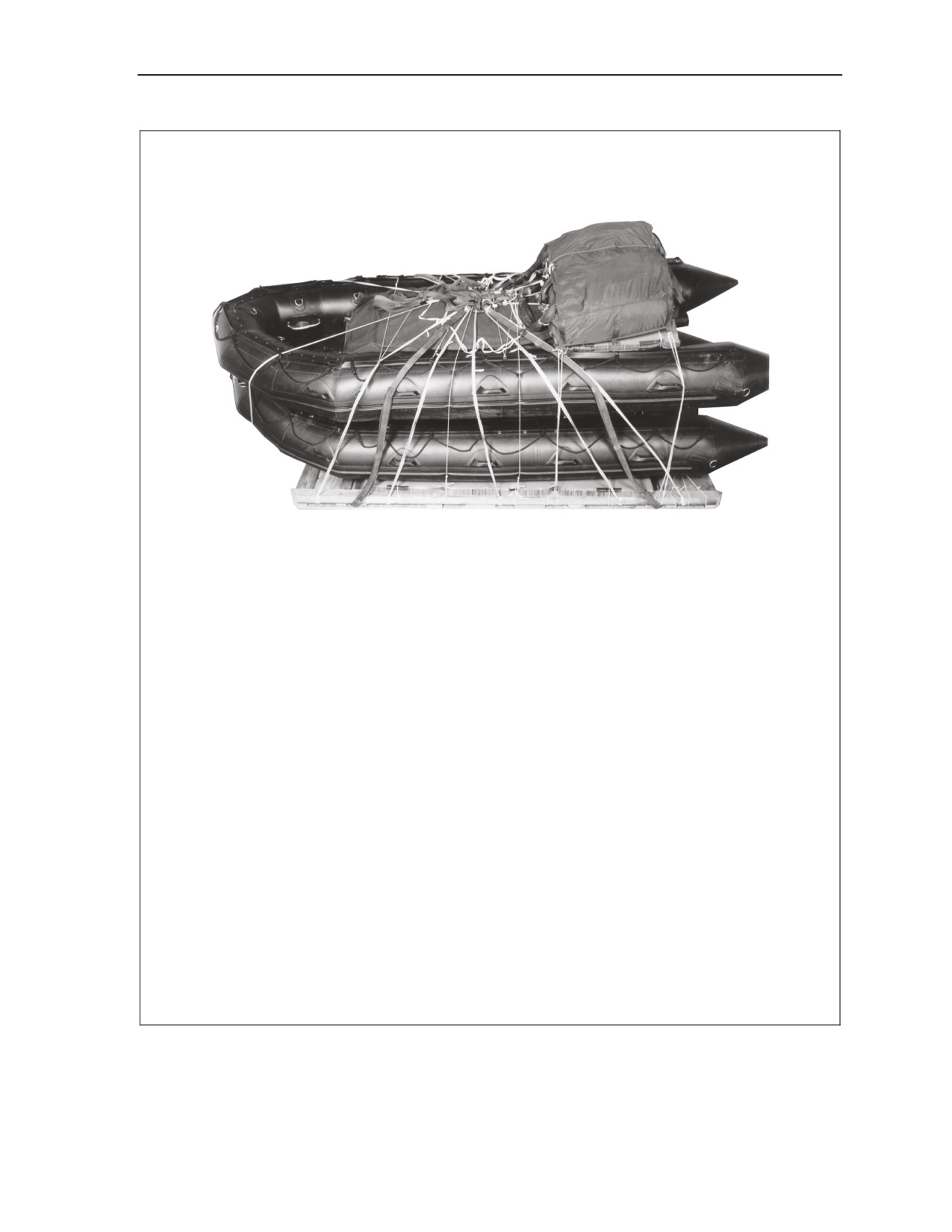

Figure 2-144. Double Zodiac F470U Boat
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-145
Chapter 2
One Motorcycle
Reference: FM 10-500-77/TO 13C7-55-1
Weight: Load shown
485 pounds
Height
71 inches
Width
32 inches
Overall Length
88 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: NA
Extraction Parachute C-17: NA
Platform Size: 32- by 88-inch
Cargo Parachute: One G-14 or T-10 Cargo
Figure 2-145. One Motorcycle
2-146
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Two Motorcycles
Reference: FM 10-500-77/TO 13C7-55-1
Weight: Load shown
892 pounds
Height
75 inches
Width
48 inches
Overall Length
96 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: 15-Foot Drogue
Extraction Parachute C-17: 15-Foot Drogue
Platform Size: 48- by 96-inch
Cargo Parachute: One G-12E
Figure 2-146. Two Motorcycles
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-147
Chapter 2
Four Wheeled Quad-Runner
Reference: FM 10-500-77/TO 13C7-55-1
Weight: Load shown
960 pounds
Height
48 inches
Width
48 inches
Overall Length
87 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: Gravity
Extraction Parachute C-130: 15-Foot Drogue
Extraction Parachute C-17: 15-Foot Drogue
Platform Size: 48- by 87-inch
Cargo Parachute: One G-12E

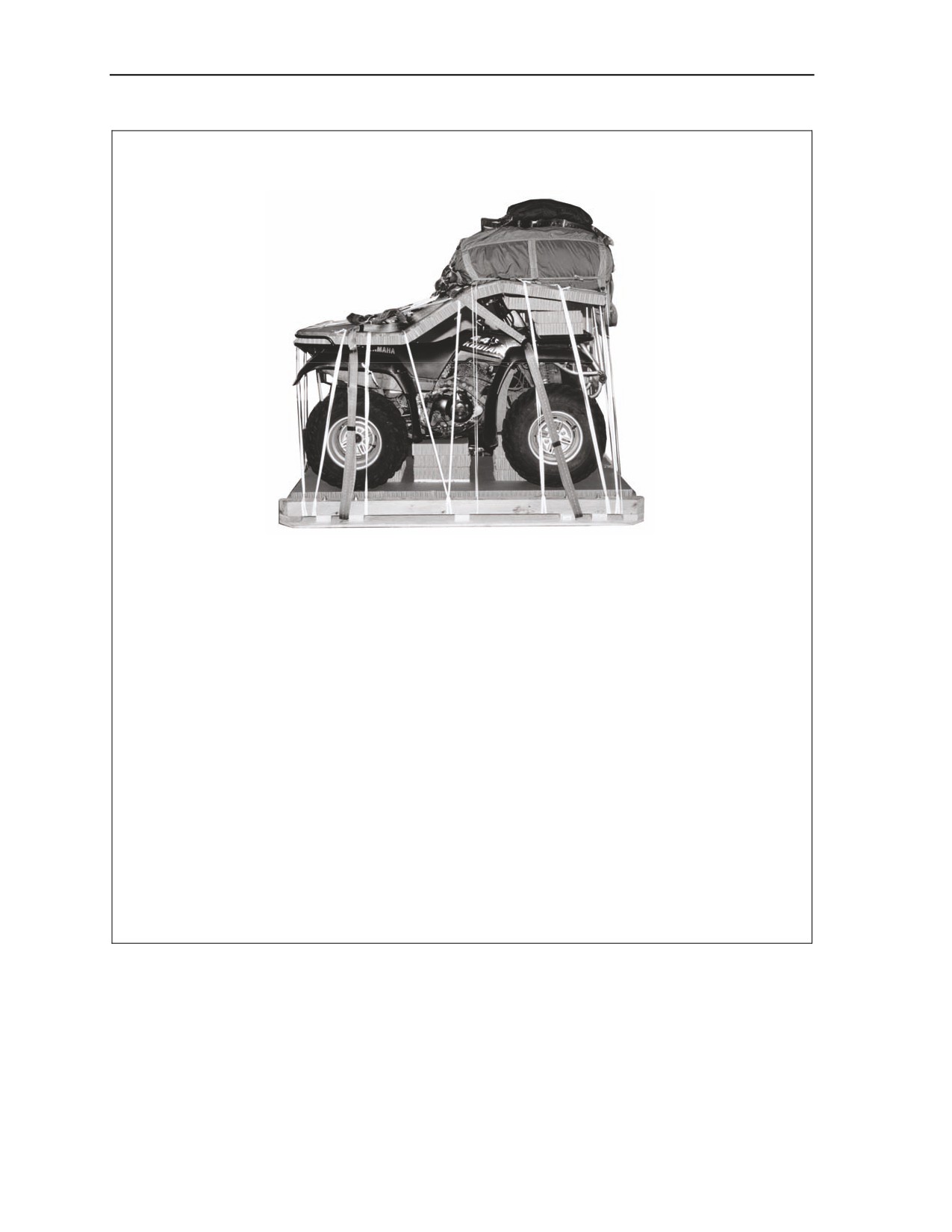

Figure 2-147. Four Wheeled Quad-Runner
2-148
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
SECTION IV - LOW-VELOCITY AIRDROP ON MARITIME AERIAL DELIVERY
SYSTEM PLATFORM
Naval Special Warfare Rigid Inflatable Boat (NSW RIB)
Reference: FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21
Weight: Load shown
18,500 pounds
Height
100 inches
Width
108 inches
Overall Length
432 inches
Overhang: Front (Motor)
42 inches
Rear (Front of Boat)
138 inches
Center of Balance (from front edge of platform)
149 1/2 inches
Accompanying Load: None
Aircraft: C-130 and C-17
Extraction System: EFTC
Extraction Parachute C-130: 28-Foot
Extraction Parachute C-17: 28-Foot
Platform: Maritime Aerial Delivery System
Cargo Parachutes: Four G-11B

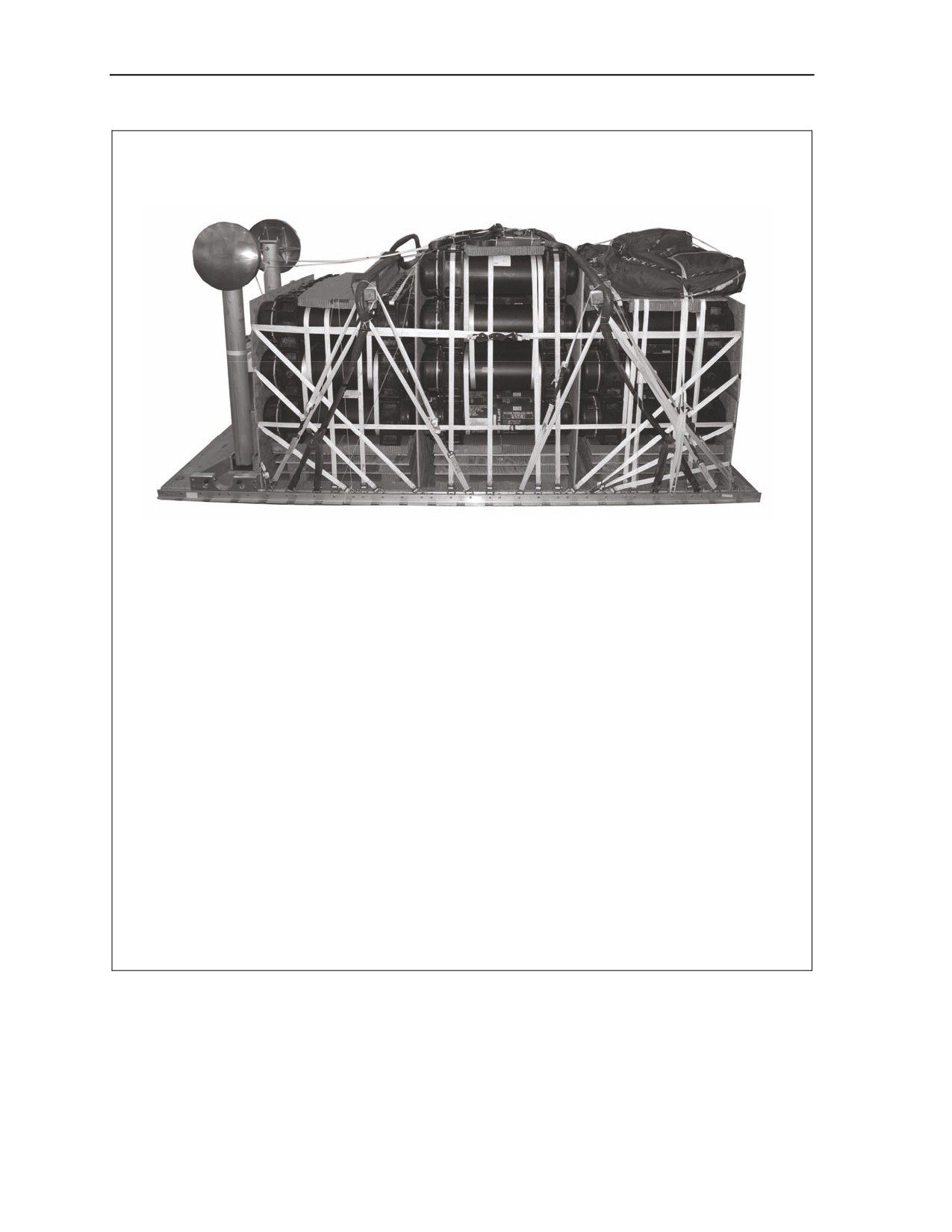

Figure 2-148. Naval Special Warfare Rigid Inflatable Boat (NSW RIB)
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-149
Chapter 2
SECTION V - LOW-VELOCITY AIRDROP ON DUAL ROW AIRDROP SYSTEM
PLATFORM
M998/M1038/M1097 Cargo/Troop Carriers
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: M998
10,912 pounds
M1038
11,165 pounds
M1097
10,097 pounds
Height
98 inches
Width
88 inches
Overall Length
228 inches
Overhang: Front (Brush Guard)
12 inches
Rear
0 inches
Center of Balance (from front edge of platform)
M998
89 inches
M1038
91 inches
M1097
90 inches
Accompanying Load: An accompanying load must weigh between 800 and 2,000 pounds.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Three G-11D

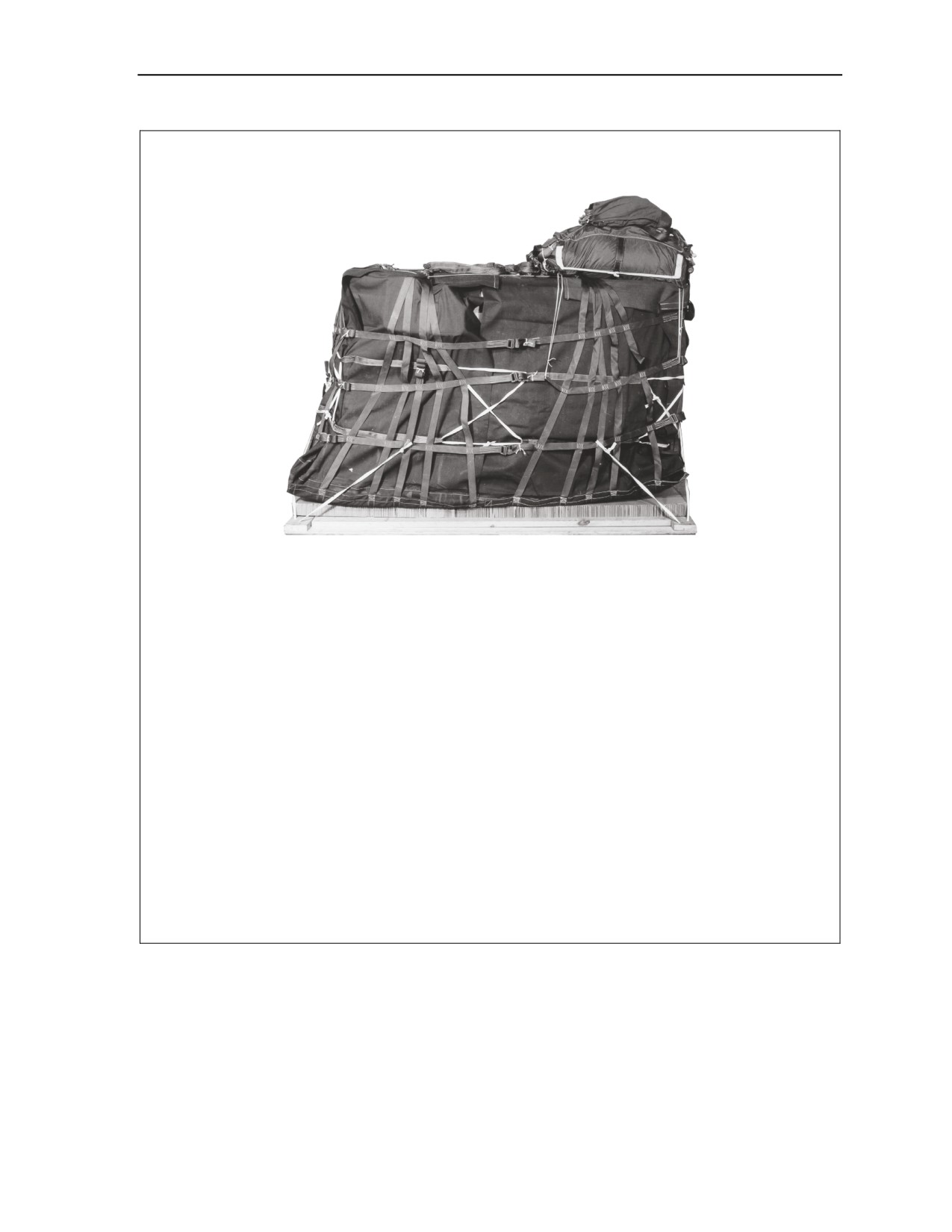

Figure 2-149. M998/M1038/M1097 Cargo/Troop Carriers
2-150
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M1097 Variant Cargo/Troop Carrier
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
11,140 pounds
Height
104 inches
Width
88 inches
Overall Length
224 inches
Overhang: Front (Brush Guard)
8 inches
Rear
0 inches
Center of Balance (from front edge of platform)
88 inches
Accompanying Load: An accompanying load must weigh between 800 and 2,000 pounds.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Three G-11D

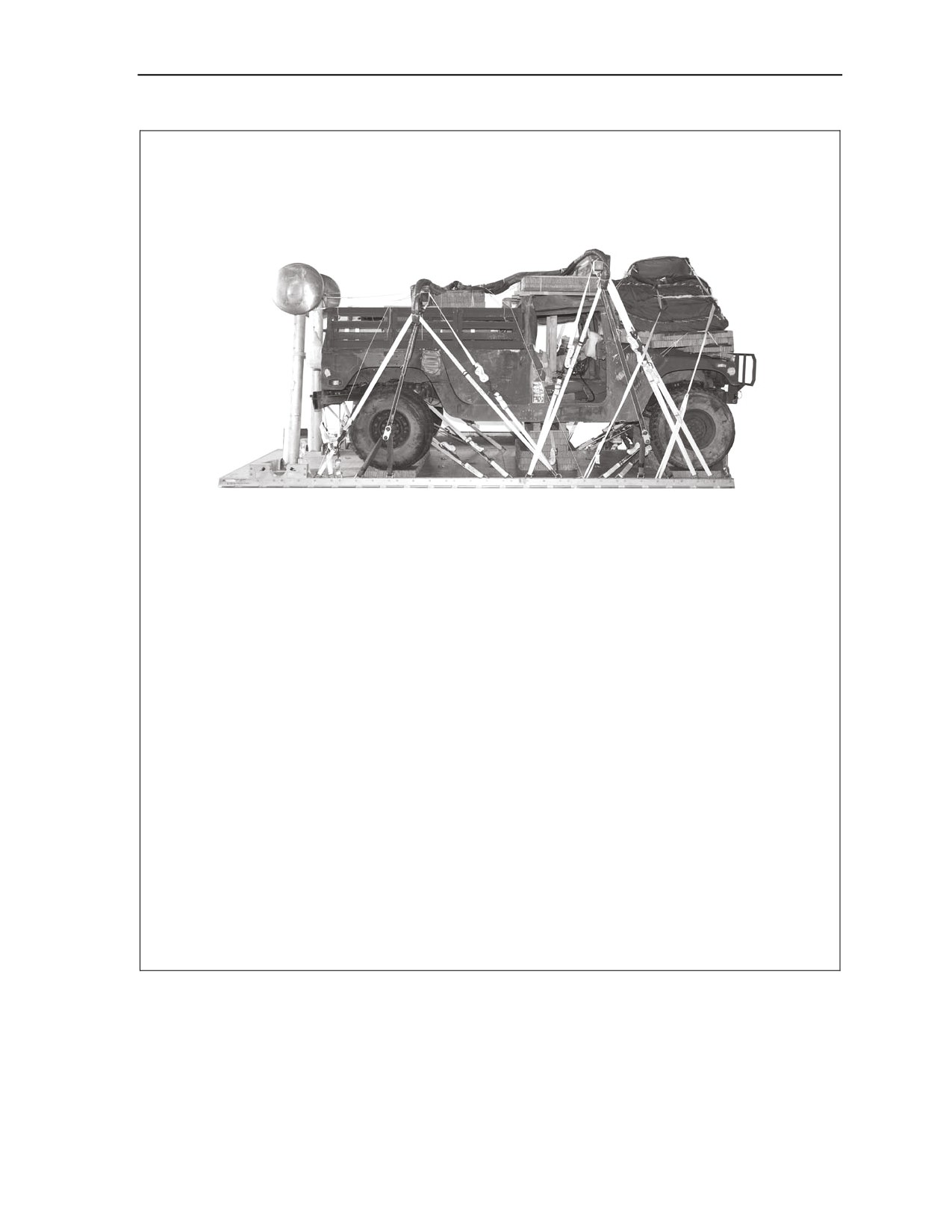

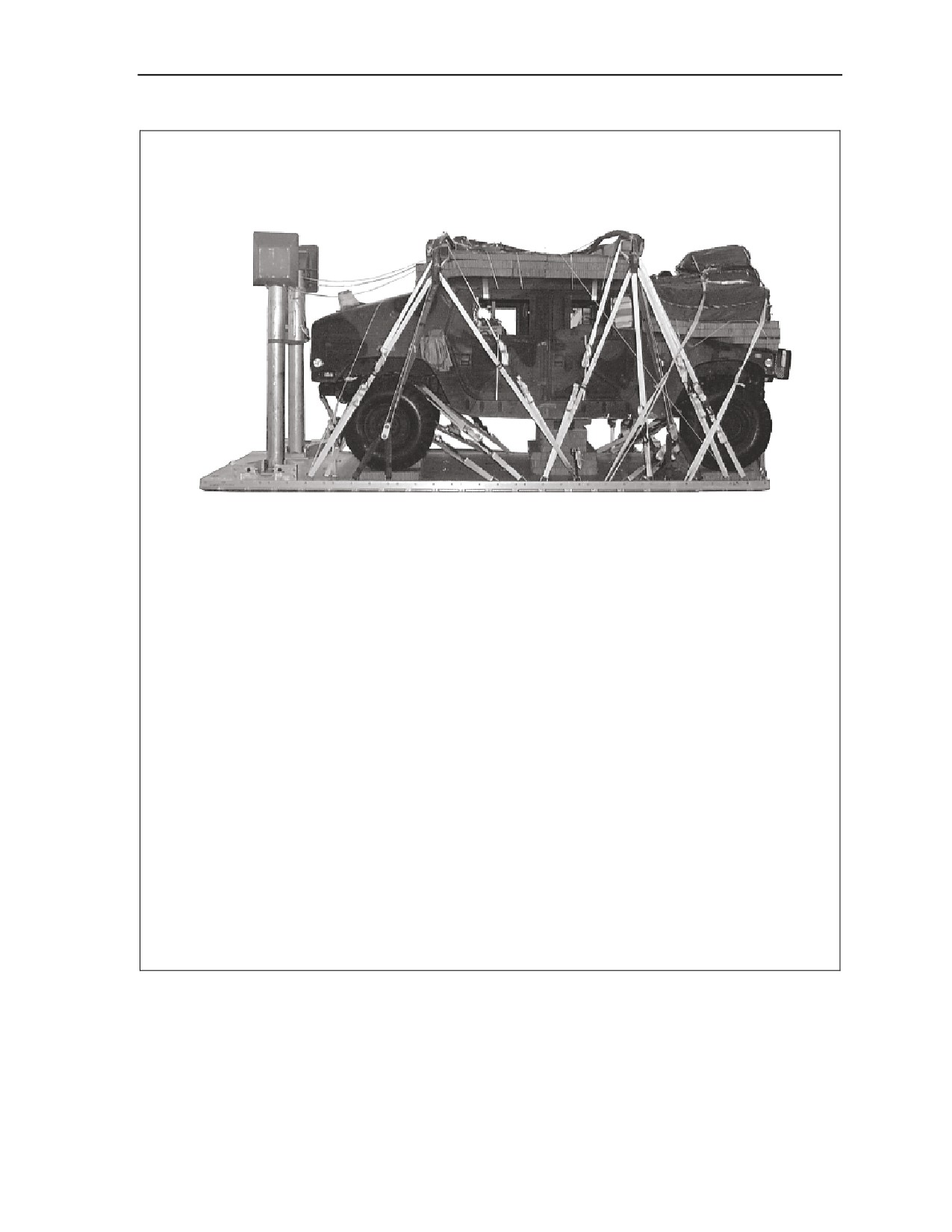

Figure 2-150. M1097 Variant Cargo/Troop Carrier
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-151
Chapter 2
M1025 Armament Carrier
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
12,637 pounds
Height
98 inches
Width
88 inches
Overall Length
229 inches
Overhang: Front (Brush Guard)
13 inches
Rear
0 inches
Center of Balance (from front edge of platform)
94 inches
Accompanying Load: An accompanying load must weigh between 800 and 2,000 pounds.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Three G-11D
Figure 2-151. M1025 Armament Carrier
2-152
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M1121 TOW Carrier
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
10,455 pounds
Height
98 inches
Width
88 inches
Overall Length
224 inches
Overhang: Front
8 inches
Rear
0 inches
Center of Balance (from front edge of platform)
86 inches
Accompanying Load: An accompanying load must weigh between 800 and 2,000 pounds.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Three G-11D
Figure 2-152. M1121 TOW Carrier
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-153
Chapter 2
M1114 Up-Armored HMMWV
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
14,400 pounds
Height
106 inches
Width
88 inches
Overall Length
222 1/2 inches
Overhang: Front (Brush Guard)
6 1/2 inches
Rear
0 inches
Center of Balance (from front edge of platform)
94 inches
Accompanying Load: An accompanying load must weigh between 800 and 2,000 pounds.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Four G-11D

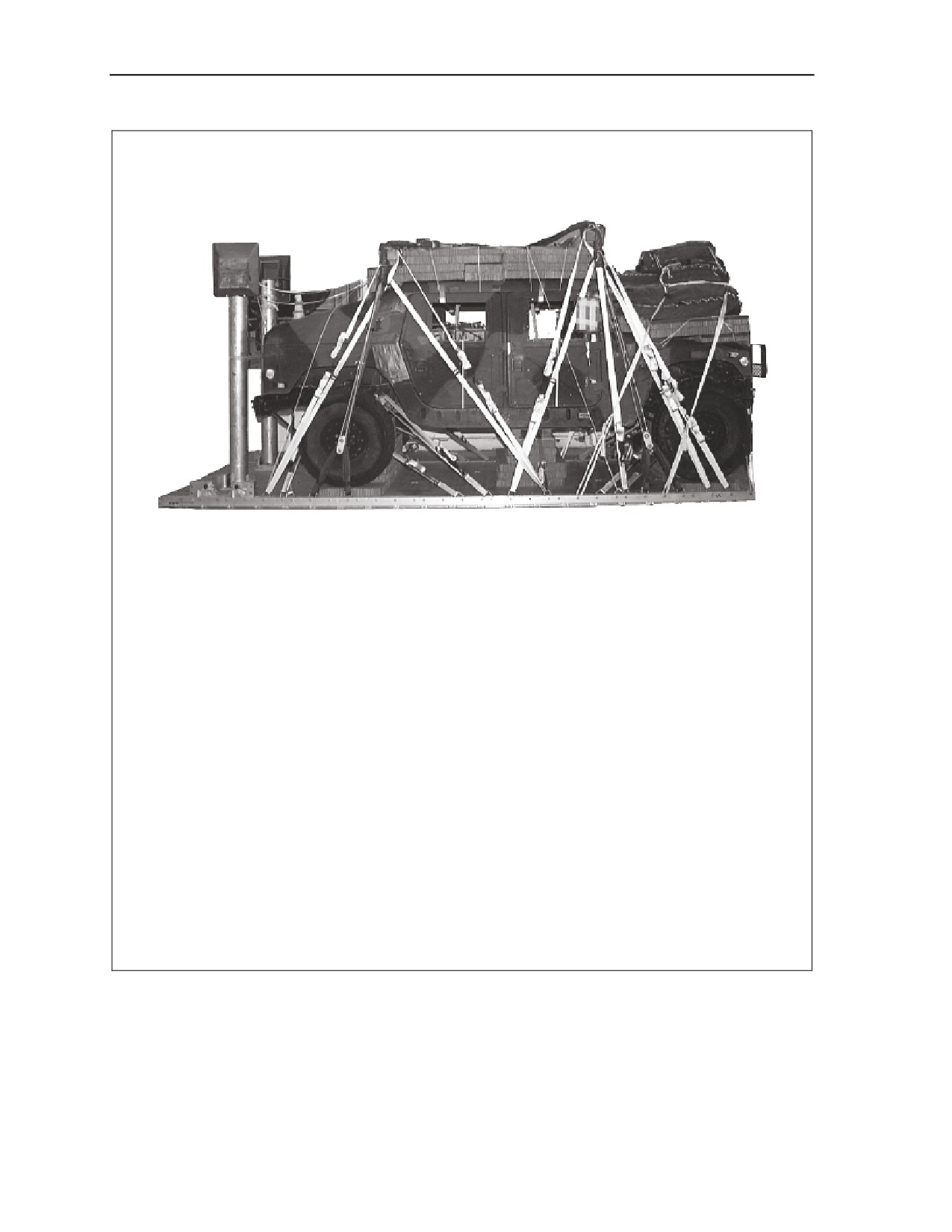

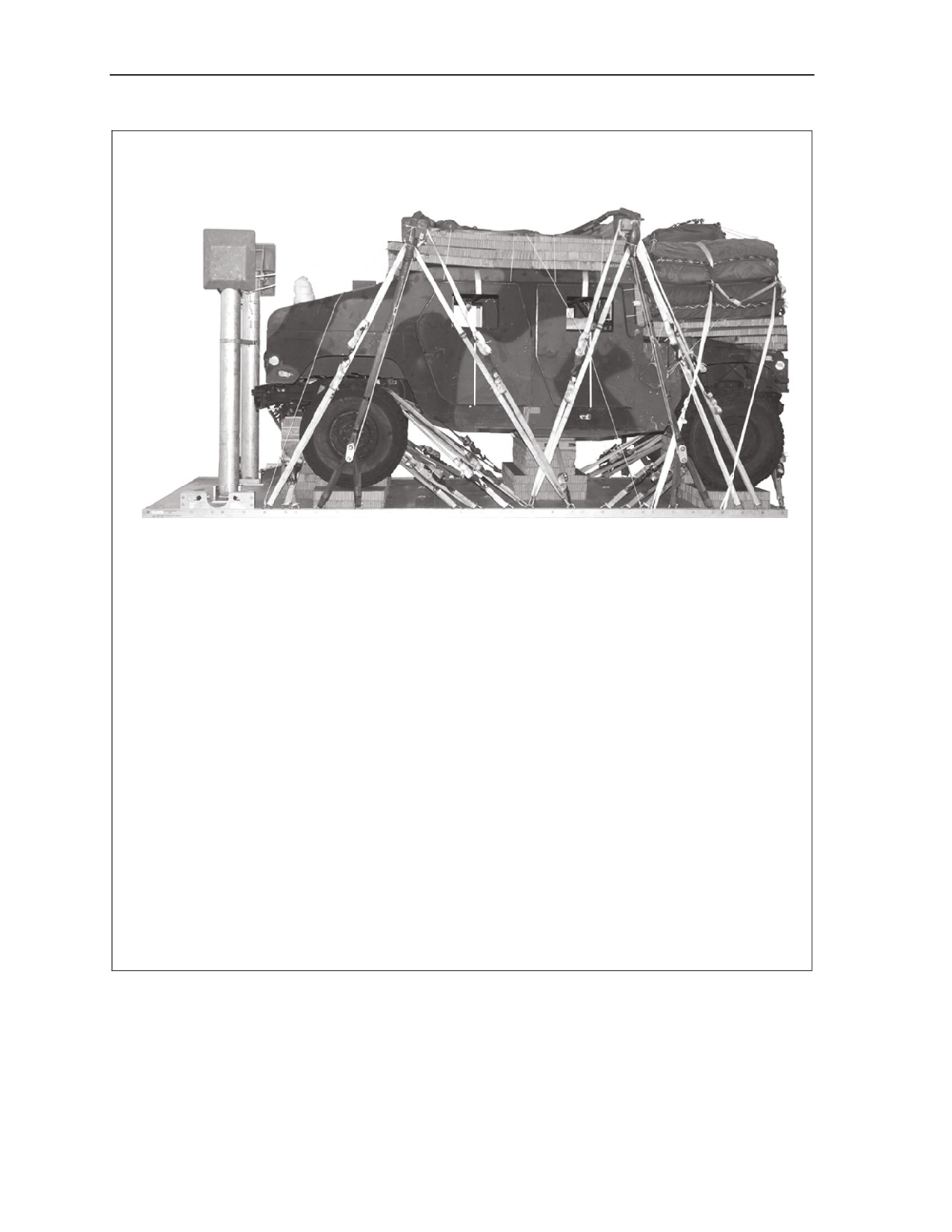

Figure 2-153. M1114 Up-Armored HMMWV
2-154
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
M119 105-mm Howitzer
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
11,200 pounds
Height
98 inches
Width
88 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of platform)
94 inches
Accompanying Load: An accompanying load consists of thirty-six 105-mm ammunition boxes
and six fuse boxes.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Three G-11D

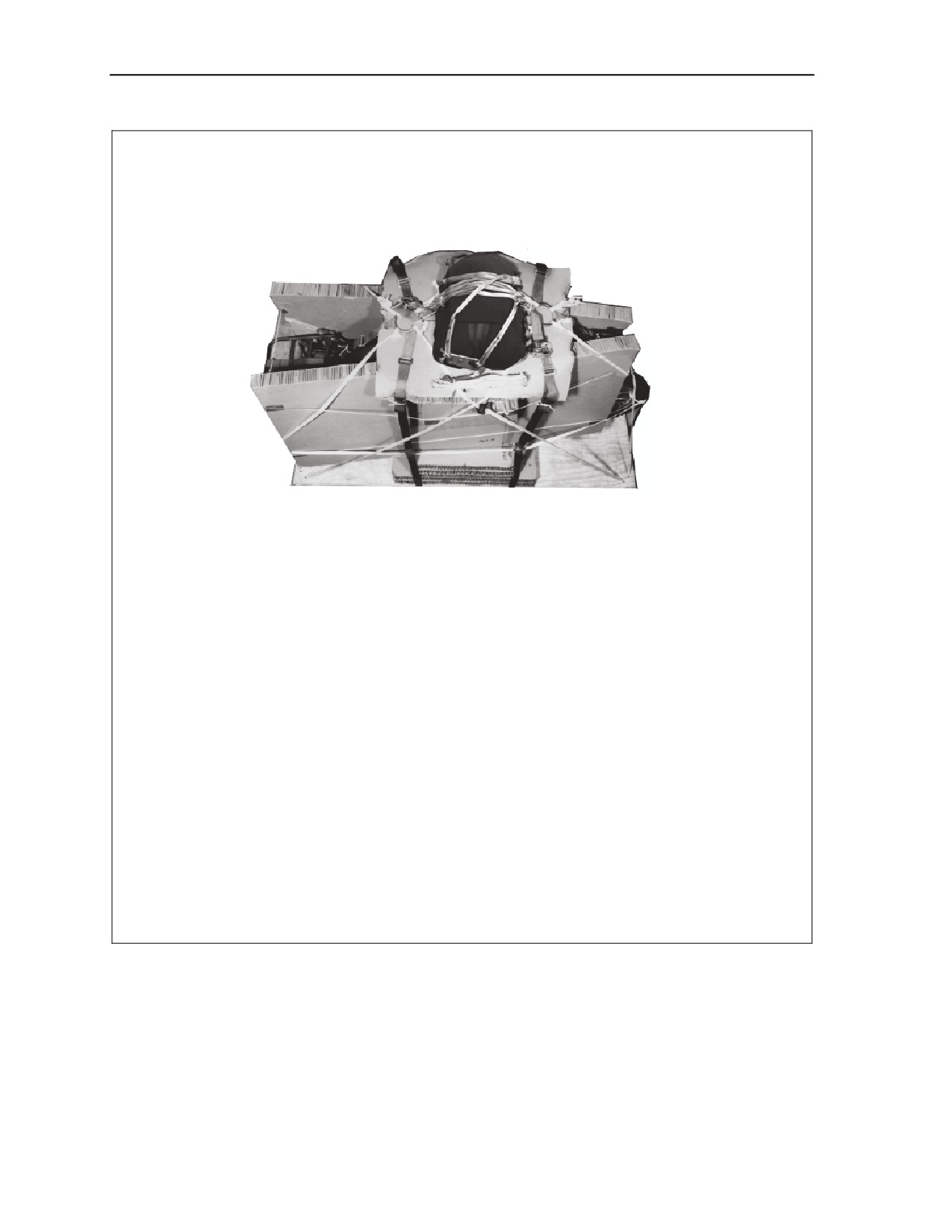

Figure 2-154. M119 105-mm Howitzer
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-155
Chapter 2
M101A1/M101A2 3/4-Ton Cargo Trailer
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: M101A1
8,062 pounds
M101A2
7,860 pounds
Height
98 inches
Width
88 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of platform) M101A1
98 inches
M101A2
99 inches
Accompanying Load: An accompanying load weighs 2,210 pounds for the M101A1 and 2,996
pounds for the M101A2.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Two G-11D

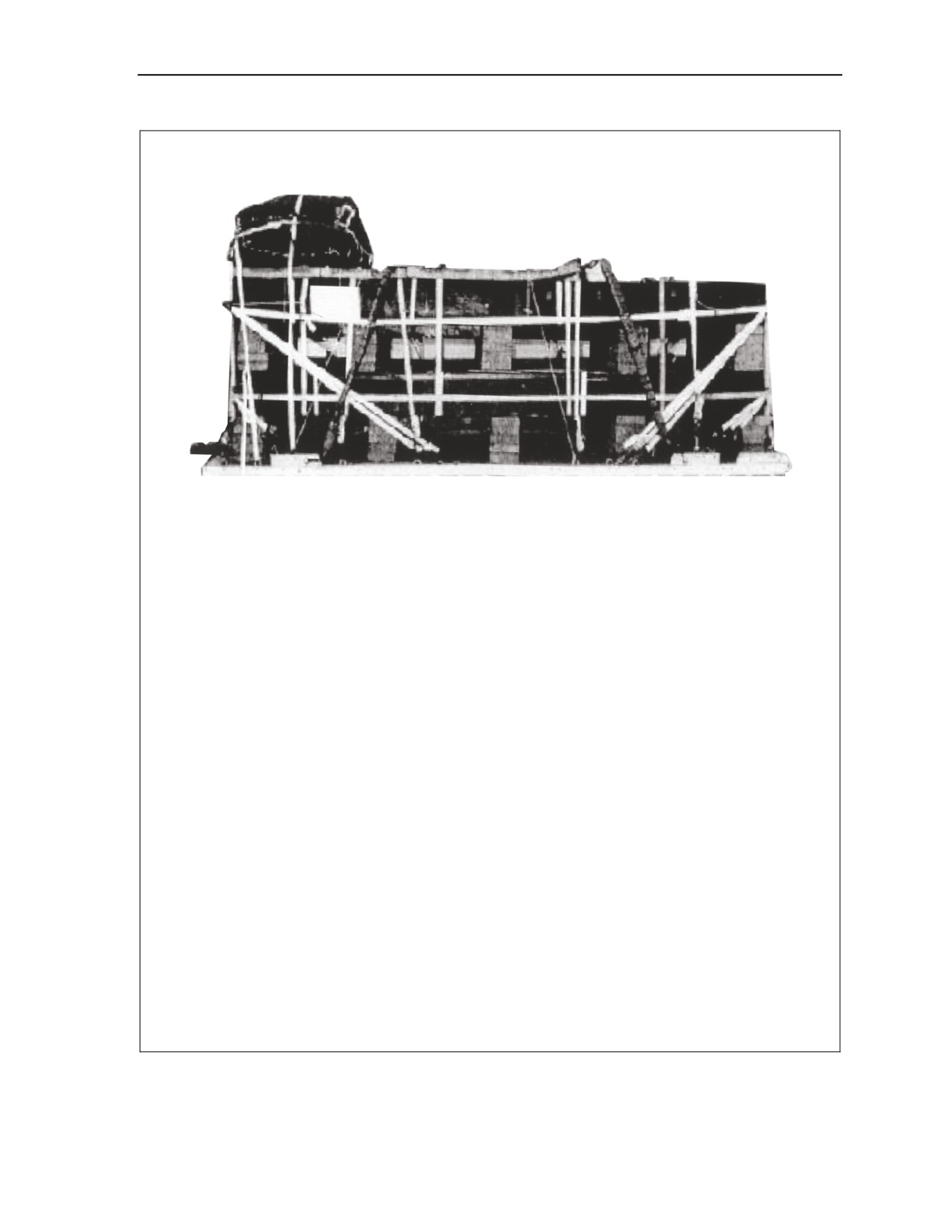

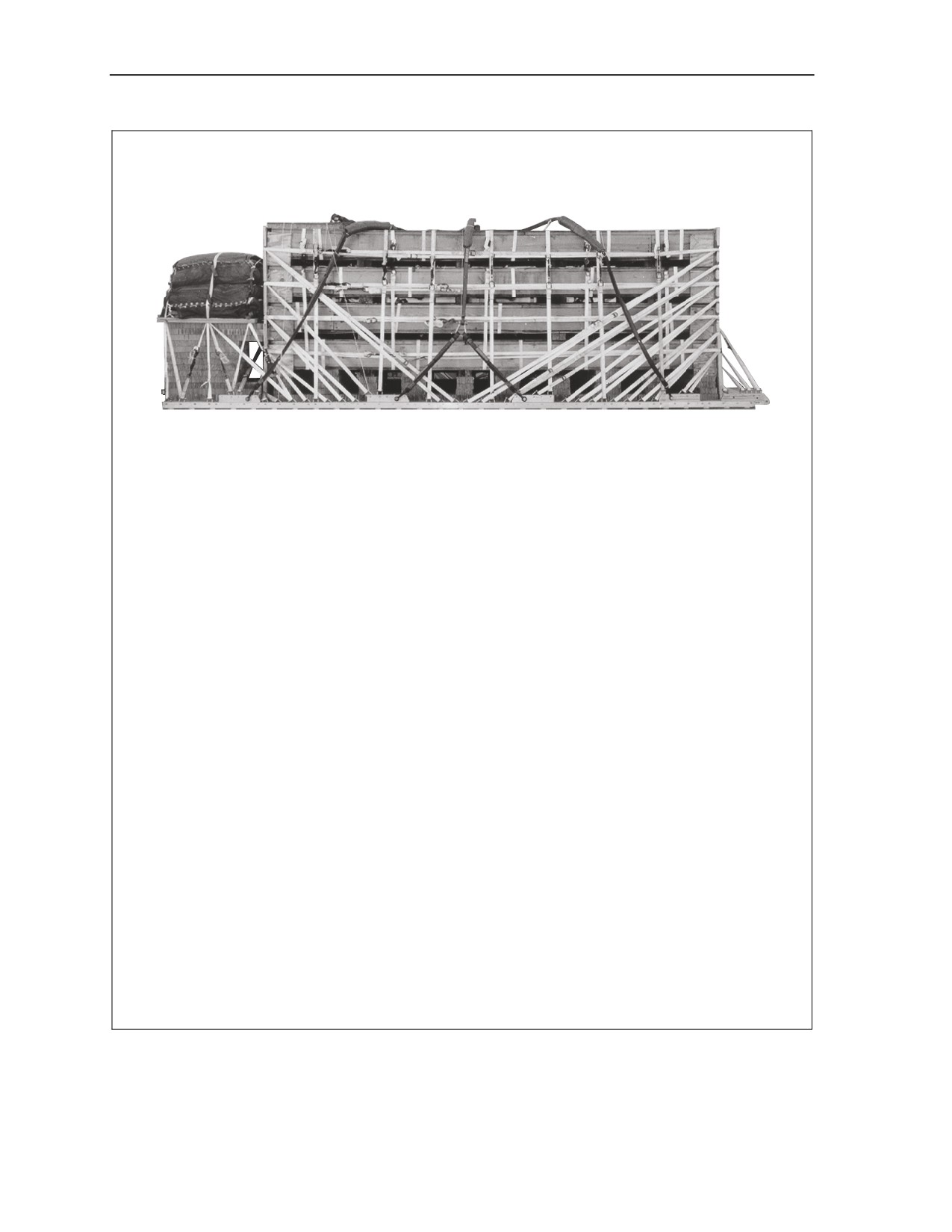

Figure 2-155. M101A1/M101A2 3/4-Ton Cargo Trailer
2-156
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
T-200 Bobcat Compact Track Loader
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
14,240 pounds
Height
105 inches
Width
88 inches
Overall Length
226 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of platform)
86 inches
Accompanying Load: None
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Four G-11D

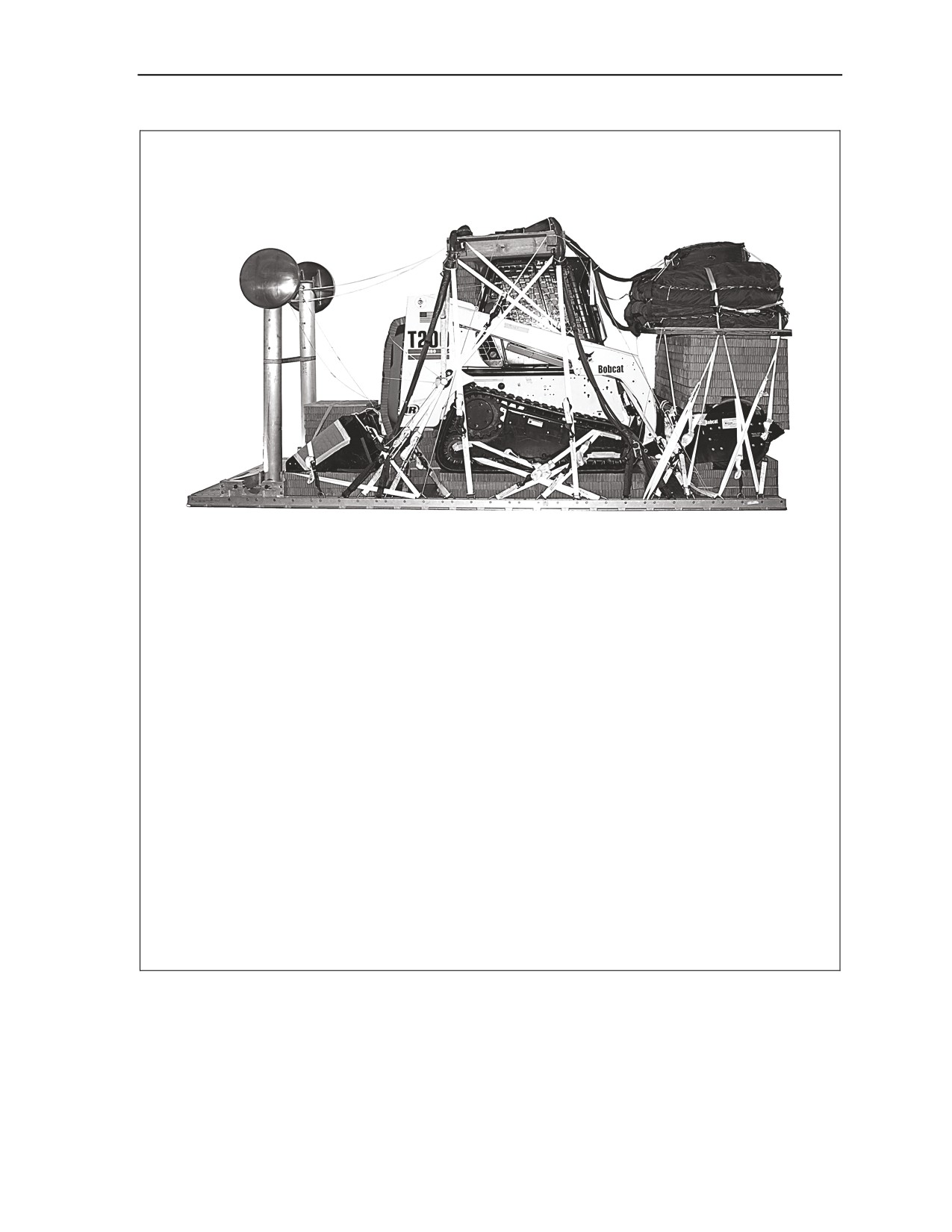

Figure 2-156. T-200 Bobcat Compact Track Loader
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-157
Chapter 2
T-200 Bobcat Compact Track Loader Accessory Load
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
12,309 pounds
Height
98 1/2 inches
Width
88 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of platform)
88 inches
Accompanying Load: None
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Three G-11D

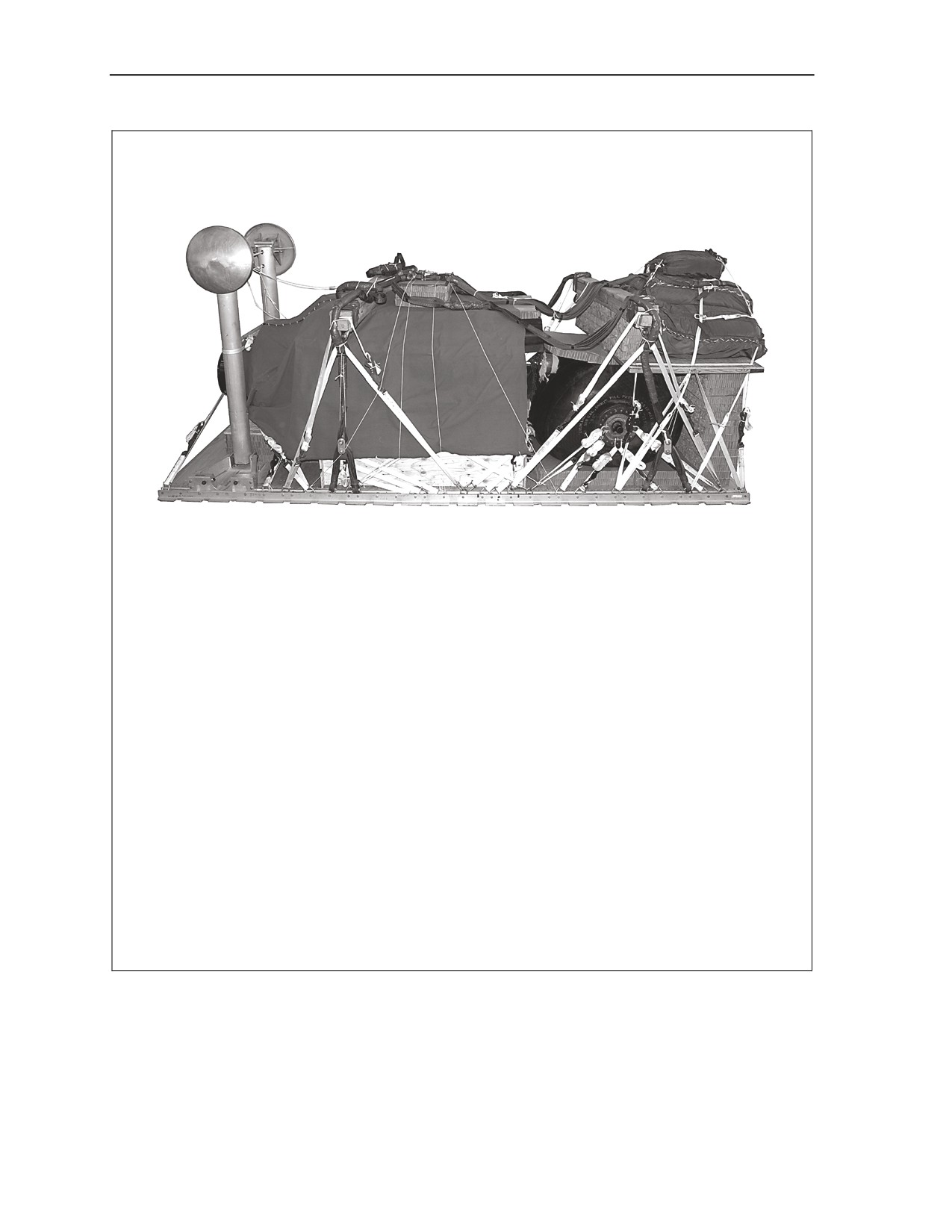

Figure 2-157. T-200 Bobcat Compact Track Loader Accessory Load
2-158
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
Javelin (Metal) Containers
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
11,140 pounds
Height
110 inches
Width
88 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of platform)
93 inches
Accompanying Load: An accompanying load in the supply box must be between 2,000 and
4,000 pounds.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Three G-11D

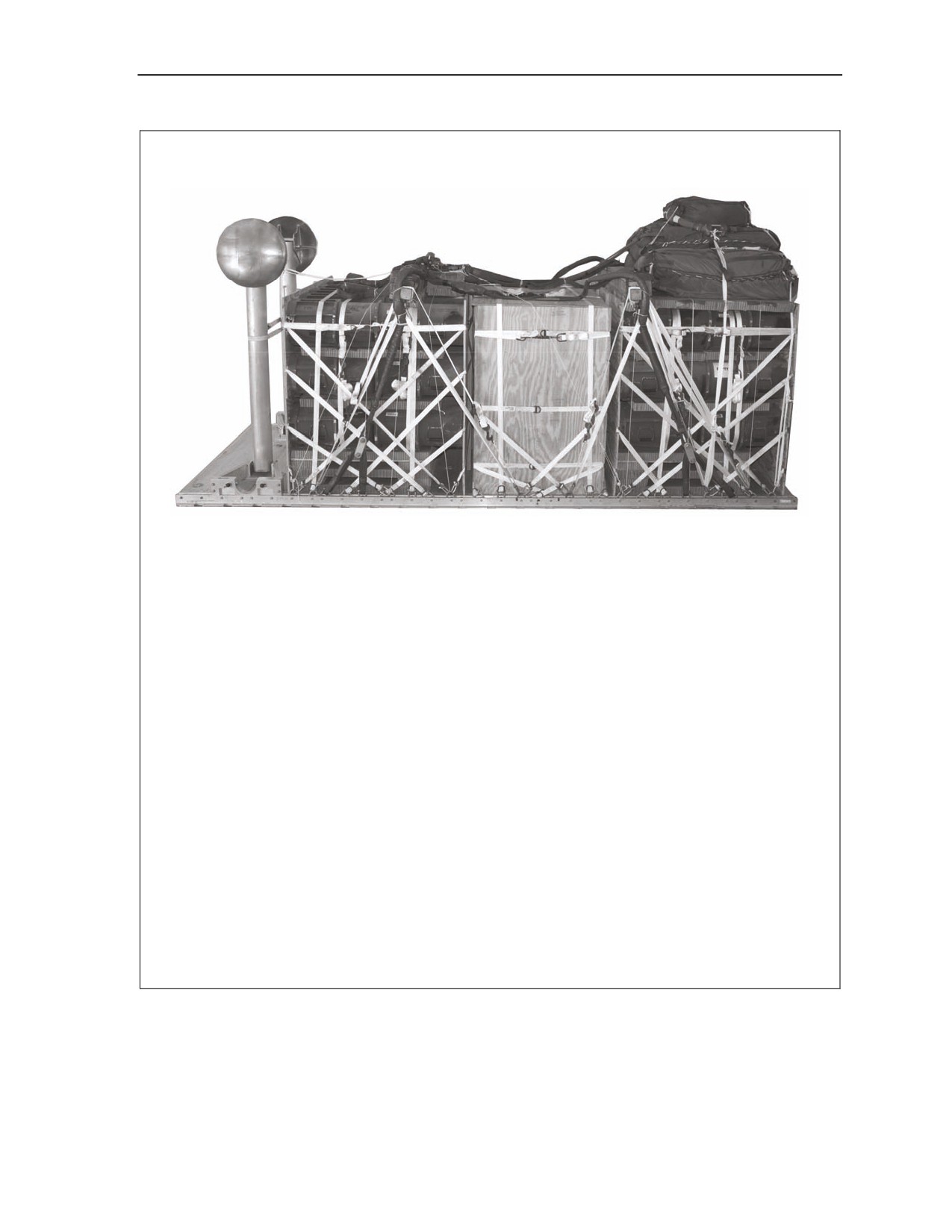

Figure 2-158. Javelin (Metal) Containers
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-159
Chapter 2
Javelin (Plastic) Containers
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
8,920 pounds
Height
89 inches
Width
88 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of platform)
98 inches
Accompanying Load: None
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Two G-11D
Figure 2-159. Javelin (Plastic) Containers
2-160
FM 4-20.116/TO 13C7-1-13
10 May 2006
Rigged Load Reference Data
105-mm Ammunition Mass Supply Load
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
12,980 pounds
Height
98 1/2 inches
Width
88 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of platform)
91 inches
Accompanying Load: None
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Three G-11D
Figure 2-160. 105-mm Ammunition Mass Supply Load
10 May 2006
FM 4-20.116/TO 13C7-1-13
2-161
Chapter 2
M-Gator with Accompanying Load
Reference: FM 4-20.105 /TO 13C7-1-51
Weight: Load shown
8,650 pounds
Height
97 inches
Width
88 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance (from front edge of platform)
90 inches
Accompanying Load: An accompanying load of thirty-six boxes of 105-mm ammunition is
rigged on the platform.
Aircraft: C-17
Extraction System: Gravity
Deployment Parachute: 28-Foot
Cargo Parachutes: Two G-11D
Figure 2-161. M-Gator with Accompanying Load
2-162
FM 4-20.116/TO 13C7-1-13
10 May 2006
Chapter 3
Airlift Capabilities
GENERAL
3-1. This chapter contains information on Air Force aircraft airdrop capabilities.
C-130 HERCULES
3-2. The C-130 has the capability to airdrop a maximum weight of 42,000 pounds using multiple airdrop
platforms. The maximum weight of a single airdrop platform weight is limited to 42,000 pounds for E / H
model airplanes AF 61-2358 and AF 62-1748 and up. The single maximum platform weight limit for MC-
130 E/H airplanes is 35,000 pounds and 25,000 pounds for all other C-130 airplanes prior to AF 62-1784.
The C-130 can airdrop loads up to 100 inches high unless otherwise certified in the specific rigging
manual. The aircraft has a maximum total space available of 40 feet. The platforms will vary from 8 to 32
feet in length. For planning purposes, allow a minimum of 18 inches between platforms to allow space for
the Extraction Force Transfer Coupling (EFTC), three-point link, and attaching the preceding extraction
line. With the Extraction Parachute Jettison Device (EPJD) attached, a 30-inch space will have to be
maintained for the EFTC, three-point link and the EPJD with extraction line attached. The specific loading
manual must be consulted when approaching maximum limits for platform space availability and weights.
C-17 GLOBEMASTER
3-3. The C-17 has the capability to airdrop a combined total weight of 110,000 pounds using multiple
airdrop platforms. The C-17 has 64 feet of space available for airdrop use. Two 32 foot platforms may be
airdropped if specific guidance is followed. The platforms will vary from 8 to 32 feet in length. For
planning purposes, allow a minimum of 18 inches between platforms to allow space for the EFTC, three-
point link and attaching the preceding extraction line. With the EPJD attached, a 30 inch space must be
maintained for the EFTC, three-point link and the EPJD with extraction line attached. The C-17 can
airdrop loads up to 118 inches high measured from the bottom of the platform. The maximum single
platform weight is limited to 60,000 pounds. The specific loading manual must be consulted when
approaching maximum limits for platform space availability.
10 May 2006
FM 4-20.116/TO 13C7-1-13
3-1
Glossary
AAFARS
Advanced Aviation Forward Area Refuleing System
AFB
Air Force Base
AFTO
Air Force Technical Order
AMC
air mobility command
approx
approximate
bbl
barrel
CAV
command assault vehicle
CB
center of balance
CHS-2
command hardware/software 2nd generation package
CU
cubic
d
Penny
DA
Department of the Army
DEUCE
deployable universal combat earthmover
DOD
Department of Defense
ECU
environmental control unit
EFTC
extraction force transfer coupling
EPJD
extraction parachute jettison device
EPJS
extraction parachute jettison system
FARE
forward area refueling equipment
FAST
forward area surgical team
FM
field manual
FRE
first response expeditionary
ft
foot/feet
GPH
gallons per hour
GPM
gallons per minute
HE
heavy explosive
HMMWV
high mobility, multipurpose wheeled vehicle
HQ
Headquarters
ID
inner diameter
in
inch
lb
pound
lin
linear
LWP
lightweight water purifier
MACS
modular artillery charge system
MAJCOM
major command
M-Gator
military utility vehicle
max
maximum
MICLIC
mine clearing line charge
10 May 2006
FM 4-20.116/TO 13C7-1-13
Glossary-1
min
minimum
MMLS
mobile microwave landing system
mm
millimeter
MOST
mobile over snow transport
no
number
NSWRIB
Naval Special Warfare Rigid Inflatable Boat
OD
outside diameter
oz
ounce
PLS
palletized load system
ROWPU
reverse osmosis water purification unit
RRR
rapid runway repair
SEE
small emplacement excavator
SICPS
standard integrated command post system
sq
square
SUSV
small unit support vehicle
TDARS
technical defense alert radar system
tn
ton
TO
technical order
TOW
tube-launched, optically tracked, wire-guided missile
TRADOC
United States Army Training and Doctrine Command
US
United States
w
width
WP
white phosphorous
yd
yard
Glossary-2
FM 4-20.116/TO 13C7-1-13
10 May 2006
References
FM 4-20.102/MCRP 4-11.3J/ NAVSEA SS400-AB-MMO-010/TO 13C7-1-5, Airdrop of Supplies and
Equipment: Rigging Airdrop Platforms, Awaiting Publication Date
FM 4-20.105/TO 13C7-1-51, Airdrop of Supplies and Equipment: Dual Row Airdrop Systems,
(Awaiting Publication Date)
FM 4-20.103/MCRP 4-11.3C/TO 13C7-1-11, Airdrop of Supplies and Equipment: Rigging
Containers, 2 September 2005
FM 4-20.108/TO 13C7-2-491, Airdrop of Supplies and Equipment: Rigging Military Utility Vehicle
(M-Gator), 29 June 2001
FM 4-20.112/MCRP 4-11.3K/TO 13C7-1-8, Airdrop of Supplies and Equipment: Rigging Typical
Supply Loads, 7 May 2000
FM 4-20.113/TO 13C7-3-51, Airdrop of Supplies and Equipment: Rigging 3/4 Ton Cargo Trailer
M101 or M101A1, 8 July 2003
FM 4-20.117/MCRP 4-11.3M/TO 13C7-1-111, Airdrop of Supplies and Equipment: Rigging 1 1/4
Ton Utility Truck (HMMWV), 2 October 2001
FM 4-20.119/TO 13C7-10-31, Airdrop of Supplies and Equipment: Rigging 105mm Howitzers,
Awaiting Publication Date
FM 4-20.121/TO 13C7-6-21, Airdrop of Supplies and Equipment: Rigging Tractors and Tractor
Dozers, 20 March 2003
FM 10-522/TO 13C7-2-1001, Airdrop of Supplies and Equipment: Rigging Potable Water, 3 June
1985
FM 10-500-23/TO 13C7-14-461, Airdrop of Supplies and Equipment: Rigging Communications
Vehicles, 31 August 1999
FM 10-524/TO 13C7-14-471, Airdrop of Supplies and Equipment: Rigging Communications Shelters,
11 February 1981
FM 4-20.127/TO 13C7-10-191, Airdrop of Supplies and Equipment: Rigging 155mm Howitzers, 29
June 2004
FM 10-528/TO 13C7-26-71, Airdrop of Supplies and Equipment: Rigging Road Rollers, 25
November 1977
FM 10-500-29/TO 13C7-10-171, Airdrop of Supplies and Equipment: Rigging Heavy Anti-Tank
Assault Weapon System (TOW), 14 April 2000
FM 4-20.131/TO 13C7-54-1, Airdrop of Supplies and Equipment: Rigging Fork Lift Trucks, Awaiting
Publication Date
FM 10-532/TO 13C7-3-361, Airdrop of Supplies and Equipment: Rigging 1 1/2 Ton Trailers, 16
April 1979
FM 10-534/TO 13C7-10-161, Airdrop of Supplies and Equipment: Rigging Air Defense Artillery
Gun, 27 February 1985
FM 4-20.137/TO 13C7-1-19, Airdrop of Supplies and Equipment: Rigging Forward Area Refueling
Equipment and Advance Aviation Forward Area Refueling System, 10 June 2003
FM 10-539/TO 13C7-1-17, Airdrop of Supplies and Equipment: Rigging JD410 Tractor, 20 May
1984
FM 10-540/TO 13C7-3-381, Airdrop of Supplies and Equipment: Rigging Tilt Trailers, 17 November
1978
FM 10-541/TO 13C7-11-21, Airdrop of Supplies and equipment: Rigging Military Bridges, 5 March
1984
FM 10-542/NAVSEA SS400-AD-MMO-010/TO 13C7-51-21, Airdrop of Supplies and Equipment:
Rigging Typical Supply Loads, 7 October 1987
10 May 2006
FM 4-20.116/TO 13C7-1-13
References-1
FM 10-543/TO 13C7-2-1011, Airdrop of Supplies and Equipment: Rigging 1/4 Ton Truck with 1/4
Ton Trailer, 3 November 1983
FM 10-500-45/TO 13C7-10-201, Airdrop of Supplies and Equipment: Rigging Mortars, 3 October
1995
FM 10-548/TO 13C7-24-21, Airdrop of Supplies and Equipment: Rigging Airborne Crane-Shovel
and Attachments, 3 May 1984
FM 10-550/TO 13C76-22-71, Airdrop of Supplies and Equipment: Rigging Stinger Weapon System
and Missiles, 29 May 1984
FM 10-552/TO 13C7-22-61, Airdrop of Supplies and Equipment: Rigging Dragon and Javelin
Missiles, 5 March 1982
FM 10-555/TO 13C7-3-401, Airdrop of Supplies and Equipment: Rigging Munitions Trailers, 23
May 1986
FM 4-20.158/TO 13C7-7-61, Airdrop of Supplies and Equipment: Rigging Reverse Osmosis Water
Purification Unit, 11 May 2005
FM 10-562/TO 13C7-34-1, Airdrop of Supplies and Equipment: Rigging Whole Blood, 23 May 1989
FM 10-564/TO 13C7-37-1, Airdrop of Supplies and Equipment: Rigging Fuel Drums, 16 April 1979
FM 4-20.166/TO 13C7-25-71, Airdrop of Supplies and Equipment: Rigging 2 Liter and 4 Litter
Ambulance, Awaiting Publication Date
FM 4-20.167/TO 13C7-16-171, Airdrop of Supplies and Equipment: Rigging Tracked
Personnel/Cargo Carriers, 11 May 2005
FM 10-569/TO 13C7-15-61, Airdrop of Supplies and Equipment: Rigging Trailer- Mounted Air
Compressors, 27 December 1988
FM 10-500-71/TO 13C7-6-141, Airdrop of Supplies and Equipment: Rigging FMTV, 1 December
1999
FM 10-573/TO 13C7-27-141, Airdrop of Supplies and Equipment: Rigging 130G Motor Grader, 27
September 1988
FM 4-20.174/TO 13C7-31-31, Airdrop of Supplies and Equipment: Rigging 950B Scoop Loader
Tractor, Awaiting Publication Date
FM 10-575/TO 13C7-17-11, Airdrop of Supplies and Equipment: Rigging 613B Water Distributor, 4
May 1987
FM 10-576/TO 13C7-27-151, Airdrop of Supplies and Equipment: Rigging 613S Scrapers, 4 May
1987
FM 10-500-77/TO 13C7-55-1, Airdrop of Supplies and Equipment: Rigging Motorcycles and Quad-
Runners, 1 February 2000
FM 10-579/TO 13C7-50-1, Airdrop of Supplies and Equipment: Rigging Landing Field Mat, 19 April
1985
FM 10-591/TO 13C7-8-31, Airdrop of Supplies and Equipment: Rigging Trailer Mounted Engineer
Electrical Tool Outfits, 17 June 1977
DA Form 2028, Recommended Change to Publications and Blank Forms
AFTO Form 22, Technical Order Publication Improvement Form
References-2
FM 4-20.116/TO 13C7-1-13
10 May 2006
|
