Step 5

Determine the possibility and time of spread due to the loss of stability of the

boundaries (barriers) of the enclosure of fire origin. Barrier failure due to loss of

stability involves the collapse of the barrier that may or may not be a structural

element of the building. The ignition of combustibles in the adjacent enclosure may

be due to radiation from hot gases and flames and the factors discussed in Step 4

apply. However, barrier failure alone may be taken as a criterion for flame spread into

the adjacent enclosure.

Step 6

Determine the possibility and time of failure of structural elements of the building due

to the impact of the fire in the enclosure of fire origin based on information from the

PBDB.

Structural adequacy and the time to failure of structural components should be

evaluated in terms of stability if their continued function is required for occupant

evacuation or fire service intervention or to prevent collapse or impact on adjacent

buildings or structures” Consideration to impacts on other items should also be given,

such as people who may be walking past the building on the street, etc.. The extent

and sophistication of the analyses applied to the structural elements in the presence

of fire should be established during the preparation of the PBDB. The evaluation of

the collapse mechanisms of complex and redundant structures may require input

from structural engineers.

Barriers that are supported by structural elements, or are structural elements

themselves supported by other elements, may also fail when the supporting element

fails. Thus, the time of failure of the structural element should be evaluated to ensure

that the barrier it is supporting does not fail prematurely. If the analysis proceeds past

the failure of the structural element, then the consequence of the failure of the

element on other barriers (or elements) needs to be considered.

Step 7

Determine if the end time has been reached. This is when:



the fire has extinguished

Australian Fire Engineering Guidelines

abcb.gov.au

Page 107



there is no further spread or loss of stability for the enclosure of fire origin



all the enclosures have been examined



the stage of the design fire, agreed to in the PBDB process, has been reached



in the engineering judgement of the fire engineer, sufficient analysis has been
carried out to justify the trial design under consideration.

If the end time has been reached, and if required by the analysis strategy, calculate

the ASET based upon the criteria for ASET set in Section 2.2.9. If this end time has

not been reached, the next iteration is undertaken and the analysis continued until

the end time has been reached.

Step 8

The analysis of SS-C is terminated.

A.3.4.2 Analysing control of fire spread and impact

There are a number of ways to control fire spread and impact. These include:



Controlling the materials comprising the fuel load so that only those materials
that have a low HRR or are difficult to ignite and burn slowly if ignited are used
(see SS-A). This would form part of a fire prevention strategy.



Designing barriers and protection of openings to limit the fire spread and impact
to a predetermined level. This uses the same basic elements of Figure A.3.1. It
enables quantification of those characteristics of the barriers and protection of
openings that enable the attainment of the relevant acceptance criteria for the
analysis (as determined in the PBDB process) used in 2.4 (Collating the results
and drawing conclusions).

A.3.5 Construction, commissioning, management, use and

maintenance – SS-C

The principal issues with regard to construction and commissioning of fire spread and

impact control measures are:



the integrity of the barriers



materials and components are to specification



operable systems, such as auto-closing fire doors, work as required



appropriate operation and maintenance manuals are available.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 108

Passive components of a fire safety system, such as fire rated walls, are prone to be

overlooked in building repairs and modifications subsequent to the original

construction. Management procedures designed to ensure the ongoing identification

and integrity of these fire safety components need to be considered as an essential

part of the use of the building.

In general, passive fire protection barriers require little routine maintenance. Active

barriers, such as automatically closing fire doors, require a maintenance schedule

that should include operational tests. Inspection to preserve the integrity of fire

spread control features should be part of the requirements of a maintenance

program. Documents should define the maintenance requirements and record the

outcomes. It may be possible to ensure that this is done through the requirements for

essential safety provisions for buildings that may apply in some jurisdictions.





Australian Fire Engineering Guidelines

abcb.gov.au

Page 109



Fire detection, warning and suppression – SS-D

SS-D is used to analyse detection, warning and suppression for fires. This process

enables estimates to be made of times of critical events and the effectiveness of

suppression.

Although the analysis of fire detection generally involves automatic devices, detection

by building occupants (audio, olfactory, visual or tactile) may also be considered,

providing appropriate criteria are used.

It should be recognised that a sprinkler head has a heat-sensitive element, and

therefore behaves very similarly to a heat detector and may be used to detect fires.

While the analysis of fire suppression generally involves automatic equipment,

suppression by building occupants (using extinguishers and hose reels), public fire

services (permanent or volunteer), and private fire crews (particularly in industrial

complexes) may also be considered – providing appropriate criteria are used. In the

case of the fire services, suppression activities are analysed in SS- F.

This appendix provides guidance on quantifying:



the detection of fire



the activation of various types of fire detectors



the activation of various types of smoke management and suppression
equipment



the time of activation of warning (for warning occupants and communication to
fire services)



the effectiveness of suppression.

This appendix also discusses the relationships between this sub-system and others.

Although this appendix provides guidance on the analysis of SS-D in the general

analysis context discussed in 2.3, each project needs to be considered individually

and the analysis varied accordingly.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 110

A.4.1 Procedure – SS-D

A.4.1.1 Fire detection, warning and suppression

Figure A.4.1 outlines the process of analysing fire detection, warning and

suppression in a building. Discussion of the figure can be found in the following

sections:



Section A.4.2 Outputs



Section A.4.3 Inputs



Section A.4.4 Analysis.

An analysis needs to be undertaken for each design fire specified by the PBDB.

Where the PBDB decision is an analysis that includes consideration of probabilities

of various events and scenarios occurring should be undertaken, the flow chart can

assist the FE in identifying those factors to be taken into account during the

probability analysis.

The flow chart provides guidance but does not necessarily cover all the factors which

may be relevant to a particular fire engineering analysis.

A.4.1.2 Enhancement of fire detection, warning and suppression

Enhanced fire detection, warning and suppression may be used to improve fire safety

as an alternative (or in addition) to the measures provided by other sub-systems, and

these are discussed in Section A.4.4.2.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 111

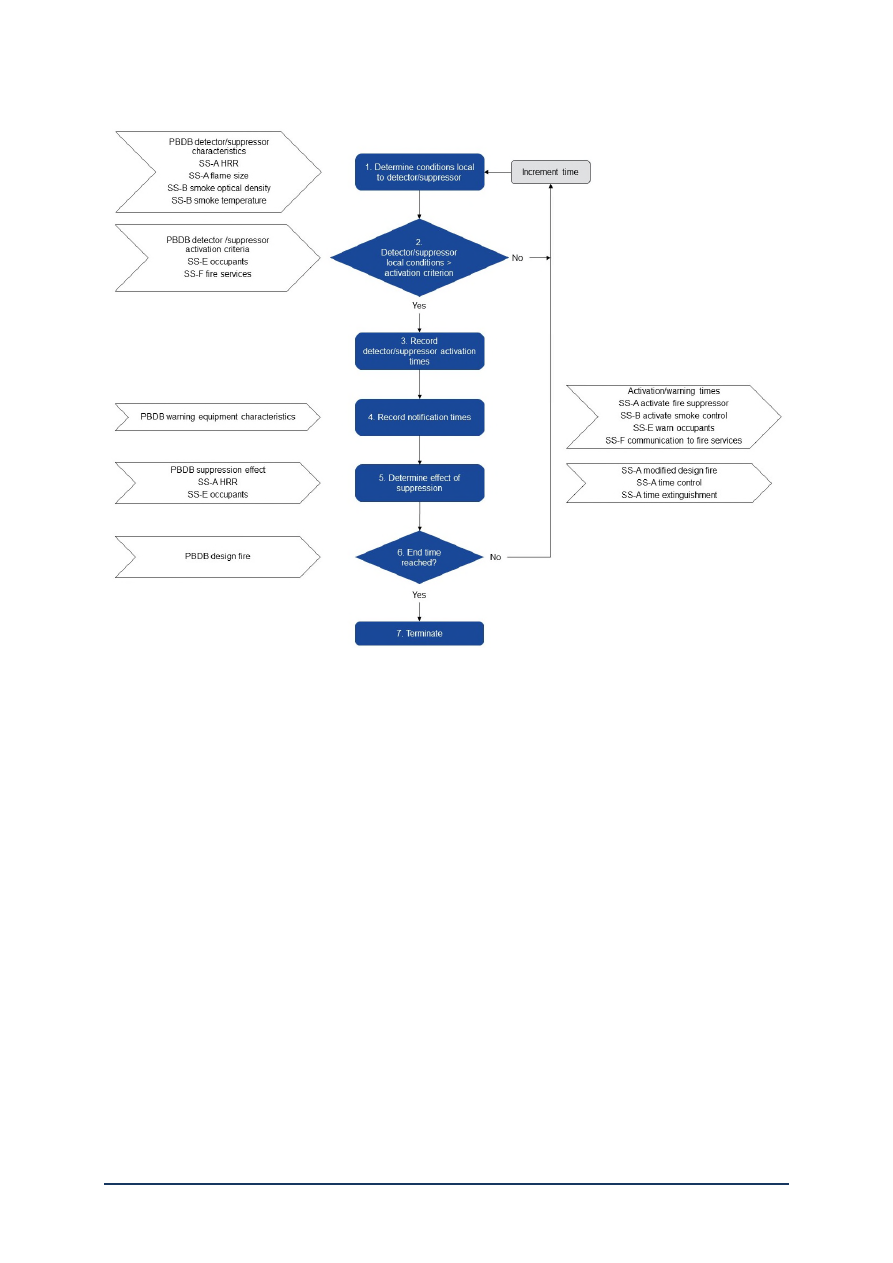

Figure A.4.1 Flow chart for detection, warning and suppression analysis



A.4.2 Outputs – SS-D

A.4.2.1 Outputs for fire detection and warning

The outputs will vary according to:



the type of fire detectors



the means of activation, namely, automatic or manual



whether the output is an electronic signal, an audible alarm or a visual alarm



the manifestations of the fire used for detection (noise, smell or obscuration).

Typical outputs are discussed below:



Time to activate smoke management equipment.

 This excludes delays in the

equipment becoming effective and is an input to SS-B.



Time to alert occupants.

As indicated above, the alarm may take a number of

forms and the time includes any time delays inherent in automatic equipment
but excludes the time for occupants to react to the alarm (see SS-E).

Australian Fire Engineering Guidelines

abcb.gov.au

Page 112



Time to alert fire services.

This includes delay time discussed in Step 4 of the

analysis in Section A.4.4.1. This provides input to SS-F.

A.4.2.2 Outputs for suppression

The following outputs apply whether the suppression is by automatic equipment,

occupants or fire fighters:



Time of commencement of activation or commencement of suppression.



In the case of automatic equipment, this will be the activation time, whereas for
human intervention this is the commencement of fire fighting activities. This
provides input to SS-A and SS-F.

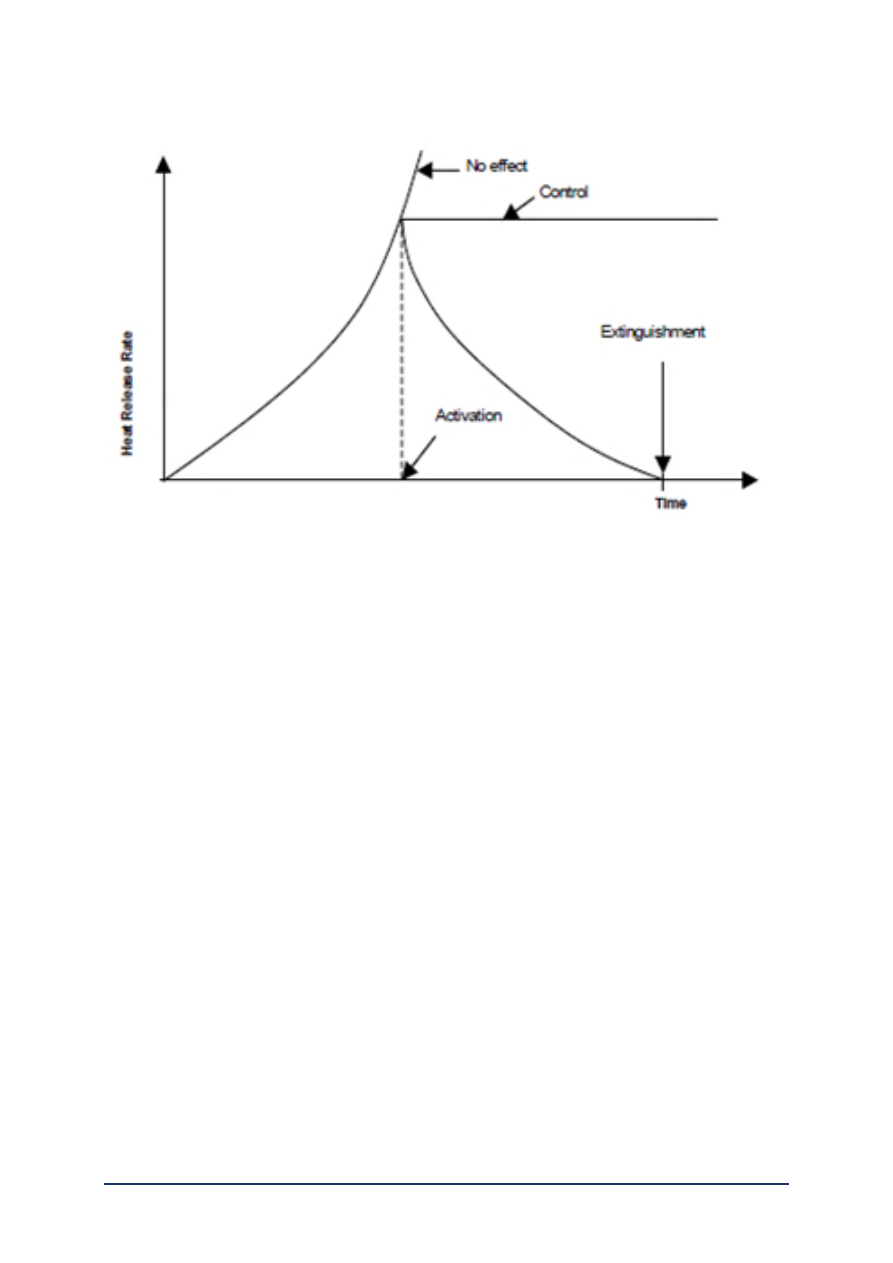

Modified HRR versus time.

This reflects the effect of suppression. It is

generally categorised by the following factors to provide input to SS-A and
SS-F:



no effect



control



extinguishment.



Time to control.

If the effect of suppression is only to ‘control’ the fire, the time

to control may be taken as the time to activation or the commencement of
suppression (and used in SS-A and SS-F).



Time to extinguishment.

If the effect of suppression is ‘extinguishment’, the

time at which the fire is finally extinguished may be determined as an input to
SS-A and SS-F.

A.4.3 Inputs – SS-D

A.4.3.1 Inputs for fire detection and warning

Typical inputs may include:



Detector and warning characterisation:

Information is required on the

location, type and actuation criteria of the detectors and alarms from the PBDB.
The actuation criteria will vary from one type to another and will determine the
other inputs required. In principle, detectors include automatic suppressors as
well as occupants of the building (see SS-E).



Fire conditions:

A number of fire parameters may be used to determine

detector activation according to the type of detector. These may include:



HRR from SS-A



flame size and temperature from SS-A

Australian Fire Engineering Guidelines

abcb.gov.au

Page 113



carbon monoxide concentration from SS-A



smoke optical density from SS-B



smoke temperature from SS-B.

A.4.3.2 Inputs for fire suppression

Typical inputs may include:



Suppressor characterisation.

Information on the location, type, actuation

criteria, and suppressing agent characteristics of the suppression equipment
are obtained from the PBDB. The actuation criteria will vary from one
suppressor type to another, and will determine the other inputs required.
Suppressors include automatic suppressors, occupants, and fire services.



Fire conditions:

A number of fire parameters may be used to determine the

suppressor activation times and the effect of suppression:



HRR from SS-A



smoke optical density from SS-B



smoke temperature from SS-B



nominated suppression effectiveness from the PBDB.

A.4.4 Analysis – SS-D

A.4.4.1 Analysing fire detection, warning and suppression

The process of analysis is shown in Figure A.4.1. The initial four steps are similar for

both detectors and suppressors, although the necessary input data will vary

according to the actuation criteria.



Step 5 deals only with suppression by automatic equipment and building occupants.

Suppression by the fire services is covered by SS-F.



Step 1

Determine the conditions local to the detector or suppressor. The parameters that are

relevant will depend on the type of detector/suppressor, its characteristics, and

activation criteria.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 114

Step 2

Compare the conditions local to the detector or suppressor with the activation criteria.

If the criterion has been exceeded by the local conditions, the device may be

considered to have activated. If the criterion has not been exceeded, the time should

be incremented, and the situation should be re-examined.

Step 3

Record the activation times.

Step 4

Modify the activation times to obtain the notification times by adding any delay times

appropriate to the equipment associated with the detector or suppressor. Generally,

delay times inherent in the detector or suppressor will have been included in the

characteristics of the detector or suppressor used in the analysis, or otherwise

included in the analysis method.

The delays may be due to:



detector signal interrogation, verification and processing by associated
equipment



the time required for a signal to sound an alarm



time required for the transmission of signals. For example, signals sent to fire
stations through automatic equipment, alarm monitoring companies or manual
alarms



time for coincident detector operation



time for occupant evacuation before the release of a suppression agent that is
harmful to humans.



Step 5

If a suppressor has been installed and activated, Step 5 is to determine the effect of

the equipment on the design fire (from SS-A). The effect of the suppressor is

illustrated in Figure A.4.2.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 115

Figure A.4.2 Possible effects of suppression on a design fire



As shown in Figure A.4.2 the possible effects of suppression can be expressed as

one of three possible outcomes:



No effect.

Although this is an unlikely outcome, it is sometimes used as a

conservative assumption. This is based on those cases where the suppressor
may be inoperative or a fire has developed beyond flashover and is thus difficult
to extinguish.



Control.

This outcome is represented by a steady HRR from the time at which

suppression begins. It is assumed that the control situation represents the
extent of the suppressor’s capability and that extinguishment is only achieved
when all the fuel is consumed. This may be a conservative assumption in a fire
engineering analysis, and is often used when the fire is shielded from the
suppressor. However, the intent of the design of the suppressor should be
taken into account as not all designs are for extinguishment.



Extinguishment.

In addition to the time of extinguishment, the FE can calculate

the rate at which the fire decays. Sometimes, arbitrarily, the decay phase is
assumed to be a mirror image of the growth phase.

The outcome(s) used in the analysis will generally be decided qualitatively during the

PBDB process, but may require input from SS-E for likely-occupant fire fighting

activities. In a fire engineering analysis, it is customary to assume that occupants will

not engage in effective fire fighting activities unless they are part of a specially-

trained site emergency response crew. However, if there is good reason to believe

Australian Fire Engineering Guidelines

abcb.gov.au

Page 116

that occupants will contribute to effective fire fighting, such action may be taken into

account and the time such activities commence determined. Decisions on these

matters should be made during the PBDB process.

Suppression by fire services is covered by SS-F.

Step 6

Determine if the end time has been reached. This is when:



the fire has ceased to burn either due to suppression or lack of fuel



the stage of the design fire agreed to in the PBDB process has been reached



in the engineering judgement of the FE, sufficient analysis has been carried out
to justify the trial design under consideration.

If the end time has not been reached, the next iteration is undertaken and the

analysis continued until the end time has been reached.

Step 7

The analysis of SS-D is terminated.

A.4.4.2 Analysis of enhanced fire detection, warning and

suppression

Enhancement of this sub-system may be achieved by designing (or choosing) fire

detection, warning and suppression equipment that performs to a predetermined

level. This process uses the same basic elements of Figure A.4.1 as well as the

analysis process described in Section A.4.1.1). It enables the quantification of those

characteristics of the detection and suppression equipment (see Section A.4.3) that

enable the attainment of the relevant acceptance criteria for the analysis (as

determined in the PBDB process used in 2.4 (Collating the results and drawing

conclusions).

Australian Fire Engineering Guidelines

abcb.gov.au

Page 117

A.4.5 Construction, commissioning, management, use and

maintenance – SS-D

Fire detection, warning and suppression equipment (‘active’ fire protection measures)

often use complex electronic components, and therefore need particular attention in

order to ensure that:



they are properly installed during construction of the building



commissioning confirms the performance assumed or required by the fire
engineering evaluation



management and use is in accordance with any requirements of the fire
engineering evaluation



maintenance is carried out in accordance with the relevant codes, standards,
manufacturers’ literature and specific maintenance requirements recommended
by the FE. It may be possible to ensure that this is done through the essential
safety provisions that may apply in some jurisdictions.





Australian Fire Engineering Guidelines

abcb.gov.au

Page 118



Occupant evacuation and control – SS-E

SS-E is used to analyse the evacuation of the occupants of a building. This process

enables estimates to be made of the events that comprise evacuation – in order to

determine the time from fire initiation required for occupants to reach a place of

safety. This time is generally referred to as RSET.

RSET comprises a number of components that are shown in the detection and

evacuation timeline of Figure A.5.1

The actual times, and hence the quantitative timeline, may vary according to the

location of the occupants with respect to the fire.

This timeline includes the following events (in order of occurrence):



Fire initiation (t

0

).

Time zero for the analysis of the fire, evacuation, and

determination of RSET.



Occurrence of cue (t

c

).

The time of a cue that indicates the occurrence of a

fire. The cue may be from an automatic alarm device, aspects of the fire itself,
or people warning others.



Recognition of cue (t

r

).

The time at which occupants, having received a cue,

recognise it as an indication of a fire.



Initiation of movement (t

d

).

The time at which occupants begin the evacuation

movement. This may occur after a delay during which occupants carry out other
actions (including ‘no action’).



Completion of movement (t

m

).

The time when occupants reach a place of

safety.

All these events or points in time are separated by time periods that comprise the

components of RSET.

These event times are used to define the components of RSET as shown in:



cue period (P

c



response period (P

r



delay period (P

d



movement period (P

m

).

Various phases may be identified to represent one or more of the above periods as

shown in Figure A.5.1:

Australian Fire Engineering Guidelines

abcb.gov.au

Page 119



detection phase = P

c





pre-movement phase = P

r

 + P

d





movement phase = P

m





evacuation phase = P

r

 + P

d

 + P

m





RSET = P

c

 + P

r

 + P

d

 + P

m

In the event of a fire in a building, traditional practice has been to commence

occupant evacuation in response to fire alarms based upon evacuation management

plans.

In high-rise buildings with an emergency warning and intercommunication system,

the evacuation may be cascaded – with occupants on floors furthest from the fire

placed initially on alert, and each floor/area evacuated progressively starting from the

fire floor.

In particular types of buildings, the concept of a fire safe refuge – where occupants

go to a special fire compartment to await support from the fire service to evacuate –

is sometimes used. This may be appropriate for specific buildings such as ultra-high

rise buildings or hospitals, however requires very careful consideration and

consultation with all relevant stakeholders including the fire service. Internationally,

the ‘protect in place’ concept has been used for some buildings, however this

strategy is being reconsidered.

Occupants should be provided with a safe means of evacuating from the building to a

road or open space. In all buildings, FE should consider safety for people with

disabilities or other mobility impairments. The use of elevators for evacuation or

providing refuges are examples of possible options.

This appendix provides guidance on quantifying the times, components and phases

described above. In particular, the RSET period is quantified so that it may be

compared with ASET (see 2.4 Collating results and drawing conclusions).

This appendix also discusses the relationships between this sub-system and others.

Although this appendix provides guidance on the analysis of SS-E in the general

analysis context discussed in 2.3, each project needs to be considered individually

and the analysis varied accordingly.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 120

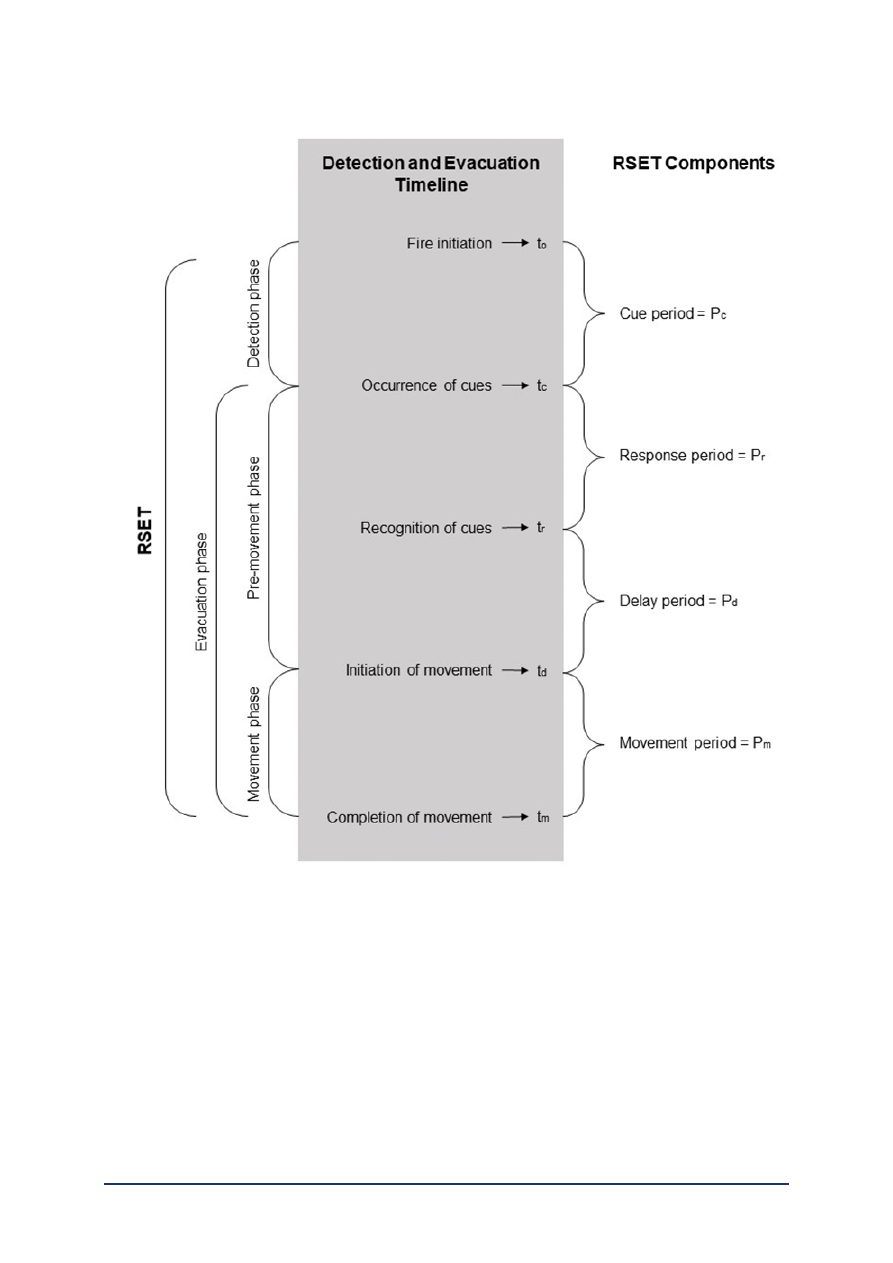

Figure A.5.1 Detection and evacuation timeline



A.5.1 Procedure – SS-E

A.5.1.1 Occupant evacuation

Figure A.5.2 illustrates how occupant evacuation can be analysed.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 121

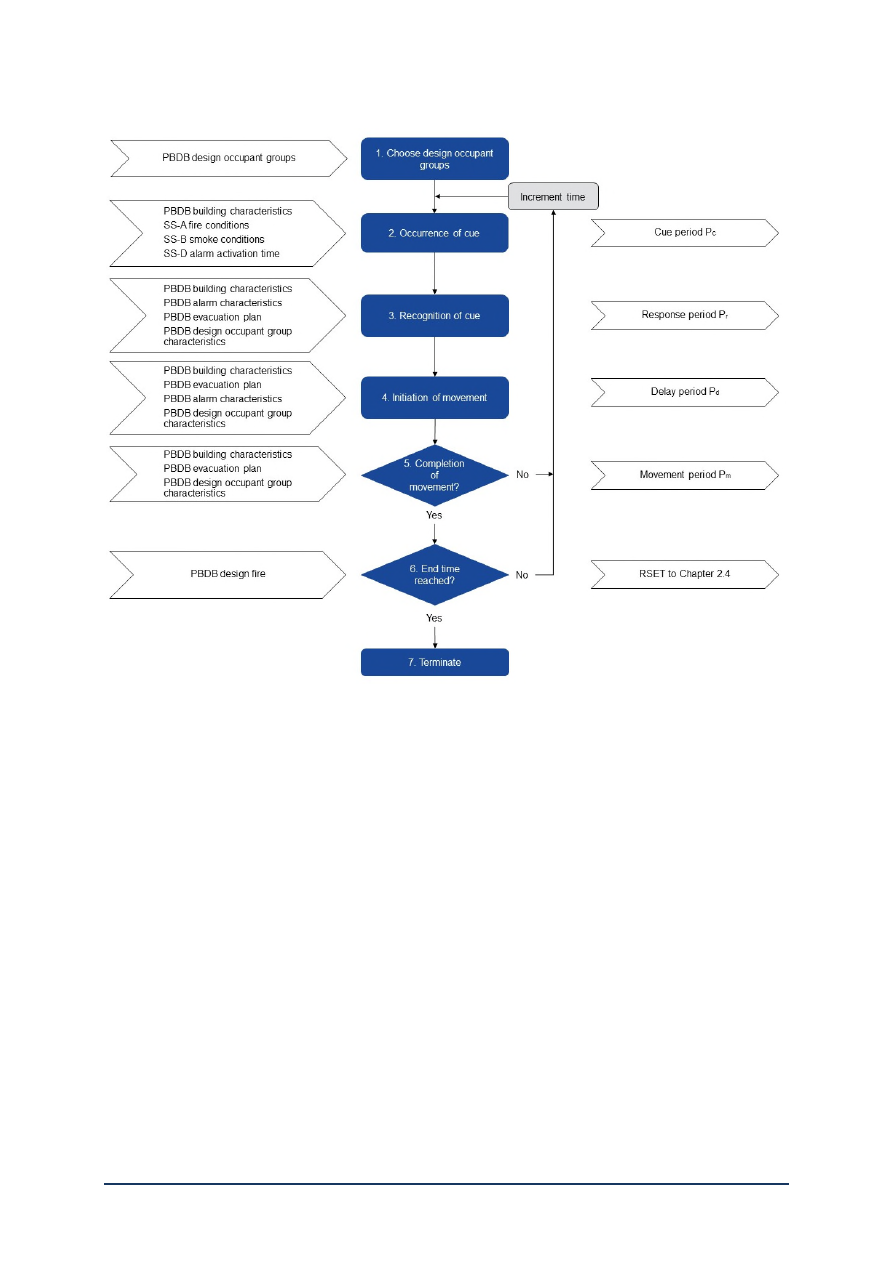

Figure A.5.2 Flow chart for occupant evacuation analysis



Discussion of the figure can be found in the following sections:



Section A.5.2 Outputs



Section A.5.3 Inputs



Section A.5.4 Analysis.

Figure A.5.1 is supplemented by other flow charts presented in the analysis section

(Section A.5.4). An analysis needs to be undertaken for each design occupant group

specified by the PBDB.

Where the PBDB decision is an analysis that includes consideration of probabilities

of various events and scenarios occurring should be undertaken, the flow chart can

assist the FE in identifying those factors to be taken into account during the

probability analysis.

The flow chart provides guidance but does not necessarily cover all the factors which

may be relevant to a particular fire engineering analysis.















Content      ..     6      7      8      9     ..
