A.5.1.2 Control of occupant evacuation

The control of occupant evacuation may be used to improve fire safety as an

alternative (or in addition) to those measures provided by other sub-systems, and

these are discussed in Section A.5.4.2.

A.5.2 Outputs – SS-E

Depending on the analysis tools used, the following parameters are generally

available as outputs from SS-E:



cue period (P

c

).

 This is the period from fire initiation to the occurrence of a

selected cue.



response period (P

r

).

 The occupants may not immediately associate the cue

available to them with a fire-related emergency. The PBDB should have set the
criteria by which the analysis will determine whether the occupants recognise
the various cues. The time span between the occurrence and recognition of
cues is referred to as the response period.



delay period (P

d

).

The occupants may carry out a wide variety of delay-causing

actions (including ‘no action’) once they have recognised the fire cues (and
become aware of a fire- related emergency) – but before they initiate their
movement towards a place of safety. The time span between the recognition of
cues and the initiation of the movement towards safety is referred to as the
delay period.



movement (travel) period (P

m

).

 The time span between the initiation and

completion of the movement to a place of safety is referred to as the movement
period.



RSET.

 The sum of the cue period, response period, delay period and

movement period is known as the RSET. This time is used in the collation of the
results and in drawing conclusions as discussed in 2.4.

A.5.3 Inputs – SS-E

The required input parameters to SS-E are determined by the analysis methods

used. They may include:



Building characteristics.

These should be available from the PBDB. Relevant

parameters may include:



building type and use



physical dimensions

Australian Fire Engineering Guidelines

abcb.gov.au

Page 123



geometry of enclosures



number of exits



location of exits



geography and layout.



Evacuation plan.

The features of any evacuation plan for the building need to

be identified. Although fire services assistance may be included in the
evacuation plan, such assistance may not be used in the analysis in some
evaluations. Features may include:



whether evacuation is controlled or uncontrolled



for controlled evacuations, what the evacuation type is (e.g. full, zone or
staged).



Design occupant groups and characteristics.

The design occupant groups

and their characteristics to be used for the analysis would have been
determined during the PBDB process (2.2.11). As a number of groups may be
analysed separately or used for different components of RSET, the relevant
characteristics for each group are required



Time of occurrence of cues.

These may include cues such as:





the activation of an automatic alarm (audio or visual), obtained from SS-D



fire-related cues (audio, olfactory, visual and tactile), based on information
from SS-A and B



warnings (in the form of actions or word of mouth) from other people,
based on information from the PBDB or this sub-system.

A.5.4 Analysis – SS-E

The analysis of occupant evacuation (particularly the pre-movement phase) is made

difficult by the lack of validated analysis methods. Where a suitable method is not

available the FE can use:



data from the literature, field studies or simulated evacuations



engineering judgement.

The data needs to be well documented and the engineering judgement well

substantiated (as described in 2.5, Completing the FER).

A.5.4.1 Analysing occupant evacuation

The process of analysis is shown in Figure A.5.2, and supplementary flow charts are

given in Figure A.5.3, Figure A.5.4, Figure A.5.5 and Figure A.5.6. The analysis

Australian Fire Engineering Guidelines

abcb.gov.au

Page 124

should be carried out for each of the enclosures (e.g. a room or mall) or group of

enclosures (e.g. a floor or a whole building).

Step 1

Choose the design occupant group. Design occupant groups should be identified and

described in the PBDB. The design occupant group recognised as being the most

critical for the analysis is generally chosen, but it may be appropriate to carry out the

analysis a number of times for different design occupant groups or to use different

design occupants groups for various steps in the analysis.

Step 2

Determine cue occurrence and quantify cue period. The flow chart in Figure A.5.3

explains the steps involved in determining cue occurrence and the quantification of

the cue period (P

c

).

In the majority of cases, automatic alarms are the preferred choice for cues

(notification). An automatic alarm may be activated in many different ways such as by

smoke detectors, thermal detectors, suppressors, ultraviolet detectors and infrared

detectors.

Fire-related cues are generally detected in the enclosure of fire origin. However,

depending on the spread of smoke and fire, they may be detected in other

enclosures. The cues may be:



audio, for example, the sound of the fire or burnt objects falling



olfactory, for example, the smell of smoke



visual, for example, the sight of smoke or flames



tactile, for example, a change in air temperature or radiated heat from the fire.

In some cases, people who have heard or observed an automatic or fire-related cue

may alert other people.

In using the option of warning by others, it should be noted that those who are doing

the warning not only need to have recognised a cue, however would also have

needed to have received a cue. This would need to be factored into the timing.

Figure A.5.3 illustrates the quantification of the cue period (P

c

).

Australian Fire Engineering Guidelines

abcb.gov.au

Page 125

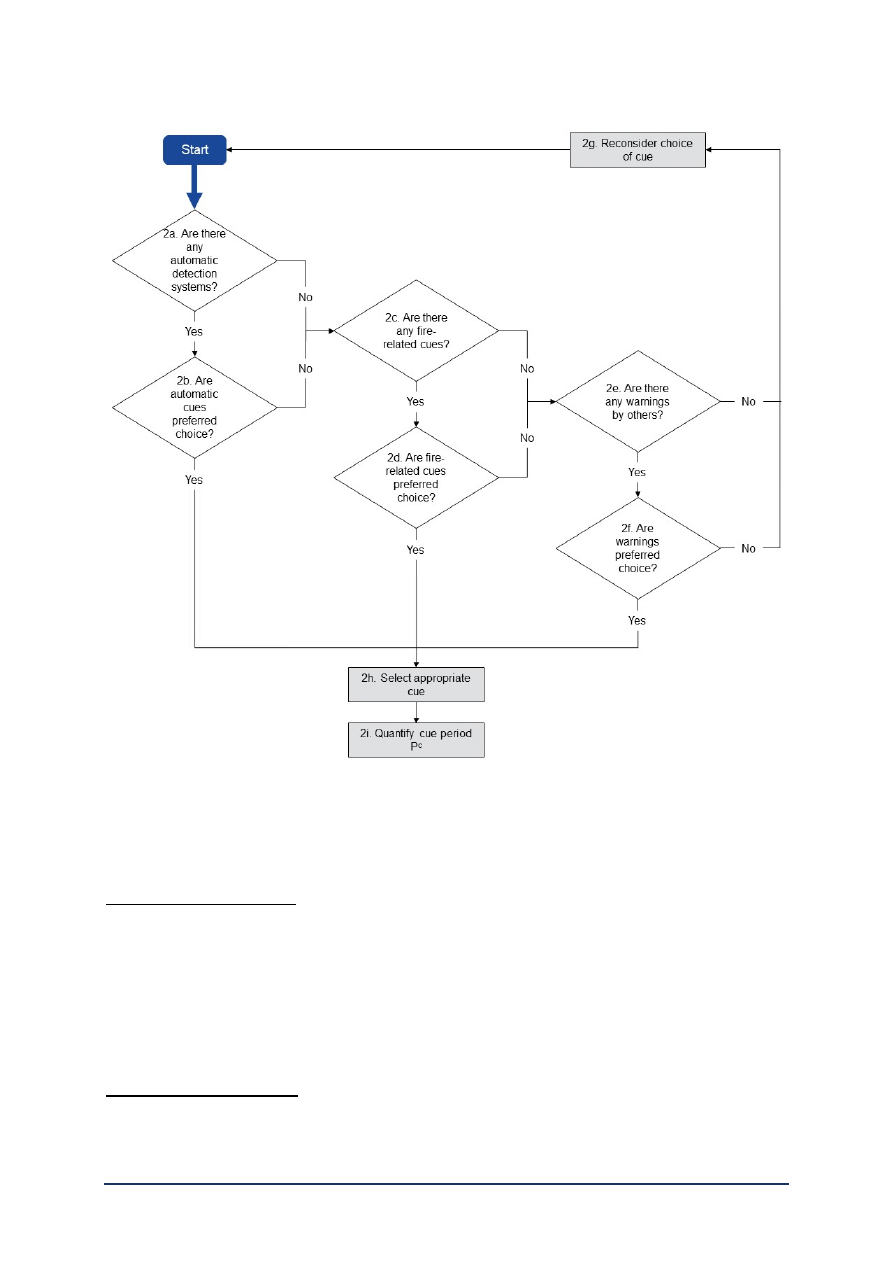

Figure A.5.3 Flow chart for determining the cue period (P

c



The steps set out in Figure A.5.3 are described in more detail below.

Steps 2a and 2b

Assess automatic cues. The presence of automatic detection equipment should be

established in the PBDB. If they are present, a decision needs to be reached on

whether to include them in the analysis. If automatic detectors are used in the

analysis, proceed to

Step 2h.

Steps 2c and 2d

Assess fire-related cues.



If automatic cues are not present or a decision has been

reached not to include them in the analysis, fire-related cues may be considered. If

fire-related cues are used, proceed to

Step 2h

Australian Fire Engineering Guidelines

abcb.gov.au

Page 126

Steps 2e and 2f

Assess cues from people warning others.



These may be considered using

information on the characteristics of the design occupant groups being used in the

analysis. Generally, those warning others will have recognised a cue (see

Step 3

). If

warning by others is used, proceed to

Step 2h

Step 2g

Re-consider choice of cue. If the FE has not chosen to consider any of the available

cues, the analysis cannot progress any further. The FE needs to re-consider the

choice of cues by returning to the start of the process.

Step 2h

Select appropriate cue.



Where the above process has identified more than one

possible cue for the analysis, select the most appropriate cue (for example, one of

several possible automatic cues). In all cases, the reasons for choosing the cue

should be documented.

Step 2i

Determine cue period.



The information needed to determine the cue time (and hence

the cue period) will be available from various sources according to the type of cue.

For example:



for automatic cues, SS-D



for fire related cues, SS-A and B



for warnings by others,

Step 3.

After obtaining the information, determine the cue time, and then the cue period.

Step 3

Determine cue recognition and quantify response period. Figure A.5.4 explains the

steps involved in determining cue recognition and quantification of the response

period (P

r

).

Cue recognition may be defined as the process of occupants receiving cues, defining

the situation and identifying the cues as an indication of a fire-related emergency.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 127

The time period over which these events take place is identified as the response

period.

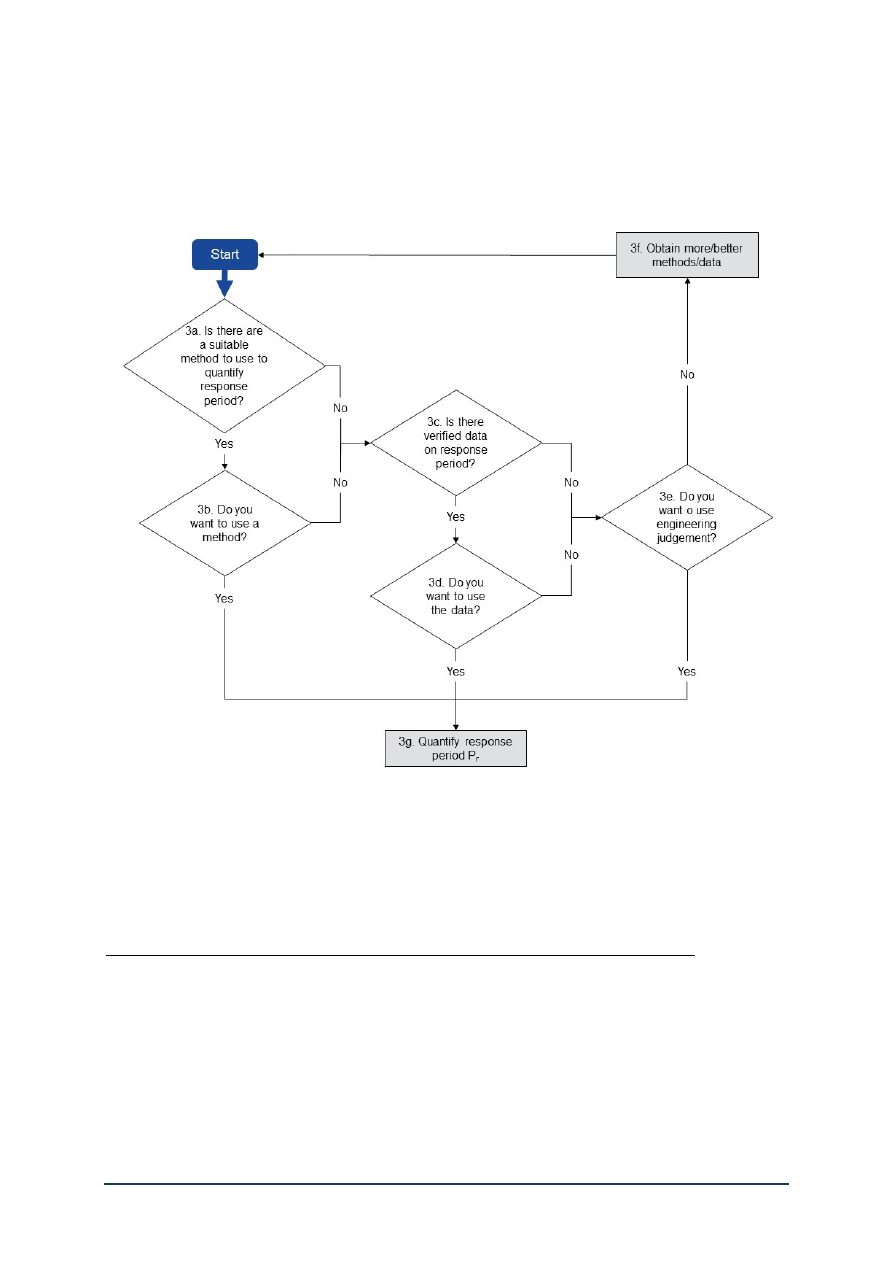

Figure A.5.4 Flow chart for determining response period (P

r



The following steps comprise the quantification of response period as set out in

Figure A.5.4.

Steps 3a and 3b

Establish the availability of a suitable method and decide whether to use it

The FE

needs to establish the availability of a suitable method to quantify the response

period. The decision on whether to use the method will depend on the suitability of

the method and the availability of input data.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 128

Steps 3c and 3d

Establish the availability of verified data and decide whether to use it or not

The FE

needs to establish the availability of verified data to quantify the response period. The

decision on whether to use the data will depend on the applicability of the data to the

scenario being assessed.

Step 3e

Use of engineering judgement

Where valid methods or verified data are not

available or not appropriate, engineering judgement may be used. However, all

quantification based on engineering judgement needs to be justified in detail (see 2.5

Completing the FER).

Step 3f

Obtain other methods or data.



Where the methods and data considered are not

appropriate and engineering judgement cannot be used, the FE needs to obtain other

methods or data in order to quantify the response period.

Step 3g

Quantify response period. Quantify the response period using methods, adopting

data, or by applying engineering judgement.

Step 4

Determine time of initiation of movement and quantify delay period (P

d

).



The flow

chart in Figure A.5.5 explains the steps involved in determining initiation of

movement and quantification of the delay period (P

d

).

After cue recognition, there is generally a delay period before movement towards a

place of safety is initiated. During this delay period, occupants may carry out a wide

variety of actions (including ‘no action’) which may vary according to the design

occupant group considered.

Figure A.5.5 illustrates the steps that comprise the quantification of the delay period

(P

d

).

Australian Fire Engineering Guidelines

abcb.gov.au

Page 129

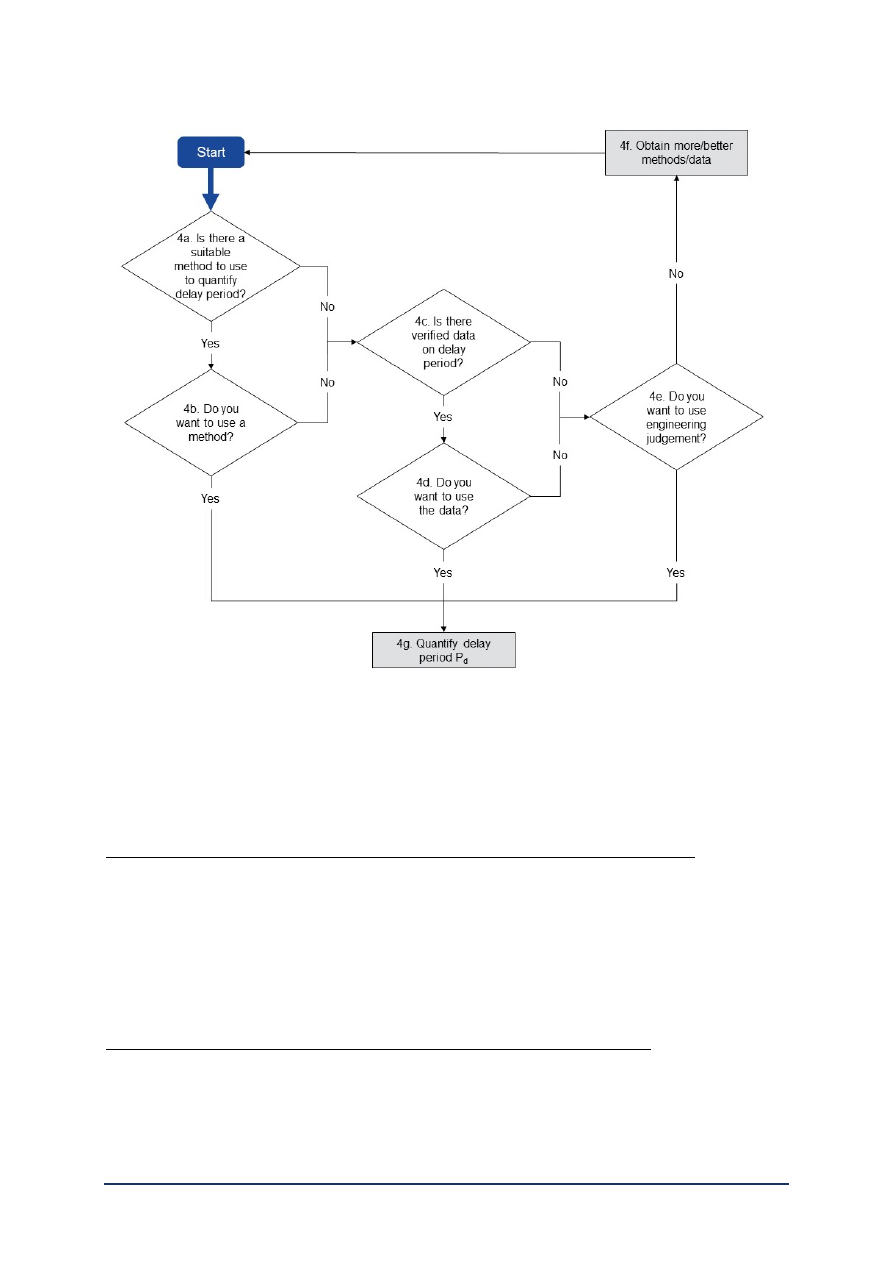

Figure A.5.5 Flow chart for determining the delay period (P

d



The following steps comprise the quantification of delay period as set out in Figure

A.5.5.

Steps 4a and 4b

Establish the availability of a suitable method and decide whether to use it

The FE

needs to establish the availability of a suitable method to quantify the delay period.

The decision on whether to use the method will depend on the suitability of the

method and the availability of input data.

Steps 4c and 4d

Establish the availability of verified data and decide whether to use it

The FE needs

to establish the availability of verified data to quantify the delay period. The decision

on whether to use the data will depend on the applicability of the data to the scenario

being assessed.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 130

Step 4e

Use engineering judgement

Where valid methods or verified data are not available

or not appropriate, engineering judgement may be used. However, all quantification

based on engineering judgement needs to be justified in detail (see 2.5 Completing

the FER).

Step 4f

Obtain other methods or data. Where the methods and data considered are not

appropriate and engineering judgement cannot be used, the FE needs to obtain other

methods or data to quantify the delay period.

Step 4g

Quantify delay period. Quantify the delay period using methods, adopting data, or by

applying engineering judgement.

Step 5

Determine completion of movement and quantify movement period (P

m

). Figure A.5.6

explains the process for determining completion of movement and quantification of

the movement period (P

m

).

Australian Fire Engineering Guidelines

abcb.gov.au

Page 131

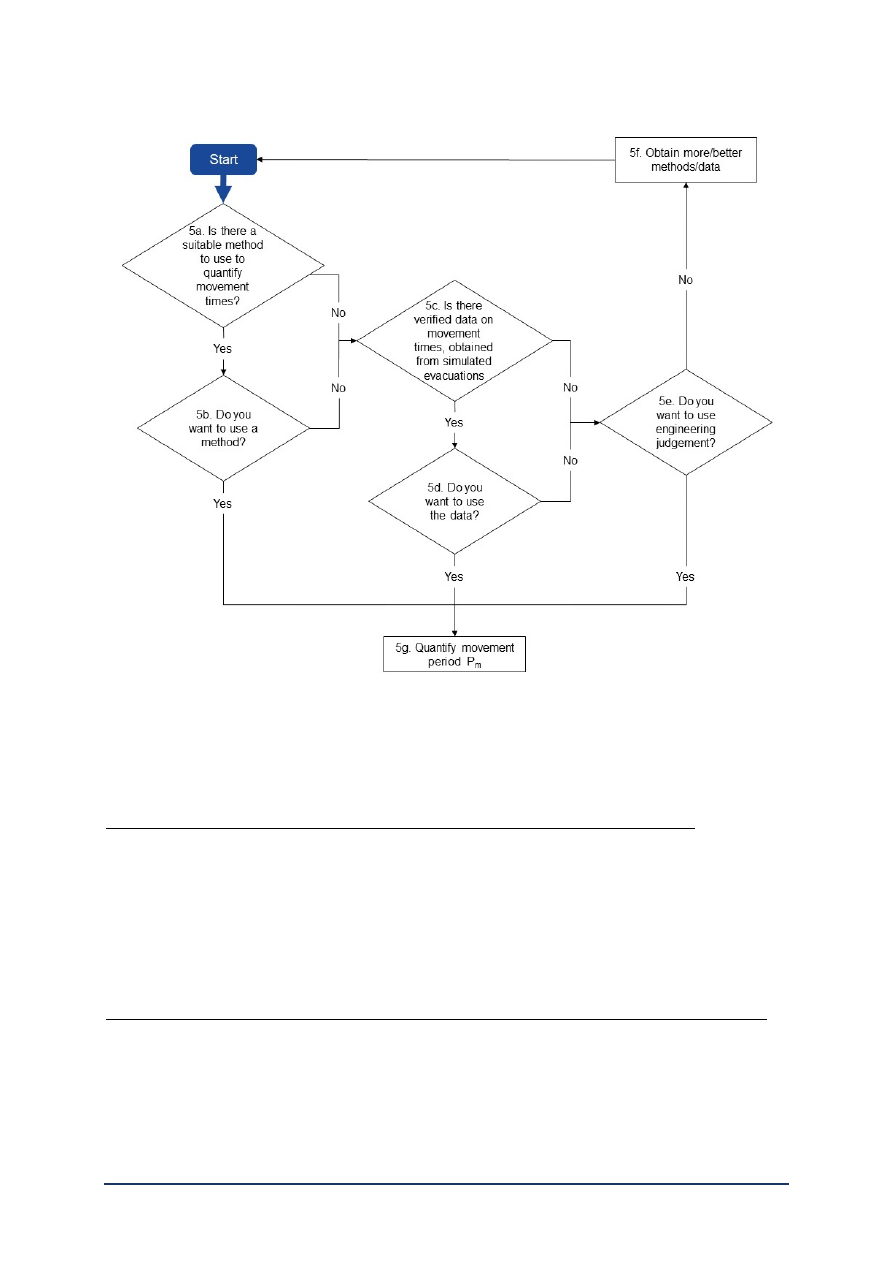

Figure A.5.6 Flow chart for determining the movement period (P

m



The following steps comprise the steps set out in Figure A.5.6.

Steps 5a and 5b

Establish the availability of a suitable method and decide whether to use it.



The FE

needs to establish the availability of a suitable method to quantify the movement

period. The decision on whether to use the method will depend on the suitability of

the method and the availability of input data.

Steps 5c and 5d

Establish the availability of simulated evacuation data and decide whether to use it.

The FE needs to establish the availability of simulated evacuation data to quantify the

movement period. The decision on whether to use the data will depend on the

applicability of the data to the scenario being assessed.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 132

Step 5e

Use of engineering judgement

Where valid methods or simulated evacuation data

are not available or not appropriate, engineering judgement may be used. However,

all quantification based on engineering judgement needs to be justified in detail (see

2.5 Completing the FER).

Step 5f

Obtain other methods or data

Where the methods and data considered are not

appropriate and engineering judgement cannot be used, the FE needs to obtain other

methods or data in order to quantify the movement period.

Step 5g

Quantify movement period

By using methods, adopting data or by applying

engineering judgement, the movement period should be quantified.

Step 6

Determine the end time has been reached. This is when:



the analysis has been carried out for all the occupant groups identified in the
PBDB



all the occupants have reached a place of safety



all the relevant enclosures have been analysed



the stage of the design fire, agreed to in the PBDB process, has been reached



in the engineering judgement of the FE, sufficient analysis has been carried out
to justify the trial design under consideration.

If the end time has been reached, calculate the RSET by adding the cue period (P

c

),

response period (P

r

), delay period (P

d

) and movement period (P

m

). If the end time

has not been reached, carry out the next iteration and continue the analysis until the

end time has been reached.

Step 7

The analysis of SS-E is terminated.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 133

A.5.4.2 Analysing control of occupant evacuation

There are a number of ways of reducing the RSET in order to improve the

performance of a building's fire safety system. The time periods that constitute RSET

can be reduced individually or collectively by varying the factors that influence the

magnitude of these periods.

The factors that could influence the relevant periods may include:



response period:



additional cues and information



less ambiguous cues



more trained personnel.



delay period:



training programs



more information related to an emergency



more trained personnel and directives.



movement period:



additional and better signage



more trained personnel and directives



improvement of egress path location and dimensions



improved egress path design



egress path illumination



contra flow integration.

The possibility of achieving a given RSET value may be analysed by varying one or

more of these factors and using the processes described in A.5.4.1 to quantify a

modified RSET.

A.5.5 Construction, commissioning, management, use and

maintenance – SS-E

The evacuation measures that contribute to a building's fire safety system comprise

both physical measures (e.g. egress paths, fire corridors and exits, signage) and

emergency organisation and procedures (e.g. emergency planning committee,

emergency control organisation, emergency procedures, evacuation plans, education

and training, testing and maintenance).

Australian Fire Engineering Guidelines

abcb.gov.au

Page 134

These aspects should be addressed during the design and construction phase. The

emergency procedures for new buildings should be developed by (or with input from)

the fire engineering team. For existing buildings, the existing emergency plan may

need to be modified to reflect the assumptions and recommendations of the fire

engineering study. Again, this should be carried out by, or receive input from, the FE.

Comment: Evacuation procedures

Documented evacuation procedures may include:



recommended procedures for the controlled evacuation of buildings,
structures and workplaces during emergencies



guidelines on the appointment of an emergency planning committee and an
emergency control organisation



setting up of an emergency control organisation, the preparation of
emergency plans and procedures



the role and authority of emergency control organisation personnel while
executing their duties



an education and training program.

During commissioning, the physical provisions, emergency organisational structure,

and emergency procedures need to be critically assessed – a cause/consequence

analysis may be appropriate. This may result in some refinements to the organisation

and procedures to better reflect the building as constructed.

Once a structure and procedures have been adopted, building management is

responsible for establishing the emergency planning committee, emergency control

organisation, appointments, education and training programs, and testing

procedures. Building management is also responsible for reviewing and amending

organisations and procedures as necessary.

Maintenance is another building management responsibility. It includes:



Maintenance of the physical measures. The building management should
ensure, through regular checks, that egress paths are kept clear of any
obstructions, all doors operate as required, and all signage is in good condition.



Maintenance of the emergency organisation and procedures. Building
management should ensure that the organisation meets at appropriate times;
training sessions are carried out; evacuation exercises are carried out;

Australian Fire Engineering Guidelines

abcb.gov.au

Page 135

emergency procedures are reviewed, tested and updated; all trained personnel
positions are filled; and records are kept.

It may be possible to ensure that these measures are maintained through the

essential safety provisions for buildings that may apply in some jurisdictions.





Australian Fire Engineering Guidelines

abcb.gov.au

Page 136



Fire services intervention – SS-F

SS-F is used to analyse the effects of the intervention activities of fire services on a

fire. This process enables estimates of various events that comprise the intervention

as well as the effectiveness of suppression activities.

This sub-system includes public and private fire services such as those that might

belong to an industrial complex.

In many fire engineering evaluations, the effect of fire services intervention on the fire

is not taken into account, the building fire safety system is evaluated on the basis of

the other five sub-systems. The fire brigade intervention strategy is to be developed

in consultation with the fire brigade during the PBDB process, and may need to be

validated using the FBIM. The analysis of the evacuation of occupants to a place of

safety should not rely on fire services intervention.



However, this does not mean that the fire engineering evaluation should discount the

needs of fire services carrying out their intervention activities. This appendix provides

guidance on quantifying the time of:



the arrival of the fire services at the fire scene



investigation by the fire services



fire services set up



search and rescue



fire services attack



fire control



fire extinguishment.

Relevant aspects of the fire safety strategy, including elements such as the RSET

and the ASET for particular fire scenarios may be represented with the FBIM to

articulate the overall fire safety strategy with the fire brigade intervention strategy and

therefore facilitate stakeholder conversation during the PBDB stage. This may be

illustrated using Gantt Charts or the like.

This appendix also discusses the relationships between this sub-system and others.

This appendix provides guidance on the analysis of SS-F in the general analysis

context discussed in 2.3. However, each project needs to be considered individually

Australian Fire Engineering Guidelines

abcb.gov.au

Page 137

and the analysis varied accordingly. In some cases, environmental and other issues

may be of concern, and these would need to be taken into account in analysing the

activities of the fire services. It should be noted that this sub-system may vary over

the life of the building due to changes in fire service location, budgets, equipment,

and changes in traffic density.

A.6.1 Fire Brigade Intervention Model (FBIM)

The objectives of the NCC require, amongst other things, that the design allows for

fire service intervention. AFAC has developed a universal model that quantifies the

time taken by a fire service to undertake its activities. The FBIM is an event-based

methodology that encapsulates standard fire service activities from time of

notification to control and extinguishment.

The FBIM employs a structured decision-based framework necessary to both

determine and measure fire service activities on a time-line basis. The model

interacts with the outputs of Sub-systems A to E as needed for analysis and is

applicable to most fire scenarios. It will be necessary to utilise the expertise of the

local fire service to validate many of the decision-based input parameters used. The

FBIM is pertinent to most service types, crew sizes and resource limitations.

To support fire brigade intervention activities, adequate fire fighting facilities must be

provided (for example, adequate vehicular access and firefighting water supply) as

determined by the interaction of Sub-systems A to F.

Fire services commonly have a responsibility to conduct activities relating to:



search and rescue of building occupants



fire containment



fire extinguishment



protection of property from damage due to fire and its products



protection of the environment and the community from the products of fire and
dangerous substances, including the effects of fire service intervention (for
example, fire fighting water run off from a chemical warehouse into the
environment)



minimising business interruption and adverse affects on the community.

















Content      ..     7      8      9      10     ..
