Australian Fire Engineering Guidelines (2021) - part 6





Australian Fire Engineering Guidelines

abcb.gov.au

Page 74

When using such considerations, it is recommended that the overall fire cost

associated with a particular design be estimated. The FCE (present value) is:

𝐹𝐶𝐸 =  Capital cost  +  𝐴𝑛𝑛𝑢𝑎𝑙 𝑐𝑜𝑠𝑡𝑠  + 𝐸𝑥𝑝𝑒𝑐𝑡𝑒𝑑 𝑐𝑜𝑠𝑡 𝑜𝑓 𝑙𝑜𝑠𝑠𝑒𝑠



Where:

Capital cost

is capital cost associated with active and passive fire protection



Annual costs

are annual costs for inspection and maintenance of fire

equipment



Expected cost of losses



is expected cost of building and contents fire losses.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 75

4 Philosophy and intent

4.1



Information sources

Because fire engineering is an emerging discipline, research is ever evolving and

approved methods constantly updating. As discussed in 1.3, there are very few well-

codified methods of approaching and solving problems. The key issues that FE need

to have an in-depth knowledge of include:



how various materials ignite



the manner in which fire develops



the manner in which smoke (including toxic products) spread



how structures react to fire



how people respond to the threat of fire, alarms, and products of combustion.

The dilemma for the FE is where to locate appropriate knowledge and guidance.

As with other emerging disciplines, there is a variety of information sources available.



State and territory based legal requirements

Examples:



Building Act



Building Regulation

The NCC as adopted by each state and territory and the Australian
Standards (AS) which are referenced documents within the NCC

Examples:



NCC 2019 Amendment 1



AS 1670.4 Fire detection, warning, control and intercom systems –
System design, installation and commissioning- Emergency warning and
intercom systems. 2018.



Australian Standards not adopted by the NCC



The Engineers Australia’s Society of Fire Safety (EA – SFS) Practice Guides

Examples:



Society of Fire Safety Practice Guide Facade/External Wall Fire Safety
Design

; SFS Facade Fire Safety Design Committee, Engineers Australia;

15 March 2019

Australian Fire Engineering Guidelines

abcb.gov.au

Page 76



International standards and guides such as the International Standards
Organisation (ISO) and the Society of Fire Protection Engineers (SFPE)
standards

Examples:



SFPE S.01 Standard on Calculating Fire Exposures to Structures. Society
of Fire Protection Engineers; Gaithersburg MD, 2011.



SFPE S.02 Standard on Calculation Methods to Predict the Thermal
Performance of Structural and Fire Resistive Assemblies. Society of Fire
Protection Engineers; Gaithersburg MD, 2015.



ISO 23932-1:2018. Fire safety engineering — General principles — Part 1:
General. ISO/TC 92/SC 4. 2018.



CIBSE Guide E, Fire Engineering, 3rd Edition, Chartered Institute of
Building Services Engineers (CIBSE), UK, 2010



National standards such as New Zealand, European, UK, USA

Examples:



BS 9999: Code of practice for fire safety in the design, management and
use of buildings. British Standards Institution (BSI). 2020.



NFPA 13: Standard for the Installation of Sprinkler Systems. National Fire
Protection Association. 2019.



Published subject matter textbooks and handbooks

Example:



SFPE Handbook of Fire Protection Engineering

, 5th Edition. Society of

Fire Protection Engineers; Gaithersburg MD, 2016.



Refereed journals and symposia and proceedings

Examples:



Asiaflam Fire Science and Engineering Conferences



IAFSS Symposia



Interflam Fire Science and Engineering Conferences



International Conferences on Performance Based Design and Fire Safety
Design Methods



International Symposia on Human Behaviour in Fire.



Refereed university publications

Australian Fire Engineering Guidelines

abcb.gov.au

Page 77

Example:



Fire Engineering Design Guide, 3rd Edition,

University of Canterbury,

Christchurch, New Zealand, 2008;



Publications from recognised national laboratories

  Non-refereed university publications

  Publications from recognised private laboratories

Examples



UL 10B. Standard for Fire Tests of Door Assemblies (Ed. 10).
Underwriters Laboratory. 2020.



FM4880. Evaluating the Fire Performance of Insulated Building Panel
Assemblies and Interior Finish Materials. FM Global. 2017.

  Non-refereed Symposia and proceedings

Australian Fire Engineering Guidelines

abcb.gov.au

Page 78







APPENDICES

Australian Fire Engineering Guidelines

abcb.gov.au

Page 79

Appendix A Fire safety sub-systems



Fire initiation, development and control – SS-A

SS-A is used to define design fires in the enclosure of fire origin as well as

enclosures to which the fire has subsequently spread. The design fires are normally

described in terms of three types (see discussion in Section 3.1.2)



smouldering fire



non-flashover flaming fire



flashover fire.

For the purposes of the AFEG, an enclosure typically is a single volume and may

take many forms such as a room, a corridor, a shaft, an atrium, a warehouse or a

stadium arena.

This appendix provides guidance on how to:



consider the initiation of a fire in a fire engineering context



quantify design fires (developed during the PBDB process, Section 2.2.10.3) in
terms of:



HRR



toxic species yield



smoke yield



time to key events, particularly flashover.



consider measures to control fire initiation and development in a fire
engineering context.

This appendix also discusses the relationships between this sub-system and other

sub-systems.

Although this appendix provides guidance on the analysis of SS-A in the general

analysis context discussed in 2.3, each project needs to be considered individually

and the analysis varied accordingly.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 80

A.1.1 Procedure – SS-A

A.1.1.1 Fire initiation and development

Within a typical fire engineering evaluation, the normal assumption is that fire

initiation has occurred. Thus analysis of fire initiation is not generally an issue.

However, in some fire engineering evaluations it is appropriate to incorporate a

probabilistic analysis of ignition based on statistics for fire starts.

The flow chart in Figure A.1.1 illustrates how fire development can be analysed.

Discussion of the figure can be found in the following sections:



Section A.1.2 Outputs



Section A.1.3 Inputs



Section A.1.4 Analysis.

An analysis needs to be undertaken for each design fire specified by the PBDB.

Where the PBDB decision is to undertake an analysis that includes consideration of

probabilities of various events and scenarios occurring should be undertaken, the

flow chart can assist the FE in identifying those factors that may be taken into

account during the probability analysis.

The flow chart provides guidance but does not necessarily cover all the factors which

may be relevant to a particular fire engineering analysis.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 81

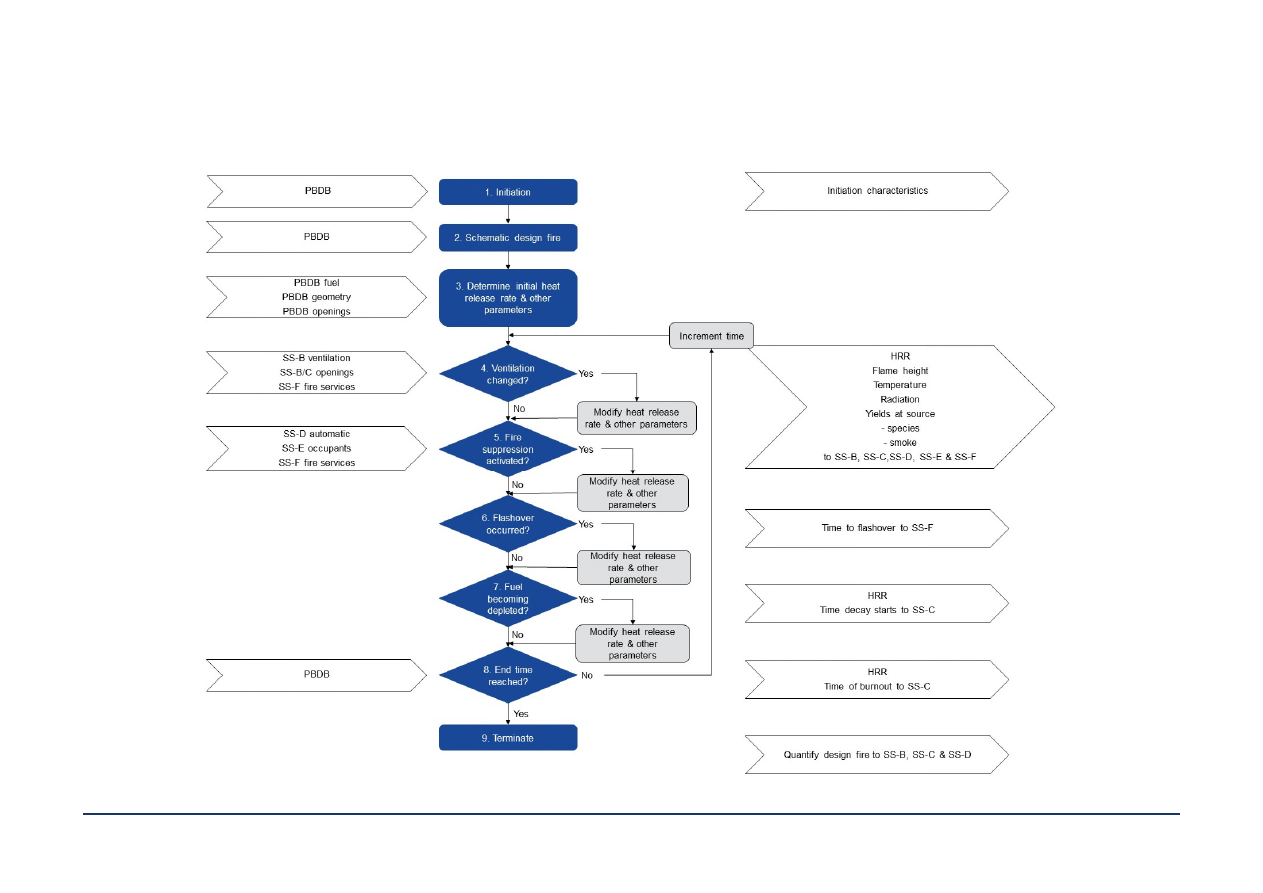

Figure A.1.1 Flow chart for fire initiation and development analysis



Australian Fire Engineering Guidelines

abcb.gov.au

Page 82

A.1.1.2 Control of fire initiation and development

The control of fire initiation and development may be used to improve fire safety as

an alternative to (or an addition to) those measures provided by other sub-systems

and these are discussed in Section 2.1.1.

A.1.2 Outputs – SS-A

The

principal outputs

from SS-A may be quantified relationships of the heat release

rate (HRR) versus time for the design fires (smouldering, non-flashover flaming, and

flashover – as appropriate). These relationships will indicate:



time to flashover (if it occurs)



time to start of fire decay



time to burnout.

The outputs may be used as inputs to SS-B, SS-C, SS-D and SS-F, and if required

for a probabilistic analysis, should have associated probabilities of occurrence.

Other possible outputs

 from SS-A include:



initiation characteristics



flame height at each time interval



temperature at each time interval



radiant heat emission at each time interval



species yield at the fire source at each time interval



smoke yield at the fire source at each time interval.

These outputs may be used as inputs to SS-B, SS-C, SS-D, SS-E and SS-F, and if

required for a probabilistic analysis, should have associated probabilities of

occurrence.

A.1.3 Inputs – SS-A

The following input data



may be required:



material and product ignitability data for enclosure linings and contents



design fires from the PBDB

Australian Fire Engineering Guidelines

abcb.gov.au

Page 83



fuel characteristics from the PBDB



occupancy characteristics from the PBDB



building characteristics from the PBDB, including:



geometry of enclosures



location, status (open or closed) and nature (fire rated or not), and size of
openings such as doors, windows and roof vents



changes in ventilation condition (e.g. due to windows breaking or smoke
dampers closing). Data on window breakage and dampers closing may
also be calculated (see SS-C and SS-B respectively)



thermal properties of internal linings (including thermal properties of
building envelope (e.g. EPS panel construction)



leakage rates through doors and barriers.



activation of smoke management equipment (SS-B):



when



the effect on smoke/hot layer parameters.



activation of suppression (SS-D):



when



the effect on HRR.



fire fighting activities of occupants (SS-E) or fire services (SS-F):



when



with what effect (e.g. on HRR).

If a probabilistic analysis is being carried out, some of these inputs will have

associated probabilities of occurrence and/or reliabilities.



A.1.4 Analysis – SS-A

A.1.4.1 Analysing fire initiation and development

As discussed in Section A.1.1.1, fire initiation is not normally subjected to analysis.

However, in some instances, it may be appropriate to carry out calculations on a

particular aspect of fire initiation.

Once ignition has occurred (or assumed to have occurred), the analysis of fire

development (in order to define a design fire) is normally carried out using an

iterative process in which the parameters of the fire are determined at each time

increment – taking into account factors that may affect fire development.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 84

The analysis need only be carried out as far as is necessary to provide a design fire

for input to the other sub-systems. A separate analysis is required for each design

fire identified in the PBDB. The typical process of analysis is shown in Figure A.1.1

and the steps are discussed below.

Step 1

If fire initiation has not been assumed, analysis may be carried out to determine:



the probability of initiation, particularly for the development of event trees for
probabilistic analysis (see discussion in Section 2.3.2)



how a fire may spread into a second (or subsequent) compartment by ignition of
material in that compartment.

Step 2

Obtain design fires from the PBDB process (see Section 2.2.10.3). The required

types (smouldering, non-flashover flaming, and flashover) and numbers of design

fires will be decided during that process.

Qualitative decisions on the effect of ventilation and suppression on the design fires

may also be made during the PBDB process. The analysis of this sub-system will

quantify such effects.

Step 3

For each design fire, an initial HRR and the initial yields of specific combustion

products need to be established. The basis for choosing these initial characteristics

will be agreed upon during the PBDB process, and in some cases, may even be

quantified.

As discussed in the PBDB, the heat release rate profile should take account of the

design fire scenario being considered, and typically it should be derived from test

data and statistical analysis. As the selection of a design fire can dominate the result

of an analysis, due care must be exercised in selecting appropriate fires. Commonly,

for a flaming fire, growth is assumed to occur as a

t

2



fire (from zero time) that best

matches the design fire scenario, up to the maximum heat release rate of the fuel or

to flashover.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 85

Generally, fire engineering analysis is carried out by adopting a broad-brush

approach to the burning of fuel, assuming that fuel will burn as a single unit.

Occasionally, however, it may be appropriate to analyse in greater detail how fire

may spread, for example, how fire may spread from one individual object to another,

in order to define the initial heat release rate in more detail.

For smouldering fires, it is difficult to calculate with certainty how long it may be

before the transition to flaming might occur. Because many fires do not have a

smouldering phase, a flaming fire is commonly assumed not to have a smouldering

phase.

The initial characteristics of the design fire will be changed by various factors, the

major ones being those shown in Figure A.4.2. Their influences need to be

determined as discussed in the following steps.



Step 4

One of the most important factors affecting the HRR is the ventilation available to the

fire. Two possible regimes are generally identified as:



a fuel-controlled fire



a ventilation-controlled fire.

Calculations can be carried out to determine:



which regime predominates (and is therefore limiting the HRR)



what modifying effect may be applicable to the design fire.

During the course of the fire, the ventilation may change for a variety of reasons.

These may include:



glass breaking (SS-A, SS-B or SS-C)



the operation of air handling or smoke extraction systems (SS-B)



doors or other partitions burning through (SS-C)



openings created by fire service intervention (SS-F).

Therefore, it is necessary to determine the times at which these factors change the

available ventilation and the magnitude of the change, in order to determine their

effect on fire development. The analysis process described in the appropriate sub-

systems should be used.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 86

Step 5

Determine whether suppression has been activated or commenced so that the

design fire can, if appropriate, be modified accordingly. This requires input from other

sub-systems:



SS-D which covers automatic suppression equipment. The qualitative effect on
the design fire will be decided during the PBDB process and SS-D will quantify
that effect



SS-D and SS-E which cover likely occupant fire fighting activities. In a fire
engineering analysis, it is customary to assume that occupants will not engage
in effective fire fighting activities. However, if there is good reason to believe
that occupants will contribute to effective fire fighting (e.g. a trained hospital fire
intervention team), and this has been recognised in the PBDB, such action may
be taken into account



SS-D and SS-F which cover fire service suppression activities (this also
includes private industrial fire crews). The qualitative effect of these activities
will be agreed during the PBDB process and SS-F will quantify that effect.

Step 6

Determine if the conditions are appropriate for flashover to occur.

The criteria used for determining the onset of flashover will depend on the method of

analysis used, and on the engineering judgement of the fire engineer, and may have

been agreed during the PBDB process.

To simplify design, the growth period between flashover and the maximum HRR is

usually ignored and it may be assumed that when flashover occurs, the HRR

instantaneously increases to the maximum value. This assumption is conservative.

Once flashover has occurred, the fire is said to be fully developed and is commonly

assumed to have a constant HRR at a level determined by the ventilation conditions

(see Step 4).



Step 7

Determine whether the fuel is becoming depleted (i.e. whether the decay phase is

starting). The criteria, in terms of the relative amount of fuel consumed, may have

been set in the PBDB process or set (and justified) by the FE using engineering

judgement.

Australian Fire Engineering Guidelines

abcb.gov.au

Page 87

If the decay phase has started, then the HRR should be decreased in the manner

agreed in the PBDB process or determined by the FE.

Step 8

Determine if the end time has been reached. This is when:



all the fuel has been calculated to have been consumed



the stage of the design fire agreed to in the PBDB process, has been reached



in the engineering judgement of the FE, sufficient analysis has been carried out
to justify the trial design under consideration.

If the end time has not been reached, the next iteration is undertaken and the

analysis continued until the end time has been reached.

Step 9

The analysis of SS-A is terminated.

A.1.4.2 Analysing control of fire initiation and development

It may be determined during the analysis, or in drawing conclusions (2.4), that it

would be beneficial to control fire initiation and development as a means of meeting

the Performance Requirements. In such cases, other measures noted below (in

addition to those shown in Figure A.1.1) may be considered, subject to the issues

discussed in Section A.4.5:



elimination or control of ignition sources



changing the configuration of fuel items (e.g. from rack storage to palletised
storage and storing items horizontally rather than vertically)



reducing the ignition and fire spread characteristics of the fuel load, which
includes the building contents (e.g. furnishings), linings, and combustible
structure. This may be accomplished by testing, selection, control of
purchasing, and use.



separating fuel from ignition sources by using protective storage



education and training of occupants.

These measures form the basis for traditional fire prevention activities, which may be

addressed by fire prevention codes and standards. Although they are not addressed

Australian Fire Engineering Guidelines

abcb.gov.au

Page 88

in most building codes to any significant degree (except for the third bullet), they can

be incorporated usefully into a fire engineering design strategy (see also 2.2.6)

A.1.5 Construction, commissioning, management, use and

maintenance – SS-A

The development of the design fires for the analysis in this sub-system relies on

various assumptions regarding:



ignition sources



the nature of the fuel and its disposition



the enclosure characteristics



the intervention of various protective measures.

It is essential that these assumptions are not negated during the construction phase

and are verified during commissioning. The greater challenge is to ensure the

assumptions continue to hold true during the management, use, and maintenance of

the building through documented procedures and schedules. This applies particularly

to the ignition sources and fuels, which are not generally the subject of building

regulation – but fundamental to a fire engineering analysis. It may be possible to

ensure this verification through the essential safety provisions for buildings that may

apply in some jurisdictions.







Australian Fire Engineering Guidelines

abcb.gov.au

Page 89



Smoke development, spread and control SS-B

SS-B is used to analyse the development of smoke in an enclosure, its spread within

the building, and the properties of the smoke at locations of interest. This process

enables estimates to be made of the times of critical events.

For the purposes of the AFEG:



smoke is considered to include both visible and invisible products of combustion
or pyrolysis and entrained air



an enclosure is typically a single volume, and may take many forms such as a
room, a corridor, a shaft, an atrium, a warehouse, or a stadium arena.

This appendix provides the guidance on quantifying:



the development of smoke within the enclosure of fire origin



the spread of smoke to enclosures beyond the enclosure of fire origin



the characteristics of the smoke (particularly those that lead to untenable
conditions)



how smoke management equipment may minimise smoke accumulation and
spread



The ASET, where appropriate.

This appendix also discusses the relationships between this sub-system and others.

Although this appendix provides guidance on the analysis of SS-B in the general

analysis context discussed in 2.3, each project needs to be considered individually

and the analysis varied accordingly.

A.2.1 Procedure – SS-B

A.2.1.1 Smoke development and spread

Figure A.2.1 illustrates how smoke development and spread within a building can be

analysed. Discussion of the figure can be found in the following sections:



Section A.2.2 Outputs



Section A.2.3 Inputs



Section A.2.4 Analysis.















Content      ..     4      5      6      7     ..
