Section 09 REAR SUSPENSION

Subsection 03 (SC 4 SUSPENSION)

SC 4 SUSPENSION

SERVICE PRODUCTS

Description

Part Number

Page

suspension synthetic grease ................................................ 293 550 033 ......................................... 421

mmr2005-096

409

Section 09 REAR SUSPENSION
Subsection 03 (SC 4 SUSPENSION)

A33F61S

4.5 N•m

(40 lbf•in)

4.5 N•m

(40 lbf•in)

4.5 N•m

(40 lbf•in)

4.5 N•m

(40 lbf•in)

4.5 N•m

(40 lbf•in)

2.5 N•m

(22 lbf•in)

2.5 N•m

(22 lbf•in)

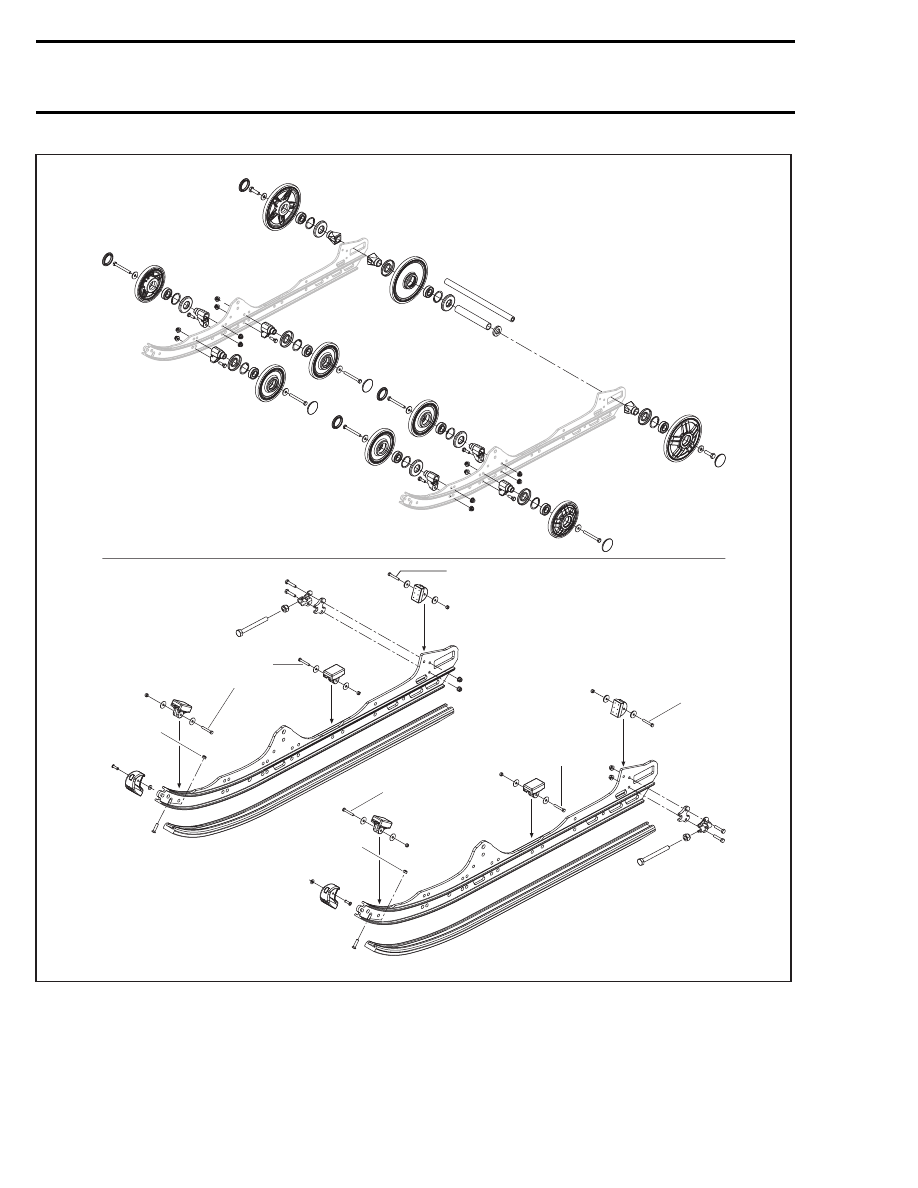

RAILS AND IDLER WHEELS

410

mmr2005-096

Section 09 REAR SUSPENSION

Subsection 03 (SC 4 SUSPENSION)

A33F62S

85 N•m

(63 lbf•ft)

120 N•m

(89 lbf•ft)

120 N•m

(89 lbf•ft)

11 N•m

(97 lbf•in)

11 N•m

(97 lbf•in)

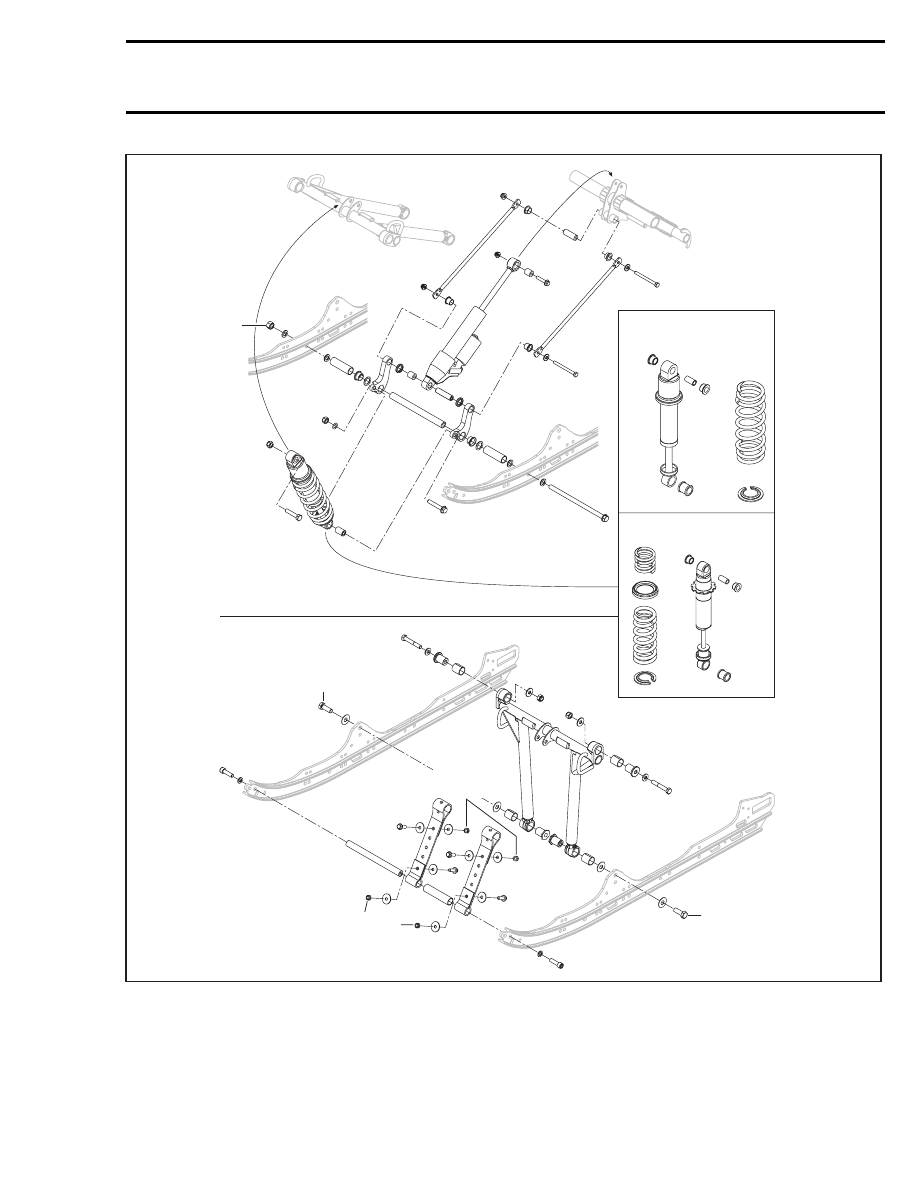

ARMS AND SHOCK ABSORBERS

mmr2005-096

411

Section 09 REAR SUSPENSION
Subsection 03 (SC 4 SUSPENSION)

A33F63S

2.5 N•m

(22 lbf•in)

3 N•m

(27 lbf•in)

Suspension

synthetic

grease

Suspension

synthetic

grease

3 N•m (27 lbf•in)

Suspension

synthetic

grease

3 N•m (27 lbf•in)

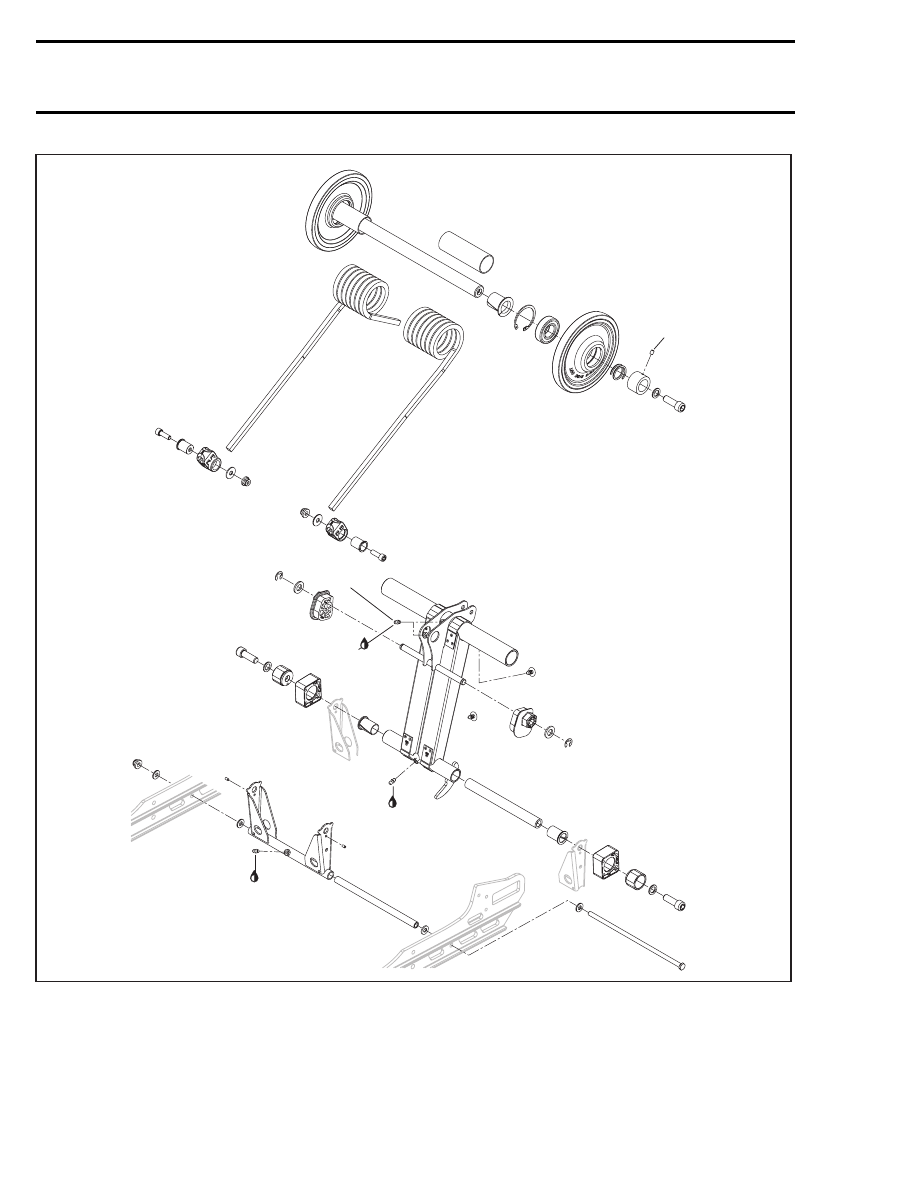

REAR ARM, SPRINGS AND IDLER WHEELS

412
