Snowmobile Ski Doo REV SERIES (2006 year). Instruction - part 81





Section 08 DRIVE SYSTEM

Subsection 02 (DRIVE PULLEY)

DRIVE PULLEY

SERVICE TOOLS

Description

Part Number

Page

bushing remover/installer ..................................................... 529 031 200 ......................................... 332
drive pulley holder ................................................................ 529 027 600 ................................. 325, 327
drive pulley holder ................................................................ 529 035 674 ................................. 329, 337
drive pulley puller.................................................................. 529 022 400 ......................... 325–326, 329
slider shoe fork ..................................................................... 529 005 500 ................................. 330, 336
sliding half bushing remover/installer ................................... 529 035 931 ................................. 332–333
spring compressor................................................................ 529 035 524 ................. 330, 332–333, 335
spring cover tool ................................................................... 529 027 300 ......................................... 326

SERVICE PRODUCTS

Description

Part Number

Page

Loctite 271............................................................................ 293 800 005 ................................. 327, 333
Loctite 609............................................................................ 413 703 100 ......................................... 333
pulley flange cleaner............................................................. 413 711 809 ......................... 327, 331, 333

mmr2005-087

323

Section 08 DRIVE SYSTEM
Subsection 02 (DRIVE PULLEY)

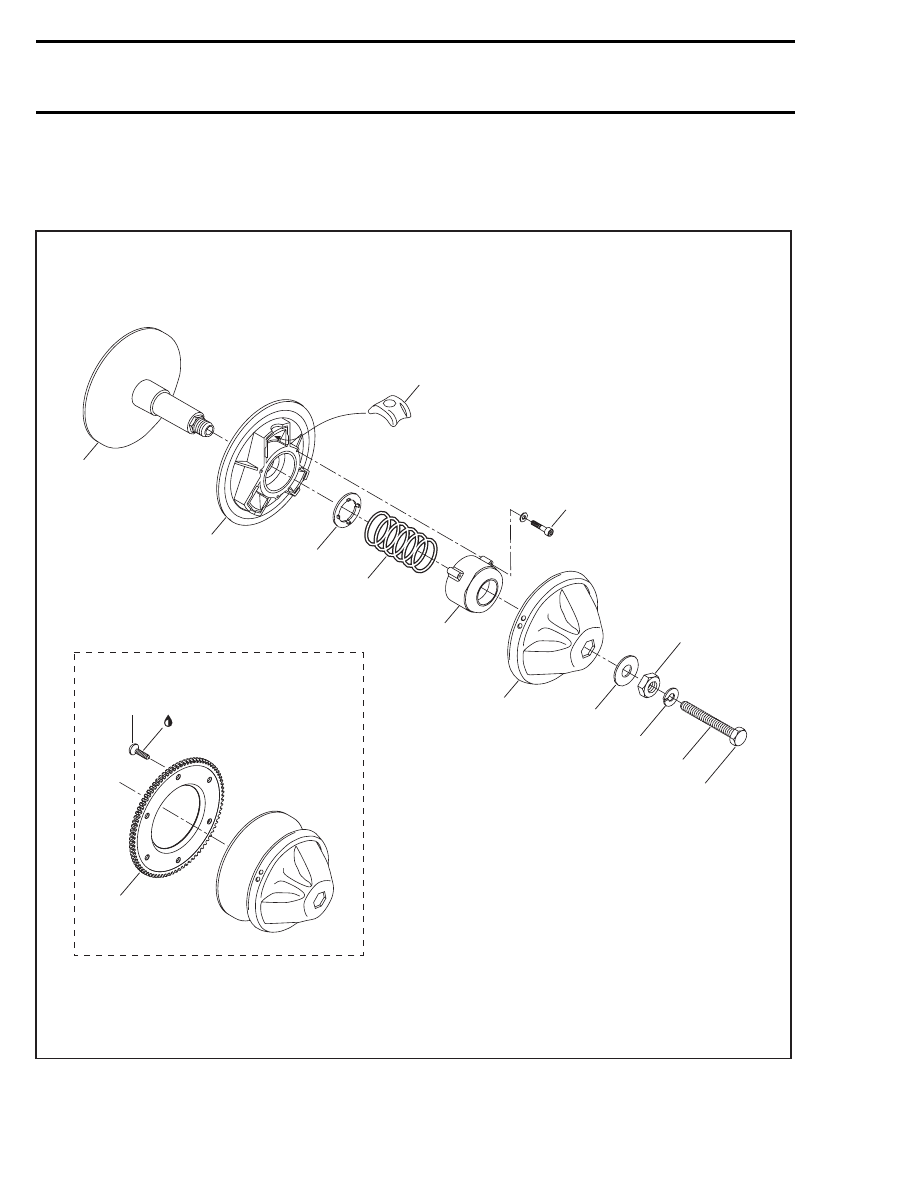

BOMBARDIER LITE

All Fan-cooled Models

NOTE: This drive pulley is lubrication free.

A33D1WS

14

128 N•m

(95 lbf•ft)

Loctite 271

10 N•m

(89 lbf•in)

First torque

90 N•m

(66 lbf•ft)

Second torque

95 N•m

(70 lbf•ft)

Models with electric starter

13

8

12

11

9

7

6

5

2

1

10

4

26 N•m

(19 lbf•ft)

3

324

mmr2005-087

Section 08 DRIVE SYSTEM

Subsection 02 (DRIVE PULLEY)

GENERAL

Some drive pulley components (return spring, cal-
ibration disk) can be changed to improve vehicle
performance in high altitude regions. A service
bulletin gives information about calibration accord-
ing to altitude.

CAUTION: Such modifications should only be
performed by experience mechanics since they
can greatly affect vehicle performance.

WARNING

Any drive pulley repairs must be performed
by an authorized Ski-Doo dealer. Subcompo-
nent installation and assembly tolerances re-
quire strict adherence to procedures detailed.

REMOVAL

NOTE: If disassembling drive pulley, first straight-
en tab washer no. 6 then untighten nut no. 5.

WARNING

Never use an impact wrench to remove or in-
stall the drive pulley.

WARNING

The drive pulley assembly is a precisely bal-
anced unit. Never replace parts with used
parts from another drive pulley assembly.

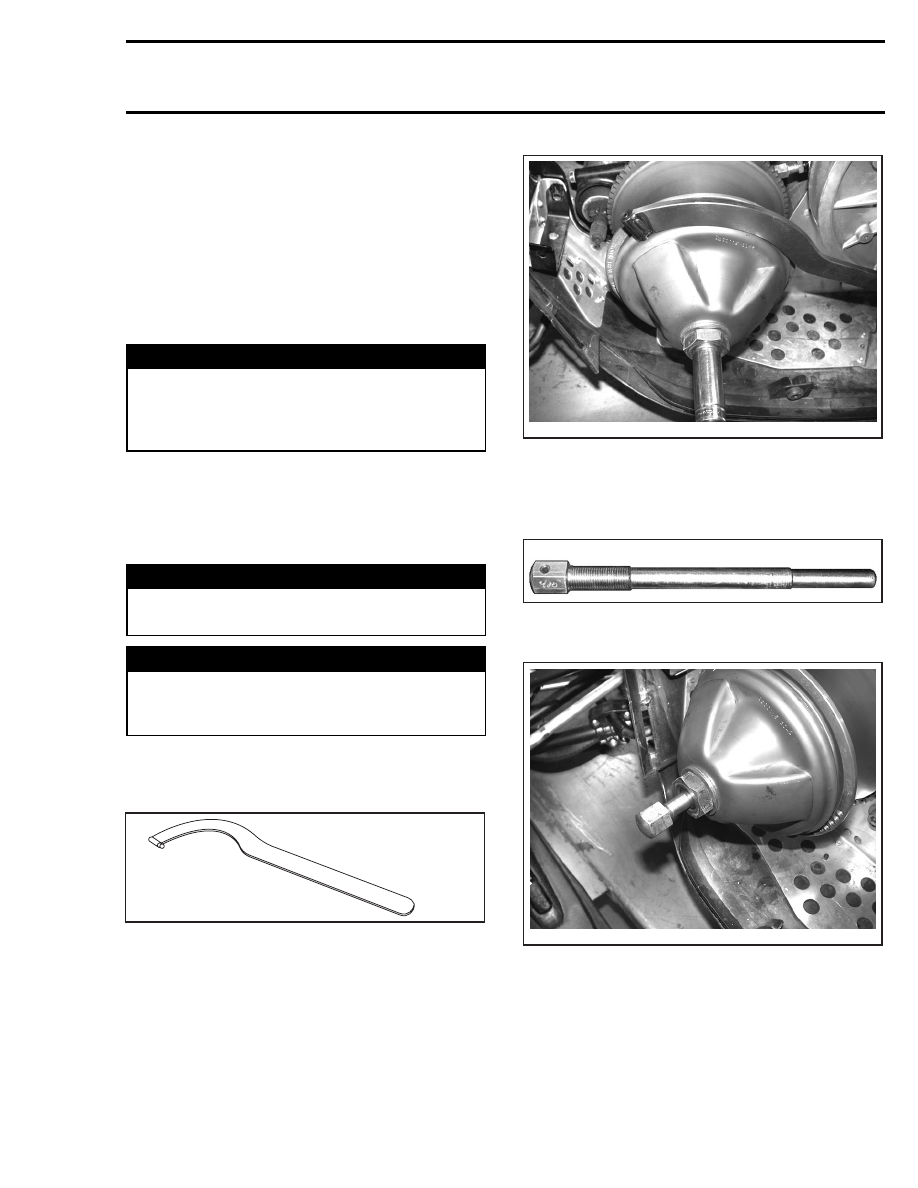

Using the drive pulley holder (P/N 529 027 600),
hold the drive pulley to remove the drive bolt no. 1
and its lock washer no. 2.

529 027 600

A33D1XA

TYPICAL

With the drive pulley holder still installed, install
the drive pulley puller (P/N 529 022 400) through
the drive pulley.

529 022 400

Hold the drive pulley and screw in the puller then
remove drive pulley.

A33D1YA

TYPICAL

DISASSEMBLY

To remove the ring gear no. 3, use a heat gun to
break the threadlocker on ring gear screws no. 4
before disassembly.

mmr2005-087

325

Section 08 DRIVE SYSTEM
Subsection 02 (DRIVE PULLEY)

CAUTION: If another tool than a heat gun is
used, do not exceed 150°C (300°F).

NOTE: The ring gear removal is not necessary to
disassemble the drive pulley.

Unscrew nut no. 5. Remove washer no. 6.

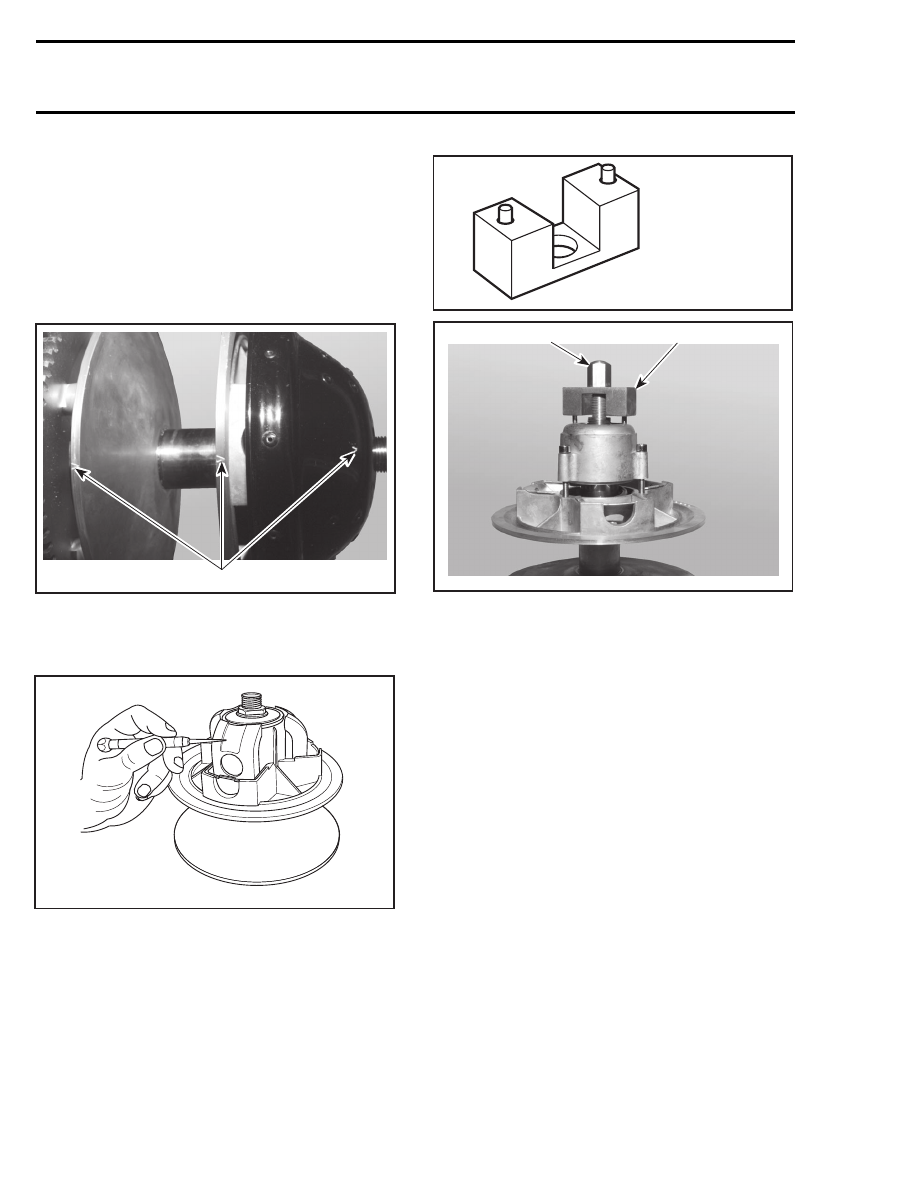

Remove the drive puller cap no. 7. Check for
alignment marks for proper indexing at reassem-
bly.

A03D2IA

1

1. Alignment marks

Identify blocks no. 8 and their respective positive
positions for reassembly.

A05D0LA

1

1

1. Identify

Remove blocks with their calibration weights.

Install the spring cover tool (P/N 529 027 300) with
the drive pulley puller (P/N 529 022 400) on spring
cover no. 9.

529 027 300

A03D2HA

2

1

1. Drive pulley puller tool
2. Spring cover tool

Screw puller (hand tight) to hold spring cover and
remove screws no. 10 holding spring cover.

Slowly unscrew puller to release spring pressure.

Remove spring cover no. 9, spring no. 11 and
spring seat no. 12.

CLEANING

Clean pulley faces and shaft with fine steel wool
and clean dry cloth. Clean sliding half bushing
with clean dry cloth.

INSPECTION

Check surface of sliding half no. 13 and fixed half
no. 14 for scratches, excessive wear or other
damages. Replace if necessary.

Check sliding half for excessive lateral play and
fixed half shaft for scratches. Replace as required.

ASSEMBLY

Install spring seat no. 12 then the spring no. 11
and its cover no. 9.

326

mmr2005-087
