Snowmobile Ski Doo REV SERIES (2006 year). Instruction - part 36





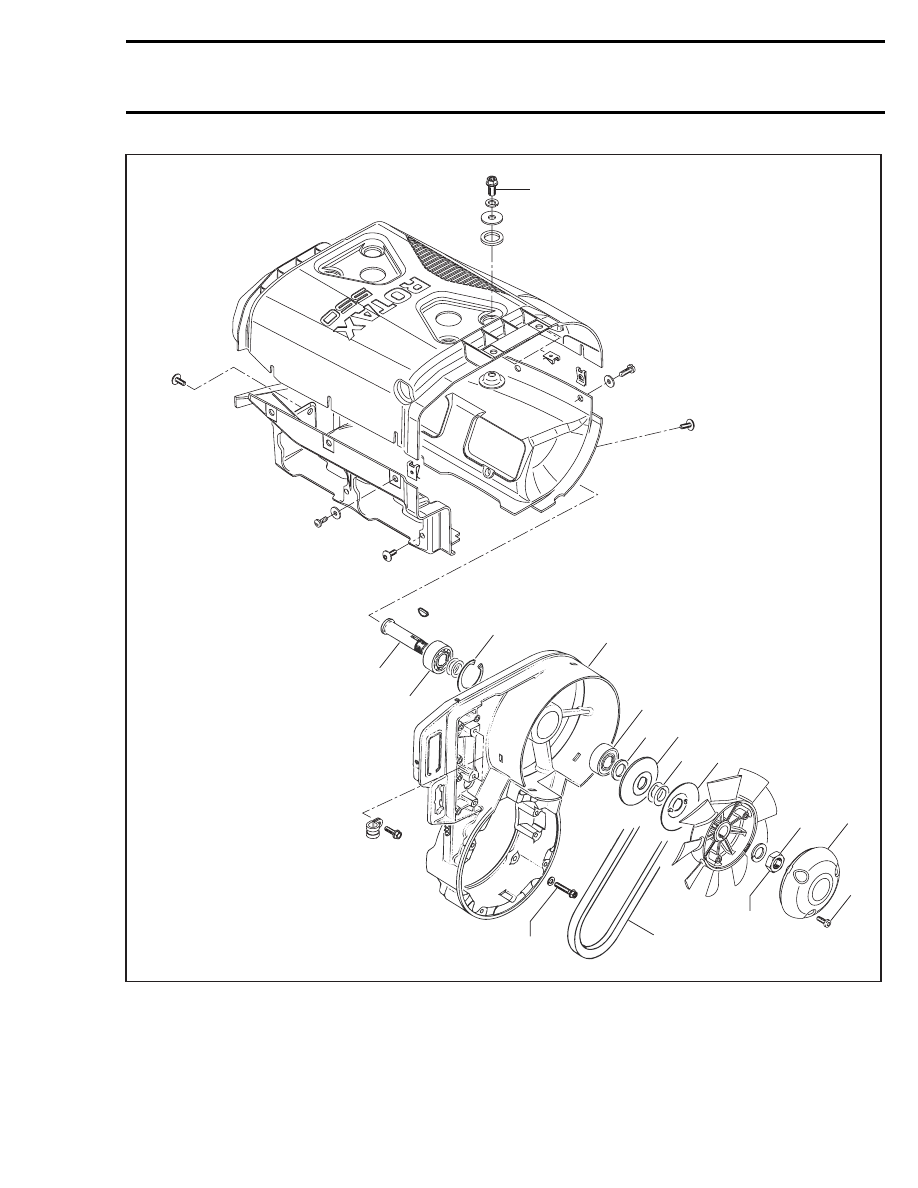

Section 03 ENGINES

Subsection 08 (COOLING SYSTEM)

COOLING SYSTEM

SERVICE TOOLS

Description

Part Number

Page

engine leak tester kit ............................................................ 861 749 100 ......................................... 145
Holder wrench ...................................................................... 420 876 357 ......................................... 138
Holder wrench ...................................................................... 529 036 006 ......................................... 138
hose pincher ......................................................................... 295 000 076 ......................................... 145
siphon tool ............................................................................ 529 035 880 ......................................... 145
special radiator cap ............................................................... 529 021 400 ......................................... 145
Supertanium

TM

bit ............................................................... 529 031 800 ......................................... 145

SERVICE PRODUCTS

Description

Part Number

Page

Loctite 592............................................................................ 293 800 018 ......................................... 145

PREMIXED COOLANT ......................................................... 293 600 038 ......................................... 146

mmr2005-074

135

Section 03 ENGINES
Subsection 08 (COOLING SYSTEM)

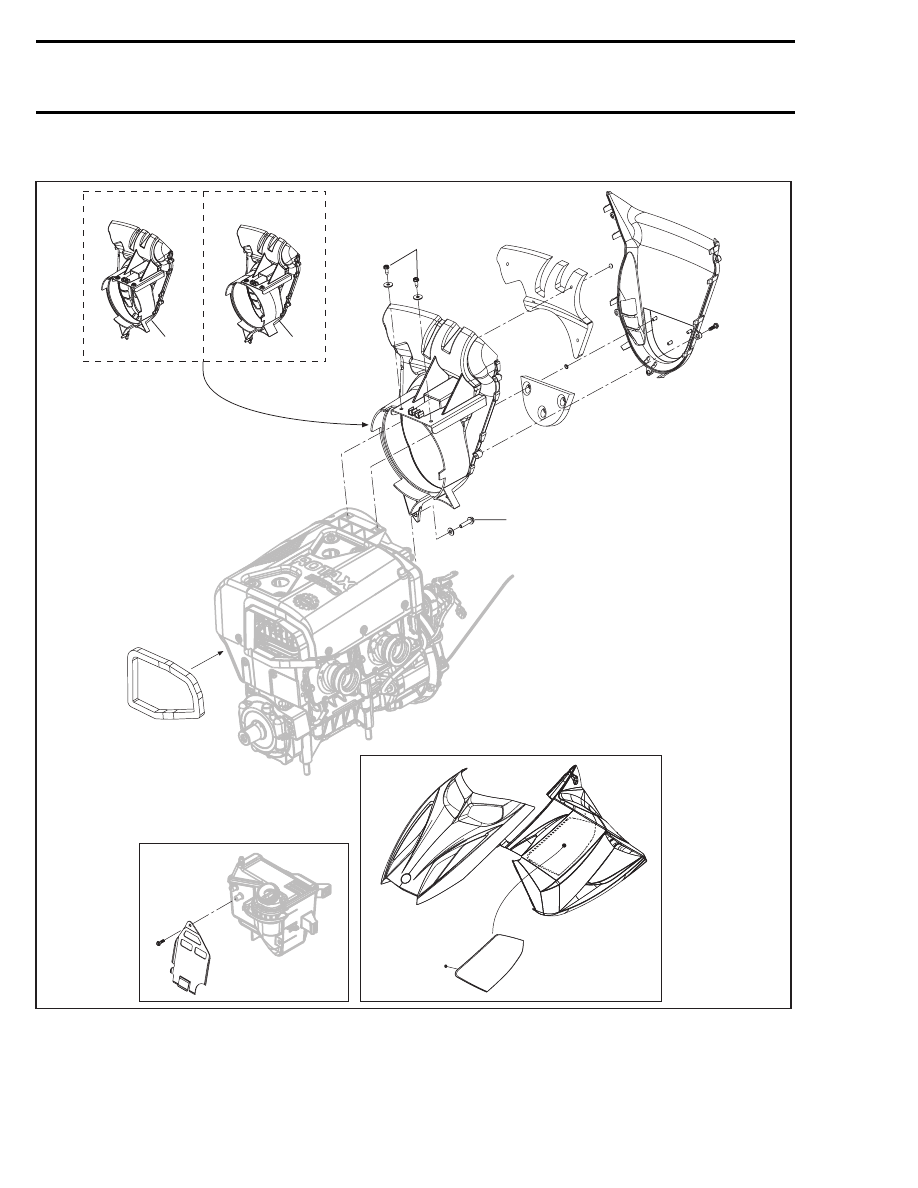

Axial Fan Cooling System

A33C4PS

1

550F models

2

1

380F models

1

136

mmr2005-074

Section 03 ENGINES

Subsection 08 (COOLING SYSTEM)

A33C4QS

10

48 N•m

(35 lbf•ft)

13 N•m

(115 lbf•in)

7

15 13

12 14

6

5

4

9 N•m

(80 lbf•in)

8

9

9

11

mmr2005-074

137

Section 03 ENGINES
Subsection 08 (COOLING SYSTEM)

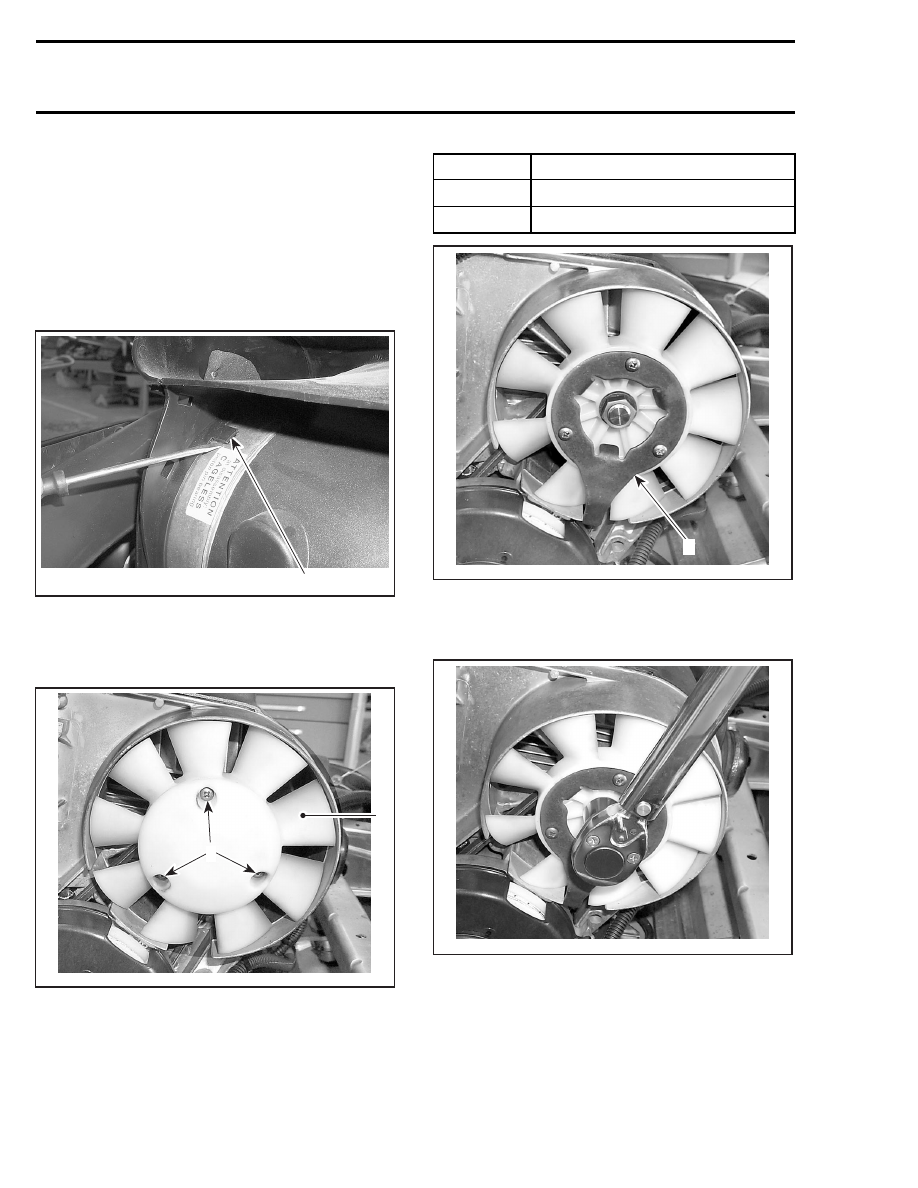

COOLING FAN REMOVAL AND
INSTALLATION

Remove the tuned pipe to gain access. Refer to
EXHAUST SYSTEM.

Unscrew the 2 screws no. 1 and no. 2 of inlet duct
no. 3. Remove the inlet duct by unclipping the
tabs using a flat screwdriver from the engine fan
housing.

A32C6LA

1

TYPICAL
1. Tab

Unscrew the screws no. 4 to remove the fan cov-
er no. 5.

2

A32CC8A

1

1. Screws
2. Cover

To remove or install fan pulley retaining nut no. 6,
lock fan pulley with special holder wrench and 3
screws as per following table:

ENGINE

TOOL

377

Holder wrench (P/N 420 876 357)

552

Holder wrench (P/N 529 036 006)

A32CC9B

1

1. Holder wrench

At assembly, torque nut no. 6 to 48 N•m
(35 lbf•ft).

A32CCAA

TYPICAL

COOLING FAN BEARING
REPLACEMENT

Remove cooling fan as explained in this section.

138

mmr2005-074
