Snowmobile Ski Doo REV SERIES (2006 year). Instruction - part 22





Section 03 ENGINES
Subsection 04 (MAGNETO SYSTEM)

STATOR

Inspection

Always check stator no. 3 before changing it. Re-
fer to CHARGING SYSTEM.

Cleaning

Clean all metal components in a non-ferrous metal
cleaner.

CAUTION: Clean stator using only a clean cloth.

Removal

Remove:

– magneto flywheel no. 1
– all Allen socket screws no. 4 retaining stator to

magneto housing

– grommet from crankcase where CPS/trigger

coils no. 5 and stator wires exit magneto hous-
ing.

Unplug the CPS/trigger coil connectors and pull
the wires through the grommet location.

NOTE: To pass the stator connector into the grom-
met location it is necessary to pass the CPS/trig-
ger coil connector first.

Unplug the stator connector and remove the stator
no. 3.

Installation

Insert the stator connector into crankcase grom-
met then the CPS/trigger coil connector(s).

Install the grommet on crankcase

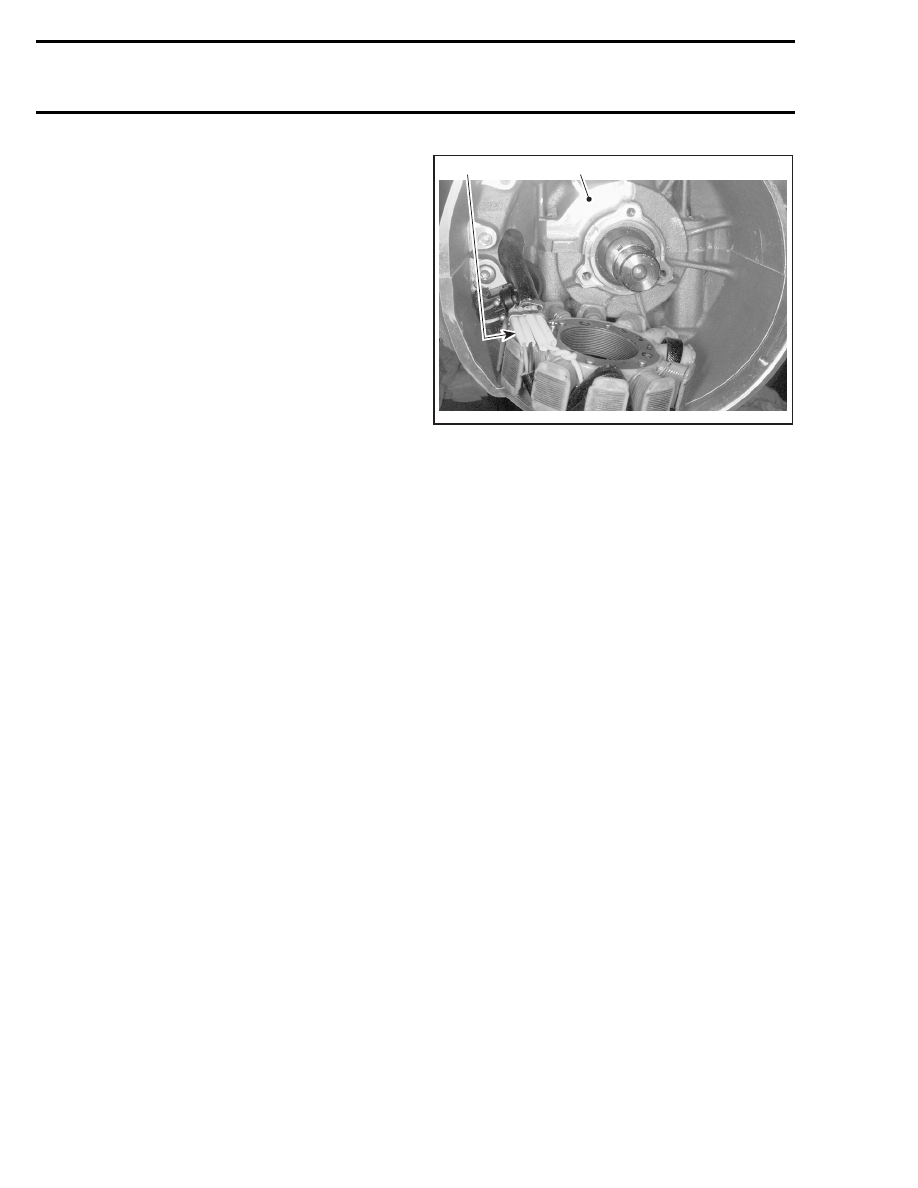

Position stator no. 3 so that its wire protectors are
over crankcase recess.

1

A32E0KA

2

1. Crankcase recess
2. Wire protectors

NOTE: During installation, make sure the stator
harness is located on the left side.

Apply Loctite 243 (blue) (P/N 293 800 060) on
threads of stator screws then torque them to
9 N•m (80 lbf•in).

Reinstall all other removed parts.

CPS/TRIGGER COIL

Inspection

Always check CPS or trigger coils before changing
it. Refer to iGNITION SYSTEM.

Removal

NOTE: Always check CPS or trigger coils no. 5 be-
fore changing them. Refer to OVERVIEW section.

To replace the CPS or the trigger coil(s), remove
or disconnect the following:

– magneto flywheel no. 1
– air intake silencer to allow an access to the

CPS/trigger coil connectors (if necessary)

– trigger coil connector housing(s)
– grommet from crankcase where CPS/trigger

coil wire(s) exit(s) magneto housing

– retaining screws no. 6
– CPS or trigger coil(s) and carefully pull wires.

Installation

For installation, reverse the removal procedure.

78

mmr2005-071

Section 03 ENGINES

Subsection 04 (MAGNETO SYSTEM)

NOTE: It is important to remove the old silicon
at CPS/trigger coil location then apply new silicon.
Screw CPS/trigger coil then stick the CPS/trigger
coil wires in the silicon.

mmr2005-071

79

Section 03 ENGINES

Subsection 05 (TOP END)

TOP END

SERVICE TOOLS

Description

Part Number

Page

bearing heater....................................................................... 529 035 969 ................................... 86, 105
centering tool........................................................................ 529 009 100 ........................................... 87
piston circlip installer ............................................................ 529 035 561 ........................................... 87
piston circlip installer ............................................................ 529 035 686 ................................... 89, 106
piston pin puller .................................................................... 529 035 503 ........................................... 87
rubber pad ............................................................................ 529 023 400 ................................... 84, 101

SERVICE PRODUCTS

Description

Part Number

Page

Loctite 243............................................................................ 293 800 060 ......................................... 107
Loctite 518............................................................................ 293 800 038 ................................... 90, 107
Loctite Chisel........................................................................ 413 708 500 ..................................... 84, 98
sealing compound Drei Bond ............................................... 420 297 906 ......................................... 104

mmr2005-072

81

Section 03 ENGINES
Subsection 05 (TOP END)

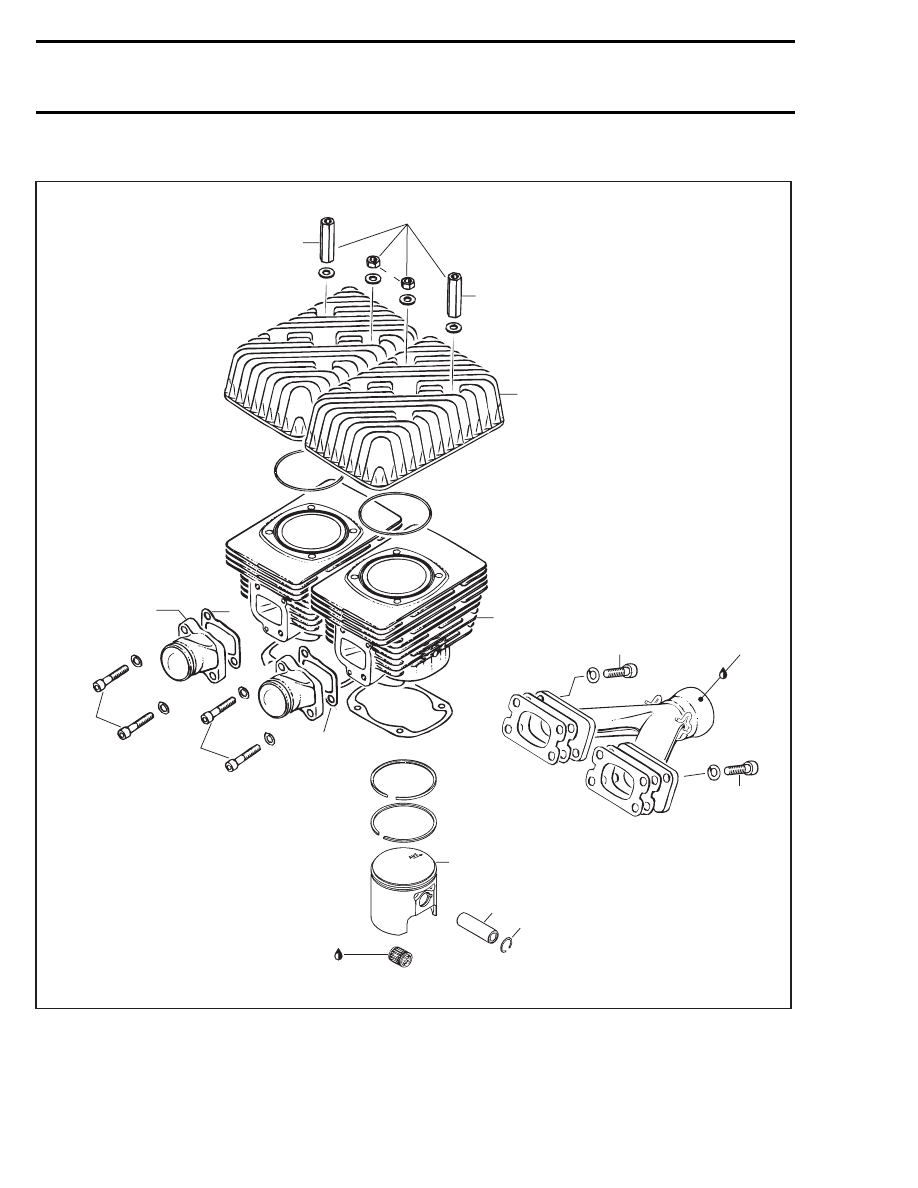

377 Engine

A03C3YS

22 N•m

(16 lbf•ft)

2

2

1

3

4

5

7

5

6

8

9

10

7

22 N•m

(16 lbf•ft)

22 N•m

(16 lbf•ft)

21 N•m

(15 lbf•ft)

21 N•m

(15 lbf•ft)

Anti-seize

lubricant

Injection

oil

82

mmr2005-072
