Snowmobile Arctic Cat (2007 year). Instruction - part 47





4-13

4

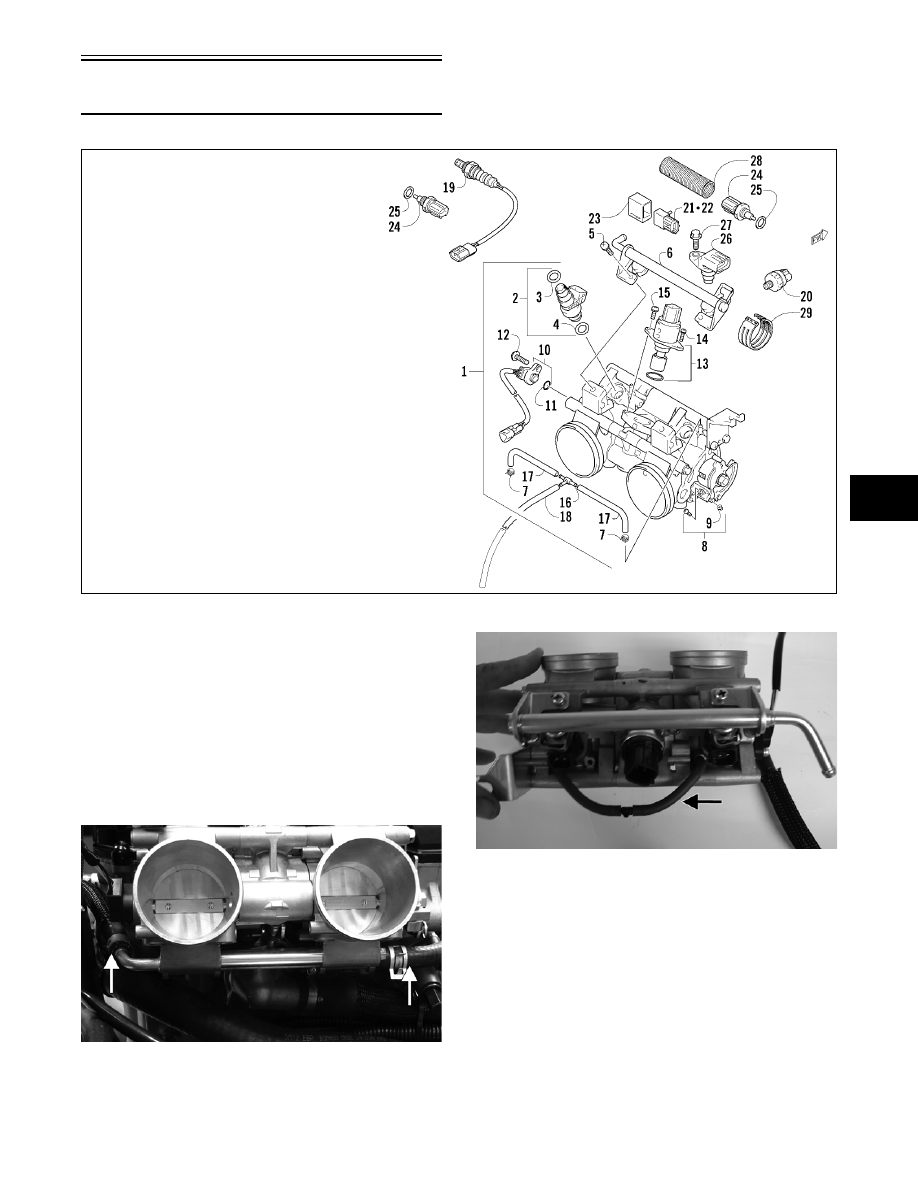

Throttle Body Assembly

(1100 cc Z1)

0741-399

REMOVING/DISASSEMBLING

„ NOTE: To remove the throttle body assembly, it
will be necessary to remove the air silencer. Pro-
ceed to Section 3 - Servicing Air Silencer (1100 cc
Z1) sub-section and follow steps 1-12 of REMOV-
ING.

13. Remove the coolant hoses and MAP sensor

hoses from the throttle body.

ZJ018A

ZJ289A

14. Loosen the throttle cable jam nut; then remove

the throttle cable from the bracket and the throt-

tle valve cam.

KEY

1. Throttle Body

Assembly

2. Fuel Injector

Assembly

3. O-Ring

4. O-Ring

5. Screw

6. Fuel Rail

7. Clip

8. Stop Screw Assembly

9. Nut

10. Throttle Sensor

Assembly

11. O-Ring

12. Torx-Head Screw

13. ISC Valve

14. Screw

15. Screw

16. Joint

17. Hose

18. Hose

19. Oxygen Sensor

20. Oil Pressure Switch

21. MAP Sensor

22. Air Pressure Sensor

23. Cover

24. Air/Water

Temperature Sensor

25. Sensor Gasket

26. Cam Position Sensor

27. Sensor Bolt

28. Sensor Protector

29. Cable Tie

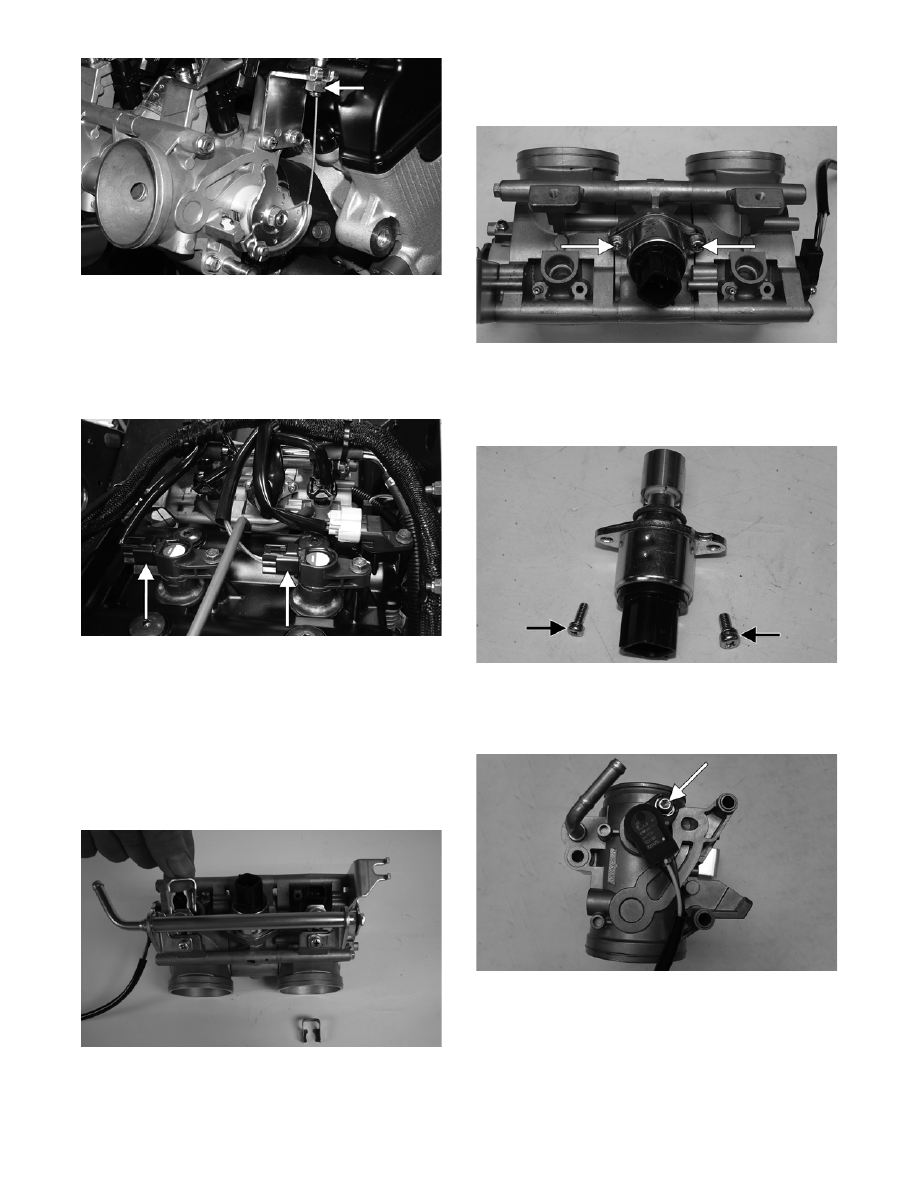

4-14

ZJ103A

15. Remove the cable ties securing the fuel injector

wiring harness to the fuel rail; then disconnect

the harness from the fuel injectors.

„ NOTE: For installing purposes, note the location
of all cable ties.

ZJ094D

16. Loosen the clamps securing the throttle bodies

to the intake boots; then remove the throttle

body assembly.

17. Remove the retaining clips securing the fuel rail

to the injectors; then remove the two screws

securing the fuel rail to the throttle body assem-

bly. Remove the fuel rail and injectors from the

throttle body assembly.

ZJ290

„ NOTE: For assembling purposes, note from
which side the fuel injectors were removed.

18. Remove the two screws securing the ISC valve;

then remove the valve from the throttle body

assembly.

ZJ131A

„ NOTE: For assembling purposes, note the color-
marks on the throttle body assembly and ISC
valve. Also, note the different-size cap screws.

ZJ134A

19. Remove the screw securing the throttle sensor;

then remove the sensor from the throttle body

assembly.

ZJ132A

ASSEMBLING/INSTALLING

1. Place the throttle sensor in position on the throt-

tle body assembly; then secure with the screw.

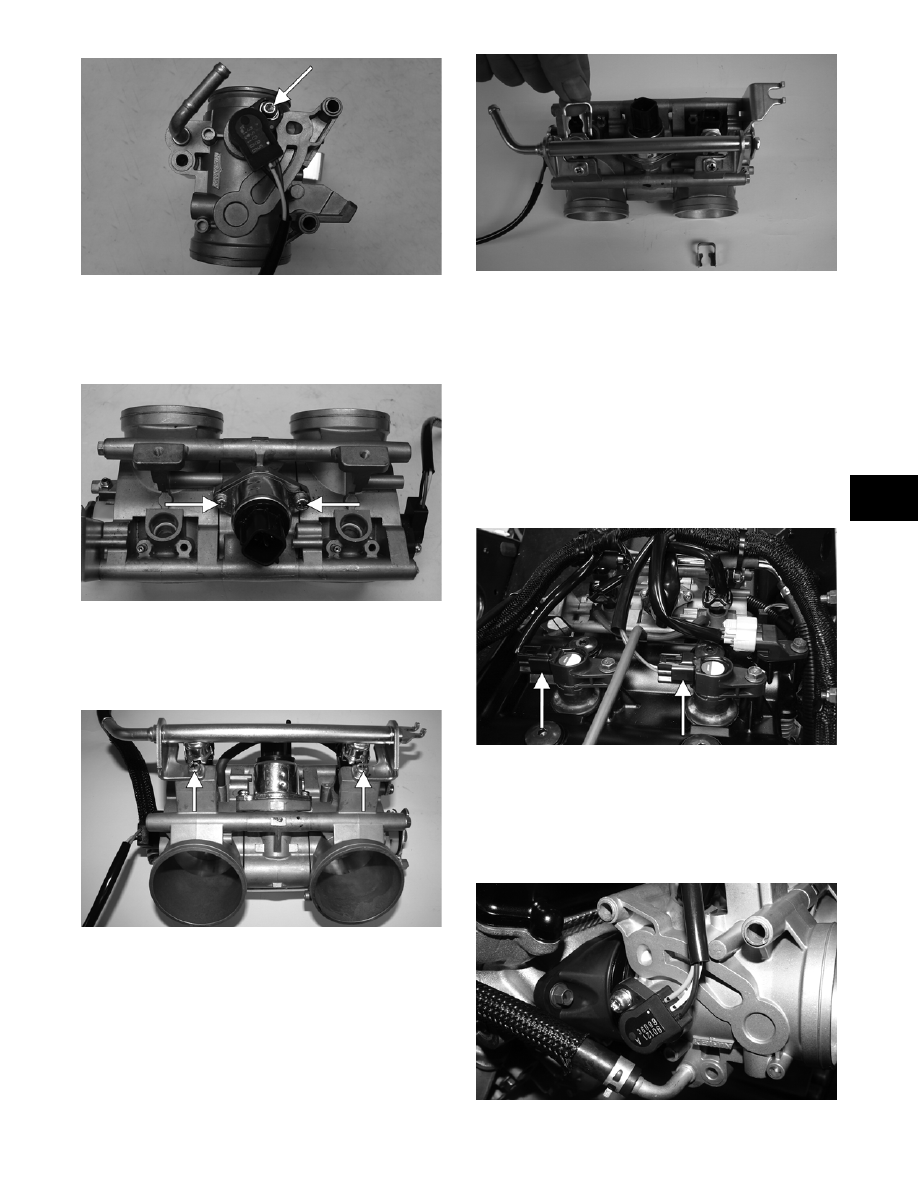

4-15

4

ZJ132A

2. With the color-marks properly aligned as noted

during disassembling, install the ISC valve and

secure it to the throttle body assembly with the

two different-size cap screws.

ZJ131A

3. Install the fuel injectors onto the throttle body

assembly; then secure the fuel rail and injectors

to the throttle body assembly with the two

screws and the retaining clips.

ZJ291A

ZJ290

„ NOTE: Always use new O-rings on the injectors
before installing.

4. Install the throttle body assembly to the intake

boots and tighten the clamps; then install the

coolant hoses and the MAP sensor hoses. Secure

the coolant hoses with the clamps.

5. Connect the injector wiring harness to the injec-

tors; then secure the harness to the fuel rail with

cable ties in the proper locations as noted during

disassembling.

ZJ094D

„ NOTE: It is critical at this point to adjust the
throttle position sensor to specification. Refer to
the proper sub-section Checking/Adjusting TPS
procedure in Section 5 - Throttle Position Sensor
in this manual.

ZJ255

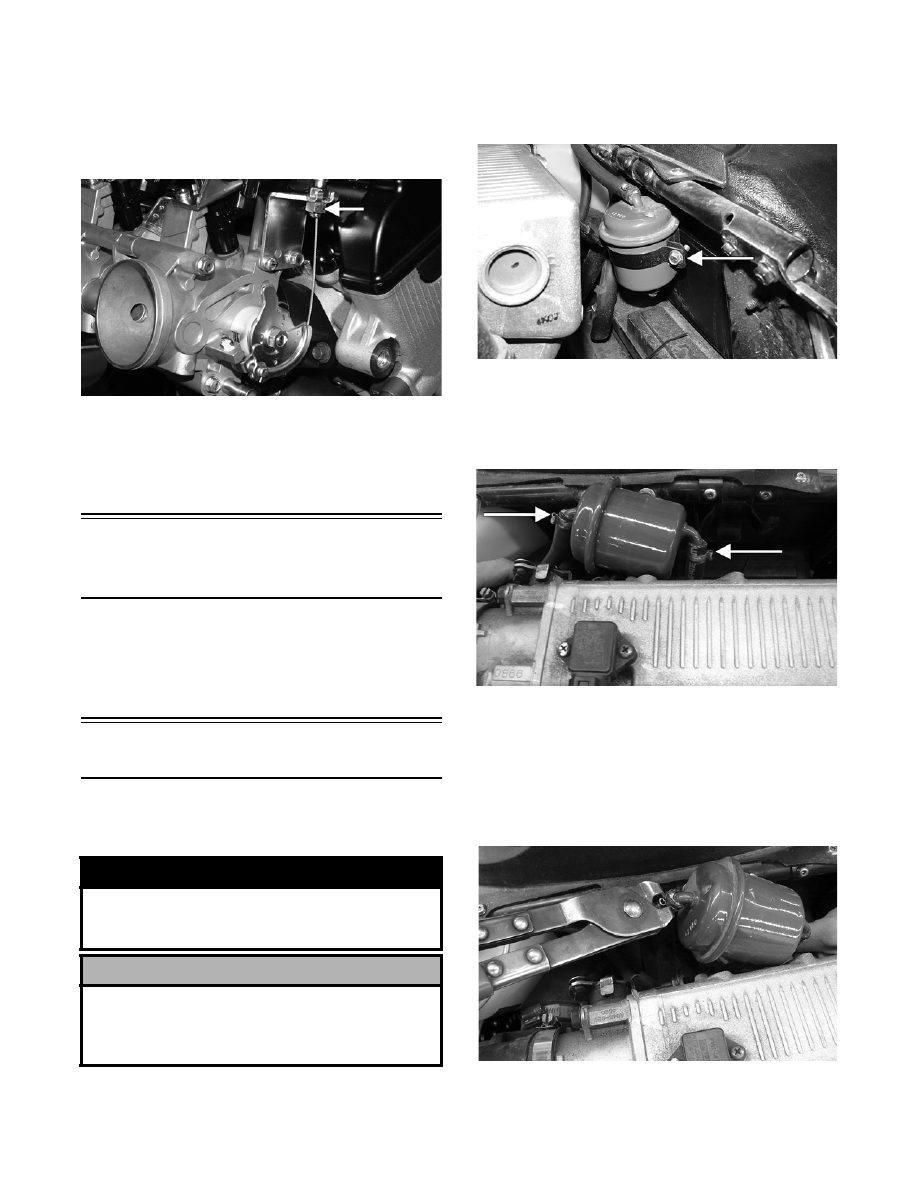

4-16

6. Install the throttle cable to the bracket on the

throttle body assembly and to the throttle valve

cam; then secure the cable with the jam nut.

„ NOTE: Assure that there is proper free-play in
the throttle cable when securing the jam nut.

ZJ103A

„ NOTE: To finalize this procedure, it is necessary
to install the air silencer. Proceed to Section 3 -
Servicing Air Silencer (1100 cc Z1) sub-section
and follow steps 3-12 of INSTALLING.

Throttle Position

Sensor

(660 cc/1100 cc Z1)

„ NOTE: To check, adjust, or replace the throttle
position sensor, refer to the proper sub-section
Checking/Adjusting TPS procedure in Section 5 -
Throttle Position Sensor in this manual.

Fuel Filter

(660 cc)

„ NOTE: The fuel filter should be replaced every
5000 miles.

„ NOTE: Before removing the fuel filter, take note
of the filter inlet and outlet for installing purposes.

REMOVING/INSPECTING

1. Remove the cap screw securing the strap to the

fuel filter bracket.

CM114A

2. Remove the hose clamps and discard; then

slowly remove the fuel hoses from the fuel filter.

Dispose of the excess fuel from the filter prop-

erly.

CM115A

3. Inspect the fuel lines thoroughly for any signs of

cracking, cuts, or wear points.

4. Place the new hose clamps on the fuel hoses;

then with the fuel pump inlet and outlet noted,

connect the fuel hoses to the fuel pump. Secure

with the hose clamps.

CM116

! WARNING

Since the fuel supply hose may be under pressure,
always wear safety glasses when removing the fuel
hoses.

! CAUTION

Since the fuel supply hose may be under pressure,
remove it slowly to release the pressure. Place an
absorbent towel around the connection to absorb
the fuel.
