Throttle Cable

(120 cc)

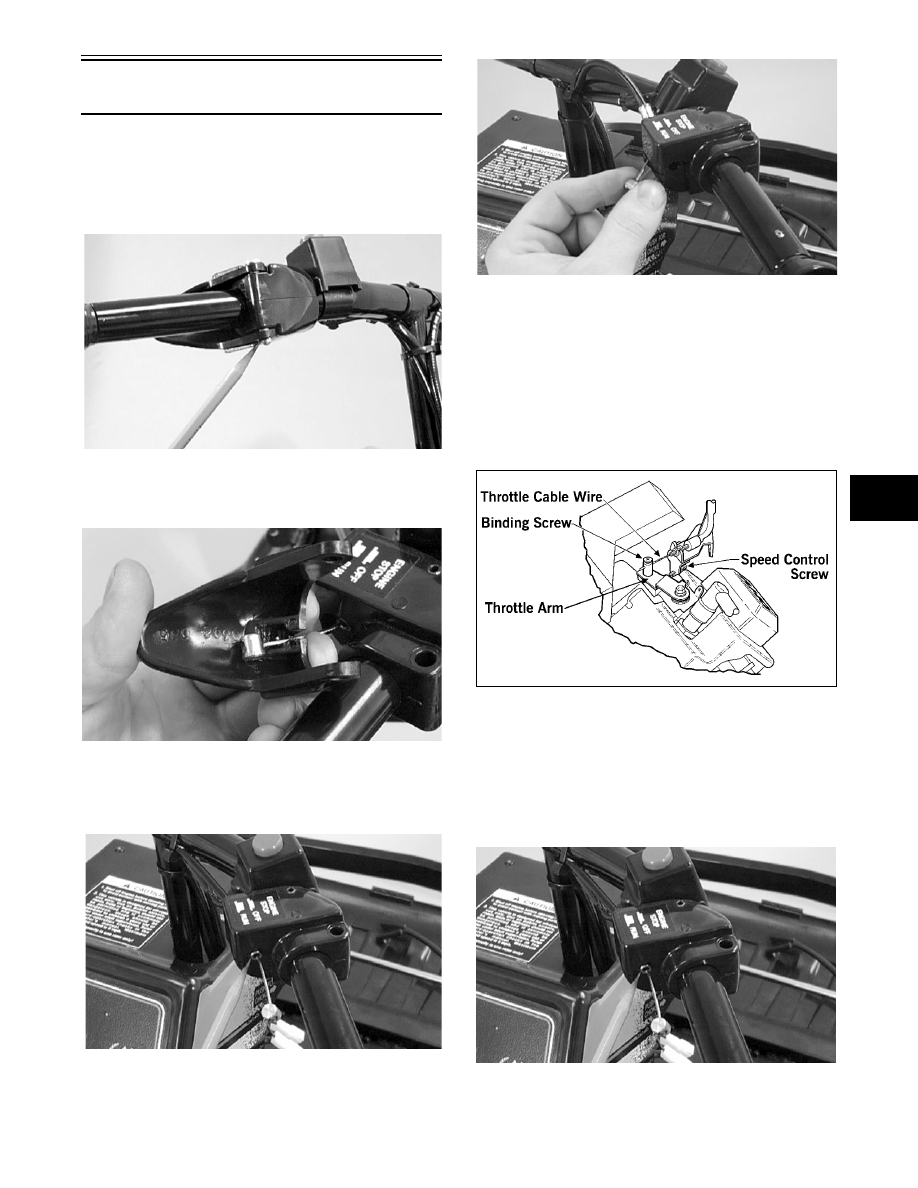

REMOVING AND INSPECTING

1. Remove the C-clip securing the lever pin in the

throttle lever; then remove the pin and the lever.

A979

2. Disconnect the throttle cable from the lever;

then slide the cable out of the lever.

A980

3. Remove the C-clip securing the cable in the

throttle control; then remove the cable from the

throttle control.

A981

A982

4. Remove the handlebar pad and cut the cable tie

securing the throttle cable to the steering post.

„ NOTE: Note the location of the cable tie for
assembly.

5. Loosen the throttle cable binding screw; then

loosen the throttle cable jam nuts and remove

the throttle cable.

0735-459

6. Inspect the throttle cable for damage or fraying.

INSTALLING

1. Route the cable through the slot in the throttle

control and insert the cable into the throttle con-

trol. Secure the cable with a C-clip.

A981

2. Seat the cable drum into the throttle lever recess;

then secure the throttle lever to the throttle con-

trol with a pin and C-clip.

4-10

A980

A979

3. Place the throttle cable into the throttle cable

bracket and secure with jam nuts.

4. Slide the tip of the throttle cable into the throttle

actuator and tighten the binding screw.

5. Secure the throttle cable to the steering post with

a cable tie; then install the handlebar pad.

„ NOTE: At this point, spray the binding screw
drum (located on the carburetor throttle arm) with
WD-40 or an equivalent lubricant.

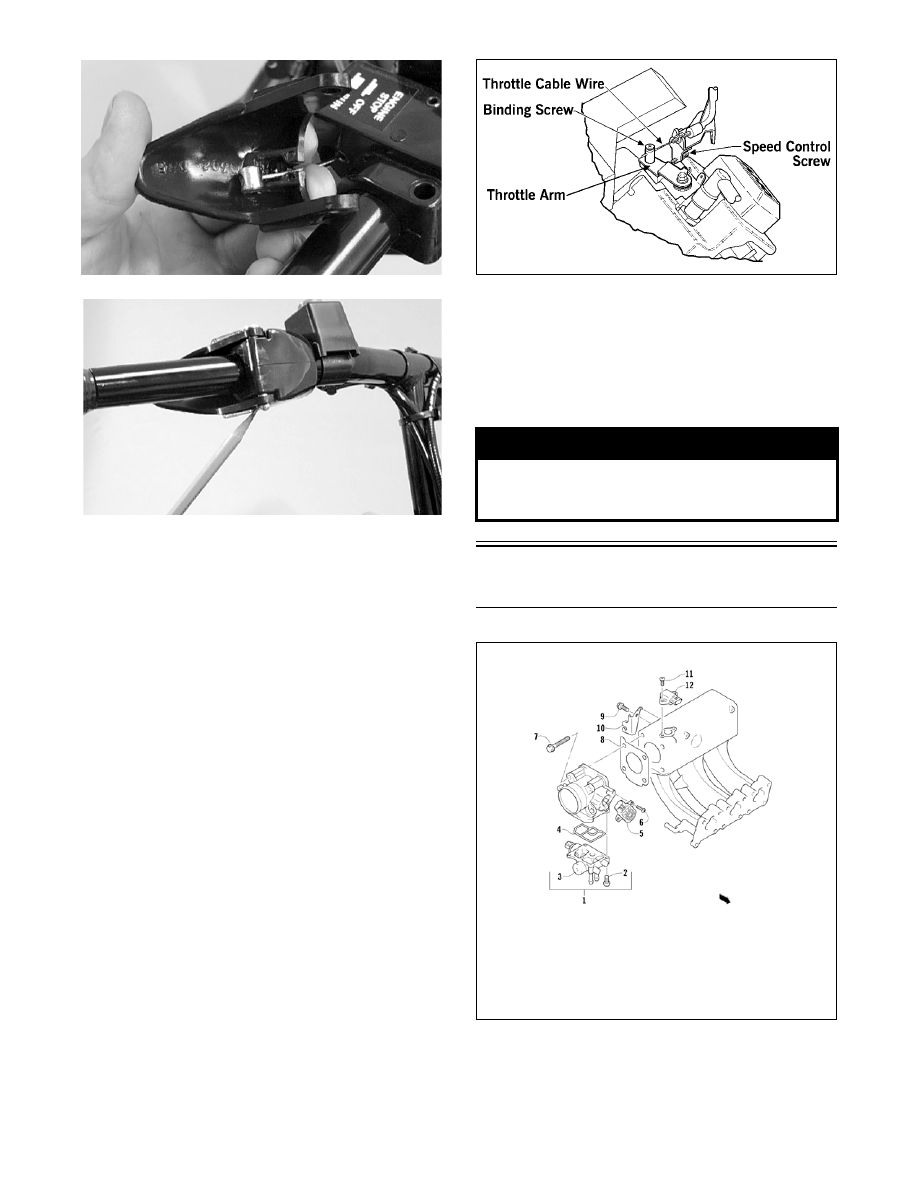

ADJUSTING

1. The correct throttle cable adjustment is when

(with the engine OFF) the carburetor throttle is

completely open (against its limit) while the

throttle control lever lightly contacts the hand

grip. The throttle arm on the carburetor should

also contact the throttle stop screw when the

throttle control is released. Adjust by using the

following procedure.

2. Loosen the throttle cable wire binding screw.

0735-459

3. Pull all slack from the throttle cable wire and

exert slight tension on the wire.

4. Tighten the throttle cable wire binding screw.

„ NOTE: The speed control screw is designed to
reduce the maximum speed of the snowmobile.

Throttle Body

Assembly

(660 cc)

0739-900

! WARNING

DO NOT operate the snowmobile when any compo-
nent in the throttle system is damaged, frayed,
kinked, worn, or improperly adjusted.

KEY

1. Throttle Body Assy

2. Screw

3. ISC Valve

4. Gasket

5. Throttle Position

Sensor

6. Machine Screw

7. Bolt

8. Gasket

9. Bolt

10. Throttle Cable Guide

11. Screw

12. Pressure Sensor

Non-Turbo Models

4-11

4

0739-164

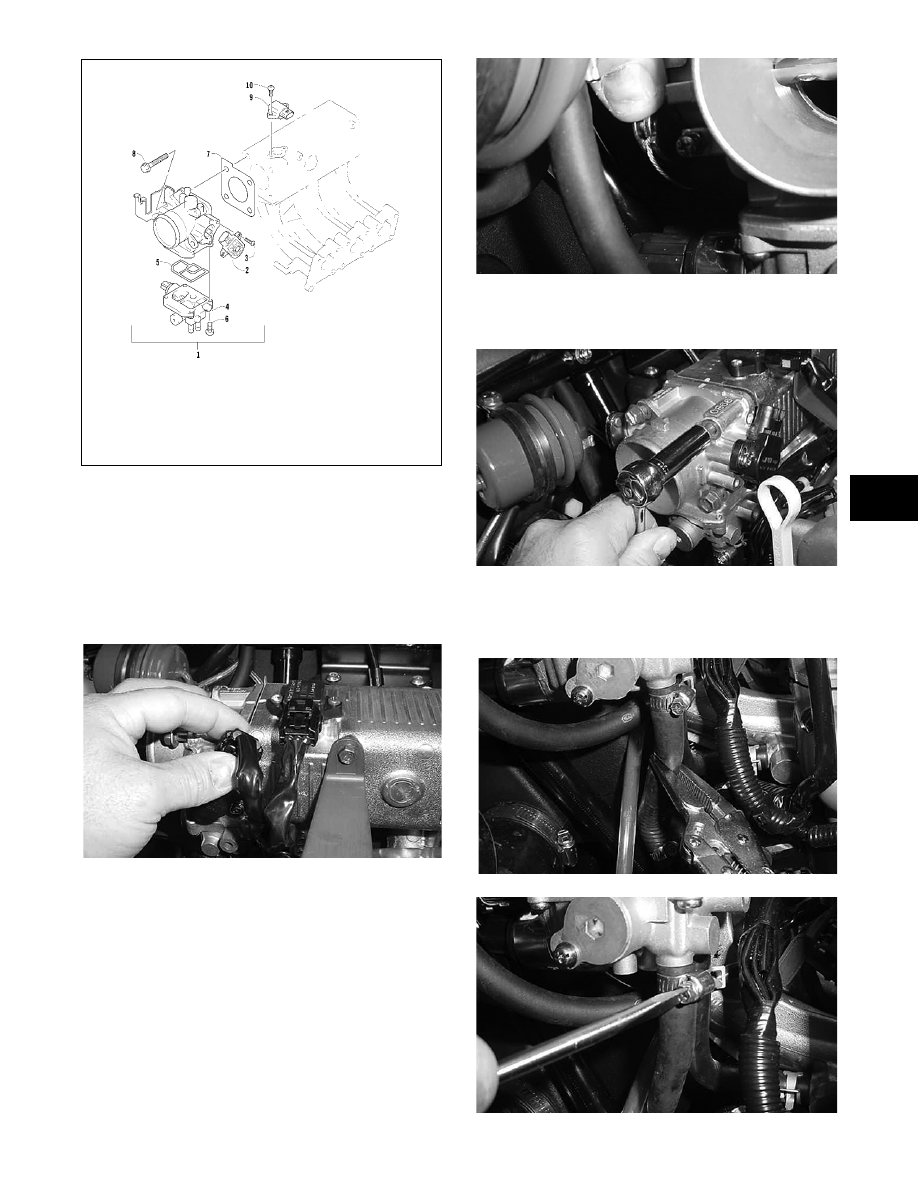

REMOVING/DISASSEMBLING

1. Remove the air silencer (see appropriate Servic-

ing Air Silencer in Section 3).

2. Unplug the throttle position sensor and the ISC

valve.

AO247

3. Open the throttle valve cam by hand and remove

the throttle cable.

AO248

4. Remove the four 8 mm cap screws securing the

throttle body to the intake plenum.

AO249

5. Clamp off the inlet and outlet coolant lines at the

base of the throttle body; then loosen the hose

clamps.

AO250

AO251

KEY

1. Throttle Body

Assy

2. Throttle Position

Sensor

3. Machine Screw

4. ISC Valve

5. Gasket

6. Screw

7. Gasket

8. Bolt

9. Pressure Sensor

10. Screw

Turbo Models

4-12

„ NOTE: It is advisable to mark the coolant hoses
for assembling purposes.

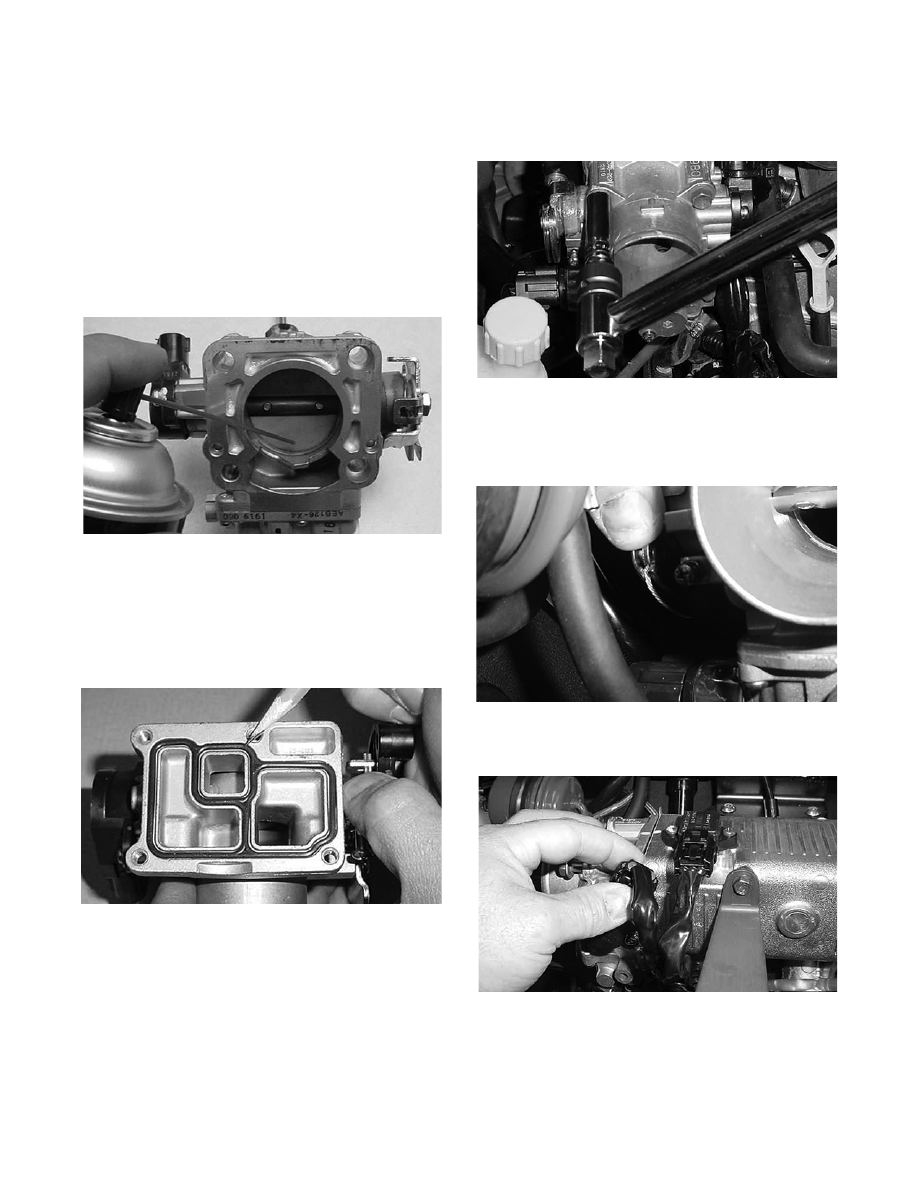

6. Remove the throttle body from the intake ple-

num.

„ NOTE: Remove the throttle body ISC bowl before
using any type of cleaners to clean the throttle
body.

7. Using a carburetor/throttle body cleaner, spray

throttle valve once and clean the venturi of car-

bon buildup. A fine nylon brush maybe needed

to clean carbon deposits.

AO252

„ NOTE: Do not remove the throttle position sen-
sor or place the throttle body in cleaning solvent.

8. Carefully blow-dry the throttle body and be sure

that the ISC bowl rubber gasket is properly

placed for assembly.

AO253

ASSEMBLING/INSTALLING

1. After verifying that the gasket for the ISC bowl

is in place, secure the ISC bowl to the throttle

body and tighten securely.

„ NOTE: Never reuse a throttle body gasket.

2. With a new throttle body gasket, secure the

throttle body to the intake plenum with the four

cap screws; then tighten to 2.4 kg-m (17 ft-lb)

on the non-turbo models or to 1.3 kg-m (9.5 ft-

lb) on the turbo models.

AO254

3.  Connect the coolant lines to the throttle body.

4. Open the throttle valve by hand and install the

throttle cable into the valve cam.

AO248

5. Connect the ISC valve and the throttle position

sensor.

AO247

6. Install the air silencer (see appropriate Servicing

Air Silencer in Section 3).
