Snowmobile Polaris Trail RMK (2010 year). Instruction - part 23





93

MAINTENANCE

Track

Track Lubrication

WARNING! Operating with insufficient lubrication between the rail slide and

track guide clips can cause track failure, loss of vehicle control and loss of

braking ability, which can result in serious injury or death. Avoid operating for

extended periods on ice and other surfaces that have little or no snow for

lubrication.

The slide rail requires adequate snow cover for sufficient lubrication.

Excessive wear indicates insufficient lubrication. A new rail slide can

cause faster heat build-up in limited lubrication, resulting in excessive

wear.

Tip: If excessive rail slide wear occurs due to poor snow conditions, additional

wheel kits are available. See your dealer for more information.

Tip: Track damage or failure caused by operation on ice or under other poor

lubrication conditions will void the track warranty.

94

MAINTENANCE

Track

Moving parts can cut and crush body parts. When performing the checks and

adjustments recommended on the following pages, stay clear of all moving

parts. Never perform track measurement or adjustments with the engine run-
ning.

Track Tension

Track adjustment is critical for proper handling. Always maintain cor-

rect tension and alignment. Tension adjustments should be made only

after the track is warmed up and limber.

WARNING! Improper track tension can cause serious damage to the

snowmobile, which can result in loss of vehicle control and serious injury or

death. Always maintain the track tension as specified.

1. Turn the engine off.
2. Lift the rear of the machine and safely support it off the ground.
3. Place the recommended weight or downward pressure on the track

at the distance specified (see chart) ahead of the center of the rear

idler wheel.

4. Measure at the point where the weight is hanging.

5. Check for specified slack between the wear surface of the track clip

and the plastic rail slide.

Weight

Measurement

Location

Measurement

10 lbs. (4.54 kg)

16 inches (41 cm) ahead of

rear idler shaft

3/8-1/2 inch (1-1.3 cm)

WARNING

95

MAINTENANCE

Track

Track Tension
I

f the track needs adjustment:

6. Loosen the rear idler

shaft bolt.

7. Loosen the locknuts.
8. Tighten or loosen the

track adjusting screws

as necessary to pro-

vide equal adjustment

on both sides of the

track.

9. Repeat the measure-

ment on the other side

of the track.

Tip: Check more frequently

when machine is new.

10. Start the engine and

slowly rotate the track

at least five revolutions. Let the track come to a stop (do not apply

brakes).

11. Check track alignment (see page 96) and adjust as necessary.
12. Tighten the locknuts.
13. Tighten the idler shaft bolts. Torque to 35 ft. lbs. (47.5 Nm).

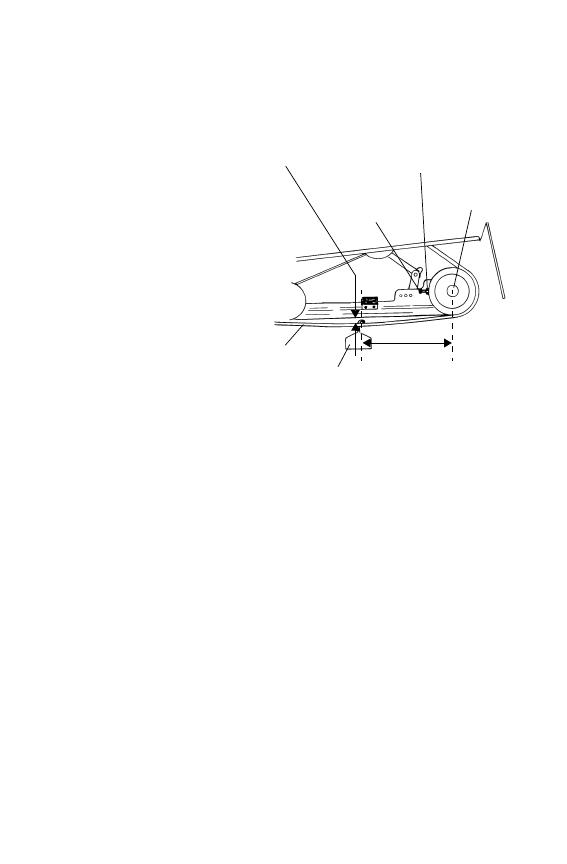

Adjusting

Screw

Locknut

Slack

Measurement

Track

10 lbs. (4.54 kg)

Idler Shaft

Bolt

16 in. (40 cm)

96

MAINTENANCE

Track

n

Track Alignment

Periodically check that the track is

centered and running evenly on the

slide rails. Misalignment will cause

excessive wear to the track and slide

rail.
1. Safely support the rear of the

machine with the track off the

ground.

2. Start the engine and apply a

small amount of throttle until

the track turns slowly at least

five complete revolutions. Stop

the engine and let the track

come to a stop (do not apply

brakes).

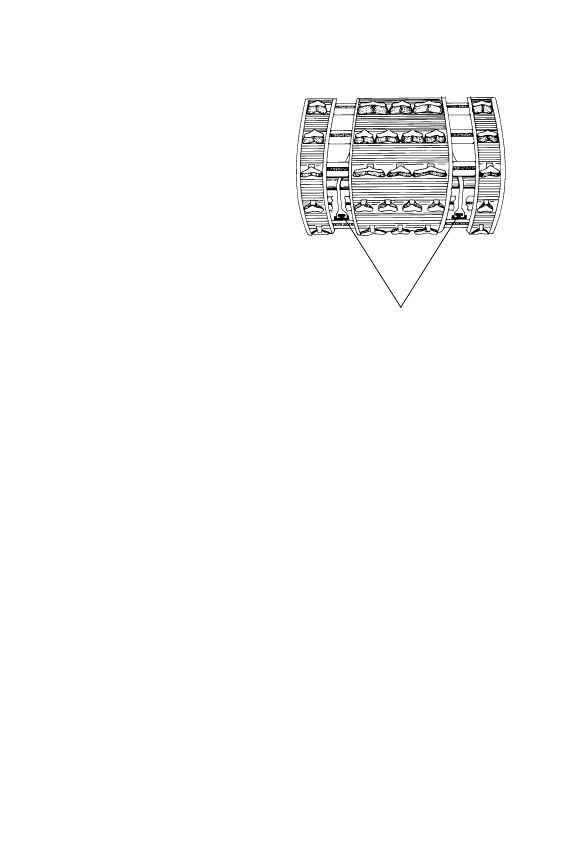

3. Inspect track alignment by looking through the track window to

make sure the rails are evenly spaced on each side. If the track runs

to the left, loosen the left locknut and tighten the left adjusting bolt.

If the track runs to the right, loosen the right locknut and tighten the

right adjusting bolt.

4. After adjustments are complete, tighten locknuts and torque idler

shaft bolts to 35 ft. lbs. (47.5 Nm).

5. Repeat steps 2 and 3 to verify proper alignment.

Rails
