MAINTENANCE

Steering System

Steering Inspection

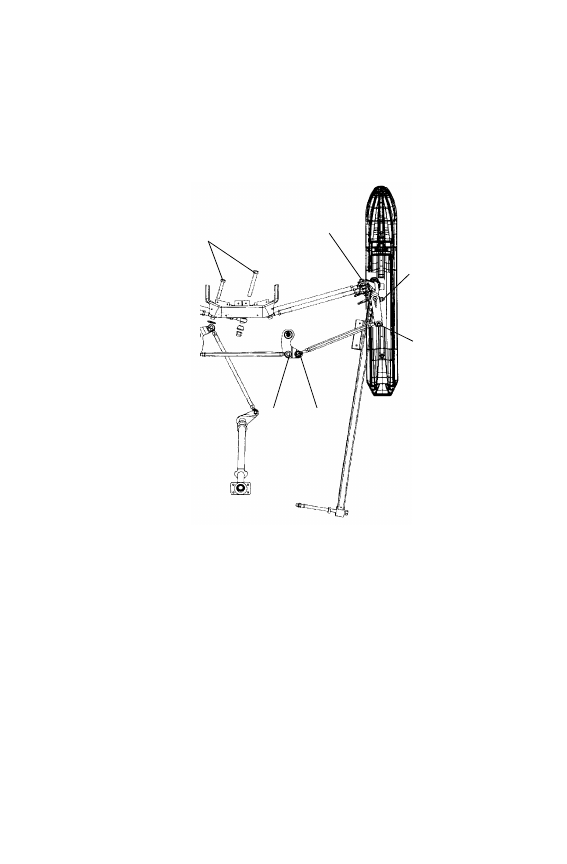

Each week, or before a long ride, check fasteners and tighten if neces-

sary. Specific fasteners that should be checked are marked with a + in

the illustration.

+

+

+

+

+

+

98

MAINTENANCE

Steering System

Ski Alignment

WARNING! Improper ski alignment or adjustment may cause loss of steering

control, resulting in serious injury or death. Do not attempt to change the ski

alignment or camber adjustment. See your Polaris dealer.

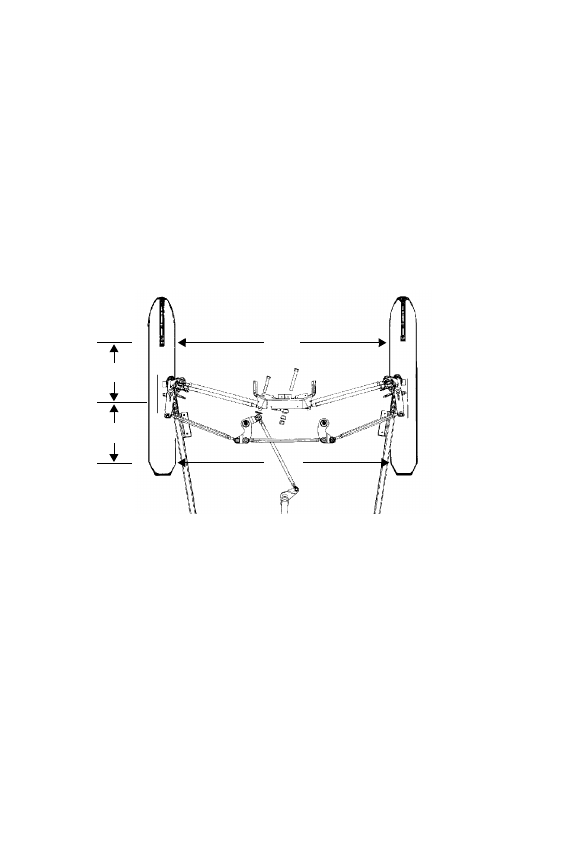

With the handlebars in a straight-ahead position, and with vehicle

weight compressing the suspension, measure from the straight edge of

the skis at the center of the ski mounting bolt. The measurement

between the skis at point X should be 1/8-1/4 inch (3-6 mm) greater than

at point Y.

Tip: If the skis are misaligned, we recommend that your dealer correct the align-

ment, since camber adjustment may also be affected.

X

Y

10 in. (25.4 cm)

10 in. (25.4 cm)

99

MAINTENANCE

Steering System

n

Ski Skags

See your dealer’s studding chart for recommended skags. If you install

longer or more aggressive carbide skags than the original equipment, it

may also be necessary to add track studs to maintain proper vehicle con-

trol while turning on hard-packed snow or ice.

WARNING! Worn skis and/or skags will adversely affect handling. Loss of

vehicle control may result, causing serious injury or death. Replace skags as

recommended.

Check skags weekly to maintain positive steering characteristics. Skags

must be replaced when worn to half their original diameter. Carbide

skags must be replaced if any abnormal wear or chipping is found.

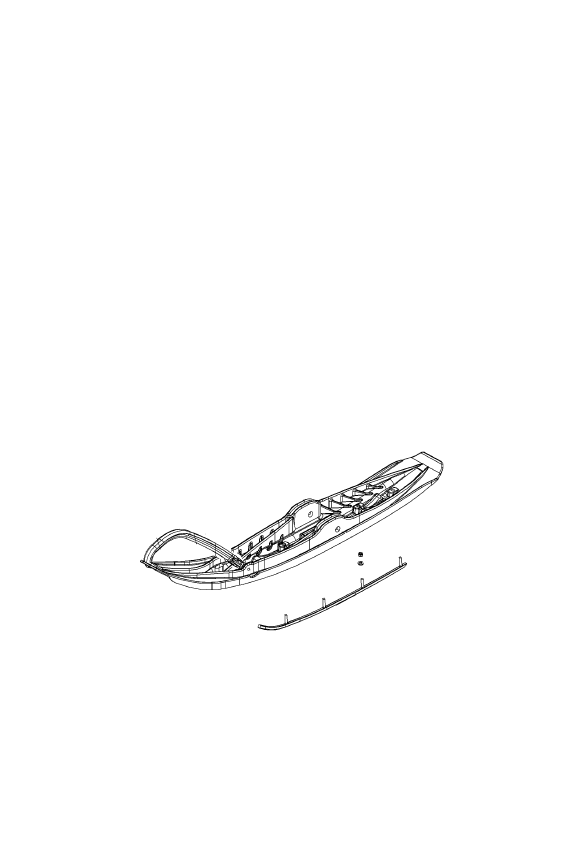

Skag Replacement

1. Raise and support the front of the machine so the skis are approxi-

mately 6I (15.2 cm) from the ground.

2. Remove the attaching hardware and pry the skag downward.
3. Remove the rear end of the skag.
4. Remove the front end of the skag.
5. Reverse the steps to install a skag.

100

MAINTENANCE

Suspension Maintenance

n

Rail Slide Wear

For ease of inspection, all

Polaris rail slides have a

wear limit indicator groove

to indicate the minimum per-

missible slide thickness.

Replace the rail slides if they

are worn to the top of the

groove at any point along

their length. Failure to do so

may result in permanent

damage to the track or rails.

Suspension Inspections

Loose nuts and bolts can reduce your snowmobile’s reliability and cause

needless repairs and down time. Before beginning any snowmobile trip,

a visual inspection will uncover potential problems. Check the follow-

ing items on a weekly basis or before any long trip:

n

Check suspension mounting bolts for tightness.

n

Check rear idler wheel bolts for tightness. See page 95.

n

Check rear idler adjusting bolt locknuts for tightness.

n

Check front torque arm limiter strap condition.

n

Check rail slide condition.

n

Check track tension. See page 94.

n

Lubricate/grease all suspension components. See page 70.

n

Check ski runner/skag condition. See page 99.

n

Check ski spindle bolts for tightness.

n

Check tie rod end nuts for tightness.

Replace when

worn to top of

groove

Minimum

Thickness
