Snowmobile Polaris Trail RMK (2010 year). Instruction - part 22





89

MAINTENANCE

Clutch System

Drive Belt Installation

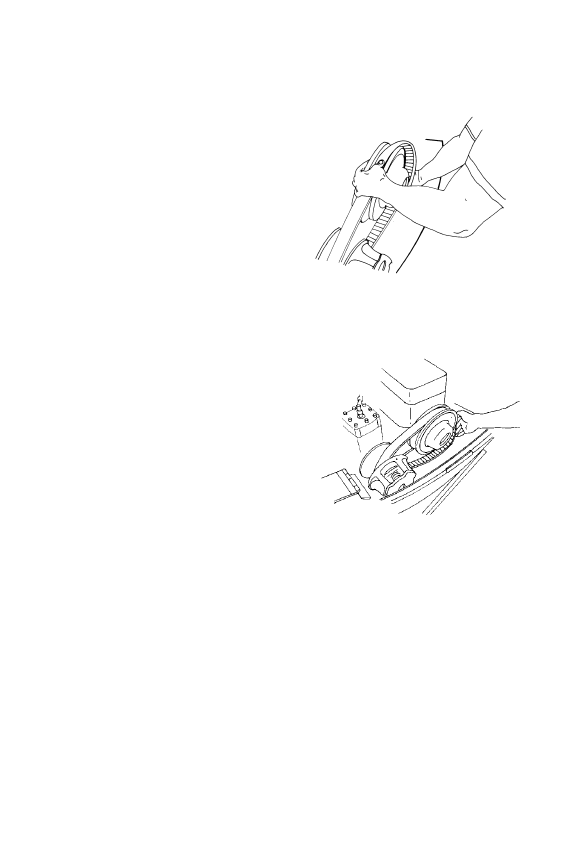

1. Drop the drive belt over the

drive clutch and pull back

the slack.

Tip: To ensure satisfactory belt life,

install belts so they operate in

the same direction of rotation

by positioning the identification

numbers so that you can read

them. If required, separate the

sheaves as outlined in the belt

removal procedures.

2. Turn the driven clutch

moveable sheave clockwise

while pushing inward and forcing the belt down between the

sheaves.

3. Hold the belt down between

the sheaves and roll the bot-

tom portion over the outer

clutch sheave. Work the belt

to the outer edge of the

sheave.

4. Rotate the L-wrench to

tighten the sheaves. Remove

the wrench and store in the

tool kit.

5. Close the clutch guard and

reinstall the retaining pin.

6. Close and secure the hood and release the parking brake.

90

MAINTENANCE

Clutch System

n

Drive Belt Deflection

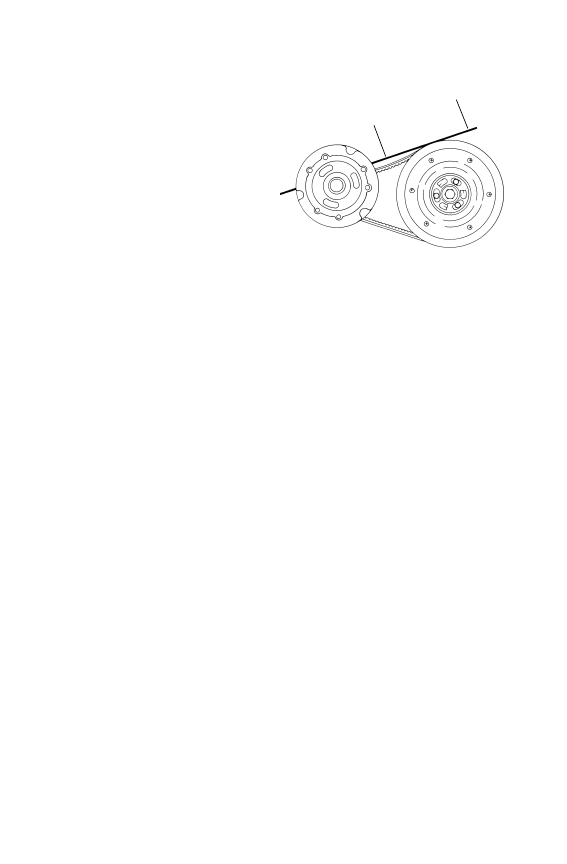

Measure belt deflection with

both clutches at rest and in

their full neutral position.
Place a straight edge on the

belt (1) and apply downward

pressure while measuring at

point 2. This measurement

should be 1 1/4 inches (32

mm).

Drive Belt Adjustment

Belt deflection should be adjusted without removing the clutch from the

jackshaft.
1. Loosen the 7/16-inch jam nut on the belt width adjuster.
2. Using a 1/8-inch Allen wrench, adjust the threaded set screw as

needed.

Tip: Turn the set screw in (clockwise) to increase the distance between the

sheaves and out (counterclockwise) to decrease the distance.

3. Tighten the jam nut.

1

2

91

MAINTENANCE

Clutch System

Torque Stop

Periodically check torque stop

clearance. With clutches in

proper alignment, the torque stop

clearance should be .010-.030

inch (.25-.75 mm) from the

engine case.
Adjust if necessary, and lock the

jam nut.

Tool Kit

A tool kit is included with each

machine for emergency and rou-

tine maintenance. Always keep

the tool kit with the snowmobile.

Chain Tension

Maintain the proper chain tension as outlined on page 80.

Fall Tune-Up

For maximum performance, arrange for a fall service tune-up with your

Polaris dealer.

.010-.030 in.

(.25-.75 mm)

92

MAINTENANCE

Track

Track Inspection

WARNING! Broken track rods can cause a rotating track to come off the

machine, which could cause serious injury or death. Never operate with a

damaged track. Never rotate a damaged track under power.

1. Using a hoist, safely lift

and support the rear of the

snowmobile off the ground.

2. Rotate the track by hand to

check for possible damage.

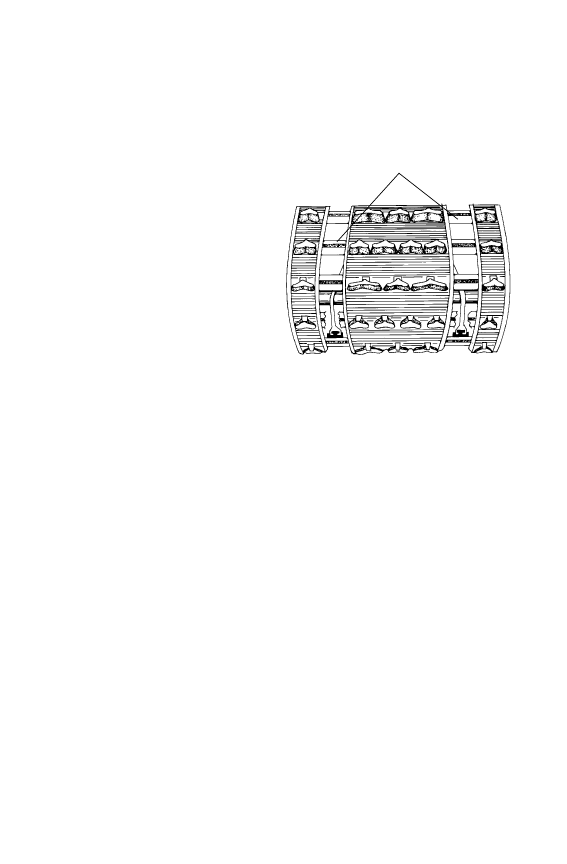

3. Carefully examine the track

along the entire length of

each rod (+). Bend the

track to check for break-

age.

4. Replace the track if any rod

damage is found.

+
