Snowmobile Polaris Trail RMK (2010 year). Instruction - part 21





85

MAINTENANCE

Lights

NOTICE: Avoid touching a halogen bulb with bare fingers. Oil from skin leaves a

residue, causing a hot spot that will shorten the life of the lamp. If fin-

gers do touch the bulb, clean it with an alcohol-moistened towel.

Removing Halogen Bulbs

1. Pinch the ends of the spring (1)

together and lift until it releases

from the spring retainer.

2. Lift spring carefully around

wire harness (2) and flip to out-

side of housing.

3. With the wire harness attached

to the bulb (3), withdraw bulb

from housing.

4. Grasp bulb by metal base and

carefully separate bulb from

harness.

Installing Halogen Bulbs

1. Hold bulb by metal base and install into wire harness.
2. Insert bulb into housing.
3. Carefully flip spring back into housing placing it around wire har-

ness.

4. Squeeze spring together until it is over the spring retainer and

release.

5. Verify headlight aim.

1

2

3

86

MAINTENANCE

Clutch System

Periodically inspect the clutch sheaves for damage, wear, or belt resi-

due. To maintain optimum performance, clean with non-oil based clean-

ers such as isopropyl alcohol.

NOTICE: If you become aware of higher than normal clutch engagement or an

unusual vibration or shift pattern, see your dealer immediately. Do not

operate the machine until repairs have been made. All clutch mainte-

nance and repairs must be performed by an authorized Polaris dealer.

Any unauthorized modifications to clutches, such as adding or remov-

ing weights, will void the warranty.
The bushings in the weights and rollers of Polaris clutches are made

of a material that may be damaged if lubricated. Do not lubricate

clutch bushings.

Clutch Alignment Offset

Clutch alignment offset is important for maintaining optimum perfor-

mance. Please see your Polaris dealer if you experience a decrease in

performance.

Clutch Center Distance

See your Owner's Manual Supplement for recommended center distance

for your machine. If adjustment is necessary, see your dealer.

87

MAINTENANCE

Clutch System

n

Drive Belt Condition

Belt width and length must match the center distance of the clutches and

sheave width of the drive clutch. For this reason, Polaris recommends

that only O.E.M. belts be used. Other belts may match the dimensions,

but can drastically change the shift pattern, resulting in poor perfor-

mance. See Belt Troubleshooting on page 111.
Periodically check the condition and tension of the drive belt, and

always carry a spare. Inspect the belt for signs of excessive wear: frayed

edges, missing cogs, cracks and excessive looseness. Replace the belt if

any of these conditions exist.

Tip: A worn belt will continue to function, but will not deliver maximum perfor-

mance. Always carry a spare belt in case of an emergency.

For improved drive-away during extremely cold temperatures, remove

the belt and warm it to room temperature. Reinstall it before starting the

snowmobile.

88

MAINTENANCE

Clutch System

Drive Belt Removal

1. Stop the engine after operating in a forward motion.

NOTICE: Do not attempt to remove the drive belt after operating in reverse. The

snowmobile must be stopped after forward motion to prevent damage

to components during belt removal.

2. Turn the ignition key off. Wait for

the engine to stop completely.

3. Lock the parking brake (if

equipped).

4. Open the hood.
5. Remove the clutch guard retain-

ing pin and open the clutch

guard.

6. Rotate the driven clutch counter-

clockwise 1/4 turn by hand to

ensure forward engagement

before attempting to remove the

belt.

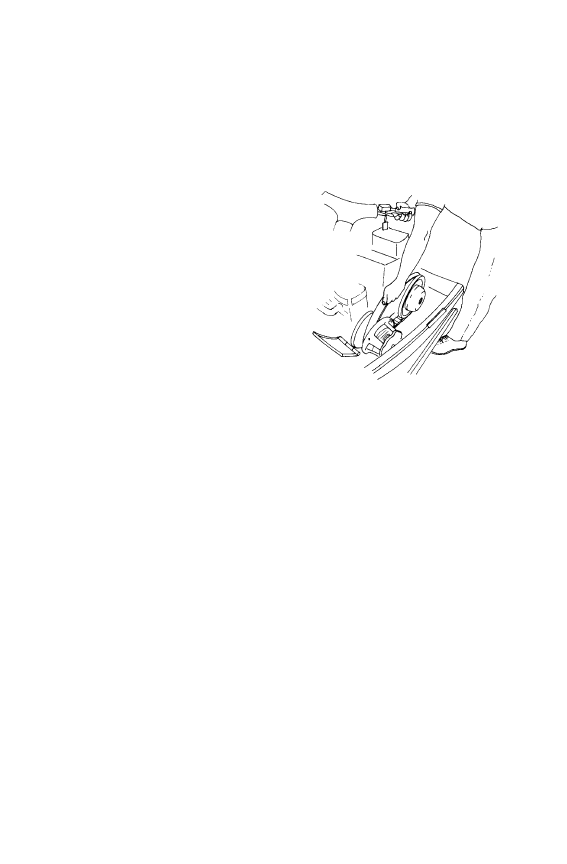

7. Locate the L-wrench in the tool kit and install it into the open

threaded hole in the outer sheave of the clutch. Rotate the wrench

until the sheaves open far enough to remove the belt.

8. Firmly grasp the belt midway between the clutches and pull upward

and rearward to remove. See illustration.
