Driving and operating

Functionality

Different views can be selected in the

left part of the display. Change the

type of view at any time during a

manoeuvre by pressing the touch

field in the left lower zone of the

display and selecting a view from the

view selection menu:

● Standard view
● Auto mode
● Zoom view
● 180° view

The display is immediately updated

with the type of view selected.
Auto mode is activated by default. In

this mode, the system selects the

best view, standard or zoom, to

display according to the information

from the parking sensors.
The state of the system is not kept in

memory when the ignition is switched

off.

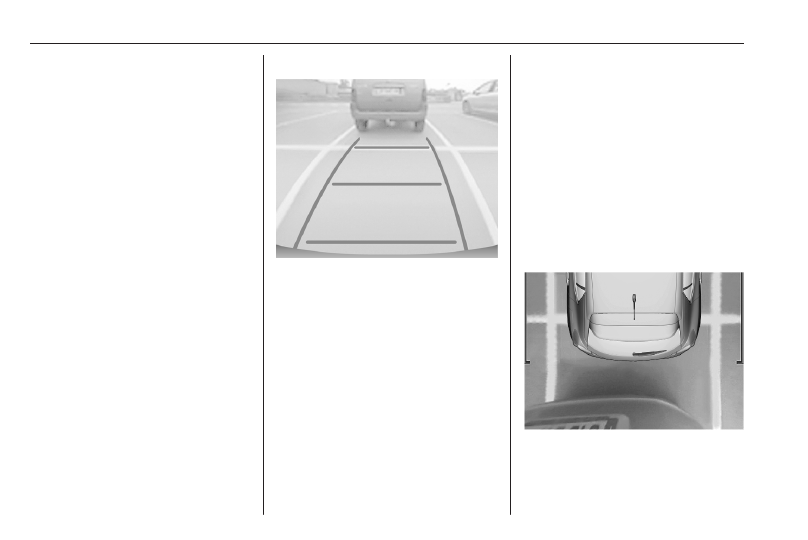

Standard view

The area behind the vehicle is

displayed in the screen. The vertical

lines represent the width of the

vehicle with mirrors unfolded. The

direction of the lines changes with the

position of the steering wheel.
The first horizontal line represents a

distance of about 30 cm beyond the

edge of vehicle's rear bumper. The

upper horizontal lines represent

distances of about 1 m and 2 m.
This view is available in auto mode or

in the view selection menu.

Auto mode

This mode is activated by default. If

the vehicle is equipped with ultrasonic

parking sensors, the automatic view

changes from rear view to a view from

above, as an obstacle is approached

during a manoeuvre.
If the vehicle is not equipped with

ultrasonic parking sensors, the view

needs to be changed manually in the

Info Display.

Zoom view

The camera records the vehicle's

surroundings during the manoeuvre

in order to reconstruct a view from

Driving and operating

231

above the vehicle in its near

surroundings.Thus, the vehicle can

be manoeuvred around obstacles

nearby. This view is available with

auto mode or in the view selection

menu.

180° view

The 180° view facilitates reversing

out of a parking bay, making it

possible to see the approach of

vehicles, pedestrians and cyclists.

This view is not recommended for

carrying out a complete manoeuvre.

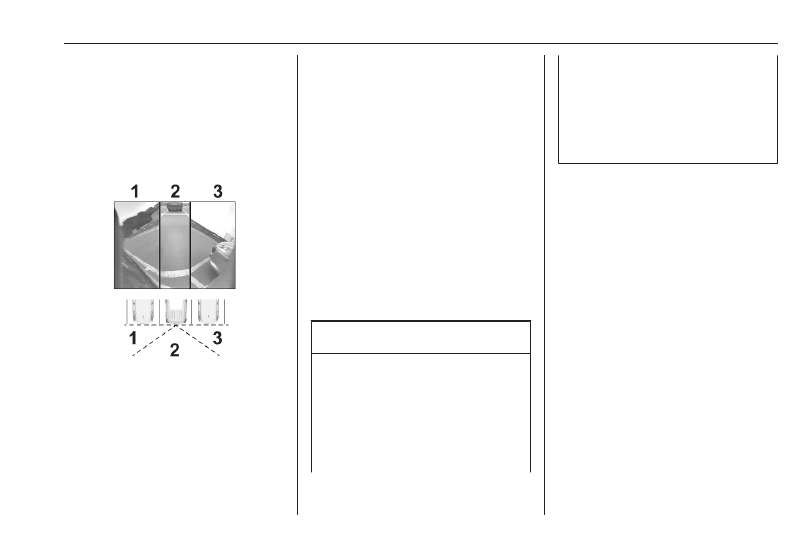

It is made up of three areas: left 1,

centre 2 and right 3. This view is

available from the view selection

menu only.

Deactivation

Panoramic view system is

deactivated when:

● a plug is connected to the power

outlet of the trailer hitch

● a certain forward speed is

exceeded or if reverse gear is not

engaged for 7 seconds

● by pressing the icon

in the left

upper corner of the touch screen

System limitations

Caution

For optimal operation of the

system, it is important to keep the

lenses of all cameras always

clean. For the rear view camera,

there is a washer nozzle which will

be activated when the rear window

washer is operating.

If manually cleaning the lenses of

the cameras, rinse the lenses with

water and wipe with a soft cloth.
Do not clean the lenses with a

steam-jet or high-pressure jet

cleaner.

The panoramic view system may not

operate properly when:

● The surrounding is dark.
● The sun or the beam of

headlights is shining directly into

the camera lenses.

● Weather limits visibility, such as

fog, rain, or snow.

● The camera lenses are blocked

by snow, ice, slush, mud, dirt.

● The vehicle is towing an

electrically connected trailer,

bicycle carrier, etc.

● The vehicle had an accident.

Contact a workshop.

● There are extreme temperature

changes.

232

Driving and operating

Caution

It is very important that any repair

to the panoramic view system is

performed accurately according to

Vauxhall specifications.

Otherwise, the system may not

work properly and there is a risk of

unexpected behaviour and / or

messages from the system.

Rear view camera

The rear view camera assists the

driver when reversing by displaying a

view of the area behind the vehicle.
The view of the camera is displayed

in the Info Display.

Warning

The rear view camera does not

replace driver vision. Note that

objects that are outside the

camera's field of view and the

parking assist sensors, e.g. below

the bumper or underneath the

vehicle, are not displayed.

Do not reverse or park the vehicle

using only the rear view camera.
Always check the surrounding of

the vehicle before and during

driving.

Activation

Rear view camera is activated when

reverse gear is engaged.

Functionality

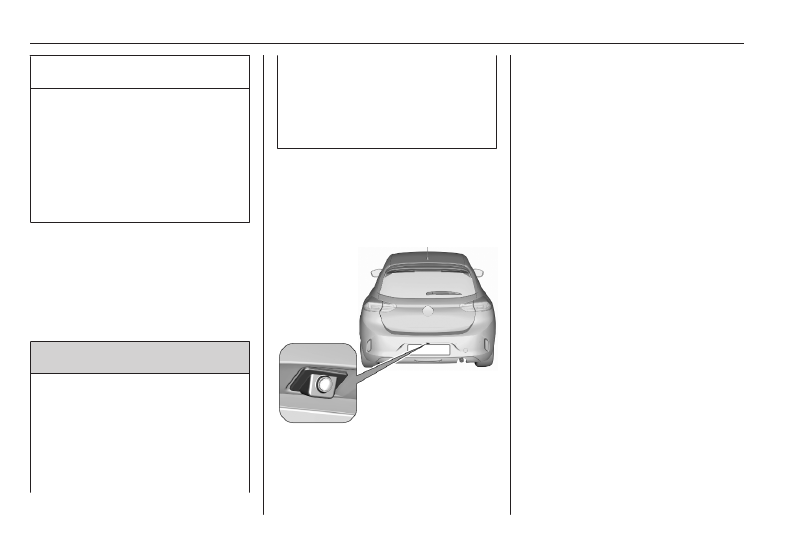

The camera is mounted in the rear

bumper above the number plate.

The area displayed by the camera is

limited. The distance of the image that

appears on the display differs from

the actual distance.

Guidelines

The first horizontal line represents a

distance of about 30 cm beyond the

edge of vehicle's rear bumper. The

upper horizontal lines represent

distances of about 1 m and 2 m.
Trajectory lane of the vehicle is

shown in accordance with the

steering angle.

Deactivation

The camera is deactivated when:

● a plug is connected to the power

outlet of the trailer hitch

● a certain forward speed is

exceeded or if reverse gear is not

engaged for 7 seconds

● by pressing the icon

in the left

upper corner of the touch screen

Driving and operating

233

System limitations

Caution

For optimal operation of the

system, it is important to keep the

lense of the camera in the tailgate

between the number plate lights

always clean. Rinse the lenses

with water and wipe with a soft

cloth.
Do not clean the lenses with a

steam-jet or high-pressure jet

cleaner.

The rear view camera may not

operate properly when:

● surrounding is dark
● sun or beam of headlights is

shining directly into camera

lenses

● weather limits visibility, such as

fog, rain, or snow

● camera lenses blocked by snow,

ice, slush, mud, dirt. Clean the

lense, rinse with water, and wipe

with a soft cloth

● vehicle had a rear end accident
● extreme temperature changes

Traffic sign assistant

Warning

The actual traffic sign always

takes priority over the traffic sign

displayed in the Driver Information

Centre.

Depending on version, are two

different systems available.

Speed limit system 1

Using the camera at the top of the

windscreen and the vehicle's

integrated navigation system, this

system provides speed limits and end

of speed limits in the Driver

Information Centre.
The system can be activated or

deactivated in the vehicle

personalisation

80.

If the system is activated but does not

detect a speed limit sign, the following

sign is displayed:

If the vehicle exceeds the speed limit

by at least 3 mph, the speed limit

displayed flashes about ten seconds.
Speed limiter

201.

Cruise control

198.

Adaptive cruise control

203.

Updating navigation map data

To maintain the performance of the

system, the navigation map should be

updated in periodical intervals. A

navigation map update is available

twice per year.
Further information is avaialble in the

Infotainment system section.

Speed limit system 2

This system displays permanently

speed limit information in the Driver

Information Centre.

234

Driving and operating

Providing the speed limit information

involves the following systems:

● camera at the top of the

windscreen

● vehicle's integrated navigation

system

● telematics service

If travelling on a road with no speed

restrictions, e.g., on German

motorways, the following sign is

displayed:

If no speed limit information can be

provided, the following sign is

displayed:

If a new speed limit is provided, a

confirmation chime is given. The

confirmation chime can be activated /

deactivated in the vehicle

personalisation

80.

If the vehicle exceeds the speed limit,

the speed limit displayed after some

time in the Driver Information Centre

flashes and an audible signal is given

after some time. Time of occurrence

varies. Both flashing and audible

signal are terminated after a few

seconds. Due to legal requirements,

the audible signal can only be

deactivated in the vehicle

personalisation until the next time the

ignition is switched on. If the audible

signal is deactivated,

illuminates

for a few seconds.
In case of a failure,

illuminates

permanently. Consult a workshop.
Speed limiter

201.

Cruise control

198.

Adaptive cruise control

203.

Operation conditions

To provide country-specific speed

limit information, the vehicle needs to

identify the country it is currently in. If

a corresponding country list is

available in the Info Display, the

respective country has to be selected

manually. Otherwise, the country is

automatically selected.
To get valid speed limit information,

the vehicle's current position is sent

via the telematics unit and is

immediately deleted after processing.

Tracking of the vehicle position is not

possible at any time.
This is not impacted by the privacy

settings of Vauxhall Connect.

Notice

It is possible to report a permanent

speed limit misinformation on our

website.

Updating data

To maintain the performance of the

system, the vehicle software and the

navigation map should be updated in

periodical intervals.

Driving and operating

235

A navigation map update is available

at least once per year. Further

information is available in the

Infotainment system section.
For vehicle software update consult a

workshop.

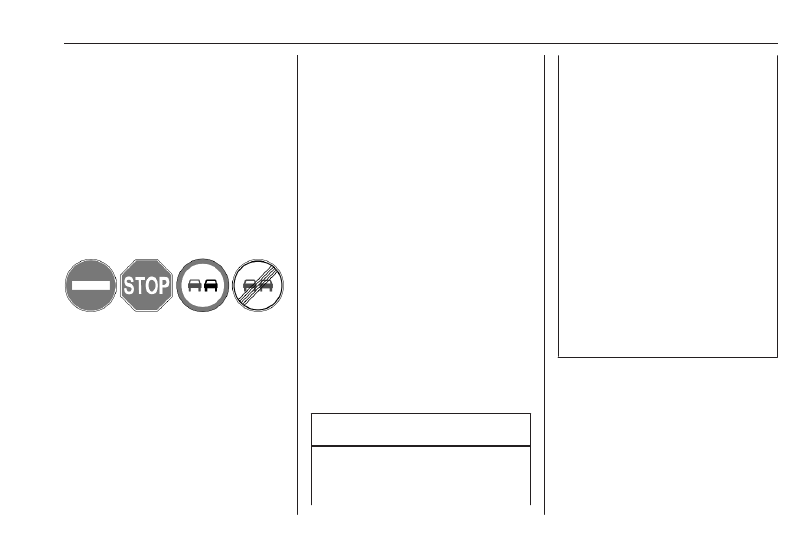

Other traffic signs

The system detects traffic signs and

displays them in specific page of the

Driver Information Centre.

This system can be activated or

deactivated in the vehicle

personalisation

80.

Driver Information Centre

74.

System limitations

Traffic sign assistant may not operate

properly when:

● Driving on winding or hilly roads.
● Driving during nighttime.

● Driving with snow chains.
● Driving with a trailer.
● The area of the windscreen,

where the front camera is

located, is not clean or affected

by foreign items, e.g. stickers.

● The visibility is limited because of

the weather, such as fog, rain, or

snow.

● The sun is shining directly into

the camera lens.

● Traffic signs are completely or

partially covered or difficult to

discern.

● Traffic signs are incorrectly

mounted or damaged.

● Traffic signs do not comply with

the Vienna Convention on Road

Signs and Signals.

● The navigation map data is

outdated.

Caution

The system is intended to help the

driver within a defined speed

range to recognise certain traffic

signs. Do not ignore traffic signs

which are not displayed by the

system.
Do not let this special feature

tempt you into taking risks when

driving.
Always adapt speed regarding

road, traffic and weather

conditions.
The driver assistance systems do

not relieve the driver from full

responsibility for vehicle

operation.
When driving abroad make sure

the vehicle uses the speed unit of

the respective country. If

necessary, select the correct units

in the Info Display.

236

Driving and operating

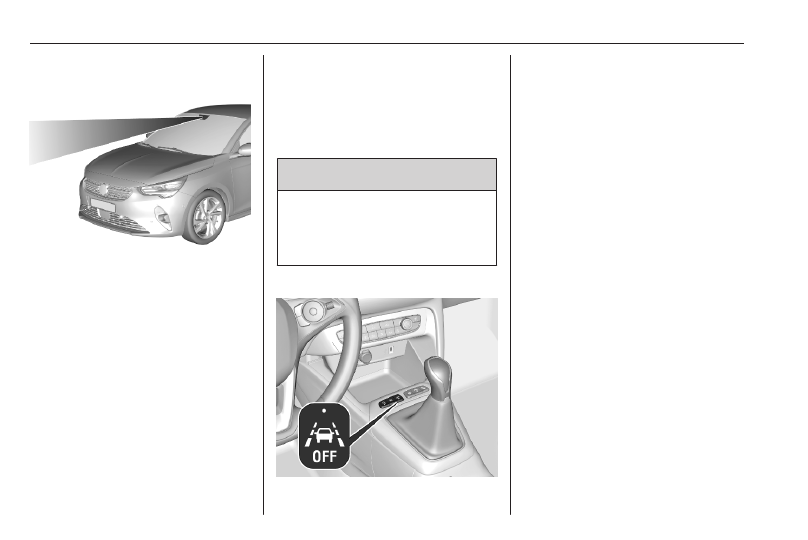

Lane departure warning

The lane departure warning system

supports the driver to avoid

unintended leaving of the lane. The

front camera observes road edges,

as well as the lane markings between

which the vehicle is driving. If the

vehicle approaches a road edge or a

lane marking, the system warns the

driver.
Unintended lane departure is not

assumed by the system when the turn

lights are operated and during few

seconds after turn lights have been

switched off.

No warning will be issued with a

dynamic driving, i.e. pressure on the

brake or accelerator pedal.
When the system recognises an

unintended lane departure, the

control indicator

flashes yellow.

Warning

This system is a driving aid that

cannot, in any circumstances,

replace the need for vigilance on

the part of the driver.

Activation

If the system is activated, the LED in

the button

is not illuminated. To

activate the system when the system

is deactivated, press

The system is only operable at

vehicle speeds above 40 mph.

Deactivation

To deactivate the system, press

until LED in the button is illuminated.

Fault

In the event of a fault,

and

appear in the Driver Information

Centre, accompanied by a display

message and a warning chime. Seek

the assistance of a workshop.

System limitations

The system performance may be

affected by:

● covered camera by snow, ice,

slush, mud, dirt, or affected by

windscreen damage or foreign

items, e.g. stickers

● close vehicles ahead
● banked roads

Driving and operating

237

● winding or hilly roads
● poor lighting conditions
● sudden lighting changes
● shining sun directly into the

camera lens

● adverse environmental

conditions, e.g. heavy rain, fog,

or snow

● vehicle modifications, e.g. tyres
● roads with poor lane markings

Lane keep assist

Lane keep assist supports the driver

to avoid unintended leaving of the

lane. The front camera observes road

edges, as well as the lane markings

between which the vehicle is driving.

If the vehicle approaches a road edge

or a lane marking, the steering wheel

is gently turned so that the vehicle

turns back into the lane. The driver

will notice a turning movement of the

steering wheel. Turn steering wheel

in same direction, if the system does

not steer sufficiently. Turn steering

wheel gently into opposite direction, if

lane change is intended.

When the system steers to correct the

trajectory of the vehicle,

flashes

yellow in the Driver Information

Centre. Lane keep assist does not

continuously steer the vehicle.
Unintended lane departure is not

assumed by the system when the turn

lights are operated and during few

seconds after turn lights have been

switched off.
If the system detects that the steering

wheel is not held permanently, it

interrupts a correction after a short

time.
When hands-off driving is detected

during a correction a warning

message appears in the Driver

Information Centre, accompanied by

a warning chime. Every further

hands-off detection prolongs the

warning chime duration.
A lane departure warning in the Driver

Information Centre alerts when the

system cannot hold the vehicle within

the lane and immediate driver´s

action is required.

If the vehicle is equipped with active

side blind spot detection, the

interruption of the lane correction

might be cancelled.
Side blind spot alert

227.

Notice

The system may be switched off if it

detects lanes which are too narrow,

too wide or too curved.

Following preconditions have to be

fulfilled that the system corrects:

● vehicle speed must be between

40 mph and 112 mph

● the turn lights are not activated
● the electronic stability control is

activated and not in operation

● no plug is connected to the power

outlet of the trailer hitch

● no dynamic driving, i.e. pressure

on the brake or accelerator pedal

● roads with good lane markings
● no temporary spare wheel is

used

238

Driving and operating

● the vehicle is not driven in a tight

corner

● no system fault is present which

prevents corrections

Depending on version, only lane

departure warning system is active,

when a system fault is present, a

spare wheel used, or e.g. a trailer is

attached.
Lane departure warning

236.

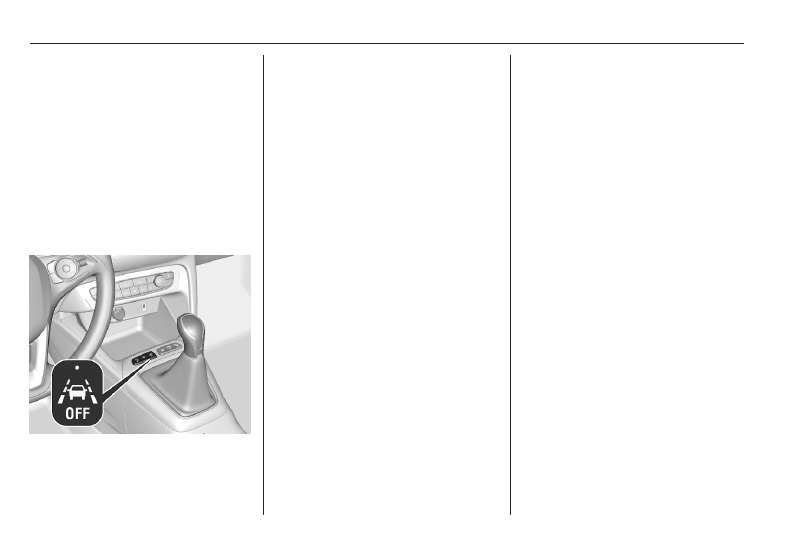

Activation

Depending on version, the system is

automatically activated when ignition

is switched on. If the system is

activated, the LED in the button

not illuminated. To activate the

system when the system is

deactivated, press

Deactivation

To deactivate the system, press

until LED in the button is illuminated.

Fault

In the event of a fault,

and

appear in the Driver Information

Centre, accompanied by a display

message and a warning chime. Seek

the assistance of a workshop.

System limitations

The system performance may be

affected by:

● covered camera by snow, ice,

slush, mud, dirt, or affected by

windscreen damage or foreign

items, e.g. stickers

● close vehicles ahead
● banked roads
● winding or hilly roads
● poor lighting conditions
● sudden lighting changes

● shining sun directly into the

camera lens

● adverse environmental

conditions, e.g. heavy rain, fog,

or snow

● vehicle modifications, e.g. tyres
● roads with poor lane markings

A warning message may appear

when the vehicle is travelling in a long

straight lane on a smooth road

surface even if the driver is holding

the steering wheel properly.
Deactivate the system if the system is

disturbed by tar marks, shadows,

road cracks, temporary or

construction lane markings, or other

road imperfections.

Driving and operating

239

Warning

Always keep your attention on the

road and maintain proper vehicle

position within the lane, otherwise

vehicle damage, injury or death

could occur.
The system may not keep the

vehicle in the lane or give an alert,

even if a lane marking is detected.
The steering of the system may

not be sufficient to avoid a lane

departure.
The system may not detect hands-

off driving due to external

influences (road condition and

surface, weather etc). The driver

has full responsibility to control the

vehicle and is always required to

keep the hands on the steering

wheel while driving.
Using the system while towing a

trailer or on slippery roads could

cause loss of control of the vehicle

and a crash. Switch the system off.

Driver alert

The driver alert system monitores the

driving time and the vigilance of the

driver. Monitoring the vigilance of the

driver is based on the trajectory

variations of the vehicle compared to

the lane markings.
The system cannot replace the need

for vigilance on the part of the driver.

Taking a break is recommended as

soon as feeling tired or at least every

two hours. Do not drive when feeling

tired.

Activation or Deactivation

The system can be activated or

deactivated in the vehicle

personalisation

80.

When the system is deactivated

may illuminate in the Driver

Information Centre.
The system is automatically activated

when ignition is switched on.

Driving time alert

The driver gets notified by a pop-up

reminder symbol

€

in the Driver

Information Centre simultaneously

with an acoustic alert if the driver has

not taken a break after two hours of

driving at a speed above 40 mph. The

alert is repeated hourly until the

vehicle is stopped, no matter how

vehicle speed evolves.
The counting of driving time alert is

reset when the ignition has been

switched off for a few minutes or the

driver's seat belt has been

unfastened and the driver's door has

been opened.

Driver drowsiness detection

The system monitors the driver's level

of vigilance at speeds above 40 mph.

A camera at the top of the windscreen

detects variations in trajectory

compared to the lane markings.
The system may perform a learning

procedure for up to 30 minutes after

the start of the monitoring. During this

period, the driver's individual driving

behaviour is analysed and no alert is

given.
If the trajectory of the vehicle

suggests a certain level of

drowsiness or inattention by the

driver, the system triggers the first

240

Driving and operating

level of alert. The driver is notified by

a message and an audible signal is

given.
After three first level alerts, the

system triggers a new alert with a

message, accompanied by a more

pronounced audible signal.
In certain driving conditions such as

poor road surface or strong winds

etc., the system may give alerts

independent of the driver's level of

vigilance.
The driver drowsiness detection is

reinitialised in the following situations:

● the ignition has been switched off

for a few minutes

● the speed remains below

40 mph for a few minutes

● the driver's seat belt has been

unfastened and the driver's door

has been opened

System limitations

In the following situations, the system

may not operate properly or even not

operate at all:

● poor visibility caused by

inadequate lighting of the

roadway, falling snow, heavy

rain, dense fog etc.

● dazzle caused by headlamps of

oncoming vehicles, low sun,

reflections on damp roads,

leaving a tunnel, alternating

shade and light etc.

● no lane markings detected or

multiple lane markings due to

roadworks

● close vehicles ahead
● winding roads or narrow roads
● advanced lane keep assist is

active

● covered camera by snow, ice,

slush, mud, dirt, or affected by

windscreen damage or foreign

items, e.g. stickers,

may

appear in the Driver Information

Centre, accompanied by a

message

● in the event of a system fault,

may appear in the Driver

Information Centre,

accompanied by a message and

a warning chime

Driving and operating

241

Charging

General information

Warning

Persons with a pacemaker should

consult a doctor for possible

precautions.

Charging the vehicle's high voltage

battery depends upon several factors:

● high voltage battery of the vehicle
● internal onboard charger (OBC)
● charging cable
● external charging device

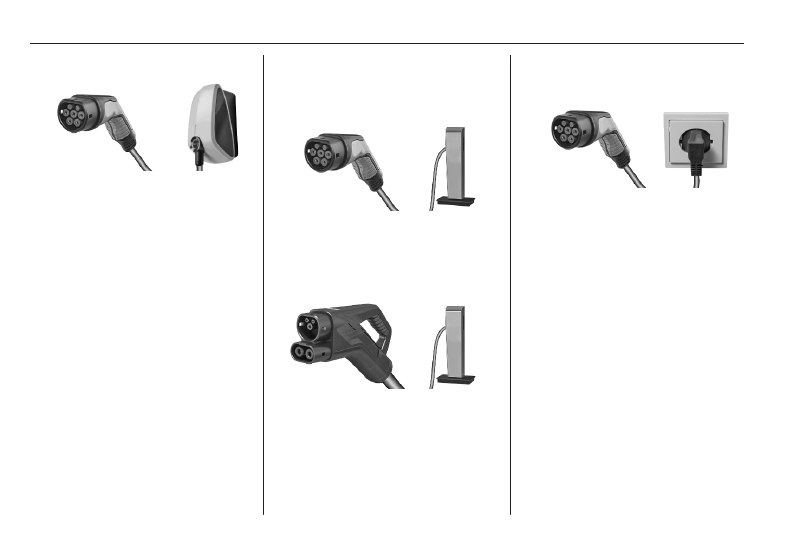

The charging cable connects the

vehicle with an external charging

device providing electric power. This

may be a domestic electrical outlet, a

Green'Up socket, a wall box or a

public charging station.
The high voltage battery is charged

with direct current (DC) only. When

charging the vehicle with alternating

current (AC), AC has to be converted

into DC. This is done by the vehicle's

onboard charger. The onboard

charger is available with 7.4 kW

(single-phase) and 11 kW (3-phase).
If the vehicle is charged at a public DC

charging station, no DC conversion is

required. The high voltage battery

can be directly charged with DC

provided by the DC charging station.
The speed of charging the vehicle's

high voltage battery depends upon

the weakest element of the charging

chain. To achieve the maximum

charging speed, charging cable and

charging device have to be attuned to

each other.

Notice

Make sure that the charging cable

used fits to the vehicle's onboard

charger.

Electric power consumption and

range

The electric power consumption

(combined) is within a range of 17.6

to 15.9 kWh/100 km.
The range is up to 217.5 miles.
For the values specific to your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The determination of electric power

consumption is regulated by directive

R (EC) No. 715/2007 and No.

2017/1151 (in the latest applicable

version).

Charging types

There are different types of charging

the vehicle's high voltage battery.

242

Driving and operating

Charging at wallboxes

A wallbox is a charging unit for private

households. It provides a charging

cable which has to be connected to

the vehicle's charging port. Some

wallboxes do not provide a charging

cable. In this case, a separate

charging cable is required which has

to be connected to both the wallbox

and the charging port of the vehicle.
Charging time may take approx. 5

hours with a charging power of 11 kW

or 7.5 hours with a charging power of

7.4 kW.

Charging at charging stations

Charging stations may provide

alternating current (AC) or direct

current (DC). Charging time may vary

depending on the charging station,

DC charging stations provide the

fastest charging. To charge the

vehicle's battery, the charging cable

of the charging station has to be

connected to the charging port of the

vehicle.

● AC charging station: Charging

time may take approx. 5 hours

with a charging power of 11 kW

or 7.5 hours with a charging

power of 7.4 kW.

● DC charging station: Up to

approx. 80% of battery capacity

may be charged in approx. 30

minutes at a charging power of

100 kW.

Charging at domestic electrical

outlets

The vehicle's high voltage battery can

be charged at a domestic electrical

outlet. Connect the charging cable to

the vehicle's charging port and to the

domestic electrical outlet.
Charging time may take approx. 30

hours with a charging power of 1.8

kW.

Charging cable

Depending on the charging type,

different charging cables are used.

Driving and operating

243

Warning

Improper use of portable charging

cables may cause a fire, electrical

shock, or burns, and may result in

damage to property, serious

injury, or death.

● Do not use extension cables,

multi-outlet power strips,

splitters, grounding adaptors,

surge protectors, or similar

devices.

● Do not use an electrical socket

that is worn or damaged, or one

that will not hold the plug firmly

in place.

● Do not immerse the charging

cable into any liquid.

● Do not use an electrical socket

that is not properly grounded.

● Do not use an electrical socket

that is on a circuit with other

electrical loads.

Warning

Read all the safety warnings and

instructions before using this

product. Failure to follow the

warnings and the instructions may

result in electric shock, fire, and /

or serious injury.
Never leave children unattended

near the vehicle while the vehicle

is charging and never allow

children to play with the charging

cable.
If the plug provided does not fit the

electrical outlet, do not modify the

plug. Arrange for a qualified

electrician to inspect the electrical

outlet.
Do not put fingers into the electric

vehicle connector.

Danger

There is a risk of electric shock

that may cause personal injury or

death.

Do not use the charging cable if

any part of the charging cable is

damaged.
Do not open or remove the

charging cable cover.
Service by qualified personnel

only. Connect the charging cable

to a properly grounded outlet with

cables that are not damaged.

244

Driving and operating

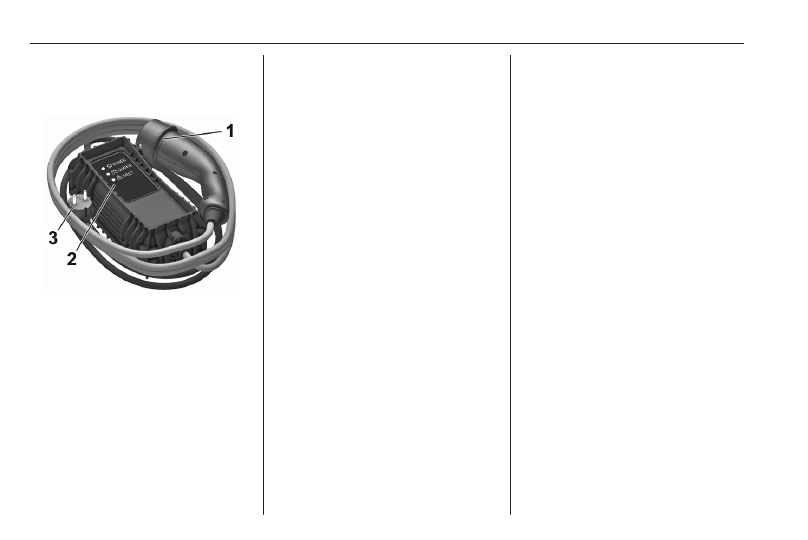

Basic domestic cable (mode 2) /

enhanced domestic cable (mode

1. Vehicle plug
2. Status indicators
3. Wall plug

Basic domestic cables (mode 2) are

used for charging at domestic

electrical outlets. A basic domestic

cable (mode 2) consists of a vehicle

plug, a control box and a plug for the

domestic electrical outlet. The control

box has an intergrated charge

controller and several LEDs

indicating the charging status.

Enhanced domestic cables (mode 2)

are similar to basic domestic cables

(mode 2). However, the charging

performance of enhanced domestic

cables (mode 2 charging) is better

than the charging performance of

basic domestic cables (mode 2).

Enhanced domestic cables (mode 2)

are used at Green'Up sockets which

have to be installed by a certified

electrician at the customer's site.

Charging cable status indicators

After plugging in the charging cable,

it will perform a quick self test and all

status indicators illuminate for a

moment. For the functions of the

status indicators, refer to the manual

of the charging cable manufacturer.

Important information about

portable BEV charging

● Charging a BEV can stress a

building's electrical system more

than a typical household

appliance.

● Before you plug in to any

electrical outlet, have a qualified

electrician inspect and verify the

electrical system (electrical

outlet, wiring, junctions and

protection devices) for heavy-

duty service at a 10 A continuous

load.

● Electrical outlets may wear out

with normal usage or be

damaged over time, making them

unsuitable for BEV charging.

● Check the electrical outlet / plug

while charging and discontinue

use if the electrical outlet / plug is

hot, then have the electrical

outlet serviced by a qualified

electrician.

● When outdoors, plug into an

electrical outlet that is weather-

proof while in use.

● Mount the charging cable to

reduce strain on the electrical

outlet / plug.

Propulsion types

Driving and operating

245

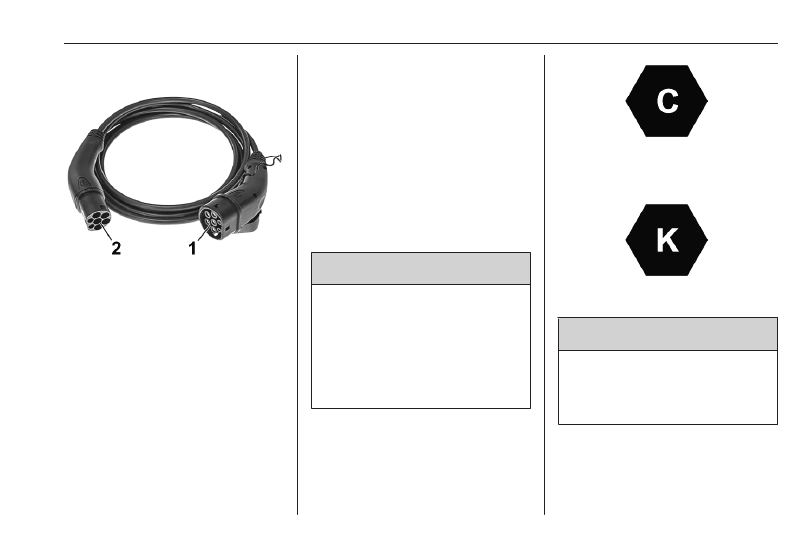

Mode 3 charging cable

1. Vehicle plug
2. Plug for wall box / AC charging

station

Mode 3 charging cables are used for

charging at wall boxes and AC

charging stations. A mode 3 charging

cable provides a vehicle plug and a

plug for the wall box / AC charging

station. Wall boxes / AC charging

stations may provide an integrated

mode 3 charging cable. For more

information on the mode 3 charging

cable, refer to the manual of the

charging cable manufacturer.

Mode 4 charging cable

Notice

Only use DC charging cables shorter

than 30 metres.

Mode 4 charging cables are used for

DC charging. Since mode 4 charging

cables are integrated within DC

charging stations, they only provide a

vehicle plug.

Charging

Warning

Persons with a pacemaker or

similar devices should consult a

doctor for possible precautions.
If in doubt, during charging do not

remain inside or near the vehicle,

near the charging cable or the

charging unit.

In order to ensure the compatibility of

plug and outlet, different labels are

used. The labels are located on the

inside of the vehicle's charging port

flap. Make sure to connect only a

cable of the same type.

Type 2 plug or outlet used for AC

charging

FF plug or outlet used for DC charging

Warning

Avoid any entry of fluids into the

charging port of the vehicle, the

vehicle plug of the charging cable

and the domestic electrical outlet.

When charging at a public AC

charging station / public DC charging

station, follow the instructions for the

use of the respective charging

station. Public AC charging stations

246

Driving and operating

may not provide an integrated

charging cable. In this case, a

portable mode 3 charging cable is

required.

Warning

When charging at a domestic

electrical outlet, only use an outlet

which is properly grounded and

protected by a 30 mA differential

switch.
Only use a domestic electrical

outlet protected by a circuit

breaker adapted to the amperage

of the electrical circuit.
Have a qualified electrician check

the electrical installation to be

used. The installation has to be in

compliance with national

standards and compatible with the

vehicle.
When using a dedicated domestic

electrical outlet, have it installed

by a qualified electrician.

Make sure that the electrical

outlet, the plug and the cable do

not support the weight of the

control box.

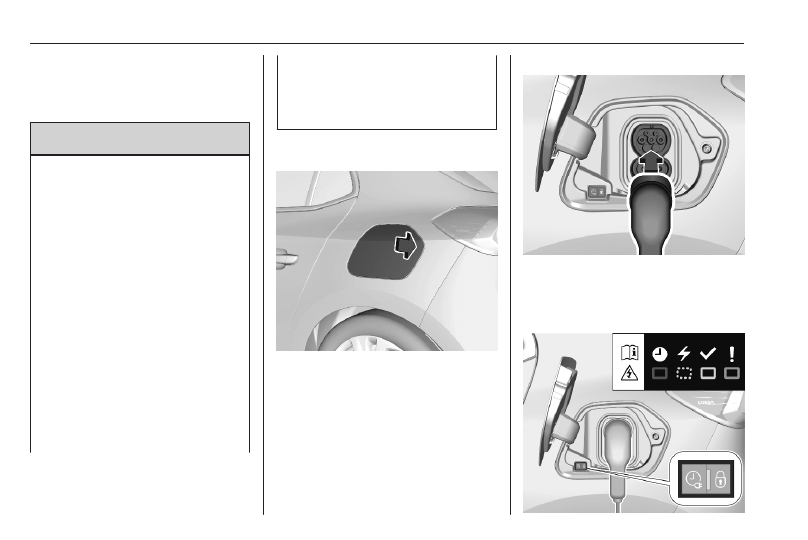

1. Shift into P and switch off the

vehicle.

2. Push the charging port flap to

release it.

3. If necessary, take the charging

cable out of the load

compartment.

4. If necessary, plug in the plug of

the charging cable into the

corresponding port of the external

power source.

Charging cable

249.

5. Plug in the vehicle plug of the

charging cable into the charging

port of the vehicle.
Charging status

249.

Driving and operating

247

The start of charging is indicated

by the green flashing of the status

indicator at the charging port and

at the control box of the charging

cable if available.

Once charging, the vehicle plug will

be locked to the charging port and

cannot be disconnected while

charging is active.

indicator

illuminates.
Charging types

241.

Cancelling the charging process

Notice

At public charging stations, the

cancelling and subsequent

resuming of the charging process

may cause additional costs.
Once the charging process has

started, only the driver's door can be

unlocked without cancelling the

charging process. Therefore,

activate the driver's door only

function in the vehicle

personalisation.

Press

on the remote control to

cancel the charging process at any

time.
Press

twice to cancel the charging

process at any time if the function

driver's door only is activated in the

vehicle personalisation.
Central locking system

10.

Vehicle personalisation

80.

Stop charging

The high voltage battery is fully

charged if the status indicator on the

charging port permanently illuminates

green.

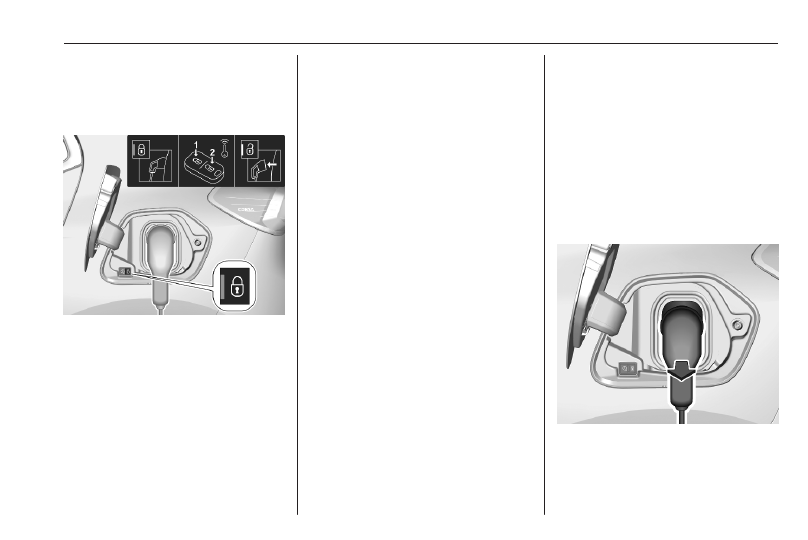

1. Unlock the vehicle before

removing the vehicle plug from

the charging port.
If the vehicle is already unlocked,

lock the vehicle and unlock it

again.

2. Disconnect the vehicle plug of the

charging cable from the charging

port within 30 seconds after

unlocking.

248

Driving and operating

3. Close the charging port flap by

pressing firmly in the centre to

latch properly.

4. Disconnect the charging cable

from the external power source.

5. If necessary, store the charging

cable in the load compartment.

While the charging cable is plugged

into the vehicle, the vehicle cannot be

driven.

Programmable charging

By default, charging starts as soon as

the charging cable is connected to the

charging port of the vehicle.
Programmable charging is only

possible when charging at a domestic

electrical outlet / Green'Up socket or

a wall box.
Programmable charging is also

available via the MyVauxhall App.

Notice

On vehicles without integrated

navigation system, programmable

charging can only be used via the

MyVauxhall App.

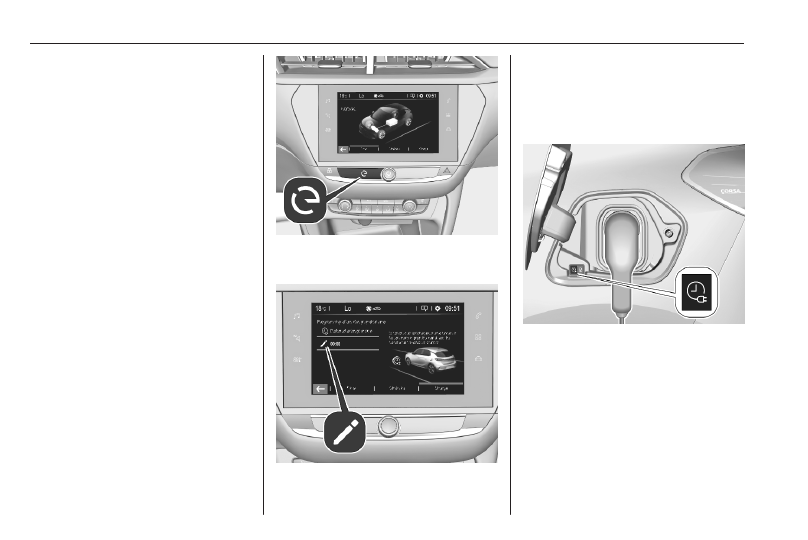

1. Press

2. Select Charge.

3. Press

4. Define the number of hours and

minutes after which the loading

process starts.

5. Press OK.
6. Plug in the vehicle.

7. Within 1 minute, press

activate programmable charging.

8. Depending on version, lock the

vehicle.

The status indicator illuminates blue

indicating that programmable

charging is active.
Charging

245.

Charging status

249.

Driving and operating

249

Charging status

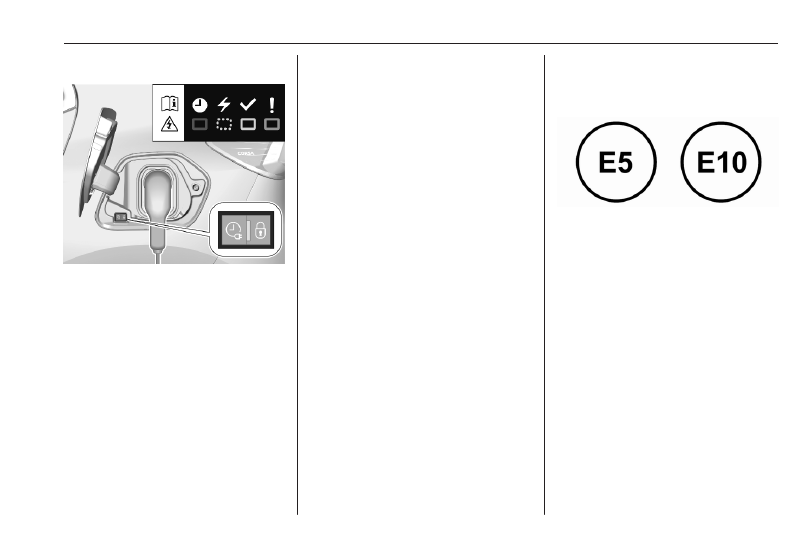

If the vehicle is plugged in and

switched off, the charging status

indicator indicates the following:

● Illuminates white: welcome

lighting when charging port flap is

opened

● Illuminates green: charging

complete

● Flashes green: charging in

process

● Illuminates red: charging fault
● Illuminates blue: programmable

charging active

A charging fault has occured if the

vehicle is plugged in and the charging

status indicator is off.
Further charging status indicators are

located on the control box of the basic

domestic cable (mode 2) / enhanced

domestic cable (mode 2).
Charging cable

242.

Programmable charging

248.

Fuel

Fuel for petrol engines

Only use unleaded fuel that complies

with European standard EN 228 or

E DIN 51626-1 or equivalent.
The engine is capable of running with

fuel that contains up to 10% ethanol

(e.g. named E10).
Use fuel with the recommended

octane rating. A lower octane rating

can reduce engine power and torque

and slightly increases fuel

consumption.

250

Driving and operating

Caution

Do not use fuel or fuel additives

that contain metallic compounds

such as manganese-based

additives. This may cause engine

damage.

Caution

Use of fuel with a lower octane

rating than the lowest possible

rating could lead to uncontrolled

combustion and engine damage.

The engine specific requirements

regarding octane rating are given in

the engine data overview

301. A

country-specific label at the fuel filler

flap can supersede the requirement.

In certain countries, the use of a

particular fuel, e.g. a specific octane

rating, may be required to ensure

proper engine operation.

Fuel for diesel engines

The Diesel engines are compatible

with bio-fuels that conform to current

and future European standards and

and can be obtained from filling

stations:

Diesel fuel that meets standard

EN590 mixed with a biofuel that

meets standard EN14214 (possibly

containing up to 7% Fatty Acid Methyl

Ester).

Diesel fuel that meets standard

EN16734 mixed with a biofuel that

meets standard EN14214 (possibly

containing up to 10% Fatty Acid

Methyl Ester).

Paraffinic Diesel fuel that meets

standard EN15940 mixed with a

biofuel that meets standard

EN14214 (possibly containing up to

7% Fatty Acid Methyl Ester).

The use of B20 or B30 fuel meeting

standard EN16709 is possible in your

Diesel engines. However, this use,

even occasional, requires strict

Driving and operating

251

application of the special servicing

conditions referred to as "Arduous

conditions".
For more information, contact a

dealer or a qualified workshop.

Caution

The use of any other type of (bio)

fuel (vegetable or animal oils, pure

or diluted, domestic fuel etc.) is

strictly prohibited (risk of damage

to the engine and fuel system).

Notice

The only Diesel additives authorised

for use are those that meet the

B715000 standard.

Low temperature operation

At temperatures below 0 °C, some

diesel products with biodiesel blends

may clog, freeze or gel, which may

affect the fuel supply system. Starting

and engine operation may not work

properly. Make sure to fill winter

grade diesel fuel at ambient

temperatures below 0 °C.

Arctic grade diesel fuel can be used

at extremely low temperatures below

-20 °C. Using this fuel grade in warm

or hot climates is not recommended

and may cause engine stalling, poor

starting or damage on the fuel

injection system.

Refuelling

Danger

Before refuelling, switch off

ignition and any external heaters

with combustion chambers.
Follow the operating and safety

instructions of the filling station

when refuelling.

Danger

Fuel is flammable and explosive.

No smoking. No naked flames or

sparks.
If you can smell fuel in your

vehicle, have the cause of this

remedied immediately by a

workshop.

A label with symbols at the fuel filler

flap is indicating the allowed fuel

types. In Europe the pump nozzles of

the filling stations are marked with

these symbols. Refuel only the

allowed fuel type.

Caution

In case of misfuelling, do not

switch on ignition.

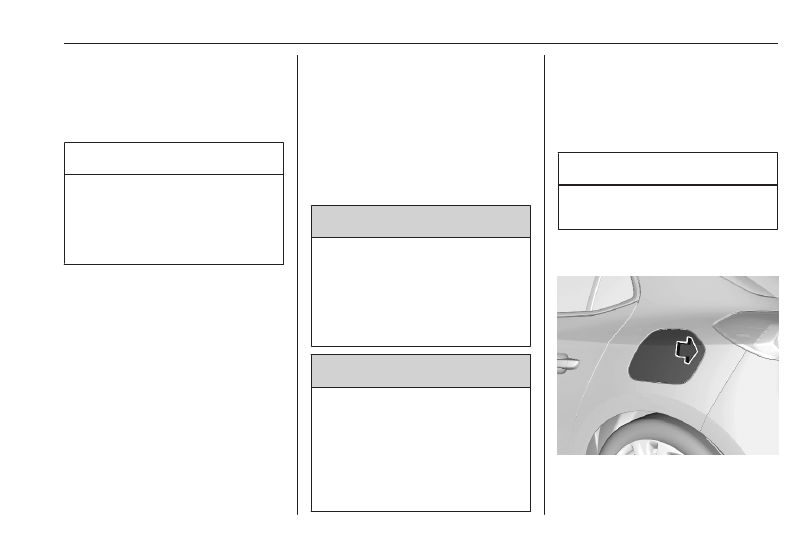

Fuel filler flap is located at left rear

side of vehicle.

The fuel filler flap can only be opened

if the vehicle is unlocked. Release the

fuel filler flap by pushing the flap.

252

Driving and operating

Petrol and diesel refuelling

To open, turn the cap slowly

anticlockwise.

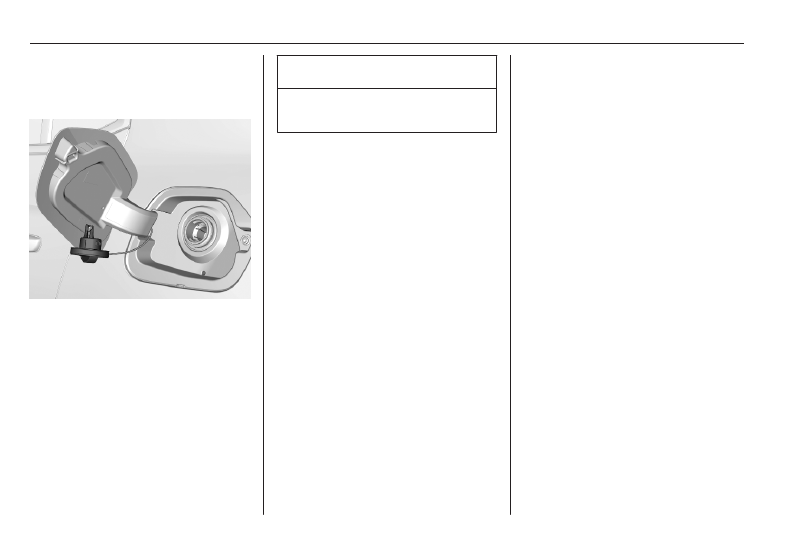

The fuel filler cap can be attached to

the hook on the fuel filler flap.
Place the nozzle in straight position to

the filler neck and press with slight

force to insert.
To refuel, switch on pump nozzle.
After the automatic cut-off, the tank

can be topped up by operating the

pump nozzle a maximum of two more

times.

Caution

Wipe off any overflowing fuel

immediately.

To close, turn the fuel filler cap

clockwise until it clicks.
Close the flap and allow it to engage.

Fuel filler cap

Only use genuine fuel filler caps.
Diesel-engined vehicles have special

fuel filler caps.

Fuel consumption - CO

Emissions

The fuel consumption (combined) is

within a range of 44 to 74 mpg.
The CO

emission is within a range of

144 to 101 g/km.

General information

For the values specific to your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The determination of fuel

consumption is regulated by directive

R (EC) No. 715/2007 and No.

2017/1151 (in the latest applicable

version).
The specification of CO

emission is

also a constituent of the directive.
The figures given must not be taken

as a guarantee for the actual fuel

consumption of a particular vehicle.

Furthermore, fuel consumption is

dependent on personal driving style

as well as road and traffic conditions.
All values are based on the EU base

model with standard equipment.
The calculation of fuel consumption

takes into account the vehicle's kerb

weight, ascertained in accordance

with the regulations. Optional

equipment may result in slightly

Driving and operating

253

higher fuel consumption and

emission levels and a lower

maximum speed.

Trailer hitch

General information

Caution

When not in use, remove the

coupling ball bar.

Only use towing equipment that has

been approved for your vehicle.
Entrust retrofitting of towing

equipment to a workshop. It may be

necessary to make changes that

affect the cooling system, heat

shields or other equipment.
The bulb outage detection function for

trailer brake light cannot detect a

partial bulb outage. E.g. in case of

four bulbs with a power of 5 W each,

the function only detects lamp outage

when only a single 5 W lamp remains

or none remain.
Trailers equipped with LED lights are

not suitable for the wiring harness of

this trailer hitch.

Fitting of towing equipment could

cover the opening of the towing eye.

If this is the case, use the coupling ball

bar for towing. Always keep the

coupling ball bar in the vehicle to have

it on hand if needed.

Driving characteristics and

towing tips

Before attaching a trailer, lubricate

the coupling ball. However, do not do

so if a stabiliser, which acts on the

coupling ball, is being used to reduce

snaking movements.
During trailer towing do not exceed a

speed of 50 mph. A maximum speed

of 60 mph is only appropriate if an

oscillation damper is used and the

permissible gross trailer weight does

not exceed the vehicle's curb weight.
For trailers with low driving stability

and caravan trailers, the use of an

oscillation damper is strongly

recommended.
If the trailer starts snaking, drive more

slowly, do not attempt to correct the

steering and brake sharply if

necessary.

254

Driving and operating

When driving downhill, drive in the

same gear as if driving uphill and

drive at a similar speed.
Adjust tyre pressure to the value

specified for full load

304.

Trailer towing

Trailer loads

The permissible trailer loads are

vehicle and engine-dependent

maximum values which must not be

exceeded. The actual trailer load is

the difference between the actual

gross weight of the trailer and the

actual coupling socket load with the

trailer coupled.
The permissible trailer loads are

specified in the vehicle documents. In

general, they are valid for gradients

up to 12%.
The permissible trailer load applies

up to the specified incline and at sea

level. Since engine power decreases

as altitude increases due to the air

becoming thinner, therefore reducing

climbing ability, the permissible gross

train weight also decreases by 10%

for every 1000 m of altitude. The

gross train weight does not have to be

reduced when driving on roads with

slight inclines (less than 8%, e.g.

motorways).
The permissible gross train weight

must not be exceeded. This weight is

specified on the identification plate

298.

Vertical coupling load

The vertical coupling load is the load

exerted by the trailer on the coupling

ball. It can be varied by changing the

weight distribution when loading the

trailer.
The maximum permissible vertical

coupling load (55 kg) is specified on

the towing equipment identification

plate and in the vehicle documents.
Always aim for the maximum vertical

coupling load, especially in the case

of heavy trailers. The vertical coupling

load should never fall below 25 kg.

Rear axle load

When the trailer is coupled and the

towing vehicle fully loaded, the

permissible rear axle load (see

identification plate or vehicle

documents) may be exceeded by

60 kg, the gross vehicle weight rating

must not be exceeded. If the

permissible rear axle load is

exceeded, a maximum speed of

60 mph applies.

Vehicle care

255

Vehicle care

General Information ................... 255

Accessories and vehicle

modifications .......................... 255

Vehicle storage ........................ 257

End-of-life vehicle recovery ..... 258

Vehicle checks ........................... 259

Performing work ...................... 259

Bonnet ..................................... 260

Engine oil ................................. 260

Engine coolant ......................... 262

Washer fluid ............................ 263

Brakes ..................................... 263

Brake fluid ............................... 263

Vehicle battery ......................... 263

High voltage battery ................ 266

Diesel fuel system bleeding ..... 266

Wiper blade replacement ........ 267

Bulb replacement ....................... 267

Halogen headlights .................. 267

LED headlights ........................ 269

Front fog lights ......................... 269

Front turn lights ....................... 269

Tail lights ................................. 270

Number plate light ................... 271

Interior lights ............................ 272

Electrical system ........................ 272

Fuses ....................................... 272

Vehicle tools .............................. 272

Tools ........................................ 272

Wheels and tyres ....................... 273

Winter tyres ............................. 273

Tyre designations .................... 273

Tyre pressure .......................... 274

Tyre deflation detection

system .................................... 275

Tread depth ............................. 275

Changing tyre and wheel size . 276

Wheel covers ........................... 276

Tyre chains .............................. 277

Tyre repair kit .......................... 277

Wheel changing ....................... 280

Spare wheel ............................ 282

Jump starting ............................. 285
Towing ....................................... 287

Towing the vehicle ................... 287

Towing another vehicle ........... 288

Appearance care ....................... 289

Exterior care ............................ 289

Interior care ............................. 291

Floor mats ............................... 291

General Information

Accessories and vehicle

modifications

We recommend the use of genuine

parts and accessories and factory

approved parts specific for your

vehicle type. We cannot assess or

guarantee reliability of other products

- even if they have a regulatory or

otherwise granted approval.
Any modification, conversion or other

changes made to standard vehicle

specifications (including, without

limitation, software modifications,

modifications of the electronic control

units) may invalidate the warranty

offered by Vauxhall. Furthermore,

such changes may affect driver

assistance systems, may impact fuel

or electric power consumption, CO

emissions and other emissions of the

vehicle and cause the vehicle to no

longer conform to the operating

permit, impacting the validity of your

vehicle registration.

256

Vehicle care

Caution

Access to the diagnostic socket

associated with the on-board

electronics is reserved for

qualified technicians and

approved tools.

Caution

When transporting the vehicle on

a train or on a recovery vehicle, the

mud flaps might be damaged.

Mobile phones and CB radio

equipment

The vehicle specific installation

instructions and the operating

guidelines of the mobile phone and

hands-free manufacturer must be

observed when installing and

operating a mobile telephone. Failure

to do so could invalidate the vehicle

type approval (EU directive 95/54/

EC).

Recommendations for fault-free

operation:

● Professionally installed exterior

antenna to obtain the maximum

range possible.

● Maximum transmission power

10 W.

● Installation of the phone in a

suitable spot, consider the area

in which the airbag inflates

37.

Seek advice on predetermined

installation points for the external

antenna or equipment holder and

ways of using devices with a

transmission power exceeding 10 W.
Use of a hands-free attachment

without external antenna with mobile

telephone standards GSM

900/1800/1900 and UMTS is only

permitted if the maximum

transmission power of the mobile

telephone is 2 W for GSM 900 or

1 W for the other types.
For reasons of safety, do not use the

phone while driving. Even use of a

hands-free set can be a distraction

while driving.

Warning

Operation of radio equipment and

mobile telephones which fail to

meet above mentioned mobile

telephone standards is only

permitted using an antenna

located outside of the vehicle.

Caution

Mobile telephones and radio

equipment may lead to

malfunctions in the vehicle

electronics when operated inside

the vehicle with no exterior

antenna, unless the above

mentioned regulations are

observed.

Vehicle care

257

Vehicle storage

Storage for a long period of time

If the vehicle is to be stored for several

months:

● Wash the vehicle.
● Have the wax in the engine

compartment and underbody

checked.

● Clean and preserve the rubber

seals.

● Fill up fuel tank completely.
● Change the engine oil.
● Drain the washer fluid reservoir.
● Check the coolant antifreeze and

corrosion protection.

● Adjust tyre pressure to the value

specified for full load.

● Park the vehicle in a dry, well

ventilated place. Engage first or

reverse gear or set selector to P.

Prevent the vehicle from rolling.

● Do not apply the parking brake.

● Open the bonnet, close all doors

and lock the vehicle.

● Disconnect the clamp from the

negative terminal of the vehicle

battery. Note that all systems are

not functional, e.g. central locking

system.
Anti-theft alarm system

18.

Storage for a long period of time

(BEV)

If the vehicle is to be stored for several

months:

● Wash the vehicle.
● Have the wax in the engine

compartment and underbody

checked.

● Clean and preserve the rubber

seals.

● Drain the washer fluid reservoir.
● Check the coolant antifreeze and

corrosion protection.

● Adjust tyre pressure to the value

specified for full load.

● Park the vehicle in a dry, well

ventilated place. Engage first or

reverse gear or set selector lever

to P. Prevent the vehicle from

rolling.

● Do not apply the parking brake.
● Open the bonnet, close all doors

and lock the vehicle.

Up to four weeks

Plug in the charging cable.
Four weeks to twelve months

● Discharge the high voltage

battery until 30 percent remain on

the battery range indicator

(battery symbol) on the

instrument cluster.

● Do not plug in the charging cable.
● Always store the vehicle in a

place with temperatures between

−10 °C and 30 °C.

● Vehicle storage at extreme

temperatures may cause

damage to the high voltage

battery.

● Remove the black negative (−)

cable from the 12 V vehicle

battery and attach a trickle

258

Vehicle care

charger to the vehicle battery

terminals or keep the 12 V

vehicle battery cables connected

and trickle charge from the

positive (+) and negative (−)

terminals in the engine

compartment.

● Every three months, check the

battery's state of charge. If the

state of charge is below 30

percent, recharge the battery to

30 percent.

Putting back into operation

When the vehicle is to be put back into

operation:

● Connect the clamp to the

negative terminal of the vehicle

battery. Initialise the power

windows

23.

● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the engine oil level.
● Check the coolant level.
● Fit the number plate if necessary.

Putting back into operation (BEV)

When the vehicle is to be put back into

operation:

● Connect the clamp to the

negative terminal of the vehicle

battery. Initialise the power

windows

23.

● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the coolant level.
● Fit the number plate if necessary.

Propulsion types

End-of-life vehicle recovery

Information on end-of-life vehicle

recovery centres and the recycling of

end-of-life vehicles is available on our

website, where legally required. Only

entrust this work to an authorised

recycling centre.

High voltage battery

The high voltage battery is designed

for the life of the vehicle if the

recommendations are followed. If it

becomes necessary to replace the

high voltage battery, contact a

workshop for instructions on its

disposal. Improper disposal carries

the risk of severe burns, electric

shock, and damage to the

environment.
Recommendations

266.

Vehicle care

259

Vehicle checks

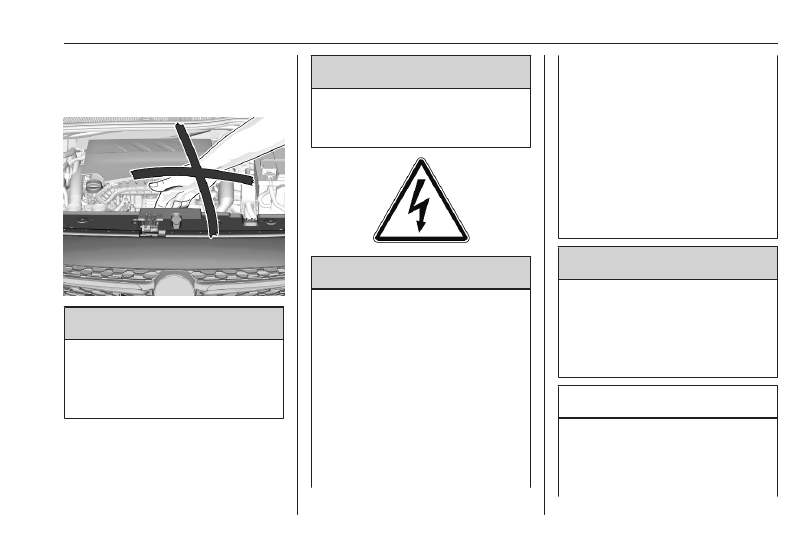

Performing work

Warning

Only perform engine compartment

checks when the ignition is off.
The cooling fan may start

operating even if the ignition is off.

Danger

The ignition system uses

extremely high voltage. Do not

touch.

Danger

Electric version:
Never try to perform maintenance

work on high voltage components

yourself. You may be injured and

the vehicle may be damaged.

Service and repair of these high

voltage components should only

be performed by a trained service

technician with proper knowledge

and tools. Exposure to high

voltage may cause shock, burns,

and even death. The high voltage

components in the vehicle can

only be serviced by technicians

with special training.
High voltage components are

identified by labels. Do not

remove, open, take apart, or

modify these components. High

voltage cable or wiring has orange

covering. Do not probe, tamper

with, cut, or modify high voltage

cable or wiring.

Warning

Electric version:
Only perform engine compartment

checks when the vehicle is off.
The cooling fan may start

operating even if the vehicle is off.

Caution

Electric version:
Even small amounts of

contamination to the liquids can

cause damage to vehicle systems.

260

Vehicle care

Do not allow contaminants to

contact the fluids, reservoir caps,

or dipsticks.

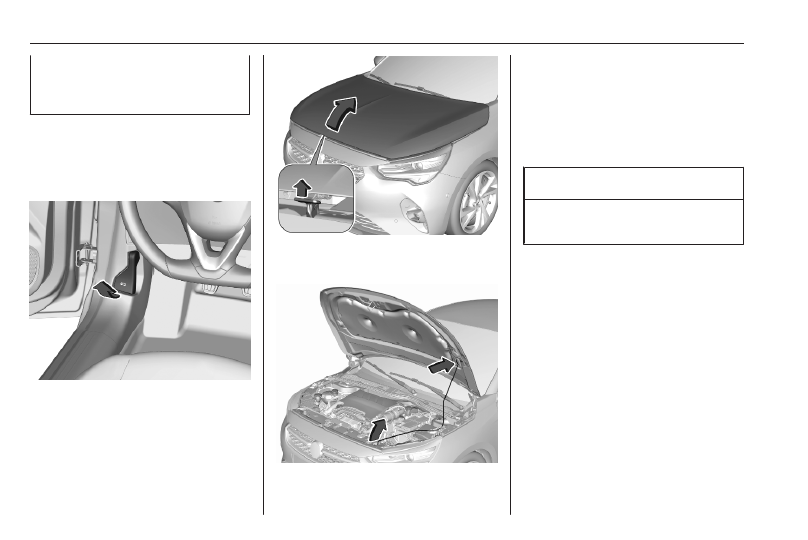

Bonnet

Opening

Open the front left door.

Pull the release lever and return it to

its original position.

Push the safety catch upwards and

open the bonnet.

Secure the bonnet support.

Closing

Before closing the bonnet, press the

support into the holder.
Lower the bonnet and let it fall into the

latch from a low height (20-25 cm).

Check that the bonnet is engaged.

Caution

Do not press the bonnet into the

latch to avoid dents.

Engine oil

Check the engine oil level manually

on a regular basis to prevent damage

to the engine. Ensure that the correct

specification of engine oil is used.
Recommended fluids and lubricants

296.

The maximum engine oil

consumption is 0.6 l per 600 miles.
Check with the vehicle on a level

surface. The engine must be at

operating temperature and switched

off for at least 5 min.

Vehicle care

261

Caution

It is the owner's responsibility to

maintain the proper level of an

appropriate quality oil in the

engine.

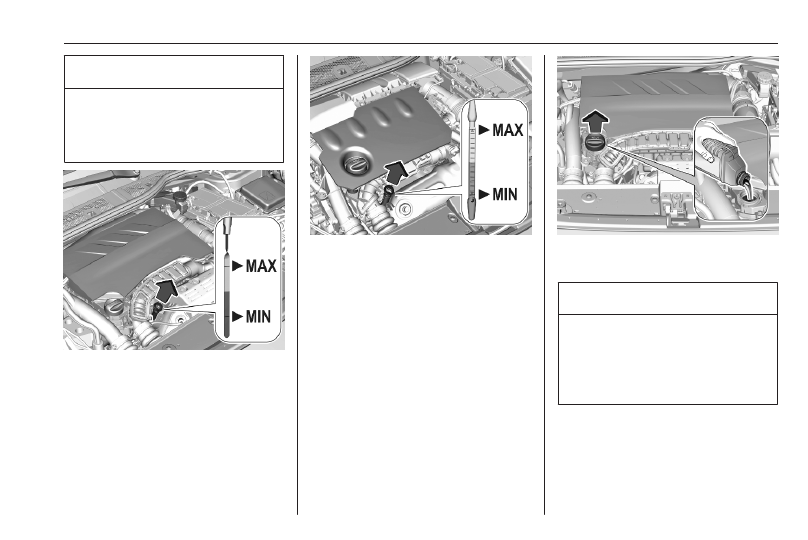

Different dipsticks are used

depending on engine variant.

Pull out the dipstick, wipe it clean,

reinsert it fully, pull out and read the

engine oil level.
When the engine oil level has

dropped to the MIN mark, top up the

engine oil.
We recommend the use of the same

grade of engine oil that was used at

last change.

The engine oil level must not exceed

the MAX mark on the dipstick.

Caution

Overfilled engine oil must be

drained or suctioned out. If the oil

exceeds the maximum level, do

not start the vehicle and contact a

workshop.

Capacities

303.

Fit the cap on straight and tighten it.

Vauxhall Corsa F (2023 year). Manual in english - page 8
