F18. FLIGHT MANUAL (2008) - page 35
A1-F18EA-NFM-200

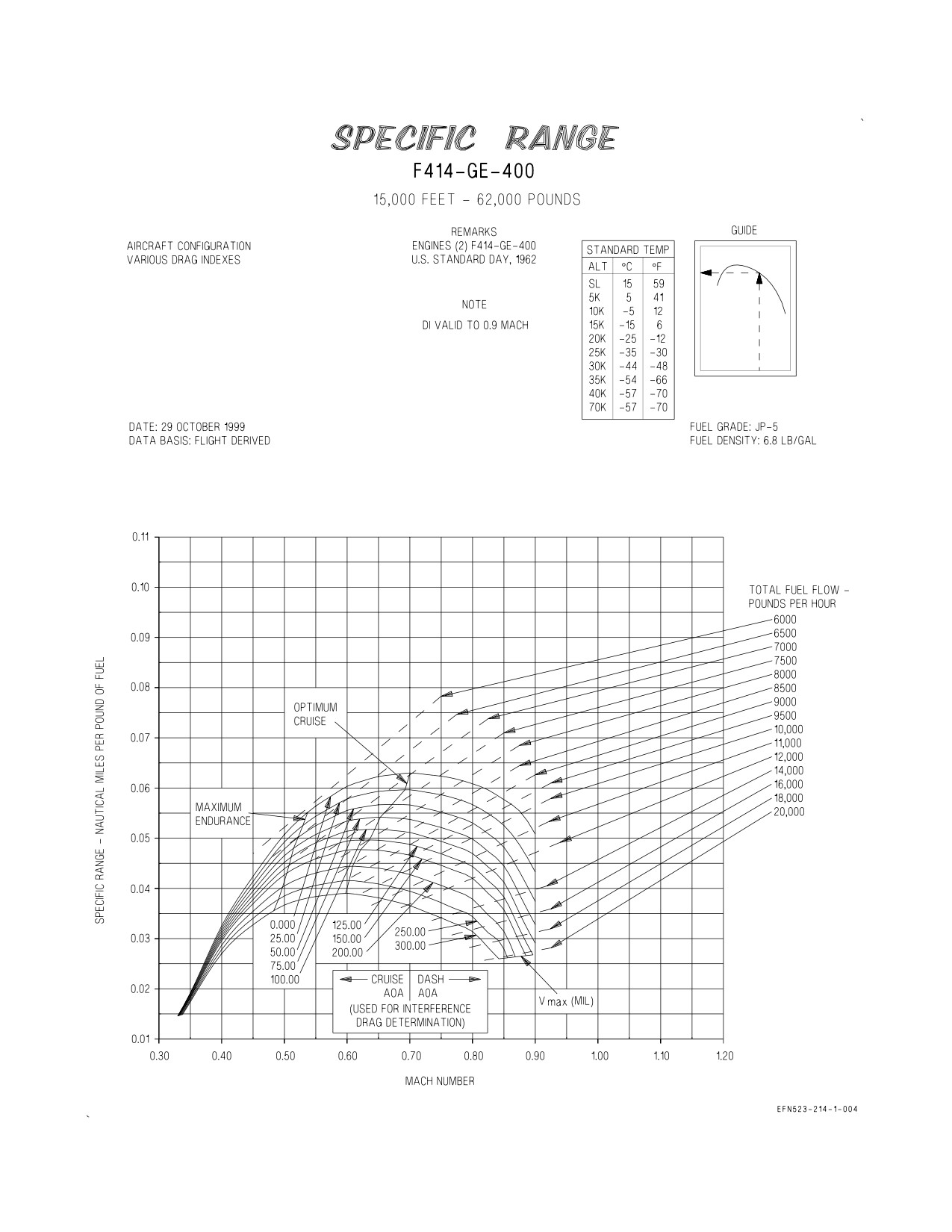

Figure 5-40. Specific Range - 15,000 Feet - 62,000 Pounds
XI-5-50
ORIGINAL
A1-F18EA-NFM-200

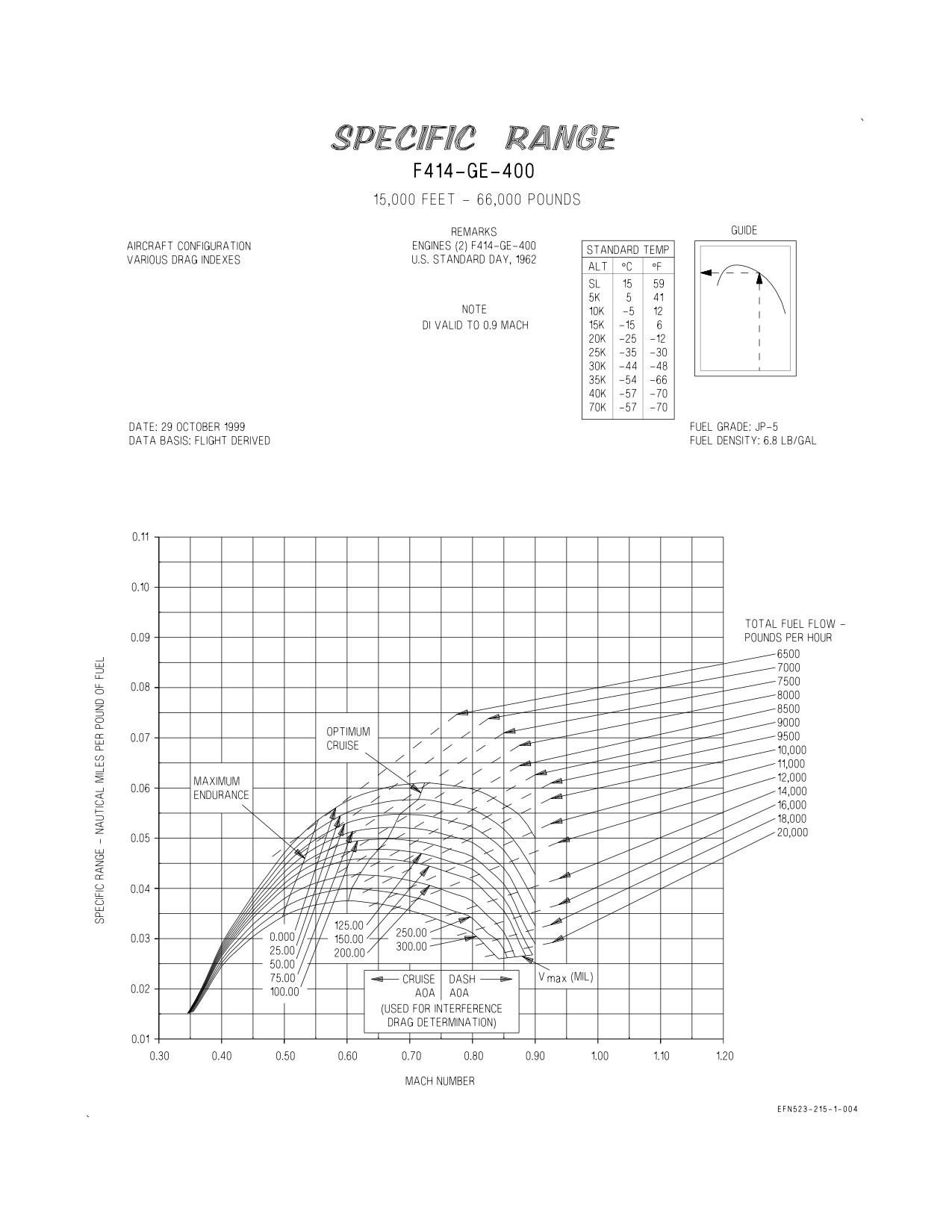

Figure 5-41. Specific Range - 15,000 Feet - 66,000 Pounds
XI-5-51
ORIGINAL
A1-F18EA-NFM-200

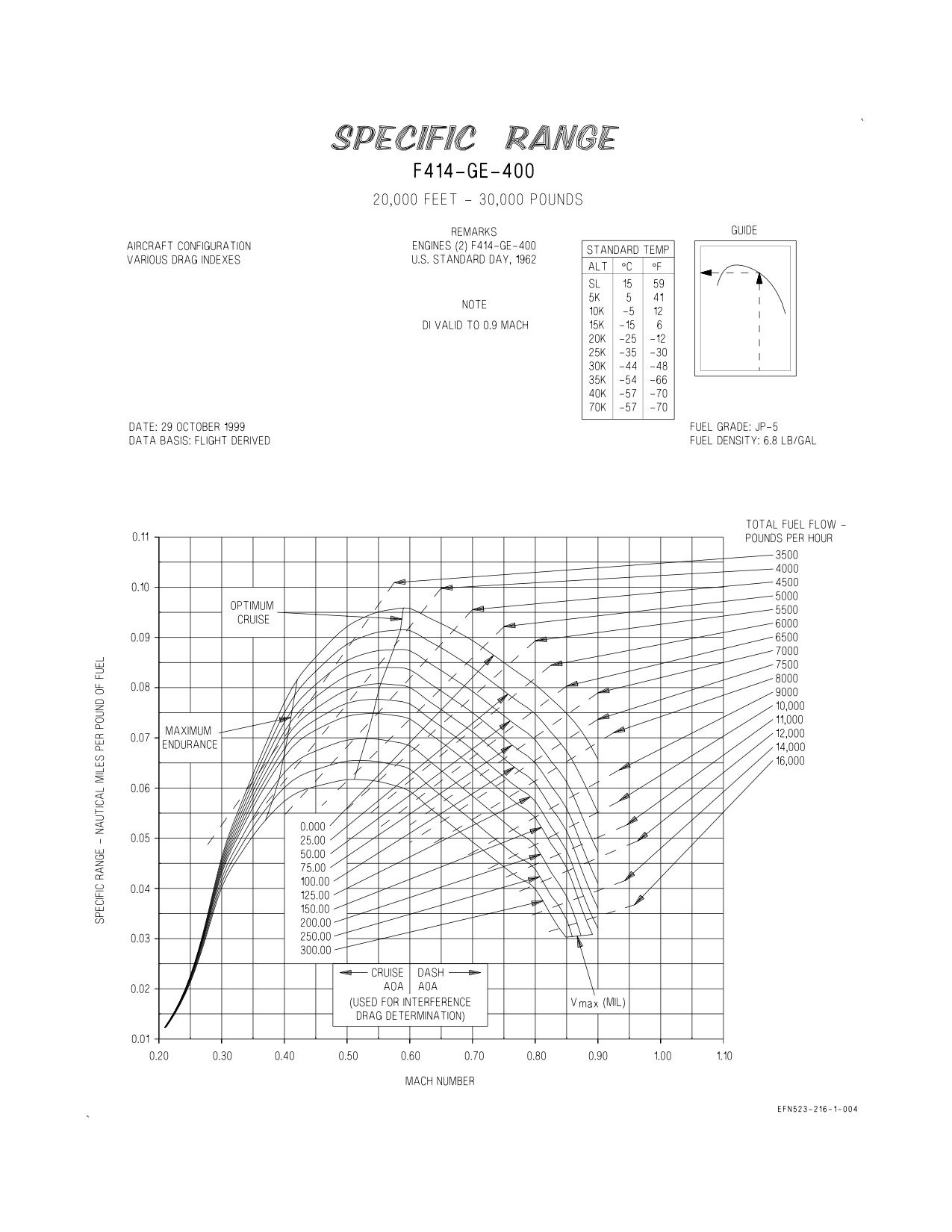

Figure 5-42. Specific Range - 20,000 Feet - 30,000 Pounds
XI-5-52
ORIGINAL
A1-F18EA-NFM-200
Figure 5-43. Specific Range - 20,000 Feet - 34,000 Pounds
XI-5-53
ORIGINAL
A1-F18EA-NFM-200

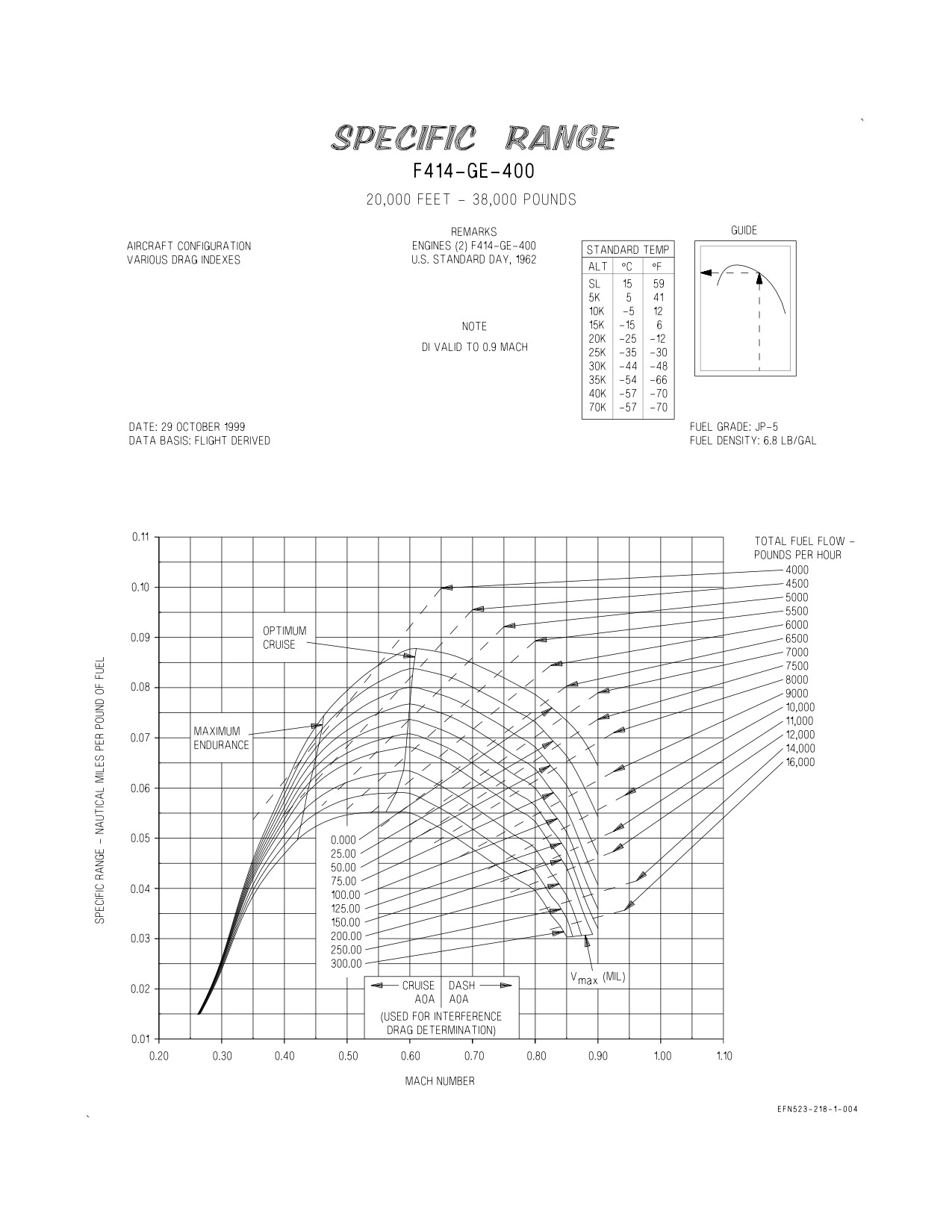

Figure 5-44. Specific Range - 20,000 Feet - 38,000 Pounds
XI-5-54
ORIGINAL
A1-F18EA-NFM-200

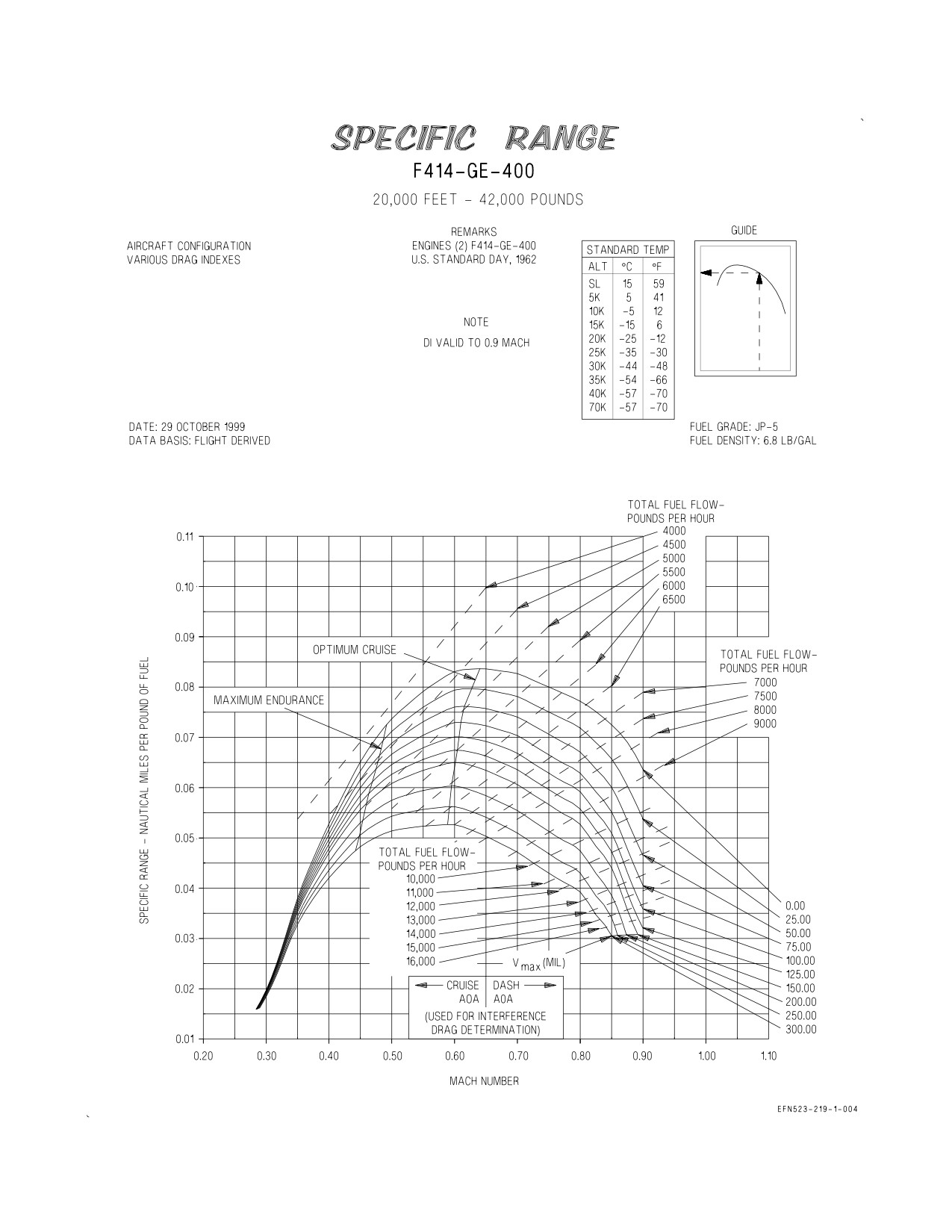

Figure 5-45. Specific Range - 20,000 Feet - 42,000 Pounds
XI-5-55
ORIGINAL
A1-F18EA-NFM-200

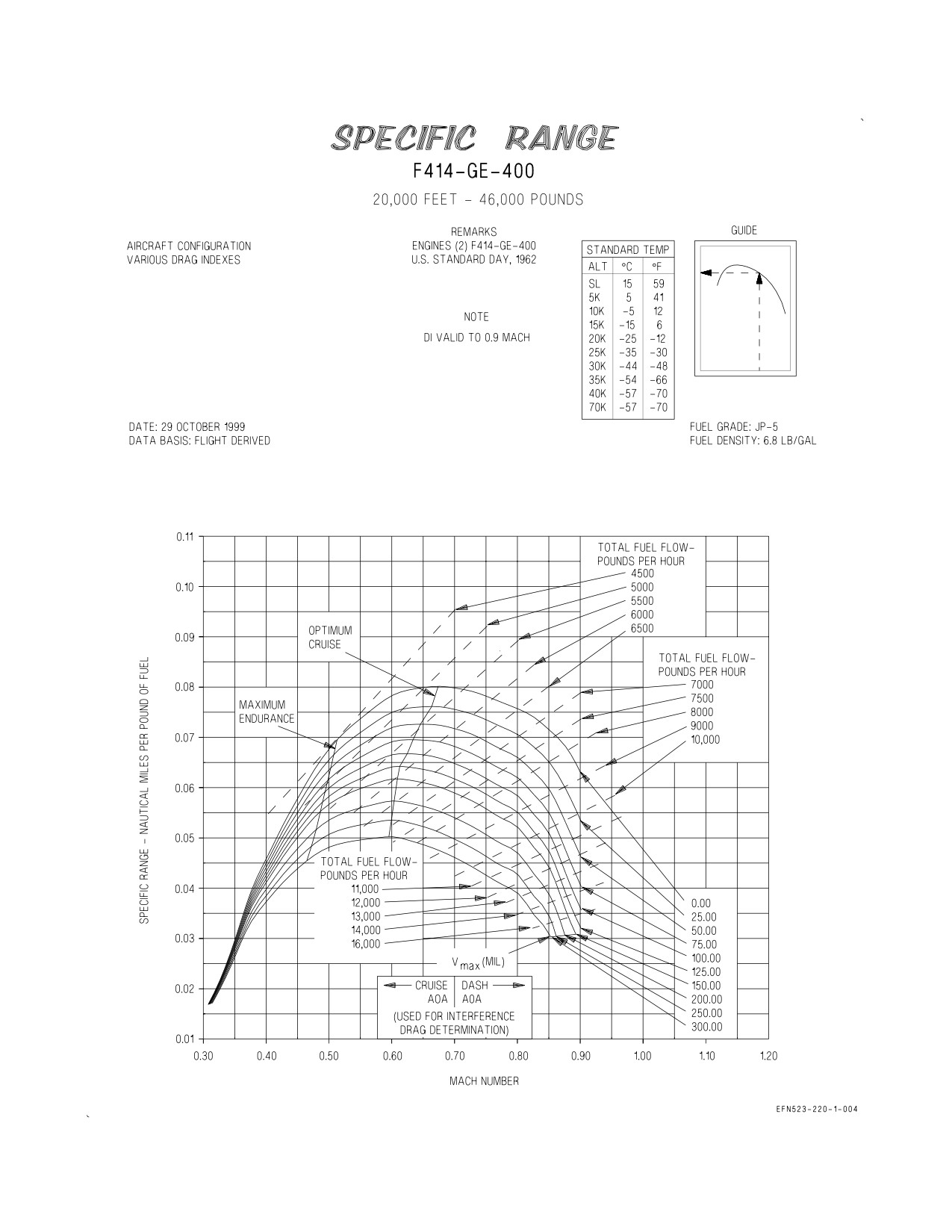

Figure 5-46. Specific Range - 20,000 Feet - 46,000 Pounds
XI-5-56
ORIGINAL
A1-F18EA-NFM-200

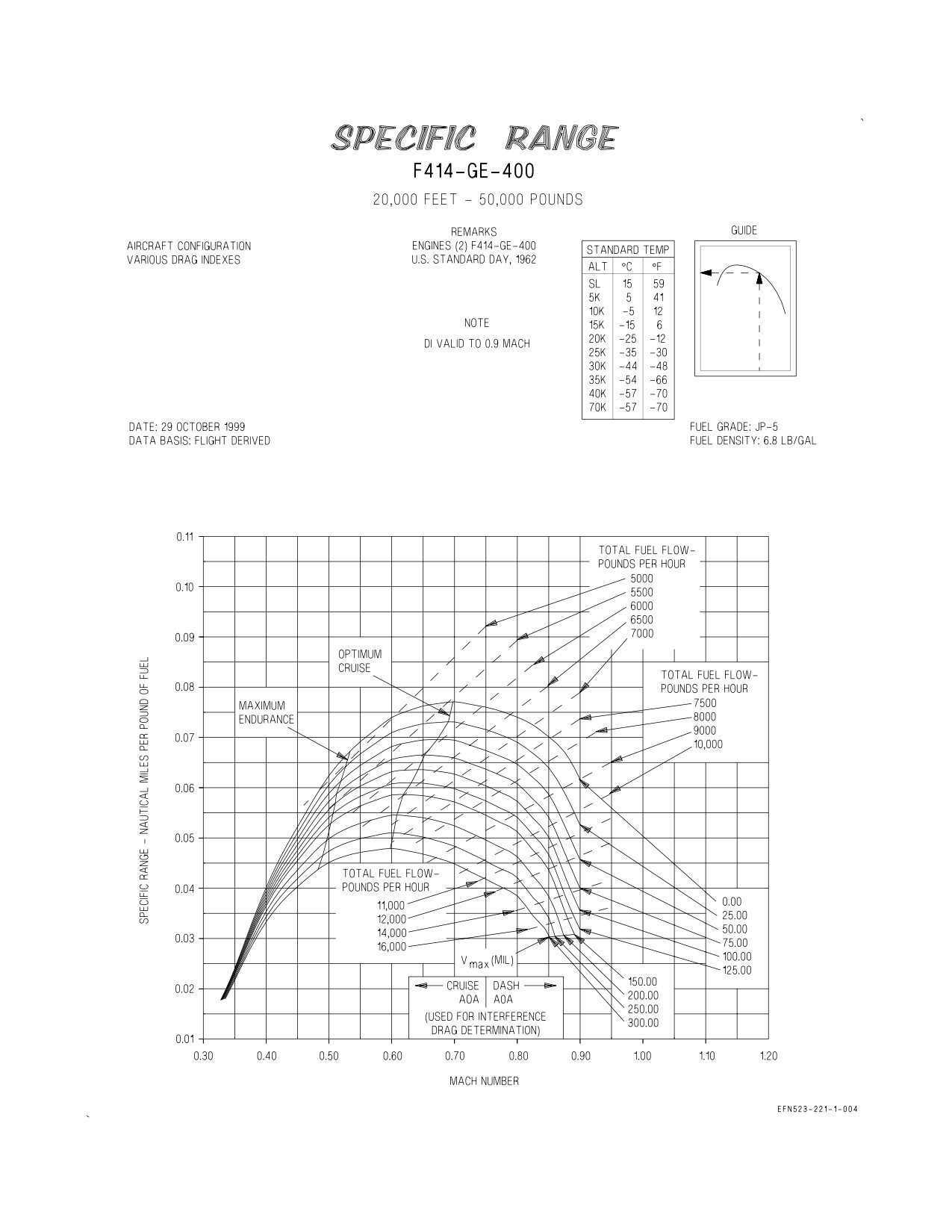

Figure 5-47. Specific Range - 20,000 Feet - 50,000 Pounds
XI-5-57
ORIGINAL
A1-F18EA-NFM-200

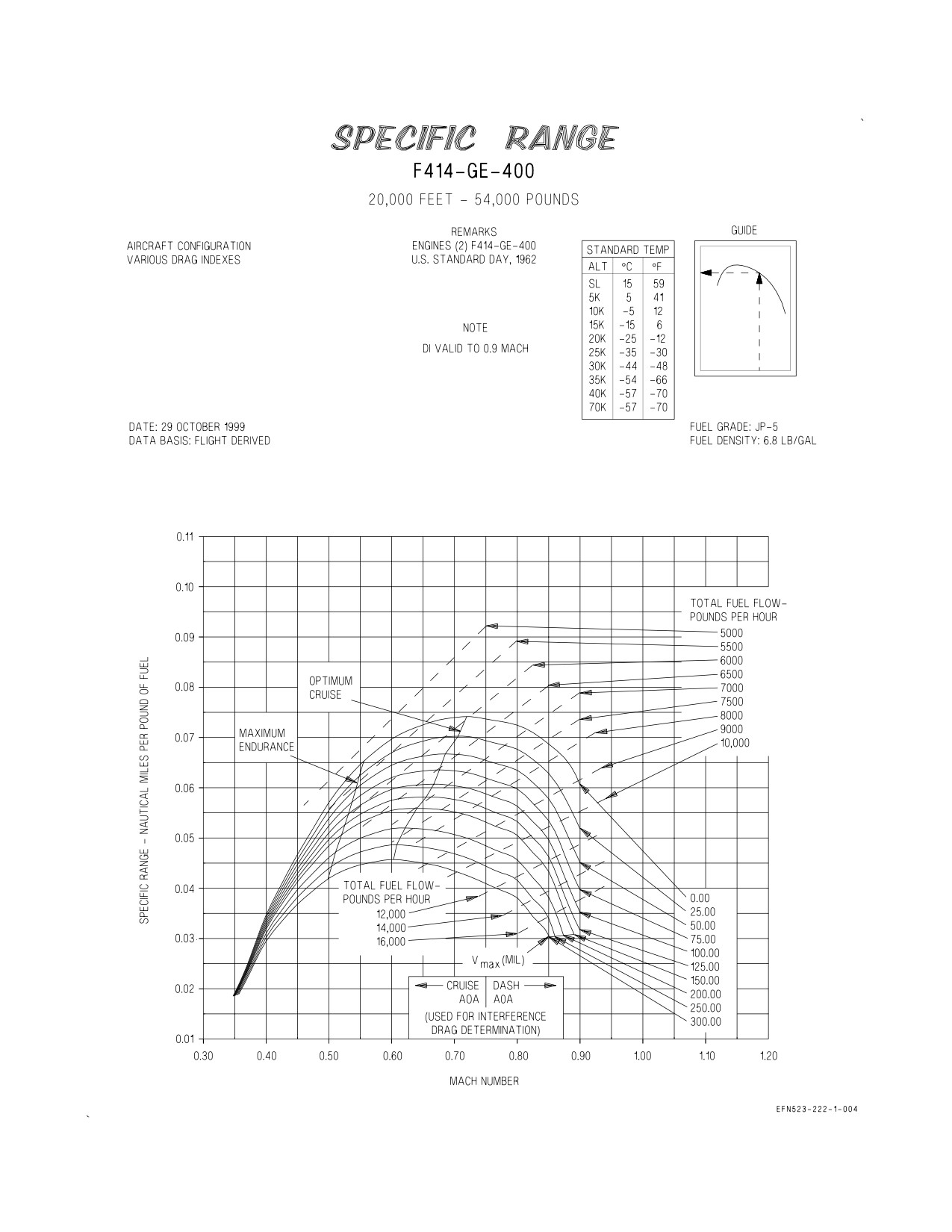

Figure 5-48. Specific Range - 20,000 Feet - 54,000 Pounds
XI-5-58
ORIGINAL
A1-F18EA-NFM-200

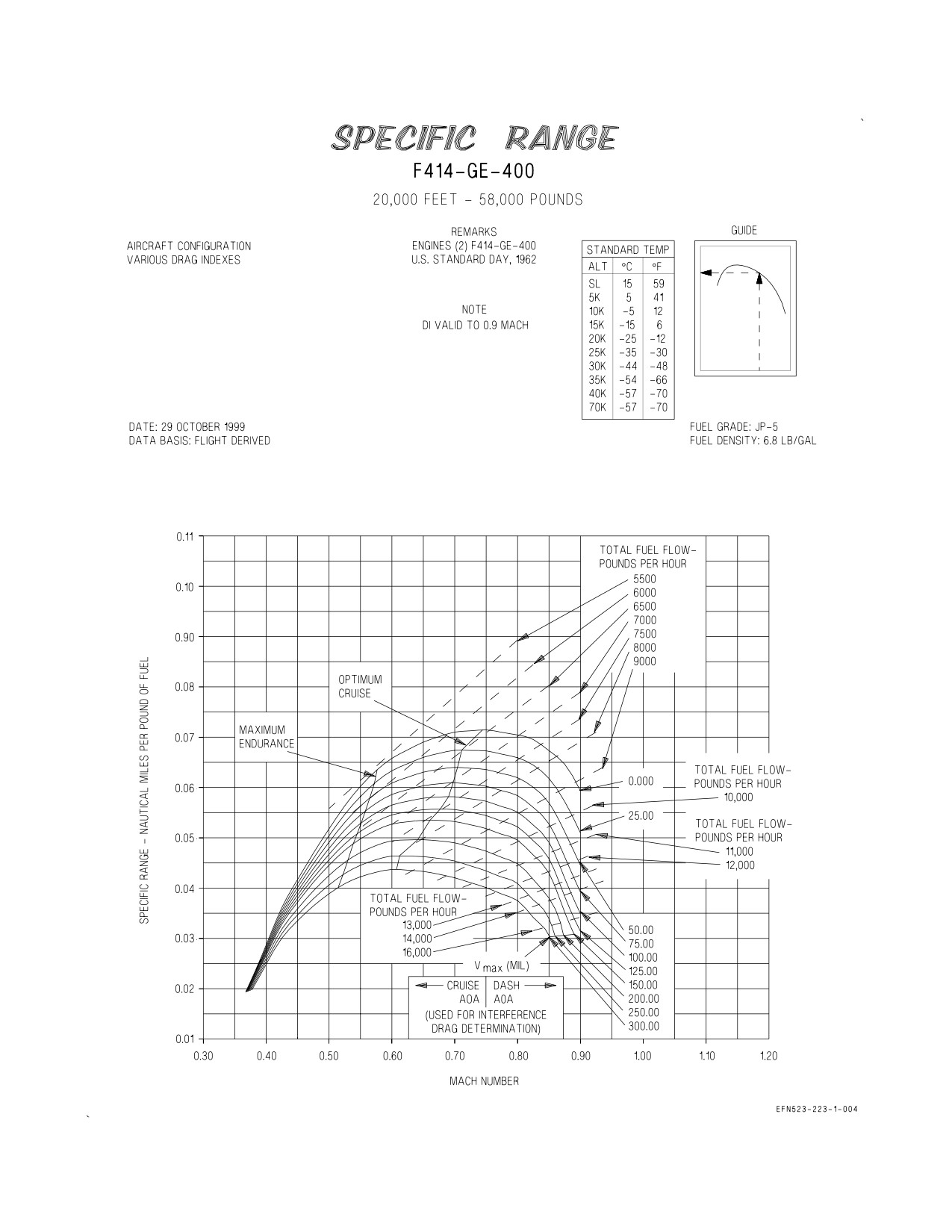

Figure 5-49. Specific Range - 20,000 Feet - 58,000 Pounds
XI-5-59
ORIGINAL
A1-F18EA-NFM-200

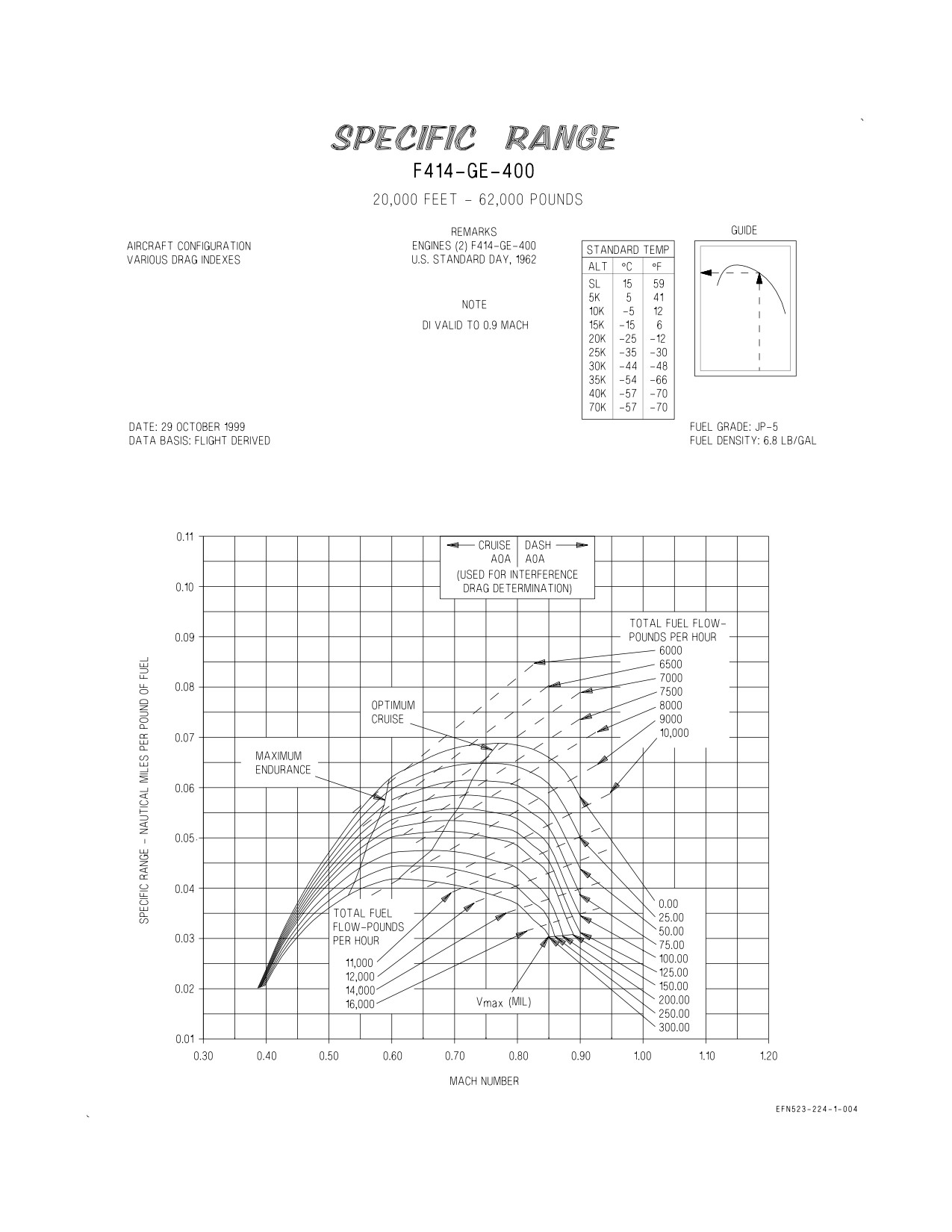

Figure 5-50. Specific Range - 20,000 Feet - 62,000 Pounds
XI-5-60
ORIGINAL
A1-F18EA-NFM-200

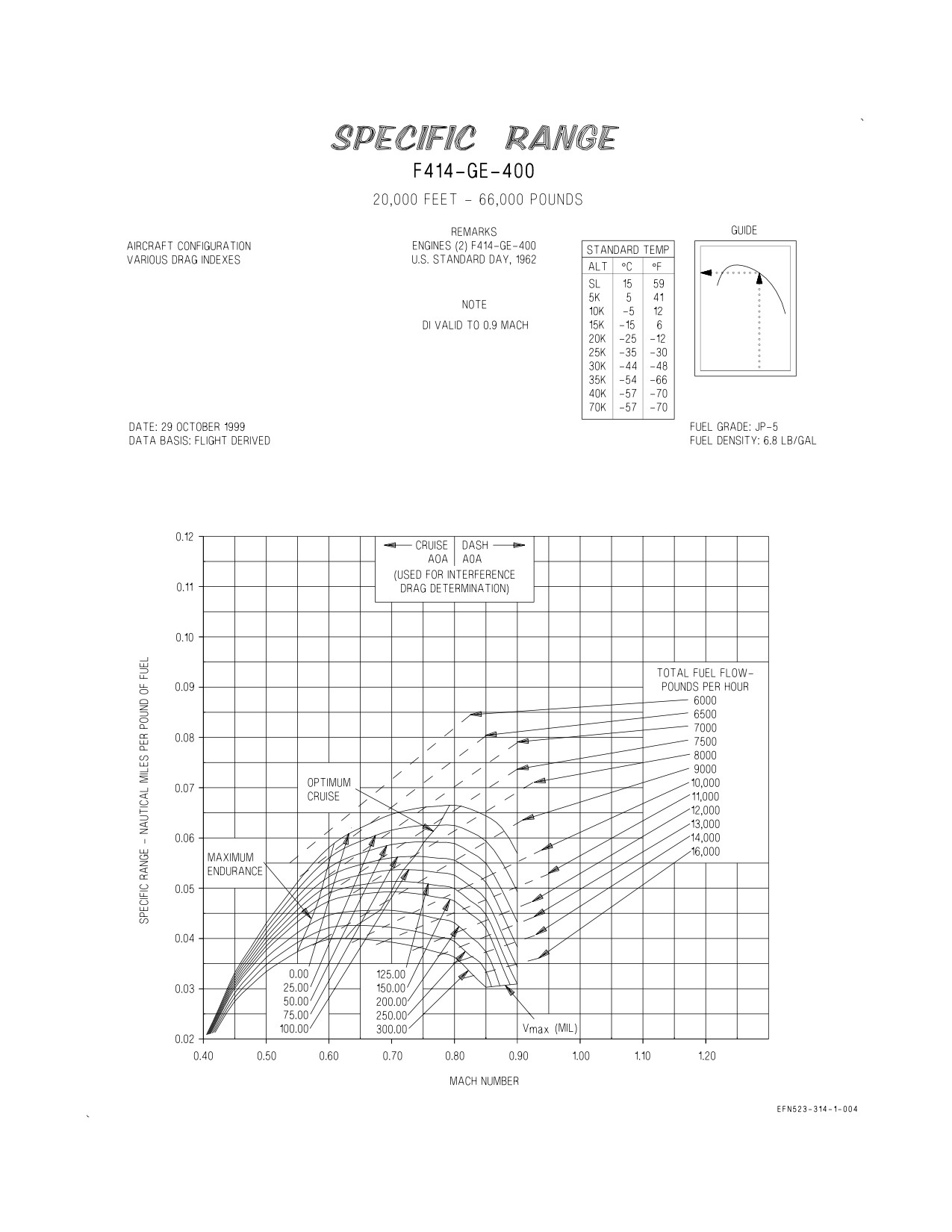

Figure 5-51. Specific Range - 20,000 Feet - 66,000 Pounds
XI-5-61
ORIGINAL
A1-F18EA-NFM-200

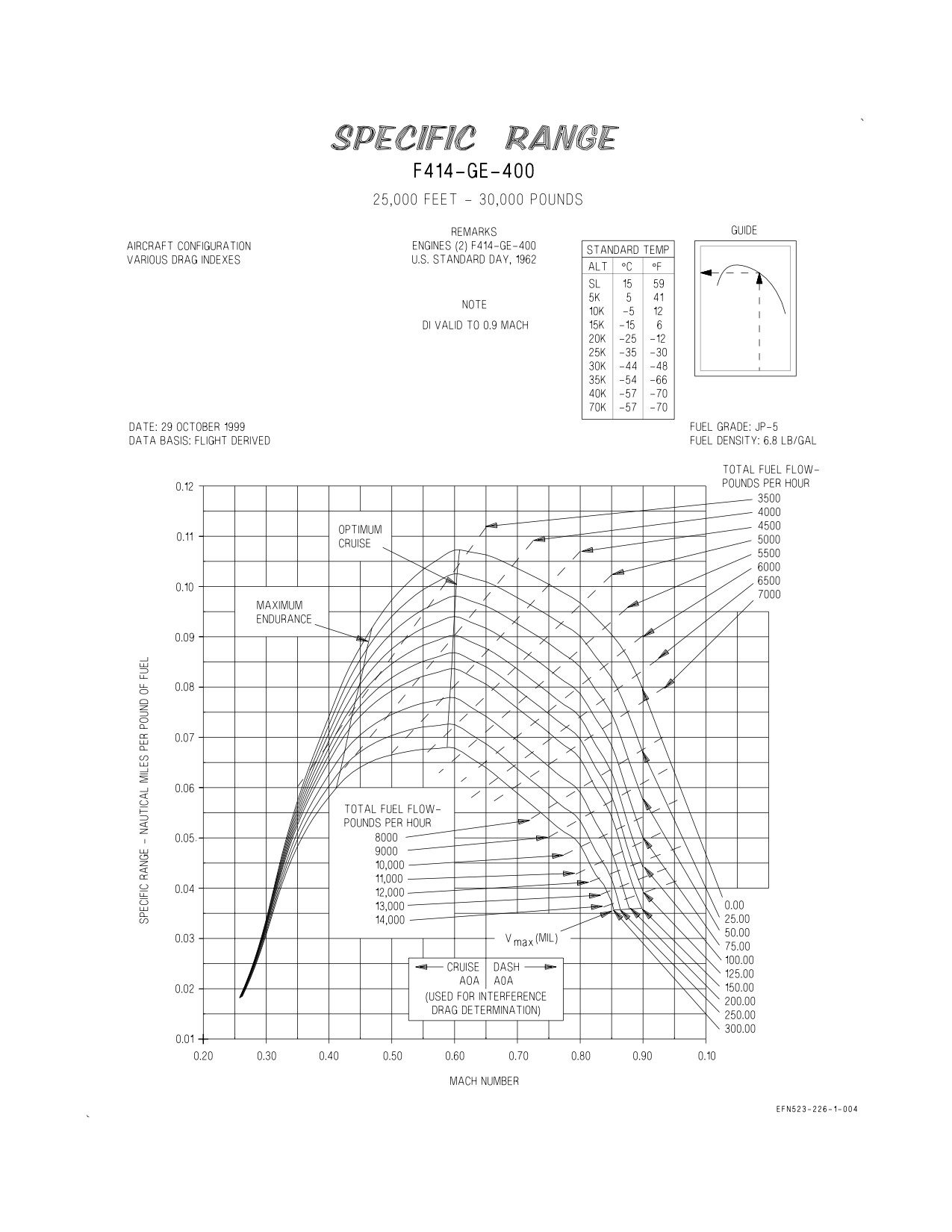

Figure 5-52. Specific Range - 25,000 Feet - 30,000 Pounds
XI-5-62
ORIGINAL
A1-F18EA-NFM-200

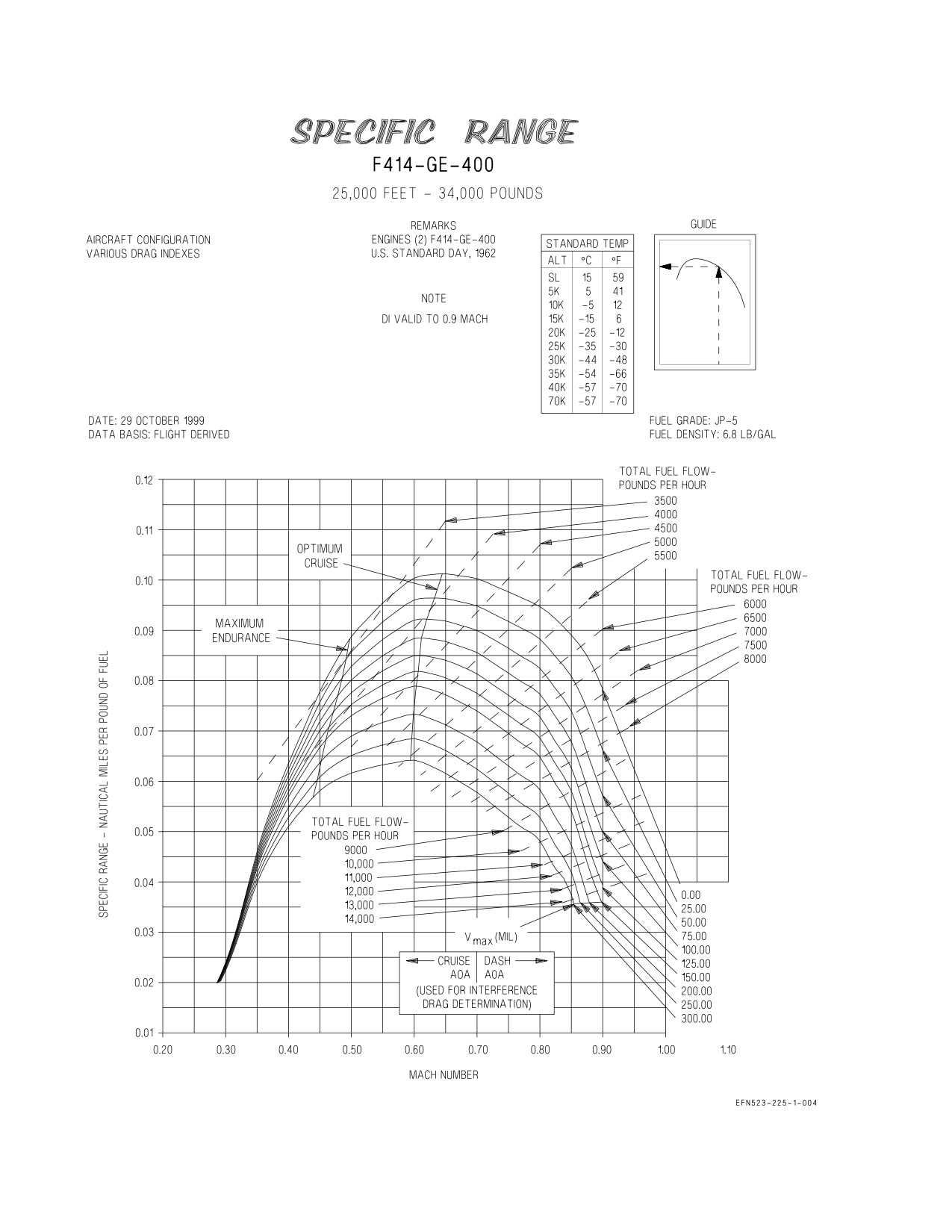

Figure 5-53. Specific Range - 25,000 Feet - 34,000 Pounds
XI-5-63
ORIGINAL
A1-F18EA-NFM-200

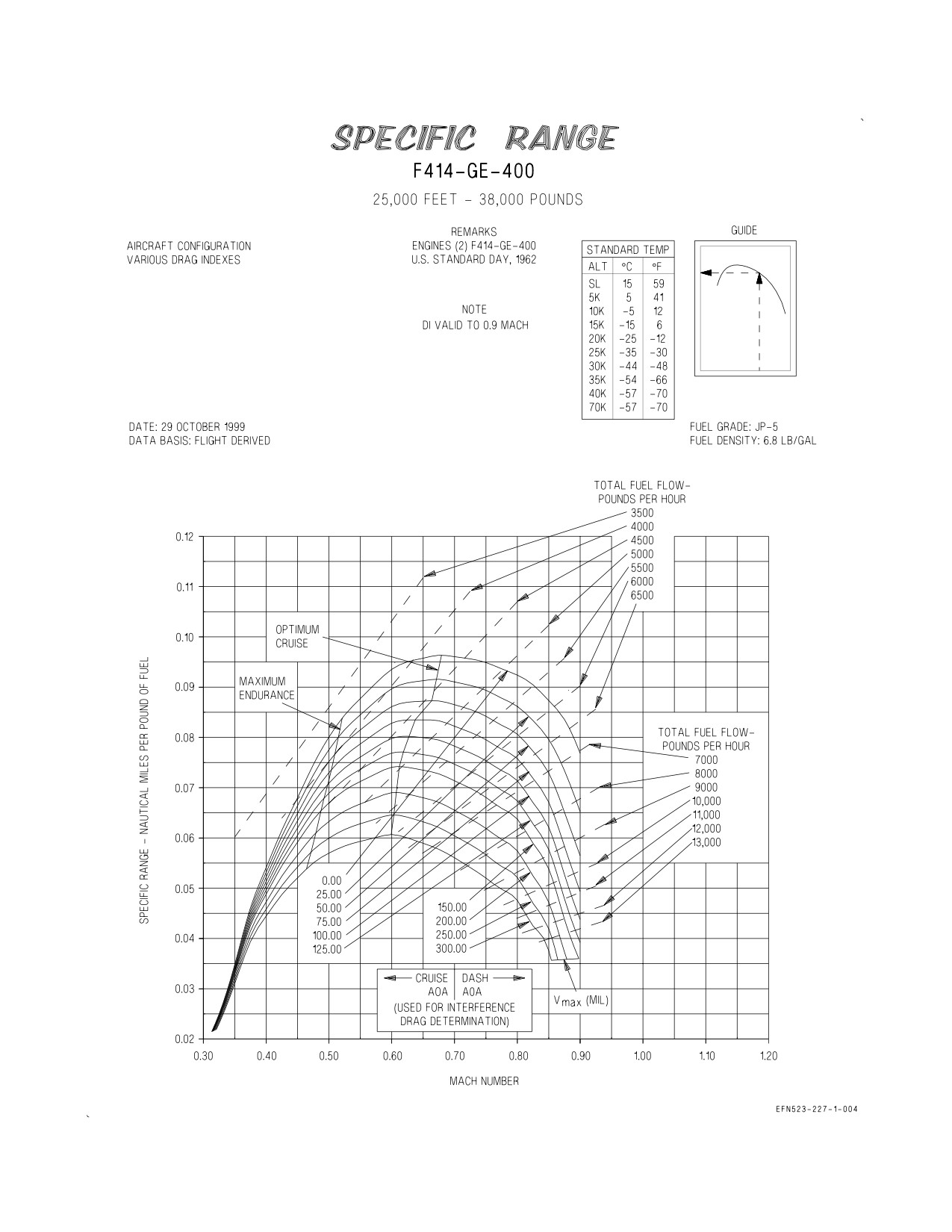

Figure 5-54. Specific Range - 25,000 Feet - 38,000 Pounds
XI-5-64
ORIGINAL
A1-F18EA-NFM-200

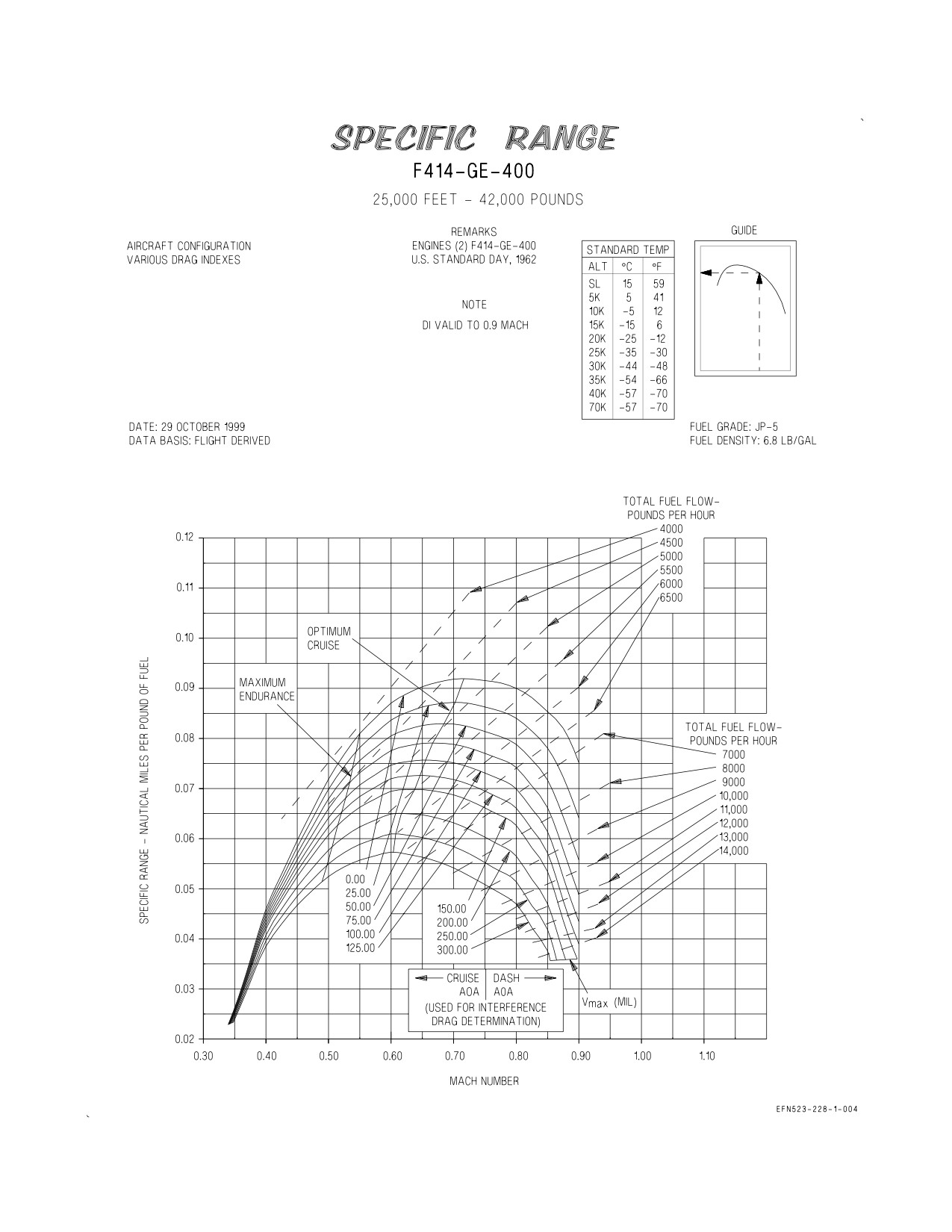

Figure 5-55. Specific Range - 25,000 Feet - 42,000 Pounds
XI-5-65
ORIGINAL
A1-F18EA-NFM-200

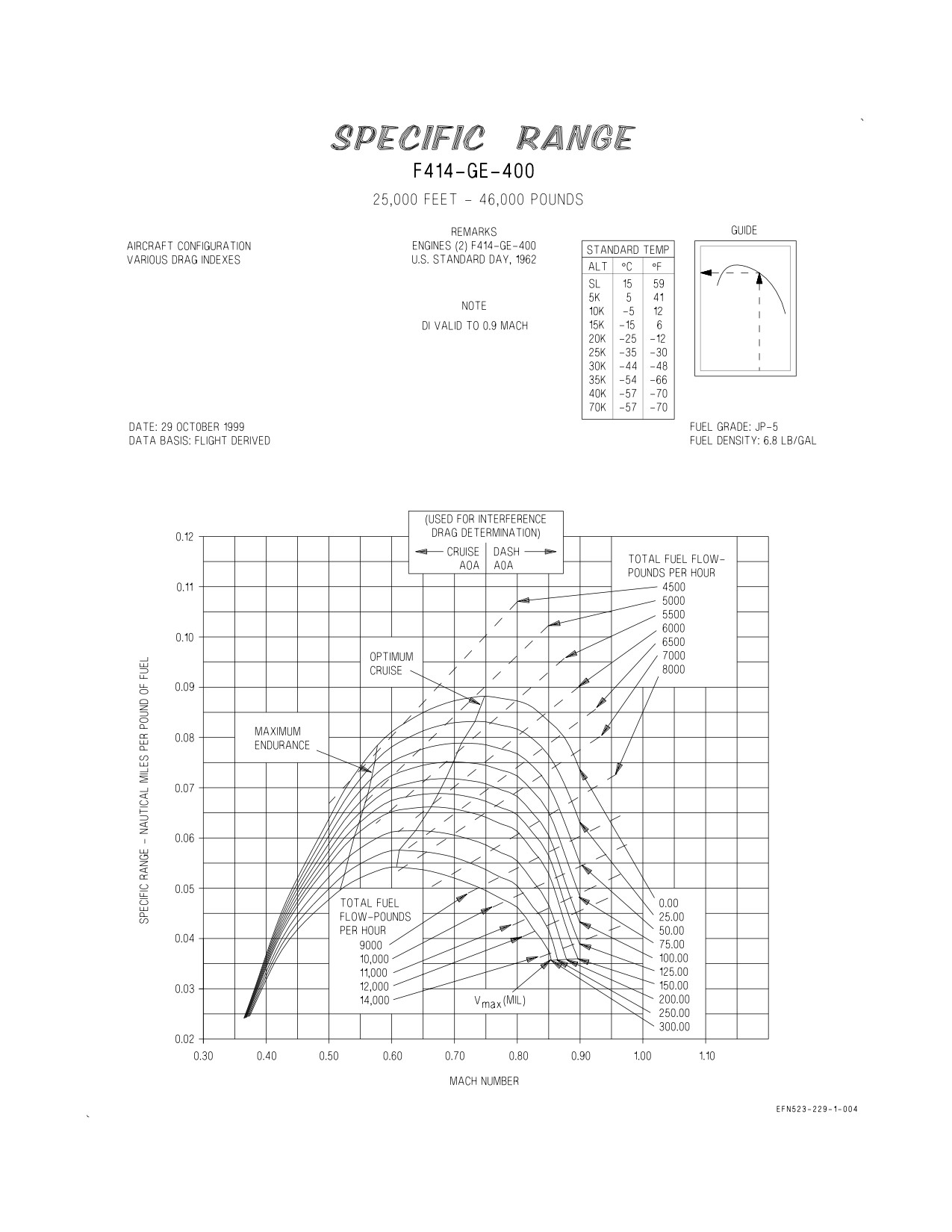

Figure 5-56. Specific Range - 25,000 Feet - 46,000 Pounds
XI-5-66
ORIGINAL
A1-F18EA-NFM-200

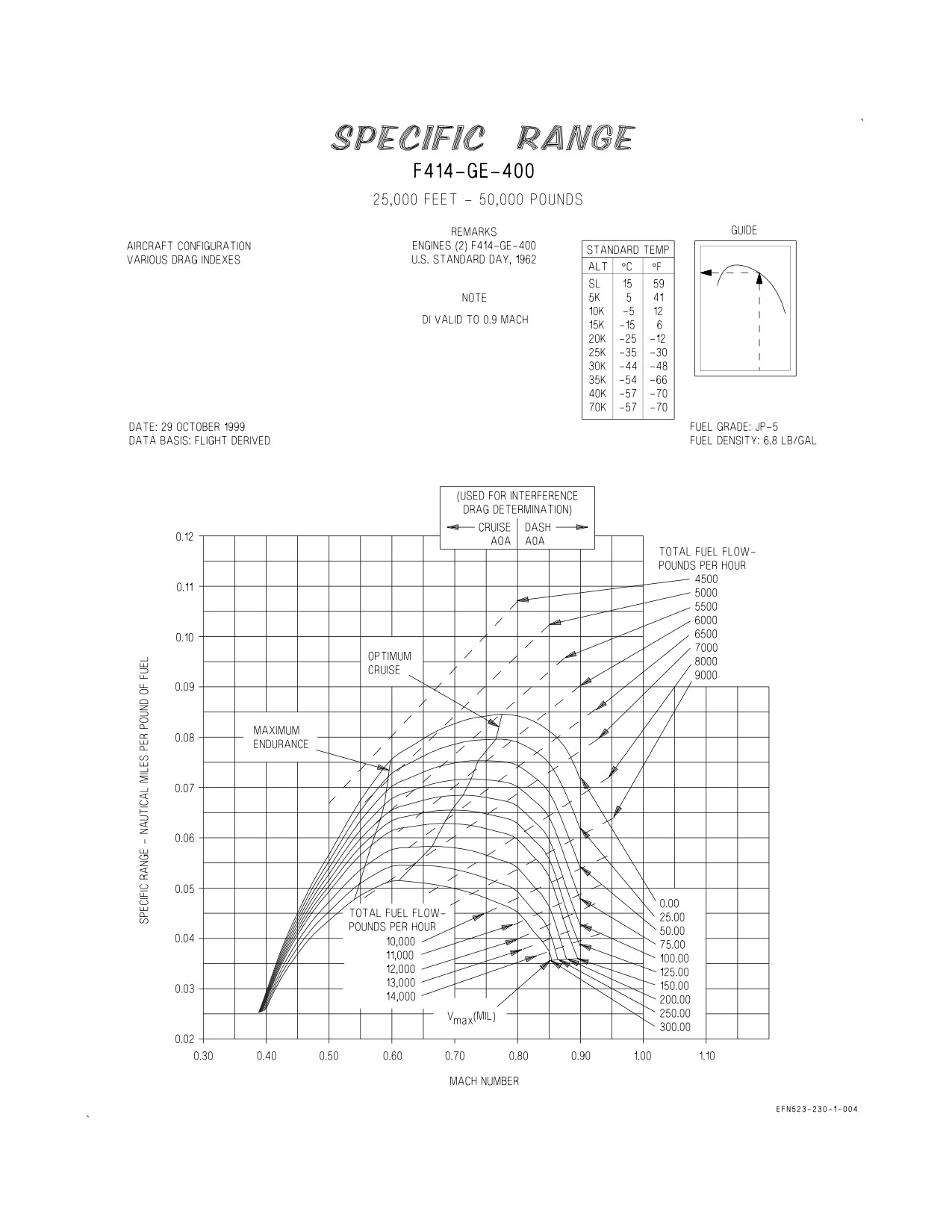

Figure 5-57. Specific Range - 25,000 Feet - 50,000 Pounds
XI-5-67
ORIGINAL
A1-F18EA-NFM-200

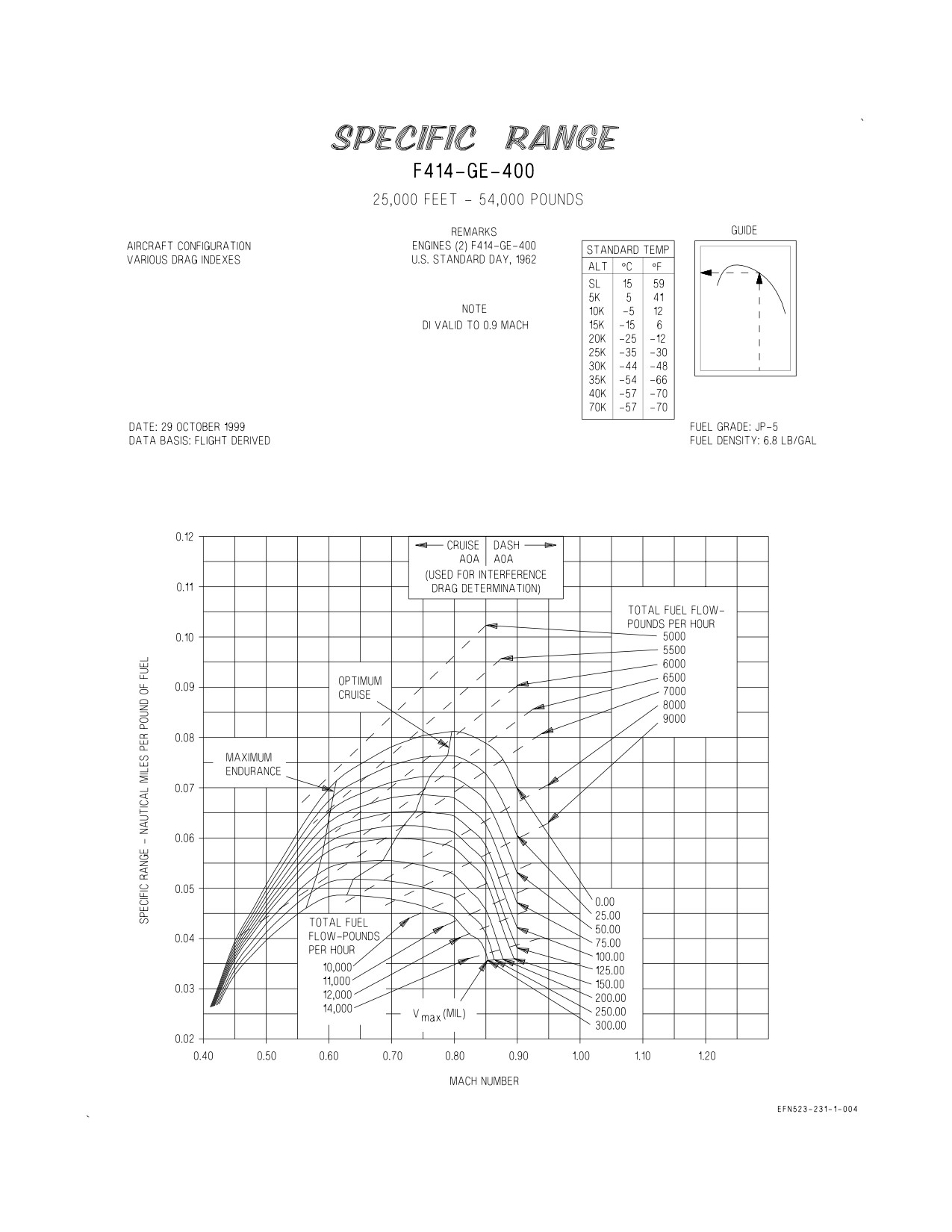

Figure 5-58. Specific Range - 25,000 Feet - 54,000 Pounds
XI-5-68
ORIGINAL
A1-F18EA-NFM-200
Figure 5-59. Specific Range - 25,000 Feet - 58,000 Pounds
XI-5-69
ORIGINAL
A1-F18EA-NFM-200

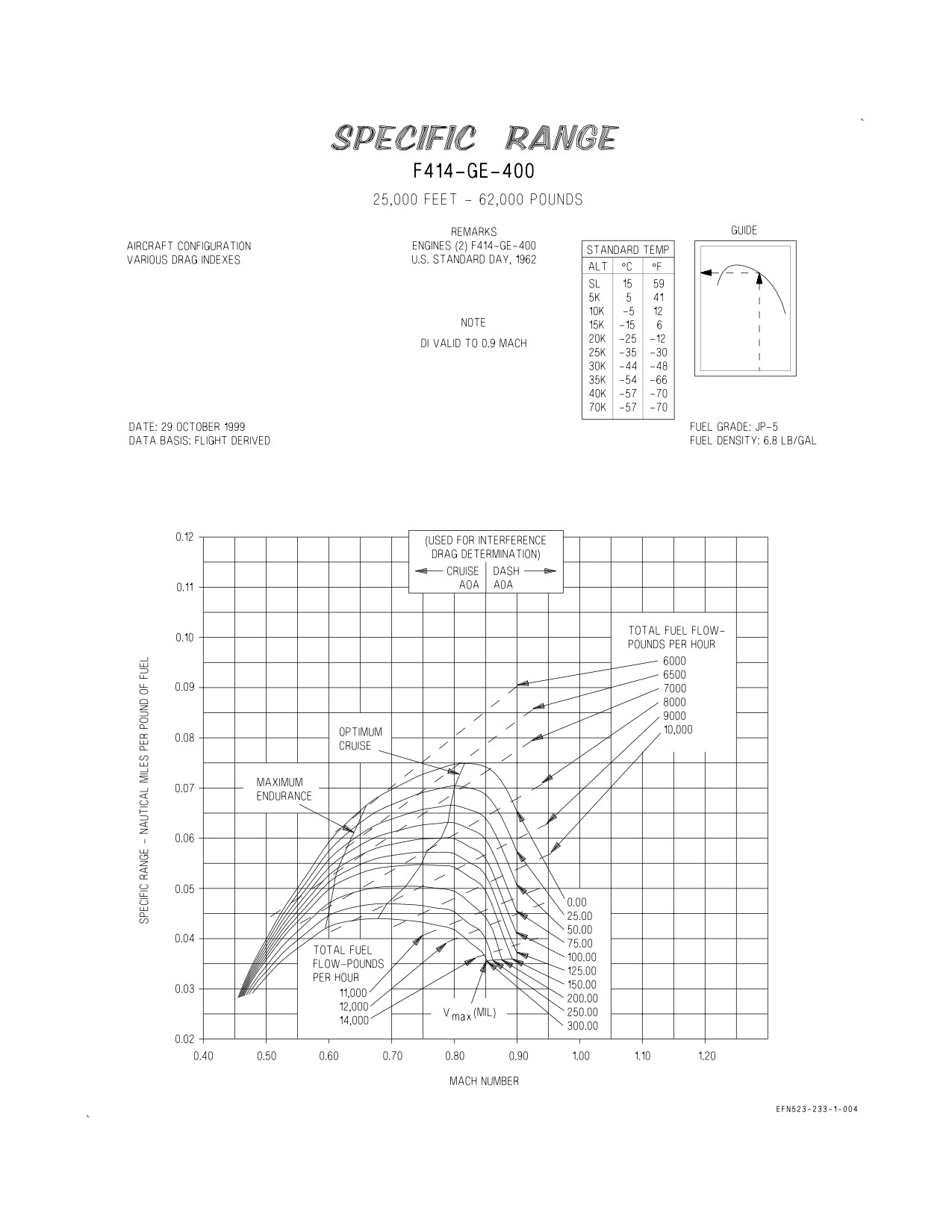

Figure 5-60. Specific Range - 25,000 Feet - 62,000 Pounds
XI-5-70
ORIGINAL
A1-F18EA-NFM-200

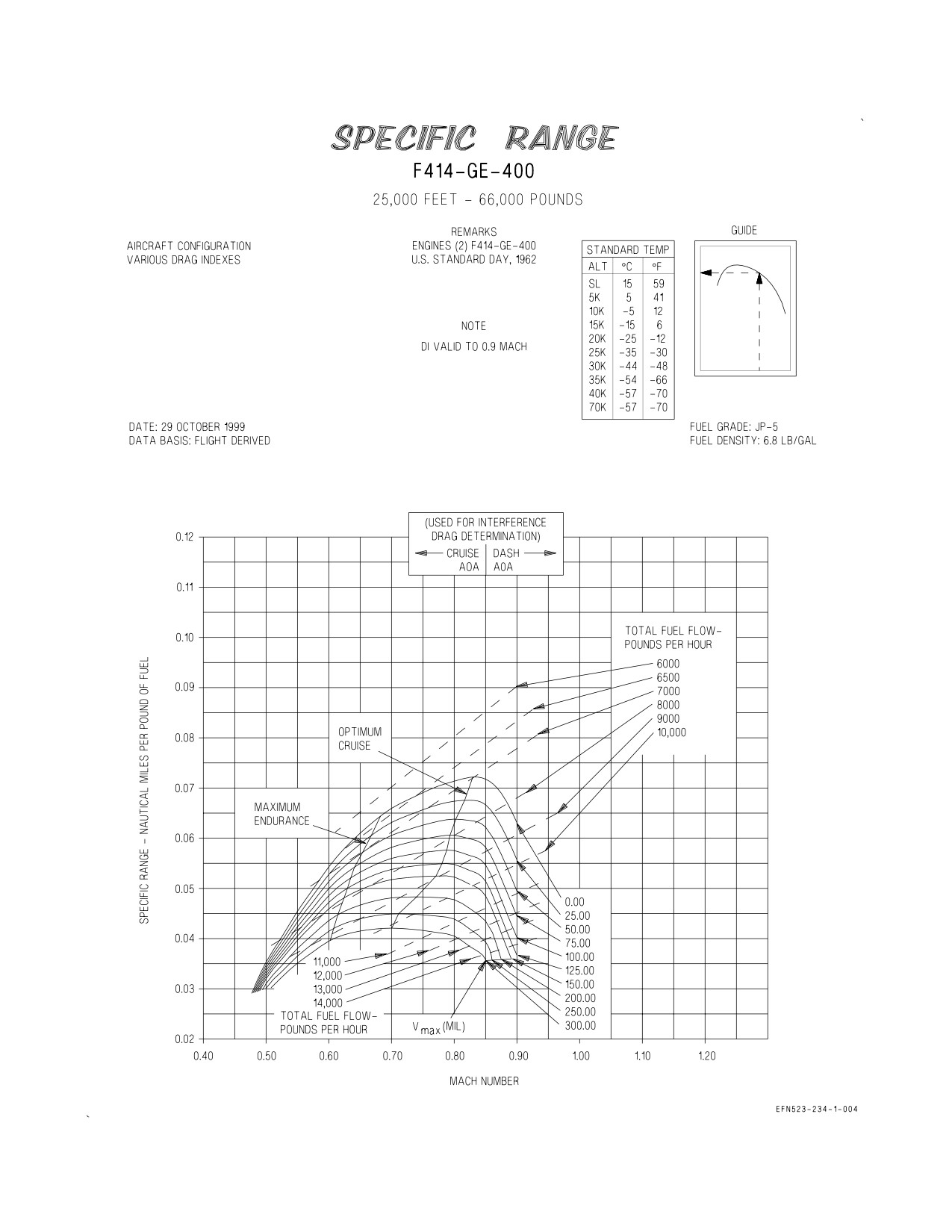

Figure 5-61. Specific Range - 25,000 Feet - 66,000 Pounds
XI-5-71
ORIGINAL
A1-F18EA-NFM-200

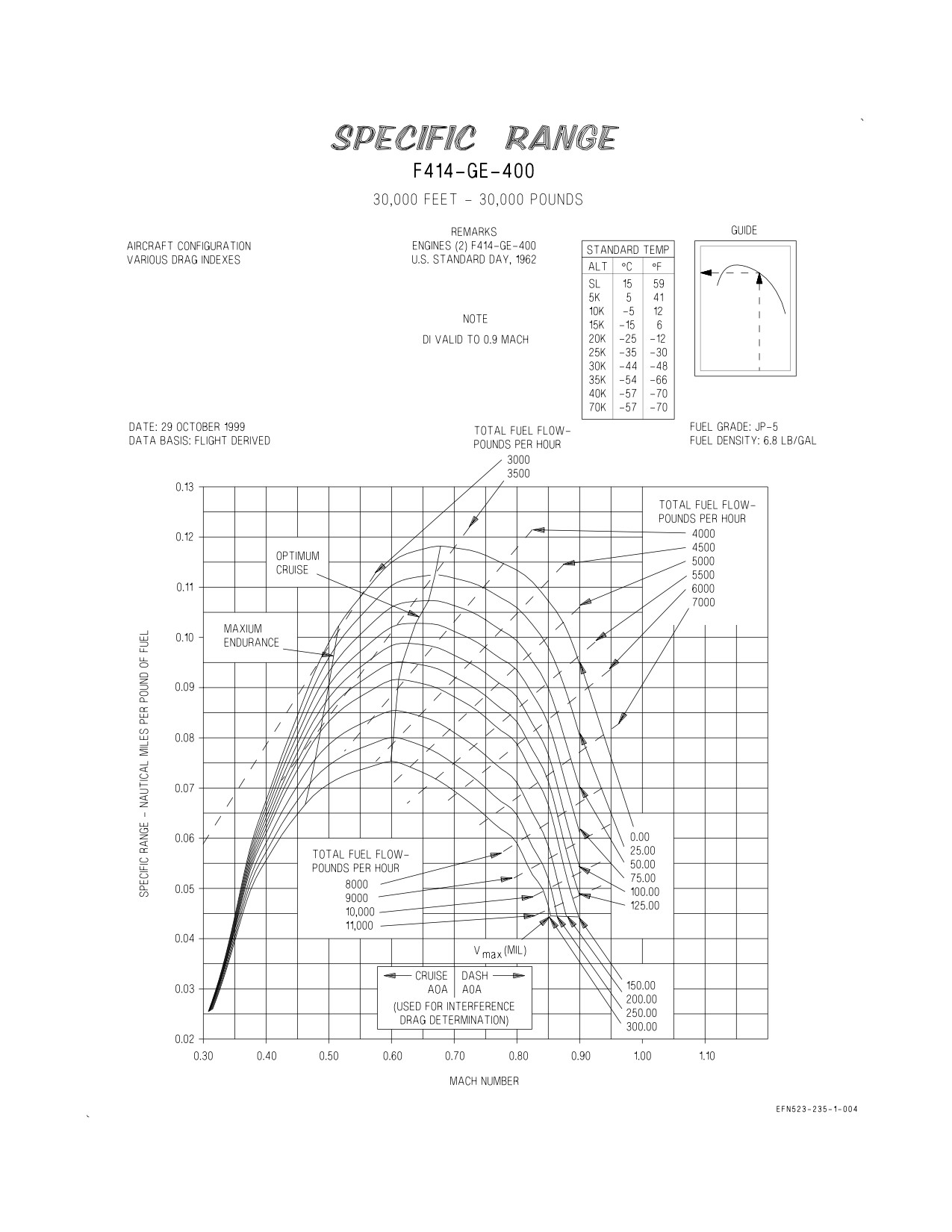

Figure 5-62. Specific Range - 30,000 Feet - 30,000 Pounds
XI-5-72
ORIGINAL
A1-F18EA-NFM-200

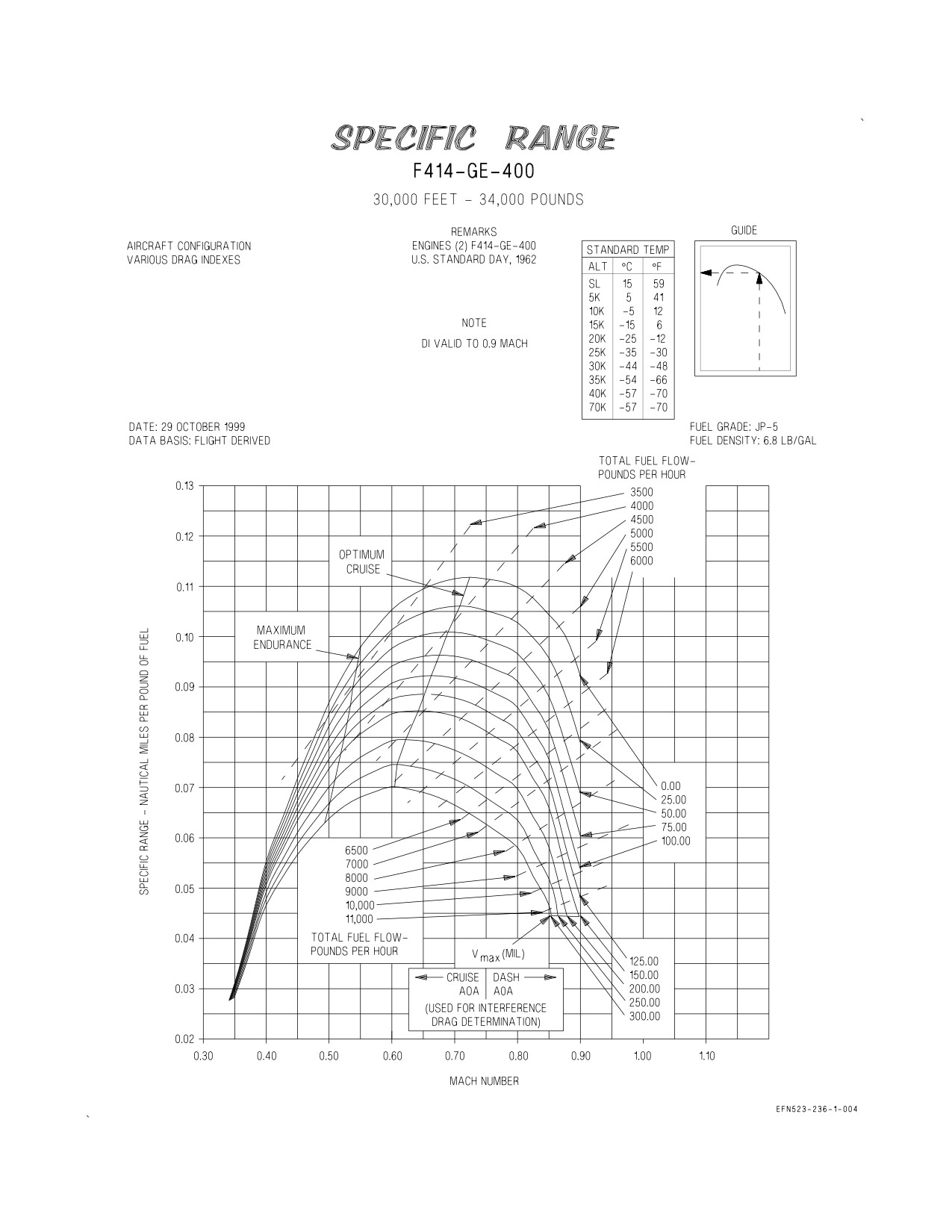

Figure 5-63. Specific Range - 30,000 Feet - 34,000 Pounds
XI-5-73
ORIGINAL
A1-F18EA-NFM-200

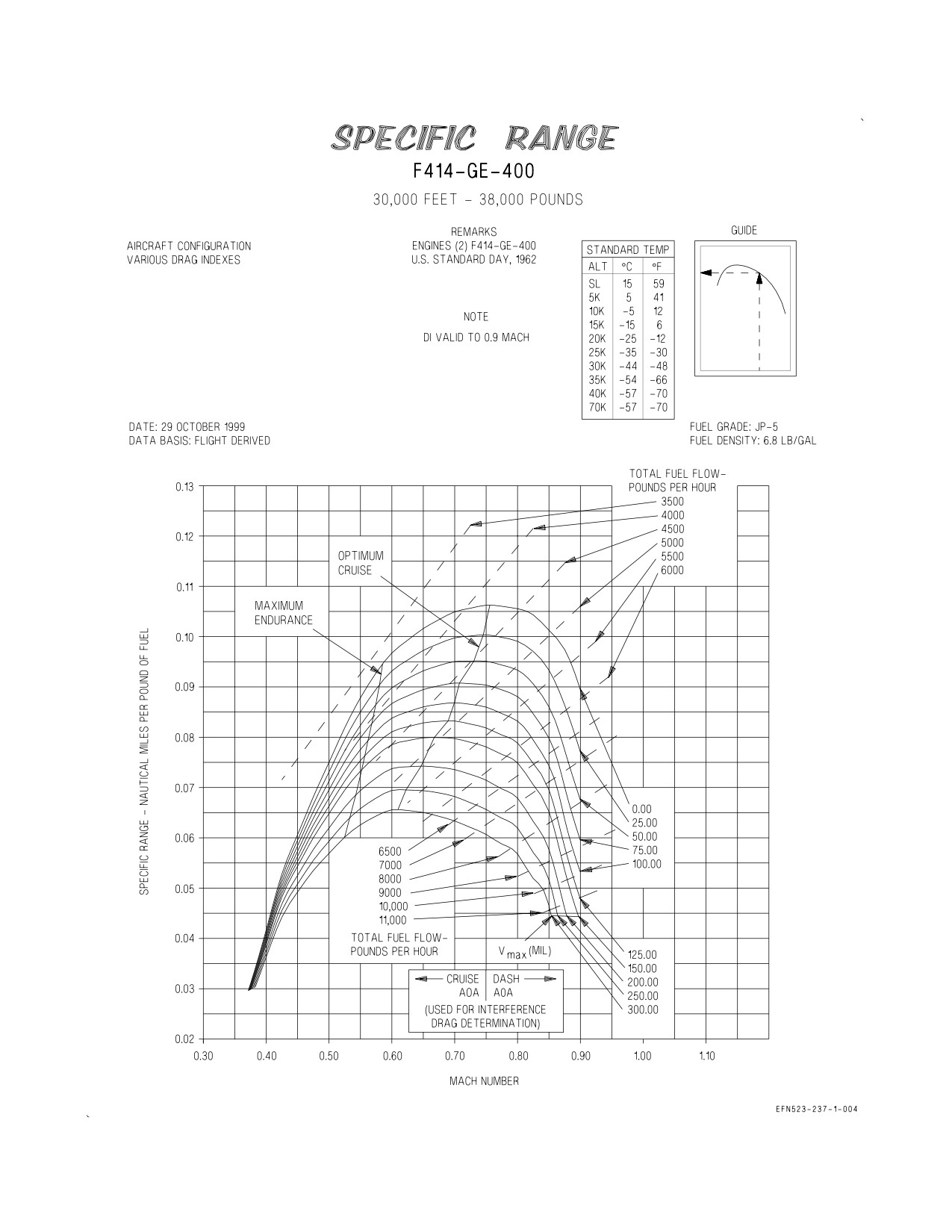

Figure 5-64. Specific Range - 30,000 Feet - 38,000 Pounds
XI-5-74
ORIGINAL
A1-F18EA-NFM-200

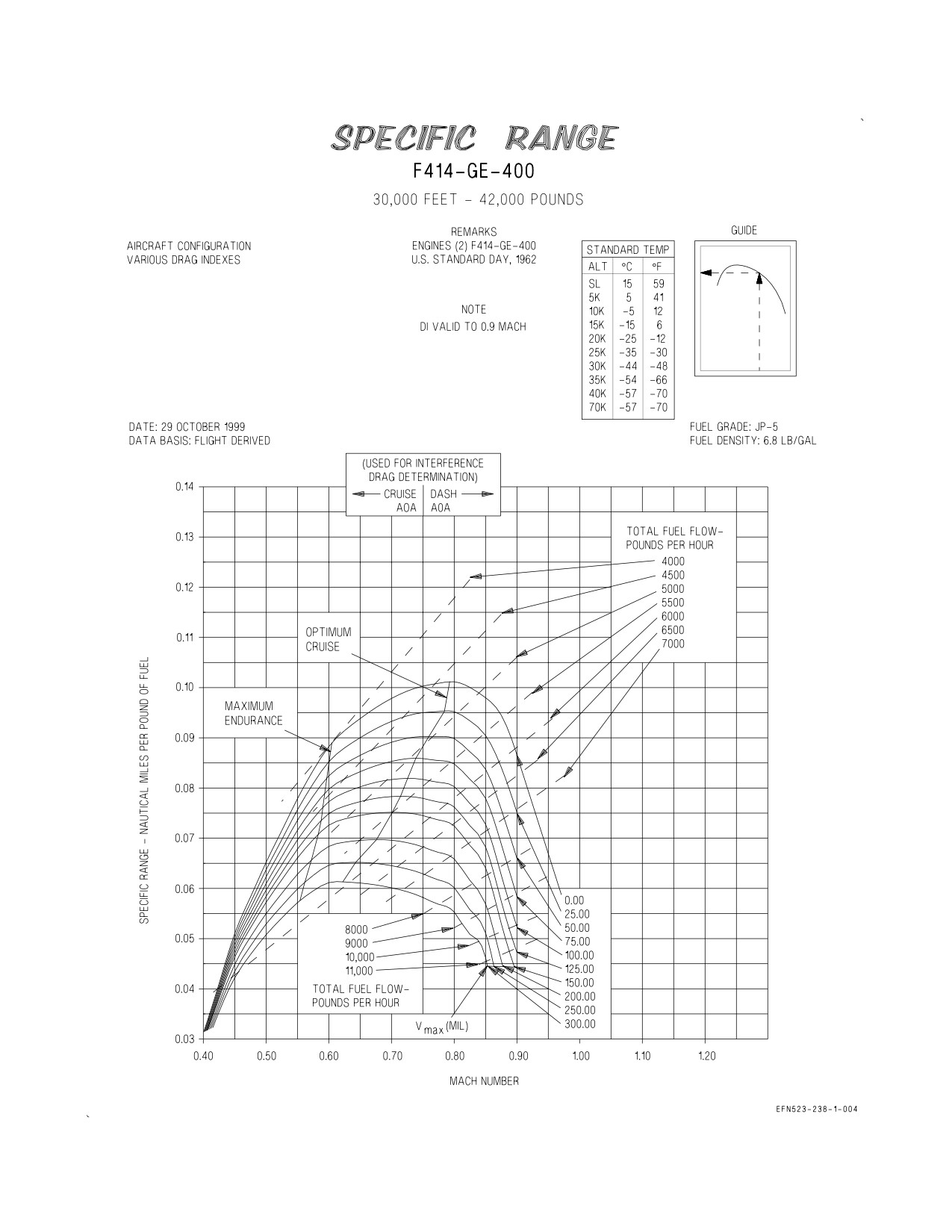

Figure 5-65. Specific Range - 30,000 Feet - 42,000 Pounds
XI-5-75
ORIGINAL
A1-F18EA-NFM-200

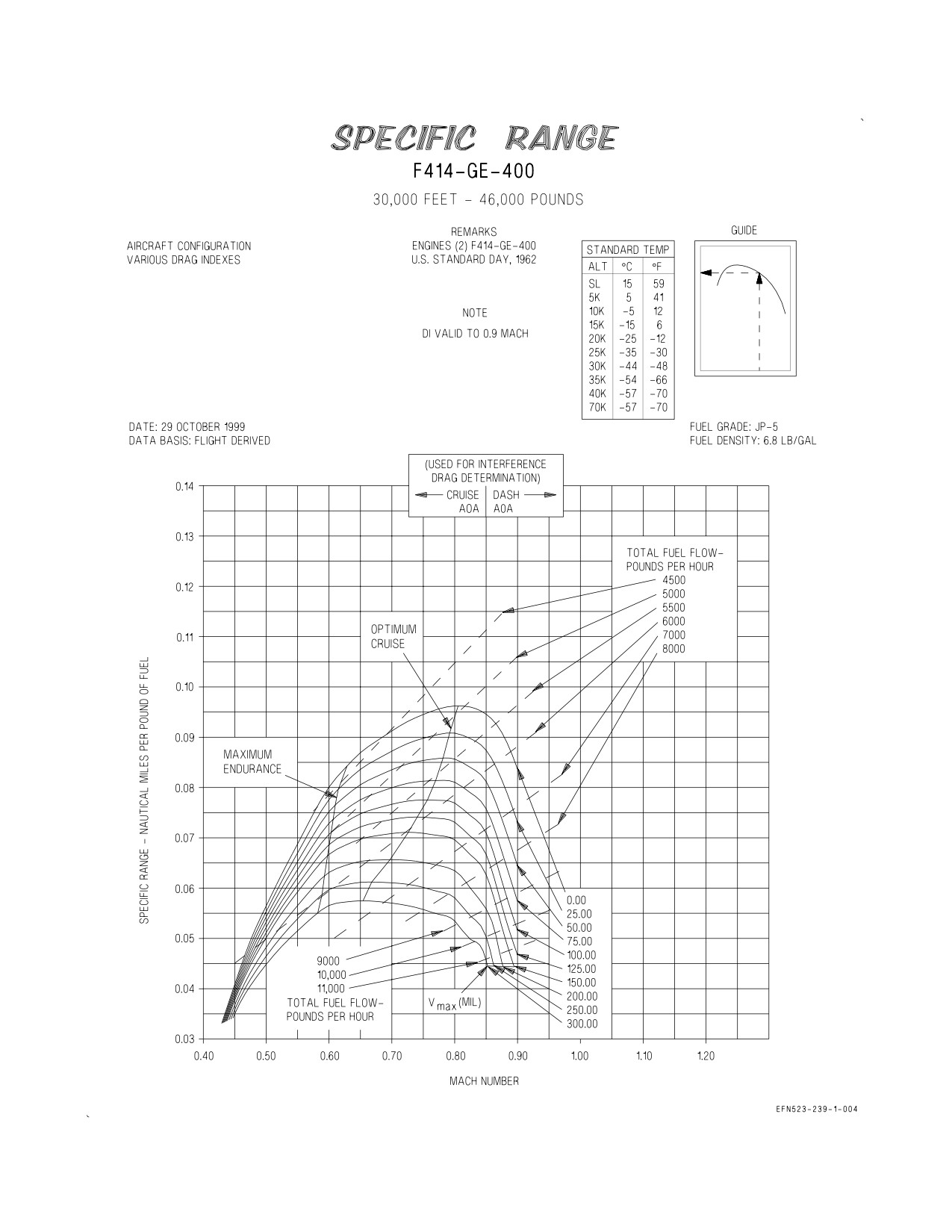

Figure 5-66. Specific Range - 30,000 Feet - 46,000 Pounds
XI-5-76
ORIGINAL
A1-F18EA-NFM-200

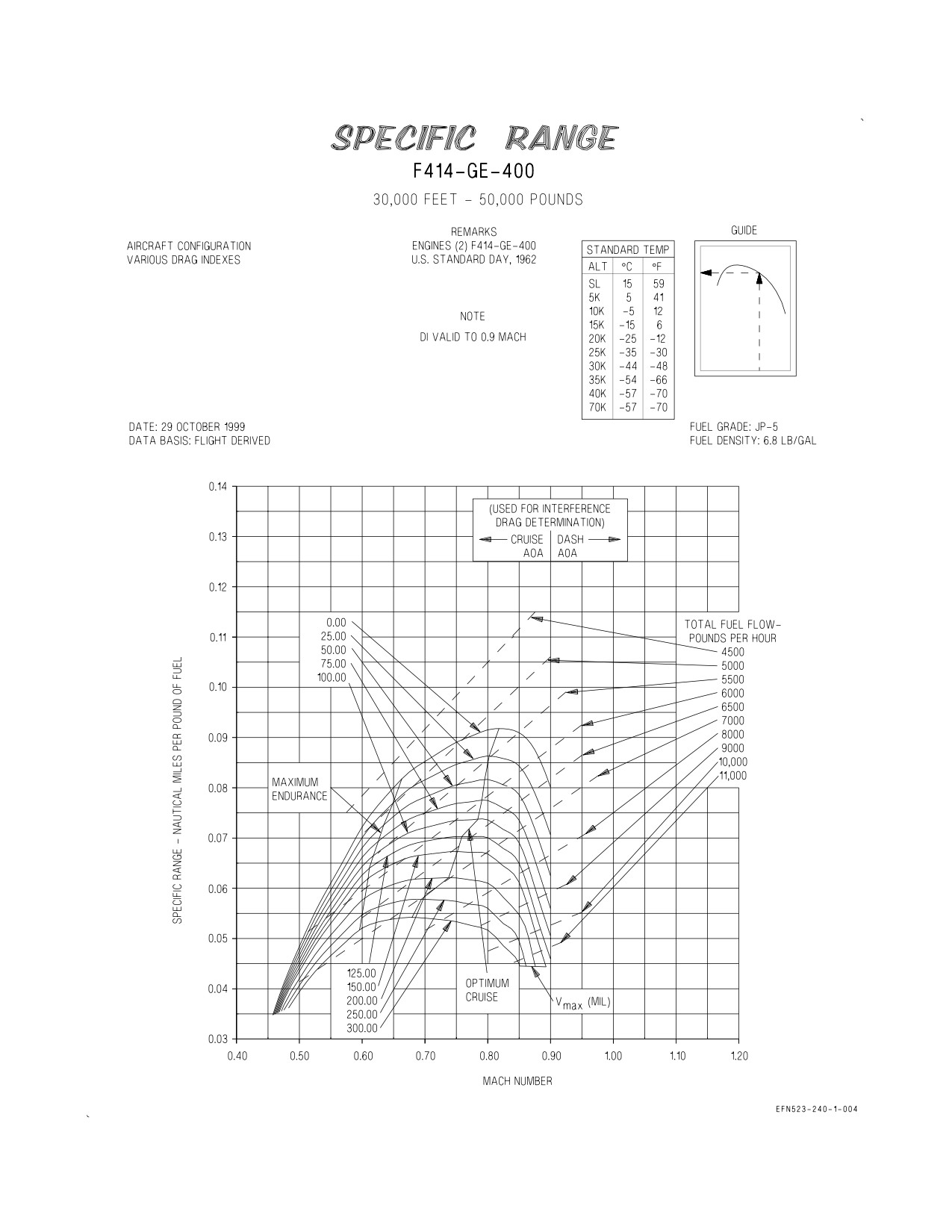

Figure 5-67. Specific Range - 30,000 Feet - 50,000 Pounds
XI-5-77
ORIGINAL
A1-F18EA-NFM-200

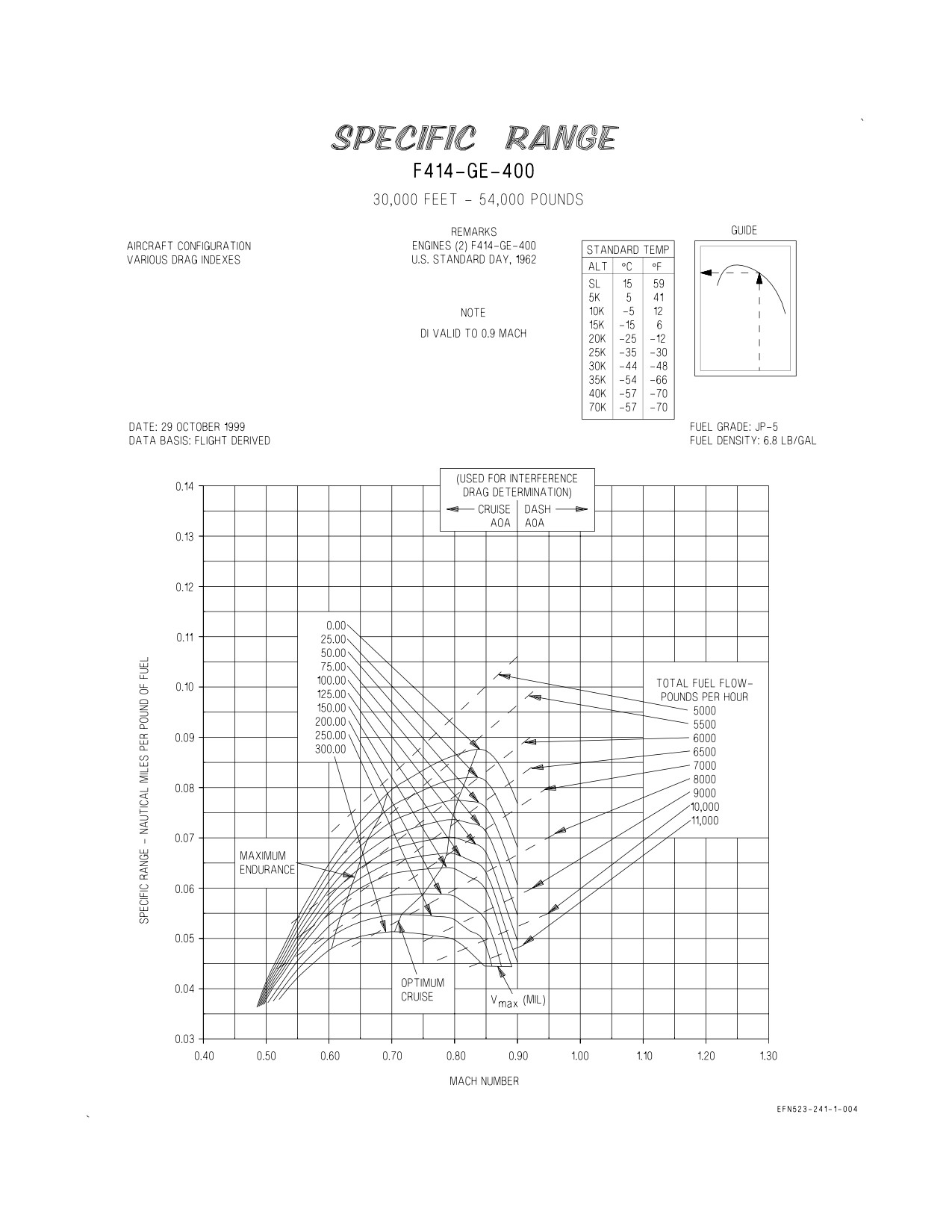

Figure 5-68. Specific Range - 30,000 Feet - 54,000 Pounds
XI-5-78
ORIGINAL
A1-F18EA-NFM-200

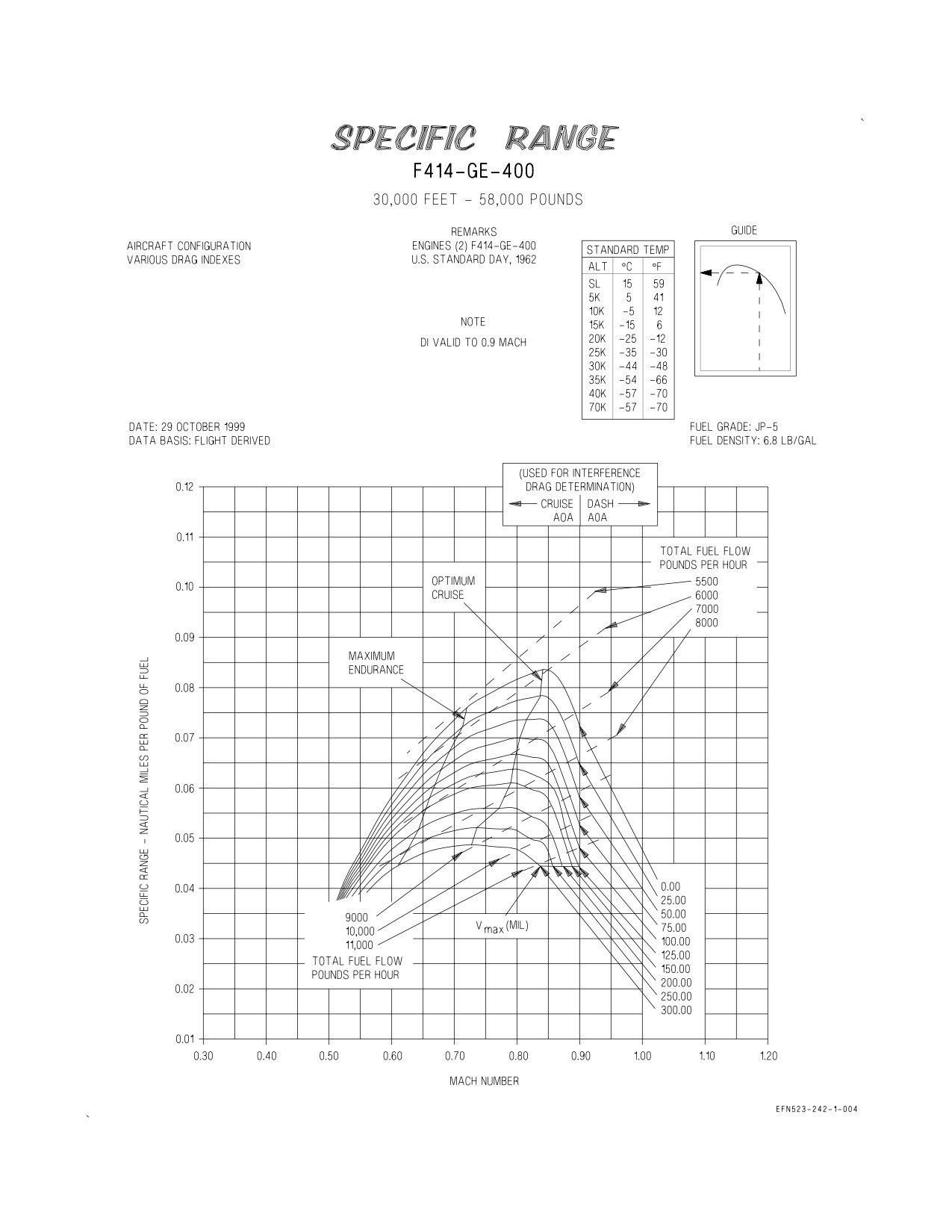

Figure 5-69. Specific Range - 30,000 Feet - 58,000 Pounds
XI-5-79
ORIGINAL
A1-F18EA-NFM-200

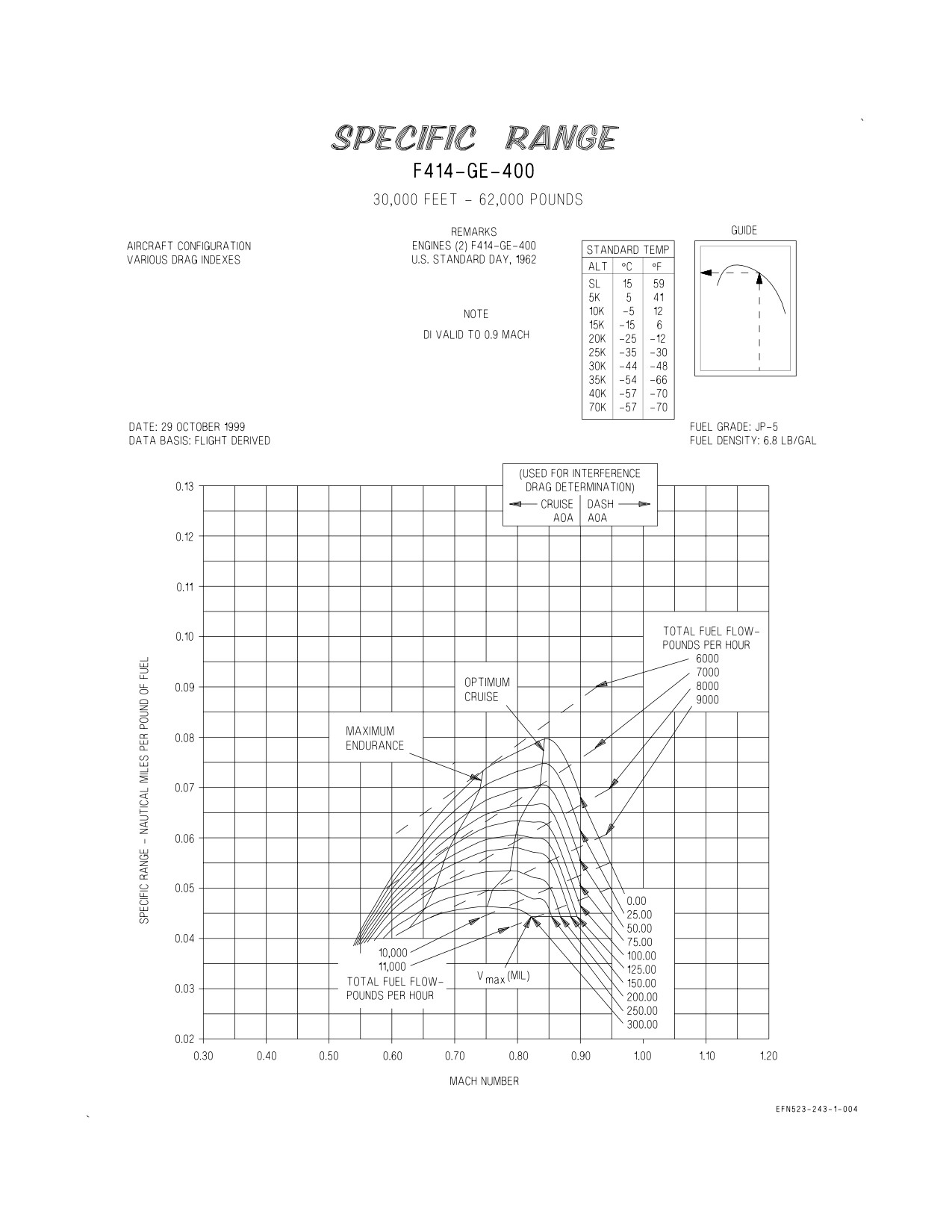

Figure 5-70. Specific Range - 30,000 Feet - 62,000 Pounds
XI-5-80
ORIGINAL
A1-F18EA-NFM-200

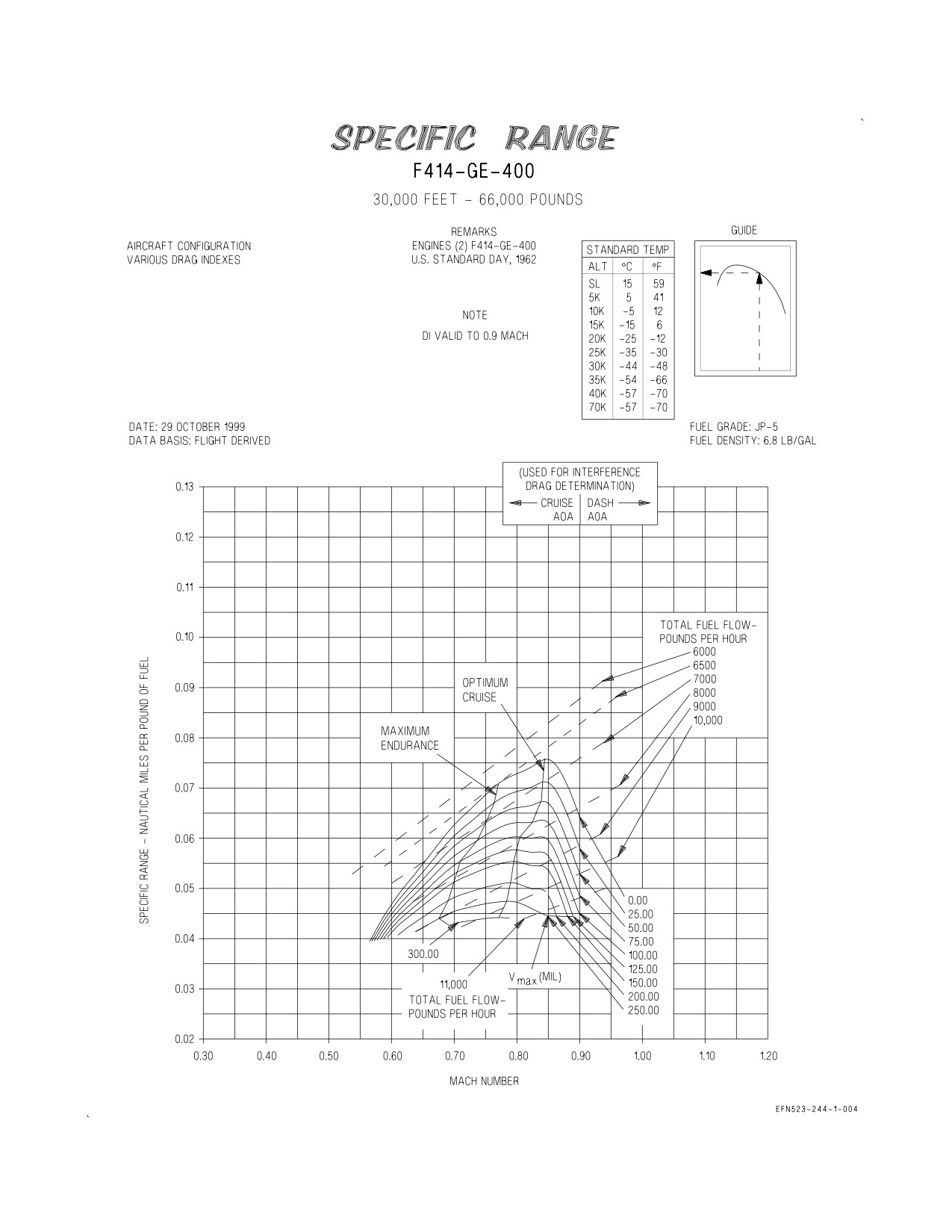

Figure 5-71. Specific Range - 30,000 Feet - 66,000 Pounds
XI-5-81
ORIGINAL
A1-F18EA-NFM-200

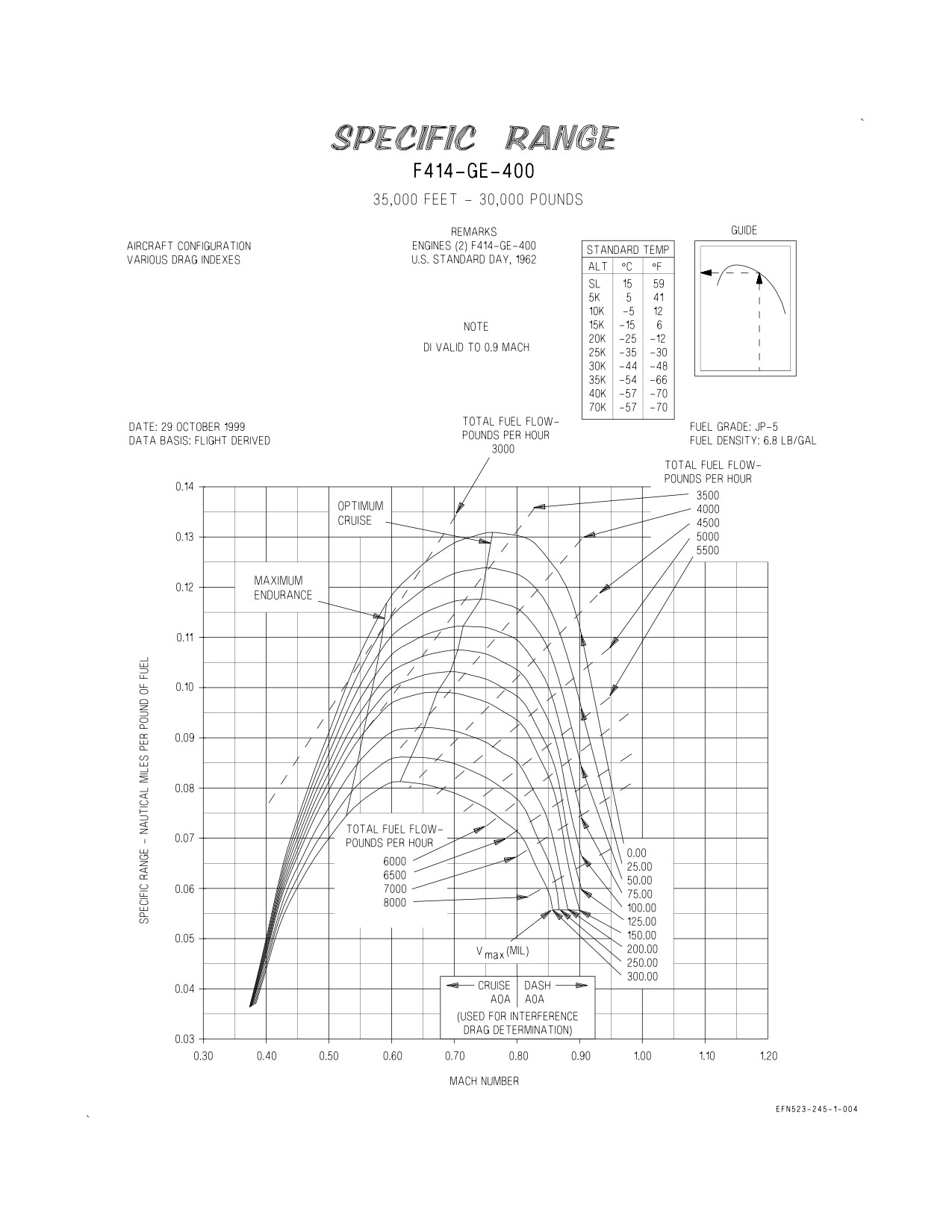

Figure 5-72. Specific Range - 35,000 Feet - 30,000 Pounds
XI-5-82
ORIGINAL
A1-F18EA-NFM-200

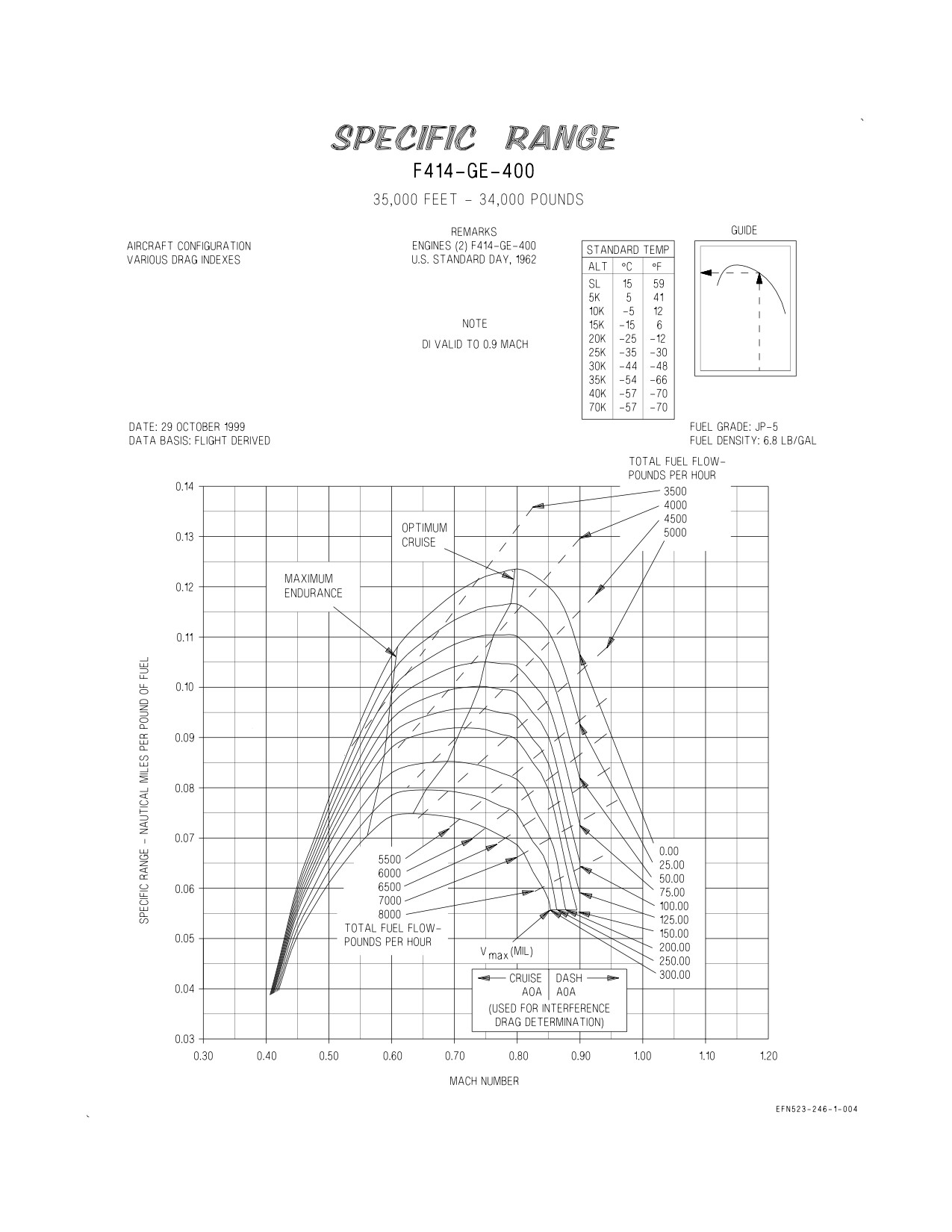

Figure 5-73. Specific Range - 35,000 Feet - 34,000 Pounds
XI-5-83
ORIGINAL
A1-F18EA-NFM-200

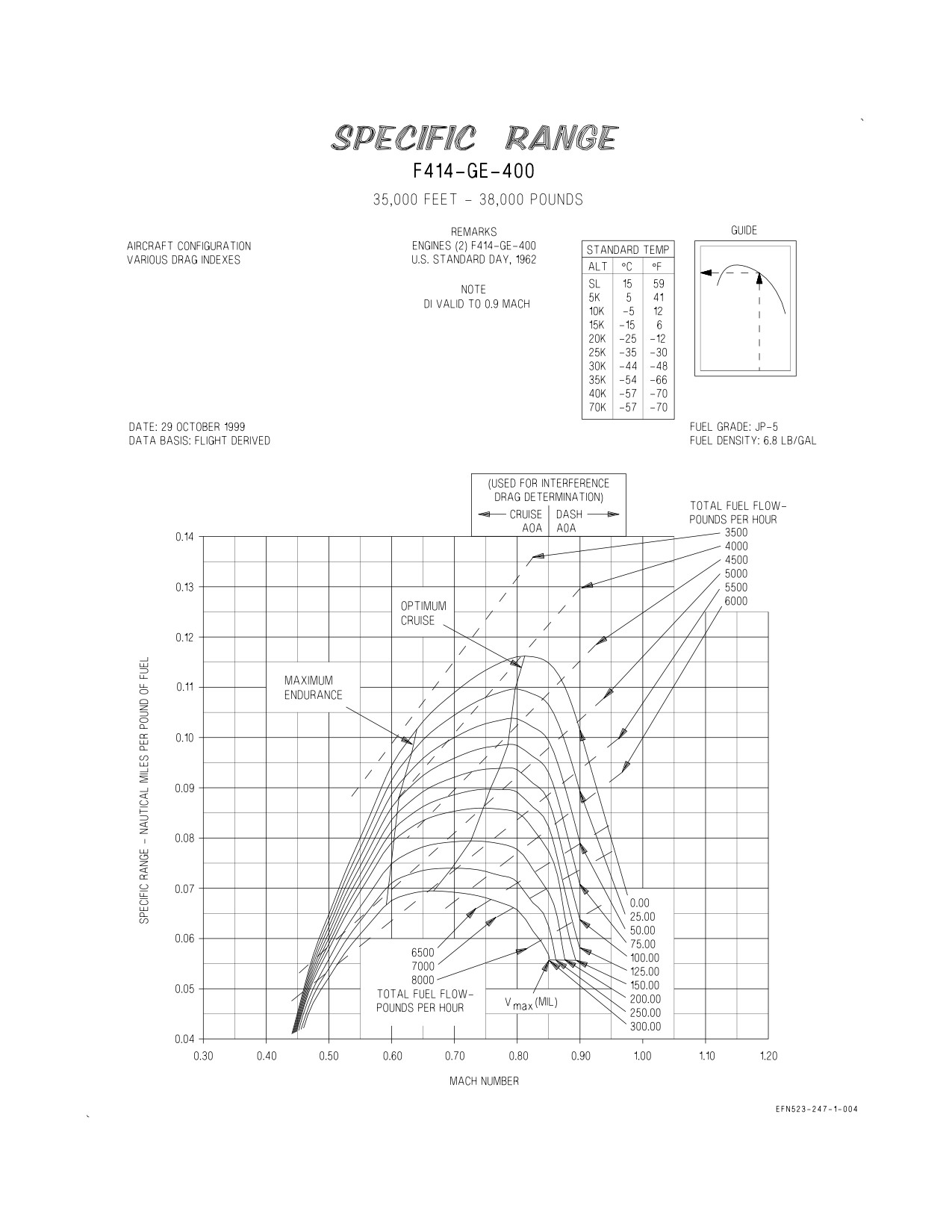

Figure 5-74. Specific Range - 35,000 Feet - 38,000 Pounds
XI-5-84
ORIGINAL
A1-F18EA-NFM-200

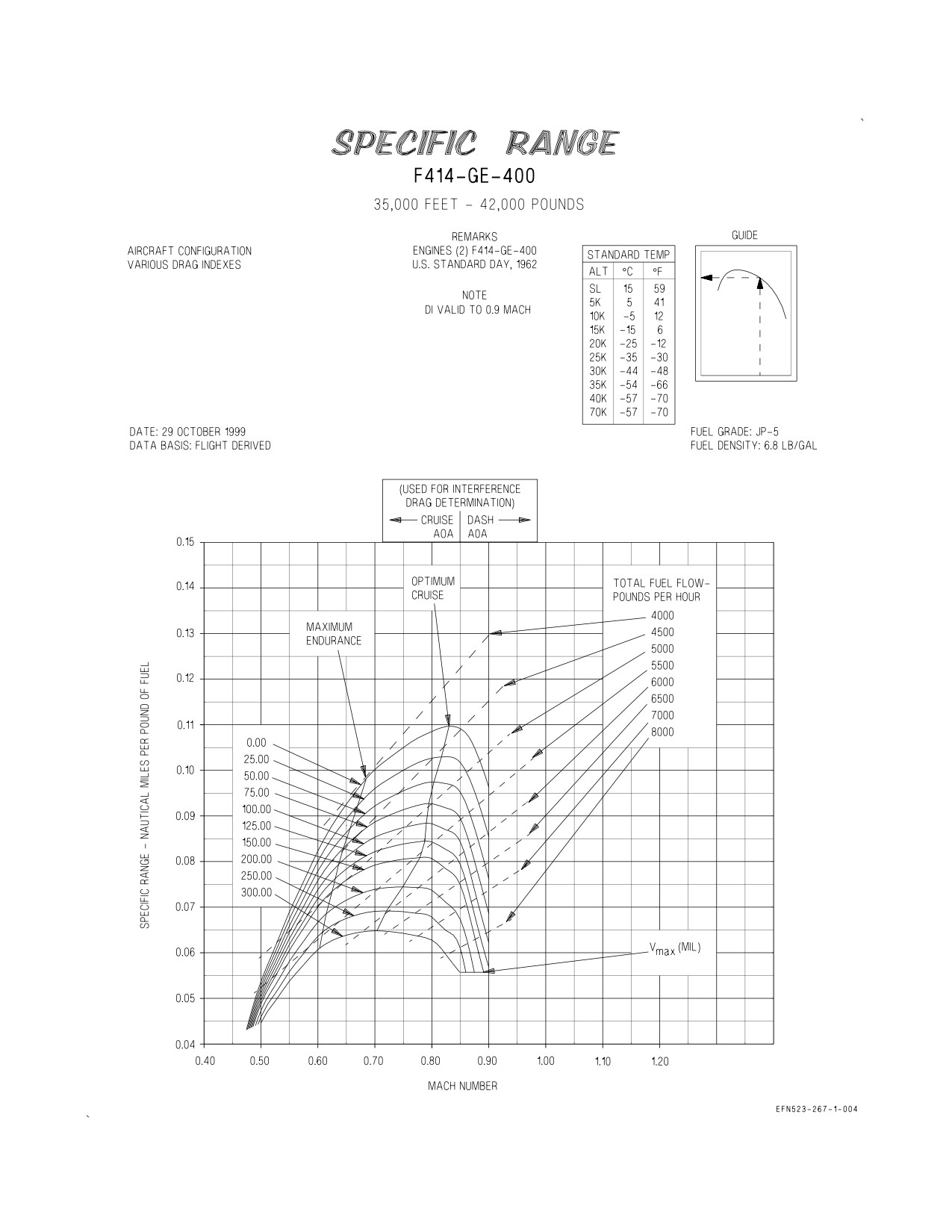

Figure 5-75. Specific Range - 35,000 Feet - 42,000 Pounds
XI-5-85
ORIGINAL
A1-F18EA-NFM-200

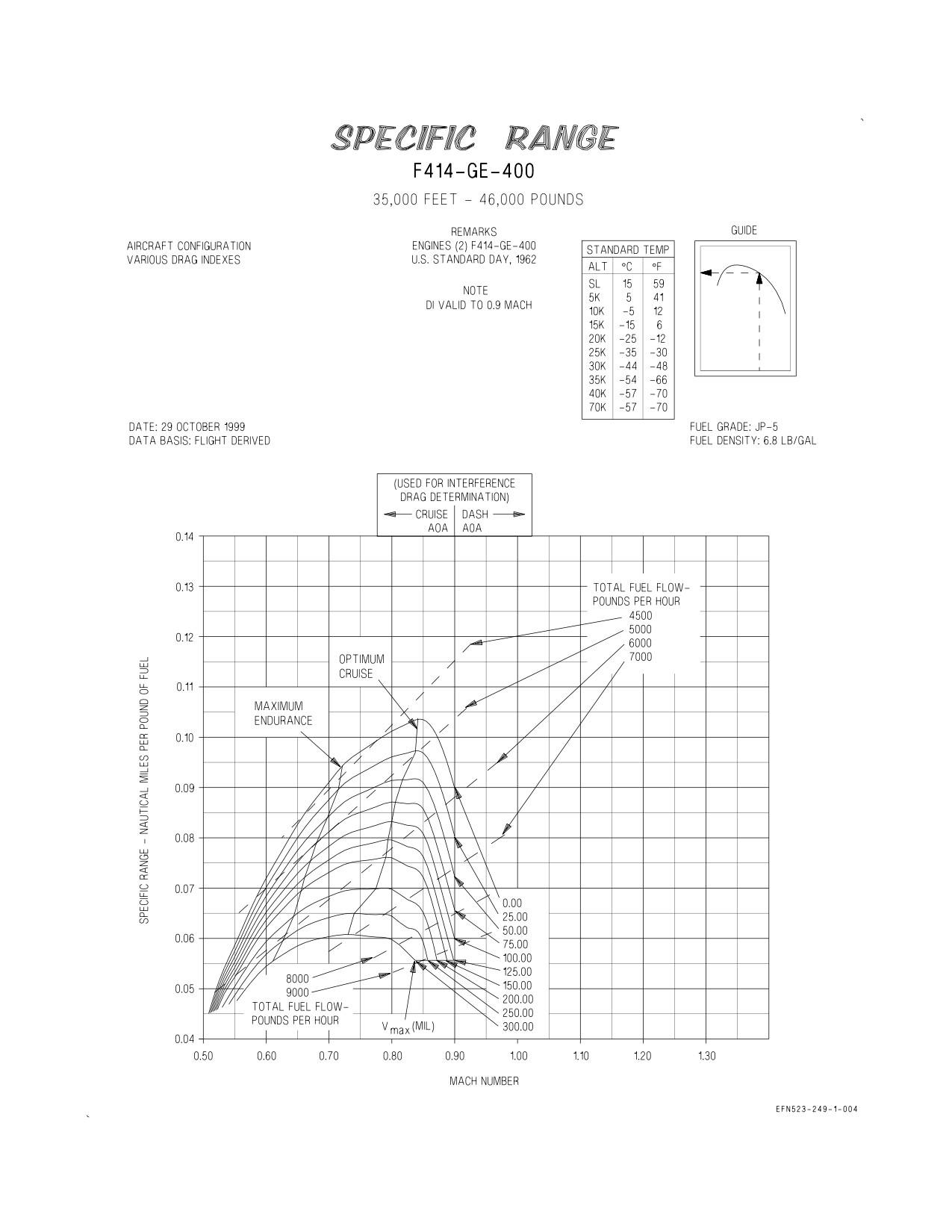

Figure 5-76. Specific Range - 35,000 Feet - 46,000 Pounds
XI-5-86
ORIGINAL
A1-F18EA-NFM-200

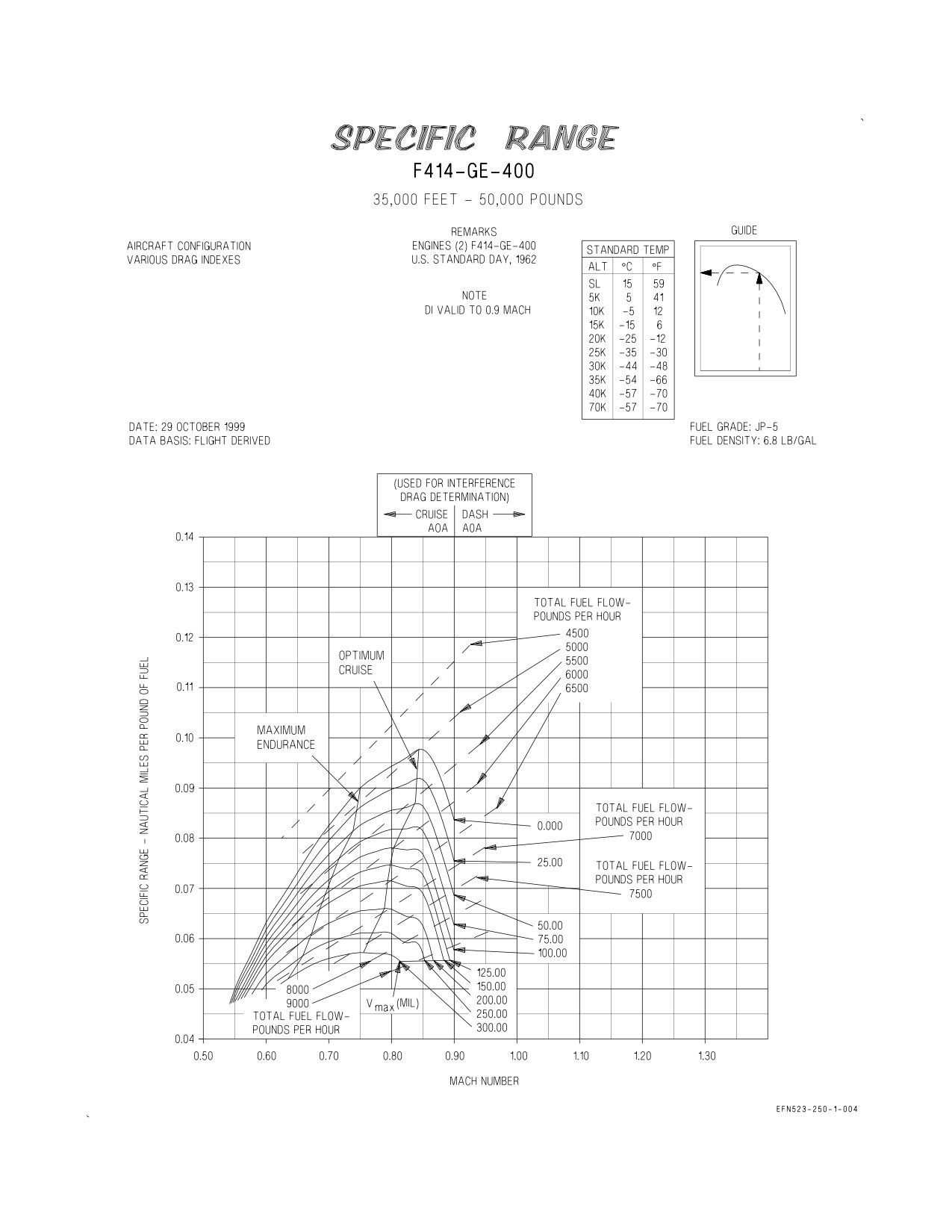

Figure 5-77. Specific Range - 35,000 Feet - 50,000 Pounds
XI-5-87
ORIGINAL
A1-F18EA-NFM-200

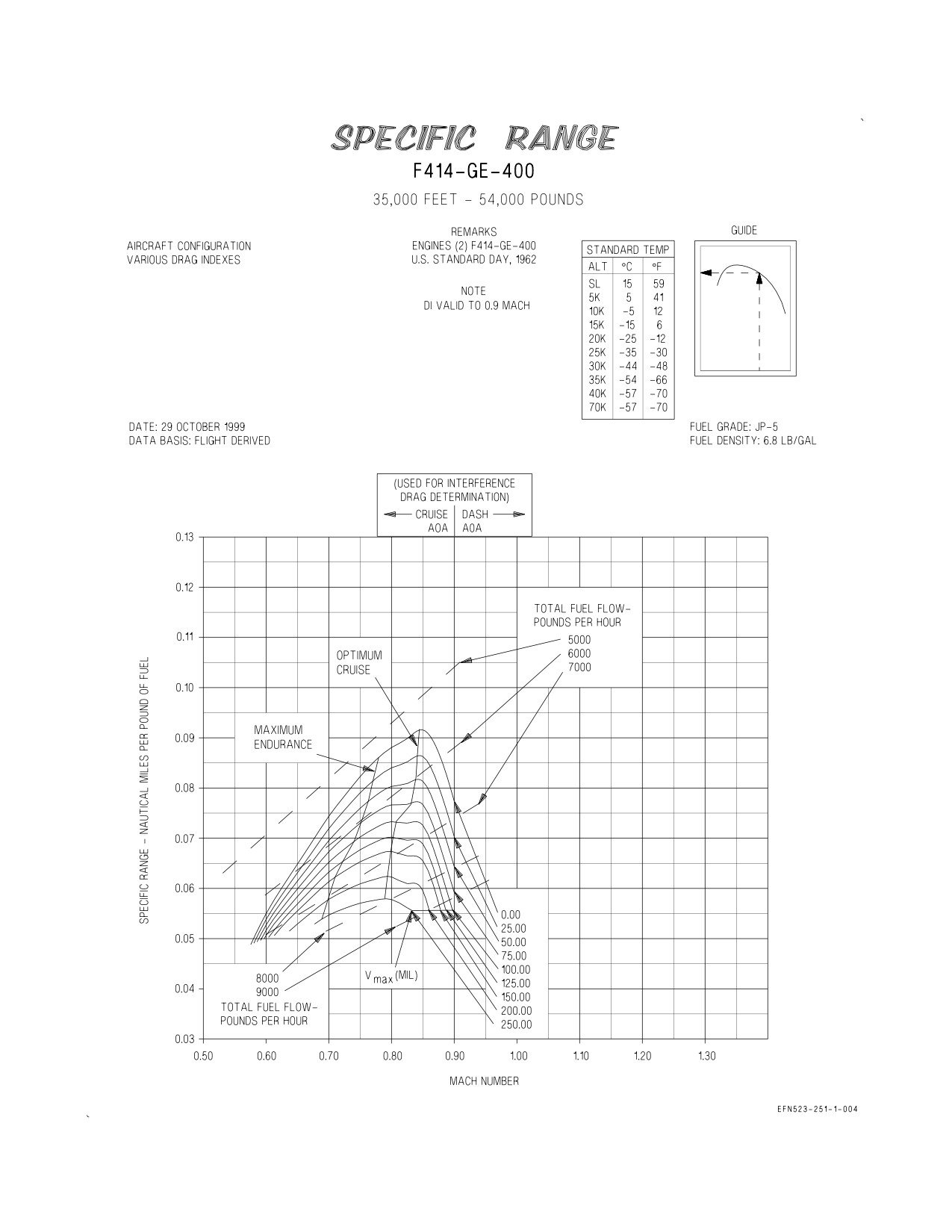

Figure 5-78. Specific Range - 35,000 Feet - 54,000 Pounds
XI-5-88
ORIGINAL
A1-F18EA-NFM-200

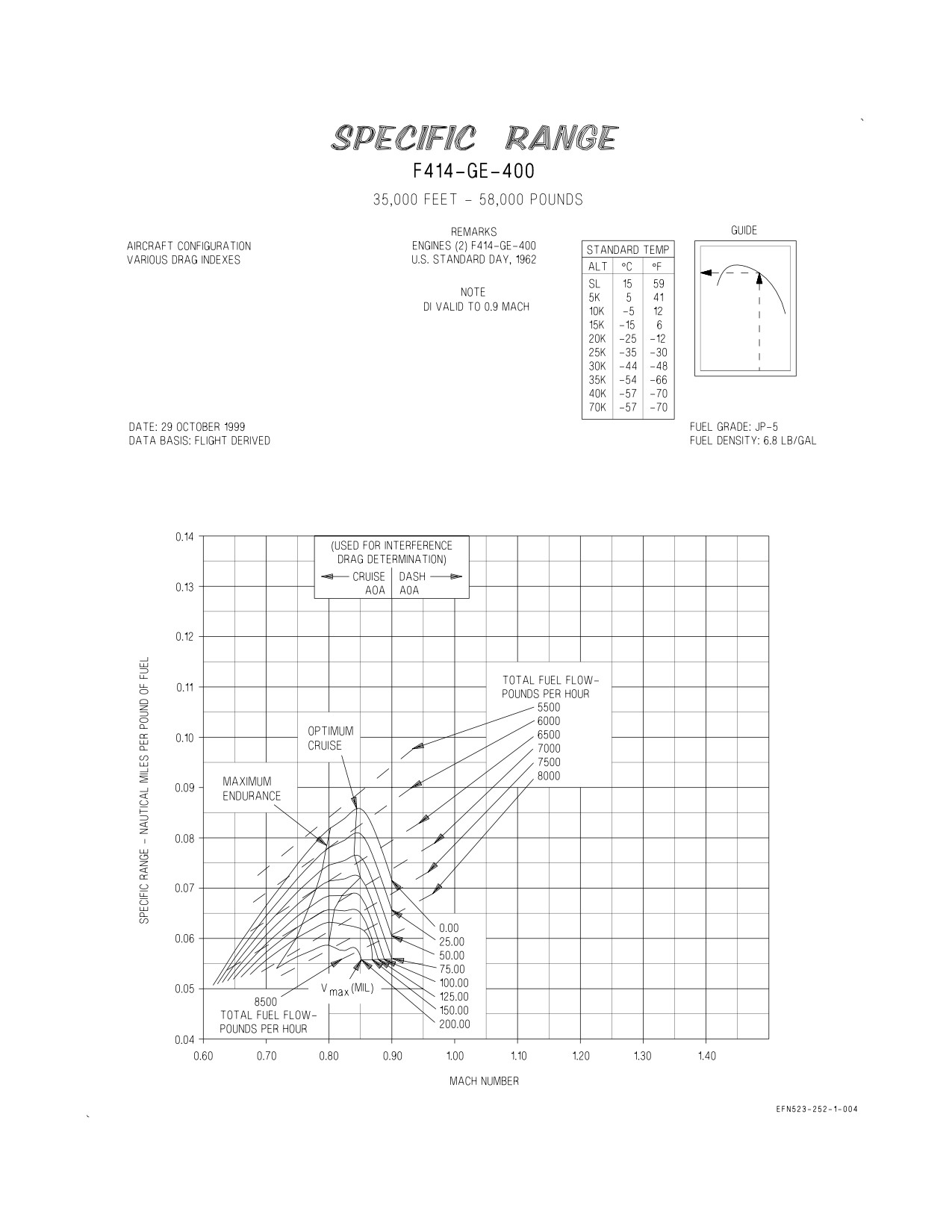

Figure 5-79. Specific Range - 35,000 Feet - 58,000 Pounds
XI-5-89
ORIGINAL
A1-F18EA-NFM-200

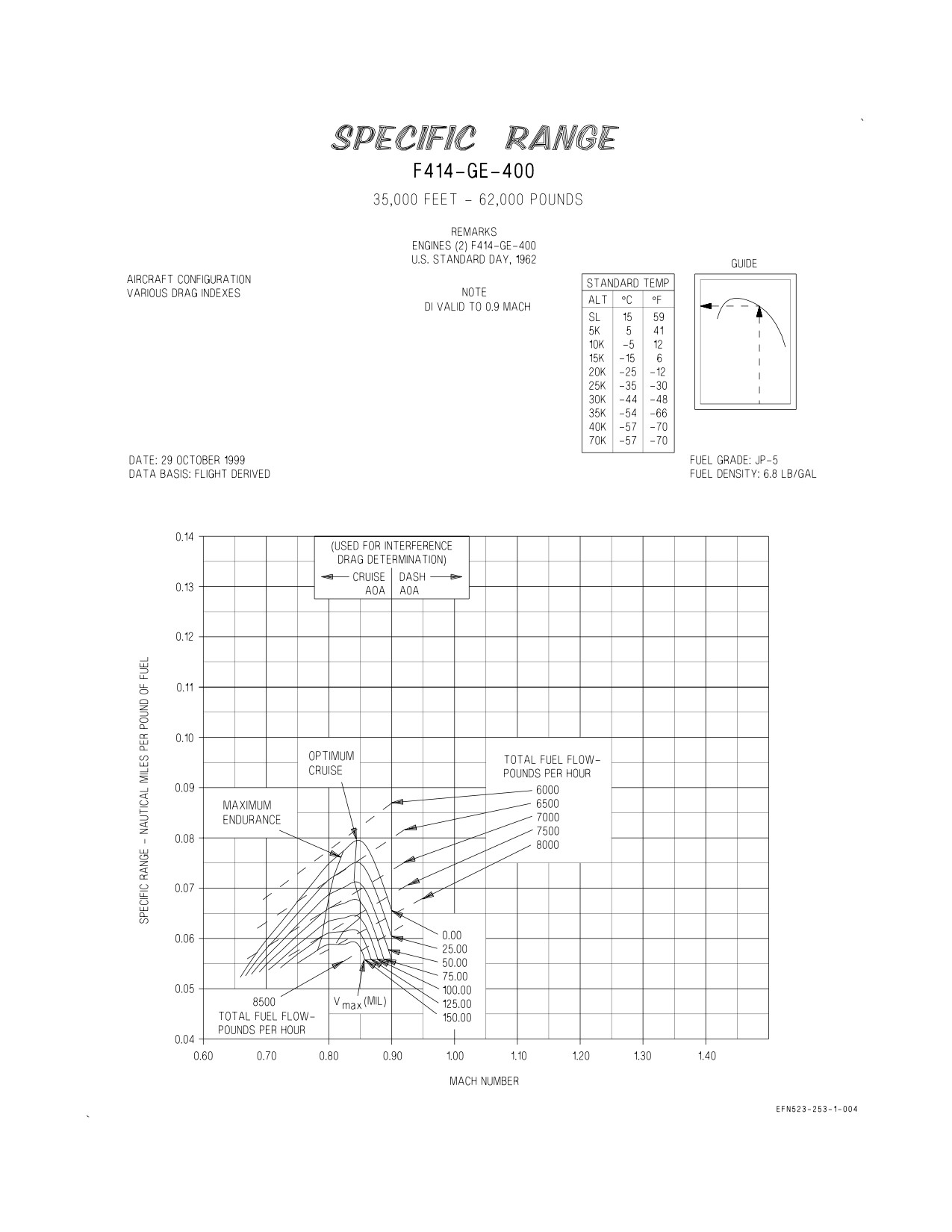

Figure 5-80. Specific Range - 35,000 Feet - 62,000 Pounds
XI-5-90
ORIGINAL
A1-F18EA-NFM-200

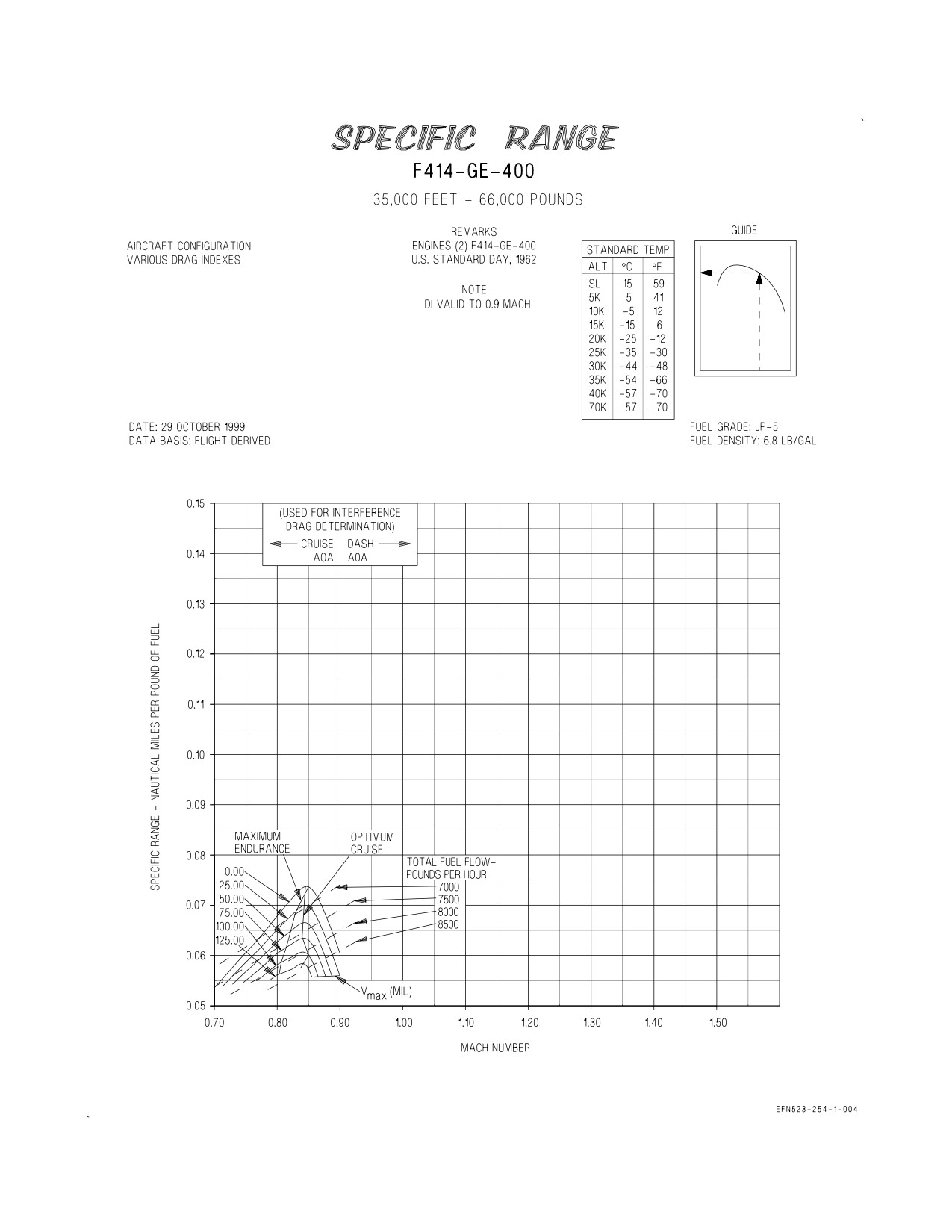

Figure 5-81. Specific Range - 35,000 Feet - 66,000 Pounds
XI-5-91
ORIGINAL
A1-F18EA-NFM-200

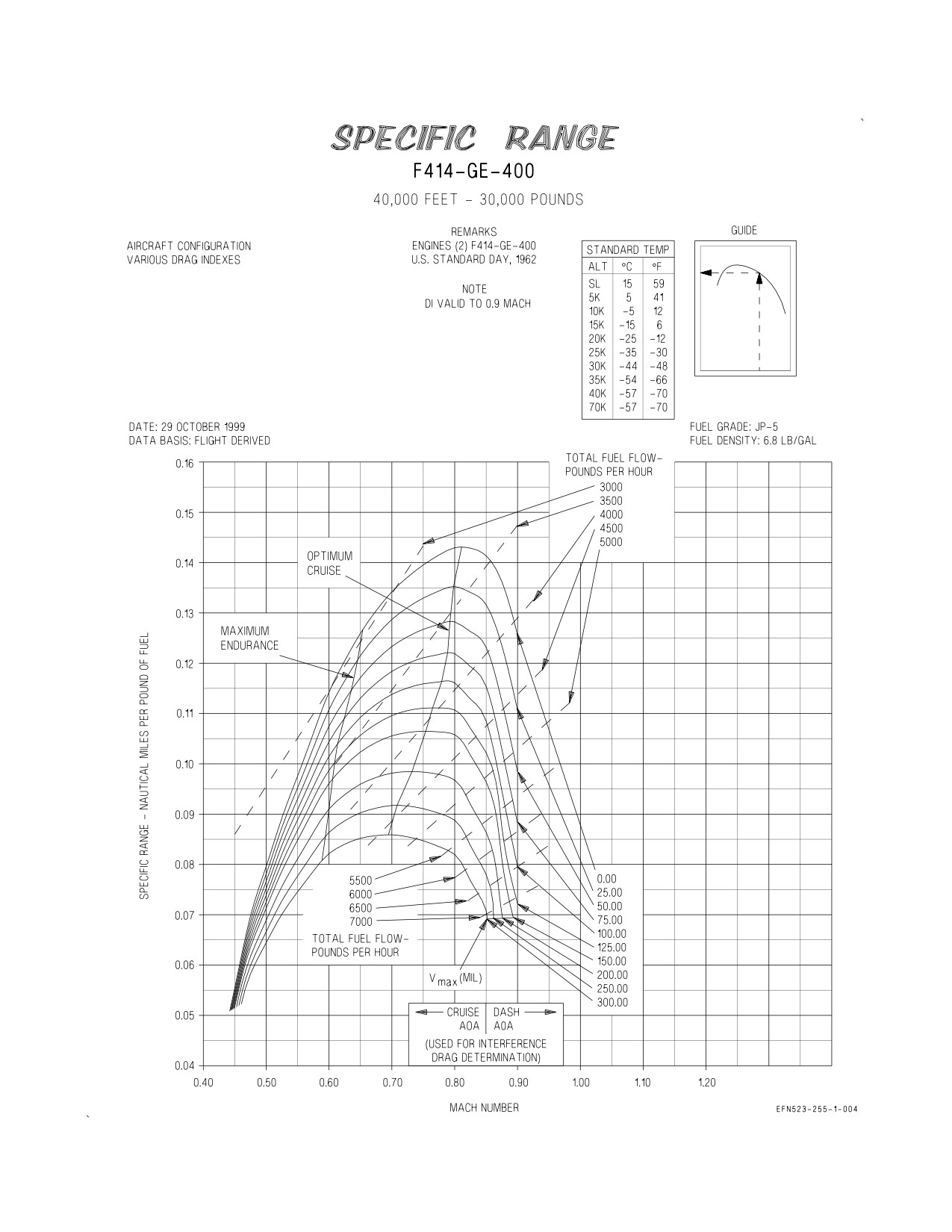

Figure 5-82. Specific Range - 40,000 Feet - 30,000 Pounds
XI-5-92
ORIGINAL
A1-F18EA-NFM-200

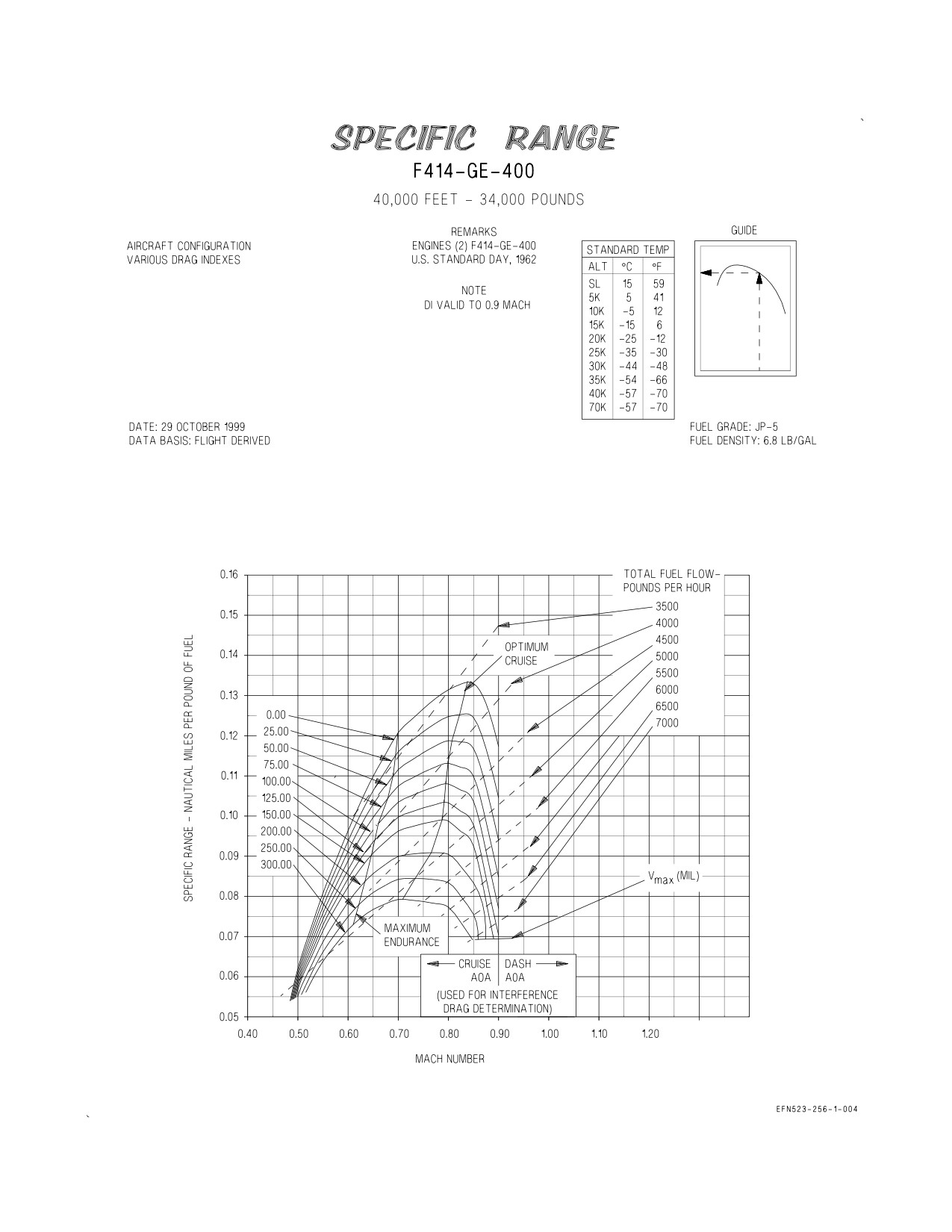

Figure 5-83. Specific Range - 40,000 Feet - 34,000 Pounds
XI-5-93
ORIGINAL
A1-F18EA-NFM-200

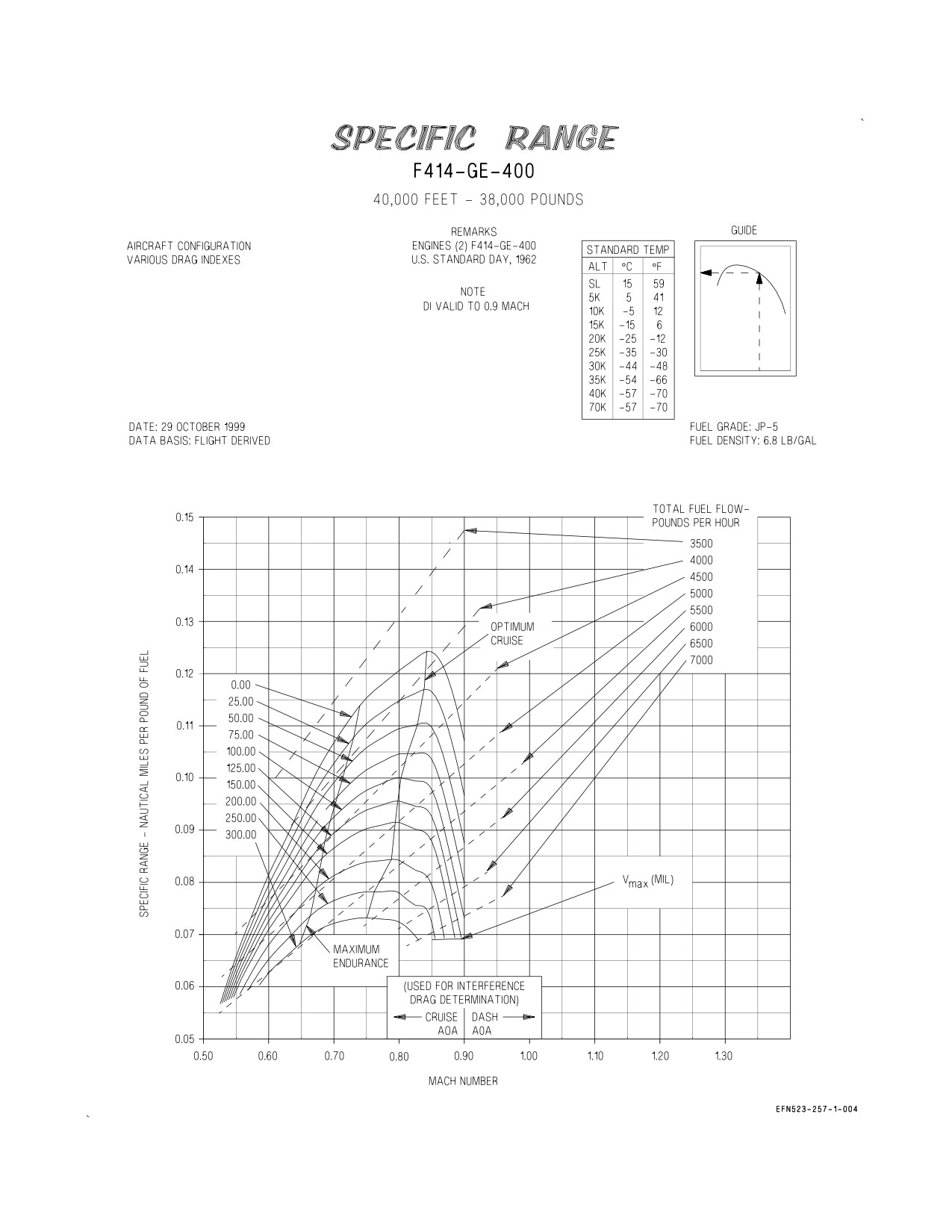

Figure 5-84. Specific Range - 40,000 Feet - 38,000 Pounds
XI-5-94
ORIGINAL
A1-F18EA-NFM-200

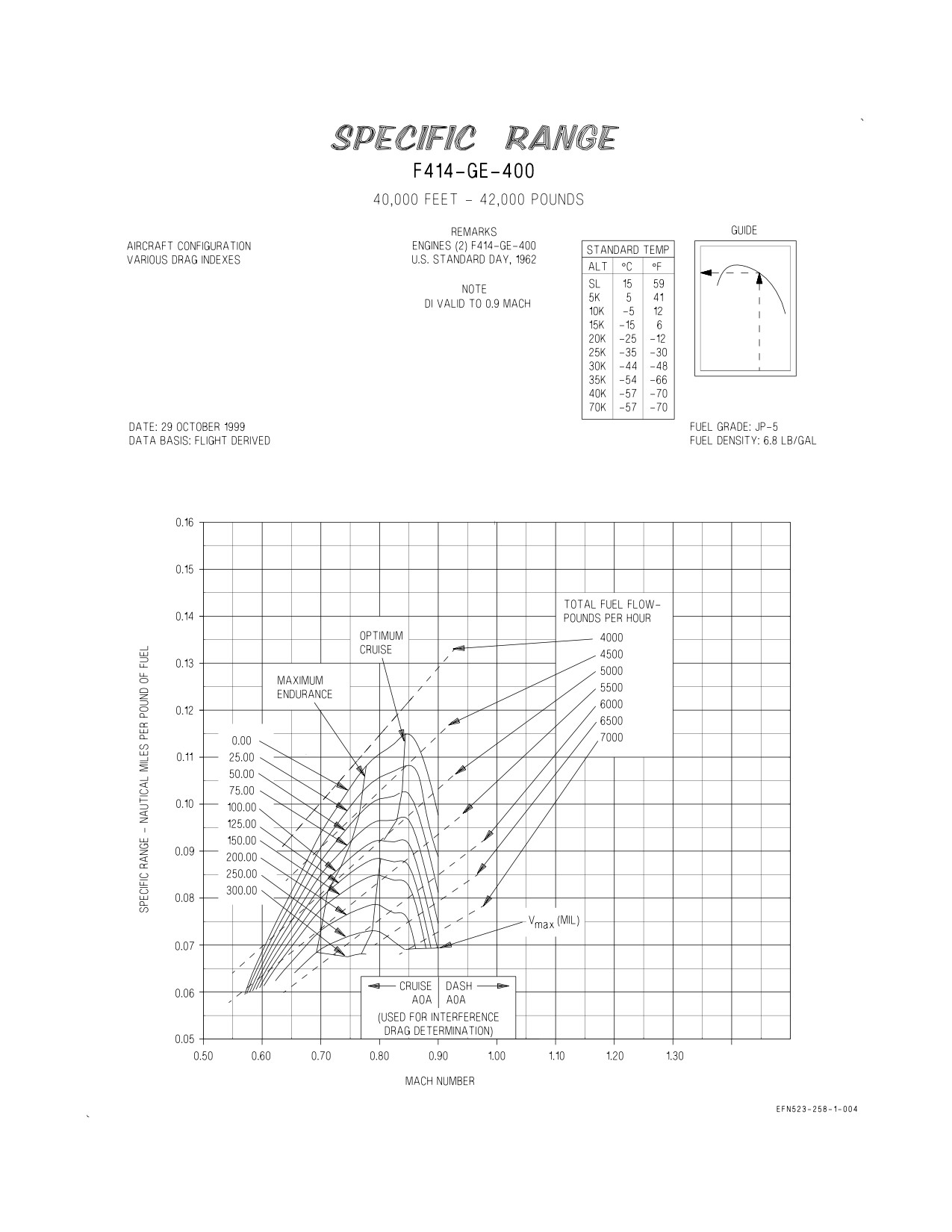

Figure 5-85. Specific Range - 40,000 Feet - 42,000 Pounds
XI-5-95
ORIGINAL
A1-F18EA-NFM-200

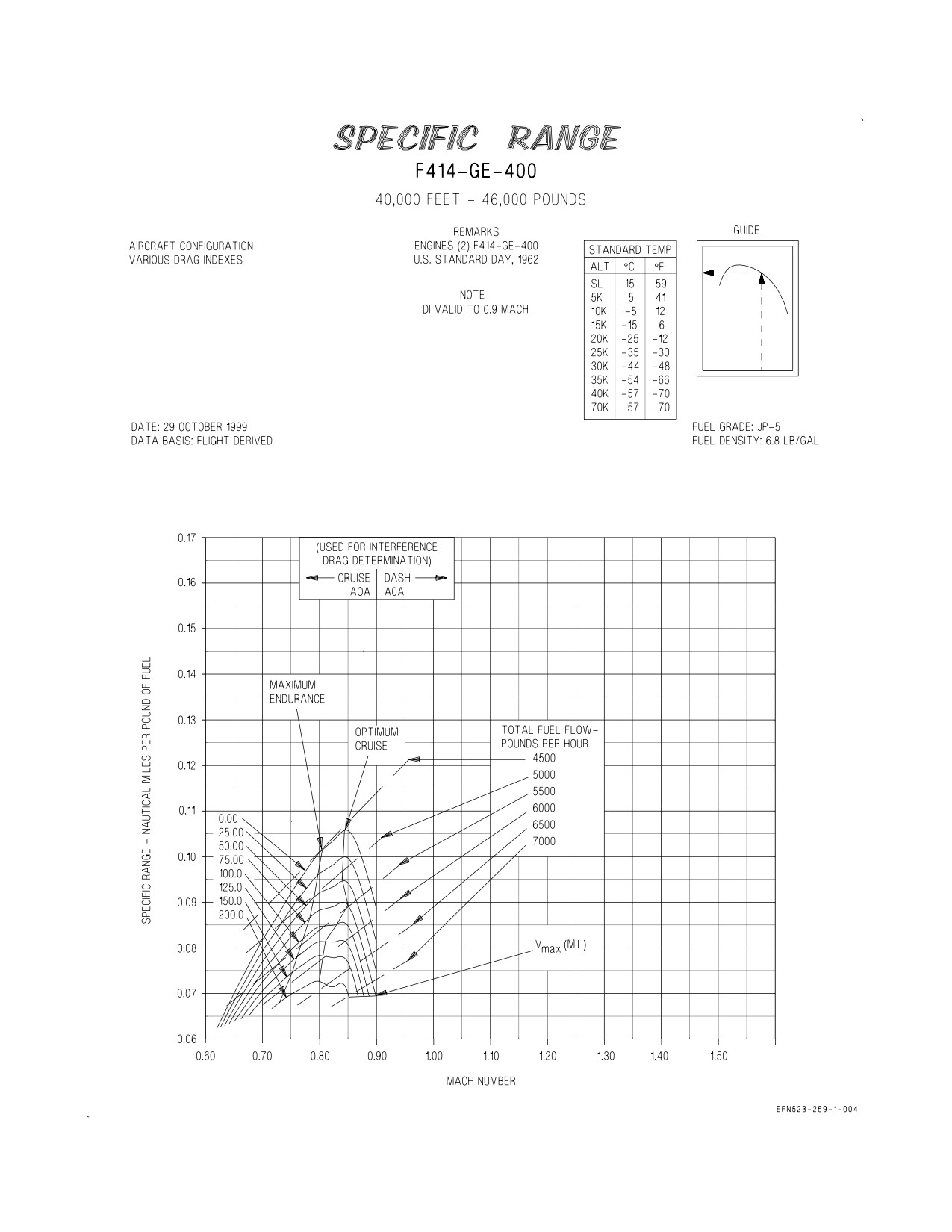

Figure 5-86. Specific Range - 40,000 Feet - 46,000 Pounds
XI-5-96
ORIGINAL
A1-F18EA-NFM-200

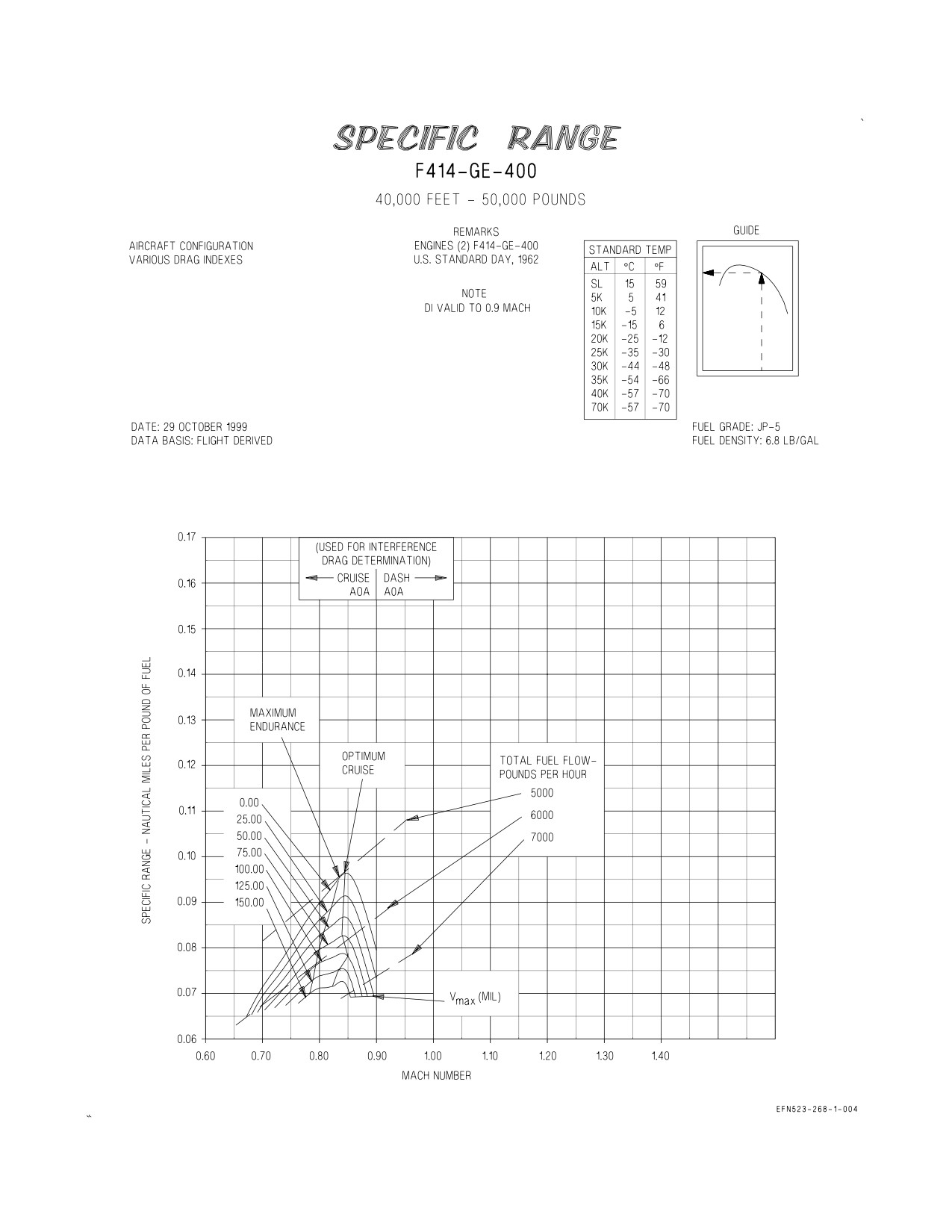

Figure 5-87. Specific Range - 40,000 Feet - 50,000 Pounds
XI-5-97
ORIGINAL
A1-F18EA-NFM-200

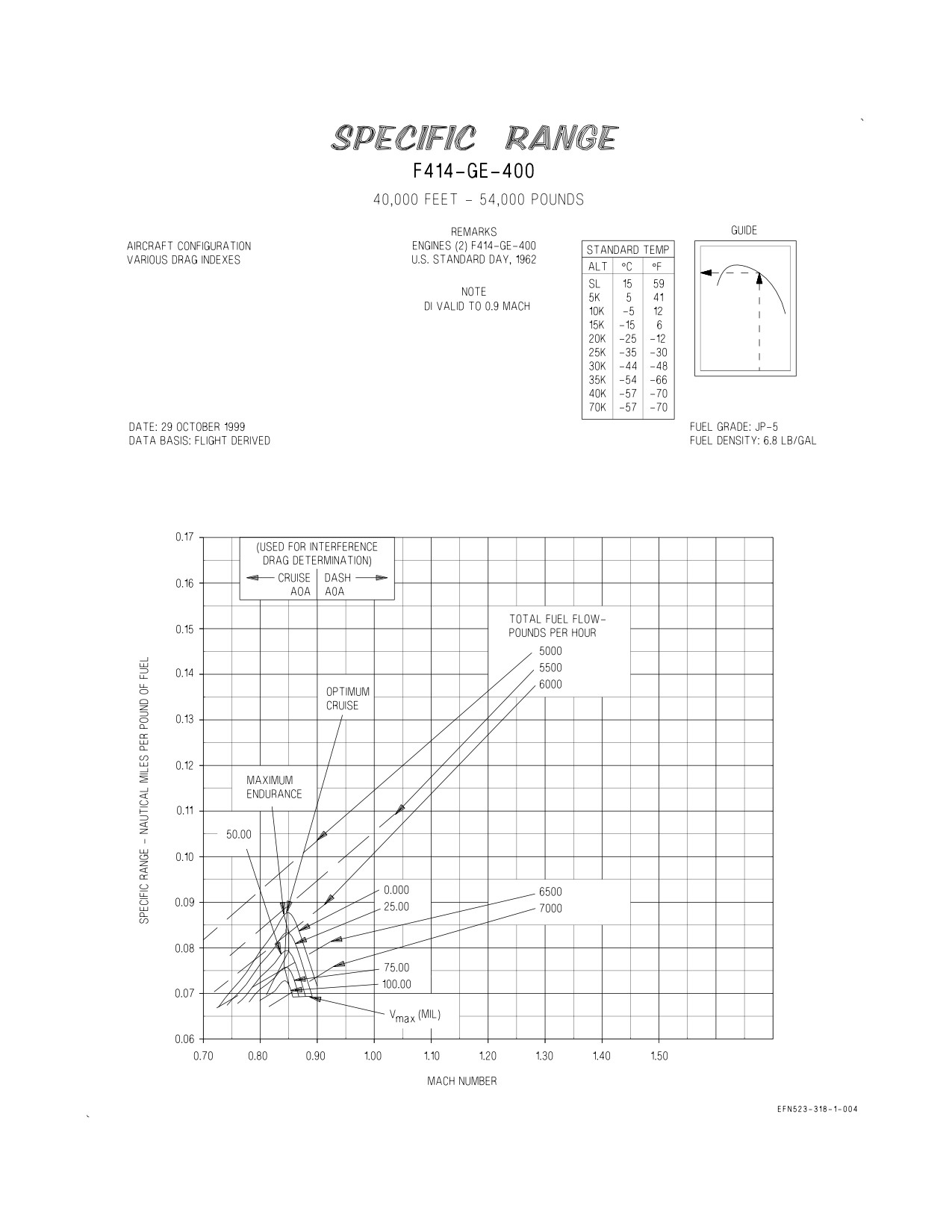

Figure 5-88. Specific Range - 40,000 Feet - 54,000 Pounds
XI-5-98
ORIGINAL
A1-F18EA-NFM-200

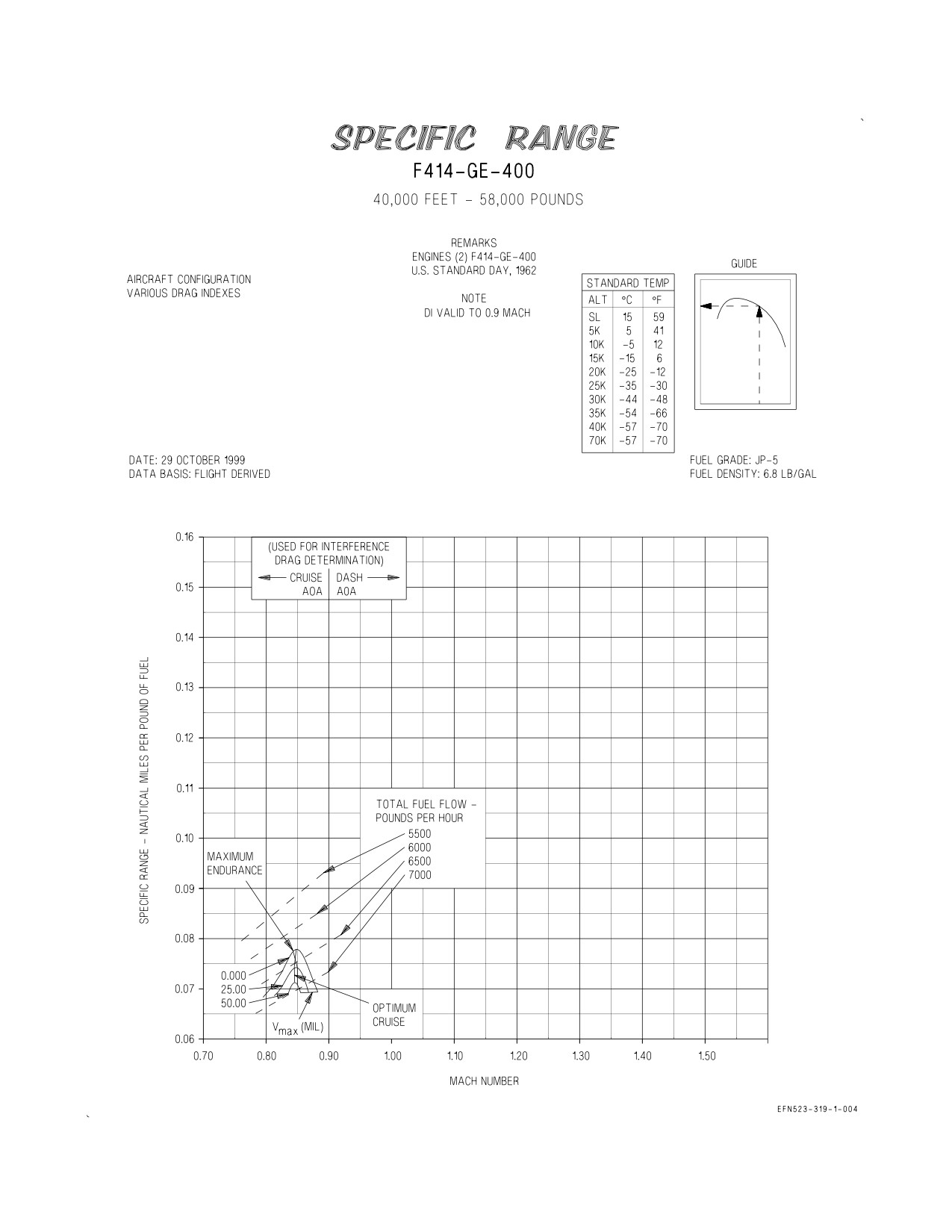

Figure 5-89. Specific Range - 40,000 Feet - 58,000 Pounds
XI-5-99
ORIGINAL
A1-F18EA-NFM-200

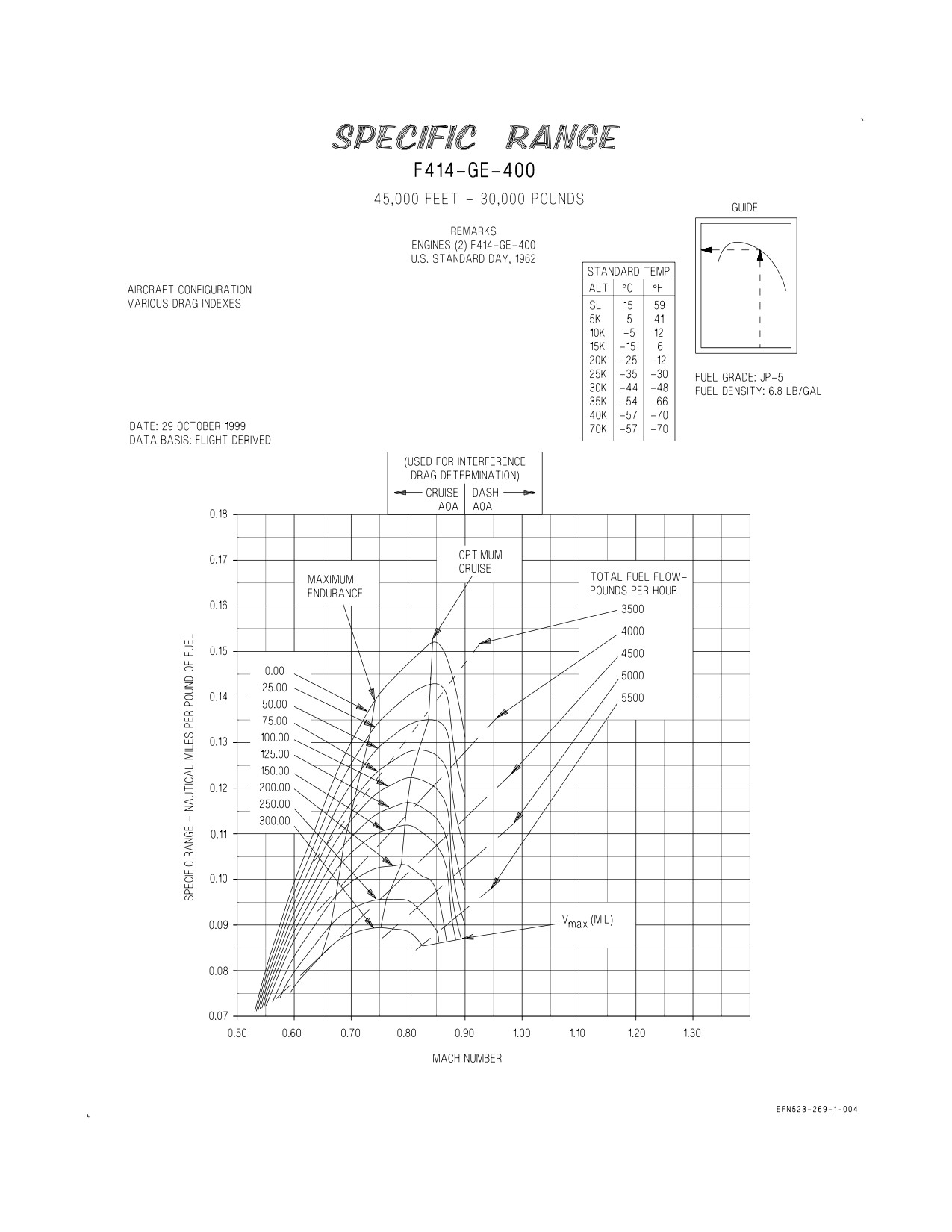

Figure 5-90. Specific Range - 45,000 Feet - 30,000 Pounds
XI-5-100
ORIGINAL
A1-F18EA-NFM-200

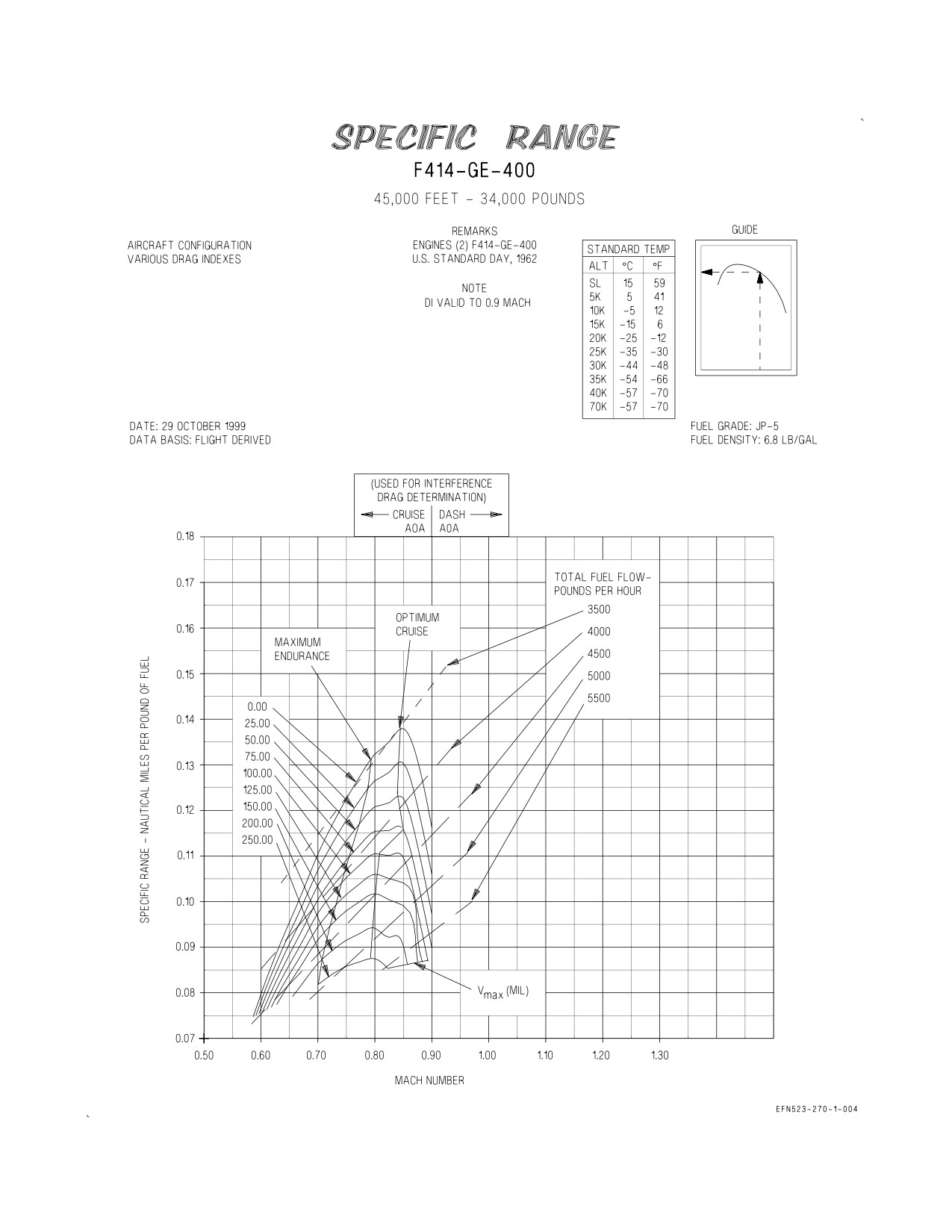

Figure 5-91. Specific Range - 45,000 Feet - 34,000 Pounds
XI-5-101
ORIGINAL
A1-F18EA-NFM-200

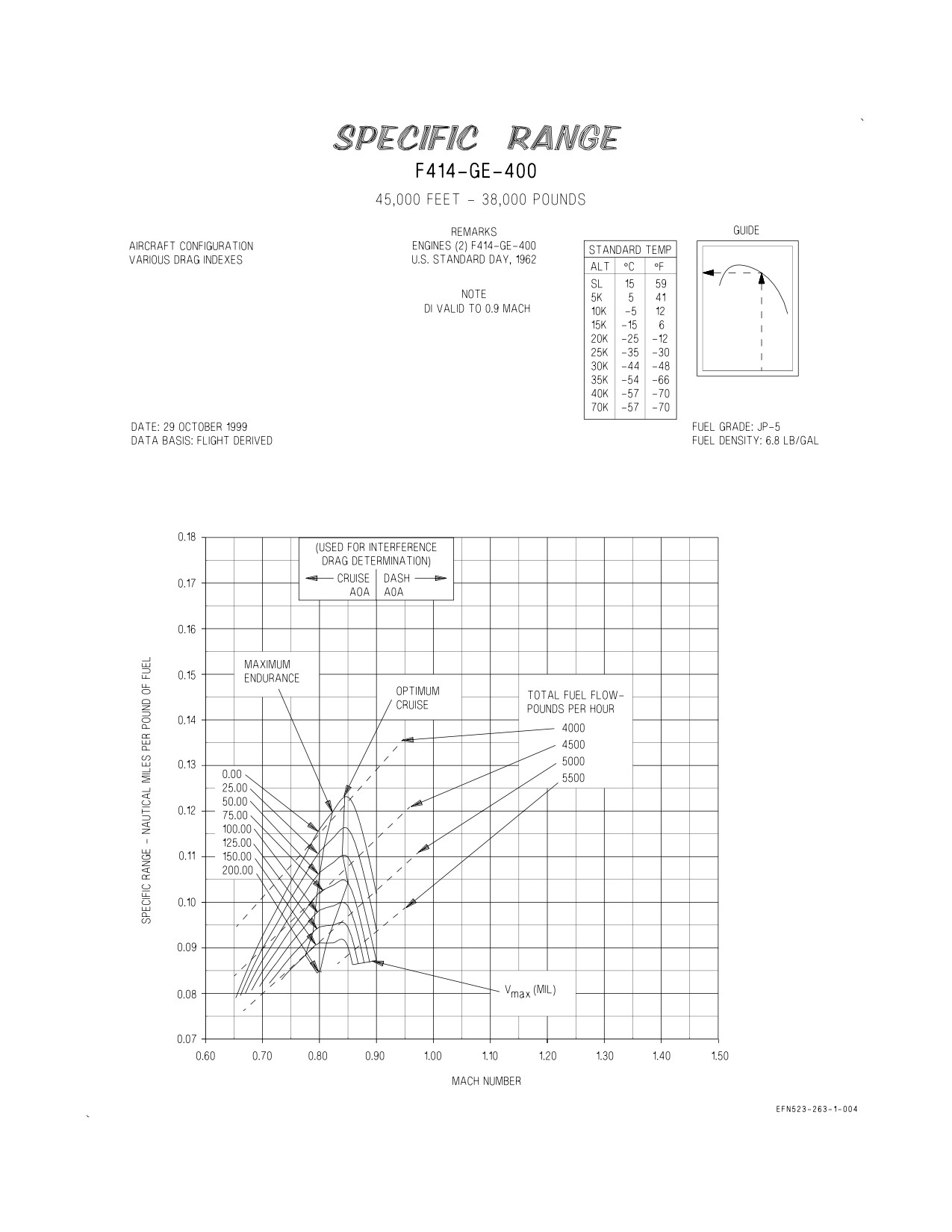

Figure 5-92. Specific Range - 45,000 Feet - 38,000 Pounds
XI-5-102
ORIGINAL
A1-F18EA-NFM-200

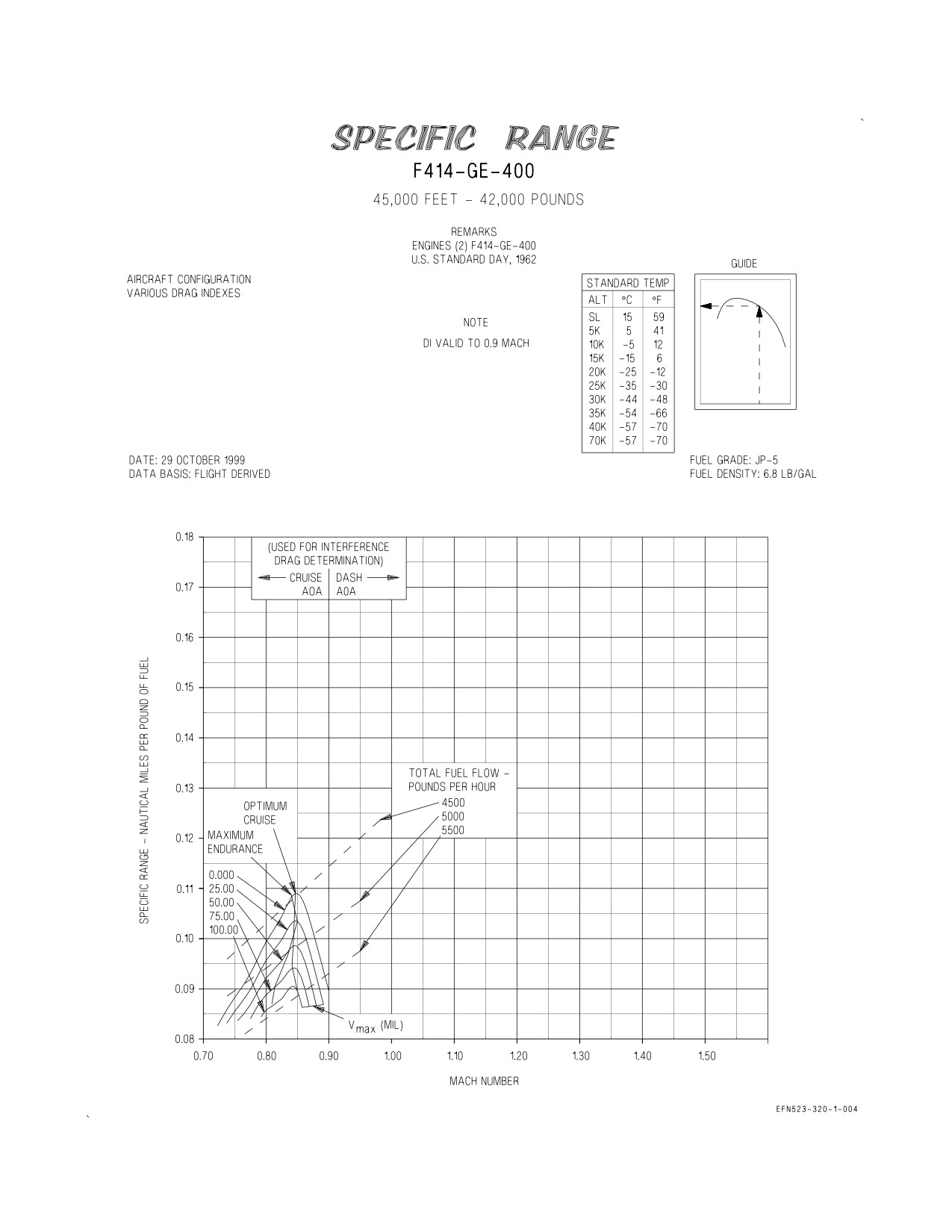

Figure 5-93. Specific Range - 45,000 Feet - 42,000 Pounds
XI-5-103
ORIGINAL
A1-F18EA-NFM-200

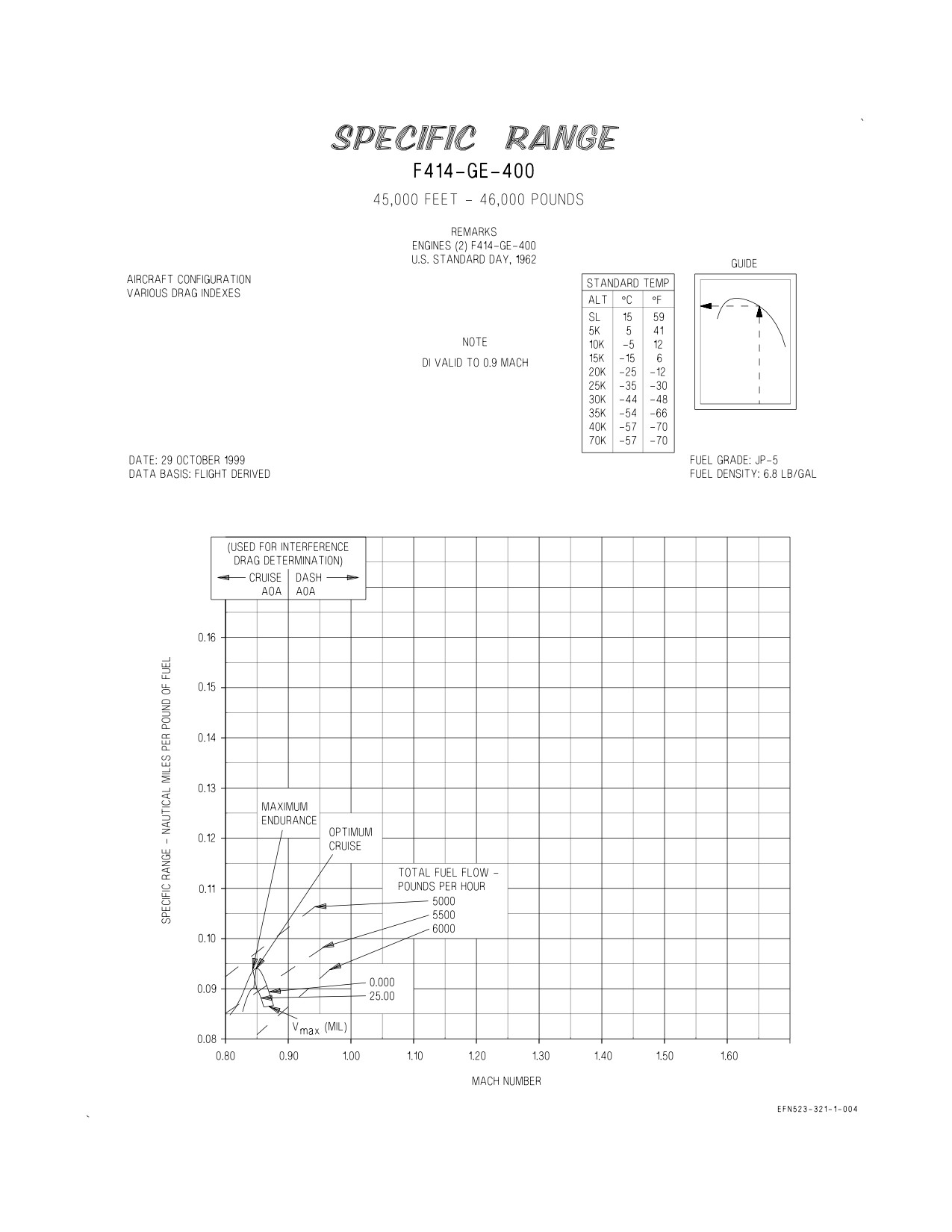

Figure 5-94. Specific Range - 45,000 Feet - 46,000 Pounds
XI-5-104
ORIGINAL
A1-F18EA-NFM-200

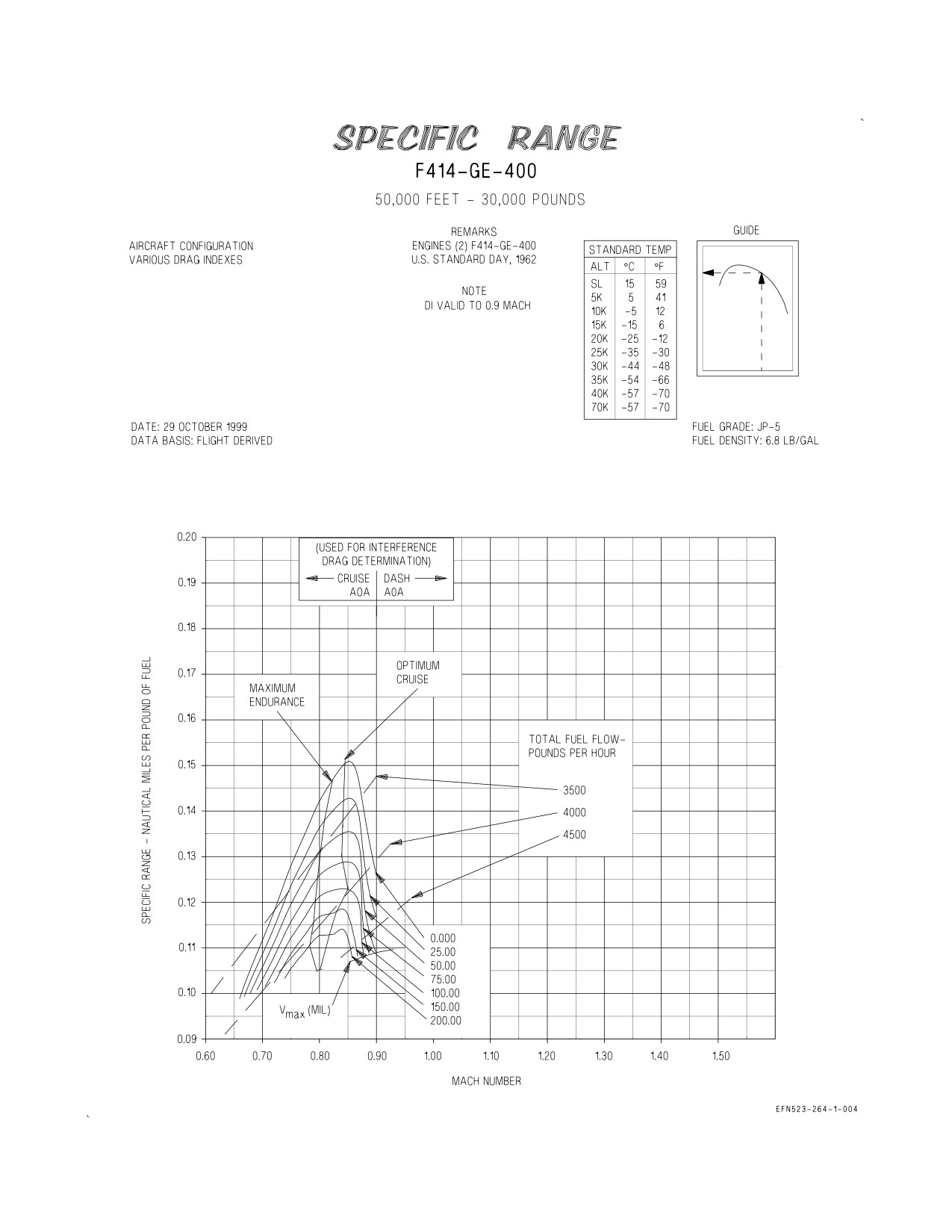

Figure 5-95. Specific Range - 50,000 Feet - 30,000 Pounds
XI-5-105
ORIGINAL
A1-F18EA-NFM-200

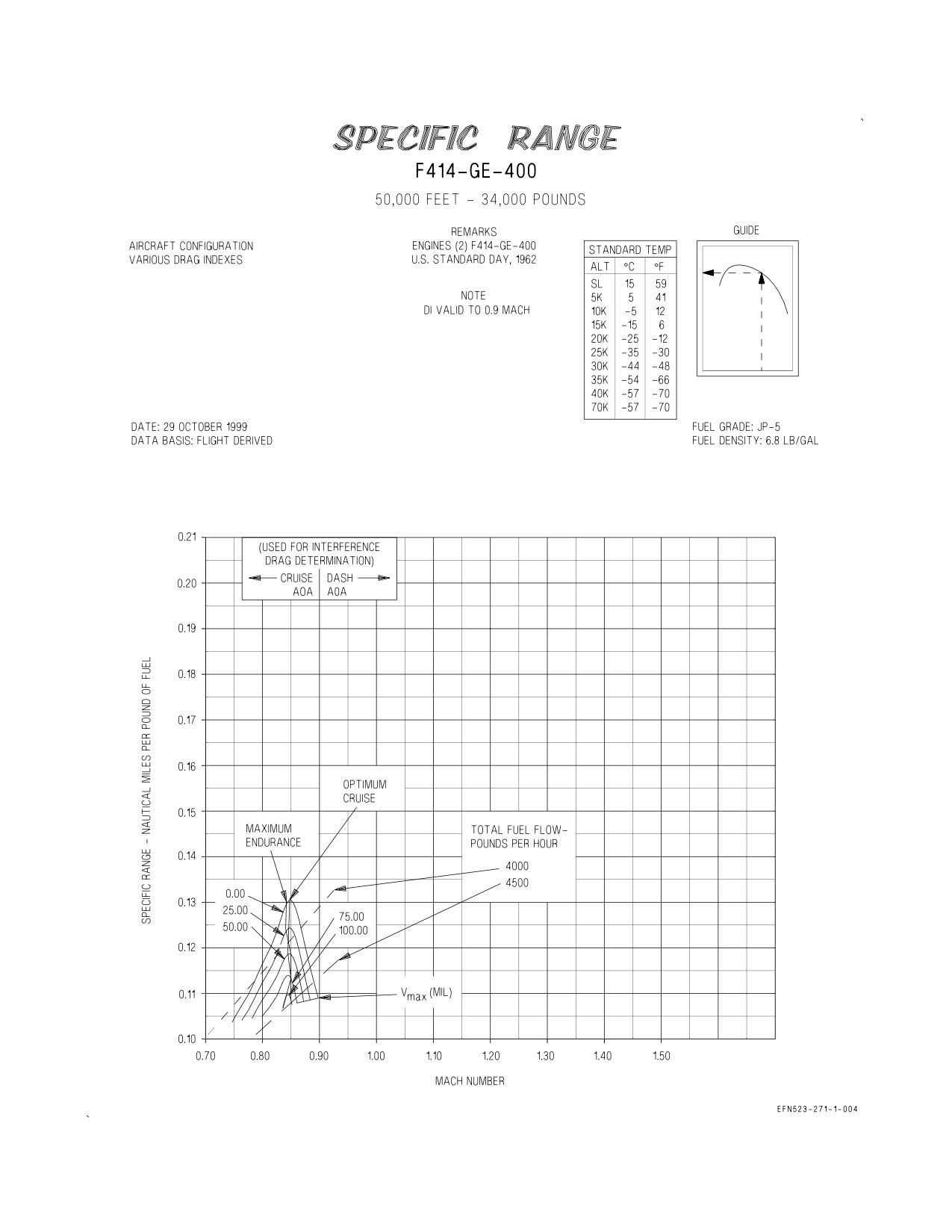

Figure 5-96. Specific Range - 50,000 Feet - 34,000 Pounds
XI-5-106
ORIGINAL
A1-F18EA-NFM-200

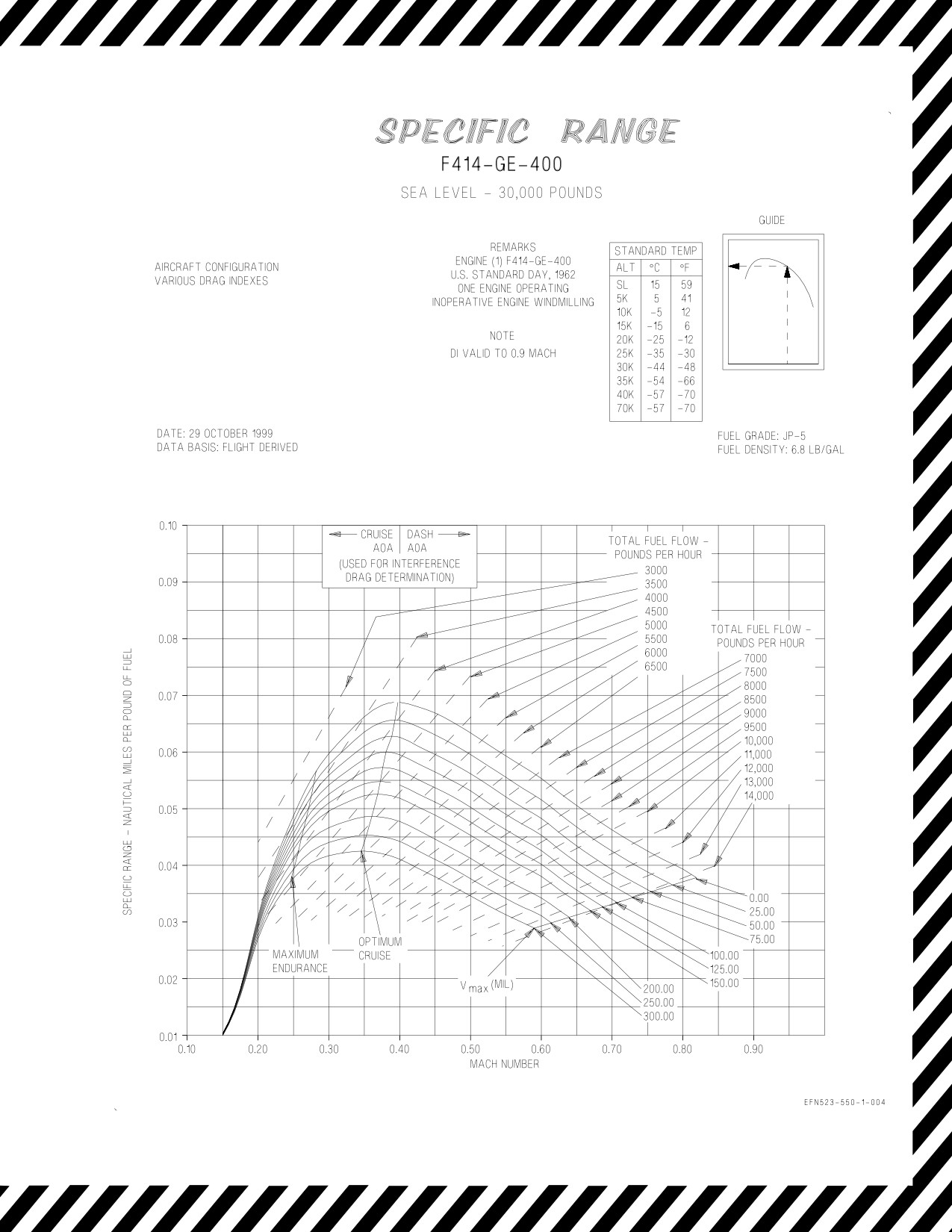

Figure 5-97. Single Engine Specific Range - Sea Level - 30,000 Pounds
XI-5-107
ORIGINAL
A1-F18EA-NFM-200

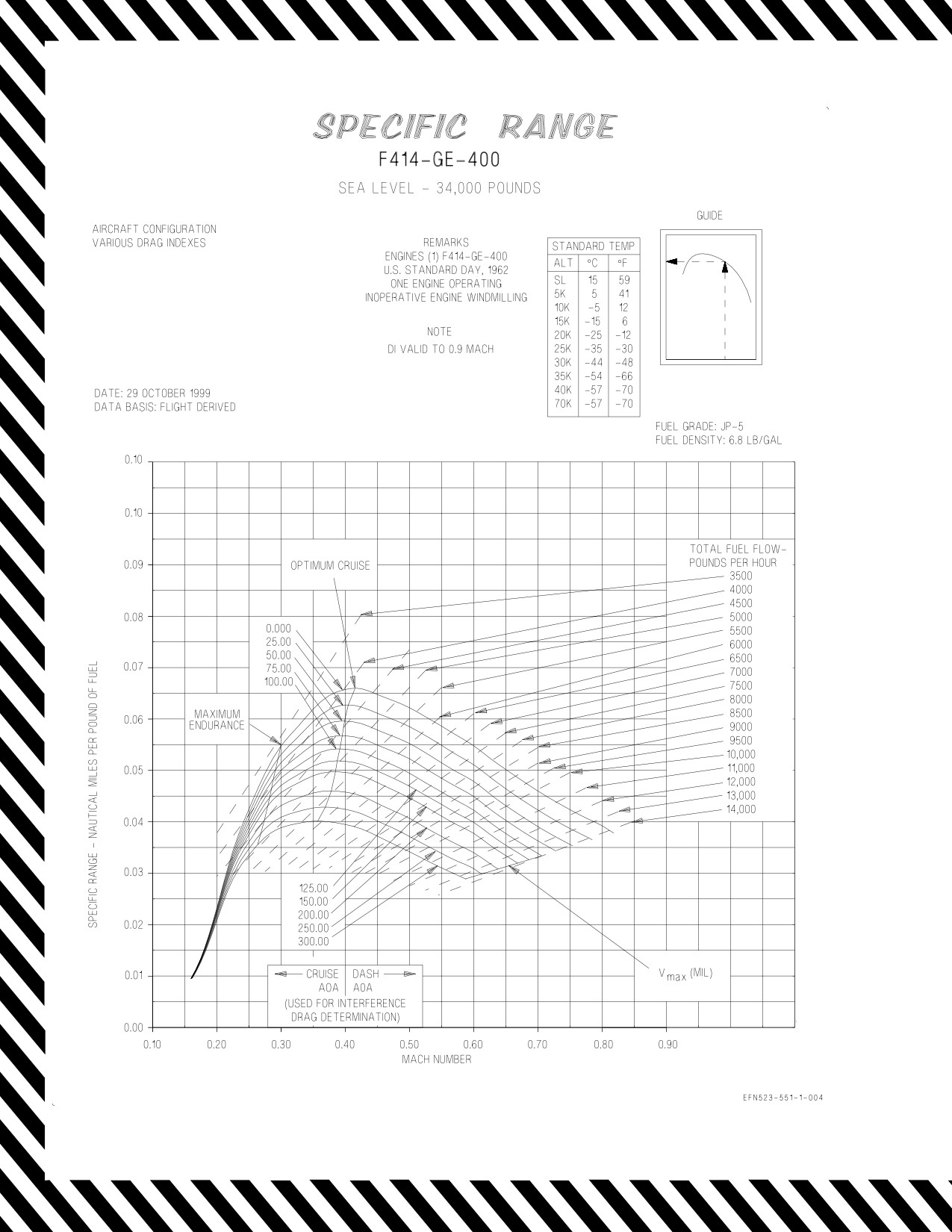

Figure 5-98. Single Engine Specific Range - Sea Level - 34,000 Pounds
XI-5-108
ORIGINAL
A1-F18EA-NFM-200

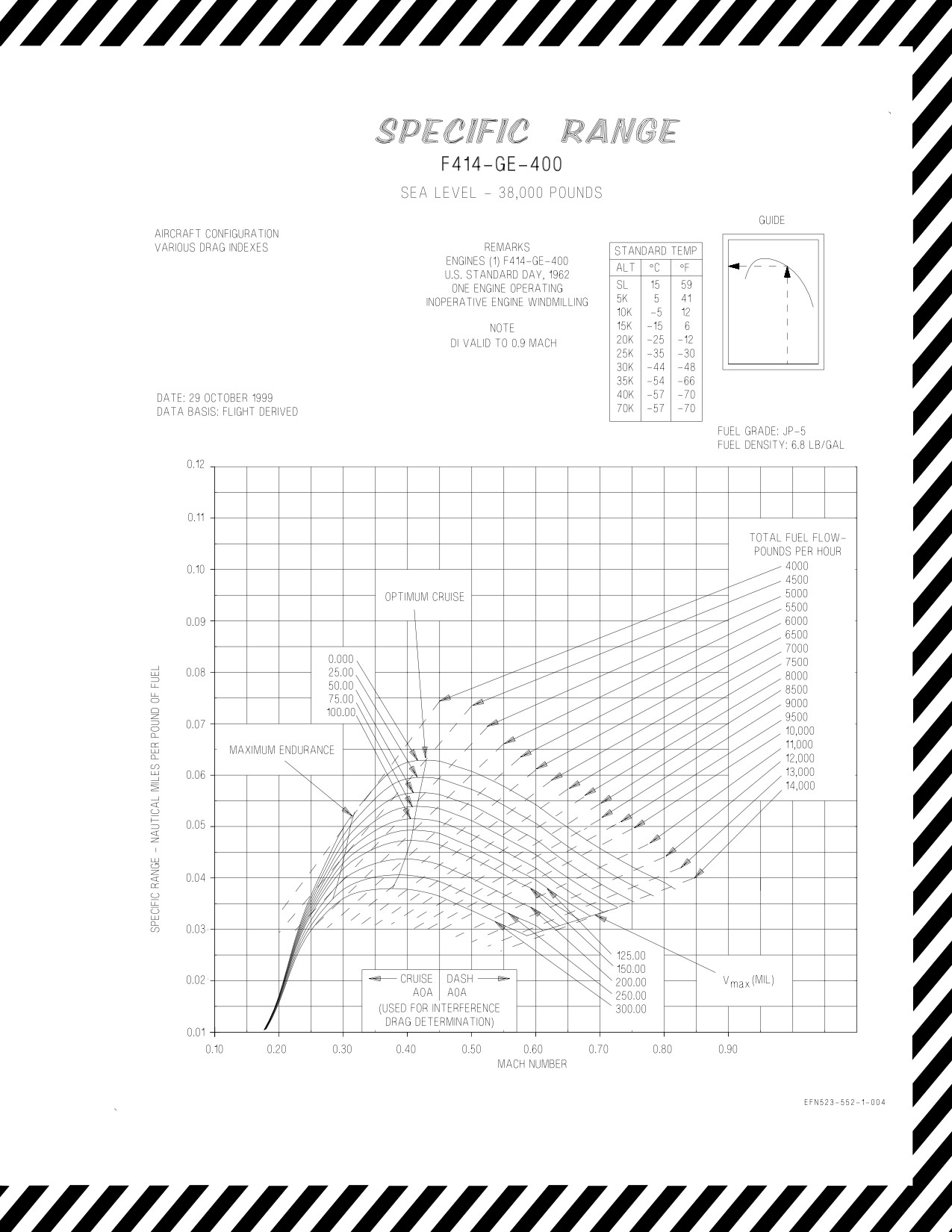

Figure 5-99. Single Engine Specific Range - Sea Level - 38,000 Pounds
XI-5-109
ORIGINAL
