F18. FLIGHT MANUAL (2008) - page 36
A1-F18EA-NFM-200

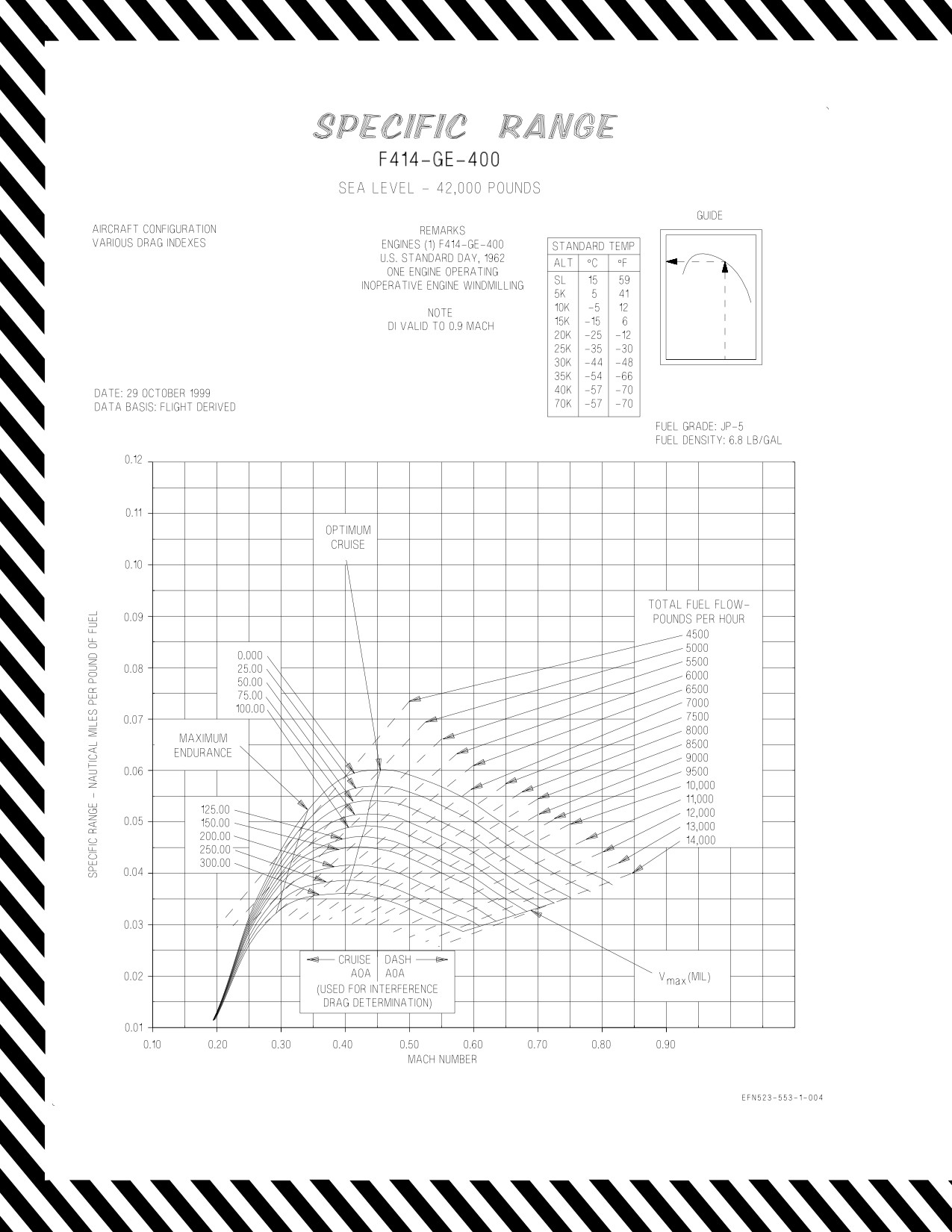

Figure 5-100. Single Engine Specific Range - Sea Level - 42,000 Pounds
XI-5-110
ORIGINAL
A1-F18EA-NFM-200

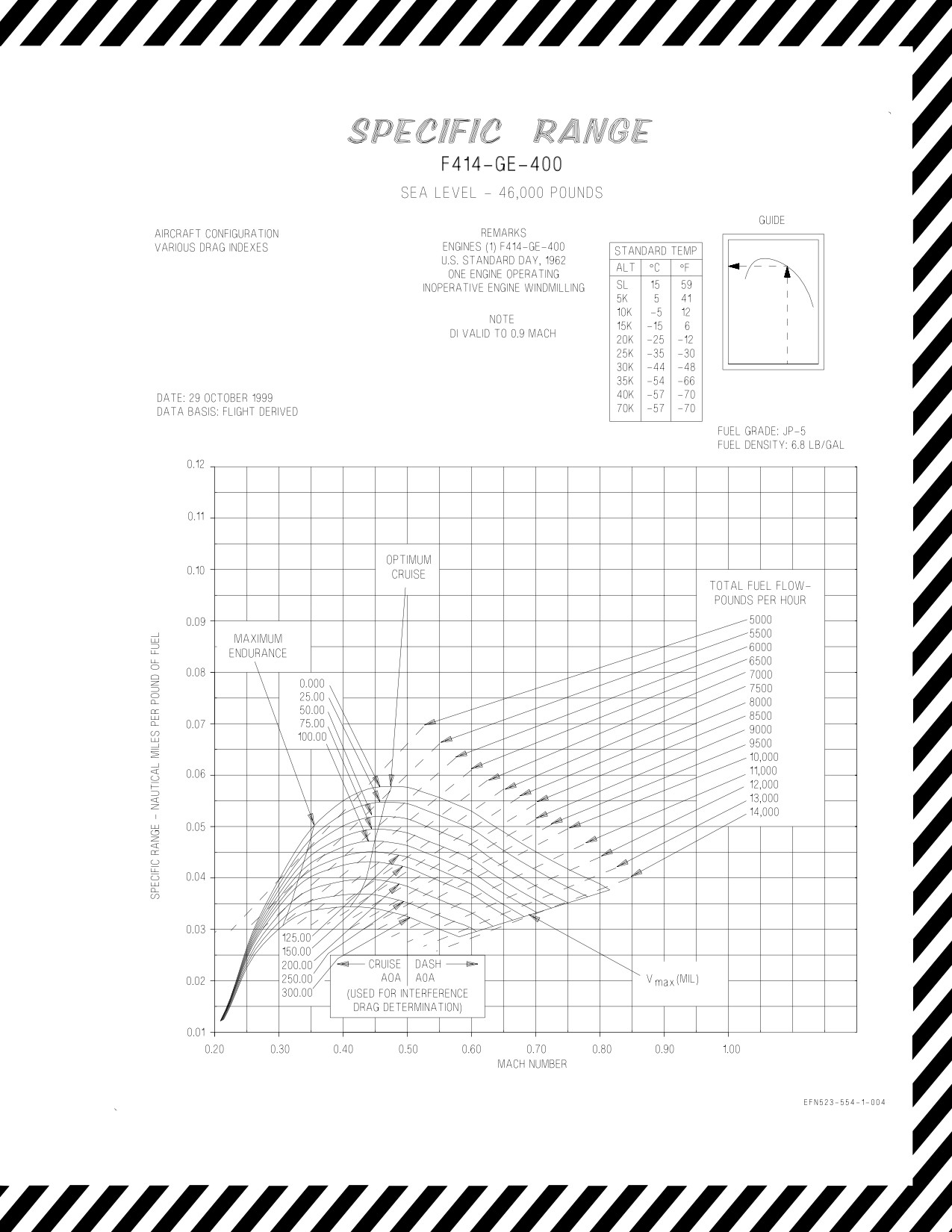

Figure 5-101. Single Engine Specific Range - Sea Level - 46,000 Pounds
XI-5-111
ORIGINAL
A1-F18EA-NFM-200

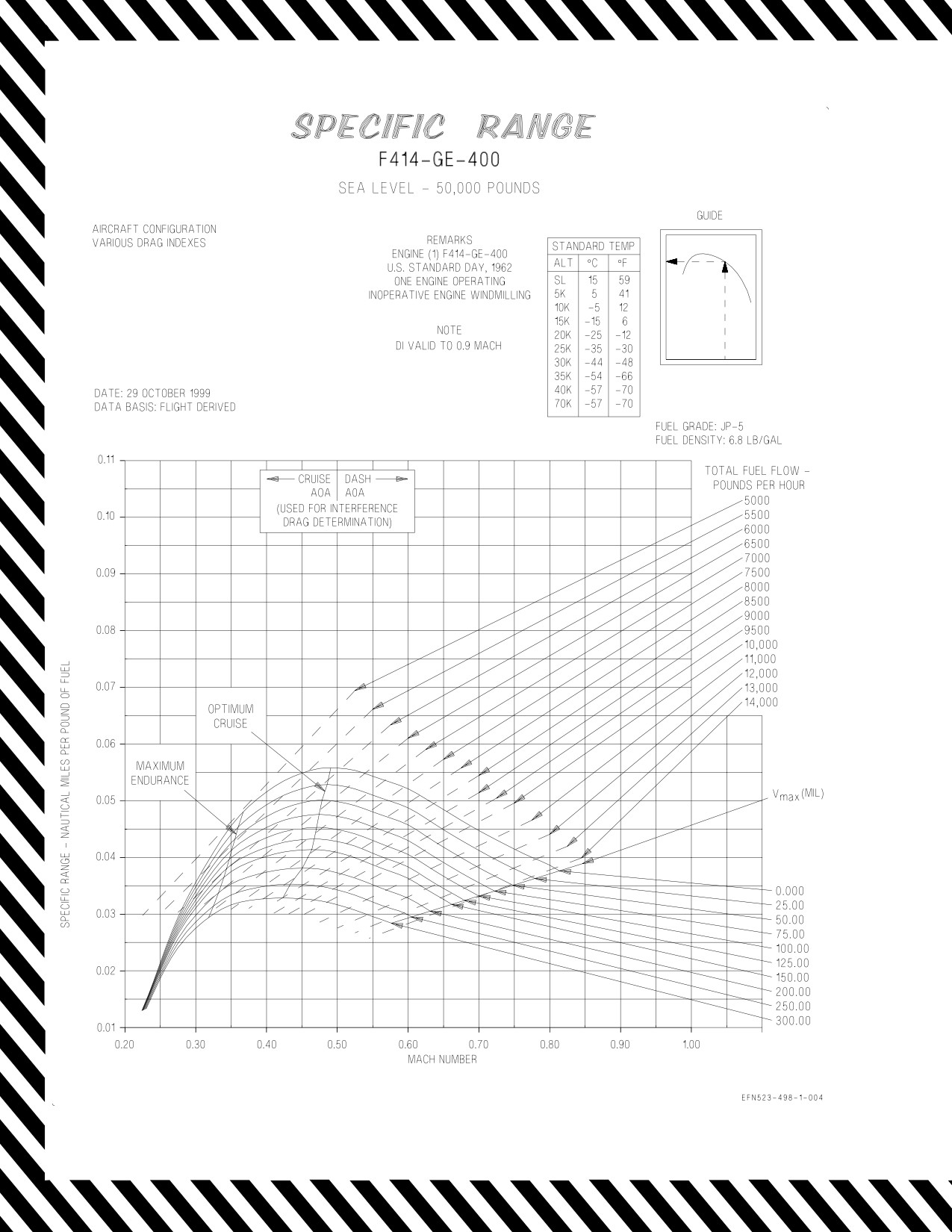

Figure 5-102. Single Engine Specific Range - Sea Level - 50,000 Pounds
XI-5-112
ORIGINAL
A1-F18EA-NFM-200

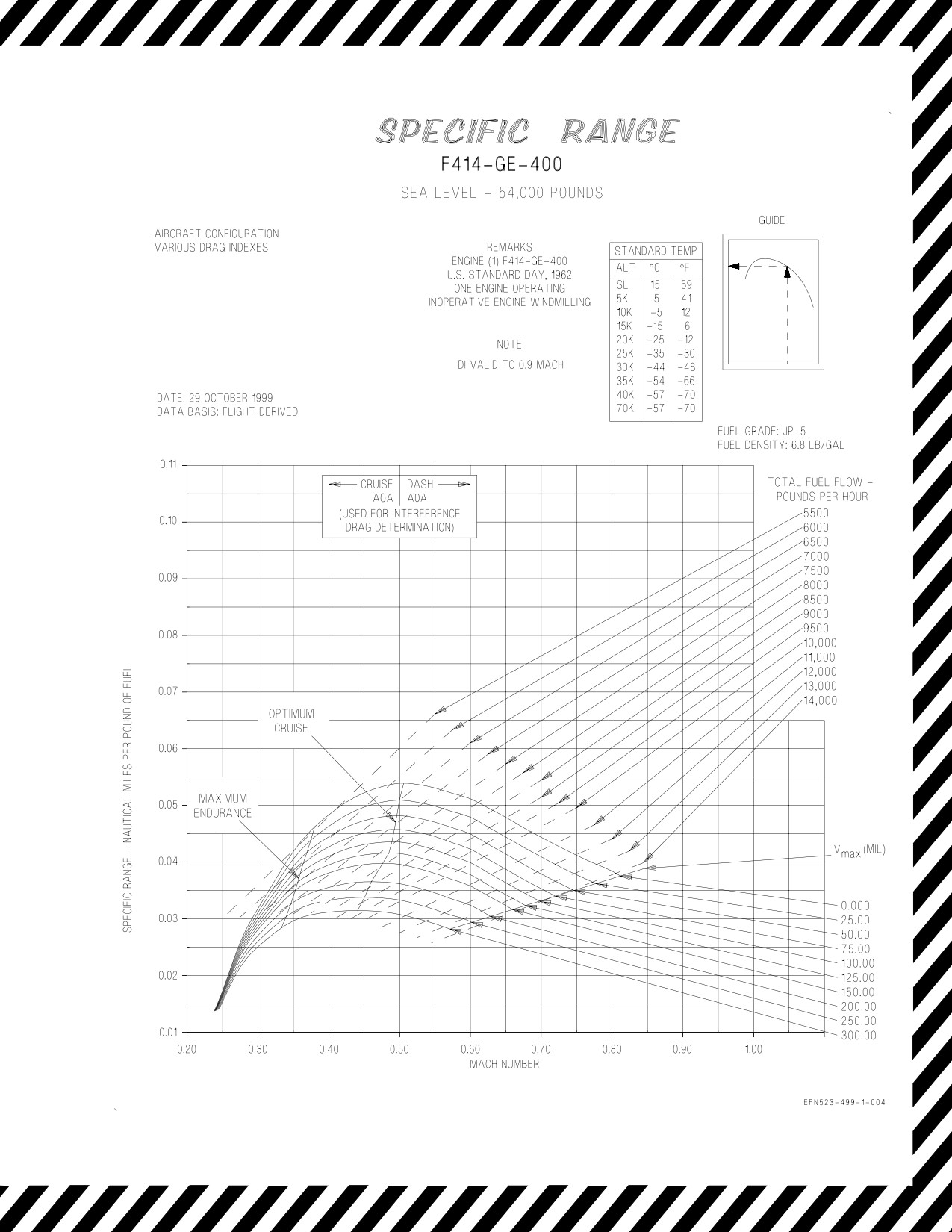

Figure 5-103. Single Engine Specific Range - Sea Level - 54,000 Pounds
XI-5-113
ORIGINAL
A1-F18EA-NFM-200

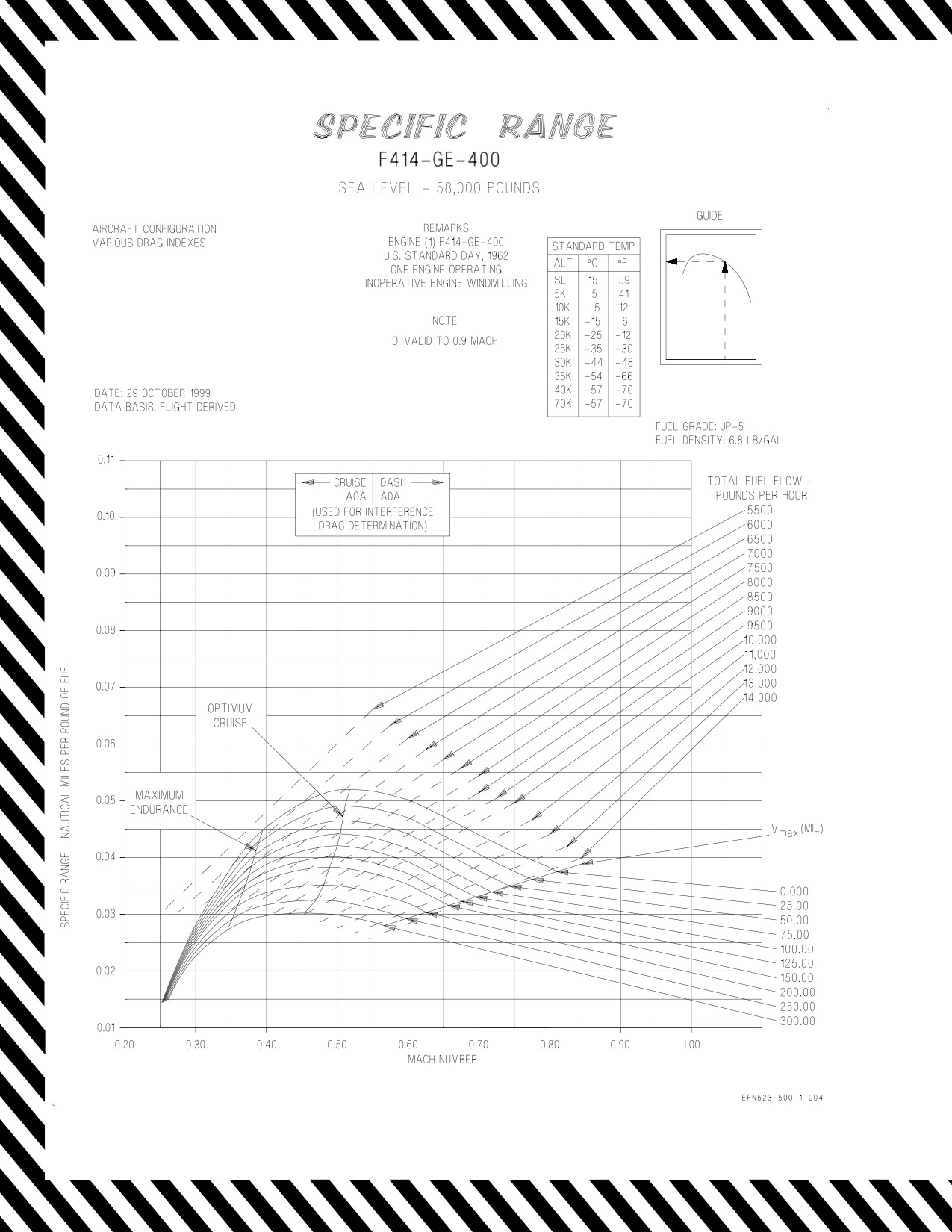

Figure 5-104. Single Engine Specific Range - Sea Level - 58,000 Pounds
XI-5-114
ORIGINAL
A1-F18EA-NFM-200

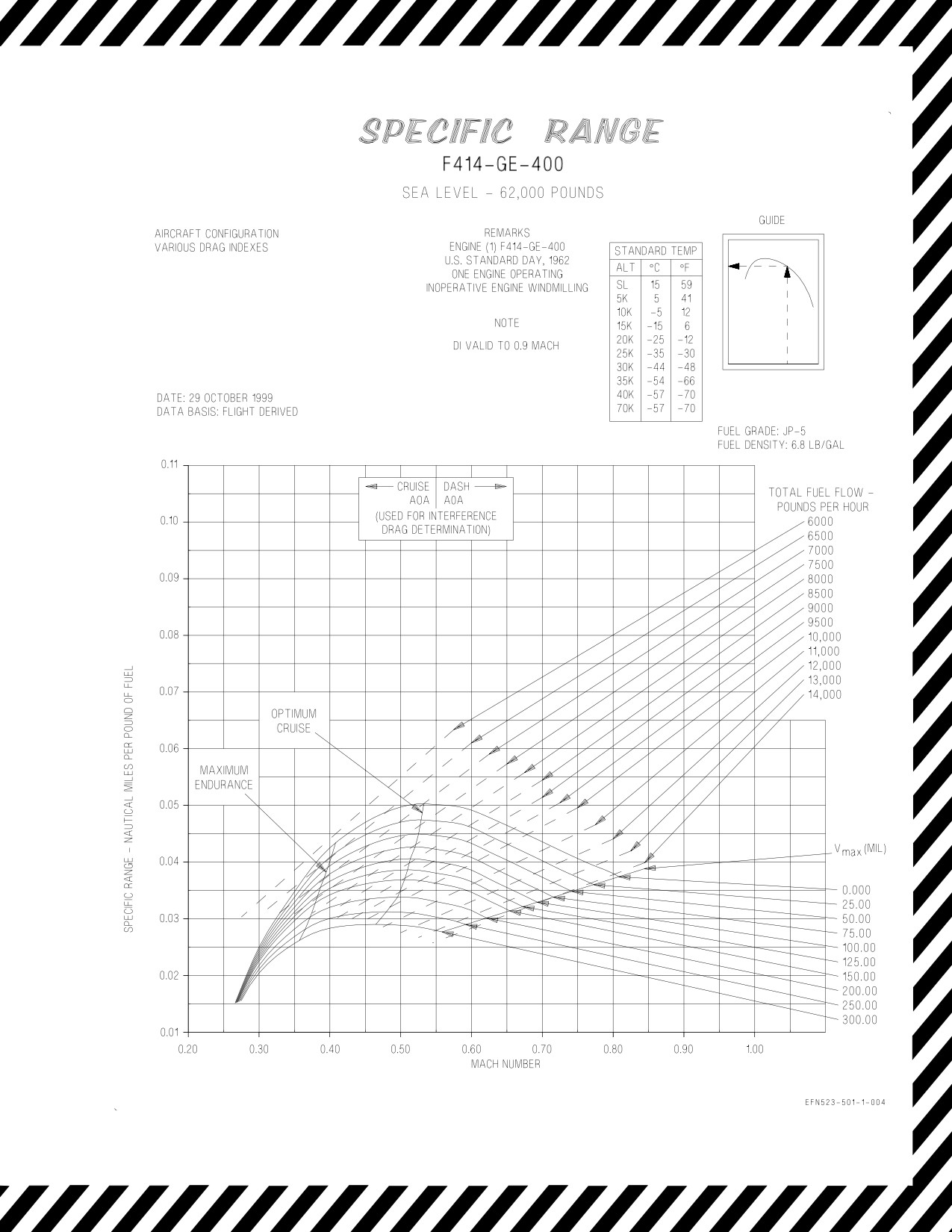

Figure 5-105. Single Engine Specific Range - Sea Level - 62,000 Pounds
XI-5-115
ORIGINAL
A1-F18EA-NFM-200
Figure 5-106. Single Engine Specific Range - Sea Level - 66,000 Pounds
XI-5-116
ORIGINAL
A1-F18EA-NFM-200

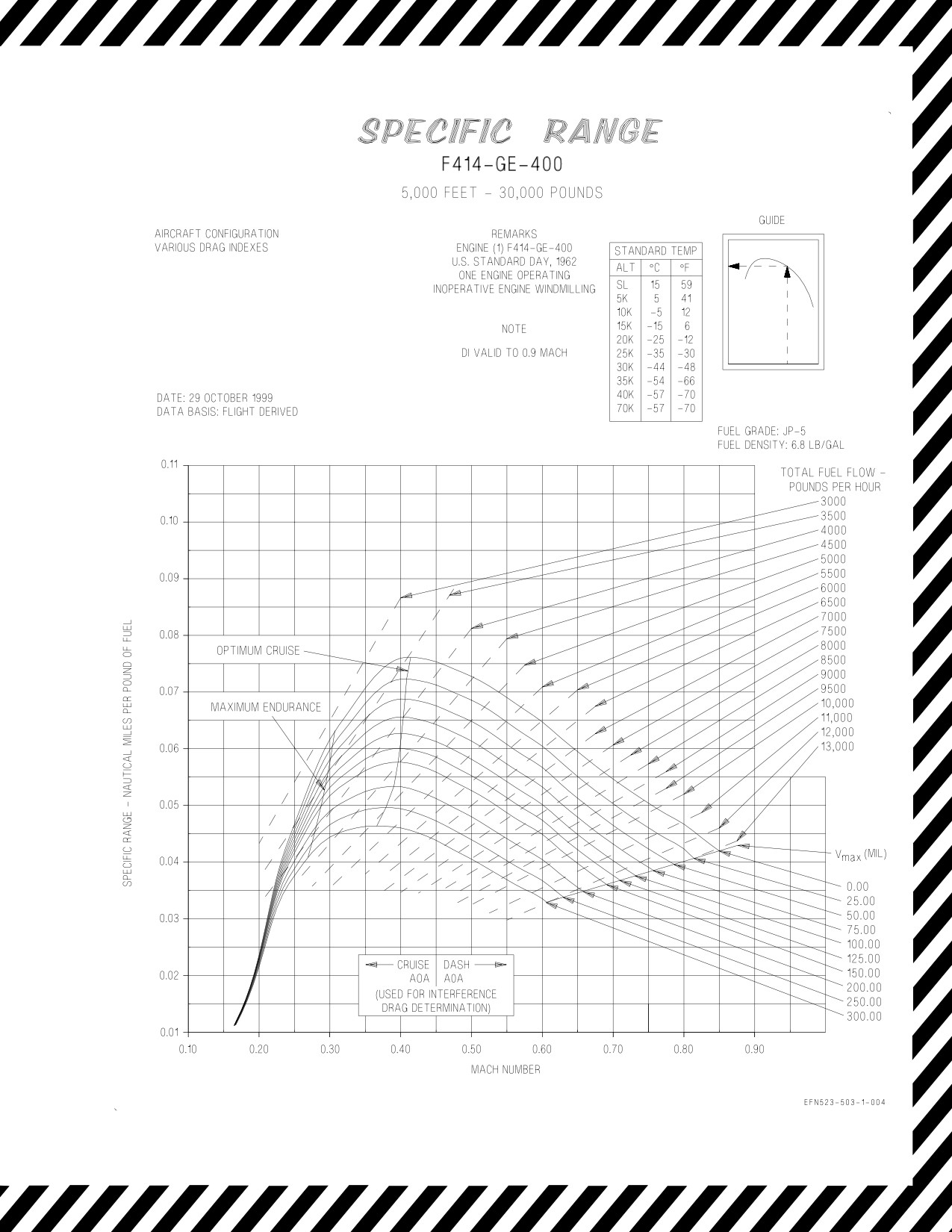

Figure 5-107. Single Engine Specific Range - 5000 Feet - 30,000 Pounds
XI-5-117
ORIGINAL
A1-F18EA-NFM-200

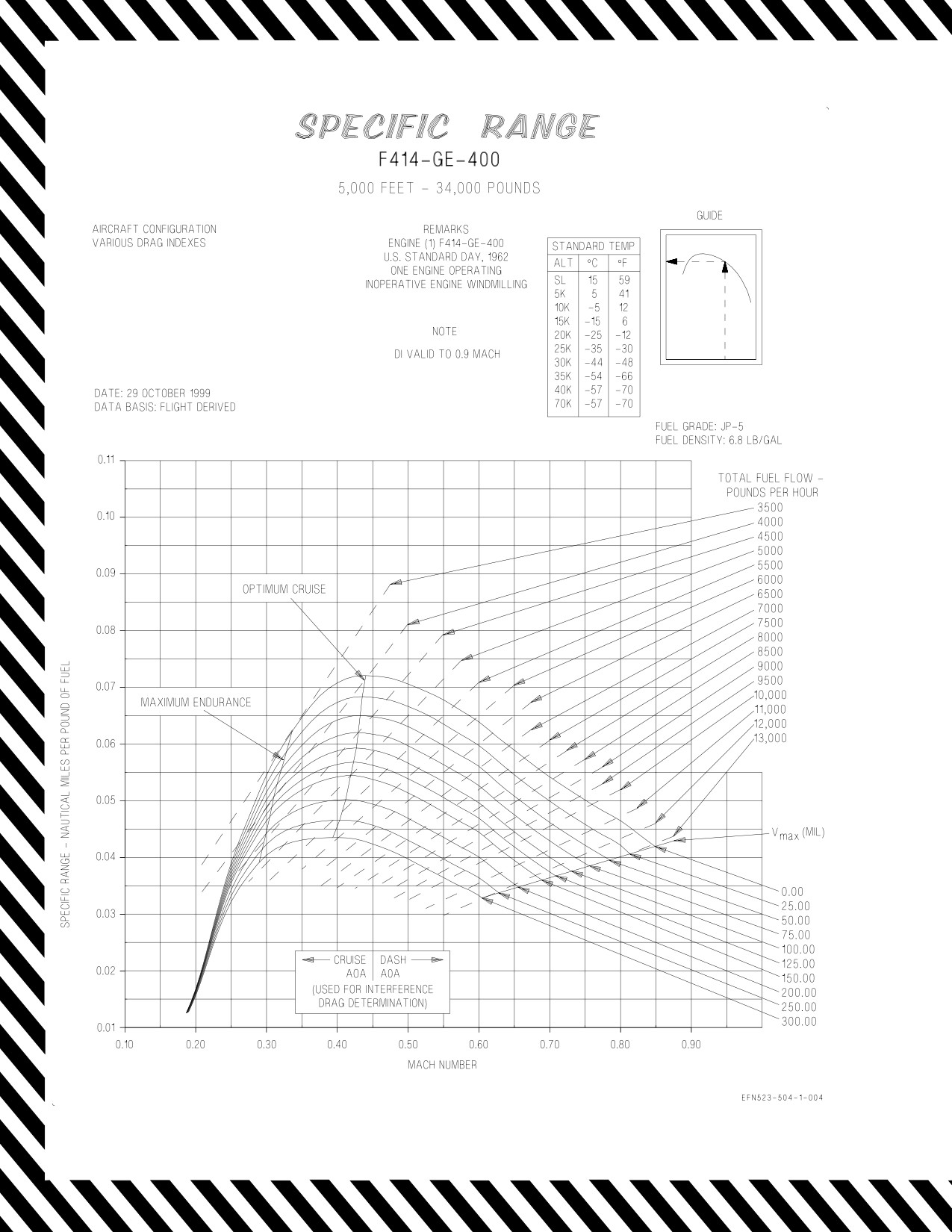

Figure 5-108. Single Engine Specific Range - 5000 Feet - 34,000 Pounds
XI-5-118
ORIGINAL
A1-F18EA-NFM-200

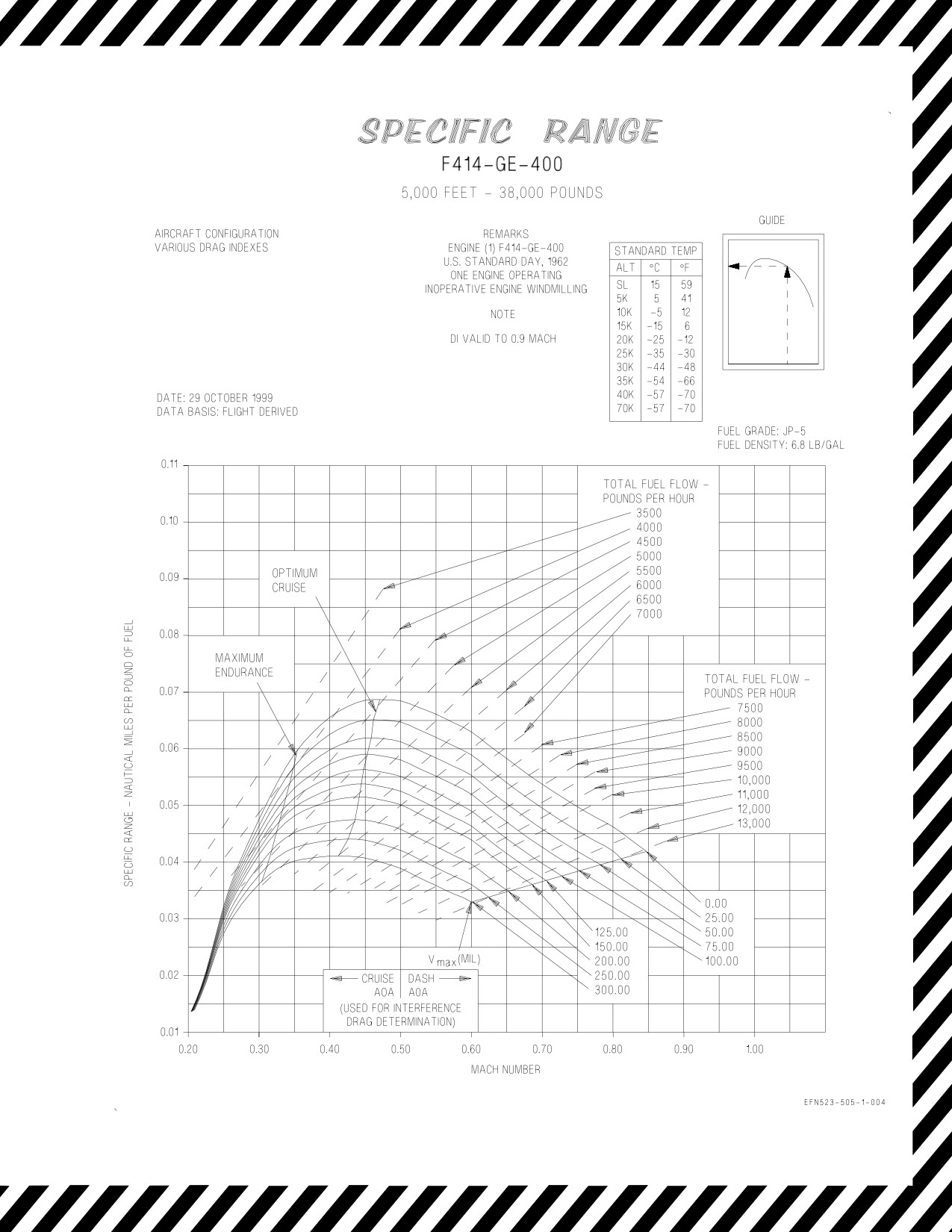

Figure 5-109. Single Engine Specific Range - 5000 Feet - 38,000 Pounds
XI-5-119
ORIGINAL
A1-F18EA-NFM-200
Figure 5-110. Single Engine Specific Range - 5000 Feet - 42,000 Pounds
XI-5-120
ORIGINAL
A1-F18EA-NFM-200

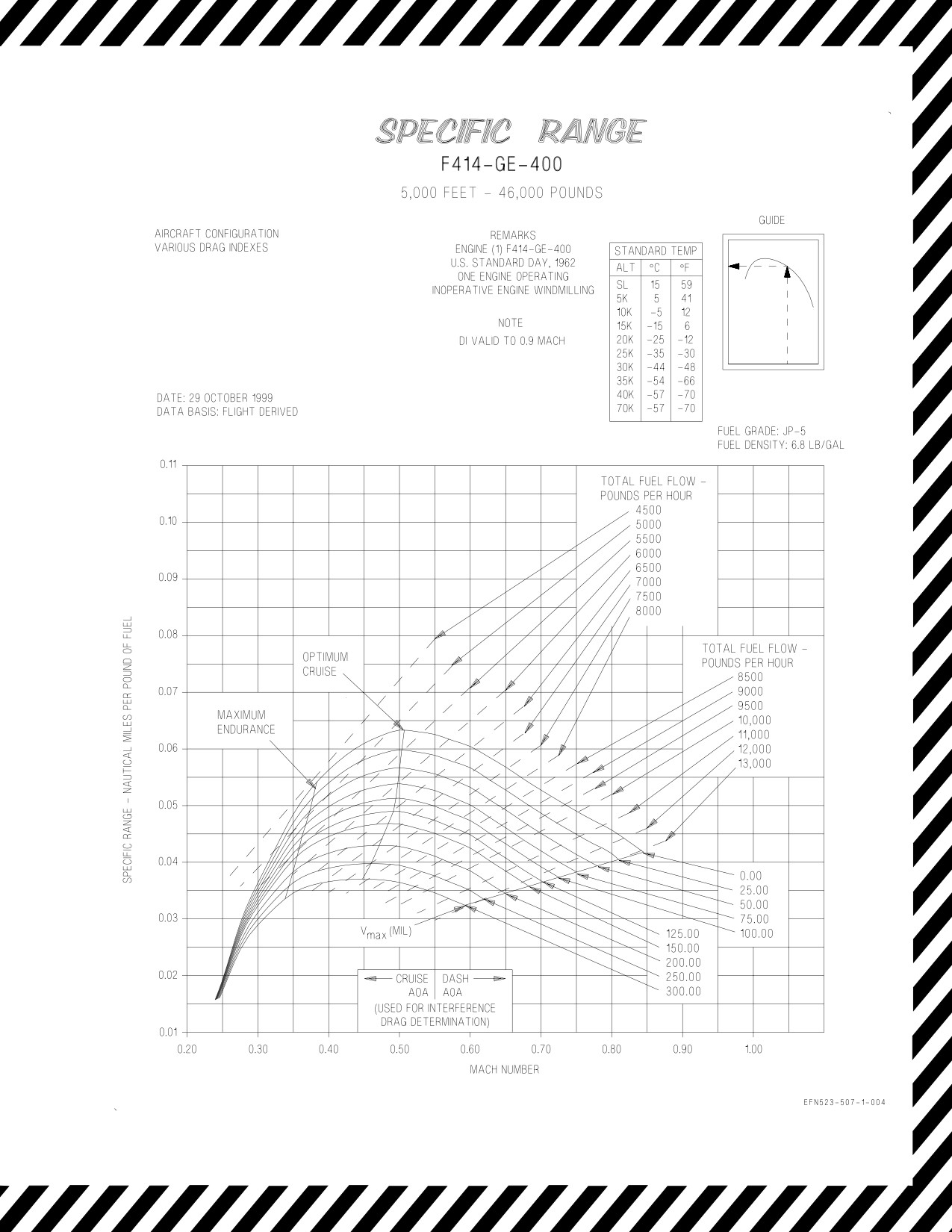

Figure 5-111. Single Engine Specific Range - 5000 Feet - 46,000 Pounds
XI-5-121
ORIGINAL
A1-F18EA-NFM-200

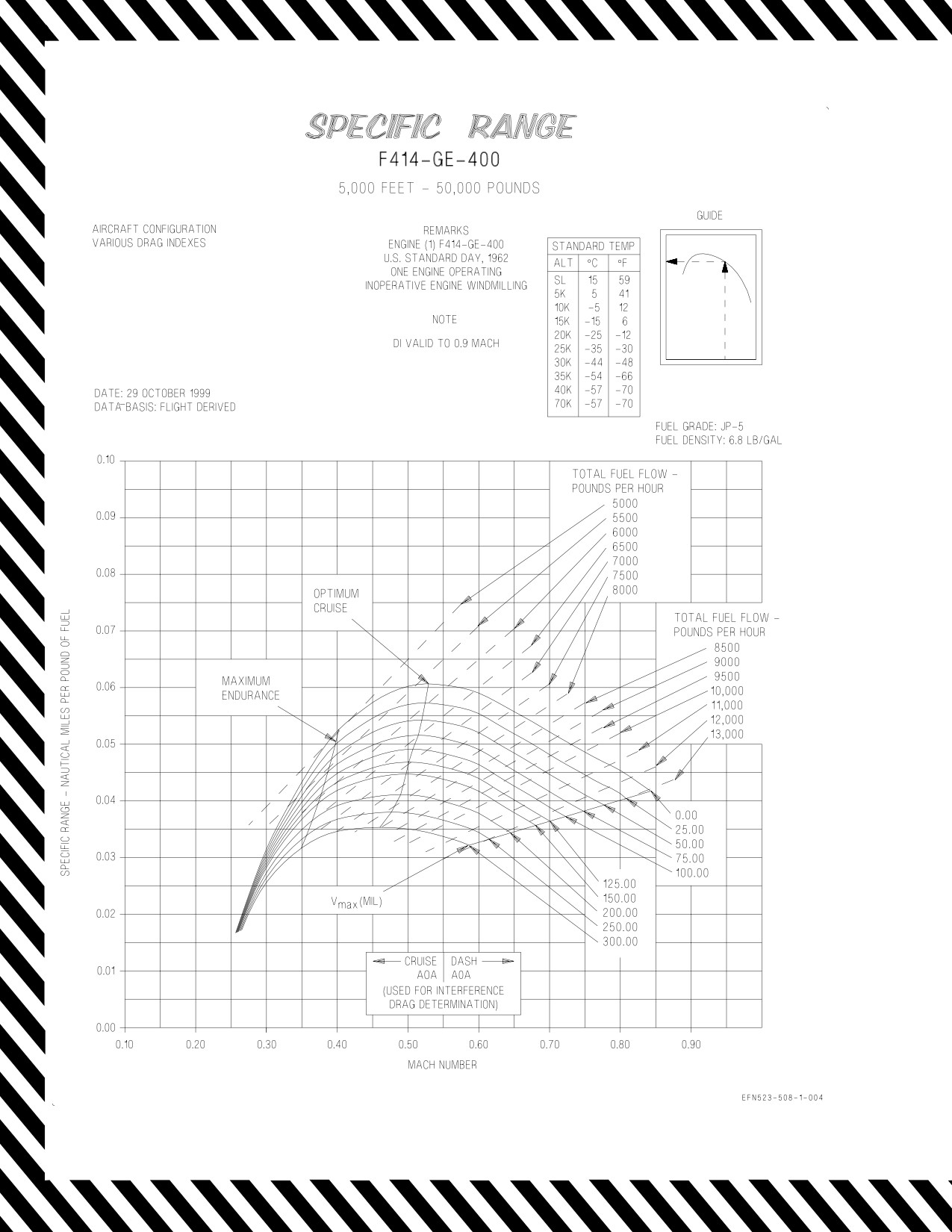

Figure 5-112. Single Engine Specific Range - 5000 Feet - 50,000 Pounds
XI-5-122
ORIGINAL
A1-F18EA-NFM-200

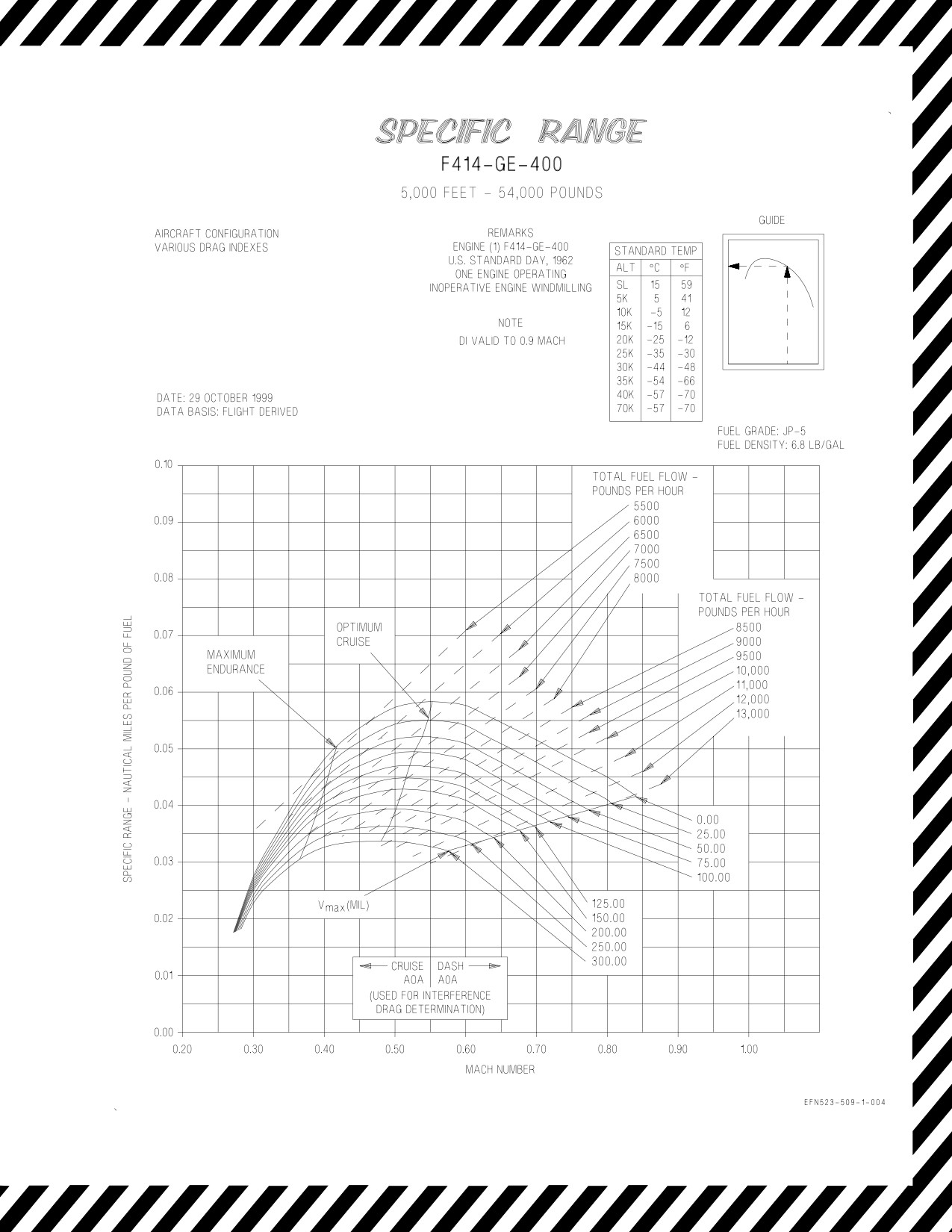

Figure 5-113. Single Engine Specific Range - 5000 Feet - 54,000 Pounds
XI-5-123
ORIGINAL
A1-F18EA-NFM-200

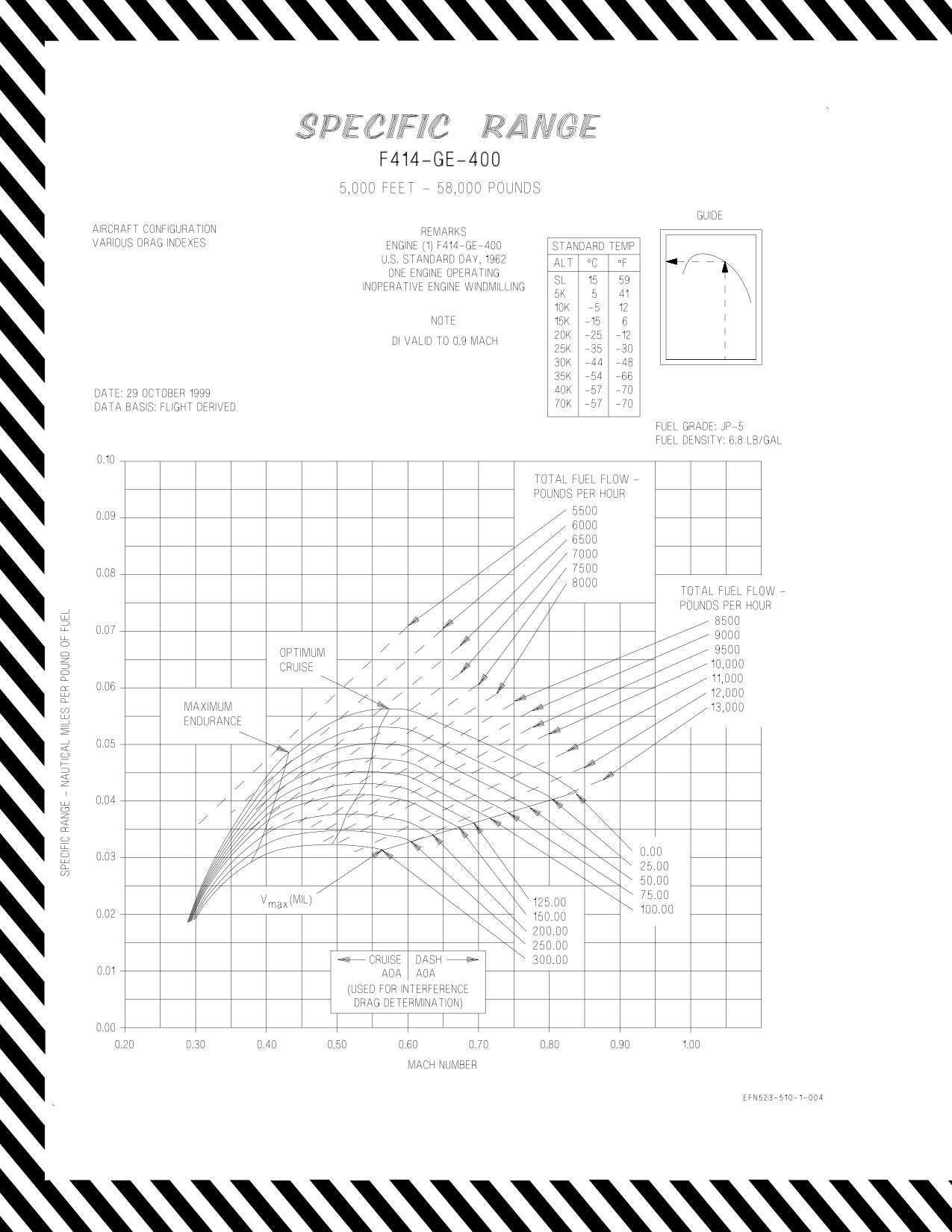

Figure 5-114. Single Engine Specific Range - 5000 Feet - 58,000 Pounds
XI-5-124
ORIGINAL
A1-F18EA-NFM-200

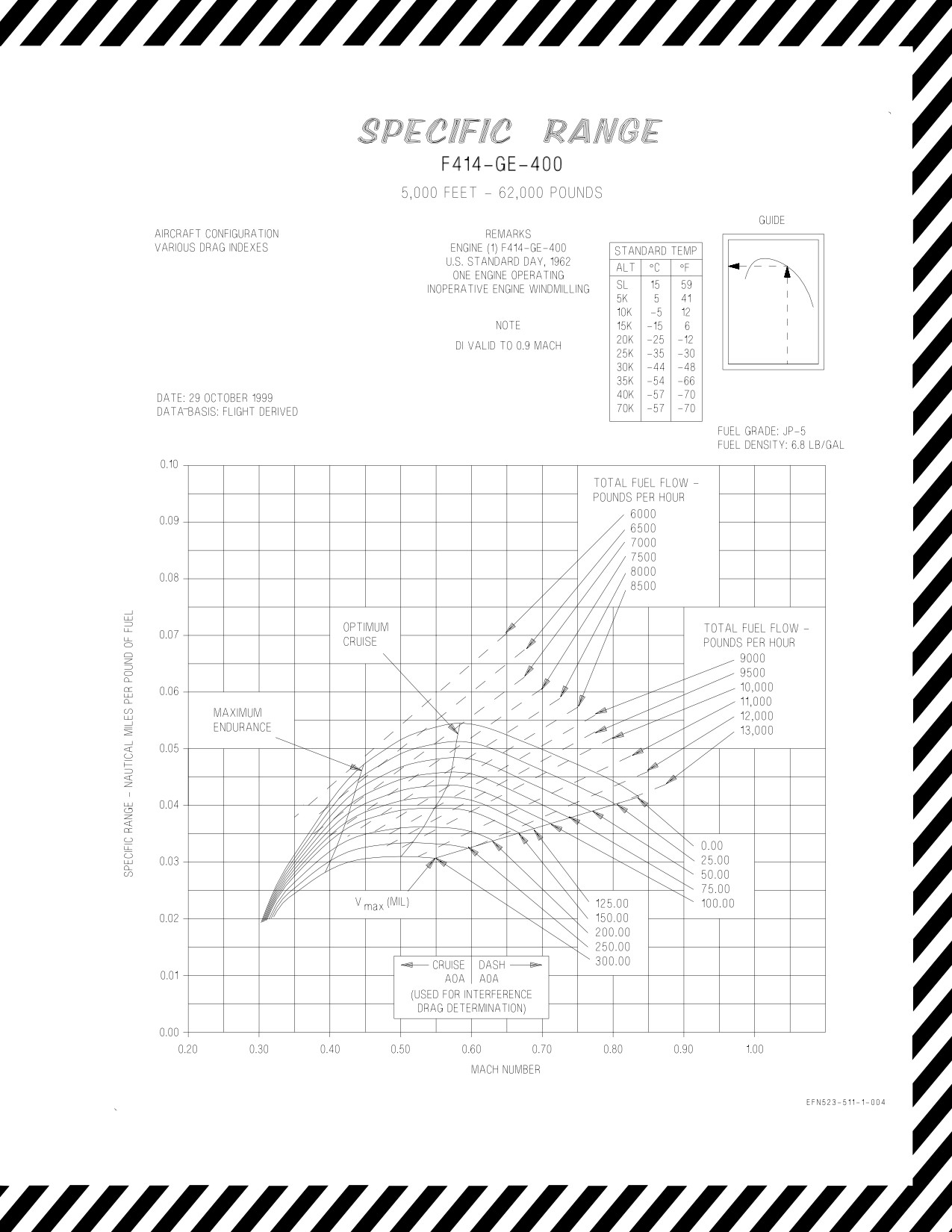

Figure 5-115. Single Engine Specific Range - 5000 Feet - 62,000 Pounds
XI-5-125
ORIGINAL
A1-F18EA-NFM-200

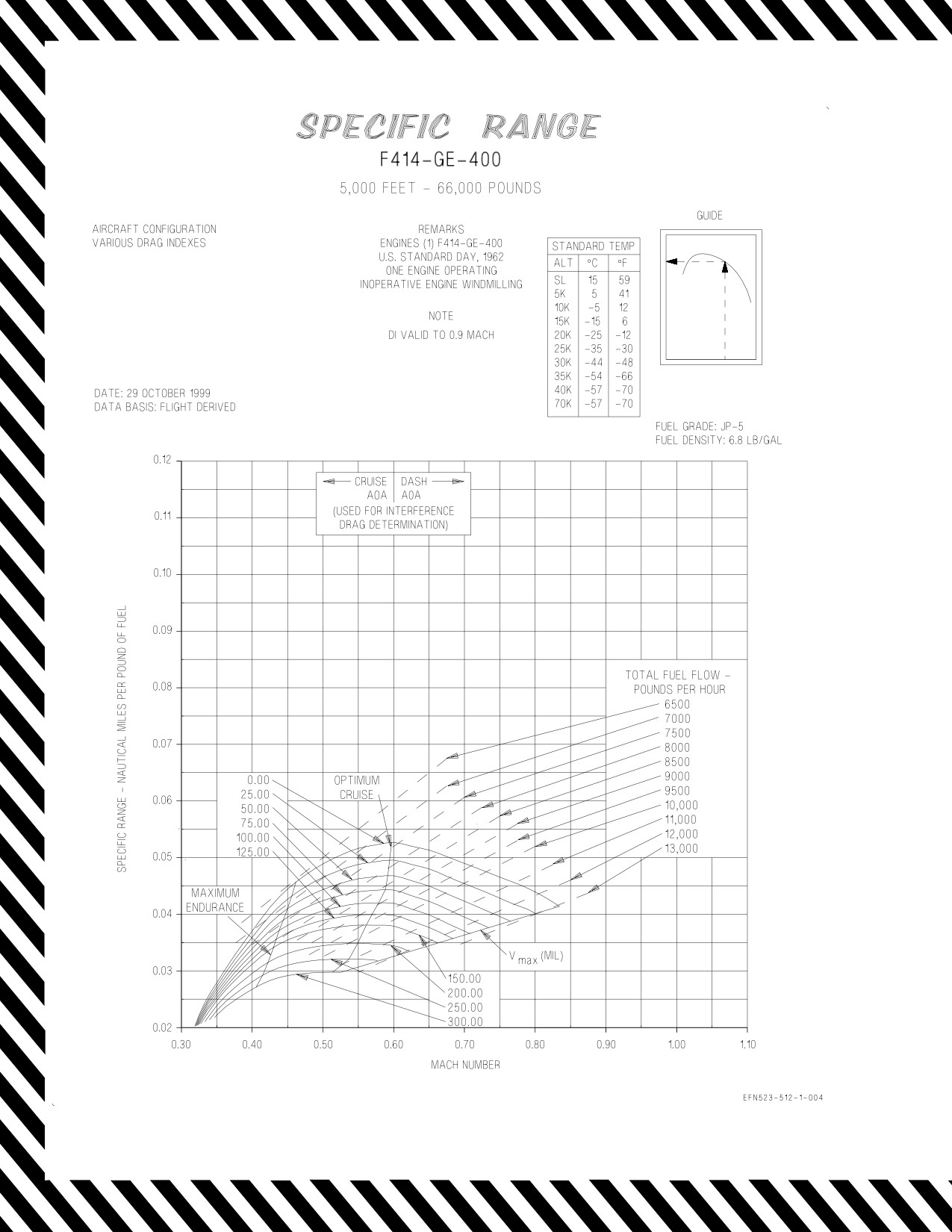

Figure 5-116. Single Engine Specific Range - 5000 Feet - 66,000 Pounds
XI-5-126
ORIGINAL
A1-F18EA-NFM-200

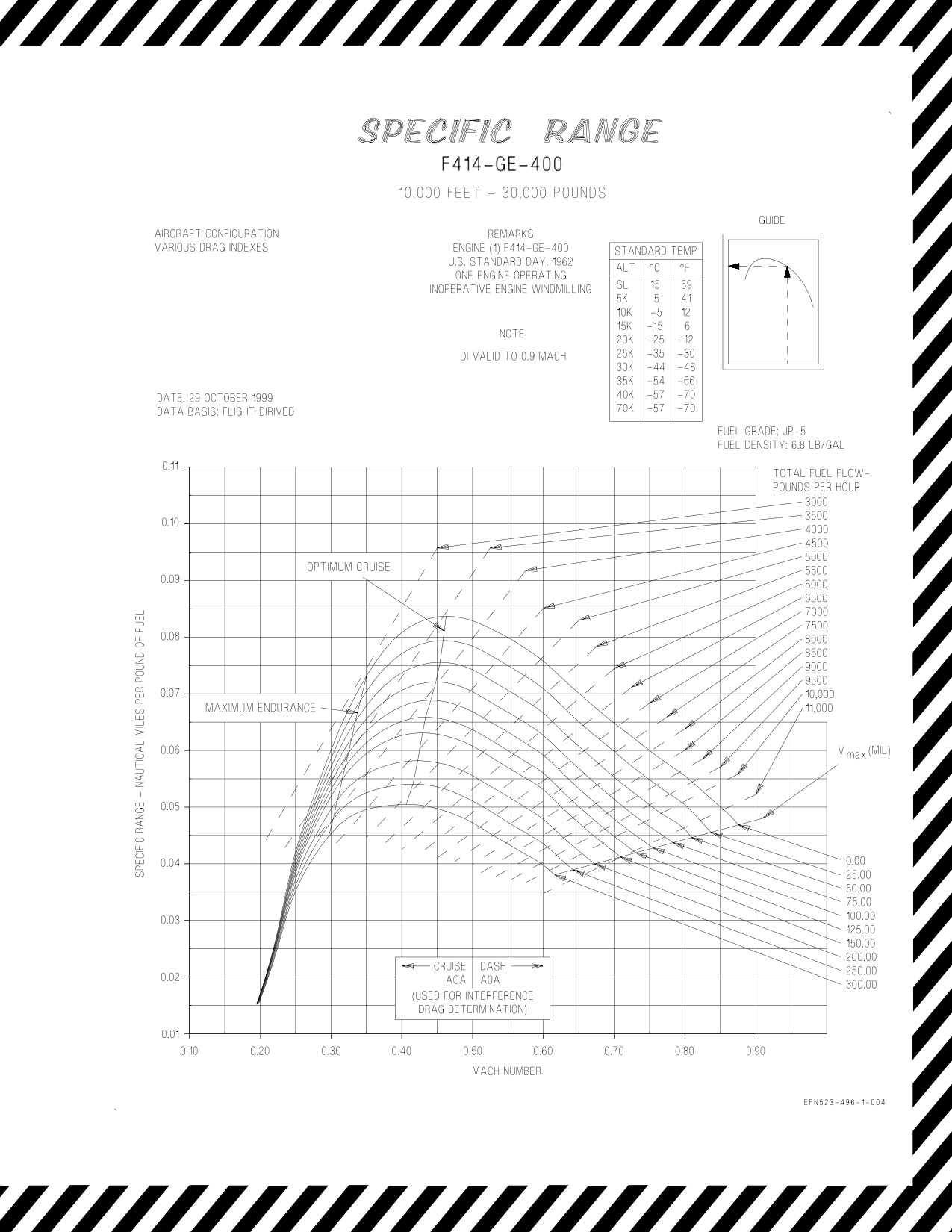

Figure 5-117. Single Engine Specific Range - 10,000 Feet - 30,000 Pounds
XI-5-127
ORIGINAL
A1-F18EA-NFM-200

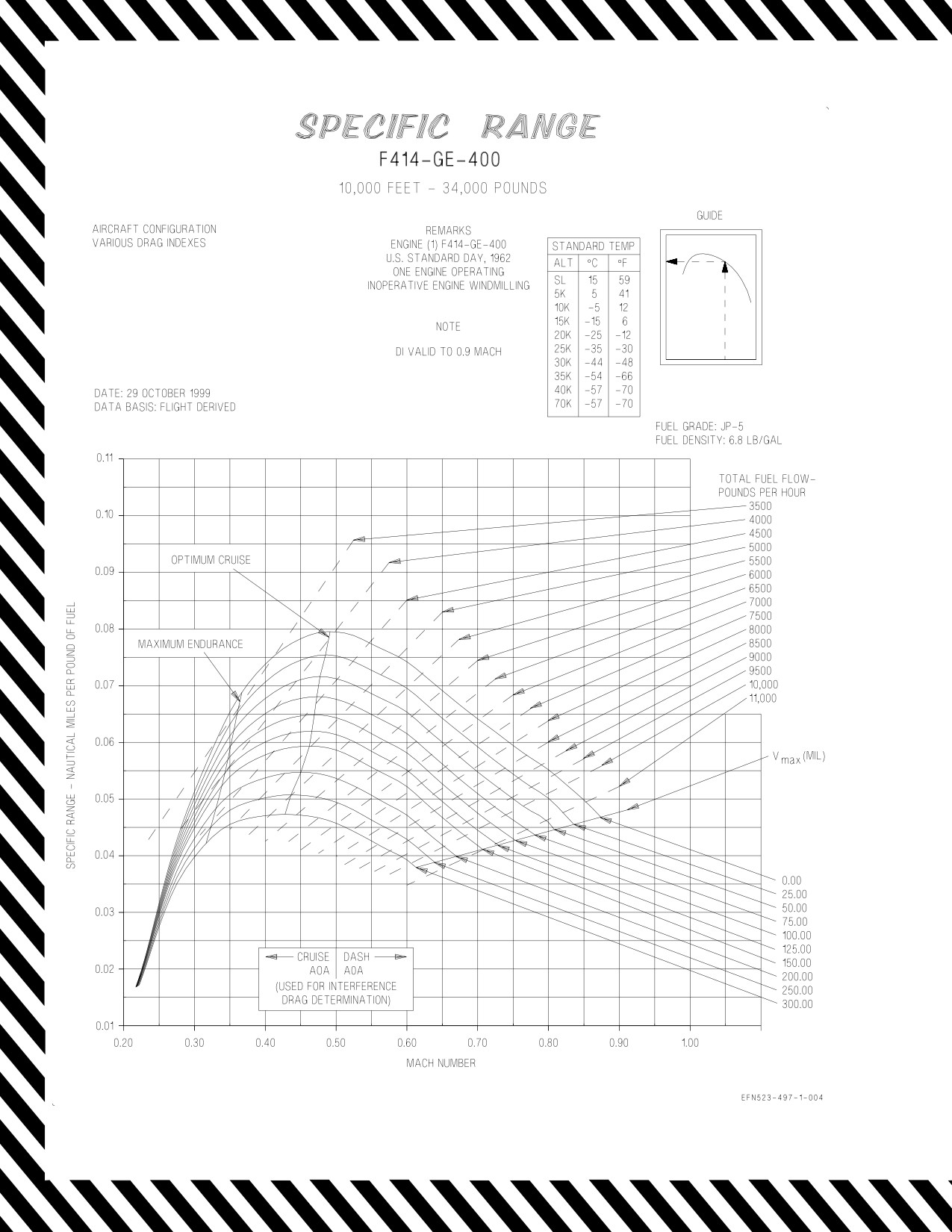

Figure 5-118. Single Engine Specific Range - 10,000 Feet - 34,000 Pounds
XI-5-128
ORIGINAL
A1-F18EA-NFM-200

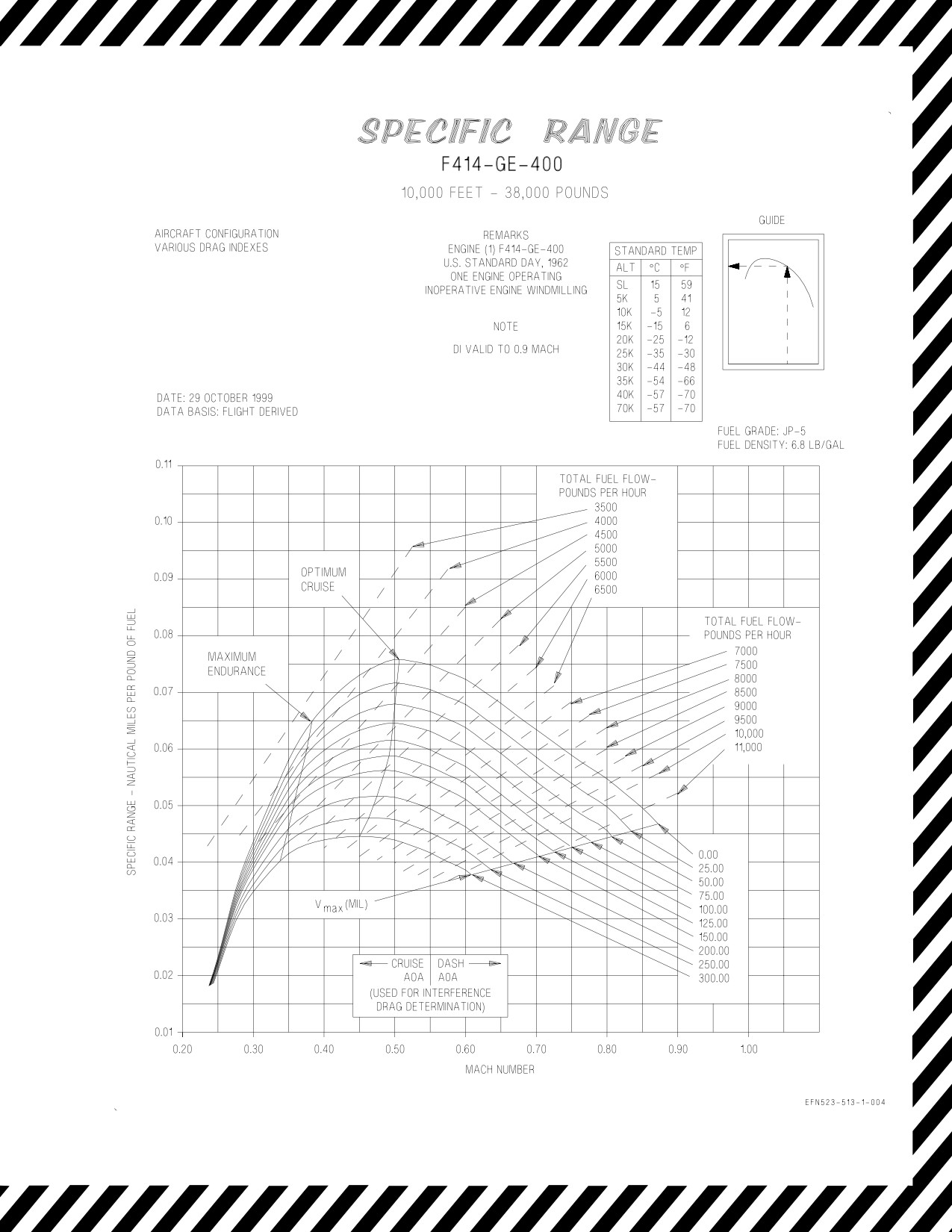

Figure 5-119. Single Engine Specific Range - 10,000 Feet - 38,000 Pounds
XI-5-129
ORIGINAL
A1-F18EA-NFM-200
Figure 5-120. Single Engine Specific Range - 10,000 Feet - 42,000 Pounds
XI-5-130
ORIGINAL
A1-F18EA-NFM-200

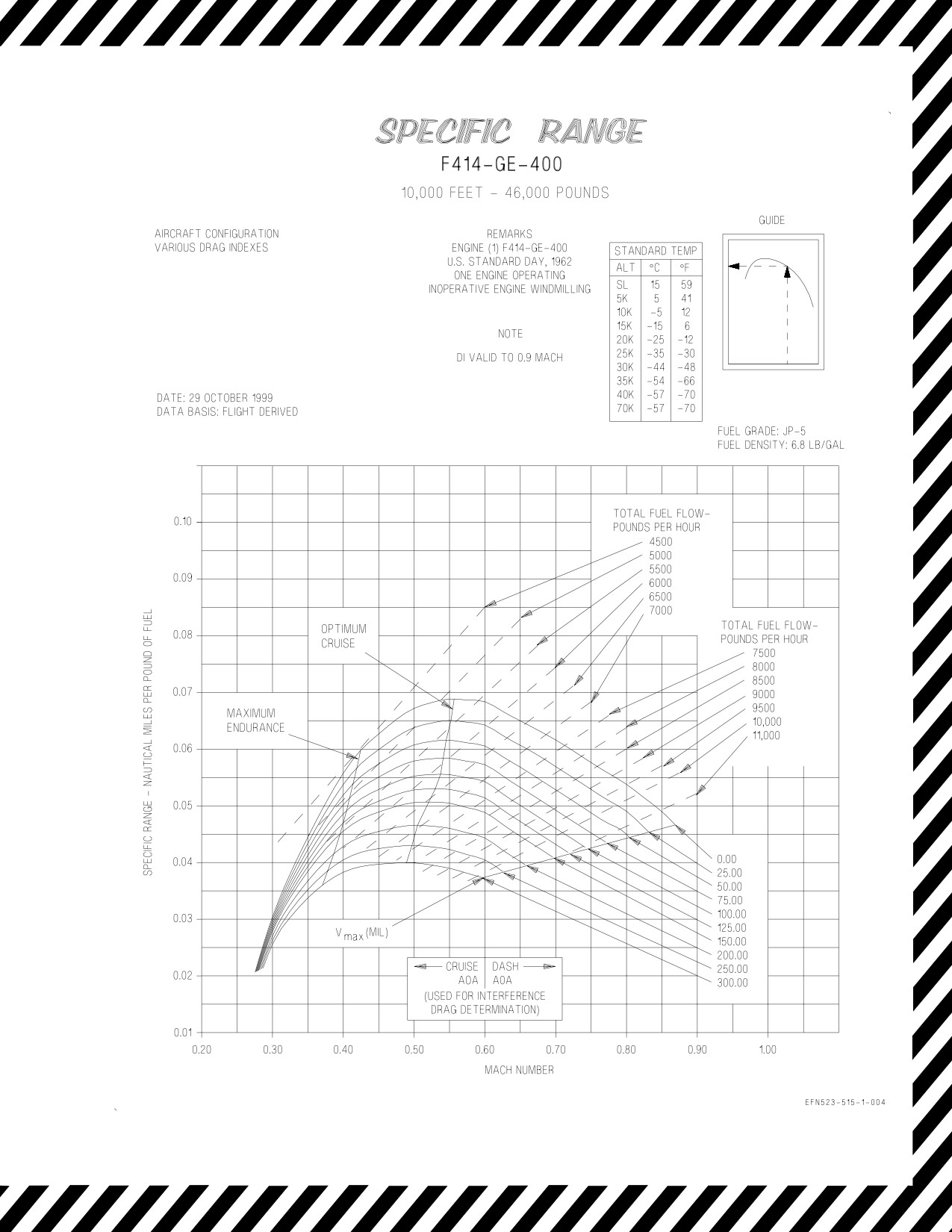

Figure 5-121. Single Engine Specific Range - 10,000 Feet - 46,000 Pounds
XI-5-131
ORIGINAL
A1-F18EA-NFM-200

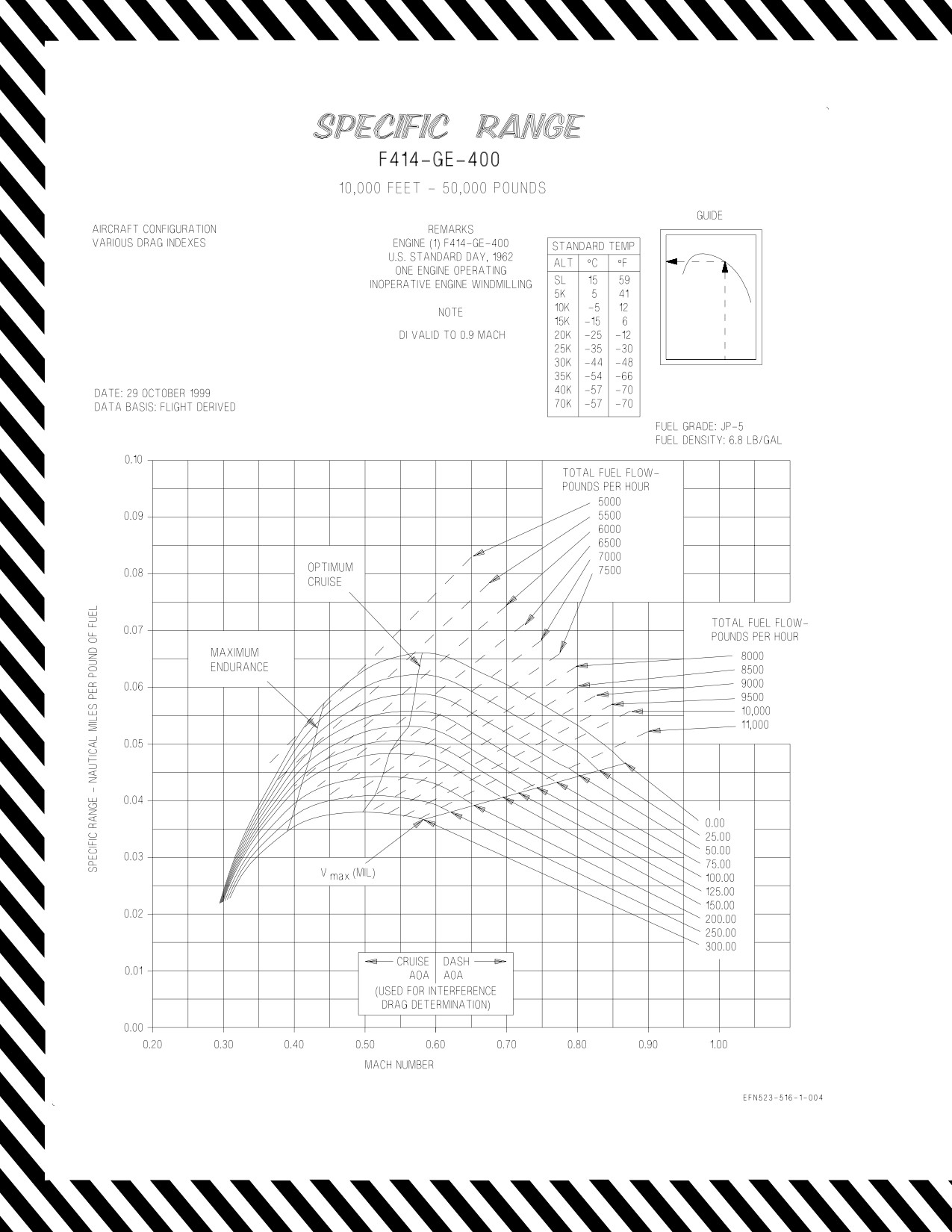

Figure 5-122. Single Engine Specific Range - 10,000 Feet - 50,000 Pounds
XI-5-132
ORIGINAL
A1-F18EA-NFM-200

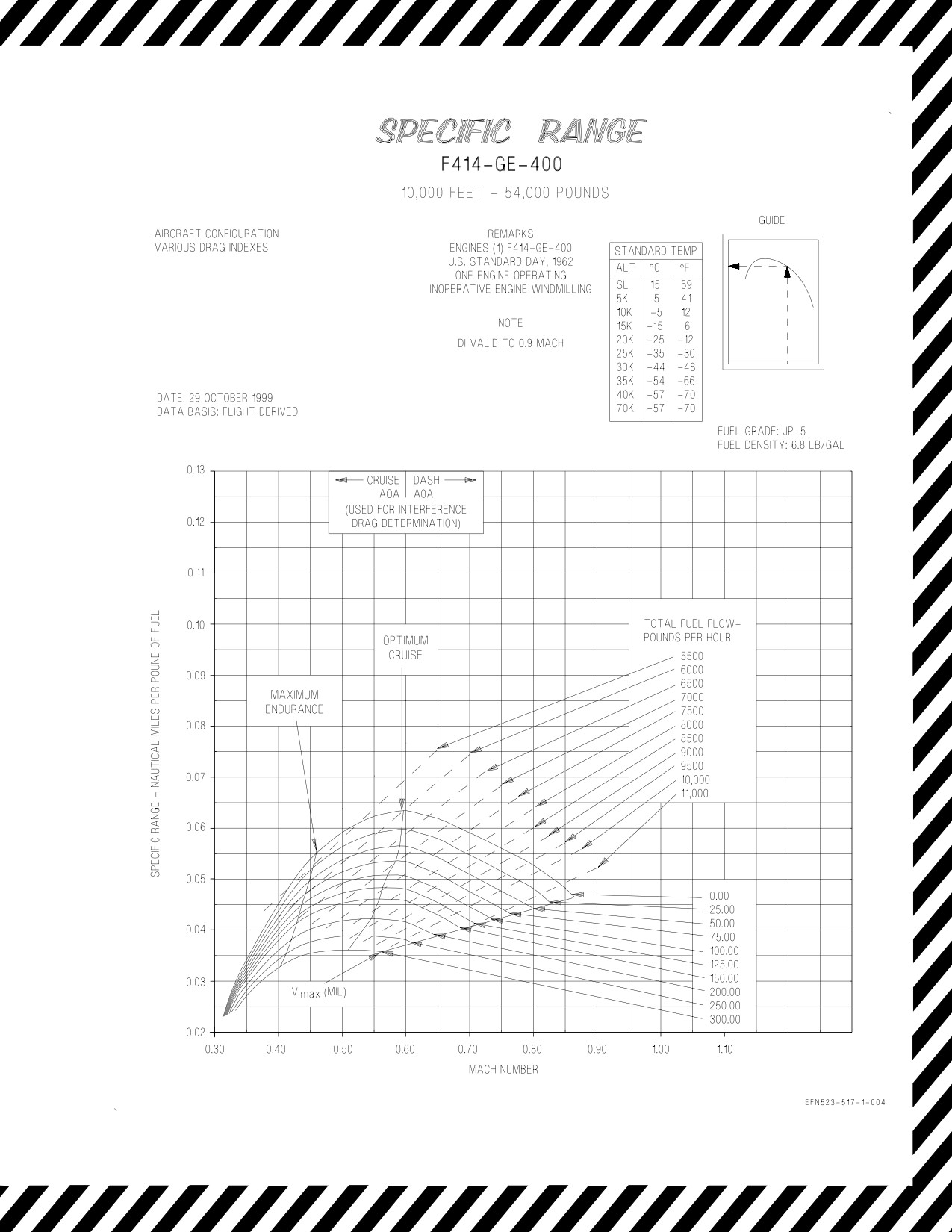

Figure 5-123. Single Engine Specific Range - 10,000 Feet - 54,000 Pounds
XI-5-133
ORIGINAL
A1-F18EA-NFM-200
Figure 5-124. Single Engine Specific Range - 10,000 Feet - 58,000 Pounds
XI-5-134
ORIGINAL
A1-F18EA-NFM-200

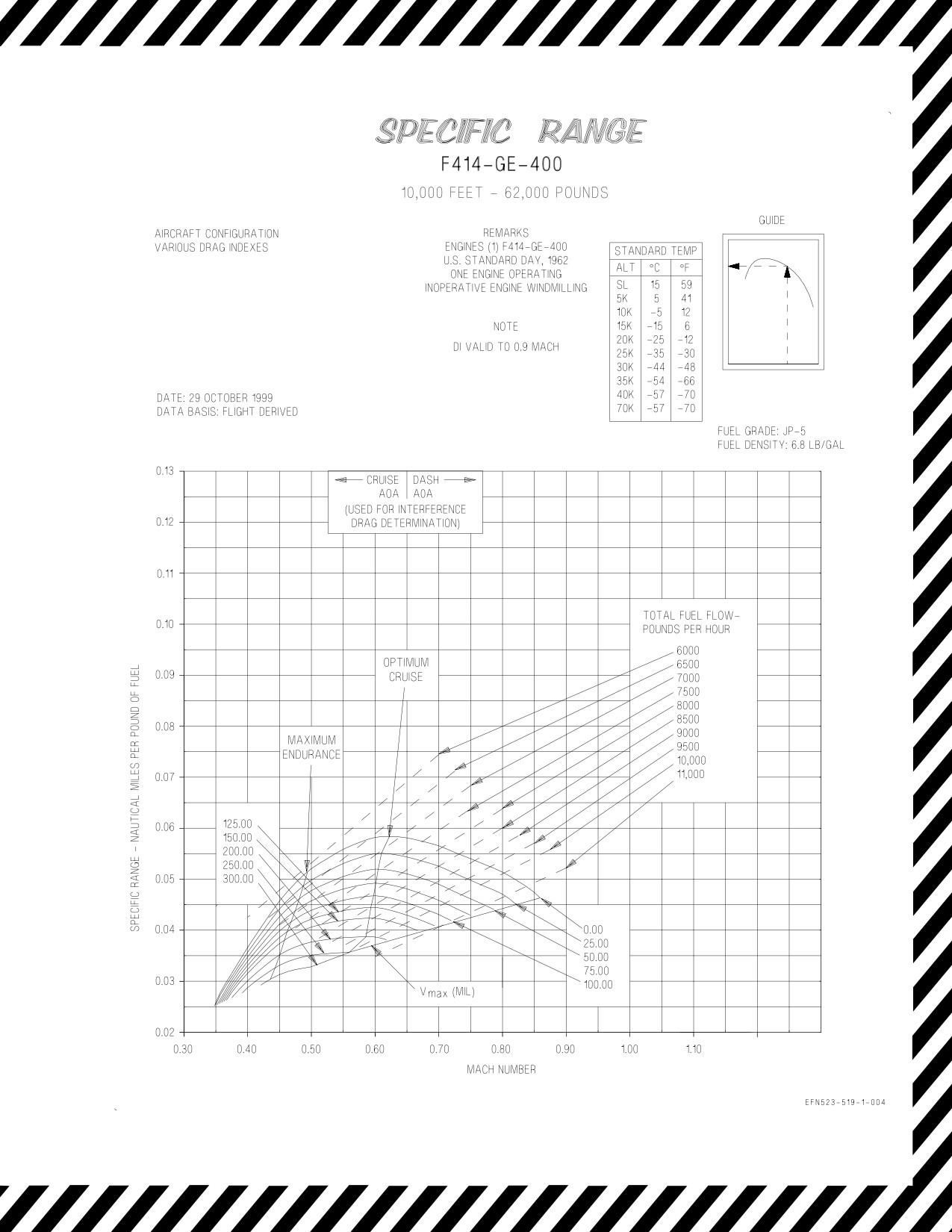

Figure 5-125. Single Engine Specific Range - 10,000 Feet - 62,000 Pounds
XI-5-135
ORIGINAL
A1-F18EA-NFM-200
Figure 5-126. Single Engine Specific Range - 10,000 Feet - 66,000 Pounds
XI-5-136
ORIGINAL
A1-F18EA-NFM-200

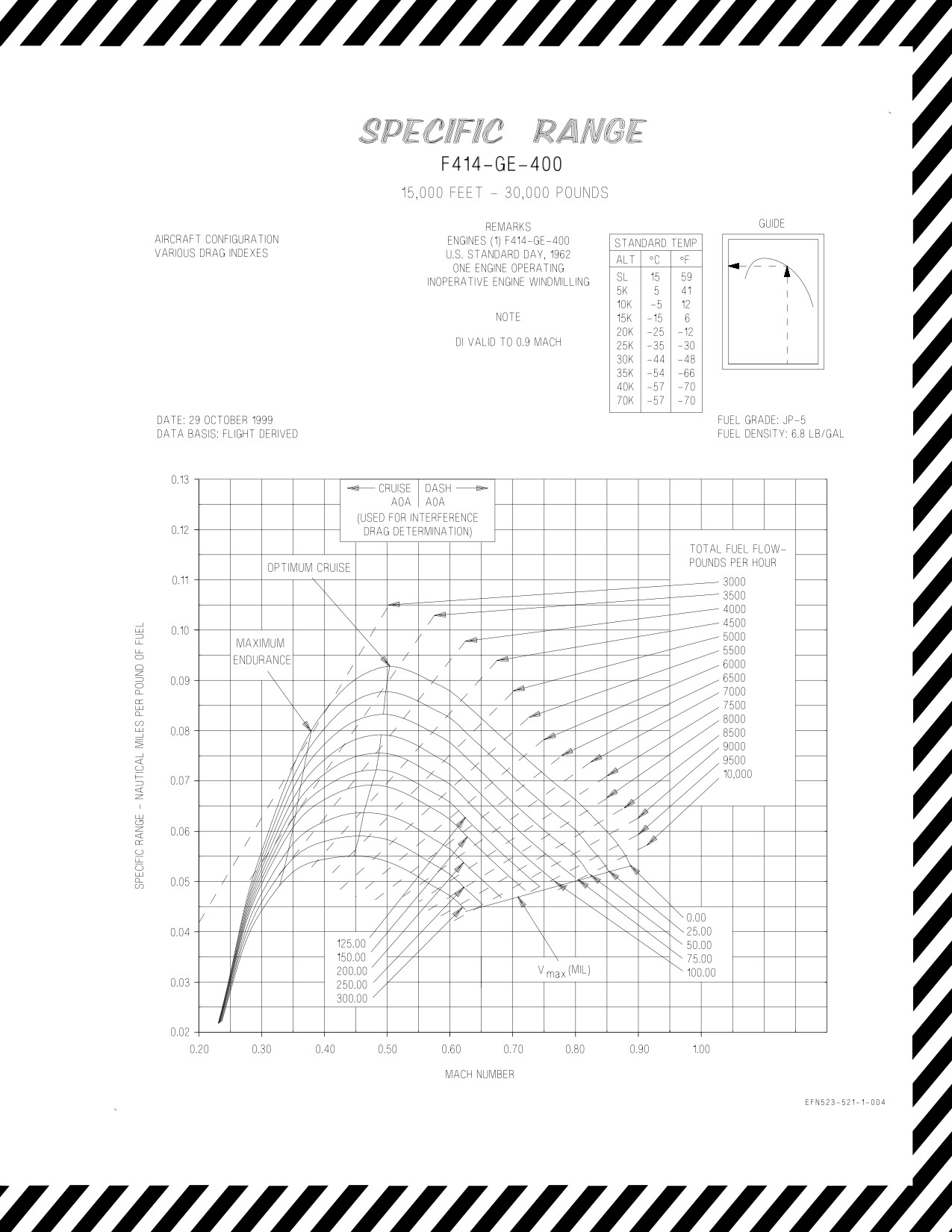

Figure 5-127. Single Engine Specific Range - 15,000 Feet - 30,000 Pounds
XI-5-137
ORIGINAL
A1-F18EA-NFM-200

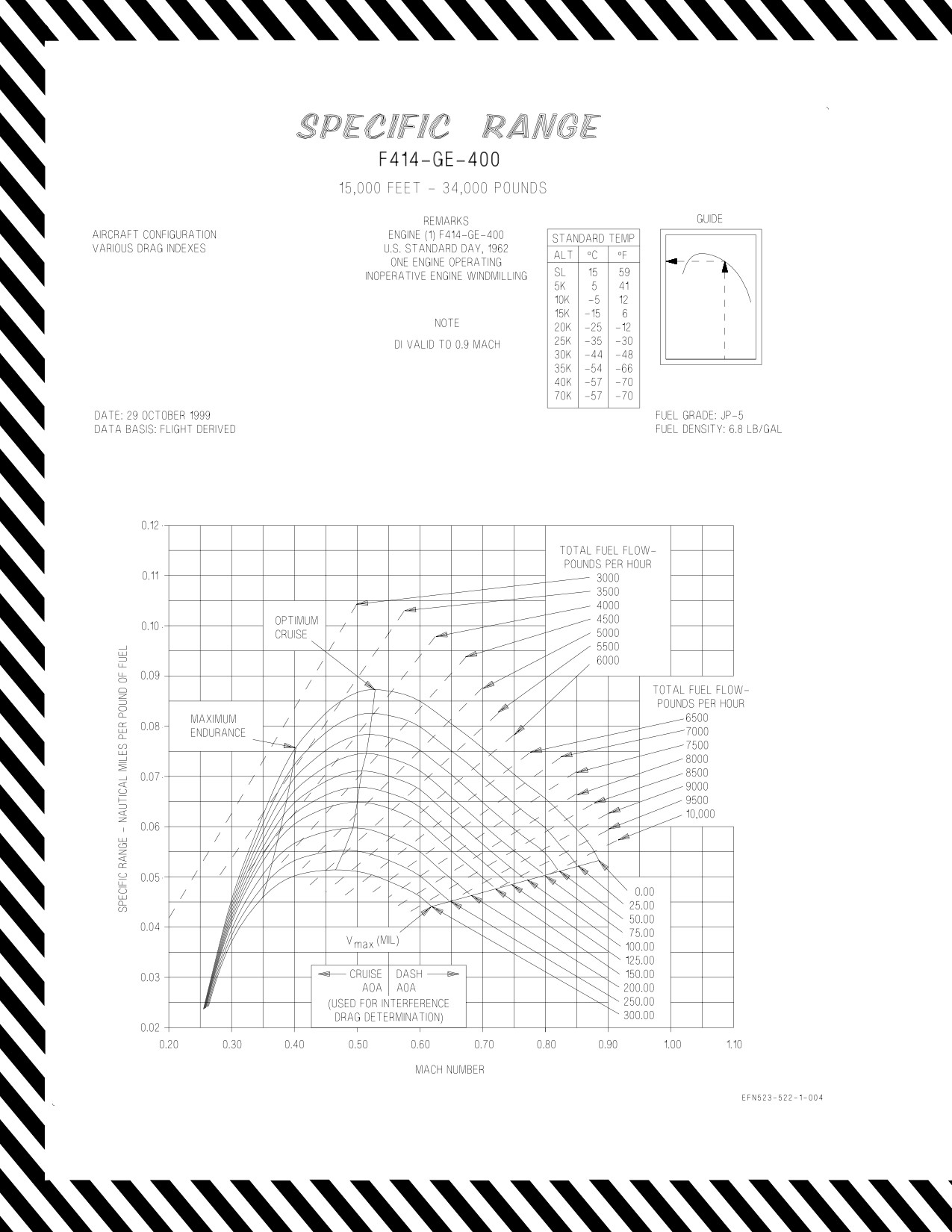

Figure 5-128. Single Engine Specific Range - 15,000 Feet - 34,000 Pounds
XI-5-138
ORIGINAL
A1-F18EA-NFM-200

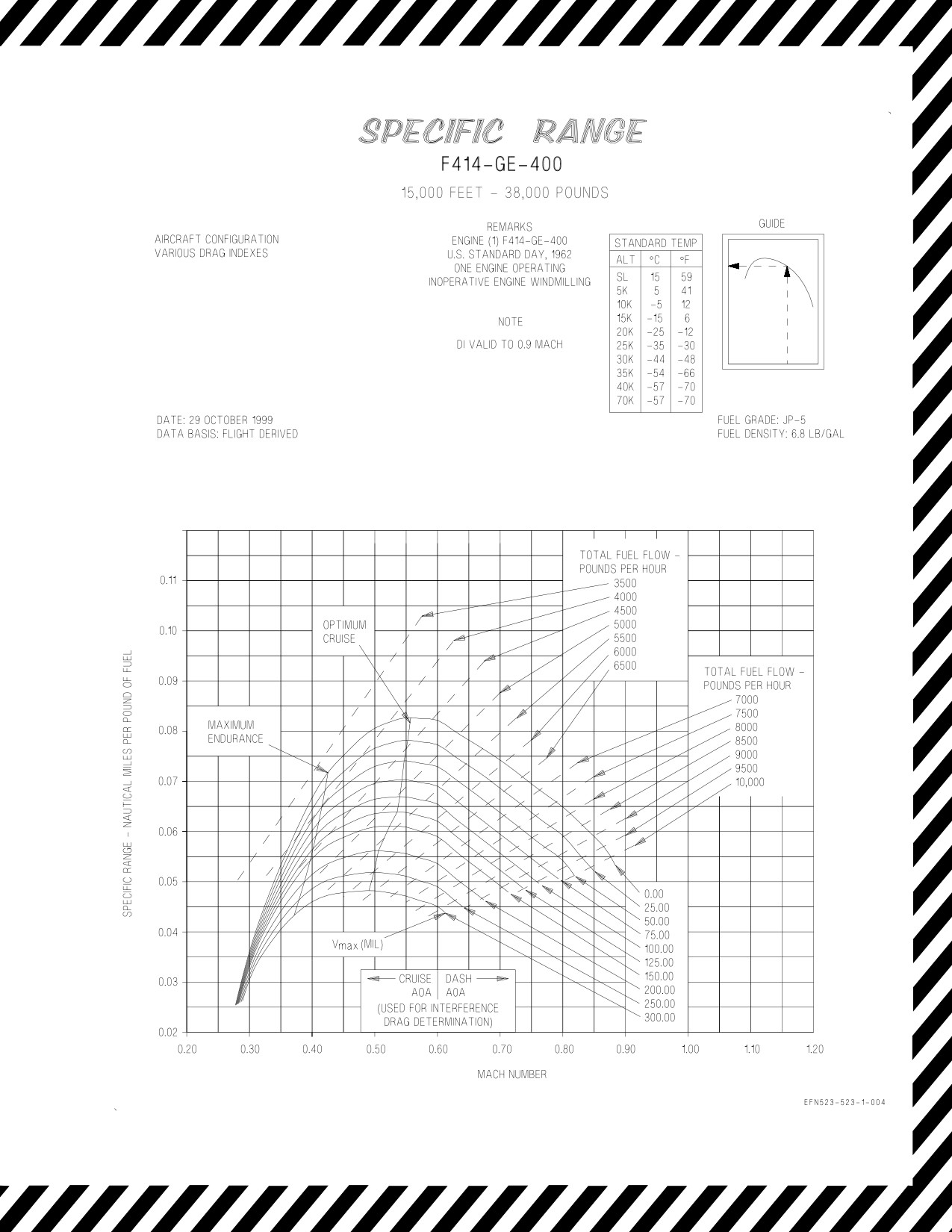

Figure 5-129. Single Engine Specific Range - 15,000 Feet - 38,000 Pounds
XI-5-139
ORIGINAL
A1-F18EA-NFM-200

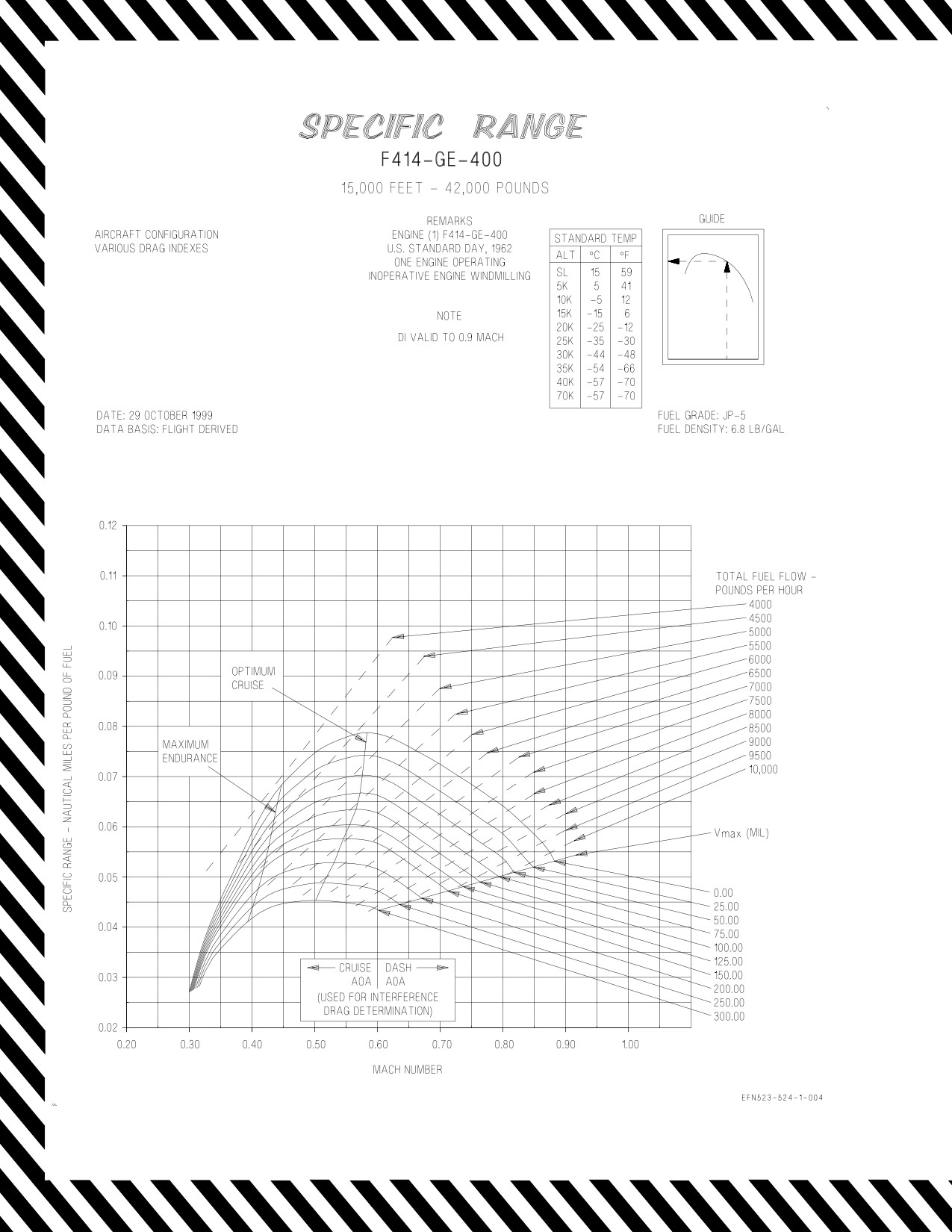

Figure 5-130. Single Engine Specific Range - 15,000 Feet - 42,000 Pounds
XI-5-140
ORIGINAL
A1-F18EA-NFM-200

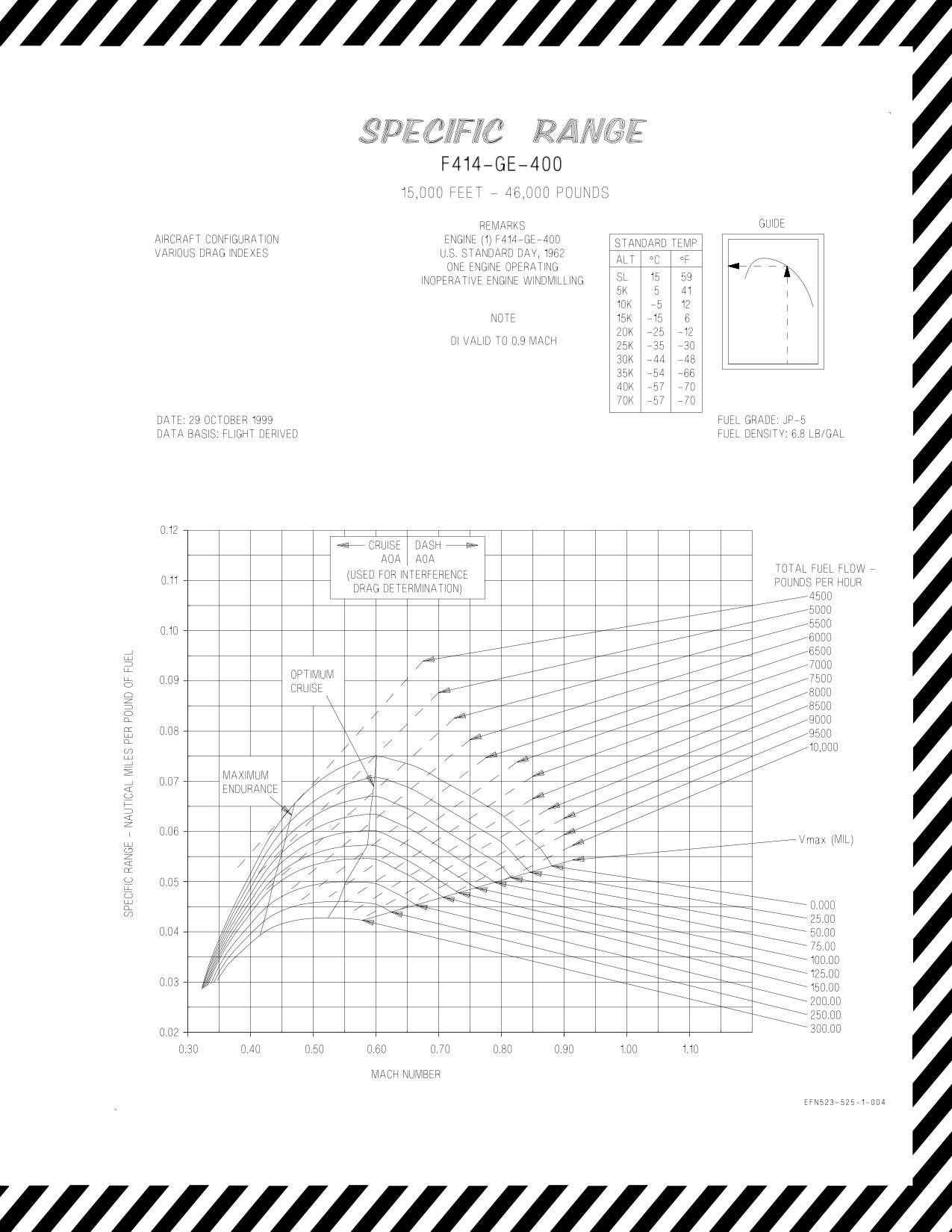

Figure 5-131. Single Engine Specific Range - 15,000 Feet - 46,000 Pounds
XI-5-141
ORIGINAL
A1-F18EA-NFM-200

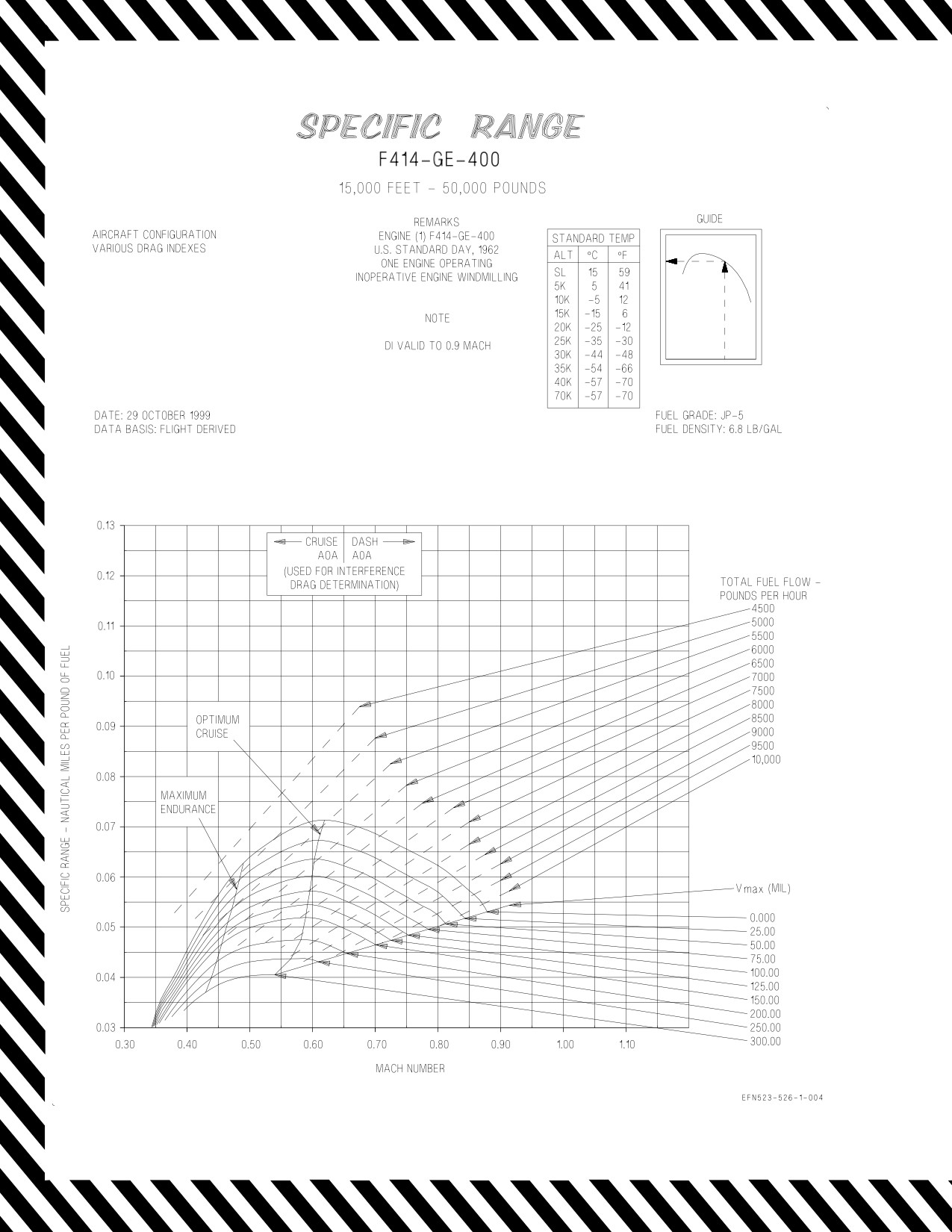

Figure 5-132. Single Engine Specific Range - 15,000 Feet - 50,000 Pounds
XI-5-142
ORIGINAL
A1-F18EA-NFM-200

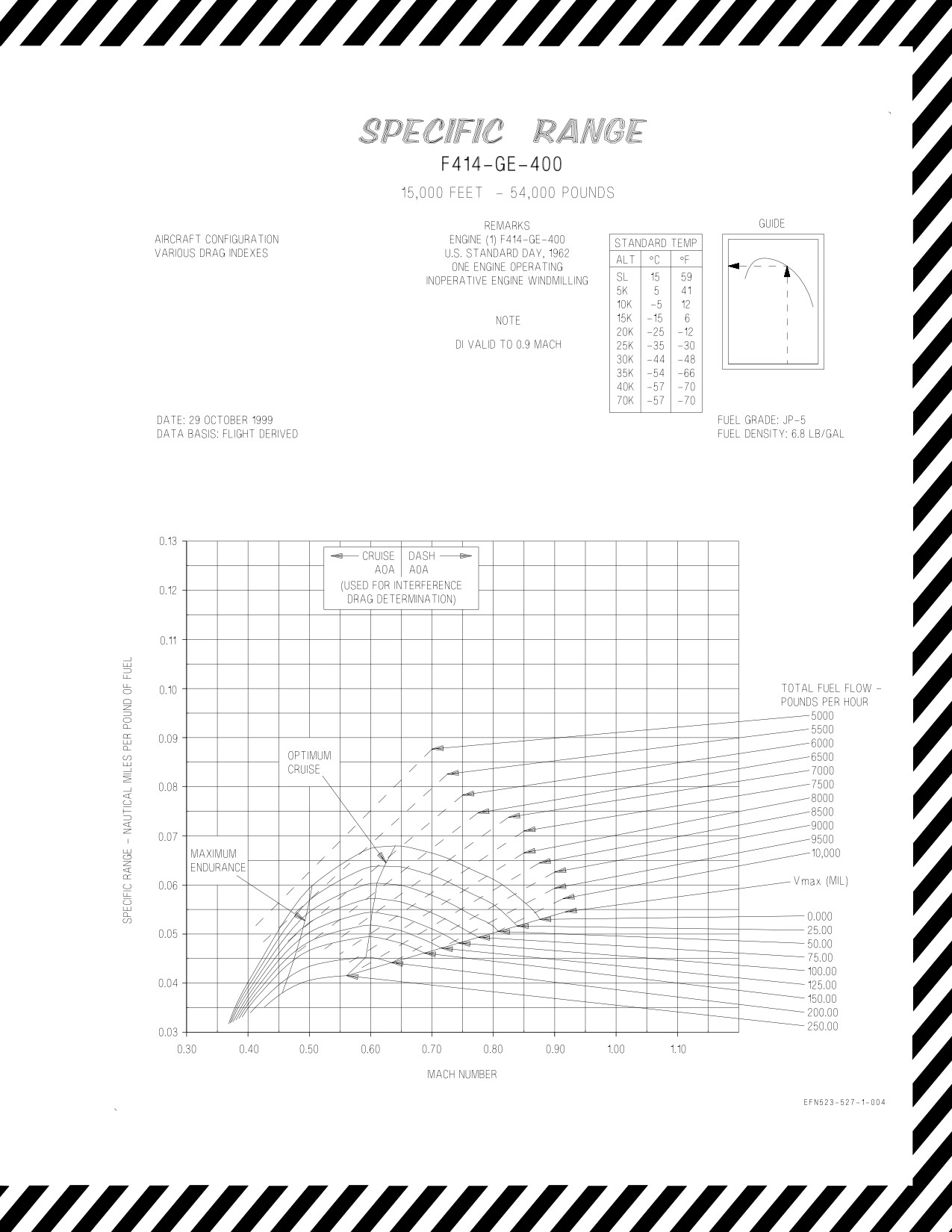

Figure 5-133. Single Engine Specific Range - 15,000 Feet - 54,000 Pounds
XI-5-143
ORIGINAL
A1-F18EA-NFM-200

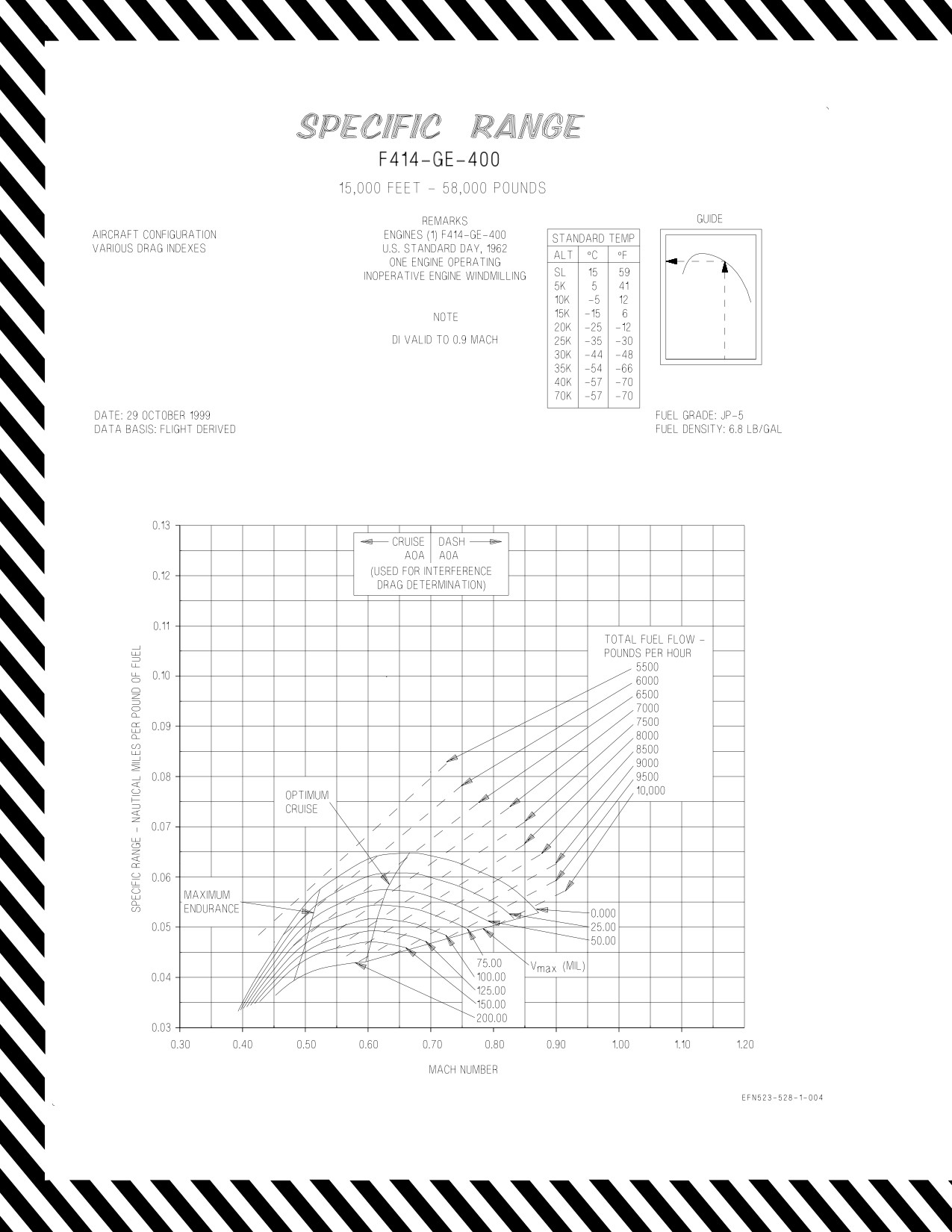

Figure 5-134. Single Engine Specific Range - 15,000 Feet - 58,000 Pounds
XI-5-144
ORIGINAL
A1-F18EA-NFM-200

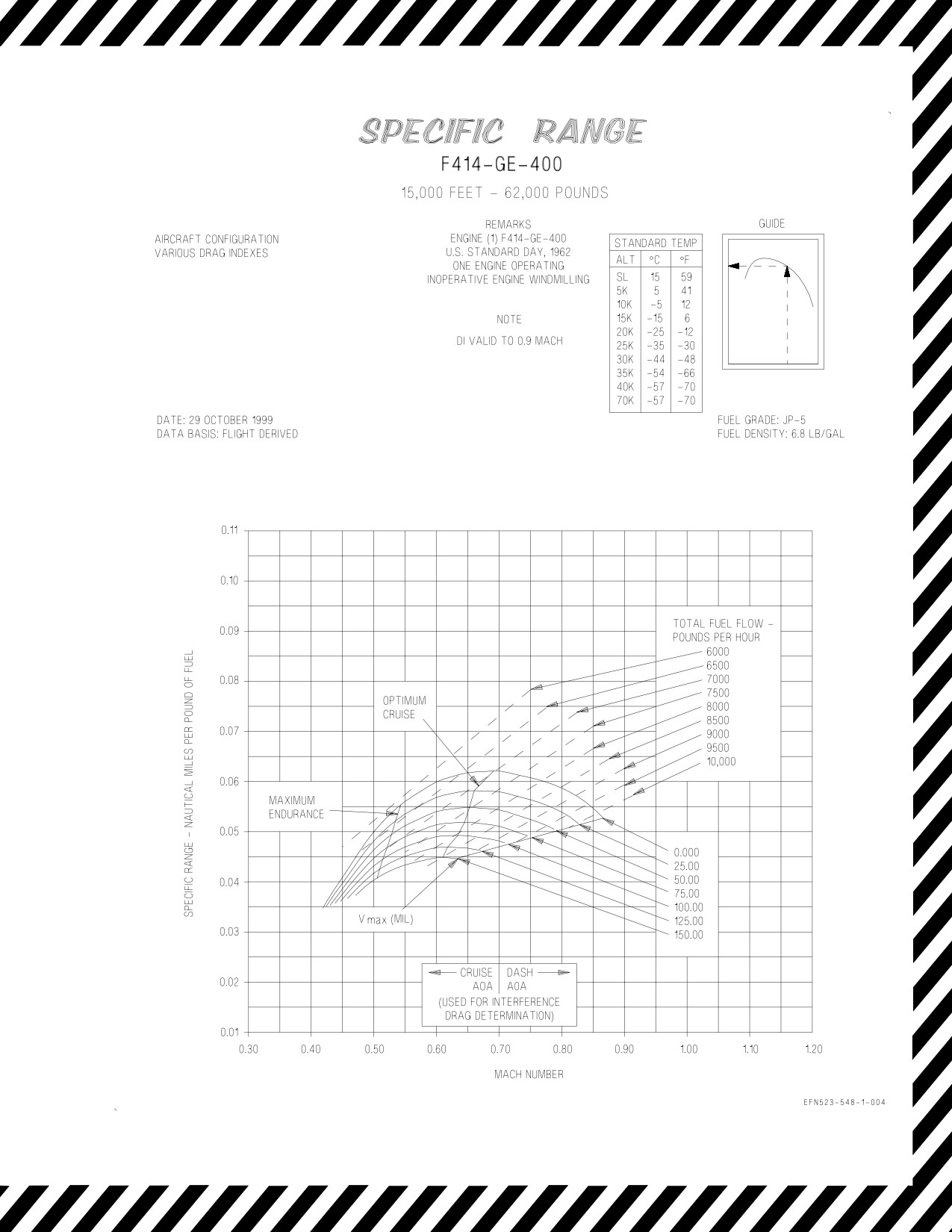

Figure 5-135. Single Engine Specific Range - 15,000 Feet - 62,000 Pounds
XI-5-145
ORIGINAL
A1-F18EA-NFM-200

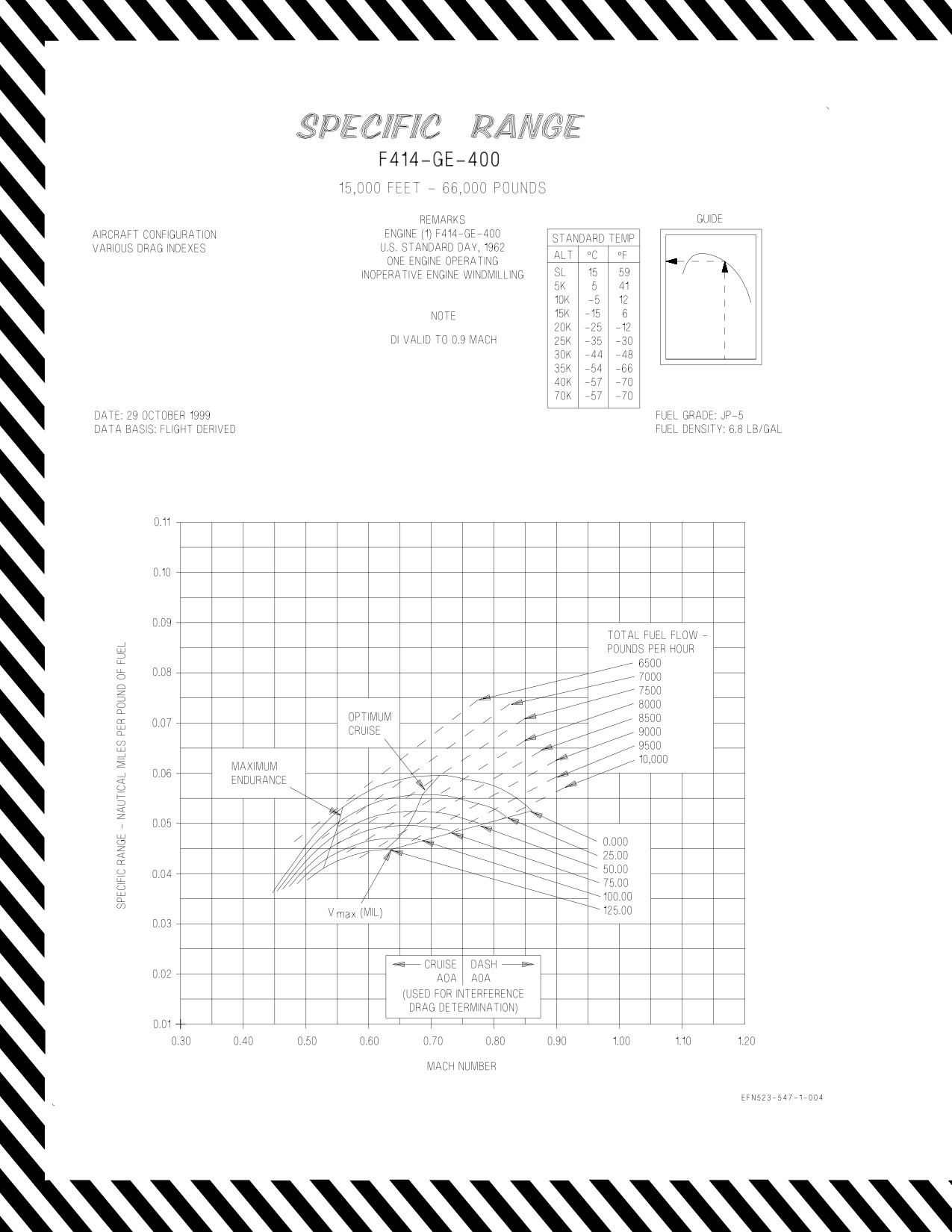

Figure 5-136. Single Engine Specific Range - 15,000 Feet - 66,000 Pounds
XI-5-146
ORIGINAL
A1-F18EA-NFM-200

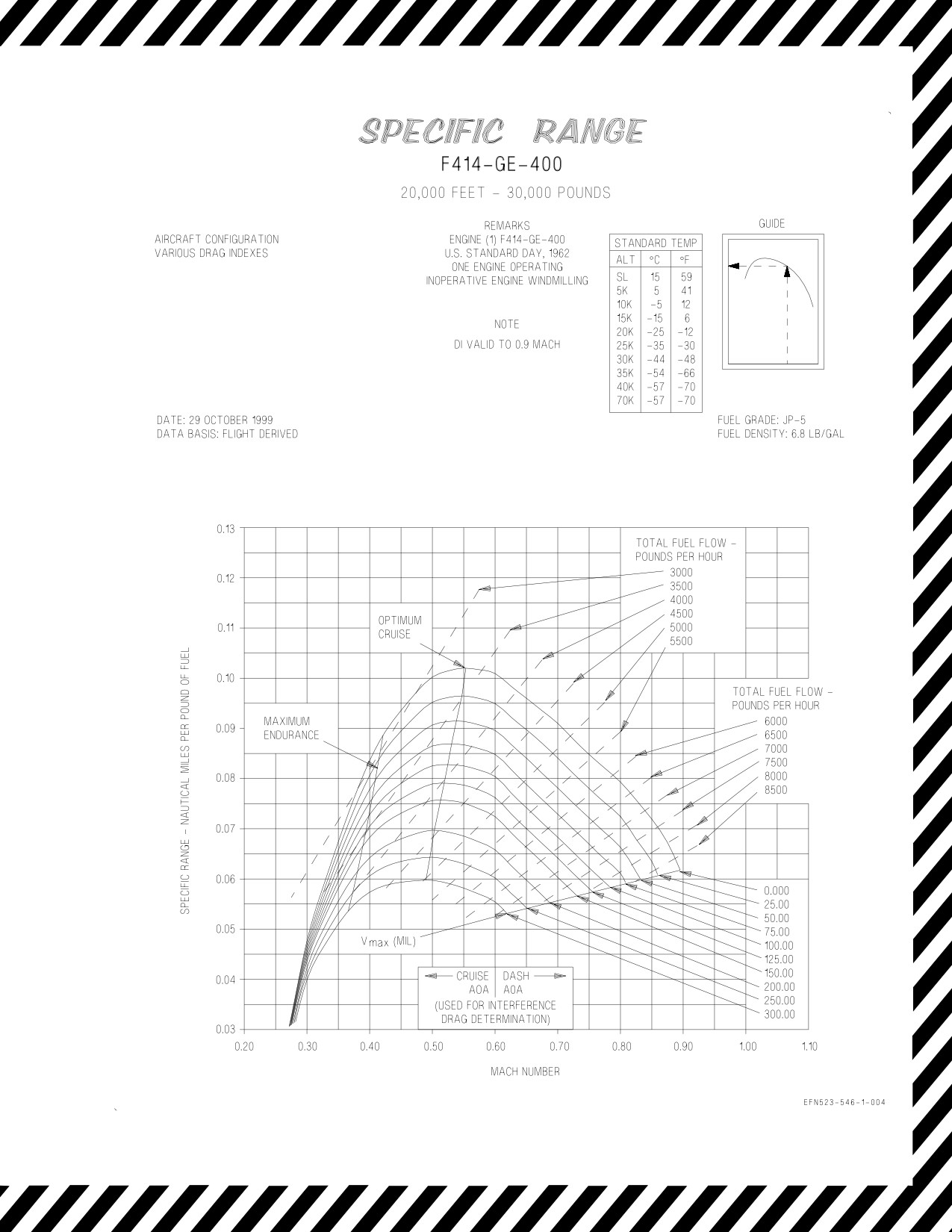

Figure 5-137. Single Engine Specific Range - 20,000 Feet - 30,000 Pounds
XI-5-147
ORIGINAL
A1-F18EA-NFM-200

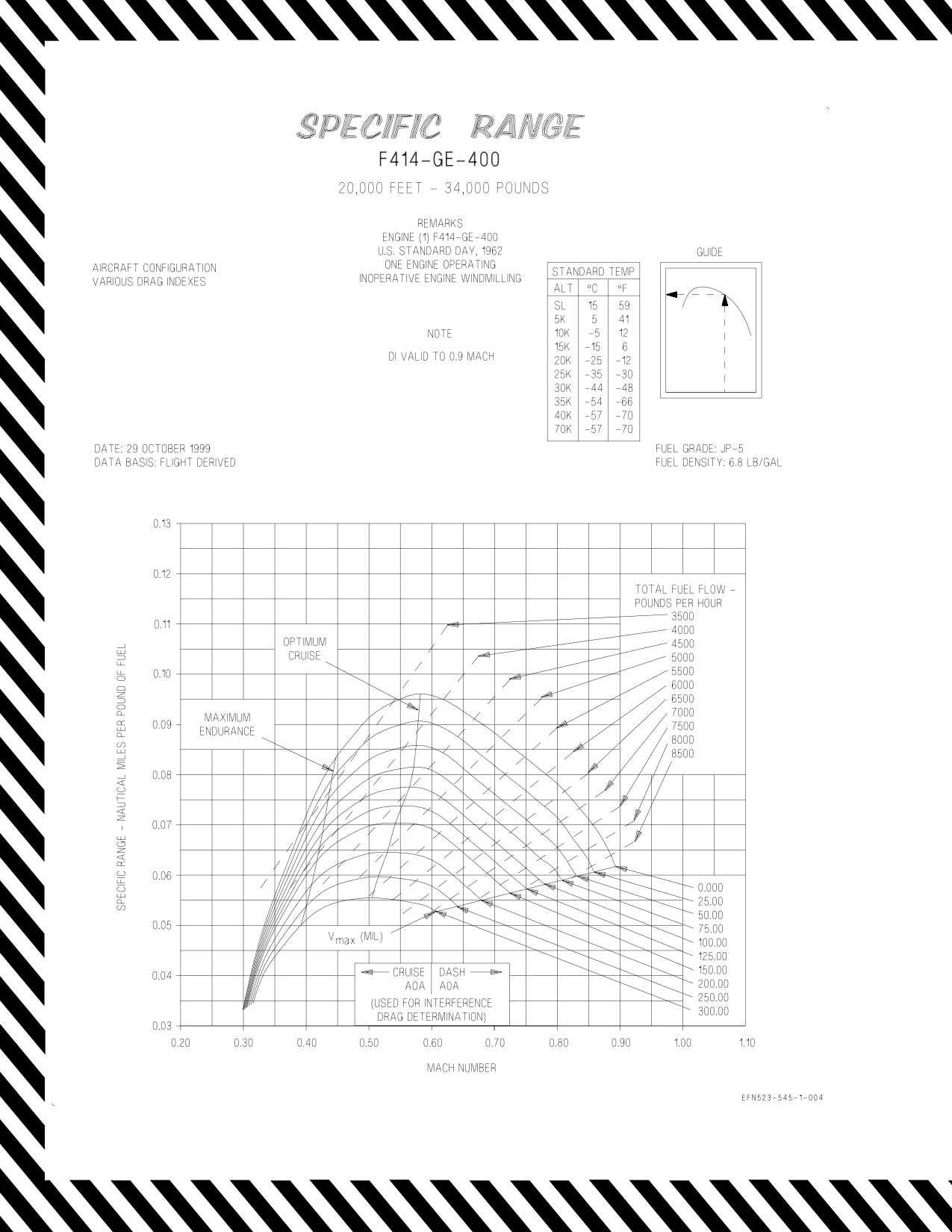

Figure 5-138. Single Engine Specific Range - 20,000 Feet - 34,000 Pounds
XI-5-148
ORIGINAL
A1-F18EA-NFM-200

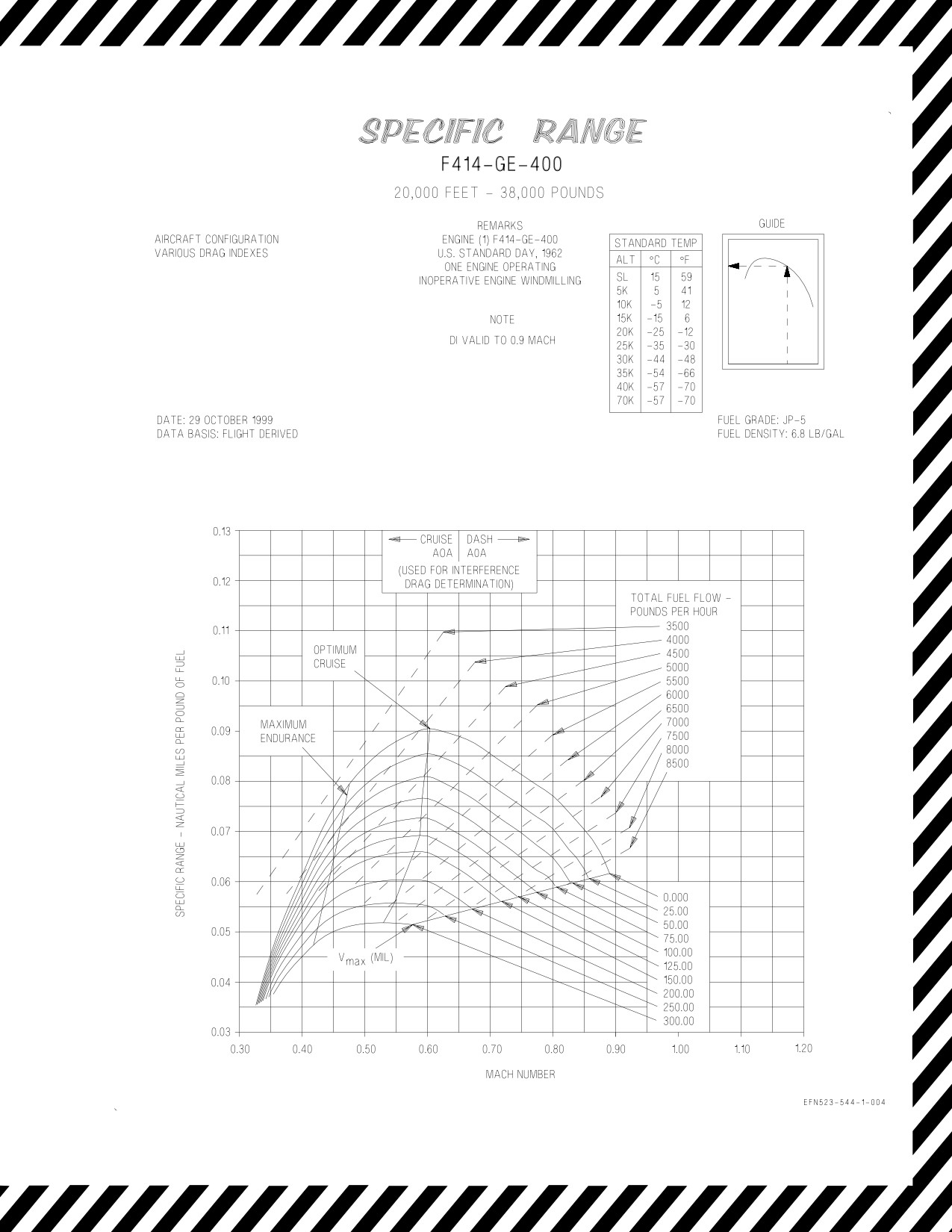

Figure 5-139. Single Engine Specific Range - 20,000 Feet - 38,000 Pounds
XI-5-149
ORIGINAL
A1-F18EA-NFM-200
Figure 5-140. Single Engine Specific Range - 20,000 Feet - 42,000 Pounds
XI-5-150
ORIGINAL
A1-F18EA-NFM-200

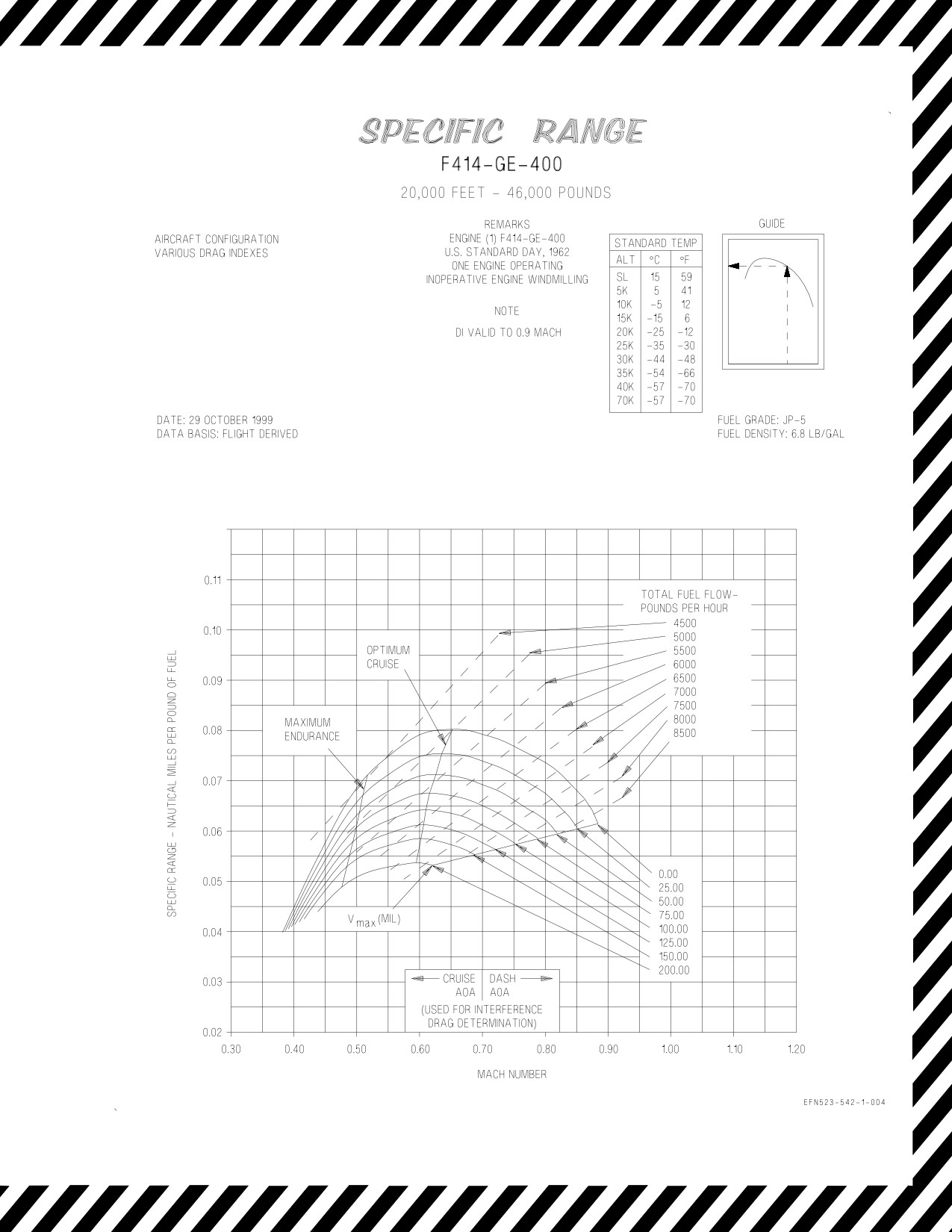

Figure 5-141. Single Engine Specific Range - 20,000 Feet - 46,000 Pounds
XI-5-151
ORIGINAL
A1-F18EA-NFM-200

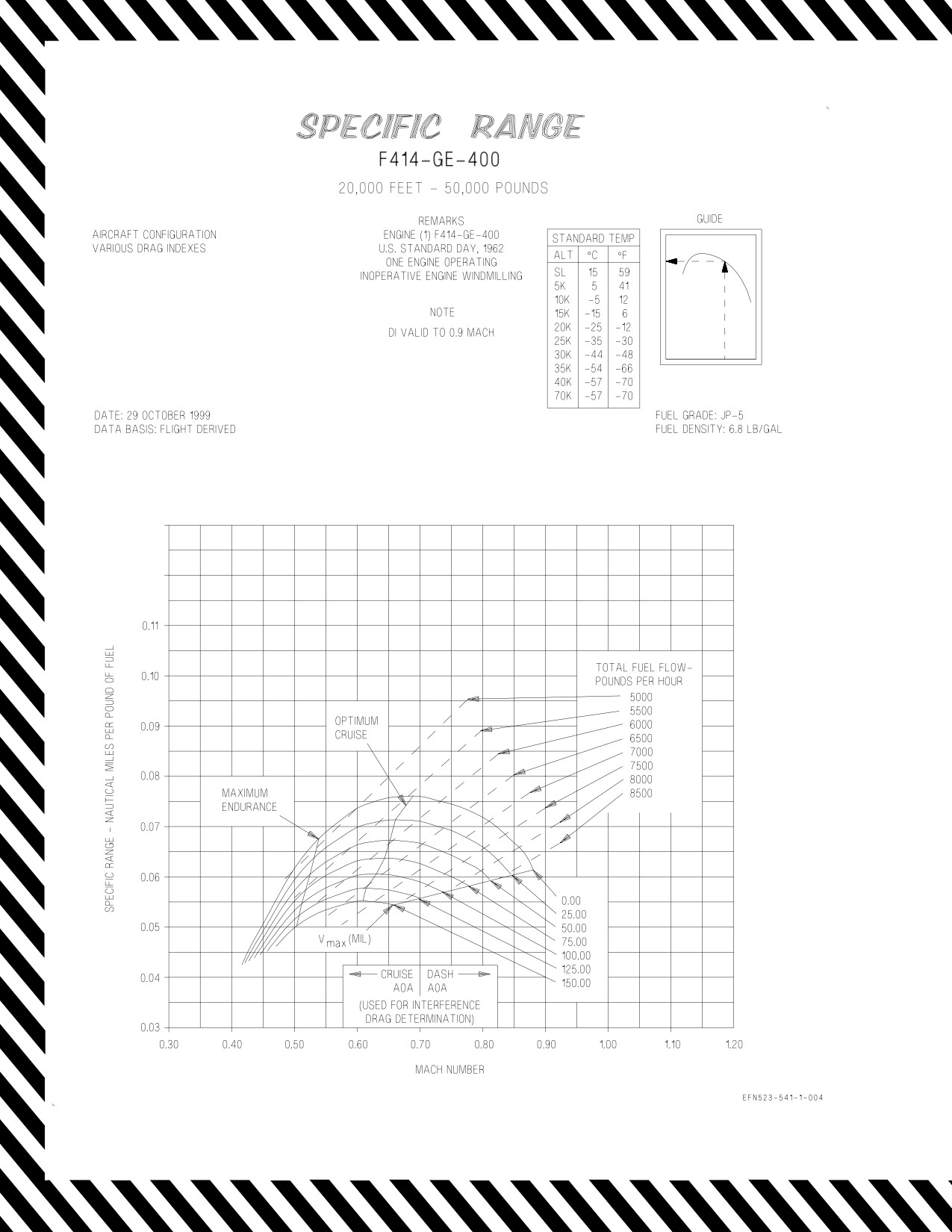

Figure 5-142. Single Engine Specific Range - 20,000 Feet - 50,000 Pounds
XI-5-152
ORIGINAL
A1-F18EA-NFM-200

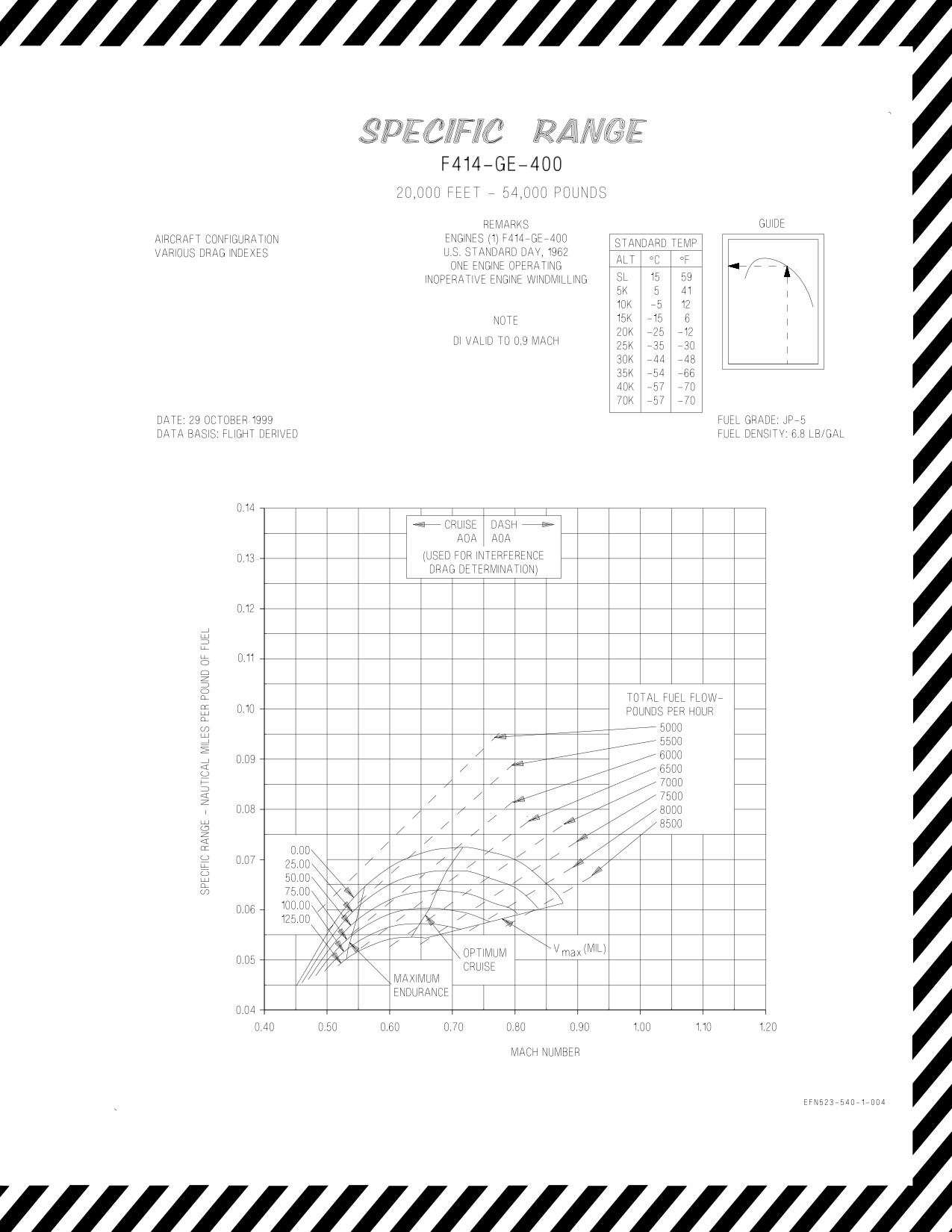

Figure 5-143. Single Engine Specific Range - 20,000 Feet - 54,000 Pounds
XI-5-153
ORIGINAL
A1-F18EA-NFM-200

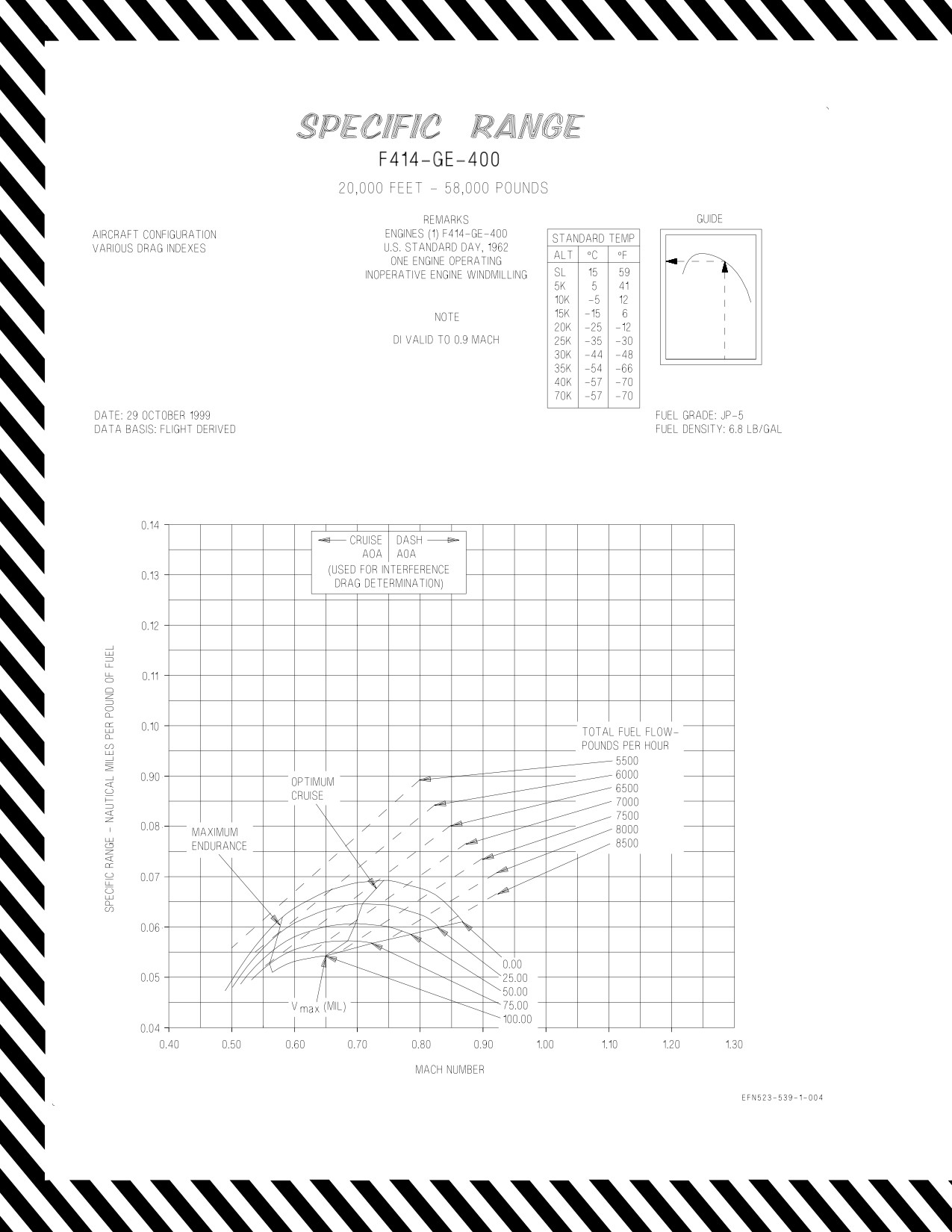

Figure 5-144. Single Engine Specific Range - 20,000 Feet - 58,000 Pounds
XI-5-154
ORIGINAL
A1-F18EA-NFM-200

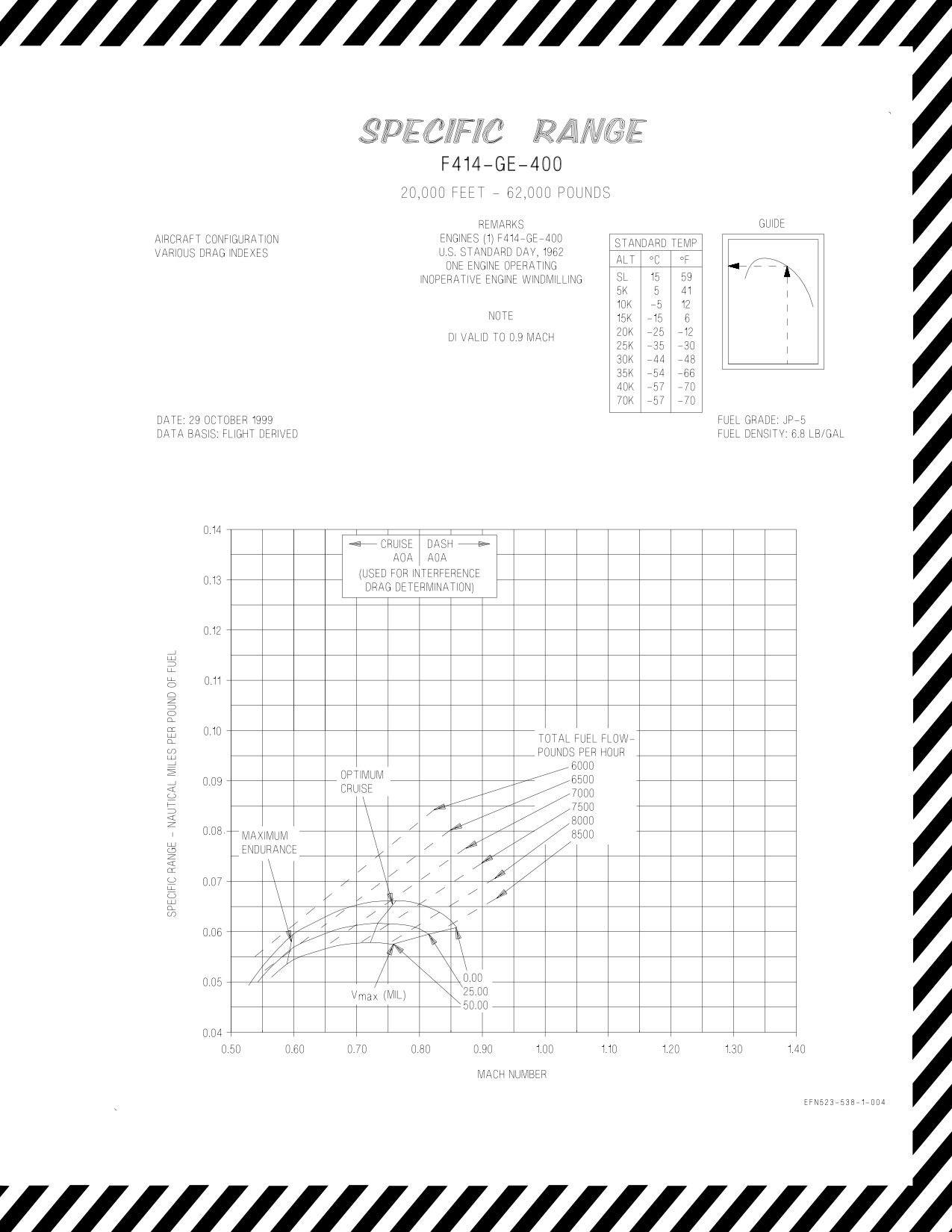

Figure 5-145. Single Engine Specific Range - 20,000 Feet - 62,000 Pounds
XI-5-155
ORIGINAL
A1-F18EA-NFM-200

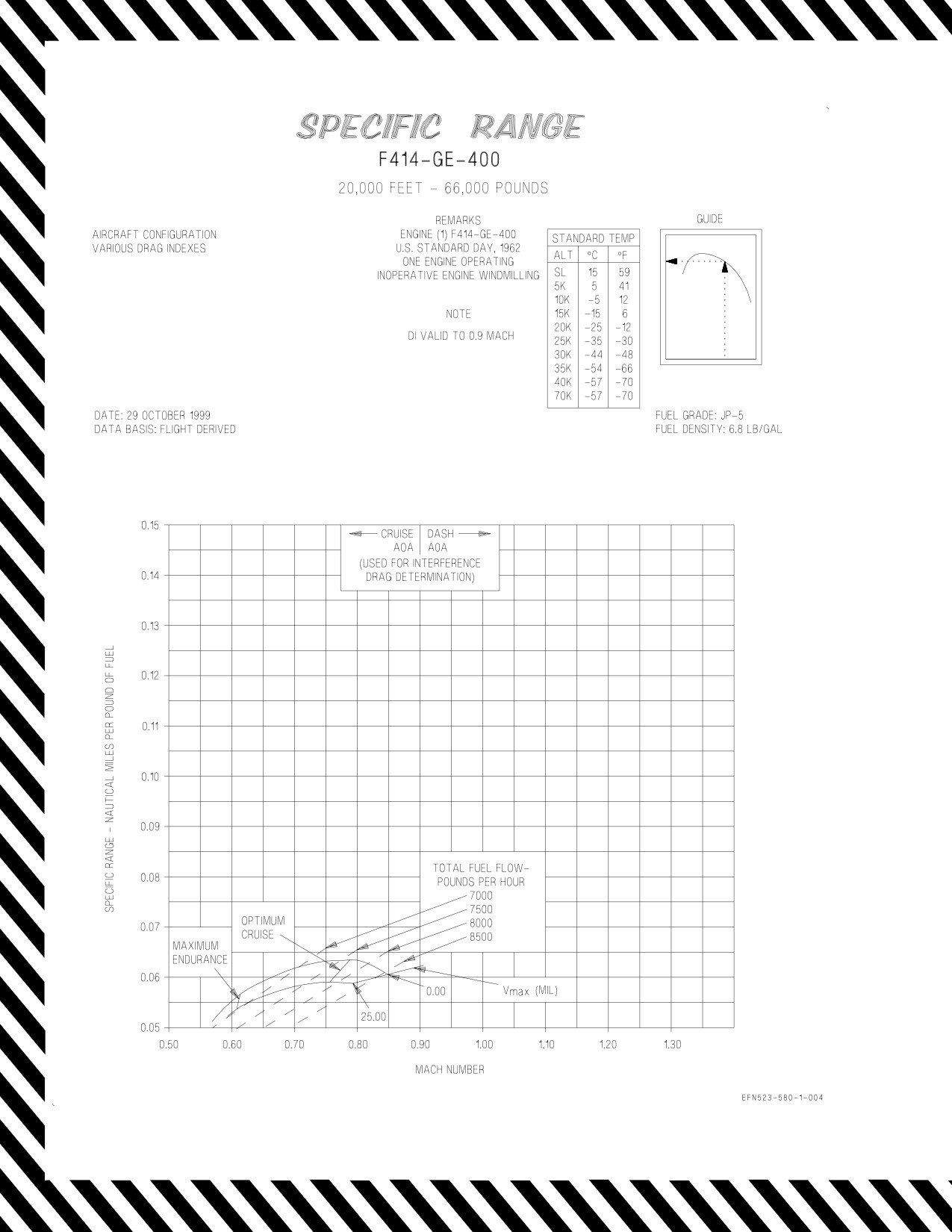

Figure 5-146. Single Engine Specific Range - 20,000 Feet - 66,000 Pounds
XI-5-156
ORIGINAL
A1-F18EA-NFM-200

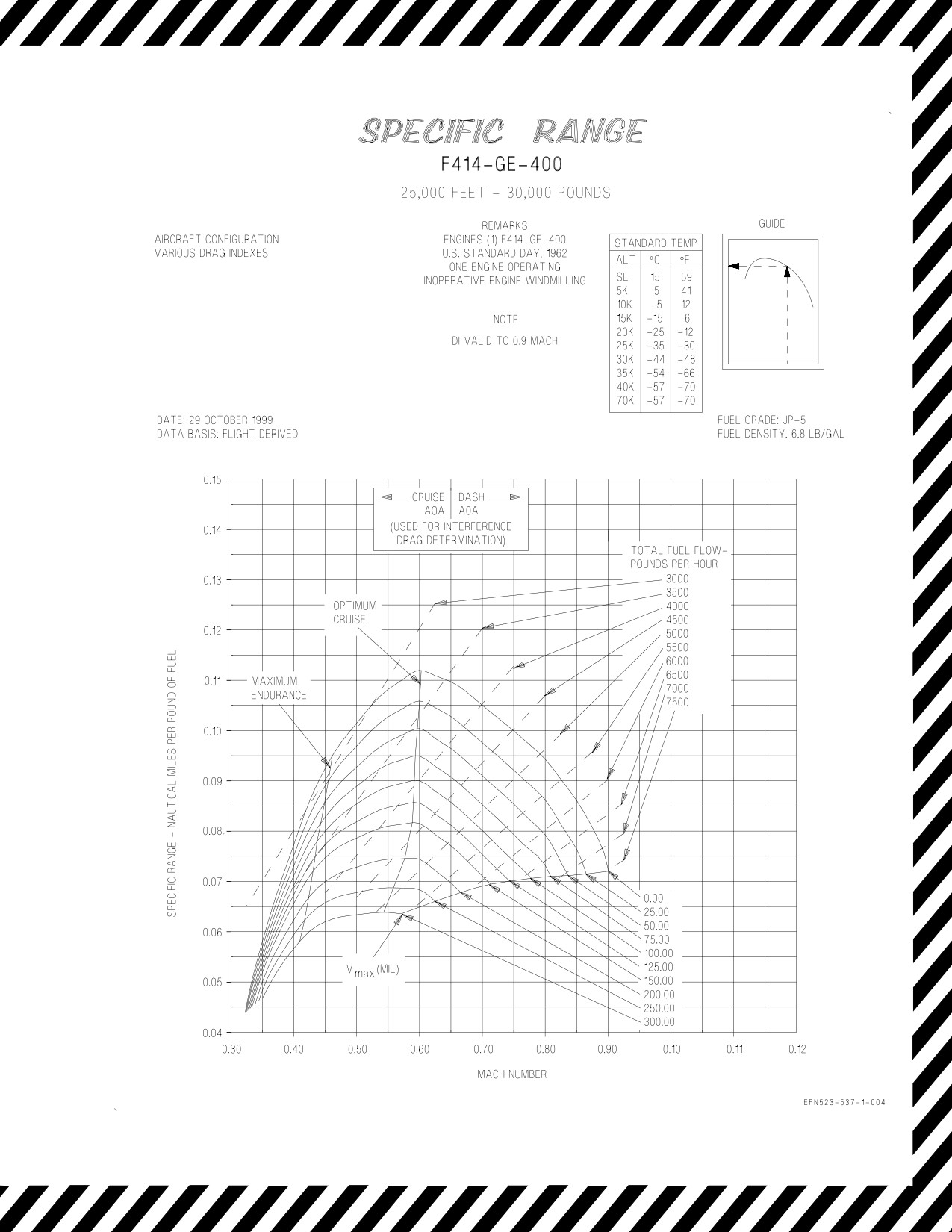

Figure 5-147. Single Engine Specific Range - 25,000 Feet - 30,000 Pounds
XI-5-157
ORIGINAL
A1-F18EA-NFM-200

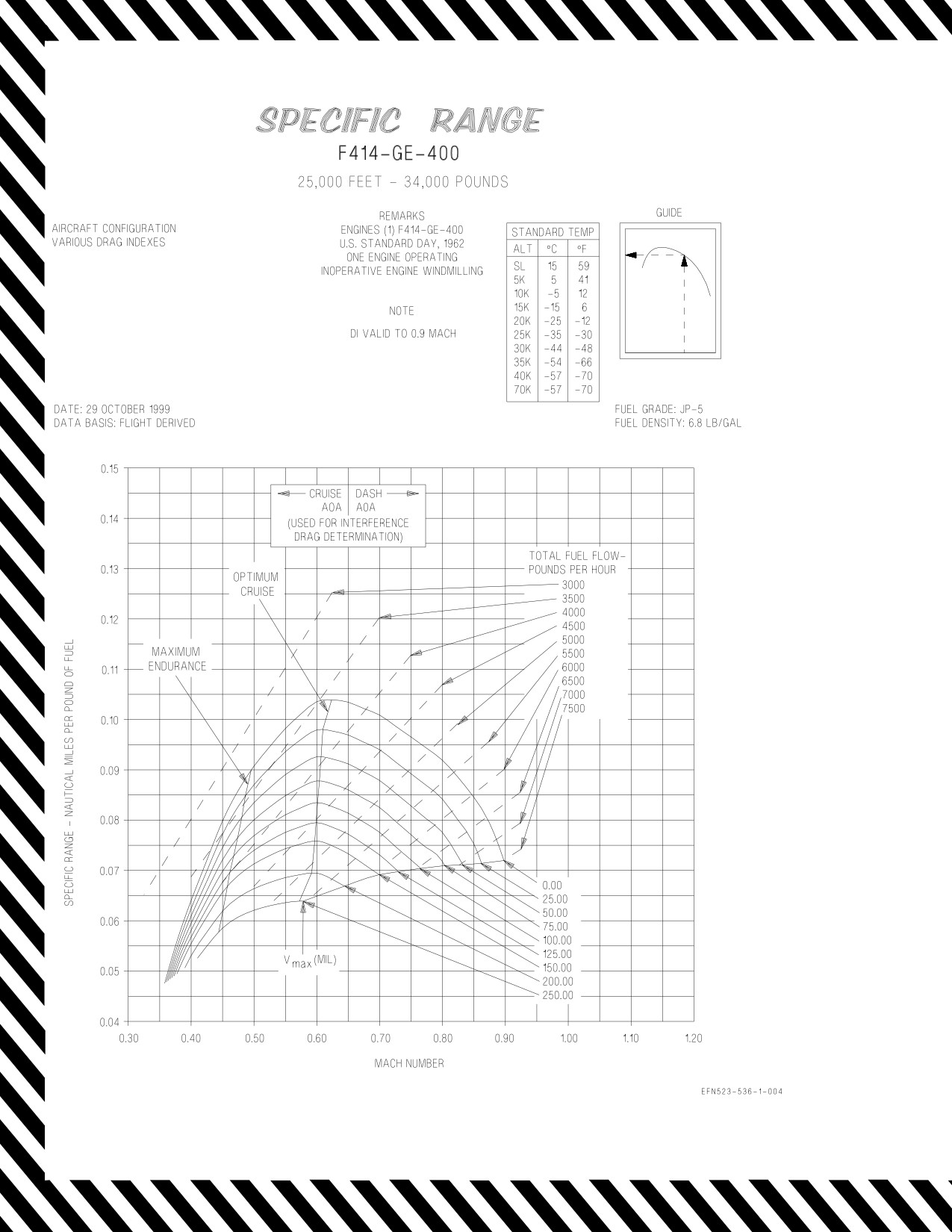

Figure 5-148. Single Engine Specific Range - 25,000 Feet - 34,000 Pounds
XI-5-158
ORIGINAL
A1-F18EA-NFM-200

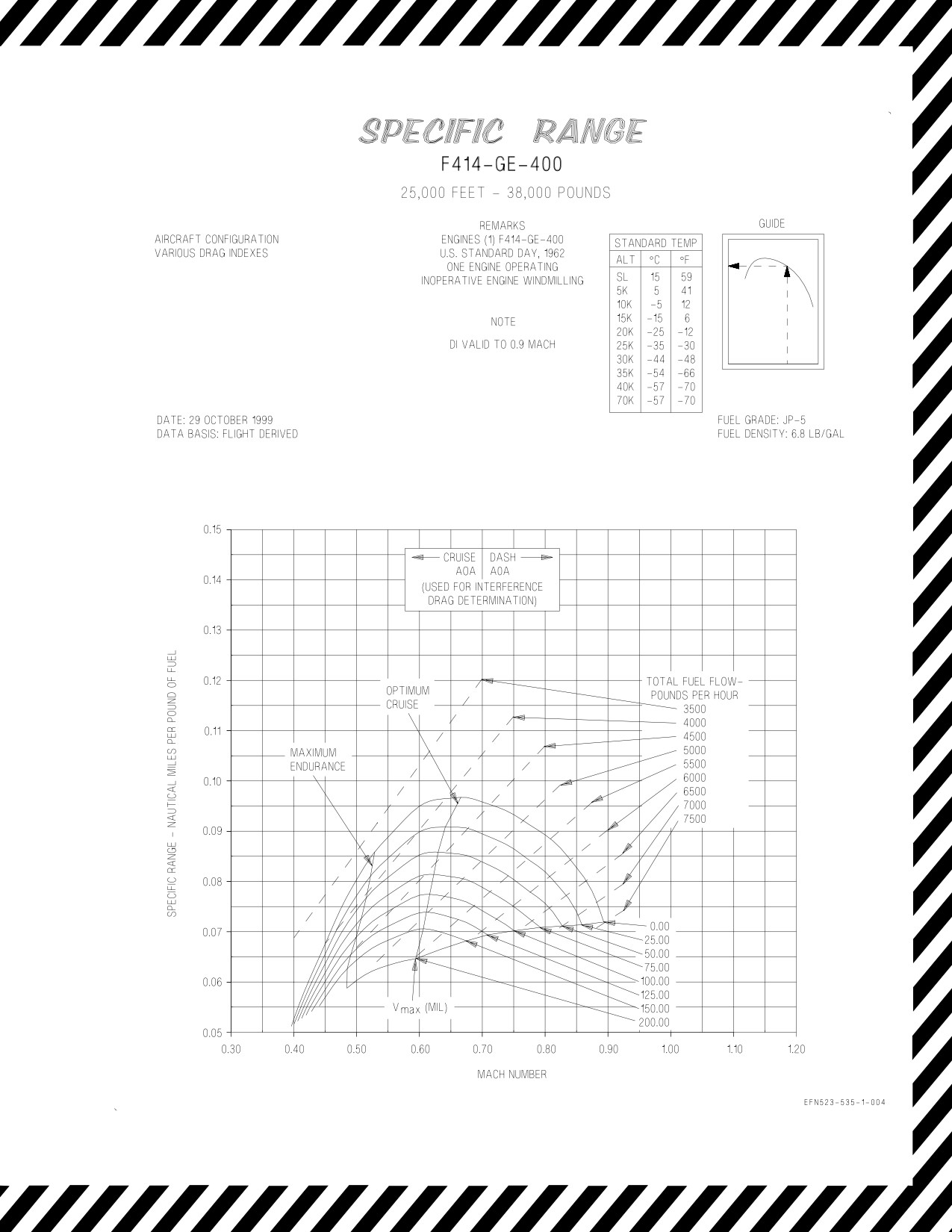

Figure 5-149. Single Engine Specific Range - 25,000 Feet - 38,000 Pounds
XI-5-159
ORIGINAL
A1-F18EA-NFM-200
Figure 5-150. Single Engine Specific Range - 25,000 Feet - 42,000 Pounds
XI-5-160
ORIGINAL
A1-F18EA-NFM-200

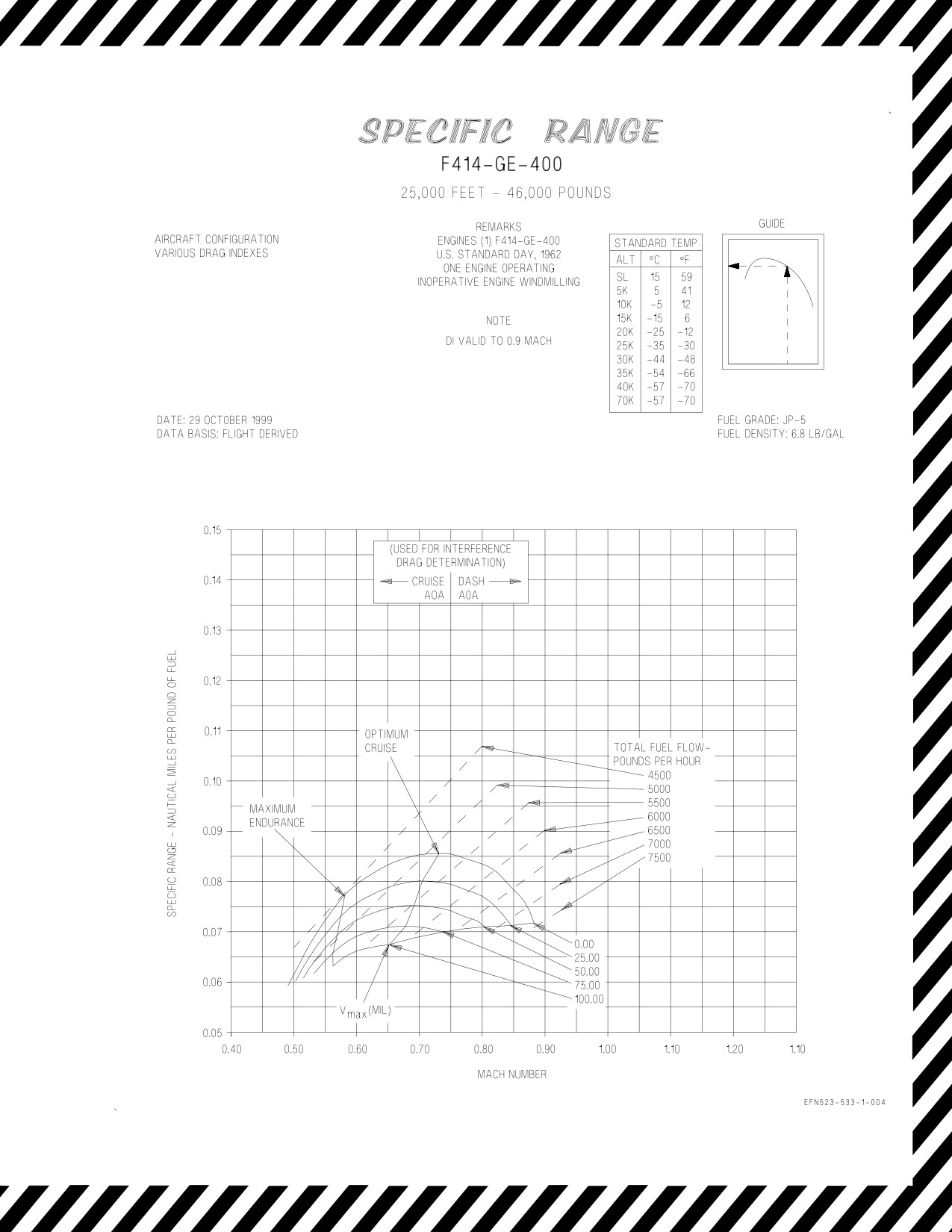

Figure 5-151. Single Engine Specific Range - 25,000 Feet - 46,000 Pounds
XI-5-161
ORIGINAL
A1-F18EA-NFM-200
Figure 5-152. Single Engine Specific Range - 25,000 Feet - 50,000 Pounds
XI-5-162
ORIGINAL
A1-F18EA-NFM-200

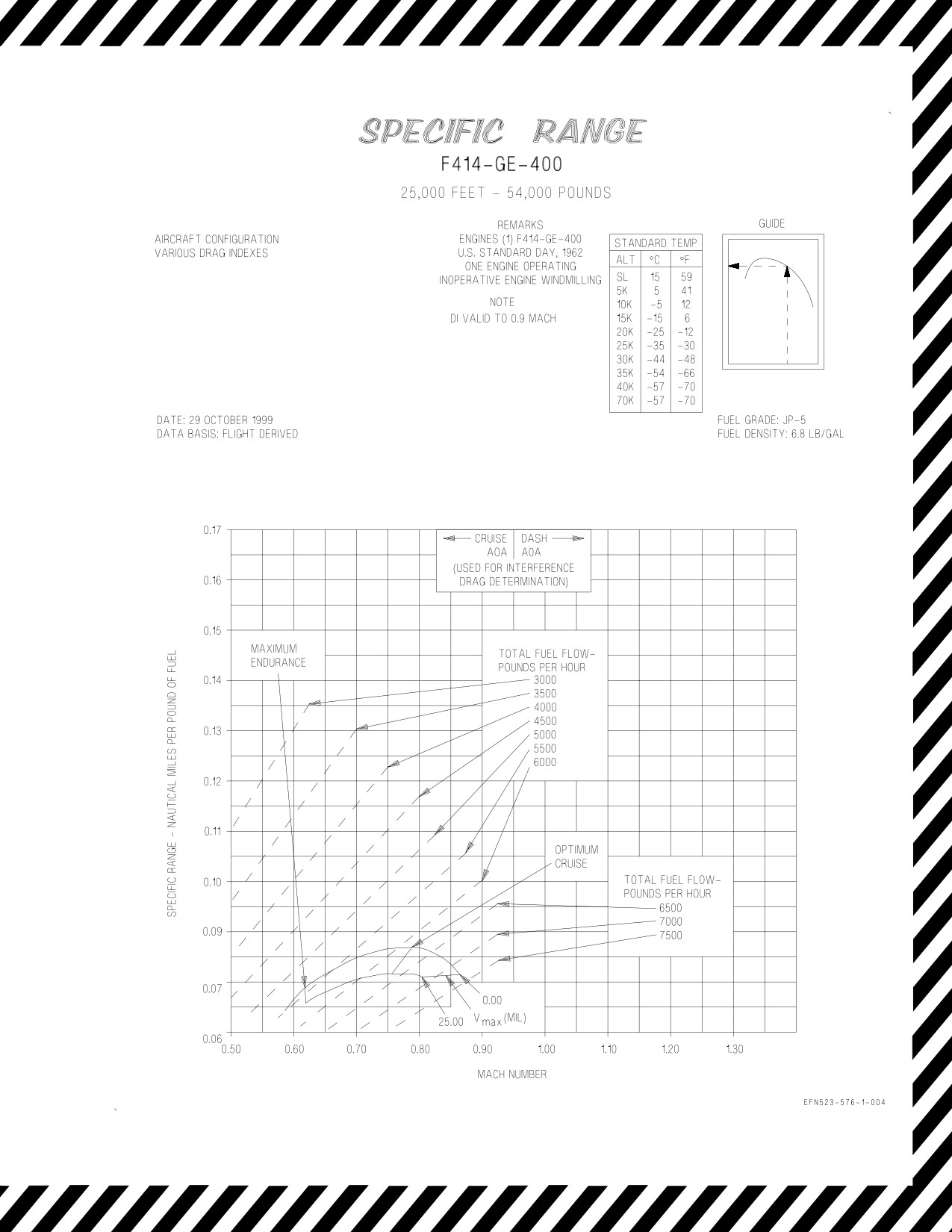

Figure 5-153. Single Engine Specific Range - 25,000 Feet - 54,000 Pounds
XI-5-163
ORIGINAL
A1-F18EA-NFM-200

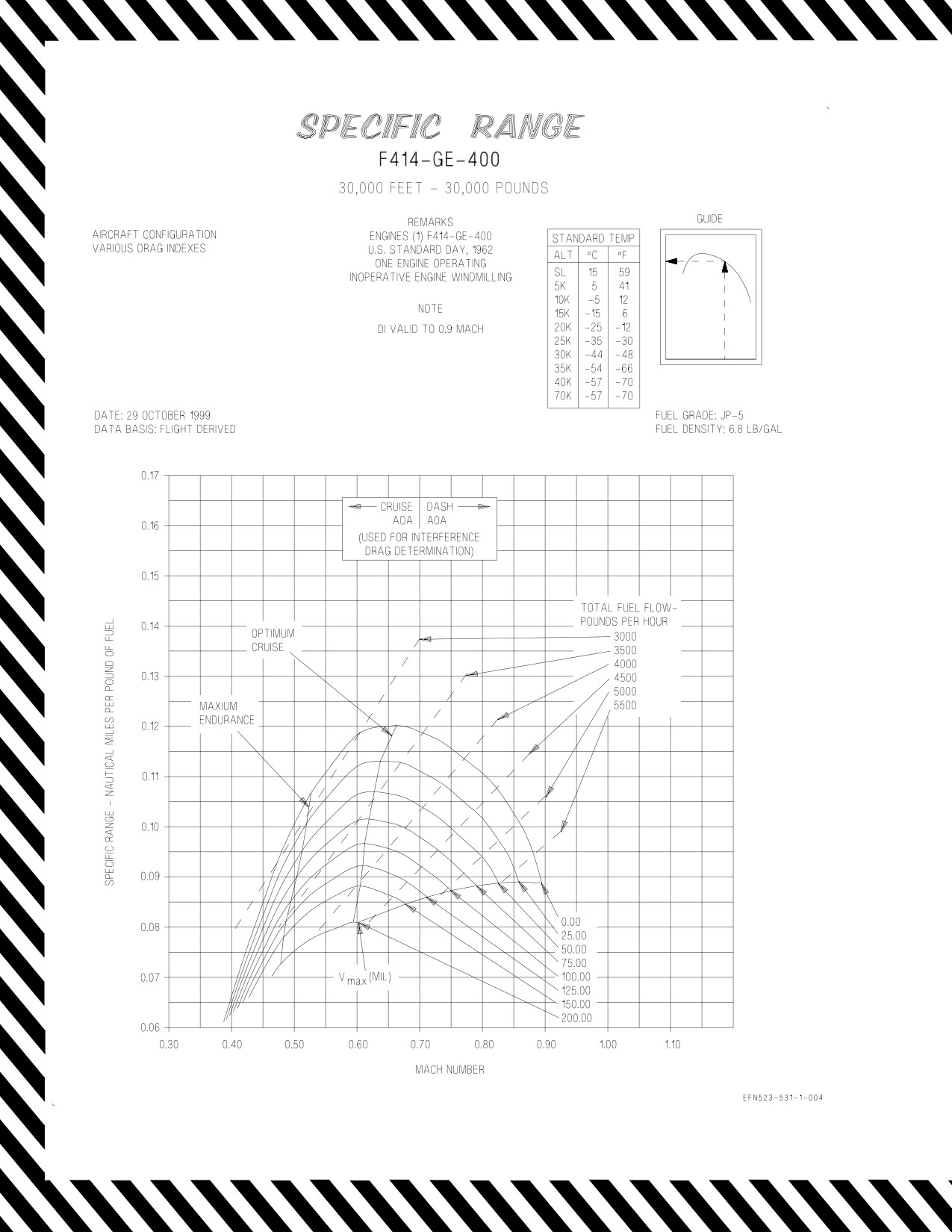

Figure 5-154. Single Engine Specific Range - 30,000 Feet - 30,000 Pounds
XI-5-164
ORIGINAL
A1-F18EA-NFM-200

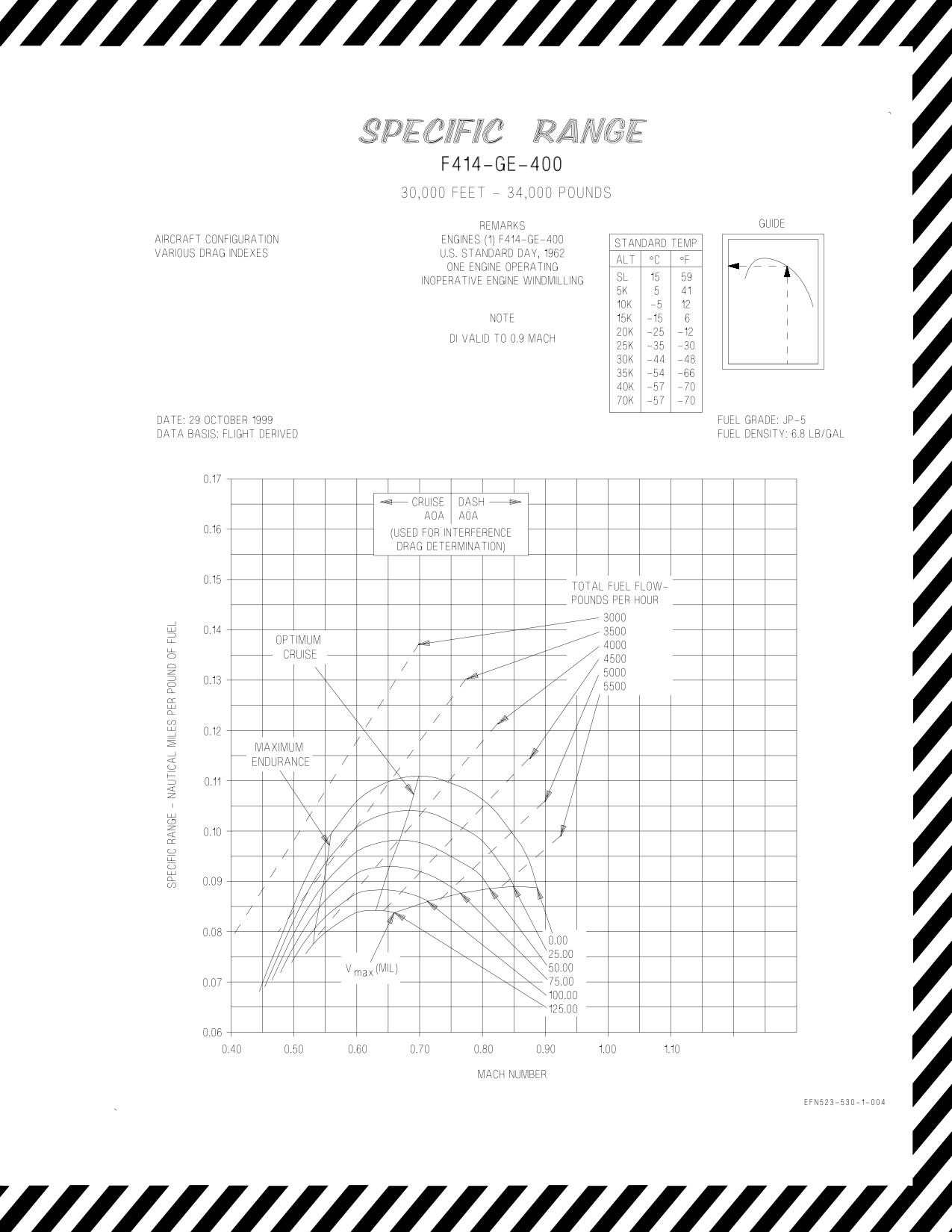

Figure 5-155. Single Engine Specific Range - 30,000 Feet - 34,000 Pounds
XI-5-165
ORIGINAL
A1-F18EA-NFM-200

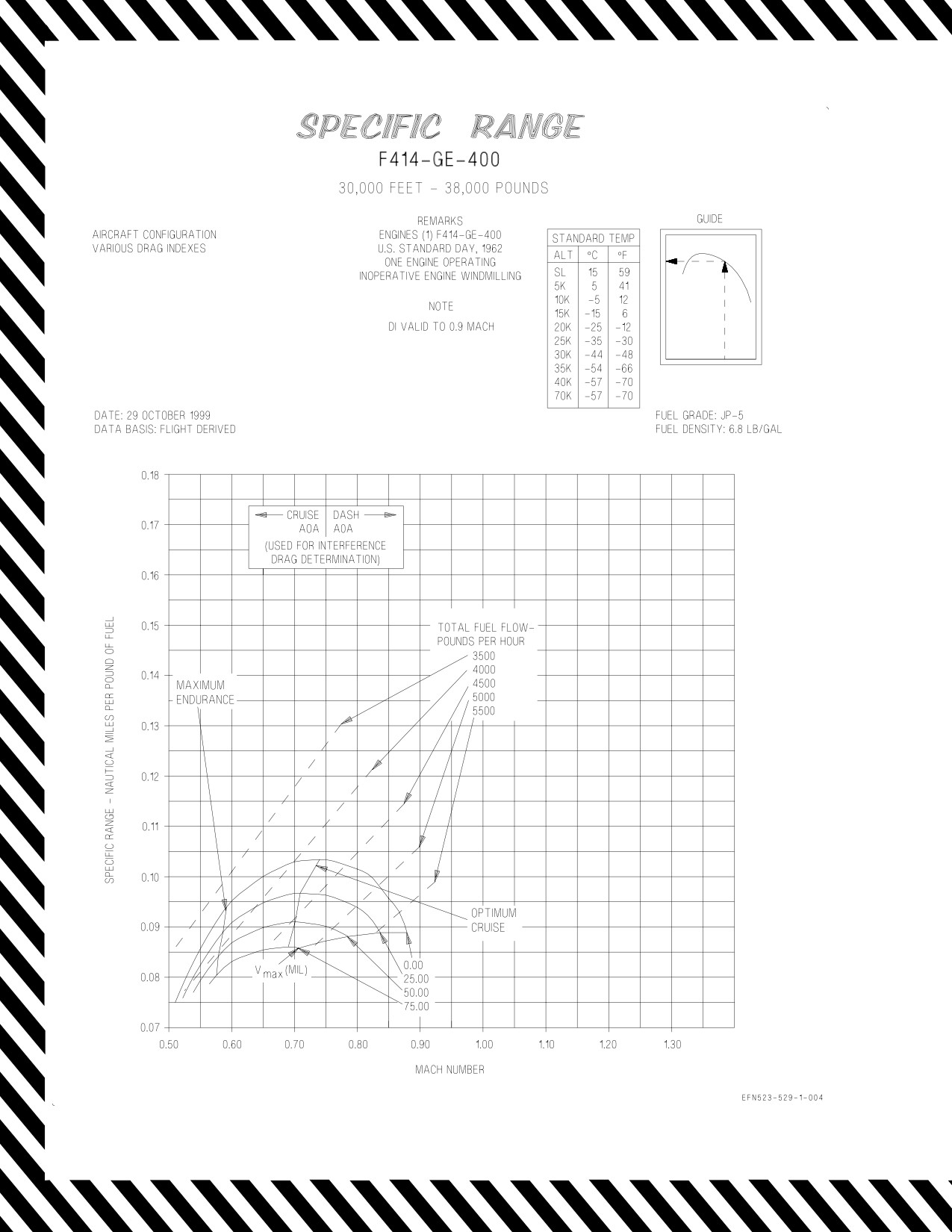

Figure 5-156. Single Engine Specific Range - 30,000 Feet - 38,000 Pounds
XI-5-166
ORIGINAL
A1-F18EA-NFM-200
Figure 5-157. Single Engine Specific Range - 30,000 Feet - 42,000 Pounds
XI-5-167
ORIGINAL
A1-F18EA-NFM-200

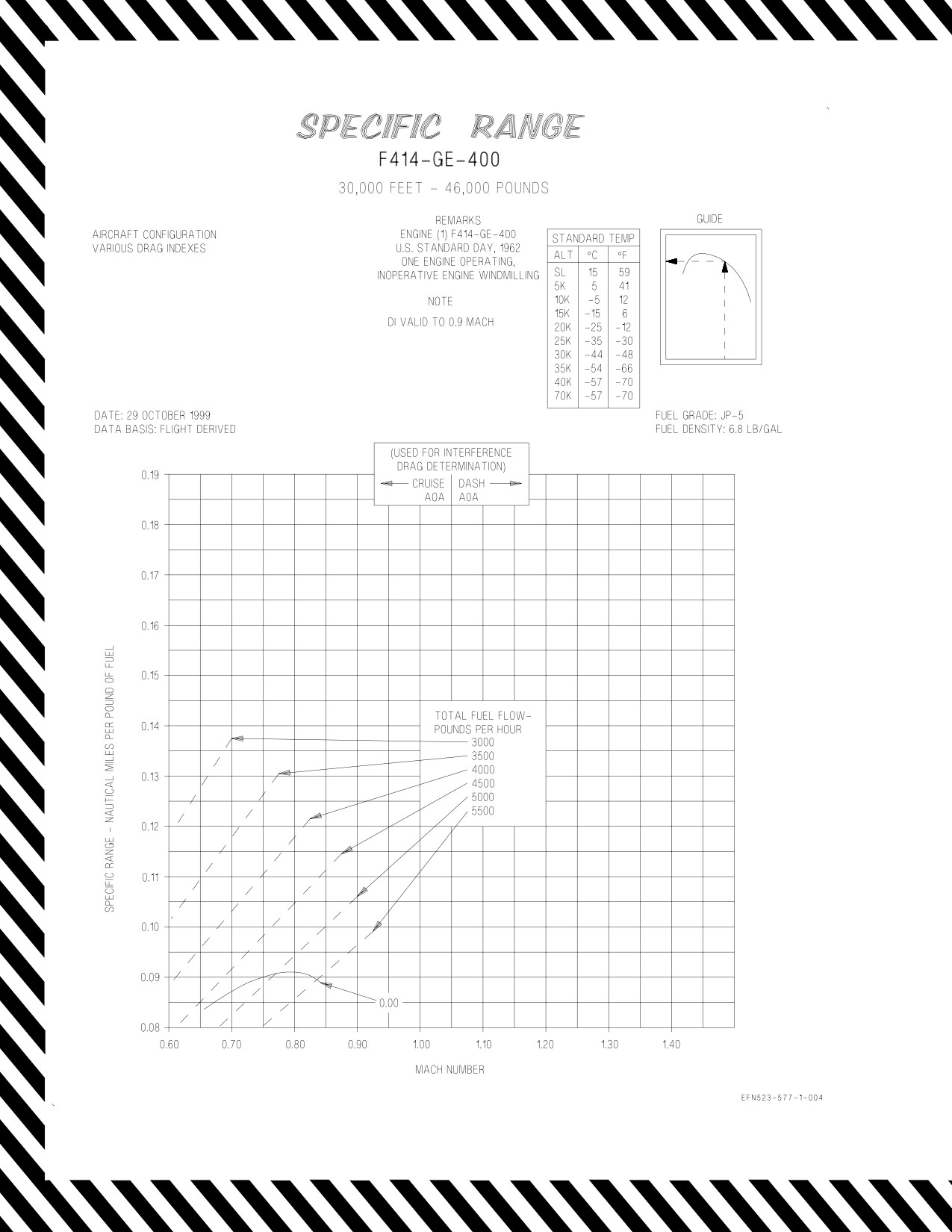

Figure 5-158. Single Engine Specific Range - 30,000 Feet - 46,000 Pounds
XI-5-168
ORIGINAL
A1-F18EA-NFM-200

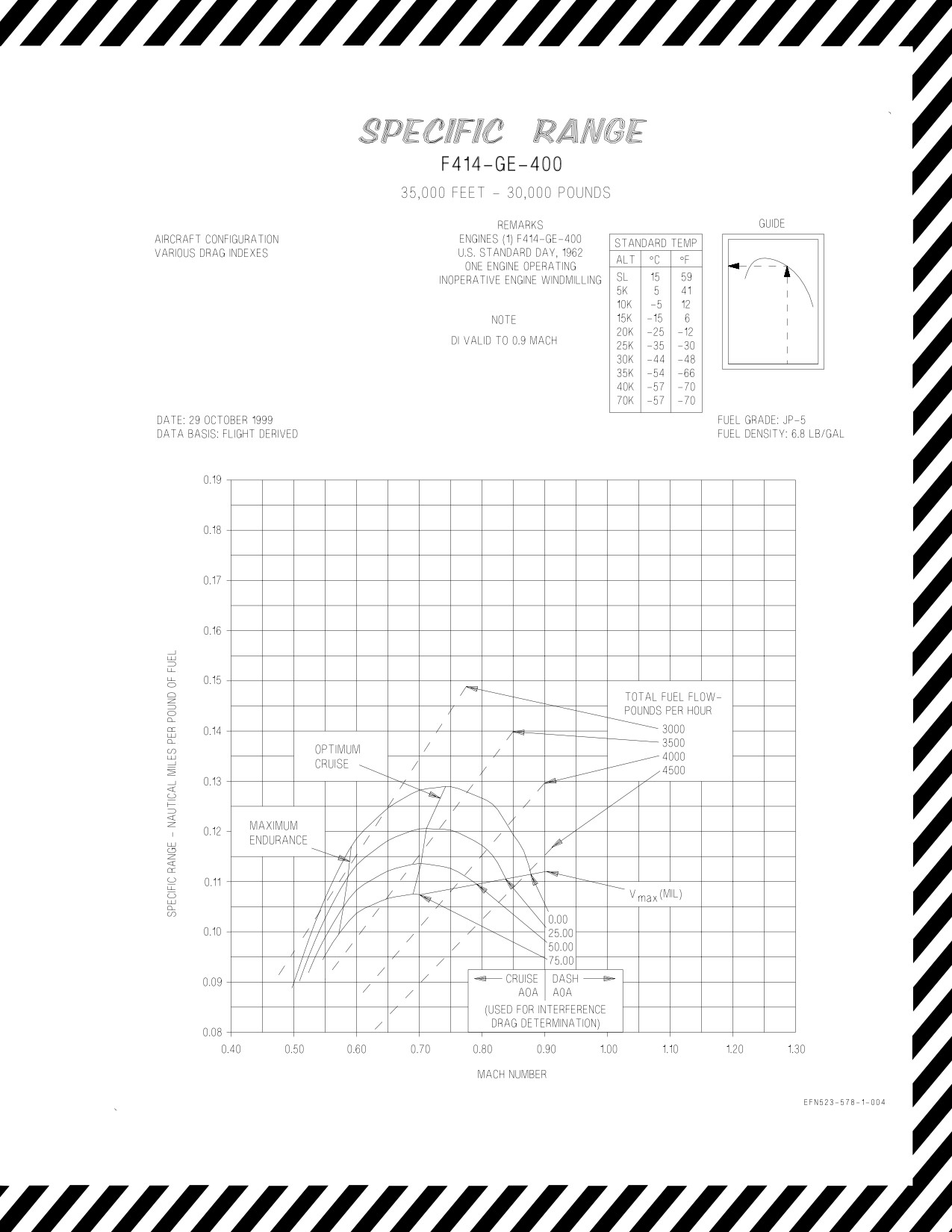

Figure 5-159. Single Engine Specific Range - 35,000 Feet - 30,000 Pounds
XI-5-169
ORIGINAL
