Amtrak. Graphic Signage Standards Manual (2010) - page 5
Regulatory
7.5
Signage
Regulatory Signs
D1 and D2
Sign Types
Design Intent
Drawing
Finishes
* Paint
1) Background field painted Scarlet Red*
• Matthews Acrylic
Polyurethane Low
2) Symbol field painted White*
Volatile Organic
3) Symbol painted AMT Blue*
Compound (LVOC)
specifications provided.
4) Message field painted White*
5) Frutiger 65 Bold text painted AMT Blue*
• AMT Blue
Satin VOC# SVOC1142SP
6)
1/2” mounting gripper on mounting side only for flag mounted conditions
• Scarlet Red
7) Entire sign clear coated*
Satin VOC# SVOC1340SP
• Silver
Satin VOC# MP18073
• White
Satin VOC# SV202SP
7
• Clear Coat
VOC Satin Clear
#281228
For fabrication and
1
installation informa-
2
tion refer to Chapter
11.0.
3
4
Line 1
5
Line 2
Line 3
D1 and D2 Sign Types
6
Regulatory
Signage
7.6
Safety Signs
D3 Sign Type
Sign Overview
These signs are used in
station interiors, on plat-
forms and exteriors to
display station and plat-
form safety information.
These sign examples
!
!
!
represent some of the
support messages found
on Safety signs. Custom
Caution
Notice
Warning
Messages found on these
signs should be based on
specific safety wayfinding
needs.
Custom
Custom
Custom
Comment
Message
Message
Message
For the definition of
Here
Here
Here
Custom Message and
proper nomenclature
refer to Chapter 1.0.
!
Custom
Message
Custom
Message
Here
D3 Sign Types
■
Regulatory
7.7
Signage
Safety Signs
D3 Sign Type
Mounting Options
The following Mounting
Post *
Options provide guide-
lines for the placement of
Safety Signs.
Mounting Options
1) Wall mounted
2) Flag mounted
2
Comments
• Refer to state and local
codes for compliance.
* Where a post does
not exist, provide a
3 3/8” aluminum post
1
with welded mounting
bracket. Post shall be
satin finished aluminum
extending 3” above the
top of the sign. When
mounting signs to an
existing post, use a
tensioned metal strap
system.
D3 Sign Type
Regulatory
Signage
7.8
Safety Signs
D3 Sign Type
Sign Size and Layout
Graphic Components
12"
12” Module
Unit size: 1 1/2”
1 1/2"
Symbol Field: 9”
6” Module
Unit Size: 3/4”
Support Text Size: 1 1/2”
Cap Ht. for two lines
1 1/2"
Support Text Size: 3/4”
x-height for three lines
Comment
For additional informa-
tion on the use of mod-
ules, arrows, symbols and
text refer to Chapter 2.0.
Line
1
Line
2
Line
4
3/4"
Line
5
Line
6
D3 Sign Type
■
Regulatory
7.9
Signage
Safety Signs
D3 Sign Type
Design Intent
Drawing
Finishes
* Paint
1) Background field painted Scarlet Red*
• Matthews Acrylic
Polyurethane Low
2) Symbol field painted White*
Volatile Organic
3) Symbol painted AMT Blue*
Compound (LVOC)
specifications provided.
4) Background field painted AMT Blue*
5) Frutiger 65 Bold text painted White*
• AMT Blue
Satin VOC# SVOC1142SP
6) Background field painted White*
• Scarlet Red
7) Frutiger 65 Bold text painted AMT Blue*
Satin VOC# SVOC1340SP
8) Striped safety bar painted Scarlet Red*
• Silver
9) Warning stripes reflective White vinyl**
Satin VOC# MP18073
10) 1/2” mounting gripper on mounting side only for flag mounted conditions
• White
11) Entire sign panel clear coated before vinyl application*
Satin VOC# SV202SP
• Clear Coat
VOC Satin Clear
Alternate Finishes
#281228
* Matthews White Satin VOC# SV202SP paint for reflective White vinyl text & back-
**Vinyl
ground fields.
• 3M Scotchlite Reflective
Vinyl White #680-10 to
11
match White
For fabrication and
1
installation informa-
2
tion refer to Chapter
11.0.
3
Line 1
4
5
Line 2
Line 4
6
Line 5
7
Line 6
8
D3 Sign Type
9
10
Regulatory
Signage
7.10
Platform End
Restrictive Sign
D4 Sign Type
Sign Overview
These signs are used at
platform ends to warn
passengers not to pro-
ceed beyond that point.
These signs always display
the restrictive message of
AUTHORIZED PERSONNEL
in Raised Characters and
Grade 2 Braille.
!
D4 Sign Type
■
Regulatory
7.11
Signage
Platform End
Restrictive Sign
D4 Sign Type
Mounting Option
The following Mounting
Option provides a guide-
1
line for the placement
of Restrictive signs. On
!
side platforms, only one
sign is required at either
end. On island platforms,
either one or two signs
are to be placed at each
end, depending on the
passenger access.
Sign must be mounted
as shown for access to
Raised Characters and
Grade 2 Braille messages
on the sign surface.
Mounting Option
1) Railing mounted
Comment
Refer to state and local
codes for conformance.
D4 Sign Type
At End of Typical High or Low Level Platform
Regulatory
Signage
7.12
Platform End
Restrictive Sign
D4 Sign Type
Sign Size and Layout
Graphic Components
12"
12” Module
Unit size: 1 1/2”
1-1/2"
Symbol Field: 9”
6” Module
Unit Size: 3/4”
Text Size: 1” All Caps
Grade 2 Braille
1-1/2"
Comment
For additional informa-
tion on the use of mod-
ules, arrows, symbols and
text refer to Chapter 2.0.
LINE
1
3/4"
LINE
2
(Grade
2
Braille)
D4 Sign Type
■
Regulatory
7.13
Signage
Platform End
Restrictive Sign
D4 Sign Type
Design Intent
Drawing
Finishes
* Paint
• Matthews Acrylic
1) 1/4” thick Exterior grade photo polymer panel with raised tactile and Braille
Polyurethane Low
letters, background field painted Scarlet Red*
Volatile Organic
2) Symbol field reflective White vinyl**
Compound (LVOC)
3) Symbol painted AMT Blue*
specifications provided.
4) Message field painted AMT Blue*
• AMT Blue
Satin VOC# SVOC1142SP
5) Frutiger 55 Roman 1/32” raised characters, painted White*
• Scarlet Red
6) Grade 2 Braille painted AMT Blue*
Satin VOC# SVOC1340SP
7) Striped safety bar painted Scarlet Red*
• Silver
8) Warning stripes reflective White vinyl**
Satin VOC# MP18073
9)
1/2” mounting gripper on mounting side only for flag mounted conditions
• White
10) Entire sign panel clear coated before vinyl application*
Satin VOC# SV202SP
• Clear Coat
Alternate Finishes
VOC Satin Clear
#281228
* Matthews White Satin VOC# SV202SP paint for reflective White vinyl symbol field.
**Vinyl
• 3M Scotchlite Reflective
Vinyl White #680-10 to
10
match White
1
For fabrication and
installation informa-
tion refer to Chapter
2
11.0.
3
4
LINE 1
LINE 2
5
(Grade 2 Braille)
6
7
D4 Sign Type
8
9
Regulatory
Signage
7.14
Safety Tips Sign
D5 Sign Type
Sign Overview
This sign type is used on
platforms in medium and
Safety Tips
large stations to advise
passengers on protecting
their safety in stations
and on trains.
In the Station:
Always use authorized
Red Caps to carry luggage
Never leave property
unattended.
On the Train:
Always keep valuables
with you.
Never place belongings
under seat.
Amtrak Police Department
1-800-331-0008
D5 Sign Type
■
Regulatory
7.15
Signage
Safety Tips Sign
D5 Sign Type
Mounting Options
The following Mounting
1
Safety Tips
Options provide guide-
In the Station:
Always use authorizedRed Caps to carry luggage
lines for the placement of
Never leave property
unattended.
On the Train:
Safety Tips signs.
Always keep valuables
with you.
Never place belongings
under seat.

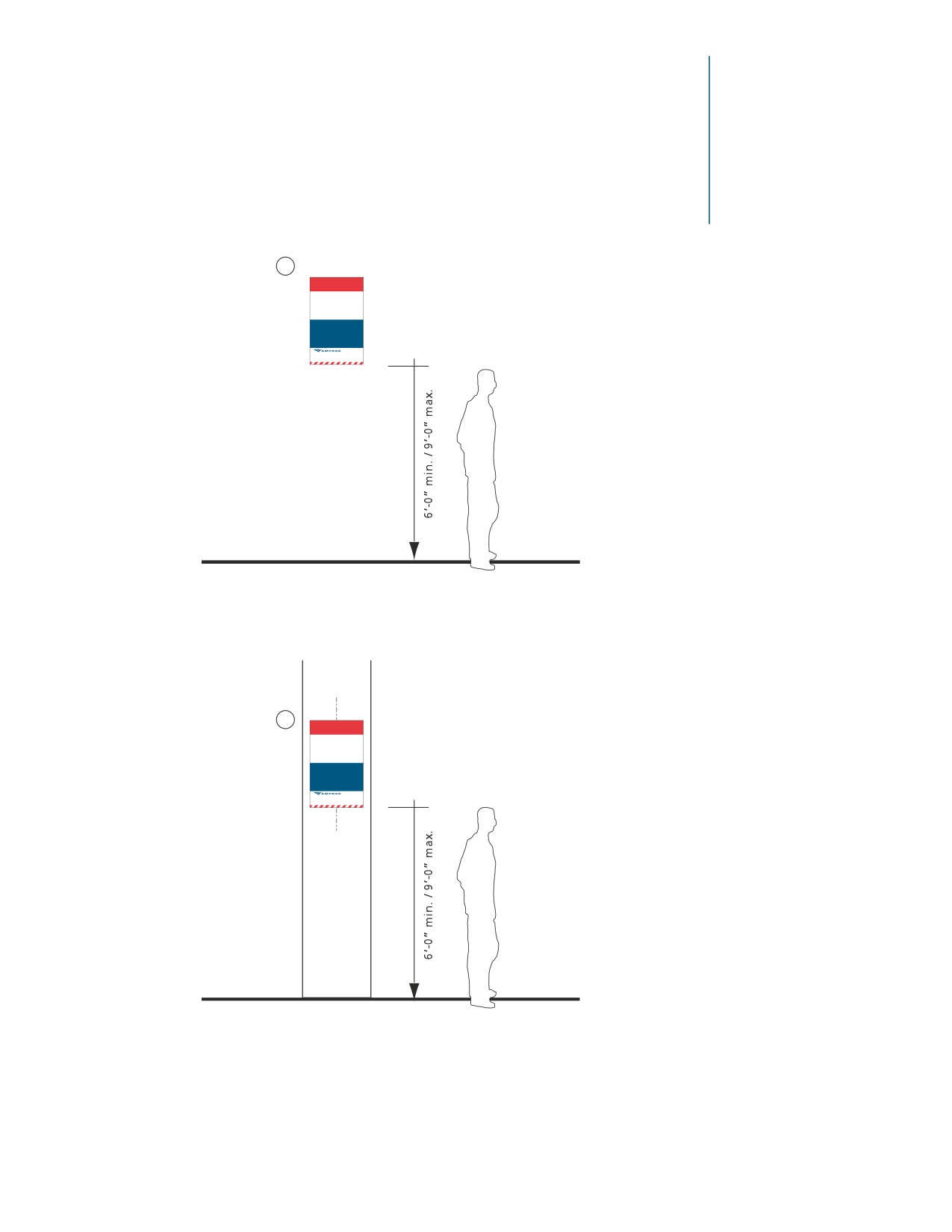

Mounting Options
Amtrak Police Department
1-800-331-0008
1) Wall mounted
2) Column mounted
Comments
• Placed on platforms.
• One (1) sign placed in
proximity to each active
platform stair, escalator,
and elevator landing.
D5 Sign Type
Typical Platform Wall Mounted
C
L
2
Safety Tips
In the Station:
Always use authorized
Red Caps to carry luggage
Never leave property
unattended.
On the Train:
Always keep valuables
with you.
Never place belongings
under seat.
Amtrak Police Department
1-800-331-0008
D5 Sign Type
Typical Platform Column Mounted
Regulatory
Signage
7.16
Safety Tips Sign
D5 Sign Type
Sign Size and Layout
The Safety Tips Sign has a
21"
customized layout.
Graphic Components
Header:
Safety Tips
2” Cap Ht.
Explanatory Text:
1” Cap Ht.
In the Station:
Always use authorized
Red Caps to carry luggage
Never leave property
unattended.
On the Train:
Always keep valuables
with you.
Never place belongings
under seat.
Amtrak Police Department
1-800-331-0008
D5 Sign Type
■
Regulatory
7.17
Signage
Safety Tips Sign
D5 Sign Type
Design Intent
Drawing
Finishes
* Paint
1) Background field painted Scarlet Red*
• Matthews Acrylic
Polyurethane Low
2) Frutiger 65 reflective White vinyl text**
Volatile Organic
3) Background field reflective White vinyl**
Compound (LVOC)
4) Amtrak logo and Frutiger 55, 65 and 75 text painted AMT Blue*
specifications provided.
5) Background field painted AMT Blue*
• AMT Blue
Satin VOC# SVOC1142SP
6) Frutiger 55, 65 and 75 reflective White vinyl text**
• Scarlet Red
7) Striped safety bar painted Scarlet Red*
Satin VOC# SVOC1340SP
8) Warning stripes reflective White vinyl**
• Silver
Satin VOC# MP18073
Alternate Finishes
• White
* Matthews White Satin VOC# SV202SP paint for reflective White vinyl text & back-
Satin VOC# SV202SP
ground fields.
**Vinyl
• 3M Scotchlite Reflective
1
Vinyl White #680-10 to
Safety Tips
2
match White
Comment
4
In the Station:
3
This sign is not clear coat-
ed due to its reflective
Always use authorized
vinyl base.
Red Caps to carry luggage
For fabrication draw-
Never leave property
ings and installation
unattended.
specifications refer to
Chapter 11.0.
6
On the Train:
5
Always keep valuables
with you.
Never place belongings
under seat.
4
3
Amtrak Police Department
1-800-331-0008
7
D5 Sign Type
8
Regulatory
Signage
7.18
Security
Warning Sign
D6 Sign Type
Sign Overview
This Sign Type is used for
security enforcement in
highly restricted, non
WARNING
public areas—typically
beyond platform ends in
large stations—to warn
BY ORDER OF THE POLICE
people of the legal con-
DANGER - KEEP OFF
sequences of entering
PRIVATE PROPERTY
the restricted area.
NO TRESPASSING
CCTV MONITORED AREA
The Police Will Detain
And Prosecute Persons
Found On This Property
Without The Railroad’s
Permission.
Amtrak Police Department
1-800-331-0008
D6 Sign Type
■
Regulatory
7.19
Signage
Security
Warning Sign
D6 Sign Type
Mounting Options
The following Mounting
1
WARNING
Options provide guide-
BY ORDER OF THE POLICE
DANGER - KEEP OFF
lines for the placement of
PRIVATE PROPERTY
NO TRESPASSING
CCTV MONITORED AREA
Warning signs.
The Police Will Detain
And Prosecute Persons
Found on This Property
Without the Railroad’s
Permission.
Mounting Options
Amtrak Police Department
1-800-331-0008
1) Wall mounted
2) Column mounted
Comment
Sign use and placement
is coordinated by Amtrak
management.
D6 Sign Type
Typical Platform Wall Mounted
C
L
2
WARNING
BY ORDER OF THE POLICE
DANGER - KEEP OFF
PRIVATE PROPERTY
NO TRESPASSING
CCTV MONITORED AREA
The Police Will Detain
And Prosecute Persons
Found on This Property
Without the Railroad’s
Permission.
Amtrak Police Department
1-800-331-0008
D6 Sign Type
Typical Platform Column Mounted
Regulatory
Signage
7.20
Security
Warning Sign
D6 Sign Type
Sign Size and Layout
The Security Warning
21"
Sign has a customized
layout.
Graphic Components
WARNING
Header:
2” Cap Ht.
Explanatory Text:
BY ORDER OF THE POLICE
1” Cap Ht.
DANGER - KEEP OFF
Do Not Enter Symbol:
PRIVATE PROPERTY
3“ diameter
NO TRESPASSING
CCTV MONITORED AREA
The Police Will Detain
And Prosecute Persons
Found On This Property
Without The Railroad’s
Permission.
Amtrak Police Department
1-800-331-0008
D6 Sign Type
■
Regulatory
7.21
Signage
Security
Warning Sign
D6 Sign Type
Design Intent
Drawing
Finishes
* Paint
1) Background field painted Scarlet Red*
• Matthews Acrylic
Polyurethane Low
2) Frutiger 65 reflective White vinyl text**
Volatile Organic
3) Background field reflective White vinyl**
Compound (LVOC)
4) Symbol painted AMT Scarlet Red*.
specifications provided.
5) Amtrak logo and Frutiger 55, 65 and 75 text painted AMT Blue*
• AMT Blue
Satin VOC# SVOC1142SP
6) Background field painted AMT Blue*
• Scarlet Red
7) Frutiger 55 and 75 reflective White vinyl text**
Satin VOC# SVOC1340SP
8) Striped safety bar painted Scarlet Red*
• Silver
9) Warning stripes reflective White vinyl**
Satin VOC# MP18073
• White
Satin VOC# SV202SP
Alternate Finishes
* Matthews White Satin VOC# SV202SP paint for reflective White vinyl text & back-
**Vinyl
ground fields.
• 3M Scotchlite Reflective
Vinyl White #680-10 to
1
match White
Comment
WARNING
2
This sign is not clear coat-
ed due to its reflective
5
BY ORDER OF THE POLICE
vinyl base.
DANGER - KEEP OFF
For fabrication and
3
installation informa-
PRIVATE PROPERTY
tion refer to Chapter
NO TRESPASSING
11.0.
4
7
CCTV MONITORED AREA
The Police Will Detain
And Prosecute Persons
Found On This Property
Without The Railroad’s
Permission.
5
3
Amtrak Police Department
1-800-331-0008
8
D6 Sign Type
9
Electronic Signage
8.1
“E” Sign Types
Electronic Signs
Signs for the Amtrak Graphics Signage System have
been categorized into five groups.
“A” Sign Types represent Platform Signs
“B” Sign Types represent Interior Signs
“C” Sign Types represent Exterior Signs
“D” Sign Types represent Regulatory Signs
“E” Sign Types represent Electronic Signs
This chapter includes a graphic review of Electronic
Signage within the Amtrak Graphics Signage System.
Amtrak has updated most of its electronic Sign Types
and is directing a national implementation of these
new units. Since this is a nationally coordinated effort,
the PIDS (Passenger Information Display Systems) Sign
Types E2 through E9 cannot be ordered for individual
stations. Contact SignageBrandManagement@Amtrak.
com for information on PIDS.
Electronic sign systems require individual configura-
tions. A sign overview, elevations of typical mount-
ing options, sign size and layout and a design intent
drawing is included for each electronic Sign Type.
General specifications given in this chapter are based
on available technology as of date of publication of
this Manual and they are subject to change. Sign types
are listed first by their name and are followed by their
identifying letter and number. For example: Visual
Messaging System, E3 Sign Type.
Electronic Signage
8.2
Next Agent
Available System
E1 Sign Type
Sign Overview
The use of the Next
Agent Available System
Please Wait
permits the efficient
movement of customers
through ticket lines at
Agent
Amtrak ticket counters.
Available
E1 Sign Types are to be
used at stations with
moderate to heavy
E1 Sign Type
E1 Sign Type
passenger loads.
Tri-Beacon Does Not
Display Ticket Agent
The E1 Sign Type con-
Position Number
figurations depicted
on pages 8.2-8.5 rep-
resent a system from a
specific manufacturer.
Other systems available
from other manufactur-
ers may be more suit-
able for specific station
needs. For further infor-
mation, please contact
Amtrak Signage Brand
E1 Sign Type
Management.
Numbered Tri-Beacon
Displays Ticket Agent
Position Number
Please Wait
Agent
Available
1 2 3 4 5 6 7 8 9 10
E1 Sign Type
■
Electronic Signage
8.3
Next Agent
Available System
E1 Sign Type
Sign Size and Layout
6"
9"
Graphic Components
3/4"
4 1/2"
3/8"
3"
6” Module
Unit Size: 3/4”
Symbol Field: 4 1/2”
Type Size: 3”
Please Wait
4 1/2” Module
Unit Size: 9/16”
Type Size: 1 1/8”
Agent
#
3” Module
Available
Unit Size: 3/8”
Text Size: 3/4”
E1 Sign Type
E1 Sign Type
Comments
Numbered Beacon
• Dashed line represents
aluminum housing.
• For additional informa-
18"
tion on the use of the
modules, arrows, sym-
9/16"
4 1/2"
4 1/2"
4 1/2"
bols and text refer to
Chapter 2.0.
Please
Wait
Agent
Available
1 2
3
4
5
6 7
8
9
10
E1 Sign Type
Electronic Signage
8.4
Next Agent
Available System
E1 Sign Type
Mounting Option
Director with Beacon
without Ticket Agent
Numbers
Semi-automatic
Operation
Includes a director with
Plan View
chime, 12 volt power
pack and a beacon with
remote switch control
at each position.
Agent Activated
When activated by an
Please Wait
agent, the beacon light
Agent
flashes and the Director
Available
6" x 6" Tri-Beacon
changes from “Please
Indicating "Agent
Wait” to “Agent
Available Position"
Available” with appro-
priate directional arrow.
Beacon light turns off
and the director reverts
to “Please Wait” when
Tickets & Baggage Check-in
remote switch control is
turned off by the agent.
Backwall Graphics
(See pages 5.47 and 5.48 for additional information)
Please Wait
Agent
Available
E1 Sign Type
■
Electronic Signage
8.5
Next Agent
Available System
E1 Sign Type
Mounting Option
Director with Beacon
with Ticket Agent
Position Numbers
Semi-automatic
Operation
Includes a numbered
Plan View
director with chime,
12 volt power pack, and
a numbered beacon with
remote switch control
at each position.
Please Wait
Agent Activated
8
8
Agent
When activated by an
Available
1 2 3 4 5 6 7 8 9 10
agent, the numbered
6" x 6" Tri-Beacon
beacon light flashes and
Indicating "Agent
Available Position"
the Director changes
from “Please Wait” to
“Agent Available” with
appropriate directional
arrow and position num-
ber. Beacon light turns
Tickets & Baggage Check-in
7
7
8
8
off and the Director
reverts to “Please Wait”
when remote switch con-
trol is turned off by the
Backwall Graphics
agent.
(See pages 5.47 and 5.48 for additional information)
Please Wait
Agent
Available
1 2 3 4 5 6 7 8 9 10
E1 Sign Type
Electronic Signage
8.6

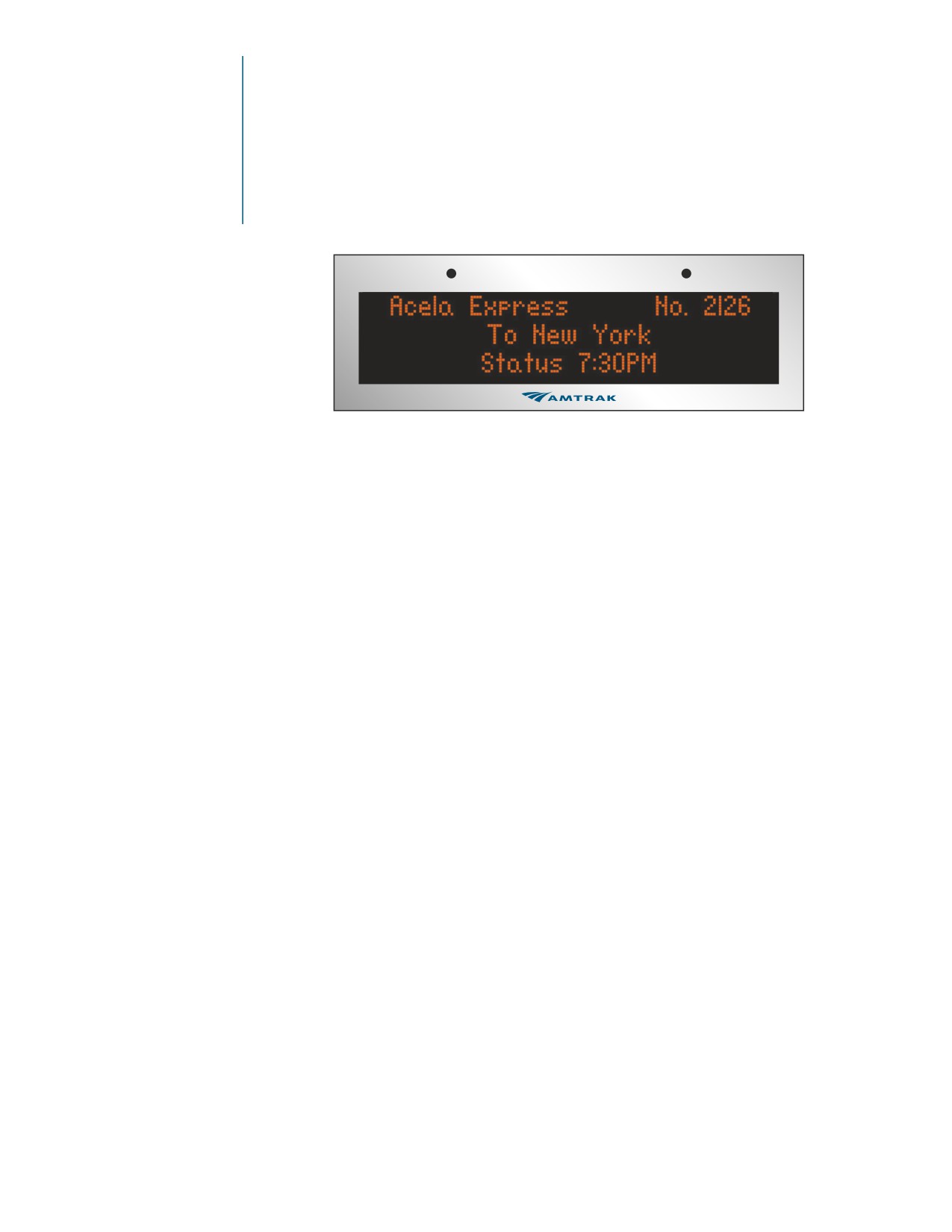

Next Train
Information
E2 Sign Type
Sign Overview
E2 Sign Types utilize
LED electronic display
technology to provide
next train information
on platforms at stations
with light to heavy pas-
senger loads. Next train
information shall include
train name and number,
train destination and
E2 Sign Type
departure time. When
no trains are expected,
information shall default
to current date and time.
Each display is operated
by Amtrak personnel
from a central controller
located in the communi-
cation center.
For maximum visibility
and efficiency, the num-
ber and placement of E2
Sign Types is determined
by careful consideration
of specific station needs,
including existing static
sign locations and view-
ing distances.
Comment
Additional information
on Sign Type E2, includ-
ing mounting options,
sign size and layout, and
design intent drawings
is on pages 8.8, 8.9, and
8.10.
■
Electronic Signage
8.7
Visual Messaging
System
E3 Sign Type
Sign Overview
The ability to visually
display station announce-
ments concurrently with
equivalent public address
announcements is man-
dated by the ADA so that
all passengers may have
access to the same infor-
mation.
E3 Sign Type
Amtrak Visual Messaging
Systems are located on
platforms at stations
with light to heavy pas-
senger loads and utilize
LED electronic display
technology. These signs
are used to communicate
public announcements
and emergency mes-
sages on platforms in the
absence of other acces-
sible visual displays.
The E3 Sign Type is distin-
guished from the E2 Sign
Type by the E3’s static
“Messaging” header and
the E3’s dynamic infor-
mation content, which is
dedicated solely to pub-
lic announcements and
emergency messages.
For maximum visibility
and efficiency, the num-
ber and placement of
Visual Messaging Systems
is determined by careful
consideration of specific
station needs, including
existing static sign loca-
tions and viewing dis-
tances.
Electronic Signage
8.8
Next Train
Information and
Visual Messaging
System
E2 and E3 Sign Types
Mounting Options
7'-0" min.
The following mounting
to center line
options provide guide-
of track*
C
L
lines for the placement
of E2 and E3 units on
platforms. Mounting
details shall be provided
by a structural engineer
licensed in the state hav-
ing jurisdiction.

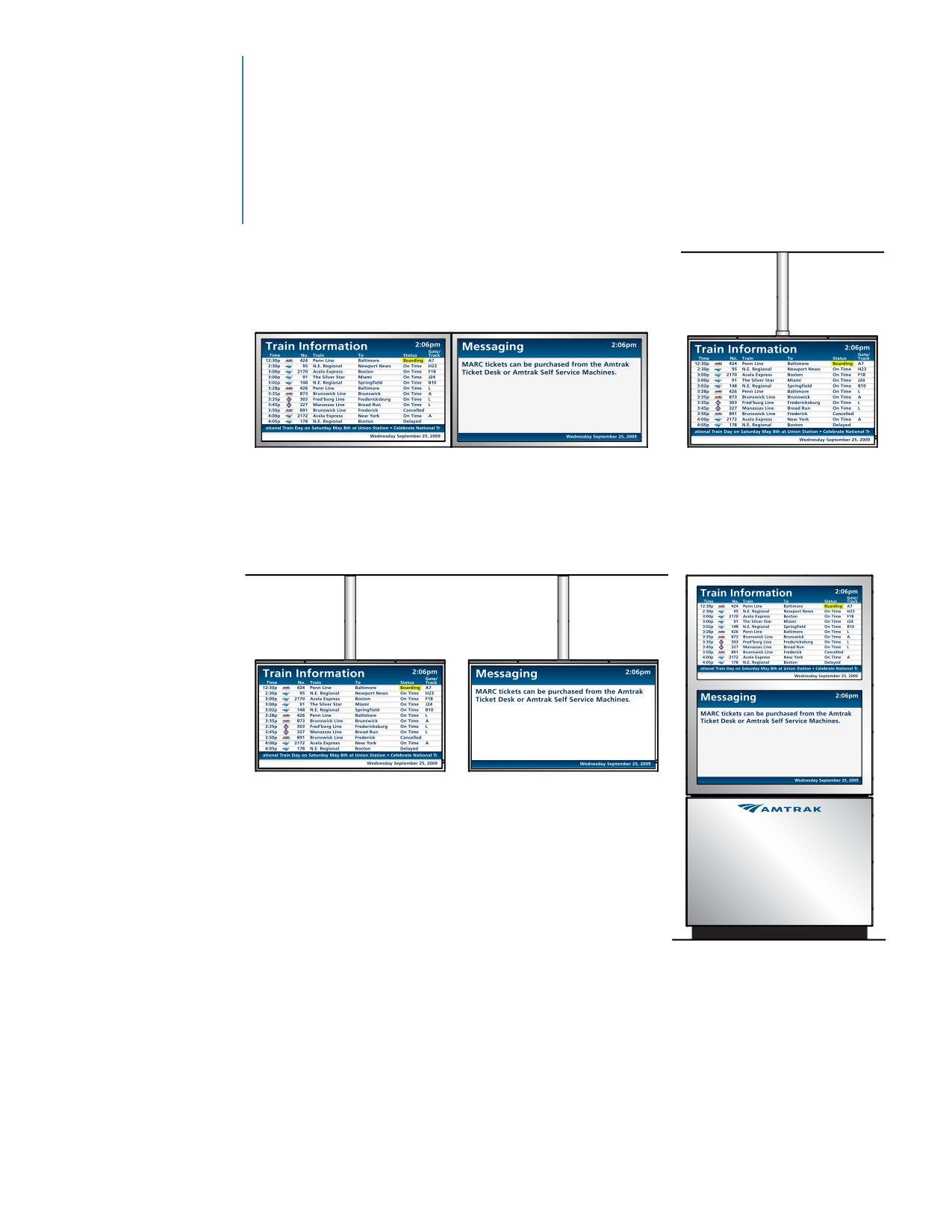

Mounting
Configurations
E2a, E3a Wall mounted
E2a and E3a Sign Type Wall Mounted
E2b and E3b Sign Type Freestanding
E2b, E3b Freestanding
E2c, E3c Suspended,
from single
7'-0" min.
7'-0" min.
mast arm
to center line
to center line
of track*
of track*
E2d, E3d Suspended,
CL
CL
from double
mast arms
E2e, E3e Suspended,
from canopies
* Sign clearance is sub-
ject to change by operat-
ing railroad.
Comments
• All mounting configura-
E2c and E3c Sign Type Suspended
E2d and E3d Sign Type Suspended
tions for E2 and E3 Sign
(Single mast arm)
(Double mast arms)
Types can employ single
or double-sided sign
units, except for the
7'-0" min.
E2a/E3a configuration
to center line
of track*
which is single-sided.
C
L
• E2 and E3 signs typically
placed perpendicular to
track.
• E2 signs placed 85’ +/-
apart.
• E3 signs placed 170’ +/-
apart.
E2e and E3e Sign Type Canopy
Suspended
■
Electronic Signage
8.9
Next Train
Information and
Visual Messaging
System
E2 and E3 Sign Types
Sign Size and Layout
4'-0"
Display Technology
Matrix is 32 x 144 amber
Header on Sign Type E3 only.
monochrome LEDs on
0.3” (8 mm) C-C spacing.
Character
2.1” high Sans Serif 7
LED font, maximum of
1'-4"
24 characters/line, three
lines of display.
Intensity Control
Intensity adjusted auto-
E2 and E3 Sign Type, Front View
matically by a light level
sensor located on the
front of the sign.
10"
Message Control
Dedicated PC provided
at each station with surge
protection. UPS device
E2 and E3 Sign Type, Double-sided, Plan View
for uninterrupted power
supply.
E2 and E3
PC Requirements
Sign Type,
Manufacturer to specify
Double-sided,
minimum requirements.
Side View
Static Graphics
“Messaging” Header:
5 1/4"
2” Cap Ht. (Sign type E3
only)
E2 and E3 Sign Type, Single-sided, Plan View
Amtrak Logo: 10 1/8”
Wide x 1 1/8” High
Comment
Single-sided units
E2 and E3
used primarily for wall
Sign Type,
mounted installations.
Single-sided,
Side View
Electronic Signage
8.10
Next Train
Information and
Visual Messaging
System
E2 and E3 Sign Types
Design Intent
Drawing
Weight (not including
4
2
support structures)
Single-sided: 55 lbs.
6
approx.
7
Double-sided: 85 lbs.
approx.
1
Power Requirements
Single-sided:
• 70 watts, .58 amps
3
@ 120 VAC
• 70 watts, .29 amps
@ 240 VAC
Double-sided:
E2 and E3 Sign Types
5
• 125 watts, 1.04 amps
@ 120 VAC
• 125 watts, .52 amps
@ 240 VAC
Comments
• Sign cabinet is locked
with front cover for
service access; electronic
components mounted
in cabinet box.
General Specifications
• Sign unit to be
1) LED display matrix
designed to meet
2) Metal cabinet and support structures painted Silver*
structural specifications
3)
.125” nominal (.118” actual) colorless polycarbonate lens panel
as defined by the appli-
with matte finish on outside surface
cable edition of the
International Building
4) Compression latches with bright chrome finish
Code.
5) Amtrak logo painted AMT Blue*
• Sign unit design must
6) All painted surfaces of cabinet and support structures clear coated*
comply with local codes
and be confirmed with
7) Frutiger 55 Roman header in AMT Blue* vinyl (Sign Type E3 only, vinyl
authorities having juris-
applied after clear coat*)
diction.
• Each E2 sign should be
able to display a unique
message based on its
platform location.
*For paint and color
specifications please refer
to page 2.10.
■
Electronic Signage
8.11
Gate Board
E4 Sign Type
Sign Overview
These signs are located
at interior gate areas in
Gate C
10:26am
stations with moderate
to heavy passenger loads.
Train
Number
They utilize LCD flat
95
screen electronic display
Name
Northeast Regional
technology to provide
Departs
Track
detailed train departure
10:30am
25
information.
Status
Gate Boards are located
Boarding
at gate entrances to pro-
Stops
Boston
Baltimore
vide information about
Providence
BWI Airport Rail
New London
Quantico
the departing train’s
New Haven
Fredericksburg
service, number, name,
New York
Richmond
Newark
Williamsburg
departure time, track
Trenton
Newport News
Philadelphia
location, boarding status
Wilmington
and major station stops.
Gate identification and
current time are dis-
played at the top of the
screen.
Displays are operated by
Amtrak personnel from a
central controller located
in the communication
center.
E4 Sign Type
Electronic Signage
8.12
Gate Board
E4 Sign Type
Mounting Options
The following mounting
options provide a refer-
ence for the placement of
Gate Boards. These signs
Gate C
10:26am
are to be placed at gate
Train
Number
95
entrances.
Name
Northeast Regional
Departs
Track
Mounting details shall be
10:30am
25
Status
provided by a structural
Boarding
Stops
engineer licensed in the
Boston
Baltimore
Providence
BWI Airport Rail
New London
Quantico
New Haven
Fredericksburg
state having jurisdiction.
New York
Richmond
Newark
Williamsburg
Trenton
Newport News
Philadelphia
Wilmington
Mounting
Configurations
E4a Wall mounted
(single-sided)
E4b Freestanding
(single-sided)
E4c Freestanding
(double-sided)
E4a Sign Type Wall Mounted
Gate C
10:26am
Train
Number
95
Name
Northeast Regional
Departs
Track
10:30am
25
Status
Boarding
Stops
Boston
Baltimore
Providence
BWI Airport Rail
New London
Quantico
New Haven
Fredericksburg
New York
Richmond
Newark
Williamsburg
Trenton
Newport News
Philadelphia
Wilmington
E4b and E4c Sign Types Freestanding
■
Electronic Signage
8.13
Gate Board
E4 Sign Type
Sign Size and Layout
Display Technology
46” LCD flat screen
display monitor, NEC
LCD 4620-2-AV, portrait
E4a Sign Type Wall Mounted,
Plan View
format.
Screen Graphics
2'-5 1/2"
8"
9 1/2"
1'-1 3/4"
Proprietary Amtrak-
branded screen layouts
1'-10 1/2"
display all electronic
information in preset
text sizes. The Gate
Board screen layout can
list up to 18 station stops.
Message Control
Dedicated PC provided
3'-4 1/2"
at each station with surge
protection. UPS device
for uninterrupted power
supply.
PC Requirements
6'-9 1/4"
Manufacturer to specify
minimum requirements.
Static Graphics
Amtrak Logo: 1’-6” Wide
x 2” High
Comment
LCD screen graphics
are designed with ADA
guidelines in mind and
to reinforce the Amtrak
brand.
E4a Sign Type Wall Mounted,
E4a Sign Type
E4b Sign Type
E4c Sign Type
Front View (E4b Front View Similar)
Wall Mounted,
Freestanding, Freestanding,
Side View
Single-sided,
Double-sided,
Side View
Side View
Electronic Signage
8.14
Gate Board
E4 Sign Type
Design Intent
Drawing
Weight
5
Single-sided: 342 lbs.
approx.
Double-sided: 422 lbs.
1
approx.
Power Requirements
Single-sided: 240 watts
2
@ 120 volts
Double-sided: 480 watts
@ 120 volts
Comments
• Power requirements
vary according to num-
ber of monitors.
• Single-sided units used
for wall mounted
installations.
*For paint and color
3
specifications please refer
4
to page 2.10.
3
E4a Sign Type (E4b and E4c Similar)
General Specifications
1) Flatscreen LCD display monitor with tempered glass lens
2) Metal cabinet powdercoated to match Silver*
3) Reveal and base powdercoated to match Black*
4) Amtrak logo painted AMT Blue*
5) Angled top powdercoated to match Black* (E4a wall
mounted units only)
■
Electronic Signage
8.15
Bumper Block Train
Information Board
E5 Sign Type
Sign Overview
This Sign Type is used
to provide detailed train
information in stations
with terminating tracks
and moderate to heavy
passenger loads. They
utilize LED electronic dis-
play technology to pro-
vide next departing train
information, including
stops and free text, and
have a separate LED clock
module to display current
time. They also display
static track identification
graphics with optional
directional arrows.
Bumper Block Train
Information Boards are
E5 Sign Type
single-sided and are
mounted to the platform
at the stub end of each
track.
Displays are operated by
Amtrak personnel from a
central controller located
in the communication
center.
Electronic Signage
8.16
Bumper Block Train
Information Board
E5 Sign Type

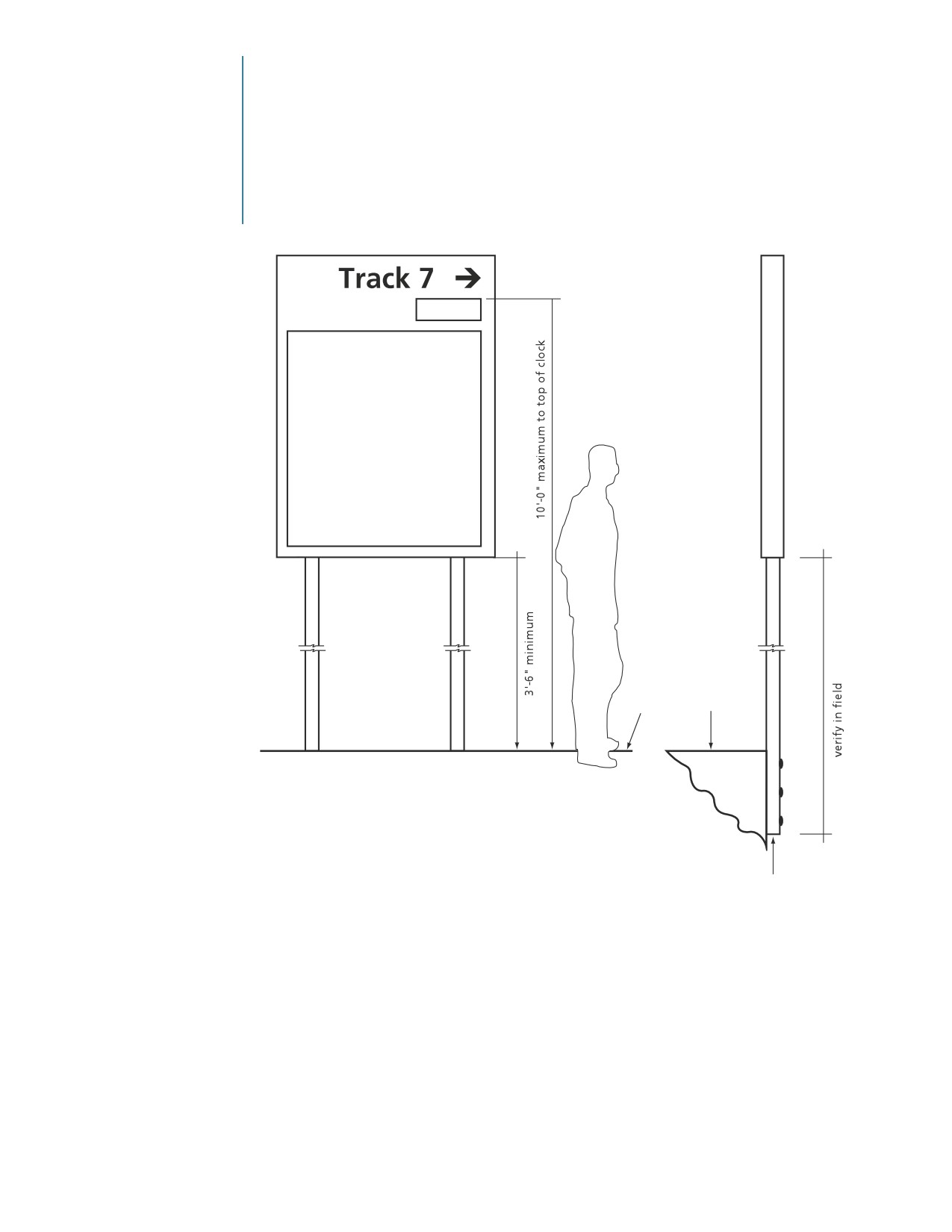

Mounting Option
Bumper Block Boards are
mounted to the platform
at the stub end of each
track. The track number
and optional arrows are
displayed at the top of
each sign.
Mounting details shall be
provided by a structural
engineer licensed in the
state having jurisdiction.
concrete decking
E5 Sign Type
vertical sign support
lag bolted to concrete
■
Electronic Signage
8.17
Bumper Block Train
Information Board
E5 Sign Type
Sign Size and Layout
4'-3/4"
5"
Display Technology
Matrix is 160 x 144 amber
monochrome LEDs on
0.3” (8 mm) C-C spacing.
Clock Matrix is 16 x 48
amber monochrome LEDs
on .3” (8 mm) C-C spac-
ing.
Character
5'-6 7/8"
2.1” high Sans Serif 7
LED font, maximum of 24
characters/line, sixteen
lines of display.
Intensity Control
Intensity adjusted auto-
matically by a light level
sensor located on the
front of the sign.
E5 Sign Type, Front View
E5 Sign Type,
Side View
Static Graphics
“Track” Header: 4 1/2”
Cap Ht.
Electronic Signage
8.18
Bumper Block Train
Information Board
E5 Sign Type
Design Intent
Drawing
Weight (not including
6
support structures)
225 lbs. approx.
3
Power Requirements
2
• 444 watts, 3.7 amps
@ 120 VAC
1
Comments
• Sign unit to be
4
designed to meet
structural specifications
as defined by the appli-
cable edition of the
International Building
5
Code.
• Sign unit design must
comply with local codes
and be confirmed with
E5 Sign Type
authorities having juris-
diction.
*For paint and color
specifications please refer
to page 2.10.
General Specifications
1) LED display matrix
2) LED clock module
3) Frutiger 65 Bold header and optional arrow painted AMT Blue*
4) Metal cabinet and support structures painted Silver*
5)
.125” nominal (.118” actual) colorless polycarbonate lens panel with
matte finish on outside surface
6) All painted surfaces of cabinet and mounting structures clear coated*
■
Electronic Signage
8.19
Train Directory Board
E6 Sign Type
Sign Overview and
Mounting Options
This Sign Type is used to
provide a detailed train
information list for multi-
ple departures and arriv-
als mixed in time order.
Train Directory Boards
utilize LED electronic dis-
play technology and are
located in the interiors of
stations with heavy pas-
senger loads. This Sign
Type has static headers
and a separate LED clock
module to display current
time.
Mounting Options
Train Directory Boards
are customized for each
station and are placed
prominently in central-
ized areas where pas-
sengers gather. Their size
is determined by specific
station needs such as
mounting location, view-
ing distance, and number
of listings required.
Train Directory Boards
can be wall mounted
(single-sided) or ceiling
suspended (double or
E6 Sign Type
single-sided).
Displays are operated by
Amtrak personnel from a
central controller located
in the communication
center.
Mounting details shall be
provided by a structural
engineer licensed in the
state having jurisdiction.
Electronic Signage
8.20
Train Directory Board
E6 Sign Type
Sign Size and Layout
Display Technology
Varies
Either full color or amber
monochrome LEDs.
Character
LED font and character
height varies with each
situation. Character
Varies
height must comply
with minimum character
heights indicated in Table
703.5.5 of the ADA.
Intensity Control
Intensity adjusted auto-
matically by a light level
E6 Sign Type
sensor located on the
front of the sign.
Static Graphics
“Train Information”
Header: 4 1/2” Cap Ht.
minimum
“Time,” etc. Headers: 3”
Cap Ht. minimum
■
Electronic Signage
8.21
Train Directory Board
E6 Sign Type
Design Intent
Drawing
1
3
4
3
5
2
Weight
6
Varies with sign size.
Power Requirements
Varies with sign size.
Comments
• Sign unit to be
designed to meet
structural specifications
as defined by the appli-
cable edition of the
International Building
Code.
• Sign unit must comply
E6 Sign Type
with local codes and be
confirmed with authori-
ties having jurisdiction.
*For paint and color
specifications please refer
to page 2.10.
General Specifications
1) LED display matrix
2) LED clock module
3) Frutiger 65 Bold headers painted AMT Blue*
4) Metal cabinet painted Silver*
5)
.125” nominal (.118” actual) colorless polycarbonate lens panel with
matte finish on outside surface
6) All painted surfaces clear coated*
Electronic Signage
8.22
Train Information
and Visual
Messaging Screens
(Two Dedicated
Monitors)
E7 Sign Type
Sign Overview
This Sign Type utilizes
LCD flat screen electronic
display technology and
employs two monitors,
each dedicated to specific
information content. The
Train Information Screen
provides a detailed
train information list
for multiple departures
and arrivals mixed in
time order. The Visual
E7a Sign Type Wall Mounted
E7b Sign Type Ceiling Hung,
Double-sided (side with Train
Messaging Screen pro-
Information Screen shown)
vides visual display of
public announcements
and emergency mes-
sages, as well as free text
messages.
E7 Sign Types are located
in interiors of stations
with heavy passenger
loads. Platform and exte-
rior use is discouraged
due to strict weather-
proofing and mounting
requirements.
Displays are operated by
Amtrak personnel from a
E7c Sign Type Ceiling Hung, Single-sided, Side-by-Side
central controller located
in the communication
center.
E7d Sign Type Freestanding
■
Electronic Signage
8.23
Train Information
and Visual
Messaging Screens
(Two Dedicated
Monitors)
E7 Sign Type
Mounting Options
The following Mounting
Options provide guide-
lines for the placement of
E7 Sign Types. These signs
are to be placed in station
interiors in areas where
they can be easily viewed
by Amtrak customers.
Mounting
Configurations
E7a Wall mounted
(single-sided)
E7a Sign Type Wall Mounted
E7b Ceiling hung
(double-sided)
E7c Ceiling hung
(single-sided),
side-by-side
E7d Freestanding
(single-sided)
The E7 Sign Type
utilizes two monitor sizes,
depending on mounting
configuration, per the
chart below.
E7b Sign Type Ceiling Hung,
E7c Sign Type Ceiling Hung,
Mounting
Monitor Sizes
Double-sided
Single-sided, Side-by-Side
E7a
46”
40”
E7b
46”
40”
E7c
46”
40”
E7d
-
40”
Mounting requirements
and monitor sizes will
vary according to individ-
ual station needs, includ-
ing viewing distances.
E7d Sign Type Freestanding
Electronic Signage
8.24
Train Information
and Visual
Messaging Screens
(Two Dedicated
Monitors)
E7a and E7b Sign
Types
Sign Size and Layout
Display Technology
3'-7 1/4"
3'-7 1/4"
46” LCD flat screen
(3'-3 1/2")
(3'-3 1/2")
display monitor, NEC LCD
4620-2-AV, landscape
9 1/2"
format.
(9 1/2")
40” LCD flat screen
display monitor, NEC LCD
4020-2-AV, landscape
format.
1'-10 1/2"
2'-1 1/4"
Screen Graphics
(1'-7 3/4")
(1'-11 3/4")
Proprietary Amtrak-
branded screen layouts
display all electronic
information in preset
3'-4 1/2" (2'-11 1/4")
text sizes for each moni-
tor size.
E7a Sign Type Wall Mounted, 46” monitor
(40” monitor dimensions in parentheses)
The Train Information
monitor lists up to 12
trains and can display
3'-5 3/4"
(3'-1/2")
one line of horizontally
scrolling free text. The
Visual Messaging monitor
displays several lines of
public announcement,
2'-7 3/4"
(2'-7 3/4")
emergency, or free text
which can be vertically
scrolled. Both screens
have a header which
displays current time and
a footer which displays
current day and date.
Comment
Varies
LCD screen graphics
are designed with ADA
guidelines in mind and
to reinforce the Amtrak
brand.
1'-10 1/2"
1'-11 7/8"
(1'-7 3/4")
(1'-8 7/8")
3'-4 1/2" (2'-11 1/4")
E7b Sign Type Ceiling Hung, Double-sided, 46” monitor shown
(40” monitor dimensions in parentheses)
■
