Amtrak. Graphic Signage Standards Manual (2010)

Interior Signage

5.51

Interior Cut Vinyl

Applied Letters

B28 Sign Type

Sign Overview

Cut vinyl letters are used

A B C D E F G H I J K L M N

to provide information of

a secondary nature, such

O P Q R S T U V W X Y Z

as operating hours.

Cut vinyl letters are self-

a b c d e f g h i j k l m n

adhesive and are applied

directly to interior

o p q r s t u v w x y z

surfaces, most typically

to glass but to opaque

surfaces as well.

Frutiger 55 Roman

The Frutiger 55 Roman

typeface is to be used

for all cut vinyl letters.

Amtrak Customer Service Hours:

Color and size are to be

determined by viewing

7:30am - 5:30pm Daily

conditions. Cut vinyl

letters are not to be used

B28 Sign Type

for exterior applications.

Comment

For proper nomenclature

refer to Chapter 1.0.

Interior Signage

5.52

Interior Cut Vinyl

Applied Letters

B28 Sign Type

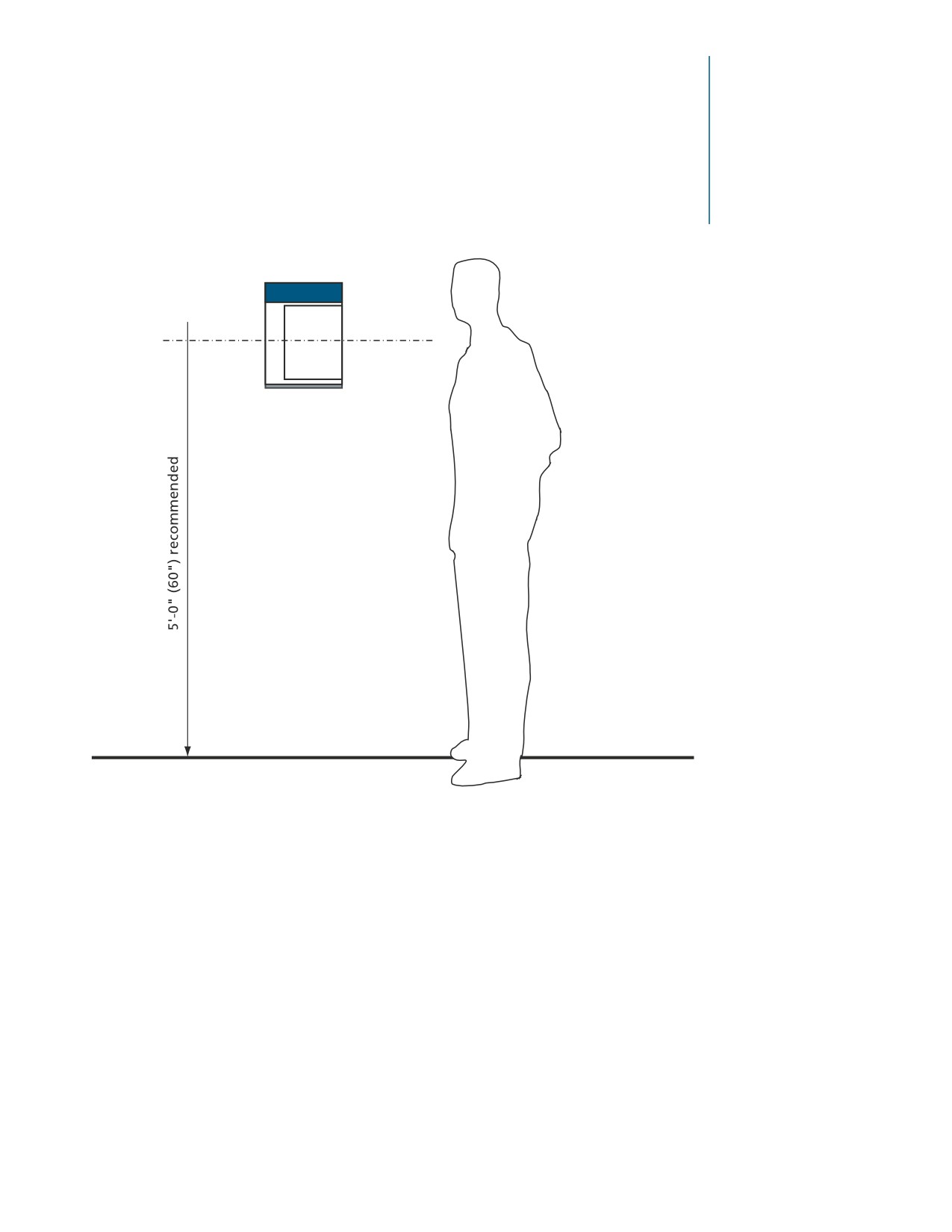

Mounting Option

The following Mounting

Option provides a guide-

line for the typical place-

ment of cut vinyl letters.

Comments

• Mounting heights vary

with letter size, con-

figuration of installa-

tion site and viewing

distance.

• Cut vinyl letters should

be mounted close to

edges of mounting

surfaces to visually

“anchor” the letters to

the surface.

• Cut vinyl letters mount-

ed on glass should be

reverse cut and applied

to the inside or second

surface of the glass.

• White letters should

be used on dark back-

grounds and letters to

match AMT Blue should

be used on light back-

grounds. The lightness

or darkness of spaces

beyond glass surfaces

should be considered

for glass mounted let-

ters.

For additional infor-

mation on application

of vinyl lettering refer

to page 11.2.

B28 Sign Type Applied to Glass

■

Interior Signage

5.53

Interior Cut Vinyl

Applied Letters

B28 Sign Type

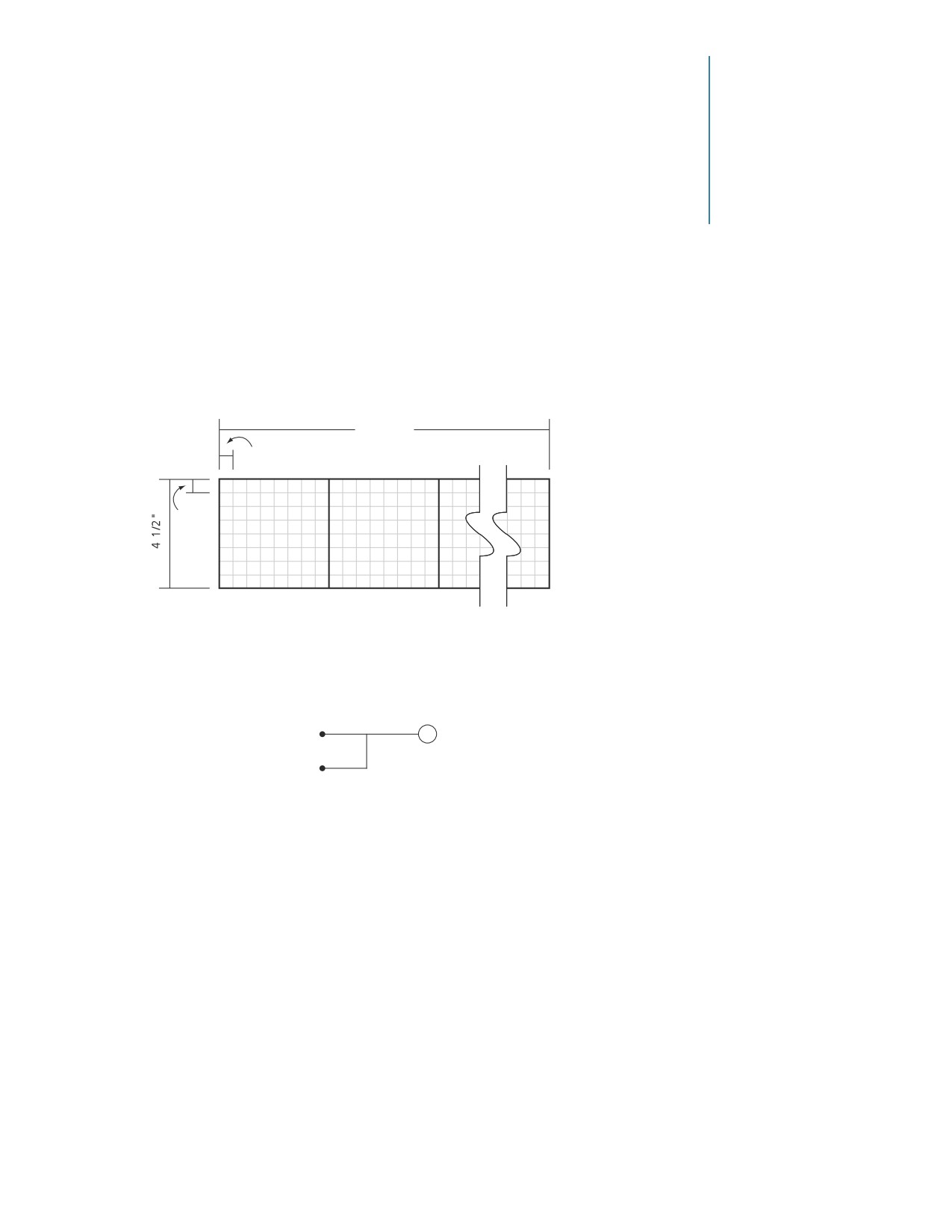

Design Intent

Drawing and Sign

Size and Layout

Finishes

Graphic Components

1) Frutiger 55 Roman text in 3M Scotchcal Electrocut Opaque Vinyl,

4 1/2” Module

White 7725-10

Unit Size: 9/16”

Text Size: 1 1/8” Cap Ht.

Alternate Finishes

Recommended for closer

• Avery Ultimate Cast Opaque Vinyl, Majestic Blue UC 900-625-O*

viewing distances and

lower mounting heights.

Comments

varies

• The sign layout illus-

9/16"

trated here represents

typical Cut Vinyl Letters

based on a 4 1/2” mod-

9/16"

Line

ule. For signs requir-

ing longer viewing

distances and/or higher

Line

mounting heights 6”,

9” or 12” modules may

B28 Sign Type

be used.

• Maintain module text

sizes indicated for

single or multiple lined

messages.

• For additional informa-

tion on the use of mod-

Line 1

ules and text refer to

Chapter 2.0.

Line 2

• 6” Module

B28 Sign Type

Unit Size: 3/4”

Text Size: 1 1/2” Cap Ht.

• 9” Module

Unit Size: 1 1/8”

Text Size: 2 1/4” Cap Ht.

• 12” Module

Unit Size: 1 1/2”

Text Size: 3” Cap Ht.

* For letters on light

backgrounds only.

Interior Signage

5.54

Changeable Message

Insert Sign

B29 Sign Type

Sign Overview

This sign is used for mes-

sages that may change,

such as operation hours,

Hours of

which are printed on an

8 1/2” x 11” paper insert

Operation

that slides into the sign

frame. The sign frame

has a header with perma-

nent graphics and a clear

window for viewing the

Ticket Office

changeable paper insert.

Comment

For proper nomenclature

refer to Chapter 1.0.

5:30am to

9:30pm Daily

B29 Sign Type

■

Interior Signage

5.56

Changeable Message

11"

Insert Sign

B29 Sign Type

3/8"

3/4"

3/8"

Design Intent

3/4"

Drawing and Sign

1/2"

Size and Layout

Graphic Components

Text size: 3/4” Cap Ht.

This sign has a custom

layout for header and

insert graphics.

For ordering paper

inserts contact

Amtrak Signage Brand

Management.

*Paint

• Matthews Acrylic

Polyurethane Low

Volatile Organic

Compound (LVOC)

B29 Sign Type

specifications provided.

• AMT Blue

Finishes

Satin VOC# SVOC1142SP

1) Frutiger 65 Bold text painted White* on second surface

• Silver

2) Header field painted AMT Blue* on second surface

Satin VOC# MP18073

3) Insert field painted White* on second surface

• White

4) Unpainted clear insert window

Satin VOC# SV202SP

5) Accent bar painted Silver* on second surface

• Clear Coat

VOC Satin Clear

#281228

Line 1

For fabrication and

installation informa-

Line 2

tion refer to Chapter

11.0.

B29 Sign Type

■

Interior Signage

5.57

Brand

Identification Fin

B30 Sign Type

Sign Overview

The Brand Identification

Fin displays the Amtrak

name to brand ticket

counters and other cus-

tomer facilities at stations

B30 Sign Type

offering Acela Express

Top View

service.

It is a projecting wall

mounted sign that is

installed in multiples,

typically between ticket

windows or on columns

in waiting areas. This

sign features the curved

vertical fin of other

Acela Express Sign Types

to establish the Acela

Express service brand

at existing Northeast

Corridor stations. This is a

special order sign.

For further infor-

mation, including

drawings and speci-

fications, contact

Amtrak Signage Brand

Management.

B30 Sign Type

Side A

Side View

Side B Mounting

Exterior Signage

6.1

“C” Sign Types

Exterior Signs

Signs for the Amtrak Graphics Signage System

have been categorized into five groups.

“A” Sign Types represent Platform Signs.

“B” Sign Types represent Interior Signs.

“C” Sign Types represent Exterior Signs.

“D” Sign Types represent Regulatory Signs.

“E” Sign Types represent Electronic Signs.

This chapter includes a comprehensive review of

all static Exterior Signage (C Sign Types) within

the Amtrak Graphics Signage System.

A sign overview, elevations of typical mounting

options, sign size and layout and a design intent draw-

ing is included for each Sign Type. “C” refers to signs

found on the non-platform curb side or street side of

station exteriors. Numeric codes (1, 2, 3, etc.), follow-

ing the location prefix “C” help organize and codify

all Sign Types within this category. Sign Types are listed

first by their name and are followed by their identify-

ing letter and number. For example: Curb Identifier,

C1 Sign Type.

Exterior Signage

6.2

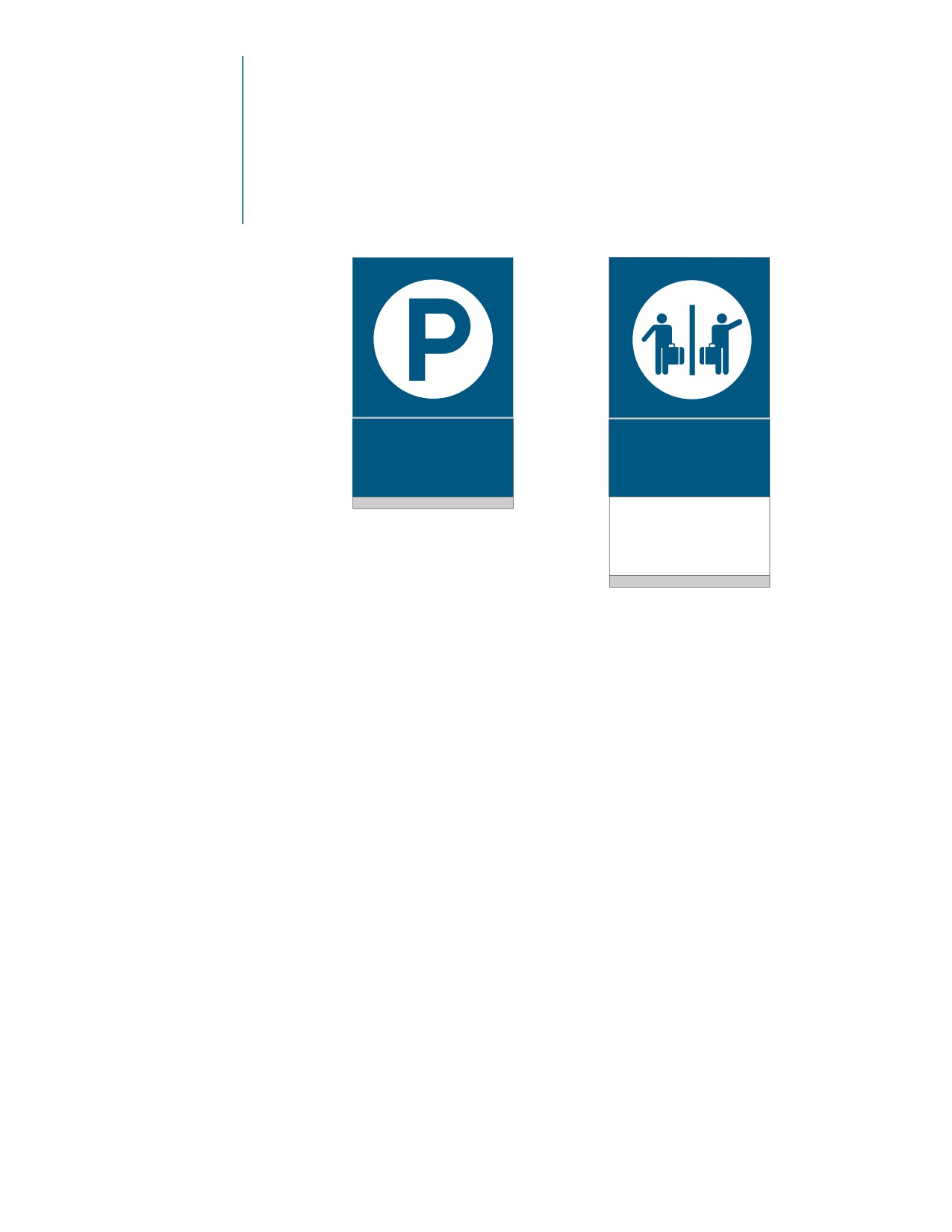

Curb Identifier

C1 and C2 Sign Types

Sign Overview

These signs display sym-

bols at station exteriors

to identify services and

provide curbside informa-

tion for pedestrian and

vehicular traffic. Signs

vary in height to accom-

modate various support

messages.

C1 Sign Type

Passenger

Visitor

Support text may include:

Drop-off and

Parking

• Accessible Drop-off

Pick-up

and Pick-up

Driver Must

• Amtrak Employee

C1 Sign Type

Remain

Parking

in Car

• No Standing

• Visitor Parking

C2 Sign Type

C2 Sign Type Curb

Identifier with

Additional Field

Support text for top

field (*) and additional

field (+) include:

* Amtrak Thruway

Comment

Service

Local jurisdictions may mandate mounting height, use of verbiage

+ Board Here

and graphic style different from Amtrak standards for accessible

* Passenger Drop-off

parking identification signage.

+ Driver Must Remain in

Car

* Passenger Pick-up

+ Driver Must Remain in

Car

* Passenger Drop-off and

Pick-up

+ Driver Must Remain in

Car

* Standing

+ “#” Minute Limit

* Taxis

+ Line Begins Here

* Custom Message

+ Custom Message

For the definition of

Custom Message and

proper nomenclature

refer to Chapter 1.0.

■

Exterior Signage

6.3

Curb Identifier

C1 and C2 Sign Types

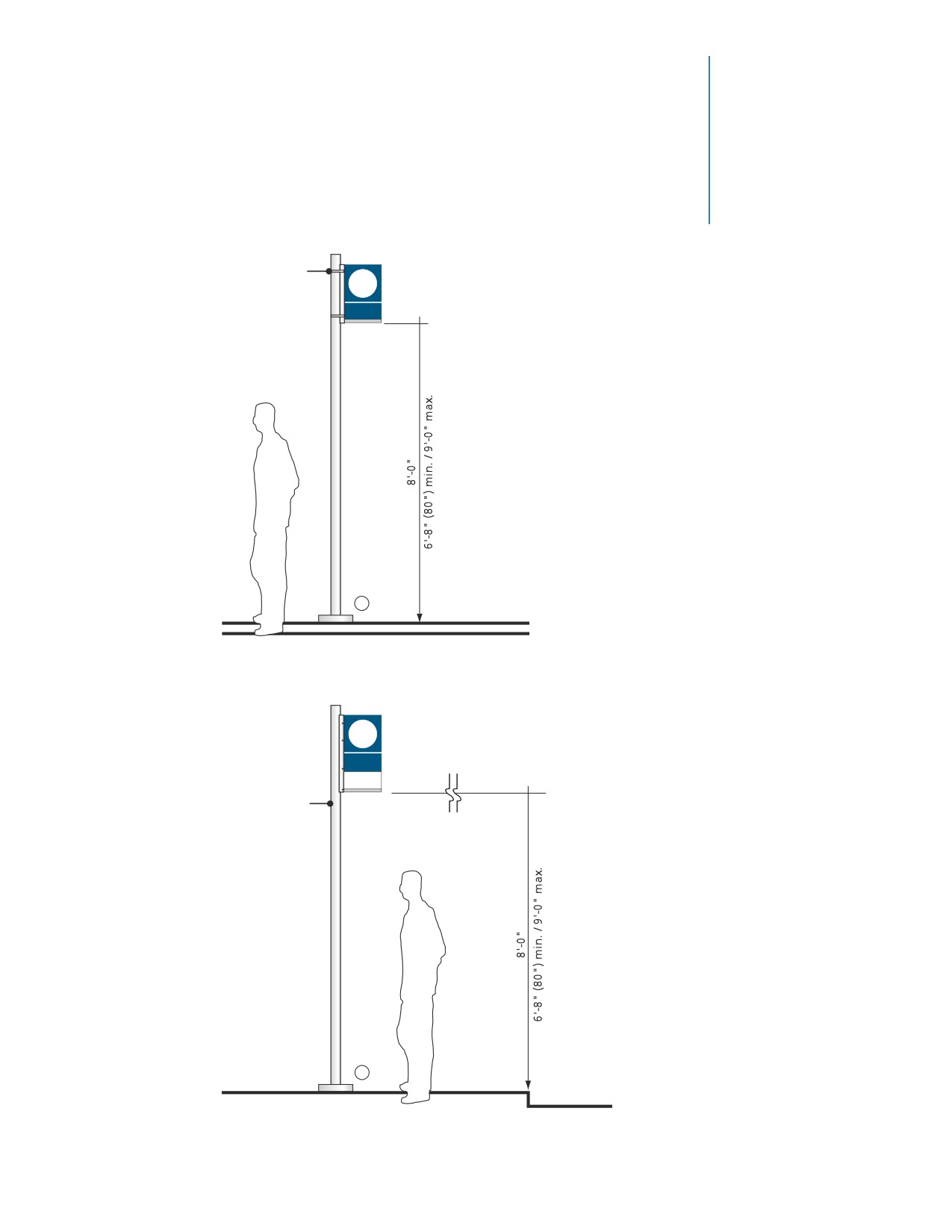

Mounting Options

The following Mounting

Mounting*

Options provide guide-

lines for the placement of

Curb Identifiers.

Mounting Options

1) Sign face placed

parallel to curb

2) Sign face placed

perpendicular to curb

C1 and C2 Sign Types may

be placed in any of the

two mounting options

illustrated on this page.

* When mounting signs

to an existing post,

use a tensioned metal

strap system.

** Where a post does

C1 Sign Type

Curb Edge

not exist, provide a

3 3/8” aluminum post

with welded mount-

ing bracket. Post shall

be satin finished alu-

minum extending 3”

1'-0" min. / 4'-0" max.

above the top of the

(verify in field)

sign.

Post**

Curb Edge

C2 Sign Type

Exterior Signage

6.4

Curb Identifier

C1 and C2 Sign Types

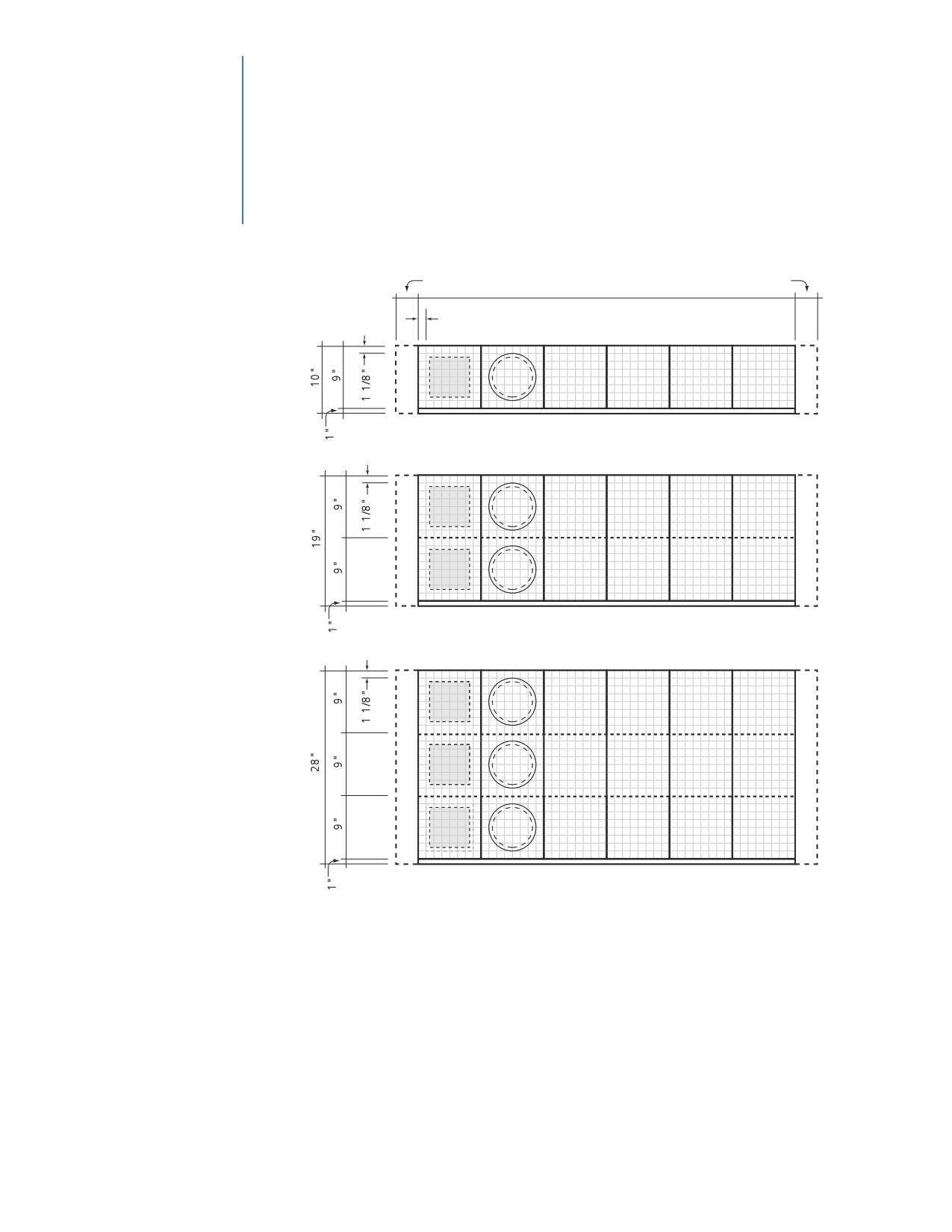

Sign Size and Layout

Graphic Components

12"

1 1/2"

12” Module

Mounting

Unit Size: 1 1/2”

Gripper

Symbol Field: 9”

6” Module

Unit Size: 3/4”

1 1/2"

Support Text Size: 1 1/2”

Cap Ht. for two lines

Support Text Size: 3/4”

x-height for three lines

Comment

3/4"

For additional informa-

tion on the use of the

Line

modules, arrows, symbols

Line

and text refer to Chapter

Line

2.0.

Optional 3 lines

C1 Sign Type

12"

1 1/2"

Mounting

Gripper

1 1/2"

3/4"

Line

Optional 3 lines

Line

3/4"

Line

C2 Sign Type

■

Exterior Signage

6.5

Curb Identifier

C1 and C2 Sign Types

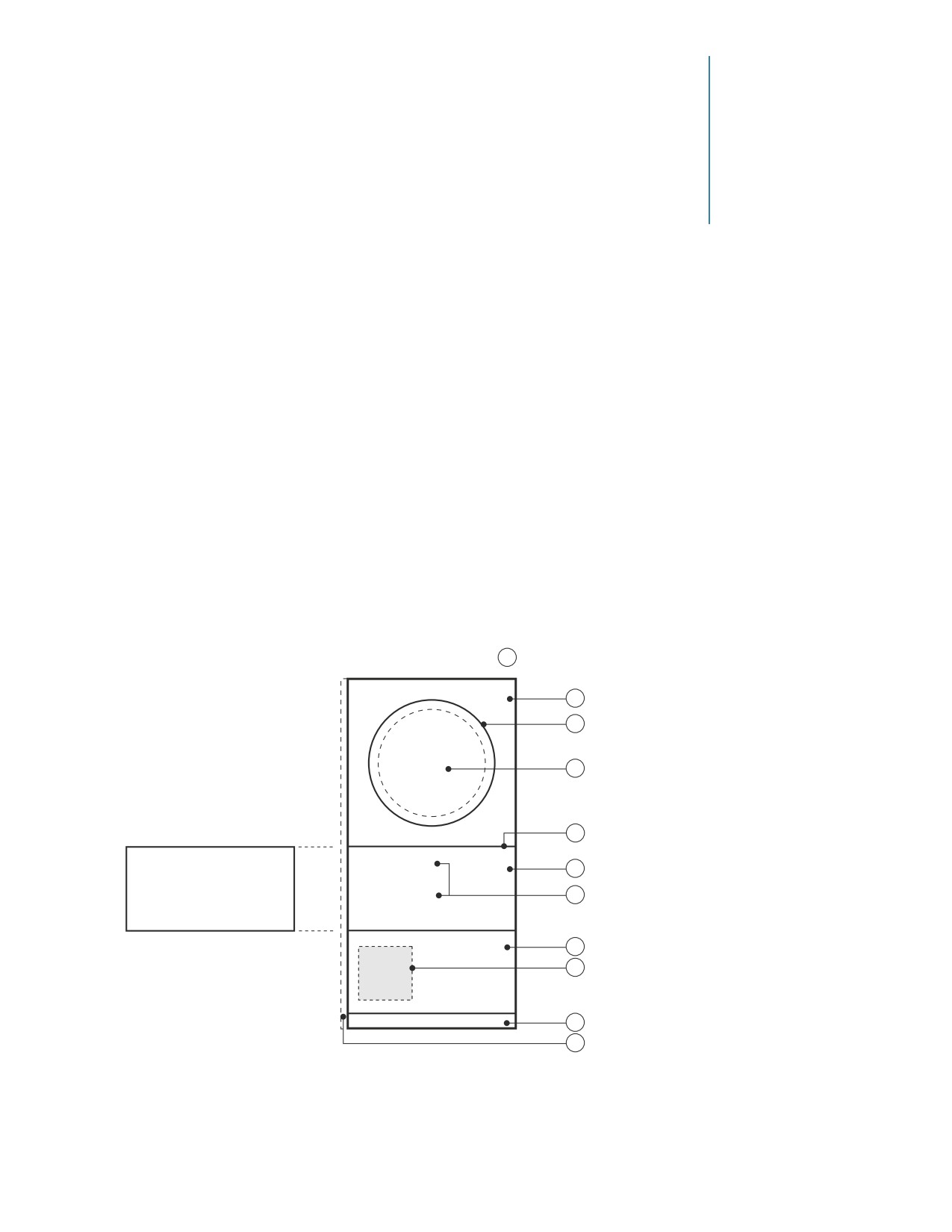

Design Intent

Drawing

Finishes

*Paint

1) Background field painted AMT Blue*

• Matthews Acrylic

Polyurethane Low

2) Symbol field applied reflective White vinyl**

Volatile Organic

3) Symbol painted AMT Blue*

Compound (LVOC)

specifications provided.

4) Divider line painted Silver*

• AMT Blue

5) Frutiger 65 Bold text applied reflective White vinyl**

Satin VOC# SVOC1142SP

6) Additional field painted White*

• Silver

7) Frutiger 65 Bold text painted AMT Blue*

Satin VOC# MP18073

8) Accent Bar painted Silver*

• White

Satin VOC# SV202SP

1/2” mounting gripper on mounting side only for flag mounted conditions

• Clear Coat

10) Entire sign clear coated before vinyl application*

VOC Satin Clear

#281228

Alternate Finishes:

**Vinyl

Reflective White vinyl symbol field and text painted White*

• 3M Scotchlite Reflective

Vinyl White #680-10

For fabrication and

installation informa-

tion refer to Chapter

11.0.

Line 1

Line 2

Line 3

Optional 3 lines

Line 4

Line 5

Line 6

C1 and C2 Sign Types

Exterior Signage

6.6

Vehicular Directional

C3, C4, C5 and

C6 Sign Types

Sign Overview

These signs are used

at station exterior sites

Parking

as a primary source for

vehicular directional

information. Vehicular

Directionals are limited

C3 Sign Type

to a maximum of three

messages as shown in C5

Sign Type.

C3 Sign Type

Parking

One (1) directional mes-

sage

Passenger

C4 Sign Type

Drop-off/Pick-up

Two (2) directional mes-

sages

C5 Sign Type

Parking

Three (3) directional

messages

C6 Sign Type

C4 Sign Type

One (1) directional sup-

port message

Comments

• The illustrations on this

page are examples of

directional messages.

Passenger

Information for these

Drop-off/Pick-up

signs should be based

on specific wayfinding

needs.

Parking

• When establishing the

order in which the

messages appear, ser-

vices straight ahead

Amtrak

should be listed first

followed by services

Thruway Service

located to the right and

then to the left. The

C5 Sign Type

use of diagonal arrows

should logically follow

the established pattern.

• For proper nomencla-

ture refer to Chapter

1.0.

■

Exterior Signage

6.7

Vehicular Directional

C3, C4, C5 and

C6 Sign Types

Mounting Options

The following Mounting

Line 1

Line 2

Options provide guide-

Line 1

1'-0" min. / 4'-0" max.

lines for the placement of

Line 2

(verify in field)

Vehicular Directionals.

Line 1

Line 2

* A “cane detection

rod” shall be placed

18” above mount-

ing surface in con-

ditions where low

profile post and panel

mounting occurs

within the circulation

path.

Curb Edge

** Where a post does

C5 Sign Type Post and Panel

not exist, provide a

(C3 and C4 Sign Types Included)

3 3/8” aluminum post

with welded mount-

ing bracket. Post shall

be satin finished alu-

minum extending 3”

Post**

above the top of the

sign. When mounting

1'-0" min. / 4'-0" max.

signs to an existing

(verify in field)

post, use a tensioned

metal strap system.

Curb Edge

C6 Sign Type Flag Mounted

Exterior Signage

6.8

Vehicular Directional

C3, C4 and C5

Sign Types

Sign Size and Layout

Graphic Components

Mounting

Gripper

9” Module

54"

Unit Size: 1 1/8”

1 1/8"

Arrow Field: 5 5/8”

Symbol Field: 6 3/4”

Text Size: 2 1/4” Cap Ht.

Line

for two lines

Line

Divider Line: 1/8”

Comments

C3 Sign Type

• For additional informa-

tion on the use of the

modules, arrows, sym-

Line

bols and text refer to

Line

Chapter 2.0.

• The sign layouts shown

Line

here represent typical

Line

Parking Directionals

based on a 9” mod-

ule. For larger Parking

C4 Sign Type

Directionals a 12” mod-

ule may be used.

• 12” Module

Line

Unit Size: 1 1/2”

Line

Arrow Field: 7 1/2”

Symbol Field: 9”

Line

Text Size: 3” Cap Ht. for

two lines

Line

Divider Line: 1/8”

Line

C5 Sign Type

■

Exterior Signage

6.9

Vehicular Directional

C3, C4 and C5

Sign Types

Design Intent

Drawing

Finishes

*Paint

• Matthews Acrylic

1) Arrow applied reflective White vinyl**

Polyurethane Low

2) Symbol painted AMT Blue*

Volatile Organic

3) Symbol field applied reflective White vinyl**

Compound (LVOC)

specifications provided.

4) Frutiger 65 Bold text applied reflective White vinyl**

• AMT Blue

5) Divider lines painted Silver*

Satin VOC# SVOC1142SP

(Divider lines are used only when there is a change in direction)

• Silver

6) Background field painted AMT Blue*

Satin VOC# MP18073

7) Post and base painted Silver*

• White

8) Accent bar painted Silver*

Satin VOC# SV202SP

9) Entire sign clear coated*

• Clear Coat

VOC Satin Clear

#281228

Alternate Finishes:

**Vinyl

Reflective White vinyl symbol field and text painted White*

• 3M Scotchlite Reflective

Vinyl White #680-10

For fabrication and

installation informa-

tion refer to Chapter

11.0.

Line 1

Line 2

Line 1

Line 2

Line 1

Line 2

C3, C4 and C5 Sign Types

Exterior Signage

6.10

Parking Directional

C6 Sign Type

Sign Size and Layout

Graphic Components

Mounting

Gripper

12"

12” Module

Unit size: 1 1/2”

1 1/2"

Symbol Field: 9”

Text Size: 3”Cap Ht. for

two lines

6” Module

Unit size: 3/4”

1 1/2"

Arrow Field: 3 3/4”

Text Size: 1 1/2” Cap Ht.

for two lines

Text Size: 3/4” x-height

for three lines

3/4"

Comment

Line

For additional informa-

Line

tion on the use of the

Line

modules, arrows, symbols

Line

and text refer to Chapter

Optional 3 lines

2.0.

3/4"

C6 Sign Type

■

Exterior Signage

6.11

Parking Directional

C6 Sign Type

Design Intent

Drawing

Finishes

*Paint

• Matthews Acrylic

1) Background field painted AMT Blue*

Polyurethane Low

2) Symbol field applied reflective White vinyl**

Volatile Organic

3) Symbol painted AMT Blue*

Compound (LVOC)

specifications provided.

4) Divider line painted Silver*

• AMT Blue

5) Frutiger 65 Bold text applied reflective White vinyl**

Satin VOC# SVOC1142SP

6) Direction field painted White*

• Silver

7) Arrow painted AMT Blue*

Satin VOC# MP18073

8) Accent Bar painted Silver*

• White

Satin VOC# SV202SP

1/2” mounting gripper on mounting side only for flag mounted conditions

• Clear Coat

10) Entire sign panel clear coated before vinyl application*

VOC Satin Clear

#281228

Alternate Finishes:

**Vinyl

Reflective White vinyl symbol field and text painted White*

• 3M Scotchlite Reflective

Vinyl White #680-10

For fabrication and

installation informa-

tion refer to Chapter

11.0.

Line 1

Line 2

Line 3

Line 2

Optional 3 lines

C6 Sign Type

Exterior Signage

6.12

Freestanding Post

and Panel Site

Identification Signs

C7 and C8 Sign Types

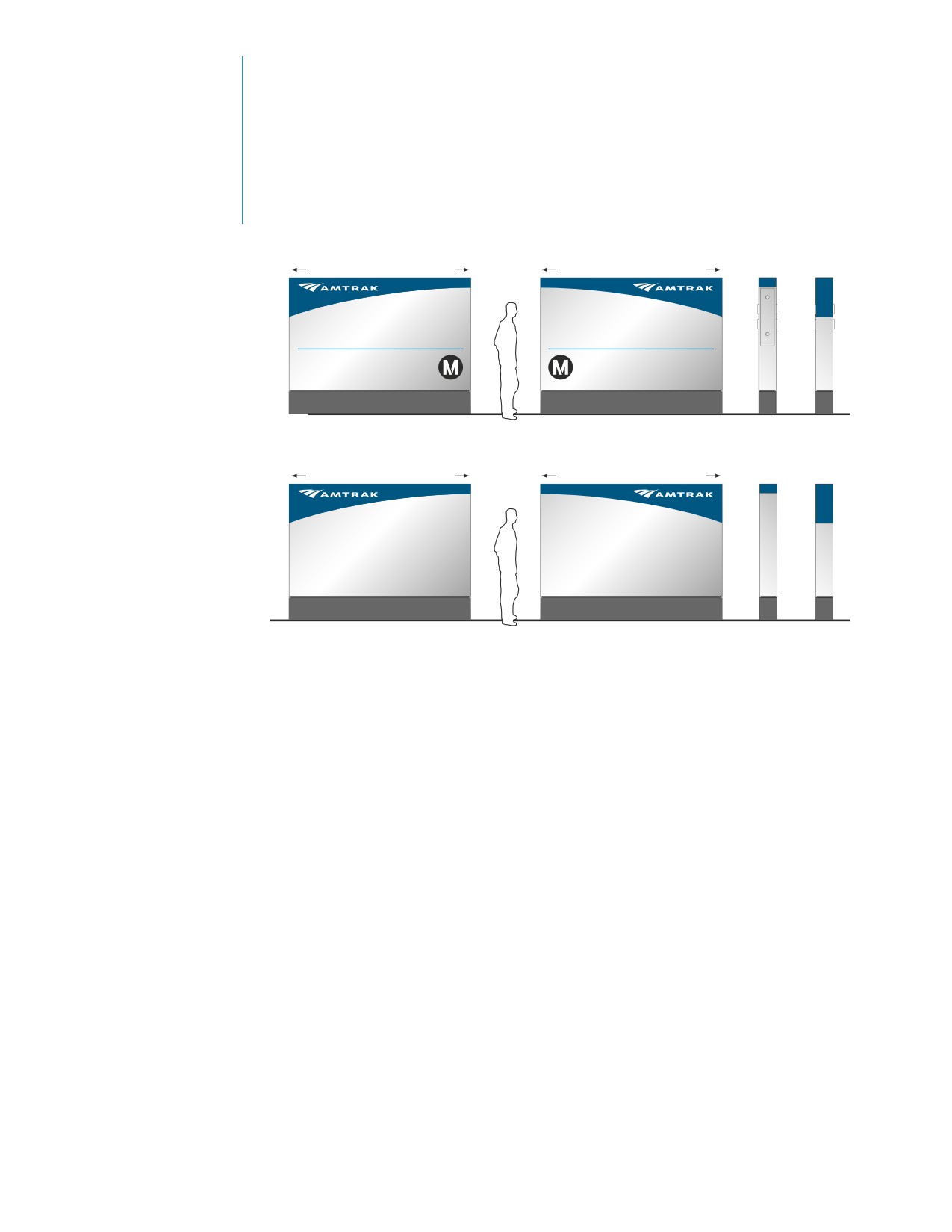

Sign Overview and

Mounting Options

These branded signs dis-

Station

Curb

play the Logo Curve and

Curb

Station

are used for curbside site

identification at small

Toccoa

stations. Both Sign Types

Station

can display optional

For information:

Amtrak contact informa-

1-800-USA-RAIL

Amtrak.com

tion, which is required at

unstaffed stations.

C7 Sign Type

This sign has a vertical

format and is smaller

than the C8 Sign Type.

C8 Sign Type

This sign has a horizontal

C7 Sign Type, Side A

C7 Sign Type, Side B

format and is larger than

the C7 Sign Type. The

logotypes of other trans-

portation carriers can

be displayed on C8 Sign

Station

Curb

Station

Types at intermodal facili-

ties. See page 2.19 on co-

Downington

branding opportunities.

Station

For information: 1-800-USA-RAIL Amtrak.com

Comments

• Curbside site identifi-

cation nomenclature

consists of the city

name and the word

“Station”. The two let-

ter state designator is

not used for curbside

C8 Sign Type, Side A

C8 Sign Type, Side B

station identification.

• Both Sign Types are

ground mounted.

• Sign use and place-

ment is coordinated by

Amtrak Signage Brand

Management.

* A “cane detection

rod” shall be placed

18” above mounting

surface in conditions

where low profile post

and panel mounting

occurs within the circu-

lation path.

■

Exterior Signage

6.13

Freestanding Post

and Panel Site

Identification Signs

C7 and C8 Sign Types

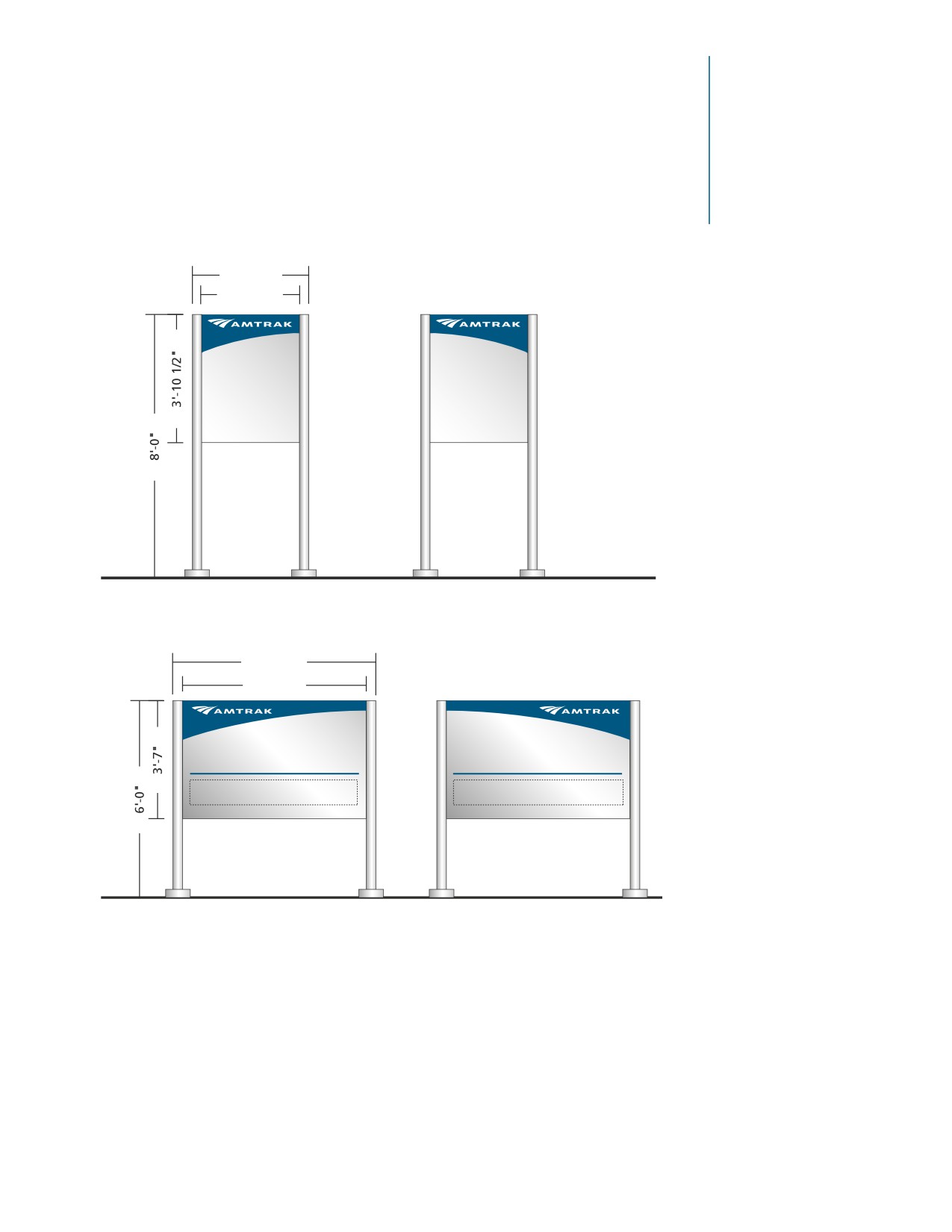

Sign Size and Layout

The Freestanding

3'-7"

Post and Panel Site

3'-0"

Identification Signs have

customized layouts.

Graphic Components,

Line 1

C7 Sign Type

Line 2

Logo Curve:

For information:

1-800-USA-RAIL

3’-0” Wide x

Amtrak.com

1’-2 3/16” High

Station Name:

3 1/4” Cap Ht.

Amtrak Contact

Information

(Optional):*

2 1/8” Cap Ht.

Graphic Components,

C7 Sign Type, Sides A and B

C8 Sign Type

Logo Curve:

5’-7” Wide x

6'-2"

1’-2 11/16” High

5'-7"

Station Name:

3 7/8” Cap Ht.

Line 1

Amtrak Contact

Line 2

Information

For information: 1-800-USA-RAIL Amtrak.com

(Optional):*

Optional Carrier

Logo Area

2” Cap Ht.

Divider Rule

(Optional):**

5’-0” Wide x 9/16” High

Optional Carrier Logo

Area:

C8 Sign Type, Sides A and B

5’-0” Wide x 9” High

Comments

* Optional Contact

Information is required

at unstaffed stations.

** Optional Divider Rule

is used only with

logo display of other

carrier(s).

Exterior Signage

6.14

Freestanding Post

and Panel Site

Identification Signs

C7 and C8 Sign Types

Design Intent

Drawings

* Paint

Finishes

• Matthews Acrylic

1) Logo Curve Field painted AMT Blue*

Polyurethane Low

2) Amtrak logo painted White*

Volatile Organic

Compound (LVOC)

3) Posts, panels, and bases painted Silver*

specifications provided.

4) Frutiger 65 Bold station name text painted AMT Blue*

• AMT Blue

5) Optional Frutiger 65 Bold Contact Information text and optional

Satin VOC# SVOC1142SP

Divider Rule painted AMT Blue*

• Silver

6) Entire sign clear coated*

Satin VOC# MP18073

7) C8 Sign Type only: Optional carrier logo(s) painted in carrier colors

• White

Satin VOC# SV202SP

• Clear Coat

VOC Satin Clear

#281228

Line 1

For additional infor-

Line 2

mation on Sign Type

For information:

C7 and C8 contact

1-800-USA-RAIL

Amtrak.com

Amtrak Signage Brand

Management.

C7 Sign Type

Line 1

Line 2

For information: 1-800-USA-RAIL Amtrak.com

Optional Carrier

Logo Area

C8 Sign Type

■

Exterior Signage

6.15

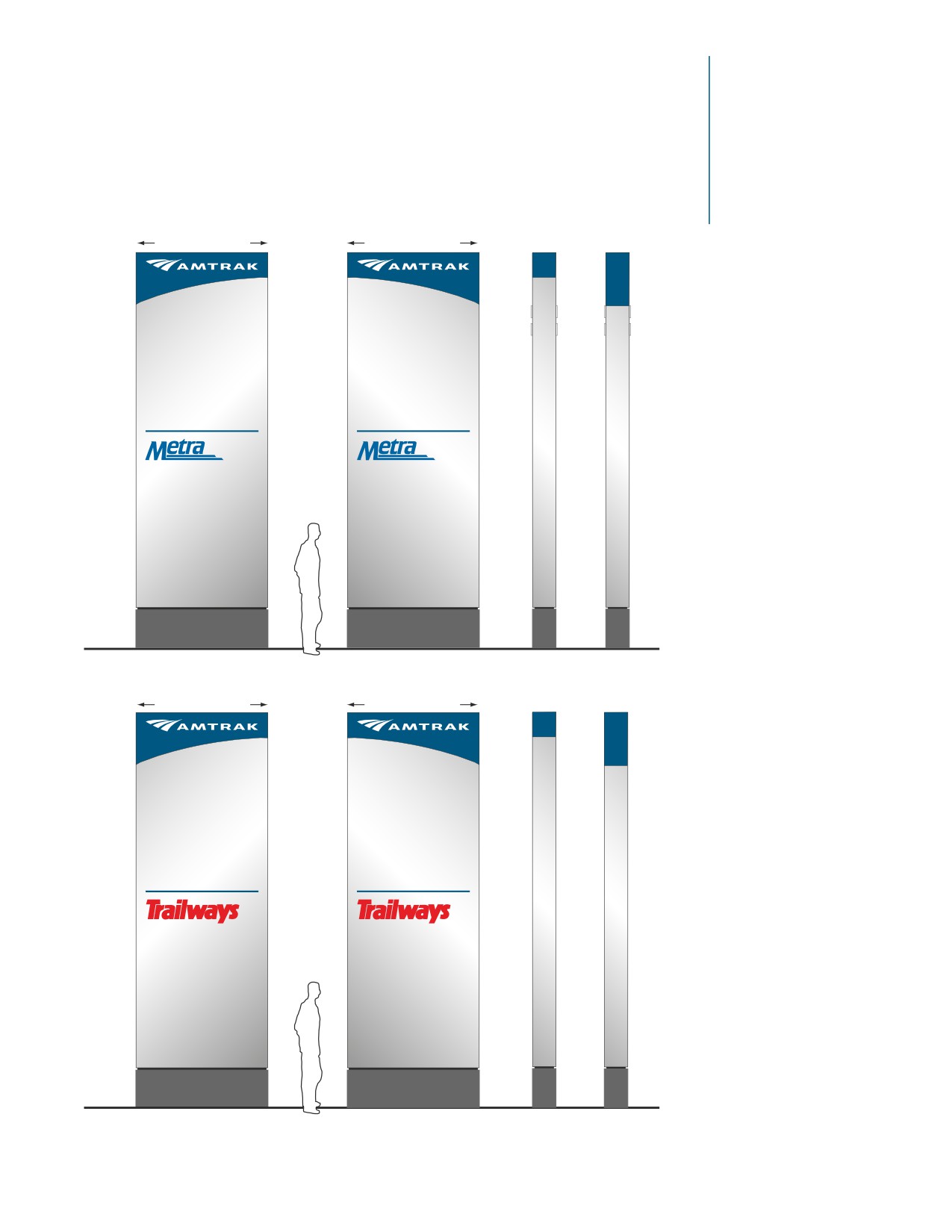

Freestanding Vertical

Site Identification

Pylons

C9 and C10 Sign

Types

Sign Overview and

Mounting Options

Station

Curb

Station

These branded signs dis-

play the Logo Curve and

are used for curbside site

Chicago

identification at large

Union Station

and medium stations

where use of tall pylons

is appropriate. Both Sign

Types feature the same

design except for their

illumination techniques.

C9 Sign Type

This sign is internally

illuminated, which is

preferred.

C10 Sign Type

This sign is externally

illuminated as an option

where conditions do not

permit internal sign illu-

mination.

Comments

C9 Sign Type, Side A

Side B

Side C

Side D

• Curbside site identifi-

cation nomenclature

Station

Curb

Station

consists of the city

name and the word

“Station”. The two let-

New Orleans

ter state designator is

Union

not used for curbside

Passenger

station identification.

Terminal

• The logotypes of other

transportation carriers

can be displayed on

these signs at intermo-

dal facilities. See page

2.19 on co-branding

opportunities.

• Both Sign Types are

ground mounted.

• Sign use and place-

ment is coordinated by

Amtrak management.

C10 Sign Type, Side A

Side B

Side C

Side D

Exterior Signage

6.16

Freestanding Vertical

Site Identification

Pylons

C9 and C10 Sign

Types

Sign Size and Layout

The Freestanding Vertical

1'-1"

Site Identification Pylons

6'-0"

have a customized layout.

Graphic Components

Logo Curve:

Line One

6’-0” Wide x

Line Two

2’-4 3/8” High

Line Three

Station Name:

6 7/16” Cap Ht.

Divider Rule

(Optional):*

5’-1” Wide x 7/8” High

Optional Carrier

Logo Area

Optional Carrier Logo

Area:

5’-0” Wide x 1’-7” High

Comments

• The sign size shown on

this page is preferred

but can be adjusted

proportionally to

conform with site and

viewing conditions, and

C9 and C10 Sign Types, Sides A - D

with local ordinances.

• Logo Curve Field

extends across sides C

and D; field is different

height on each side.

* Optional Divider Rule is

used only with logo dis-

play of other carrier(s).

■

Exterior Signage

6.17

Freestanding Vertical

Site Identification

Pylons

C9 and C10 Sign

Types

Design Intent

Drawing

C19 Finishes

* Paint

1) Logo Curve Field painted AMT

• Matthews Acrylic

Blue* on sides A-D

Polyurethane Low

Line One

Volatile Organic

2) Amtrak logo internally illuminated

Line Two

Compound (LVOC)

translucent white acrylic, flush fit

Line Three

specifications provided.

3) Frutiger 65 Bold station name text

• AMT Blue

internally illuminated clear acrylic

Satin VOC# SVOC1142SP

push-through with translucent

AMT Blue vinyl faces**

• Silver

Optional Carrier

4) Sign box painted Silver*

Satin VOC# MP18073

Logo Area

5) Optional Divider Rule painted AMT

• White

Blue*

Satin VOC# SV202SP

6) Optional carrier logo(s) painted in

• Clear Coat

carrier colors

VOC Satin Clear

#281228

7) Base cladded to match site materi-

als (granite, colored concrete, etc.)

** Vinyl

8) All painted surfaces of sign box

• Arlon Calon Series 2500

clear coated*

Translucent Vinyl #2051

Blue

C9 Sign Type, Side A

For additional infor-

mation on Sign Type

C9 and C10 contact

Amtrak Signage Brand

C10 Finishes

Management.

1) Logo Curve Field painted AMT

Blue* on sides A-D

Line One

Line Two

2) Amtrak logo painted White*

Line Three

3) Frutiger 65 Bold station name text

painted AMT Blue*

4) Sign box painted Silver*

5) Optional Divider Rule painted AMT

Optional Carrier

Blue*

Logo Area

6) Optional carrier logo(s) painted in

carrier colors

7) Base cladded to match site materi-

als (granite, colored concrete, etc.)

8) Entire sign box clear coated*

C10 Sign Type, Side A

Exterior Signage

6.18

Freestanding

Horizontal Site

Identification

Monuments

C11 and C12 Sign

Types

Sign Overview and

Mounting Options

These branded signs dis-

Station

Curb

Station

play the Logo Curve and

are used for curbside site

Los Angeles

identification at large and

Union Station

medium stations where

use of low-lying monu-

ments is appropriate.

Both Sign Types can dis-

play optional Amtrak con-

C11 Sign Type, Side A

Side B

Side C

Side D

tact information, which

is required at unstaffed

stations. Both Sign Types

Station

Curb

Station

feature the same design

except for their illumina-

San Antonio

tion techniques.

Station

For information: 1-800-USA-RAIL Amtrak.com

C11 Sign Type

This sign is internally

illuminated, which is

preferred.

C12 Sign Type

C12 Sign Type, Side A

Side B

Side C

Side D

This sign is externally

illuminated as an option

where conditions do not

permit internal sign illu-

mination.

Comments

• Curbside site identifi-

cation nomenclature

consists of the city name

and the word “Station”.

The two letter state des-

ignator is not used for

curbside station identifi-

cation.

• The logotypes of other

transportation carri-

ers can be displayed on

these signs at intermo-

dal facilities. See page

2.19 on co-branding

opportunities.

• Both Sign Types are

ground mounted.

• Sign use and place-

ment is coordinated by

Amtrak Signage Brand

Management.

■

Exterior Signage

6.19

Freestanding

Horizontal Site

Identification

Monuments

C11 and C12 Sign

Types

Sign Size and Layout

10 1/2"

The Freestanding

9'-4"

Horizontal Site

Identification

Monuments have a cus-

Station Name

tomized layout.

Line Two

For information: 1-800-USA-RAIL Amtrak.com

Graphic Components

Optional Carrier

Logo Curve:

Logo Area

9’-4” Wide x 2’-1/8” High

Station Name:

6 3/8” Cap Ht.

C11 and C12 Sign Types, Sides A - D

Amtrak Contact

Information

(Optional):*

3 5/16” Cap Ht.

Divider Rule

(Optional):**

8’-6” Wide x 9/16” High

Optional Carrier Logo

Area:

8’-5” Wide x 1’-3” High

Comments

• The sign size shown on

this page is preferred

but can be adjusted

proportionally to con-

form with site and

viewing conditions, and

with local ordinances.

• Logo Curve Field

extends across sides C

and D; field is different

height on each side.

* Optional Contact

Information is required

at unstaffed stations.

** Optional Divider Rule

is used only with

logo display of other

carrier(s).

Exterior Signage

6.20

Freestanding

Horizontal Site

Identification

Monuments

C11 and C12 Sign

Types

Design Intent

Drawing

* Paint

C12 Finishes

• Matthews Acrylic

Polyurethane Low

1) Logo Curve Field painted AMT

Volatile Organic

Blue*on sides A-D

Compound (LVOC)

2) Amtrak Logo internally illuminated

specifications provided.

Station Name

translucent white acrylic, flush fit

Line Two

• AMT Blue

3) Frutiger 65 Bold station name text

For information: 1-800-USA-RAIL Amtrak.com

Satin VOC# SVOC1142SP

internally illuminated clear acrylic

Optional Carrier

push-through with translucent

• Silver

Logo Area

AMT Blue vinyl faces**

Satin VOC# MP18073

4) Sign box painted Silver*

• White

Satin VOC# SV202SP

5) Optional Contact Information text

C11 Sign Type, Side A

and Divider Rule painted AMT

• Clear Coat

Blue*

VOC Satin Clear

#281228

6) Optional carrier logo(s) painted in

carrier colors

** Vinyl

7) Base cladded to match site materi-

• Arlon Calon Series 2500

als (granite, colored concrete, etc.)

Translucent Vinyl #2051

Blue

8) All painted surfaces of sign box

clear coated*

For additional infor-

mation on Sign Type

C11 and C12 contact

C11 Finishes

Amtrak Signage Brand

1) Logo Curve Field painted AMT

Management.

Blue*on sides A-D

Station Name

Line Two

2) Amtrak logo painted White*

For information: 1-800-USA-RAIL Amtrak.com

3) Frutiger 65 Bold station name text

Optional Carrier

painted AMT Blue*

Logo Area

4) Sign box painted Silver*

5) Optional Contact Information text

and Divider Rule painted AMT

C12 Sign Type, Side A

Blue*

6) Optional carrier logo(s) painted in

carrier colors

7) Base cladded to match site materi-

als (granite, colored concrete, etc.)

8) Entire sign box clear coated*

■

Exterior Signage

6.21

Monument Station

Site Identification

Sign

C13 Sign Type

Sign Overview

The Enhanced Service

Site Identification Pylon

identifies stations offering

Acela Express service.

C13 Sign Type

It is an internally illumi-

Plan View

nated sign featuring a dis-

tinctive airfoil-shaped sign

body and a curved vertical

fin to connote the Acela

Express service brand. The

sign size can be adjusted

proportionally to conform

with site and viewing

conditions, and with local

Philadelphia

ordinances. This is a spe-

cial order sign.

30th Street

Station

For additional infor-

mation on Sign Type

C13, contact Amtrak

Signage Brand

Management.

Philadelphia

30th Street

Station

C13 Sign Type

Side A

Side View

Side B Mounting

Exterior Signage

6.22

Brand

Identification Fin

C14 Sign Type

Sign Overview

The Brand Identification

Fin displays the Amtrak

name to brand the exte-

riors of stations offering

Acela Express service.

C14 Sign Type

It is a projecting wall

Top View

mounted sign that is

installed in multiples,

typically at regular

intervals along building

facades. This sign fea-

tures the curved vertical

fin of other Acela Express

sign types to establish

the Acela Express service

brand. This is a special

order sign.

For additional infor-

mation on Sign Type

C14, contact Amtrak

Signage Brand

Management.

C14 Sign Type

Side A

Side View

Side B Mounting

■

Exterior Signage

6.23

Trailblazer Kits 1-5

C15, C16, C17, C18

and C19 Sign Types

Sign Overview

Trailblazer signs are

used to guide drivers

on public thorough-

fares to Amtrak sta-

tions. Amtrak Trailblazer

signs are stocked in

five (5) kits available

from Amtrak Signage

Brand Management.

They are also available

on the Great American

Stations website (www.

GreatAmericanStations.

com). Each kit contains

sign panels in the follow-

C15 Sign Type (Kit #1)

C16 Sign Type (Kit #2)

ing assortments along

with mounting hardware.

All sign panels reflect

light from car headlights

to enhance night

visibility.

C15 Sign Type (Kit #1)

This kit consists of one (1)

large Trailblazer and one

(1) large arrow panel,

both with white graphics

on green fields. This kit

should be used in jurisdic-

tions that require green

fields for roadway trail-

blazers.

C16 Sign Type (Kit #2)

This kit consists of one (1)

large Trailblazer and one

(1) large arrow panel,

both with AMT Blue

graphics on white fields.

This kit is preferred and

should be used in jurisdic-

tions that permit display

of trailblazers in Amtrak’s

brand colors.

Exterior Signage

6.24

Trailblazer Kits 1-5

C15, C16, C17, C18

and C19 Sign Types

Sign Overview

(continued)

C17 Sign Type (Kit #3)

This kit consists of one

(1) large Trailblazer with

the text “Auto Train”

and one (1) large arrow

panel, both with white

graphics on green fields.

This kit should only be

used in jurisdictions with

Auto Train stops.

C18 Sign Type (Kit #4)

This kit consists of one

(1) small logo Trailblazer

and one (1) small arrow

panel, both with AMT

C17 Sign Type (Kit #3)

C18 Sign Type (Kit #4)

Blue graphics on white

fields. This kit should

be used in jurisdictions

that permit display of

trailblazers in Amtrak’s

brand colors, and only

when conditions require

smaller trailblazers.

C19 Sign Type (Kit #5)

This kit consists of one

(1) small logo Trailblazer

and one (1) large arrow

panel, both with AMT

Blue graphics on white

fields, plus one (1) sym-

bol panel displaying

the Federal Highway

Administration (FHWA)

train station symbol in

white on a green field.

This kit should be used in

jurisdictions that require

use of the FHWA station

symbol.

■

Exterior Signage

6.25

Trailblazer Kits 1-5

C15, C16, C17, C18

and C19 Sign Types

Mounting Option

The following Mounting

Mounting holes on back

Option provides a guide-

of arrow panels allow

for arrow rotation at 45˚

line for the placement of

and 90˚ angles

Trailblazers.

Comments

• Trailblazers are for

placement on public

roadways only.

• Trailblazer location,

placement and mount-

ing height is the pur-

view of local transpor-

tation officials.

• Trailblazers are mount-

Perforated metal posts

ed to existing or new

not included in kits

sign posts supplied by

local transportation

officials.

• All Trailblazer panels

are pre-drilled with

mounting holes spaced

for easy attachment to

standard perforated

metal sign posts. The

circular arrow panels

are pre-drilled with

holes spaced so the

arrow can be rotated in

45 degree increments

corresponding to the

direction to the station

C16 Sign Type (Kit #2)

at a given sign location.

• All Trailblazer kits con-

tain the proper quan-

tity of tamper-proof

mounting hardware to

attach each panel in the

kit to perforated metal

sign posts.

Exterior Signage

6.26

Trailblazer Kits 1-5

C15, C16, C17, C18

and C19 Sign Types

Sign Size and Layout

The sizes of all panels in

36"

each kit are shown on

this page.

The Trailblazer signs have

customized layouts.

36"

Comment

Various positions for

arrow panel mounting

are shown on this page.

18"

C15 Sign Type (Kit #1)

C16 Sign Type (Kit #2)

C17 Sign Type (Kit #3)

with arrow panel in

Hard Left position

Straight Ahead position

Hard Right position

30”

24"

24”

12"

18”

C18 Sign Type (Kit #4)

C19 Sign Type (Kit #5)

with arrow panel in

Diagonal Left position

Diagonal Right position

■

Exterior Signage

6.27

ADA Station

Entrance Identifier

C20 Sign Type

Sign Overview

These signs are used at

the station entry from

curbside to identify the

LANCASTER

station to the visually

impaired.

STATION

Raised Character messag-

es must be written in cap-

ital letters, raised 1/32”

and be accompanied by a

Grade 2 Braille message

equivalent directly below

the Raised Characters.

C20 Sign Type

The C20 Station Entrance

Identifier signs display

the city name and the

word “Station”; they do

not display a two letter

state designation.

C20 signs, which are

located at curbside sta-

tion entrances, are often

confused with A12 signs,

which are located at

platforms and display the

city name and two let-

ter state designation. At

Amtrak stops with only a

platform and no station

building, the A12 sign is

to be used, not the C20.

Exterior Signage

6.28

ADA Station

Entrance Identifier

C20 Sign Type

Mounting Options

The following Mounting

9" min.

Options provide guide-

lines for the placement

Tactile

of ADA Station Entrance

Characters

Identifiers.

Signs can be mounted as

shown on this page.

LANCASTER

STATION

Comments

• Sign shall be wall

mounted or column

mounted.

• Station Entrance

Identifiers shall be

located so that a clear

floor space of 18” mini-

mum by 18” minimum,

centered on Tactile

C20 Sign Type Mounted to Wall by Door

Characters, is provided

beyond the arc of any

door swing between

the closed position and

the 45 degree open

position, see Chapter

3.0.

• One (1) sign minimum

LANCASTER

STATION

per curbside entrance

zone, which may have

multiple entry doors.

If multiple entrance

zones, one (1) sign min-

imum per zone.

• For ADA mounting

guidelines for Raised

Character signs refer to

Chapter 3.0.

C20 Sign Type Mounted to Column

C20 Sign Type Mounted to

* Sign should be mount-

Freestanding Post*

ed to freestanding post

only when wall mount-

ing is prohibited such as

on the walls of histori-

cal stations. Post should

be located as close to

building as possible.

■

Exterior Signage

6.30

ADA Station

Entrance Identifier

C20 Sign Type

Design Intent

Drawing

*For paint and color spec-

Finishes

ifications please refer to

1) 1/4” thick Exterior grade photopolymer panel with raised tactile and Braille

page 2.10.

letters, background field painted AMT Blue*

For fabrication and

2) Frutiger 55 Roman 1/32” Raised Characters, painted White*

installation informa-

tion refer to Chapter

3) Grade 2 Braille painted AMT Blue*

11.0.

4) Entire sign clear coated*

Comment

Alternate zinc panel to

Alternate Finishes

be used for post mounted

signs and high exposure

1/8” thick etched zinc panel with raised tactile and Braille letters

locations.

CITY NAME

STATION

(Grade 2 Braille)

C20 Sign Type

■

Regulatory

7.1

Signage

“D” Sign Types

Regulatory and

Security Signs

Signs for the Amtrak Graphics Signage System

have been categorized into five groups.

“A” Sign Types represent Platform Signs

“B” Sign Types represent Interior Signs

“C” Sign Types represent Exterior Signs

“D” Sign Types represent Regulatory Signs

“E” Sign Types represent Electronic Signs

This chapter includes a comprehensive review of all

static Regulatory and Security Signage (D Sign Types)

within the Amtrak Graphics Signage System.

A sign overview, elevations of typical mounting

options, sign size and layout and a design intent draw-

ing is included for each Sign Type. “D” refers to signs

found on station platforms, in station interiors or at a

station exterior. Numeric codes (1, 2, 3, etc.), follow-

ing the location prefix “D” help organize and codify

all Sign Types within this category. Sign Types are list-

ed first by their name and are followed by their iden-

tifying letter and number. For example: Regulatory,

D1 Sign Type.

Regulatory

Signage

7.2

Regulatory Signs

D1 and D2

Sign Types

Sign Overview

These signs are used in

station interiors and exte-

riors to display

regulatory messages.

D1 Sign Type

These signs display

regulatory symbols only.

D2 Sign Type

These signs display

regulatory symbols

with accompanying sup-

port message text.

D1 Sign Type

In the Event

Comments

of Fire

Regulatory messages may

include:

Use Stairs

• Authorized Personnel

• Do Not Enter

D2 Sign Type

• Fire Extinguisher*

• In the Event of Fire

Use Stairs

• No Smoking*

• Smoking Area

• Stairs

• This Is a Smoke-free

Facility

• Custom Message

• For the definition of

Custom Message and

proper nomenclature

refer to Chapter 2.0.

* Messages for D1 Sign

Types displayed only

by the corresponding

symbol.

■

Regulatory

7.3

Signage

Regulatory Signs

D1 and D2

Sign Types

Mounting Options

The following Mounting

Options provide guide-

lines for the placement of

regulatory signs.

Mounting Options

1) Wall mounted

2) Flag mounted

Comments

• Refer to state and

local building codes

for compliance.

• Local jurisdictions may

mandate use of ver-

biage, graphic style and

mounting requirements

different from Amtrak

standards for regulatory

signage.

D1 Sign Type

D2 Sign Type

Wall Mounted

Flag Mounted to Wall or Column

Regulatory

Signage

7.4

Regulatory Signs

D1 and D2

Sign Types

Sign Size and Layout

Graphic Components

9” Module

Unit size: 1 1/8”

Symbol Field: 6 3/4”

1 1/8"

4 1/2” Module

Unit Size: 9/16”

Support Text Size: 9/16”

x-height for three lines

Comment

For additional informa-

tion on the use of mod-

1 1/8"

ules, arrows, symbols and

text refer to Chapter 2.0.

Line

9/16"

Line

D1 and D2 Sign Types

■

Amtrak. Graphic Signage Standards Manual (2010) - page 4
