09 Wheels and tires

09

266

exists. When the malfunction indicator is illu-

minated, the system may not be able to

detect or signal low tire pressure as intended.
System malfunctions may occur for a variety

of reasons, including the installation of

replacement or alternate tires or wheels on

the vehicle that prevent the tire pressure

monitoring system from functioning properly.
Always check the system's malfunction tell-

tale after replacing one or more tires or

wheels on your vehicle to ensure that the

replacement or alternate tires and wheels

allow the system to continue to function

properly.

NOTE

The system indicates low tire pressure but

does not replace normal tire maintenance.

For information on correct tire pressure,

please refer to the tire inflation pressure

table (see Tire inflation – pressure table

(p. 260)), the tire inflation pressure placard

located on the driver's side B-pillar (the

structural member at the side of the vehi-

cle, at the rear of the driver's door open-

ing) or consult your Volvo retailer.

WARNING

Incorrect inflation pressure could lead to

tire failure, resulting in a loss of control of

the vehicle.

Tire Pressure Monitoring System

(TPMS) – general information

TPMS uses sensors mounted in the tire valves

to check inflation pressure levels. When the

vehicle is moving at a speed of approximately

20 mph (30 km/h) or faster, these sensors

transmit inflation pressure data to a receiver

located in the vehicle.

NOTE

USA – FCC ID: KR5S180052050
This device complies with part 15 of the

FCC rules. Operation is subject to the fol-

lowing conditions: (1) This device may not

cause harmful interference, and (2) this

device must accept any interference

received, including interference that may

cause undesired operation.

When low inflation pressure is detected or if a

sensor is not functioning properly, TPMS will
light up the tire pressure warning light (

)

(also referred to as a telltale) in the instrument

panel and will display one of the following

messages:

Tire pressure low

Tire needs

air now

 or

Tire press. syst Service

required

.

NOTE

If a malfunction occurs in the system, the

tire pressure warning light will flash for

approximately 1 minute and then remain

illuminated.

Tire press. syst Service

required

 will be displayed.

Related information

Tire Pressure Monitoring System (TPMS)

– recalibrating (p. 268)

Tire Pressure Monitoring System (TPMS)

– messages (p. 269)

Tire Pressure Monitoring System (TPMS)

– activating/deactivating (p. 268)

Tire Pressure Monitoring System (TPMS)

– changing wheels (p. 267)

09 Wheels and tires

09

267

Tire Pressure Monitoring System

(TPMS) – changing wheels

Please keep the following in mind when

changing or replacing the factory installed

TPMS wheels/tires on the vehicle:

Not all aftermarket wheels are equipped

with TPMS sensors in the valves.

If the vehicle is equipped with a tempo-

rary spare tire, this tire does not have a

TPMS sensor.

If wheels without TPMS sensors are

mounted on the vehicle, a text message

will displayed in the instrument panel

each time the vehicle is driven above

20 mph (30 km/h) for 10 minutes or more.

Once TPMS sensors are properly instal-

led, the warning message should not

reappear. If the message is still displayed,

drive the vehicle for several minutes at a

speed of 20 mph (30 km/h) or faster to

erase the message.

Volvo recommends that TPMS sensors

be fitted on all wheels used on the vehi-

cle, including winter tires. Volvo does not

recommend moving sensors back and

forth between sets of wheels.

CAUTION

When inflating tires with TPMS sensors,

press the pump's mouthpiece straight

onto the valve to help avoid bending or

otherwise damaging the valve.

CAUTION

After inflating the tires, always reinstall

the valve cap to help avoid damage to

the valve from dirt, gravel, etc.

Use plastic valve caps only. Metal

caps could corrode and become diffi-

cult to remove.

NOTE

If you change to tires with a different

dimension than the factory-installed

ones, the TPMS system must be

reconfigured for these tires. This must

be done by a trained and qualified

Volvo service technician.

If a tire is changed, or if the TPMS sen-

sor is moved to another wheel, the

sensor's seal, nut, and valve core

should be replaced.

When installing TPMS sensors, the

vehicle must be parked for at least

15 minutes with the ignition off. If the

vehicle is driven within 15 minutes, a

TPMS error message will be displayed.

Related information

Tire Pressure Monitoring System (TPMS)

– general information (p. 266)

Tire Pressure Monitoring System (TPMS)

– recalibrating (p. 268)

Tire Pressure Monitoring System (TPMS)

– messages (p. 269)

Tire Pressure Monitoring System (TPMS)

– activating/deactivating (p. 268)

09 Wheels and tires

09

268

*



Option/accessory, for more information, see Introduction.

Tire Pressure Monitoring System

(TPMS) – recalibrating

In certain cases, it may be necessary to recali-

brate TPMS to conform to Volvo's recom-

mended tire inflation pressures (see the infla-

tion pressure table in Tire inflation – pressure

table (p. 260)), for example, if higher inflation

pressure is necessary when transporting

heavy loads, etc.

Recalibrating TPMS (Canadian models
only)*
This is done in the vehicle's menu system.
To recalibrate:
1. Switch off the engine.
2. Inflate the tires to the desired pressure

and put the ignition in mode I or II (see

Ignition modes (p. 69) for additional infor-

mation).

3. Press the MY CAR key in the center con-

sole control panel and select

Settings

Car settings

Tire pressure

.

4. Press OK/MENU, select

Calibrate tire

pressure

 and press OK/MENU again.

5. Drive the vehicle at a speed above

20 mph (30 km/h) continuously for at

least 10 minutes.
> Calibration is done automatically once

initiated by the driver and the system

does not give any confirmation when

calibration is finished.

The new pressures are used until step 1-5

above are repeated.

Related information

Tire Pressure Monitoring System (TPMS)

– general information (p. 266)

Tire Pressure Monitoring System (TPMS)

– messages (p. 269)

Tire Pressure Monitoring System (TPMS)

– activating/deactivating (p. 268)

Tire Pressure Monitoring System (TPMS)

– changing wheels (p. 267)

My Car – introduction (p. 66)

Tire Pressure Monitoring System

(TPMS) – activating/deactivating

Activating/deactivating TPMS
(Canadian models only)
1. Switch off the engine.
2. Put the ignition in mode I or II (see Igni-

tion modes (p. 69) for additional informa-

tion).

3. Press the MY CAR key in the center con-

sole control panel and select

Settings

Car settings

Tire pressure

4. Select

Tire monitoring

 and press OK/

MENU to turn the system on or off.

Related information

Tire Pressure Monitoring System (TPMS)

– general information (p. 266)

09 Wheels and tires

09

269

Tire Pressure Monitoring System

(TPMS) – messages

Erasing warning messages
When a low tire pressure warning message

has been displayed and the tire pressure
warning light in the instrument panell (

)

has come on:
1. Use a tire pressure gauge to check the

inflation pressure of all four tires.

2. Re-inflate the tire(s) to the correct pres-

sure (consult the tire pressure placard

located on the driver's side B-pillar (the

structural member at the side of the vehi-

cle, at the rear of the driver's door open-

ing) or the inflation pressure table, see

Tire inflation – pressure table (p. 260).

3. In certain cases, it may be necessary to

drive the vehicle for several minutes at a

speed of 20 mph (30 km/h) or faster. This

will erase the warning text and the telltale

will go out.

NOTE

Tire monitoring systems use a tem-

perature compensated pressure value.

This pressure value is dependent on

tire temperature and ambient tempera-

ture, which can differ from the recom-

mended cold tire pressure in the tire

inflation table and on the tire pressure

placard located on the driver's side B-

pillar (the structural member at the

side of the vehicle, at the rear of the

driver's door opening). This means

that it may sometimes be necessary to

inflate them slightly above the recom-

mended cold pressure value

(approx. 3-4 psi or 0.2-0.3 bar) in order

to reset a low tire pressure warning.

To help avoid incorrect tire inflation

pressure, if possible only inflate the

tires when they are cold. The tires are

considered to be cold when they have

the same temperature as the sur-

rounding (ambient) air. This tempera-

ture is normally reached after the vehi-

cle has been parked for at least

3 hours. After driving a distance of

approximately 1 mile (1.6 km), the tires

are considered to be hot.

CAUTION

After inflating the tires, always reinstall

the valve cap to help avoid damage to

the valve from dirt, gravel, etc.

Use plastic valve caps only. Metal

caps could corrode and become diffi-

cult to remove.

WARNING

Incorrect inflation pressure could lead

to tire failure, resulting in a loss of con-

trol of the vehicle.

Tire monitoring systems cannot indi-

cate sudden tire damage caused by

external factors (e.g., a blowout) in

advance.

Related information

Tire Pressure Monitoring System (TPMS)

– general information (p. 266)

Tire Pressure Monitoring System (TPMS)

– recalibrating (p. 268)

Tire Pressure Monitoring System (TPMS)

– activating/deactivating (p. 268)

Tire Pressure Monitoring System (TPMS)

– changing wheels (p. 267)

Tire pressure monitoring - introduction

(p. 265)

Tire inflation – pressure table (p. 260)

09 Wheels and tires

09

270

Tire Monitor - introduction

Tire Monitor uses the rotational speed of the

tires in combination with signal analysis of the

ABS sensor signals to determine if they are

properly inflated.

When a tire is under-inflated, its diameter

(and consequently also its rotational speed)

changes. By comparing the individual tires

with each other it is possible to determine if

one or more tires are under inflated.
When low inflation pressure is detected or if

the system is not functioning properly, Tire

Monitor will light up the tire pressure warning
light (

) (also referred to as a telltale) in

the instrument panel and will display one of

the following messages in the text window,

for example:

Tire pressure low Check rear

right tire

4

 or

Tire press. syst Service

required

.

If two or more tires have low pressure or if the

system cannot determine which tire has low

pressure, a general text (

Tire pressure low

Check tires

) will be displayed.

NOTE

If a malfunction occurs in the system, the

tire pressure warning light will flash for

approximately 1 minute and then remain

illuminated.

Tire press. syst Service

required

 will be displayed.

NOTE

The system indicates low tire pressure but

does not replace normal tire maintenance.

For information on correct tire pressure,

please refer to the tire inflation pressure

table (see Tire inflation – pressure table

(p. 260)), the tire inflation pressure placard

located on the driver's side B-pillar (the

structural member at the side of the vehi-

cle, at the rear of the driver's door open-

ing) or consult your Volvo retailer.

Related information

Tire pressure monitoring - introduction

(p. 265)

Calibrating Tire Monitor

In order for Tire Monitor to work correctly, tire

pressure reference values must be set. This

must be done each time wheels or tire pres-

sures are changed.

Calibration
1. Switch off the engine.
2. Inflate the tires to the desired pressure

(consult tire pressure placard located on

the driver's side B-pillar (the structural

member at the side of the vehicle) and

put the ignition in mode II, see Ignition

modes (p. 69).

3. Press the MY CAR button on the center

console control panel and select

Settings

Car settings

Tire monitoring

.

4. Press OK/MENU, select

Calibrate tire

pressure

 and press OK/MENU again.

5. Drive away.

> The calibration process will be comple-

ted while driving and will be interrupted

if the vehicle is parked and the engine

is switched off. Calibration continues

automatically when driving resumes.

The system will not give any confirma-

tion when calibration is finished

although it will state if calibration fails.

4

That last part of this message varies, depending on the tire(s) effected.

09 Wheels and tires

09

271

The new reference values will be used until

steps 1-5 stated above are repeated.

NOTE

Always remember to calibrate Tire Monitor

when the wheels have been changed or

the tire pressure has been corrected

according to tire pressure placard or tire

pressure table. If correct reference values

have not been set, the system cannot

issue low tire pressure alerts correctly.

Tire Monitor status information

The current status of the system and the tires

is indicated by color-coded graphics.

This status can be displayed by pressing the

MY CAR button on the center console and
going to

Settings

Car settings

Tire

monitoring

.

The following color-coded graphics indicate:

All green: the system is operational and

all tire pressures are at or above the rec-

ommended levels.

One yellow wheel: the tire indicated is

under-inflated.

All wheels yellow: two or more tires are

under-inflated

All wheels gray: the system is currently

unavailable. It might be necessary to

drive at a speed of at least 20 mph

(30 km/h) for several minutes for the sys-

tem to become operational.

All wheels gray in combination with the

message

Tire press. syst Service

required

 and the telltale in the instru-

ment panel (

) is illuminated: the

system is not functioning correctly. Have

it checked by a trained and qualified

Volvo service technician.

All wheels gray in combination with the

message

Tire press. syst currently

unavailable

 and the telltale in the

instrument panel (

) is illuminated:

the system is temporarily unavailable. It

should become operational again shortly.

Related information

Tire Monitor – messages (p. 272)

09 Wheels and tires

09

272

Tire Monitor – messages

When low tire pressure has been detected, a

message will be displayed and the tire pres-

sure warning telltale in the instrument panel

 will illuminate.

Erasing warning messages
To erase a low tire pressure message and

turn off the telltale:
1. Use a tire pressure gauge to check the

inflation pressure of all four tires (see the

article "Tire inflation – checking pres-

sure").

2. Re-inflate the tires to the correct pressure

(consult the tire pressure placard located

on the driver's side B-pillar (the structural

member at the side of the vehicle, at the

rear of the driver's door opening) or the

inflation pressure table, see Tire inflation –

pressure table (p. 260).

3. Recalibrate Tire Monitor, see Calibrating

Tire Monitor (p. 270).

NOTE

To help avoid incorrect tire inflation pres-

sure, only inflate the tires when they are

cold. The tires are considered to be cold

when they have the same temperature as

the surrounding (ambient) air. This tem-

perature is normally reached after the vehi-

cle has been parked for at least 3 hours.

After driving a distance of approximately

1 mile (1.6 km), the tires are considered to

be hot.

CAUTION

After inflating the tires, always reinstall

the valve cap to help avoid damage to

the valve from dirt, gravel, etc.

Use plastic valve caps only. Metal

caps could corrode and become diffi-

cult to remove.

WARNING

Incorrect inflation pressure could lead

to tire failure, resulting in a loss of con-

trol of the vehicle.

Tire monitoring systems cannot indi-

cate sudden tire damage caused by

external factors (e.g., a blowout) in

advance.

Related information

Tire Monitor – messages (p. 272)

Tire inflation – checking pressure (p. 256)

Tire inflation – pressure table (p. 260)

09 Wheels and tires

09

}}

*



Option/accessory, for more information, see Introduction.

273

Self-supporting run flat tires (SST)

Self-supporting run flat tires are available as

optional equipment on certain models.

The vehicle must be equipped with one of the

tire pressure monitoring systems if tires of

this type are installed.
Tires of this type have specially reinforced

sidewalls that make it possible to continue

driving to a limited extent even though the tire

has lost some or all of its inflation pressure.

These tires are mounted on special rims (nor-

mal tires can also be mounted on these rims).
If an SST tire loses inflation pressure, the yel-

low TPMS symbol illuminates in the instru-

ment panel and a text message is also dis-

played. If this happens, reduce speed to not

more than 50 mph (80 km/h). The tire should

be replaced as soon as possible.

WARNING

SST tires should only be mounted by

service technicians who are familiar

with tires of this type.

SST tires may only be mounted on

vehicles equipped with a tire pressure

monitoring system.

Do not drive faster than 50 mph

(80 km/h) if the monitoring system indi-

cates that a tire has lost inflation pres-

sure.

Do not drive farther than 50 miles

(80 km) before replacing a damaged

SST tire.

Drive carefully and avoid e.g., hard

braking or fast turns.

SST tires must be replaced if they are

damaged. A tire of this type cannot be

repaired.

Related information

Tire pressure monitoring - introduction

(p. 265)

Tire sealing system* – general

information

Introduction
The tire sealing system consists of an air

compressor, a container for the sealing com-

pound, wiring to connect the system to the

vehicle’s electrical system via one of the 12-

volt sockets, and a hose used to connect the

system to the tire’s inflation valve.

NOTE

The tire sealing system's compressor has

been tested and approved by Volvo.

Accessing the tire sealing system
1. Lift the floor hatch in the cargo area.
2. Lift out the tire sealing system.

NOTE

The tire sealing system is only

intended to seal holes on the tire’s

tread area, not the sidewall.

Tires with large holes or tears cannot

be repaired with the tire sealing sys-

tem.

After use, stow the tire sealing system

properly to help prevent rattling.

||

09 Wheels and tires

09

274

*



Option/accessory, for more information, see Introduction.

WARNING

After using the tire sealing system, the

vehicle should not be driven farther

than approximately 120 miles (200

km).

Have the tire inspected by a trained

and qualified Volvo service technician

as soon as possible to determine if it

can be permanently repaired or must

be replaced.

The vehicle should not be driven faster

than 50 mph (80 km/h) while using a

tire that has been temporarily repaired

with the tire sealing system.

After using the tire sealing system,

drive carefully and avoid abrupt steer-

ing maneuvers and sudden stops.

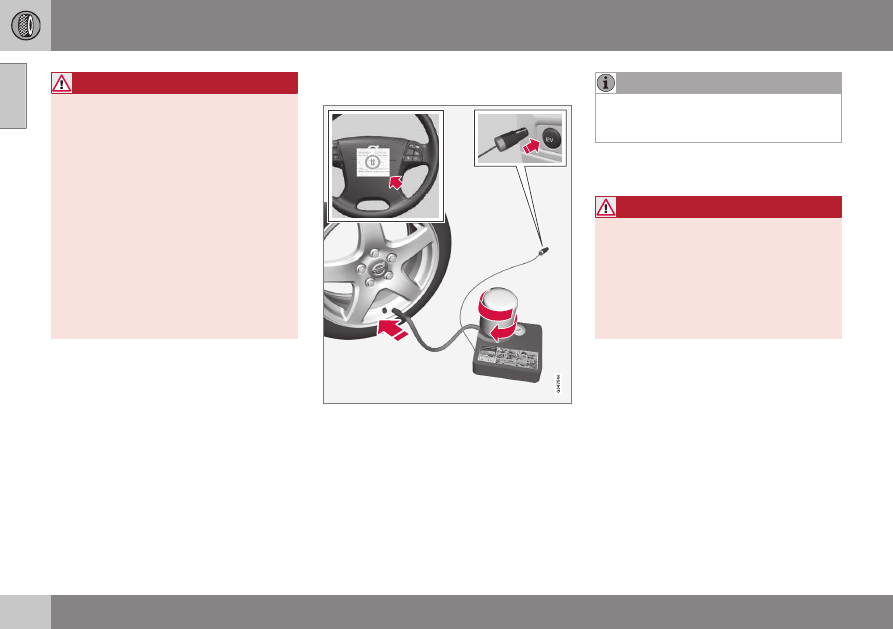

Tire sealing system–temporarily
repairing a flat tire

Temporarily repairing a flat tire is done in two

stages:

Stage 1: The hole is sealed by pumping

sealing compound into the tire. The car is

then driven a short distance to distribute

the sealing compound in the tire.

NOTE

Do not remove any foreign objects (nails,

etc.) from the tire before using the sealing

system.

Stage 2: The tire’s inflation pressure is

checked and adjusted if necessary.

WARNING

Never leave the tire sealing system

unattended when it is operating.

Keep the tire sealing system away

from children.

Be sure the vehicle is parked safely off

the road and away from moving traffic.

Apply the parking brake.

Related information

Tire sealing system* – overview (p. 275)

Tire sealing system* – inflating tires

(p. 278)

Tire sealing system* – sealing compound

container (p. 279)

Tire sealing system* – sealing hole

(p. 276)

Tire sealing system – checking inflation

pressure (p. 278)

Tunnel console – 12-volt sockets (p. 119)

09 Wheels and tires

09

*



Option/accessory, for more information, see Introduction.

275

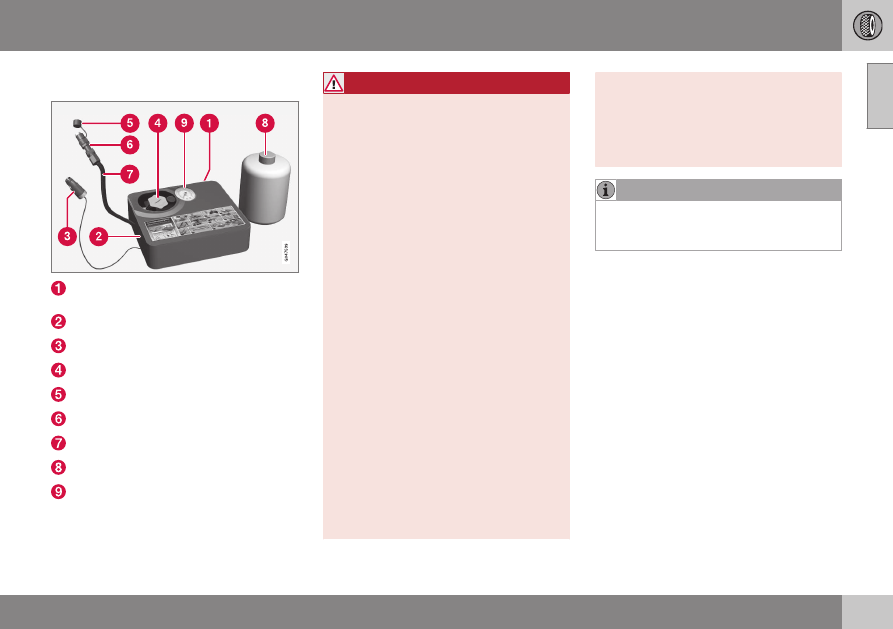

Tire sealing system* – overview

Speed limit sticker (on the rear side of the

compressor)
On/Off switch

Electrical wire

Bottle holder (orange cover)

Protective hose cover

Air release knob

Hose

Bottle with sealing compound

Air pressure gauge

WARNING

Please keep the following points in mind

when using the tire sealing system:

The sealing compound bottle (no. 8 in

the illustration) contains 1) rubber

latex, natural and 2) ethanediol. These

substances are harmful if swallowed.

The contents of this bottle may cause

allergic skin reactions or otherwise be

potentially harmful to the respiratory

tract, the skin, the central nervous sys-

tem, and the eyes.

Precautions:

Keep out of reach of children.

Do not ingest the contents.

Avoid prolonged or repeated contact

with the skin.

Wash thoroughly after handling.

First aid:

Skin: Wash affected areas of skin with

soap and water. Get medical attention

if symptoms occur.

Eyes: Flush with plenty of water for

least 15 minutes, occasionally lifting

the upper and lower eyelids. Get medi-

cal attention if symptoms occur.

Inhalation: Move the exposed person

to fresh air. If irritation persists, get

medical attention.

Ingestion: Do NOT induce vomiting

unless directed to do so by medical

personnel. Get medical attention.

Disposal: Dispose of this material and

its container to a hazardous or special

waste collection point.

NOTE

Do not break the seal on the bottle. This

occurs automatically when the bottle is

screwed into the holder.

Related information

Tire sealing system* – general information

(p. 273)

Tire sealing system* – inflating tires

(p. 278)

Tire sealing system – checking inflation

pressure (p. 278)

Tire sealing system* – sealing hole

(p. 276)

Tire sealing system* – sealing compound

container (p. 279)

09 Wheels and tires

09

276

*



Option/accessory, for more information, see Introduction.

Tire sealing system* – sealing hole

The tire sealing system can be used to tem-

porarily seal a hole in the tread surface of a

tire.

Stage 1: Sealing the hole
1. Peel off the speed limit sticker and affix it

to the steering wheel hub where it will be

clearly visible to the driver.

2. Ensure that the on/off switch is in posi-

tion 0 (the 0 side of the switch should be

pressed down).

WARNING

Contact with the sealing compound may

cause skin irritation. If contact occurs,

wash the affected area immediately with

soap and water.

3. Unscrew the orange cover over the bottle

holder and unscrew the cap on the bottle

of sealing compound.

NOTE

Do not break the seal on the bottle. This

occurs automatically when the bottle is

screwed into the holder.

4. Screw the bottle into the bottle holder.

WARNING

The bottle is equipped with a catch to

keep it securely in place and help prevent

sealing compound leakage. Once in place,

the bottle cannot be unscrewed. This must

be done by a trained and qualified Volvo

service technician.

5. Remove the valve cap from the tire’s

inflation valve and screw the tire sealing

system’s hose connector onto the valve

as tightly as possible by hand.

6. Connect the electrical wire to the nearest

12-volt socket in the vehicle.

NOTE

Be sure that none of the other 12-volt

sockets is being used while the compres-

sor is in operation.

7. Start the vehicle’s engine.

WARNING

The vehicle´s engine should be running

when the tire sealing system is used to

avoid battery drain. Therefore, be sure the

vehicle is parked in a well ventilated place,

or outdoors, before using the system.

8. Start the tire sealing system’s compres-

sor by pressing the on/off switch to posi-

tion I.

09 Wheels and tires

09

277

WARNING

Never stand next to the tire being infla-

ted when the compressor is in opera-

tion.

If cracks, bubbles, etc. form on the tire,

switch off the compressor immediately.

If there is visible damage to the sidewall

or the rim, the tire cannot be repaired.

The vehicle should not be driven if this

occurs. Contact a towing service or

Volvo On Call Roadside Assistance if

applicable.

NOTE

The air pressure gauge will temporarily

show an increase in pressure to approxi-

mately 88 psi (6 bar) while the sealing

compound is being pumped into the tire.

The pressure should return to a normal

level after approximately 30 seconds.

9. Within seven minutes, inflate the tire to

between 22—44 psi (1.8—3.0 bar).

Switch off the compressor briefly to get a

clear reading from the pressure gauge.

CAUTION

The compressor should not be used for

more than 10 minutes at a time to avoid

overheating.

WARNING

If the pressure remains below 22 psi

(1.8 bar) after approximately seven

minutes, turn off the compressor. In this

case, the hole is too large to be sealed and

the vehicle should not be driven.

10. Switch off the compressor and discon-

nect the electrical wire from the 12-volt

socket.

11. Unscrew the hose from the tire’s inflation

valve and reinstall the valve cap.

CAUTION

After inflating the tires, always reinstall

the valve cap to help avoid damage to

the valve from dirt, gravel, etc.

Use plastic valve caps only. Metal caps

could corrode and become difficult to

remove.

12. Immediately drive the vehicle for approxi-

mately 2 miles (3 km) at a maximum

speed of 50 mph (80 km/h) to distribute

the sealing compound in the tire.

CAUTION

If your vehicle is equipped with the Tire

Pressure Monitoring System (TPMS), the

use of the sealing compound may lead to

incorrect tire pressure readings or in rare

cases, damage to the tire pressure sensor.

Use the tire sealing system to check and

adjust the damaged tire's inflation pres-

sure.

NOTE

Safely stow the tire sealing system in a

convenient place as it will soon be

used again to check the tire’s inflation

pressure.

The empty bottle of sealing compound

cannot be removed from the bottle

holder. Consult a trained and qualified

Volvo service technician to have the

bottle removed and properly disposed

of.

WARNING

If heavy vibrations, unsteady steering

behavior, or noises should occur while

driving, reduce speed and park the vehicle

in a safe place. Recheck the tire for

bumps, cracks, or other visible damage,

and recheck its inflation pressure. If the

pressure is below 19 psi (1.3 bar), do not

continue driving. Have the vehicle towed

to a trained and qualified Volvo service

technician.

09 Wheels and tires

09

278

*



Option/accessory, for more information, see Introduction.

Tire sealing system – checking

inflation pressure

The tire sealing system can also be used to

check the tires' inflation pressure.

Stage 2: Checking inflation pressure
1. Connect the tire sealing system as

described in stage 1, see Tire sealing

system* – sealing hole (p. 276).

2. Refer to the inflation pressure table in this

chapter for the correct inflation pressure.

If the tire needs to be inflated, start the

tire sealing system’s compressor. If nec-

essary, release air from the tire by turning

the air release knob counterclockwise.

CAUTION

The compressor should not be used for

more than 10 minutes at a time to avoid

overheating.

WARNING

If you interrupt your trip for more than 1

hour, check the inflation pressure in the

damaged tire again before continuing.

Tire sealing system* – inflating tires

The tire sealing system can be used to inflate

the tires.

To do so:
1. Park the car in a safe place.
2. The compressor should be switched off.

Ensure that the on/off switch is in position
0 (the 0 side of the switch should be

pressed down).

3. Take out the electrical wire and hose.
4. Remove the valve cap from the tire’s

inflation valve and screw the hose con-

nector onto the valve as tightly as possi-

ble by hand.

5. Connect the electrical wire to the nearest

12-volt socket in the vehicle.

6. Start the vehicle’s engine.

WARNING

The vehicle’s engine should be running

when the tire sealing system is used to

avoid battery drain. Therefore, be sure

the vehicle is parked in a well ventilated

place, or outdoors, before using the

system. The parking brake should be

securely applied and the gear selector

should be in the P (park) position.

Children should never be left unatten-

ded in the vehicle when the engine is

running.

7. Check the tire’s inflation pressure on the

gauge. Switch off the compressor briefly

to get a clear reading from the pressure

gauge.

8. Refer to the tire inflation table in this

chapter for the correct inflation pressure.

If the tire needs to be inflated, start the

tire sealing system’s compressor (press

the on/off switch to position I). If neces-

sary, release air from the tire by turning

the air release knob counterclockwise.

09 Wheels and tires

09

*



Option/accessory, for more information, see Introduction.

279

CAUTION

The compressor should not be used for

more than 10 minutes at a time to avoid

overheating.

9. Turn off the compressor (press the on/off

switch to position 0) when the correct

inflation pressure has been reached.

10. Unscrew the hose from the tire’s inflation

valve and reinstall the valve cap.

CAUTION

After inflating the tires, always reinstall

the valve cap to help avoid damage to

the valve from dirt, gravel, etc.

Use plastic valve caps only. Metal caps

could corrode and become difficult to

remove.

11. Disconnect the electrical wire from the

12-volt socket.

Tire sealing system* – sealing

compound container

The sealing compound container must be

replaced if the tire sealing system has been

used to repair a tire or if the container’s expi-

ration date has passed (see the date on

decal).

Replacing the sealing compound
container

NOTE

After use, the sealing compound bot-

tle, the hose, and certain other system

components must be replaced. Please

consult your Volvo retailer for replace-

ment parts.

If the sealing compound bottle’s expi-

ration date has passed, please take it

to a Volvo retailer or a recycling station

that can properly dispose of harmful

substances.

10 Maintenance and servicing

10

281

Maintenance – introduction

Periodic maintenance will help keep your

vehicle running well.

Introduction
The maintenance services contain several

checks that require special instruments and

tools and therefore must be performed by a

qualified technician. To keep your Volvo in

top condition, specify time-tested and proven

Genuine Volvo Parts and Accessories.

The Federal Clean Air Act – U.S.

The Federal Clean Air Act requires vehicle

manufacturers to furnish written instructions

to the ultimate purchaser to assure the proper

servicing and function of the components that

control emissions. These services, which are

listed in the "Warranty and Service Records

Information" booklet, are not covered by the

warranty. You will be required to pay for labor

and material used.

Maintenance

Your Volvo passed several major inspections

before it was delivered to you, in accordance

with Volvo specifications. The maintenance

procedures outlined in the Warranty and

Service Records Information booklet, many of

which will positively affect your vehicle's

emissions, should be performed as indicated.

It is recommended that receipts for vehicle

emission maintenance be retained in case

questions arise concerning maintenance.

Inspection and maintenance should also be

performed anytime a malfunction is observed

or suspected.

Applicable warranties – U.S./Canada

In accordance with applicable U.S. and

Canadian regulations, the following list of

warranties is provided.

New Vehicle Limited Warranty

Parts and Accessories Limited Warranty

Corrosion Protection Limited Warranty

Seat Belt and Supplemental Restraint

Systems Limited Warranty

Emission Design and Defect Warranty

Emission Performance Warranty

These are the federal warranties; other war-

ranties are provided as required by state/

provincial law. Refer to your separate War-

ranty and Service Records Information book-

let for detailed information concerning each

of the warranties.

Periodic maintenance helps minimize
emissions

NOTE

Refer to your Warranty and Service

Records Information booklet for a

comprehensive service and mainte-

nance schedule up to 150,000 miles

(240,000 km). This program contains

inspections and services necessary for

the proper function of your vehicle and

includes components that affect vehi-

cle emissions.

The Warranty and Service Records

Information booklet also contains

detailed information concerning the

warranties that apply to your vehicle.

Related information

Climate – general information (p. 107)

10 Maintenance and servicing

10

282

Maintenance – owner maintenance

Periodic maintenance requirements and inter-

vals are described in your vehicle's Warranty

and Service Records Information booklet.
The following points can be carried out

between the normally scheduled maintenance

services.

Owner maintenance

Each time the car is refueled:

Check the engine oil level.

Clean the windshield, windshield wipers,

headlights, and taillights.

Monthly:

Check cold tire pressure in all tires.

Inspect the tires for wear.

Check that engine coolant and other fluid

levels are between the indicated "min"

and "max" markings.

Clean interior glass surfaces with a glass

cleaner and soft paper towels.

Wipe driver information displays with a

soft cloth.

Visually inspect battery terminals for cor-

rosion. Corrosion may indicate a loose

terminal connector, or a battery near the

end of its useful service life. Consult your

Volvo retailer for additional information.

As needed:

Wash the car, including the undercarriage, to

reduce wear that can be caused by a buildup

of dirt, and corrosion that can be caused by

salt residues.
Clean leaves and twigs from air intake vents

at the base of the windshield, and from other

places where they may collect.

NOTE

Complete service information for qualified

technicians is available online for purchase

or subscription at www.volvotechinfo.com.

Related information

Maintenance – opening/closing hood

(p. 285)

Engine compartment – overview (p. 285)

Engine compartment – coolant (p. 288)

Engine compartment – engine oil (p. 286)

Engine compartment – power steering

fluid (p. 289)

Engine compartment – washer fluid

(p. 295)

Cleaning the interior (p. 310)

Washing the car (p. 308)

Tire inflation – checking pressure (p. 256)

Tires – tread wear indicator (p. 251)

Maintenance – hoisting

When the vehicle is hoisted, the jack or

garage lift must be positioned in the correct

lifting points.

Hoisting the vehicle
If a garage jack is used to lift the vehicle, it

should be placed:
Front: under either of the two reinforced

areas under the front section of the vehicle,

not under to jack attachment points (the

outermost points shown in the illustration).
Rear: Under the jack attachment points.
Ensure that the jack is positioned so that the

vehicle cannot slide off it. Always use axle

stands or similar structures.

Related information

Changing a wheel – removing wheel

(p. 252)















Content   ..  14  15  16  17   ..
