10 Maintenance and servicing

10

}}

*



Option/accessory, for more information, see Introduction.

283

Onboard Diagnostic System

OBD II is part of your vehicle's computerized

engine management system. It stores diag-

nostic information about your vehicle's emis-

sion controls. It can light the Check Engine

light (MIL) if it detects an emission control

"fault." A "fault" is a component or system

that is not performing within an expected

range. A fault may be permanent or tempo-

rary. OBD II will store a message about any

fault.

Emission inspection readiness

How do states use OBD II for emission
inspections?

Many states connect a computer directly to a

vehicle's OBD II system. The inspector can

then read "faults." In some states, this type of

inspection has replaced the tailpipe emission

test.

How can my vehicle fail OBD II emission
inspection?

Your vehicle can fail OBD II emission inspec-

tion for any of the following reasons.

If your Check Engine (MIL) light is lit, your

vehicle may fail inspection.

If your vehicle's Check Engine light was

lit, but went out without any action on

your part, OBD II will still have a recorded

fault. Your vehicle may pass or fail,

depending on the inspection practices in

your area.

If you had recent service that required

disconnecting the battery, OBD II diag-

nostic information may be incomplete

and "not ready" for inspection. A vehicle

that is not ready may fail inspection.

How can I prepare for my next OBD II
emission inspection?

If your Check Engine (MIL) light is lit – or

was lit but went out without service, have

your vehicle diagnosed and, if necessary,

serviced by a qualified Volvo technician.

If you recently had service for a lit Check

Engine light, or if you had service that

required disconnecting the battery, a

period of driving is necessary to bring the

OBD II system to "ready" for inspection.

Two half-hour trips of mixed stop-and-

go/highway driving are typically needed

to allow OBD II to reach readiness. Your

Volvo retailer can provide you with more

information on planning a trip.

Maintain your vehicle in accordance with

your vehicle's maintenance schedule.

Booking service and repairs

Connected Service Booking (CSB) makes set-

ting up a time for service, maintenance and/or

repairs directly from the vehicle quick and

convenient.

Prerequisites

The owner (primary driver) must have a

valid Volvo ID. See Volvo ID (p. 21) for

additional information.

The vehicle must be connected to the
Internet using a paired Bluetooth

®

 cell

phone. See your Sensus Infotainment

supplement for information on pairing a

cell phone. On models equipped with

Volvo On Call (VOC)*, you can connect to

the Internet using your separate VOC

data plan. Refer to your separate Volvo

On Call manual.

By default, the retailer where you pur-

chased your vehicle will be your preferred

(primary) retailer/Volvo authorized work-

shop who will perform service and repairs

on your vehicle. To change the preferred

retailer, go to Dealer Locator at

volvocars.com and select a retailer, click

on Service Scheduler and book an

appointment at the new preferred retailer.

In order to be guided through the on-

screen steps, the menu alternative

Display notifications

 must be activated.

CSB menu access
Once the prerequisites have been estab-

lished, all CSB-related menus can be

||

10 Maintenance and servicing

10

284

accessed in MY CAR by pressing OK/MENU
and then selecting

Maintenance & repair

.

Booking information and data from the
vehicle
If you request an appointment from your vehi-

cle, with your consent, booking information
and data about your vehicle

1

 will be transmit-

ted to your preferred retailer.

Using the service
Once the prerequisites have been estab-

lished, all CSB-related menus can be

accessed in MY CAR by pressing OK/MENU
and then selecting

Maintenance & repair

.

If the time for the next regularly scheduled

service is approaching, if the vehicle requires

certain types of repairs or if a system needs

to be checked, a message will be displayed.

You will then by guided through the steps

required to book service or repairs.

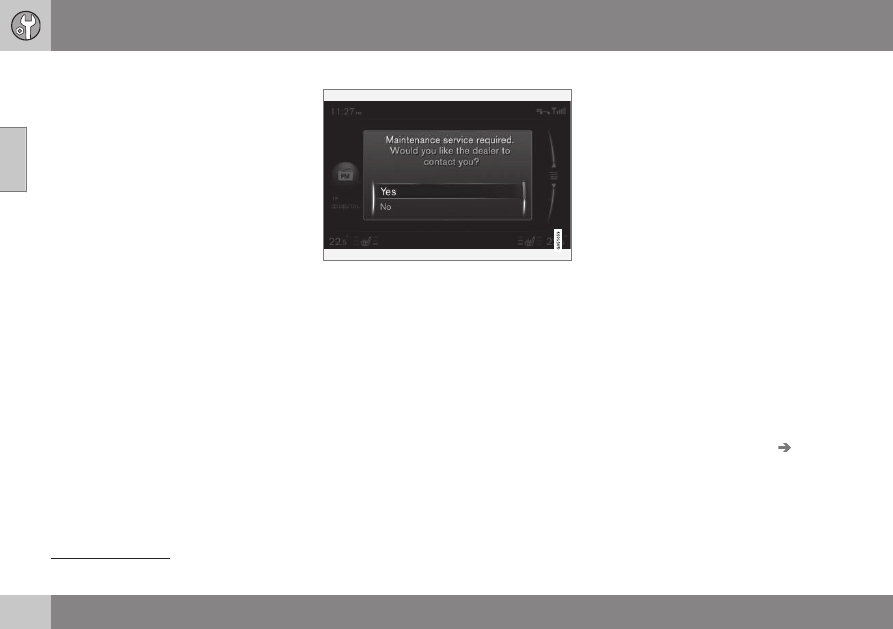

On-screen service messages

On-screen service message

The pop-up service alert menu offers the fol-

lowing alternatives:

Yes

: The vehicle will transmit a booking

request as well as vehicle data directly to

your preferred retailer. In return, you will

receive an email from this retailer with a

link to their booking portal. From a smart-

phone or a computer, you can select a

day and time that suits you and specify

any other service requests that you may

have. When you have submitted your

request, it will be entered into the retail-

er's booking portal and you will receive

immediate confirmation online and via

email. The service reminder light in the

vehicle's instrument panel will also be

turned off remotely by Volvo.

No

: No other messages will be displayed

on the Sensus screen but the Service

Reminder Light on the vehicle's instru-

ment panel will stay on. If you have

answered "No", service can still be

booked manually (see the following sec-

tion).

Postpone

: The pop-up menu will be dis-

played that next time the engine is

started.

Booking service or repairs manually

Access your Volvo On-Line Service Scheduler

portal from a smartphone or a computer to

select a day and time that suits you and

specify any other service requests that you

may have. When you have submitted your

request, it will be entered into the retailer's

booking portal and you will receive immediate

confirmation online and via email.

My Appointments
This displays booking information.

Select

Maintenance & repair

My

Appointments

.

Transmitting vehicle data
In order for a retailer to access vehicle data,

the information is initially sent to a central

Volvo database (not directly to your retailer)

1

This information includes: service requirements, status of various functions, odometer reading and the vehicle's VIN number and software version.

10 Maintenance and servicing

10

}}

285

where any retailer can access or search for

this information using your vehicle's VIN num-

ber. This number can be found in your war-

ranty booklet or on the dashboard at the

lower left corner of the windshield.

Select

Maintenance & repair

Send

vehicle data

.

Booking information and vehicle data
When you opt to book service from your vehi-

cle, booking information and vehicle data will

be transmitted. Vehicle data consists of a

number of parameters in the following areas:

Service requirements

Function status

Fluid levels

Odometer reading (mileage)

Vehicle Identification Number (VIN)

The vehicle's software version

Related information

Volvo ID (p. 21)

Maintenance – opening/closing hood

The hood is opened by first releasing the lock

from the passenger compartment and then

pressing the release control.

Opening and closing the hood

Lift the hood slightly. Press the release

control (located under the right front edge

of the hood) to the left, and lift the hood.

WARNING

Check that the hood locks properly when

closed.

Related information

Maintenance – owner maintenance

(p. 282)

Engine compartment – overview (p. 285)

Engine compartment – overview

The overview shows the main inspection

points in the engine compartment.

The appearance of the engine compartment

may vary depending on engine model.

WARNING

The cooling fan (located at the front of the

engine compartment, behind the radiator)

may start or continue to operate (for up to

6 minutes) after the engine has been

switched off.

||

10 Maintenance and servicing

10

286

WARNING

Before performing any operations in the

engine compartment, the ignition should

always be completely switched off (in

mode 0, see Ignition modes (p. 69)) and

there should be no remote keys in the pas-

senger compartment. The gear selector

should be in the P (park) position. If the

engine has been running, wait until it has

cooled before touching any components in

the engine compartment.
The distributor ignition system operates at

very high voltages. Special safety precau-

tions must be followed to prevent injury.

Always turn the ignition off when:

Replacing distributor ignition compo-

nents e.g. plugs, coil, etc.

Do not touch any part of the distributor

ignition system while the engine is run-

ning. This may result in unintended

movements and body injury.

Related information

Maintenance – opening/closing hood

(p. 285)

Maintenance – owner maintenance

(p. 282)

Engine compartment – engine oil

The correct oil must be used for the stated oil

change (service) intervals to apply.
The oil level on 4-cylinder engines is checked

electronically and is checked using a dipstick

on 5- and 6-cylinder engines.

Checking the engine oil (5- and 6-
cylinder engines)
The oil level should be checked at regular

intervals, particularly during the period up to

the first scheduled maintenance service.

See Oil specifications (p. 323) for oil

specifications.

Also, refer to the Warranty and Service

Records information booklet for informa-

tion on oil change intervals and oil speci-

fications.

CAUTION

Not checking the oil level regularly can

result in serious engine damage if the

oil level becomes too low.

Oil that is lower than the specified

quality can damage the engine.

Volvo does not recommend the use of

oil additives.

Always add oil of the same type and

viscosity as already used.

Never fill oil above the MAX mark. This

could cause an increase in oil con-

sumption.

Oil changes should be carried out by a

trained and qualified Volvo service

technician.

10 Maintenance and servicing

10

}}

*



Option/accessory, for more information, see Introduction.

287

Checking and adding oil

NOTE

Before checking the oil:

The car should be parked on a level

surface.

If the engine is warm, wait for at least

10 – 15 minutes after the engine has

been switched off.

G021737

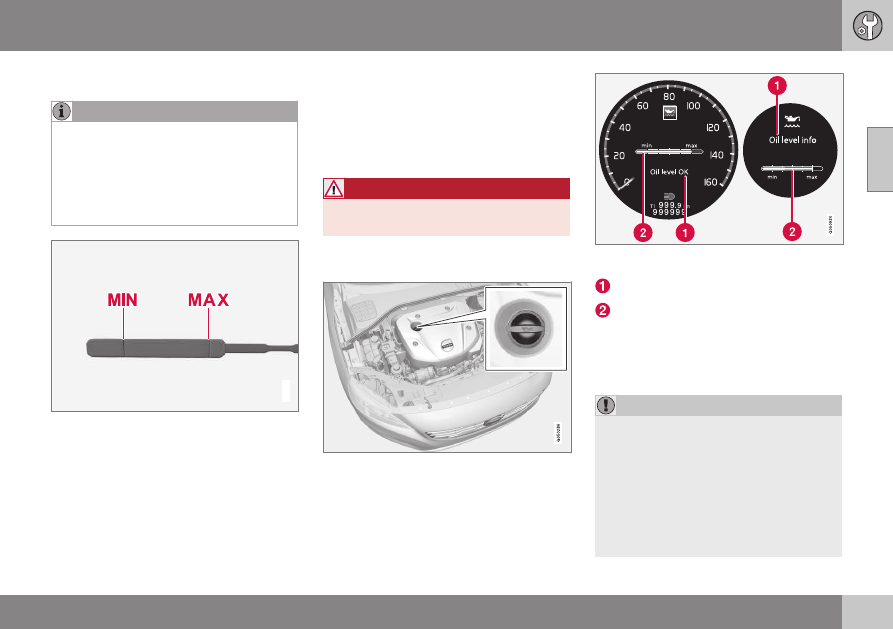

The oil level must be between the MIN and MAX

marks on the dipstick

Checking the oil

1. Pull out the dipstick and wipe it with a

lint-free rag.

2. Reinsert the dipstick, pull it out, and

check the oil level. The level must be

between the MIN and MAX marks.

3. Add oil if necessary. If the level is close to

the MIN mark, add approximately

0.5 US quarts (0.5 liters) of oil.

4. Recheck the level and add more oil if

necessary until the level is near the MAX

mark.

WARNING

Do not allow oil to spill onto or come into

contact with hot exhaust pipe surfaces.

Electronic oil level sensor (4-cylinder
engines only)

Oil filler cap

No action is necessary until a message is dis-

played, see the following illustration.

Left: digital instrument panel*, Right: analog

instrument panel

Message

Oil level

The oil level can be checked when the engine

is not running by scrolling to the oil level sen-

sor using the thumb wheel on the left steering

wheel lever.

CAUTION

If

Oil service required

 is displayed,

the oil level may be too high. Take the

vehicle to an authorized Volvo work-

shop as soon as possible.

If the oil level sensor indicates that the

level is too low, using the correct oil,

top up with the amount of oil indicated

as soon as possible, see oil specifica-

tions (p. 323).

||

10 Maintenance and servicing

10

288

WARNING

Do not allow oil to spill onto or come into

contact with hot exhaust pipe surfaces.

Electronically checking the oil level

The oil level should be checked at regular

intervals, particularly during the period up to

the first scheduled maintenance service.
To check the oil level:
1. Activate ignition mode II, see Ignition

modes (p. 69).

2. Turn the thumb wheel on the left steering

wheel lever until

Oil level

 is displayed.

> The oil level will be displayed.

NOTE

The system cannot detect changes in

the oil level immediately. The vehicle

must be driven approximately 20 miles

(30 km) or have been parked on level

ground with the engine off for

5 minutes before the oil level reading

will be correct.

If the necessary conditions are not met

for checking the oil level electronically

(time interval after the engine was

switched off, if the vehicle is parked on

an incline, etc.),

No values available

will be displayed. This does not indi-

cate a problem with the oil level sen-

sor.

Engine compartment – coolant

Normally, the coolant does not need to be

changed. If the system must be drained, con-

sult a trained and qualified Volvo service tech-

nician.

Level check and filling
See Fuel tank volume – specification and vol-

ume (p. 325) for information on cooling sys-

tem capacities.

CAUTION

If necessary, top up the cooling sys-

tem with Volvo Genuine Coolant/Anti-

freeze only (a 50/50 mix of water and

antifreeze).

Different types of antifreeze/coolant

may not be mixed.

If the cooling system is drained, it

should be flushed with clean water or

premixed anti-freeze before it is refilled

with the correct mixture of water/anti-

freeze.

The cooling system must always be

kept filled to the correct level, and the

level must be between the MIN and

MAX marks. If it is not kept filled, there

can be high local temperatures in the

engine which could result in damage.

Check coolant regularly!

Do not top up with water only. This

reduces the rust-protective and anti-

freeze qualities of the coolant and has

a lower boiling point. It can also cause

damage to the cooling system if it

should freeze.

Do not use chlorinated tap water in the

vehicle's cooling system.

10 Maintenance and servicing

10

289

WARNING

Never remove the expansion tank cap

while the engine is warm. Wait until the

engine cools.

If it is necessary to top off the coolant

when the engine is warm, unscrew the

expansion tank cap slowly so that the

overpressure dissipates.

Engine compartment – brake fluid

The brake fluid should always be between the

MIN and MAX marks on the inside of the res-

ervoir.

Filling

1. Turn and open the cover.
2. Unscrew the reservoir cap and fill the

fluid. The level must be between the MIN

and MAX marks.

Engine compartment – power steering

fluid

The fluid level must be between the MIN and

MAX marks. For capacities and recom-

mended fluid grade, see Fuel tank volume –

specification and volume (p. 325).

Check the level frequently. It does not nor-

mally require changing.

WARNING

If a problem should occur in the power

steering system or if the vehicle has no

electrical current and must be towed, it is

still possible to steer the vehicle. However,

keep in mind that greater effort will be

required to turn the steering wheel.

CAUTION

Keep the area around the power steering

fluid reservoir clean when checking.

10 Maintenance and servicing

10

290

*



Option/accessory, for more information, see Introduction.

Bulbs – introduction

Certain bulbs can be replaced by the vehicle's

owner. However, the bulbs on the following

list should only be replaced by a trained and

qualified Volvo service technician.

NOTE

For information regarding any bulbs

not mentioned in this section, please

contact your Volvo retailer or a trained

and authorized Volvo service techni-

cian.

Always switch off the ignition before

starting to replace a bulb.

If an error message remains in the dis-

play after a faulty bulb has been

replaced, contact an authorized Volvo

workshop.

Condensation may form temporarily on

the inside of the lenses of exterior

lights such as headlights, fog lights, or

taillights. This is normal and the lights

are designed to withstand moisture.

Normally, condensation will dissipate

after the lights have been on for a

short time.

The optional Active Bending Light

bulbs contain trace amounts of mer-

cury. These bulbs should always be

disposed of by a trained and qualified

Volvo service technician.

CAUTION

Never touch the glass of bulbs with your

fingers. Grease and oils from your fingers

vaporize in the heat and will leave a

deposit on the reflector, which will damage

it.

WARNING

The engine should not be running

when changing bulbs.

If the engine has been running just

prior to replacing bulbs in the head-

light housing, please keep in mind that

components in the engine compart-

ment will be hot.

WARNING

Active Bending Lights* – due to the

high voltage used by these headlights,

these bulbs should only be replaced

by a trained and qualified Volvo serv-

ice technician.

Turn off the lights and remove the

remote key from the ignition before

changing any bulbs.

Related information

Bulbs – headlight housing (p. 290)

Bulbs – vanity mirror lighting (p. 293)

Bulbs – license plate lighting (p. 292)

Bulbs – headlight housing

The entire headlight housing must be lifted

out when replacing all front bulbs.

Removing the headlight housing

Pull out the headlight housing's locking

pins.

CAUTION

When disconnecting the connector, pull on

the connector itself and not on the wiring.

Unplug the wiring connector by holding

down the clip with your thumb.
Pull the connector out with the other

hand.

5. Lift out the headlight housing and place it

on a soft surface to avoid scratching the

lens.

6. Replace the defective bulb(s).

Related information

Bulbs – introduction (p. 290)

Bulbs – cover (p. 291)

Bulbs – specifications (p. 293)

10 Maintenance and servicing

10

291

Bulbs – cover

The larger cover has to be removed in order

to change the high/low beam headlight bulbs.

Removing the cover to access the bulbs

NOTE

Before starting to replace a bulb, see

Bulbs – introduction (p. 290).

Reinstall the cover in the reverse order.

Related information

Bulbs – headlight housing (p. 290)

Bulbs – low beam, Halogen (p. 291)

Bulbs – high beam, Halogen (p. 291)

Bulbs – extra high beam (p. 292)

Bulbs – low beam, Halogen

The low beam bulb is concealed by the larger

cover.

1. Remove the headlight housing from the

vehicle (see Bulbs – headlight housing

(p. 290)).

2. Remove the cover over the bulbs (see

Bulbs – cover (p. 291)).

3. Unplug the connector from the bulb.
4.
5. Put the cover back into position and rein-

stall the headlight housing.

Related information

Bulbs – specifications (p. 293)

Bulbs – high beam, Halogen

The high beam bulb is concealed behind the

larger cover.

1. Remove the headlight housing from the

vehicle (see Bulbs – headlight housing

(p. 290)).

2. Remove the cover over the bulbs (see

Bulbs – cover (p. 291)).

3. Remove the bulb by turning it counter-

clockwise and pulling it straight out.

4. Remove the connector from the bulb.
5. Press the new bulb into the socket and

turn it clockwise to put it in place. It can

only be secured in one position.

6. Reinsert the bulb holder into the headlight

housing.

7. Put the cover back into position and rein-

stall the headlight housing.

Related information

Bulbs – specifications (p. 293)

10 Maintenance and servicing

10

292

Bulbs – extra high beam

The extra high beam bulb is concealed by the

larger cover.

Extra high beam

2

Related information

Bulbs – specifications (p. 293)

Bulbs – front turn signals

The turn signal bulb is concealed behind the

smaller cover.

Related information

Bulbs – specifications (p. 293)

Bulbs – license plate lighting

1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing

and pull it out.

3. Replace the bulb.
4. Reinsert the entire bulb housing and

tighten the screws.

Related information

Bulbs – specifications (p. 293)

2

Models with optional Active Bending Lights only.

10 Maintenance and servicing

10

}}

293

Bulbs – vanity mirror lighting

The vanity mirror bulbs are located behind the

lens.

Related information

Bulbs – specifications (p. 293)

Bulbs – specifications

The following bulbs can be replaced by the

vehicles owner. All other bulbs should only be

replaced by a trained and qualified Volvo

service technician.

NOTE

Please consult a Volvo retailer’s Parts

department for the most up-to-date bulb

specifications.

Related information

Bulbs – introduction (p. 290)

Wiper blades – service position

The windshield wiper blades must be in the

vertical (service) position for replacement,

washing or to lift them away from the wind-

shield when e.g., removing ice or snow.

CAUTION

Be sure the wiper blades are not frozen in

position before attempting to move them

to the service position.

To put the windshiield wipers in the service

position:
1. Insert the remote key into the ignition

slot

3

 and press the START/STOP

ENGINE button briefly to put the ignition

in mode I (see Ignition modes (p. 69) for

detailed information about the ignition

modes).

2. Press the START/STOP ENGINE button

again briefly to switch the ignition off.

3. Within 3 seconds, move the right steering

wheel lever up and hold it for at least

1 second.
> The wipers will then move to the verti-

cal (service) position on the windshield.

The wipers can be returned to the normal

position by pressing the START/STOP

3

Not necessary on vehicles with the optional keyless drive.

||

10 Maintenance and servicing

10

294

ENGINE button briefly to put the ignition in

mode I (or by starting the engine).

CAUTION

If the wiper arms have been folded out

from the windshield while in the service

position, fold them back against the wind-

shield before returning the wipers to the

normal position to help avoid scratching

the paint on the hood.

Related information

Engine compartment – washer fluid

(p. 295)

Wiper blades – windshield

The wiper blades should be replaced regularly

for best effect.
The windshield wiper blades must be in the

vertical (service) position for replacement,

washing or to lift them away from the wind-

shield when e.g., removing ice or snow.

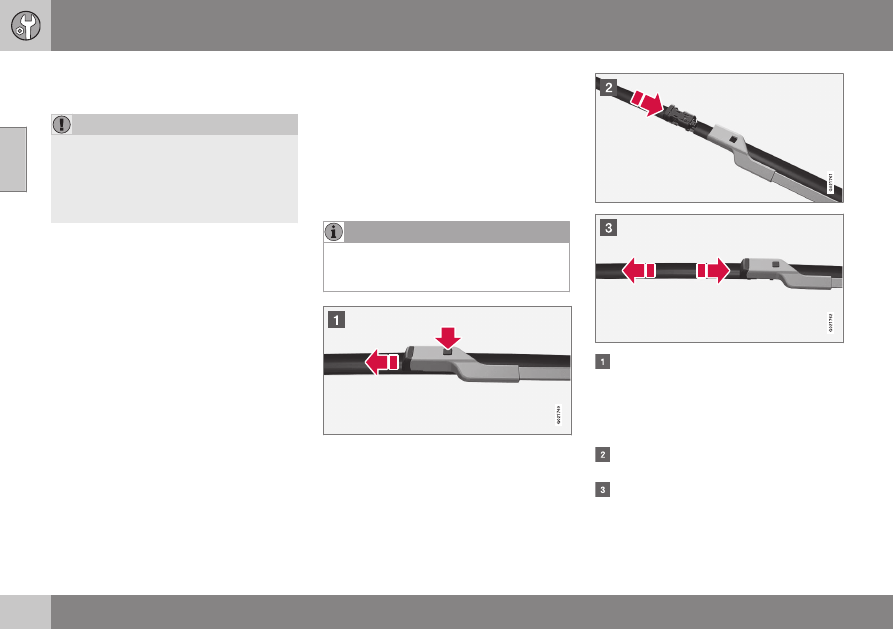

Replacing the windshield wiper blades

NOTE

The windshield wiper blades are different

lengths. The blade on the driver’s side is

longer than the one on the passenger side.

With the wipers in the service position,

fold out the wiper arm from the wind-

shield. Press the button on the wiper

blade attachment and pull the wiper

blade straight out, parallel with the wiper

arm.
Slide in the new wiper blade until it clicks

into place.
Check that the blade is securely in place.

4. Press the wipers back against the wind-

shield.

To return the wipers from the service position

to the normal position, fold the wipers back

10 Maintenance and servicing

10

}}

295

against the windshield and press the START/

STOP ENGINE button briefly to put the igni-

tion in mode I (or start the engine).

Cleaning
Keeping the windshield and wiper blades

clean helps improve visibility and prolongs

the service life of the wiper blades. Clean the

wiper blades with a stiff-bristle brush and

lukewarm soap solution or car washing deter-

gent.

Related information

Engine compartment – washer fluid

(p. 295)

Wiper blades – service position (p. 293)

Engine compartment – washer fluid

Washer fluid helps keep the windshield and

headlights clean. During cold weather, the

reservoir should be filled with windshield

washer solvent containing antifreeze. Use

Volvo Original Washer Fluid or the equivalent

with a recommended pH value between 6 and

8.

The windshield and headlight washers share

a common reservoir.
The washer fluid reservoir is located on the

driver's side of the engine compartment. For

capacities, see the printed Owner's Manual.
Specification:Use a washer antifreeze rec-

ommended by Volvo, mixed with water.
Volume:

6.8 US qts (6.5 liters)

4.7 US qts (4.5 liters

4

)

Related information

Wiper blades – service position (p. 293)

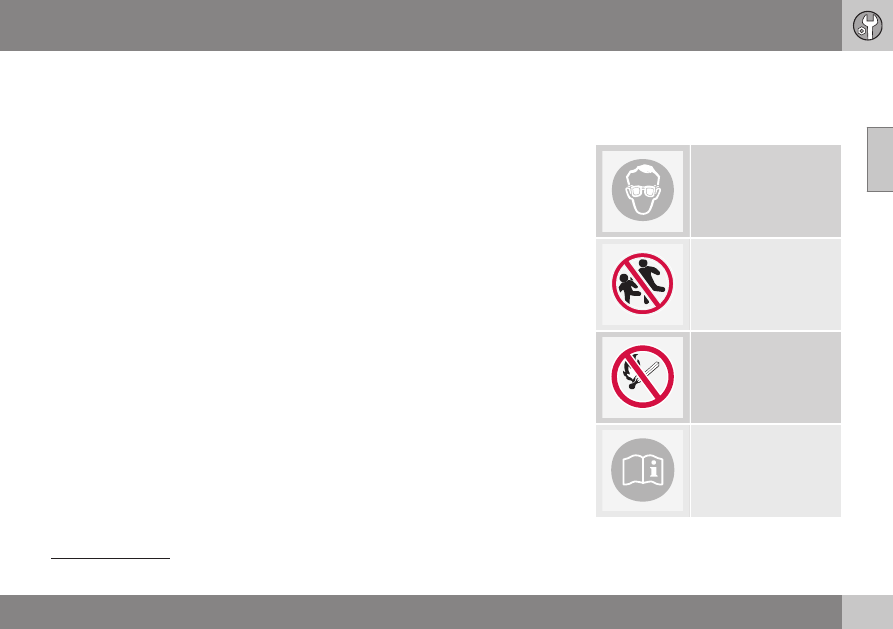

Battery – symbols

There are information and warning symbols

on the battery.

Symbols on the battery

Wear protective goggles.

Keep away from children.

Avoid smoking, open

flames, and/or sparks.

See the owner's manual.

4

Models without headlight washers

||

10 Maintenance and servicing

10

296

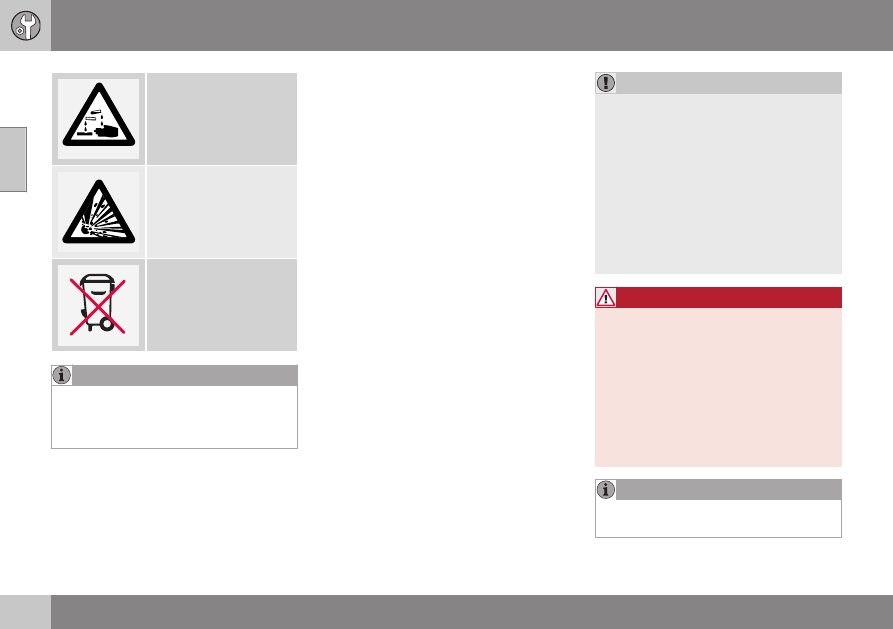

Contains corrosive acid.

Risk of explosion

Recycle properly

NOTE

A used battery should be disposed of in an

environmentally responsible manner. Con-

sult your Volvo retailer or take the battery

to a recycling station.

Related information

Battery – changing (p. 298)

Battery – handling (p. 296)

Battery – maintenance (p. 297)

Battery – handling

The battery's service life is affected by the

number of starts, if it has been discharged,

driving style, driving conditions, weather con-

ditions ,etc.

Handling

Check that the battery cables are cor-

rectly connected and tightened.

Never disconnect the battery when the

engine is running (for example, when

replacing the battery).

If the battery is fully discharged a number

of times, this may shorten its service life.

The service life of a battery is affected by

factors such as the number of starts, driv-

ing conditions and climate. Extreme cold

may also further decrease the battery’s

starting capacity.

Because the battery’s starting capacity

decreases with time, it may be necessary

to recharge it if the vehicle is not driven

for an extended period of time or if the

vehicle is usually only driven short dis-

tances.

Never use a quick charger to charge the

battery. Only traditional types of battery

chargers should be used.

CAUTION

The infotainment system's energy-saving

feature may not function correctly or at all,

and/or a message may be displayed if a

battery charger or jumper cables are not

connected properly.

The negative terminal on the battery

must never be used to connect a

jumper cable or a battery charger.

Only the ground point on the chassis

may be used.

See Jump starting (p. 215) for an illustra-

tion and additional information.

WARNING

Never expose the battery to open

flame or electric spark.

Do not smoke near the battery.

Battery fluid contains sulfuric acid. Do

not allow battery fluid to contact eyes,

skin, fabrics or painted surfaces. If

contact occurs, flush the affected area

immediately with water. Obtain medi-

cal help immediately if eyes are affec-

ted.

NOTE

The life of the battery is shortened if it

becomes discharged repeatedly.

10 Maintenance and servicing

10

297

Related information

Battery – changing (p. 298)

Battery – maintenance (p. 297)

Battery – symbols (p. 295)

Battery – maintenance

Proper battery maintenance can help prolong

its service life.

Maintenance

Use a screw driver to open the caps or

cover and a flashlight to inspect the level.

If necessary, add distilled water. The level

should never be above the indicator.

The fluid level should be checked if the

battery has been recharged.

After inspection, be sure the cap over

each battery cell or the cover is securely

in place.

Check that the battery cables are cor-

rectly connected and properly tightened.

Never disconnect the battery when the

engine is running, or when the key is in

the ignition. This could damage the vehi-

cle's electrical system.

The battery should be disconnected from

the vehicle when a battery charger is

used directly on the battery.

To help keep the battery in good condi-

tion, the vehicle should be driven for at

least 15 minutes a week or connected to

a charger with an automatic charging

function.

If the battery is fully discharged a number

of times, this may shorten its service life.

Keeping the battery fully charged helps

prolong its service life.

The service life of a battery is affected by

factors such as driving conditions and cli-

mate. Extreme cold may also further

decrease the battery’s starting capacity.

Because the battery’s starting capacity

decreases with time, it may be necessary

to recharge it if the vehicle is not driven

for an extended period of time or if the

vehicle is usually only driven short dis-

tances.

CAUTION

Always use distilled or deionized water

(battery water).

Never fill above the level mark in the

cell.

Related information

Battery – changing (p. 298)

Battery – handling (p. 296)

Battery – symbols (p. 295)

10 Maintenance and servicing

10

298

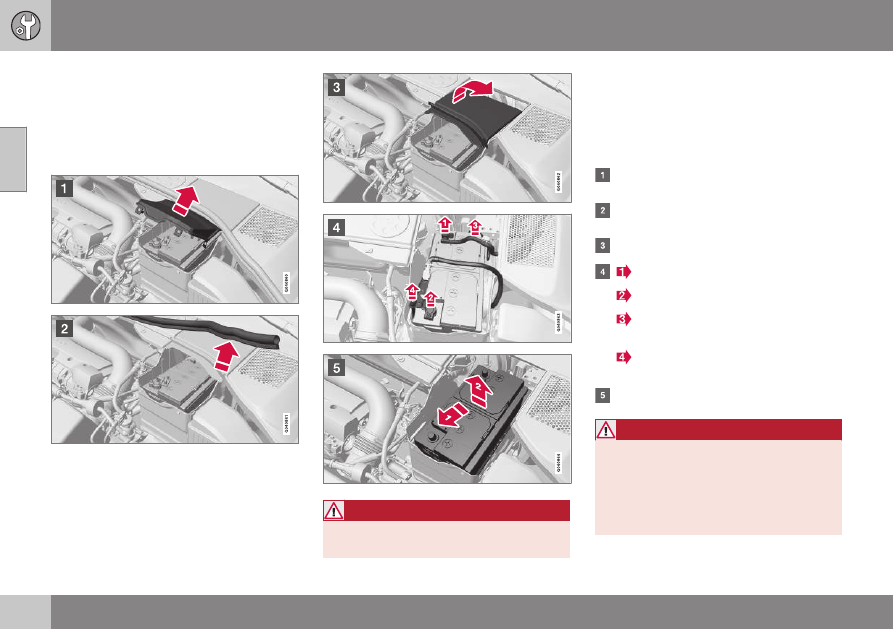

Battery – changing

When changing batteries, be sure to use the

correct battery for your vehicle. Consult a

Volvo retailer or a trained and qualified Volvo

service technician.

Changing

WARNING

Connect and disconnect the positive and

negative cables in the correct sequence.

Removal

Switch off the ignition, remove the remote key

from the ignition slot and wait at least

5 minutes before disconnecting the battery so

that all information in the vehicle's electrical

system can be stored in the control modules.

Open the clips on the front cover and

remove the cover.
Release the rubber molding so that the

rear cover is free.
Remove the rear cover by pulling it away.

 Detach the black negative cable.

 Detach the red positive cable

 Detach the ventilation hose from the

battery

 Loosen the screw holding the battery

clamp.
Move the battery to the side and lift it up.

WARNING

PROPOSITION 65 WARNING!
Battery posts, terminals, and related

accessories contain lead and lead com-

pounds, chemicals known to the state of

California to cause cancer and reproduc-

tive harm. Wash hands after handling.















Content   ..  15  16  17  18   ..
