SUN ROOF - POWER

         Removal & Installation (Golf, GTI & Jetta)
         1) Slide headliner to rear. Tilt glass panel open. Unclip

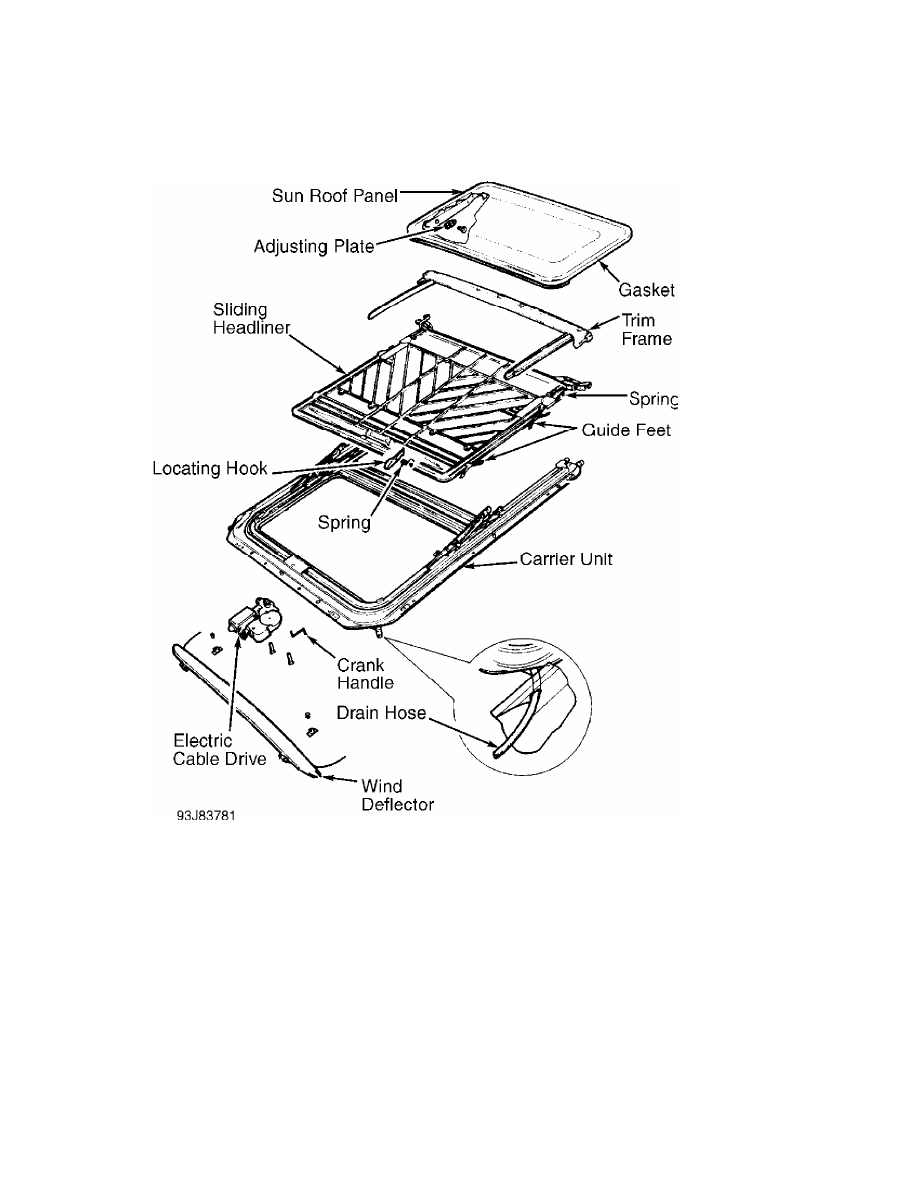

trim frame. Slide trim frame to rear. See Fig. 7.
         2) Remove adjusting plate Torx screws. Remove adjusting
plate. Pull glass panel upward to remove. To install, reverse removal
procedure.

         SLIDING HEADLINER

         Removal & Installation (Golf, GTI & Jetta)
         1) Remove sliding glass panel and move trim frame to rear.
Using a small screwdriver, pry guide feet out of carrier guide by
prying on one side while pressing sliding headliner into opposite
guide channel.
         2) Release spring and pull sliding headliner out of roof cut-
out.  See Fig. 7. To install, reverse removal procedure. Push sliding
 headliner to rear until both springs engage.

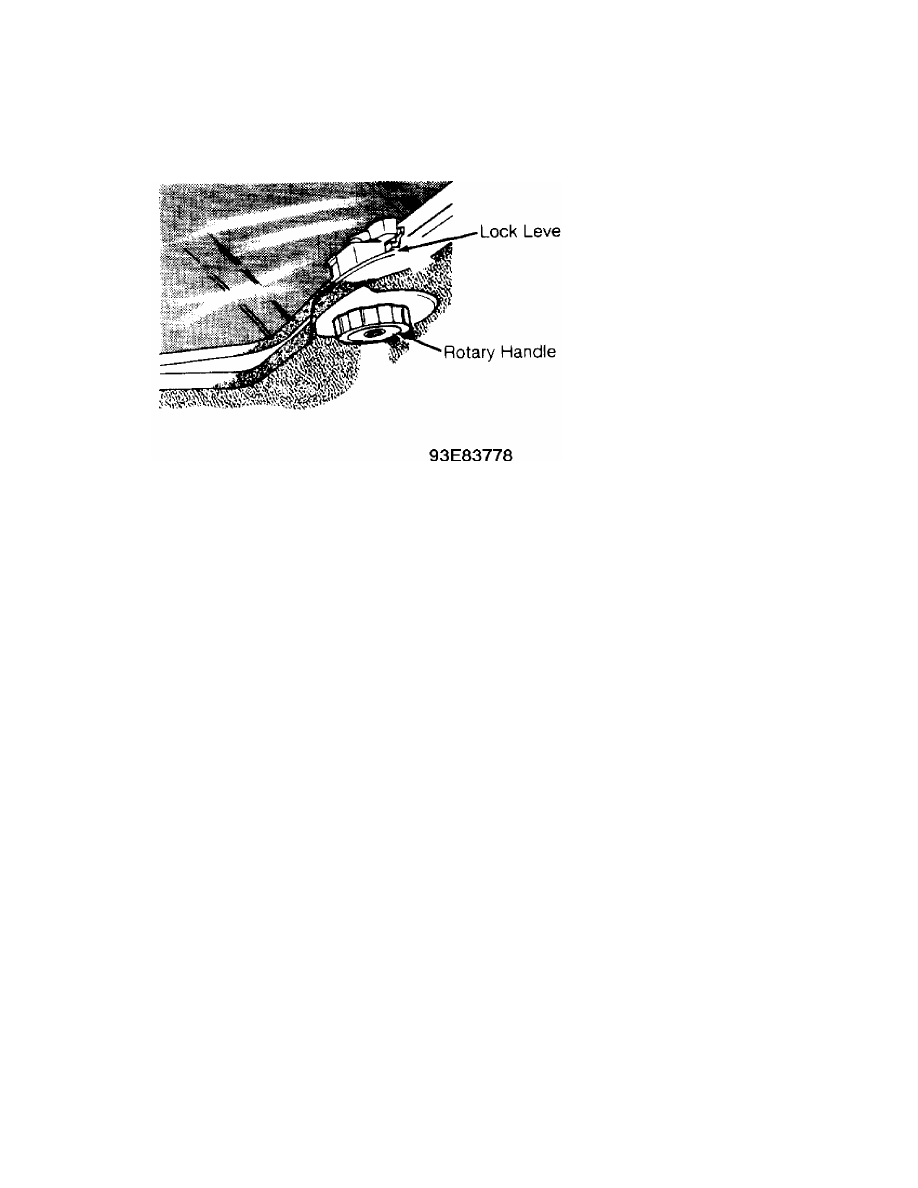

SUN ROOF - POWER

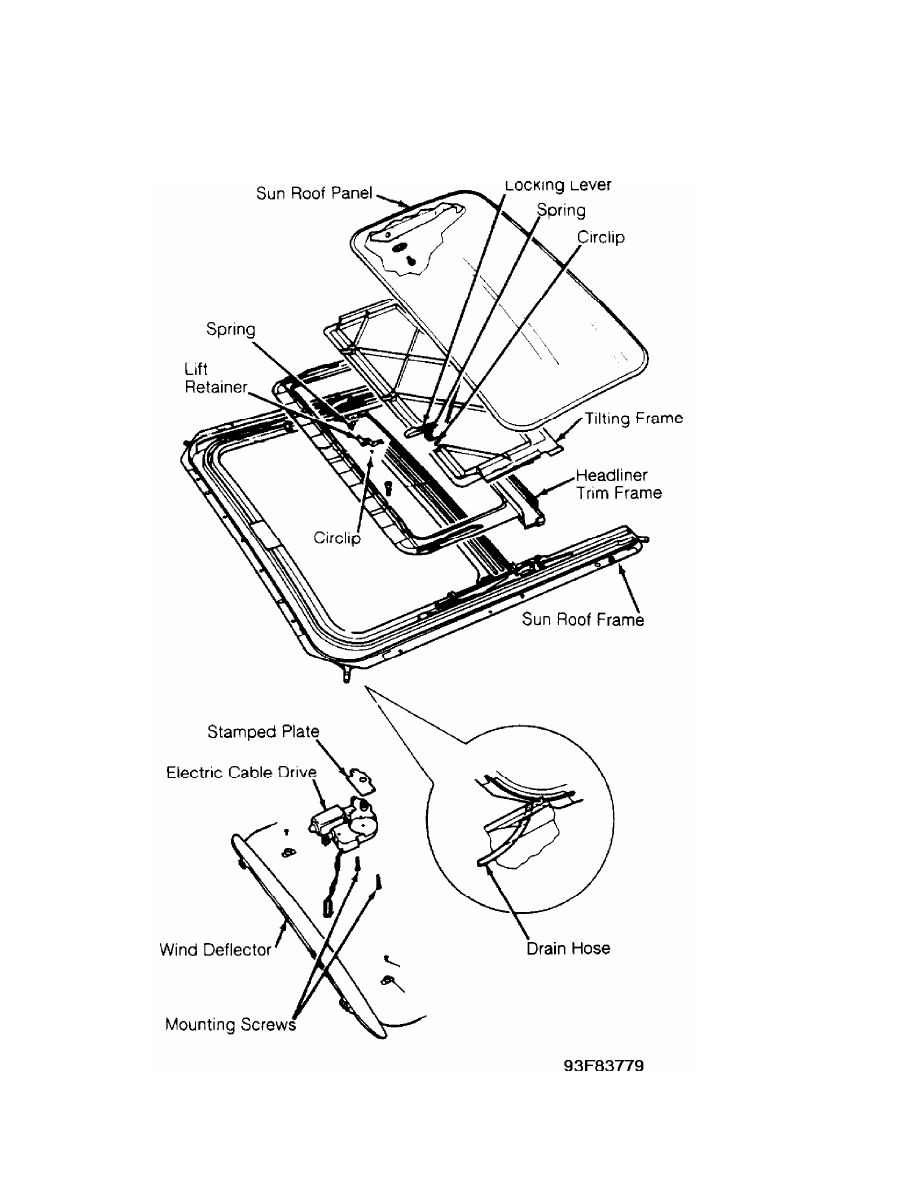

SUN ROOF - POWER

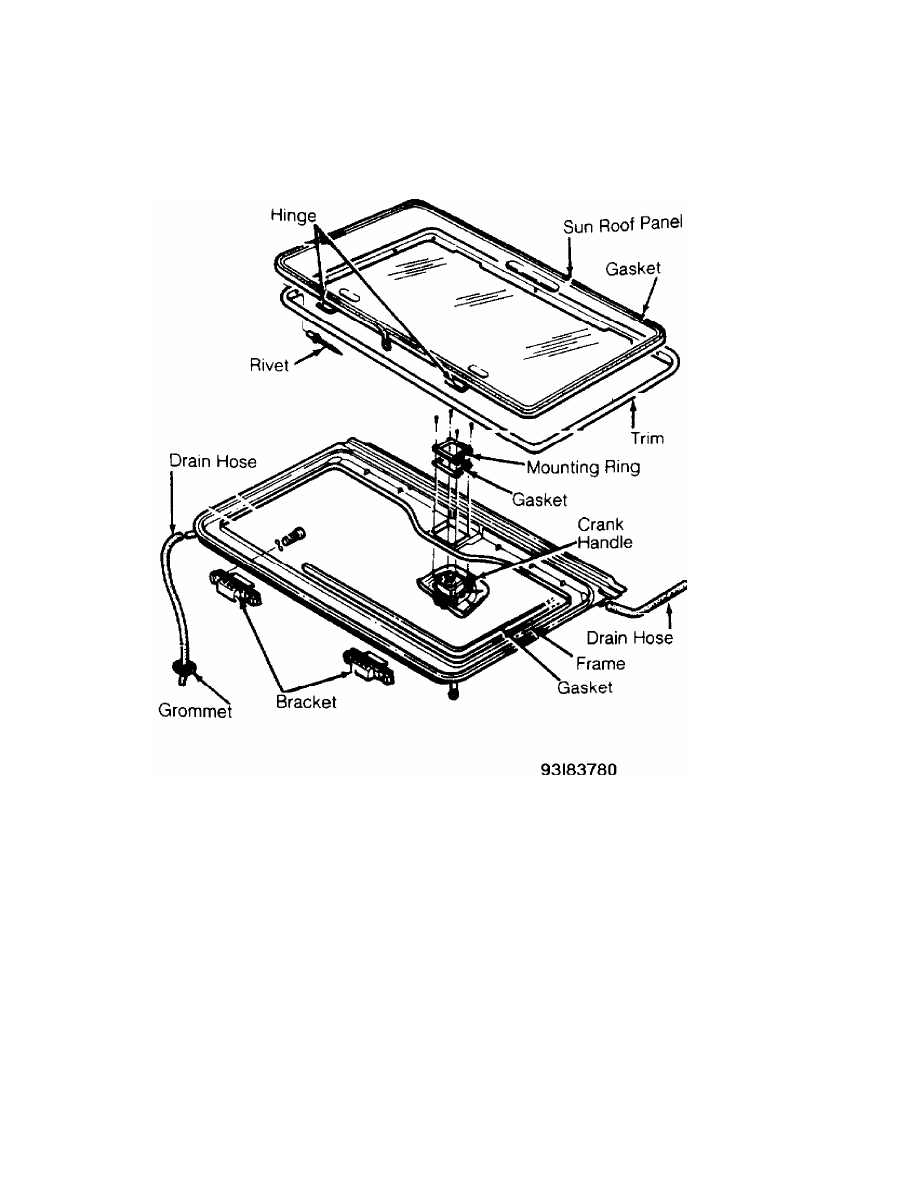

SUN ROOF - POWER

         WIRING DIAGRAMS

         See appropriate chassis wiring diagram in WIRING DIAGRAMS.
