STEERING COLUMN SWITCHES

NOTE:    On Corrado SLC, pull steering column upward from steering
         column tube as far as possible to ensure proper column
         position.

         2) Install combination switch, upper and lower steering
column covers and steering wheel. Tighten steering wheel nut to
specification. See TORQUE SPECIFICATIONS table.

         TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                   Ft. Lbs. (N.m)

Steering Wheel Nut ................................. 30 (40)

                                             INCH Lbs. (N.m)

Air Bag Unit-To-Steering Wheel Screws .............. 89 (10)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE

STEERING GEAR - POWER RACK & PINION

         1993 STEERING
         Volkswagen - Power Rack & Pinion

         Corrado SLC

         DESCRIPTION & OPERATION

         System consists of a vane pump, rack and pinion steering
gear, and an oil reservoir. Vane pump draws fluid from reservoir and
supplies it to flow control valve. Control valve directs fluid to
appropriate side of rack piston.

         LUBRICATION

         CAPACITY

         Fluid capacity is approximately 1 qt. (.95L).

         FLUID TYPE

         Recommended fluid type is VW Hydraulic Oil No. G 002 000.

         FLUID LEVEL CHECK

         Remove reservoir cover. Start engine and let idle. Fluid
level should be between MIN and MAX marks on reservoir.

         HYDRAULIC SYSTEM BLEEDING

         1) Start engine and let idle. Ensure fluid is at proper
level. Turn steering wheel from lock to lock several times quickly.
         2) Continue until fluid level remains at reservoir mark.
Ensure no bubbles appear in reservoir when steering wheel is turned.
Shut off engine. Ensure oil level does not rise more than 3/8" (10
mm).

STEERING GEAR - POWER RACK & PINION

         ADJUSTMENTS

         POWER STEERING PUMP BELT

         Loosen nuts on pump mounting bracket. Turn adjuster bolt
until belt deflection is 3/8" (10 mm) at center of belt. Tighten nuts
to specification.

         TESTING

         HYDRAULIC SYSTEM INSPECTION

         Ensure fluid level is okay. Check service belt condition and
adjustment. Ensure hoses are not kinked or leaking.

         PUMP PRESSURE TEST

         Install Pressure Gauge (US 1074 B) between pressure hose and
pressure line of valve housing. Start engine and let idle. Close
valve. Leave valve closed for no longer than 5 seconds. Pressure
should be within specification. See POWER STEERING SYSTEM PRESSURE
table. If pump pressure is not within specification, replace pump.

POWER STEERING SYSTEM PRESSURE TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

                                                    Pressure
Model                                              psi (bar)

Corrado .................................  1102-1189 (76-82)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         STEERING GEAR INSPECTION

STEERING GEAR - POWER RACK & PINION

         REMOVAL & INSTALLATION

         POWER STEERING PUMP

         Removal
         Remove alternator and pump belts. Disconnect hydraulic lines
from pump. Cap lines to prevent contamination. Remove bracket bolts.
Remove pump. See Fig. 2.

         Installation
         To install, reverse removal procedure. Adjust belt tension.
See POWER STEERING PUMP BELT under ADJUSTMENTS. Tighten nuts and bolts
to specification. See TORQUE SPECIFICATIONS table at end of article.
Fill and bleed hydraulic system. See HYDRAULIC SYSTEM BLEEDING. Start
engine and check for leaks.

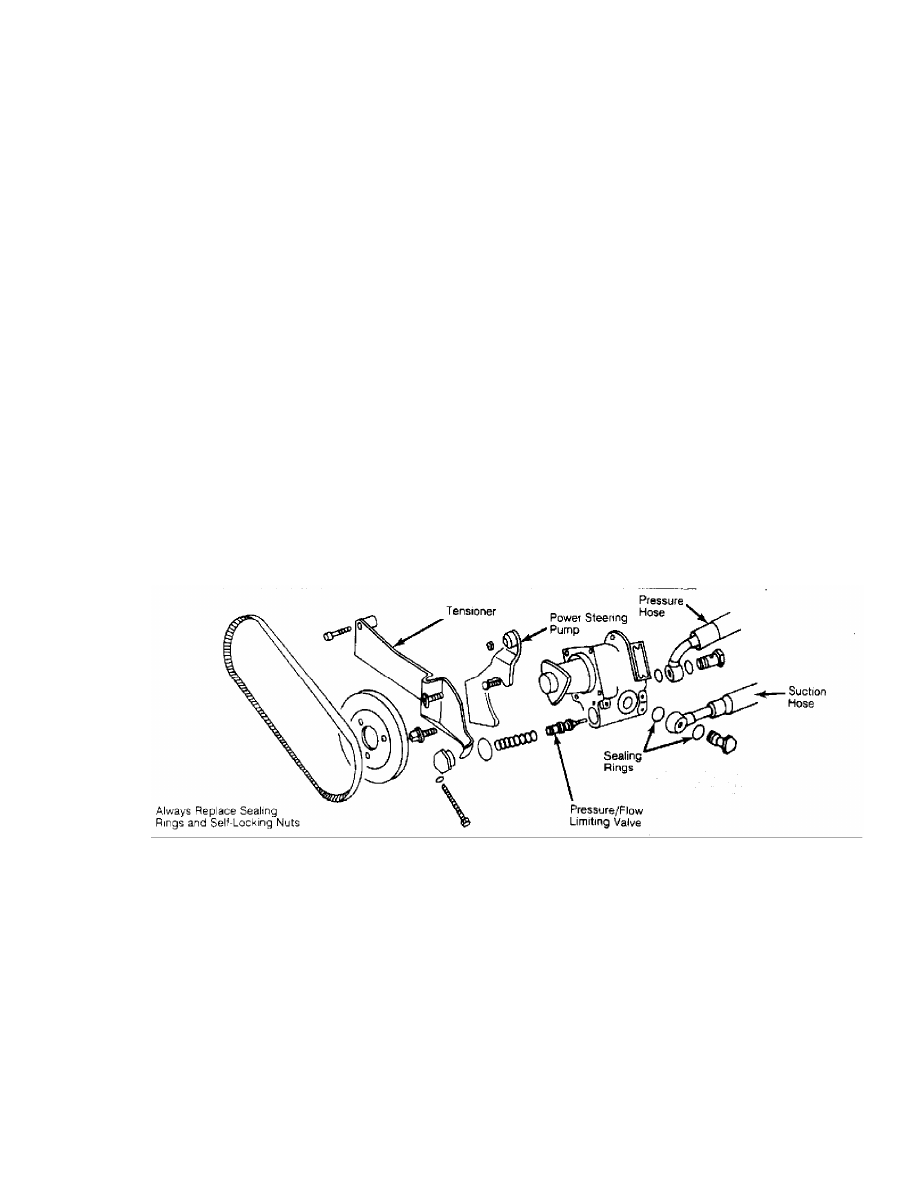

Fig. 2:  Identifying Typical Power Steering Pump Components
Courtesy of Volkswagen United States, Inc.

         POWER RACK & PINION

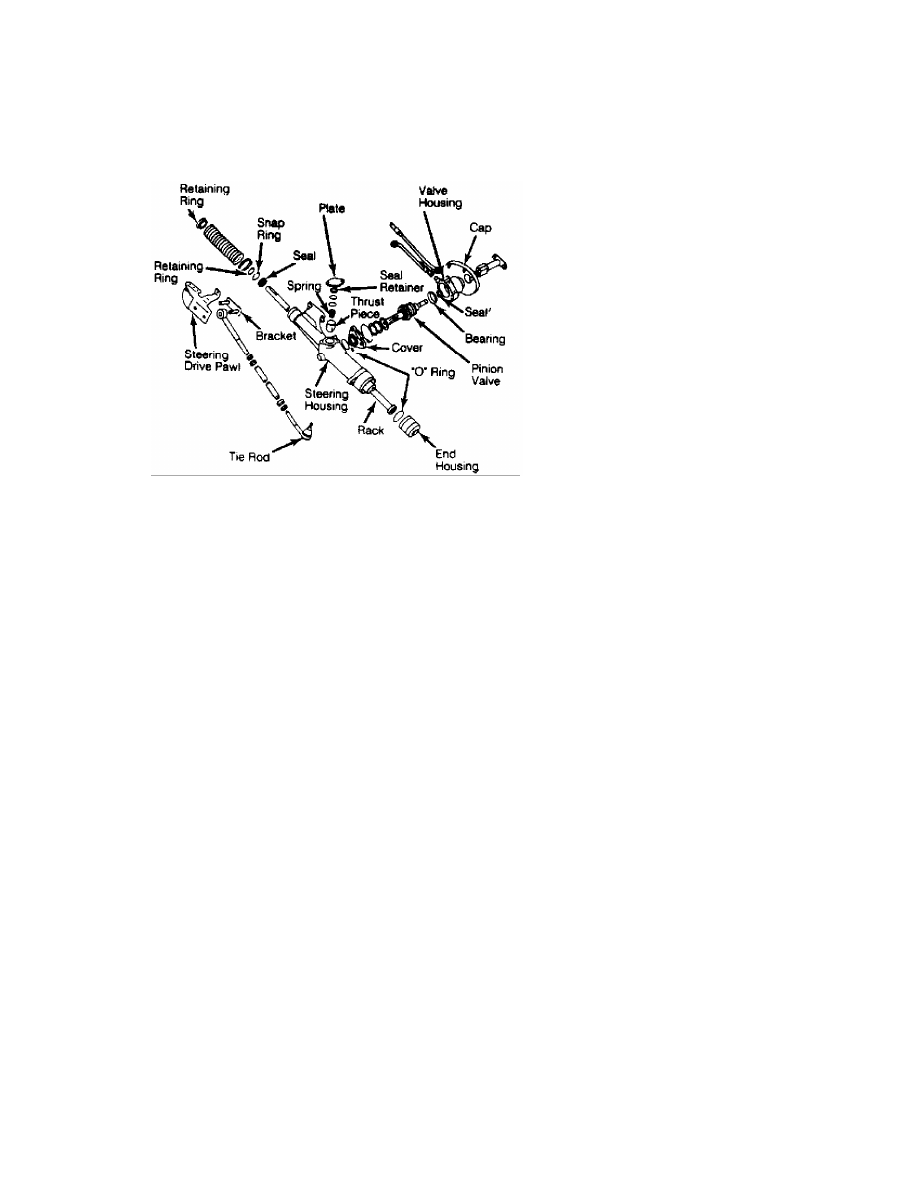

NOTE:    Refer to illustration for exploded view of power rack and
         pinion components. See Fig. 1.

         Removal
         1) Disconnect return line from pump. Drain fluid from pump
and line. Disconnect tie rod ends from steering knuckles. Remove lock
bolt at "U" joint.
         2) Remove steering gear retaining bolts. Disconnect hydraulic
lines at steering gear. Plug openings. Support engine and
transmission. Remove subframe bolts. Remove steering gear.
