Volkswagen Corrado (1993 year). Manual - part 184





STEERING COLUMN

         TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                   Ft. Lbs. (N.m)

Pinch Bolt  .......................................  22 (30)
Steering Column-To-Instrument Panel
  Retaining Bolt  .................................  15 (20)
  Shear Bolt  ........................................   (1)
Steering Gear Retaining Nut  ......................  22 (30)
Steering Wheel Nut ................................. 30 (40)

                                             INCH Lbs. (N.m)

Air Bag Unit-To-Steering Wheel Screws .............. 89 (10)

(1) - Tighten until bolt head snaps off.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE

STEERING COLUMN SWITCHES

         1993 ACCESSORIES & EQUIPMENT
         Volkswagen Steering Column Switches

         Cabriolet, Corrado SLC, EuroVan, Fox, Golf, GTI, Jetta,
           Passat

         * PLEASE READ THIS FIRST *

CAUTION: Cabriolet is equipped with Supplemental Restraint System
         (SRS). SRS wiring harness is routed close to instrument
         cluster, steering wheel, and related components. Before
         working on steering column components, disable air bag
         system. See AIR BAG RESTRAINT SYSTEM article in the
         ACCESSORIES/SAFETY EQUIPMENT section.

WARNING: Wait about 20 minutes after disabling air bag system. Back-up
         power circuit, capacitor internal to SRS unit, maintains
         system voltage for up to 20 minutes after battery is
         disconnected. Servicing air bag system before 20 minutes may
         cause accidental air bag deployment and possible personal
         injury.

         REMOVAL & INSTALLATION

         COMBINATION SWITCH

         Removal
         Remove steering wheel. Remove upper and lower steering column
covers. Disconnect combination switch harness connectors. Remove snap
ring and washer from steering shaft (if equipped). Remove combination
switch attaching screws. Remove combination switch.

         Installation
         To install, reverse removal procedure. Ensure all electrical
connections are tight. Check canceling operation of turn signal
switch.

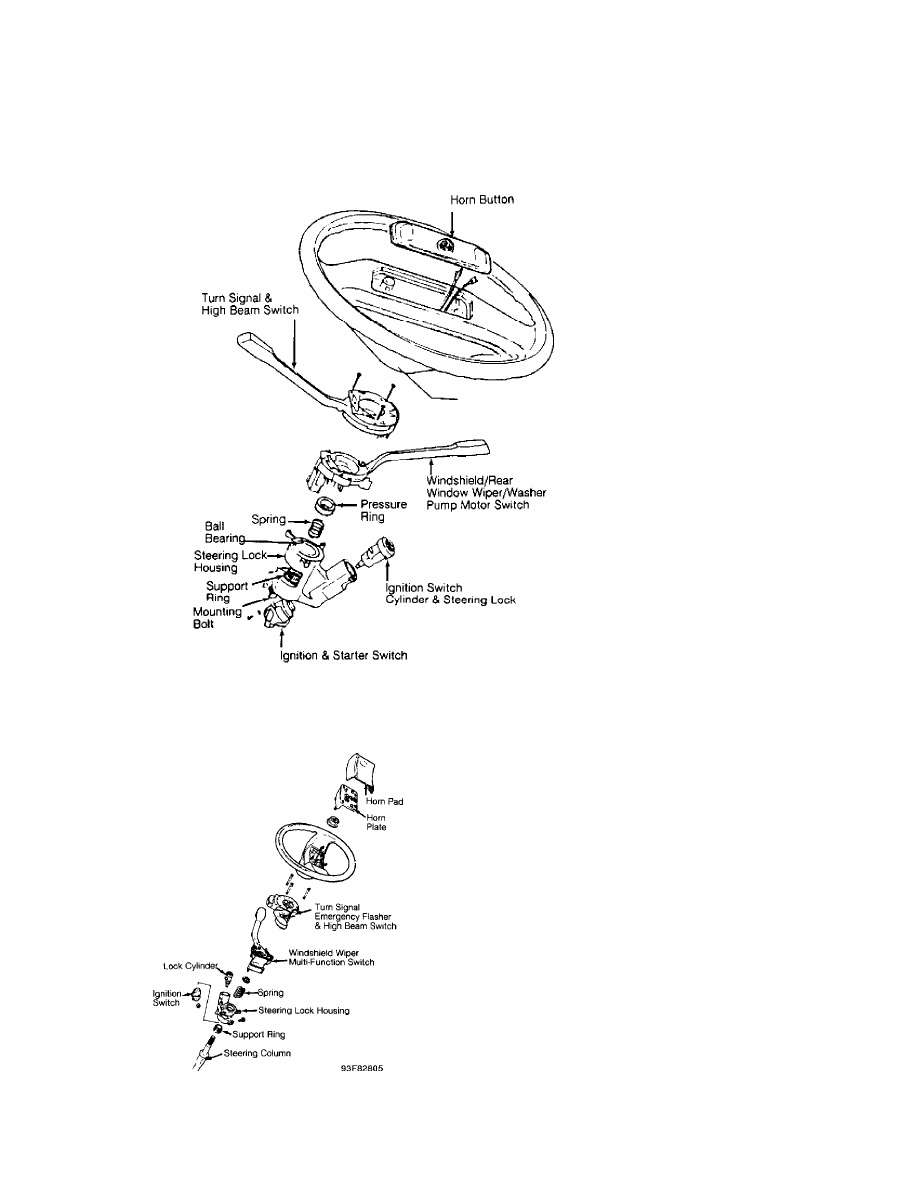

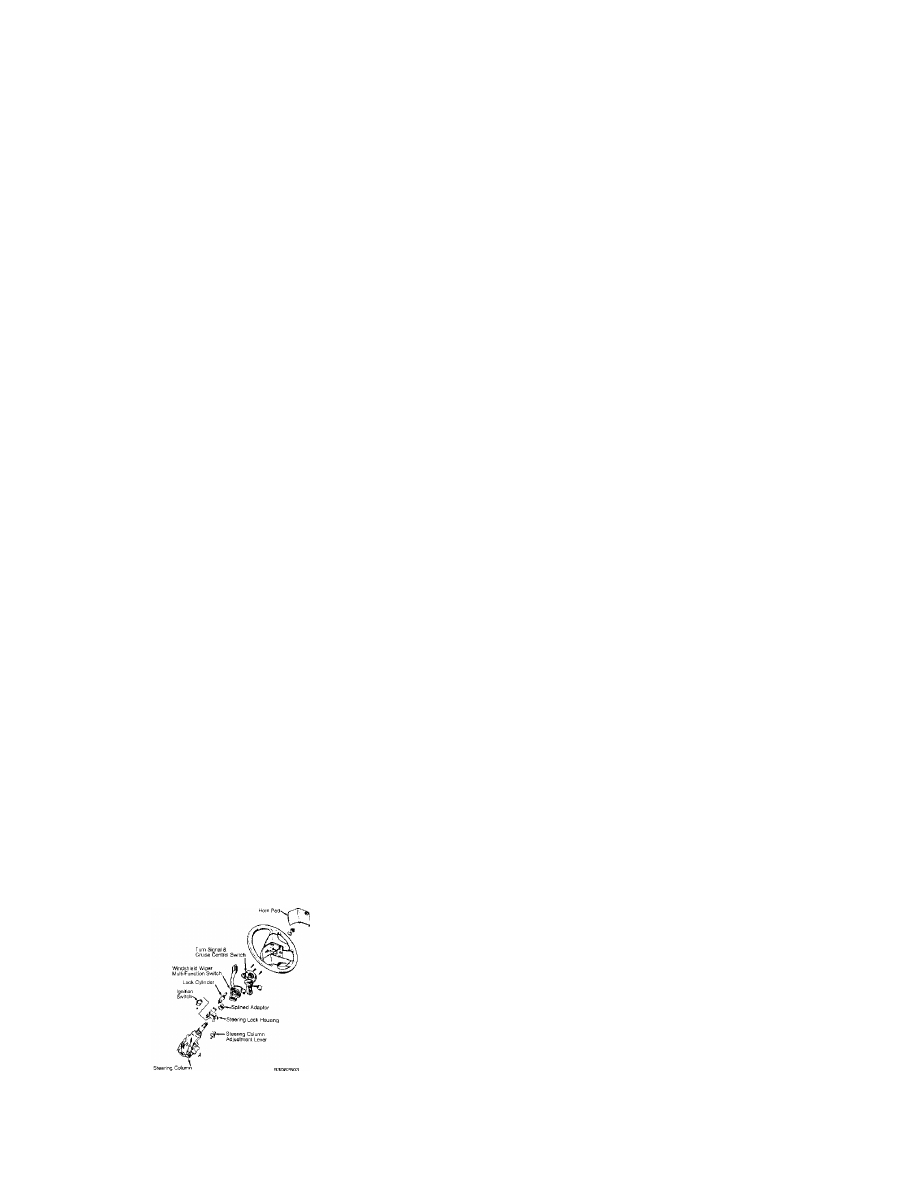

Fig. 1:  Identifying Steering Wheel Components (Corrado SLC)
Courtesy of Volkswagen United States, Inc.

STEERING COLUMN SWITCHES

STEERING COLUMN SWITCHES

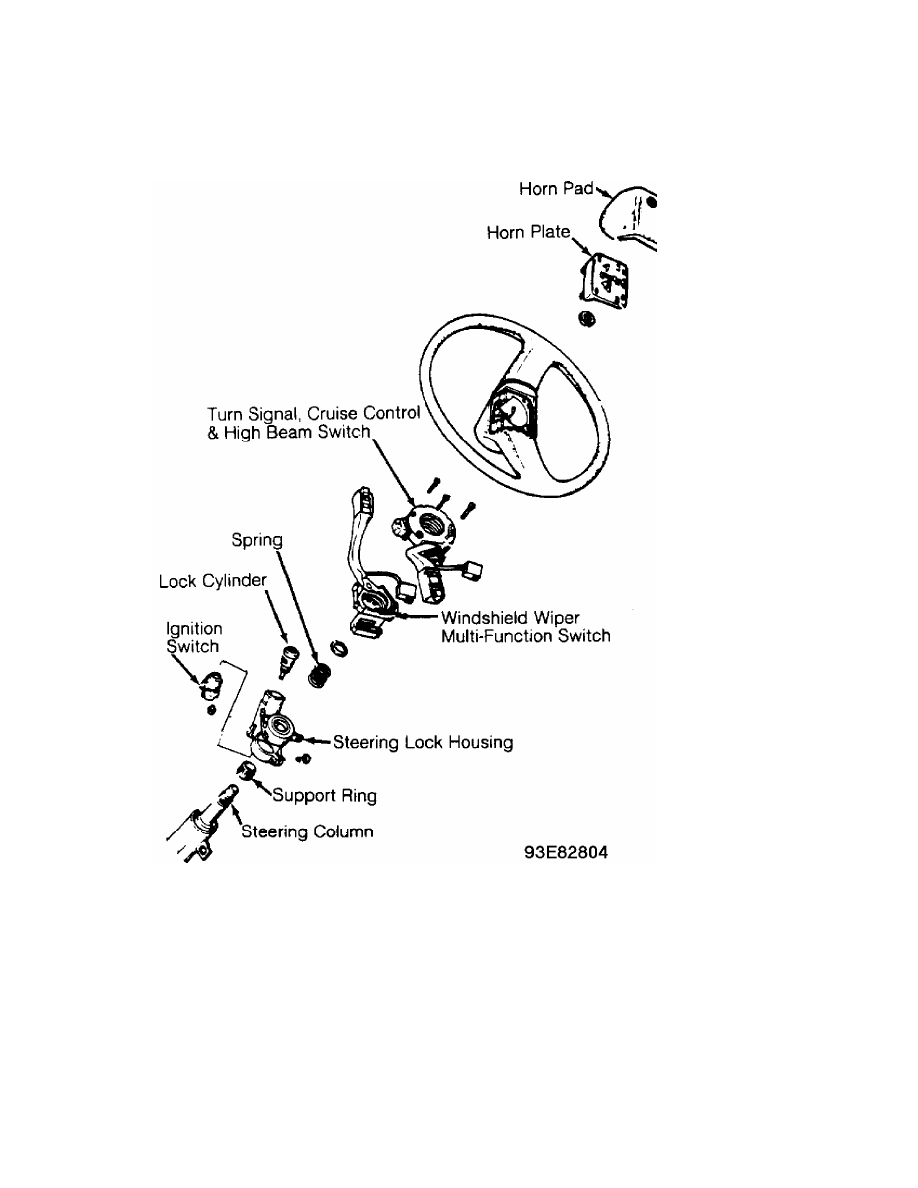

Fig. 4:  Identifying Steering Wheel Components
         (Golf, GTI & Jetta)
Courtesy of Volkswagen United States, Inc.
