Volkswagen Corrado (1993 year). Manual - part 187





STEERING GEAR - POWER RACK & PINION

         OVERHAUL

         Manufacturer recommends that power steering pump and steering
gear be replaced, rather than be repaired.

         TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                   Ft. Lbs. (N.m)

End Housing Bolt  .................................  37 (50)
Power Steering Pump Bolt  .........................  18 (25)
Pressure-Flow Limiting Valve Cap  .................  42 (57)
Pressure Line Fitting  ............................  29 (39)
Return Line Fitting
  On Pump  ........................................  29 (39)
  On Valve Housing  ...............................  22 (30)
Steering Gear Retaining Bolt  .....................  24 (33)
Subframe Bolt
  Long  ..........................................  96 (130)
  Short  ..........................................  59 (80)
Tie Rod Lock Nut  .................................  42 (55)
Tie Rod-To-Steering Arm  ..........................  32 (44)
Valve Housing Bolt  ...............................  15 (20)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE

SUN ROOF - POWER

         1993 ACCESSORIES & EQUIPMENT
         Volkswagen Power Sun Roof

         Volkswagen;  Corrado SLC, EuroVan, Golf, GTI, Jetta, Passat

         DESCRIPTION & OPERATION

         The power sun roof operates at all times when the ignition is
in the on position. Power sun roof will operate after the ignition is
turned off until driver's door is opened. Power sun roof can also be
closed by inserting key in door lock and holding in the locked
position. If power system fails, sun roof can be operated manually by
removing control panel and rotating crank.

         ADJUSTMENTS

NOTE:    Adjustment information for EuroVan is not available.

         PARALLEL ALIGNMENT

         Corrado SLC, Golf, GTI, Jetta & Passat
         1) Obtain radio code. Disconnect negative battery cable.
Using Headliner Trim Remover (3195), disengage headliner trim frame
from guide rails and push toward rear as far as possible. See Fig. 5
or 7.
         2) Pry off interior light. Remove sun roof cable drive cover.
Remove cable drive mounting screws. Lower pinion drive until drive
pinion no longer meshes with cables.
         3) Move rear guides with cables to rear. Ensure pivots
position is correct. See Fig. 1. Engage locking levers into guide
rails. Drive cable should be in the closed position.
         4) Clean cable drive mounting screws and coat threads with
locking compound. Install cable guide and interior light. Install
headliner trim frame onto guides. Reconnect negative battery cable.

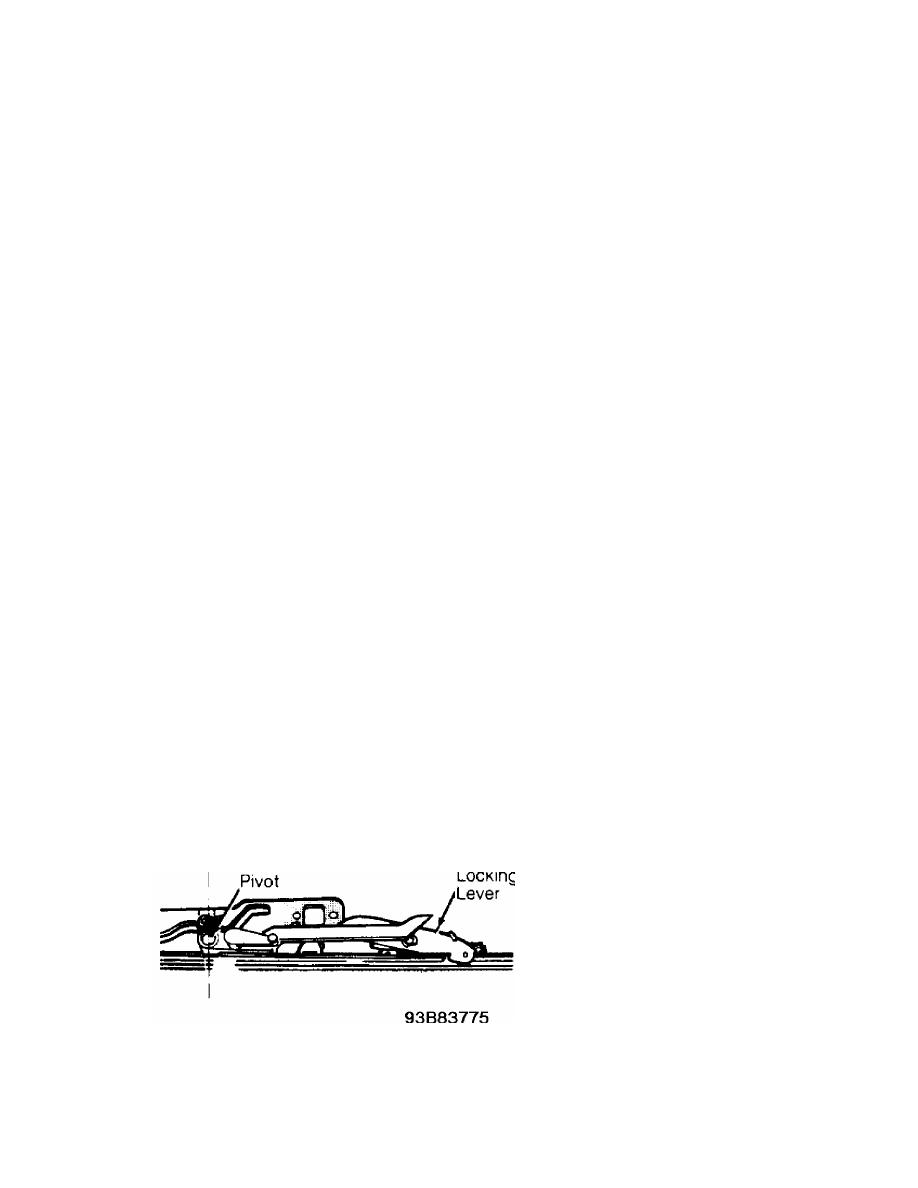

Fig. 1:  Aligning Guide Rail Pivot Position
         (Corrado SLC, Golf, GTI, Jetta & Passat)
Courtesy of Volkswagen United States, Inc.

         SUN ROOF HEIGHT ADJUSTMENT

SUN ROOF - POWER

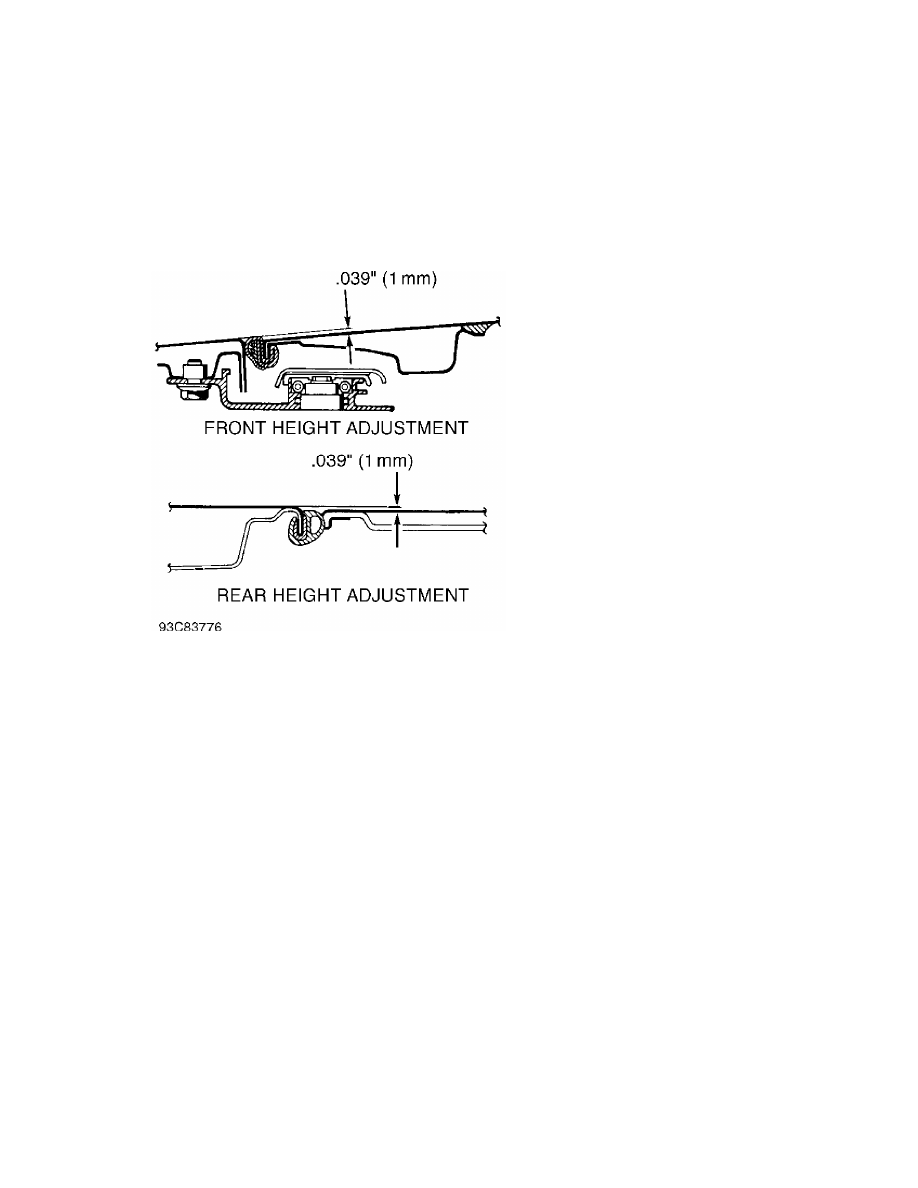

Fig. 2:  Adjusting Sun Roof Panel
Courtesy of Volkswagen United States, Inc.

         MAINTENANCE

         DRAIN TUBES

Front drain tubes are routed through A pillars and discharge above
front door hinge. Rear drain tubes are routed through D pillars and
discharge behind rear wheel housing. Clean rear drain tubes through
sun roof opening.

NOTE:    Compressed air can be used to clean drain tubes

         TESTING

NOTE:    Test information is not available from manufacturer.

         REMOVAL & INSTALLATION

         CARRIER UNIT

         Removal & Installation (Golf, GTI & Jetta)
         1) Obtain radio code. Disconnect negative battery cable.
Remove sliding glass panel. Remove molding from headliner cut-out.
Remove electric drive motor cover.

SUN ROOF - POWER

         SLIDING SUN ROOF PANEL

         Removal & Installation (Corrado SLC & Passat)
         1) Slide headliner to rear. Tilt sun roof panel up. Install
Sun Roof Remover (3195) into sun roof opening. See Fig. 3.
         2) Pull sliding headliner and tilting frame down until sun
roof remover engages headliner trim frame. See Fig. 5. Disengage
headliner trim frame from guide rails by hitting sun roof remover
toward rear.
         3) Push back headliner trim frame until sun roof remover
contacts edge of roof cutout. Remove adjusting plate Torx screws.
Remove adjusting plate. Pull sun roof panel upward to remove. To
install, reverse removal procedure.

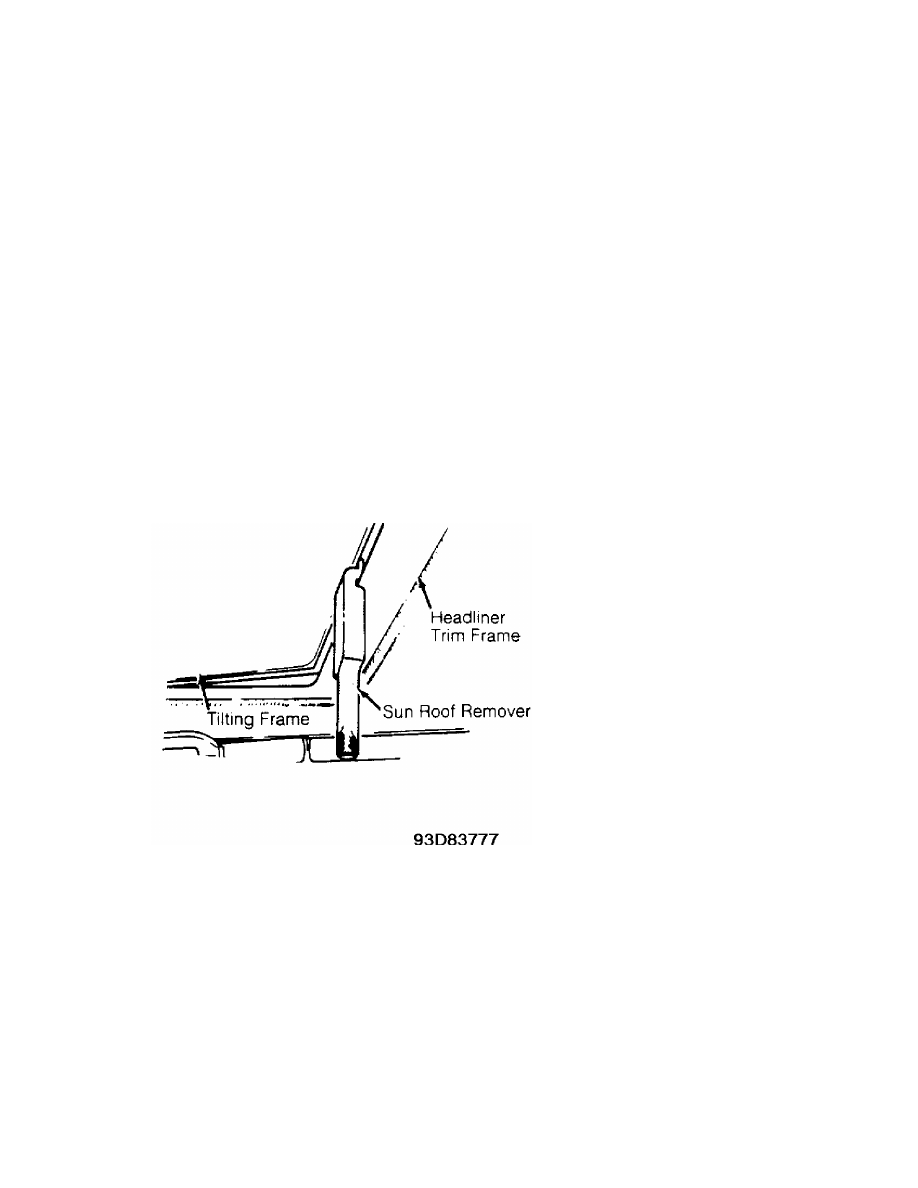

Fig. 3:  Installing Sun Roof Remover Into Sun Roof Opening
Courtesy of Volkswagen United States, Inc.

         Removal & Installation (EuroVan)
         1) Ensure sun roof panel is closed. Turn rotary handle screw
about 1/4 turn until sun roof panel disengages from latch. See Fig. 4.
         2) Turn rotary handle clockwise until sun roof is raised.
Ensure sun roof panel does not engage latch. Press lock lever upward.
Unlatch sun roof and remove from brackets. See Fig. 6. To install,
reverse removal procedure.
