Volkswagen Corrado (1993 year). Manual - part 167





MAINTENANCE INFORMATION

         Fuse & Circuit Breaker Identification

  1 - 10 Amp (Red)
         Left Low Beam
  2 - 10 Amp (Red)
         Right Low Beam
  3 - 10 Amp (Red)
         Instrument Lights, License Plate Lights
  4 - 15 Amp (Blue)
         Rear Window Wiper, Sliding Roof
  5 - 15 Amp (Blue)
         Windshield & Rear Window Washer, Windshield Wiper
  6 - 20 Amp (Yellow)
         Air Conditioner, Fresh Air Fan
  7 - 10 Amp (Red)
         Right Tail & Side Lights
  8 - 10 Amp (Red)
         Left Tail & Side Lights
  9 - 20 Amp (Yellow)
         Rear Window Defroster, Mirror Heating
 10 - 15 Amp (Blue)
         Foglights
 11 - 10 Amp (Red)
         Left High Beam, High Beam Indicator
 12 - 10 Amp (Red)
         Right High Beam
 13 - 10 Amp (Red)
         Horn, Radiator Fan
 14 - 15 Amp (Blue)
         Back-Up Lights, Electric Mirrors, Heated Washer Jets
 15 - 10 Amp (Red)
         Crankcase Ventilation Heating Element
 16 - 15 Amp (Blue)
         Warning/Indicator Lights, Multi-Function Indicator, Glove Box
         Light, Cassette Storage Light, Rear Spoiler Control Unit
 17 - 10 Amp (Red)
         Emergency Flashers, Turn Signals
 18 - 20 Amp (Yellow)
         Fuel Pump, Heated Oxygen Sensor
 19 - 30 Amp (Green)
         Radiator Fan, Air Conditioner
 20 - 10 Amp (Red)
         Brake Lights, Cruise Control
 21 - 15 Amp (Blue)
         Dome & Luggage Compartment Lights, Cigarette Lighter, Clock
         Central Locking System, Multi-Function Indicator,
         Rear Spoiler Adjustment
 22 - 10 Amp (Red)

MAINTENANCE INFORMATION

         Relay & Circuit Breaker Identification

  1 - A/C Control Module Relay
  2 - Rear Window Wiper/Washer Relay
  3 - ECM Power Supply Relay
  4 - Load Reduction Relay
  5 - Engine Coolant Level (ECL) Control Module
  6 - Emergency Flasher Relay
  7 - Headlight Washer Relay
  8 - Washer/Wiper Intermittent Relay
  9 - Seat Belt Warning Control Module
 10 - Fog Lamp/Parking Lamp Relay
 11 - Dual Horn Relay
 12 - Fuel Pump Relay
 13 - Back-Up Light Fuse (A/T)
 14 - Coolant After-Run Control Module
 15 - ABS Hydraulic Pump Relay
 16 - ABS Relay
 17 - Not Used
 18 - Power Seat Fuse
 19 - A/C Relay
 20 - Park/Neutral Position (PNP) Relay
 21 - ABS Hydraulic Pump Fuse/Power Window Circuit Breaker
 22 - ABS Hydraulic Valve Fuse
 23 - Cruise Control Fuse/Automatic Shoulder Belt System Fuse
 24 - Not Used

END OF ARTICLE

MAINTENANCE REMINDER LIGHT RESET PROCEDURES

         1983-96 MAINTENANCE
         Volkswagen Maintenance Reminder Light Reset Procedures

         EGR MAINTENANCE LIGHT (IF EQUIPPED)

         EGR light comes on at 15,000 mile intervals to indicate EGR
servicing is required. After checking EGR system, reset mileage
counter. See RESETTING MILEAGE COUNTER.

         OXYGEN SENSOR WARNING LIGHT (IF EQUIPPED)

         Oxygen sensor (OXS) light comes on at 30,000 mile intervals
to indicate oxygen sensor replacement. After installing new sensor,
reset mileage counter. See RESETTING MILEAGE COUNTER.

         RESETTING MILEAGE COUNTER (IF EQUIPPED)

         1) On some Rabbit and Pickup models, remove instrument panel
cover plate. Reach into opening at top left corner of speedometer and
pull release arm to reset counter. See Fig. 1. Left arm resets EGR
counter, right arm resets oxygen sensor.
         2) On Vanagon models, locate mileage counter under spare tire
or under driver's floorboard (in-line with speedometer cable). Using a
pointed instrument, depress reset button. Ensure light is out.
         3) On all other models, locate mileage counter (in-line with
speedometer cable) and push White reset button. See Fig. 1. Ensure
light is out.

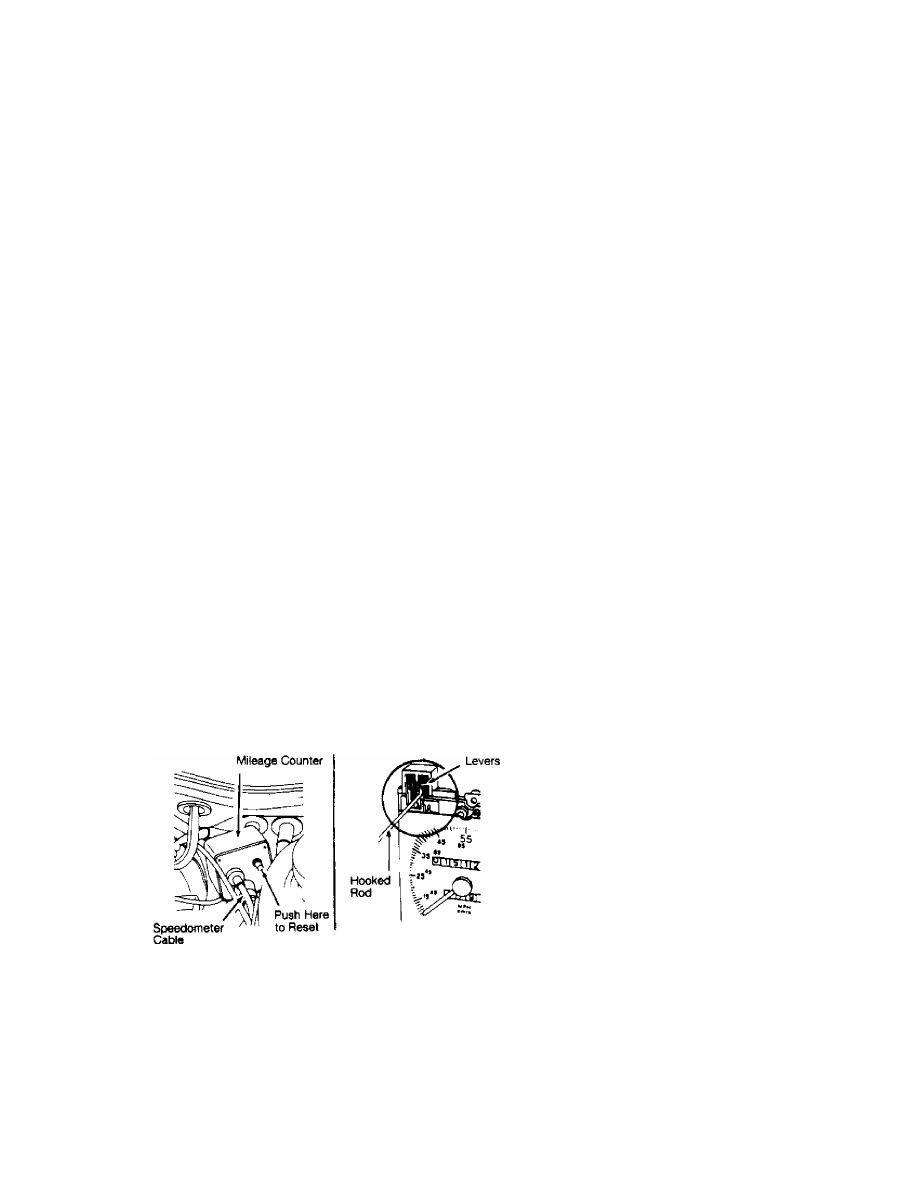

Fig. 1:  Resetting Mileage Counters
Courtesy of Volkswagen United States, Inc.

         SERVICE REMINDER INDICATOR (SRI) DISPLAY

         CABRIO, GOLF III, GTI, JETTA III (1993-95) JETTA (1996)

         1) One of four service codes may be displayed on instrument
cluster according to mileage driven. Each service code displayed
determines type or level of maintenance required. Service code will

MAINTENANCE REMINDER LIGHT RESET PROCEDURES

     *  IN 00 (No Service Necessary)
     *  OEL (Oil Change Service) Every 7500 Miles
     *  IN 01 (Inspection Service) Every 15,000 Miles
     *  IN 02 (Additional Servicing Work) Every 30,000 Miles

         2) After performing required maintenance, each effected
service code displayed must be reset individually. For example, at 15,
000 miles service codes OEL and IN 01 will both need to be reset.
         3) To reset service codes, turn ignition on. Press and hold
odometer reset button located below speedometer. While holding button,
press clock reset button (lower button for digital clock) located to
left of fuel gauge. Release buttons. Programming mode is now
activated. Service code OEL1.S (distance counter) should be displayed.
         4) Press clock reset button once more. 7500 miles should now
be indicated on display. Desired mileage for reset may be attained by
pressing clock reset button. Mileage displayed will decrease in
increments of 500 miles each time button is pressed. This feature
should only be used to calibrate mileage when instrument cluster is
replaced. When desired mileage is displayed, press odometer reset
button.
         5) Service code OEL2.S (time counter) should be displayed.
Press clock reset button. 6 (months) will be indicated on display.
Time counter for next oil change may be set by pressing clock reset
button if instrument cluster was replaced. When desired time is
displayed, press odometer reset button.
         6) Service code IN 01.S (time counter) should be displayed.
Press clock reset button. 12 (months) will be indicated on display.
Time counter for next maintenance interval may be set by pressing
clock reset button if instrument cluster was replaced. When desired
time is displayed, press odometer reset button.
         7) Service code IN 02.S (distance counter) should be
displayed. Press clock reset button. 30,000 (miles) will be indicated
on display. Desired mileage for reset may be attained by pressing
clock reset button. Mileage displayed will decrease in increments of
500 miles each time button is pressed. This feature should only be
used to calibrate mileage when instrument cluster is replaced. When
desired mileage is displayed, turn ignition off. Programming is now
stored in memory.

END OF ARTICLE
