MAINTENANCE INFORMATION

         CAUTIONS & WARNINGS

CAUTION: Contact with live components of ignition system while
         engine is running could lead to a fatal electric shock.

CAUTION: Brake pedal requires extreme pressure to stop vehicle when
         engine is not running.

         WARRANTY INFORMATION

CAUTION: Always refer to customer's copy of warranty information for
         specific model application and/or coverage limitations.

         BASIC NEW CAR WARRANTY

         Manufacturer warrants to the original retail customer, and
any subsequent purchaser, that every vehicle imported and sold as a
new vehicle to a retail customer will be free of defects in material
and workmanship for 2 years or 24,000 miles, whichever comes first,
after date of delivery to the first retail customer, or after vehicle
was first placed in service.

         LIMITED WARRANTY

         Warrants cars to be free of defects in materials or
workmanship for a period of 2 years or 24,000 miles, whichever comes
first.

         LIMITED POWER TRAIN WARRANTY

         Covers engine, transmission and drivetrain for a period of 5
years or 50,000 miles, whichever occurs first.

         ANTI-CORROSION

         Covers holes caused by corrosion in body sheet metal for 6
years, without respect to mileage, so long as inspection and
maintenance services are performed.

         EMISSION CONTROL SYSTEM

         Manufacturer warrants to the initial purchaser and each
subsequent purchaser that this vehicle is designed, built, and
equipped so as to conform at the time of sale with all U.S. and
California Air Resources Board emission regulations applicable at the
time of manufacture, and that this vehicle is free from defects in
materials and workmanship which cause it to fail to conform with
applicable regulations within the first 5 years or 50,000 miles,
whichever occurs first.

MAINTENANCE INFORMATION

         FUSE PANEL LOCATION

         Fuse panel is located under left side of dash board by
driver's knee. Fuses are numbered from left to right.

         FUSE PANEL IDENTIFICATION

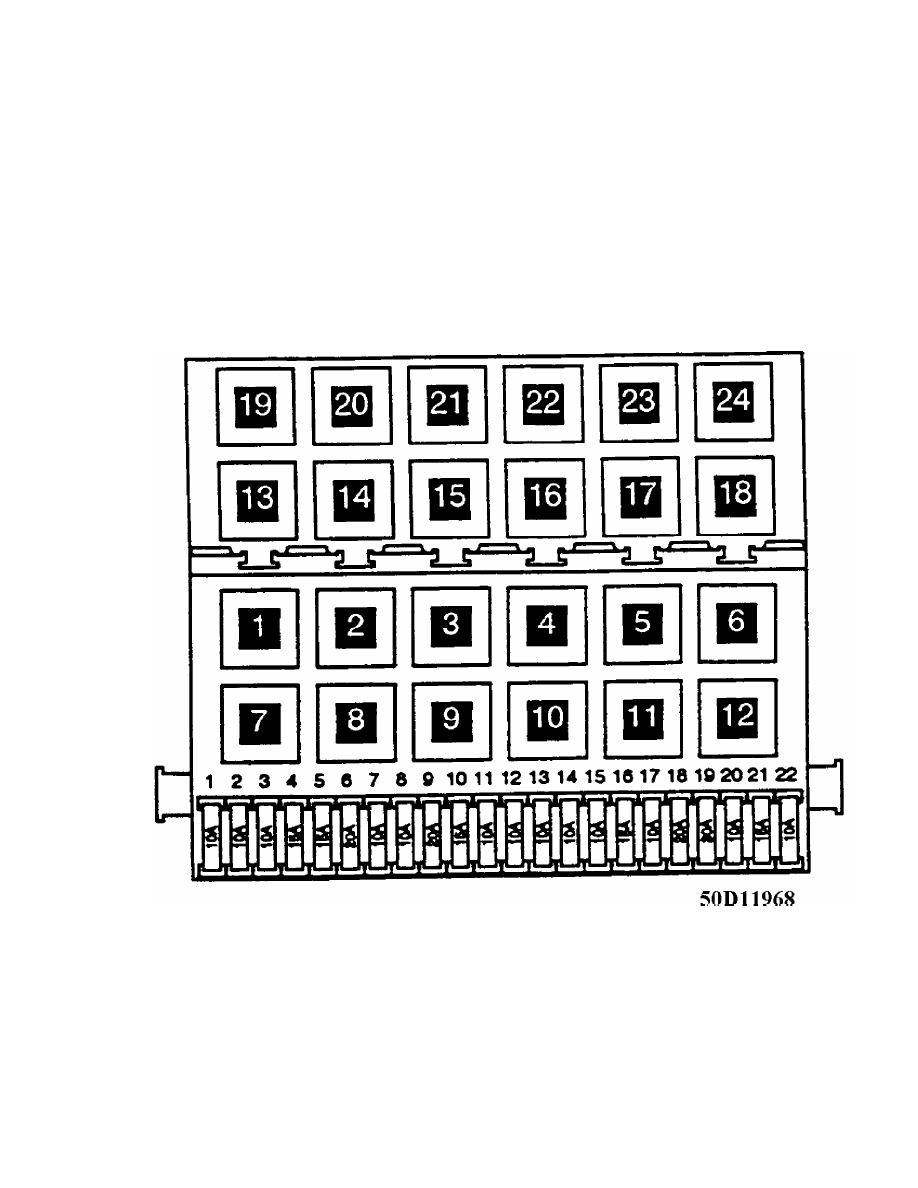

Fig. 10:  Fuse & Relay Panel Identification (1990)
Courtesy of Volkswagen United States, Inc.

WARNING: Always disconnect battery ground cable before servicing
         "high-current fuses. It is recommended that "high-current"
         fuses be replaced by a qualified technician.

         Fuse & Circuit Breaker Identification

  1 - 10 Amp (Red)
         Left Low Beam
  2 - 10 Amp (Red)

MAINTENANCE INFORMATION

         Relay & Circuit Breaker Identification

  1 - A/C Control Module Relay
  2 - Rear Window Wiper/Washer Relay
  3 - ECM Power Supply Relay
  4 - Load Reduction Relay
  5 - Low Coolant Level

MAINTENANCE INFORMATION

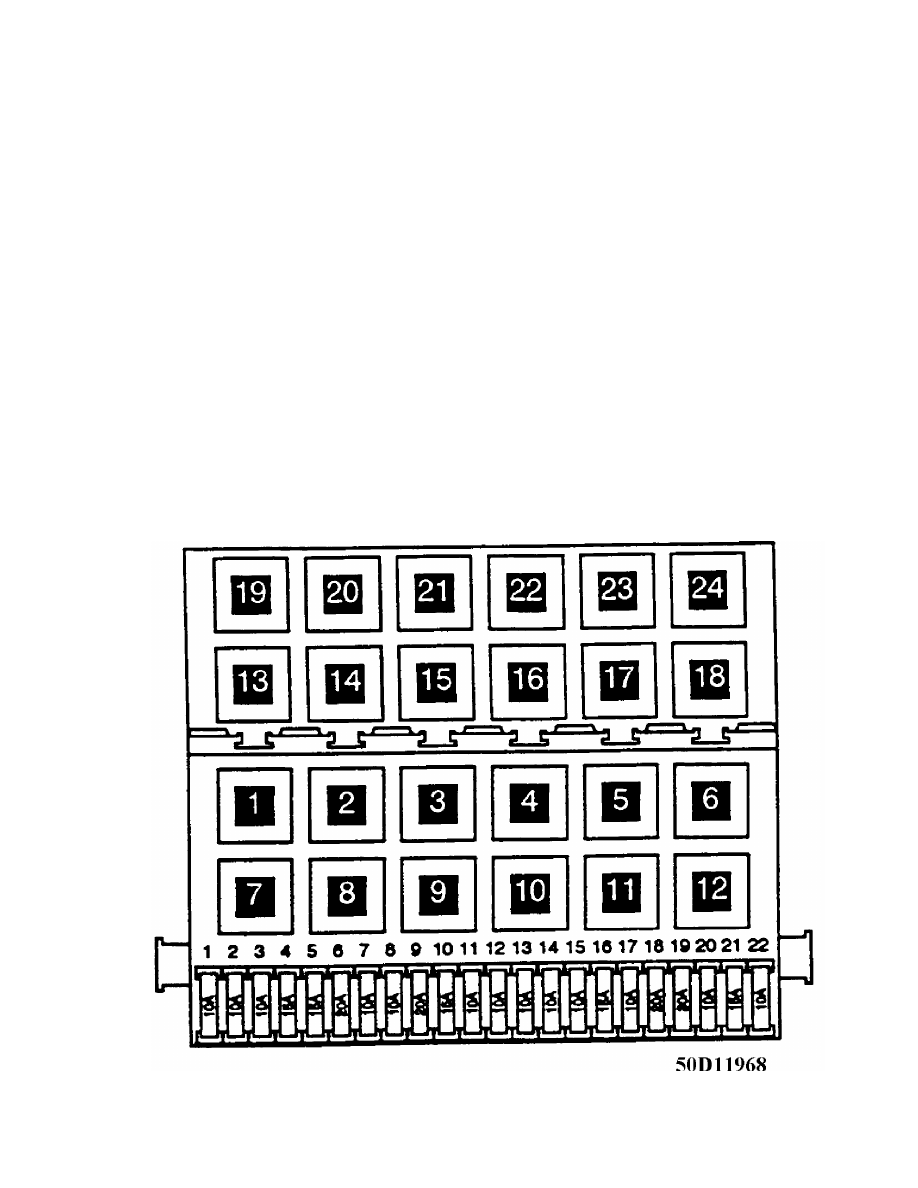

Fig. 11:  Fuse & Relay Panel ID (1991-92)
Courtesy of Volkswagen United States, Inc.
