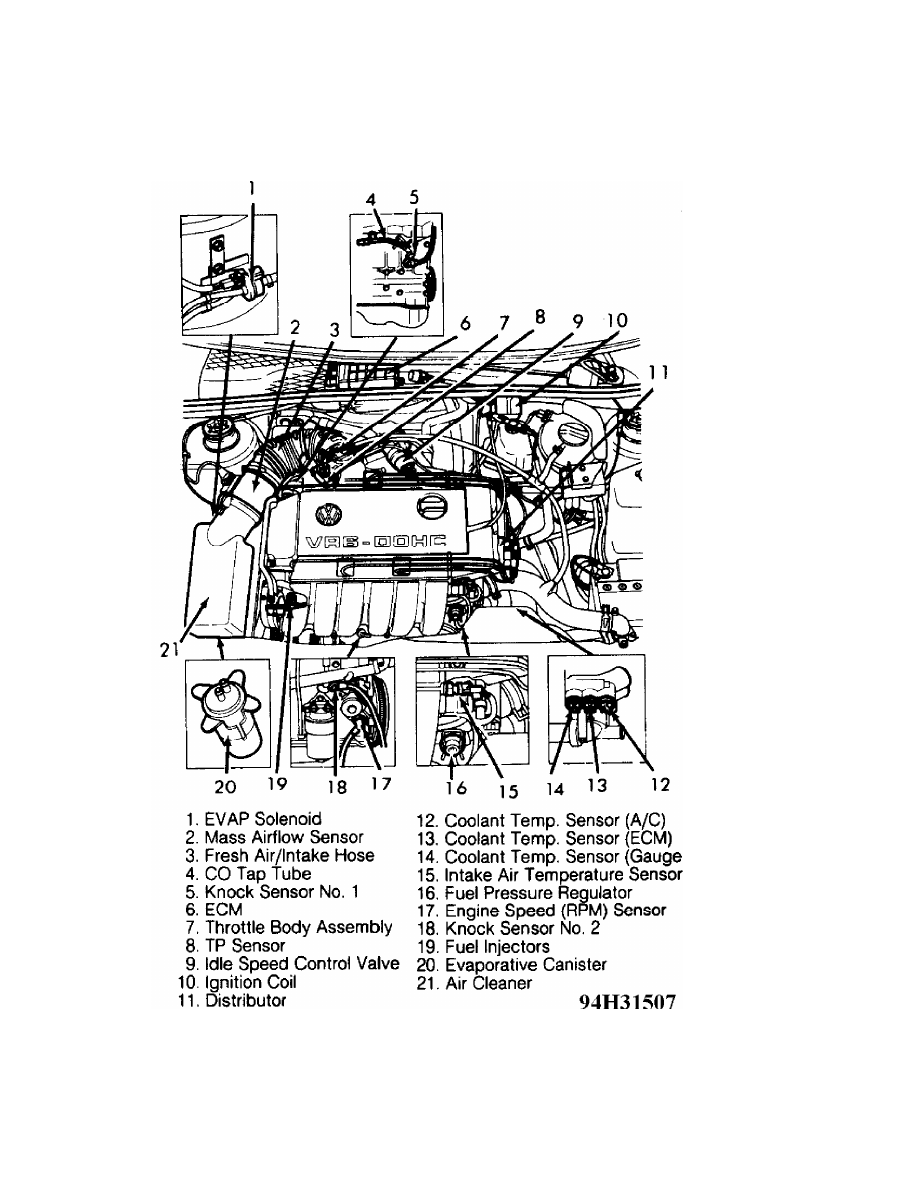

ELECTRICAL COMPONENT LOCATOR

Engine Speed (RPM) Sensor               On lower left rear of engine,
                                        near flywheel.

Hall Speed Sensor                       On rear of speedometer
                                        housing.

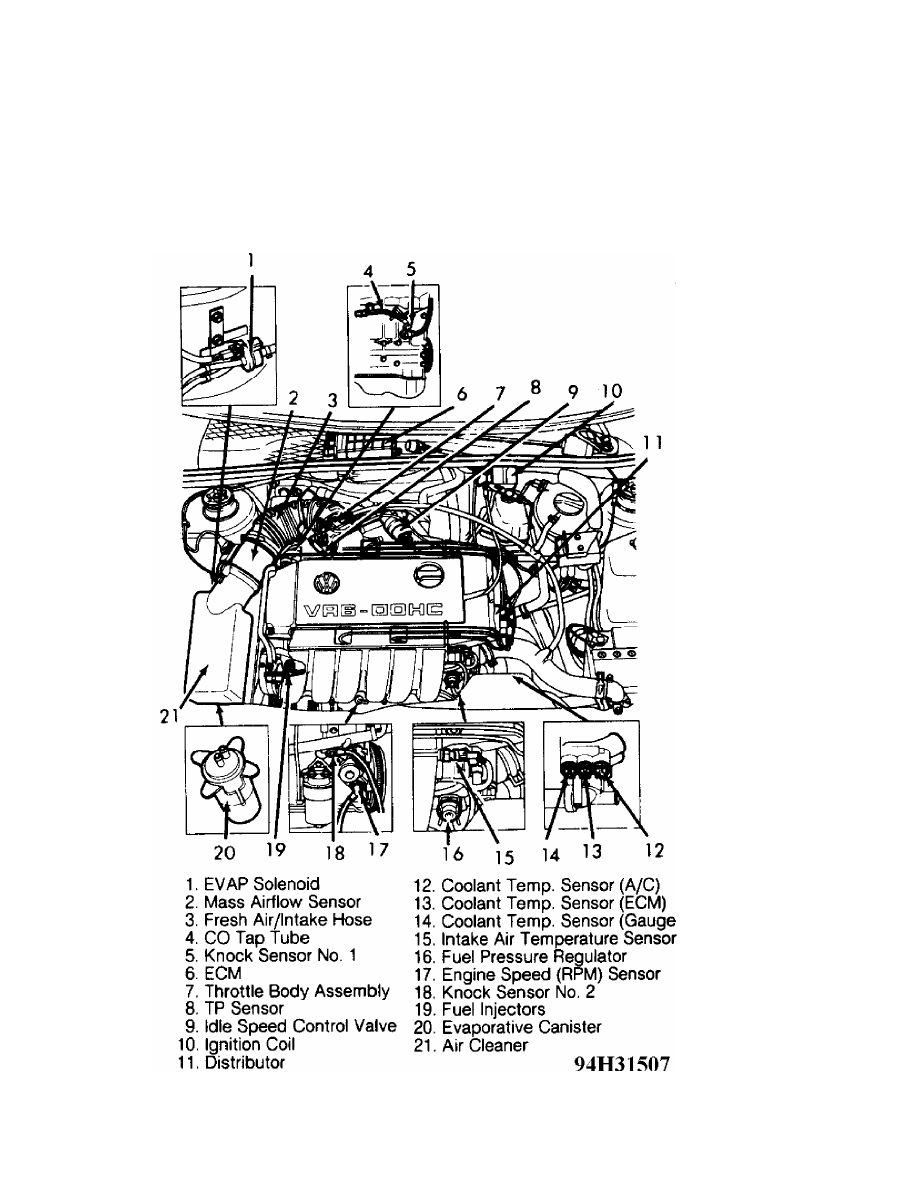

ELECTRICAL COMPONENT LOCATOR

Intake Air Temperature Sensor           On rear of upper intake
                                        manifold.

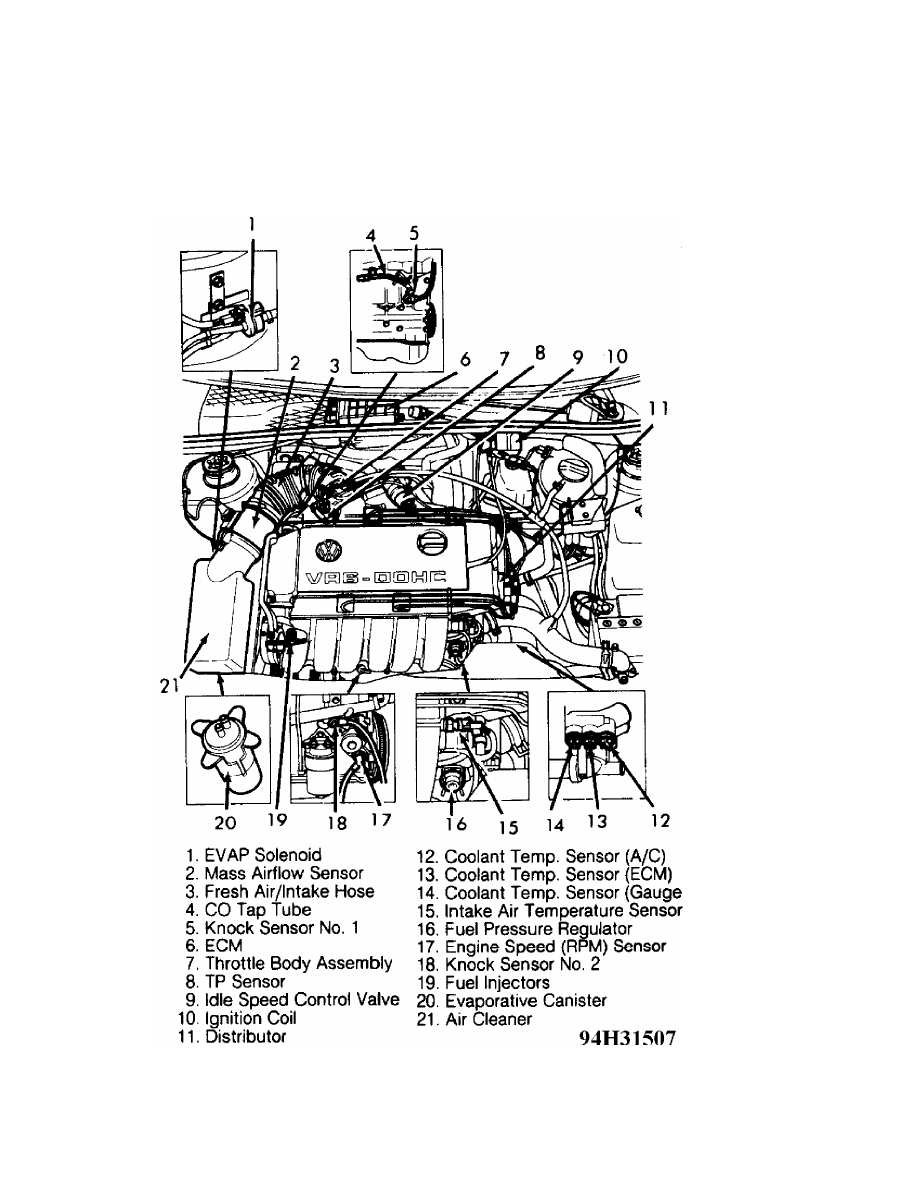

ELECTRICAL COMPONENT LOCATOR

ELECTRICAL COMPONENT LOCATOR
