Volkswagen Corrado (1993 year). Manual - part 124





ELECTRICAL COMPONENT LOCATOR

ELECTRICAL COMPONENT LOCATOR

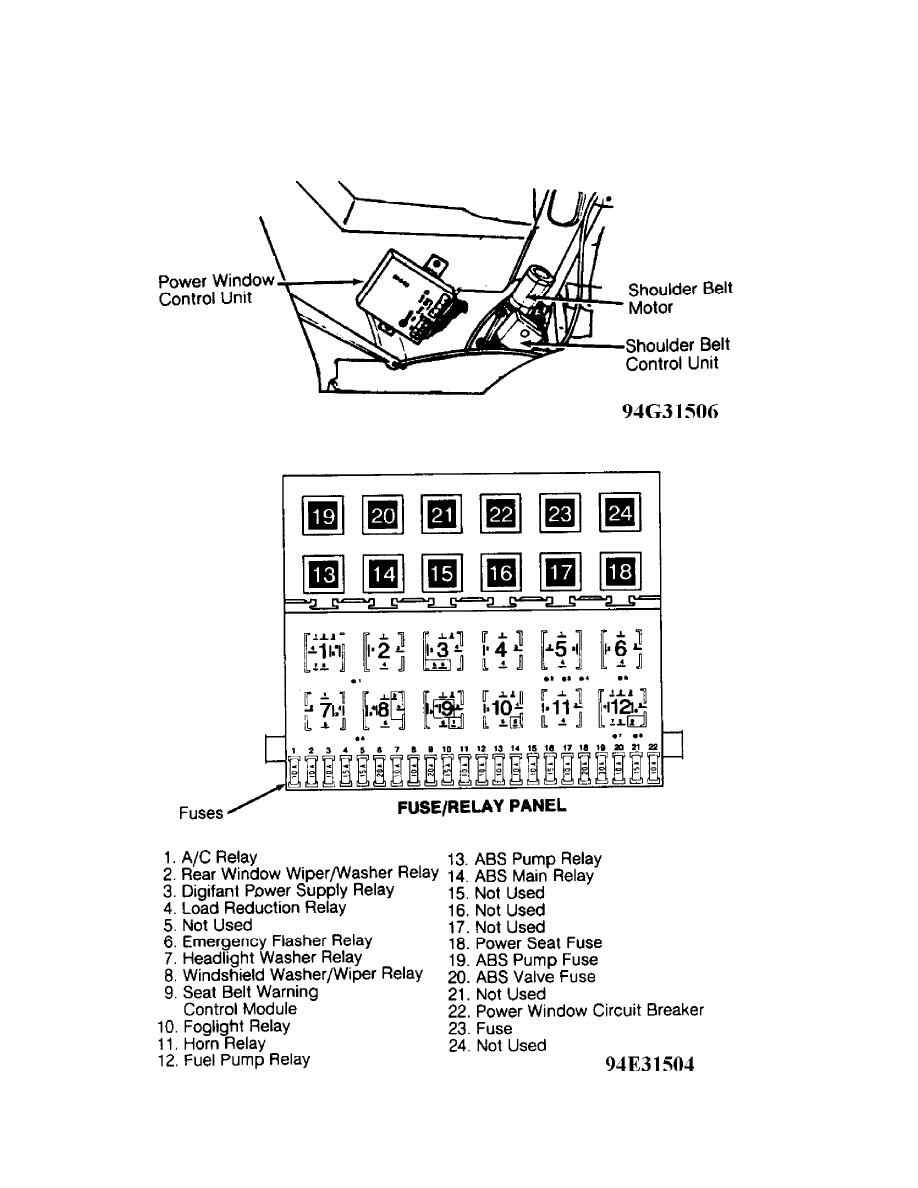

Seat Belt Warning Control Unit          In fuse/relay panel, behind
                                        left side of dash.

ELECTRICAL COMPONENT LOCATOR

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Component                               Component Location

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

ABS Pump Motor                          Below master cylinder.

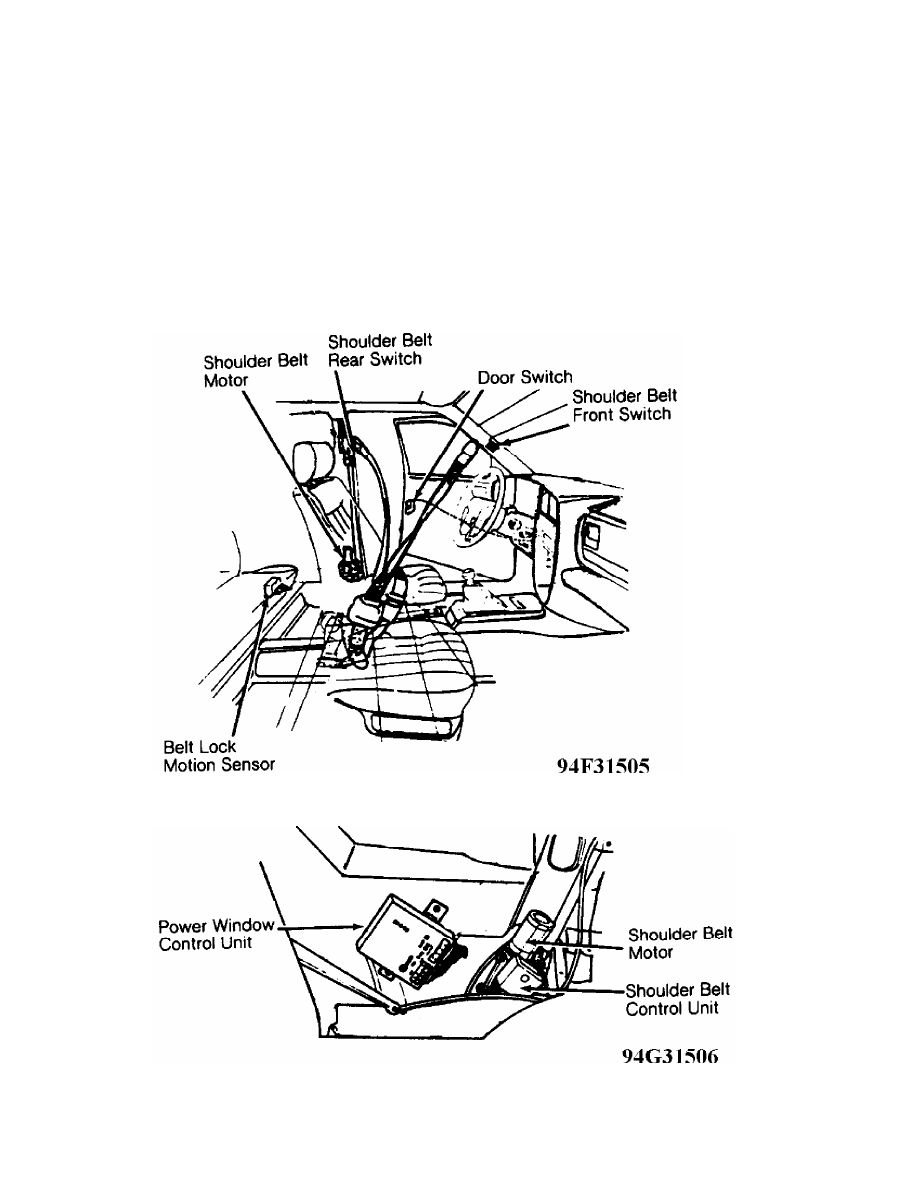

Auto. Shoulder Belt Motor

  Graphic No. 1                         Behind trim panel on "B" door
                                        pillar.

  Graphic No.2                          Behind trim panel on "B" door
                                        pillar.

ELECTRICAL COMPONENT LOCATOR

Blower Motor                            In bottom of lower air duct on
                                        right side.

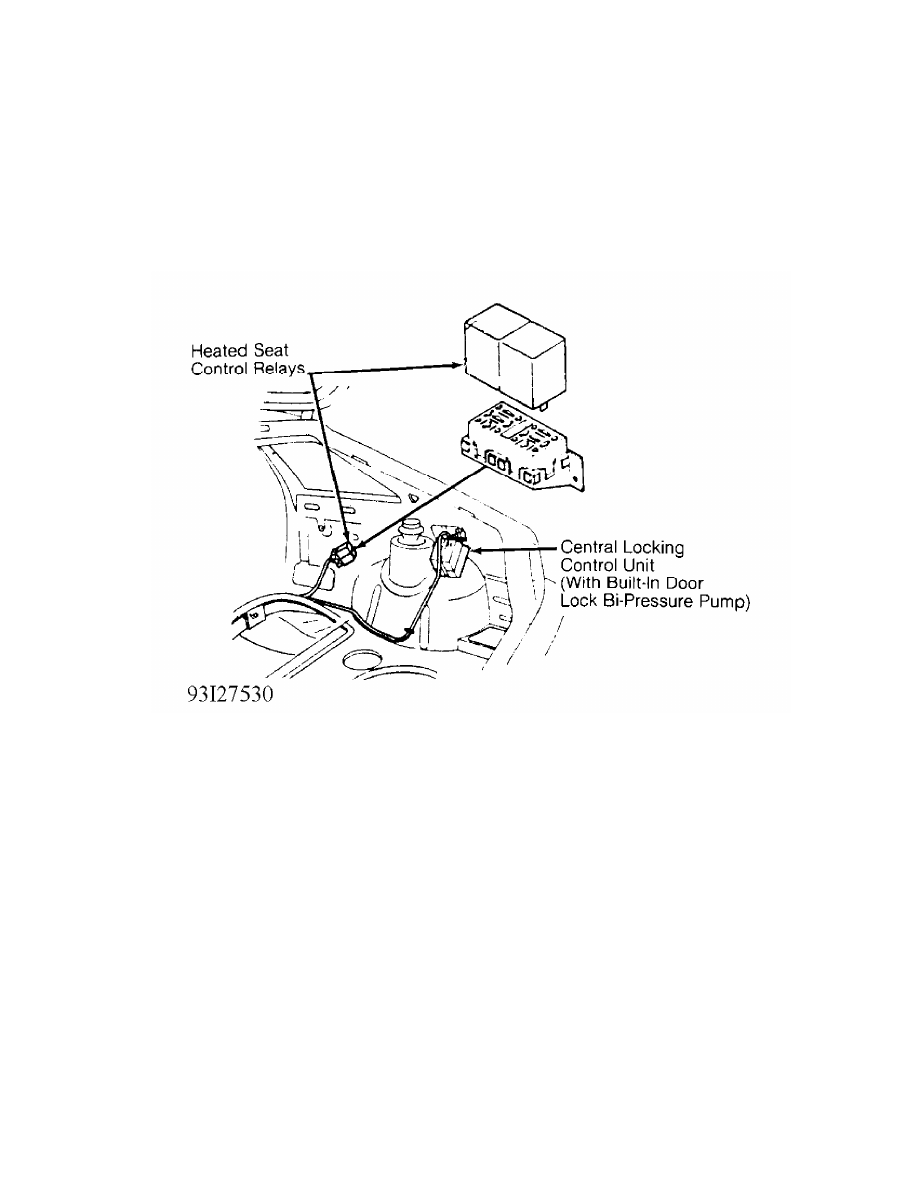

Door Lock Bi-Pressure Pump              Built-in with central locking
                                        control unit.

Fuel Pump                               Mounted in fuel tank.

Washer Pump Motor                       Bottom of washer fluid
                                        reservoir, on left inner
                                        fender panel.

Windshield Wiper Motor                  On center of firewall.

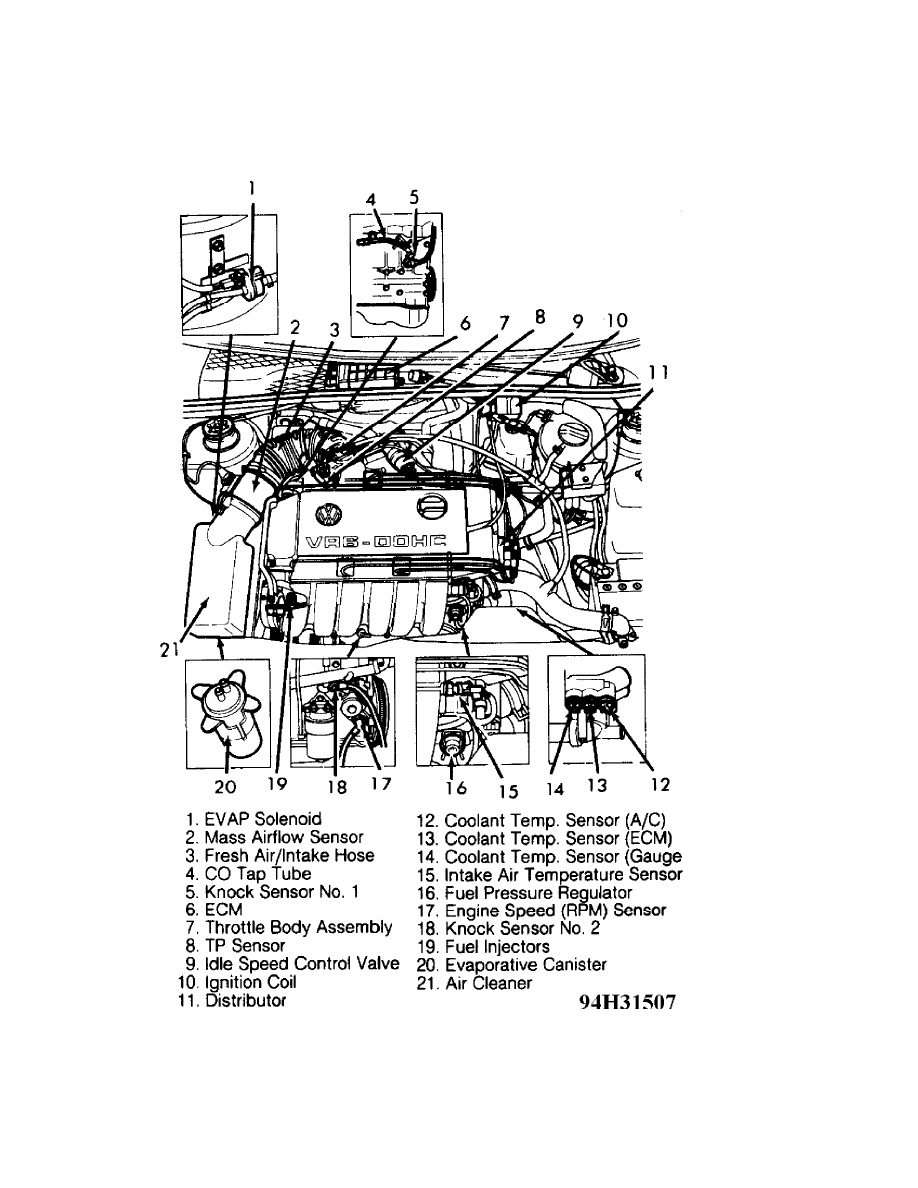

         SENDING UNITS & SENSORS

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Component                               Component Location

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

ABS Wheel Speed Sensor                  Mounted near each wheel hub
                                        assembly.

Auto. Shoulder Belt Lock
