Volkswagen Corrado (1993 year). Manual - part 122

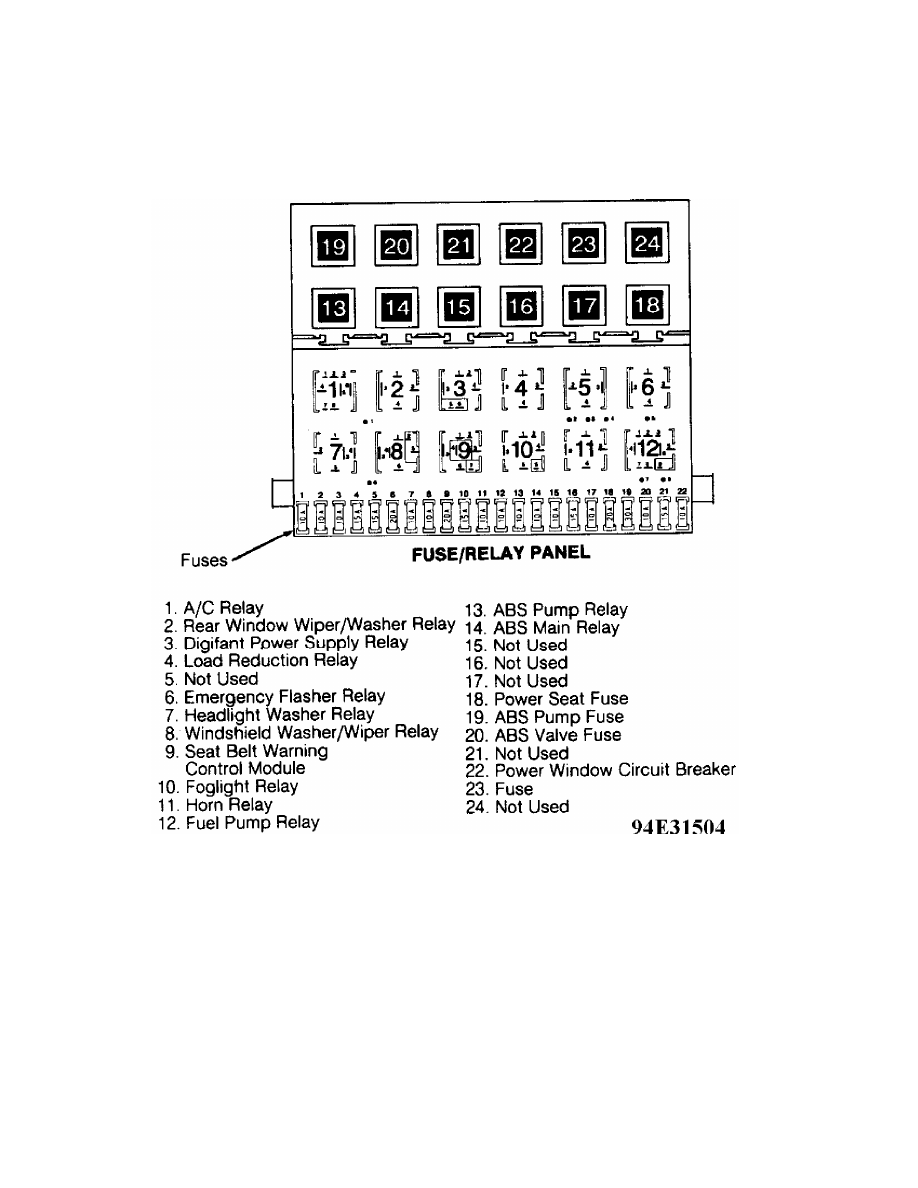

ELECTRICAL COMPONENT LOCATOR

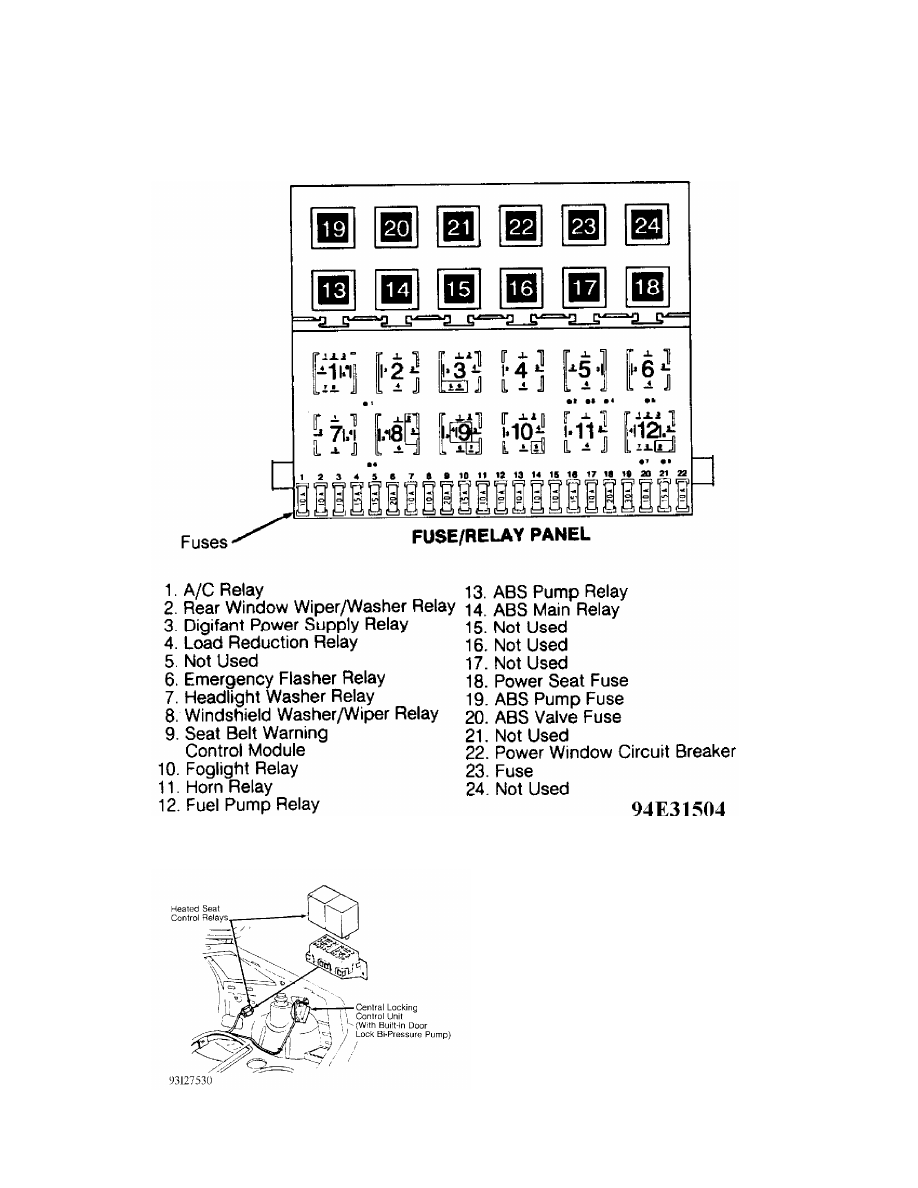

Heated Seat Control Relays              Behind trim panel, on right
                                        side of luggage compartment.

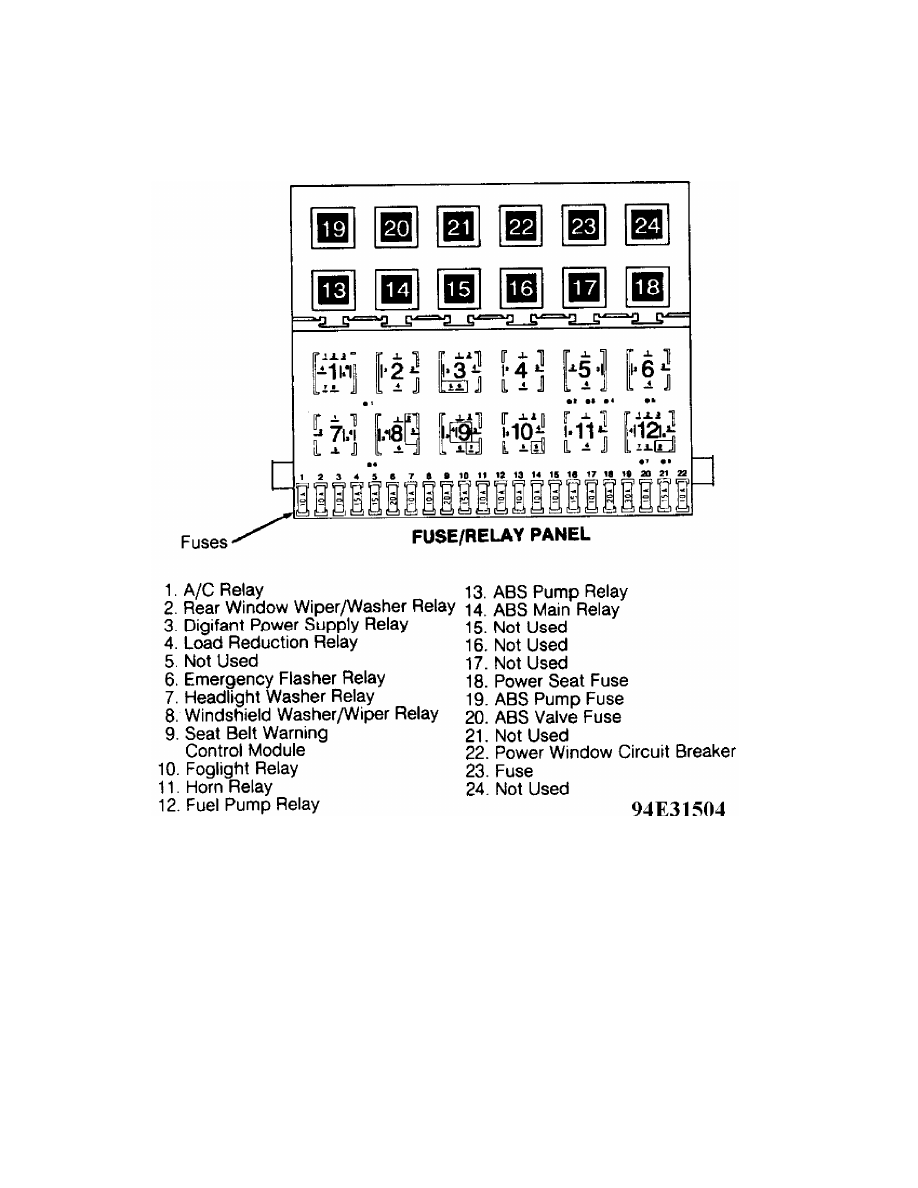

ELECTRICAL COMPONENT LOCATOR

ELECTRICAL COMPONENT LOCATOR

ELECTRICAL COMPONENT LOCATOR

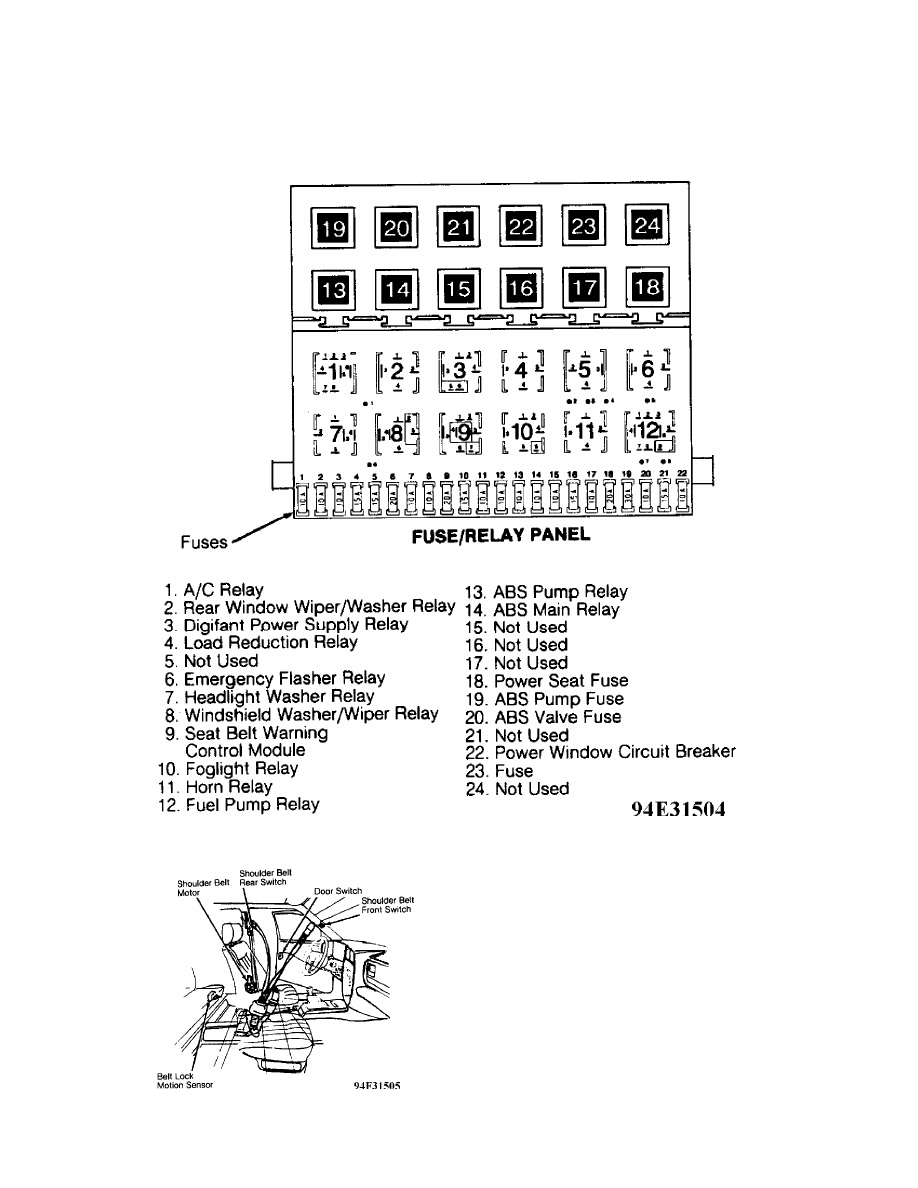

Seat Belt Warning Relay
  (Canada)                              On right side of steering
