3220 Jointed wrench

z

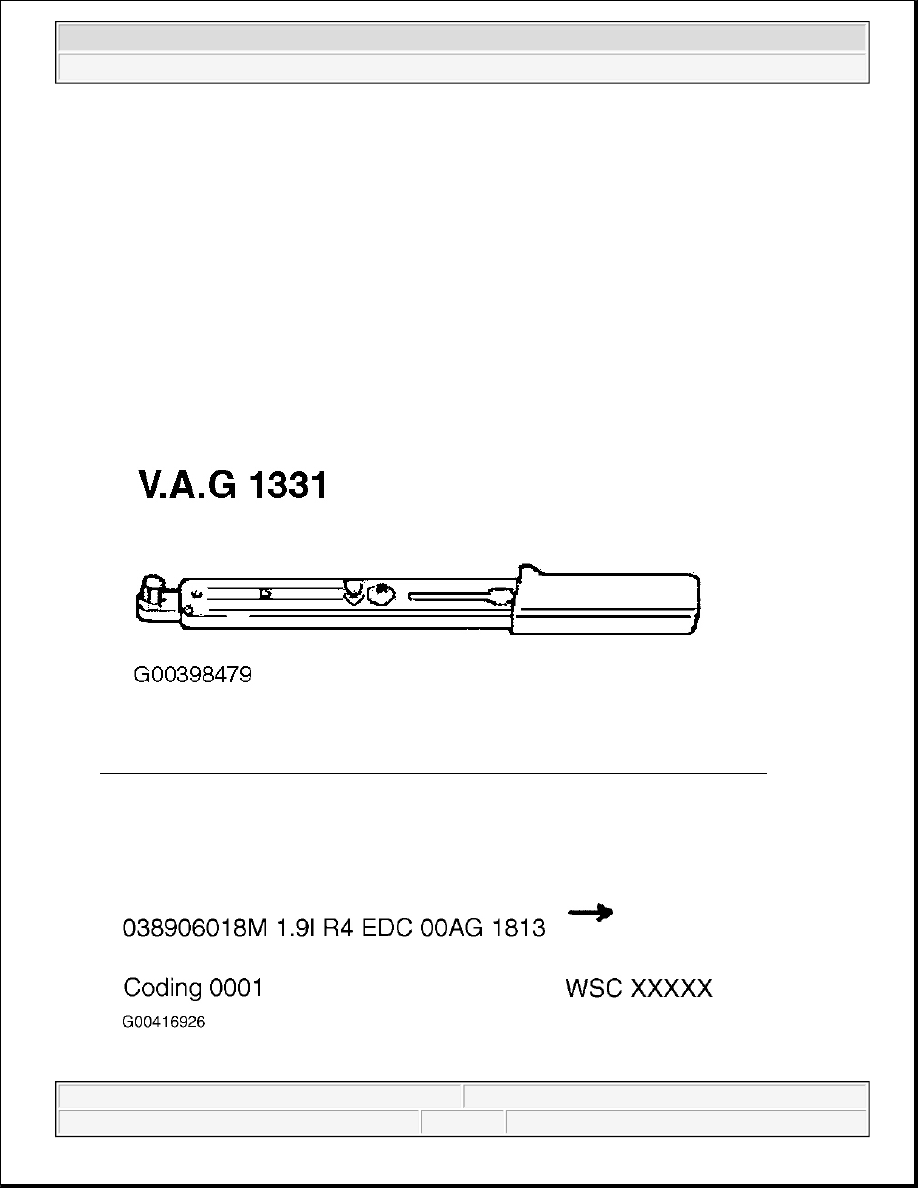

V.A.G 1331 Torque wrench (5 to 50 N.m)

z

V.A.G 1381/12 Adapter

z

V.A.G 1763 Compression tester



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



Fig. 105: Identifying Special Tools And Equipment



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



Courtesy of VOLKSWAGEN OF AMERICA, INC.

Requirement

z

Engine oil temperature must be min. 30°C

Work sequence

z

Remove engine cover.

z

Remove central connector for unit injectors -1-.

z

Disconnect connector strip -2- from glow plugs.

z

Remove all glow plugs -3- using jointed wrench 3220.

Fig. 106: Removing Unit Injector Central Connector, Connector Strip And Glow Plugs
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Thread in adapter V.A.G 1381/12 in place of glow plugs.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



Fig. 107: Checking Compression Pressure
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Check compression pressure using compression tester V.A.G 1763.

z

Operate starter until tester shows no further pressure increase.

Compression pressures

z

New: 25 to 31 bar

z

Wear limit: 19 bar

Permissible difference between all cylinders: 5 bar

z

Install glow plugs with jointed spanner 3220

Tightening torque: 15 N.m

z

Check DTC memory. See ENGINE CONTROL MODULE (DTC) MEMORY, READING AND
ERASING
 .

VALVE TRAIN, SERVICING

Fig. 108: Exploded View Of Valve Train Assembly
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Using the compression tester --> tester operating instructions.

NOTE:

Trouble codes will be stored because the diesel injection pump harness
connector has been disconnected. Check and erase DTC memory.

NOTE:

z

Cylinder heads with cracks between the valve seats may be used without
reducing engine life, provided the cracks are small and not more than 0.5
mm wide.

z

Do not rework valve seats. Only lapping-in of valves is permitted.
