Volkswagen New Beetle. Manual - part 948





Fig. 3: Identifying Cooling System Components & Coolant Flow (1.9L TDI, Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DRAINING, FILLING & BLEEDING

COOLING SYSTEM PRECAUTIONS

Use only coolant additive G12 meeting specification VW 774 D. G12 coolant is Red in color. G12 must not be
mixed with any other additives. If fluid in expansion tank is Brown, this is an indication that G12 has been
mixed with another type of coolant. In this case, coolant must be changed.

G12 coolant additive may be used in older vehicles when original coolant is drained and cooling system is
flushed. Contaminated coolant must be drained immediately and cooling system flushed. See SERVICING .
Also, if radiator, heat exchanger (heater core), cylinder head or cylinder head gasket, have been replaced, flush
cooling system and replace engine coolant.

DRAINING, FILLING & BLEEDING COOLING SYSTEM

1.9L TDI (Engine Code ALH)

1. Turn engine off, and allow to cool. Remove engine cover. Open cap on coolant expansion tank. Raise and

support vehicle. Remove noise insulation panel from below engine compartment. See Fig. 4 or Fig. 5 .
Place appropriate drain pan underneath vehicle.

WARNING:

Cooling system is pressurized, when engine is at operating temperature.
Use caution and use other appropriate protective gear (safety glasses and
gloves) when servicing cooling system. Slowly and carefully release
system pressure, before performing any repairs.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)



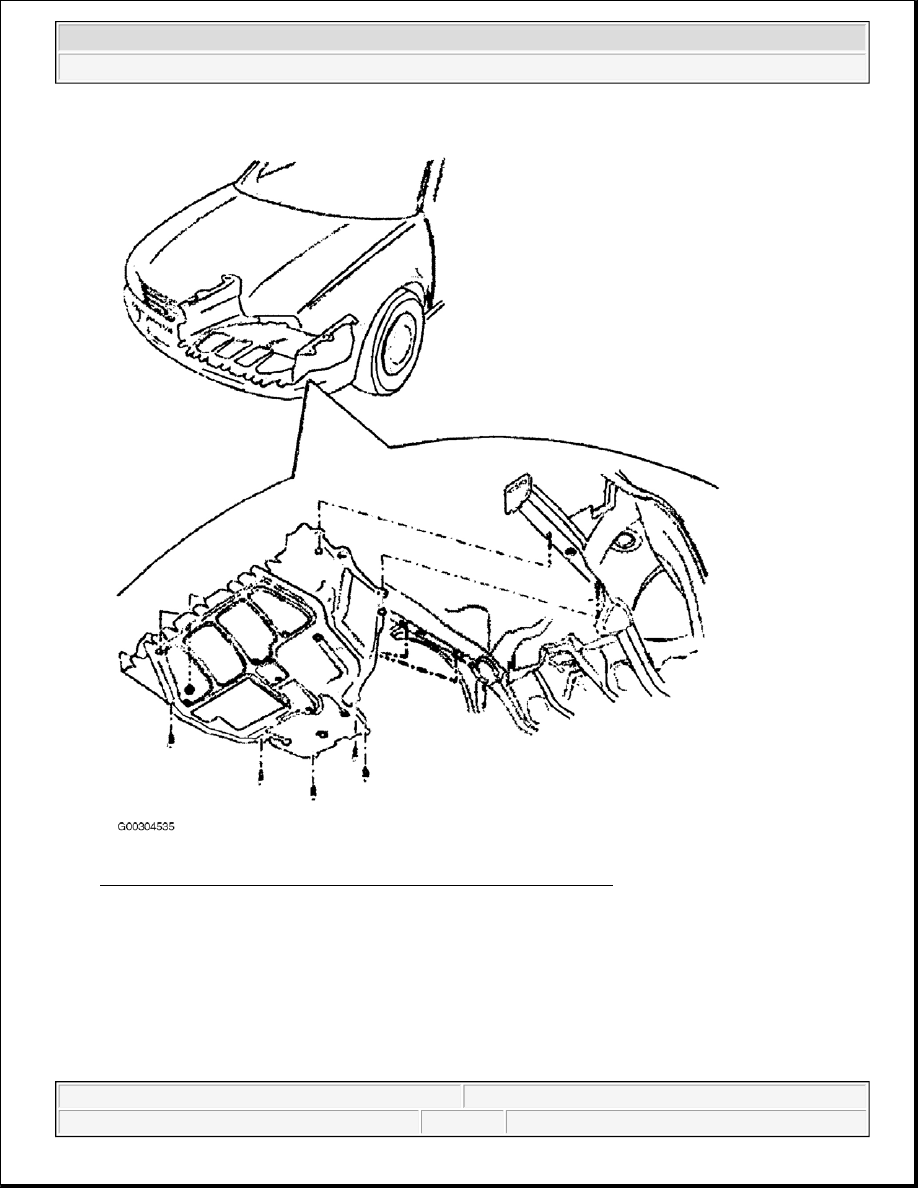

Fig. 4: Identifying Noise Insulation Mounting Points (Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)

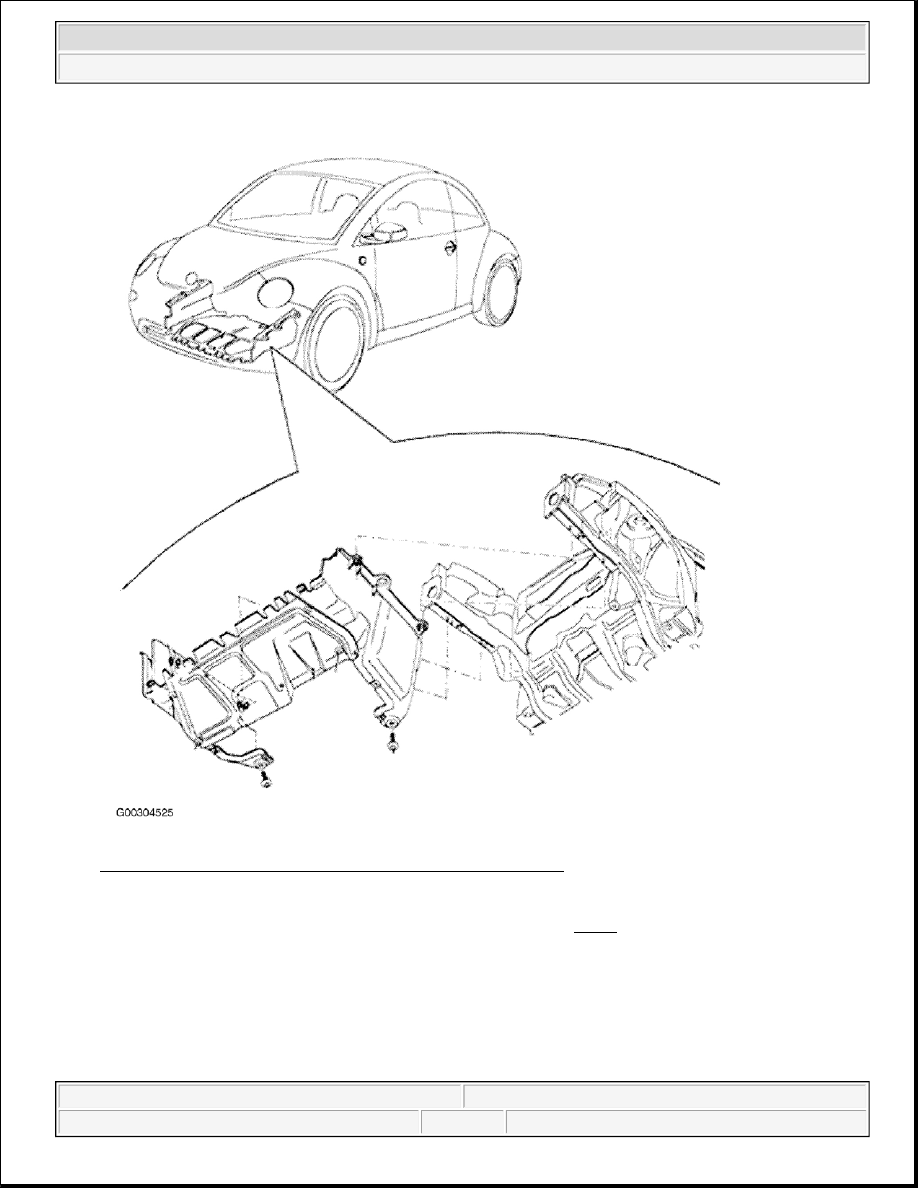

Fig. 5: Identifying Noise Insulation Mounting Points (Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Unscrew drain plug (arrow), and drain coolant from radiator. See Fig. 6



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)

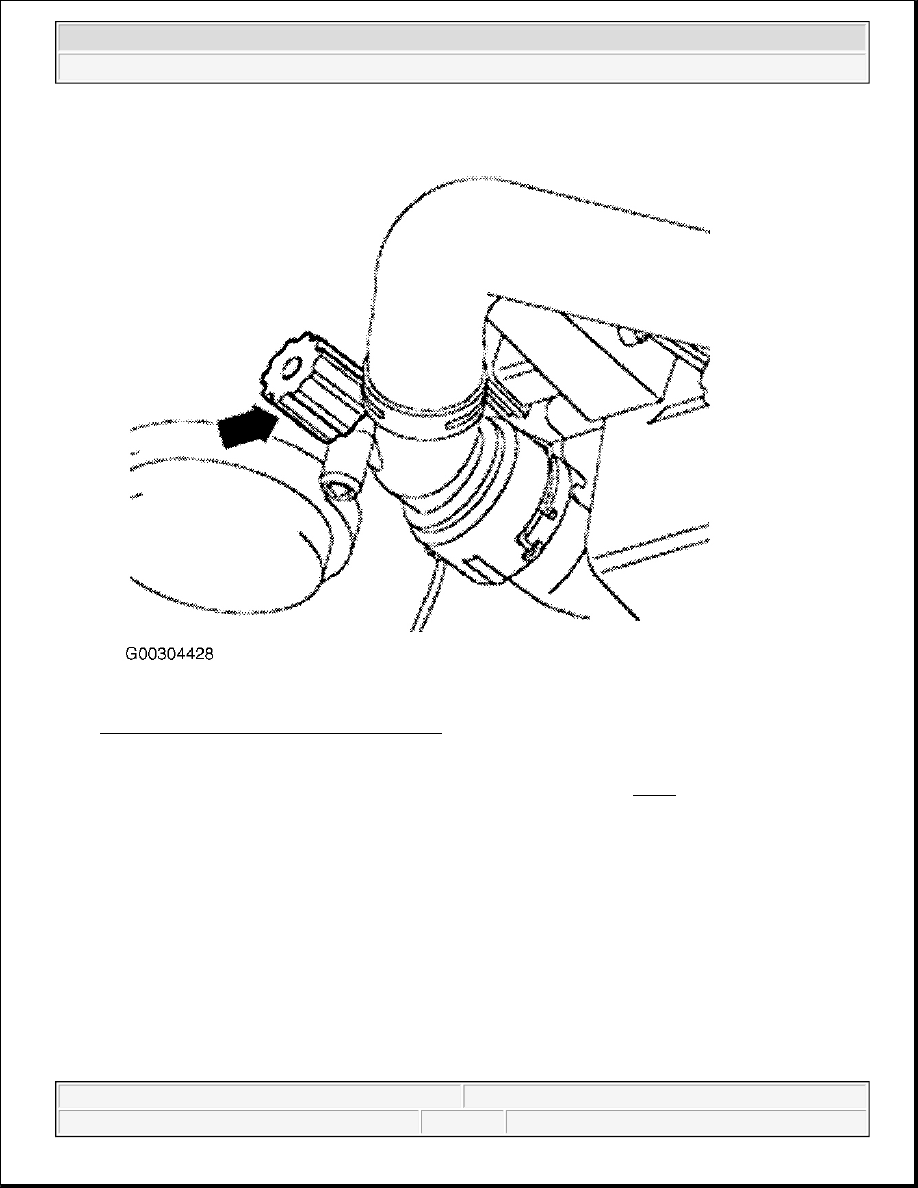

Fig. 6: Identifying Drain Screw On Radiator
Courtesy of AUDI OF AMERICA, INC.

3. Remove coolant hose from oil cooler, and drain coolant from engine. See Fig. 7 .



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)
