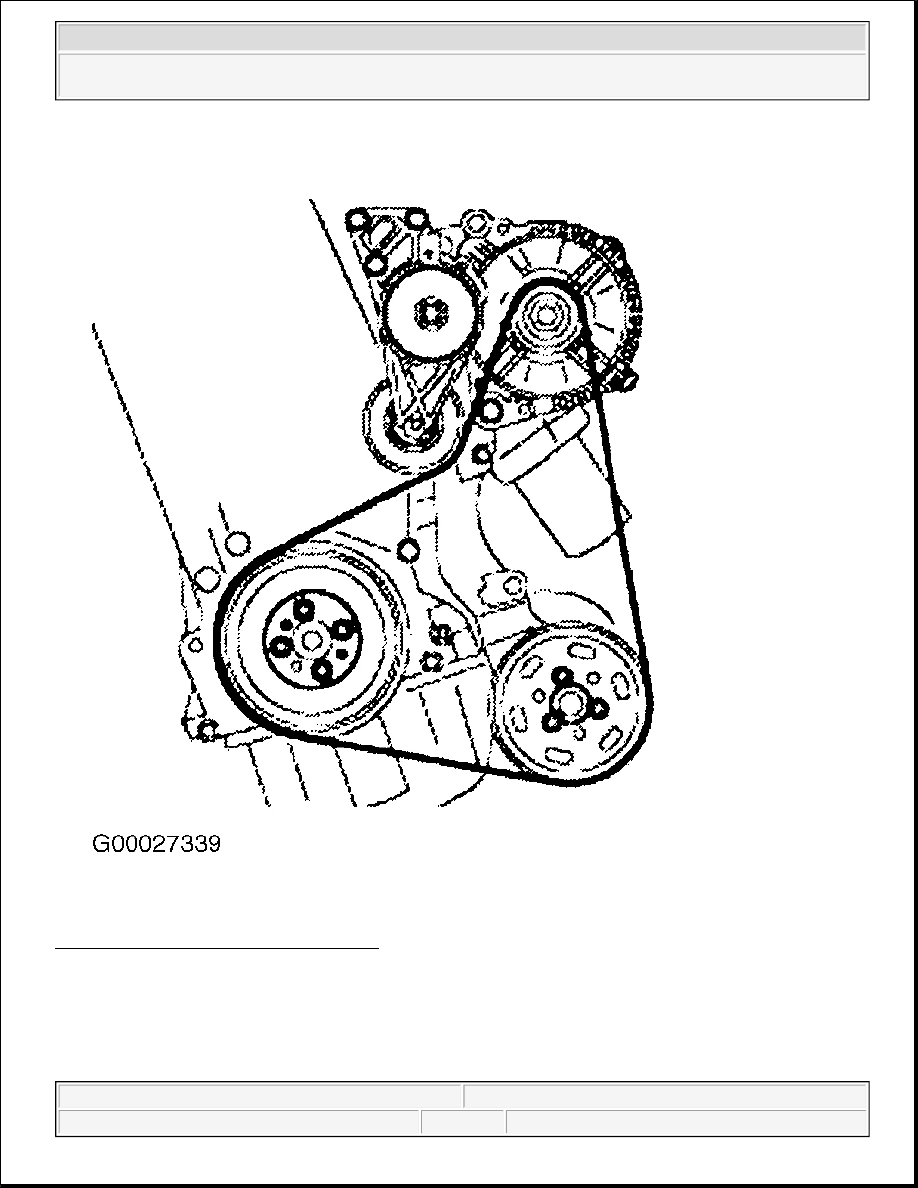

Fig. 13: Drive Belt Routing (Without A/C)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)

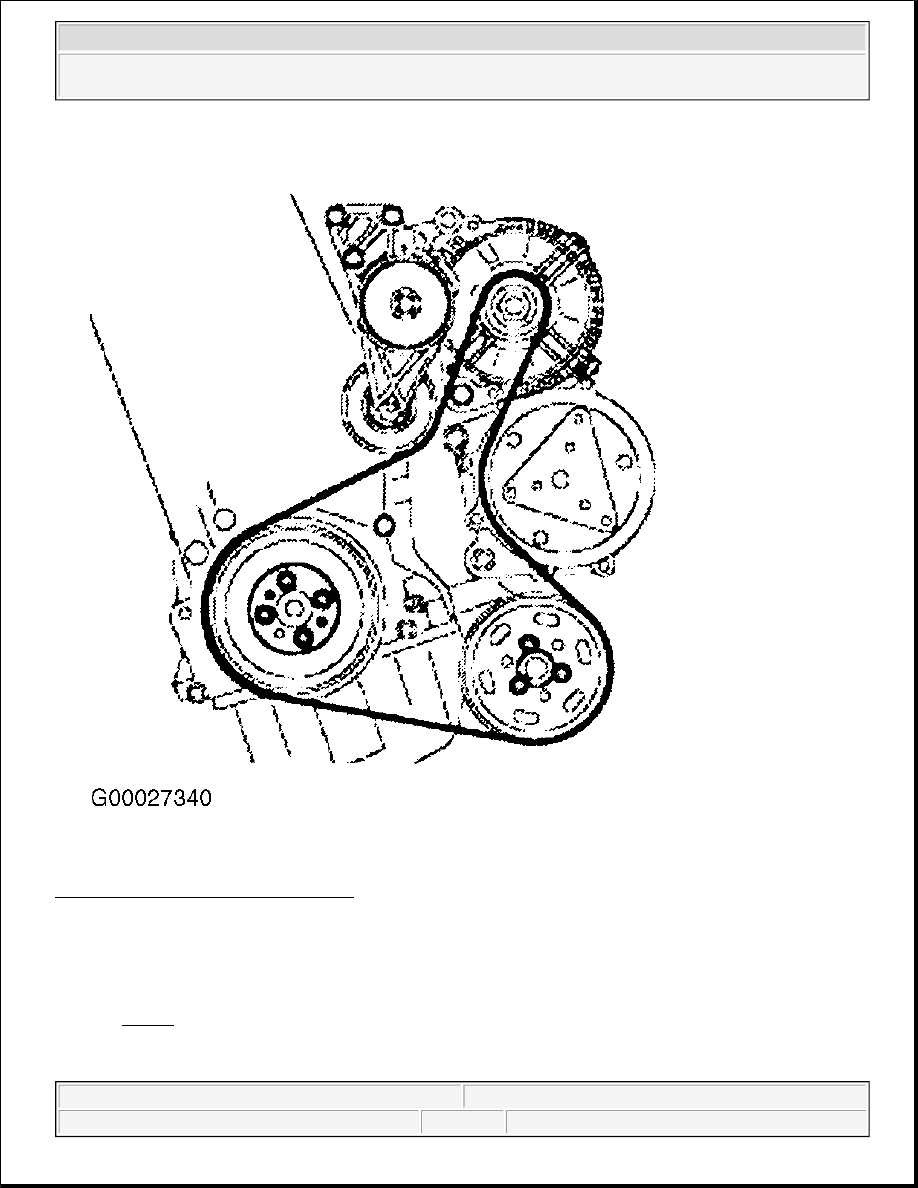

Fig. 14: Drive Belt Routing (With A/C)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DRIVE BELT, REMOVING & INSTALLING

Remove engine cover. Rotate serpentine belt tensioner clockwise to relieve belt tension. Remove serpentine
belt. See Fig. 15 . Lock in place using Mandrel (T10060) or a drift.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



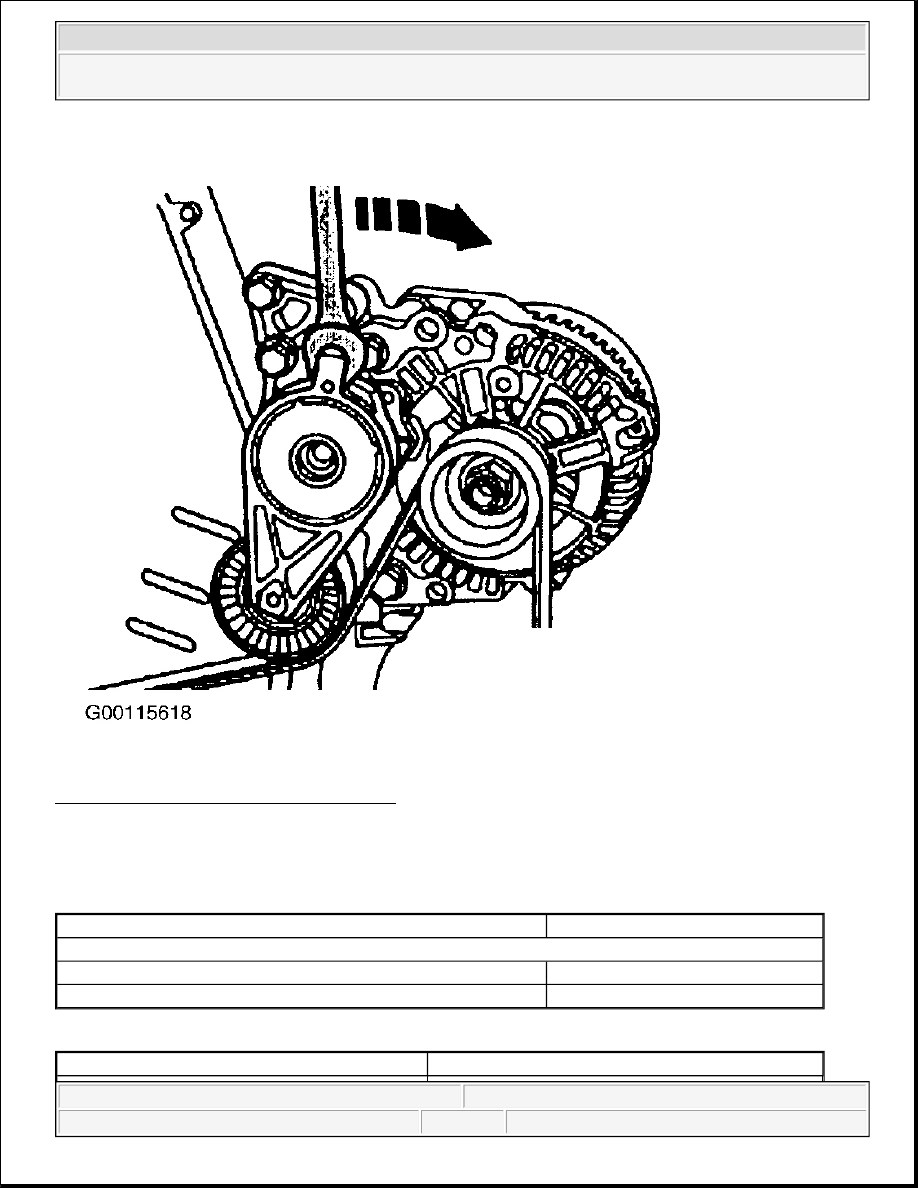

Fig. 15: Releasing Serpentine Belt Tensioner
Courtesy of VOLKSWAGEN UNITED STATES, INC.

COOLING SYSTEM SPECIFICATIONS

COOLANT MIXTURE RECOMMENDATIONS

COOLING SYSTEM SPECIFICATIONS

Application

Specification

Freeze Point

Down To -13° F (- 25° C)

40% Coolant

Down To -31° F (- 35° C)

50% Coolant

Application

Specification



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



Coolant Capacity

(1)

 5.3 Qts. (5.0L)

Coolant Replacement Interval

(2)

Recommended Coolant

Golf & Jetta

(3)

 ,

(5)

(4)

 Red G 012 A8 D

New Beetle

(5)

 Lilac (Purple) G 012 A8 F

Cooling Fan Thermal Switch

First Stage

On

198-207° F (92-97° C)

Off

183-196°F (84-91°C)

Second Stage

On

210-221°F (99-105°C)

Off

196-208°F (91-98°C)

Thermostat

Starts To Open

186°F (87°C)

Fully Open

216°F (102°C)

Opening Stroke

.28" (7 mm)

(1)

Total coolant quantity may vary depending on vehicle equipment.

(2)

Manufacturer does not require routine coolant replacement. Replace coolant only if major repair is
necessary.

(3)

On model year 2004 Golf and Jetta, engine code BEV, uses G12 coolant that is Lilac (Purple) in
color. Refer to TSB Group 19 No. 02-01, dated Dec. 20, 2002. See COOLANT (ANTIFREEZE),
MIXING PRECAUTIONS
 .

(4)

G12 coolant is Red in color. DO NOT mix Green and Red coolant. Mixing these coolant types will
cause severe engine damage.

(5)

G12 coolant is Lilac (Purple) in color. DO NOT mix Green with Lilac coolant. Mixing these coolant
types will cause severe engine damage.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)
