2002-04 ENGINE COOLING

Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)

ENGINE IDENTIFICATION

Engine identification code is stamped between diesel injection pump and exhaust manifold, on cylinder block.
See Fig. 1 . In addition, engine code and serial number are on a sticker on timing belt cover. Also engine code is
listed on vehicle data plate.

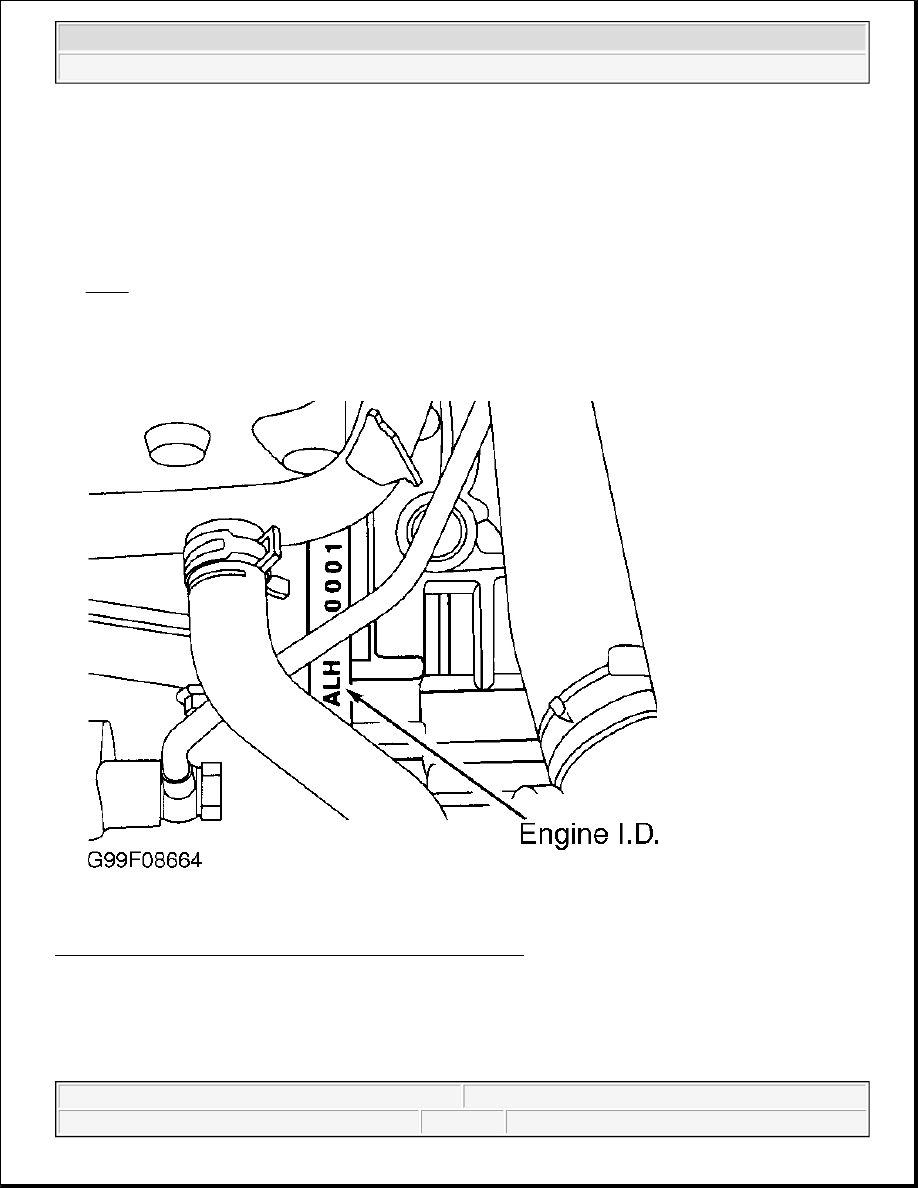

Fig. 1: Locating Engine Identification Code (1.9L TDI, ALH)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

COMPONENT LOCATIONS

COOLING SYSTEM IDENTIFICATION



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)





2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)



NOTE:

Three letter code indicates engine identification code. For location of engine
code, see ENGINE IDENTIFICATION .



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)





2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)

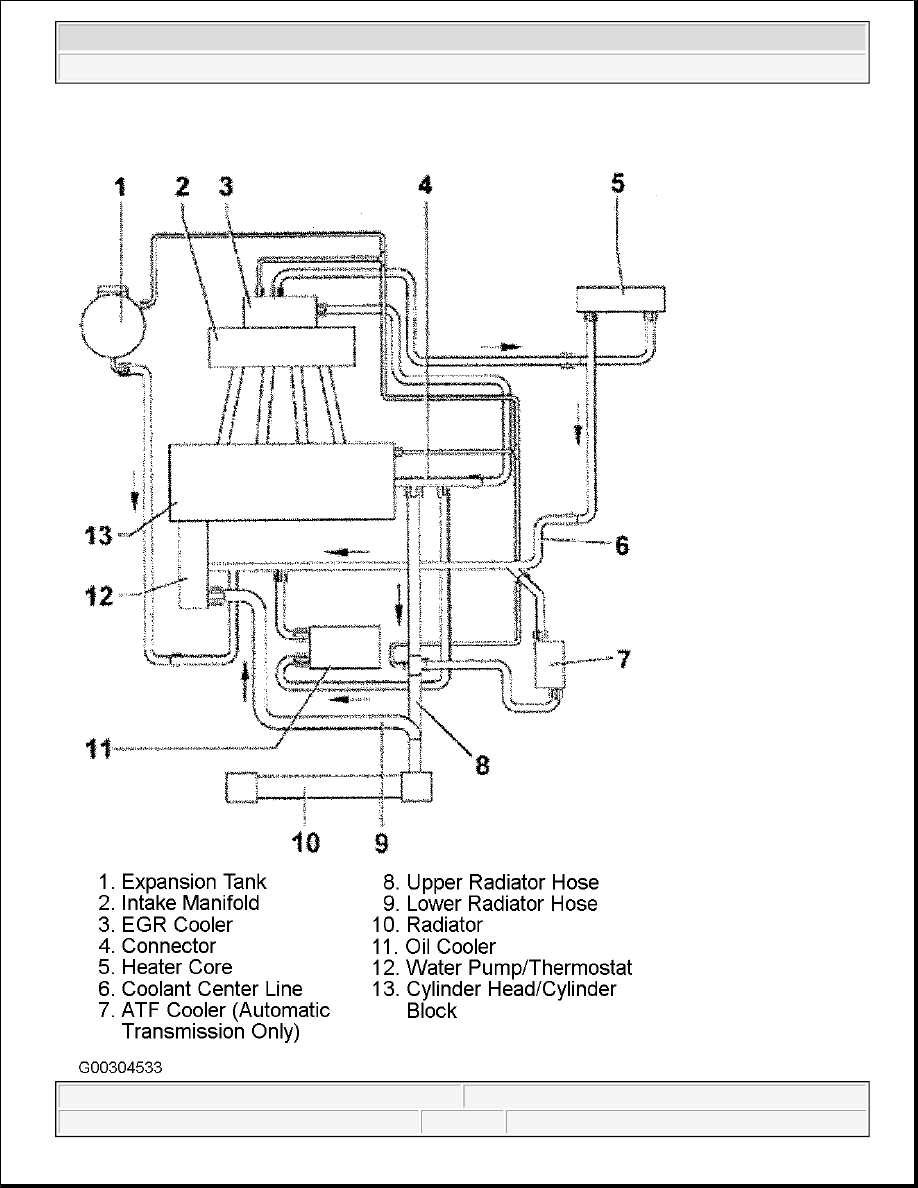

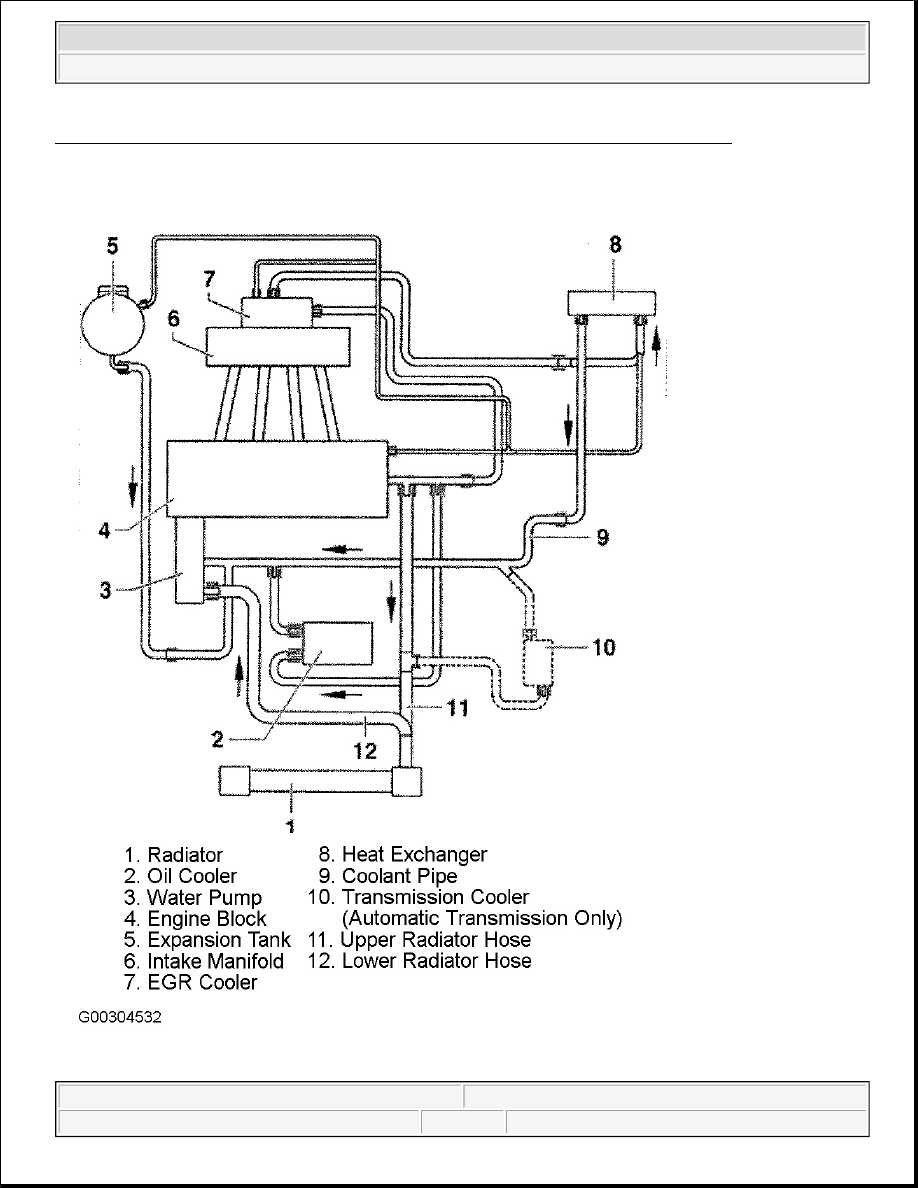

Fig. 2: Identifying Cooling System Component & Coolant Flow (1.9L TDI, Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.9L TDI (ALH Engine Code)
