Volkswagen New Beetle. Manual - part 841





Fuse (Holder) Panel

For fuse position number, amp rating and description of circuits protected, see FUSE IDENTIFICATION
(FUSE HOLDER PANEL)
table.

FUSE IDENTIFICATION (FUSE HOLDER PANEL)

S179

30

ABS Control Module

S180

30

Coolant Fan Control Thermal Switch

NOTE:

Fuses 23 through 44 may be designated in wiring diagrams with a prefix of 2.
For example, fuse No. 29 may be labeled as 229. Fuse No. 43 may be labeled as
243.

Fuse No.

Amp

Rating

Circuit Protected

10

Glove Compartment Light Switch, Glove Compartment

Light, Washer Nozzle Heater (Left & Right), Heated Mirror

Relay

10

Turn Signal Relay

Instrument Panel Light Dimmer Switch

Dual Horns, License Plate Light

7.5

Clutch Vacuum Vent Valve Switch, Power Mirror Switch,

Driver's Heated Seat Adjust Control Switch, Automatic

Day/Night Interior Mirror, Cruise Control Switch, A-C High

Pressure Sensor, Fresh Air/Recirculation Air Switch,

(1)



Brake Vacuum Vent Switch,

(2)

Brake Pedal Switch

Comfort System Central Control Module, Driver's Door

Warning Indicator Light

10

Back-Up Light Switch, Park Neutral Position Relay, Selector

Lever Position Warning Light, Speedometer Vehicle Speed

Sensor,

(3)

 Multi-Function Transmission Range Switch

N/A

Vacant

ABS Control Module, Anti-Slip Control Switch, Steering

Angle Sensor

10

All Engine
Codes

10

ECM, ECM Power Relay

Engine Code
ALH

10

Diesel Direct Fuel Injection ECM

11

Instrument Panel, Instrument Panel Control Indicator Unit,

Shift Lock Solenoid

12

7.5

DLC (Terminal 16)



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:45 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.

13

10

High Mount Brake Light, Left Brake/Tail Light, Brake Light

Switch

14

10

Comfort System Central Control Module

15

Control Module W/Indicator, Transmission Control Module,

ABS Warning Indicator Light

16

10

Coolant Fan Control Module

17

N/A

Vacant

18

10

Headlight High Beam Indicator

19

10

Headlight (High Beam - Left)

20

15

Headlight (High & Low Beam - Right)

21

15

Daytime Running Lights Change-Over Relay, Headlight

(Low Beam - Left)

22

Control Module W/Indicator, Parking Light (Right), Front

Side Marker Light (Right), Tail Light (Right), Brake Light

(Right ) Turn Signal Light (Right Front)

23

Control Module W/Indicator, Tail Light (Left), Parking Light

(Left), Front Side Marker Light (Left), Brake Light (Left),

Turn Signal (Left), Headlight Switch

24

20

Wiper/Washer Intermittent Relay & Switch

25

25

Fresh Air Blower Switch, Fresh Air Blower Motor

26

20

Rear Window Defogger Switch

27

N/A

Vacant

28

15

Fuel Pump

29

All Engine
Codes

15

ECM

Engine Code
ALH

10

Diesel Direct Fuel Injection ECM

30

20

Power Sunroof Control Module

31

20

Transmission Control Module, Multi-Function Transmission

Range Switch, Brake Booster Control Module

32

All Engine
Codes

10

Fuel Injectors

Engine Code
ALH

15

Diesel Direct Fuel Injection ECM, Modulating Piston

Displacement Sensor, PCV Heating Element

33

20

Wiper/Washer Intermittent Relay

34

Engine Codes
AVH/AZG &
BDC

10

PCV Heating Element



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:45 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

MISCELLANEOUS FUSES

Engine Code
AWV

10

Turbocharger Recirculation Valve, Wastegate Bypass Valve,

Camshaft Adjuster Valve

Engine Code
ALH

10

Wastegate Bypass Regulator Valve, EGR Vacuum Regulator

Solenoid Valve, Intake Manifold Flap Change-Over Valve,

Cold Start Injector, Glow Plug Triggering Control Module

35

30

(4)

Luggage Compartment 12V Outlet

36

15

Fog Light Switch

37

10

Comfort System Central Control Module, Instrument Cluster,

Radio

38

15

Remote Fuel Door Switch & Motor, Comfort System Central

Control Module

39

15

Turn Signal Relay, Side Door Control Module (Driver's &

Passenger's)

40

20

Dual Horn Relay

41

15

Cigarette Lighter, Cigarette Lighter Light, 12V Socket,

(5)



Luggage Compartment 12V Outlet, Lighting Controller

Illumination, Rear Window Defogger Switch Illumination

42

25

Radio, Amplifier, Emergency Flasher

43

All Engine
Codes

10

Brake Vacuum Vent Valve Solenoid, Leak Detection Pump,

Heated Oxygen Sensors Pre & Post Catalytic Converter,

EVAP Canister Purge Regulator Valve

Engine Code
ALH

10

Brake Vacuum Vent Valve Solenoid, Brake Pedal Switch

44

15

Heated Seat Control Module (Driver's & Passenger's)

67

30

Convertible Top Control Module

68

30

Convertible Top Hydraulic Pump Relay Circuit Breaker

(1)

On 1.8L (AWV) engines only.

(2)

On 2.0L (AVH/AZG and BDC) engines only.

(3)

On 2.0L Engine (BDC) only.

(4)

On Convertible only.

(5)

Except Convertible.

Fuse No.

Amp Rating

Circuit Protected

S51

(1)

20

Brake System Vacuum Pump (Automatic Only)

S329

(2)

30

Rear Spoiler Motor

(1)

Located in left side of engine compartment, within protective housing.



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:45 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

RELAYS

RELAY PANEL & THIRTEENFOLD AUXILIARY RELAY PANEL

For ECM power, secondary air injection pump relays and relay for preheating coolant (high and low output)
locations, see Fig. 7 , Fig. 8 or Fig. 9 . For relay positions, see Fig. 10 .

Thirteenfold auxiliary relay panel is located above relay panel. For relay number, position number and circuits
protected, see RELAY IDENTIFICATION (RELAY PANEL) and RELAY IDENTIFICATION
(THIRTEENFOLD AUXILIARY RELAY PANEL)
table.

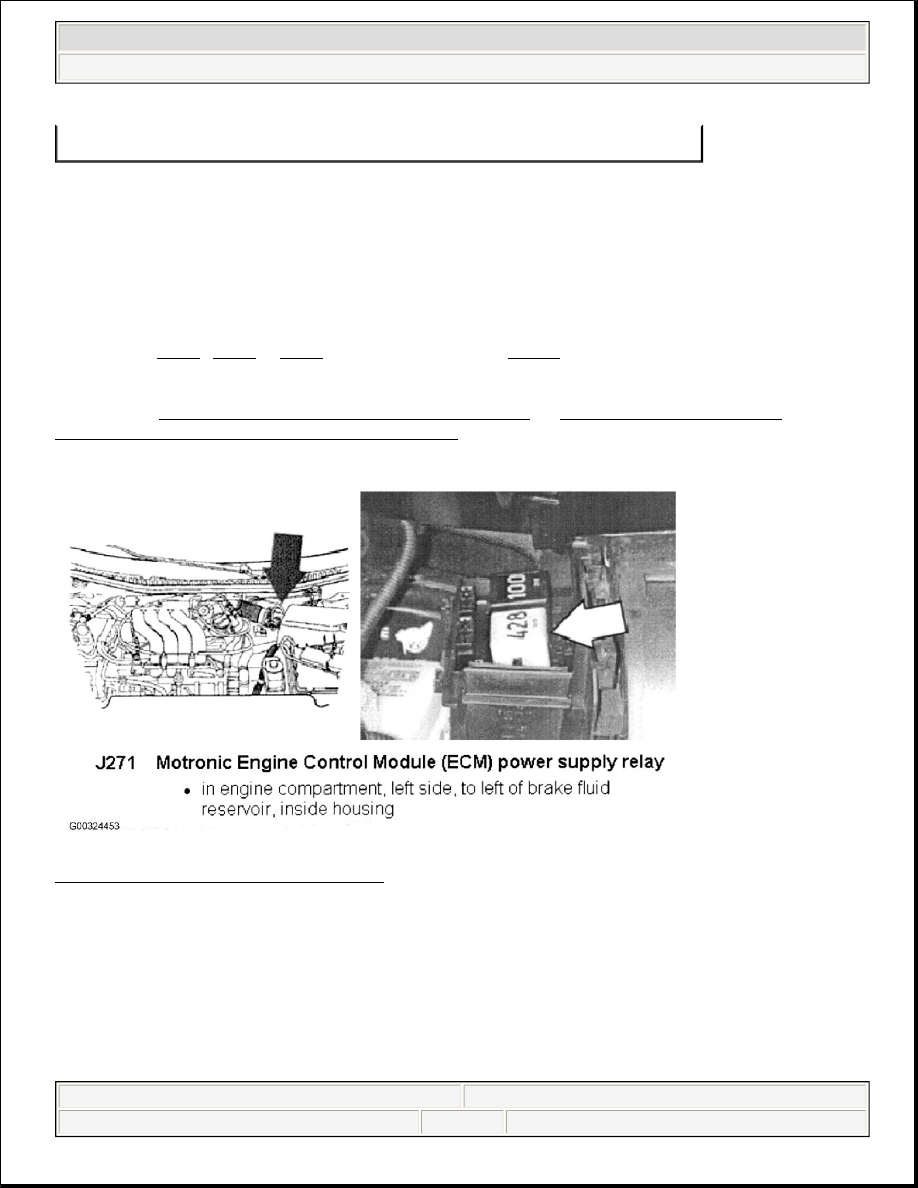

Fig. 7: Locating ECM Power Supply Relay
Courtesy of VOLKSWAGEN UNITED STATES, INC.

(2)

Only equipped on 1.8L GL.

NOTE:

Relay panels are under driver's side of dash, behind trim panel.



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:46 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.
