Volkswagen New Beetle. Manual - part 840





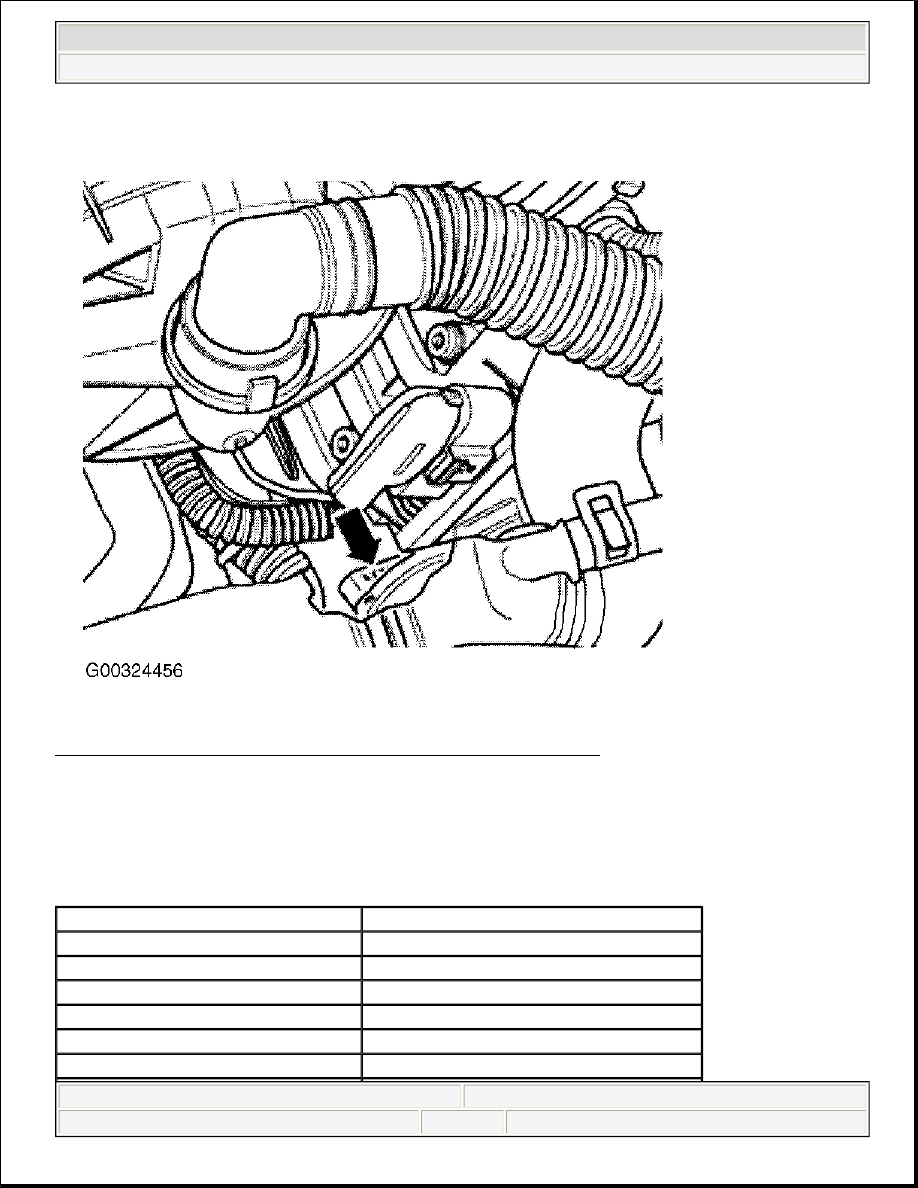

Fig. 3: Locating Engine Identification Code (2.0L - AVH/AZG & BDC)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

FUSES

FUSE COLOR IDENTIFICATION

FUSE COLOR/AMP RATING

Fuse Color

Amp Rating

Beige

Blue

15

Brown

7.5

Green

30

Red

10

Violet



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:45 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.

FUSE (HOLDER) PANEL LOCATION

Fuse (holder) panel is located behind trim panel on far left side of dashboard. See Fig. 4 .

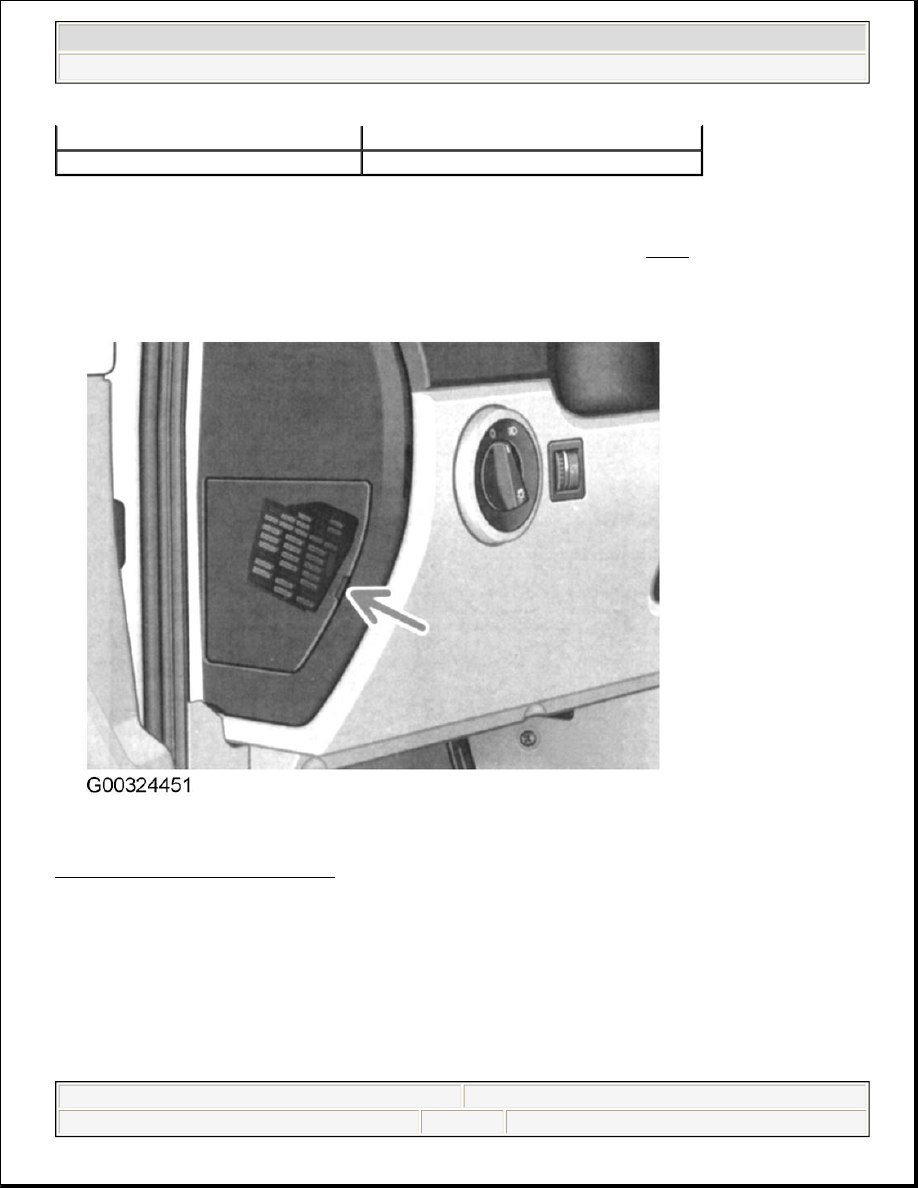

Fig. 4: Locating Fuse (Holder) Panel
Courtesy of VOLKSWAGEN UNITED STATES, INC.

White

25

Yellow

20



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:45 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

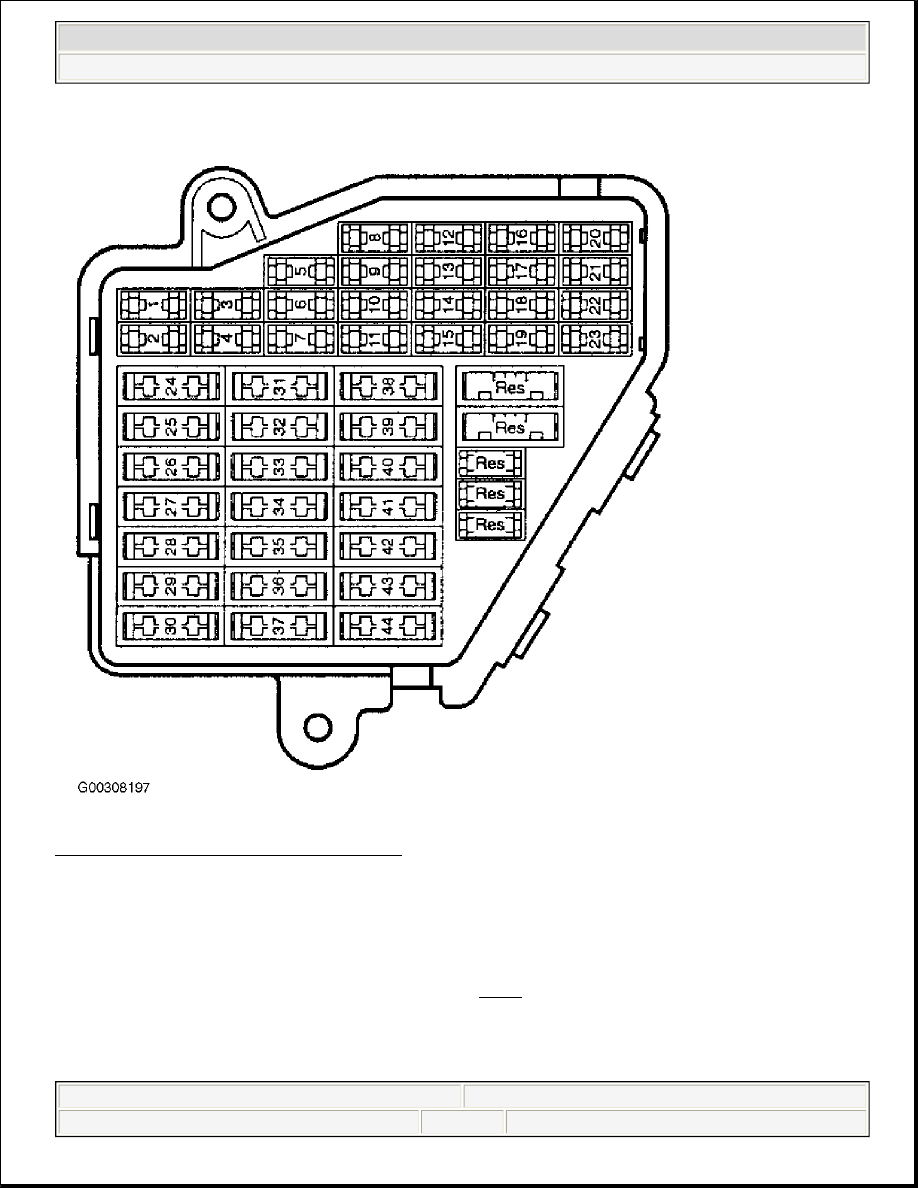

Fig. 5: Identifying Fuse Panel Fuse Locations
Courtesy of AUDI OF AMERICA, INC.

FUSE PANEL IDENTIFICATION

Fuse Bracket/Battery Panel

Fuse bracket/battery panel is located on battery cover. See Fig. 6



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:45 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

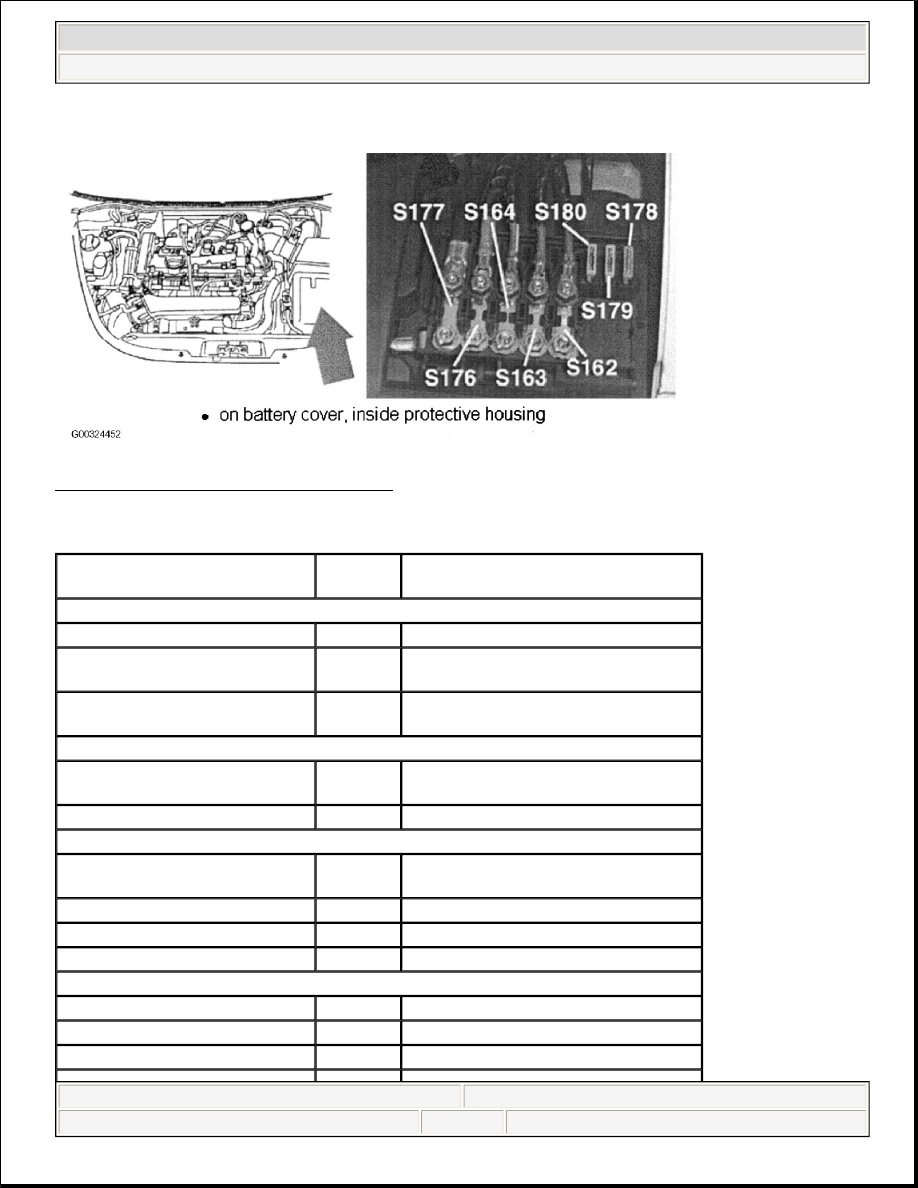

Fig. 6: Locating Fuse Bracket/Battery Panel
Courtesy of VOLKSWAGEN UNITED STATES, INC.

FUSE IDENTIFICATION (FUSE BRACKET/BATTERY PANEL)

Fuse No.

Amp

Rating

Circuit Protected

S162

Engine Codes AVH/AZG

50

Secondary Air Injection Pump Relay

Engine Code AWV

50

Fuse 51 (20 A), Secondary Air Injection

Pump Relay

Engine Code ALH

50

Preheating Coolant (Low & High Heat

Output) Relay

S163

Engine Codes AVH/AZG,
AWV & BDC

50

Fuel Pump Relay

Engine Code ALH

50

Glow Plug Triggering Control Module

S164

Engine Code AVH/AZG &
ALH

30

Coolant Fan Control Module

AWV

30

Third Speed Coolant Fan Control Relay

BDC

40

Secondary Air Injection Pump Relay

S176

110

Load Reduction Relay

S177

All Engine Codes

110

Generator

BDC

150

Generator

S178

30

ABS Control Module



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:45 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.
