09G 6-SPEED AUTOMATIC TRANSMISSION

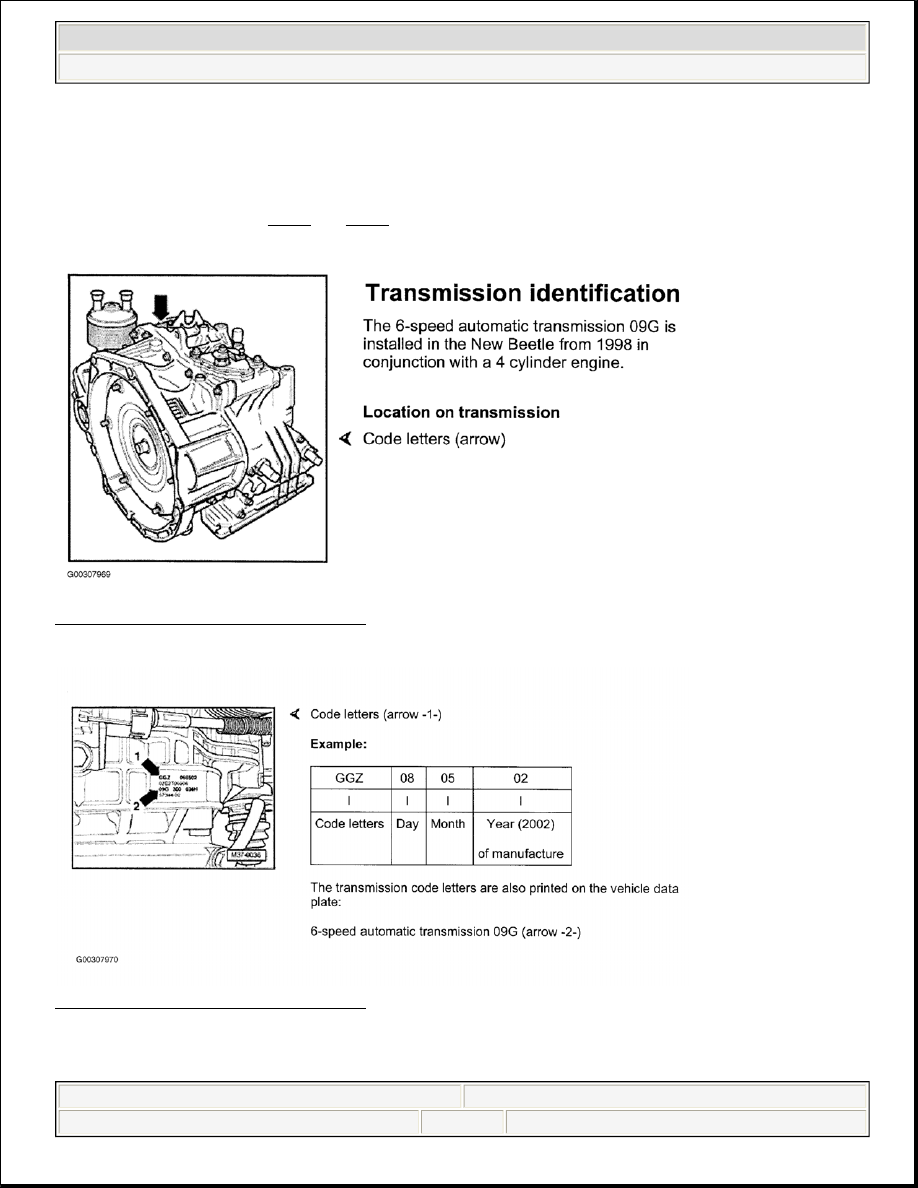

To identify transmission, see Fig. 5 and Fig. 6 .

Fig. 5: Identifying Transmission (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 6: Identifying Transmission (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

LUBRICATION



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:12 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

CONSTANT VELOCITY JOINT LUBRICATION

TRIPLE ROLLER JOINT (AAR 2000)

TRIPLE ROLLER JOINT (AAR 2900)

TRIPLE ROLLER JOINT (AAR 3300 i)

Application

Grease: Total Quantity

- Oz. (G)

Amount In Joint -

Oz. (G)

Amount In CV Boot -

Oz. (G)

Outer Joint

81 Mm
Diameter

2.8 (80)

1.4 (40)

1.4 (40)

90 Mm
Diameter

4.2 (120)

2.8 (80)

1.4 (40)

Inner Joint

94 Mm
Diameter

3.2 (90)

1.4 (40)

1.8 (50)

100 Mm
Diameter

4.2 (120)

1.8 (50)

2.5 (70)

Application

Grease: Total Quantity

- Oz. (G)

Amount In Joints -

Oz. (G)

Amount In CV Boot -

Oz. (G)

Outer Joint

90 Mm
Diameter

3.53 (100)

1.76 (50)

1.76 (50)

Inner Joint

100 Mm
Diameter

3.88 (110)

1.94 (55)

1.94 (55)

108 Mm
Diameter

3.88 (110)

1.94 (55)

1.94 (55)

Application  Grease: Total Quantity -

Oz. (G)

Amount In Joints -

Oz. (G)

Amount In CV Boot -

Oz. (G)

Outer Joint

90 Mm

3.53 (100)

1.76 (50)

1.76 (50)

Inner Joint

124 Mm

4.94 (140)

2.47 (70)

2.47 (70)

Application  Grease: Total Quantity -

Oz. (G)

Amount In Joints -

Oz. (G)

Amount In CV Boot -

Oz. (G)

Outer Joint

98 Mm

4.23 (120)

2.82 (80)

1.41 (40)

Inner Joint

123 Mm

4.59 (130)

2.47 (70)

2.12 (60)



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:12 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.

REMOVAL & INSTALLATION

FRONT AXLE SHAFT

Removal (All Except AAR 3300i, W/ 09G 6-Speed Auto. Trans.)

1. Lift vehicle until load on front axle is relieved. Loosen wheel hub 12-point nut. Raise and support

vehicle. Remove wheels. Remove noise insulation panel. See Fig. 7

NOTE:

The AAR 3300i axle shaft is used with the 09 G 6-speed automatic transmission.
To identify this transmission, see 09G 6-SPEED AUTOMATIC TRANSMISSION
under IDENTIFICATION.

CAUTION: Wheel bearings must not be loaded when wheel hub 12-point nuts are

loose. If wheel bearings are loaded by vehicle's own weight, bearings will
be stressed and their service life reduced.

CAUTION: If vehicle has to be moved after removing axle shaft, install outer CV joint

and tighten to 37 ft. lbs. (50 N.m) or else wheel bearing will be damaged.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:12 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

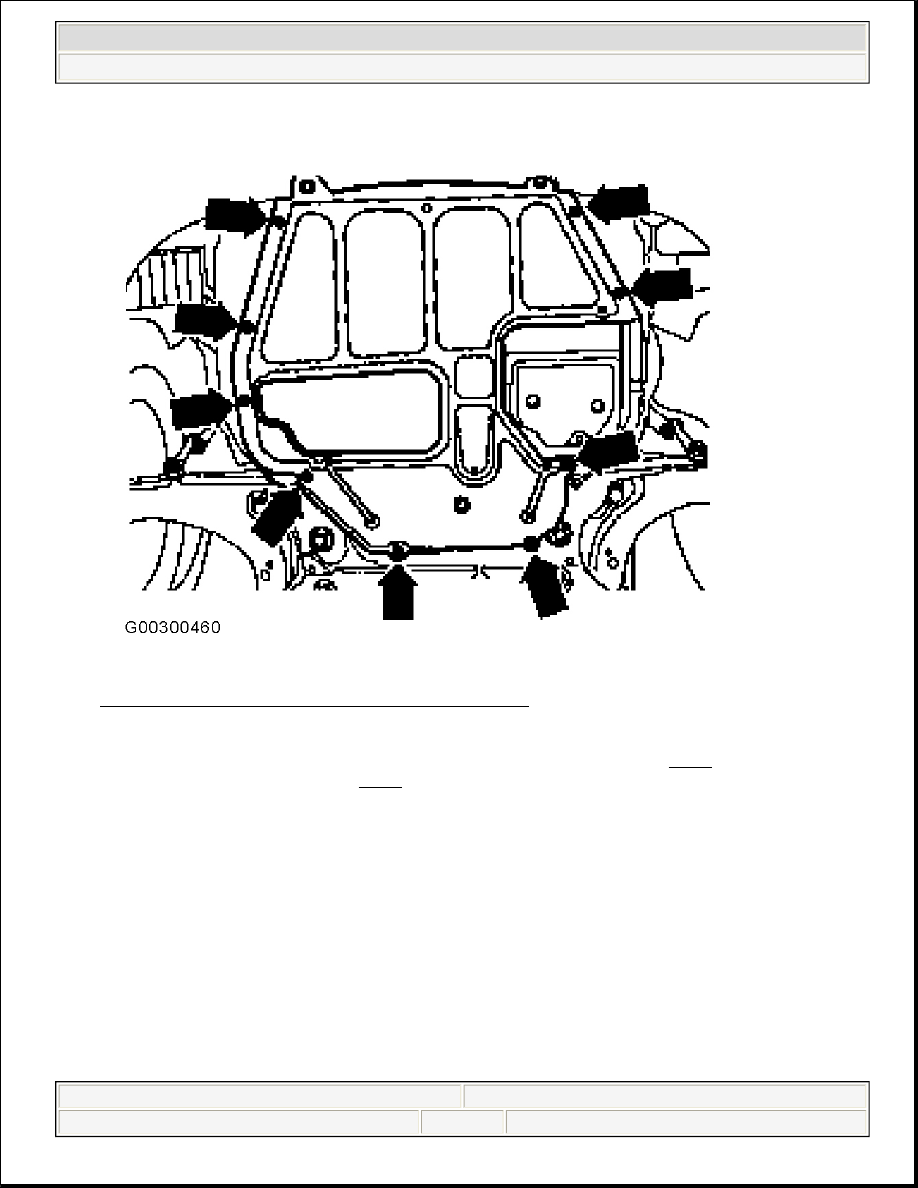

Fig. 7: Locating Noise Insulation Panel Bolts (1.9L TDI)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. On 1.8L (turbo) and 2.0L engines, remove left side noise insulation panel. See Fig. 8 . Remove center,

left and right insulation panels. See Fig. 9 Remove intake air duct between charge air cooler and
turbocharger.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:12 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.
