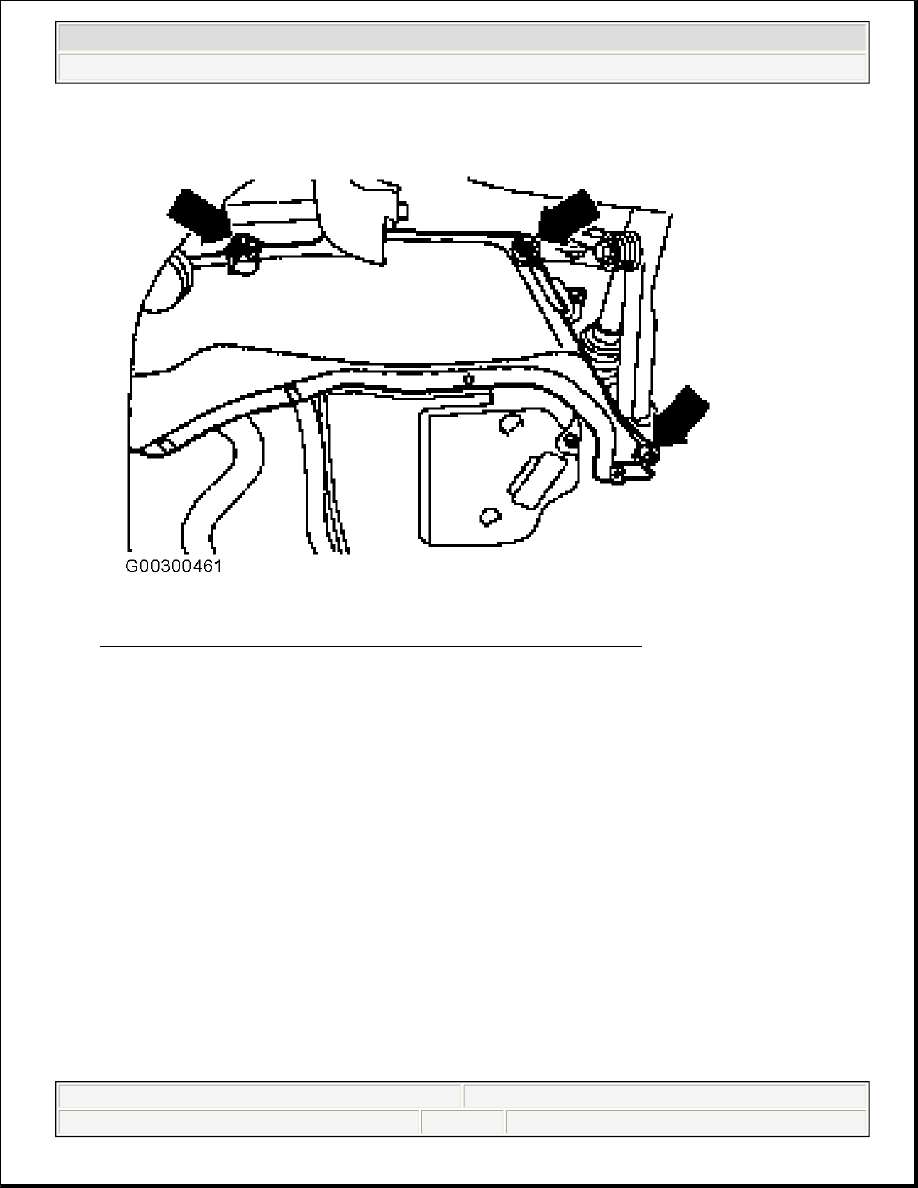

Fig. 8: Locating Noise Insulation Bolts (1.8L Turbo & 2.0L - Left Side)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:12 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

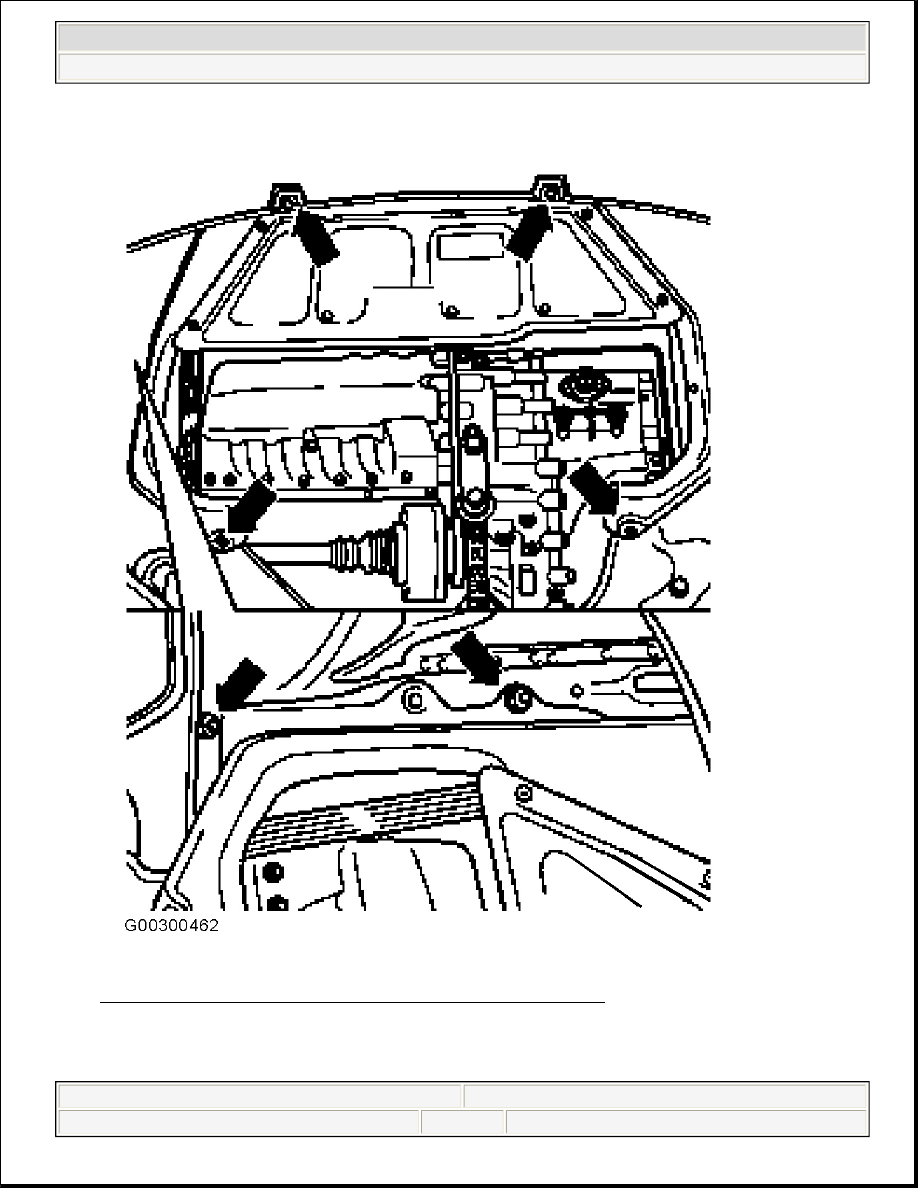

Fig. 9: Locating Noise Insulation Panel Bolts (1.8L Turbo & 2.0L)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. On all models, remove right-side noise insulation, if installed. Disconnect axle shaft from transmission

drive flange. Mark installation position of ball joint bolts to control arm. Remove bolts.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:12 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.

4.

Press out axle shaft. Ensure sufficient clearance is available when pressing axle shaft out. See Fig. 10 .
Remove axle shaft.

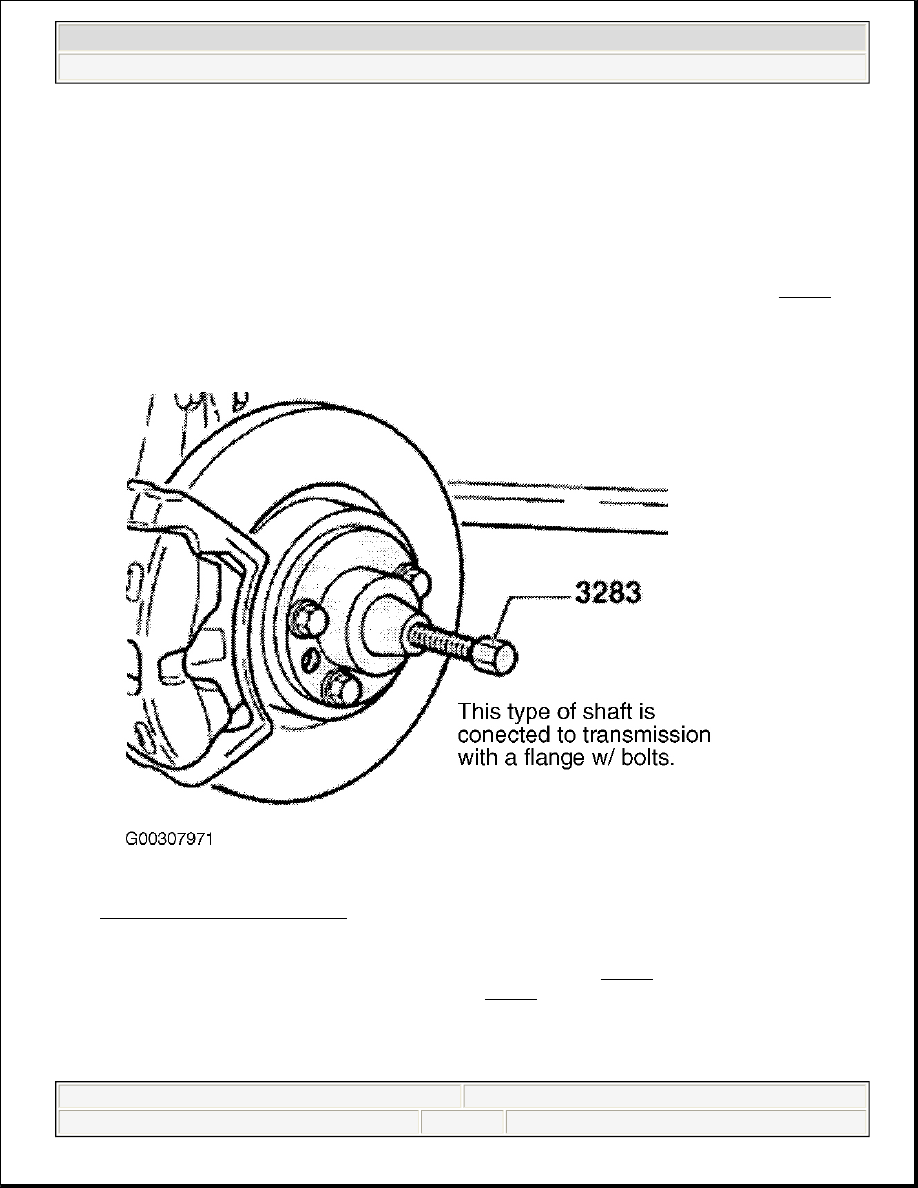

Fig. 10: Pressing Out Axle Shaft
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. On vehicles with automatic transmission, remove bolts (arrows). See Fig. 11 . Using a lever or similar,

push engine and transmission assembly forward. See Fig. 12 . Remove triple roller joint axle shaft.

CAUTION: DO NOT allow axle shaft to hang by inner CV or triple-rotor joint to

avoid damaging bearing surfaces. Tie axle shaft to stabilizer bar or
other suspension compnent if it is to remain attached to axle flange.
DO NOT flex inner CV or triple-rotor joint more than 25 degrees from
its original angle.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:12 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

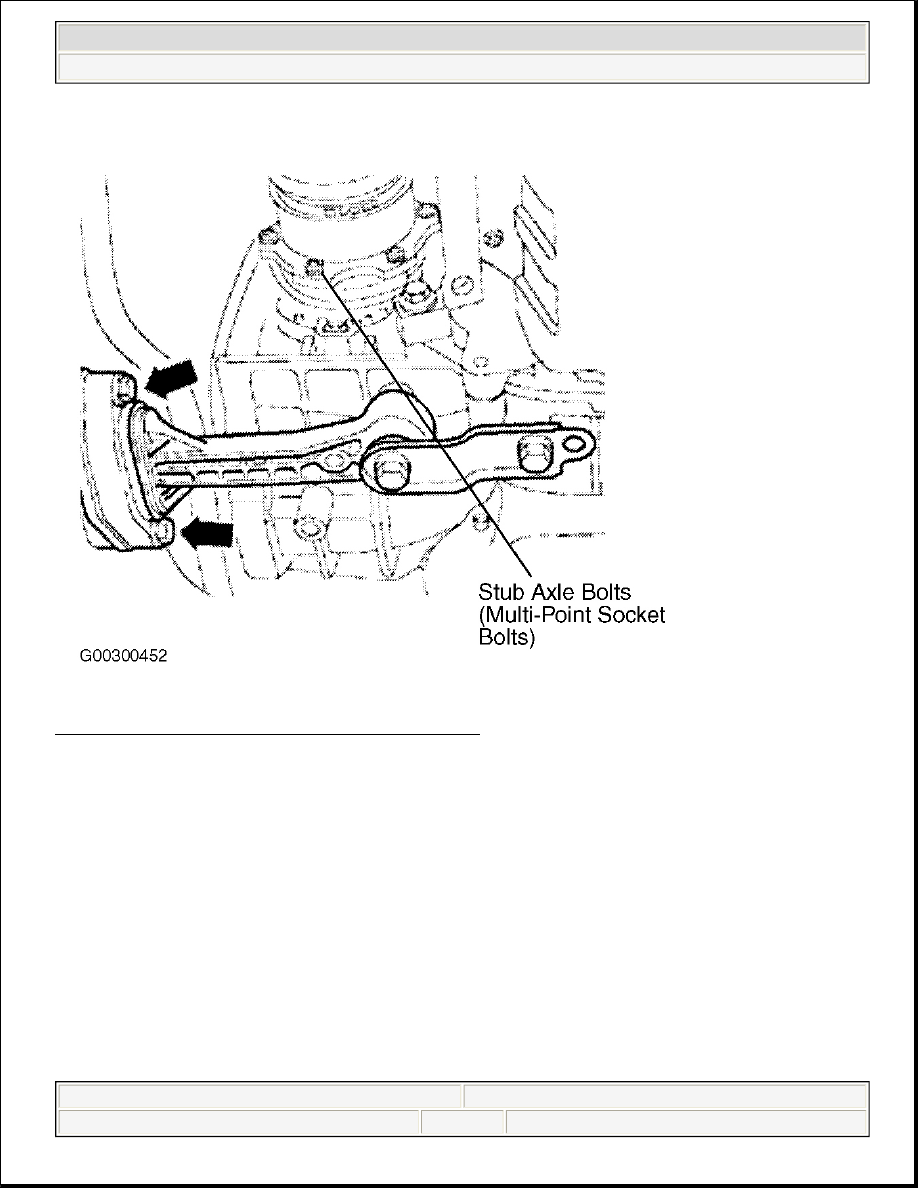

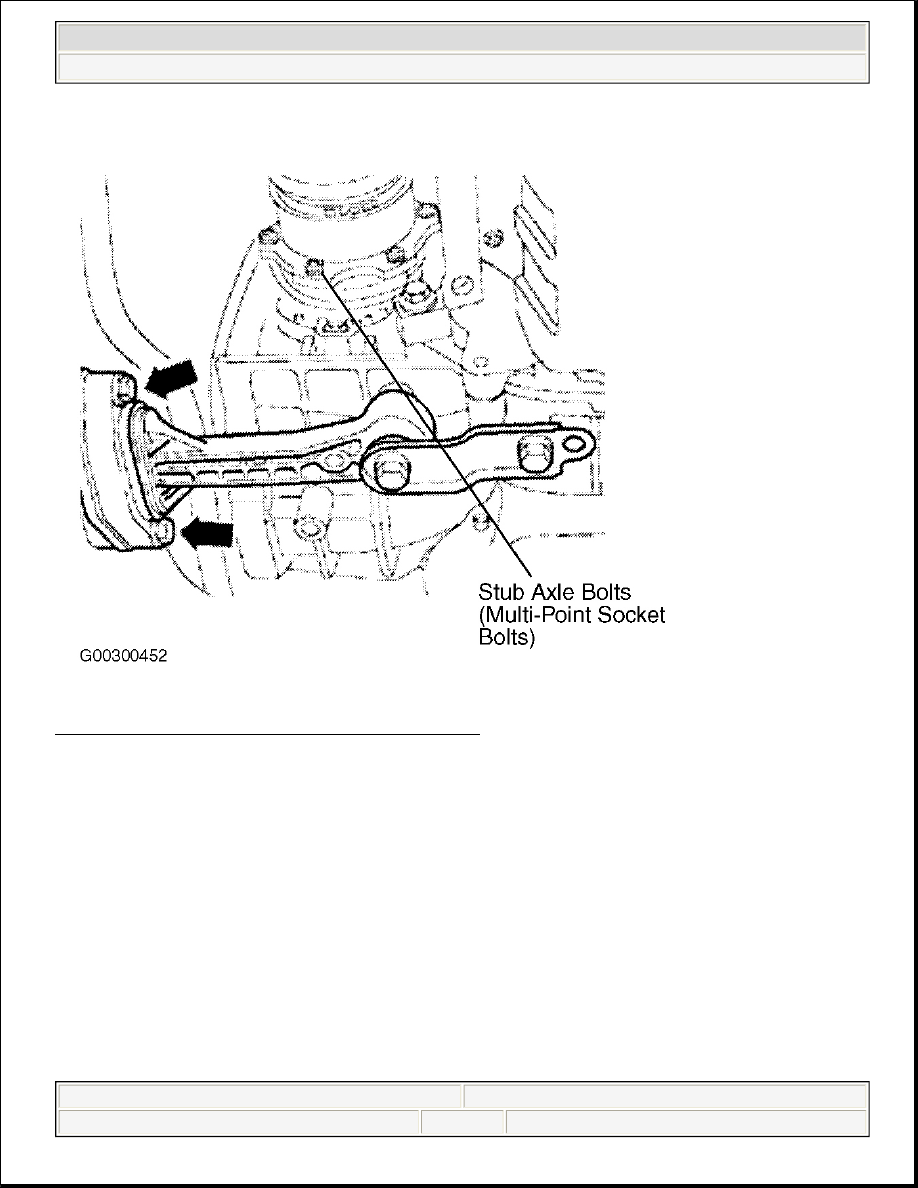

Fig. 11: Locating Pendulum Support & Stub Axle Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 DRIVE AXLES Axle Shafts - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:01:12 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.
