Volkswagen New Beetle. Manual - part 817

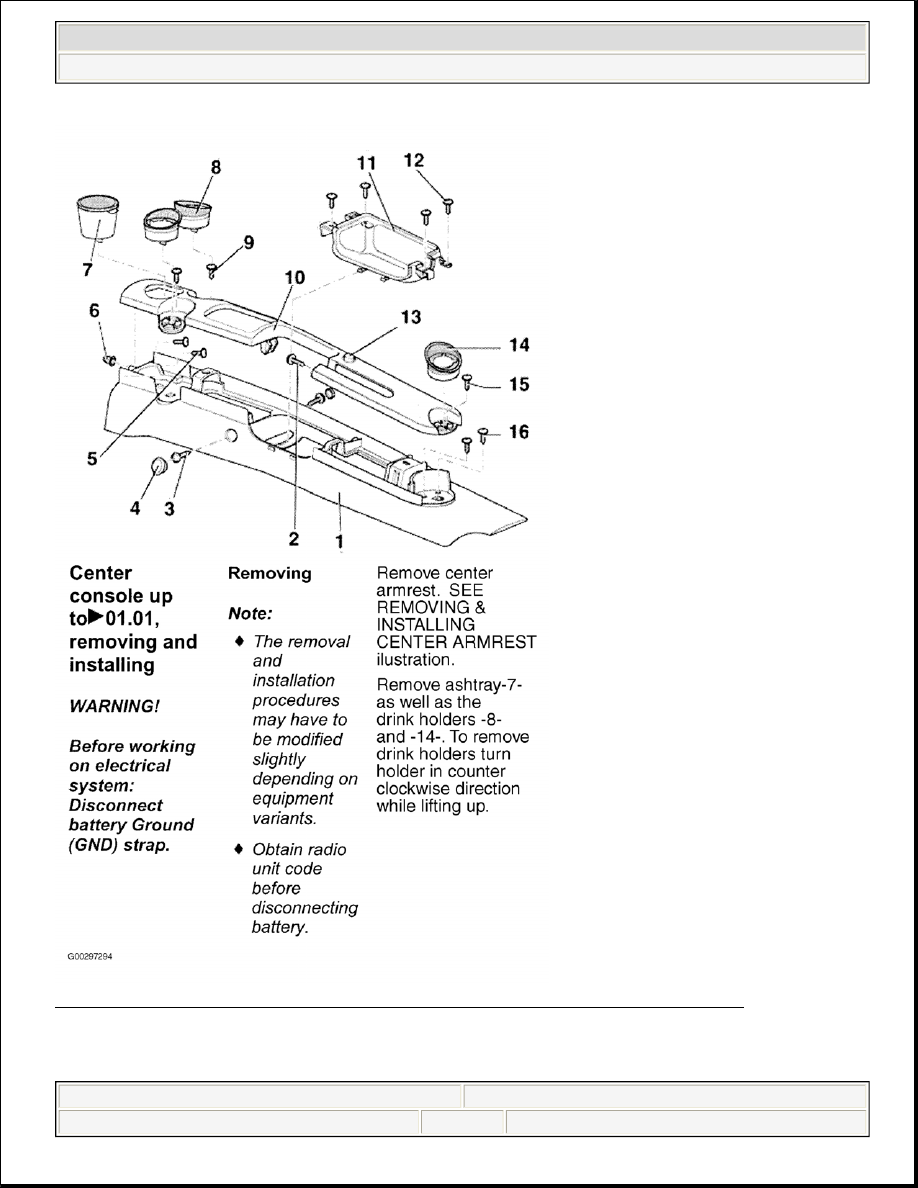

Fig. 25: Removing & Installing Center Console Models Built Up To January 2001 (1 Of 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.

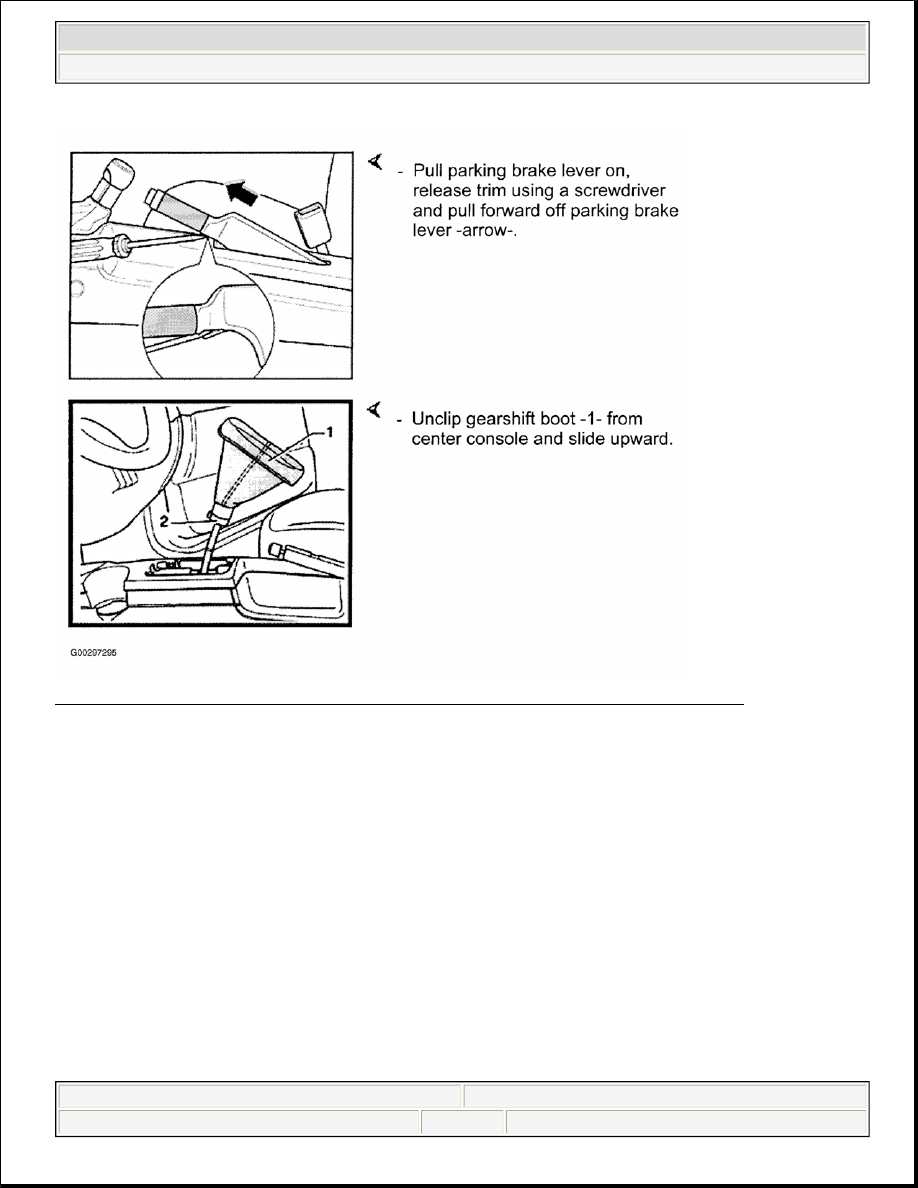

Fig. 26: Removing & Installing Center Console Models Built Up To January 2001 (2 Of 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:18 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.

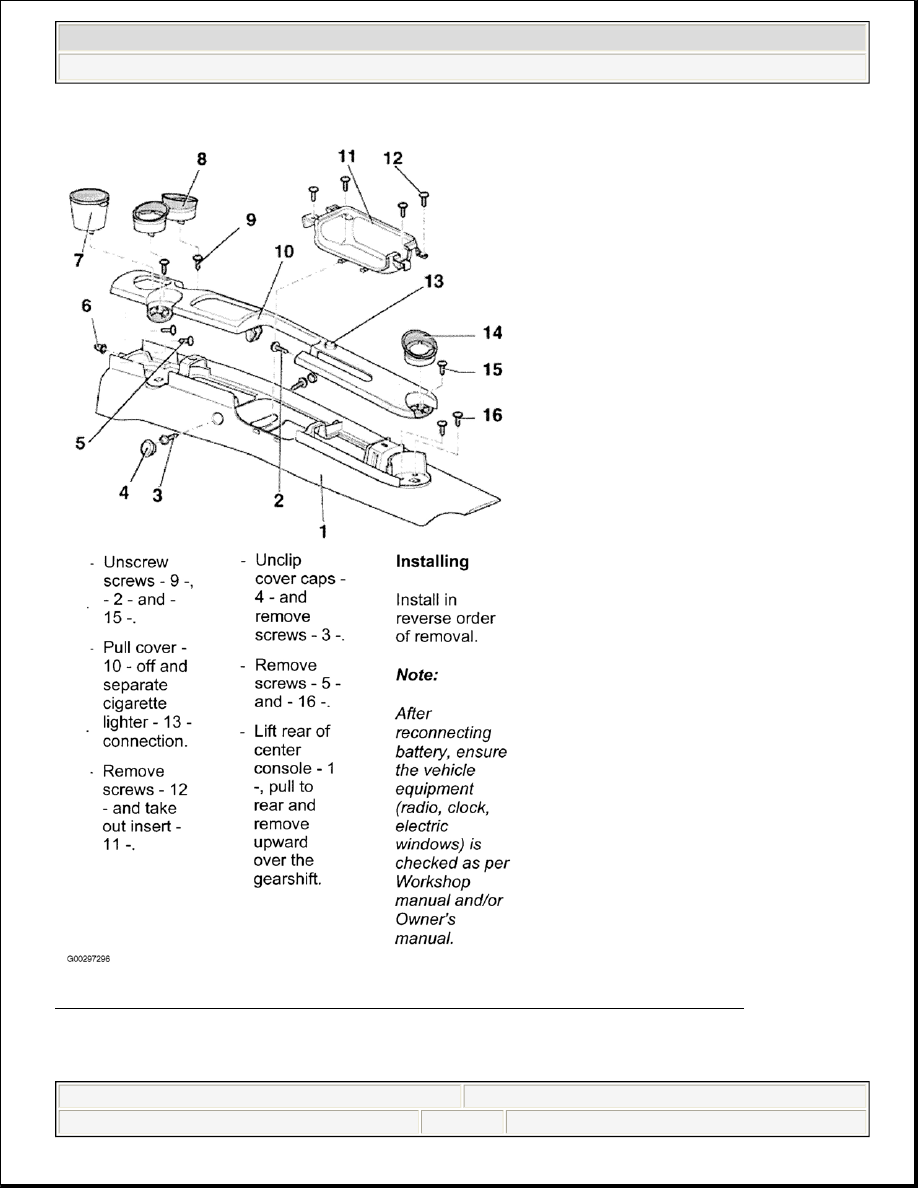

Fig. 27: Removing & Installing Center Console Models Built Up To January 2001 (3 Of 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:18 AM

Page 30

© 2004 Mitchell Repair Information Company, LLC.

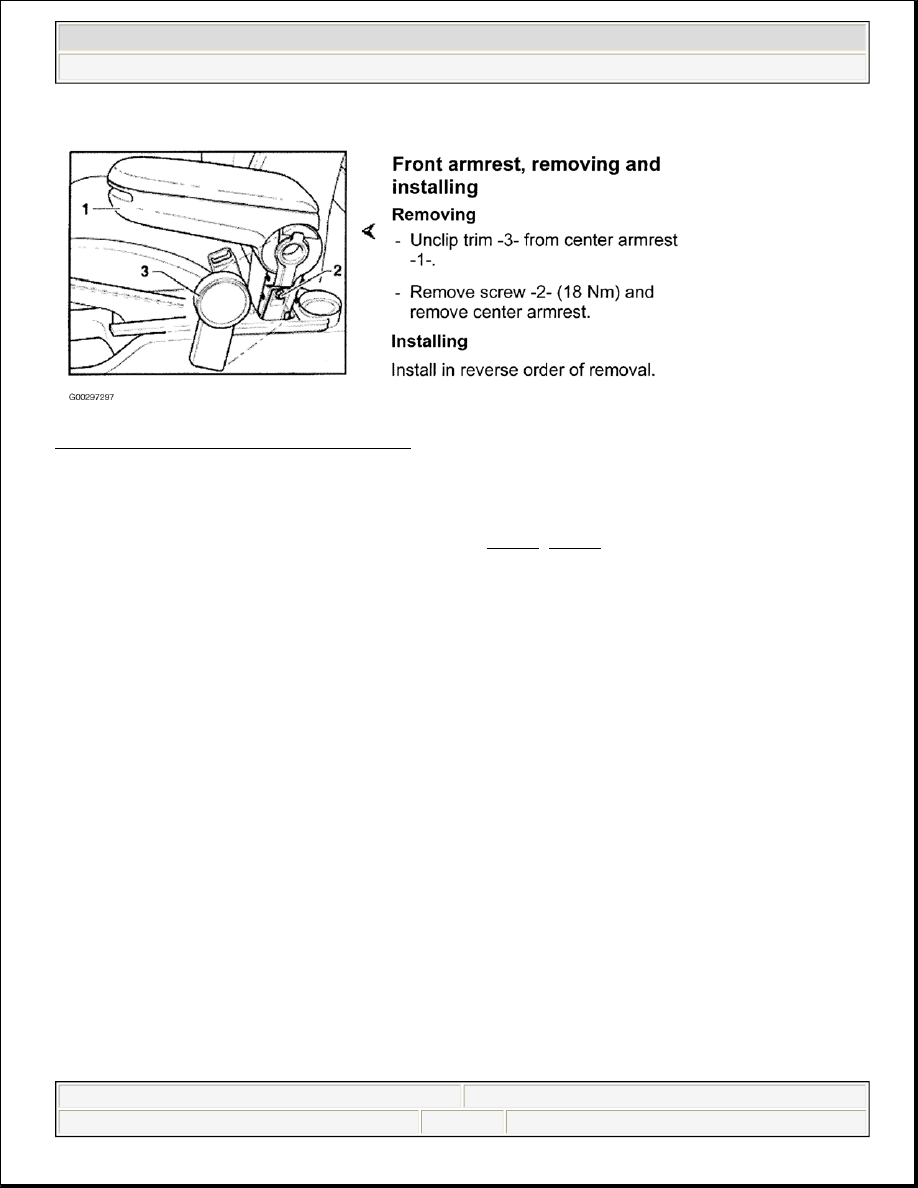

Fig. 28: Removing & Installing Front Armrest
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Models Built Between February 2001 To April 2003

For models built between February 2001 to April 2003, see Fig. 28 -Fig. 32
