Volkswagen New Beetle. Manual - part 816

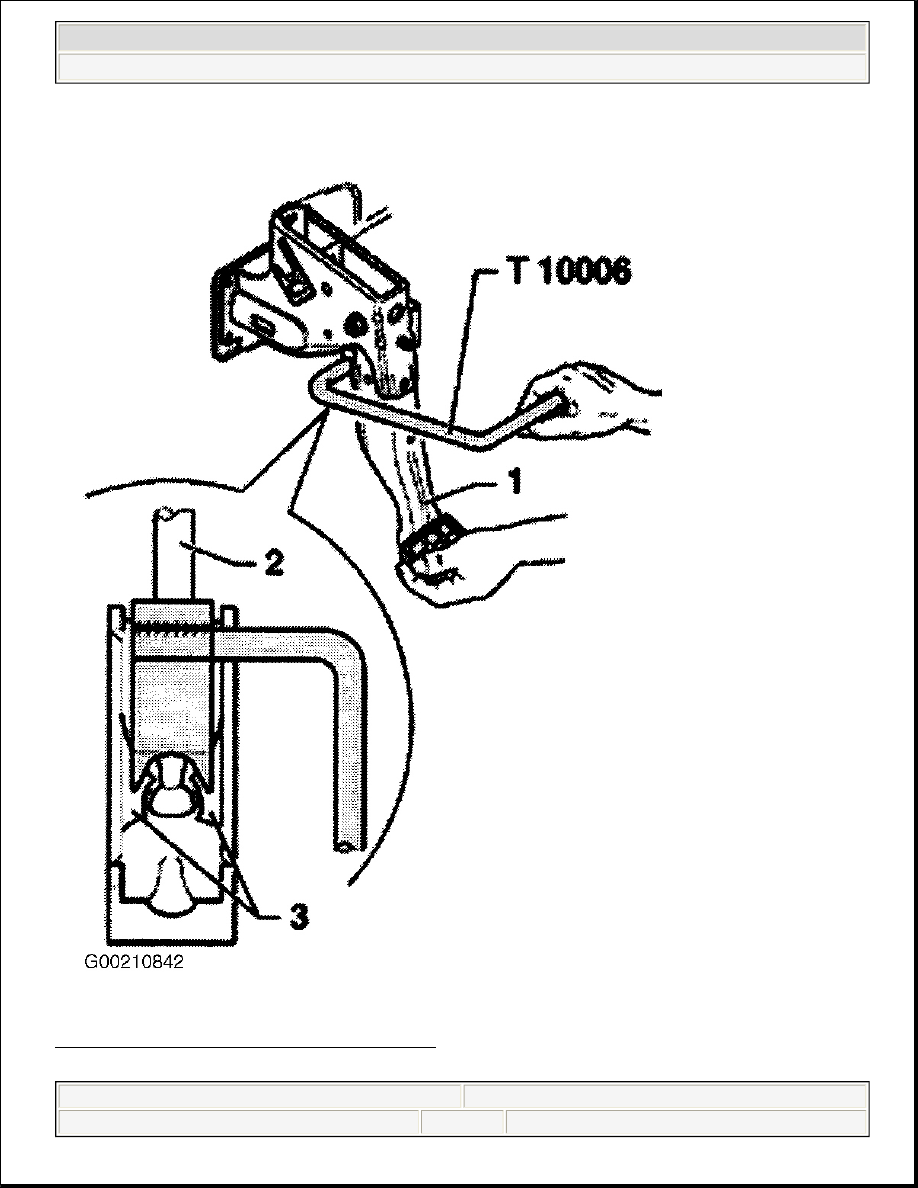

Fig. 22: Disconnecting Brake Pedal From Booster
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 24

© 2004 Mitchell Repair Information Company, LLC.

Installation

Before installing master cylinder, clean residual brake fluid from brake booster. Ensure push rod is properly
centered in master cylinder. To install, reverse removal procedure. Hold push rod ball head in front of mounting
and push brake pedal in direction of brake booster until the ball head engages audibly. Tighten fasteners to
specification. See TORQUE SPECIFICATIONS . Adjust brake light switch. See BRAKELIGHT SWITCH
under ADJUSTMENTS. Bleed brake system. See BLEEDING BRAKE SYSTEM .

BRAKELIGHT SWITCH

Before removing brakelight switch, identify which one of 2 possible switch types is installed. "Old style" switch
is identified by large approximately 10 mm plunger tip button, and square plunger shaft. "New style" switch is
identified by small approximately 4 mm plunger tip without button, and round plunger shaft.

Brakelight Switch (Old Style)

1. Remove driver's side lower instrument panel cover. Brakelight switch is located on bracket above brake

pedal. Disconnect brake light switch harness connector. See Fig. 23 . Turn brakelight switch 90°
counterclockwise, and guide switch from bracket.

2. To install, pull switch plunger out to stop. Depress and hold brake pedal in down position. Guide switch

into opening and turn 90° clockwise. Slowly release brake pedal to stop. This automatically adjusts
switch plunger travel. Verify proper function of brake lights.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 25

© 2004 Mitchell Repair Information Company, LLC.

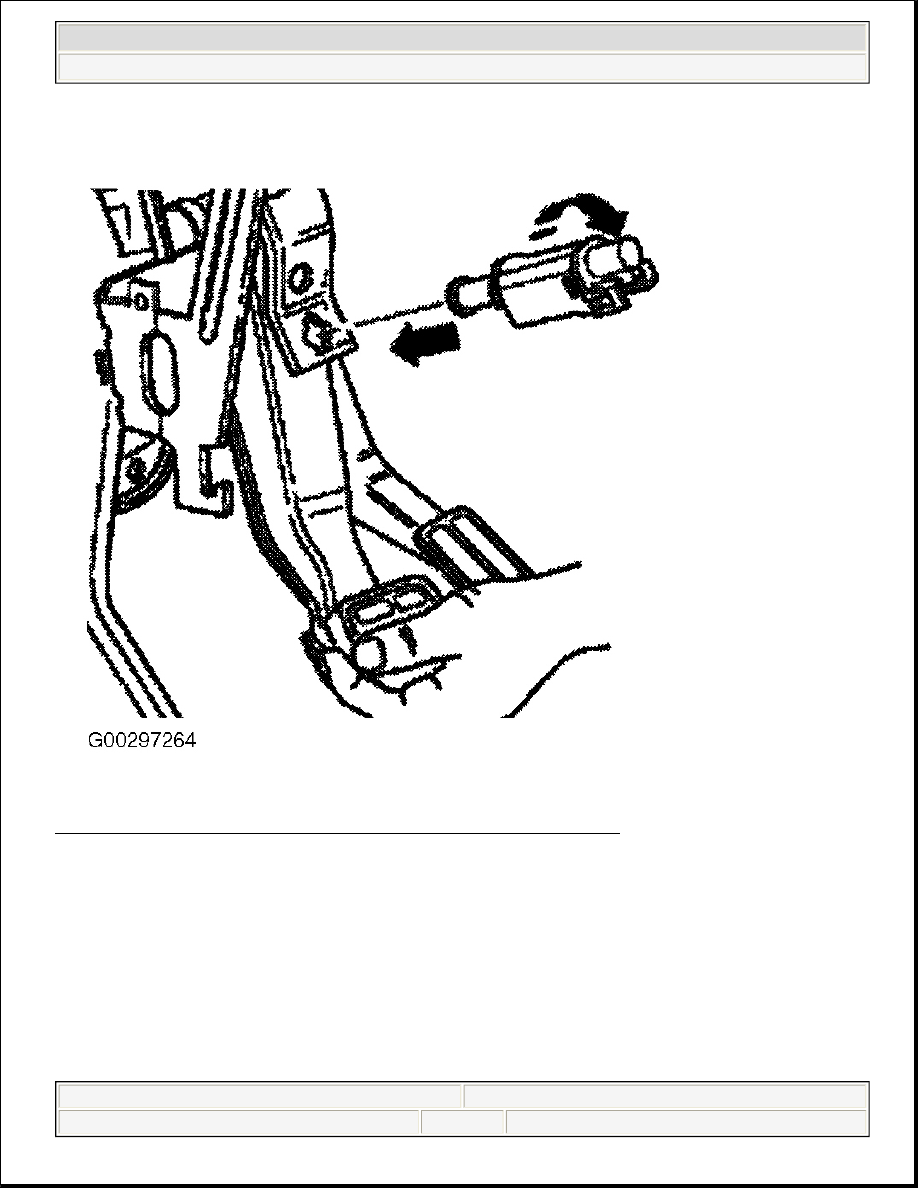

Fig. 23: Removing, Installing & Adjusting Brake Light Switch (Old Style)
Courtesy of AUDI OF AMERICA, INC.

Brakelight Switch (New Style)

1. Remove driver's side lower instrument panel cover. Brakelight switch is located on bracket above brake

pedal. Disconnect brake light switch harness connector. Turn brakelight switch 45° counterclockwise, and
guide switch from bracket. Dispose of switch accordingly. "New style" switches must NOT be reused
after removal. Always replace.

2. "New style" switches have an internal switch mechanism that will be damaged if not installed and

adjusted according to the following procedure. DO NOT depress switch plunger or otherwise rotate the
retaining collar of the switch prior to installation. Brake pedal must be held in the up position (not
depressed) during switch installation.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

3. Pull out plunger completely (arrow). See Fig. 24 . Hold brake pedal in up position (against stop). Note

orientation of retainer tabs on switch and carefully insert switch into retainer mounting hole.

4. Push switch in and seat fully into opening (pressing plunger against brake pedal to adjust). Once seated,

secure switch by turning clockwise 45°. This action turns the plunger shoe into the correct orientation to
make electrical contacts in switch operate, as well as locks in the plunger adjustment against the brake
pedal. Switch must be rotated until it is fully locked and harness connector is in horizontal position.
Inspect to ensure internal stop pin on retaining collar is fully seated against outer shell. Reconnect
brakelight switch harness connector. Verify proper function of brake lights.

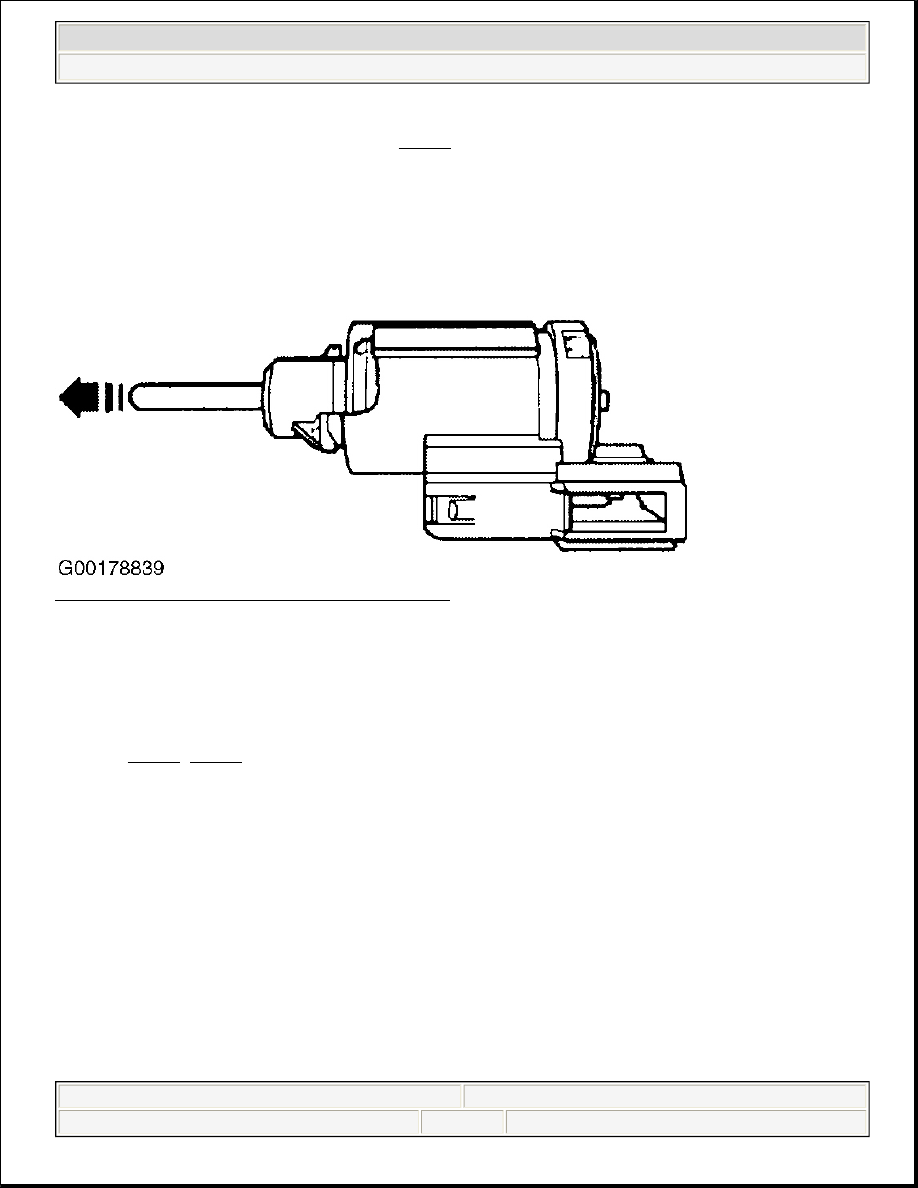

Fig. 24: Identifying Brake Light Switch (New Style)
Courtesy of AUDI OF AMERICA, INC.

CENTER CONSOLE

Models Built Up To January 2001

Use following illustrations to aid in removing and installing center console. For models built up to January
2001, see Fig. 25 -Fig. 28 .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.
