Volkswagen New Beetle. Manual - part 815

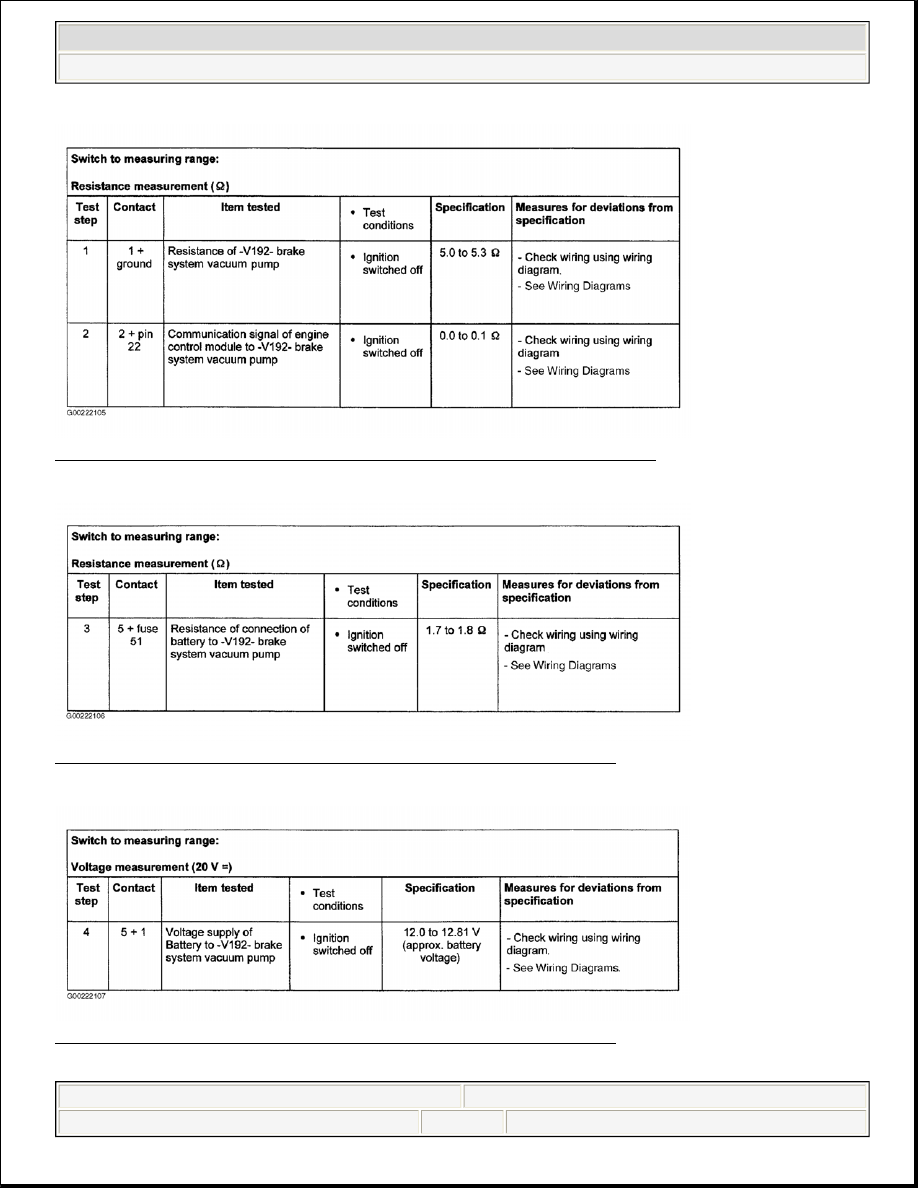

Fig. 17: Vacuum Pump Electrical Test Steps No. 1 & 2 (Models From 06/2002)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 18: Vacuum Pump Electrical Test Step No. 3 (Models From 06/2002)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 19: Vacuum Pump Electrical Test Step No. 4 (Models From 06/2002)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

SERVICING

Manufacturer recommends replacing brake fluid every 2 years. After replacing brake fluid, bleed brake system.
See BLEEDING BRAKE SYSTEM .

REMOVAL & INSTALLATION

BRAKE BOOSTER

Removal

1. Obtain radio code. Disconnect negative battery cable. Clamp and remove clutch master cylinder supply

hose. Remove ABS control module and hydraulic unit. See REMOVAL & INSTALLATION in
appropriate ANTI-LOCK BRAKE SYSTEM article. Disconnect brake lines to master cylinder.
Disconnect vacuum hose from brake booster.

2. On vehicles equipped with 1.9L TDI engine, remove retainer for wiring harness from vacuum pump.

3. On all models, remove harness connector from retainer (2). See Fig. 20 . Disconnect in-line harness

connector (1).

4. Remove lower instrument panel trim. Remove bolts (1) and remove cover "A". See Fig. 21 . On vehicles

equipped with manual transmission, remove connecting plate between clutch and brake pedals. Remove
brake light switch. See appropriate procedure under BRAKELIGHT SWITCH

WARNING:

Use only DOT 4 brake fluid from a sealed container. DO NOT mix brake
fluid with any other type.

CAUTION: Brake fluid will damage painted surfaces. If brake fluid is spilled on

painted surface, wipe it off immediately and clean with alcohol.

CAUTION: Brake fluid will damage painted surfaces. If brake fluid is spilled on

painted surface, wipe it off immediately and wash with water.

CAUTION: When battery is disconnected, vehicle computer and memory systems

may lose memory data. Driveability problems may exist until adaptation
systems have completed a relearn cycle. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION before disconnecting
battery.

NOTE:

Before disconnecting battery, on vehicles equipped with coded anti-theft radio,
note radio code, obtain if necessary.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.

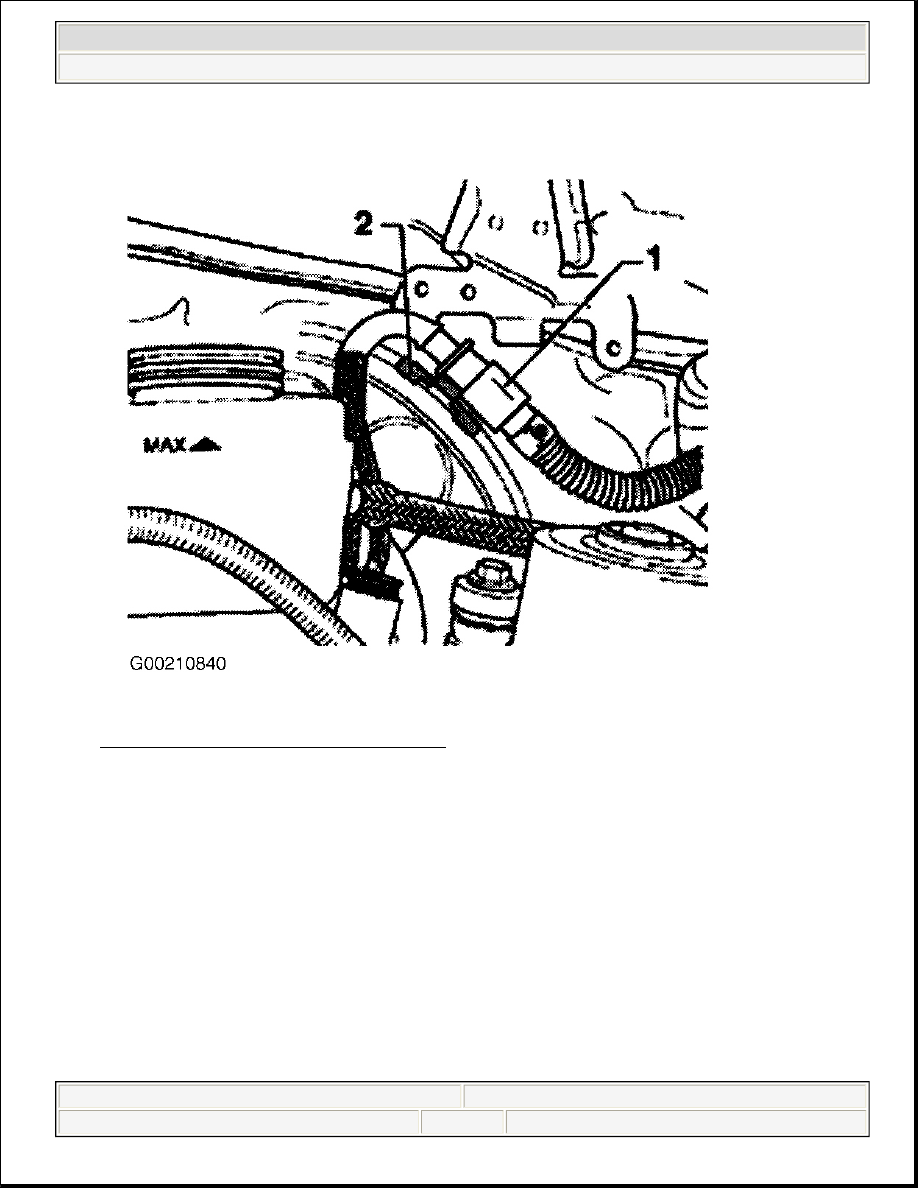

Fig. 20: Locating In-Line Harness Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 22

© 2004 Mitchell Repair Information Company, LLC.

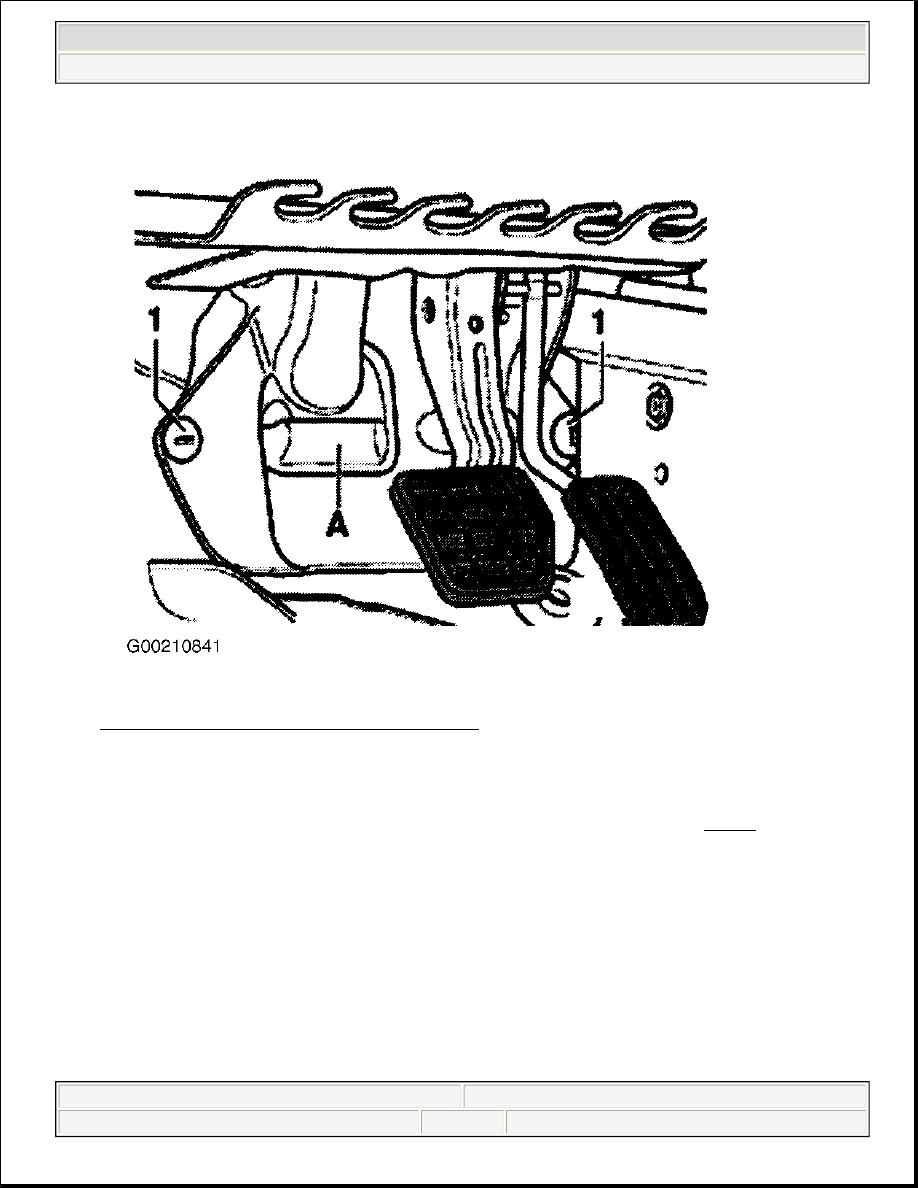

Fig. 21: Removing Lower Instrument Panel Trim
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. Remove brake pedal from brake booster by first pressing brake pedal in direction of brake booster and

hold. Insert special tool T 10006 and pull in direction of driver's seat, when doing this counter-hold on
brake pedal (at this moment the pedal must not be allowed to move backward). See Fig. 22 . Mounting
retaining tabs will be pressed off the ball head of the push rod. For ease of illustration separating the
brake pedal from the brake booster is shown with the pedal cluster removed.

6. Remove brake booster-to-firewall nuts. Guide brake booster with brake master cylinder forward to

remove.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:17 AM

Page 23

© 2004 Mitchell Repair Information Company, LLC.
