Volkswagen New Beetle. Manual - part 790





Fig. 190: V.A.G 1551 Scan Tool Display - Checking Speed Sensor Application (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press C key for the next display group number entry.

If the --> key is pressed, keys 0 and 8 for work sequence "Read measured value block" must be pressed again
afterwards to regain entry.

DISPLAY GROUP NUMBER: 001

Checking speed sensor

Display group number 002

NOTE:

For display group number 001 remember:
The actual wheel speeds are displayed. They serve to check the speed sensor
allocation to the wheel. (The vehicle must be raised and the wheel must be
rotated by hand by a 2nd mechanic).

Read measured value block

1 -->

Display group number: 001

0km/h

4km/h

0km/h

0 km/h

<-Indicated on display: (Example)









Wheel speed at right rear speed sensor

z

(0...255 km/h)







Wheel speed at left rear speed sensor

z

(0...255 km/h)





Wheel speed at right front speed sensor

z

(0...255 km/h)



Wheel speed at left front speed sensor

z

(0...255 km/h)



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Press keys 0, 0 and 2.

z

Confirm entry with key Q.

z

There are always 4 display zones -arrows- in the measured value block. Decoding the individual values in
display zones 1 to 4 can be read-off from the following tables.

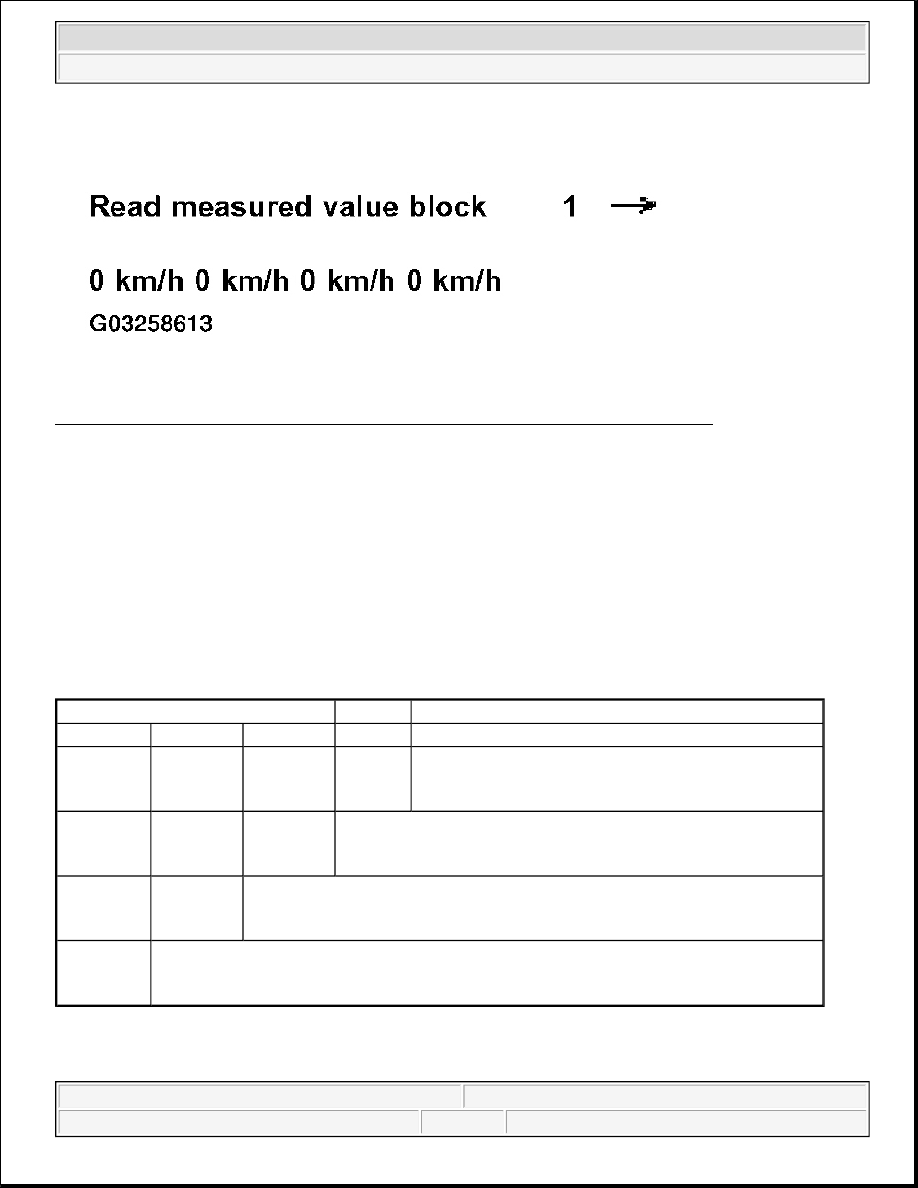

Fig. 191: V.A.G 1551 Scan Tool Display - Checking Speed Sensor (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (vehicle stationary)

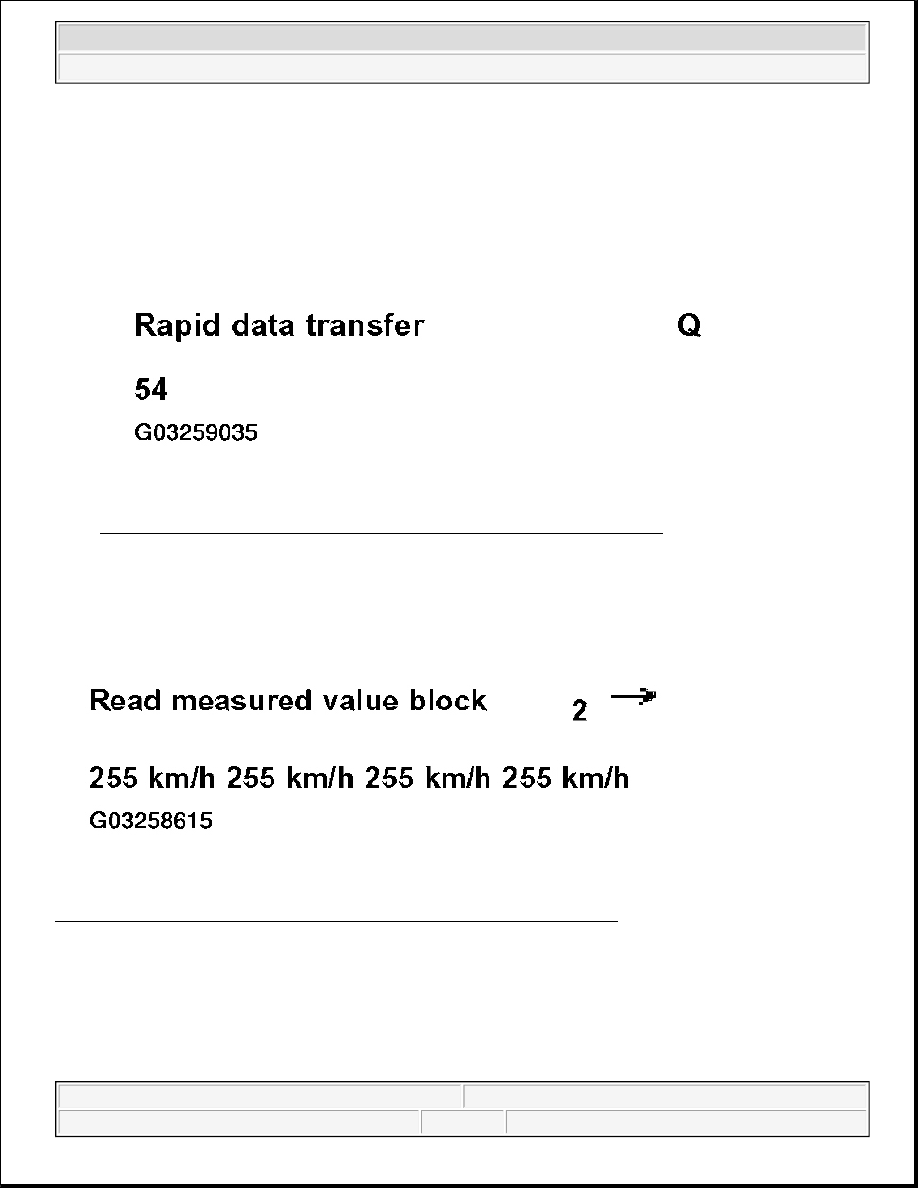

Fig. 192: V.A.G 1551 Scan Tool Display - Checking Speed Sensor (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press C key for the next display group number entry.

If the --> key is pressed, keys 0 and 8 for work sequence "Read measured value block" must be pressed again
afterwards to regain entry.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



DISPLAY GROUP NUMBER: 002

Checking brake light switch, brake system warning lamp, ABS warning lamp and ASR/ESP warning light

Display group number 003

z

Press keys 0, 0 and 3

z

Confirm entry with key Q.

z

There are always 4 display zones -arrows- in the measured value block. Decoding the individual values in
display zones 1 to 4 can be read-off from the following tables.

NOTE:

For display group number 002 remember: The reading of measured value
blocks in display group number 002 must be undertaken when driving off
slowly. Then the ABS control module (w/EDL) -J104- will store the first usable
voltage signals provided by the speed sensors and display these as a fixed
value in the measured value block.

Read measured value block

2 -->

Display group number: 002

3 km/h

(1)

6 km/h

(1)

2 km/h

(2)

1 km/h

(2)

<- - Indicated on display: (when driving off slowly)









Wheel speed at right rear speed sensor

z

(0...255 km/h)







Wheel speed at left rear speed sensor

z

(0...255 km/h)





Wheel speed at right front speed sensor

z

(0...255 km/h)



Wheel speed at left front speed sensor

z

(0...255 km/h)

(1)

If the deviations in display zones 1 and 2 are greater than 6 km/h (approx. 3.75 mph), the following
malfunctions may be present:

(2)

If the deviations in display zones 3 and 4 are greater than 2 km/h (approx. 1.25 mph), the following
malfunctions may be present. Air gap between speed sensor and rotor may be too big: Check that
speed sensor is screwed correctly to wheel bearing housing. Speed sensor or rotor exterior damaged:
Change damaged component.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 193: V.A.G 1551 Scan Tool Display - Checking Brake Light Switch (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (vehicle stationary)

Press C key for the next display group number entry.

If the --> key is pressed, keys 0 and 8 for work sequence "Read measured value block" must be pressed again
afterward to regain entry.

Fig. 194: V.A.G 1551 Scan Tool Display - Checking Brake Light Switch (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUP NUMBER: 003

Read measured value block

3 -->

Display group number: 003

not
oper.

off

off

off

< - - Indicated on display









ASR/ESP warning light

z

off

z

on



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
