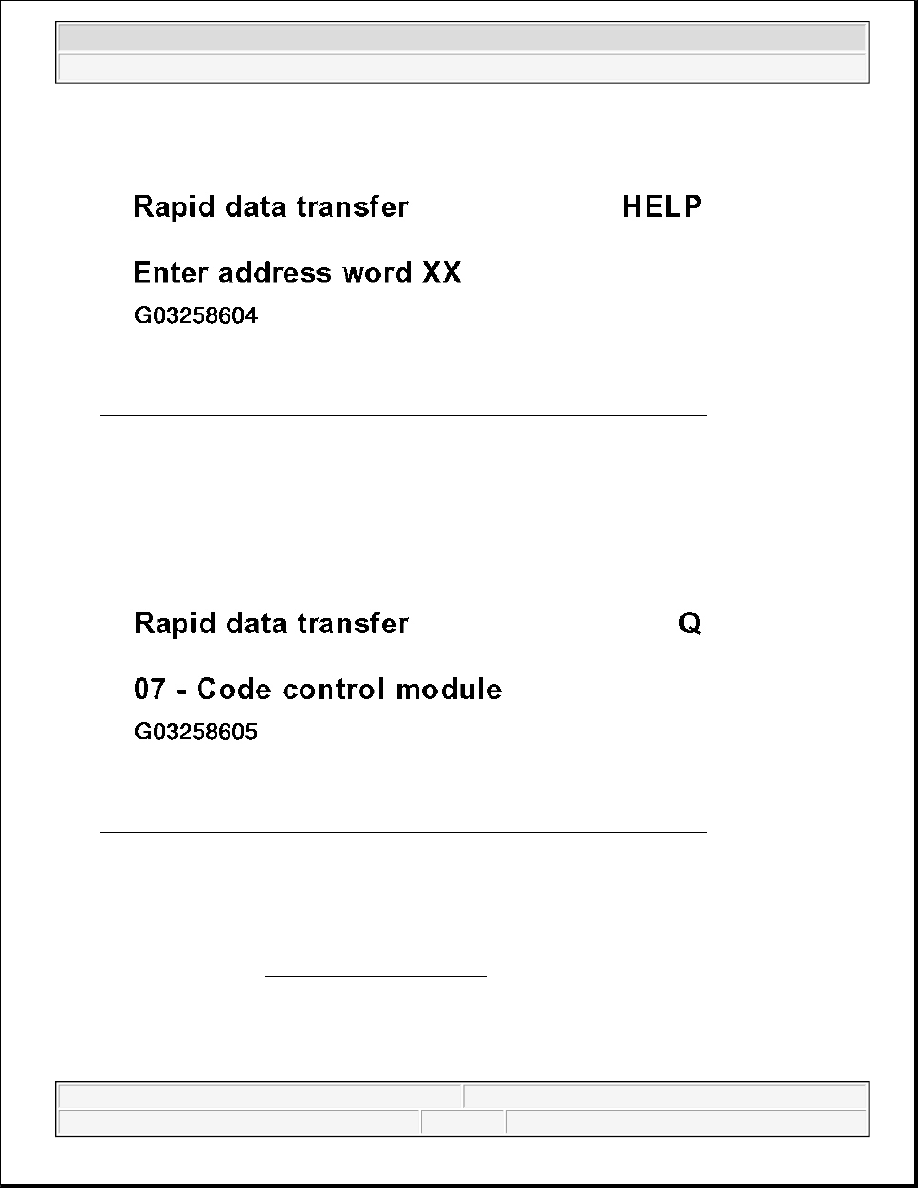

Fig. 181: V.A.G 1551 Scan Tool Display - Coding ABS Control Module (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm input with Q key.

Fig. 182: V.A.G 1551 Scan Tool Display - Coding ABS Control Module (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Enter the relevant code number for this vehicle and confirm with Q key.

Coding variations, see CODING TABLE FOR ABS .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

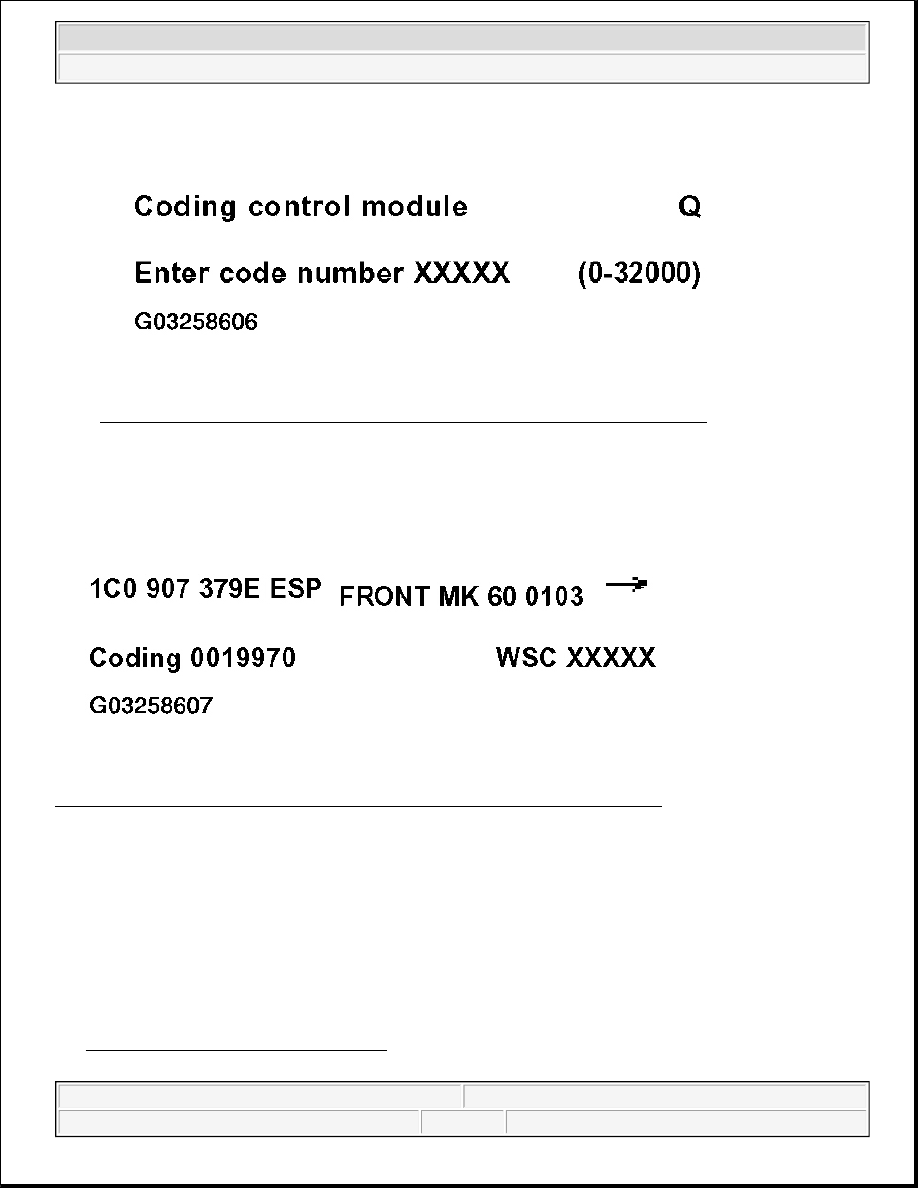

Fig. 183: V.A.G 1551 Scan Tool Display - Coding ABS Control Module (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module identification is displayed on display of V.A.G 1551 scan tool, e.g.:

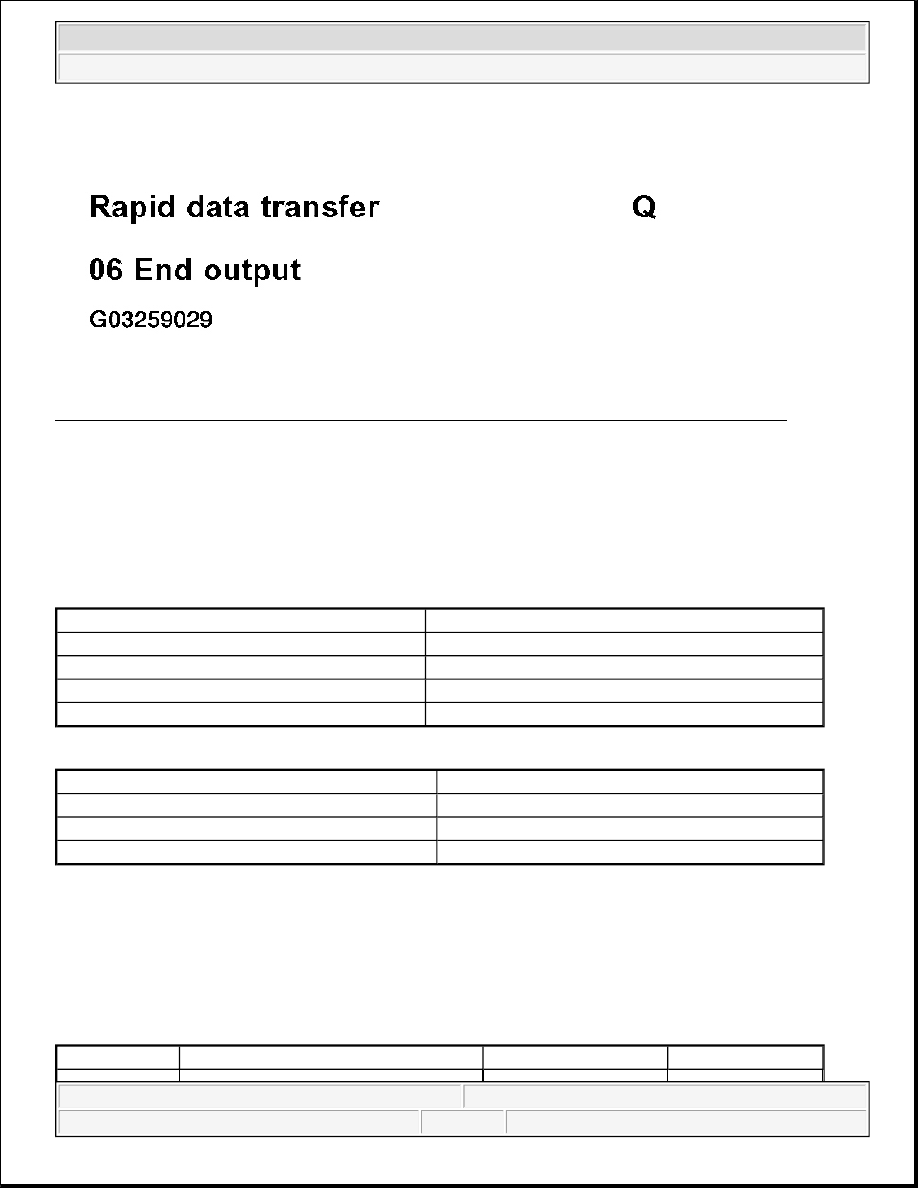

Fig. 184: V.A.G 1551 Scan Tool Display - Coding ABS Control Module (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

VEHICLE DATA LABEL

Explanation of the PR. numbers on vehicle data label

Various wheels are installed depending on engine and equipment level. These are identified by the PR.
numbers.

The wheel installed in the vehicle is documented on the vehicle data label with the relevant PR number.

See SPECIFICATIONS & PROCEDURES .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 185: Identifying Location Of Optional Equipment Number (PR No.) On Vehicle Data Plate
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Depending on equipment level, the PR number is printed in different locations on the vehicle data label.

In this example the vehicle is equipped with the standard wheel 1ZM -arrow-.

The PR numbers are critical for the assignment of coding.

PR NUMBER (1 Of 2)

PR NUMBER (1 OF 3)

Coding table for ABS

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle

With control unit identification number 1C0 907 379 C/J/L for vehicles from m.y. 10.00

CODING

PR number

Brakes

1LS

FS III Brakes

1LQ

FS III Brakes

1ZM

FS III Brakes

1ZF

FS III Brakes

PR number

Brakes

1LE

FN 3 Brakes

1LJ

FN 3 Brakes

1ZE

FN 3 Brakes

Engine

Engine code

Vehicle type

Code number



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Table for ABS/EDL, coding

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle

With control unit identification number 1C0 907 379 E for vehicles up to m.y. 09.2000

CODING

Table for ABS/EDL/ASR, coding

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle

With control unit identification number 1C0 907 379 D/K for vehicles from m.y. 10.00

ABS/EDL/ASR CODING

Table for ABS/EDL/ASR/ESP, coding

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle

With control unit identification number 1C0 907 379 for vehicles up to m.y. 09.00

ABS/EDL/ASR/ESP CODING

Table for ABS/EDL/ASR/ESP, coding

z

Note: the control module must be coded with the same code number as the previous control module
installed in the vehicle

1.8 ltr.

APH; AWV; AWP

Front wheel drive

04097

1.9 ltr. TDI

ALH; BEW

Front wheel drive

04097

2.0 ltr.

AEG;AVH;AZG;BBW, BEV

Front wheel drive

04097

Engine

Engine code

Vehicle type

Code number

1.8 ltr.

APH; AWV

Front wheel drive

13504

1.9 ltr. TDI

ALH

Front wheel drive

13504

2.0 ltr.

AEG

Front wheel drive

13504

Engine

Engine code

Vehicle type

Code number

1.8 ltr.

APH; AWV; AWP

Front wheel drive

18945

Engine

Engine code

Vehicle type

Code number

1.8 ltr.

APH; AWV

Front wheel drive

18945

1.9 ltr. TDI

ALH

Front wheel drive

18945

2.0 ltr.

AEG; AVH; AZG

Front wheel drive

18433
