Volkswagen New Beetle. Manual - part 789





with control unit identification number 1C0 907 379 E/G/M for vehicles from m.y. 10.00

ABS/EDL/ASR/ESP CODING

See

MEASURED VALUE BLOCK, READING

The control module can transfer a considerable amount of test data. This test data delivers information on the
operational condition of the system and/or sensor connected to it. In many cases the transferred test data
supports troubleshooting and repair. The test data has been summarized into single display groups because all
the information cannot be evaluated at the same time. The information can be selected via display group
numbers.

Safety measures

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS .

Indicated on display:

z

Press keys 0 and 8. (The function "Read measured value block" is initiated with 08.)

Engine

Engine code

Brake versions

(1)

Heavy-duty package

(2)

Coding

1.8ltr.

APH; AWV; AWP

FN3

sin

19970







con

20098



2.0 ltr.

AEG; AVH; AZG; BBW, BEV

FS III

without

22530







with

22658



1.9 ltr. TDI

ALH; BEW

FS III

without

19458







with

19586



(1)

Overview of types of brakes (PR No.), see VEHICLE DATA LABEL .

(2)

Overview of types of vehicle.

NOTE:

All functions which could previously be performed with V.A.G 1551 can now
also be carried out with the tester VAS 5051.

WARNING:

z

If the use of test and information devices during a test drive is
necessary, observe the following:

z

You must always secure testing and measuring equipment on the
rear seat.

z

When vehicle is being driven, a second technician must operate this
equipment.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

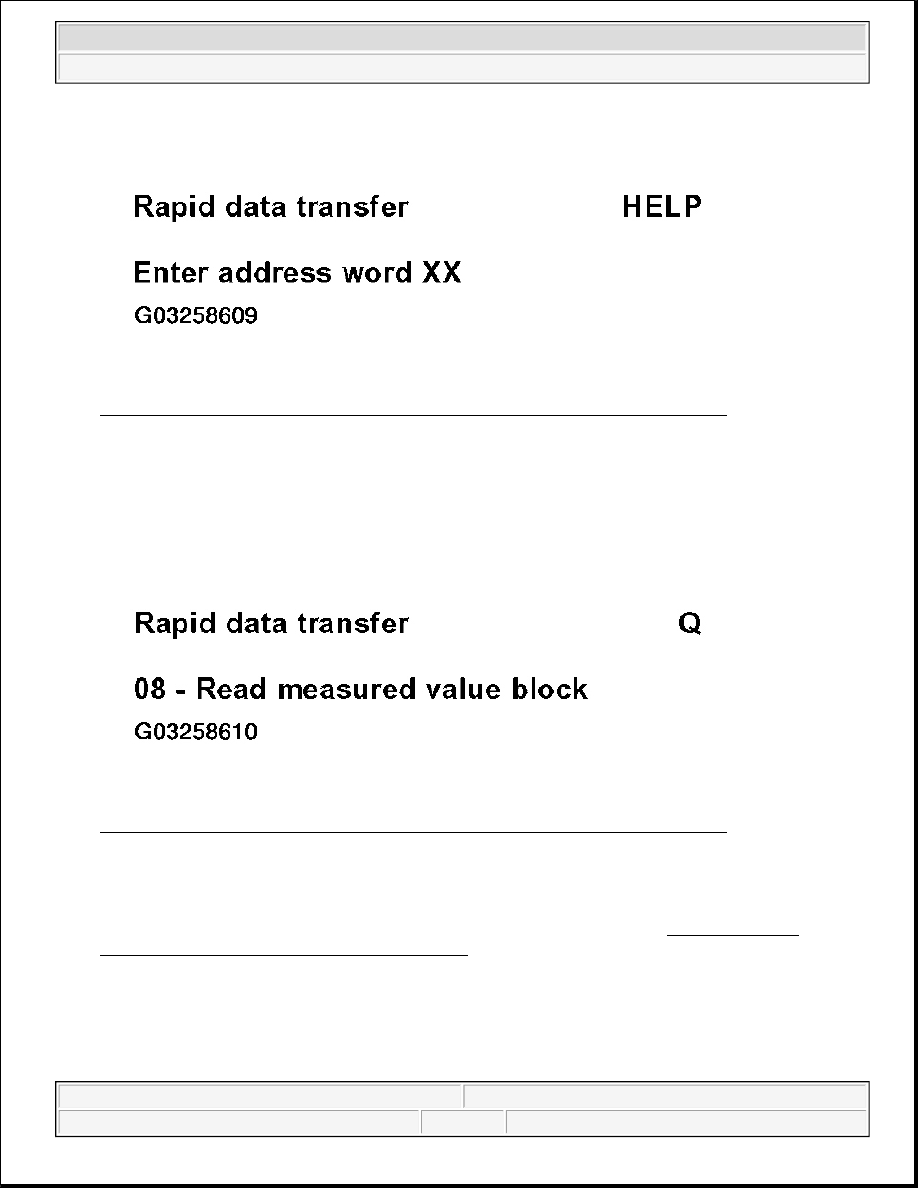

Fig. 186: V.A.G 1551 Scan Tool Display - Reading Measured Value Block (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.

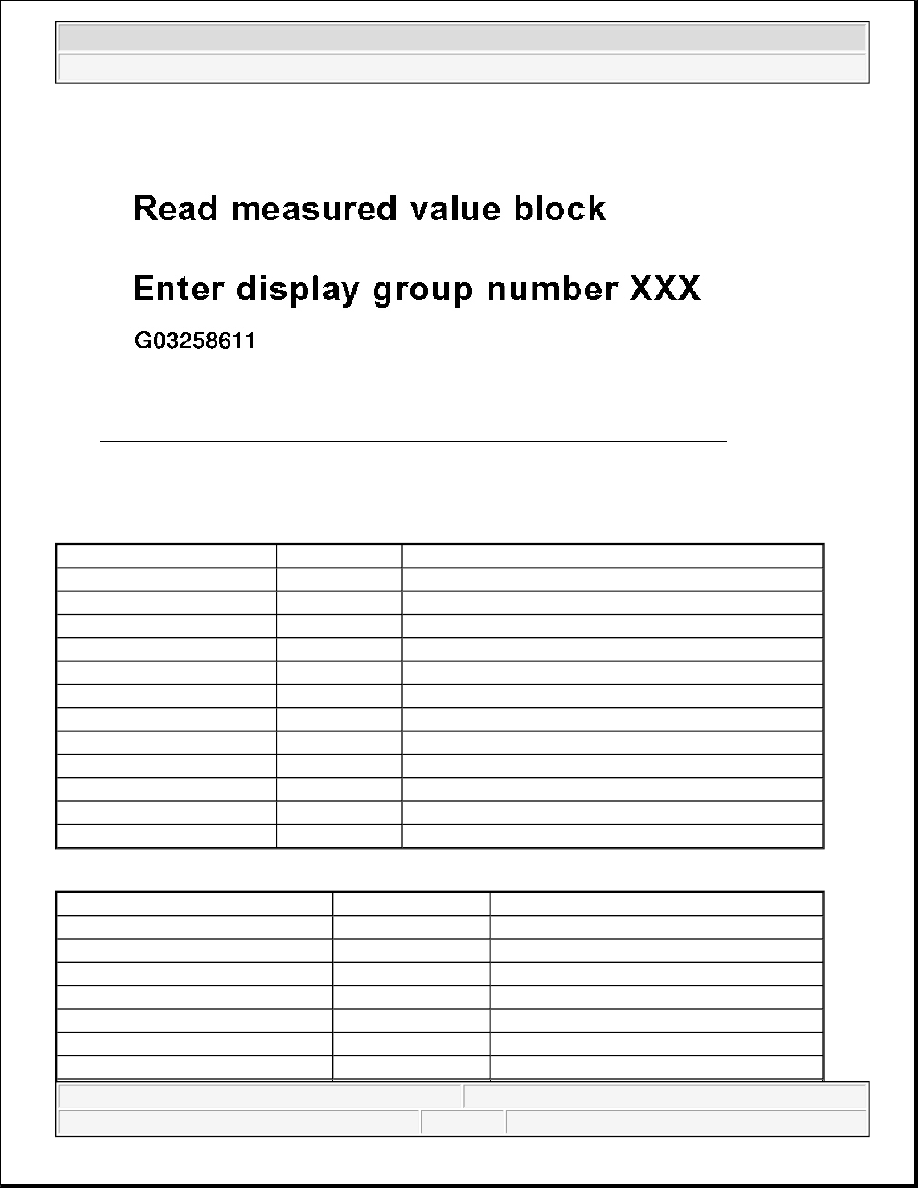

Fig. 187: V.A.G 1551 Scan Tool Display - Reading Measured Value Block (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Enter display group number, see List of selectable display group numbers, see OVERVIEW OF
SELECTABLE DISPLAY GROUP NUMBERS



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



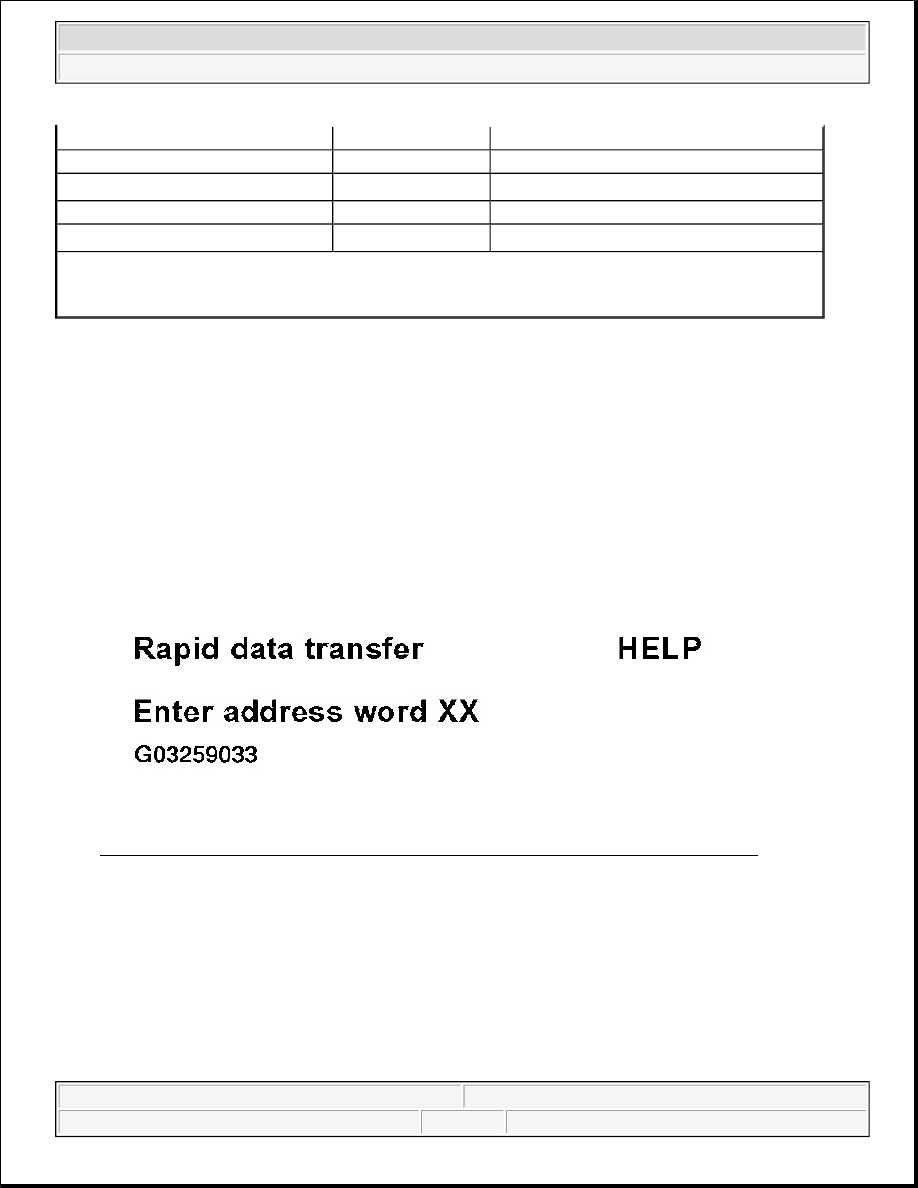

Fig. 188: V.A.G 1551 Scan Tool Display - Reading Measured Value Block (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Overview of selectable display group numbers

SELECTABLE DISPLAY GROUP NUMBERS (1 Of 2)

SELECTABLE DISPLAY GROUP NUMBERS (2 Of 2)

Display group number

Display zone

Designation

001

1

Wheel speed at left front wheel sensor (km/h)



2

Wheel speed at right front wheel sensor (km/h)



3

Wheel speed at left rear speed sensor (km/h)



4

Wheel speed at right rear speed sensor (km/h)

002

1

Wheel speed at left front speed sensor (km/h)



2

Wheel speed at right front wheel sensor (km/h)



3

Wheel speed at left rear speed sensor (km/h)



4

Wheel speed at right rear speed sensor (km/h)

003

1

Brake light switch



2

Brake system warning light



3

ABS warning light



4

ASR/ESP warning light

Display group number

Display zone

Designation

004

1

Steering angle sensor



2

Lateral acceleration sender



3

Sender for rotation rate



4

Vacant

005

1

Brake pressure sensor



2

Vacant



3

Vacant



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Test sequence and test tables with measured values

Checking speed sensor application

Display group number 001

z

Press keys 0, 0 and 1.

z

Confirm entry with key Q.

z

There are always 4 display zones -arrows- in the measured value block. Decoding the individual values in
display zones 1 to 4 can be read-off from the following tables.

Fig. 189: V.A.G 1551 Scan Tool Display - Checking Speed Sensor Application (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (vehicle stationary)



4

Vacant

125

1

Data bus for engine



2

Data bus for steering angle

(1)



3

Vacant



4

Data bus for Transmission

(2)

(1)

With ABS/EDL/ASR/ESP only.

(2)

Vehicles with an automatic Transmission only



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
