Volkswagen New Beetle. Manual - part 781

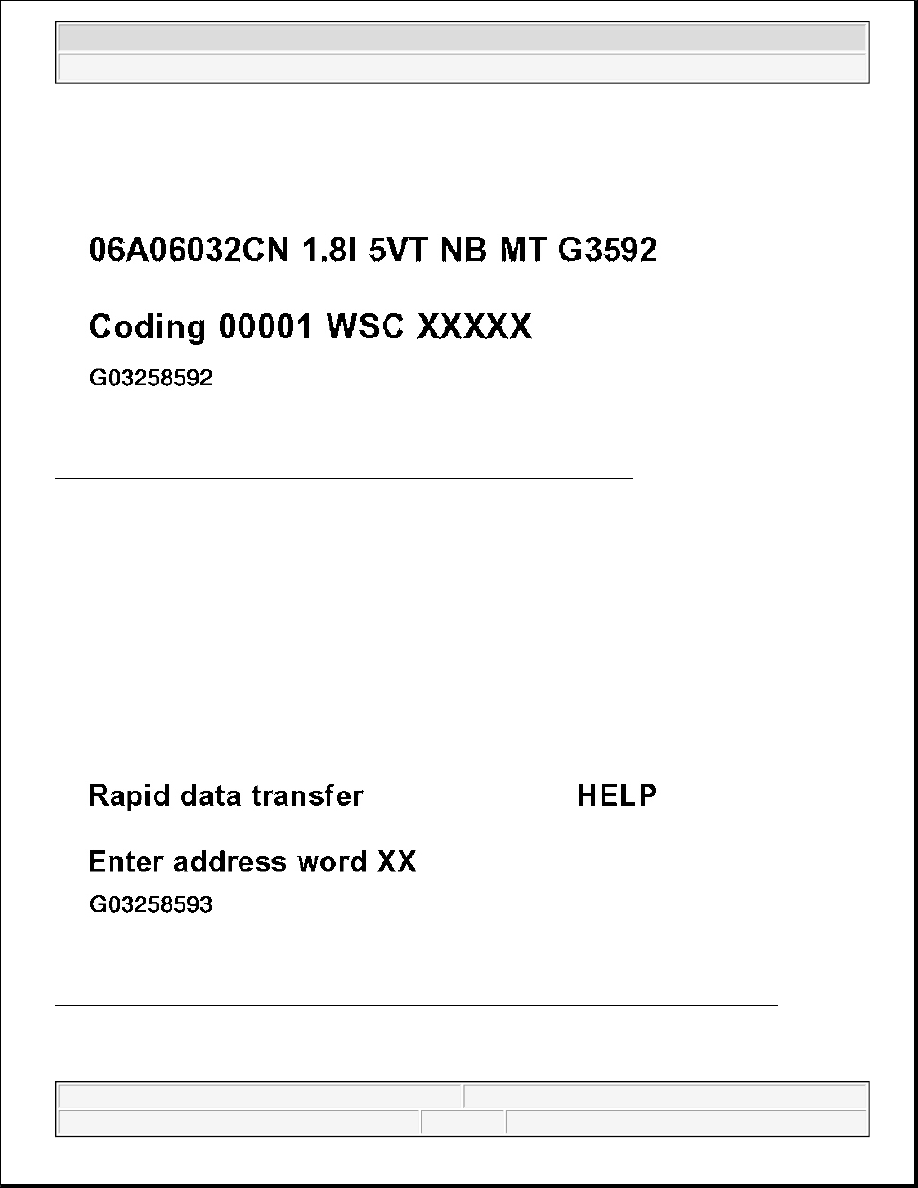

On display of V.A.G 1551 scan tool the engine control module identification will appear first e.g.

Fig. 169: V.A.G 1551 Scan Tool Display - Automatic Test Sequence (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Thereafter all control module identifications with eventual DTC memory entries are displayed.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING

Indicated on display:

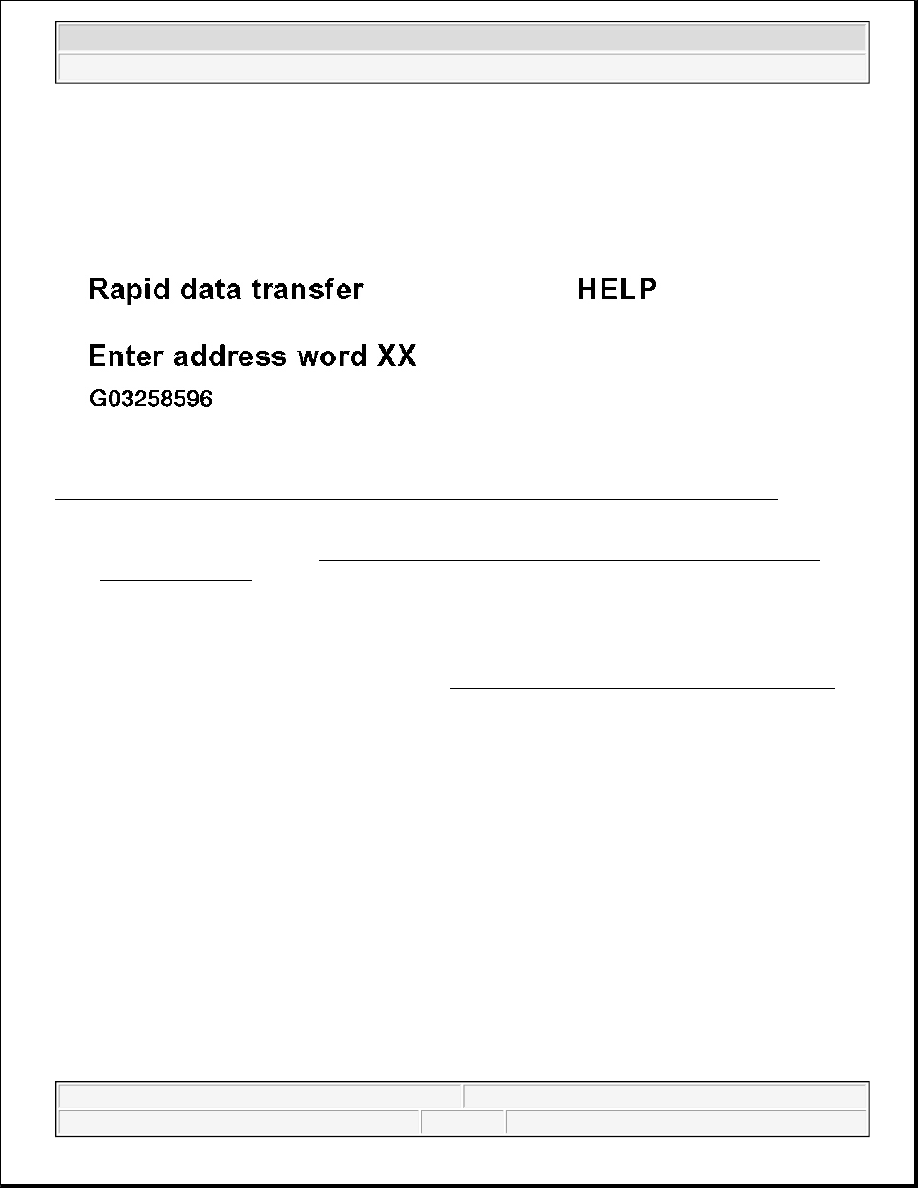

Fig. 170: V.A.G 1551 Scan Tool Display - Checking Diagnostic Trouble Code Memory (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys -0- and -2-; 02 enters the "Check DTC memory" function.

NOTE:

All functions which could previously be performed with V.A.G 1551 can now
also be carried out with the tester VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display:

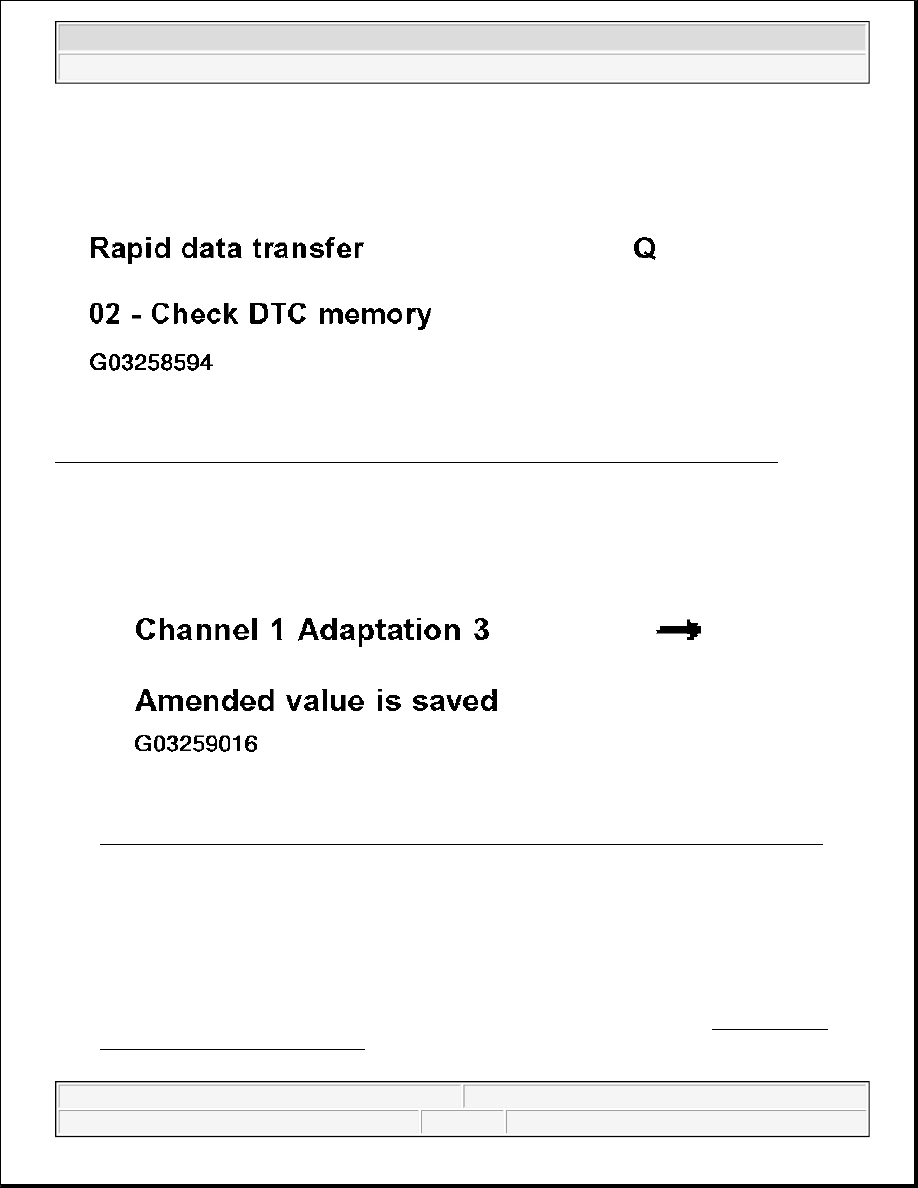

Fig. 171: V.A.G 1551 Scan Tool Display - Checking Diagnostic Trouble Code Memory (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Confirm entry with Q key.

Fig. 172: V.A.G 1551 Scan Tool Display - Checking Diagnostic Trouble Code Memory (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The number of stored DTCs or "No DTC recognized" appears in the display.

z

Press --> key.

The stored DTCs are displayed and printed out one after the other.

z

With DTC information print-out, eliminate malfunction according to DTC table, see DIAGNOSTIC
TROUBLE CODE (DTC) TABLE
 .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



As with "No DTC recognized", the program returns to the start position after pressing the --> key:

Indicated on display:

Fig. 173: V.A.G 1551 Scan Tool Display - Checking Diagnostic Trouble Code Memory (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

End output (Function 06), see DIAGNOSTIC TROUBLE CODE (DTC) ERASING MEMORY,
ENDING OUTPUT
 .

z

Switch off ignition and unplug diagnostic connector.

Work sequence if a DTC has been recognized:

1. Repair malfunction according to DTC table, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE

2. Check DTC memory (Function 02)

3. Erase DTC memory (Function 05)

4. End output (Function 06)

5. Perform a test drive

6. Check DTC memory again

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

NOTE:

z

When beginning On Board Diagnostic (OBD) troubleshooting of the
vehicle control modules, always start with function "Automatic test
sequence" by pressing keys 0 and 0 because the control modules are
interconnected with a data bus wire. This checks the DTC memories of the
control modules in the vehicle.

z

All the possible DTCs which can be recognized by the ABS Control Module
(w/EDL) -J104- and printed-out on V.A.G 1551 or VAS 5051, are listed on
the following pages according to the 5 digit DTC code.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

DTC code appears (in the "Rapid data transfer" mode) only on the print-out.

Example:

DIAGNOSTIC TROUBLE CODE (DTC) EXPLANATION - ABS MARK 60

z

The 5 digit P code which may appear next to the DTC code, is for use with the On Board Diagnosis
(OBD) and may be disregarded.

z

The 3 digit DTC type code is a data code and may be disregarded, but the DTC type text is of use.

z

Before replacing components indicated as being faulty, check all the appropriate connectors, wiring and
Ground connections using the wiring diagram.

See

z

On completion of repairs always interrogate the DTC memory with V.A.G 1551 scan tool or the new
tester VAS 5051 and erase.

z

Carry out road test exceeding 20 km/h (13 mph).

z

After the road test check DTC memory again.

DIAGNOSTIC TROUBLE CODE (DTC) - ABS MARK 60 (1 OF 36)

DIAGNOSTIC TROUBLE CODE (DTC) - ABS MARK 60 (2 OF 36)

DTC code

P code

DTC type code

5 digit

5 digit

3 digit

18256

P1848

035

V.A.G 1551
print-out

Possible cause

Repair

No DTC
recognized

If "No DTC recognized" appears after carrying out repairs, On Board Diagnostic (OBD)
is ended.



If, despite "No DTC recognized" appearing in the display, the ABS system does not
function properly, then proceed as follows:



1. Carry out road test exceeding 20 km/h (13 mph),



2. Again check DTC memory, if there is still no DTC stored,



3. Continue troubleshooting without OBD and work through the complete Electrical
check, see ELECTRICAL TEST OF MARK 60, VEHICLES FROM M.Y. 10.00

Fault number:
0003 /
literature

ABS control

module (w/EDL)

-J104- faulty

z

Replace ABS control module (w/EDL) -J104-





See HYDRAULIC UNIT, BRAKE BOOSTER/BRAKE

MASTER CYLINDER ASSEMBLY OVERVIEW MARK 60

CONTROL MODULE AND HYDRAULIC UNIT, REMOVING

AND INSTALLING

V.A.G 1551



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
